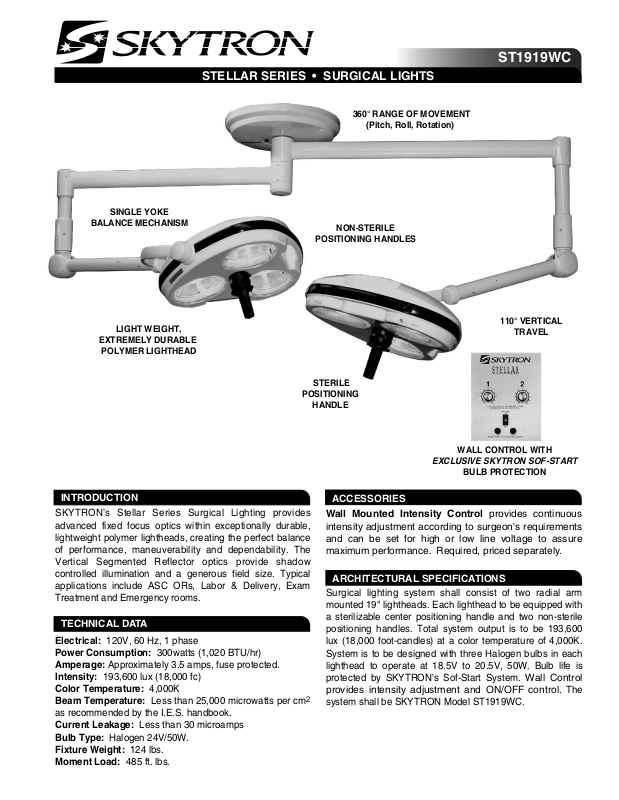

Skytron Stellar User manual

SINGLE YOKE

BALANCE MECHANISM

ST1919WC

STELLAR SERIES • SURGICAL LIGHTS

360° RANGE OF MOVEMENT

(Pitch, Roll, Rotation)

NON-STERILE

POSITIONING HANDLES

LIGHT WEIGHT,

EXTREMELY DURABLE

POLYMER LIGHTHEAD

POSITIONING

INTRODUCTION

SKYTRON’s Stellar Series Surgical Lighting provides
advanced fixed focus optics within exceptionally durable,
lightweight polymer lightheads, creating the perfect balance
of performance, maneuverability and dependability. The
Vertical Segmented Reflector optics provide shadow
controlled illumination and a generous field size. Typical
applications include ASC ORs, Labor & Delivery, Exam
Treatment and Emergency rooms.

TECHNICAL DATA

Electrical: 120V, 60 Hz, 1 phase
Power Consumption: 300watts (1,020 BTU/hr)
Amperage: Approximately 3.5 amps, fuse protected.
Intensity: 193,600 lux (18,000 fc)
Color Temperature: 4,000K
Beam Temperature: Less than 25,000 microwatts per cm

2

as recommended by the I.E.S. handbook.

Current Leakage: Less than 30 microamps
Bulb Type: Halogen 24V/50W.
Fixture Weight: 124 lbs.
Moment Load: 485 ft. lbs.

110° VERTICAL

TRAVEL

STERILE

HANDLE

WALL CONTROL WITH

EXCLUSIVE SKYTRON SOF-START

BULB PROTECTION

ACCESSORIES

Wall Mounted Intensity Control provides continuous

intensity adjustment according to surgeon's requirements
and can be set for high or low line voltage to assure
maximum performance. Required, priced separately.

ARCHITECTURAL SPECIFICATIONS

Surgical lighting system shall consist of two radial arm
mounted 19" lightheads. Each lighthead to be equipped with
a sterilizable center positioning handle and two non-sterile
positioning handles. Total system output is to be 193,600
lux (18,000 foot-candles) at a color temperature of 4,000K.
System is to be designed with three Halogen bulbs in each
lighthead to operate at 18.5V to 20.5V, 50W. Bulb life is
protected by SKYTRON's Sof-Start System.

Wall Control
provides intensity adjustment and ON/OFF control.
system shall be SKYTRON Model ST1919WC.

The

ST1919WC

PLAN VIEWELEVATION VIEW

45-1/2"

1155mm

2-3/4"

70mm

360°

360°

Minimum ceiling height: 8'-5". Consult your SKYTRON representative for lower ceiling heights and special applications.

110°

80"

2030mm

360°

49"

52-1/2"

1250mm

1335mm

35-1/2"

39"

1000mm

900mm

360°

38"

965mm

360°

360°360°

360°

110°

360°

Wall

Control

35-1/4"

895mm

360°

43"

1090mm

35-1/4"

895mm

360°

360°

78.34"

1990mm

35-1/4"

895mm

360°

86"

2185mm

REFER TO APPROPRIATE MOUNTING STRUCTURE GUIDELINE

• STANDARD MOUNTING STRUCTURE GUIDELINE

• SPECIFIC SEISMIC CALCULATIONS IF APPLICABLE

WALL CONTROL

3-1/2"

1"

10"

7-7/8"

5-7/8"

3-1/2"

BACK

7-5/8"

4"

VIEW

TOP VIEW

1"

1-1/16" Dia.

(2 places)

11-3/4"
10-1/4"

RECESS

MOUNT

FLANGE

12-7/16"

14"

6-7/8"

6mm Dia.

(4 places)

4mm Dia.

(4 places)
