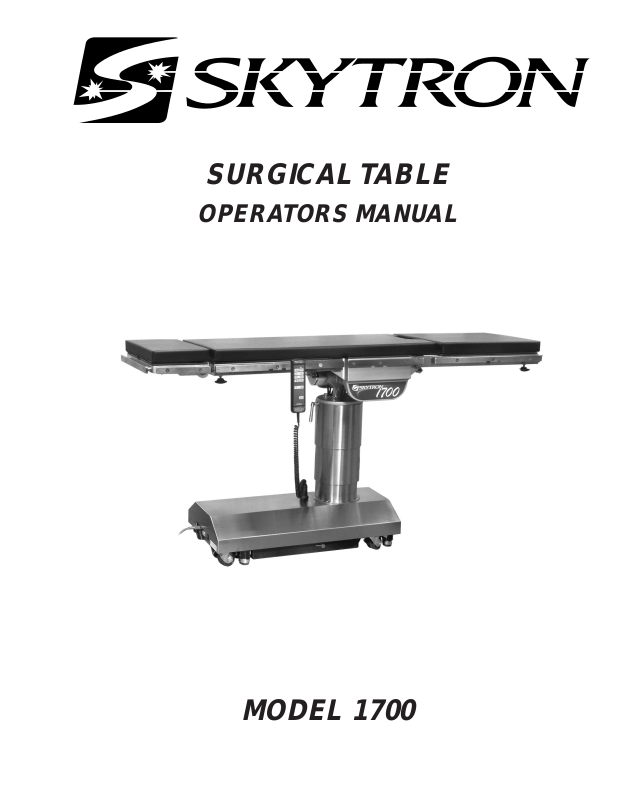

SURGICAL T ABLE
OPERATORS MANUAL
MODEL 1700
21
18
MODEL 1700
SKYTRON STANDARD LIMITED WARRANTY
SKYTRON, a Division of the KMW Group, Inc. (SKYTRON) warrants all new products sold by it directly or through a dealer or other
authorized representative, with exception to replacement parts, spares, bulbs (surgical lights), pads, and accessory items (surgical tables)
to be free from defects in material or workmanship, under normal use and service, for a period of two (2) years. This warranty shall include
the cost of repair or replacement of defective parts including the cost of service labor and travel time to the site of equipment use. Delays
caused by the user in accessing the equipment for repair will be chargeable at the normal hourly rate for service by SKYTRON’s authorized
service representative. The warranty period shall begin with the initial operation or one (1) year after receipt of the product, whichever shall
occur first.
Replacement parts, spares, bulbs (surgical lights), pads and accessory items (surgical tables) are warranted to be free from defects in material
or workmanship, under normal use and service, for a period of ninety (90) days from receipt by the ultimate user, with exception to replacement
parts supplied by SKYTRON, for products under warranty, which shall be covered for any remaining period of the original product warranty,
or for 90 days, whichever is of greater benefit to the ultimate user.
SKYTRON’s responsibility and liability shall be limited to the repair or replacement of any part which we, SKYTRON, determine to be defective
within the applicable warranty period. Minor adjustments required as a result of normal wear during the use of the product within the warranty
period are not covered under warranty. The labor portion of this warranty is covered by SKYTRON’s Authorized Service Agent. Repairs
made by others are not authorized nor covered by SKYTRON with respect to labor costs.
SKYTRON shall not be liable for any other expense, loss or damage, whether direct, incidental, consequential or exemplary arising in connection
with the sale or use of or the inability to use SKYTRON products.
NO EXPRESS WARRANTY IS GIVEN BY SKYTRON WITH RESPECT TO ITS PRODUCTS EXCEPT AS SPECIFICALLY SET FORTH
HEREIN. ANY WARRANTY IMPLIED BY LAW, INCLUDING ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, IS EXPRESSLY LIMITED TO THE TWO-YEAR AND 90-DAY TERMS SET FORTH ABOVE. THE FOREGOING STATEMENTS
OF WARRANTY ARE EXCLUSIVE AND IN LIEU OF ALL OTHER REMEDIES.
No dealer, agent, employee or other representative of SKYTRON is authorized to extend or enlarge this warranty.
12/03
Although current at the time of publication, SKYTRON’s policy of continuous development makes this
manual subject to change without notice.
19
18
TABLE OF CONTENTS
Title Page
EQUIPMENT LABELS AND SPECIFICATIONS .................................................................................... 2
1700 Surgical Table Specifications .......................................................................................................... 3
SPECIAL USER ATTENTION ................................................................................................................ 4
SECTION I INTRODUCTION ................................................................................................................. 7
1-1. General......................................................................................................................................... 7
1-2. Power Requirements.................................................................................................................... 7
1-3. Pendant Control Unit .................................................................................................................... 8
1-4. Floor Lock/Brake System ............................................................................................................. 8
SECTION II OPERATION ....................................................................................................................... 9
2-1. Electrical Power ........................................................................................................................... 9
2-2. Positioning Functions ................................................................................................................... 9
a. Floor Lock/Brake system ..................................................................................................... 10
b. Trendelenburg ...................................................................................................................... 10
c. Lateral Tilt ............................................................................................................................. 10
d. Back Section ........................................................................................................................ 11
e. Elevation............................................................................................................................... 11
f. Leg Section........................................................................................................................... 11
2-3. Emergency Brake Release ........................................................................................................ 12
2-4. Head Section.............................................................................................................................. 12
2-5. 180 Degree Table Top Rotation. ................................................................................................ 13
2-6. Positioning .................................................................................................................................. 14
SECTION III MAINTENANCE ............................................................................................................... 16
3-1. Preventive Maintenance............................................................................................................. 16
3-2. Cleaning Recommendations ...................................................................................................... 16
3-3. Service....................................................................................................................................... 17
1
TYPE B
EQUIPMENT
EQUIPMENT LABELS AND SPECIFICATIONS
INDICATES DANGEROUS VOLTAGE, 120 V, 60 Hz
CLASS I DEFIBRILLATION PROOF, TYPE B EQUIPMENT- IPX4 RATED.
INTERNALLY POWERED EQUIPMENT
PROTECTIVE GROUNDING.
IN ORDER TO ENSURE PROPER GROUNDING RELIABILITY,
THIS TABLE MUST BE CONNECTED TO A PROPERLY GROUNDED
HOSPITAL GRADE OUTLET.
N
IPX4
V
A
HZ
CONNECTION FOR NEUTRAL CONDUCTOR SUPPLIED
UNIT TO BE USED ONLY IN SPECIFIED ENVIRONMENTAL CONDITIONS
TEMPERATURE: 15˚ - 30˚ C (60˚ -85˚ F)
HUMIDITY: 30% - 60% RELATIVE HUMIDITY, NON CONDENSING
AC VOLTAGE
ENCLOSURE CLASS
VOLTAGE RATING OF THE UNIT
AMPERAGE RATING OF THE UNIT
FREQUENCY OF THE UNIT
ATTENTION, CONSULT MANUAL FOR FURTHER INSTRUCTIONS.
INDICATES SPECIAL USER ATTENTION.
POWERED BY AC VOLTAGE
2
14-1/2"
1700 Surgical Table Specifications
60˚
9-1/2"
90˚
8-3/4"
22"
21-1/2"
22"
19-3/4"
TOP VIEW
76"
35-1/2" 19"
22"
39" Max
29" Min
SIDE VIEW END VIEW
Electrical Specifications
Power requirements
Current Leakage
Power Cord
15 feet w/hospital grade connector(removeable)
ENTELA CERTIFIED
TO UL2601-1
CAN/CSA601.1, IEC 60601-2-46
120 VAC, 60Hz, 300 Watts
Less than 100 micro amps
3
SPECIAL USER ATTENTION
The positioning capabilities of the 1700 Table
requires special attention for possible interference
points when using multiple function positioning. As
with the operation of any surgical table, a certain
amount of care should be exercised to position the
patient safely. Although the thick pads and sheets
substantially protect the patient, pinch points, located at the joints of the top section should always
be considered. BE SURE THAT THE ARMS,
HANDS AND FINGERS OF THE PATIENT AND
THOSE OF THE OPERATING ROOM PERSONNEL ARE CLEAR OF ALL MOVING PARTS BEFORE POSITIONING THE TABLE. Proper restraints should always be used for patient safety.
Certain accessories such as the Armboards and
Table Side Extensions can be damaged when
changing the position of the table top sections.
Always look first to see if a desired movement is
going to interfere with any accessories in use.
The operator has the ultimate responsibility of
preventing damage to the table and surrounding
equipment or possible injury to the patient or staff.
In general, common sense will dictate when there
is a potential hazard.
WARNING
Indicates a possibility of personal injury.
CAUTION
Indicates a possibility of damage to
equipment.
NOTE
Indicates important facts or helpful hints.
The following precautions should be reviewed
by all personnel prior to operating the table.
A routine Instructional Program should be
implemented by the facility for proper usage
instructions for all personnel that may operate
this table.
In every case it is recommended to keep the
equipment away from disturbance sources including electromagnetic fields in order to avoid
any possible instability and malfunctioning of
the equipment.
4
SPECIAL USER ATTENTION
WARNING
Risk of electrical shock. Make sure
power cord is disconnected prior to
accessing fuses.
NOTE
Activating any function button will activate the brake system. Using the TABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked. As the brake cylinders are
extending, the entire table will move
slightly. When the table top begins to
elevate, the brakes are fully locked.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
To maximize patient safety, utilize
proper restraint methods during extreme
Trendelenburg positioning.
WARNING
To maximize patient safety, utilize
proper restraint methods during extreme
lateral tilt positioning.
WARNING
WARNING
Never operate the table without ensuring that the brakes are set.
NOTE
The main power switch can be placed in
the OFF position to completely deactivate all table functions if required during
certain procedures or in case of emergency.
NOTE
With an evenly distributed patient weight
load, all table positioning functions will
operate smoothly and quietly with a
patient weight of up to 500 pounds.
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
NOTE
Normal table top position is with the
head (and back) section over the power
cord end of the base.
WARNING
Always lock the table top in position
after rotation. DO NOT rotate the top
with an unevenly distributed patient
weight load as instability may result.
WARNING
Make sure the TOP ROTATION LOCK
HANDLE is tightened and the brakes
are set before transferring the patient.
5
SPECIAL USER ATTENTION
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment, cardiac defibrillator and cardiac defibrillator monitors.
WARNING
When an antistatic pathway is required,
the table has to be used on an antistatic
floor.
WARNING
The antistatic properties of the table are
dependent on the use of the original pad
set which was furnished with the table
or an alternate approved replacement.
WARNING
Exercise caution with the table top rotated 90° to the base since an improperly distributed patient load may cause
the table to be tipped over.
WARNING
Always follow OSHA blood-borne pathogens standards for protective clothing,
including gloves, masks and eye protection when cleaning the surgical table.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all cleaning fluids. DO NOT use cleaners containing phenolics.
WARNING
Certain accessories may limit weight
capacities, check with your SKYTRON
representative.
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
CAUTION
Caution should be taken when cleaning
the table to prevent excessive fluid entry into electrical connectors.
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical receptacles.
CAUTION
Before replacing pads on the table, make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
between the pads and mating surfaces
may cause distortion of table tops.
6
SECTION I INTRODUCTION
HEAD
SECTION
SIDE
RAIL
HEAD SECTION
LOCKING KNOB
SERVICE
ACCESS COVER
POWER
CORD
MAIN POWER
SWITCH
BACK SECTION
TOP ROTATION
HANDLE
PENDANT
CONTROL
SEAT
SECTION
EMERGENCY
BRAKE RELEASE
LEG SECTION
FLOOR/LOCK
BRAKE (4)
Figure 1-1. Elite 1700
1-1. General
SKYTRON’s Elite 1700 Surgical Table is an electrohydraulically operated, general purpose surgical
table. See figure 1-1.
The electro-hydraulic positioning functions operated by the hand-held, push button, pendant control
unit are: Trendelenburg, lateral tilt, back section,
elevation, leg section and the floor lock/brake system.
Manual controls are provided for head section positioning and table top rotation.
1-2. Power Requirements
The Elite 1700 Surgical Table requires a 120VAC,
60 Hz electrical power supply. The table is equipped
with a removable 15 foot long power cord with a
standard three prong, hospital grade plug. The main
power ON/OFF switch is located on the electrical
panel. See figure 1-2.
POWER
CORD
MAIN POWER
SWITCH
Figure 1-2. Power Switch and Fuse Location
7
1-3. Pendant Control Unit
1-4. Floor Lock/Brake System
The hand-held pendant control unit (figure 1-3) has
a spring clip hanger located on the back of the
control for storage. When the Pendant Control is
not in use, it should be stored on a convenient side
or end rail.
POWER
SIDE RAIL
CLIP
INDICATOR
FUNCTION
BUTTONS
The floor lock/brake system consists of four selfleveling, hydraulic brake cylinders which raise and
support the table base off from the casters. Press
the TABLE UP button on the pendant control to set
the table’s brakes. An electronic timer will activate
the brake system until the brakes are completely
set, approximately 8-10 seconds.
NOTE
Activating any function button will activate the brake system. Using the TABLE
UP function to set the brakes provides
a visual assurance that the brakes are
locked. As the brake cylinders are
extending, the entire table will move
slightly. When the table top begins to
elevate, the brakes are fully locked.
To unlock the brakes, press the BRAKE UNLOCK
button and release. The brakes will retract automatically in approximately 7-8 seconds.
Figure 1-3. Pendant Control Unit
The function push buttons are identified with abbreviated descriptions for all functions. See figure 1-4.
The Trendelenburg and table up buttons are orange,
the remaining buttons are all white.
TRENDELENBURG
REVERSE
LATERAL
TILT LEFT
BACK UP
TABLE UP
(BRAKE LOCK)
LEG UP
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TRENDELENBURG
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
BRAKE
UNLOCK
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient
weight load may cause instability.
WARNING
Never operate the table without ensuring that the brakes are set.
Figure 1-4. Function Push Buttons
8
SECTION II OPERATION
AC120V POWER ON
INDICATOR LIGHT
(GREEN)
TABLE UP
(BRAKE LOCK)
LATERAL
TILT LEFT
BACK UP
LEG UP
LATERAL
TILT RIGHT
BACK DOWN
TABLE DOWN
LEG DOWN
BRAKE
UNLOCK
REVERSE
TRENDELENBURG
TRENDELENBURG
2-1. Electrical Power
a. Check to be sure the power cord is plugged
into a properly grounded, Hospital Grade, 120VAC
outlet. Make sure the power cord is routed so as to
prevent it from being in the way of the operating
personnel.
b. Depress "Main Power ON/OFF" switch on
the electrical panel. See figure 2-1. The green
POWER ON indicator light on the pendant control
should now be illuminated.
NOTE
The main power switch can be placed in
the OFF position to completely deactivate all table functions if required during
certain procedures or in case of emergency.
2-2. Positioning Functions
The hand-held pendant control (figure 2-2) activates the following table functions:
POWER
CORD
MAIN POWER
SWITCH
Figure 2-2. Pendant Control Unit
NOTE
With an evenly distributed patient weight
load, all table positioning functions will
operate smoothly and quietly with a patient weight of up to 500 pounds.
Figure 2-1. Main Power Switch
9
a. Floor Lock/Brake System. To activate the
brakes without affecting table positioning, press the
TABLE UP button. See figure 2-3. The elevation
cylinder will not function until the brakes are completely extended.
TABLE UP
(BRAKE LOCK)
BRAKE
UNLOCK
b. Trendelenburg. To place the surgical table in
a Trendelenburg (head down) position, press the
TREND button (figure 2-4). Trendelenburg positioning of up to 25° may be obtained. To place the table
in a reverse Trendelenburg (head up) position, press
the REV TREND button. Reverse Trendelenburg
positioning of up to 25° may be obtained.
WARNING
To maximize patient safety, utilize
proper restraint methods during extreme Trendelenburg positioning.
Figure 2-3. Brake System Activation
Press the BRAKE UNLOCK button on the pendant
control to release the four self-leveling brake feet in
order to move the table. See figure 2-3. The brake
delay circuit automatically retracts the brake system with just one press of the BRAKE UNLOCK
button. It takes approximately 7-8 seconds to totally
release the system.
WARNING
DO NOT unlock brakes when a patient
is on the table. An uneven patient weight
load may cause instability.
TRENDELENDURG
REVERSE
25˚
25˚
TRENDELENDURG
Figure 2-4. Trendelenburg Positioning
c. Lateral Tilt. To achieve lateral tilt right (as
viewed from the head end of the table), press the
TILT RIGHT button (figure 2-5). Tilt of up to 25°
may be obtained. To achieve lateral tilt left, press
the TILT LEFT button. Tilt of up to 25° may be
obtained.
10
WARNING
To maximize patient safety, utilize
proper restraint methods during extreme lateral tilt positioning.
LATERAL
TABLE
UP
TABLE
DOWN
39"
29"
TILT LEFT
LATERAL
TILT RIGHT
25˚25˚
Figure 2-7. Elevation Function
Figure 2-5. Lateral Tilt Positioning
d. Back Section. To raise the back section,
press the BACK UP button (figure 2-6). The back
section will raise up to 60° above horizontal. To
lower the back section, press the BACK DOWN
button. The back section will go down to 30° below
horizontal.
BACK UP
60˚
30˚
BACK DOWN
f. Leg Section. To lower the leg section press
the LEG DOWN button (figure 2-8). The leg section
will go down to 90° below horizontal. To raise the
leg section, press the LEG UP button. The leg
section will go up to horizontal.
LEG UP
LEG DOWN
90˚
Figure 2-6. Back Section Positioning
e. Elevation. To raise table top, press the
TABLE UP button (figure 2-7). The table will lift a
patient weight of 500 pounds up to a maximum
height of 39". To lower the table top, press the
TABLE DOWN button. The table top will go down
to a minimum height of 29".
Figure 2-8. Leg Section Positioning
WARNING
The Leg section may hit the table base
or the floor if both the leg and elevation
systems are placed in their full down
position.
11
2-3. Emergency Brake Release
2-4. Head Section
In case of power failure or an electrical problem
within the table, the emergency brake release
system can be use to move the table. The control
lever for this function is located on the side of the
table base and is identified by an EMERGENCY
BRAKE RELEASE label. Turn the lever counterclockwise to release the brakes. See figure 2-9.
SERVICE ACCESS
COVER
POWER
CORD
EMERGENCY
BRAKE RELEASE
BRAKE (4)
Figure 2-9. Emergency Brake Release
a. A quick release positioning bar located under
and to the front of the head section (figure 2-10) is
used to raise or lower the head section. Pull the
release bar toward the head end to allow the
section to pivot up or down. Positioning from 60°
above horizontal to 90° below horizontal in 15°
increments is available. Release the bar to lock the
head section in position.
HEAD SECTION
RELEASE BAR
NOTE
The Emergency Brake Release Valve
must be closed and tightened (clockwise) before activating any function.
•If the Emergency Brake Release Valve
has been operated, the UNLOCK button
on the pendant control will have to be
pressed before brakes will lock again.
Figure 2-10. Head Section Adjustment
b. By loosening two locking knobs beneath the
back section, an additional 5" of longitudinal adjustment can be achieved. If desired, the head section
may be removed by loosening the locking knobs and
pulling it straight out of the back section. 1700 Tables
have the capability of attaching the head section to the
leg section for use as a foot extension ONLY. Do Not
reverse the patient on the table without first consulting
with SKYTRON. Two locking knobs are located on
the inside of the leg section for securing the head
section. See figure 2-11.
HEAD
SECTION
LOCKING
KNOB
LEG
SECTION
LOCKING
KNOB
12
Figure 2-11. Repositioning Head Section
2-5. 180 Degree Table Top Rotation.
SUPPORT
ROD
NOTE
Normal table top position is with the
head (and back) section over the power
cord end of the base.
a. The table top can be horizontally rotated 180°
without having to rotate the entire table. To rotate
the top, turn the TOP ROTATION LOCK HANDLE
counterclockwise (figure 2-12), grasp the table by
the head end and rotate the top 180° counterclockwise. Lock the top in position by tightening the TOP
ROTATION LOCK HANDLE clockwise.
WARNING
Always lock the table top in position
after rotation. DO NOT rotate the top
with an unevenly distributed patient
weight load as instability may result.
WARNING
Exercise caution with the table top rotated 90° to the base since an improperly distributed patient load may cause
the table to be tipped over.
TOP ROTATION
LOCK HANDLE
Figure 2-12. 180 Degree Top Rotation
b. The use of the optional support rod allows
the table top to be rotated 90° from the base. See
figure 2-13.
WARNING
Make sure the TOP ROTATION LOCK
HANDLE is tightened and the brakes
are set before transferring the patient.
Figure 2-13. 90 Degree Top Rotation
WARNING
Consult manufacturer's instructions
when using high frequency surgical
equipment, cardiac defibrillator and cardiac defibrillator monitors.
WARNING
When an antistatic pathway is required, the
table has to be used on an antistatic floor.
WARNING
The antistatic properties of the table are
dependent on the use of the original pad
set which was furnished with the table
or an alternate approved replacement.
13
2-6. Positioning
The use of certain optional accessories available
from SKYTRON further extend the positioning
capabilities of the 1700 Table. Refer to the following
Positioning Guidelines or contact your SKYTRON
representative for further details.
WARNING
Certain accessories may limit weight
capacities. Check with your SKYTRON
representative.
14
1700 Patient Positioning Guidelines
Upper Body Imaging
Shoulder Arthroscopy
Ophthalmic/ENT
Knee Arthroscopy
OB/GYN & C-Section
Rectal/ Hemorrhoidectomies
15
SECTION III MAINTENANCE
3-1. Preventive Maintenance
The following preventive maintenance checks and
services are recommended to ensure the serviceability and proper operation of your SKYTRON
Surgical Table.
a. During normal cleaning, a general visual
examination should be made checking for leaks,
loose bolts or parts, and cracked, chipped, or
missing paint. Any necessary repairs should be
made.
b. Semi-annually the following checks and
services should be performed:
1. Check all hydraulic fittings, mini-valves and
slave cylinders for proper operation and
any signs of leaks.
2. Check the hydraulic speed controls and
adjust if necessary.
3. Pressure check (with a gauge) the pressure relief valve.
4. Check all mechanical adjustments and adjust as necessary.
3-2. Cleaning Recommendations
NOTE
Always follow current AORN Journal
Guidelines to ensure proper cleaning
and disinfection procedure.
CAUTION
Caution should be taken when cleaning
the table to prevent excessive fluid entry into electrical connectors.
The following procedures should be followed when
cleaning the surgical table between cases.
Place table top in level position prior to starting
cleaning procedure.
WARNING
Always follow OSHA blood-borne pathogens standards for protective clothing,
including gloves, masks and eye protection when cleaning the surgical table.
5. Check hydraulic fluid level.
6. Lubricate the slider assembly.
Remove major contaminants from the table with
disposable materials following appropriate biohazard waste disposal procedures.
Remove all table pads and place them on a flat
surface for cleaning.
CAUTION
Thoroughly read and follow the
manufacturer's directions for all cleaning fluids. DO NOT use cleaners containing phenolics.
Apply cleaning fluid liberally to top and sides of
each pad and wipe with a clean lint-free cloth.
Using a clean, damp, lint-free cloth, wipe the pads
to remove the cleaning fluid.
Using a clean, dry, lint-free cloth, wipe the pads to
remove all moisture.
16
3-3. Service
Repeat the steps to clean the bottom of the each
pad.
CAUTION
When using spray cleaners DO NOT
spray fluids directly into electrical receptacles.
Repeat cleaning procedure for all table surfaces
including the top, sides, elevation column, base
and all accessories.
CAUTION
Before replacing pads on the table, make
sure the pads and all mating surfaces
are completely dry. Moisture trapped
between the pads and mating surfaces
may cause distortion of table tops.
When the cleaning procedure is complete, replace
all pads and accessories as applicable.
Table maintenance can be performed by trained
maintenance personnel using SKYTRON authorized replacement parts and service techniques.
Service instructions and parts are available from
SKYTRON.
Preventive Maintenance contracts are available
through your local SKYTRON representative.
To obtain service instructions, replacement parts,
factory service or preventive maintenance contracts, contact your nearest SKYTRON representative or write or call:
SKYTRON
5000 36th Street S.E.
Grand Rapids, MI 49512
1-800-SKYTRON (1-800-759-8766)
Fax. 1-616-957-5053
Remove pendant control from table side rail and
apply cleaning solution to the pendant control and
cord.
Use a clean cloth dampened with water to remove
cleaning solution.
Use another clean damp cloth to remove any
remaining residue.
Install pendant control on side rail for storage when
cleaning procedure is complete.
17
182220
5000 36th Street S.E., Grand Rapids, MI 49512
1-800-SKYTRON or 1-616-957-0500 • FAX 1-616-957-5053
Loading...
