Skil 7313 User Manual

Page 1 of 3

F 012 731 301

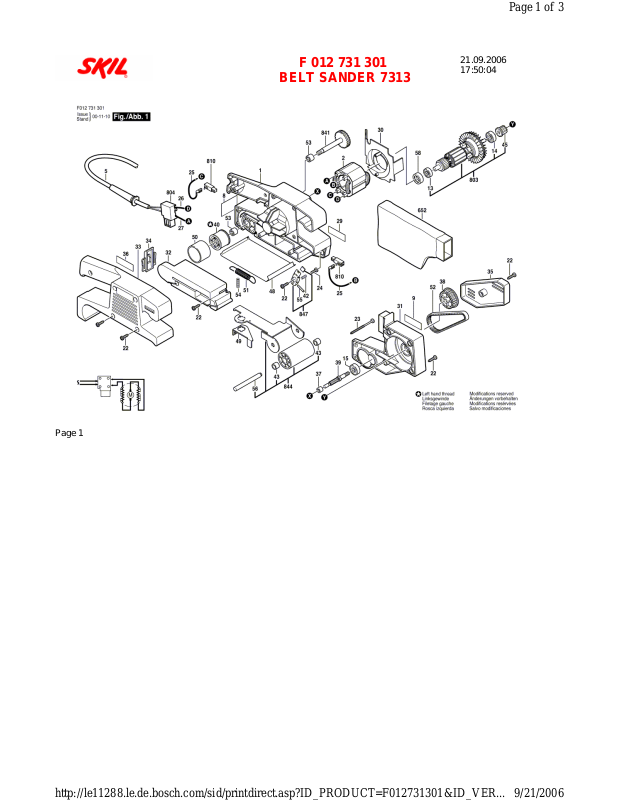

BELT SANDER 7313

21.09.2006
17:50:04

Page 1

9/21/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012731301&ID_VER...

Page 2 of 3

Item Quantity Order No. Designation Price group Page

1 1 2 610 909 580 MOTOR HOUSING 1
2 1 2 610 352 364 POLE SHOE \ 120V 1
5 1 2 610 354 068 MAINS CONNECTION CABLE 1
8 1 2 610 998 885 NAMEPLATE 1
9 1 2 610 911 627 REFERENCE PLATE 1
13 1 2 610 996 216 DEEP-GROOVE BALL BEARING 1
14 1 2 610 010 409 DEEP-GROOVE BALL BEARING 1
15 1 2 610 305 670 BALL BEARING 1
22 13 2 610 326 578 SCREW 1
23 2 2 610 352 374 HEADLESS SCREW 1
24 1 2 610 367 556 SCREW 1
25 2 2 610 038 615 CONNECTING CABLE 1
26 1 2 610 039 850 CONNECTING CABLE 1
27 1 2 610 039 851 CONNECTING CABLE 1
29 1 2 610 347 244 MANUFACTURER'S NAMEPLATE 1
30 1 2 610 919 663 AIR GUIDE PLATE 1
31 1 2 610 909 578 BEARING END PLATE 1
32 1 2 610 909 579 BASE SUPPORT 1
33 1 2 610 909 581 COVER 1
34 1 2 610 390 788 PLATE \ RED 1
35 1 2 610 909 583 COVER 1
36 1 2 610 911 626 NAMEPLATE 1
37 1 2 610 348 609 NEEDLE-ROLLER BEARING 1
38 1 2 610 354 001 PULLEY 1
39 1 2 610 354 011 JACK SHAFT 1
40 1 2 610 354 016 ROLLER 1
42 1 2 610 361 473 SPRING 1
43 2 2 610 361 694 BEARING 1
45 1 2 610 386 472 PULLEY 1
48 1 2 610 907 974 PLATE 1
49 1 2 610 907 638 LEVER 1
50 1 2 610 372 780 RING 1
51 1 2 610 372 781 SPRING 1
52 1 2 610 372 783 DRIVE BELT 1
53 2 2 610 372 789 BEARING 1
54 1 2 610 373 415 SPRING 1
55 1 2 610 374 649 DOWEL PIN 1
56 1 2 610 913 863 SHAFT 1
58 1 2 610 373 997 BUSHING 1
652 1 2 610 373 400 DUST BAG \ GREEN 1
803 1 2 610 996 246 ARMATURE \ 120V 1
804 1 2 610 353 949 ON-OFF SWITCH 1
810 1 2 610 967 197 CARBON-BRUSH SET 1
841 1 2 610 354 747 SPINDLE WITH GEAR 1
844 1 2 610 906 137 ROLLER 1
847 1 2 610 918 936 CALIBRATION ARM 1
