Skil 5860 User Manual

Page 1 of 4

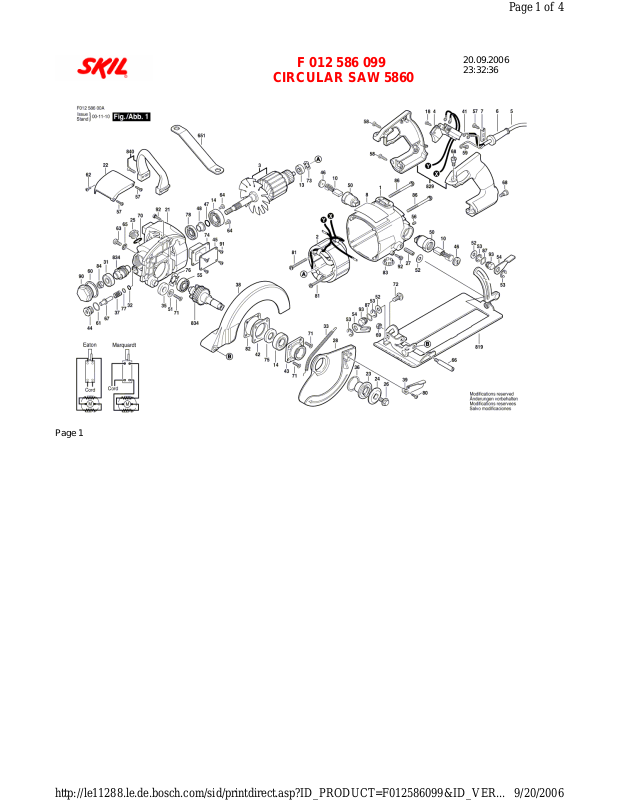

F 012 586 099

CIRCULAR SAW 5860

20.09.2006
23:32:36

Page 1

9/20/2006http://le11288.le.de.bosch.com/sid/printdirect.asp?ID_PRODUCT=F012586099&ID_VER...

Page 2 of 4

Item Quantity Order No. Designation Price group Page

1 1 2 610 352 053 HOUSING 1
2 1 2 610 329 947 FIELD 1
3 1 2 610 329 937 ARMATURE \ 120V 1
4 1 2 610 321 608 ON-OFF SWITCH 1
5 1 2 610 320 881 MAINS CONNECTION CABLE 1
6 1 2 610 005 970 GROMMET 1
7 1 2 610 003 719 CABLE CLIP 1
8 1 2 610 994 098 NAMEPLATE 1
10 2 2 610 320 391 CARBON BRUSH 1
13 1 2 610 017 348 DEEP-GROOVE BALL BEARING 1
14 2 2 610 024 748 BALL BEARING 1
18 1 2 610 901 971 SCREW 1
21 1 2 610 352 057 GEAR HOUSING 1
22 1 2 610 303 855 COVER 1
23 1 2 610 352 118 PLAIN WASHER 1
24 1 2 610 901 964 PLAIN WASHER 1
25 1 2 610 023 384 LOCK 1
26 1 2 610 932 181 BOLT 1
27 1 2 610 315 286 BOLT 1
28 1 2 610 352 113 PIVOTING BLADE GUARD 1
31 1 2 610 017 875 BALL BEARING 1
32 1 2 610 015 726 RING 1
33 1 2 610 993 546 EXTENSION SPRING 1
35 1 2 610 319 494 BUFFER 1
36 1 2 610 341 359 RETAINING RING 1
37 1 2 610 023 394 SPRING 1
38 1 2 610 352 104 UPPER HOUSING 1
39 1 2 610 352 085 CONTROL LEVER 1
41 3 2 610 316 596 TERMINAL 1
42 1 2 610 352 115 PIVOT PLATE 1
43 1 2 610 352 091 HOLDING PLATE 1
44 1 2 610 023 324 PIN 1
45 1 2 610 023 336 COVER 1
46 2 3 603 463 500 SCREW PLUG 1
47 1 2 610 044 638 RING 1
48 1 2 610 023 330 SEAL 1
50 2 2 610 329 940 CARBON BRUSH HOLDER 1
51 1 2 610 004 341 DISC 1
52 3 2 610 009 722 PLAIN WASHER 1
53 4 2 610 302 855 RING 1
54 2 2 610 968 745 LEVER 1
55 1 2 610 000 166 BALL BEARING 1
56 2 2 610 027 039 FITTING SCREW 1
57 4 2 610 315 299 SCREW 1
58 4 2 610 315 380 SCREW 1
59 1 2 610 320 173 SCREW 1
60 1 2 610 023 331 WASHER 1
61 1 2 610 025 067 WASHER 1
62 1 2 610 329 929 SCREW 1
63 2 2 610 329 955 SCREW 1
64 3 2 610 341 365 SCREW 1
