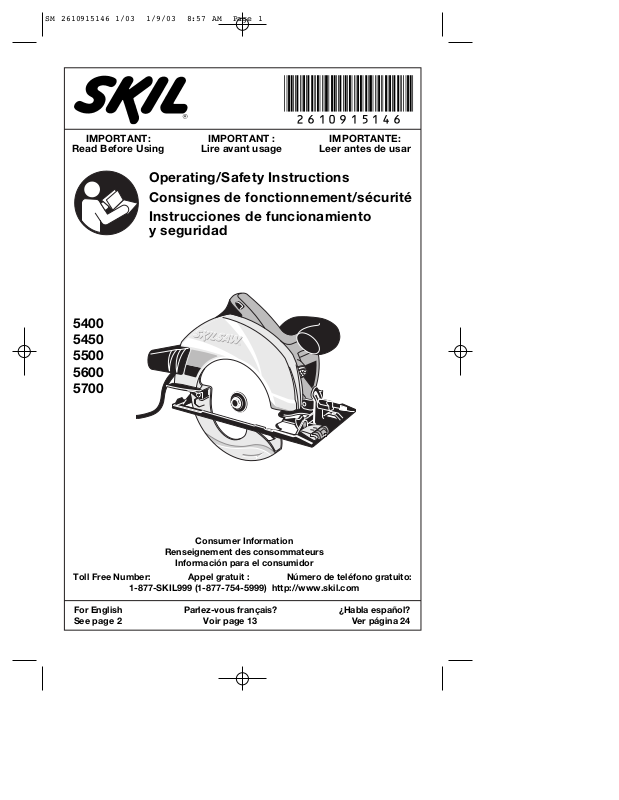

Skil 5450, 5500, 5600, 5700 User guide
Operating/Safety Instructions
Consignes de fonctionnement/sécurité
Instrucciones de funcionamiento
y seguridad
5400
5450
5500
5600
5700
IMPORTANT: IMPORTANT : IMPORTANTE:
Read Before Using Lire avant usage Leer antes de usar
Consumer Information
Renseignement des consommateurs
Información para el consumidor
Toll Free Number: Appel gratuit : Número de teléfono gratuito:
1-877-SKIL999 (1-877-754-5999) http://www.skil.com
For English Parlez-vous français? ¿Habla español?
See page 2 Voir page 13 Ver página 24
!2610915146!
SM 2610915146 1/03 1/9/03 8:57 AM Page 1
Read and understand all instructions. Failure to follow all instructions listed
below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
-2-
Work Area
Keep your work area clean and well lit.
Cluttered benches and dark areas invite
accidents.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust
or fumes.
Keep by-standers, children, and visitors
away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
Double Insulated tools are equipped with a
polarized plug (one blade is wider than the
other.) This plug will fit in a polarized outlet
only one way. If the plug does not fit fully in
the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician to
install a polarized outlet. Do not change
the plug in any way. Double Insulation
eliminates the need for the three wire
grounded power cord and grounded power
supply system. Before plugging in the tool, be
certain the outlet voltage supplied is within the
voltage marked on the nameplate. Do not use
“AC only” rated tools with a DC power supply.
Avoid body contact with grounded surfaces
such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded. If
operating the power tool in damp locations is
unavoidable, a Ground Fault Circuit Interrupter
must be used to supply the power to your
tool. Electrician’s rubber gloves and footwear
will further enhance your personal safety.
Don't expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
Do not abuse the cord. Never use the cord
to carry the tools or pull the plug from an
outlet. Keep cord away from heat, oil, sharp
edges or moving parts. Replace damaged
cords immediately. Damaged cords increase
the risk of electric shock.
When operating a power tool outside, use
an outdoor extension cord marked "W-A"
or "W." These cords are rated for outdoor use
and reduce the risk of electric shock. Refer to
“Recommended sizes of Extension Cords” in
the Accessory section of this manual.
Personal Safety
Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use tool while tired or
under the influence of drugs, alcohol, or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep your
hair, clothing, and gloves away from
moving parts. Loose clothes, jewelry, or
long hair can be caught in moving parts.
Keep handles dry, clean and free from oil and
grease.
Avoid accidental starting. Be sure switch is
“OFF” before plugging in. Carrying tools with
your finger on the switch or plugging in tools
that have the switch “ON” invites accidents.
Remove adjusting keys or wrenches before
turning the tool “ON”. A wrench or a key that
is left attached to a rotating part of the tool
may result in personal injury.
Do not overreach. Keep proper footing and
balance at all times. Proper footing and
balance enables better control of the tool in
unexpected situations.
Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be
used for appropriate conditions.
Tool Use and Care
Use clamps or other practical way to
secure and support the workpiece to a
stable platform. Holding the work by hand or
against your body is unstable and may lead to
loss of control.
!
WARNING
Power Tool Safety Rules
SM 2610915146 1/03 1/9/03 8:57 AM Page 2
-3-
Safety Rules for Circular Saws
Do not force tool. Use the correct tool for
your application. The correct tool will do the
job better and safer at the rate for which it is
designed.
Do not use tool if switch does not turn it
“ON” or “OFF”. Any tool that cannot be
controlled with the switch is dangerous and
must be repaired.
Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing the tool. Such
preventive safety measures reduce the risk of
starting the tool accidentally.
Store idle tools out of reach of children and
other untrained persons. Tools are
dangerous in the hands of untrained users.
Maintain tools with care. Keep cutting tools
sharp and clean. Properly maintained tools,
with sharp cutting edges are less likely to bind
and are easier to control. Any alteration or
modification is a misuse and may result in a
dangerous condition.
Check for misalignment or binding of
moving parts, breakage of parts, and any
other condition that may affect the tools
operation. If damaged, have the tool
serviced before using. Many accidents are
caused by poorly maintained tools. Develop a
periodic maintenance schedule for your tool.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for
one tool, may become hazardous when used
on another tool.
Service
Tool service must be performed only by
qualified repair personnel. Service or
maintenance performed by unqualified
personnel could result in a risk of injury. For
example: internal wires may be misplaced or
pinched, safety guard return springs may be
improperly mounted.
When servicing a tool, use only identical
replacement parts. Follow instructions in
the Maintenance section of this manual.
Use of unauthorized parts or failure to follow
Maintenance Instructions may create a risk of
electric shock or injury. Certain cleaning
agents such as gasoline, carbon tetrachloride,
ammonia, etc. may damage plastic parts.
Keep hands away from
cutting area and blade.
Keep your second hand on auxiliary handle,
or motor housing. If both hands are holding
the saw, they cannot be cut by the blade. Hold
the saw firmly to prevent loss of control. Figures
in this manual illustrate typical hand support of
the saw. NEVER place your hand behind the
saw blade since kickback could cause the saw
to jump backwards over your hand.
Keep your body positioned to either side of
the saw blade, but not in line with the saw
blade. KICKBACK could cause the saw to
jump backwards. (See “Causes and Operator
Prevention of Kickback.”)
Do not reach underneath the work. The
guard cannot protect you from the blade below
the work. Do not attempt to remove cut
material when blade is moving.
Check lower guard for proper closing before
each use. Do not operate saw if lower guard
does not move freely and close instantly.
Never clamp or tie the lower guard into the
open position. If saw is accidentally dropped,
lower guard may be bent. Raise the lower
guard only with the Lower Guard Lift Lever and
make sure it moves freely and does not touch
the blade or any other part, in all angles and
depths of cut.
Check the operation of the lower guard
spring. If the guard and the spring are not
operating properly, they must be serviced
before use. Lower guard may operate
sluggishly due to damaged parts, gummy
deposits, or a buildup of debris. Disconnect the
plug from power source. Periodically remove
the blade, clean the upper, lower guards and
the hub area with kerosene and wipe it dry, or
blow it clean with compressed air.
Lower guard should be retracted manually
only for special cuts such as “Pocket Cuts”
and “Compound Cuts”. Raise lower guard
by Lower Guard Lift Lever. As soon as blade
enters the material, lower guard must be
released. For all other sawing, the lower guard
should operate automatically.
DANGER
!
SM 2610915146 1/03 1/9/03 8:57 AM Page 3
Always observe that the lower guard is
covering the blade before placing saw down
on bench or floor. An unprotected, coasting
blade will cause the saw to walk backwards,
cutting whatever is in its path. Be aware of the
time it takes for the blade to stop after switch is
released.
NEVER hold piece being cut in your hands
or across your leg. It is important to support
the work properly to minimize body exposure,
blade binding, or loss of control.
Hold tool by the insulated gripping surfaces
when performing an operation where the
cutting tool may contact hidden wiring or it
own cord. Contact with a "live" wire will also
make exposed metal parts of the tool “live” and
shock the operator.
When ripping always use a rip fence or
straight edge guide. This improves accuracy
of cut and reduces the chance for blade
binding.
Always use blades with correct size and
shape (diamond vs. round) arbor holes.
Blades that do not match the mounting
hardware of the saw will run eccentrically,
causing loss of control and will not allow proper
vari-torque engagement.
Never use damaged or incorrect blade
washers or bolts. The blade washers and bolt
were specially designed for your saw, for
optimum performance and safety of operation.
The blade washers and the bolt on your saw
have been designed to work as a “VARITORQUE CLUTCH”. Understand the operation
and settings of the VARI-TORQUE CLUTCH,
because the proper setting of the CLUTCH,
combined with firm handling of the saw will
allow you to control KICKBACK.
Do not run the saw while carrying it at your
side. Lower guard may be opened by a
contact with your clothing. Accidental contact
with the spinning saw blade could result in
serious personal injury.
Depending upon use, the switch may not
last the life of the saw. If the switch should
fail in the “OFF” position, the saw may not
start. If it should fail while the saw is
running, the saw may not shut off. If either
occurs, unplug the saw immediately and do not
use until repaired.
This circular saw should not be mounted to
a table and converted to a table saw. Circular
saws are not designed or intended to be used
as table saws.

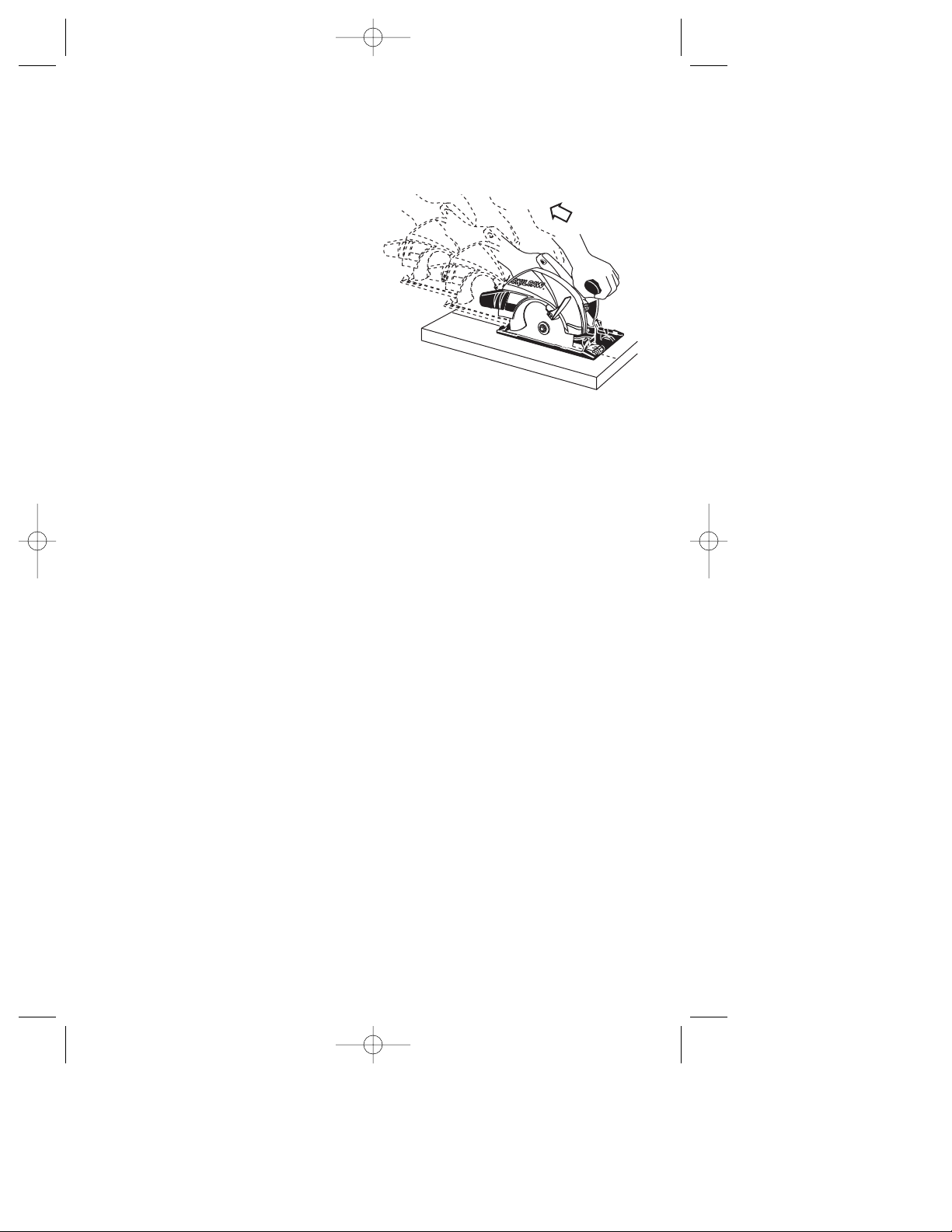

CAUSES AND OPERATOR PREVENTION OF
KICKBACK:

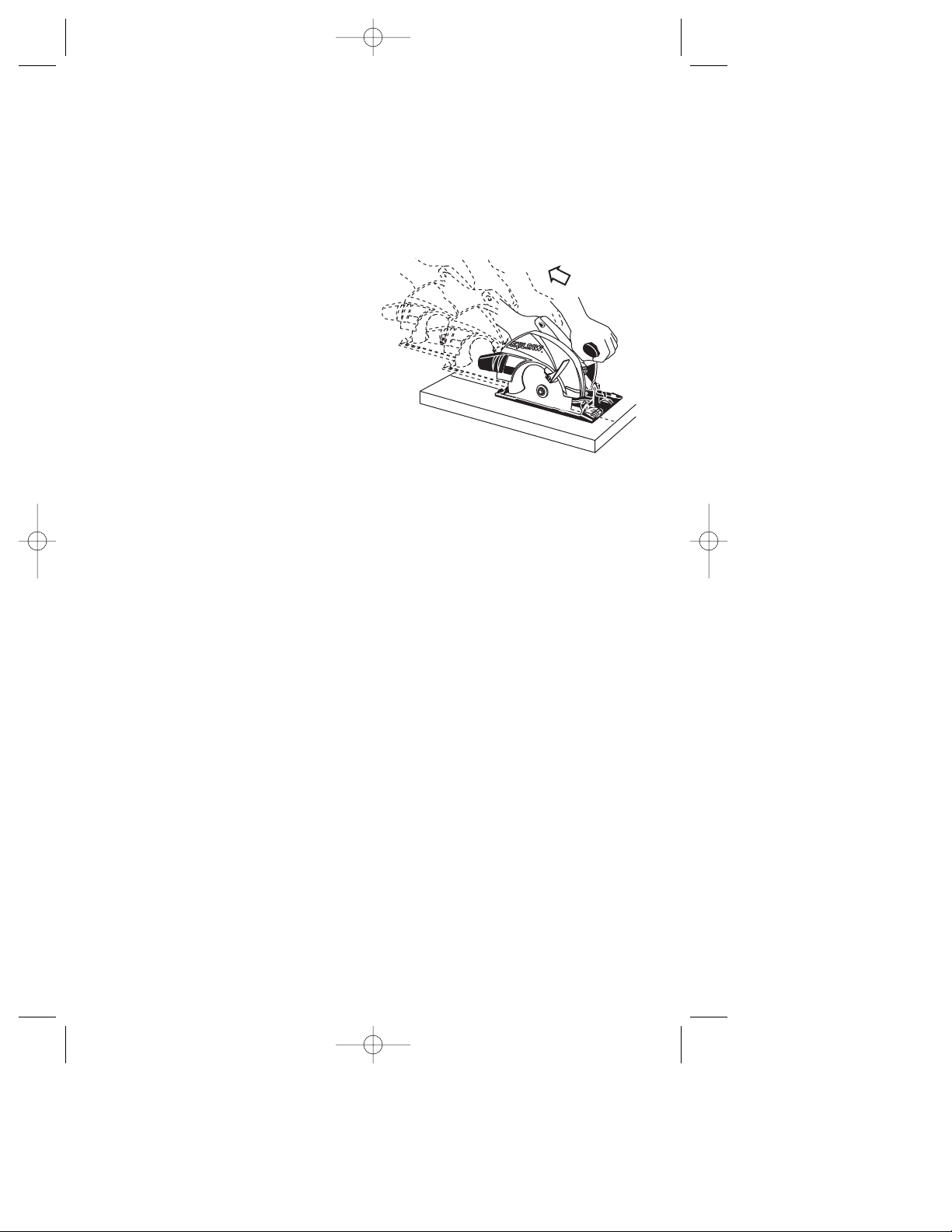

Kickback is a sudden reaction to a pinched,
bound or misaligned saw blade, causing an
uncontrolled saw to lift up and out of the
workpiece toward the operator.
When the blade is pinched or bound tightly by
the kerf closing down, the blade stalls and the
motor reaction drives the unit rapidly back
toward the operator.
If the blade becomes twisted or misaligned in
the cut, the teeth at the back edge of the blade
can dig into the top surface of the wood
causing the blade to climb out of the kerf and
jump back toward the operator.
Kickback is the result of tool misuse and/or
incorrect operating procedures or conditions
and can be avoided by taking proper
precautions as given below:
Maintain a firm grip with both hands on the
saw and position your body and arm to
allow you to resist KICKBACK forces.
KICKBACK forces can be controlled by the
operator, if proper precautions are taken.
When blade is binding, or when interrupting
a cut for any reason, release the trigger and
hold the saw motionless in the material until
the blade comes to a complete stop. Never
attempt to remove the saw from the work or
pull the saw backward while the blade is in
motion or KICKBACK may occur. Investigate
and take corrective action to eliminate the
cause of blade binding. Wet lumber, green
lumber or pressure treated lumber require
special attention during cutting operation to
prevent KICKBACK. Avoid cutting nails. Inspect
for and remove all nails from lumber before
cutting.
When restarting a saw in a workpiece,
center the saw blade in the kerf and check
that saw teeth are not engaged into the
material. If saw blade is binding, it may walk up
-4-
SM 2610915146 1/03 1/9/03 8:57 AM Page 4
or KICKBACK from the workpiece as the saw is
restarted.
Support large panels to minimize the risk of
blade pinching and KICKBACK. Large panels
tend to sag under their own weight. Supports
must be placed under the panel on both sides,
near the line of cut and near the edge of the
panel. See “Cutting Large Sheets” in this
manual.
Do not use dull or damaged blade.
Unsharpened or improperly set blades produce
narrow kerf causing excessive friction, blade
binding and KICKBACK.
Blade depth and bevel adjusting locking
knobs must be tight and secure before
making cut. If blade adjustment shifts while
cutting, it may cause binding and KICKBACK.
Using the saw with an excessive depth of cut
setting increases loading on the unit and
susceptibility to twisting of the blade in the kerf.
It also increases the surface area of the blade
available for pinching under conditions of kerf
close down.
Use extra caution when making a “Pocket
Cut” into existing walls or other blind areas.
The protruding blade may cut objects that can
cause KICKBACK.
Some dust created by
power sanding, sawing,
grinding, drilling, and other construction
activities contains chemicals known to
cause cancer, birth defects or other
reproductive harm. Some examples of
these chemicals are:
• Lead from lead-based paints,
• Crystalline silica from bricks and cement
and other masonry products, and
• Arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area,
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
-5-
!
WARNING
SM 2610915146 1/03 1/9/03 8:57 AM Page 5
-6-
IMPORTANT: Some of the following symbols may be used on your tool. Please study them
and learn their meaning. Proper interpretation of these symbols will allow you to operate the
tool better and safer.

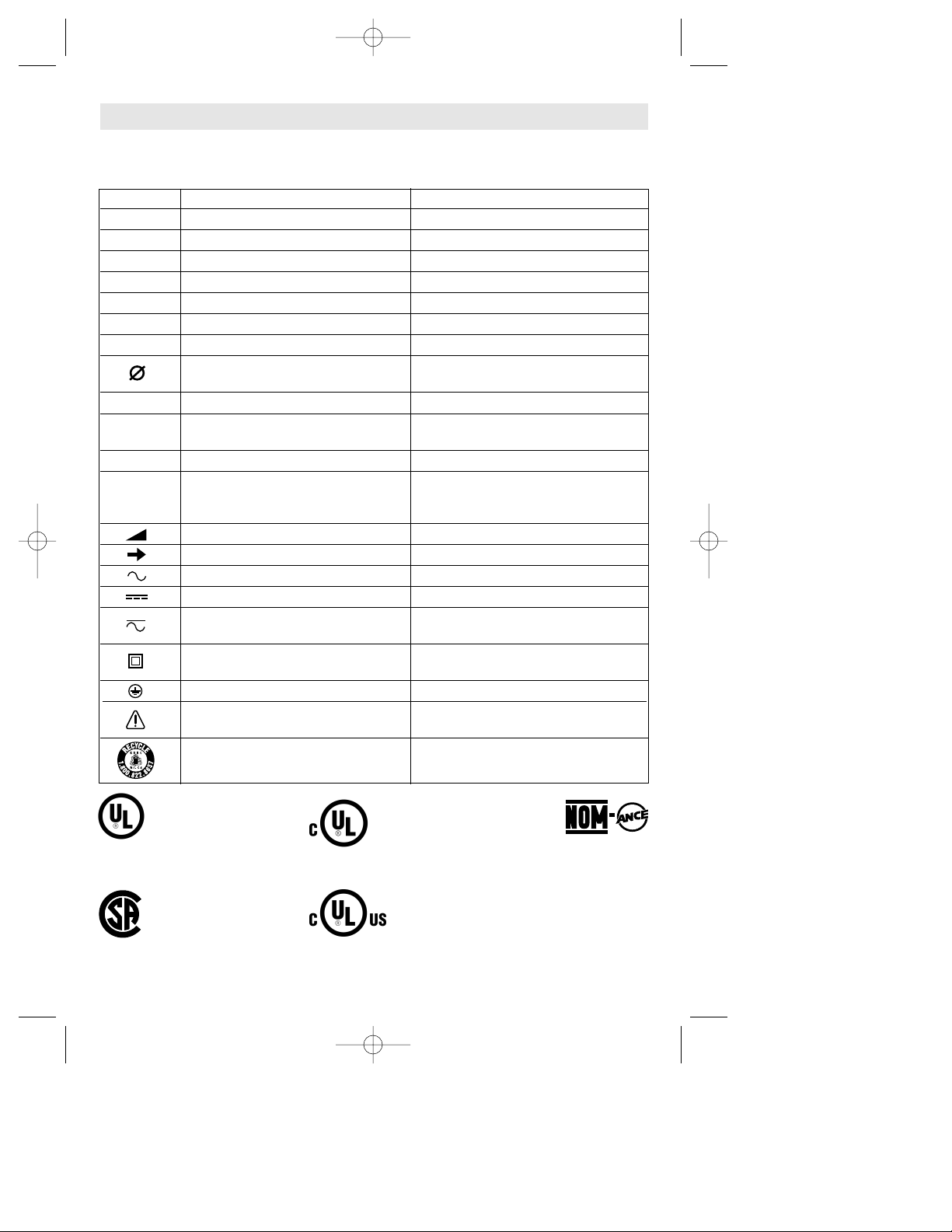

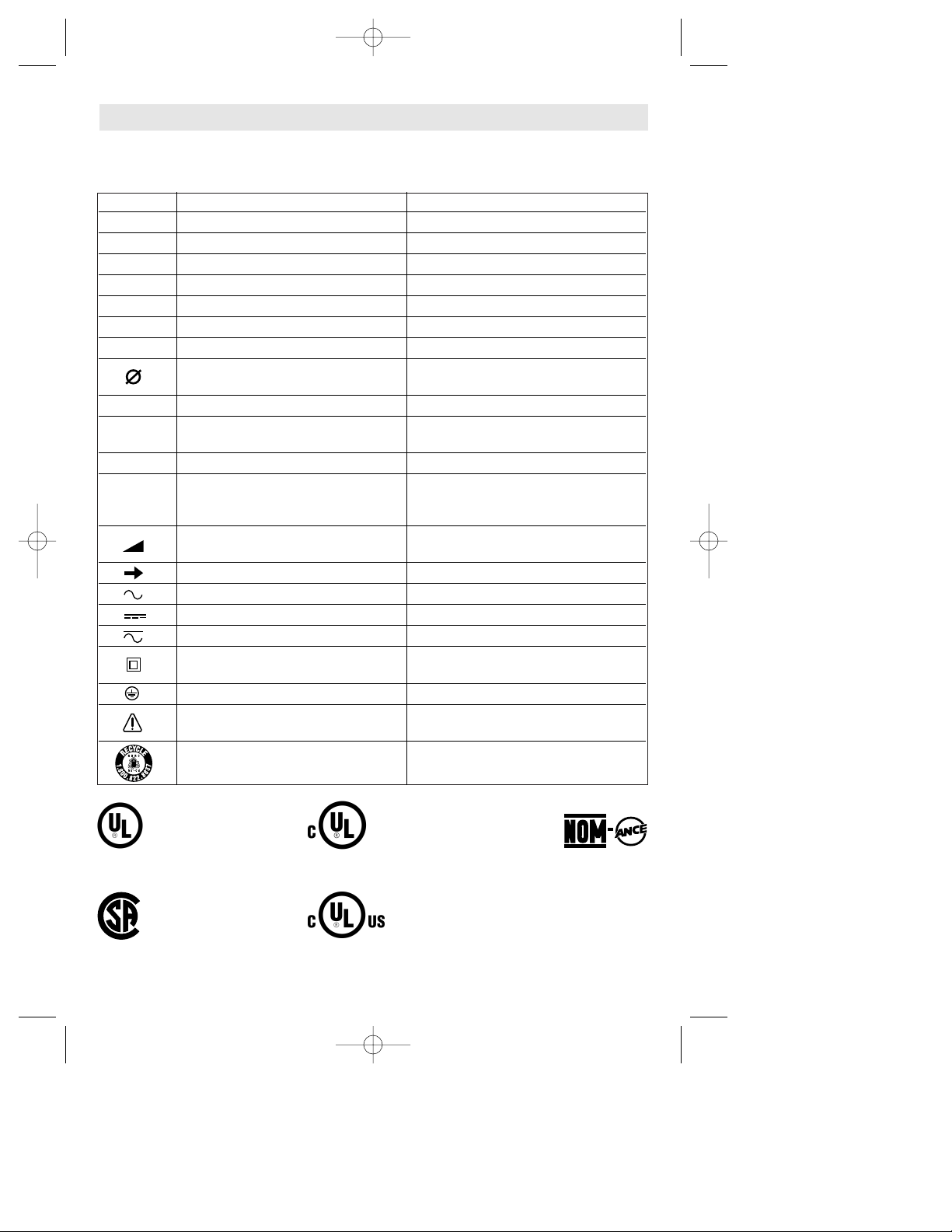

Symbol Name Designation/Explanation
V Volts Voltage (potential)
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
kg Kilograms Weight
min Minutes Time
s Seconds Time
Diameter Size of drill bits, grinding wheels, etc.
n
0
No load speed Rotational speed, at no load
.../min Revolutions or reciprocation per minute Revolutions, strokes, surface speed,
orbits etc. per minute
0 Off position Zero speed, zero torque...
1, 2, 3, ... Selector settings Speed, torque or position settings.
I, II, III, Higher number means greater speed
Infinitely variable selector with off Speed is increasing from 0 setting
Arrow Action in the direction of arrow
Alternating current Type or a characteristic of current
Direct current Type or a characteristic of current
Alternating or direct current Type or a characteristic of current
Class II construction Designates Double Insulated
Construction tools.
Earthing terminal Grounding terminal
Warning symbol Alerts user to warning messages
Ni-Cad RBRC seal Designates Ni-Cad battery recycling
program
Symbols
0
This symbol designates
that this tool is listed by
Underwriters Laboratories.
This symbol designates
that this tool is listed by
the Canadian Standards
Association.
This symbol designates
that this tool is listed to
Canadian Standards by
Underwriters Laboratories.
This symbol
designates
that
this tool
complies
to NOM
Mexican
Standards.
This symbol designates
that this tool is listed by
Underwriters Laboratories,
and listed to Canadian
Standards by Underwriters
Laboratories.
SM 2610915146 1/03 1/9/03 8:57 AM Page 6
-7-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING

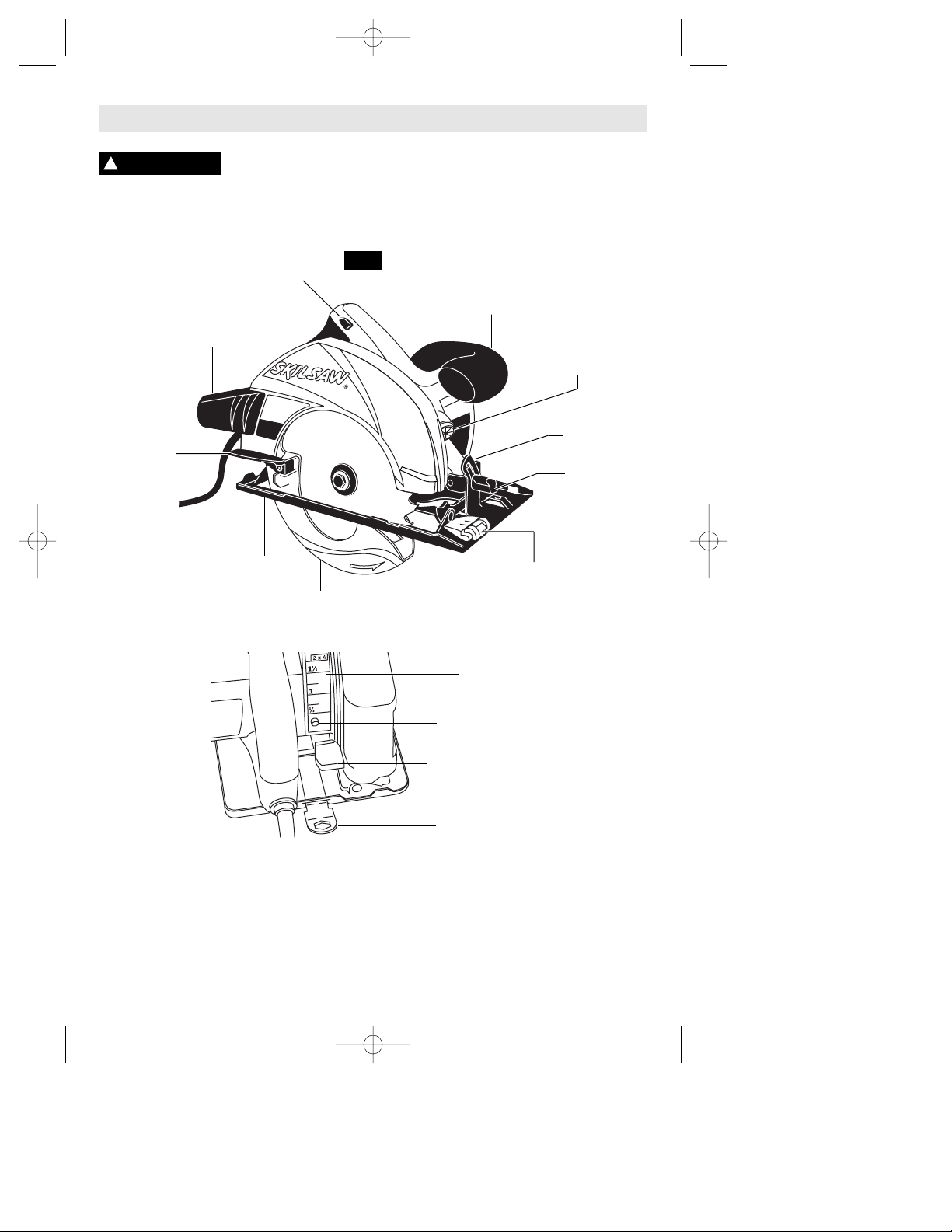

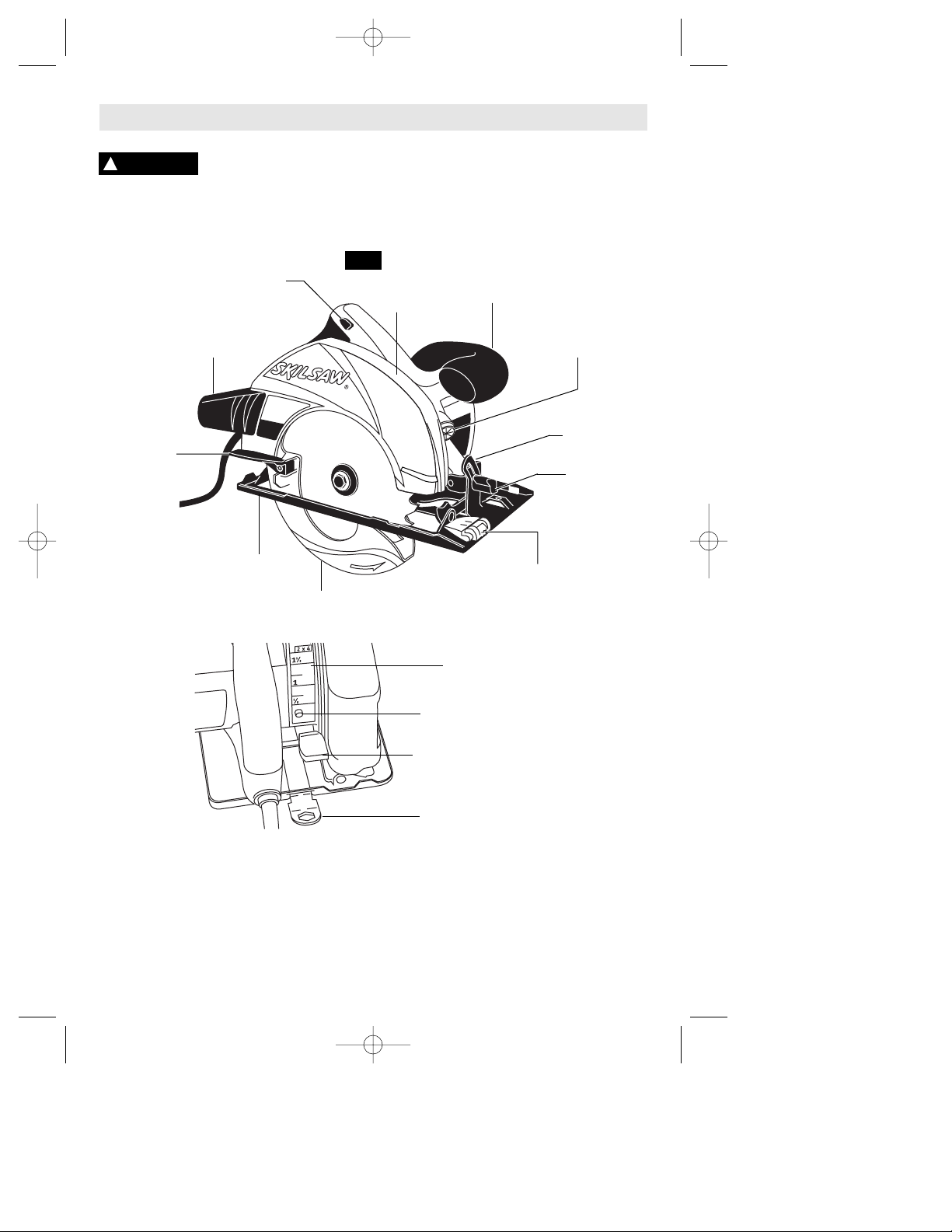

FIG. 1
LOWER
GUARD
FOOT
LOWER
GUARD LIFT
LEVER
AUXILIARY
HANDLE
ADJUSTABLE LINE GUIDE
(Models 5450 5500, 5600, & 5700 only)
BEVEL
ADJUSTMENT
KNOB
CALIBRATED
BEVEL
QUADRANT
SAFETY SWITCH
UPPER
GUARD
DUST PORT ADAPTER
(Not included,
available as accessory)
Maximum Capacities
Blade 7-1/4"
Blade arbor hole Round
Depth of cut at 90° 2-7/16"
Depth of cut at 45° 1-15/16"
Circular Saws
LINE OF CUT
LIGHT
(Model 5700 0nly)
[51
]
[38mm]
[25m
m]
[25m
m]
DEPTH ADJUSTMENT
LEVER
LOCK BUTTON
(Model 5700 only)
DEPTH
SCALE
BLADE WRENCH &
STORAGE AREA
NOTE: For tool specifications refer to the nameplate on your tool.
SM 2610915146 1/03 1/9/03 8:57 AM Page 7
-8-
Assembly
ATTACHING THE BLADE
Disconnect the plug from
the power source before
making any assembly, adjustments or
changing accessories. Such preventive
safety measures reduce the risk of starting
the tool accidentally.
1. Turn BLADE STUD with wrench provided
counter-clockwise and remove BLADE STUD
and OUTER WASHER (Fig. 2). If the shaft
moves while attempting to loosen the blade
stud press the lock button. On models 5400,
5450, 5500, & 5600, strike the wrench counterclockwise to jar BLADE STUD loose.
2. Retract the lower guard all the way up into
the upper guard. While retracting the lower
guard, check operation and condition of the
LOWER GUARD SPRING.
3. Make sure the saw teeth and arrow on the
blade point in the same direction as the arrow
on the lower guard.
4. Slide blade through slot in the foot and
mount it against the INNER WASHER on the
shaft. Be sure the large diameter of the OUTER
washer lays flush against the blade.
5. Reinstall OUTER WASHER and tighten
BLADE STUD finger tight. Press lock button to
lock shaft. To lock shaft on models 5400,
5450, 5500 & 5600 hold the saw securely by
the upper guard with blade teeth imbedded in
scrap wood. For all models TIGHTEN BLADE
STUD 1/8 TURN (45°) WITH THE WRENCH
PROVIDED.
Do not use wrenches with longer handles,
since it may lead to over tightening of the
blade stud.
VARI-TORQUE CLUTCH
This clutching action is provided by the friction
of the OUTER WASHER against the BLADE
and permits the blade shaft to turn when the
blade encounters excessive resistance. When
the BLADE STUD is properly tightened (as
described in No. 5 of Attaching The Blade), the
blade will slip when it encounters excessive
resistance, thus reducing saw’s tendency to
KICKBACK.
One setting may not be sufficient for cutting all
materials. If excessive blade slippage occurs,
tighten the blade stud a fraction of a turn more
(less than 1/8 turn). OVERTIGHTENING THE
BLADE STUD NULLIFIES THE EFFECTIVENESS OF THE CLUTCH.
DUST EXTRACTION
(Not included, available as accessory)
Your tool is equipped with a dust port adapter
for dust and chip extraction. To attach, push
tabs on end of adapter into dust port until it
snaps into place. To use this feature, attach
standard 1-1/4" vacuum hose (optional
accessory) to the dust port adapter.
To prevent personal injury,
always position dust port
adapter and vacuum hose so that it does
not interfere with the lower guard, or the
cutting operation at all settings.
!
WARNING
!
WARNING

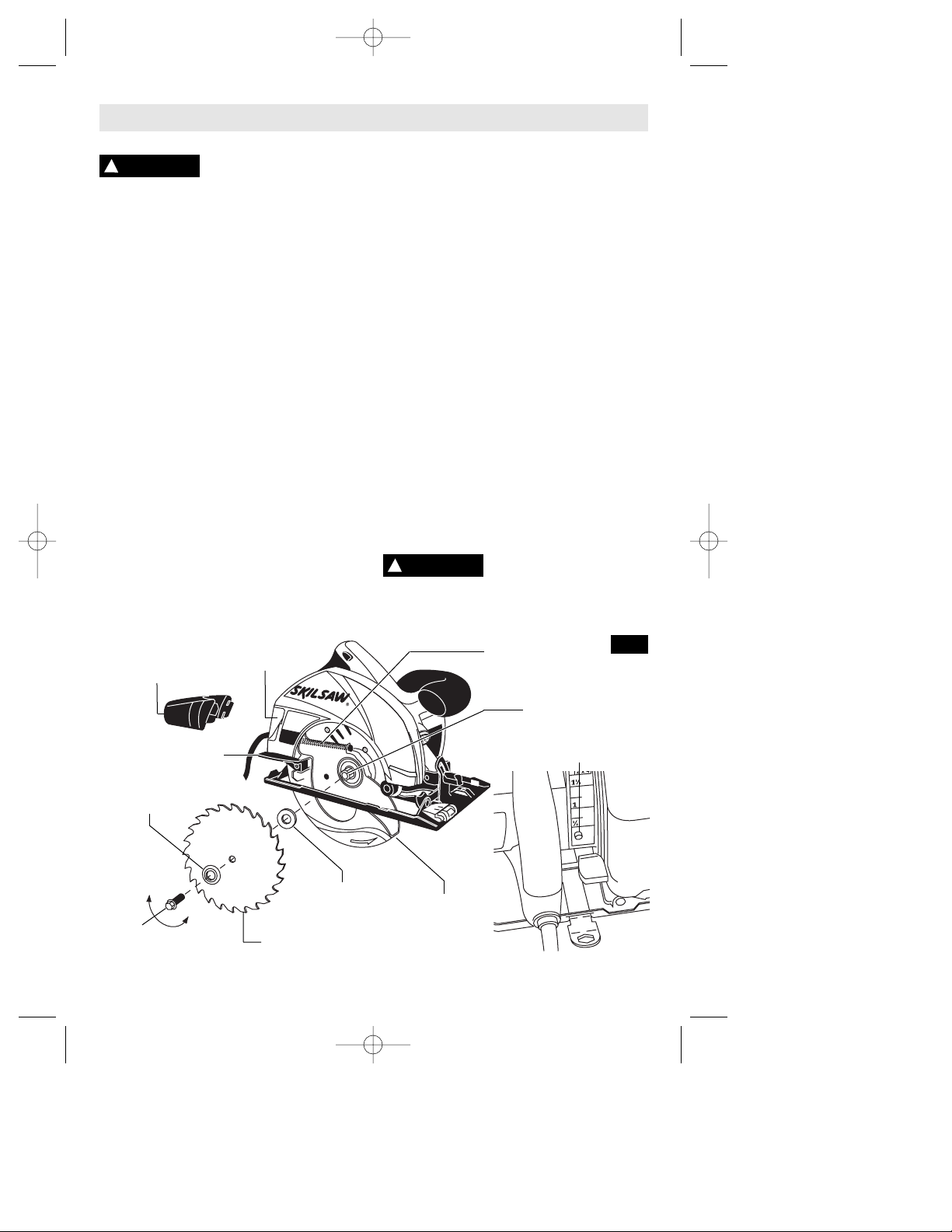

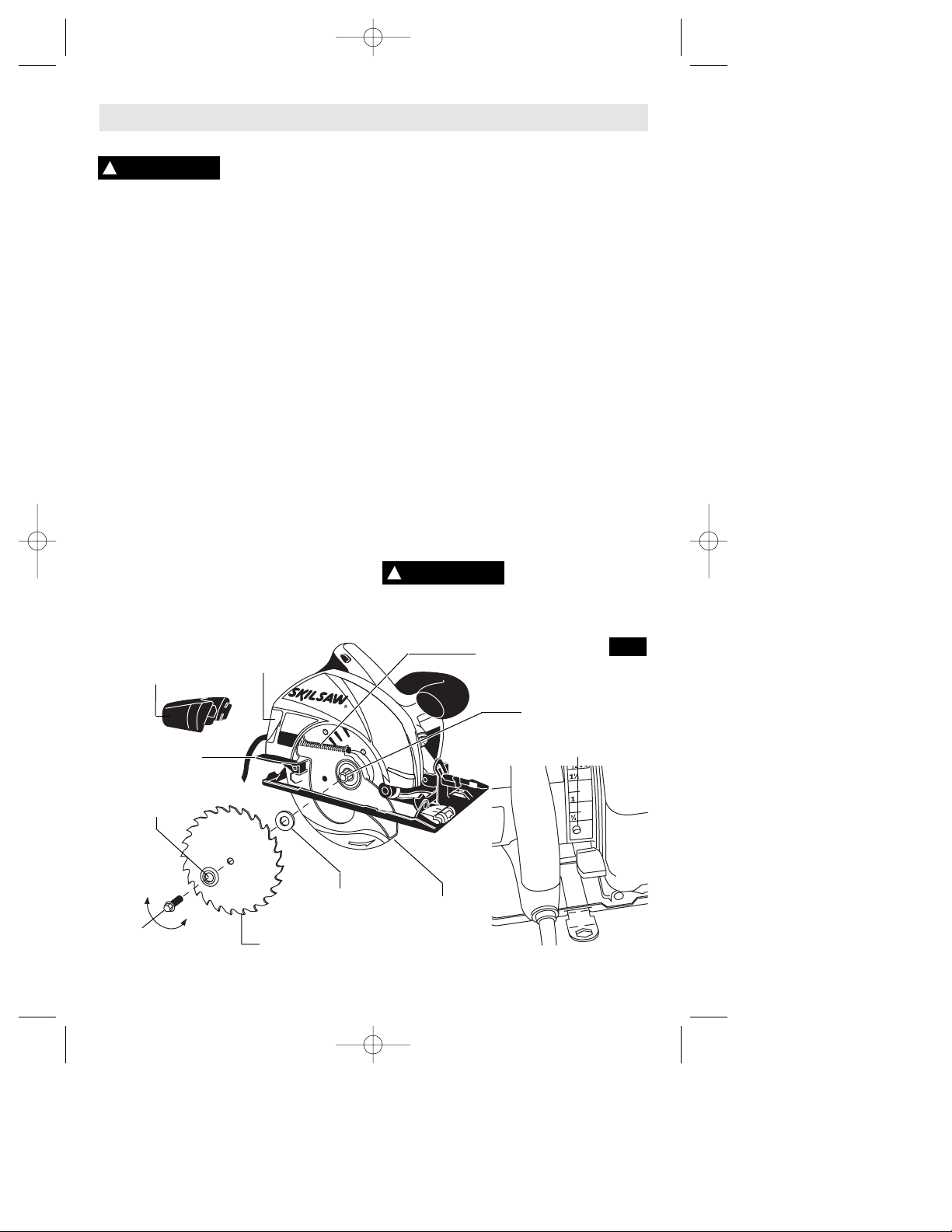

FIG. 2
Tighten
Loosen
BLADE
STUD
LOCK BUTTON
(Model 5700 only)
LOWER GUARD
SPRING
OUTER WASHER
Large Diameter
Faces Blade
INNER WASHER
Large Diameter
Faces Blade
BLADE
LOWER
GUARD
BLADE SHAFT
DUST
PORT
DUST PORT ADAPTER
(Not included,
available as accessory)
[38mm
]
[25mm
]
[25mm
]
LOWER GUARD
LIFT LEVER
SM 2610915146 1/03 1/9/03 8:57 AM Page 8
-9-

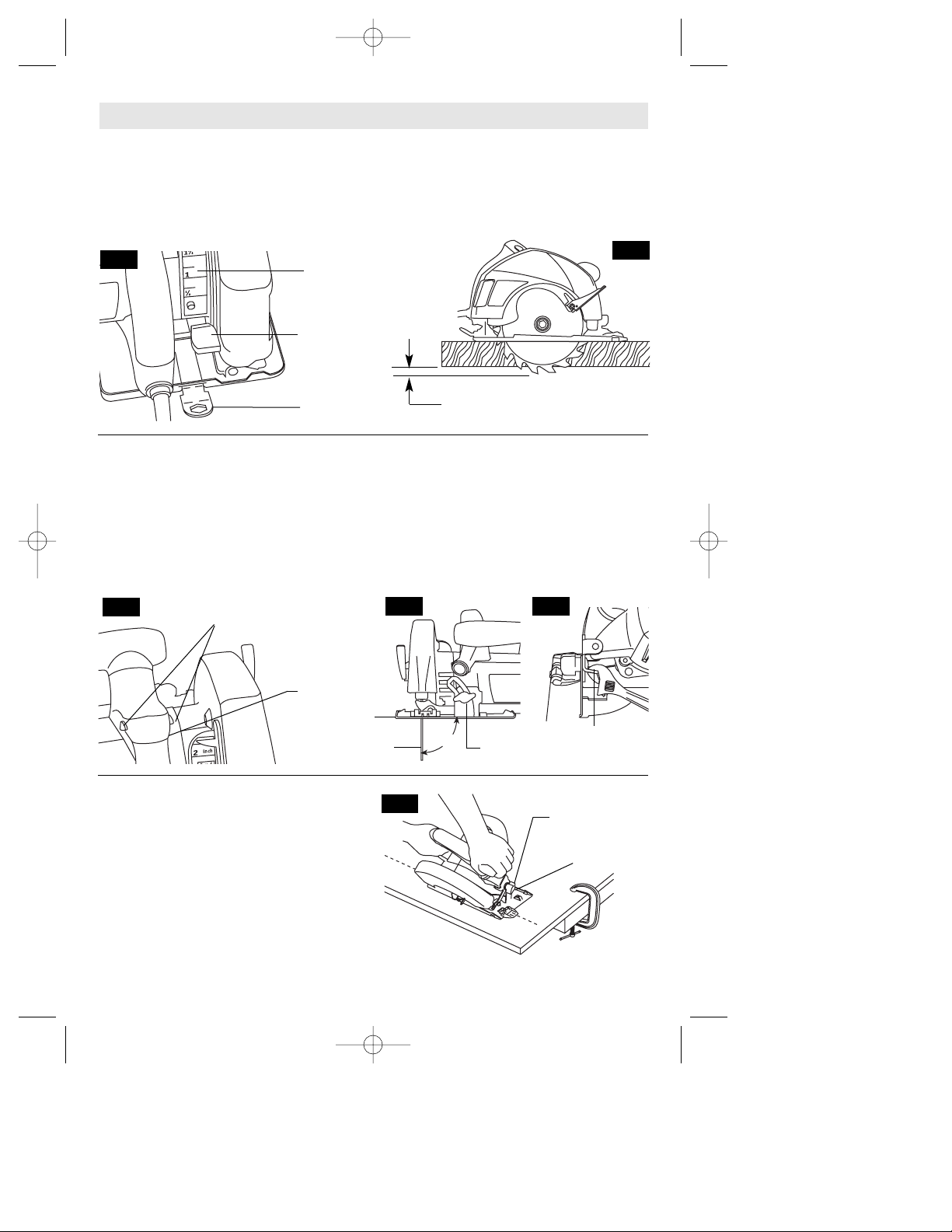

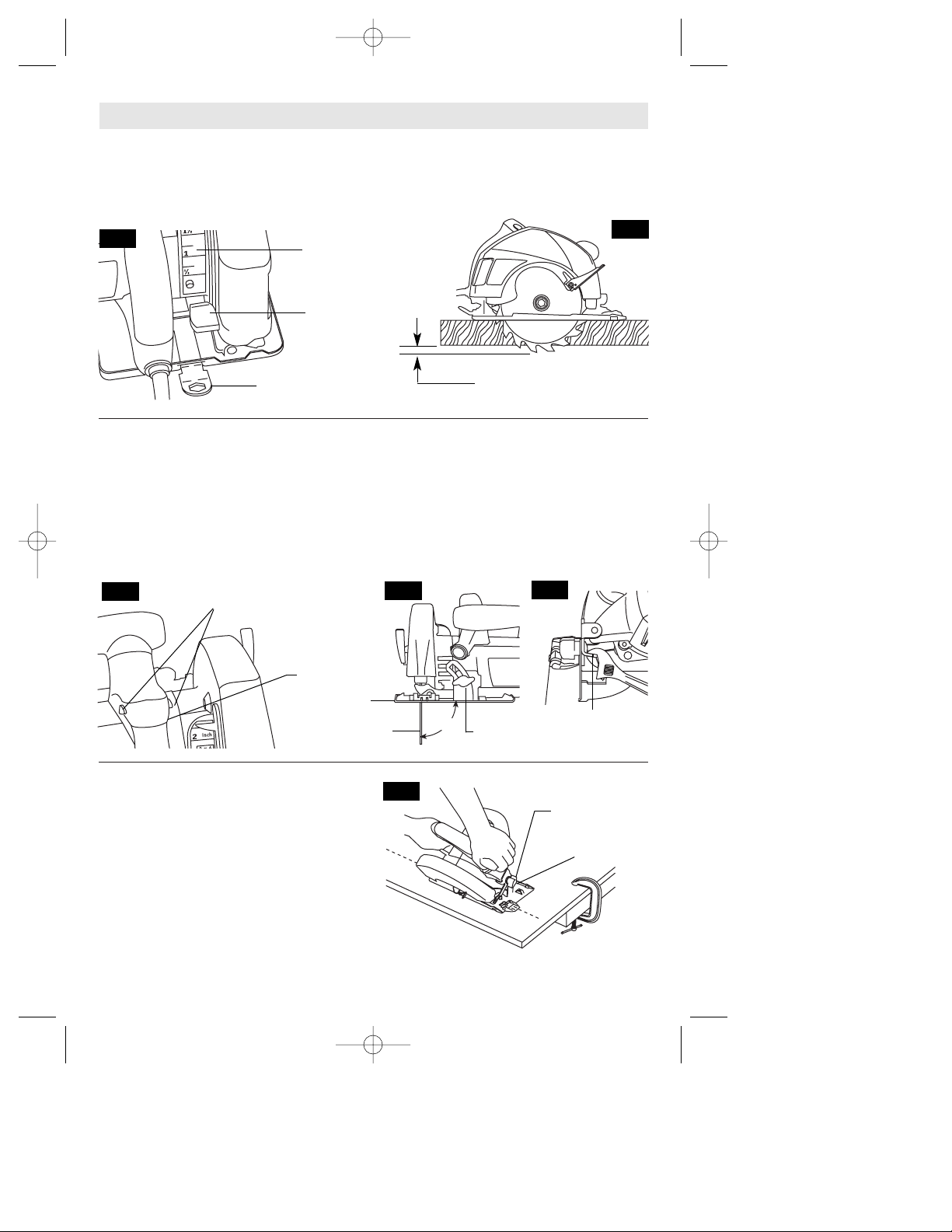

Disconnect plug from power source. Loosen
the depth adjustment lever located between
the guard and handle of saw. Hold the foot
down with one hand and raise or lower saw
by the handle. Tighten lever at the depth
setting desired. Check desired depth (Fig. 3).
Not more than one tooth length of the blade
should extend below the material to be cut,
for minimum splintering (Fig. 4).
SAFETY SWITCH
The safety switch is designed to prevent
accidental starts. To operate safety switch,
press the release button with your thumb on
either side of handle to disengage the lock,
then pull the trigger (Fig. 5). When the trigger
is released the button will engage the safety
switch automatically, and the trigger will no
longer operate. (See Switch & General Cuts
on page 10.)
90° CUTTING ANGLE CHECK
Disconnect plug from power source. Set foot
to maximum depth of cut setting. Loosen
bevel adjustment knob, set to 0° on quadrant,
retighten knob and check for 90° angle
between the blade and bottom plane of foot
with a square (Fig. 6). If adjustment is
necessary, tilt foot to 45°, tighten bevel
adjustment knob and bend "TAB" with an
adjustable wrench or pliers (Fig. 7).
BEVEL ADJUSTMENT
Disconnect plug from power source. The foot
can be adjusted up to 45° by loosening the
bevel adjustment knob at the front of the saw.
Align to desired angle on calibrated quadrant.
Then tighten bevel adjustment knob (Fig. 8).
Because of the increased amount of blade
engagement in the work and decreased
stability of the foot, blade binding may occur.
Keep the saw steady and the foot firmly on
the workpiece.
DEPTH ADJUSTMENT
Operating Instructions
[38mm
]
[25mm]
[25mm]
[51mm]
90º
FIG. 3
FIG. 4
FIG. 5
FIG. 7
FIG. 6
FIG. 8
ONE TOOTH LENGTH SHOULD
PENETRATE WOOD FOR
MINIMUM SPLINTERING
DEPTH
ADJUSTMENT
LEVER
DEPTH
SCALE
BLADE WRENCH,
& STORAGE
AREA
SAFETY SWITCH
RELEASE
BUTTON
TRIGGER
TAB
BEVEL
ADJUSTMENT
KNOB
QUADRANT
BLADE
FOOT
BEVEL
ADJUSTMENT
KNOB
SM 2610915146 1/03 1/9/03 8:57 AM Page 9
-10-
ADJUSTABLE LINE GUIDE
(Models 5450 5500, 5600, & 5700 only)
For a straight 90° cut you can use the left or
right side of notch in the foot. For 45° bevel
cuts, use the right side (Fig 9). The guide can
be adjusted to allow for variation in blade
thicknesses for whichever side of the blade
the user would prefer to cut the line on.
TO ATTACH: Disconnect plug from power
source. Align hole in adjustable line guide
with hole in foot and secure with screw
provide.
TO ADJUST: Loosen but don’t remove, the
adjustment screw enough so the guide can
move freely. Set a straightedge flat on the
preferred side of the blade, lining up both the
edge of the straightedge and the edge of the
guide where the 0° mark is located.
SWITCH
When starting the tool,
hold it with both hands. The
torque from the motor can cause the tool to
twist.
To turn tool “ON”, squeeze the trigger switch.
To turn the tool “OFF”, release the trigger
switch, which is spring loaded and will return
to the off position automatically.
Your saw should be running at full speed
BEFORE starting the cut, and turned off only
AFTER completing the cut. To increase
switch life, do not turn switch on and off while
cutting.
LINE OF CUT LIGHT (Model 5700 only)
Your tool is also equipped with a light that
turns on automatically when the switch is
activated, for better visibility when cutting.
GENERAL CUTS
Always hold the saw handle with one hand
and the auxiliary handle or housing with the
other.
Always be sure either hand
does not interfere with the
free movement of the lower guard.
Maintain a firm grip and operate the switch
with a decisive action. Never force the saw.
Use light and continuous pressure.
After completing a cut and
the trigger has been
released, be aware of the necessary time it
takes for the blade to come to a complete
stop during coast down. Do not allow the
saw to brush against your leg or side,
since the lower guard is retractable, it
could catch on your clothing and expose
the blade. Be aware of the necessary blade
exposures that exist in both the upper and
lower guard areas.
When cutting is interrupted, to resume
cutting: squeeze the trigger and allow the
blade to reach full speed, re-enter the cut
slowly and resume cutting.
When cutting across the grain, the fibers of
the wood have a tendency to tear and lift.
Advancing the saw slowly minimizes this
effect. For a finished cut, a cross cut blade or
miter blade is recommended.
CUTTING MASONRY/METAL
This tool is not recommended for continuous
and general usage with metal or masonry cutoff wheels. If you use your saw for cutting
these materials, use the appropriate wheel for
the material being cut.
When cutting masonry, do not cut a depth of
more than 1/4 inch (6 mm). Make successive
passes to achieve desired depth. Apply a
light forward pressure. Do not overload
motor. Disconnect plug from power source
and clean dust from air vents frequently.
Metal cutting is done at full depth.
Clean guards frequently to
assure a rapid return of
lower guard. The lower guard may become
sluggish when cutting masonry materials.
Abrasive Cut Off Wheels
must have a maximum
safe operating speed greater than the “no
load RPM” marked on the tool’s
nameplate. Wheels running over the rated
speed can fly apart and cause injury.
Do not use the abrasive
cut off wheel near
flammable materials. Sparks from the
wheel could ignite these materials.
This machine is not
intended to be used with
Wet Diamond Wheels. Using water or other
liquid coolants with this machine may result
in electrocution or shock. Use of Dry
Diamond Wheels is acceptable.
!
WARNING
!
WARNING
!
WARNING
!
WARNING
45º 0º

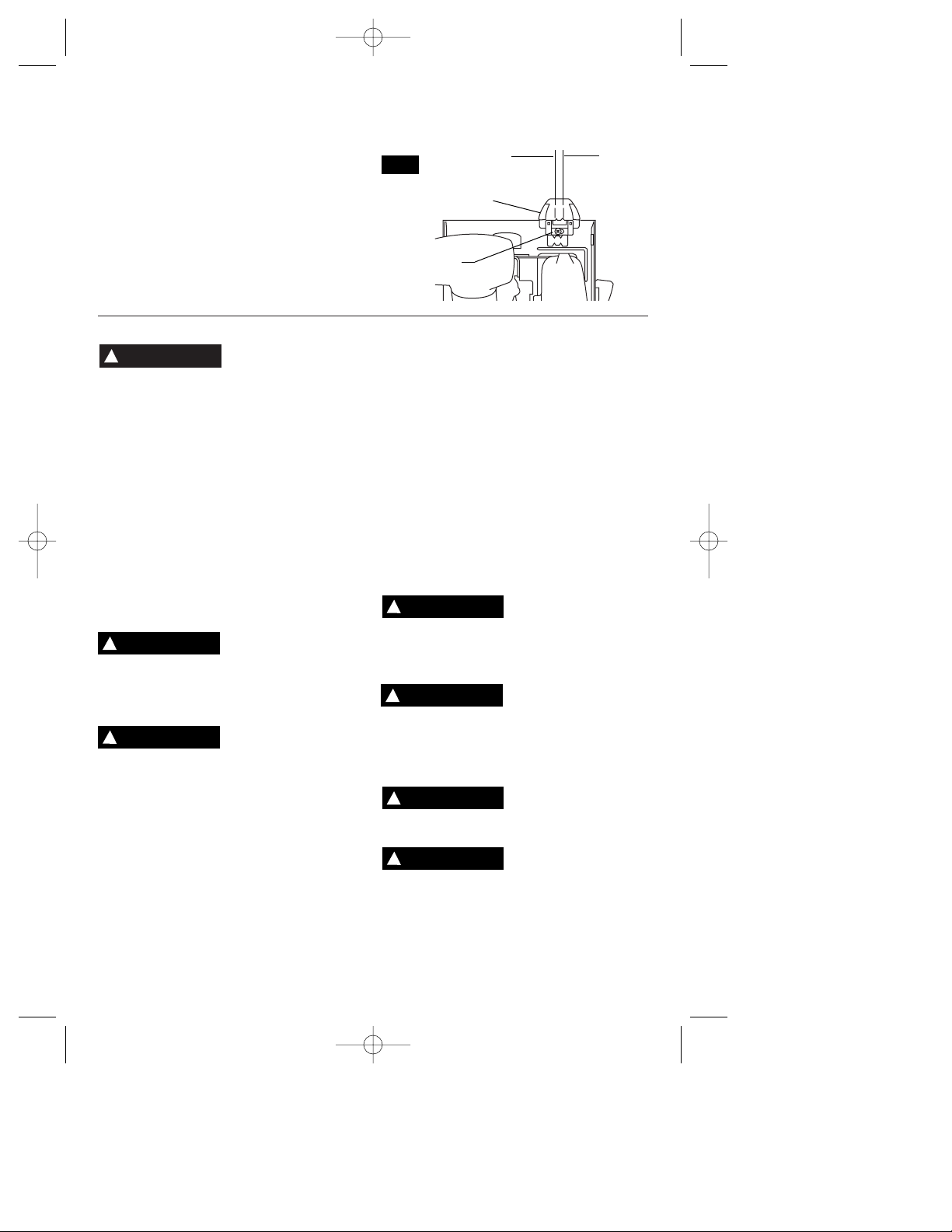

FIG. 9
45°
BEVEL CUTS
GUIDE
ADJUSTMENT
SCREW
ADJUSTABLE
LINE GUIDE
90°
VERTICAL
CUTS
!
WARNING
!
WARNING
!
WARNING
SM 2610915146 1/03 1/9/03 8:57 AM Page 10
-11-
POCKET CUTS
Disconnect the plug from the power source
before making adjustments. Set depth adjustment according to material to be cut. Tilt saw
forward with cutting guide notch lined up with
the line you’ve drawn. Raise the lower guard,
using lift lever and hold the saw by the front and
rear handles (Fig. 10).
With the blade just clearing the material to be
cut, start the motor. Gradually lower the back
end of saw using the front end of the foot as
the hinge point. WARNING: As blade starts
cutting the material, release the lower guard
immediately. When the foot rests flat on the
surface being cut, proceed cutting in forward
direction to end of cut. WARNING: Allow
blade to come to a complete stop before
lifting the saw from cut. Also, never pull the
saw backward since blade will climb out of
the material and KICKBACK will occur. Turn
saw around and finish the cut in the normal
manner, sawing forward. If corners of your
pocket cut are not completely cut through, use
a jigsaw or hand saw to finish the corners.
CUTTING LARGE SHEETS
Large sheets and long boards sag or bend,
depending on support. If you attempt to cut
without leveling and properly supporting the
piece, the blade will tend to bind, causing KICKBACK and extra load on the motor (Fig. 11).
Support the panel or board close to the cut, as
shown in (Fig. 12). Be sure to set the depth of
the cut so that you cut through the sheet or
board only and not the table or work bench. The
two-by-fours used to raise and support the
work should be positioned so that the broadest
sides support the work and rest on the table or
bench. Do not support the work with the narrow
sides as this is an unsteady arrangement. If the
sheet or board to be cut is too large for a table
or work bench, use the supporting two-by-fours
on the floor and secure.
RIP CUTS
The combination blade provided with your saw
is for both cross cuts and rip cuts. Ripping is
cutting lengthwise with the grain of the wood.
Rip cuts are easy to do with a rip fence
(Fig. 13). Rip Fence is available as an
accessory (not included). To attach fence, insert
fence through slots in foot to desired width as
shown and secure with the wing nut
(not included).
RIP BOARD GUIDE
When rip cutting large sheets, the rip fence
may not allow the desired width of cut. Clamp
or nail a straight piece of 1" lumber to the
sheet as a guide (Fig. 14). Use the right side
of the foot against the board guide.

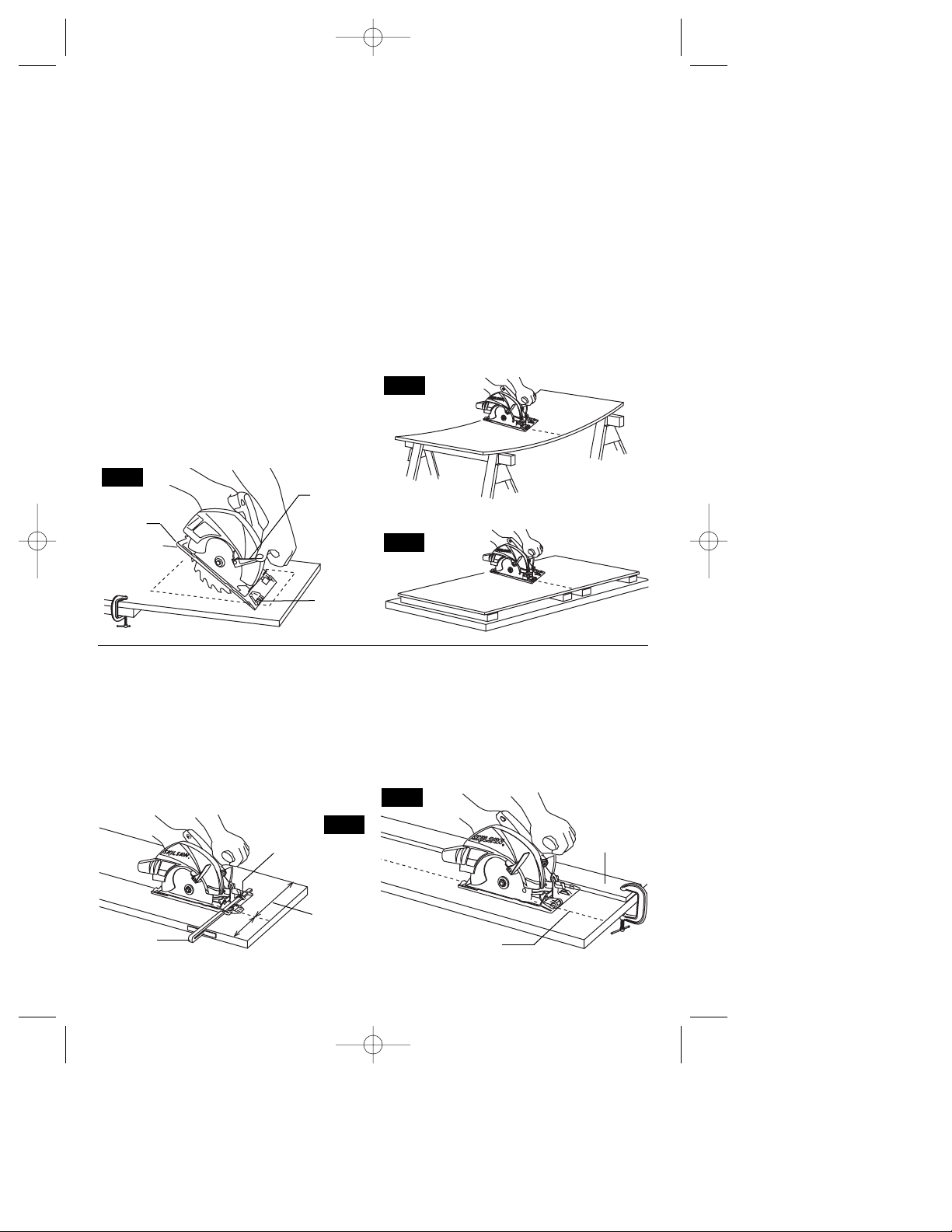

FIG. 10
FIG. 11
FIG. 12
FIG. 13
FIG. 14
FOOT
LINE
GUIDE
LOWER
GUARD
LIFT
LEVER
RIP FENCE
WING
NUT
DESIRED
WIDTH
OF CUT
DESIRED LINE
OF CUT
RIP
BOARD
GUIDE
RIGHT
WRONG
SM 2610915146 1/03 1/9/03 8:57 AM Page 11
Loading...
