Simplicity 300 User Manual
OPERATOR’S
MANUAL
18HP Hydro Tractors
Mfg. No. Description
1694629 Broadmoor, 18HP
1694630 Broadmoor, 18HP
1694631 Broadmoor, 18HP (CE)
1694683 Broadmoor, 18HP (CE)
1694807 2618H, 18HP (CE)
1694808 LT1840, 18HP (CE)
1694844 2618H, 18HP (CE)
2690273 Broadmoor, 18HP & 44” Mower
2690274 Broadmoor, 18HP & 38” Mower
2690277 Broadmoor, 18HP & 40” Mower (CE)
2690276 Broadmoor, 18HP & 44” Mower (CE)
2690400 2618H, 18HP & 44” Mower (CE)
2690404 LT1840, 18HP & 40” Mower (CE)
2690430 2618H, 18HP & 40” Mower (CE)
2690757 Broadmoor, 18HP & 38” Mower
20HP Hydro Tractors
Mfg. No. Description
1694632 Broadmoor, 20HP
1694633 1620H, 20HP
1694634 1620H, 20HP
1694635 2620H, 20HP
1694636 2620H, 20HP
1694637 LT2044, 20HP
1694682 Broadmoor, 20HP
2690248 Broadmoor, 20HP& 50” Mower
2690279 1620H, 20HP & 44” Mower
2690280 1620H, 20HP & 50” Mower
2690424 2620H, 20HP & 44” Mower
2690481 2620H, 20HP & 44” Mower
2690282 2620H, 20HP & 50” Mower
2690283 LT2044, 20HP & 44” Mower
2690275 Broadmoor, 20HP & 44” Mower
2690278 Broadmoor, 20HP & 50” Mower
2690281 2620H, 20HP & 44” Mower
2690488 Broadmoor, 20HP & 44” Mower (CE)
2690489 Broadmoor, 20HP & 40” Mower (CE)
2690490 2620H, 20HP & 44” Mower (CE)
2690491 2620H, 20HP & 40” Mower (CE)
2690500 LT2040, 20HP & 40” Mower (CE)
2690701 Broadmoor, 20HP & 44” Mower
2690756 Broadmoor, 20HP & 44” Mower
2690755 Broadmoor, 20HP & 50” Mower
2690758 1620H, 20HP & 44” Mower
2690764 2620H, 20HP & 44” Mower
2690759 LT2044, 20HP & 44” Mower
2690760 Broadmoor, 20HP & 44” Mower (CE)
2690761 LT2044, 20HP & 44” Mower (CE)
38” Mower Decks
Mfg. No. Description
1694036 38” Mower Deck
1694042 38” Mower Deck
1694453 38” Mower Deck (CE)
40” Mower Decks
Mfg. No. Description
1694339 40” Mower Deck
1694340 40” Mower Deck
1694341 40” Mower Deck (CE)
1694815 40” Mower Deck (CE)
1694821 40” Mower Deck (CE)
1695030 40” Mower Deck (CE)
1695034 40” Mower Deck (CE)
1695052 40” Mower Deck (CE)
44” Mower Decks
Mfg. No. Description
1694037 44” Mower Deck
1694043 44” Mower Deck
1694178 44” Mower Deck (CE)
1694687 44” Mower Deck
1694822 44” Mower Deck (CE)
1695028 44” Mower Deck (CE)
1695038 44” Mower Deck (CE)
50” Mower Decks
Mfg. No. Description
1694473 50” Mower Deck
1694474 50” Mower Deck
Broadmoor / 300 / 1600 / 2600 Series
1732286
Revision 02
Rev. Date 02/2008
TP 100-4247-02-BM-SMAN
1
Regular Maintenance ........................................24
Maintenance Schedule .........................................24
Safety Interlock System Check.............................25
Blade Brake Check ...............................................25
Checking Tire Pressures.......................................25
PTO Clutch Adjustment Check .............................25
Engine Maintenance .............................................25
Battery Maintenance.............................................26
Lubricate Rear Axles.............................................26
Lubrication ............................................................27

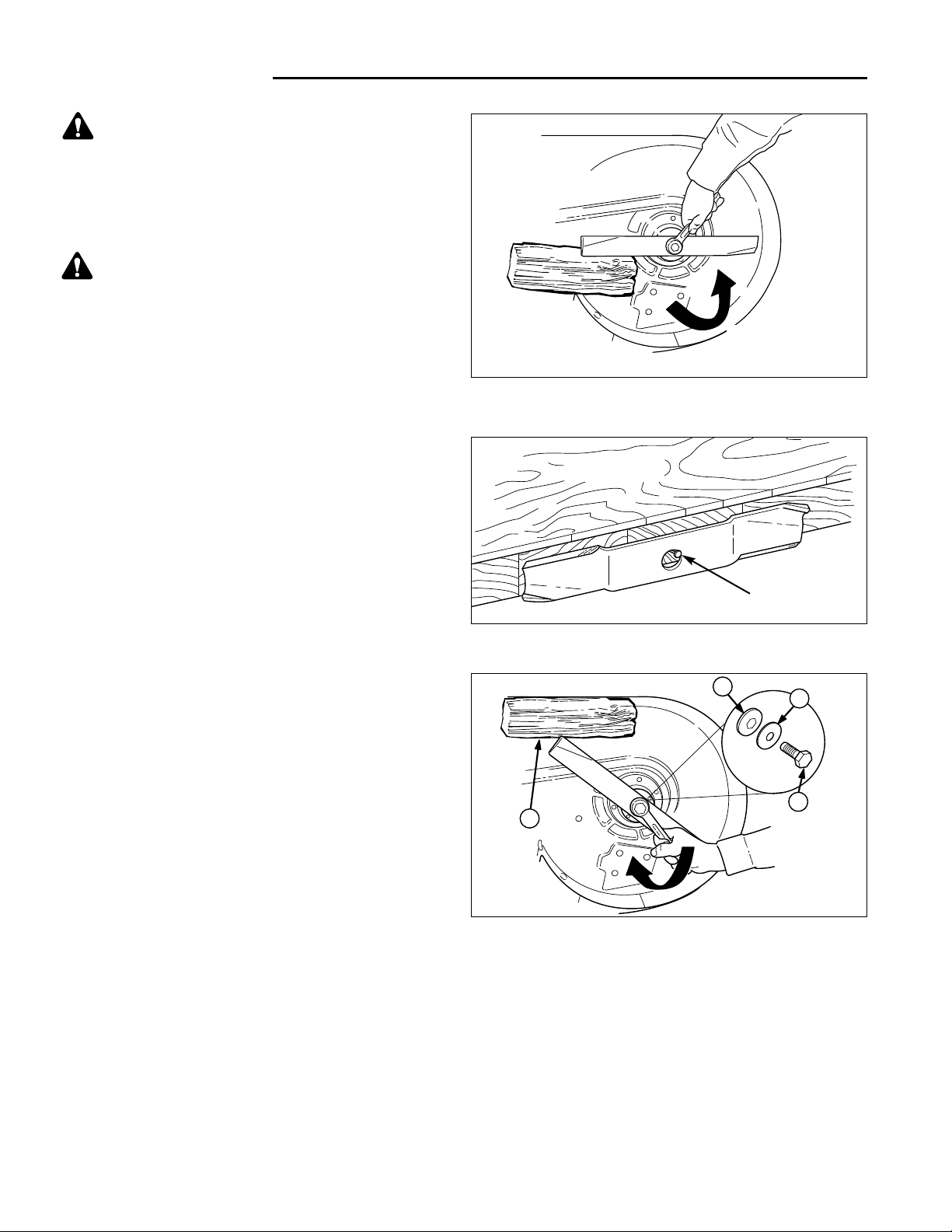

Servicing the Mower Blades .................................28
Check Mower Blade Timing..................................29

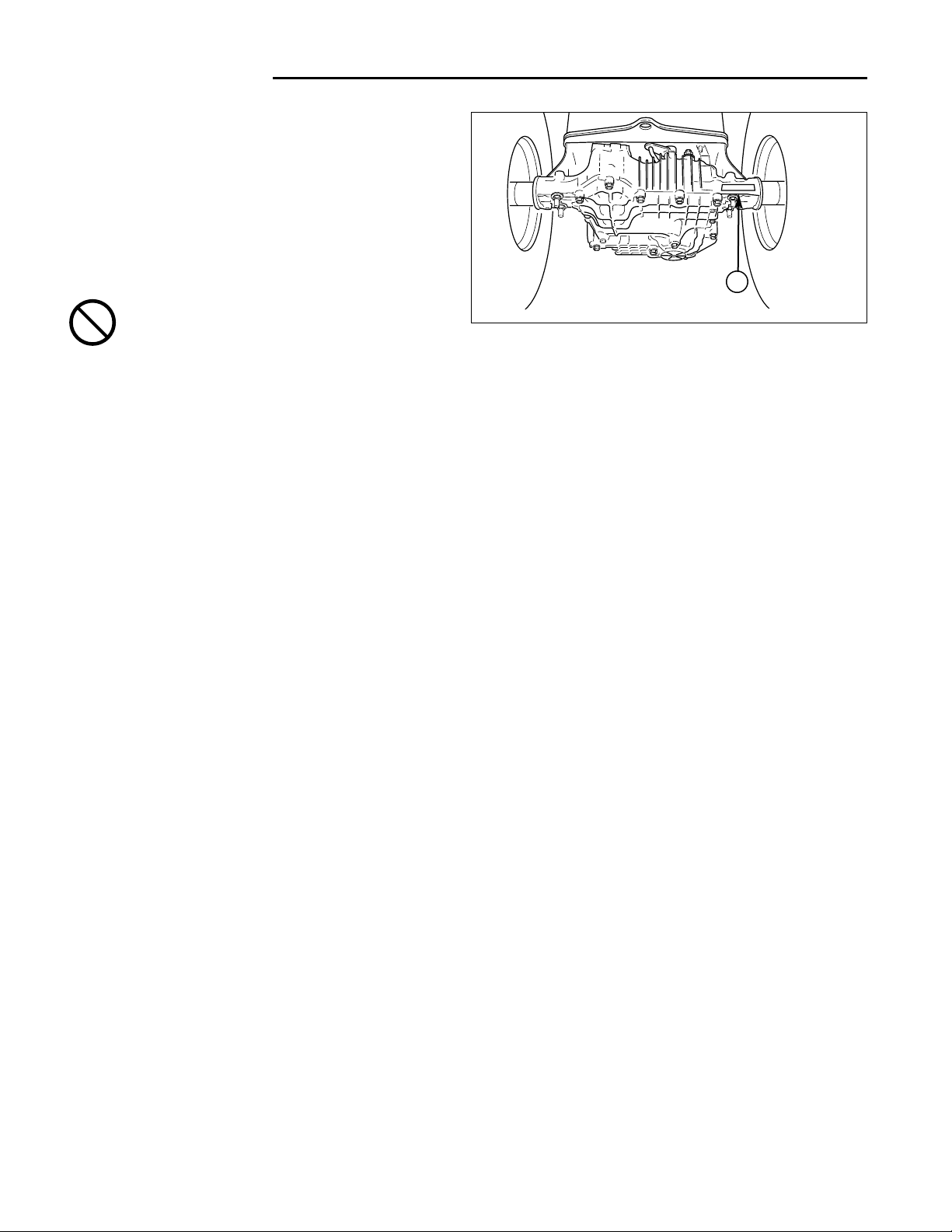

Transmission Identification ...................................30
Transmission Maintenance...................................30
Troubleshooting, Adjustment & Service....32
Troubleshooting the Tractor..................................32
Troubleshooting the Mower ..................................33
Battery Charging...................................................34
Seat Adjustment....................................................34
Steering Wheel Adjustment ..................................35
Steering Gear Adjustment.....................................35
Brake Adjustment..................................................35
PTO Clutch Adjustment ........................................36
Mower Adjustments ..............................................37
Gauge Wheels (Select Models) ....................37
Transport Height & Ground
Following Adjustment (Select Models)..........37
Leveling the Mower.......................................38
Mower Belt Replacement......................................39
44” & 50” PTO Belt Replacement .................39
44” & 50” Arbor Drive Belt Replacement.......40
40” Mower PTO Belt Replacement ...............41
40” Mower Arbor Drive Belt Replacement ....42
38” Mower Drive Belt Replacement ..............43
Specifications....................................................44
Parts & Accessories..........................................45
NOTE: In this manual, “left” and “right” are referred to as
seen from the operating position.
Safety Rules & Information.................................2
Identification Numbers........................................7
Safety Decals.......................................................8
Safety Icons .........................................................9
Features & Controls..........................................10
Control Functions..................................................10
Parking Brake Function.........................................12
Hourmeter.............................................................13
12 Volt Power Adapter..........................................13
Automatic Controlled Traction...............................12
Operating the Tractor........................................13
Safety Interlock System ........................................13
General Operating Safety .....................................13
Adding Fuel...........................................................13
Starting the Engine ...............................................14
Stopping the Tractor & Engine..............................14
Driving the Tractor ................................................14
Mowing..................................................................14
Mowing in Reverse ...............................................15
Attachment Operation in Reverse.........................15
Pushing the Tractor by Hand ................................15
Adjusting Mower Cutting Height -
38” 44” 50” Decks .................................................16
Adjusting Mower Cutting Height - 40” Decks ........16
Lift Variations When Using Attachments...............17
Attaching a Trailer.................................................17
Mower Deck Removal & Installation .....................18
Storage .................................................................20
Lawn Care & Mowing Information....................21

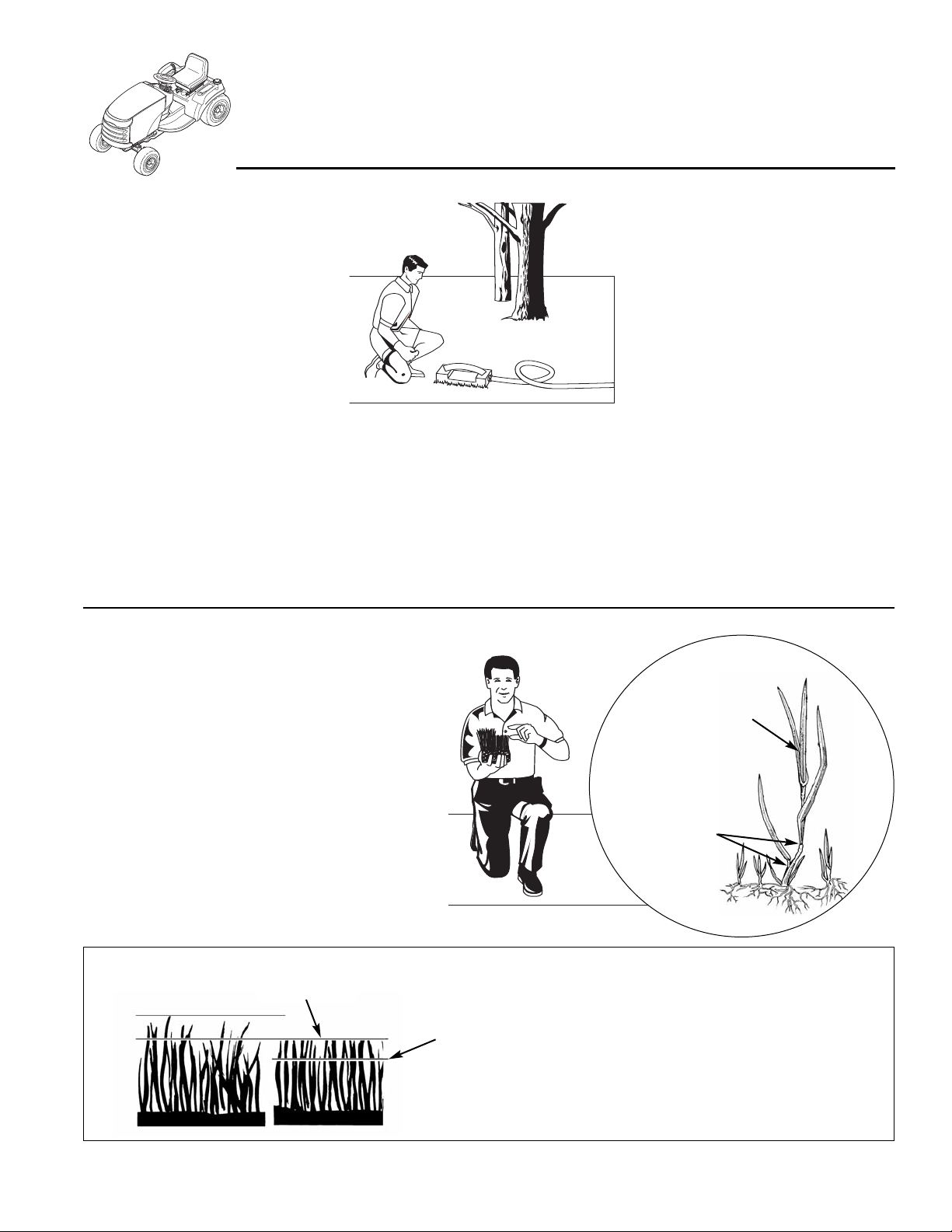

How and When to Water Fertilize & Aerate ..........21
How High to Mow the Grass .................................21
When and How Often to Mow...............................22
Proper Mowing Speed ..........................................22
Using a Mulching Mower.......................................23
Benefits of Proper Mulching..................................23
Limitations of Mulching Decks ..............................23
Correct ground Speed & Engine Speed................23
Correct Cutting Height ..........................................23
Using the Side Discharge Deflector......................23
Table of Contents
2
Safety Rules & Information
TP 600-2459-08-UV-SMA
Operating Safety
Congratulations on purchasing a superior-quality piece of lawn and
garden equipment. Our products are designed and manufactured to
meet or exceed all industry standards for safety.
Power equipment is only as safe as the operator. If it is misused, or
not properly maintained, it can be dangerous! Remember, you are
responsible for your safety and that of those around you.
Use common sense, and think through what you are doing. If you
are not sure that the task you are about to perform can be safely
done with the equipment you have chosen, ask a
professional: contact your local authorized dealer.
Read the Manual
The operator’s manual contains important safety information you need to be aware of
BEFORE you operate your unit as well as DURING operation.
Safe operating techniques, an explanation of the product’s features and
controls, and maintenance information is included to help you get the
most out of your equipment investment.
Be sure to completely read the Safety Rules and Information found on
the following pages. Also completely read the Operation section.
Children
Tragic accidents can occur with children. Do not allow
them anywhere near the area of operation. Children are
often attracted to the unit and mowing activity. Never
assume that children will remain where you last saw them.
If there is a risk that children may enter the area where you
are mowing, have another responsible adult watch them.
DO NOT GIVE CHILDREN RIDES ON THIS UNIT! This
encourages them to come near the unit in the future while it
is running, and they could be seriously hurt. They may then
approach the unit for a ride when you are not expecting it,
and you may run over them.
Reverse
Do not mow in reverse unless
absolutely necessary. Always look
down and behind before and
while traveling in reverse
even with the mower
blades disengaged.
3
Safety Rules and Information
Slope Operation
You could be seriously injured or even killed if you use this unit on too
steep an incline. Using the unit on a slope that is too steep or where
you don’t have adequate traction can cause you to lose control or roll
over.
A good rule of thumb is to not operate on any slope you cannot back up
(in 2-wheel drive mode). You should not operate on inclines with a
slope greater than a 3.5 foot rise over a 20 foot length. Always drive up
and down slopes: never cross the face.
Also note that the surface you are driving on can greatly impact stability
and control. Wet grass or icy pavement can seriously affect your ability
to control the unit.
If you feel unsure about operating the unit on an incline, don’t do it. It’s
not worth the risk.
Moving Parts
This equipment has many moving parts that can injure you or someone else.
However, if you are seated in the seat properly, and follow all the rules in this
book, the unit is safe to operate.
The mower deck has spinning mower blades that can amputate hands and feet.
Do not allow anyone near the equipment while it is running!
To help you, the operator, use this equipment safely, it is equipped with an
operator-present safety system. Do NOT attempt to alter or bypass the system.
See your dealer immediately if the system does not pass all the safety interlock
system tests found in this manual.
Thrown Objects
This unit has spinning mower blades. These blades can pick up and throw
debris that could seriously injure a bystander. Be sure to clean up the area to
be mowed BEFORE you start mowing.
Do not operate this unit without the entire grass catcher or discharge guard
(deflector) in place.
Also, do not allow anyone in the area while the unit is running! If someone
does enter the area, shut the unit off immediately until they leave.
Fuel and Maintenance
Gasoline is extremely flammable. Its vapors are also extremely flammable
and can travel to distant ignition sources. Gasoline must only be used as a
fuel, not as a solvent or cleaner. It should never be stored any place where
its vapors can build up or travel to an ignition source like a pilot light. Fuel
belongs in an approved, plastic, sealed gas can, or in the tractor fuel tank
with the cap securely closed. Spilled fuel needs to be cleaned up
immediately.
Proper maintenance is critical to the safety and performance of your unit.
Be sure to perform the maintenance procedures listed in this manual,
especially periodically testing the safety system.
4
Safety Rules & Information
GENERAL OPERATION
1. Read, understand, and follow all instructions in the
manual and on the unit before starting.
2. Do not put hands or feet near rotating parts or under
the machine. Keep clear of the discharge opening at
all times.
3. Only allow responsible adults, who are familiar with
the instructions, to operate the unit (local regulations
can restrict operator age).
4. Clear the area of objects such as rocks, toys, wire,
etc., which could be picked up and thrown by the
blade(s).
5. Be sure the area is clear of other people before
mowing. Stop the unit if anyone enters the area.
6. Never carry passengers.
7. Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while
travelling in reverse.
8. Never direct discharge material toward anyone.
Avoid discharging material against a wall or
obstruction. Material may ricochet back toward the
operator. Stop the blade(s) when crossing gravel
surfaces.
9. Do not operate the machine without the entire grass
catcher, discharge guard (deflector), or other safety
devices in place.
10.Slow down before turning.
11.Never leave a running unit unattended. Always
disengage the PTO, set parking brake, stop engine,
and remove keys before dismounting.
12.Disengage blades (PTO) when not mowing. Shut off
engine and wait for all parts to come to a complete
stop before cleaning the machine, removing the grass
catcher, or unclogging the discharge guard.
13.Operate the machine only in daylight or good artificial
light.
14.Do not operate the unit while under the influence of
alcohol or drugs.
15 Watch for traffic when operating near or crossing
roadways.
16.Use extra care when loading or unloading the unit
into a trailer or truck.
17.Always wear eye protection when operating this unit.
18.Data indicates that operators, age 60 years and
above, are involved in a large percentage of power
equipment-related injuries. These operators should
evaluate their ability to operate the equipment safely
enough to protect themselves and others from injury.
19.Follow the manufacturer’s recommendations for
wheel weights or counterweights.
20.Keep in mind the operator is responsible for accidents
occurring to other people or property.
21.All drivers should seek and obtain professional and
practical instruction.
22.Always wear substantial footwear and trousers.
Never operate when barefoot or wearing sandals.
23.Before using, always visually check that the blades
and blade hardware are present, intact, and secure.
Replace worn or damaged parts.
24.Disengage attachments before: refueling, removing
an attachment, making adjustments (unless the
adjustment can be made from the operator’s
position).
25.When the machine is parked, stored, or left
unattended, lower the cutting means unless a positive
mechanical lock is used.
26.Before leaving the operator’s position for any reason,
engage the parking brake (if equipped), disengage
the PTO, stop the engine, and remove the key.
27.To reduce fire hazard, keep the unit free of grass,
leaves, & excess oil. Do not stop or park over dry
leaves, grass, or combustible materials.
28.It is a violation of California Public Resource Code
Section 4442 to use or operate the engine on or near
any forest-covered, brush-covered, or grass-covered
land unless the exhaust system is equipped with a
spark arrester meeting any applicable local or state
laws. Other states or federal areas may have similar
laws.
Read these safety rules and follow them closely. Failure to obey these rules could result in loss of control
of unit, severe personal injury or death to you, or bystanders, or damage to property or equipment.
This mowing deck is capable of amputating hands and feet and throwing objects.
The triangle in text signifies important cautions or warnings which must be followed.
TRANSPORTING AND STORAGE
1. When transporting the unit on an open trailer, make
sure it is facing forward, in the direction of travel. If
the unit is facing backwards, wind lift could damage
the unit.
2. Always observe safe refueling and fuel handling
practices when refueling the unit after transportation
or storage.
3. Never store the unit (with fuel) in an enclosed poorly
ventilated structure. Fuel vapors can travel to an
ignition source (such as a furnace, water heater, etc.)
and cause an explosion. Fuel vapor is also toxic to
humans and animals.
4. Always follow the engine manual instructions for
storage preparations before storing the unit for both
short and long term periods.
5. Always follow the engine manual instructions for
proper start-up procedures when returning the unit to
service.
6. Never store the unit or fuel container inside where
there is an open flame or pilot light, such as in a
water heater. Allow unit to cool before storing.
5
Safety Rules and Information
CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children. Children are often attracted to the
unit and the mowing activity. Never assume that children
will remain where you last saw them.
1. Keep children out of the mowing area and under the
watchful care of another responsible adult.
2. Be alert and turn unit off if children enter the area.
3. Before and during reverse operation, look behind and
down for small children.
4. Never carry children, even with the blade(s) off. They
may fall off and be seriously injured or interfere with
safe unit operation. Children who have been given
rides in the past may suddenly appear in the mowing
area for another ride and be run over or backed over
by the machine.
5. Never allow children to operate the unit.
6. Use extra care when approaching blind corners,
shrubs, trees, or other objects that may obscure
vision.
EMISSIONS
1. Engine exhaust from this product contains chemicals
known, in certain quantities, to cause cancer, birth
defects, or other reproductive harm.
2. Look for the relevant Emissions Durability Period and
Air Index information on the engine emissions label.
IGNITION SYSTEM
1. This spark ignition system complies with Canadian
ICES-002.
SLOPE OPERATION
Slopes are a major factor related to loss-of-control and tipover accidents, which can result in severe injury or death.
Operation on all slopes requires extra caution. If you
cannot back up the slope or if you feel uneasy on it, do not
operate on it.
Control of a walk-behind or ride-on machine sliding on a
slope will not be regained by the application of the brake.
The main reasons for loss of control are: insufficient tire
grip on the ground, speed too fast, inadequate braking, the
type of machine is unsuitable for its task, lack of awareness
of the ground conditions, incorrect hitching and load
distribution.
1. Mow up and down slopes, not across.
2. Watch for holes, ruts, or bumps. Uneven terrain could
overturn the unit. Tall grass can hide obstacles.
3. Choose a slow speed so that you will not have to
stop or change speeds while on the slope.
4. Do not mow on wet grass. Tires may loose traction.
5. Always keep unit in gear especially when traveling
down slopes. Do not shift to neutral and coast
downhill.
6. Avoid starting, stopping, or turning on a slope. If tires
lose traction, disengage the blade(s) and proceed
slowly straight down the slope.
7. Keep all movement on slopes slow and gradual. Do
not make sudden changes in speed or direction,
which could cause the machine to rollover.
8. Use extra care while operating machines with grass
catchers or other attachments; they can affect the
stability of the unit. Do not use on steeps slopes.
9. Do not try to stabilize the machine by putting your
foot on the ground (ride-on units).
10.Do not mow near drop-offs, ditches, or
embankments. The mower could suddenly turn over
if a wheel is over the edge of a cliff or ditch, or if an
edge caves in.
11.Do not use grass catchers on steep slopes.
12.Do not mow slopes you cannot back up them.
13.See your authorized dealer/retailer for
recommendations of wheel weights or
counterweights to improve stability.
14.Remove obstacles such as rocks, tree limbs, etc.
15.Use slow speed. Tires may lose traction on slopes
even through the brakes are functioning properly.
16.Do not turn on slopes unless necessary, and then,
turn slowly and gradually downhill, if possible.
TOWED EQUIPMENT (RIDE-ON UNITS)
1. Tow only with a machine that has a hitch designed
for towing. Do not attach towed equipment except at
the hitch point.
2. Follow the manufacturer’s recommendations for
weight limit for towed equipment and towing on
slopes.
3. Never allow children or others in or on towed
equipment.
4. On slopes, the weight of the towed equipment may
cause loss of traction and loss of control.
5. Travel slowly and allow extra distance to stop.
6. Do not shift to neutral and coast down hill.
WARNING
Never operate on slopes greater than 17.6 percent
(10°) which is a rise of 3-1/2 feet (106 cm) vertically in
20 feet (607 cm) horizontally.
When operating on slopes use additional wheel
weights or counterweights. See your dealer/retailer
to determine which weights are available and
appropriate for your unit.
Select slow ground speed before driving onto slope.
In addition to front weights, use extra caution when
operating on slopes with rear-mounted grass
catchers.
Mow UP and DOWN the slope, never across the
face, use caution when changing directions and DO
NOT START OR STOP ON SLOPE.
6
Safety Rules & Information
SERVICE AND MAINTENANCE
Safe Handling of Gasoline
1. Extinguish all cigarettes, cigars, pipes, and other
sources of ignition.
2. Use only approved gasoline containers.
3. Never remove the gas cap or add fuel with the engine
running. Allow the engine to cool before refueling.
4. Never fuel the machine indoors.
5. Never store the machine or fuel container where
there is an open flame, spark, or pilot light such as
near a water heater or other appliance.
6. Never fill containers inside a vehicle or on a truck bed
with a plastic bed liner. Always place containers on
the ground away from your vehicle before filling.
7. Remove gas-powered equipment from the truck or
trailer and refuel it on the ground. If this is not
possible, then refuel such equipment on a trailer with
a portable container, rather than from a gasoline
dispenser nozzle.
8. Keep nozzle in contact with the rim of the fuel tank or
container opening at all times until fueling is
complete. Do not use a nozzle lock-open device.
9. If fuel is spilled on clothing, change clothing
immediately.
10.Never over-fill the fuel tank. Replace gas cap and
tighten securely.
11.Use extra care in handling gasoline and other fuels.
They are flammable and vapors are explosive.
12.If fuel is spilled, do not attempt to start the engine but
move the machine away from the area of spillage and
avoid creating any source of ignition until fuel vapors
have dissipated.
13.Replace all fuel tank caps and fuel container caps
securely.
Service & Maintenance
1. Never run the unit in an enclosed area where carbon
monoxide fumes may collect.
2. Keep nuts and bolts, especially blade attachment
bolts, tight and keep equipment in good condition.
3. Never tamper with safety devices. Check their proper
operation regularly and make necessary repairs if
they are not functioning properly.
4. Keep unit free of grass, leaves, or other debris buildup. Clean up oil or fuel spillage. and remove any fuelsoaked debris. Allow machine to cool before storage.
5. If you strike an object, stop and inspect the machine.
Repair, if necessary, before restarting.
6. Never make adjustments or repairs with the engine
running.
7. Check grass catcher components and the discharge
guard frequently and replace with manufacturer’s
recommended parts, when necessary.
8. Mower blades are sharp. Wrap the blade or wear
gloves, and use extra caution when servicing them.
9. Check brake operation frequently. Adjust and service
as required.
10.Maintain or replace safety and instructions labels, as
necessary.
11.Do not remove the fuel filter when the engine is hot
as spilled gasoline may ignite. Do not spread fuel line
clamps further than necessary. Ensure clamps grip
hoses firmly over the filter after installation.
12.Do not use gasoline containing METHANOL, gasohol
containing more than 10% ETHANOL, gasoline
additives, or white gas because engine/fuel system
damage could result.
13.If the fuel tank must be drained, it should be drained
outdoors.
14.Replace faulty silencers/mufflers.
15.Maintain or replace safety and instruction labels as
necessary.
16.Use only factory authorized replacement parts when
making repairs.
17.Always comply with factory specifications on all
settings and adjustments.
18.Only authorized service locations should be utilized
for major service and repair requirements.
19.Never attempt to make major repairs on this unit
unless you have been properly trained. Improper
service procedures can result in hazardous operation,
equipment damage and voiding of manufacturer’s
warranty.
20.On multiple blade mowers, take care as rotating one
blade can cause other blades to rotate.
21.Do not change engine governor settings or overspeed the engine. Operating the engine at excessive
speed can increase the hazard of personal injury.
22.Disengage drive attachments, stop the engine,
remove the key, and disconnect the spark plug
wire(s) before: clearing attachment blockages and
chutes, performing service work, striking an object, or
if the unit vibrates abnormally. After striking an
object, inspect the machine for damage and make
repairs before restarting and operating the
equipment.
23.Never place hands near the moving parts, such as a
hydro pump cooling fan, when the tractor is running.
(Hydro pump cooling fans are typically located on top
of the transaxle).
24.Units with hydraulic pumps, hoses, or motors:
WARNING: Hydraulic fluid escaping under pressure
may have sufficient force to penetrate skin and cause
serious injury. If foreign fluid is injected into the skin it
must be surgically removed within a few hours by a
doctor familiar with this form of injury or gangrene
may result. Keep body and hands away from pin
holes or nozzles that eject hydraulic fluid under high
pressure. Use paper or cardboard, and not hands, to
search for leaks. Make sure all hydraulic fluid
connections are tight and all hydraulic hoses and
lines are in good condition before applying pressure
to the system. If leaks occur, have the unit serviced
immediately by your authorized dealer.
25.WARNING: Stored energy device. Improper release
of springs can result in serious personal injury.
Springs should be removed by an authorized
technician.
26.Models equipped with an engine radiator: WARNING:
Stored energy device. To prevent serious bodily
injury from hot coolant or steam blow-out, never
attempt to remove the radiator cap while the engine is
running. Stop the engine and wait until it is cool.
Even then, use extreme care when removing the cap.
7
Identification Numbers
Tractor ID Tag
Mower ID Tag
ENGINE REFERENCE DATA
Model Description Name/Number
Unit MFG
Number
PRODUCT REFERENCE DATA
Unit SERIAL Number
Dealer Name
Date Purchased
Engine Make
Engine Type/Spec
Engine Model
Engine Code/Serial Number
Mower Deck MFG Number
Mower Deck SERIAL
Number
When contacting your authorized dealer for
replacement parts, service, or information you MUST
have these numbers.
Record your model name/number, manufacturer’s
identification numbers, and engine serial numbers in the
space provided for easy access. These numbers can be
found in the locations shown.
NOTE: For location of engine identification numbers,
refer to the engine owner’s manual.
CE Models: Place the extra copy of the identification tag
in the manual
SAMPLE
SAMPLE
North American /
CE Models
CE Models
(Only)
CE Identification Tag Markings
A. Manufacturer’s Identification Number
B. Manufacturer’s Serial Number
C. Power Rating in Kilowatts
D. Maximum Engine Speed in Rotations per Minute
E. Manufacturer’s Address
F. Year of Manufacture
G. CE Compliance Logo
H. Mass of Unit in Kilograms
I. Sound Power in Decibels ***
J. Sound Pressure at Operator’s Position in Decibels **
K. Vibration at the Steering Wheel *
L. Vibration at the Seat *
This unit complies with European Harmonized Lawn Mower
Standard EN 836, European Machinery Directive 98/37/EC,
and European EMC Directive 89/336/EC
* Tested according to EN 836:1997/A2:2001, EN 1032:
1996, EN 1033:1995
** Tested according to EN836:1997/A2:2001
*** Tested according to 2000/14/EC
A
B
C
D
J
K
E
F
G
H
I
CE Models:
Place copy of
Identification Tag here.
L
8
Safety Decals
Safety Decals
This unit has been designed and manufactured to
provide you with the safety and reliability you would
expect from an industry leader in outdoor power
equipment manufacturing.
Although reading this manual and the safety instructions
it contains will provide you with the necessary basic
knowledge to operate this equipment safely and
effectively, we have placed several safety labels on the
unit to remind you of this important information while you
are operating your unit.
All DANGER, WARNING, CAUTION and instructional
messages on your rider and mower should be carefully
read and obeyed. Personal bodily injury can result when
these instructions are not followed. The information is for
your safety and it is important! The safety decals below
are on your rider and mower.
If any of these decals are lost or damaged, replace them
at once. See your local dealer for replacements.
These labels are easily applied and will act as a constant
visual reminder to you, and others who may use the
equipment, to follow the safety instructions necessary for
safe, effective operation.
DANGER
Amputation Hazard
1704276
To avoid injury from rotating
blades, stay clear of deck edge.
DANGER
Amputation and
Thrown Objects Hazard
1704277
To avoid injury from rotating blades and
thrown debris, stay clear of deck edge
and discharge. Do not mow without
deflector or entire grass catcher in place.
Decal - Danger, SideDischarge Models
Part No. 1704276
Amputation Hazard
To avoid injury from rotating
blades, stay clear of deck edge.
DANGER
1720660
Decal - Danger, Mulching Models
Part No. 1720660
Decal - Danger, Side
Discharge Models
Part No. 1704277
Decal - Transmission Release
Part No. 1723160
Decal - Ignition Switch
Positions
Part No. 1722806
Decal - Operating Instructions, North American
Models, Part No. 1726923
DANGER
OPERATING ON SLOPES
CAN BE DANGEROUS
SEE OPERATOR'S MANUAL. IF YOU
CANNOT BACK-UP A HILL, DO NOT
DRIVE ON IT.
ROTATING BLADES CUT
OFF ARMS AND LEGS
RMO™ System:
STOP MOWER WHEN CHILDREN
ARE NEAR.
NO RIDERS — THEY FALL OFF.
This product is equipped with
the RMO system. Refer to the
operator's manual for a full
explanation of the RMO
system and for important
safety messages.
DANGER
AVOID SERIOUS INJURY OR DEATH
• READ OPERATOR'S MANUAL(S).
• KNOW LOCATION AND FUNCTION OF ALL CONTROLS.
• KEEP SAFETY DEVICES (GUARDS, SHIELDS, SWITCHES, ETC.)
IN PLACE AND WORKING.
• REMOVE OBJECTS THAT COULD BE THROWN BY THE BLADE.
• DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.
• NEVER CARRY CHILDREN EVEN WITH BLADES OFF.
• LOOK DOWN AND BEHIND BEFORE AND WHILE BACKING.
• AVOID SUDDEN TURNS.
• IF YOU CANNOT BACK UP A HILL, DO NOT OPERATE ON IT.
• GO UP AND DOWN SLOPES, NOT ACROSS.
• IF MACHINE STOPS GOING UPHILL, STOP BLADE AND
BACK DOWN SLOWLY.
• BE SURE BLADE(S) AND ENGINE ARE STOPPED BEFORE
PLACING HANDS OR FEET NEAR BLADE(S).
• WHEN LEAVING MACHINE, SHUT OFF ENGINE, REMOVE KEY,
AND SET PARKING BRAKE.
WARNING
1726923
DO NOT TOW TRACTOR! DAMAGE MAY RESULT TO TRANSMISSION.
Decal - Operating Instructions, CE Models,
Part No. 1723175
1723175
North American Models
All Models
CE Models
Decal - Danger, Rotating Blades
Part No. 1720389
Decal - Cutting
Height
Part No. 1723470
1723470
Decal - Cutting
Height
Part No. 1723847
1723847
9
CE Safety Icons
Warning: Read Operator’s
Manual.
Read and understand the
Operator’s Manual before using
this machine.
Danger: Thrown Objects.
This machine is capable of throwing
objects and debris. Keep
bystanders away.
Warning: Remove Key Before
Servicing.
Remove the key and consult
technical literature before
performing repairs or maintenance.
Danger: Machine Rollover.
Do not use this machine on slopes
greater than 10°.
Danger: Dismemberment.
This machine can amputate limbs.
Keep bystanders and children away
when engine is running.
Danger: Dismemberment.
This mower deck can amputate
limbs. Keep hands and feet away
from blades.
Safety Icons
10
Features & Controls
Throttle Control
The throttle controls engine speed. Move the throttle
forward to increase engine speed and back to decrease
engine speed. Always operate at FULL throttle.
Choke
Close the choke for cold starting. Open the choke once
the engine starts. A warm engine may not require
choking. Move the lever forward to close the choke.
Headlights
The light switch turns the tractor headlights on and off.
Reverse Mowing Option (RMO)
The Reverse Mowing Option allows for mowing (or use
of other PTO driven attachments) while traveling in
reverse. If you choose to mow or operate another
attachment in reverse, turn the RMO key after the PTO is
engaged. The L.E.D. light will illuminate, and the
operator can then mow in reverse. Each time the PTO is
disengaged the RMO needs to be reactivated if desired.
Control Functions
The information below briefly describes the function of individual controls. Starting, stopping, driving, and mowing
require the combined use of several controls applied in specific sequences. To learn what combination and
sequence of controls to use for various tasks see the OPERATION section.
Figure 1. Controls
38”, 44”,
& 50” Models
40” Models
12V
PTO Switch
The PTO (Power Take-Off) switch engages and
disengages attachments that use the PTO. To engage
the PTO, pull UP on the switch. Push DOWN to
disengage.
Note that the operator must be seated firmly
in the tractor seat for the PTO to function.
Ignition Switch
The ignition switch starts and stops the engine, it has
three positions:
OFF Stops the engine and shuts off the
electrical system.
RUN Allows the engine to run and powers the
electrical system.
START Cranks the engine for starting.
NOTE: Never leave the ignition switch in the RUN
position with the engine stopped–this drains the battery.
Brake Pedal
Depressing the brake pedal applies the tractor brake.
Ground Speed Pedals
The tractor’s forward ground speed is controlled by the
forward ground speed control pedal. The tractor’s
reverse ground speed is controlled by the reverse
ground speed control pedal.
Depressing either pedal will increase ground speed.
Note that the further down the pedal is depressed, the
faster the tractor will travel.
Parking Brake
The parking brake knob is used to lock the parking brake
when the tractor is stopped. Fully depressing the brake
pedal and pulling up on the knob engages the parking
brake. Refer to page 10 for a full explanation of parking
brake functions.
Mower Height of Cut Adjustment
38”, 44” & 50” MOWER DECKS
The cutting height adjustment knob controls the mower
cutting height. The cutting height is infinitely adjustable
between 1” and 3-5/8.”
40” MOWER DECKS
The cutting height adjustment lever controls the mower
cutting height. Push down on the button to release the
lever, move to the desired cutting height, and release the
button to lock. The cutting height is infinitely adjustable
between 1” and 3-5/8.”
11
Features & Controls
Cutting Height Fine Tuning Adjustment
(40” Mower Decks Only)
The cutting height fine tuning adjustment is used to set
the mower cutting height between two of the preset
cutting positions.
Attachment Lift Control Lever
When using the mower deck, lift the deck off the ground
while transporting to and from the job site. DO NOT cut
with the mower in the raised, transport position.
The attachment lift control lever raises and lowers
attachments that utilize the tractor’s manual lift linkage.
To lower an attachment: pull the lever back slightly,
depress the release button, and push the lever forward
until it locks in the lowered position. To raise an
attachment: push the lever forward slightly, depress the
release button, then pull the lever back until it locks in
the raised position.
Cruise Control (Select Models)
The cruise control is used to lock the ground speed
control in forward. Move the lever forward until the
desired ground speed is reached. To disengage the
cruise control move the lever back. In the event you
need to stop quickly, depressing the brake pedal will also
return the cruise control to neutral.
Seat Adjustment Lever
The seat can be adjusted forward and back. Move the
lever, position the seat as desired, and release the lever
to lock the seat into position.

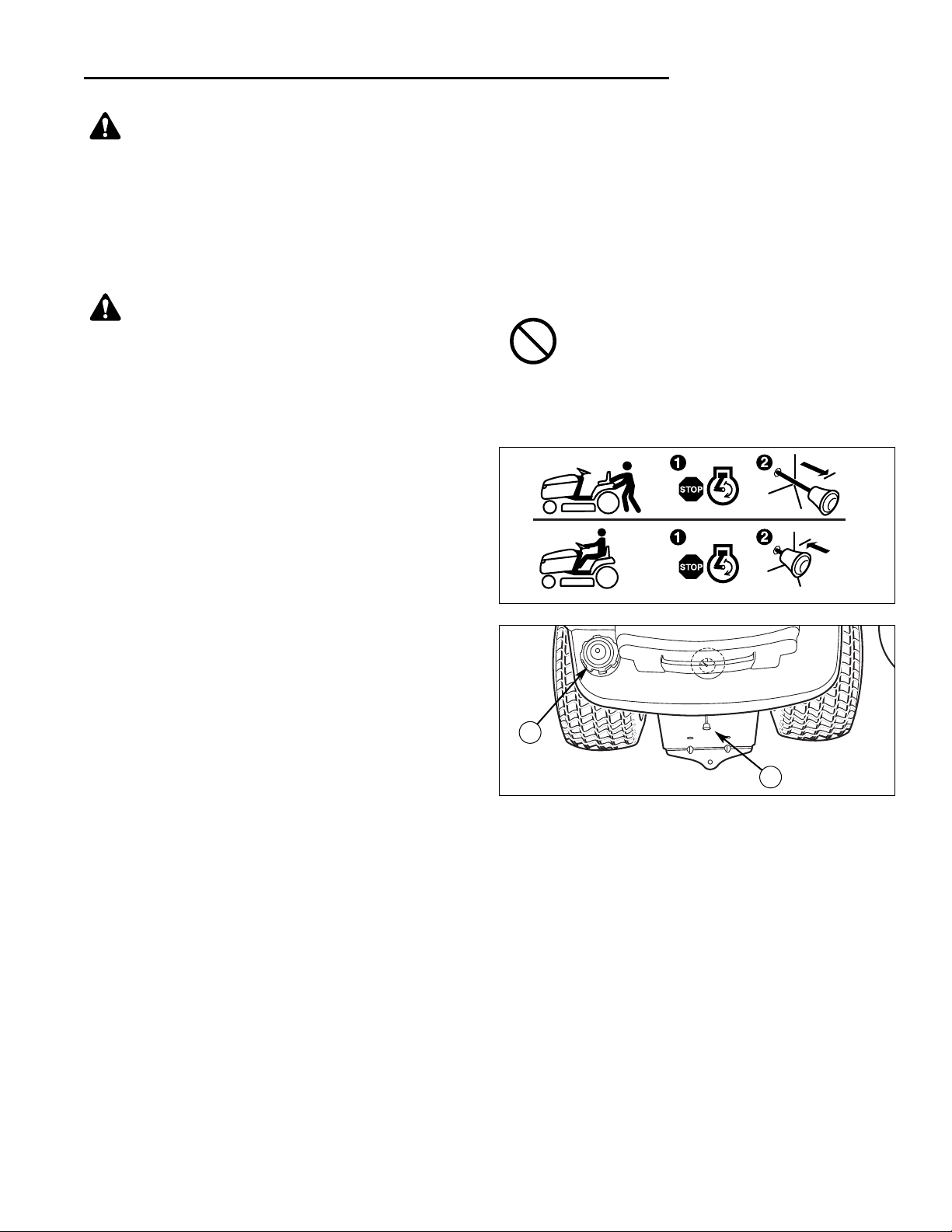

Transmission Release Valve Lever
The transmission release valve lever deactivates the
transmission so that the tractor can be pushed by hand.
See PUSHING THE TRACTOR BY HAND for
operational information.
Fuel Tank
To remove the cap, turn counterclockwise. On models
with a dashboard display, the fuel gauge is part of the
dashboard. Models without a dashboard display have a
fuel gauge located under the seat.
Power Outlet (Select Models)
The power outlet is 12V-DC. Accessory must be rated at
14 amps or less.
12V
12
Features & Controls
Figure 2. Engaging the Parking Brake
A. Ground Speed Pedals
B. Brake Pedal
C. Parking Brake Knob
Parking Brake Function
Applying the Parking Brake - See Figure 2. To lock
the parking brake, release the ground speed pedals (A),
fully depress the brake pedal (B), pull UP on the parking
brake knob (C), and then release brake pedal.
Releasing the Parking Brake - See Figure 2. To
release the parking brake, fully depress the brake pedal
(B) and push the parking brake knob (C) DOWN.
Hourmeter
The hour meter measures the number of hours the key
has been in the RUN position. The hour meter will flash
an initial oil change indicator at 5 hours, and a lubrication
reminder every 50 hours. These reminders display for
approximately two hours and will automatically reset
themselves.
Note: The hour meter will register the passage of time
when the key is in the RUN position, even if the engine is
not running. The hour meter has a self contained power
source so the total hours are always visible.
1/10
HOURS
B
Figure 3. Hourmeter - Select Models
Automatic Controlled Traction
What is Automatic Controlled Traction?
Automatic Controlled Traction (ACT) is an exclusive
feature of our transmissions that provides improved
traction. ACT applies a preset amount of torque to both
rear wheels even if one starts slipping (a transmission
without ACT will lose traction completely if one rear
wheel starts slipping). This preset torque is just enough
to provide additional traction, and still allow the wheels to
turn at different speeds in a tight turn without damaging
the lawn.
A
B
C
12 Volt Power Outlet
(Select Models)
The 12-volt accessory plug is located in the left side pod
(D, Figure 1). It can be used to power small electronic
devices. The accessory must be rated at 9 amps or less.
Note: Operating a 12-volt accessory, especially with the
engine at idle, may cause battery discharge. When not
using the accessory plug it must be covered with the
rubber plug to prevent moisture from causing a short
circuit. Entrance of water into plug can cause a short
circuit.
CAUTION
Avoid Injury. Safe operation requires your full
attention. Do not wear radio or music headphones
while operating machine.
What to Expect from Your ACT Tractor
For the most part, while using your tractor you will not
notice ACT working, and you will simply become
accustomed to increased traction an ACT transmission
provides.
Under certain circumstances the ACT system limit can
be exceeded, and one of the rear wheels may slip (for
instance if trying to turn up a hill while accelerating).
This is normal. If you start to lose traction, do not speed
up. Instead, slow to a stop, straighten the steering
wheel, and slowly accelerate. Stopping the tractor
allows the transmission to regain more traction.
13
Operating the Tractor
Safety Interlock System
Tests
This unit is equipped with safety interlock switches and other
safety devices. These safety systems are present for your
safety: do not attempt to bypass safety switches, and never
tamper with safety devices. Check their operation regularly.
Operational SAFETY Checks
Your unit is equipped with a seat switch safety system.
Check the seat switch operation every fall and spring with the
following tests.
Test 1 — Engine should NOT crank if:
• PTO switch is ON, OR
• Brake pedal is NOT fully depressed (parking brake OFF),
OR
• The cruise control lever is NOT in NEUTRAL.
Test 2 — Engine SHOULD crank if:
• PTO switch is OFF, AND
• Brake pedal is fully depressed (parking brake ON), AND
• The cruise control lever is in NEUTRAL.
Test 3 — Engine should SHUT OFF if:
• Operator rises off seat with PTO engaged, OR
• Operator rises off seat with brake pedal NOT fully
depressed (parking brake OFF).
Test 4 — Blade Brake Check
Mower blades and mower drive belt should come to a
complete stop within five seconds after electric PTO switch is
turned OFF (or operator rises off seat). If mower drive belt
does not stop within five seconds, readjust the PTO clutch as
described in the ADJUSTMENTS section or see your dealer.
Test 5 — Reverse Mow Option (RMO) Check
• Engine should shut off if reverse travel is attempted if the
PTO has been switched on and RMO has not been
activated.
• RMO light should illuminate when RMO has been
activated.
NOTE: Once the engine has stopped, the PTO switch must
be turned off after the operator returns to the seat in order to
start the engine.
WARNING
If the unit does not pass a safety test, do not
operate it. See your authorized dealer. Under no
circumstance should you attempt to defeat the
purpose of the safety interlock system.
General Operating Safety
Be sure to read all information in the Safety and
Operation sections before attempting to operate this unit.
Become familiar with all of the controls and how to stop
the unit.
Adding Fuel
To add fuel:
1. Remove the fuel cap (A, Figure 4).
2. Fill the tank. Do not overfill. Leave room in the tank
for fuel expansion. Refer to your engine manual for
specific fuel recommendations.
3. Install and hand tighten the fuel cap.
WARNING
Gasoline is highly flammable and must be
handled with care. Never fill the tank when the
engine is still hot from recent operation. Do not
allow open flame, smoking or matches in the
area. Avoid over-filling and wipe up any spills.
Do not use gasoline containing METHANOL,
gasohol containing more than
10% ETHANOL, gasoline additives, or white
gas because engine/fuel system damage
could result.
Loading...
