Simplicity 2WD User Manual

Parts Manual

Not for

Reproduction

Conquest / 1700 / 2700

2WD Series Garden Tractors & Mower Decks

23HP Product

Mfg. No. Description

1694818 1723H, 23HP Hydro RMO 1694819 Conquest, 23HP Hydro RMO 1694820 2723H, 23HP Hydro RMO 1695153 Conquest, 23HP Kohler Hydro RMO 1695154 1723H, 23HP B&S Hydro w/PS RMO 1695155 2723H, 23HP B&S Hydro w/PS RMO 1695226 Conquest, 23HP B&S Hydro (CE/Export) 2690745 Conquest, 23HP Hydro 2WD w/PS and 50" Mower Deck 2690746 Conquest, 23HP Hydro 2WD RMO and 50" Mower Deck 2690747 Conquest, 23HP Hydro 2WD RMO and 44" Mower Deck 2690748 1723H, 23HP Hydro 2WD RMO and 50" Mower Deck 2690749 1723H, 23HP Hydro 2WD w/PS RMO and 50" Mower Deck 2690750 2723H, 23HP Hydro 2WD RMO and 50" Mower Deck 2690751 2723H, 23HP Hydro 2WD w/PS RMO and 50" Mower Deck 2690753 Conquest, 23HP 2WD RMO and 44" Mower Deck

2690799 Conquest, 23HP Hydro and 54" Mower Deck (CE/Export)

Mower Decks

Mfg. No. Description

1695399 44" Mower Deck 1695400 44" Mower Deck 1695397 50" Mower Deck 1695589 50" Mower Deck

(CE/Export)

Rev.

1735722 12/2008

Part No.:

TP 400-4803-C-CQ-SMA

Not for

Reproduction

Table Of Content

s

Not for

Reproduction

PRODUCT COMPONENTS PAGES

Frame Group - Manual Steering ..........................................................................................................................

Frame Group - Power Steering ............................................................................................................................

Power Steering & Hydraulic Lift Group ................................................................................................................

Steering Group - Manual Steering .......................................................................................................................

Steering Group - Tilt Steering ..............................................................................................................................

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin ...........................................................

Engine Group - 23HP Kohler, Courage Twin ......................................................................................................

Transmission Group .............................................................................................................................................

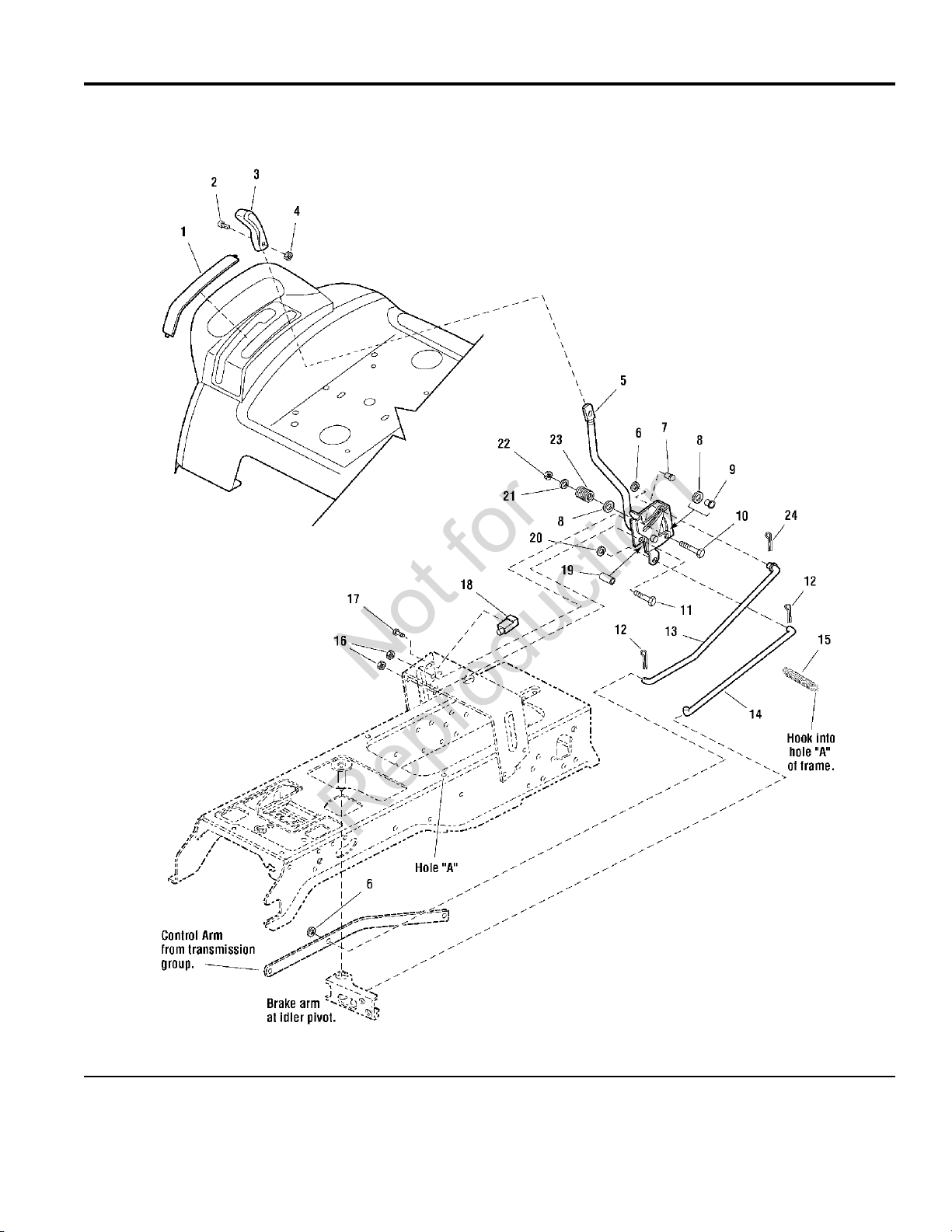

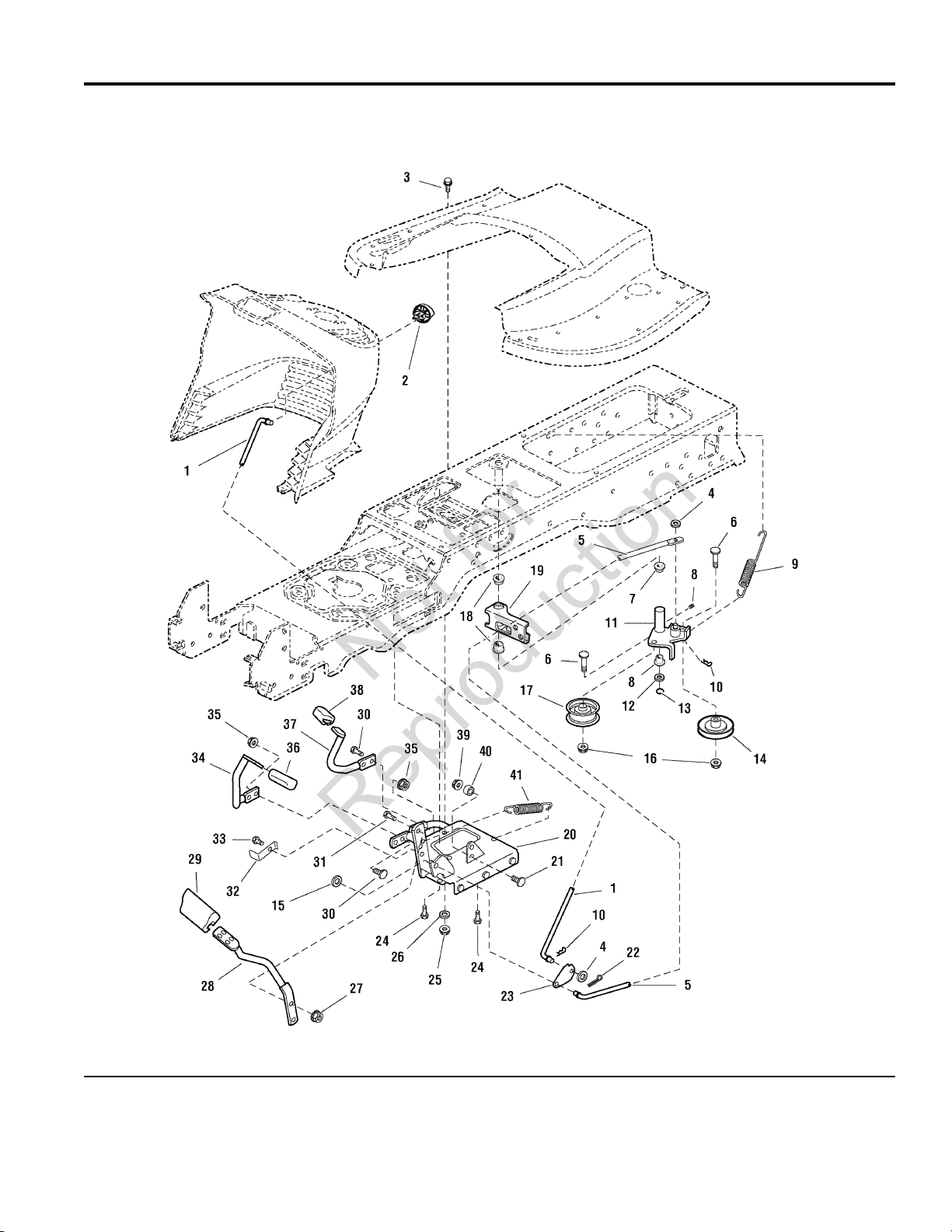

Controls Group .....................................................................................................................................................

Cruise Control Group ...........................................................................................................................................

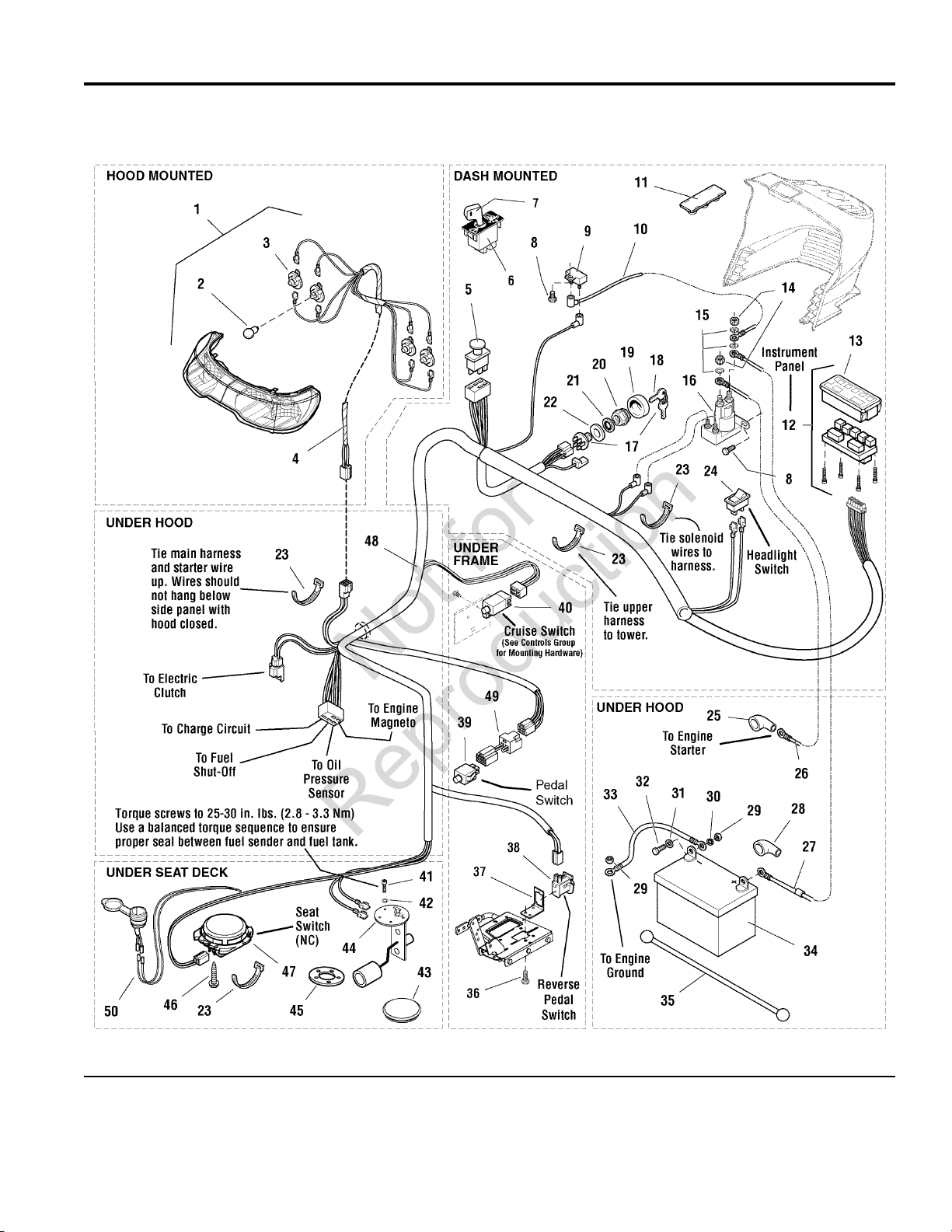

Electrical Group ....................................................................................................................................................

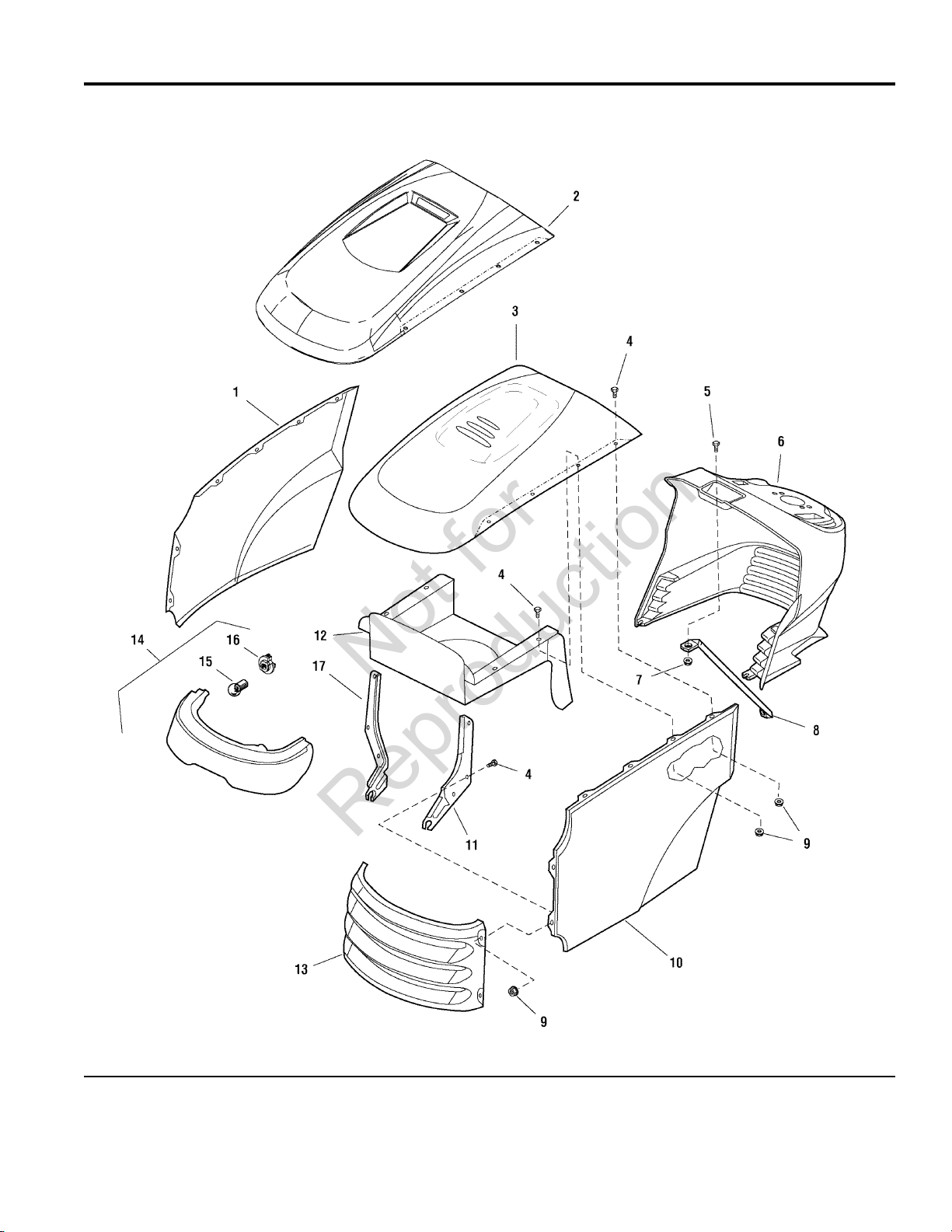

Hood, Grille & Dash Group ..................................................................................................................................

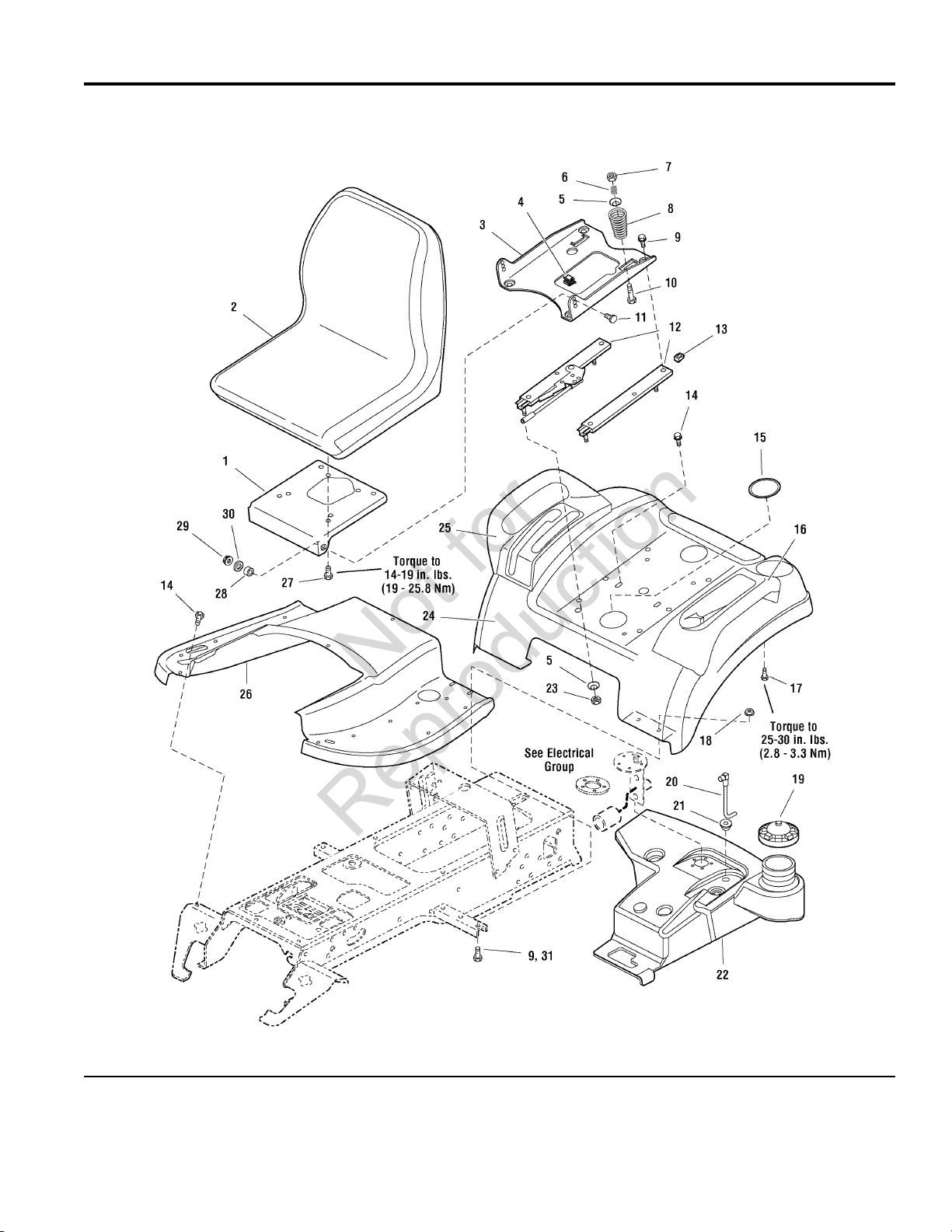

Seat & Seat Deck Group ......................................................................................................................................

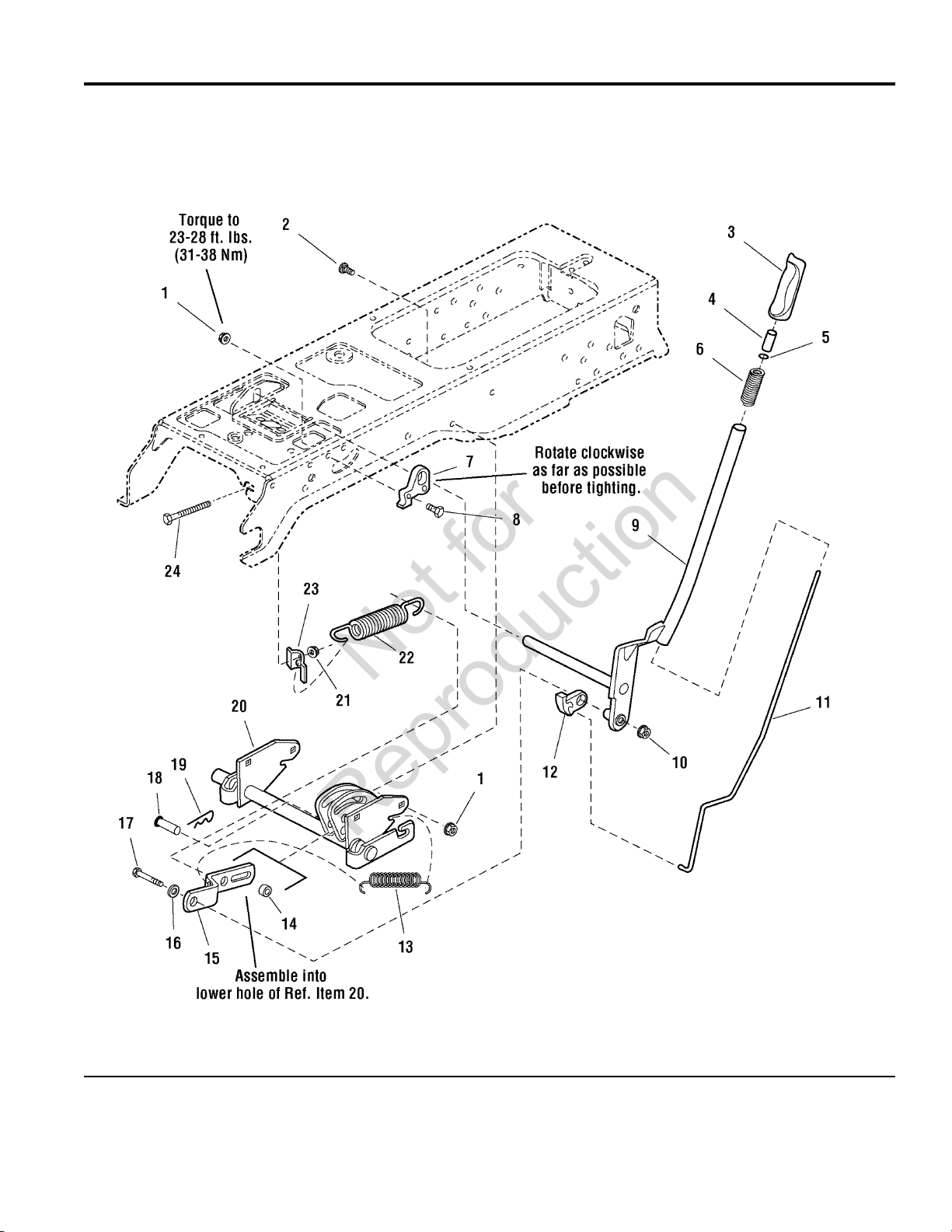

Lift Group - Manual Lift .........................................................................................................................................

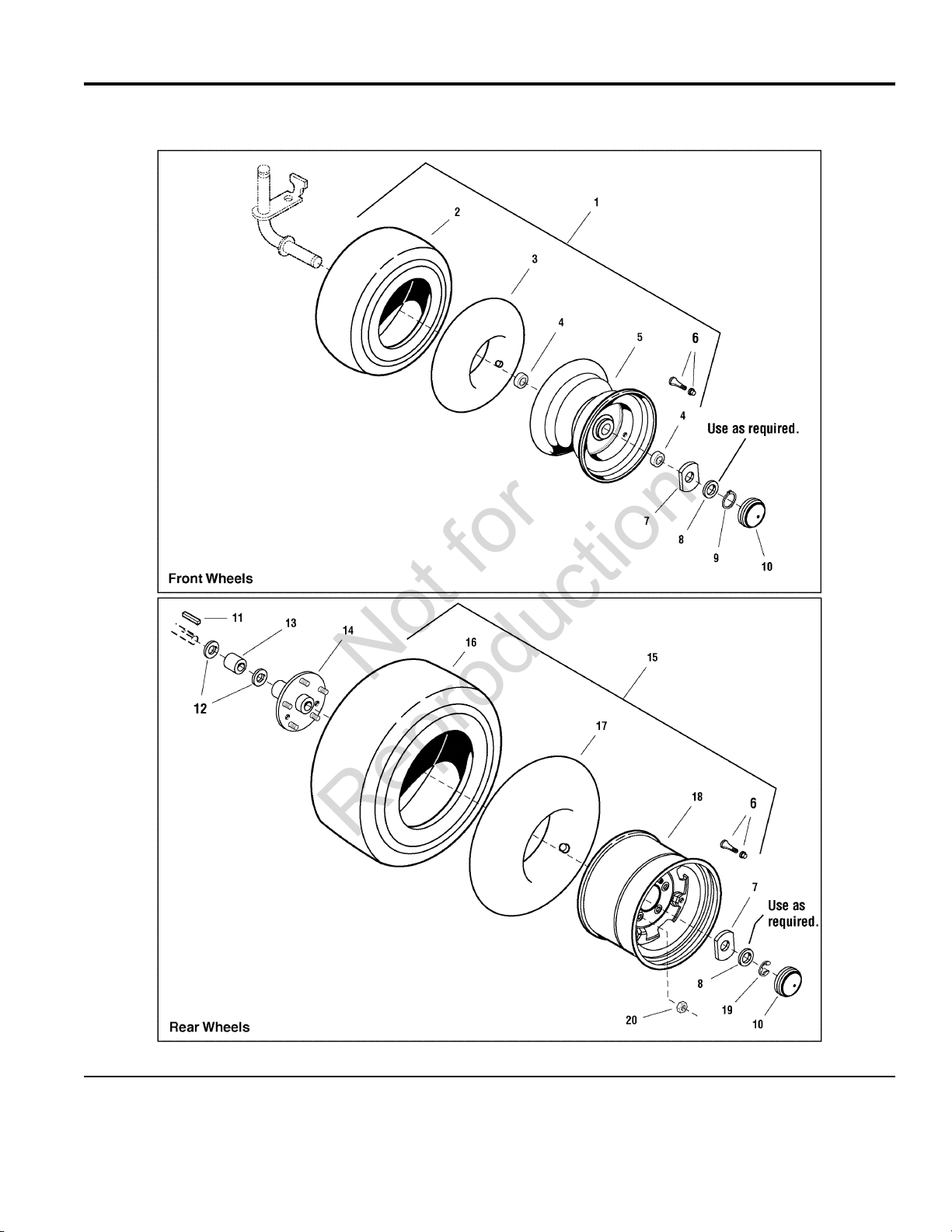

Wheels & Tires Group ..........................................................................................................................................

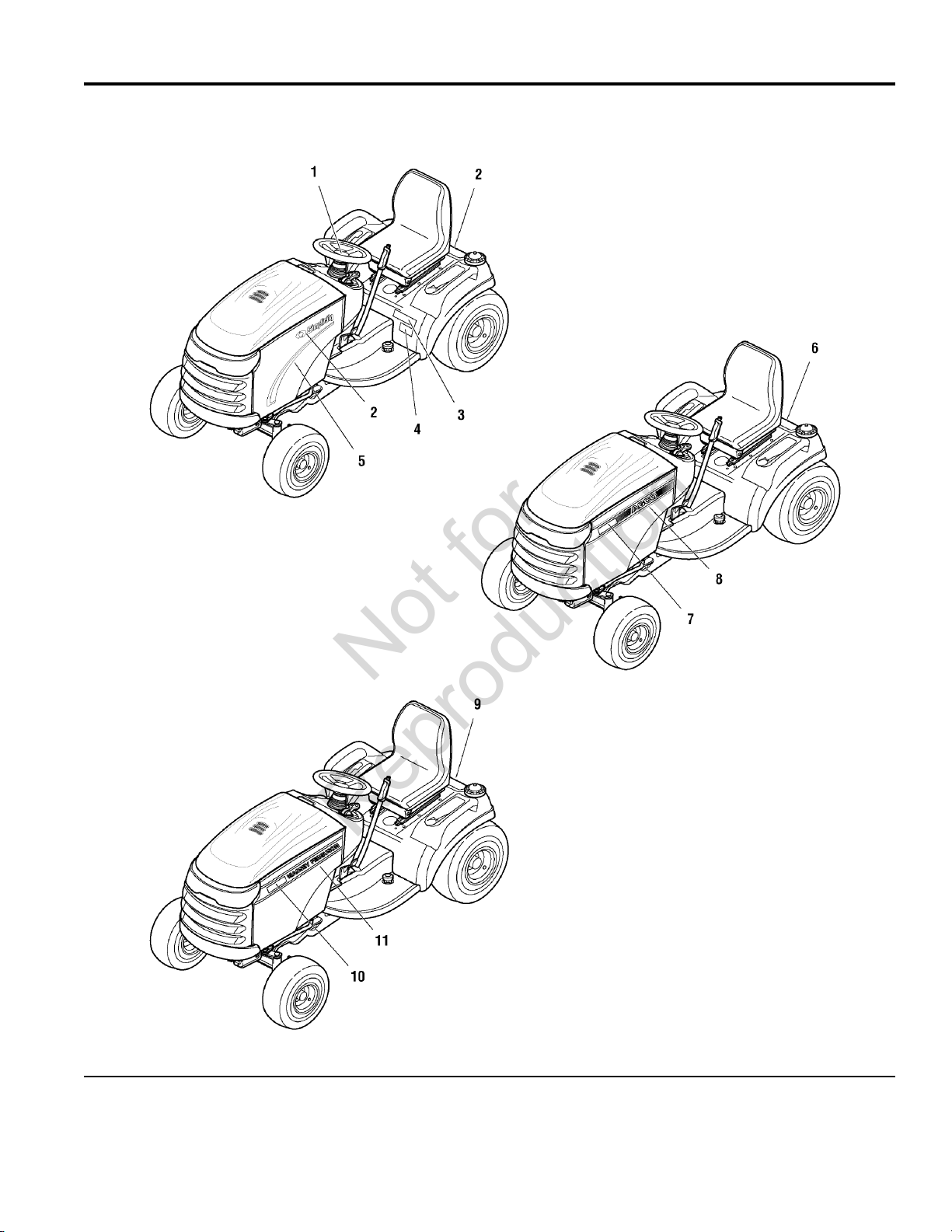

Decals Group - Brand & Model ............................................................................................................................

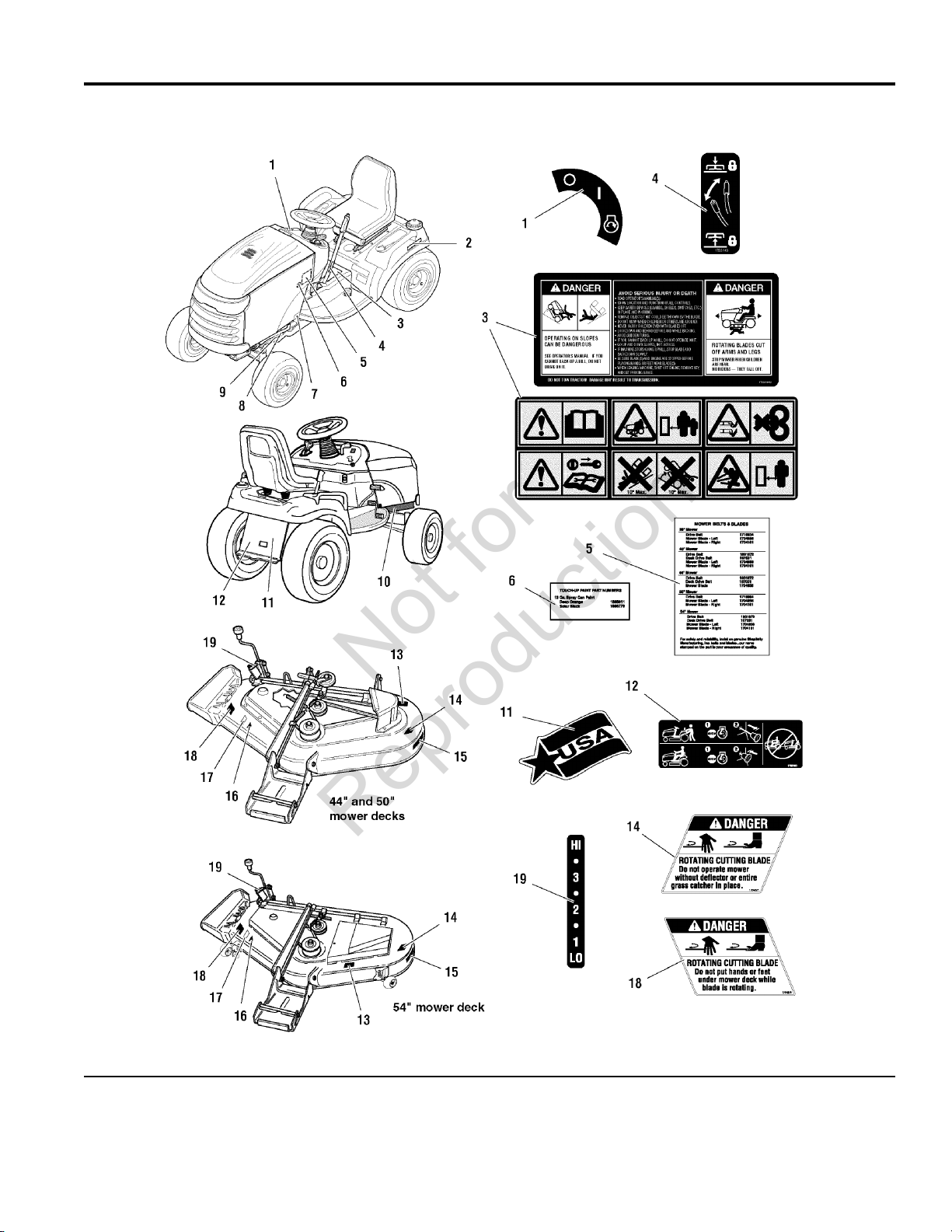

Decals Group - Safety & Common ......................................................................................................................

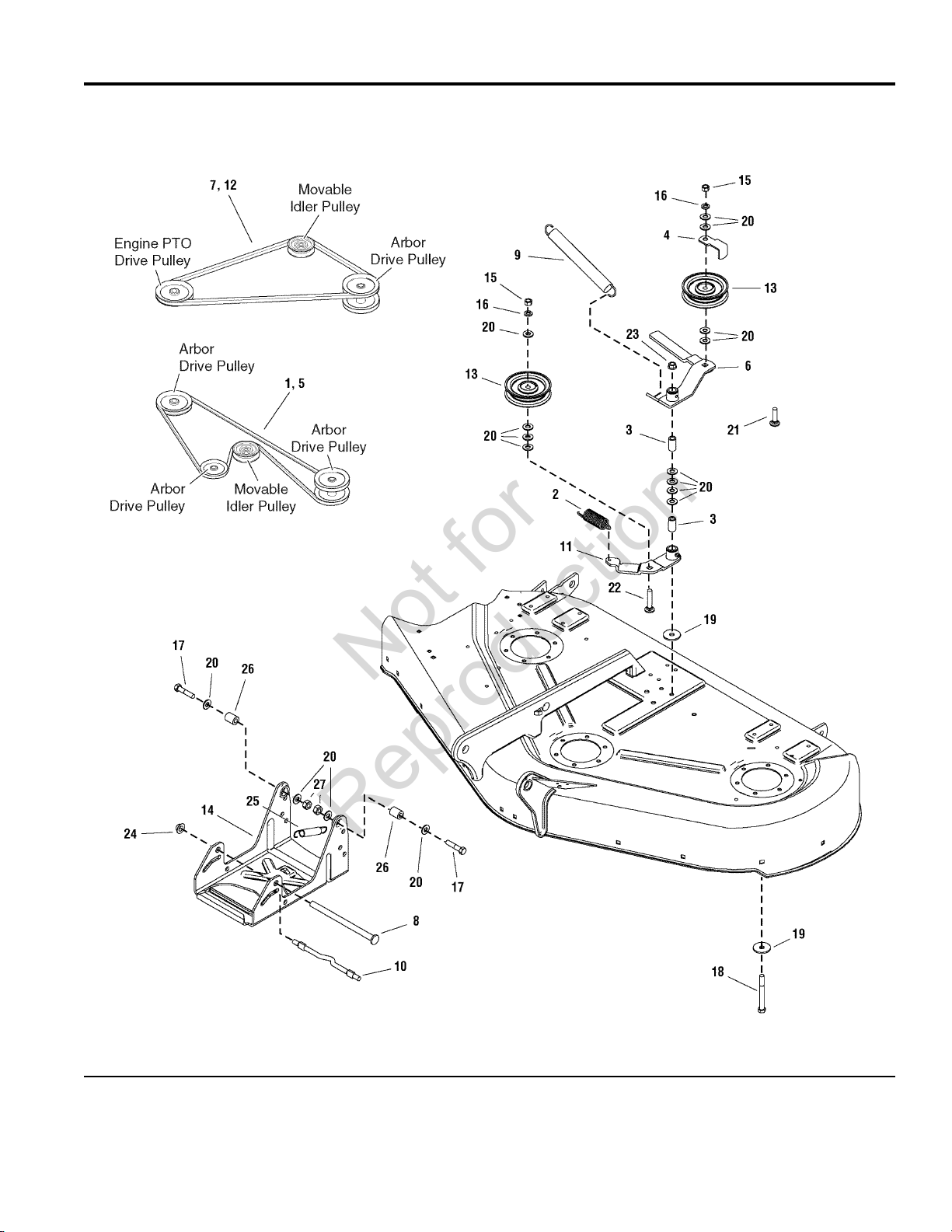

44" & 50" Mower Deck - Clutch & Support Group ...............................................................................................

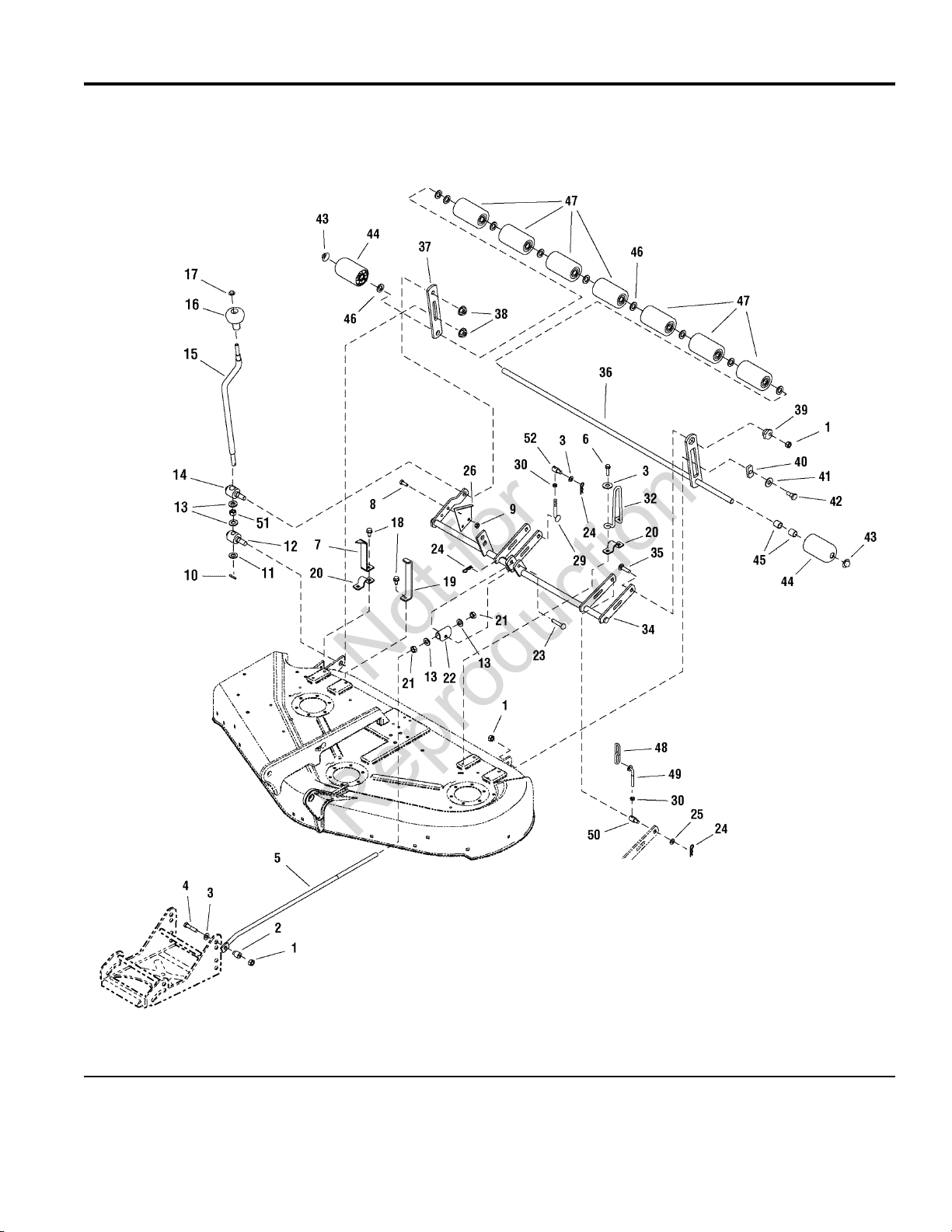

44" Mower Deck - Height Adjustment & Roller Group .........................................................................................

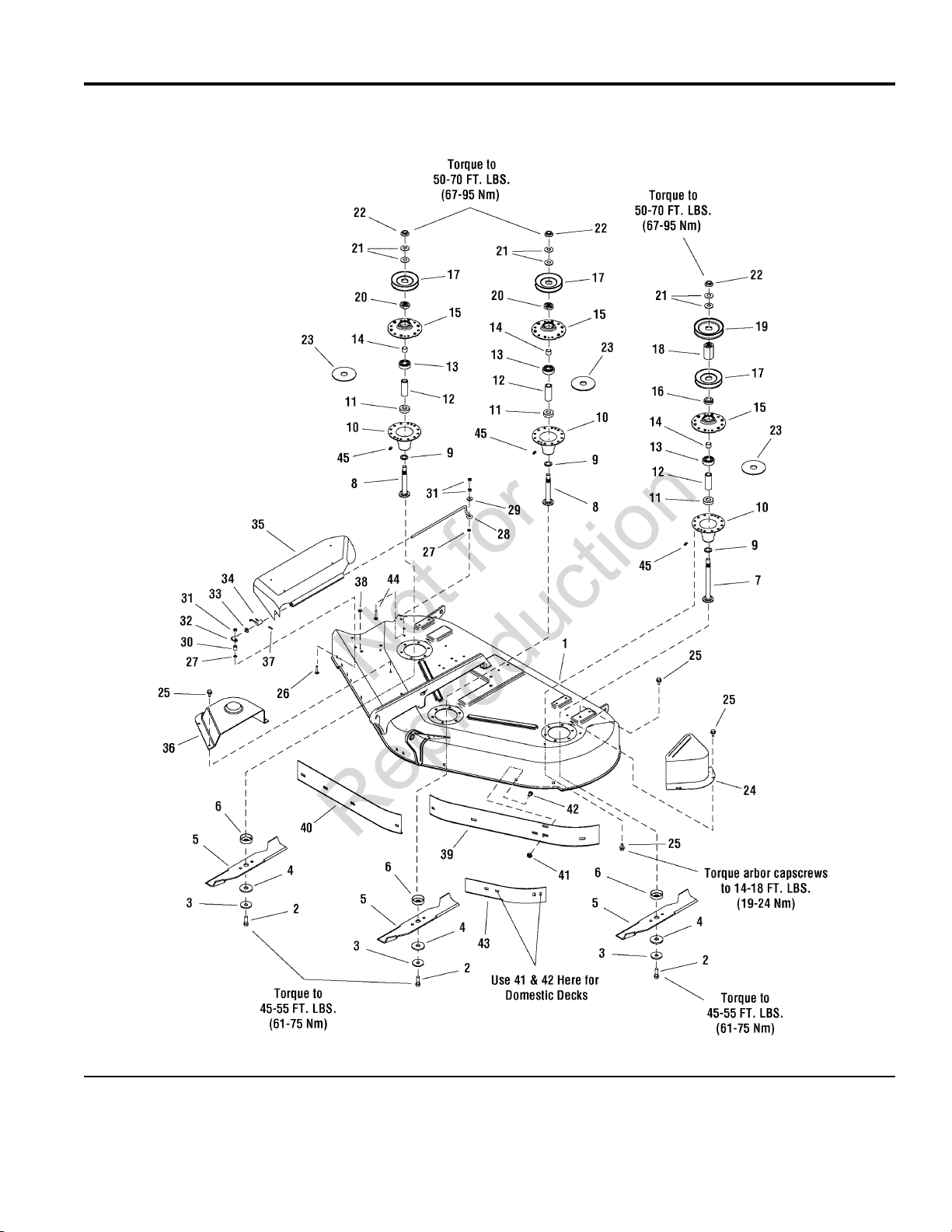

44" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................

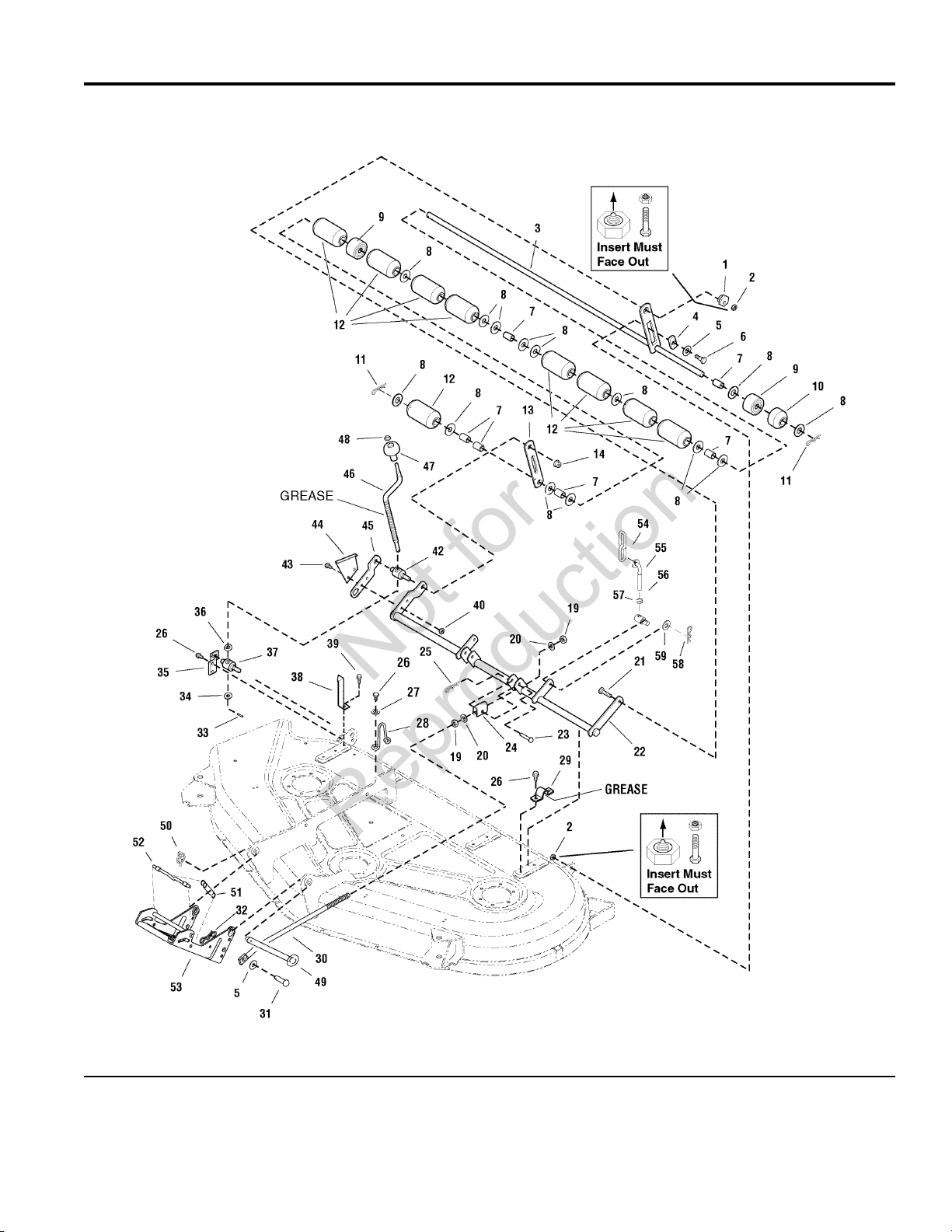

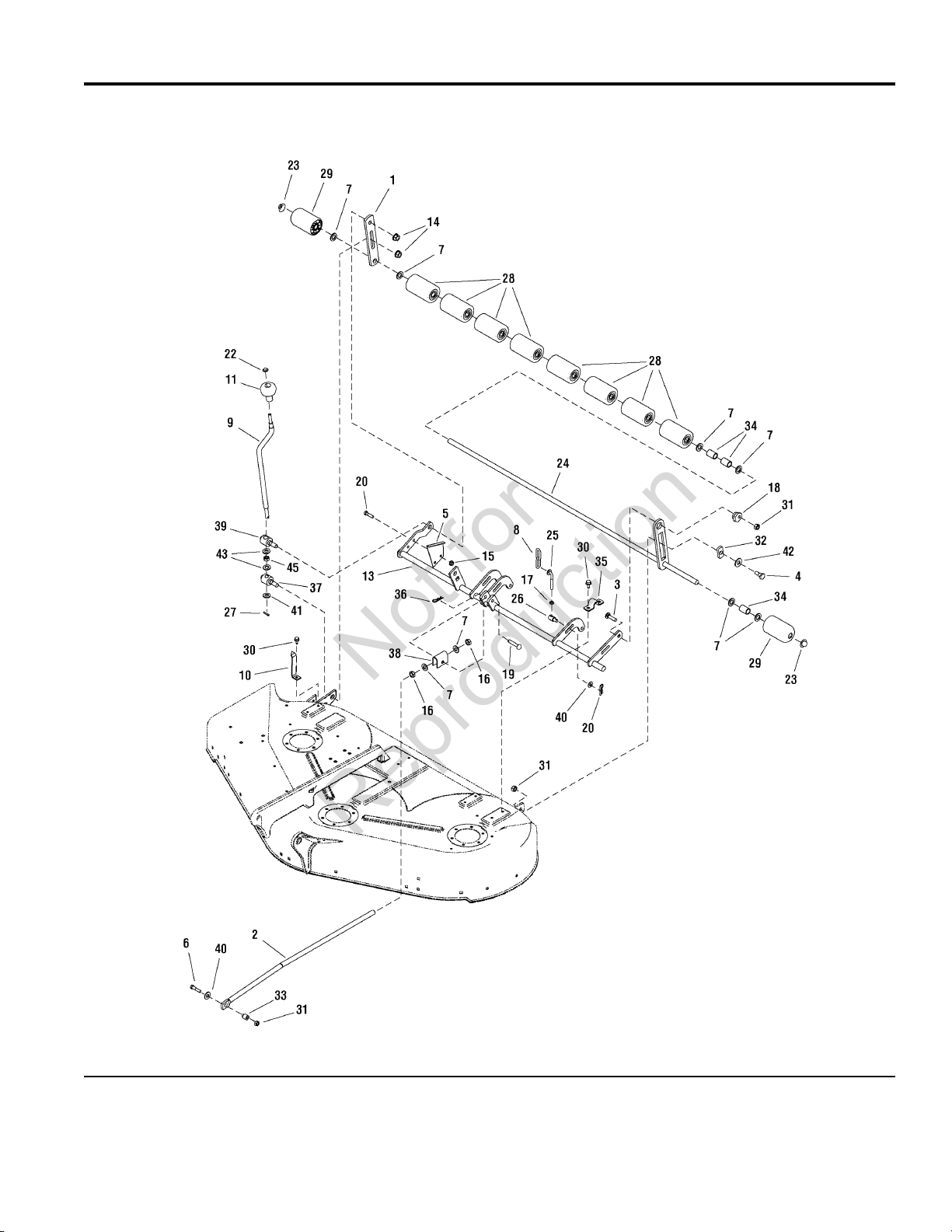

50" Mower Deck - Height Adjustment & Roller Bar Group ..................................................................................

50" Mower Deck - Housing, Arbors & Blades Group ...............................................................................

54" Mow

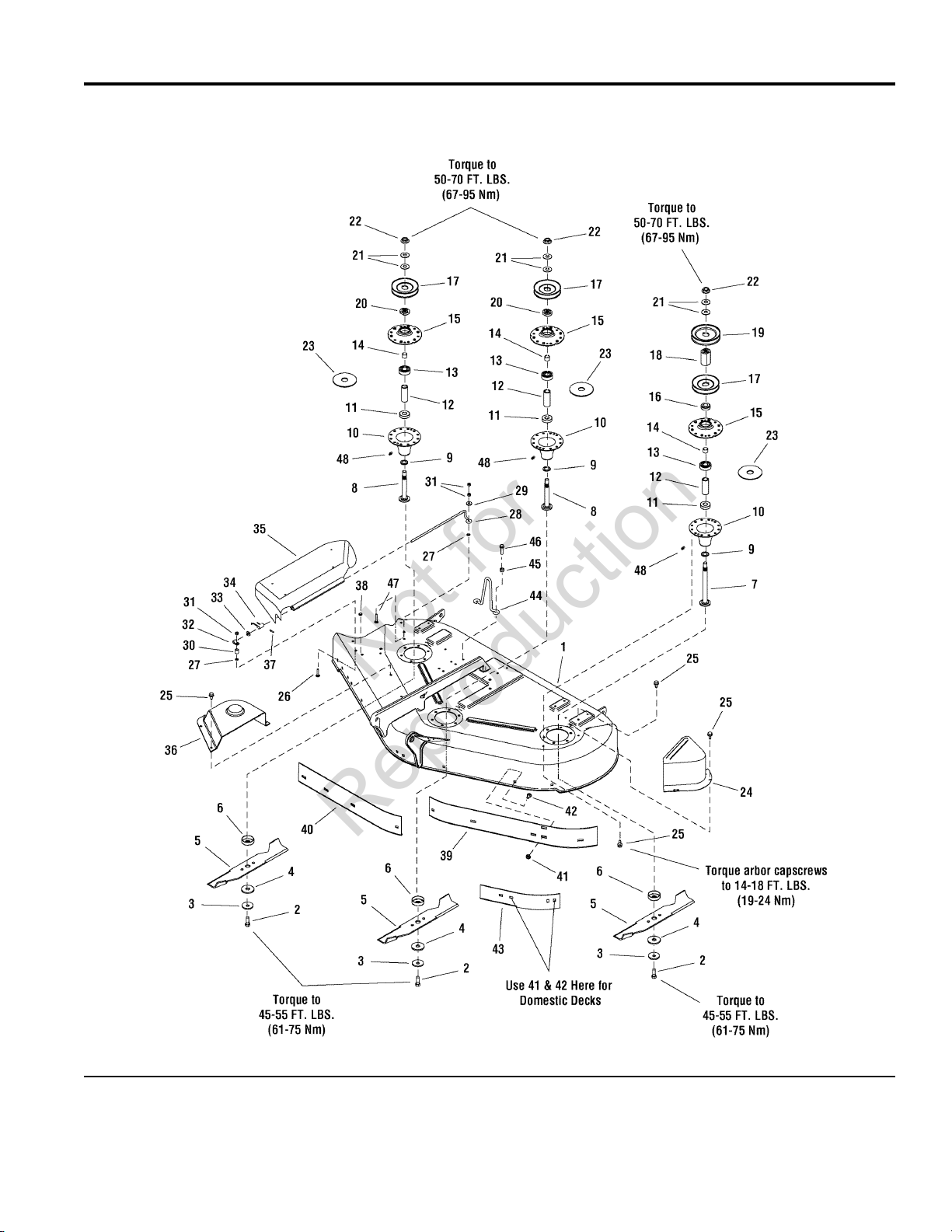

54" Mower Deck - Housing, Arbors & Blades Group ...........................................................................................

er Deck - Height Adjustment & Roller Bar Group ..................................................................................

............

12 14 16 18 20 22 26 28 30 34 36 38 40 42 44 46 48 52 56 58 62 66

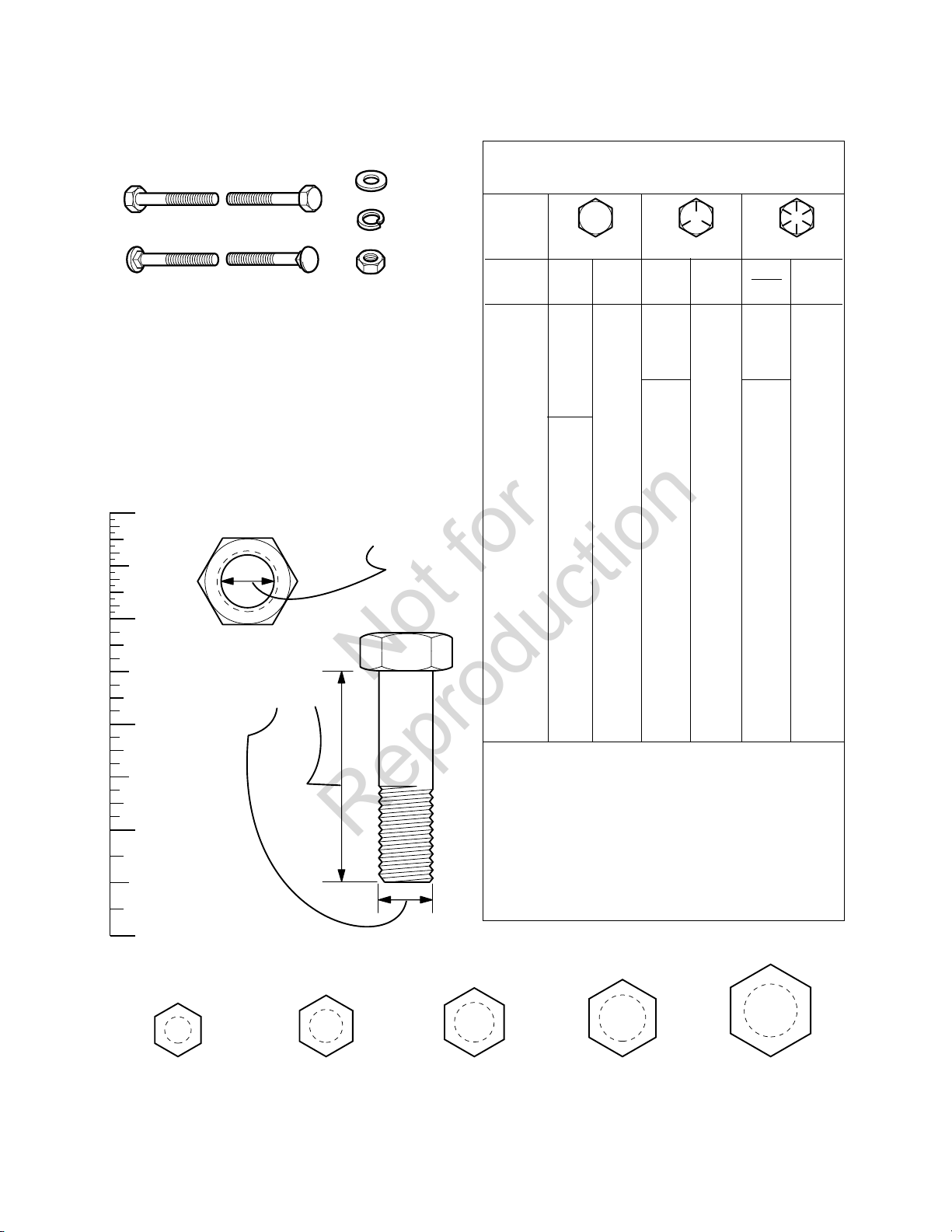

Torque Specification Chart ..................................................................... Inside Back Cover

4 8

Frame Group - Manual Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986747

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695226 - Conquest 2690746 - Conquest

2008

2690747 - Conquest 2690748 - 1723H 2690750 - 2723H 2690753 - Conquest 2690799 - Conquest

4

TP 400-4803-C-CQ-SMA

Frame Group - Manual Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

TOWER & SUPPORT ASSEMBLY 1 1733139ASM 1 CAPSCREW, Hex Washer Head Taptite, 3/8-16 x 3/4 2 1923683SM 4 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 3 1960541SM 4 SUPPORT, Seat Deck 4 1723528ASM 1 NUT, Hex Flange 3/8-16 Whiz Lock, Large 5 1928352SM 2 NUT, Hex Flange Two-Way Lock, 1/2-13 6 1930644SM 2 BACKPLATE 7 1722602ASM 1 CAPSCREW, Hex Head 1/2-13 x 1, Black 8 1923114SM 2 CAPSCREW, Hex Head 3/8-16 x 1, Black 9 1921210SM 2 FRAME ASSEMBLY, Front & Rear 10 1726989ASM 1 NUT, Hex Flange Two-Way Lock, 3/8-16 11 1930645SM 7 WASHER, 3/8, Black 12 1922755SM 1 WASHER, 3/8, Black 13 1960103SM 2 LINK, Drag 14 1722541SM 1 NUT, Hex Jam 1/2-20 15 1919262SM 1 JOINT, Ball 16 1702779SM 1 SPACER, 3/8 x 1/2 x 5/8 17 1708236SM 1 CARRIAGE BOLT, 3/8-16 x 1 18 1931350SM 2 ROD, Tie 19 1722626ASM 1 AXLE ASSEMBLY w/LH Spindle (Includes Ref. Nos. 22, 24, 41, 42 & 43) 20 1722200ASM 1 SPACER, 25/64 x 5/8 x 5/16, Powder Metal 21 1611705SM 2 BUSHING, 31/32 x 1-1/4 x 3/4, Powder Metal 22 1721682SM 6 NUT, Hex Flange Two-Way Lock, 7/16-14 23 1930650SM 2 FITTING, Lube 24 2821133SM 3 SPINDLE REPLACEMENT KIT, LH (Includes Ref. Nos. 22, 26, 27, 28, 29 & 30) 25 1686985SM 1 CAPSCREW, 3/8-16 x 7/8, GR8 26 2823485SM 1 WASHER, Spring, 3/8 27 1663151SM 1 HUB & ARM ASSEMBLY 28 1725112SM 1 KEY, Woodruff 29 2830671SM 1 SPINDLE, LH 30 1724264SM 1 CARRIAGE BOLT, 3/8-16 x 1-1/2 31 1931352SM 1 SPACER, 11/16 x 21/32 x 2 3/32 32 1721752SM 1 CAPSCREW, Hex Head, 7/16-14 x 2 G8 33 1927531SM 2 HOOK, "J" 34 1721918ASM 1 BUMPER, Black 35 1721805ASM 1 BUMPER, Chrome 35 1723502SM 1 SCREW, Truss Head Torque Drive, 5/16-18 x 7/8 36 1960086SM 4 CAPSCREW, Hex Whiz Lock, 5/16-18 x 3/4 37 1930591SM 2 PLATE, Axle Wear 38 1724801ASM 1 NUT, Hex Flange Whix Lick, 5/16-18 39 1931277SM 2 SPINDLE, RH 40 1722199SM 1 WASHER 41 1919394SM 1 RETAINING RING 42 2832577SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695226 - Conquest 2690746 - Conquest

2008

2690747 - Conquest 2690748 - 1723H 2690750 - 2723H 2690753 - Conquest 2690799 - Conquest

5

TP 400-4803-C-CQ-SMA

Frame Group - Manual Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986747

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695226 - Conquest 2690746 - Conquest

2008

2690747 - Conquest 2690748 - 1723H 2690750 - 2723H 2690753 - Conquest 2690799 - Conquest

6

TP 400-4803-C-CQ-SMA

Frame Group - Manual Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

CAPSCREW, Hex Flange Whiz Lock, 3/8-16 x 3/4 43 1933260SM 4 FITTING, Grease for Wear Plate 44 2821133SM 2 WASHER, 5/8 45 1960035SM 2 CAPSCREW, Hex Head, 5/8-11 x 3-1/2 46 2860645SM 1 NUT, Hex Flange Two-Way Lock, 5/8-11 47 2860646SM 1 PLATE, Axle 48 1722212ASM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695226 - Conquest 2690746 - Conquest

2008

2690747 - Conquest 2690748 - 1723H 2690750 - 2723H 2690753 - Conquest 2690799 - Conquest

7

TP 400-4803-C-CQ-SMA

Frame Group - Power Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987426

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H 2690751 - 2723H

2008

8

TP 400-4803-C-CQ-SMA

Frame Group - Power Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

FRAME ASSEMBLY, Front & Rear 1 1733765ASM 1 TOWER & SUPPORT ASSEMBLY 2 1733139ASM 1 SUPPORT, Seat Deck 3 1723528ASM 1 BACKPLATE, Hitch 4 1722602ASM 1 PLATE, Axle Support 5 1722212ASM 1 BUMPER 6 1721805ASM 1

7 1732937ASM 1

AXLE, SPINDLES & BUSHINGS ASSEMBLY (Includes Ref. Nos. 19, 21, 44, 45, 46, 47, 48, 49 & 50)

HOOK, "J" 8 1721918ASM 1 ROD, Tie, Flat Ends 9 1732759ASM 1 SUPPORT, Steering Unit 10 1733044ASM 1 SPACER, Powdered Metal 11 1721752SM 1 SPACER 12 1611705SM 2 JOINT, Ball, 1/2-20 Thread 13 1702779SM 1 SPACER 14 1719725SM 1 NUT, Hex Jam, 1/2-20 15 1919262SM 1 NUT, Hex Flange, 3/8-16 Two-Way Lock 16 1930645SM 4 CYLINDER, Hydraulic Steering 17 1732439SM 1 CARRIAGE BOLT, 3/8-16 x 1 G5 18 1931350SM 2 FITTING, Lube 1/4 Drive 19 1704314SM 3 NUT, Hex Flange 7/16-14 Two Way Lock 20 1930650SM 2 SPACER, Powdered Metal 21 1732208SM 1 CAPSCREW, Hex Head 7/16-14 x 2 G8 22 1927531SM 2 CAPSCREW, Hex Head 5/8-11 x 3-1/2 G5 23 2860645SM 1 WASHER, 5/8 24 1960035SM 2 SCREW, Hex Whiz Lock Flange 3/8-16 x 3/4 25 1933260SM 4 SCREW, Hex Washer Head Taptite 5/16-18 x 3/4 26 1664847SM 4 NUT, Hex Flange 5/8-11 Two Way Lock 27 2860646SM 1 SCREW, Hex Washer Head Taptite 3/8-16 x 3/4 28 1923683SM 4 NUT, Hex Flange 1/2-13 Whiz Lock 29 2860668SM 2 NUT, Hex Flange 3/8-16 Whiz Lock Large 30 1928352SM 2 CAPSCREW, Hex Head 1/2-13 x 1 G5 31 1923114SM 2 CAPSCREW, Hex Head 3/8-16 x 1 G5 32 1921210SM 2 SCREW, Truss Head Torx Drive 5/16-18 x 7/8 33 1960086SM 4 PLATE, Axle "U" Form 34 1724801ASM 1 SCREW, Hex Whiz Lock Flange 5/16-18 x 3/4 35 1930591SM 2 NUT, Hex Flange 5/16-18 Whiz Lock 36 1931277SM 2 FITTING, Lube 1/4 Drive 37 2821133SM 2 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 38 1924856SM 4 SPACER 39 1733912ASM 1 WASHER, 5/8 40 1924366SM 2 CAPSCREW, Hex Head 41 1960713SM 1 NUT, Hex Toplock 42 1960714SM 1 NUT, Hex Flange, Machine Lock 3/8-16 43 1960339SM 2

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H 2690751 - 2723H

2008

9

TP 400-4803-C-CQ-SMA

Frame Group - Power Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987426

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H 2690751 - 2723H

2008

10

TP 400-4803-C-CQ-SMA

Frame Group - Power Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

AXLE, Front Casting 44 1733851SM 1 NUT, Hex Lock ESNA Heavy 1/2-13 45 1960355SM 1 SPINDLE & ARM ASSEMBLY, R.H. 46 1732939SM 1 BUSHING, Axle 47 1721682SM 6 WASHER, 1 48 1919394SM 1 RING, Retaining, Extension 49 2832577SM 2 SPINDLE & ARM ASSEMBLY, L.H. 50 1734202SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H 2690751 - 2723H

2008

11

TP 400-4803-C-CQ-SMA

Power Steering & Hydraulic Lift Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987528

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H 2690751 - 2723H

2008

12

TP 400-4803-C-CQ-SMA

Power Steering & Hydraulic Lift Group

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

POWER STEERING UNIT, 32CC, 4 Ports 1 1733409SM 1 LOCKWASHER, Spring 2 1916964SM 4 CAPSCREW, Hex Head 3 2860444SM 4 TUBE, Hydraulic 4 1722138SM 1 TIE, Self Locking 5 2825094SM 2 TUBE, Hydraulic 6 1733727SM 1 SCREW, Hex Whiz Lock Flange 1/4-20 x 1/2 7 1931646SM 2 FITTING, Straight 8 1722123SM 4 FILTER, Oil 9 1719168SM 1 BASE, Oil Filter 10 1719169SM 1 TUBE, Hydraulic 11 1722297SM 1 FITTING, Hose Elbow Perma Push 9/16-18 12 1733230SM 2 HOSE ASSEMBLY, 50" Port R 25 1733413SM 1 HOSE ASSEMBLY, 18" Port T 26 1733791SM 1 HOSE ASSEMBLY, 26" Port P 27 1733780SM 1 HOSE ASSEMBLY, 46" Port L 28 1733212SM 1 POWER STEERING ASSEMBLY, 32CC, 4 Ports (Includes Ref. Nos 1, 25, 26, 27 & 28) 29 1733582SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H 2690751 - 2723H

2008

13

TP 400-4803-C-CQ-SMA

Steering Group - Manual Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

985890

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695226 - Conquest 2690746 - Conquest

2008

2690747 - Conquest 2690748 - 1723H 2690750 - 2723H 2690753 - Conquest 2690799 - Conquest

14

TP 400-4803-C-CQ-SMA

Steering Group - Manual Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

STEERING WHEEL, Straight, Shaft 1 1722318SM 1 CAP, Steering Wheel, SMI Logo 2 1722319SM 1 CAP, Steering Wheel, Plain 2 1725024SM 1 PIN, Spring, 5/16 x 2-1/2 3 1960540SM 1 COVER, Rubber, Upper Steering Shaft 4 1722749SM 1 WASHER, 3/4 5 1960114SM 5 BUSHING, 15/32 x 7/8 x 7/8, Nylon 6 2176440SM 2 NUT, Hex KEPS 5/6-18 7 1960636SM 2 PLATE, Mounting Steering 8 1721736ASM 1 NUT, Push 9 1933988SM 2 CARRIAGE BOLT, 5/16-18 x 1-1/4 10 1960655SM 2 GEAR & SHAFT ASSEMBLY, Steering 11 1724470ASM 1 CAPSCREW, Hex Head, 3/8-16 x 1-1/4, Black 12 1960032SM 1 NUT, Hex Flange Two-Way Lock, 3/8-16 13 1930645SM 1 CAPSCREW, Hex Washer Head Taptite, 5/16-18 x 3/4 14 1664847SM 2 SHAFT & PINION ASSEMBLY, Steering Manual 15 1721626SM 1 RING, Clipring Extension 16 1611710SM 1 BEARING, 3/4 x 1-11/16 x 13/16, 3" Long Housing 17 1722459SM 1 SPACER, 3/4 x 1-1/16 x 3/8, Powder Metal 18 1722461SM 1 NUT, Hex Flange Whiz Lock, 3/8-16, Small 19 1931211SM 2 CAPSCREW, Hex Whiz Lock Flange, 3/8-16 x 3/4, Black 20 1933260SM 2 CLIP, Hairpin 21 1960033SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695226 - Conquest 2690746 - Conquest

2008

2690747 - Conquest 2690748 - 1723H 2690750 - 2723H 2690753 - Conquest 2690799 - Conquest

15

TP 400-4803-C-CQ-SMA

Steering Group - Tilt Steering

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987424

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H

2008

16

TP 400-4803-C-CQ-SMA

Steering Group - Tilt Steering

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

STEERING WHEEL 1 1733363SM 1 PLATE, Steering Mounting 4 1724685ASM 1 CARRIAGE BOLT, 5/16-18 x 1-1/4 G5 5 1960655SM 2 ADAPTER, Tilt 6 1725294SM 1 SPACER 7 1723898SM 2 NUT, Push Pal 8 1933988SM 2 NUT, Hex Keps 5/16-18 9 1960636SM 2 STEERING UNIT, Tilt 10 1734002SM 1 BELLOWS, Tilt Steering Unit w/Slot 11 1724368SM 1 CAP, Steering Wheel 12 1725024SM 1 DECAL, Power Steering (Not Shown) 13 1716518SM 2 NUT, Hex Lock ESNA Light 5/8-18 15 1960576SM 1

Footnotes

The above parts group applies to the following Mfg. Nos.:

1695154 - 1723H 1695155 - 2723H 2690745 - Conquest 2690749 - 1723H

2008

17

TP 400-4803-C-CQ-SMA

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986651

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695154 - 1723H 1695155 - 2723H 1695226 - Conquest

2008

2690745 - Conquest 2690746 - Conquest 2690748 - 1723H 2690749 - 1723H 2690750 - 2723H 2690751 - 2723H

18

2690753 - Conquest 2690799 - Conquest

TP 400-4803-C-CQ-SMA

Engine Group - 20HP, 22HP & 23HP Briggs & Stratton, Vanguard Twin

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

MUFFLER 1 1736543SM 1 MUFFLER (Only used on 20HP Models) 1 1722625SM 1 GASKET 2* 2 LOCKWASHER, 5/16 3 1917356SM 4 CAPSCREW, Socket Head, 5/16-18 x 7/8, G8 4 2860660SM 4 HOSE, Oil Drain 5 1723165SM 1 ENGINE, 22HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E1 6* 1 ENGINE, 23HP Briggs & Stratton VANGUARD Twin, Model 386777, Type 0111E1 6* 1 ENGINE, 21HP Briggs & Stratton VANGUARD Twin, Model 385777, Type 0119-E1 6* 1 ENGINE, 20HP Briggs & Stratton VANGUARD Twin, Model 358777, Type 0110-E1 6* 1 SEAL, Circle 7 1722949SM 1 BULKHEAD 8 1722388ASM 1 CAPSCREW, Hex Head Taptite, 1/4-20 x 1/2 9 1925003SM 2 CONTROL, Throttle Double 39" Long w/Knobs (Only used on 20HP Models) 10 1727223SM 1 CONTROL, Throttle Double 10 1734506SM 1 TIE 11 1701011SM 1 CLAMP, Hose Type E 12 2860112SM 2 HOSE, 59" Long 13 1718678SM 1 CLIP, Wire 14 2834683SM 2 SHIELD 15 1722392ASM 2 SCREW, Hex Head Taptite, 1/4-20 x 3/8 16 1927428SM 8 KEY 17 1720463SM 1 PULLEY & HUB ASSEMBLY, 4-1/2 OD 18 1722288SM 1 WASHER, Hex 19 1708264SM 1 LOCKWASHER, 7/16 20 1918199SM 1 CAPSCREW, Hex Head, 7/16-20 x 2-3/4 21 1960648SM 1 CLUTCH, Electric, OGURA 22 1686883SM 1 CLUTCH, Electric, Big Brake OGURA 22 1720532SM 1 TIE 23 2832747SM 1 CAPSCREW, Hex Head Taptite, 3/8-16 x 1-1/2 24 2830598SM 4 LOCKWASHER, External Tooth, 3/8 25 2820427SM 1 SHIELD, Muffler Bottom 26 1722414ASM 1 CAPSCREW, Hex Head Flange Lock, 1/4-20 x 5/8 27 1960295SM 8 CAPSCREW, Hex Head Taptite, 5/16-18 x 1/2 28 1924856SM 2 NUT, Speed, 1/4-20 29 1960368SM 8 NUT, Speed, 5/16-18 30 1935255SM 2 DUCT, Muffler Top 31 1722389ASM 1 DUCT, Muffler Extension 32 1722390ASM 1

Footnotes

Note* See your local Briggs & Stratton distributor for parts and service.

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695154 - 1723H 1695155 - 2723H 1695226 - Conquest

2008

2690745 - Conquest 2690746 - Conquest 2690748 - 1723H 2690749 - 1723H 2690750 - 2723H 2690751 - 2723H

19

2690753 - Conquest 2690799 - Conquest

TP 400-4803-C-CQ-SMA

Engine Group - 23HP Kohler, Courage Twin

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

987542

The above parts group applies to the following Mfg. Nos.:

1695153 - Conquest 2690747 - Conquest

2008

20

TP 400-4803-C-CQ-SMA

Engine Group - 23HP Kohler, Courage Twin

Not for

Reproduction

PART NO. DESCRIPTIONREF NO QTY.

ENGINE, 23HP Kohler Courage Twin, Model SV720, Type PS-SV720-0031 1* 1 HOSE, Oil Drain 2 1723165SM 1 BULKHEAD 3 1722388ASM 1 SCREW, Hex Washer Head Taptite 5/16-18 x 1/2 4 1924856SM 2 THROTTLE, Control Double w/Knob 5 1727375SM 1 CLAMP, Hose 1/2 Diameter Wire Type-E 6 2860112SM 2 HOSE, Fuel 7 1723174SM 1 TIE, Self Locking 8 2825094SM 3 SHIELD, Side 18GA 9 1722392ASM 2 MUFFLER, Kohler Twin 10 1721705SM 1 DUCT, Muffler Extension 18GA Courage 11 1733884ASM 1 SCREW, Hex Whiz Lock Flange 1/4-20 x 5/8 12 1960295SM 8 CLIP, Speed Wire 13 2834683SM 2 DUCT, Muffler Top 14 1722389ASM 1 SCREW, Hex Washer Head Taptite 1/4-20 x 3/8 15 1929000SM 8 SHIELD, Muffler 16 1722414ASM 1 NUT, Speed 1/4-20 Lug Type 17 1960368SM 8 NUT, Speed, 5/16-18 Lug Type 18 1935255SM 2 LOCKWASHER, External Tooth 3/8 19 2820427SM 1 SCREW, Hex Washer Head Taptite 3/8-16 x 1 20 2827187SM 3 KEY, Hi-Pro 1/4 x 2-1/2 21 1720463SM 1 PULLEY & HUB ASSEMBLY 22 1722288SM 1 WASHER, Hex 23 1708264SM 1 LOCKWASHER, Spring 24 1918199SM 1 CAPSCREW, Hex Head 7/16-20 x 3-1/2 G5 25 1960649SM 1 CLUTCH, Electric 26 1718836SM 1 TIE, Self Locking 27 2832747SM 1 SCREW, Hex Washer Head Taptite 1/4-20 x 1/2 28 1925003SM 2 WASHER, 3/8 29 1924940SM 1 RETAINER, Clutch 30 1732026SM 1 SCREW, Hex Washer Head Taptite 3/8-16 x 1-1/2 31 2830598SM 1

Footnotes

Note* See your local Kohler distributor for parts & service.

The above parts group applies to the following Mfg. Nos.:

1695153 - Conquest 2690747 - Conquest

2008

21

TP 400-4803-C-CQ-SMA

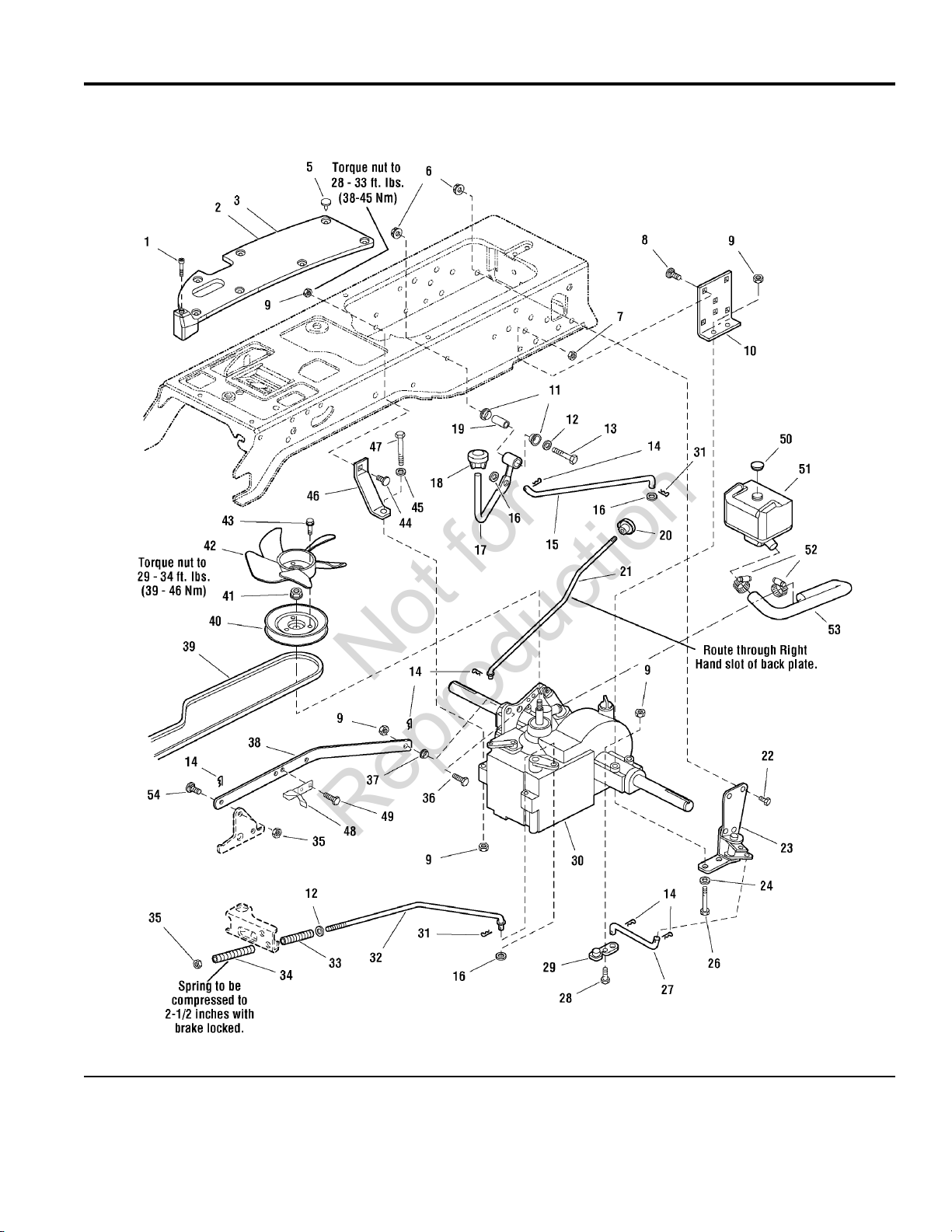

Transmission Group

Not for

Reproduction

NOTE: Unless noted otherwise, use the standard hardware torque specification chart.

986602

The above parts group applies to the following Mfg. Nos.:

1694818 - 1723H 1694819 - Conquest 1694820 - 2723H 1695153 - Conquest 1695154 - 1723H 1695155 - 2723H

2008

1695226 - Conquest 2690745 - Conquest 2690746 - Conquest 2690747 - Conquest 2690748 - 1723H 2690749 - 1723H

22

2690750 - 2723H 2690751 - 2723H 2690753 - Conquest 2690799 - Conquest

TP 400-4803-C-CQ-SMA
