Silverline Multi-Function Rotary Tool User Manual [en, de, es, fr, it]
3 Year Guarantee
*Register online within 30
days. Terms & Conditions apply
Garantie de 3 ans
*Enregistrez votre produit en ligne
dans les 30 jours. Sous réserve des
Conditions Générales d’utilisation
3 Jahre Garantie
*Registrieren Sie sich innerhalb von 30
Tagen online. Es gelten die allgemeinen
Geschäftsbedingungen
www.silverlinetools.com
3 años de garantía
*Regístrese online dentro de 30 días.
Se aplican los términos y condiciones
3 anni di garanzia
*Registrarsi on-line entro 30 giorni.
Termini e Condizioni si applicano
3 Jaar Garantie
*Registreer online binnen 30 dagen.
Algemene voorwaarden van toepassing
V
L
I
S
DIY
R
A
249765
R
E
L
I
N
E
E
G
N
135W Hobby Tool
Hobby Tool 135W
Coffret outil pour loisirs créatifs 135 W
Multifunktionswerkzeug, 135 W
www.silverlinetools.com
Herramienta para manualidades 135 W
Utensili Hobbistico 135 W
Hobbymachine 135 W
1
2
3
6
4
5
2
V
L
I
S
DIY
R
A
R
E
L
I
N
E
E
G
N
®
135W Hobby Tool
English .................. 4
Français ................ 6
Deutsch ................. 8
Español ................. 10
Italiano .................. 12
Nederlands ............ 14
www.silverlinetools.com
3
GB

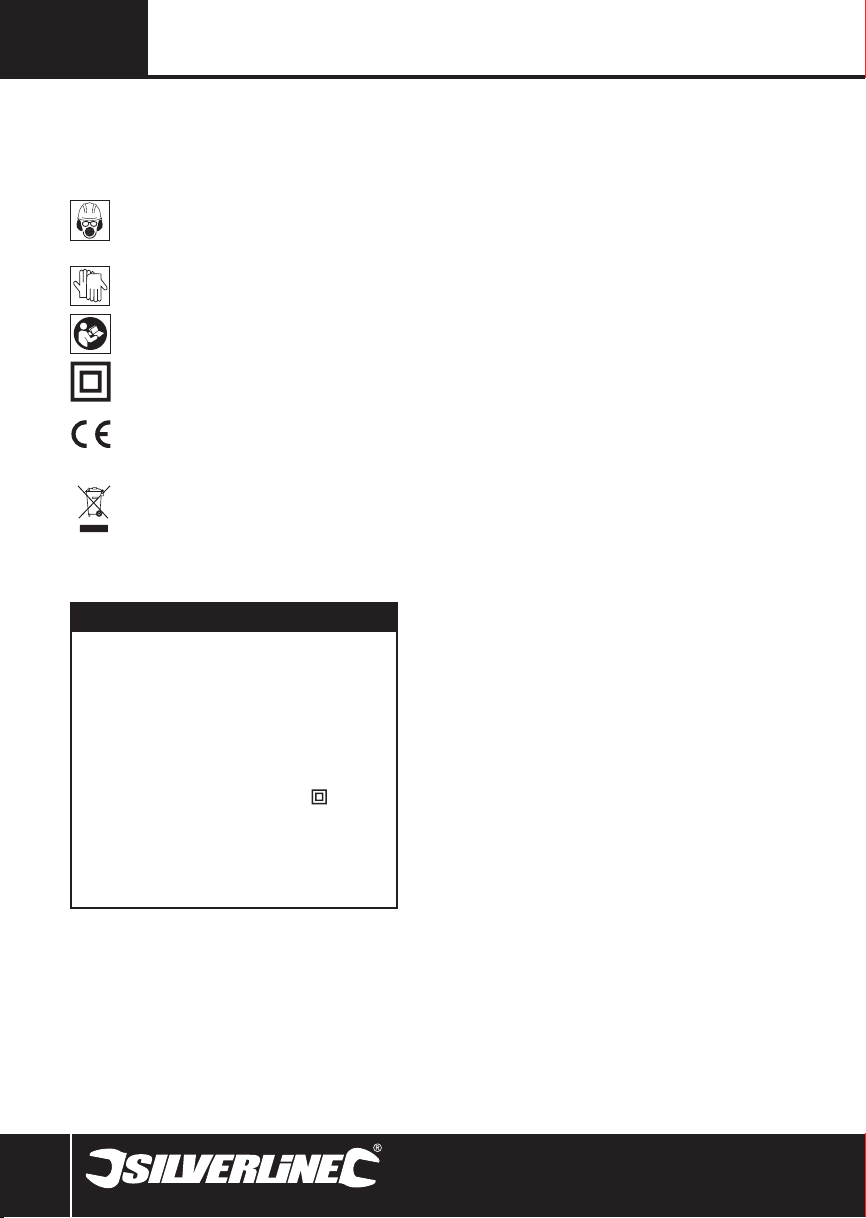

Description of Symbols
The rating plate on your tool may show symbols. These represent important
information about the product or instructions on its use.
Wear hearing protection
Wear eye protection
Wear breathing protection
Wear head protection
Wear hand protection
Read instruction manual
Double insulated for additional protection
Conforms to relevant legislation and safety standards
Environmental Protection
Waste electrical products should not be disposed of with
household waste. Please recycle where facilities exist. Check
with your local authority or retailer for recycling advice
Specification
Voltage............... ........................................ 230V~
Frequency .................................................. 50Hz
Power ......................................................... 135W
Rated speed .............................................. 10000 -
32000min-
Spindle size ................................................ M8
Max. drill diameter:.....................................Ø3.2mm
Protection Class: ........................................
As part of our ongoing product development, specifications of
Silverline products may alter without notice.
1
Carefully read and understand this manual and any label attached to
the tool before use. Keep these instructions with the product for future
reference. Ensure all persons who use this product are fully acquainted
with this manual.
Even when used as prescribed it is not possible to eliminate all residual risk
factors. Use with caution. If you are at all unsure of the correct and safe
manner in which to use this tool, do not attempt to use it.
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric shock, fire and/
or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
Work Area Safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents
b) Do not operate power tools in explosive atmospheres, such as
in the presence of flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control
Electrical Safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk
of electric shock
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased
risk of electric shock if your body is earthed or grounded
c) Do not expose power tools to rain or wet conditions. Water
entering a power tool will increase the risk of electric shock
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the
risk of electric shock
e) When operating a power tool outdoors, use an extension cord
suitable for outdoor use. Use of a cord suitable for outdoor use
reduces the risk of electric shock
f) If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock
NOTE: The term “residual current device (RCD)” may be replaced by
the term “ground fault circuit interrupter (GFCI)” or “earth leakage
circuit breaker (ELCB)”.
Personal Safety
a) Stay alert, watch what you are doing and use common sense
when operating a power tool. Do not use a power tool while you
are tired or under the influence of drugs, alcohol or medication.
A moment of inattention while operating power tools may result in
serious personal injury
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries
c) Prevent unintentional starting. Ensure the switch is in the
off-position before connecting to power source and/or battery
pack, picking up or carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that have the switch on
invites accidents
d) Remove any adjusting key or wrench before turning the power
tool on. A wrench or a key left attached to a rotating part of the power
tool may result in personal injury
4
249765 135W Hobby Tool
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations
f) Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts
g) If devices are provided for the connection of dust extraction
and collection facilities, ensure these are connected and properly
used. Use of dust collection can reduce dust-related hazards
Power Tool Use & Care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired
c) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments,
changing accessories, or storing power tools. Such preventive
safety measures reduce the risk of starting the power tool accidentally
d) Store idle power tools out of the reach of children and do
not allow persons unfamiliar with the power tool or these
instructions to operate the power tool. Power tools are dangerous
in the hands of untrained users
e) Maintain power tools. Check for misalignment or binding of
moving parts, breakage of parts and any other condition that may
affect the power tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are caused by poorly
maintained power tools
f) Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control
g) Use the power tool, accessories and tool bits etc. in accordance
with these instructions, taking into account the working
conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous
situation
Service
a) Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of
the power tool is maintained
Product Familiarisation
1 Collet
2 Collar
3 Spindle Lock Button
4 Speed Control Dial
5 On/Off Switch
6 Brush Access Plugs
Unpacking Your Tool
• Carefully unpack and inspect your tool. Fully familiarise yourself with all
its features and functions
• Ensure that all parts of the tool are present and in good condition. If
any parts are missing or damaged, have such parts replaced before
attempting to use this tool
www.silverlinetools.com
5
GB
Operating Instructions
Operating the collet
1. Open Collet (1) by depressing the Spindle Lock Button (3), and rotating
the collet nut anti-clockwise (it may be necessary to use the supplied
collet spanner to loosen the collet)
2. Place the accessory required in the collet
3. Depress the spindle lock button and rotate the collet nut clockwise to
secure the accessory
WARNING: Never fit any attachment with a maximum speed lower than the
no load speed of the machine.
Switching on and off
1. Start the hobby tool by moving the On/Off Switch (5) into the '1'
position
2. To stop the tool move the switch into the '0' position
3. Use the Speed Control Dial (4) is used to control the rotation speed.
The higher the number on the dial the faster the spindle rotates
Handling
• Hold the tool securely, keeping hands well away from rotating parts. For
most purposes, it is most convenient to grip the tool like a pencil
• Practice using the tool with scrap material before starting a job. Be aware
that different accessories will require different techniques, and may
require different speed settings
• Applying excess pressure does not result in faster or more efficient
performance. If the pressure applied to the tool has a noticeable effect on
the speed of the tool then reduce the pressure. Overloading the tool will
reduce its service life
• Always ensure that material is secure. If appropriate use a vice or clamp
to hold the work
Maintenance
WARNING: Always disconnect from power supply before carrying out any
maintenance/cleaning.
Cleaning
• Keep your tool clean at all times. Dirt and dust will cause internal parts
to wear quickly, and shorten the machine’s service life. Clean the body of
your machine with a soft brush, or dry cloth. If available, use clean, dry,
compressed air to blow through the ventilation holes
Brushes
• Over time the carbon brushes inside the motor may become worn
• Excessively worn brushes may cause loss of power, intermittent failure,
or visible sparking
• To replace the brushes, remove the brush access plugs from both sides
of the machine. Remove the worn brushes and replaced with new.
Replace brush access plugs. Alternatively, have the machine serviced at
an authorised service centre
Storage
• Store this tool carefully in a secure, dry place out of reach of children
Disposal
• Do not dispose of power tools, or other waste electrical and electronic
equipment, with household waste
• Contact your local waste disposal authority for information on the correct
way to dispose of tools
6
249765 135W Hobby Tool
Silverline Tools Guarantee
This Silverline product comes with a 3 year
guarantee
Register this product at www.silverlinetools.com within 30 days of
purchase in order to qualify for the 3 year guarantee. Guarantee period
begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee
Registration button. You will need to enter:-
• Your personal details
• Details of the product and purchase information
Once this information is entered your guarantee certificate will be created
in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as
detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the
stockist where it was purchased, with your receipt, stating details of the
fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date,
your name, address and place of purchase before any work can be
carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools
to establish if the deficiencies are related to material or manufacturing of
the product.
Carriage will not be refunded. Items for return must be in a suitably clean
and safe state for repair, and should be packaged carefully to prevent
damage or injury during transportation. We may reject unsuitable or
unsafe deliveries.
All work will be carried out by Silverline Tools or its authorised
repair agents.
The repair or replacement of the product will not extend the period
of guarantee
Defects recognised by us as being covered by the guarantee shall be
corrected by means of repair of the tool, free of charge (excluding carriage
charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will
become the property of Silverline Tools.
EC Declaration of Conformity
The undersigned: Mr Darrell Morris
as authorised by: Silverline Tools
Declares that the
Name/ model: 135 W Hobby Tool
Type/ serial no: 249765
Net installed power: 135W
Conforms to the following Directives:
• Machinery Directive 2006/42/EC
• Low Voltage Directive 2006/95/EC
• EMC Directive 2004/108/EC
• ROHS Directive 2011/65/EU
• EN60745-1:2009, EN60745-2-3:2007+A11:09
• EN55014-1:2006/+A1:2009, EN55014-2:1997/+A1:2001/+A2:2008
• EN61000-3-2:2006/+A1:2009/+A2:2009, EN61000-3-3:2008
The repair or replacement of your product under guarantee provides
benefits which are additional to and do not affect your statutory rights as
a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline
Tools that the deficiencies were due to faulty materials or workmanship
within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will
replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating
instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding
sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse,
neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools
components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its
authorised repair agents.
Claims other than the right to correction of faults on the tool named in
these guarantee conditions are not covered by the guarantee.
The technical documentation is kept by: Silverline Tools
Notified body: Intertek Testing
Place of declaration: Shanghai, China
Date: 02/04/12
Signed by:
Director
Name and address of Manufacturer or Authorised representative:
Silverline Tools, Boundary Way, Lufton Trading Estate, Yeovil, Somerset,
BA22 8HZ United Kingdom
www.silverlinetools.com
7
F
Description des symboles
La plaque signalétique figurant sur votre outil peut présenter des symboles.
Ces symboles constituent des informations importantes relatives au produit
ou des instructions concernant son utilisation.
Port de protection auditive
Port de lunettes de sécurité
Port de masques respiratoires
Port du casque
Port de gants
Lire le manuel d’instructions
Double isolation pour une protection supplémentaire
Conforme à la réglementation et aux normes de sécurité
pertinentes
Protection de l’environnement
Les produits électriques usagés ne doivent pas être jetés avec
les ordures ménagères. Veuillez les recycler dans les centres
prévus à cet effet. Pour de plus amples informations, veuillez
contacter votre municipalité ou point de vente.
Caractéristiques techniques
Tension : ..................................................230 V~
Fréquence : .............................................50 Hz
Puissance : ..............................................135 W
Vitesse nominale : ...................................de 10000 à
32000 tr/mn
Taille de l’arbre : ................................... M8
Capacité de perçage maximale : ...........Ø 3,2 mm
Classe de protection : ..............................
Du fait de l’évolution constante de notre développement produits,
les spécifications des produits Silverline peuvent changer sans
notification préalable.
Lisez attentivement ce manuel ainsi que toute étiquette apposée sur l’outil
et assurez-vous d’en comprendre le sens avant utilisation. Rangez ces
consignes avec l’outil, pour référence ultérieure. Assurez-vous que toute
personne venant à utiliser cet outil ait attentivement pris connaissance de
ce manuel.
Sachez qu’utiliser un outil conformément aux prescriptions ne garantit
pas l’élimination de tous les facteurs de risque. Procédez avec prudence.
N’utilisez pas cet outil si vous avez des doutes quant à la manière sûre et
correcte de procéder.
Consignes générales de
sécurité relatives aux appareils
électriques
AVERTISSEMENT Veuillez lire l’intégralité des consignes de sécurité
et des instructions. Le non-respect de ces consignes et instructions peut
entraîner un risque de choc électrique, d’incendie et/ou se traduire par des
blessures graves
Veuillez conserver ces instructions et consignes de sécurité pour
référence ultérieure.
L’expression « appareil électrique » employée dans les présentes consignes
recouvre aussi bien les appareils filaires à brancher sur le secteur que les
appareils sans fils fonctionnant sous batterie.
Sécurité sur la zone de travail
a) Maintenir une zone de travail propre et bien éclairée. Des zones
encombrées et mal éclairées sont sources d’accidents.
b) Ne pas utiliser d’outils électriques dans des environnements
explosifs, tels qu’à proximité de liquides, de gaz ou de poussières
inflammables. Les appareils électriques produisent des étincelles
susceptibles d’enflammer la poussière ou les vapeurs présentes.
c) Eloigner les enfants et les passants pendant l’utilisation d’un
appareil électrique. Ceux-ci peuvent provoquer une perte d’attention
et faire perdre la maîtrise de l’appareil.
Sécurité électrique
a) La prise d’un appareil électrique doit être adaptée à la prise du
secteur. Ne jamais modifier la prise en aucune façon. Ne jamais
utiliser d’adaptateur sur la prise électrique d’appareil mis à la
terre. Des prises non modifiées, adaptées aux boîtiers de prise de
courant, réduiront le risque de décharge électrique.
b) Eviter le contact corporel avec les surfaces mises à la terre telles
que tuyaux, radiateurs, cuisinières et réfrigérateurs. Le risque de
décharge électrique est plus important si le corps est mis à la terre.
c) Ne pas exposer l’appareil électrique à la pluie ou à l’humidité.
L’infiltration d’eau dans un appareil électrique accroît le risque de
décharge électrique.
d) Ne pas maltraiter le cordon électrique. Ne jamais utiliser le
cordon électrique pour porter, tirer ou débrancher l’appareil.
Protéger le cordon électrique de la chaleur, du contact avec
l’essence, des bords tranchants et pièces rotatives. Un cordon
électrique endommagé ou entortillé accroît le risque de décharge
électrique.
e) Lors d’une utilisation de l’appareil électrique en extérieur, se
servir d’une rallonge appropriée à une utilisation en extérieur.
Cela réduit le risque de décharge électrique.
f) Si une utilisation de l’appareil électrique dans un environnement
humide ne peut être évitée, utiliser une alimentation protégée par
un disjoncteur différentiel. L’utilisation d’un disjoncteur différentiel
réduit le risque de décharge électrique.
Sécurité des personnes
a) Rester vigilent et faire preuve de bon sens lors de la manipulation
de l’appareil. Ne pas utiliser un appareil électrique lorsque l’on
se trouve dans un état de fatigue, ou sous l’influence de drogues,
d’alcool ou de médicaments. Un moment d’inattention pendant
l’utilisation d’un outil électrique peut se traduire par des blessures
graves.
8
Loading...
