Silvercrest 10-IN-1 User Manual [en, pl, de]

10-IN-1 REMOTE CONTROL SFB 10.1 B2

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

Przed przeczytaniem proszę rozłożyć stronę z ilustracjami, a następnie proszę zapoznać się z wszystkimi funkcjami urządzenia.

Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami prístroja.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

10-IN-1 REMOTE CONTROL

Operating instructions

PILOT UNIWERSALNY

KOMPERNASS GMBH

Burgstraße 21 D-44867 Bochum www.kompernass.com

Last Information Update · Stan informacji Stav informácií · Stand der Informationen: 12 / 2012 · Ident.-No.: SFB 10.1B2102012-3

Instrukcja obsługi

UNIVERZÁLNY DIAL'KOVÝ OVLÁDAČ

Návod na obsluhu

UNIVERSALFERNBEDIENUNG

Bedienungsanleitung

IAN 86342 IAN 86342

GB Operating instructions Page 1 PL Instrukcja obsługi Strona 29 SK Návod na obsluhu Strana 59 DE / AT / CH Bedienungsanleitung Seite 87

INDEX     PAGE

Important safety instructions 2 Device summary 3 Initial use 4

Unpacking the device/checking the package contents 4 Inserting the batteries 4

Operating components 5

LCD display 5

Buttons 6 The conguration menu 9 Menu language conguration 11 Code conguration (Programming the remote control) 11

Programming by brand code search 11

Programming by manual code input 12

Programming by automatic code search 13 System conguration 14

Setting the time 14

Setting the date 14

Adjust contrast 15

Background Illumination 15

Setting the global volume/mute switching 15

Select a Tape-/Disc device for direct operation 16

Setting the lock function 17

System reset 17 Timer conguration 18

Sleep timer 18

Event timer 18

Delete Timer 19 Learn conguration 19

Code learn function 20 Macro conguration 21 Favourites channel 22 Volume control 24

Vol +/—, (Mute switching) 24 For operation 24

All OFF 24 Cleaning and storage 25 Faults / Remedies 25 Disposal 26 Technical data 26 Note regarding conformity 27 Importer 27 Warranty & Service 27

- 1 -

10-IN-1 REMOTE CONTROL SFB 10.1 B2

Introduction

Congratulations on the purchase of your new appliance. You have clearly decided in favour of a quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specied areas of application. Retain these instructions for future reference. In addition, pass these documents on, together with the product, to any future owner.

This documentation is copyright protected. All rights including those of photographic reproduction, duplication and distribution by means of particular methods (for example data processing, data carriers and data networks), wholly or partially as well as substantive and technical changes are reserved.

Importantsafetyinstructions

Proper use

Children may only operate the remote control under adult supervision. The universal remote control can replace a maximum of ten remote controls. It can only be used for entertainment electronics with infrared receivers. The functions of the Universal remote control essentially correspond to those of the original remote control. The universal remote control is intended for private use. It is not suitable for commercial use. Any other use is considered improper use. The manufacturer accepts no responsibility for damage caused by improper handling or unauthorized reconstruction.

Warning

A warning of this danger level signies a possible dangerous situation. If the dangerous situation is not avoided it can lead to injuries. The directives in this warning are there to avoid personal injuries.

Important

A warning of this danger level signies possible property damage. If the situation is not avoided it can lead to property damage. The directives in this warning are there to avoid property damage.

Note

A note signies additional information that assists in the handling of the device.

- 2 -

 Warningofinjurydangerasaresultof

improperhandlingofbatteries!

Batteries must be handled with special care. Take note of the following safety instructions:

• Keep batteries well away from children. Children can

put batteries into their mouths and swallow them. If a battery is swallowed medical assistance must be sought IMMEDIATELY.

• Do not throw batteries into a re. Never subject batteries

to high temperatures.

• Explosion hazard! Non-rechargeable batteries must never

be recharged.

• Do not open the batteries or short-circuit them.

• Battery acid leaking from a battery can cause inamma-

tion of the skin. In event of contact with the skin, rinse with large amounts of water. If the liquid comes into contact with your eyes, rinse thoroughly with water, do not rub and immediately consult a doctor.

 Attention!

The Universal remote control contains an infrared diode of laser class 1. In order to avoid eye injuries do not look at the

diode with optical devices.

Damagetothedevice

• If the device is defective, do not attempt to repair it your-

self. In case of damage, contact the manufacturer or the manufacturer's service hotline (see Warranty information).

• If liquid escapes from the device or if the device has been

otherwise damaged, it must be inspected by the manufacturer or the manufacturer's service hotline. Contact the manufacturer or the manufacturer's service hotline (see Warranty information).

• Take the batteries out of the battery compartment as soon

as they are depleted.

• If you will not be using the device for a long period of time,

remove the batteries to prevent them from discharging.

• Always change all batteries at the same time and always

use batteries of the same type.

Devicesummary

q LCD display w /ALL OFF button e Device buttons r S button t Arrow buttons y EXIT button u P +/— buttons i MACRO button o Number buttons a Button for one or two digit programme numbers

- 3 -

s Teletext function buttons d Illumination button f Playback buttons g AV button h Mute switching

VOL +/— buttons

j k MENU button l OK button 1( FAV / EPG button

2) Infrared sender/receiver 2! Battery compartment cover

Tips:

• The functions described here pertain to the theoretically

ideal circumstance that the button structure of the respective original remote control is identical to this universal remote control. This only occurs, however, in rare cases. If, therefore, not all of the original remote control's functions can be reproduced it is not due to a diciency in the Universal remote control.

• All the brand names used in these instructions or in the

accompanying code list are trademarks of the corresponding companies.

Initialuse

Unpacking the device/checking the package contents

 Warning!

Keep the plastic packaging well away from small children. There is a risk of suocation!

• Unpack the device and accessories.

• Check the package contents

- Universal remote control (URC),

- Operating instructions,

- Manufacturers directory with device code list:

- 2 x 1,5 V Batteries, type AAA/LR03 (Micro)

 Note:Transportdamage

If you notice any transport damage contact the manufacturer or the manufacturer's Service-Hotline (see warranty information).

Inserting the batteries

 Attention!

The Universal remote control must only be operated with

1.5 Volt batteries (Type AAA, LR03).

Carry out the battery change as quickly as possible. Preset settings will remain saved for approx. 1 minute. If new batteries have not been installed within this time all of the settings will have to be carried out again. The time of day and date

will, however, be lost in either case.

- 4 -

1. Open the battery compartment cover 2! in the direction

of the arrow.

2. Insert the batteries as shown in the diagram and close the

battery compartment. The LCD display q is activated as long as batteries are installed. The following diagram shows the LCD display q after the batteries have been installed or changed.

 Note:

If no LCD display q is visible check the polarity of the batteries or install new ones.

Operatingcomponents

LCD display

The LCD display q is divided into elds.

Text field 2@

Here is shown the currently selected device, for example DVD, TV VCR etc.

Infrared symbol 2#

Every time a button is pressed, with which an infrared signal is to be sent the Infrared symbol illuminates.

- 5 -

Code/Time field 2$

Here is shown the device code of the relevent selected device or the time of day. With the time of day indicator " bers blink in the middle. For time displays in the 12-hour format, the period of the day code is shown to the left of the time.

Day of the week field 2%

Here you can read the shortened form of the current day of the week after you have entered the date.

Standard display:

The standard readout of the LCD display q consists of the details for the relevent device, for example, "TV", the initial for the day of the week and the time of day indicator.

:" the num-

Buttons

 Note:

All the functions described here can, of course, only be used if they are supported by the device being controlled.

/ALL OFF button. w

To switch the device on/o; press and hold

for a few seconds to switch all devices on/o.

Device buttons e

The device buttons are used to select the device that should be operated.

Television Video recorder Accessory unit 1 Cable receiver CD player BluRay Disc Player Audio amplier DVD player Digital satellite receiver Accessory unit 2

The mentioned button allocation is not compulsory. You can, for example, also save the code for the video recorder on the TV slot.

"S" button r

Press and hold for 3 seconds to access the

conﬁguration menu or press brieﬂy to show the date.

- 6 -

To access the target device’s electronic

programme guide (EPG) ﬁrst press brieﬂy the S button r and then the FAV/EPG button 1(.

To control the “PIP” function (picture in pic-

ture) of your television set, rst press the S button r followed by the

- button

of the Videotext function buttons s.

Arrow buttons t

Move up, right, left and down in menus.

EXIT button y

Move a level backward in the menu.

P +/— buttons u

Changing the reception channel. In the DVD and CD-mode these buttons

control the SKIP function

MACRO button i

MACRO button i followed by a number

button o 1-6 activates a previously saved chain of commands.

Number buttons o

Enter programme and device code numbers.

Button for one/two digit programme numbers a

For two digit programme numbers (depend-

ing on the device type) rst press the a button then via the number buttons o enter the programme number. When pressed again the display becomes single digit once more.

Teletext function buttons s

In teletext operation the buttons have the following functions:

Access the teletext function.

Stop automatic paging forward for

multi-page teletexts.

Enlarge page presentation

Screen text and TV image one upon the

other

To end the teletext function.

- 7 -

To access the SWAP function of the target

device briey press the S button r, followed by the

-button.

 Note:

• The teletext function is only available in the European TV

mode and your reception device must be teletext ready.

• In addition the P +/- buttons u control the following

teletext functions:

P+ Leaf one page forward P— Leaf one page backwards

Playback buttons f

The playback buttons f control devices such as DVD/CD players and video recorders:

Start playback

Image format switching with TV operation.

Record Stop Playback/Record/Wind Pause playback Rewind Wind forward

The coloured marking of the playback buttons refer to the coloured elds in the video text, over which the Toptext functions can be controlled.

AV button g

Switch to the AV input.

Mute switching h

Switch sound on/o.

VOL+/— buttons j

Set volume (Volume).

MENU button k

Access the menu of the controlled device.

OK button l

You can conrm a menu selection with the OK

button.

FAV/EPG button 1(

Press the FAV/EPG button to access your

previously programmed favourite station. To access the EPG function of the target

device ﬁrst press brieﬂy the S button r.

- 8 -

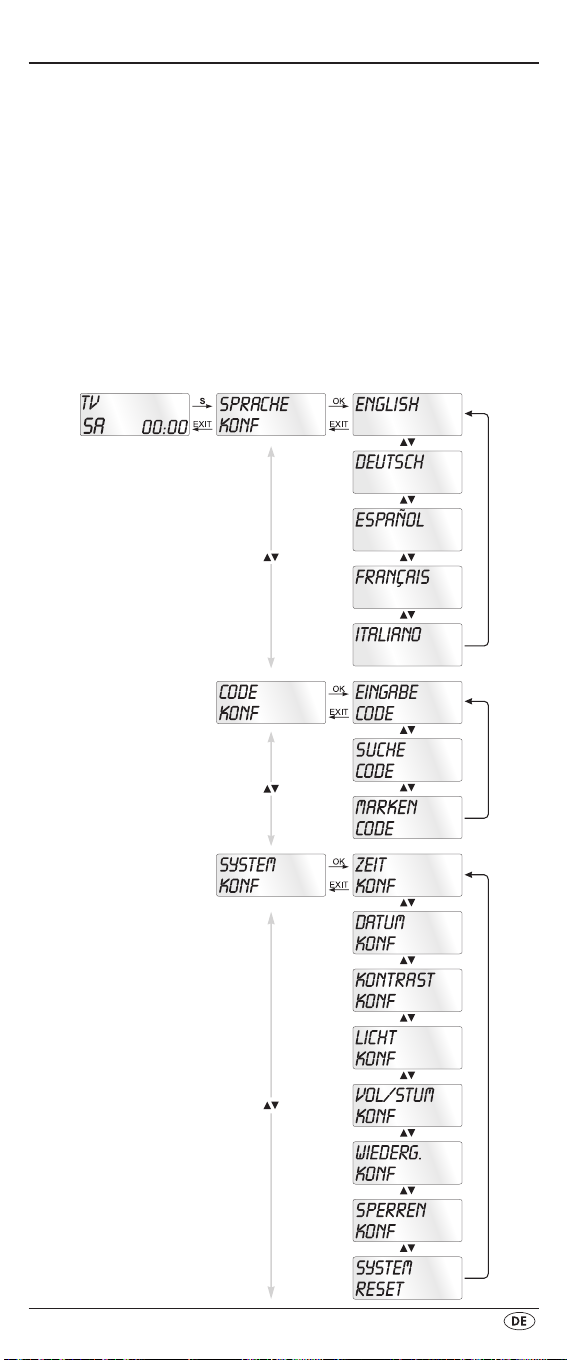

The conﬁguration menu

In the system settings you undertake the following:

• Programming the remote control to the devices to be con-

trolled

• Settings for the menu language, time of day, date, display

contrast, background illumination, volume, lock function as well as system reset.

• Timer settings

• The "learning" of designated button commands

• Setting up Macros

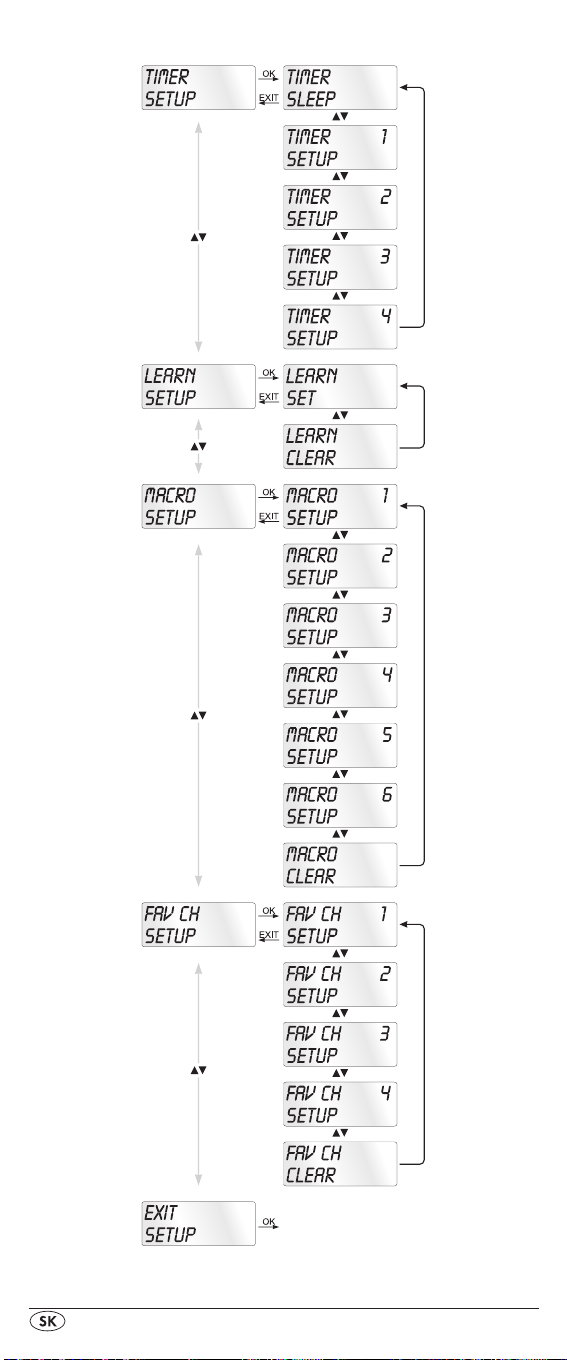

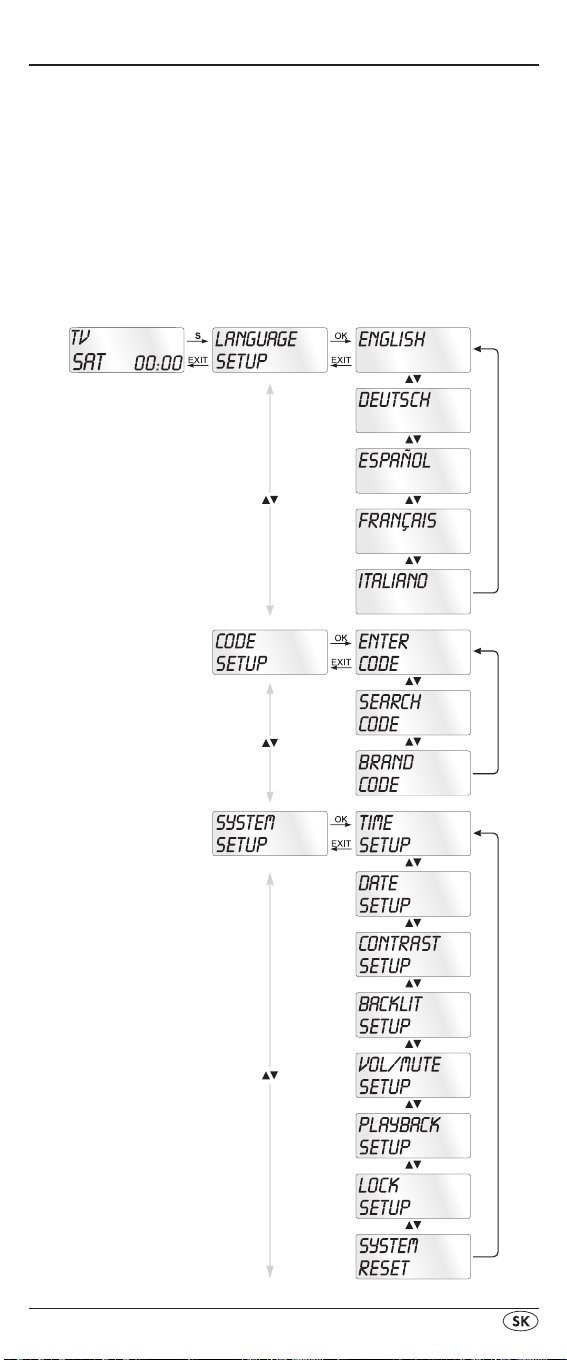

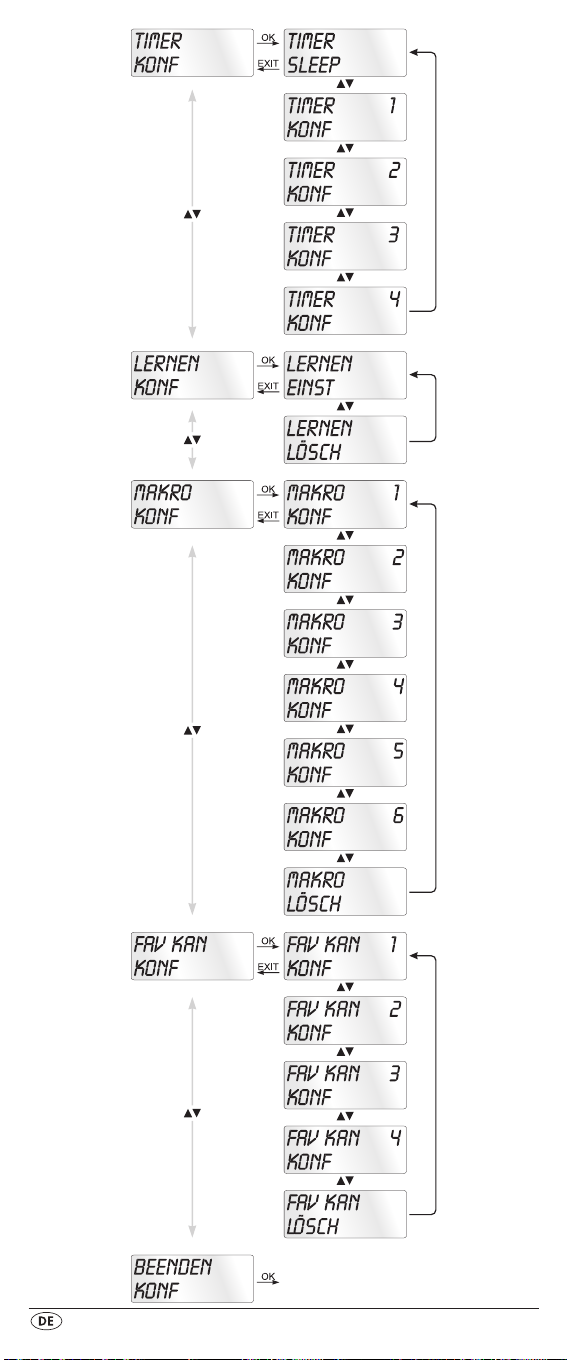

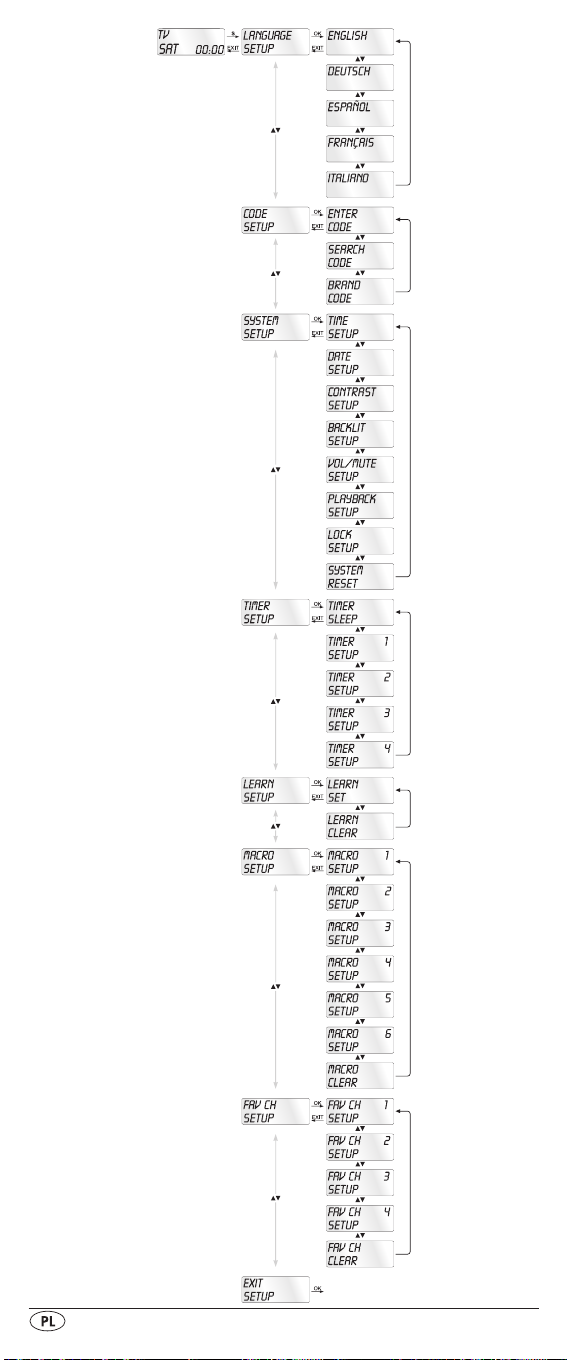

• Assigning favourites On the following page you can see a summary of the menu

structure.

- 9 -

- 10 -

Menu language conﬁguration

For the device menu display you can select from 5 languages: English, German, Spanish, French and Italian.

1. Hold down the S button r for a little longer than 3 sec-

onds. Carry out entries in the menu quickly because after

approx. 15 seconds without an entry the menu will end.

2. “LANGUAGE SETUP” appears in the LCD display q.

Press the OK button l.

“ENGLISH” now appears in the LCD display q. With the

 buttons t select the desired language and conﬁrm

with the OK button l.

With the EXIT button y you exit the menu.

4. The device menu is now displayed in the selected language.

For the following instructions we are assuming that you have selected your own language.

Code conﬁguration

(Programming the remote control) 3 Programming methods are available for the remote control:

Programming by brand code search, by automatic code search and by direct code input (manual).

First you should use the brand code search since this method is the fastest way of programming if the manufacturer of your device is itemized in the code list. As second is recommended the direct code input followed by the automatic code search.

Programming by brand code search

With this method you select the brand and code direct via the LCD display q.

Observe the following operational references to programme the remote control:

1. Press the device button e for the device that you want to

programme the remote control.

2. Hold down the S button r for a little longer than 3 sec-

onds. “LANGUAGE SETUP” appears in the LCD display

q. With the  or  button t select “CODE SETUP” and

conﬁrm with the OK button l.

3. "ENTER CODE" now appears in the LCD display q. With

the  buttons t select "BRAND CODE" and conrm

with the OK button l.

4. Now appears the alphabetical rst brand name from the

list of pre-programmed devices.

5. With the 34 buttons t select the various brand names.

6. To make access easier you can skip directly to specic let-

ters of the alphabet with the number buttons o:

2 => A 3 => D  4 => G 5 => J

6 => M 7 => P  8 => T 9 => W

Example for the search of a TV brand code: With button

- 11 -

number 5 the display skips to the letter "J". The rst brand

is "JEC"*. If, for example, you own a "Kenwood"* brand

device, continue leang with the 4 button t until this

brand name appears. (* All brand names used here are

trademarks of the corresponding manufacturer.)

7. The majority of manufacturers use several dierent codes

for the remote control. You must now ascertain which of

the available codes is best suited to your device. On the

right underneath the brand name the relevent code will

be shown in the LCD display q.

8. To test the code, point the remote control at the actual

device and press the buttons that correspond to the func-

tions of this device (except

34t, OK l, EXIT y,

the device buttons e or the numeric buttons o).

9. If most of the buttons function press the OK button l to

save the setting. In the LCD display q "OK" appears.

Subsequently the menu will close automatically.

10. If, however, none or only a few of the buttons function

select with the

 or  button t the next code and test

again as described in step 8.

11.

With the EXIT button y you move back one level in the menu.

Repeat these operational steps for all devices that you would like to control with the remote control.

Programming by manual code input

In this mode the remote control can be programmed by direct input of a code number. You can obtain the necessary code number from the enclosed manufacturers directory with device code list. In the event that the new code is invalid the last valid programmed code will be restored.

1. Press the device button e for the device that you want to

programme the remote control.

Hold down the S button r for a little longer than 3 sec-

2.

onds. “LANGUAGE SETUP” appears in the LCD display

q. With the  or  button t select “CODE SETUP” and

conﬁrm with the OK button l.

3. "ENTER CODE" now appears in the LCD display q.

access this function press the OK button l.

4. In the LCD display q appears the presently used code for

the selected device. Now the rst digit of the code blinks

and waits for your code input. Enter the new four digit

code via the number buttons o. After entering the fourth

digit the whole code ashes. You can now test if the URC

can control the device you want with this code. Press

those keys that correspond to the functions of the device,

with a TV set for example, PROG +/–. If the device re-

acts as required, conrm the code input with the OK but-

ton l. If it does not, enter the next possible code from the

list and try again.

5. If the entered CODE is valid the code will be saved. In

the LCD display q "OK" appears briey. Subsequently

To

- 12 -

the menu will close automatically. In the event of failure

the LCD display q shows briey "ERROR" and waits for a

new code entry. Then you repeat step 4.

With the EXIT button y you move back one level in the

menu.

Programming by automatic code search

This process can take several minutes per device since all codes for the selected device have to be gone through. Therefore this method should only be used when the device cannot be programmed via brand code search or direct code input or if your device is not listed at all in the manufacturers directory with device code list.

Follow the steps listed below to carry out programming by means of the automatic code search.

1. Press the device button e for the device that is to be con-

trolled (i.e. VCR).

2. Switch the device that is to be controlled with the remote

control on. With VCR/DVD/CD devices please insert a

tape and/or disc.

Hold down the S button r for a little longer than 3 sec-

3.

onds. “LANGUAGE SETUP” appears in the LCD display

q. With the  or  button t select “CODE SETUP” and

conﬁrm with the OK button l.

4. "ENTER CODE" now appears in the LCD display q. Press

the  or  button t until "SEARCH CODE" is shown in

the LCD display q. Point the remote control to the device

and then press the OK button l to access the mode "au-

tomatic code search".

5. The search begins. Thereby the device sends, one after

the other, the code numbers in ascending order. The infra-

red symbol 2# indicates this. Every search starts with the

currently programmed code.

6. When the device reacts by switching o press immedi-

ately the OK button l to save the relevent code. The LCD

display q shows briey "OK".

Check to see if the majority of your device's functions can

now be controlled with the remote contol. If yes you have

most probably found the correct code. In the event that a

few functions are not working you can start the automatic

code search again beginning with step 1.

However if the device does not react any more you prob-

ably did not press the OK button l quick enough in step

6. Then press repeatedly the EXIT button y to exit the

menu and return to the standard display.

9. Now hold down the device button e of the device for

which you have just sought the relevent code. Below on

the right in the LCD display q will thereby be shown the

relevent code. Make a note of this number.

- 13 -

10. Then proceed as described in the preceding chapter

"Programming by manual code entry" and check to see if the code with the next lowest number combination will function.

 Tips:

1. While the code search is activated none of the buttons

will function apart from OK l and EXIT y.

2. If the automatic search has reached the end of the code

list it stops there. The display then returns to "SEARCH

CODE".

System conﬁguration

Setting the time

The LCD display q shows you the time of day. You set this as follows:

1. Hold down the S button r for a little longer than 3 sec-

onds. The notice "LANGUAGE SETUP" appears. If ap-

pox. 15 seconds passes without an entry the device exits

the menu and returns to the standard display.

2. With the  or  button t select "SYSTEM SETUP" and

conrm with the OK button l.

3. In the LCD display q "TIME SETUP" appears. Conrm

with the OK button l.

"TIME" and the time format (24 HR) blinks.

4.With the  or  button t you can switch to the other

time format (12 HR). After which the time display for the

time of day will show an “AM” or “PM” before the time.

„AM“ stands fpr “AM” = “ante meridium” (Morning, 0:00

o’clock midnight to 12:00 o’clock midday). „PM“ stands

for “PM” = “post meridium” (Afternoon and evening,

12:00 o’clock midday to 0:00 o’clock midnight). Press

the OK button l to conrm.

5.Now the hour indicator blinks. With the  or  button t

select the hour number for the present time of day and

press the OK button l.

6.Now the minute indicator blinks. With the  or  button

t select the minute number for the present time of day

and press the OK button l to save. The "TIME SETUP"

notice appears again.

7. To exit this or the following menus press repeatedly the

EXIT button y until the standard display appears in the

LCD display q.

The LCD display q now shows

Setting the date

The LCD display q shows you the date when you press the S button r. You set the date in this way:

1. Hold down the S button r for a little longer than 3 sec-

onds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "SYSTEM SETUP" and

conrm with the OK button l.

- 14 -

3. In the LCD display q "TIME SETUP" appears. Press the 

button t to change to "DATE SETUP". Conrm with the

OK button l.

4.In the display the year "2011" blinks. With the  or

 button t you can change the year and conrm with

the OK button l. With the  or  button t you can

change the now blinking month and conrm with the OK

button l. Now the day indicator blinks which you can

also change with the  or  button t.

5. To save press the OK button l. The "DATE SETUP"

notice appears again.

Adjust contrast

You can set the display's contrast as follows:

1. Hold down the S button r for a little longer than 3 sec-

onds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "SYSTEM SETUP" and

conrm with the OK button l.

3.With the  or  button t select "CONTRAST SETUP"

and conrm with the OK button l.

4. In the LCD display q the contrast value now blinks which

you can set with the  or  button t.

Display readout:

0 = highest contrast:

15 = lowest contrast

5. With the OK button l you can save the desired setting.

The notice "CONTRAST SETUP" appears again.

Background Illumination

You can set how long the LCD display’s q background and the button illuminations remain alight after completion of the operation.. Thereby taking into account that the longer the illumination remains lit the shorter the battery life will be.

1. Hold down the S button r for a little longer than 3 sec-

onds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "SYSTEM SETUP" and

conrm with the OK button l.

3.With the

conrm with the OK button l.

4. In the LCD display q now blinks the second count for the

length of time that the light is to be left on which you can

set with the   buttons t from 0 to 60. If you select

"0" the background illumination will shut o completely.

5. With the OK button l you can save the desired setting.

The notice "BACKLIT SETUP" appears again.

 or  button t select "BACKLIT SETUP" and

Setting the global volume/mute switching

So that you don’t always have to rst press a device button for the volume control and mute switching, for these functions the URC always only responds to an individual device. You can determine this target device yourself.

- 15 -

1.Hold the S button r down for a little longer than

3 seconds. The notice „LANGUAGE SETUP“ appears.

2.With the  or  button t select “SYSTEM SETUP” and

conﬁrm with the OK button l.

3.With the  or  button t select “VOL/MUTE SETUP”

and conﬁrm with the OK button l.

4.The LCD display q shows “ALL VOL SET”. Press the OK

button l, the display changes to „ALL VOL MODE“.

5. Now press the device button e for the device that is to be

controlled by the global volume control.

6. If the speciﬁed device is equipped with a volume control,

“SUCCESS” will be displayed brieﬂy and the menu will

close. From now on the volume control functions on the

device just speciﬁed.

7. If this device is not equipped with its own volume control

the URC will not allow this selection and shows “VOLUME

ERROR”. Even then the menu will close. The volume con-

trol will then continue to function on the former device.

You can also deactivate the global volume control for speciﬁc devices.

1. For this select in the menu “VOL/MUTE SETUP” with the

 or  button t the function “MODE VOL SET” and

conﬁrm with the OK button l. In the LCD display q ap-

pears „MODE VOL MODE”.

2.Now press the device button e for the device that is to

be excluded from the global volume control. The LCD

display q shows „SUCCESS“ and the global volume

control is deactivated if the URC is working in the opera-

tional mode of one of the selected devices.

You can again override the settings in the “VOL/MUTE SETUP” menu.

1. For this select in the menu “VOL/MUTE CONF” with the

 or  button t the function “VOL/MUTE RESET” and

conﬁrm with the OK button l.

2.The LCD display q prompts you, with CONFIRM RESET,

to a conﬁrmation which is done by pressing the OK

button l.

Press the OK button l if you want to delete the setting, the displayed “SUCCESS” then conﬁrms the deletion of the device assignment to global volume control. Otherwise you press the EXIT button

yto abort the

deletion.

Select a Tape-/Disc device for direct operation

You can select a tape or disk device that you can control with the playback buttons f without rst having to press the corresponding device button e.

1. Hold down the S button r for a little longer than 3 seconds. The notice “LANGUAGE SETUP” appears.

2. With the  or  button t select “SYSTEM SETUP” and conrm it with the OK button l.

- 16 -

3. In the LCD display q “TIME SETUP” appears. Press the  button t to switch to “PLAYBACK SETUP”. Conrm with the OK button l.

4. With the  or  buttons t now select the device that should respond to the URC when you use the playback buttons f. Conrm with the OK button l.

5. If instead of a device you select “OFF” and conrm it with the OK button l, you switch the direct operation o. If

you select “RESET” and conﬁrm with the OK button l you activate the pre-programmed default settings (DVD) for this function.

6. The LCD display q shows “SUCCESS” and the selected device can now be directly controlled using the playback buttons f.

Setting the lock function

With the lock function you can block access to all conﬁguration menus.

1.Hold down the S button r for a little longer than 3 seconds.

2. With the  or  button t select „SYSTEM SETUP“ and conﬁrm with the OK button l.

3.With the  or  button t select “LOCK SETUP and conﬁrm with the OK button l. The LCD display q shows the current settings.

4.With the  or  button t now select between „LOCK“ (Block) or „UNLOCK“ (Unblock).

5.With the OK button l you save the setting. In the LCD display q „LOCK SETUP“ then appears again.

System reset

With this function you can delete the assignment of all or individual device buttons.

1. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "SYSTEM SETUP" and conrm with the OK button l.

3.With the  or  button t select "SYSTEM RESET" and conrm with the OK button l.

4. With the  or  buttons t you can now select the desired function. To delete the assignments (Code) of all device buttons e, as well as all data to macros, timer and learned functions, select “ALL RESET” and conrm it with the OK button l.

5. In the LCD display q there now appears “CONFIRM RESET”. Conrm the deletion with the OK button l. Then the LCD display q shows “SUCCESS RESET”. The detailed information is now deleted and the menu is terminated.

6. To delete only the assignments of individual device keys e, select “MODE RESET” and then press the OK button l. The LCD display q now shows MODE” and asks you to

- 17 -

press the device button e whose assignment you want to delete. To conclude, “SUCCESS” briey appears, then you will again read “MODE” in the LCD display. Now press any other further desired device buttons e to also delete their assignment.

7. Otherwise, you can exit the menu by pressing the EXIT button y.

Timer conﬁguration

The URC oers 2 timer modes, sleep timer and event timer.

Sleep timer

1. Press the device button e for the device that is to be controlled (i.e. VCR).

2. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

3.Press the  or  button t until "TIMER SETUP" is shown. Press the OK button l "TIMER SLEEP" appears in the LCD display q. with the OK button l.

4. Now, below to the right in the LCD display q blinks the minutes for the remaining time of the selected device. Set with the  or  button t the desired value from 1 to 99 minutes. Press the OK button l to conrm. With

programmed sleep-timer the LCD display q shows “ on the right next to the time.

5. Position the remote control in such a way that your infrared signal can reach the device to be switched o. After expiration of the set time the remote control will switch the device o.

6. If you now press the S button r “SL” is shown in the dis-

play q below on the left.

Conrm the selection of this function

”

Event timer

The remote control has 4 event timers available via which you are allowed to send out specic series of button combinations at designated times.

1. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "TIMER SETUP" and conrm with the OK button l. "TIMER SLEEP" appears in the LCD display q. the desired memory slot "TIMER SETUP 1" to "TIMER SETUP 4" and conrm with the OK button l.

3. Now the hour of the time of day, to which the desired button combinations are to be carried out, blinks. Set with the  or  button t the desired hour and press for conrmation the OK button l.

4. Now the minutes of the time of day, to which the desired button combinations are to be carried out, blinks. Set with the  or  button t the desired minutes and press for conrmation the OK button l.

With the  or  button t select

- 18 -

5. In the LCD display q you will see "TIMER X KEY" (X stands for the desired timer). Now press the desired device button e followed by the desired sequence of the button commands.

6. By default, the timer commands are sent at intervals of 1 second. Since many devices react sluggishly, it is possible that the sequences of the timer commands are sent to the device too quickly. Then you have the option of programming, before a button command, a pause of between 5 to 21 seconds. For this press, if necessary repeatedly, on the MACRO button i. Below and to the right the LCD display q shows the current pause length in seconds.

7. Press the S button r to save your entry and to return to the timer menu.

8. Procede in a similar manner in order to, if required, programme the other timer memory slots also.

9.With programmed event timer the LCD display q shows the timer symbol „

 Tips:

1. Per timer memory slot a maximum of 14 buttons can be programmed. After entry of the 14th button the sequence will be automatically saved and "FULL" is shown in the LCD display q.

2. In this menu also the device will return to the standard display after approx. 15 seconds without an entry.

” on the right next to the time.

Delete Timer

You can delete a programmed sleep or event timer as follows:

1. Select the timer that you wish to delete (see chapter Sleep-Timer/Event-Timer) and then press the OK button l. In the LCD display q you will read „TIMER CLEAR“.

2. Press the OK button l. The LCD display q changes to „CONFIRM CLEAR“.

3. Press the OK button l once again to delete the timer. The LCD display q conrms the successful deletion with the message „SUCCESS“.

Learnconguration

The Universal remote control (URC) can learn and save button signals of an original remote control. If the URC does not work after applying the programming methods already described or cannot carry out all commands please attempt to teach the URC with the help of the original remote control.

• Use new batteries for the URC and the original remote

control.

• Maintain a distance of at least one metre from other light

sources. The light sources could disrupt the infrared transmission.

• Place the URC and the original remote control at a dis-

tance of 20 to 50 mm from each other on an even surface so that the infrared diodes 2) are facing each other.

- 19 -

 Tips:

1. Do not use the following buttons for the learn function: all device buttons e, MACRO i, S button r, EXIT y.

2. If when teaching, during the notice "LEARNING", no button is pressed on the original RC after 25 seconds the learn menu will end. This mode can not be ended by pressing a button on the URC.

3. The memory can accommodate 150 button commands. If the memory is full the LCD display q shows "LEARN FULL" and the learn mode will end.

4. With the EXIT button y you return to the previous status (except with a notice of "LEARN KEY" and/or "LEARNING").

Code learn function

1. Press the device button e for the device that the URC should learn a button code.

2. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

3. With the  or  button t select the menu "LEARN SETUP" and then press the OK button l.

4. In the LCD display q "LEARN SET" appears. Then press the OK button l. pears.

5. First press the button on the URC that is to be taught. In the LCD display q "LEARNING" appears. The URC now waits for the infrared signal from the original remote control.

Note:

Should the notice not change to "LEARNING" you have selected a button for which no button code can be taught.

6. Point the infrared sensors 2) of both remote controls towards each other.

7. Now hold down the desired button of the original remote control until "SUCCESS" or "LEARN ERROR" appears in the display q of the URC.

8. If in the LCD display q "SUCCESS" appears (process successful), you can teach further buttons begining with step 5. If "LEARN ERROR" appears (process unsuccessful) repeat the process in any case from step 5.

To stop/end the learn process press the S button and

9.

subsequently, while “LEARN KEY” is displayed, repeatedly the EXIT button y until the normal indicator appears in the LCD display q. During the displayed “LEARNING” simply allow 30 seconds to pass without any operation and the device will then exit the menu.

In the LCD display q "LEARN KEY" ap-

Delete all programmed buttons of all devices

1. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select the menu "LEARN SETUP" and then press the OK button l. In the LCD display q "LEARN SET" appears.

- 20 -

3.With the  or  button t select "LEARN CLEAR" (taught delete) and conrm with the OK button l. In the LCD display q "CONFIRM CLEAR" (conrm delete) appears.

4. Conrm with the OK button l. "SUCCESS" appears. All programmed buttons are de- leted. Finally the menu will automatically end.

 Note:

When the LCD display shows “CONFIRM CLEAR” you can stop the deletion with the EXIT button y.

In the LCD display q

Macro conﬁguration

With the MACRO function up to 16 button commands can be carried out with the press of a single button, that is to say, several previously saved control commands can be deleted with one MACRO button. There are 6 Macro memory slots available for you.

To programme a Macro

For Macro programming proceed as follows:

1. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "MACRO SETUP" and conrm with the OK button l. In the display "MACRO SETUP 1" appears.

3.With the  or  button t select the memory slot to be programmed (MACRO SETUP 1 - 6) and conrm with the OK button l.

4. In the LCD display q "MACRO STEP" appears. Now press, one after the other, the desired buttons (max. 16). The sequence should begin with a device button e.

5.By default the Macro commands are sent in intervals of 1 every second. Since many devices react sluggishly it is possible that the sequence of the Macro commands are sent too quickly to the device. Then you have the option of programming, before a button command, a pause of between 5 - 21 seconds. For this purpose press, if necessary repeatedly, the MACRO button i. Below and to the right the LCD display q shows the current pause length in seconds.

6. When the maximum number of button commands is reached the LCD display q shows "FULL".

7. Save the entry with the S button r. In the LCD display q "MACRO SETUP" appears.

8. If, with the selection of the Macros to be programmed (step 3), you select a memory slot that is already occupied the existing Macro will be overwritten.

9. Repeat the process from step 3 to create further Macros.

10.With the EXIT button y you move back a level in the

menu, except during the input of the button commands.

- 21 -

 Tips:

1. A maximum of 16 button commands can be saved in a Macro. After input of the 16th button command, “FULL”

appears in the LCD display q.

2. To exit the mode without saving allow approx. 15 seconds to pass without an entry.

3. In the mode "MACRO STEP" you can only return to the previous status with the S button r.

Example: You want to save a command chain in a Macro. We begin in the mode "MACRO STEP".

Desired command chain: Switch on TV => PAUSE => switch

to the AV input => switch on DVD => PAUSE => Playback DVD.

In the mode "MACRO STEP", for this you enter the following button commands:

=> => (Pause time) => => =>

=> (Pause time) =>

Execute a Macro

To execute a pre-programmed Macro proceed as follows:

1. Press the MACRO button i.

2. With the corresponding number button o you access the desired Macro (1-6). Example: If Macro 3 is to be implemented press rst the Macro button i and then, within 5 seconds, the number button "

To delete all Macros

To delete all pre-programmed Macros proceed as follows:

1. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

2.With the  or  button t select "MACRO SETUP" and conrm with the OK button l. In the display "MACRO SETUP 1" appears.

3.With the  or  button t select "MACRO CLEAR" and conrm with the OK button l.

4. In the LCD display q "CONFIRM CLEAR" (conrm delete) appears. Conrm the delete process with the OK button l. All Macros are now deleted and the menu will end.

 Tips:

1. When the LCD display q shows "CONFIRM CLEAR" you can stop the delete process with the EXIT button y.

2. Individual Macros can not be deleted they can only be overwritten.

The LCD display q shows "SUCCESS".

Favouriteschannel

 Note:

With this function you can save your preferred stations as favourites.

- 22 -

To programme favourites

Your favourite stations are saved as follows:

1. Press the device button e for the device that you want to save a favourite.

2. Hold down the S button r for a little longer than 3 seconds. The notice "LANGUAGE SETUP" appears.

3.With the  or  button t select "FAV CH SETUP" and conrm with the OK button l. In the display "FAV CH 1 SETUP" appears.

4.With the  or  button t select the memory slot to be programmed (FAV CH 1 - 4 SETUP) and conrm with the OK button l.

5. In the LCD display q "FAV CH STEP" appears. Now press, one after the other, the buttons (max. 4) for access to your desired favourite stations.

6. When the maximum number of button commands is reached the LCD display q shows "FULL".

7. Save the entry with the S button r.

In the LCD display q

"FAV CH SETUP 1 - 4" appears.

8. If, with the selection of the favourites to be programmed (step 4), you select a memory slot that is already occupied the existing favourite will be overwritten.

9. Repeat the steps to apply further favourites.

10.With the EXIT button y you move a level backwards in the

menu except during the entry of the button commands.

 Note:

The input of the channel numbers can vary according to the model and brand of the selected devices. If necessary, with multi-digit channel numbers you must rst press the button a.

To access favourites

To access a pre-programmed favourite press the FAV/EPG button 1( followed by the corresponding number button for the desired memory slot (1 - 4).

Delete All FAV channels

To delete all pre-programmed favourites proceed as follows:

1. Hold down the S button r for a little longer than 3 seconds.

2.With the  or  button t select "FAV CH SETUP" and conrm with the OK button l. In the display "FAV CH 1 SETUP" appears.

3.With the  or  button t select "FAV CH CLEAR" and conrm with the OK button l.

4. In the LCD display q "CONFIRM CLEAR" (conrm delete) appears. Conrm the delete process with the OK button l. The LCD display q shows "SUCCESS". All favourites are now deleted and the menu will end.



 Tips:

1. When the LCD display q shows "CONFIRM CLEAR" you can stop the delete process with the EXIT button y.

- 23 -

2. Individual favourites can not be deleted they can only be overwritten.

Volumecontrol

Vol +/—, (Mute switching)

Press the "VOL+" button to increase the volume. With the "VOL —" button you reduce the volume. To mute the sound press the the sound back on.

If you have not set any other device as the target for the global volume control, when you press the VOL +/- buttons j on the URC the volume control of the TV set is addressed by default, regardless of which device button e was previously pressed. However, this does not apply to the following de-

vices: “AMP”, “DVD”, and “DSAT” since it can be assumed that these devices are equipped with their own volume control.

-button h. A further press of this button turns

Foroperation

> To operate one of the programmed devices with the URC

rst press the corresponding device button e. Then point the URC to this device and press the desired button.

> Put the number buttons o exactly as you do with the

original remote control. Before you make a two digit entry press, if necessary, the

> Press the S button r and subsequently the FAV/EPG but-

ton 1( to start the electronic programme guide of a device equipped with this function.

> If you press the S button r the date is superimposed for

10 seconds in the LCD display q below and on the right.

> Whilst you hold down one of the device buttons e the

active code for this device will be superimposed below to the right in the LCD display q.

> Via the MENU button k you access the dialogue for the

setting of the respective target device.

> Press the illumination button dto switch the display and

button illuminations on and/or off.

button a.

All OFF

 Tips:

With the button ALL OFF (all o) w all devices that are switched on can be automatically switched o. This function can switch on again devices that have already been switched o (depending on the device). For this, press and hold the ALL OFF button w for a few seconds. It may take up to 10 seconds before all devices are switched o. This will only function under the following circumstances:

1. A visible connection exists between all the devices and the URC.

- 24 -

2. Automatic code search, brand code search and MACRO function are not active.

3. All target devices must be suitable for remote control switch o.

To again switch on all devices automatically hold down once more the button

w until all devices are switched on.

Cleaningandstorage

 Attention!

Ensure that moisture cannot permeate into the device during cleaning! Otherwise there is the danger of causing irreparable damage to the device!

> Clean the housing of the device exclusively with a soft

moist cloth and a mild dishwashing detergent.

> Store the device exclusively in an environment that com-

plies with the specications given in the technical data.

> Before storing remove the batteries so that they will not

cause damage to the device if, during storage, they happen to leak.

Faults/Remedies

Your device does not react to the URC.

> Check the batteries. They must have enough voltage and

be properly installed.

> Firstly have you pressed the correct device button e for

the desired target device?

> Check to see that the correct code is programmed in for

the target device (see section "Code Setup").

The URC is transmitting the commands incorrectly.

> Press the corresponding device button e to set the URC

to the correct mode.

> The batteries must have enough voltage and be properly

installed.

> It is possible that you are using the wrong code. Start the

brand code search, the automatic code search or the direct code input (manual).

The URC does not change the station on the device.

> Press the corresponding device button e to set the URC

to the correct mode.

> In the event that the original RC does not have a "-/- -"

button, change the programme with the P +/— buttons u or the number buttons o.

> If this also does not work the child protection for the

target device could be activated.

Some buttons on the URC do not function properly.

> It is possible that your URC does not have all of the func-

tions that are on the device's original remote control.

- 25 -

> It is possible that you have not programmed in the optimal

code. Search for a code that supports more of the target device's functions.

The URC stops reacting after a button is pressed.

> The batteries must have enough voltage and be properly

installed.

> Point the URC towards your device.

The LCD display q shows nothing.

> The batteries must have enough voltage and be properly

installed.

> The contrast could be set too low. Increase the contrast

setting.

Disposal

Do not dispose of the device in your normal

domestic waste. This product is subject to the European directive 2002/96/EC.

Universal remote control

• Have the universal remote control or parts of it disposed

of by a professional disposal company or by your communal disposal facility.

• Observe the currently applicable regulations. In case of

doubt contact your disposal facility.

Batteries/rechargeable batteries

• Used batteries/rechargeable batteries may not be dis-

posed of in household waste.

• Batteries can contain poisons which are damaging to the

environment. Therefore, dispose of the batteries/rechargeable batteries in accordance with statutory regulations.

• Every consumer is legally obliged to surrender batteries/

rechargeable batteries to a community collection centre in their district or to a dealer. The purpose of this obligation is to ensure that batteries are disposed of in a nonpolluting manner.

• Only dispose of batteries when they are fully discharged.

Packaging

• Dispose of packaging materials in an environmen-

tally responsible manner.

Technicaldata

Controllable devices: 10 Dimensions L x W x H: 217 x 50 x 22 mm Weight : 133 g (incl. batteries) Infrared LED: Laser class 1 Power supply Batteries: 2 x 1.5 V, type AAA/LR03 (micro) (supplied)

- 26 -

Operating temperature: +15 – +35 °C Storage temperature : —0 – +50 °C

Humidity: ≤ 75 % (No condensation)

Noteregardingconformity

This device satises the fundamental requirements and other relevant regulations of the EMC Directive 2004/108/EC and the RoHS Directive 2011/65/EU.

Importer

KOMPERNASS GMBH BURGSTRASSE 21 44867 BOCHUM, GERMANY

www.kompernass.com

Warranty&Service

You receive a 3-year warranty for this appliance as of the purchase date. This appliance has been manufactured with care and meticulously examined before delivery.

Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and manufacturing defects, but not for transport damage, wearing parts or for damage to fragile components, e.g. buttons or batteries.

This product is for private use only and is not intended for commercial use. The warranty is void in the case of abusive and improper handling, use of force and internal modications not carried out by our authorized Service Centre.

Your statutory rights are not restricted in any way by this warranty.

The warranty period is not extended through repairs made under warranty. This applies also for replaced or repaired parts. Any damages or deciencies found on purchase must be reported as soon as possible after unpacking, at the latest two days after purchase. On expiry of the warranty, all repairs carried out are subject to payment.

Service Great Britain

Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk

IAN 86342

Service Ireland

Tel.: 1890 930 034 (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (o peak)) E-Mail: kompernass@lidl.ie

IAN 86342

- 27 -

- 28 -

+ 86 hidden pages
