Sigma ROX 10.0 G User Manual

STEM OR HANDLEBAR? INSTALLATION OF THE BRACKET

?

oder

or
ou

1.1 1.2 1.3 1.4

?

oder

or
ou

– Remove the
yellow foil

1. INSTALLATION OF THE BRACKET

2.1

3.1

3.3

2.2 2.3

?

oder

or
ou

INSTALLATION OF THE POWER MAGNET

INSTALLATION OF THE CADANCE MAGNET

Max. 12 mm

ADJUSTING OF POWER MAGNET

ADJUSTING OF POWER MAGNET

– In order to achieve the
necessary 12 mm or less
install the transmitter and
the magnet closer to the
wheel hub.

?

oder

or
ou

3. INSTALLATION OF THE WIRELESS CADENCE TRANSMITTER

?

oder

or
ou

ROX 10.0 GPS INSTALLATION ON THE BIKE

2. INSTALLATION OF THE WIRELESS SPEED TRANSMITTER

1.4

A

B

Max. 12 mm

Max. 14 mm

3.2 3.2

A B

Max. 12 mm

Max. 12 mm

10.0 GPS

INSTALLATION ON THE BIKE

SIGMA-ELEKTRO GmbH

Dr.-Julius- Leber-Straße 15

D-67433 Neustadt/ Weinstraße

SIGMA SPORT ASIA

4F, No.192, Zhonggong 2

nd

Rd.,

Xitun Dist., Taichung City 407, Taiwan

SIGMA SPORT USA

3487 Swenson Ave.

St. Charles, IL 60174, U.S.A.

081000/1

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference,

and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can

be determined by turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna.

– Increase the separation between the equipment and receiver.

– Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

– Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) this device may not cause interference,

and

(2) this device must accept any interference, including interference that may cause undesired

operation of the device.

This Class digital apparatus complies with Canadian ICES-003.

FIND THE COMPLETE MANUAL,
INSTALLATION AND SETTING VIDEOS
UNDER: WWW.SIGMA-QR.COM/ROX10

?

oder

or
ou

081000-1_Montageanleitung ROX 10.0_600x280.indd 1 12.06.13 14:30

7.1 8.1

WHEEL SIZE CHART FIRST WAKE UP

mm x 3,14

km/h:

WS = mm x 3,14

mph:

WS = mm x 3,14

1x

= WS (mm)

km/h:

WS = mm

mph:

WS = mm

A

B

ETRTO ETRTO ETRTO

1

6

x

1

.

7

5

x

2

1

6

x

1

.

7

5

x

2

1

6

x

1

.

7

5

x

2

C

47-305

47-406

37-540

47-507

37-584

37-590

40-559

42-559

47-559

50-559

54-559

57-559

57-584

28-630

32-630

40-635

32-622

35-622

37-622

37-622

40-622

42-622

47-622

50-622

54-622

57-622

60-622

23-571

18-622

20-622

23-622

25-622

28-622

1272

1580

1948

1900

2086

2100

2030

2025

2050

2075

2100

2120

2128

2174

2220

2265

2170

2185

2200

2200

2220

2230

2250

2280

2295

2288

2330

1973

2102

2100

2125

2135

2150

16 x 1.90

20 x 1.75

24 x 1

3

/

8

24 x 1.75

26 x 1

3

/

8

, 650 STD

26 x 1

3

/

8

, 650 x 35A

26 x 1.50

26 x 1.60

26 x 1.75

26 x 2.00

26 x 2.10

26 x 2.25

27

1

/

2

x 2.25

27 x 1

1

/

4

27 x 1

1

/

4

28 x 1

1

/

2

28 x 1.25, 700 x 32C

28 x 1.35, 700 x 35C

28 x 1.40, 700 x 35C

28 x 1.40, 700 x 37C

28 x 1.50, 700 x 38C

28 x 1.60, 700 x 40C

28 x 1.75

29 x 2.00

29 x 2.10

29 x 2.25

29 x 2.35

650 x 23C

700 x 18C

700 x 20C

700 x 23C

700 x 25C

700 x 28C

kmh
mph

kmh
mph

kmh
mph

7. WHEEL SIZE CHART 8. FIRST WAKE UP

6.1 6.46.2 6.3

CHANGE BATTERY / SPEED TRANSMITTER
(BATTERY TYPE CR 2032)

+

LOAD BATTERY / ROX 10.0 GPSCHANGE BATTERY / CADENCE TRANSMITTER

(BATTERY TYPE CR 2032)

CHANGE BATTERY / HEARTRATE TRANSMITTER
(BATTERY TYPE CR 2032)

6. BATTERY CHANGE / LOAD

ROX 10.0 GPS INSTALLATION ON THE BIKE

4.1 5.1

4.2 4.3 4.4

RUB WATER OR CARDIO-GEL ON THE ELECTRODES ADJUSTING THE CHEST STRAP

4. ATTACHING THE WIRELESS HEART RATE TRANSMITTER 5. INSTALLING THE SIGMA ROX TO THE BRACKET

CLICK!

PC USE

OR

AC/DC

1. Installation of the bracket and sensors

2. Wake up ROX 10.0 GPS

– Press the key

ENTER

for 5 seconds. Press

ENTER

to change your language.

– Select your language with the keys / and press

ENTER

.

– Press the key

BACK

twice to return to the Main Menue.

3. Download the instruction manual from www.sigmasport.com or load it from the cd rom.

4. Pairing the sensors with the ROX 10.0 GPS

– Before using the transmitter, they have to be paired with the ROX 10.0 GPS.

– To pair a sensor, it must be activated. (Use the magnet at ANT+ Speed sensor and ANT+ Cadence sensor).
Please navigate to Settings k Bike 1-3+Totals k Bike 1 k ANT+ Pairing. Use the function keys

/ to select

the appropriate sensor for the pairing and start the pairing with the

ENTER

key.

– For a few moments „Search“ will be displayed, then the ID of the transmitter appears. The pairing process is complete
and the sensor can be used in training. Go back to the main menu to enter the training mode.

5. Start training

Note: Load completely before you start using this device.

081000-1_Montageanleitung ROX 10.0_600x280.indd 2 12.06.13 14:30

TRACK
NAVI

TRAINING

ANALYSIS

BAROMETRIC

COMPATIBLE

LOG

DIGITAL

WIRELESS

DIGITAL

WIRELESS

DIGITAL

WIRELESS

READY

BIKE COMPUTER BLACK set

GPS

Page 3

Contents

www.sigmasport.com ROX 10.0

ROX 10.0

Contents

ROX 10.0

Contents

1 Functions and contents ............................................................................................................................................ 7

1.1Foreword ............................................................................................................................................................... 7

1.2Contents ................................................................................................................................................................ 7

1.2.1 Optional accessories .............................................................................................................. 8

1.3ROX 10.0 GPS functions ................................................................................................................................ 8

1.3.1 ANT+ speed transmitter (optional accessory) ........................................................... 8

1.3.2 ANT+ heart rate transmitter (optional accessory) ................................................... 8

1.3.3 ANT+ cadence transmitter (optional accessory) ...................................................... 8

1.3.4 GPS transmitter ....................................................................................................................... 9

1.3.5 Favorites ...................................................................................................................................... 9

1.3.6 PC/MAC interface .................................................................................................................. 9

2 Attaching the ROX 10.0 GPS and initial use ................................................................................................... 10

2.1Attaching the bracket ...................................................................................................................................... 10

2.2 Before initial use ............................................................................................................................................... 10

2.3Initial use ................................................................................................................................................................ 10

2.4Pairing the transmitters with the ROX 10.0 GPS ............................................................................... 10

2.5Synchronizing the transmitters ................................................................................................................... 11

2.5.1 Synchronizing the speed ....................................................................................................... 11

2.5.2 Synchronizing the cadence .................................................................................................. 11

2.5.3 Synchronizing the chest belt ............................................................................................... 11

3 Menu tree ....................................................................................................................................................................... 12

4 Operating concept ...................................................................................................................................................... 13

4.1ROX 10.0 GPS navigation principle ........................................................................................................... 13

4.2Button functions ................................................................................................................................................. 14

4.3Operating concept for the remaining menu .......................................................................................... 15

4.3.1 Top display segment ............................................................................................................... 15

4.3.2 Bottom display segment ....................................................................................................... 15

4.4Training menu operating concept & display structure ...................................................................... 16

4.4.1 “Bikecomputer” view mode .................................................................................................. 16

4.4.1.1 Top display segment ............................................................................................................... 16

4.4.1.2 Middle display segment ......................................................................................................... 17

4.4.1.3 Bottom display segment ....................................................................................................... 17

4.4.2 “Track View” mode .................................................................................................................. 17

4.4.3 “Altitude View” mode .............................................................................................................. 17

5 Training with the ROX 10.0 GPS .......................................................................................................................... 18

5.1Favorites A and B ............................................................................................................................................... 18

5.2Calibrating the altitude IAC+ ......................................................................................................................... 19

5.3Power calculation or measurement .......................................................................................................... 20

Page 4

Contents

www.sigmasport.com ROX 10.0

ROX 10.0

ROX 10.0

Contents

5.3.1 Power calculation .................................................................................................................... 20

5.3.2 Power measurement ............................................................................................................. 20

5.4Intensity zones .................................................................................................................................................... 21

5.5Training .................................................................................................................................................................. 21

5.5.1 Using the short menu to select training settings ...................................................... 21

5.5.2 Starting logs ............................................................................................................................... 22

5.5.3 Stopping/ending logs ............................................................................................................ 22

5.5.4 Saving logs .................................................................................................................................. 22

5.5.5 Auto pause .................................................................................................................................. 23

5.5.6 Displaying training parameters.......................................................................................... 24

5.5.7 Lap Message view ................................................................................................................... 24

5.6Training functions .............................................................................................................................................. 25

5.6.1 Zoom function in Track View and Altitude View .......................................................... 25

5.6.2 Same track back function .................................................................................................... 25

5.6.3 Track found message ............................................................................................................ 25

5.6.4 Off-track alarm .......................................................................................................................... 25

5.6.5 Wrong direction message ................................................................................................... 25

5.6.6 Waypoint alarm ........................................................................................................................ 25

5.7Analysis .................................................................................................................................................................. 25

6 Load track ....................................................................................................................................................................... 26

6.1Memory capacity for track data .................................................................................................................. 26

6.1.1 Track data memory ................................................................................................................. 26

6.2Driven tracks ...................................................................................................................................................... 27

6.2.1 Start track .................................................................................................................................. 27

6.2.2 Show track .................................................................................................................................. 27

6.2.3 Show altitude profile ............................................................................................................... 27

6.3Stored tracks ..................................................................................................................................................... 28

6.3.1 Start track .................................................................................................................................. 28

6.3.2 Show track .................................................................................................................................. 28

6.3.3 Show altitude profile ............................................................................................................... 29

6.3.4 Show details ............................................................................................................................... 29

7 Memory ........................................................................................................................................................................... 30

7.1Current tour ......................................................................................................................................................... 30

7.2Stored tours ......................................................................................................................................................... 30

7.3Stored data ........................................................................................................................................................... 31

7.3.1 Tour data – bicycle .................................................................................................................. 32

7.3.2 Tour data – heart rate .......................................................................................................... 32

7.3.3 Tour data – time ...................................................................................................................... 32

7.3.4 Tour data – power .................................................................................................................. 32

7.3.5 Tour data – temperature ..................................................................................................... 33

Page 5

Contents

www.sigmasport.com ROX 10.0

ROX 10.0

Contents

ROX 10.0

7.3.6 Tour data – altimeter ............................................................................................................. 33

7.3.7 Tour data – uphill ..................................................................................................................... 33

7.3.8 Tour data – downhill ............................................................................................................... 33

7.3.9 Tour data – laps ....................................................................................................................... 34

7.3.10 Tour data – show track ......................................................................................................... 34

7.3.11 Tour data – graph. analysis ................................................................................................. 34

7.4Total values ........................................................................................................................................................... 35

7.4.1 Total values – bicycle ............................................................................................................. 35

7.4.2 Total values – heart rate ...................................................................................................... 35

7.4.3 Total values – uphill ................................................................................................................. 35

7.4.4 Total values – downhill ........................................................................................................... 35

8 Status info ...................................................................................................................................................................... 36

8.1Battery .................................................................................................................................................................... 36

8.2GPS signal ............................................................................................................................................................. 36

8.3Memory .................................................................................................................................................................. 36

9 Extras................................................................................................................................................................................ 37

9.1Stopwatch ............................................................................................................................................................. 37

9.2Countdown ............................................................................................................................................................ 37

9.3Compass ............................................................................................................................................................... 37

10 Settings............................................................................................................................................................................ 38

10.1Scale unit ............................................................................................................................................................ 38

10.2Device .................................................................................................................................................................. 38

10.3Bike 1-3 & totals ............................................................................................................................................. 39

10.3.1 Pairing with the ROX 10.0 GPS ......................................................................................... 40

10.3.2 Pairing power meters ............................................................................................................ 40

10.3.3 Total Values ................................................................................................................................ 40

10.4Altitude ................................................................................................................................................................ 41

10.5User ...................................................................................................................................................................... 41

10.6Heart rate intensity zones .......................................................................................................................... 41

10.7Heart rate target zone ................................................................................................................................ 42

10.8Power target zone.......................................................................................................................................... 42

10.9GPS settings ..................................................................................................................................................... 42

10.10Favorites .......................................................................................................................................................... 43

10.11Firmware update ......................................................................................................................................... 47

10.12 Factory settings .......................................................................................................................................... 47

11 Important information, troubleshooting, and FAQ ......................................................................................... 48

11.1Important information .................................................................................................................................. 48

11.1.1 ROX 10.0 GPS water resistance ..................................................................................... 48

11.1.2 Water resistance of the transmitter (optional accessory) ................................... 48

11.1.3 Chest belt care (optional accessory) ............................................................................... 48

Page 6

Contents

www.sigmasport.com ROX 10.0

ROX 10.0

11.1.4 Training advice .......................................................................................................................... 48

11.2Troubleshooting............................................................................................................................................... 49

11.3Frequently asked questions ........................................................................................................................ 50

12 Technical data ............................................................................................................................................................... 52

12.1Max, min, and default values ...................................................................................................................... 52

12.2Temperature, batteries ................................................................................................................................ 54

13 Warranty and guarantee ......................................................................................................................................... 55

14 Index .................................................................................................................................................................................. 57

Page 7

Foreword

www.sigmasport.com ROX 10.0

ROX 10.0

Functions and contents

1 Functions and contents

1.1 Foreword

Thank you for choosing a SIGMA SPORT bike computer. Your new ROX 10.0 GPS
will be a reliable companion for years to come. To familiarize yourself with and
learn how to use the many functions of your new bike computer, please read
these operating instructions carefully.

Enjoy the ride with your new ROX 10.0 GPS!

The ROX 10.0 GPS is a GPS bike computer that provides you with a broad range
of information both during and after your rides:

− Speed, time, distance, power and position, altitude, incline, heart rate,
intensity zones, and much more.

− Download all information to a PC or Mac so that you can view and analyze
your ride data.

− Plan tracks with DATA CENTER 3.1.

1.2 Contents

ROX 10.0 GPS Black or White bike
computer

CR2450 twist-lock bracket

USB charger (5V, 1A)

USB type A to micro-B cable

Attachment materials ROX 10.0 GPS quick start guide

DATA CENTER 3.1 on CD (including operating instructions)

Page 8

ROX 10.0 GPS functions

Functions and contents

www.sigmasport.com ROX 10.0

ROX 10.0

1.2.1 Optional/Additional accessories

ANT+ speed transmitter*

ANT+ cadence transmitter*

ANT+ heart rate transmitter*

COMFORTEX+ textile belt*

Attachment materials*

* Included with ROX 10.0 GPS complete set only

1.3 ROX 10.0 GPS functions

The ROX 10.0 GPS is a versatile bike computer. Thanks to its five navigation
functions, nine bicycle, nine heart rate, eight performance, and five altitude
measuring functions, as well as several other functions, the ROX 10.0 GPS is the
perfect companion for any ambitious cyclist. To measure cadence, power, and
heart rate, you need the appropriate accessories (depending on the set).

All current values – current speed, current altitude, current heart rate, current
cadence, and current incline – can be easily viewed on the large display.

The ROX 10.0 GPS is more than a classic bike computer. It features three bike
profiles, a configurable automatic start/stop function, and three different altitude
calibration methods.

1.3.1 ANT+ speed transmitter (optional accessory)

Use the ANT+ speed transmitter to precisely determine your speed and trip
distance regardless of GPS signal quality. An ANT+ speed transmitter can also
be used to automatically detect different bike profiles.

1.3.2 ANT+ heart rate transmitter (optional accessory)

Use the ANT+ heart rate transmitter to precisely tailor your training. The heart
rate zones and intensity zones will keep you on track toward reaching goals.

1.3.3 ANT+ cadence transmitter (optional accessory)

The ANT+ cadence transmitter enables you to see your cadence at all times. The
cadence transmitter is also required to calculate your power using the power
formula.

Page 9

ROX 10.0 GPS functions

Functions and contents

www.sigmasport.com ROX 10.0

ROX 10.0

1.3.4 GPS transmitter

The integrated GPS transmitter determines your current speed and distance
ridden. When the ROX 10.0 GPS is switched on, it automatically searches for
GPS satellites. When indoors, you may not be able to receive GPS satellite
signals, or those received may be weak. Move outdoors to for better satellite
reception or use the optionally available ANT+ speed transmitter.

1.3.5 Favorites

Favorites A & B allow you to personalize your ROX 10.0 GPS.

Select up to 28 functions that are most important to you during a ride. Don”t
worry, the ROX 10.0 GPS will record all functions in the background for post ride
analysis.

This reduces the amount of “clicking” and lets you focus on your ride.

1.3.6 PC /Mac interface

The ROX 10.0 GPS can be connected to a PC or Mac. The micro USB cable
supplied can be used to charge the ROX 10.0 GPS and transfer data between
your computer and the ROX 10.0 GPS.

You can also configure the settings for the ROX 10.0 GPS on the computer and
then transmit them to the bike computer. This enables you to quickly and easily
configure your ROX 10.0 GPS without having to navigate through all the menu
levels. Before starting, install the Data Center software from the CD supplied.
Keep an eye out for regular updates online.

Page 10

Attaching the bracket

Attaching the ROX 10.0 GPS and initial use

www.sigmasport.com ROX 10.0

ROX 10.0

2 Attaching the ROX 10.0 GPS and initial use

2.1 Attaching the bracket

− Determine whether you want to attach to the handlebars or stem.

− Remove the yellow foil.

− Please bracket on handlebar or stem and attach using either cable ties
(permanent attachment) or the O-rings.

Detailed attachment information can be found in the quick start guide provided.

2.2 Before initial use

Fully charge the ROX 10.0 GPS:
Charge the device using the micro USB cable and the USB port on your PC or
use the wall charger supplied. The process takes approximately three hours.

On the back of your ROX 10.0 GPS, lift the rubber plug to expose the micro
USB port.

2.3 Initial use

1. Press and hold the

ENTER

button for five seconds.

2. Press

ENTER

to change the language.

3. Now press the

and buttons to select your desired language then

press

ENTER

.

4. Configure the remaining settings using the same method.

2.4 Pairing the transmitters with the ROX 10.0 GPS

To use the transmitters, they must be paired with the ROX 10.0 GPS.

Information on how to pair the transmitters can be found under “ANT+ pairing” in
section ‘10.3 Bike 1–3 & totals’.

Page 11

Synchronizing the transmitters

Attaching the ROX 10.0 GPS and initial use

www.sigmasport.com ROX 10.0

ROX 10.0

2.5 Synchronizing the transmitters

To synchronize the transmitters, the ROX 10.0 GPS must be switched on and in
training mode.

Once synchronization is complete, the respective values appear on the
ROX 10.0 GPS”s top display segment in “Bikecomputer” view mode.

2.5.1 Synchronizing the speed

There are two options for synchronizing the speed:

− Start cycling – the receiver usually synchronizes with the transmitter after
five wheel rotations.

− Spin the wheel until the current speed appears on the display.

2.5.2 Synchronizing the cadence

There are two options for synchronizing the cadence:

− Start cycling – the receiver usually synchronizes with the transmitter after
five pedal rotations.

− Turn the pedals until the current cadence appears on the display.

2.5.3 Synchronizing the chest belt

Slightly moisten the electrodes and put on the chest belt. Move into the vicinity of
the ROX 10.0 GPS or get onto your bike. The ROX 10.0 GPS usually synchronizes
with the chest belt in less than 10 seconds.

The current heart rate then appears on the display.

Page 12

Synchronizing the transmitters

Menu tree

www.sigmasport.com ROX 10.0

ROX 10.0

3 Menu tree

Training

Load track

Driven tracks Stored tracks

Memory

Current tour

Stored tours

Total values

Tour 1....

Bicycle

Heart rate Time

Power Temperature

Altimeter Uphill

Downhill Laps

Show track Graph. analysis

Delete tour!

Bicycle Heart rate

Uphill Downhill

Bicycle Heart rate

Time Power

Temperature Altimeter

Uphill Downhill

Laps Show track

Graph. analysis

Status info

Battery GPS signal

Memory

Extras

Stopwatch Countdown

Compass

Settings

Scale unit Device

Bike 1–3 & totals

Altitude

User

Intensity zone Target zone Power target zone

GPS settings Favorites Firmware update Factory settings

Page 13

ROX 10.0 GPS navigation principle

Operating concept

www.sigmasport.com ROX 10.0

ROX 10.0

4 Operating concept

4.1 ROX 10.0 GPS navigation principle

The ROX 10.0 GPS has up to seven menu levels. When navigating through the
ROX 10.0 GPS menus and submenus, you can use the tree diagram in section
‘3 Menu tree’ as a guide.

The navigation bar at the top of the ROX 10.0 GPS screen will help guide you
through the menus. The possible functions of the

BACK

and

ENTER

buttons are

also displayed in the navigation bar:

− Go to the next level down (ENTER/SELECT/EDIT)

− Go back to the next level up (BACK)

− Go to the next editable position (NEXT)

− Activate or deactivate a function (ON/OFF)

− Scroll forward or backward within the menu levels (

and )

− Confirm/save a setting (SAVE).

Page 14

Button functions

Operating concept

www.sigmasport.com ROX 10.0

ROX 10.0

4.2 Button functions

Back/Stop button

Press this button to exit the
submenus or stop a current
data log.

Press and hold the button in
training mode to reset all data and
save the current trip.

Start/Lap button

Minus button

Press this button to start a data
log. During a data log press this
button to start a new lap.

Scroll backward in a menu level …

… or lower/change the value
displayed …

… or zoom out in Track/Altitude
View.

Enter button

Press this button to access the
submenus or zoom the top display
data (HR, Alti, Cad, Slope).

Press and hold the button to
turn the ROX 10.0 GPS on
and off.

Simultaneously press the

BACK

and

ENTER

buttons to open the

short menu.

Mode button

Plus button

Press this button to switch
between the “Bikecomputer”,
“Track View” and “Altitude View”
modes in the training menu.

Scroll forward in a menu level …

… or increase/change the value
displayed …

… or zoom in in Track/Altitude
View

Simultaneously press the

START

and

MODE

buttons.

Backlight on/off

Shortcut

Only in training mode

Page 15

Operating concept for the remaining menu

Operating concept

www.sigmasport.com ROX 10.0

ROX 10.0

4.3 Operating concept for the remaining menu

All settings are done following the same procedure:

− Press the and buttons to select the desired menu.

− Open this menu by pressing

ENTER

.

− Navigate to the respective unit using

and and press

ENTER

to edit it.

− The value to be edited has a black background and can be modified by
pressing the

and buttons.

− Save your changes by pressing

ENTER

.

4.3.1 Top display segment

The top line of the upper display segment will change depending on which menu
you are in. The possible functions of the

BACK

and

ENTER

buttons will be displayed

to assist you.

The second line of the top display segment always shows which menu/submenu
you are currently in.

4.3.2 Bottom display segment

The submenus and programmable values are displayed in the bottom display
segment.

Press the

and buttons to select the desired menu/submenu.

Press

ENTER

to open the menu/submenu.

Enter Enter Enter

Page 16

Training menu operating concept & display structure

Operating concept

www.sigmasport.com ROX 10.0

ROX 10.0

4.4 Training menu operating concept & display structure

The ROX 10.0 GPS”s training menu is divided into three view modes:

Training

Bikecomputer

Track View

Altitude View

While training, you can track your current training values using the three modes
“Bikecomputer”, “Track View” and “Altitude View”. Press the

MODE

button to

switch between the different modes.

4.4.1 “Bikecomputer” view mode

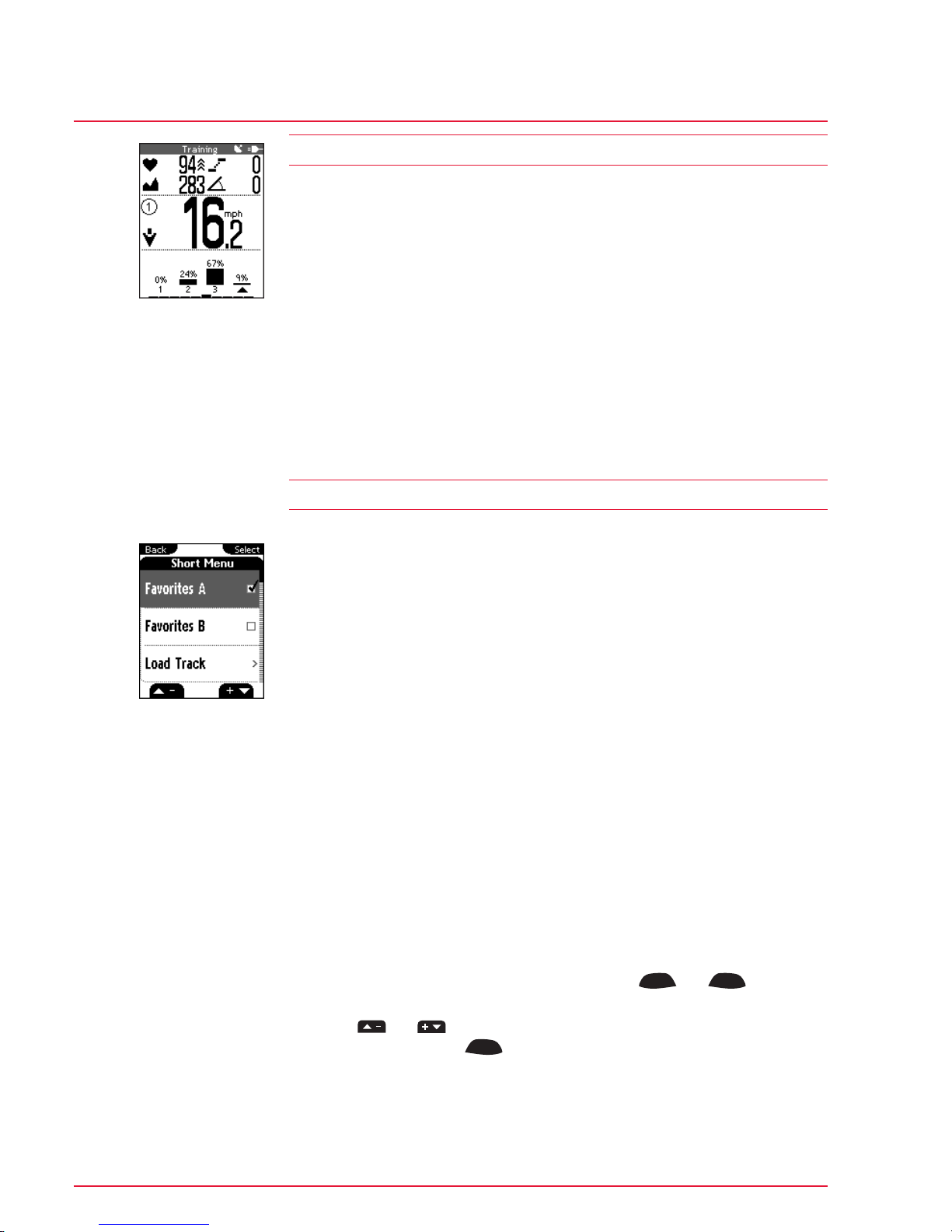

The “Bikecomputer” view mode is divided into three display segments.

4.4.1.1 Top display segment

The first line displays the following values:

Battery status indicator or

Battery charging

GPS signal available

Beneath these, four current values are displayed:

Current heart rate (only if you are wearing the chest belt)

Current cadence (only if the cadence transmitter has been attached)

Current altitude (permanent)

Current incline (permanent)

Press

ENTER

to zoom in so that only one of the four functions is displayed. Press

ENTER

to scroll through each current value and return to the multi-view screen.
