sigarms mosquito User Guide
3
Contents
USA
1 Safety regulations USA 5
2 Product description USA 6
2.1 Main parts USA 6
2.2 Technical data USA 7
3Transporting the pistol USA 8
4 Safety mechanisms USA 8
5Handling the pistol USA 10
5.1 General USA 10
5.2 Ammunition USA 10
5.3 Loading the magazine USA 10
5.4 Loading the pistol
(ready for firing) USA 11
5.5 Firing USA 11
5.6 Reloading during firing USA 12
5.7 Unloading the pistol;
magazine not empty USA 12
5.8 Unloading the pistol;
magazine empty,
slide open USA 13
6 Sight correction USA 14
6.1 Sight correction
for windage USA 14
6.2 Sight correction
for elevation USA 14
7 Pistol maintenance USA 15
7.1 Stripping the pistol USA 15
7.2 Cleaning the pistol USA 16
7.3 Pistol assembly USA 17
7.4 Functional check USA 17
7.5 Care of the pistol USA 19
8 Service and repairs USA 19
8.1 Fault detection,
fault removal USA 19
8.2 Safekeeping and storage
of pistol USA 21
8.3 Shipping the pistol USA 21
9 Scope of supply USA 22
10 Accessories USA 22
11 Disposal USA 22

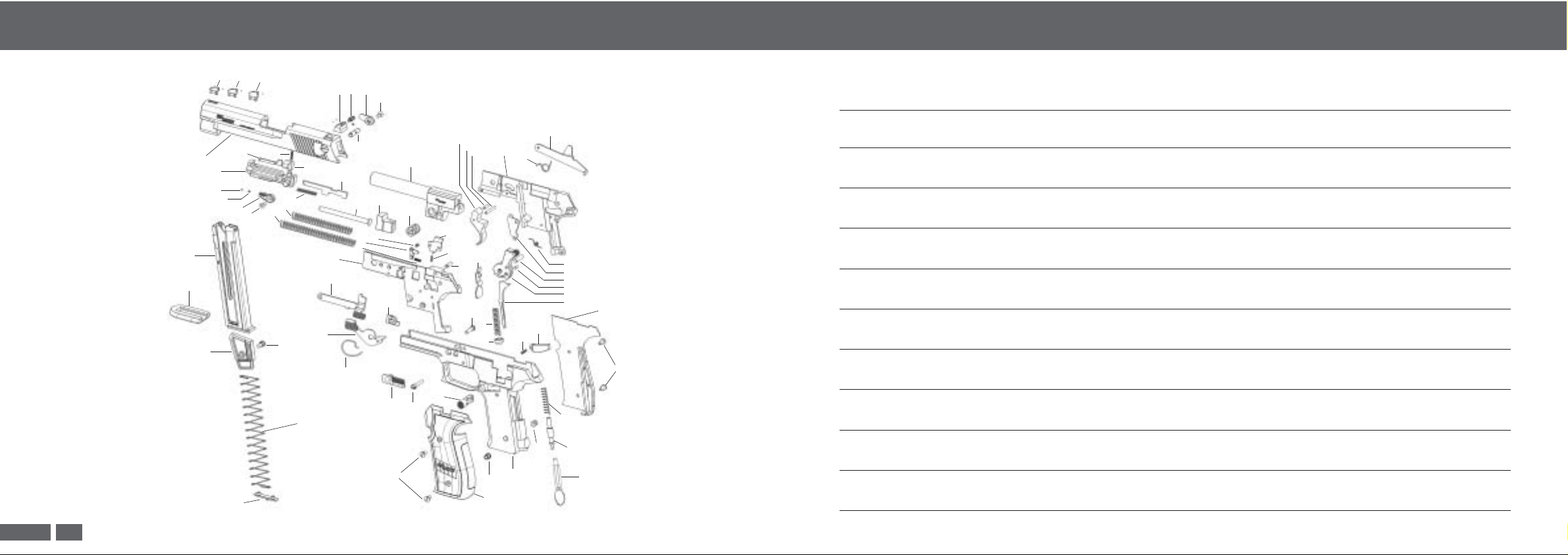

12 List of replacement parts USA 22
4
USA
5
General instructions General instructions
USA
1 Safety regulations
• Never use the pistol under the influence of drugs or
alcohol, while ill or suffering other such difficulties.
These conditions can impair your powers of judgment
and reflexes.
• Always think of the pistol as being loaded and with the
safety off until you have established the opposite
through the unloading procedure (see Section 4.7 and
4.8).
• Allows keep the muzzle of the pistol in a safe direction
with all handling. A safe direction is towards an area
where there are no people, other life forms or property
that is not a recognized target.
• Never point the pistol at doors, panes of glass, walls,
concrete, stone or flat surfaces (water included). A bullet
can penetrate such surfaces or be ricocheted in an
unsafe direction.
• Never aim at yourself or other life forms.
• Never rely on safety mechanisms alone. Safety mecha-
nisms are not a substitute for careful, correct and secure
handling of the pistol.
• Always treat your pistol as if the safety mechanisms
were not functioning. The best safety precaution is a
correct, well-trained and safe handling of the pistol.
• Never shoot with a pistol which has been penetrated
by water, sand, dirt or other foreign bodies.
• Never decock the hammer by holding on to the hammer
and pulling the trigger at the same time.
• Never let a loaded pistol out of your hand.
• Always unload the pistol immediately after firing, before
putting the pistol away, putting into a holster or
handing it to another authorized person.
• Never give the pistol to a person who has not tho-
roughly familiarized himself or herself with the safety
instructions and handling of the pistol, by reading the
corresponding instructions.
• Never leave the pistol lying unattended and protect the
pistol from unauthorized access.
• Never store the pistol loaded, but rather remove the
magazine and ensure that no cartridge is left in the
chamber of the barrel.
• Always keep the pistol and the ammunition separate
from one another, and ensure that neither is obtained
by unauthorized persons or children.
Information on dangers, which if not scrupulously
observed, can directly lead to severe bodily harm or
death.
Information on dangers, which if not scrupulously
observed, can lead to bodily harm, damage to property
and damage to the pistol.
Information on technical requirements, which if not
scrupulously observed, can lead to damage to the
pistol.
Caution
Warning
Notice
Please read and understand this instructions carefully
before each and every handling of the SIG SAUER Pistol.
Sport version
Caliber 22 Long Rifle
Overall length 207 mm
Overall height 134 mm
Overall width 37 mm
Barrel length 126 mm
Rifling length 406 mm, right
Number of grooves 6
Sight base 164 mm
Weight without magazine 740 g
Magazine weight empty 50 g
Trigger pool, approx. SA 1.8 kg
DA 5.5 kg
Magazine capacity/rounds 10
6
USA
7
Product description
USA
2 Product description
2.1 Main parts
1 Barrel block
4Slide
5 Front sight A, B, C
6 Rear sight
15 Frame
16 Takedown lever
18 Slide catch lever
20 Trigger
29 Hammer
40 Decocking lever
43 Magazine catch
46 Manual safety
51 Magazine
2.2 Technical data
Standard version
Caliber 22 Long Rifle
Overall length 183 mm
Overall height 134 mm
Overall width 37 mm
Barrel length 101 mm
Rifling length 406 mm, right
Number of grooves 6
Sight base 140 mm
Weight without magazine 650 g
Magazine weight, empty 50 g
Trigger pool, approx. SA 1.8 kg
DA 5.5 kg
Magazine capacity/rounds 10
Included in the delivery are:
1 pistol
2 magazines
1 handbook
1 assembly illustration
1 cable lock
1 key
Product description
516
1615
18
202940
43
46
51
4
Fig. 1
9
Safety mechanisms
USA
3. Magazine safety
Removing the magazine fully from the pistol prevents the
pistol from being fired. The magazine must be fully inserted into the magazine well in order to fire the pistol.
8
USA
Transport
3 Transporting the pistol
• For your own safety and the safety of others, always
transport the pistol unloaded, decocked and closed
(see Section 4.7 and 4.8).
• Never carry a pistol with you that has already been
cocked and which has a round in the chamber.
• Always carry the pistol so that if you fall or slip, you
always have the direction of the muzzle under control.
• Transport the pistol separate from the ammunition.
• Ensure that all applicable laws governing the transport
of firearms are complied with.
Warning
4 Safety mechanisms
• Never completely trust any safety mechanism. Your
pistol is equipped with effective, well designed safety
mechanisms.
1. Manual safety
Engaging manual safety:
Push the manual safety down fully to engage (see figure
1 part # 46). This prevents firing of the pistol.
Disengaging manual safety:
Push manual safety up fully to disengage (see figure 1
part # 46). This allows the pistol to be fired.
2. Integral safety lock (key operated)
Locking: (see figure 4 and 5)
Pistol must be decocked. Insert key into opening at
bottom rear of the grip. Push key to depress lock and
rotate 90 degrees. Remove key leaving end of lock below
the grip surface (see figure 5). This locking feature
prevents the firing of the pistol.
Unlocking: (see figure 2 and 3)
Pistol must be decocked. Insert key into opening at bottom rear of grip. Push key to depress lock and rotate 90
degrees. Remove key leaving end of lock flush or even
with bottom of grip (
see figure 3
).
Warning
Fig. 2, decocked Fig. 4, securedFig. 3, unlocked Fig. 5, locked
Safety mechanisms
