Table of Contents

1 CELLULAR COMMUNICATION ..........................................................................................................2

1.1 SUBSCRIBER IDENTITY MODULE (SIM)...........................................................................................4

2 KEY FEATURES ......................................................................................................................................5

3 ACCESSORIES ........................................................................................................................................7

4 EXPLODED VIEW OF X3 ......................................................................................................................8

5 SPARE PARTS LIST...............................................................................................................................9

6 DISASSEMBLY OF X3 ........................................................................................................................ 11

7 REASSEMBLY OF X3 ......................................................................................................................... 13

7.1 INSTALLATION OF THE SIM CARD................................................................................................. 14

8 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI....................................................... 15

10 BATTERY INFORMATION............................................................................................................. 16

11 GENERAL TESTING INFORMATION......................................................................................... 18

ANNEX 1 .......................................................................................................................................................... 21

ANNEX 2 .......................................................................................................................................................... 21

1 Cellular Communication

The cellular systems are made up of numerous transmitting and receiving sites, whose

individual coverage areas partially overlap. The concept of frequency re-use, same

frequency is used by several sites, allows a high traffic density in a wide area. Due to the

limited transmission range of the terminals, cellular systems are based on a large number of

base stations on the infrastructure side, scattered over the area to cover, with each covering

a fairly small geographical zone called cell. Cells are often represented by hexagons (see

figure 1.1.).

FIGURE 1.1

CELLULAR COVERAGE REPRESENTATION.

GSM Network Architecture.

GSM network can be broadly divided into three broad parts, namely:

1. Mobile Station(MS) carried by the subscriber,

2. Base Station Sub-system (BSS) which controls the radio link with the mobile station.

3. Mobile Switching Centre (MSC) which performs the switching of calls between the mobile

users, and between mobile and fixed network users.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

FIGURE 1.2 GSM ARCHITECTURE

Each mobile station is given a unique identity. As soon as the mobile phone is turned on, it

registers with the network and is authenticated; as such the network could always find the mobile

phone.

Larger amount of data is being exchanged to and from the following functional blocks in the MSC:

Visitor Location Register, VLR

Stores information about mobile subscribers that enter it coverage area, which is associated with

the geographical area where the mobile is currently roaming. When there is an incoming call for

the mobile, the HLR is interrogated about the present address of the VLR.

Home Location Register, HLR

A database that contains all data concerning the subscription of the mobile subscriber, i.e. their

access capabilities, subscribed services, and supplementary services. It also contains information

about the VLR that is handling the mobile station currently. When the mobile changes location,

the HLR is updated accordingly. It also provides the MSC with information about the MSC area

where the mobile is actually located to allow incoming calls to be routed immediately to the called

party.

Authentication Centre, AUC

Stored information that is necessary to protect communication through the air interface against

any intrusions. The legitimacy of the subscriber is established through authentication and

ciphering, which protects the user information against unwanted disclosure.

Equipment Identity Register, EIR

An option the network operator can use to enforce security. With this feature the network can

identify defective or stolen mobile that may not be used in the network.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

1.1 Subscriber Identity Module (SIM)

SIM is a smart card, which has a computer, and memory chip that is permanently installed in the

mobile equipment. It comes in either the size of a credit card or smaller version known as the

plug-in SIM.

The subscriber information, which includes a unique number called the International Mobile

Subscriber Identity (IMSI), is stored in the SIM card. SIM card identifies the subscriber to the

network.

To protect the SIM card from improper use, a security feature, a four digits personal identification

number (PIN), is built in. The PIN is stored in the SIM card and can be changed by the

subscriber. PIN2 is required for additional functions available with a special SIM card (Consult the

operator for more information about the PIN 2).

A code (PUK) is provided for unlocking the SIM card if the SIM card is blocked

Extended GSM 900, E-GSM

This is a new standard that allows Network Operators to increase their capacity through an

extended frequency. The frequency range of E-GSM is as follows:

· Mobile Transmit: 880,2 - 914,8 MHz

· Mobile Receive: 925,2 - 959,8 MHz

X3 is a GSM Phase 2 / Phase 2+ Dual band E-GSM900 / GSM 1800 mobile phone.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

2 Key Features

General:

Power

Battery

Charging

· Modern design; Retro-futuristic, Sleek and Pure

· Valuable looking finishing; Navikey, lacquered and plated details

· Pictures and Melodies

· EMS

· Voice and one key controlled

· Screensaver

· Silent Alert

· EGSM 900: Class 4 (2W)

· GSM 1800: Class1 (1W)

· Li Ion Battery Pack (Integrated in the rear part)

· Nominal Capacity: 620mAh

· Cut-off Threshold : 3.7V

· Max. 4 hours for empty battery (0-5% capacity)

Stand-by Time

Talk Time

SIM Card

Speech Coder

Temperature Range

Display

Charging of deeply discharged battery is possible.

· Approx. >300 h / Li Polymer (Network dependent)

· Best case approx. : > 4 hours

· Small (=”Plug In”) 1.8V or 3V SIM card (Phase II)

· Full Rate, Enhanced Full Rate and Half Rate speech coders are

available as standard.

· -10˚C to +55˚C (Normal operation)

· -40˚C to +85˚C (Storage capability)

· Type: BW

· Resolution: 101 x 56 Pixel

· Technology: FSTN

· Graphic, Transflective, neutral, non-inverting paper white

background

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

SIM Appl. Tool Kit

Voice Recognition

Keypad

Antenna

SMS

· One Navikey control (4-contact navigation key – 2 soft keys + up/down)

· Integrated. Folded-inverted-F-Antenna

· Class 0, 1, 2

· GSDM TS 7.05 Short Message MT / MO

· Cell Broadcast

· Concatenated Messages / Picture Messages

· Release 98

· Speaker independent number dialling and speaker dependent name

dialling (up to 50 voice tags).

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

3 Accessories

The following are Xelibri and Siemens approved accessories:

Li-Ion Battery (620 mAh) : EBA-550 Black/Silver

EBA-560 Gold/Flip

EBA-570 Blackberry

Travel Charger : ETC-500(Euro)

ETC-510(UK)

(Travel charger with an extended input voltage rate of 100-240V)

Car Charger : ECC-500

(Charger for the cigarette lighter socket in the car)

Interface X3 to accessories

Slim Lumberg

SIEMENS PTE LTD

Chassis

Xelibri X3 Level 2 Service Manual

4 Exploded View of X3

Upper Case Assembly

Keypad

MMI Module

Speaker

Necklace

Dust Cover

2 PT Screws

1.6X6WN145

M2X3 Screws

PCB (RF Board)

Vibra Motor

Nut

Microphone

Spring

Release Button

Lower Case Assembly

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

5 Spare Parts List

XELIBRI 3 (SHAKARA) Spare Parts List.

Material number Discription M-type Siemens Partnumber

A5B00075015377 Rubber f. Trembler ROH C39158-A106-B900 A5B00075015417 Holder f. Trembler ROH C39158-A106-C150 A5B00075015453 Vibramoter/Panasonic ROH C39453-Z5-C239 A5B00075033660 User Guide German ROH A31008-H9200-A2-1-19 A5B00075033678 User Guide English ROH A31008-H9200-A1-1-7619 A5B00075034588 User Guide Italian ROH A31008-H9200-A3-1-7219 A5B00075034590 User Guide French ROH A31008-H9200-A4-1-7719 A5B00075034592 User Guide Spanish ROH A31008-H9200-A5-1-7819 A5B00075037885 Microphone ROH C39254-Z6-C110 A5B00075039914 User Guide China Standard ROH A31008-H9200-A6-1-5D19 A5B00075039915 User Guide China Tradition ROH A31008-H9200-A7-1-7U19 A5B00075040041 Power Supply EURO ROH C39280-Z4-C450-1 A5B00075040042 Power Supply UK ROH C39280-Z4-C451-1 A5B00075040043 Power Supply China ROH C39280-Z4-C452-1 A5B00075043702 Headset PTT ROH S30880-S9201-A550-1

DUSTCOVER

A5B00075037406

A5B00075037693

A5B00075037694 A5B00075039646 1 M2X3SCREW/SHAKARA ROH C39158-A106-C88

A5B00075020324

A5B00075037186 A5B00075015423 BUTTON LACQ. SHAKARA ROH C39158-A106-B620 A5B00075020323 RELEASE SPRING/SHAKARA ROH C39158-A106-C85

A5B00075039655 RELEASE INSERT/SHAKARA ROH C39158-A38-C220 A5B00900110061 LC assembly gold-flip HALB C39158-A106-A200

A5B00900110062 UC assembly gold-flip HALB C39158-A106-A1 A5B00900110064 Keypad assembly HALB C39158-A106-B600 A5B00900115295 LC assembly Blackberry HALB C39158-A106-A210 A5B00900115297 LC assembly Blacksilver HALB C39158-A106-A220 A5B00900115301 UC assembly Blackberry HALB C39158-A106-A10 A5B00900115302 UC assembly Blacksilver HALB C39158-A106-A11 A5B00900116222 Necklace Complete Blackberry HALB C39158-A106-C80 A5B00900116223 Necklace Complete Blacksilver HALB C39158-A106-C75 A5B00900116224 Necklace Complete W hitegoldflop HALB C39158-A106-C65 A5B00900122589 MMI-module HALB C39158-A106-C205 A5B00900116880 LC ass.chinese ver.gold-flip HALB C39158-A106-A230 A5B00900116891 LC ass.chinese ver.Blacksilver HALB C39158-A106-A235 A5B00900116893 LC ass.chinese ver. Blackberry HALB C39158-A106-A240

WHITEGOLDFLOP/SHAKARA ROH C39158-A106-B90 DUSTCOVER BLACKSILVER/SHAKARA ROH C39158-A106-B95 DUSTCOVER BLACKBERRY/SHAKARA ROH C39158-A106-B100

2 PT SCREWS 1.6X6WN 1452/SHAKARA ROH C39158-A106-C86 SPEAKER/SHAKARA/PHILIPS 10OHM/13MM ROH V39104-F3090-X905

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

TBD XELIBRI SWAP PCB HALB TBD

EBA-550 Li-Ion Battery 620 mAh LC ASSEMBLY

A5B00100117491

A5B00100117492

A5B00100117493

A5B00100121641

A5B00100121642

A5B00100121643

BLACKSILVER/SHAKARA FERT L36880-N9201-A100-* EBA-560 Li-Ion Battery 620 mAh LC ASSEMBLY GOLDFLIP/SHAKARA FERT L36880-N9201-A101-* EBA-570 Li-Ion Battery 620 mAh LC ASSEMBLY BLACKBERRY/SHAKARA FERT L36880-N9201-A102-* EBA-552 Li-Ion Battery 620 mAh/Chinese Ver/Shakara LC Assembly Chinese Ver. Blacksilver FERT L36880-N9201-A140-* EBA-572 Li-Ion Battery 620 mAh/Chinese Ver/Shakara LC Assembly Chinese Ver.Whitegoldflip EBA-572 Li-Ion Battery 620 mAh/Chinese Ver/Shakara LC Assembly Chinese Ver. Blackberry

FERT L36880-N9201-A150-*

FERT L36880-N9201-A160-*

The items listed above are subjected to changes.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

6 Disassembly of X3

Note: It is a requirement for the service personnel to observe ESD protection rules while performing servicing the X3.

Step 1

Front view of the X3 w/o Necklace/Dust Cover.

Step 3

To eject the SIM card, (1) push it inwards and (2) release.

Step 2

Back View of the X3

Step 4

Remove the Lower Case Assembly, first by unscrewing the screw with a Philips “+” tips screwdriver.

Step 5

Next, use the opening tool to release the back cover from both sides.

Step 6

The RF board can be seen after the Lower Case Assembly is separated.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

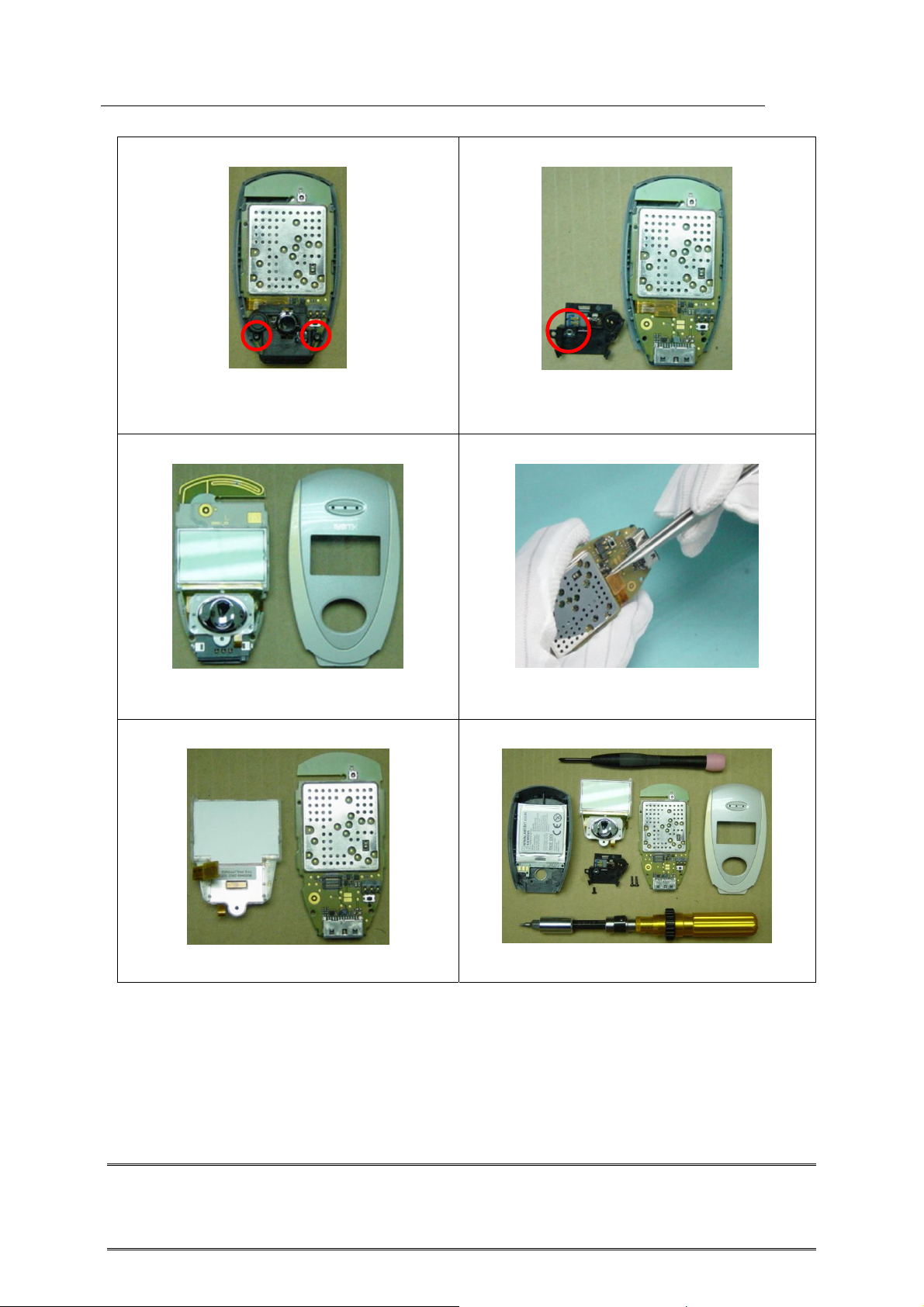

Step 7

Remove the Chassis from the RF board by unscrewing the two screws (as indicated) with a Torque Plus screw driver.

Step 9

Step 8

Separate the Chassis from the RF board. Take note of the small nut, as indicated.

Step 10

Separate the RF Board from the Upper Case Assembly of the phone.

Step 11

Separate the MMI Module from the RF board.

Detach the display connector from the RF board with a pair of tweezers.

Step 12

Fully disassembled X3.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

7 Reassembly of X3

Step 1

Assemble the MMI Module back on to the RF board and reattach the MMI connector.

Step 3

Step 2

Assemble the RF board to the Upper Case Assembly of the phone.

Step 4

Place the Chassis back on to the RF board and secure it with the two screws (Torque Plus) as shown.

Step 5

Secure the Lower Case Assembly with the single screw (Philips) as shown.

Attach the Lower Case Assembly with the Upper Case Assembly.

Step 6

Fully Assembled X3 w/o Necklace/Dust Cover.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

7.1 Installation of the SIM card

During the installation of the SIM card, make sure that the SIM card is inserted properly.

(1) Insert the SIM Card in the direction as shown. (2) Push the SIM Card inwards until it is locked

into position as shown.

(1) Direction of insertion (2) SIM Card locked into position

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

8 International Mobile Equipment Identity, IMEI

www.xelibri.com

Siemens X3

S30880-S9200-XXXX-1

Barcode:

Typ 128, table C and

Characteristic:

IMEI-No. has 15 digits Digit 1-14 is generated as Barcode with table C. Digit 15 is printed with table

1) 2)

Made in Denmark / China

11)

XXXXXX FF SSSSSS C

Current serial number (6 digits)

Assigned by PICS

Final-Assembly Code: FAC

Typ-Approval Code: TAC

CHECK DIGIT

15. digit

10)

Ink ribbon: TTR-Band Ricoh 110-A

Font: Title blocks concentric

1) Corporate logo: 1.5 SN 66324

2) Product name: Internal font B, size 3

3) Made xx xxxxxxx Internal font B, size 3

4) Code of date: Internal font D, size 4 e.g. F3 ¾ March └¾─1995

5) Code number: Internal font D, size 4

7) Barcode IMEI-No.: Code: 128 Size: 2 Ratio: 3.0 Height: 3 mm

8) IMEI-No. (Plain writing): Internal font D, size 4, space between TAC, FAC, serial no.

and 15.digit

10) Document for IMEI-No. allocation: DIS 20224 000 **BOM

Valid is the highest level in the digital archive

11) Code number: Corresponding to the number of the transceiver unit part list

12) “Made in Germany“or Depending on final assembly code

“Made in China” or “Made in Denmark” or “Made in Brazil”

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

9 Battery Information

Lettering

Part No. on the battery:

International version (English/French): V30145-K1310-X261

Chinese version: V30145-K1310-X264

Additionally, the makers marking, production date coded according to DIN IEC 62 Par. 5,

functional status, cell supplier and other lawful stipulated labels for Li-Ion batteries have to be

inscribed.

The lettering must be executed by printing on a label. Lawful rules (e.g. coloured symbols) must

be regarded.

The date code has to be as follows: P

Year (O: 2002, P: 2003...) Supplier Code Month (1: Jan, 2: Feb, ... 9: Sep, O: Oct, N: Nov, D: Dec) (Makers marking) Revision Letter (A, B...)

The information should be printed on the battery label.

2 A SO

www.xelibri.com

LITHIUM ION BATTERY

CAUTION

DO NOT DISASSEMBLE DO NOT SHORT-CIRCUIT DISPOSE OF PROPER LY

DO NOT EXPOSE TO HIGH TEMPERATURES 140° F/60°C

V30145-K1310-X261

3.7V/620mAh MADE IN JAPAN

ATTENTION

NE PAS DEMONTER NE PAS COURT-CIRCUITER METTRE AU REBUT CONFORMÉMENT AUX DISPOSITIONS LÉGALES NE PAS EXPOSER À DES TEMPÉRATURES ÉLEV ÉES 140°F/60°C

At first, the manufacturer has to make a proposal about the executing of the lettering that is either

approved by Siemens or redesigned in agreement with the manufacturer.

Ordering Code

Battery/Shakara/Li-Ion/680mAh (ROW): V30145-K1310-X261

Battery/Shakara/Li-Ion/680mAh (China): V30145-K1310-X264

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

Packaging The packaging must ensure that the products arrive undamaged at the customer site without

technical or optical damages.

The batteries are delivered in trays with 20 pcs. 15 trays are stacked a packed in a bulk package.

The bulk package (300 pcs. batteries in one packaging) needs a label with the following data:

V30145-K1310-X261-* F-4968-870-0 LIS1275SIP 300 pieces MN Supplier Made in Japan

The * has to be replaced by the functional status.

Pay attention that the label still shall be readable in case the bulk packages are pilled.

Siemens part No. (Hint: The final “1” describes the “State of production”

Supplier part no. Supplier model name Numbers of pieces Date of production according to IEC 62, Part 5 Supplier (Logo possible) Country of origin

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

10 General Testing Information

General Information

The technical instruction for testing GSM mobile phones is to ensure the best repair quality.

Validity

This procedure is to apply for all from Siemens AG authorized level 2 and above workshops.

Procedure

All following checks and measurements have to be carried out in an ESD protected

environment and with ESD protected equipment/tools. For all activities the international ESD

regulations have to be considered.

Get delivery:

Ø Ensure that every required information like fault description, customer data a.s.o. is

available.

Ø Ensure that the packing of the defective items is according to packing requirements.

Ø Ensure that there is a description available, how to unpack the defective items and

what to do with them.

Enter data into your database:

(Depends on your application system)

Ø Ensure that every data, which is required for the IRIS-Reporting is available in your

database.

Ø Ensure that there is a description available for the employees how to enter the data.

Incoming check and check after assembling:

!! Verify the customers fault description!!

Ø After a successful verification pass the defective item to the responsible

troubleshooting group.

Ø If the fault description can not be verified, perform additional tests to save time and to

improve repair quality.

- Switch on the device.

- Check the function

- Check the display for error in line and row

- Check the ringer/loudspeaker acoustics by individual validation.

- Perform a GSM Test.

of all keys.

, and for illumination.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

Visual inspection:

Ø Check the entire board for liquid damages.

Ø Check the entire board for electrical damages.

Ø Check the housing of the mobile phone for damages.

GSM Test:

Ø Connect the mobile via internal antenna (antenna coupler) to a GSM tester.

Ø Use a Test SIM.

Note: Adjust the attenuation to compensate the cable lost before testing.

Internal Antenna

Test Case Parameter Measurement Limits

1) Location Update

2) Call to Mobile

3) Release Call

4) Call from Mobile

· GSM 900

· BS Power = -55dBm

· Middle BCCH

· Low TCH

· PCL 5

· BS Power = -55dBm

· Middle BCCH

· - · - · -

· GSM 900

· High TCH

· PCL 5

· BS Power = -55dBm

· Middle BCCH

· Display check · Individual check

· Ringer/Loudspeaker

check

· Echo Test

· Keyboard check · Individual check

· Individual check

5) TX GSM900

6) RX GSM900

· Low/Mid/High TCH

· PCL Low/Mid/High

· BS Power = --55 dBm

· High TCH

· BS Power = -102 dBm

· 50 frames

· Average Power

· Power Template

· RX Level

· RX Qual

· Phase Error RMS

· GSM Spec.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

· Middle BCCH · Phase Error Peak

· Frequency Error

· BER Class Ib

· BER Class II

· BER Erased Frames

7) Handover to GSM1800 Including Handover Check

8) TX GSM1800

9) RX GSM1800

10) Call Release from Mobile

· - · - · -

· Low/Mid/High TCH

· PCL Low/Mid/High

· BS Power = --55 dBm

· High TCH

· BS Power = -102 dBm

· 50 frames

· Middle BCCH

· - · - · -

· Average Power

· Power Template

· RX Level

· RX Qual

· Phase Error RMS

· Phase Error Peak

· Frequency Error

· BER Class Ib

· BER Class II

· BER Erased Frames

· GSM Spec.

Final Inspection:

The final inspection contains: 1) a 100% network test (location update, and

set up call).

2) Refer to point 3.3

3) a random sample check of :

- data reset (if required)

- optical appearance

- complete function

4) Check if PIN-Code is activated

delete PIN-Code if necessary

Basis is the international standard of DIN ISO 2859.

SIEMENS PTE LTD

Xelibri X3 Level 2 Service Manual

Use Normal Sample Plan Level II and the Quality Border 0,4 for LSO.

Remark

: All sample checks must be documented.

Annex 1

The attached file contains the Compatibility List with previous products.

Co mpatibilit y Lis t . x ls

Annex 2

Test SIM Card

There are 2 different “Test-SIM-Cards” in use

a) Test SIM from the company “ORGA”

Pin 1 No: 0000 PUK 1: 12345678

Pin 2 No: 0000 PUK 2: 23456789

b) Test SIM from the company “T-D1”

Pin 1 No: 1234 PUK 1: 76543210

Pin 2 No: 5678 PUK 2: 98765432

Siemens Xelibri X3 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
