Transducers
ACUSON X700
™
Ultrasound System
Release 2.0
www.siemens.com/ultrasound
TABLE OF CONTENTS
2

4C1 Transducer

Part Number: 10658872
Frequency Bandwidth: 1.0 – 5.0 MHz
Compatible with: ACUSON S3000™ ultrasound system
ACUSON S2000™ ultrasound system ACUSON S1000™ ultrasound system ACUSON Sequoia™ ultrasound system ACUSON Aspen™ ultrasound system
Exam Types: Abdomen, Early OB, Emergency Medicine, Fetal Echo, OB/GYN, Peripheral Vascular, Renal, Urology, Venous
Design Attributes:
• Curved Vector Format
• Hanafy lens transducer technology
• User-selectable MultiHertz™ multiple frequency imaging

6C2 Transducer

Part Number: 10658876
Frequency Bandwidth: 2.0 – 6.0 MHz
Compatible with: ACUSON S3000 ultrasound system
ACUSON S2000 ultrasound system ACUSON S1000 ultrasound system ACUSON Sequoia ultrasound system
Exam Types: Abdomen, Early OB, Emergency Medicine, Fetal Echo, OB/GYN, Peripheral Vascular, Renal
Design Attributes:
• Curved Vector Format
• Hanafy lens transducer technology
• Ergonomically designed form factor
• User-selectable MultiHertz imaging
3

C8-5 Transducer

Part Number: 10789592
Frequency Bandwidth: 3.1 – 8.8 MHz
Compatible with: ACUSON X300™ ultrasound system, premium system (PE)
Exam Types: Cerebrovascular, Neonatal Head, Pediatric Abdomen,
Design Attributes:
• Wide bandwidth micro-curved array transducer
• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• Lightweight transducer with flexible cable
ACUSON X150™ ultrasound system SONOLINE G40™ ultrasound system
Pediatric Echo

C6F2 Transducer

Part Number: 10789583
Frequency Bandwidth: 1.5 – 5.5 MHz
Compatible with: ACUSON X600™ ultrasound system
Exam Types: Abdomen, Early OB, Fetal Echo, OB/GYN, Pelvic Floor
Design Attributes:
• Curved Vector Format
• Wide bandwidth curved array transducer
• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• Lightweight transducer with flexible cable
4

C8F3 Transducer

Part Number: 10789584
Frequency Bandwidth: 2.0 – 7.0 MHz
Compatible with: ACUSON X600 ultrasound system
Exam Types: Abdomen, Early OB, Fetal Echo, GYN, OB, Pelvic Floor
Design Attributes:
• Curved Vector Format
• Wide bandwidth curved array transducer
• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• Lightweight transducer with flexible cable

4V1c Transducer

Part Number: 10658864, 10785466 (DL)
Frequency Bandwidth: 1.0 – 4.0 MHz
Compatible with: ACUSON S3000 ultrasound system
ACUSON S2000 ultrasound system ACUSON S1000 ultrasound system ACUSON SC2000™ ultrasound system ACUSON X600 ultrasound system ACUSON Sequoia ultrasound system
Exam Types: Abdomen, Cardiac, Emergency Medicine, Transcranial
Design Attributes:
• Hanafy lens transducer technology
• Sector imaging format
• User-selectable MultiHertz imaging
• RF shielding
5

P8-4 Transducer

Part Number: 10789629
Frequency Bandwidth: 2.7 – 8.0 MHz
Compatible with: ACUSON X300 ultrasound system, premium system (PE)
Exam Types: Cerebrovascular, Neonatal Head, Pediatric Abdomen,
Design Attributes:
• Wide bandwidth phased array transducer
• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• Lightweight transducer with flexible cable
ACUSON X150 ultrasound system SONOLINE G40 ultrasound system
Pediatric Echo

VF10-5 Transducer

Part Number: 10658883
Frequency Bandwidth: 5.0 – 10.0 MHz
Compatible with: ACUSON X600 ultrasound system
Exam Types: Breast, Cerebrovascular, Emergency Medicine,
Design Attributes:
• Wide bandwidth linear transducer
• Virtual format imaging
• User-selectable MultiHertz imaging
• Ergonomically designed form factor
• 2D beam steering
• Lightweight transducer with flexible cable
ACUSON X300 ultrasound system, premium edition (PE) ACUSON X300 ultrasound system ACUSON X150 ultrasound system SONOLINE G40 ultrasound system
Musculoskeletal, Orthopedic, Peripheral Vascular, Testicle, Thyroid, Venous
6

VF12-4 Transducer

Part Number: 10659483
Frequency Bandwidth: 4.0 – 12.0 MHz
Compatible with: ACUSON X600 ultrasound system
Exam Types: Breast, Cerebrovascular, Emergency Medicine,
Design Attributes:
• Wide bandwidth long linear transducer
• Virtual format imaging
• Hanafy lens transducer technology
Musculoskeletal, Orthopedics, Peripheral Vascular, Small Parts, Testicle, Thyroid, Venous

VF16-5 Transducer

Part Number: 01790094
Frequency Bandwidth: 5.0 – 15.0 MHz
Compatible with: ACUSON X600 ultrasound system
Exam Types: Breast, Cerebrovascular, Emergency Medicine,
Design Attributes:
• Wide bandwidth linear transducer
• Virtual format imaging
• Hanafy lens transducer technology
Muskuloskeletal, Penile, Testicle, Thyroid
7

V5Ms Transducer

Part Number: 10658866
Frequency Bandwidth: 3.0 – 7.0 MHz
Compatible with: ACUSON S3000 ultrasound system
ACUSON S2000 ultrasound system ACUSON S1000 ultrasound system ACUSON SC2000 ultrasound system ACUSON X300 ultrasound system, premium edition (PE) ACUSON X300 ultrasound system ACUSON Sequoia ultrasound system ACUSON Antares™ ultrasound system ACUSON CV70™ cardiovascular system ACUSON Cypress™ cardiovascular system ACUSON Aspen ultrasound system ACUSON 128XP/10C™ echocardiography system
Exam Types: Transesophageal Echo
Design Attributes:
• Wide bandwidth transesophageal transducer
• Endoscope diameter = 10.5 mm, length = 11.0 mm
• Adult tip size: width = 14.5 mm, height = 11.5 mm
• Ergonomic design featuring one-hand control with variable speed rotation – 90° per sec.
• RF shielding
• User-selectable MultiHertz imaging

EV9F3 Transducer

Part Number: 10789584
Frequency Bandwidth: 3.0 – 9.0 MHz
Compatible with: ACUSON X600 ultrasound system
Exam Types: Early OB, OB/GYN
Design Attributes:
• Curved Vector Format
• Wide bandwidth endovaginal volume transducer
• User-selectable MultiHertz imaging
• Lightweight transducer with flexible cable
8

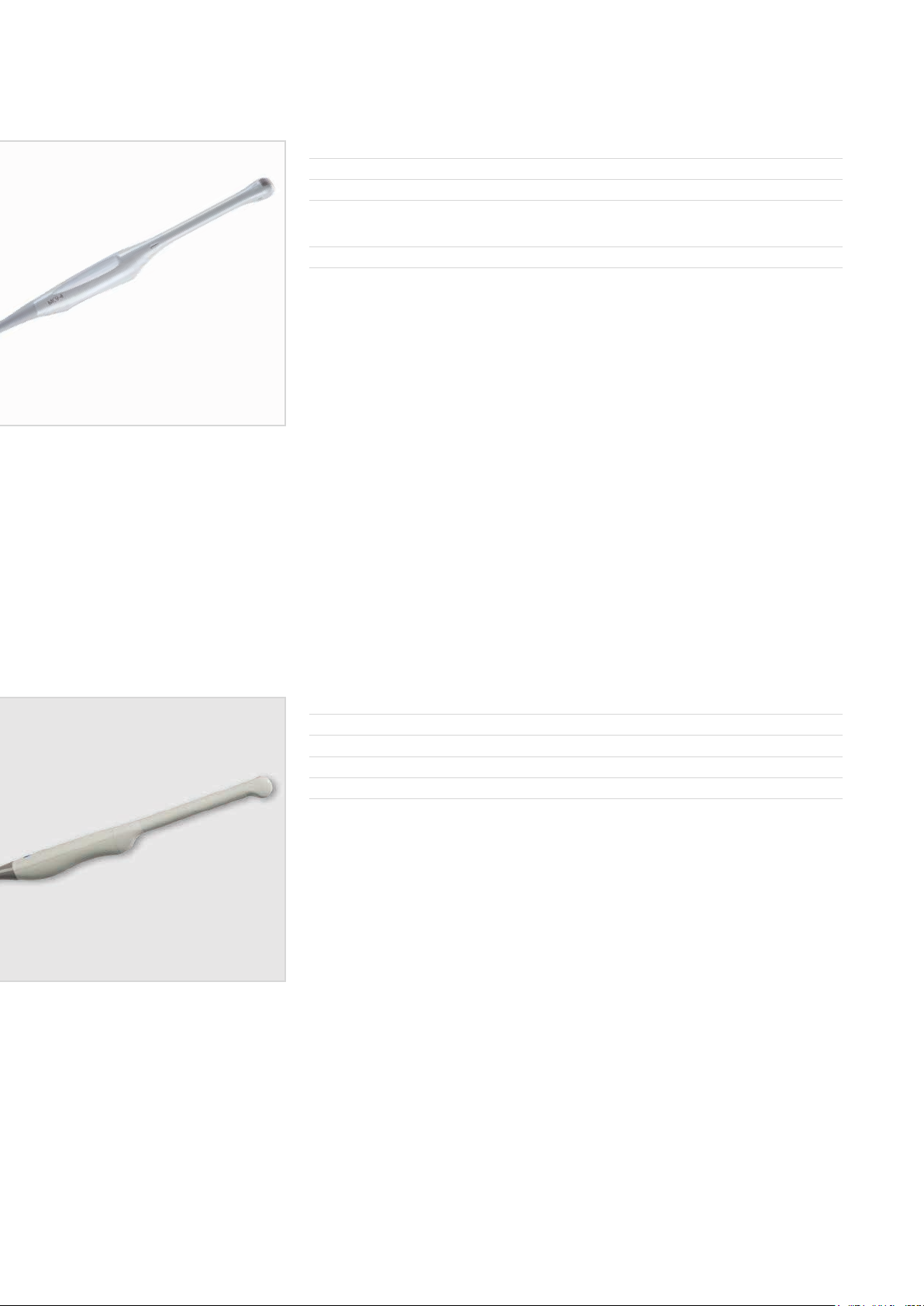

MC9-4 Transducer

Part Number: 10789581
Frequency Bandwidth: 4.0 – 9.0 MHz8
Compatible with: ACUSON S3000 ultrasound system, Helx™ Evolution*
ACUSON S2000 ultrasound system, Helx™ Evolution* ACUSON S1000 ultrasound system, Helx™ Evolution*
Exam Types: Neonatal Head, OB/GYN, Prostate
Design Attributes:
• Wide field of view curved array transducer
• User-selectable MultiHertz imaging
• Lightweight transducer with flexible cable
• Curved Vector Format
• Designed for cleanliness with no shaft notches
* Revision 3 or higher

EC9-4w Transducer

Part Number: 10659487
Frequency Bandwidth: 4.0 – 9.0 MHz
Compatible with: ACUSON X600 ultrasound system
Exam Types: Early OB, OB/GYN, Urology
Design Attributes:
• Wide field of view curved array transducer
• User-selectable MultiHertz imaging
• Lightweight transducer with flexible cable
• Curved Vector Format
9

CW5 Transducer

Part Number: 10658871
Selectable CW Doppler Frequencies: 5.0 MHz
Compatible with: ACUSON S3000 ultrasound system
ACUSON S2000 ultrasound system ACUSON S1000 ultrasound system ACUSON Antares ultrasound system ACUSON X600 ultrasound system ACUSON X500™ ultrasound system ACUSON X300 ultrasound system, premium edition (PE) ACUSON X300 ultrasound system SONOLINE G60 S™ ultrasound system
Exam Types: Cerebrovascular, Pediatric Echo

CW2 Transducer

Part Number: 10658912
Selectable CW Doppler Frequencies: 2.0 MHz
Compatible with: ACUSON S3000 ultrasound system
ACUSON S2000 ultrasound system ACUSON S1000 ultrasound system ACUSON Antares ultrasound system ACUSON X600 ultrasound system ACUSON X500 ultrasound system ACUSON X300 ultrasound system, premium edition (PE) ACUSON X300 ultrasound system SONOLINE G60 S ultrasound system
Exam Types: Adult Echo, Pediatric Echo
10

AcuNav 10F*

Part Number: 8255790
Frequency Bandwidth: 5.0 – 10.0 MHz
Compatible With: ACUSON SC2000 ultrasound system
Exam Types: Intracardiac Echo
Design Attributes:
• 10 french catheter (3.3 mm diameter)
• 90 cm insertable length
• Sterile, single-use advanced miniaturization ACUSON AcuNav™ ultrasound catheter family
• Reusable SwiftLink™ catheter connector
• Four-way steering in two planes: 160° in each direction
• Longitudinal side-fire imaging
• Vector imaging format
* For purchase or inquiries, contact Biosense Webster: USA (1-909-839-8500 and 1-800-729-9010),
Belgium (+32-2-352-1411)
ACUSON X300 ultrasound system, premium edition (PE)

AcuNav 8F*

Part Number: 10135936
Frequency Bandwidth: 5.0 – 10.0 MHz
Compatible With: ACUSON SC2000 ultrasound system
ACUSON X300 ultrasound system, premium edition (PE)
Exam Types: Intracardiac Echo
Design Attributes:
• 8 french catheter (2.7 mm diameter)
• 90 cm insertable length
• Sterile, single-use advanced miniaturization ACUSON AcuNav ultrasound catheter family
• Reusable SwiftLink catheter connector
• Four-way steering in two planes: 160° in each direction
• Longitudinal side-fire imaging
• Vector imaging format
* For purchase or inquiries, contact Biosense Webster: USA (1-909-839-8500 and 1-800-729-9010),
Belgium (+32-2-352-1411)
11
The products/features mentioned in this document may not be commercially avail­able in all countries. Due to regulatory reasons their future availability cannot beguaranteed. Please contact your local Siemens organization for further details.
Frequency Bandwidth measurements represent bandwidth at ± 20 dB.
128XP/10C, ACUSON Antares, ACUSON S1000, ACUSON S2000, ACUSON S3000, ACUSON SC2000, ACUSON X150, ACUSON X300, ACUSON X500, ACUSON X700, Aspen, CV70, Cypress, Elegra, G40, G50, G60 S, HELX, MultiHertz, SONOLINE and SwiftLink are trademarks of Siemens Medical Solutions USA, Inc.
