Siemens S 564 Technical Manual

instabus EIB

Technical Product Information

August 2005

Socket outlet switch wave S 564 5WG3 564-7AB11

Product and Applications Description

The socket outlet switch wave S 564 is an adapter plug
for the remote control of electrical devices connected to
socket outlets like floor lamps or radios by controlling a
relay via radio frequency.
The socket outlet switch wave is a product from the
range of GAMMA wave devices and therefore uses the
standardized KNX RF protocol.
Besides the remote operation using RF switches (with
function switching or scene control) or other RF sensors
like smoke detectors or door contacts, the socket outlet
switch wave can be controlled directly by a push button
on the device. A LED indicates the actual switching
status.

The commissioning of the socket outlet switch wave is
carried out without any additional means via push button
actions (Easy mode Push Button: EP).

There are two different operation modes for the socket
outlet switch wave:

Normal function

• Operation of the integrated socket outlet locally

• Remote operation of the integrated socket outlet via

RF switches or other RF senders

Special function

• Establishing connections with other radio control com­ponents

• Deleting connections with other radio control compo­nents

Operation

After a short operation of the push button (less than 10s)
the local socket outlet is switched ON or OFF respec­tively.

After a long operation (at least 10s) the device is
switched to special function mode. In this mode the
socket outlet switch wave can be connected with other
devices or an established connection can be released.
If the push button is operated again long (at least 10s)
while in special function mode, all connections with other
devices will be deleted.

Installation Instructions

Caution:

• The device may be us ed in interior installations in dry
rooms only.

• Occasionally the transmission range may be influ­enced by structural conditions (e.g. reinforced con­crete) or electric / electronic sources of interference.

• A minimum distance of 0.5m must be maintained
between the transmitter and the relevant receivers.

• Though the radio transmission is carried out in the
safe 868MHz range, disruptions to the radio transmis­sion cannot be excluded.

• The radio transmission is not suitable for security
applications.

WARNING

V

• The device must not be opened.

• The device must not be combined with other adaptor

plugs

• The prevailing safety and accident regulations must be
observed.

Technical Specifications

Mechanical specifications

• Housing: plastic

• Mounting form: socket outlet adapter for countries

using socket outlets with side grounding contacts (DIN
norm)

• Dimensions (L x W x D):
12,8 x 7,2 x 7,5 cm (incl. contacts)

• Weight: approx. 140g

Power supply

Integrated power supply 230V AC +10% / -15%

Siemens AG S 564, 4 pages Technical Manual
Automation and Drives Group
Electrical Installation Technology © Siemens AG 2005 Update: http://www.siemens.de/gamma
P.O. Box 10 09 53, D-93009 Regensburg Subject to change without prior notice

2.20.7.1/1

instabus EIB

Technical Product Information

August 2005

Socket outlet switch wave S 564 5WG3 564-7AB11

Connections

• socket outlet receptacle with side grounding contacts
for the connection of any load up to 16A (resistive)

• socket outlet plug with side grounding contacts to be
plugged in any socket outlet receptacle with side
grounding contacts fused with at most 16A.

Breaking capacity

• socket outlet receptacle and plug connected via relay

• Rated voltage; AC 230 V, 50Hz

• Rated current: 16 A

• Switching cycles: > 20.000

if used with Incandescent lamps up to 1000W

Electrical safety

• Pollution degree (according to IEC 60664-1): 2

• Protection (according to EN 60529): IP 20

• Overvoltage category (according to IEC 60664-1): III

• Device complies with EN 60669-2-1 and IEC 60664-1

Electromagnetic compatibility

Complies with EN 60669-2-1, EN 301489, EN 300220

Environmental specifications

• Climatic conditions: EN 50090-2-2

• Ambient operating temperature: - 5 ... + 45°C

• Storage temperature: - 25 ... + 70°C

• Relative humidity (non-condensing): 5% to 93%

Approbation

VDE Approbation in preparation, complies

- Standard
radio frequency wave
easy mode push button EP

CE Norm

Complies with EN 61058-1, DIN VDE 0620, DIN 49440 /
DIN 4944, EMV-regulations (residential building), low
voltage regulations and R&TTE-regulations:

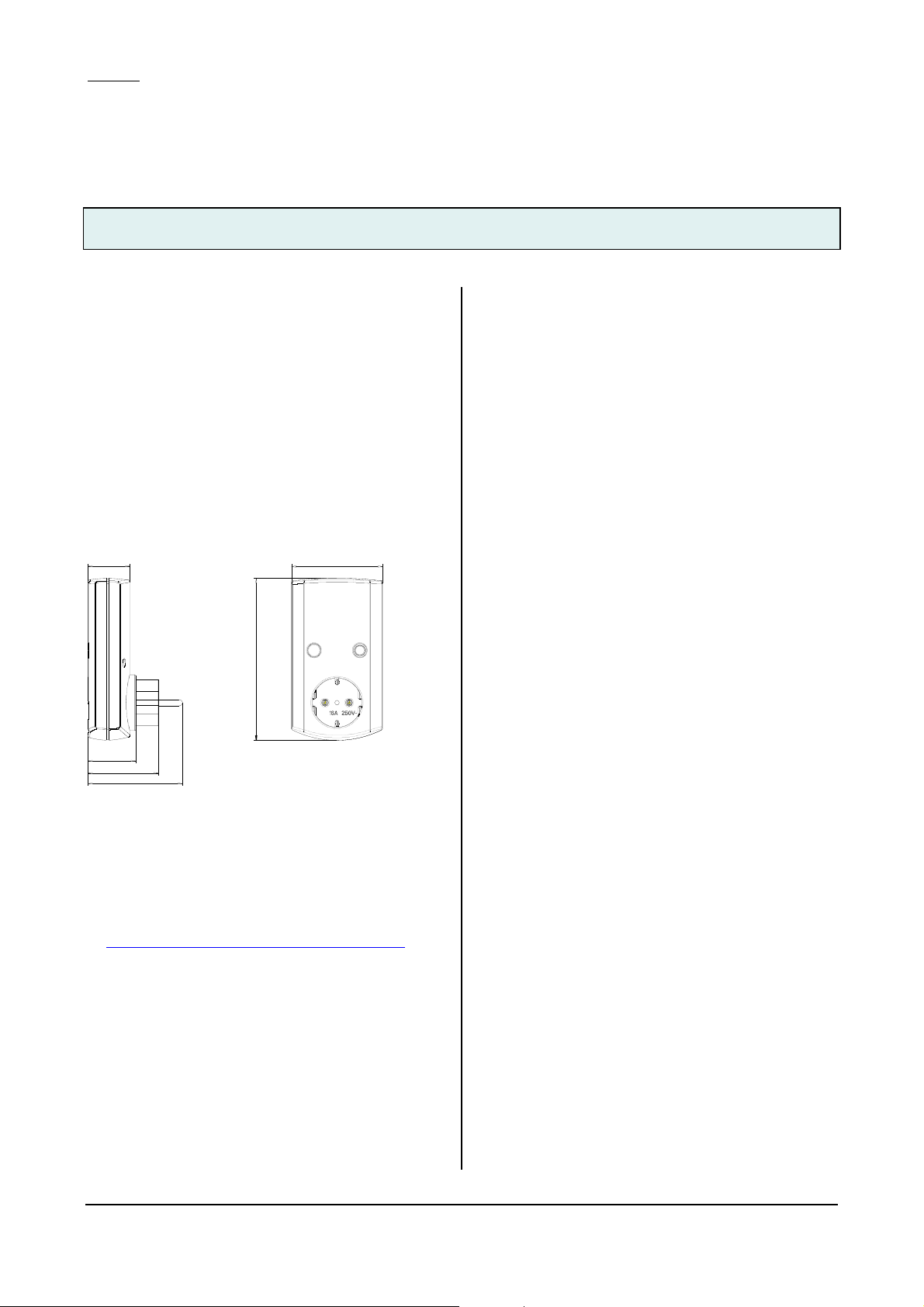

Location and Function of Display and
Operating Elements

A2

A1

A3

A4

A1 socket outlet receptacle with side grounding contacts
A2 Status LED
A3 Push button for local operation
A4 socket outlet plug with side grounding contacts

Mounting and commissioning

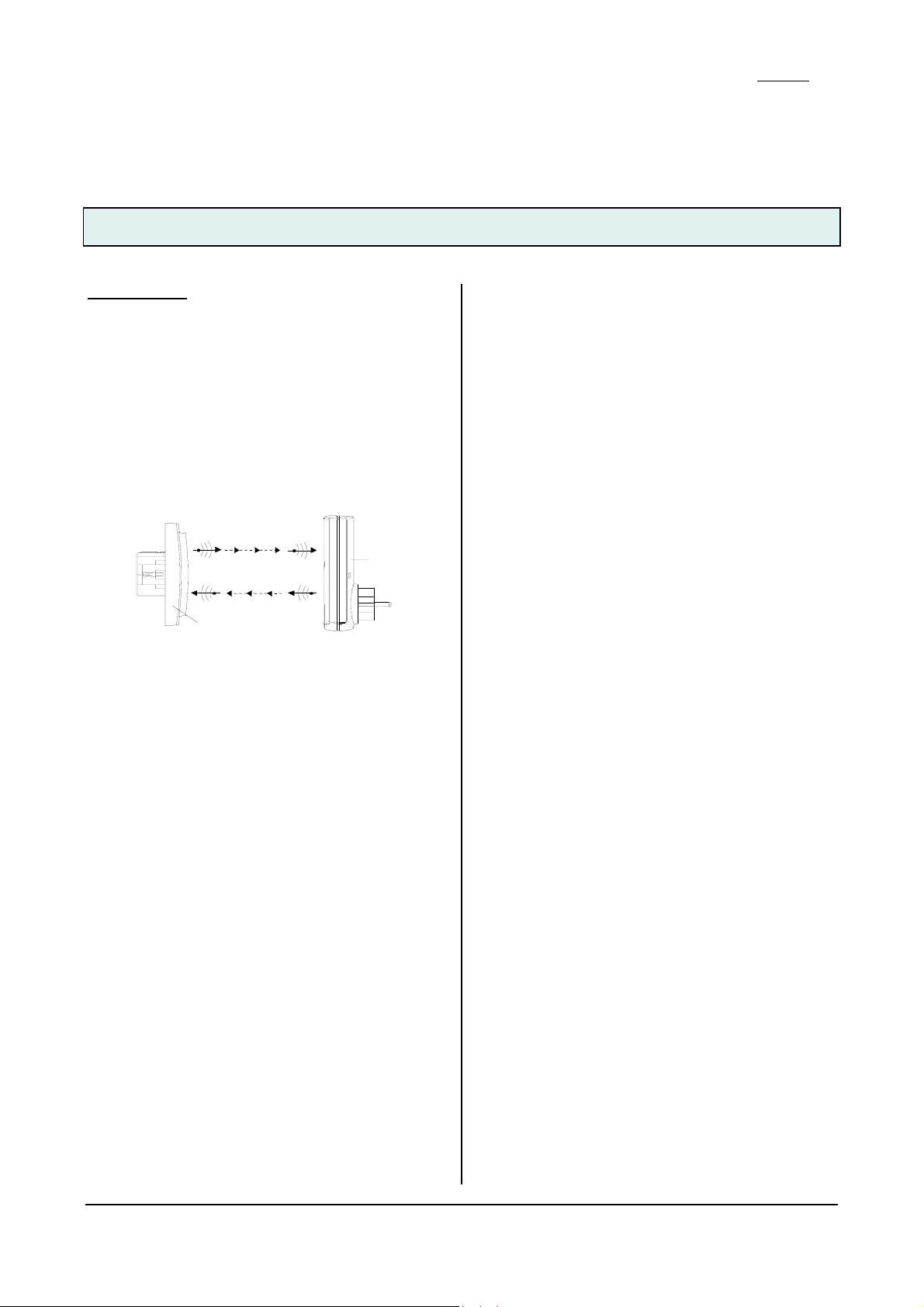

Mounting:

(Figure 2)
The socket outlet switch wave is plugged into a socket
outlet receptacle with side grounding contacts manually.
To avoid radio interference the socket outlet switch wave
should be mounted in a way that the cable of the
switched device does not run across the housing.

The CE declaration can be inspected at:
SIEMENS AG
Siemensstraße 10
D-93055 Regensburg

Frequency band

868 MHz (transmission is not susceptible to interference;
frequency band reserved for system and security applica­tions)

Range of radio control

approx. 100 m (applying to free field applications)

Technical Manual S 564, 4 pages Siemens AG
Automation and Drives Group
Update: http://www.siemens.de/gamma © Siemens AG 2005 Electrical Installation Technology
Subject to change without prior notice P.O. Box 10 09 53, D-93009 Regensburg

Dismantling:
Remove the socket outlet switch wave manually out of
the socket outlet receptacle.

2.20.7.1/2
