Important information
en

Congratulations

In purchasing your new refrigerator, you have selected a qualitatively high-grade household appliance.
Your refrigerator sets itself apart through its economical consumption of energy.
Each appliance which leaves our factory is inspected thoroughly to ensure that it functions properly and is in perfect condition.
If you have any questions concerning installation and connection of the appliance hesitate to contact our customer service, see section “Customer service”, page 17.
Further information and a selection of our products can be found on our home page.
Please read these operating instructions as well as the installation instructions and all information enclosed with the appliance and follow accordingly.
Keep all documentation for subsequent use or for the next owner.
please do not
particularly

Safety and warning information

Before you switch ON the appliance

Please read the operating and installation instructions carefully. They contain important information on how to install, use and maintain the appliance. Keep all documentation for subsequent use or for the next owner.

Technical safety

Warning

m
8LMWETTPMERGIGSRXEMRWEWQEPPUYERXMX] SJIRZMVSRQIRXEPP]JVMIRHP]FYX JPEQQEFPI6EVIJVMKIVERX)RWYVI XLEXXLIXYFMRKSJXLIVIJVMKIVERXGMVGYMX MWRSXHEQEKIHHYVMRKXVERWTSVXEXMSR ERHMRWXEPPEXMSR0IEOMRKVIJVMKIVERXQE] GEYWII]IMRNYVMIWSVMKRMXI

If damage has occurred

Keep naked flames and/or ignition
sources away from the appliance,
Pull out the mains plug,
Thoroughly ventilate the room
for several minutes,
Notify customer service.
The more refrigerant an appliance contains, the larger the room must be in which the appliance is situated. Leaking refrigerant can form a flammable gas-air mixture in rooms which are too small.
3
The room must be at least 1 m of refrigerant. The amount of refrigerant in your appliance is indicated on the rating plate inside the appliance.
per 8 g
when using the appliance
Never use electrical appliances
inside the appliance (e. g. heater, electric ice maker, etc.). Explosion hazard!
NEVER use a steam cleaner to
defrost or clean the appliance! Steam may come into contact with electrical components and cause a short-circuit or an electric shock.
Do not store products which
contain flammable propellants (e. g. spray cans) or explosive substances in the appliance. Explosion hazard!
Do not stand or support yourself on
the base, drawers or doors, etc.
Use the motorised compartment
carefully.
Warning: Hands can become trapped between the motorised compartment and the appliance casing.
For cleaning and exchanging the
bulb, pull the mains plug out or switch off the fuse. Do not pull out the mains plug by tugging the cable.
Warning: When the appliance is switched off using the temperature

setting (Display: current is not disrupted.
Bottles which contain a high
percentage of alcohol must be sealed and stored in an upright position.
Keep plastic parts and the door
seal free of oil and grease. Otherwise, parts and door seal will become porous.
Never cover or block the ventilation
openings for the appliance.
Only customer service may change
the power cord and carry out any other repairs. Improper installations and repairs may put the user at considerable risk.
), the supply of
3
en

Children in the household

Do not allow children to play with
the appliance!
If the appliance features a lock,
keep the key out of the reach of children.

General requirements

The appliance is suitable for refrigerating food.
The appliance is designed for domestic use.
The appliance is suppressed according to EU Directive 89/336/EEC.
The refrigerant circuit has been tested for leaks.
This product complies with the relevant safety regulations for electrical appliances (EN 60335/2/24).

Information concerning disposal

Disposal of packaging

The packaging protects your appliance from damage during transit. All packaging materials are environ­mentally friendly and recyclable. Please contribute to a better environ­ment by disposing of packaging materials in an environmentally-friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.

m Warning

/IITGLMPHVIRE[E]JVSQTEGOEKMRK ERHMXWTEVXW(ERKIVSJWYJJSGEXMSR JVSQJSPHMRKGEVXSRWERHTPEWXMGJMPQ

m Redundant appliances:

l
Cut off the power cord and discard with the mains plug.
l
Take off the doors.
l
Do not take out the trays and receptacles: children are therefore prevented from climbing in!
Do not allow children to play with the appliance once it has spent ist useful life. Risk of suffocation!
Refrigerators contain refrigerants and the insulation contains gases. Refrigerant and gases must be disposed of properly. Ensure that tubing of the refrigerant circuit is not damaged prior to proper disposal.

Disposal of your old appliance

Old appliances are not worthless rubbish! Valuable raw materials can be reclaimed by recycling old appliances.
This appliance has been identified in accordance with the European directive 2002/ 96/EG on Waste Electrical and Electronic Equipment WEEE. The directive specifies the framework for an EU-wide valid return and recycling of old appliances.
4

Your new appliance

These operating instructions refer to several models. Illustrations can differ.
en

1. Fascia

2. Motorised compartment

3. Motorised compartment button

4. Glass compartments

5. Storage compartment for snacks, sweets

6. Fruit and vegetable container with controllable ventilation

7. Control buttons for the chiller section drawer

8. “Cool-fresh” drawer for optimum storage of fish, meat, poultry and vegetables

9. Butter and cheese compartment

10. Door storage compartment

11. Bottle storage compartment

5
en

Fascia

A On/Off button

Serves to switch the appliance on and off.

m Caution

8LIETTPMERGIMWRSXWITIVEXIHJVSQXLI QEMRW[LIRMXMWW[MXGLIHSJJF]
TVIWWMRKXLISRSJJFYXXSR

B Alarm button

switches the alarm sound off. See section “Door alarm” (page 9).

C “super” cool button

Serves to switch the “super” cooling function on and off. See section “Super” cooling (page 9).

D Display panel

The refrigerated drawer temperature is displayed on the fascia. Activated special functions are shown by means of symbols, “super” cooling for example.
The menus and setting options which are available are represented on the fascia in the setup mode. See section “Setup mode” (page 11).
4
E Selection button
The temperature setting is activated using the selection buttons See section “Setting the temperature” (page 8).
For selecting a menu in the setup mode. See section “Setup mode” (page 11).
F Setting buttons
In the temperature setting mode, the temperature can be changed using the setting buttons See section “Setting the temperature” (page 8).
For setting the parameters available in the menu. See section “Setup mode”, (page 11).

GSetup button

This button starts and ends the setup mode. If the setup mode is ended using the setup button which have been made are stored.

H Holiday button

For switching the energy saving holiday mode on and off. See section “Holiday mode”, page 12.
+/–.


.
+/–
, the changes
A sound can be heard every time a button is actuated if this function is

activated ( during the setup mode.
Symbols in the display
) in the sound menu
“Super cool” function is activated, seepage9.
Holiday mode is activated, seepage12.
For the setting options in the setup mode, see page 11.
A warning message is displayed, see page 14.
6

Fixing

en

Installation

Installation location

Install the appliance in a dry, well ventilated room. The installation location should neither be exposed to direct sunlight nor near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances to a heat source:
3 cm to an electric cooker.
30 cm to an oil or solid-fuel cooker.
The floor on which the appliance is to be installed must be rigid. If required, reinforce the floor. To ensure that the ice maker functions correctly, the appliance must be upright.

Observe ambient temperature and ventilation

The climatic class can be found on the rating plate It states the room temperature within which the appliance can be operated.
Atmosphere grade
SN +10
N+16
ST +18
T+18°C to 43 °C

Ventilation

Never cover the ventilation openings in the base panel. The cooling motor otherwise has to increase ist output, and this increases the electricity consumption.
Permitted ambient temperature
°C to 32 °C
°C to 32 °C
°C to 38 °C
For secure installation, the appliance screwed to neighbouring kitchen furniture and/or units.
It is very important therefore that all bordering furniture and/or units are fixed securely to the floor and/or walls. If making structural changes fix the appliance in place again corresponding to the the installation instructions.

Installation surface

A load-bearing base is necessary because of the heavy weight of the fully laden appliance.
The weight of the appliance when fully loaded:
Refrigerator 24" 400 kg
Refrigerator 30" 500 kg
In case of doubt, consult an architect or structural engineer.

Installing and connecting the appliance

Caution

m
8LIETTPMERGIWLSYPHSRP]FIMRWXEPPIH ERHGSRRIGXIHF]EVIGSKRMWIH MRWXEPPEXMSRIRKMRIIVEGGSVHMRKXSXLI MRWXEPPEXMSRMRWXVYGXMSRWFIPSRKMRKXSXLI ETTPMERGI
After installing the appliance, wait at least ½ hour before switching on the appliance. During transportation the oil in the compressor may have flowed into the refrigeration system.
Before switching on the appliance for the first time, clean the interior of the appliance (see “Cleaning the appliance”, page 14).

Electrical connection

Do not use an extension lead or a multi­plug socket.
The plug to secure the appliance must be freely accessible. Connect the appliance to a 220 50 Hz ac current via a plug which has been properly installed. The socket must be fused with a 10 A fuse or higher.
For appliances operated in non­European countries, the identifi­cation plate should be checked whether the electric supply and the current model stated match the vales of the mains supply. The rating plate is situated in the bottom left-hand side of the appliance. Any necessary exchanging of the mains lead should carried out by a specialist electrician.

m Warning

Never connect the appliance to electronic energy saver plugs or to power inverters which convert the direct current to 230 V alternating current (e.g. solar equipment, power supplies on ships).

240 V/
7
en

Factory settings

Upon leaving the factory, the appliance has been supplied with the following settings:
Fascia language: English
Temperature unit: °C
Refrigerator compartment
temperature: +4 °C

Note

The factory settings (language, tempe­rature unit) can be changed in the setup mode.

Switching on the appliance

l
Press the on/off button .
The appliance starts to cool down when switched on for the first time. When the door is opened, the interior light comes on.

Note

The preset temperatures (factory settings) are reached after approx.
8 hours. Do not put any food in the
2 appliance beforehand.
To change the set temperatures –> see “Setting the temperature” (page 8).

Selecting the temperature

The temperature can be set from +2 °C
°C. We recommend a setting of
to +8
°C.
+4

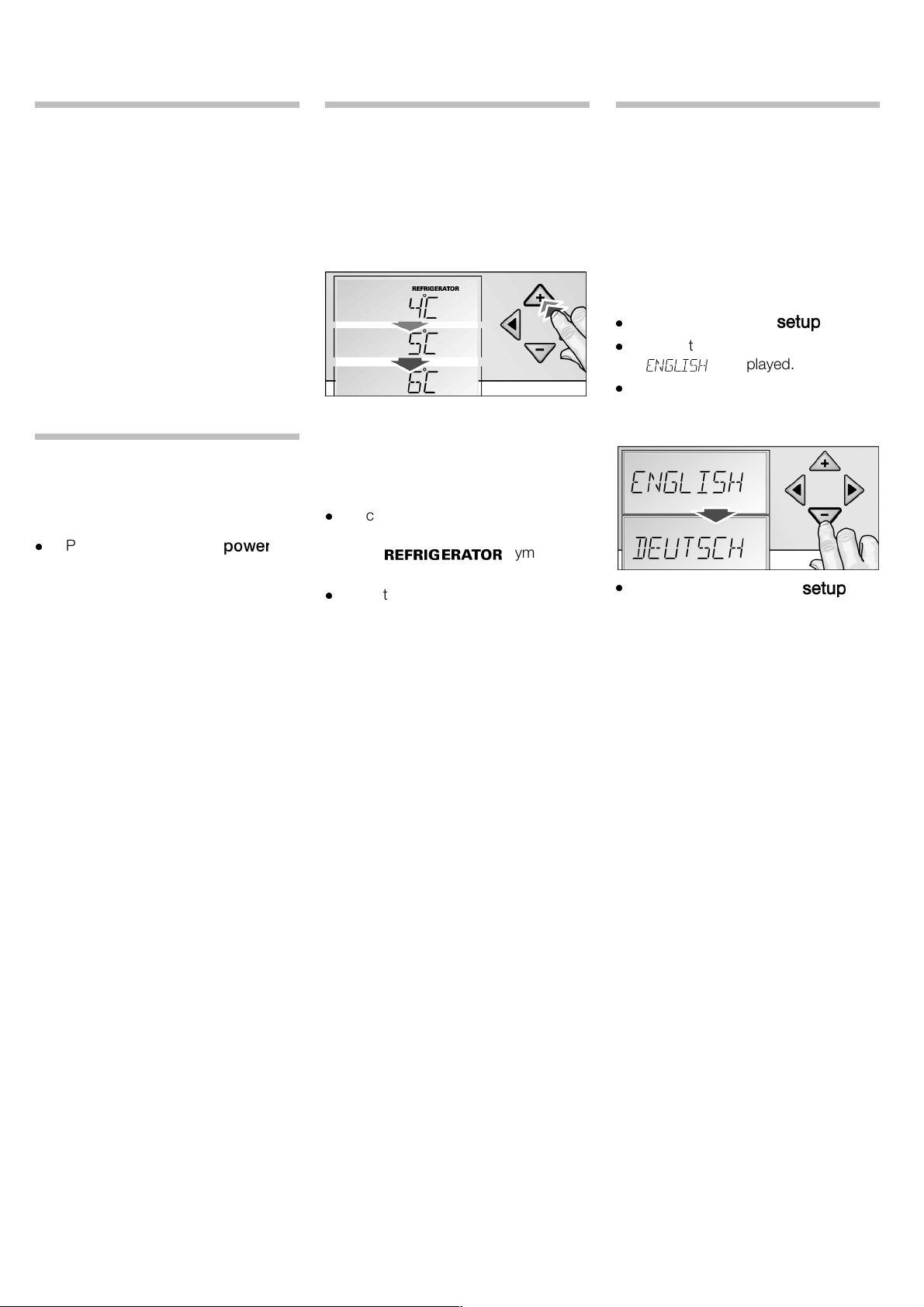

The temperature setting can be changed using the + (warmer) or (cooler) setting buttons. The tempera­ture can be set at 1
To set the temperature:
l
Active the setup mode using the < or > buttons.
23
The displayed.
l
Set the desired temperature using the + (warmer) or buttons.
°C intervals.
(cooler) setting
symbol is

Set the language

When the appliance is operated, all messages are displayed in fascia in English.
Alternatively, the display languages can be selected corresponding to the table on page page 11.
In order to change the display language:
l
Press setup button .
l
Press the selection button >, until

l
Press the + or – setting button, until the desired language is displayed.
l
Press the setup button , in order to store the settings. The set temperature is displayed again in the fascia.
is displayed.
8
en

Motorised compartment

The appliance is equipped with a height adjustable motorised compartment.
When the toggle switch is set
upwards: The compartment moves upwards
When the toggle switch is set
downwards: The compartment moves downwards
Maximum motorised compartment load: 10 kg
l
The drive cuts out if overloaded in order to avoid damage.

Controlled ventilation

“Super” cooling

In the “super” cooling mode, the refrigerated zone will be cooled for approx. 6 hours as cold as possible.
Switch the function on:
l
to cool drinks quickly.
l
Before placing large quantities of food in the refrigerator compartment.
This function is activated by pressing the “super” cooling button
The symbol appears in the fascia under super temperature.
“Super cool” function ends:
l
by pressing the “super” cool button again;
l
by activating the eco function;
l
by activating the holiday mode;
l
by activating the sabbatical mode.
After approx. 6 hours, the appliance switches automatically back to the temperature set before the “Super cool” function.
.

Chiller section drawer (Drawer with adjustable temperature)

The temperature in this compartment is kept at almost 0 optimum storage conditions for fresh food.
l
Press the appropriate button (fish, meat/poultry, vegetables) corresponding to the food stored.
The selection is displayed by the corresponding LED being illuminated.
The chiller section drawer is equipped with a filter. See in addition “Cleaning the chiller section drawer” (page 17).
°C. This provides
You can use the controllable ventilation to set the air humidity in your fruit and vegetable container.
Slide control to the right:
low air humidity
Slide control to the left:
high air humidity.

Door alarm

If an appliance door is left open, an alarm signal is emitted after one minute and a corresponding alarm message appears in the fascia.
Close the door. Pressing the alarm button switches the signal off. If the door is not closed properly again, the alarm signal will be emitted after one minute once more.
9
en

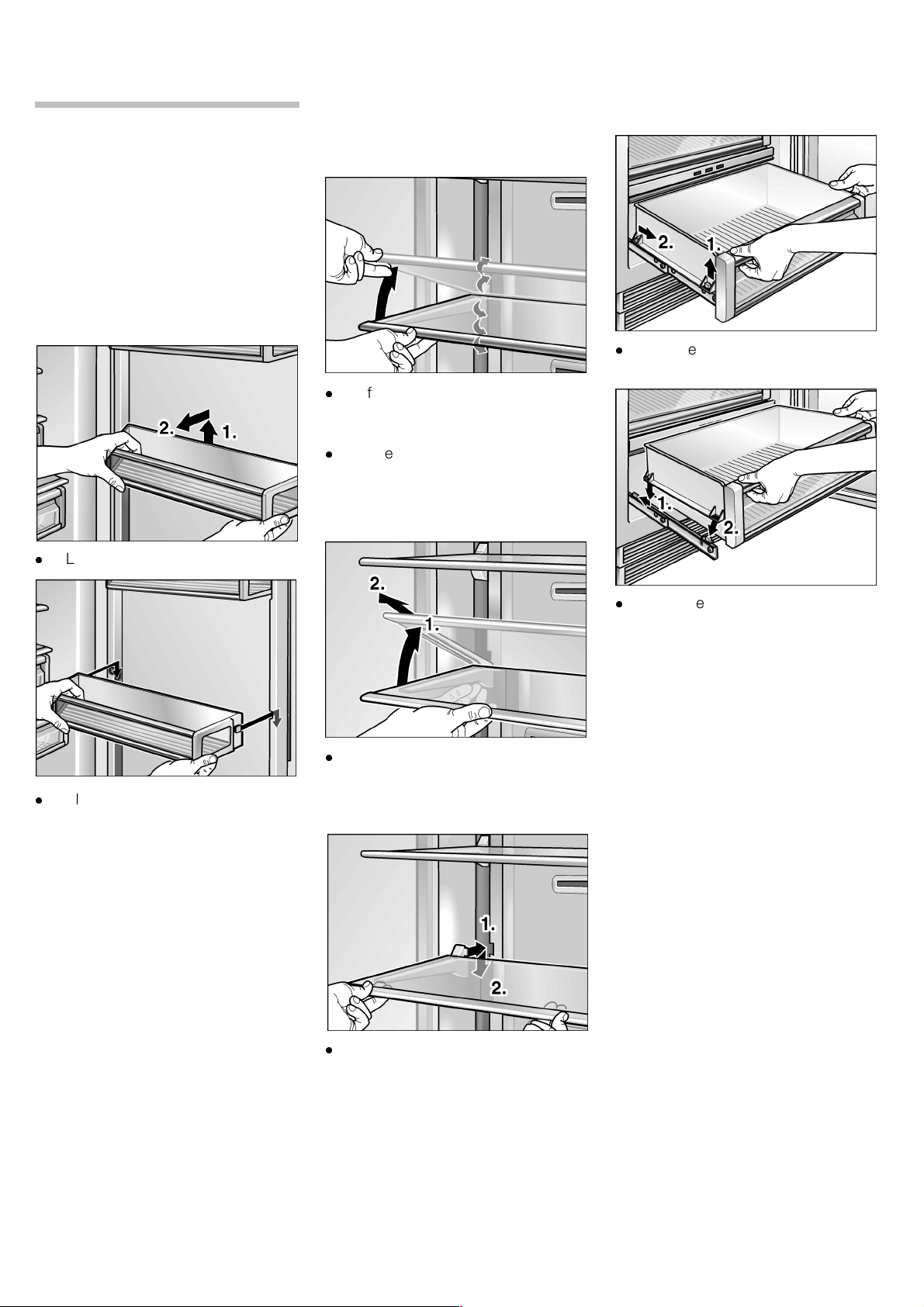

Variable interior design

You can vary the shelves inside the appliance and the containers in the door to suit your requirements.

Door storage compartment

l
Lift the container and remove.

Glass compartments

The height of the glass shelves can be adjusted.
l
Lift the compartment front and move it upwards or downwards into the guiding positions.
l
Lower the compartment front to the desired height. The holders engage into the guiding positions.

Removing the compartments:

Drawers

l
To take out, lift the drawers slightly and take out.
l
Place the containers at the desired heights and press downwards.
l
Lift the compartment front and move it into the guiding positions as far as the openings. Remove the compartment forwards.
l
Place the compartment into the guiding positions openings and press downwards. Set the compartment to the desired height.
l
To place in, lift the front of the drawers slightly and place into the chest of drawers. Lower the drawer and slide it backwards.
10
en

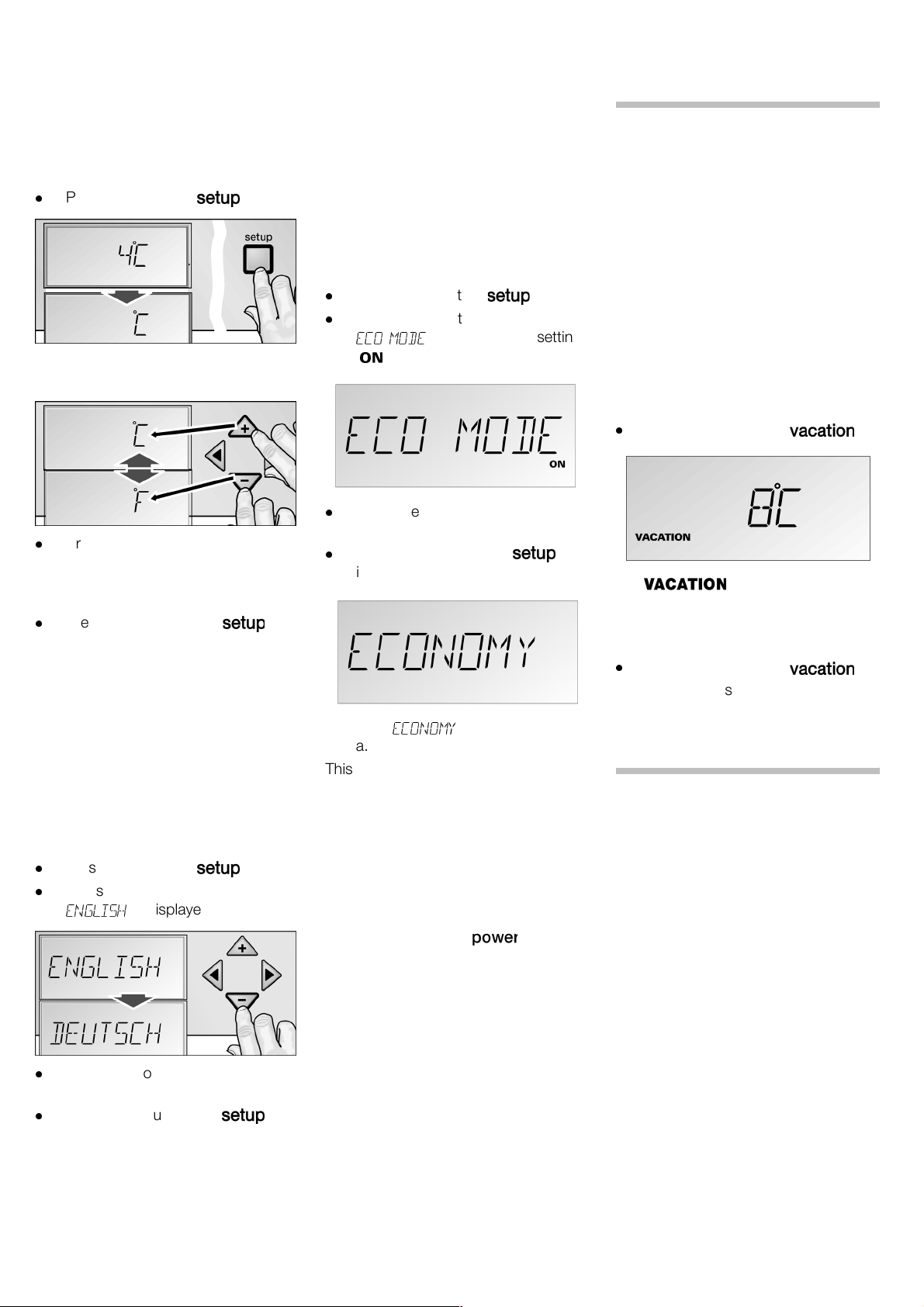

Setup mode

Individual adjustments

There are menus for adapting the appliance to the individual user require­ments. These adaptions are carried out in the setup mode.
To activate the setup mode:
l
Press setup button .
The first menu (temperature unit) is displayed in the fascia.

Menus in the setup mode

To switch to the next menu:
l
Press the selection button < or >. The next menu is displayed and its
0
current setting (mostly
or 1).
To make a selection within the setting options of a menu:
l
Press the setting button + or –.
A changed setting is stored, if the next menu is selected using < or >.
To deactivate the setup mode:
l
Press setup button . All of the changed settings are stored.
If no button is selected within 20 seconds, the setup mode ends automatically. All of the changed settings are stored. The set temperature is displayed again in the fascia.
Menu Setting options Displayed text
Temperature unit °C (degrees Celsius)
°F (degrees Fahrenheit)
Language German
English French Danish Finnish Greek Dutch Italian Polish Portuguese Norwegian Russian Swedish Spanish Turk i sh Czech
Sound On /
Energy saving mode (eco function) On /
Off /
Off /
0 1
0 1
° °
"!     "   !  !" " #   !"  &
!

11
en

Temperature unit

The temperature can be displayed in degrees Fahrenheit ( Celsius (
l
°C).
Press setup button .
°F) or degrees
The first menu (temperature unit) is displayed.
l
Press the + or – setting button in order to switch between degrees Fahrenheit (
°C).
(
l
Press the setup button , in
°F) and degrees Celsius
order to store the settings. The set temperature is displayed again in the fascia.

Language setting

When the appliance is operated, all messages are displayed in fascia in English.
Alternatively, the display languages can be selected corresponding to the table above.
l
Press setup button .
l
Press the selection button >, until

is displayed.

Energy saving mode

If the energy saving function (eco function) is activated, the appliance switches to energy saving operation. This energy saving function is preset at the factory in order to reduce energy consumption. The background illumi­nation of the fascia is likewise reduced.
To switch the energy saving function on:
l
Press setup button .
l
Press the selection button >, until
 
0
(
l
Press the + or – setting button, in order to reset the setting.
l
Press the setup button , in order to store the settings.
The word fascia.
This function is then ended:
by switching the eco function off in
the setup mode,
by activating the "Super cool"
function;
by changing the target temperature
of the appliance,
by switching the appliance off using
the on/off button .
and the current setting
) is displayed.
&
is displayed in the

Holiday mode11

If leaving the appliance for a long period of time, you can switch the appliance over to the energy saving holiday mode.
Holiday mode settings:
The appliance works in energy
saving mode (see “Energy saving mode”, page 12);
The interior illumination is switched
off;
The “Super cool” function is ended
(if activated).
To switch the holiday mode on:3.
l
Press Holiday button .
The symbol appears in the fascia under the eco-temperature preset at the factory.
To switch the holiday mode off:
l
Press Holiday button .
The previous settings and temperature values are once again activated.

Sabbatical mode

Sabbatical mode settings:
The “Super cool” function is ended
(if activated);
the accoustic signal is switched off
when the button is actuated (if activated);
The interior illumination is switched
off;
the background illumination of the
fascia is switched off.
l
Press the + or – setting button, until the desired language is displayed.
l
Press the setup button , in order to store the settings. The set temperature is displayed again in the fascia.
12

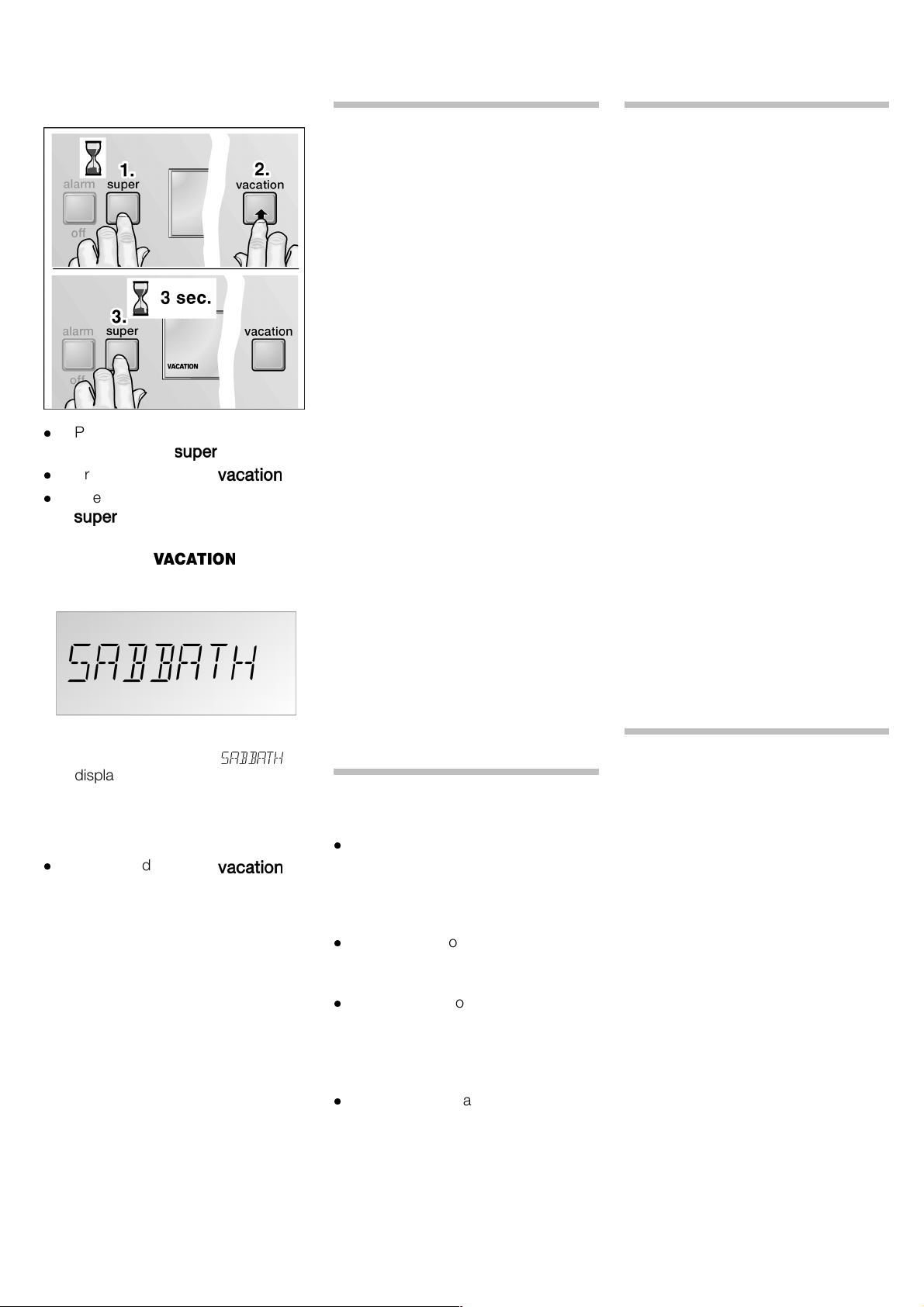

To switch the sabbatical mode on:
en
l
Press and hold down the “super” cooling button
l
Press Holiday button .
l
Keep the “super” cooling button
.
held down for 3 seconds
longer.
The symbol flashes on the display panel.
The background illumination in the fascia is switched off. displayed in the fascia. The sabbatical mode is switched on.
!
is

Preserving food

Pay attention when arranging food:

Allow warm food and drinks to cool
down outside the appliance.
Wrap or cover food before placing
in the appliance. This way the aroma and freshness is preserved. This is done likewise to help avoid the transfer of odours and colours onto plastic parts.
Keep plastic parts and the door
seal free of oil and grease.
Bottles which contain a high
percentage of alcohol must be sealed and stored in an upright position.

When buying food, please note:

The “purchase freshness” is important for the shelf-life of your food. The following principle applies: the fresher the supplies are when placed in the chiller section drawer, the longer they can be held for. When buying food, always note the degree of freshness.

How to save energy

Operating noises

Normal operating noises

Humming refrigerating unit is running.
The fan in the circulating air system is running.
Bubbling, gurgling or whirring noises
refrigerant is flowing through the
tubing.
Clicking
motor is switching on or off.

Noises which can be easily rectified

The appliance is not level
Allign the appliance with the aid of aspirit level.
Use the height-adjustable feet or place something under the feet.
Drawers, baskets or storage areas are loose or sticking
Please check the removable parts and, if required, reinsert them.
Receptacles are touching each other
Please move bottles or receptacles away from each other.

Thawing the appliance

To switch the sabbatical mode off:
l
Press Holiday button .
The previous settings and temperature values are once again activated.
l
Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker, etc.). If required, use an insulating plate.
l
Allow warm food and drinks to cool down before placing in the appliance!
l
Thaw frozen food by placing it in the refrigerator. The low tempera­ture of the frozen food will then cool the food in the refrigerator compartment.
l
Open the appliance door as briefly as possible.
The appliance starts to defrost automatically.
13
en

Switching off and disconnecting the appliance

Switching off the appliance

l
Press the on/off button .

Disconnecting the appliance

If the appliance is not used for a prolonged period:
l
Take all food out of the appliance.
l
Pull out the mains plug or switch off the fuse.
l
Clean the appliance interior (see “Cleaning the appliance”, page 14).
l
To prevent odours, leave the doors open.

Cleaning the appliance

l
Press the on/off button and switch the appliance off! Pull out the mains plug or switch off the fuse.
l
Clean the appliance with lukewarm water and a little washing-up liquid. Water used for cleaning must not drip onto the fascia or light.
l
Clean the door seal with water only and then dry thoroughly.
l
Remove dirt on the ventilation and air release openings using a vacuum cleaner.
l
Clean the surface of the appliance using a damp cloth. Afterwards, rub dry.

After cleaning:

Insert the plug and/or switch the fuse on. Press the on/off button and switch the appliance on!
m Warning
NEVER use a steam cleaner
to clean the appliance!
Water used for cleaning must not
drip onto the fascia or light.
Do not use abrasive or acidic
cleaning agents and solvents.
Never clean the shelves or
containers in the dishwasher. The parts may warp.

Odours

If you experience unpleasant odours:
l
Press the on/off button and switch the appliance off!
l
Take all food out of the appliance.
l
Clean the interior. See section “Cleaning the appliance”, page 14.
l
Clean all packing units located in the appliance.
l
Seal strong smelling food in order to avoid odours from forming.
l
Press the on/off button and switch the appliance on!
l
Storing food in the appliance.
l
Check whether the formation of odours is still occuring after 24 hous.
l
Change the odour filter.

Warning messages via the display

If several warning notices appear at once, see to each warning in turn.
As long as a warning is displayed, no buttons can be pressed.

Door alarm

Cause
One door of the appliance has not been closed correctly or has been open too long.
Remedial action
Press the alarm button . Close the door. The display goes out.

Sensor failure

Cause
A technical defect on the appliance is possible.
Remedial action
Conduct a self-test on the appliance.

Low voltage

Cause
The mains voltage falls below the permitted limiting value.
Remedial action
No button actuations are possible. When the mains voltage reaches the stipulated value again, the warning message goes out. If the warning message lasts for longer, inform the energy supply company.
14
en

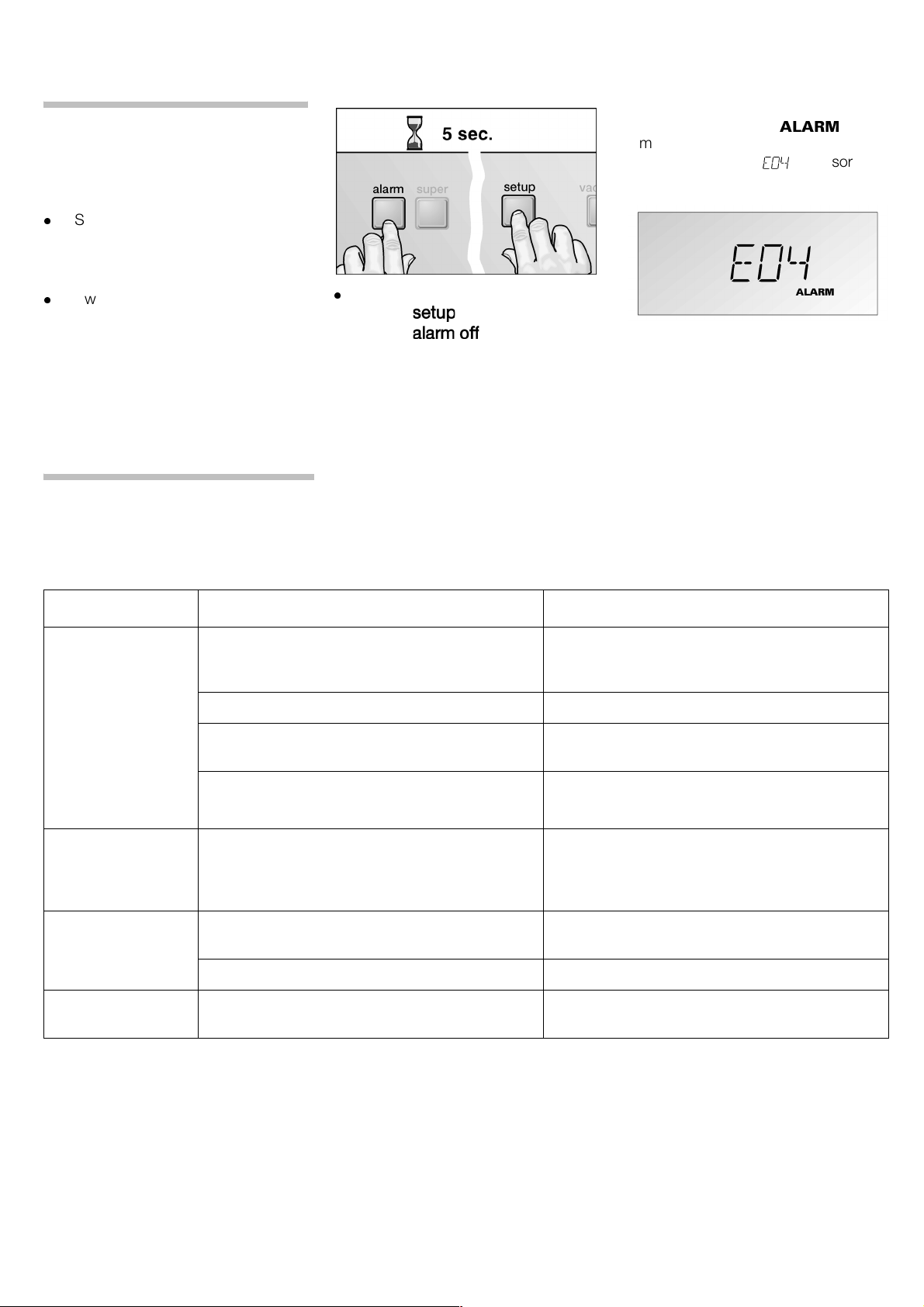

Appliance self-test

Before you call customer service, conduct a self-test on the appliance.
l
Switch off the appliance and wait 5 minutes. Keep the door closed during this time.
l
l
Switching on the appliance.
At the same time, press the setup
and the alarm
button button for 5 seconds.
The self-test programme starts. Various messages appear in the facia one after the other.

Eliminating minor faults yourself

If an error is established during the appliance self-test, the
/
symbol appears in the fascia and an

error message (e. g.
=sensor
error) is displayed.
Inform the customer service of these error messages.
If no error is established during the appliance self-test, the preset temperature appears in the fascia after the test has ended.
Before you call customer service: Please check whether you can eliminate the fault yourself based on the following information. Customer service will charge you for advice
even if the appliance is still under guarantee!
Fault Possible cause: Remedial action
Appliance has no refrigerating capacity.
Power failure; the fuse has been switched off; the mains plug has not been inserted properly.
Check whether the power is on. The appliance must be switched on. Check whether the mains
plug is secure. Interior light does not function. The display does not illuminate. The refrigerating unit is switching on more frequently and
Appliance door opened frequently. Do not open the door unnecessarily.
Large amounts of fresh food have been put
Activate the “Super cool” function.
away.
The ventilation openings have been covered. Remove obstructions and dirt.
for longer.
The temperature in the refrigerator
Temperature has been set too low. Select a warmer temperature (see page 8
“Setting the temperature”) compartment is too cold.
Interior light does not function.
The bulb is defective. Replace bulb (see page 16 “Changing light
bulbs”).
Light switch is sticking. Check whether it can be moved.
You experience unpleasant odours.
Strongly smelling food is not sealed. Cleaning the appliance. Seal strongly smelling
food (see page 14 “Odours”).
15
en

Side halogen lamps

Change the light bulbs

m Warning

Pull out the mains plug or switch off the fuse. Risk of electric shock!

m Caution

Do not touch the halogen bulb with your fingers. Always use a soft cloth when inserting a halogen bulb.

Upper halogen lamp

Halogen lamp type: 12 V/20 W/bulbholder G4
Halogen lamp type: 12 V/10 W/bulbholder G4
l
Pull off the cover strip forwards.
l
Remove the pane forwards.
l
Remove the defective halogen bulb.
l
Replace the panes.
l
Insert the cover strip.

Halogen light in the chiller section drawer

Halogen lamp type: 12 V/5 W/bulbholder G4
l
Free the cover and remove.
l
Remove the defective halogen bulb.
l
Insert the new halogen bulb. Always use a soft cloth when inserting a halogen bulb.
l
Replace the cover and press it until it engages.
l
Insert the new halogen bulb. Always use a soft cloth when inserting a halogen bulb.
l
Free the cover and remove it from the holder.
l
Remove the defective halogen bulb.
l
Insert the new halogen bulb. Always use a soft cloth when inserting a halogen bulb.
l
Attach cover and fix it into the holder.
16
en

Cleaning the chiller section drawer filter

Clean the filter on the chiller section drawer as follows:
l
Remove the chiller section drawer.

Exchange the odour filter

Spare filters are available from your dealer.

l
Opening the filter holder.

Customer service

Check whether you can remedy the fault yourself on the basis of information provided in the “Eliminating minor faults yourself” section (page 15). Your local customer service can be found in the telephone directory or in the customer­service index.
Please provide customer service with the appliance product number (E-Nr.) and production number (FD).
To prevent unnecessary call-outs, please assist customer service by quoting the product and production numbers. This will save you additional costs.
l
Press the filter-holder front down­wards (1) with both hands. Only open the filter-holder for cleaning!
l
Remove the filter-cover (2).
l
Clean the filter with clear water and leave it to dry. Re-insert the filter. Replace the filter cover (3).
l
Press on the filter cover until it engages.
l
Replace the chiller section drawer.
l
Remove the old odour filter.
l
Replace with a new odour filter.
l
Opening the filter holder.
This information can be found on the product label.
17
=
=
Subject to alterations.
Siemens Elektrogeräte GmbH Carl-Wery-Straße 34 81739 München www.siemens-hausgeraete.de
9000 265 242
en (8705)
Loading...
