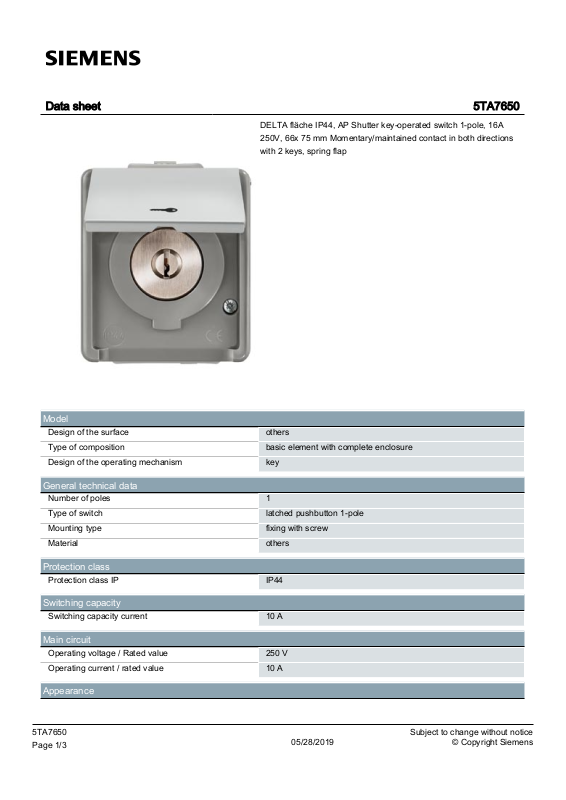

Siemens 5TA7650 data sheet
Data sheet 5TA7650
3
DELTA fläche IP44, AP Shutter key-operated switch 1-pole, 16A
250V, 66x 75 mm Momentary/maintained contact in both directions
with 2 keys, spring flap
Model
Design of the surface others
Type of composition basic element with complete enclosure
Design of the operating mechanism key
General technical data
Number of poles 1
Type of switch latched pushbutton 1-pole
Mounting type fixing with screw
Material others
Protection class
Protection class IP IP44
Switching capacity
Switching capacity current 10A
Main circuit
Operating voltage / Rated value 250V
Operating current / rated value 10A
Appearance
5TA7650 Subject to change without notice
Page 1/
05/28/2019 © Copyright Siemens
Appearance shiny
3
Color grey
Product details
Product feature / interlock No
Product component / Labeling field No
Product feature
● halogen-free
● transparent
Yes
No
Product function
Product function
● electronic operation
● Mechanical operation
No
Yes
Display and operation
Number of keys 0
Mechanical Design
Height 82mm
Depth 47mm
Mounting type surface mounted
Material / of the enclosure plastic
