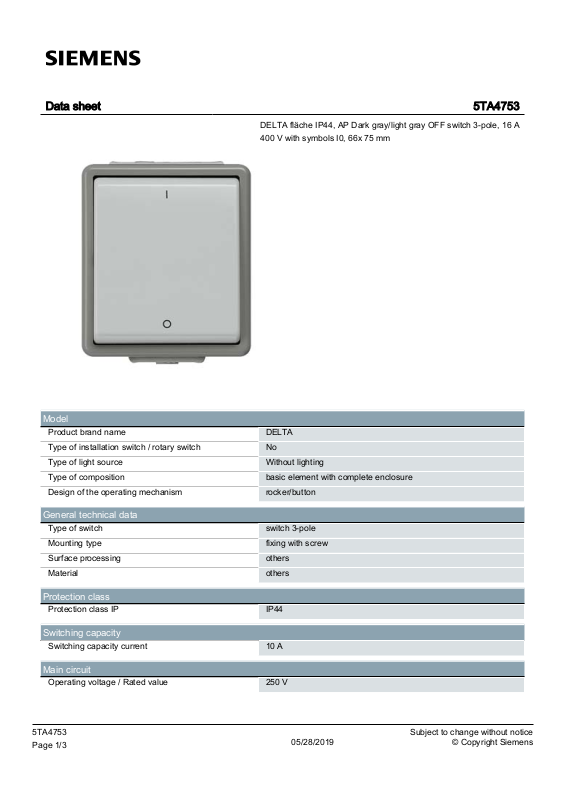

Siemens 5TA4753 data sheet
Data sheet |
5TA4753 |
DELTA fläche IP44, AP Dark gray/light gray OFF switch 3-pole, 16 A 400 V with symbols I0, 66x 75 mm
Model
Product brand name
Type of installation switch / rotary switch
Type of light source
Type of composition
Design of the operating mechanism
DELTA
No
Without lighting
basic element with complete enclosure
rocker/button
General technical data
Type of switch
Mounting type
Surface processing
Material
switch 3-pole
fixing with screw
others
others
Protection class
Protection class IP |
IP44 |
|
|
Switching capacity
Switching capacity current |
10 A |
|
|
Main circuit
Operating voltage / Rated value |
250 V |
|
|
5TA4753 |
05/28/2019 |
Subject to change without notice |
Page 1/3 |
© Copyright Siemens |
|
|
|
Operating current / rated value |
16 A |
|
|
Appearance
Appearance |
shiny |
|
|
Color |
grey |
|
|
Product details
Product component |
|
● Labeling field |
No |
● Signaling contact |
No |
● Pushbutton switch |
No |
|
Yes |
Product feature / halogen-free |
|
|
|
Number
Number of actuating rockers |
1 |
|
|
Connections
Type of electrical connection |
Plug-in terminal |
|
|
Mechanical Design
Height
Depth
Mounting type
Material / of the enclosure
82 mm
47 mm
surface mounted
plastic
Certificates
|
Reference code |
|
|
|
● acc. to DIN EN 61346-2 |
S |
|
|
● acc. to DIN EN 81346-2 |
SF |
|
|
|
|
|
|
|
|
|
Declaration of Conformity |
Test Certificates |
Type Test Certificates/Test Report
Further information
Informationand Downloadcenter (Catalogs, Brochures,…)
http://www.siemens.com/lowvoltage/catalogs
Industry Mall (Online ordering system) https://mall.industry.siemens.com/mall/en/en/Catalog/product?mlfb=5TA4753
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) https://support.industry.siemens.com/cs/ww/en/ps/5TA4753
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
http://www.automation.siemens.com/bilddb/cax_en.aspx?mlfb=5TA4753
CAx-Online-Generator
http://www.siemens.com/cax
Tender specifications
http://www.siemens.com/specifications
5TA4753 |
05/28/2019 |
Subject to change without notice |
Page 2/3 |
© Copyright Siemens |
|
|
|
