Operating Instructions
Warning :
3SB5 Operating Instruction
Manual

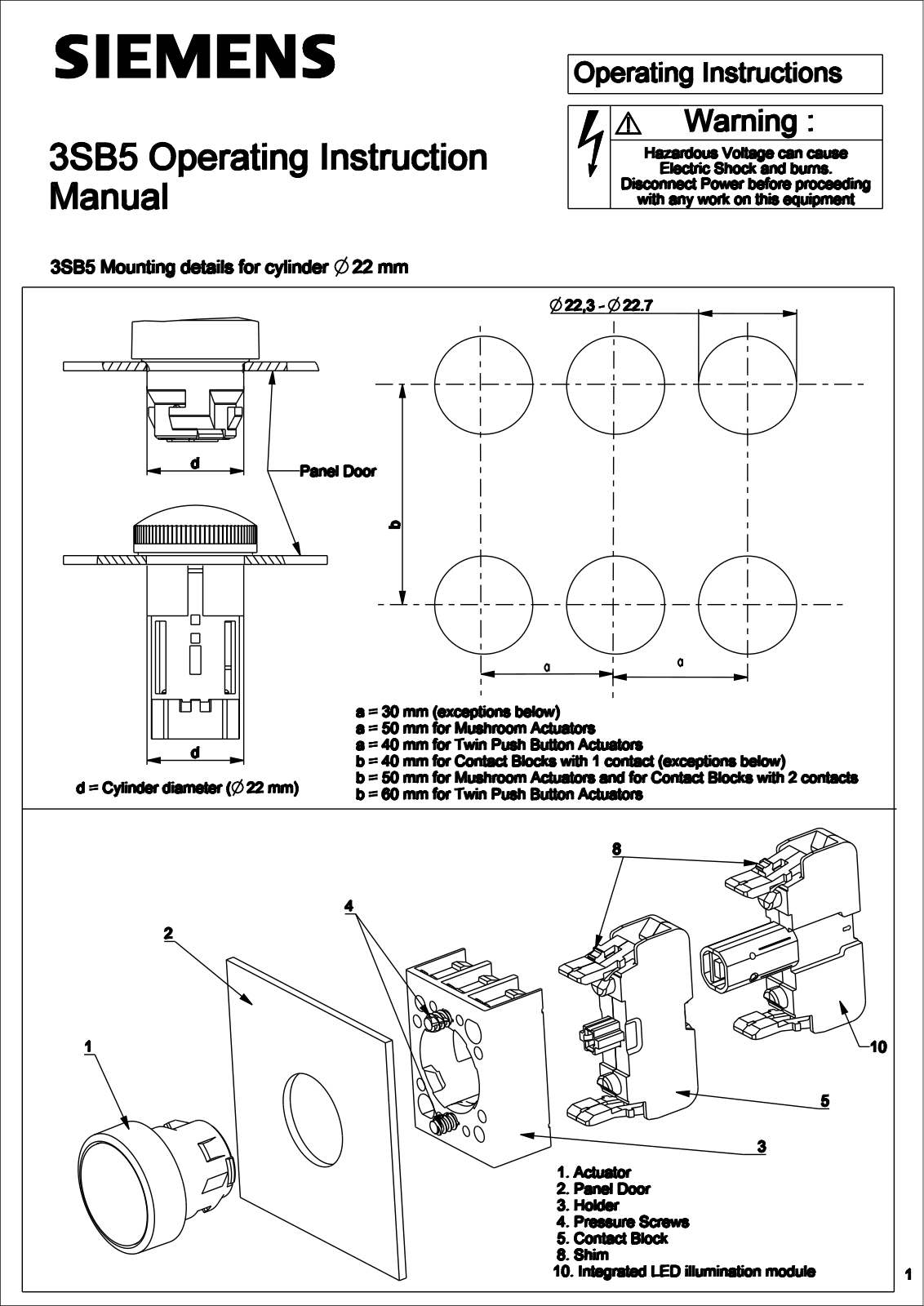

3SB5 Mounting details for cylinder 22 mm
d
Panel Door
b
Hazardous Voltage can cause
Electric Shock and burns.
Disconnect Power before proceeding
with any work on this equipment
- 22.722,3
d
d = Cylinder diameter ( 22 mm)
2
1
a
a = 30 mm (exceptions below)
a = 50 mm for Mushroom Actuators
a = 40 mm for Twin Push Button Actuators
b = 40 mm for Contact Blocks with 1 contact (exceptions below)
b = 50 mm for Mushroom Actuators and for Contact Blocks with 2 contacts
b = 60 mm for Twin Push Button Actuators
8
4
a
5
10
3
1. Actuator
2. Panel Door
3. Holder
4. Pressure Screws
5. Contact Block
8. Shim
10. Integrated LED illumination module
1

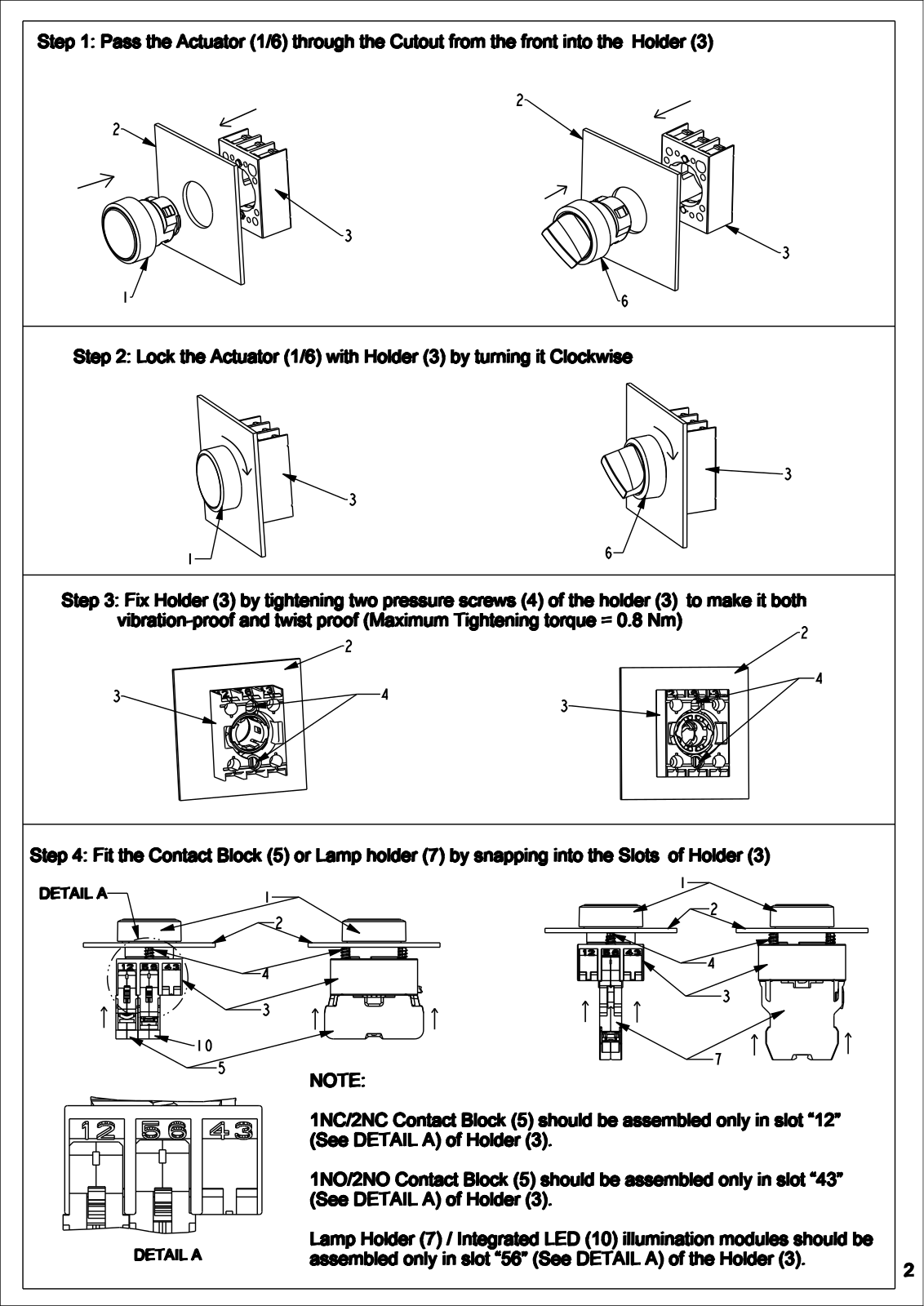

Step 1: Pass the Actuator (1/6) through the Cutout from the front into the Holder (3)
2
2
3
3
1
6
Step 2: Lock the Actuator (1/6) with Holder (3) by turning it Clockwise
3
3
1
6
Step 3: Fix Holder (3) by tightening two pressure screws (4) of the holder (3) to make it both
vibration-proof and twist proof (Maximum Tightening torque = 0.8 Nm)
2
3
4
3
2
4
Step 4: Fit the Contact Block (5) or Lamp holder (7) by snapping into the Slots of Holder (3)
DETAIL A
1
2
4
3
10
5
1
2
4
3
7
NOTE:
1NC/2NC Contact Block (5) should be assembled only in slot “12”
(See DETAIL A) of Holder (3).
1NO/2NO Contact Block (5) should be assembled only in slot “43”
(See DETAIL A) of Holder (3).
Lamp Holder (7) / Integrated LED (10) illumination modules should be
DETAIL A
assembled only in slot “56” (See DETAIL A) of the Holder (3).
2

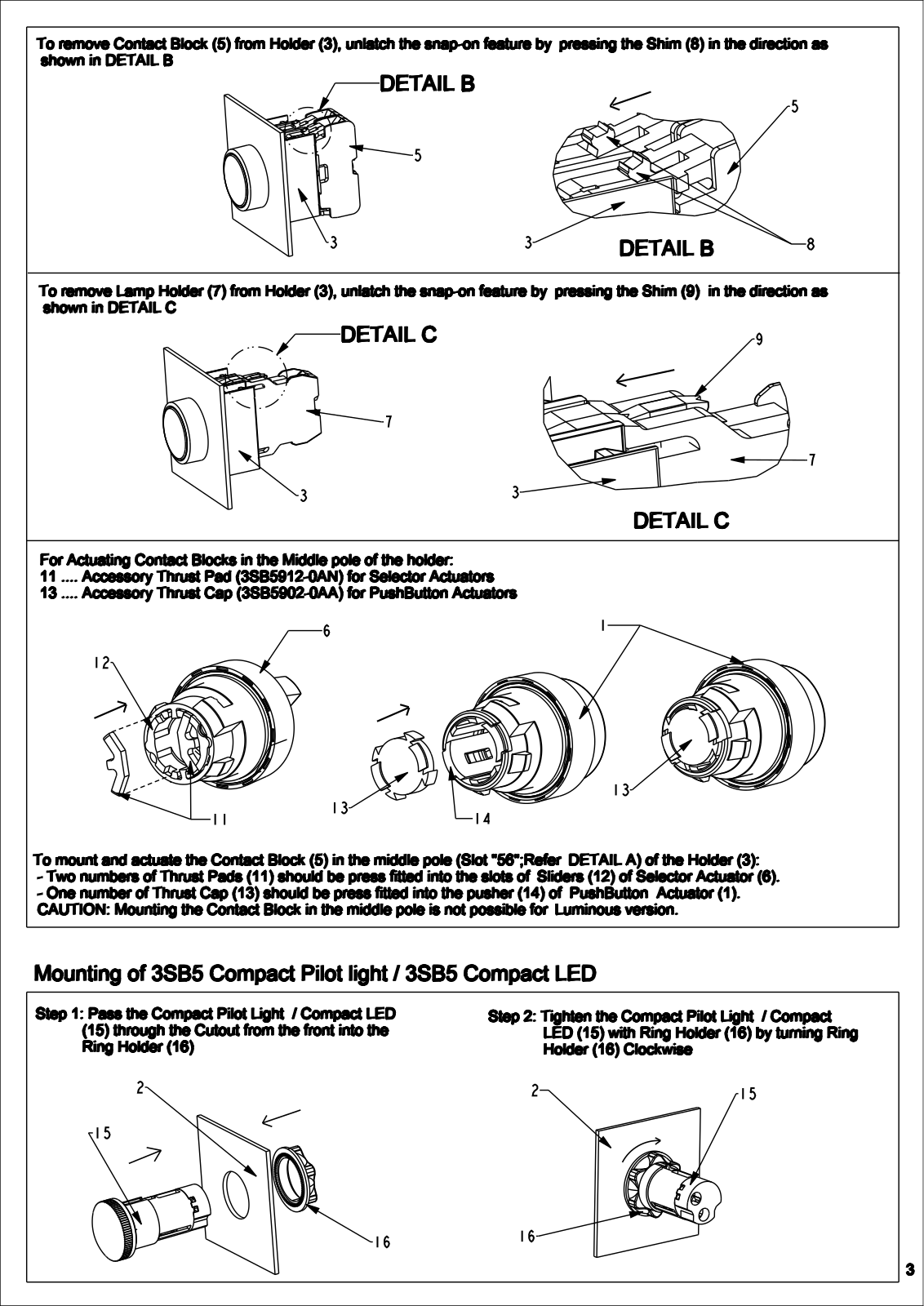

To remove Contact Block (5) from Holder (3), unlatch the snap-on feature by pressing the Shim (8) in the direction as
shown in DETAIL B
DETAIL B
5
5
3
To remove Lamp Holder (7) from Holder (3), unlatch the snap-on feature by pressing the Shim (9) in the direction as
shown in DETAIL C
DETAIL C
7
3
3
3
DETAIL B
9
8
7
DETAIL C
For Actuating Contact Blocks in the Middle pole of the holder:
11 .... Accessory Thrust Pad (3SB5912-0AN) for Selector Actuators
13 .... Accessory Thrust Cap (3SB5902-0AA) for PushButton Actuators
6
12
1
13
11
To mount and actuate the Contact Block (5) in the middle pole (Slot "56";Refer DETAIL A) of the Holder (3):
- Two numbers of Thrust Pads (11) should be press fitted into the slots of Sliders (12) of Selector Actuator (6).
- One number of Thrust Cap (13) should be press fitted into the pusher (14) of PushButton Actuator (1).
CAUTION: Mounting the Contact Block in the middle pole is not possible for Luminous version.
13
14
Mounting of 3SB5 Compact Pilot light / 3SB5 Compact LED
Step 1: Pass the Compact Pilot Light / Compact LED
(15) through the Cutout from the front into the
Ring Holder (16)
2
15
16
Step 2: Tighten the Compact Pilot Light / Compact
LED (15) with Ring Holder (16) by turning Ring
Holder (16) Clockwise
2
16
15
3

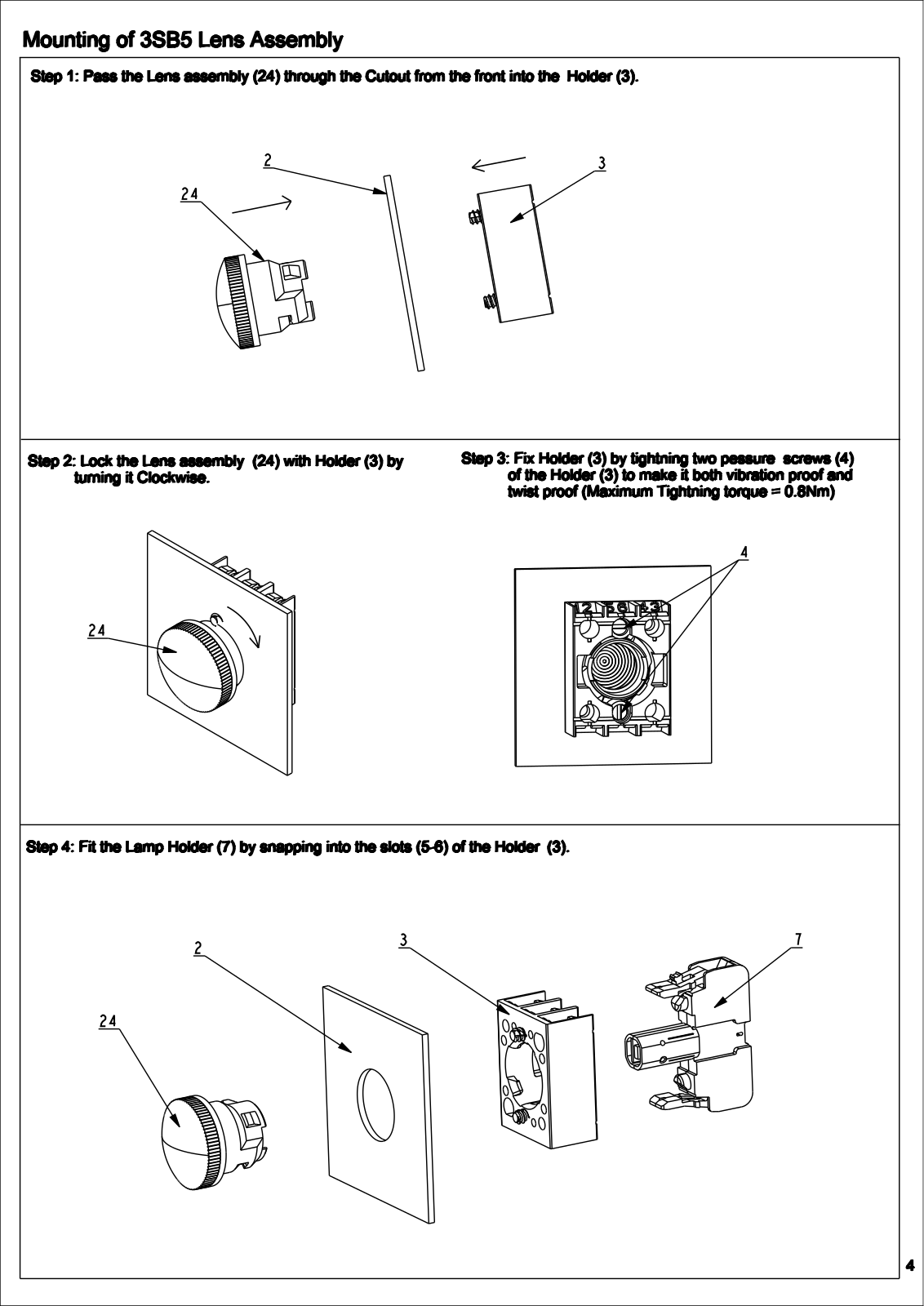

Mounting of 3SB5 Lens Assembly
Step 1: Pass the Lens assembly (24) through the Cutout from the front into the Holder (3).
2
24
Step 2: Lock the Lens assembly (24) with Holder (3) by
turning it Clockwise.
3
Step 3: Fix Holder (3) by tightning two pessure screws (4)
of the Holder (3) to make it both vibration proof and
twist proof (Maximum Tightning torque = 0.8Nm)
4
24
Step 4: Fit the Lamp Holder (7) by snapping into the slots (5-6) of the Holder (3).
2
24
3
7
4

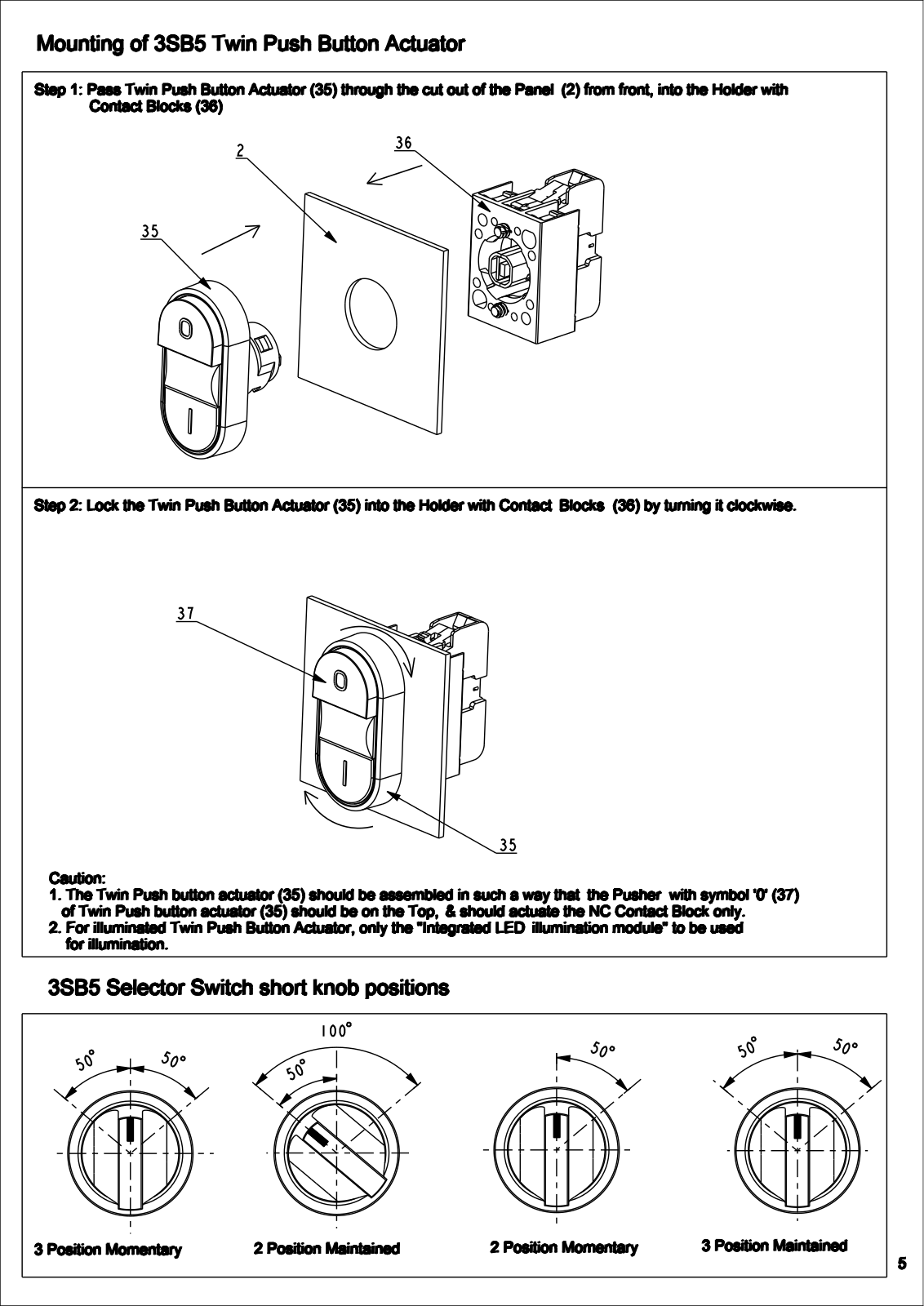

Mounting of 3SB5 Twin Push Button Actuator
Step 1: Pass Twin Push Button Actuator (35) through the cut out of the Panel (2) from front, into the Holder with
Contact Blocks (36)
2
35
36
Step 2: Lock the Twin Push Button Actuator (35) into the Holder with Contact Blocks (36) by turning it clockwise.
37
35
Caution:
1. The Twin Push button actuator (35) should be assembled in such a way that the Pusher with symbol '0' (37)
of Twin Push button actuator (35) should be on the Top, & should actuate the NC Contact Block only.
2. For illuminated Twin Push Button Actuator, only the "Integrated LED illumination module" to be used
for illumination.
3SB5 Selector Switch short knob positions
50 $
100 $
50 $
50 $
50 $
50 $
50 $
3 Position Momentary
2 Position Maintained
2 Position Momentary
3 Position Maintained
5

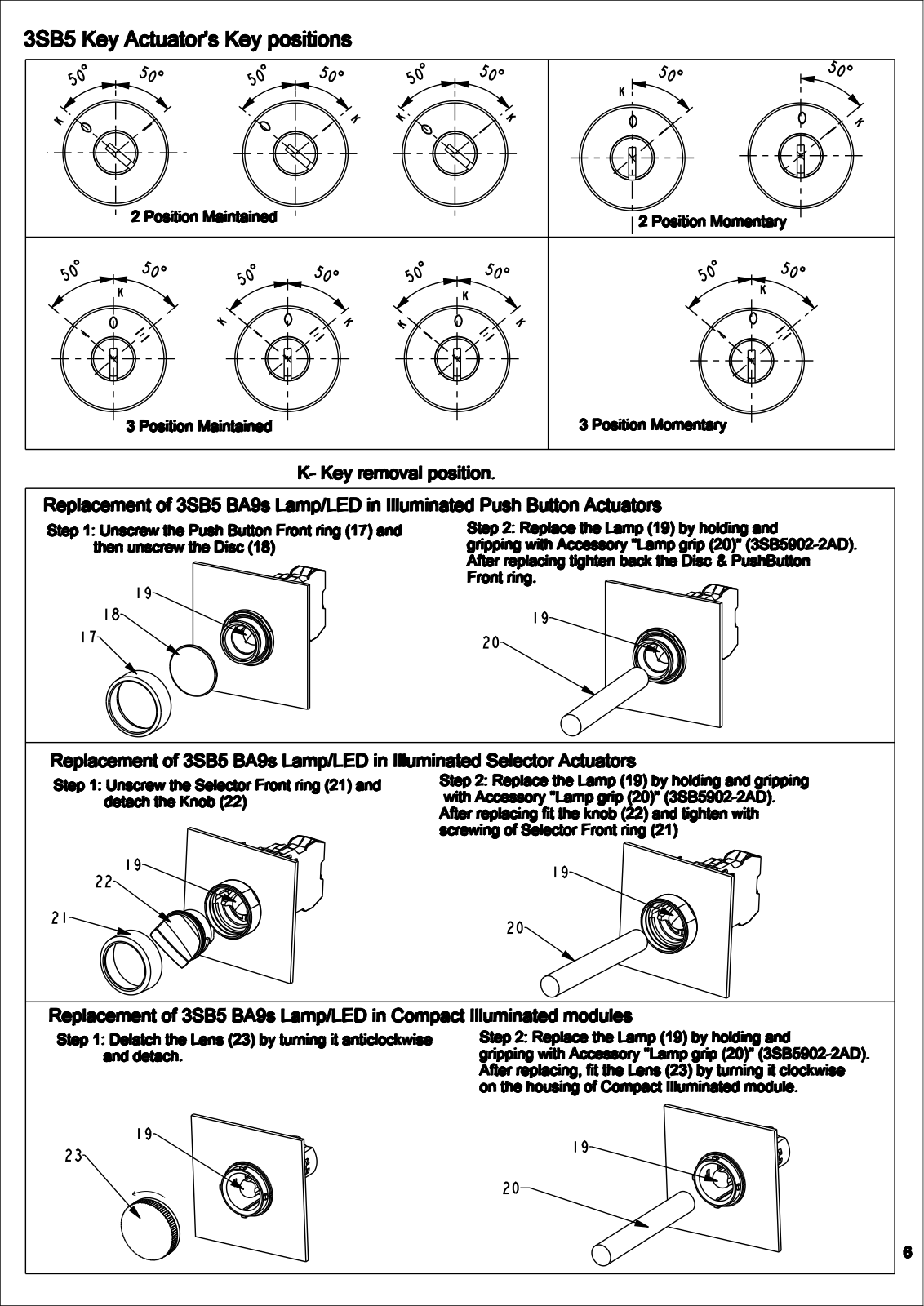

3SB5 Key Actuator's Key positions
50 $
K
50 $
O
I
50 $
O
50 $
I
50 $
K
K
O
50 $
I
K
50 $
K
O
I
50 $
O
K
I
50 $
2 Position Maintained
50 $
K
O
I
II
3 Position Maintained
K
50 $
I
50 $
O
K
II
50 $
K
I
50 $
K
O
K
II
3 Position Momentary
2 Position Momentary
K- Key removal position.
Replacement of 3SB5 BA9s Lamp/LED in Illuminated Push Button Actuators
Step 1: Unscrew the Push Button Front ring (17) and
then unscrew the Disc (18)
19
18
17
Step 2: Replace the Lamp (19) by holding and
gripping with Accessory "Lamp grip (20)" (3SB5902-2AD).
After replacing tighten back the Disc & PushButton
Front ring.
19
20
50 $
50 $
K
O
I
II
Replacement of 3SB5 BA9s Lamp/LED in Illuminated Selector Actuators
Step 1: Unscrew the Selector Front ring (21) and
detach the Knob (22)
19
22
21
Step 2: Replace the Lamp (19) by holding and gripping
with Accessory "Lamp grip (20)" (3SB5902-2AD).
After replacing fit the knob (22) and tighten with
screwing of Selector Front ring (21)
19
20
Replacement of 3SB5 BA9s Lamp/LED in Compact Illuminated modules
Step 1: Delatch the Lens (23) by turning it anticlockwise
and detach.
19
23
Step 2: Replace the Lamp (19) by holding and
gripping with Accessory "Lamp grip (20)" (3SB5902-2AD).
After replacing, fit the Lens (23) by turning it clockwise
on the housing of Compact Illuminated module.
19
20
6

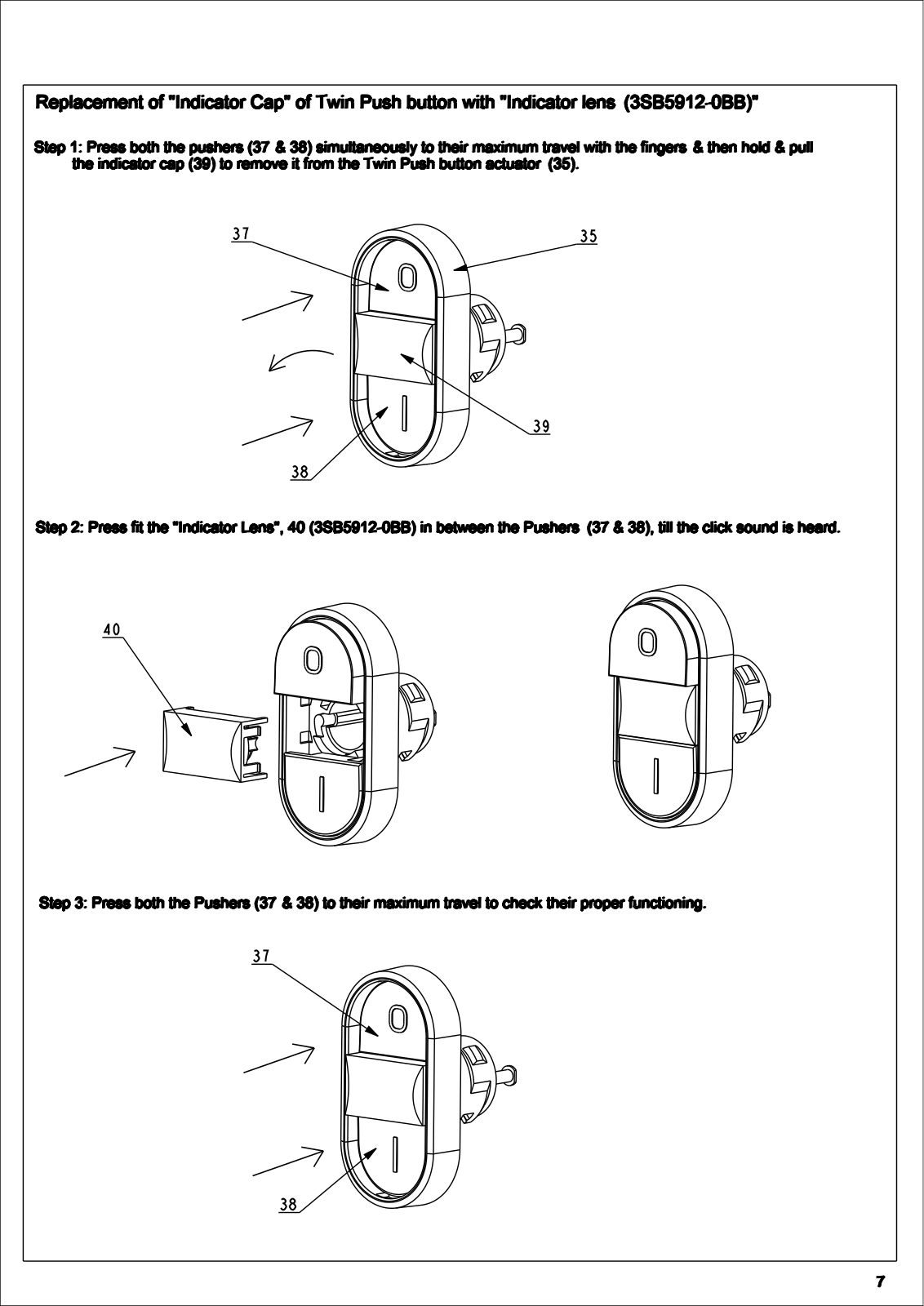

Replacement of "Indicator Cap" of Twin Push button with "Indicator lens (3SB5912-0BB)"
Step 1: Press both the pushers (37 & 38) simultaneously to their maximum travel with the fingers & then hold & pull
the indicator cap (39) to remove it from the Twin Push button actuator (35).
37
39
38
35
Step 2: Press fit the "Indicator Lens", 40 (3SB5912-0BB) in between the Pushers (37 & 38), till the click sound is heard.
40
Step 3: Press both the Pushers (37 & 38) to their maximum travel to check their proper functioning.
37
38
7

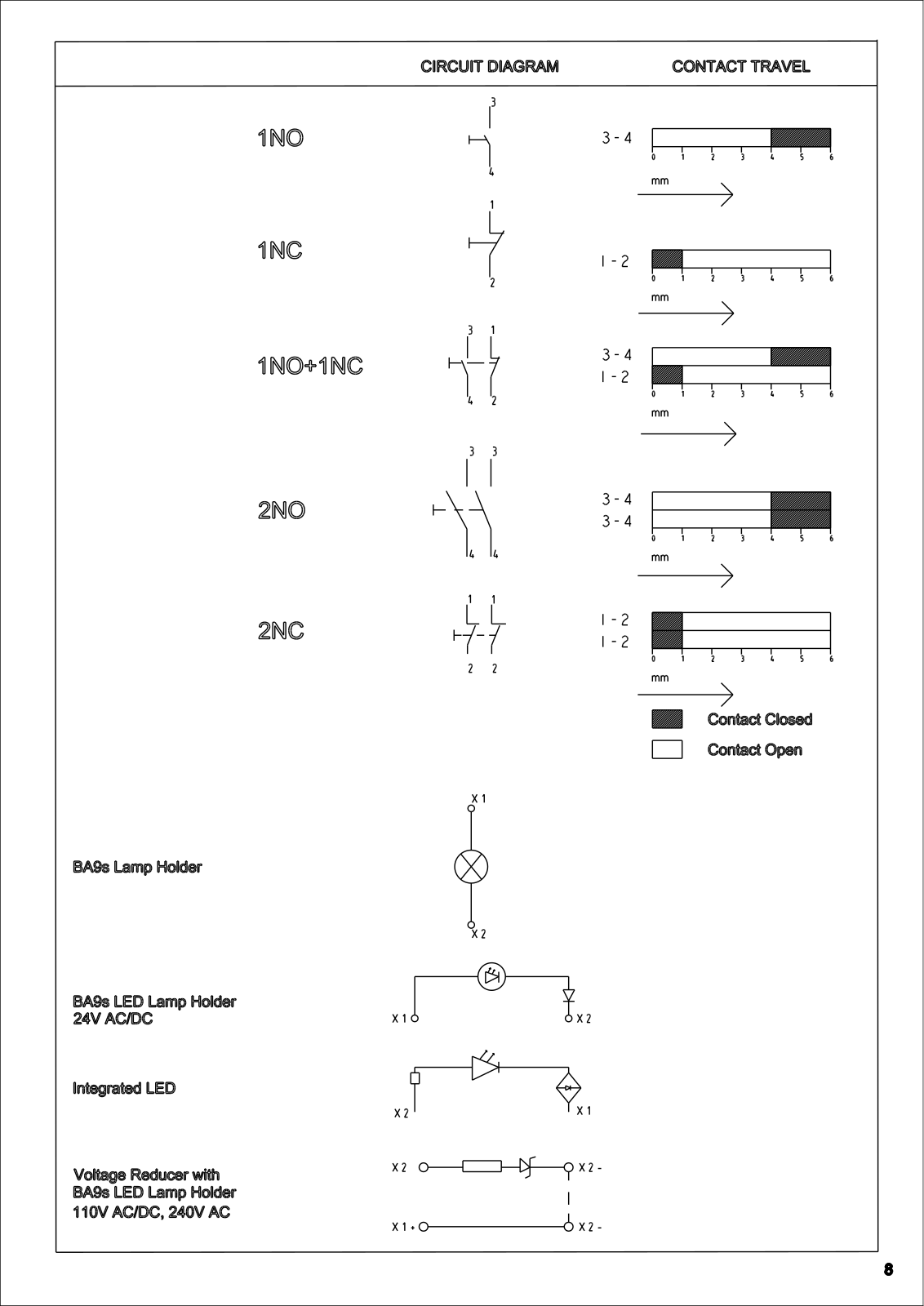

8

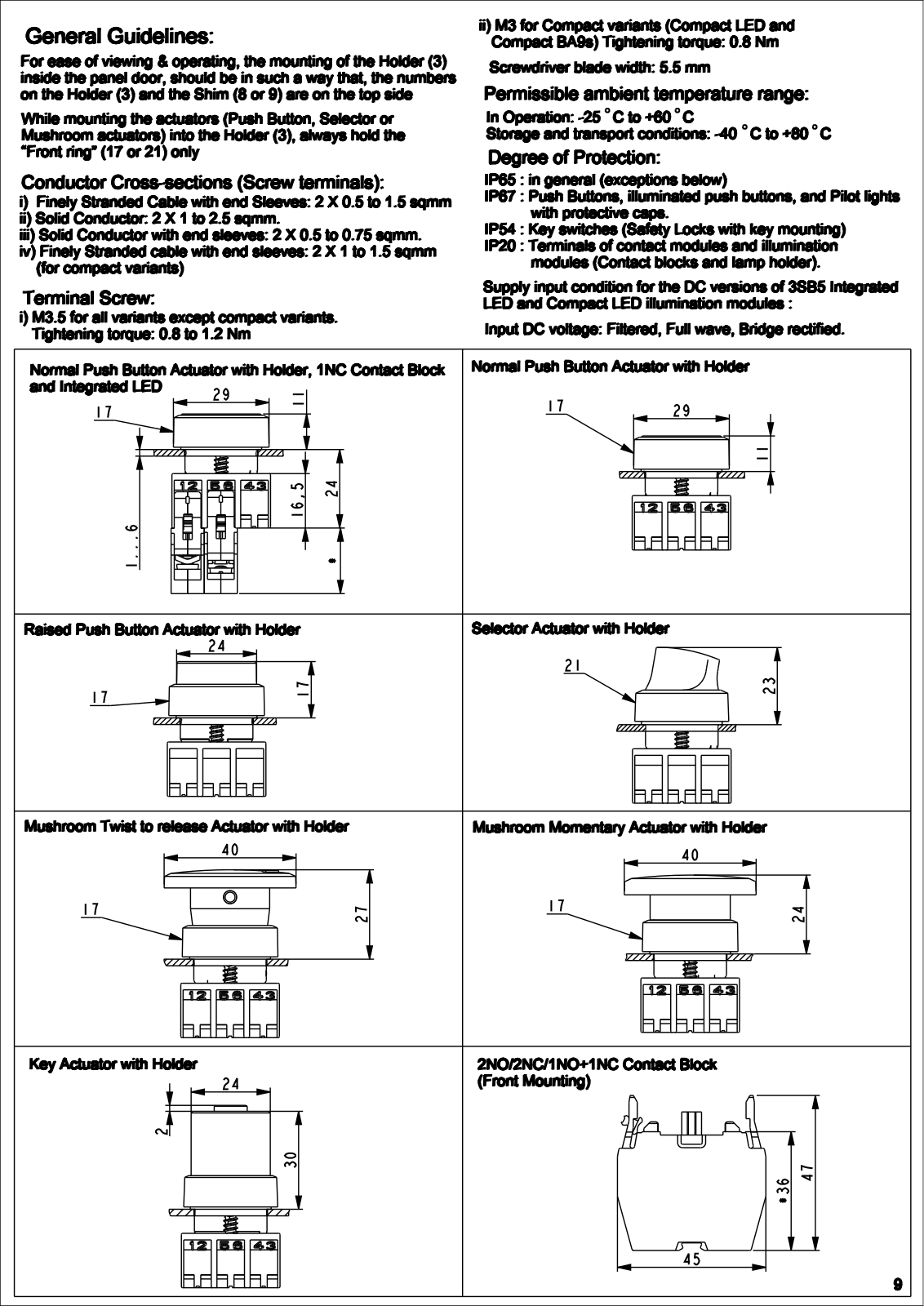

General Guidelines:
For ease of viewing & operating, the mounting of the Holder (3)
inside the panel door, should be in such a way that, the numbers
on the Holder (3) and the Shim (8 or 9) are on the top side
While mounting the actuators (Push Button, Selector or
Mushroom actuators) into the Holder (3), always hold the
“Front ring” (17 or 21) only
Conductor Cross-sections (Screw terminals):
i) Finely Stranded Cable with end Sleeves: 2 X 0.5 to 1.5 sqmm
ii) Solid Conductor: 2 X 1 to 2.5 sqmm.
iii) Solid Conductor with end sleeves: 2 X 0.5 to 0.75 sqmm.
iv) Finely Stranded cable with end sleeves: 2 X 1 to 1.5 sqmm
(for compact variants)
Terminal Screw:
i) M3.5 for all variants except compact variants.
Tightening torque: 0.8 to 1.2 Nm
Normal Push Button Actuator with Holder, 1NC Contact Block
and Integrated LED
17
29
11
ii) M3 for Compact variants (Compact LED and
Compact BA9s) Tightening torque: 0.8 Nm
Screwdriver blade width: 5.5 mm
Permissible ambient temperature range:
In Operation: -25 $C to +60 $C
Storage and transport conditions: -40 $C to +80 $C
Degree of Protection:
IP65 : in general (exceptions below)
IP67 : Push Buttons, illuminated push buttons, and Pilot lights
with protective caps.
IP54 : Key switches (Safety Locks with key mounting)
IP20 : Terminals of contact modules and illumination
modules (Contact blocks and lamp holder).
Supply input condition for the DC versions of 3SB5 Integrated
LED and Compact LED illumination modules :
Input DC voltage: Filtered, Full wave, Bridge rectified.
Normal Push Button Actuator with Holder
17
29
11
24
16,5
1...6
*
Raised Push Button Actuator with Holder
24
17
17
Mushroom Twist to release Actuator with Holder
40
17
27
Selector Actuator with Holder
21
23
Mushroom Momentary Actuator with Holder
40
17
24
Key Actuator with Holder
2
24
2NO/2NC/1NO+1NC Contact Block
(Front Mounting)
30
47
*36
45
9

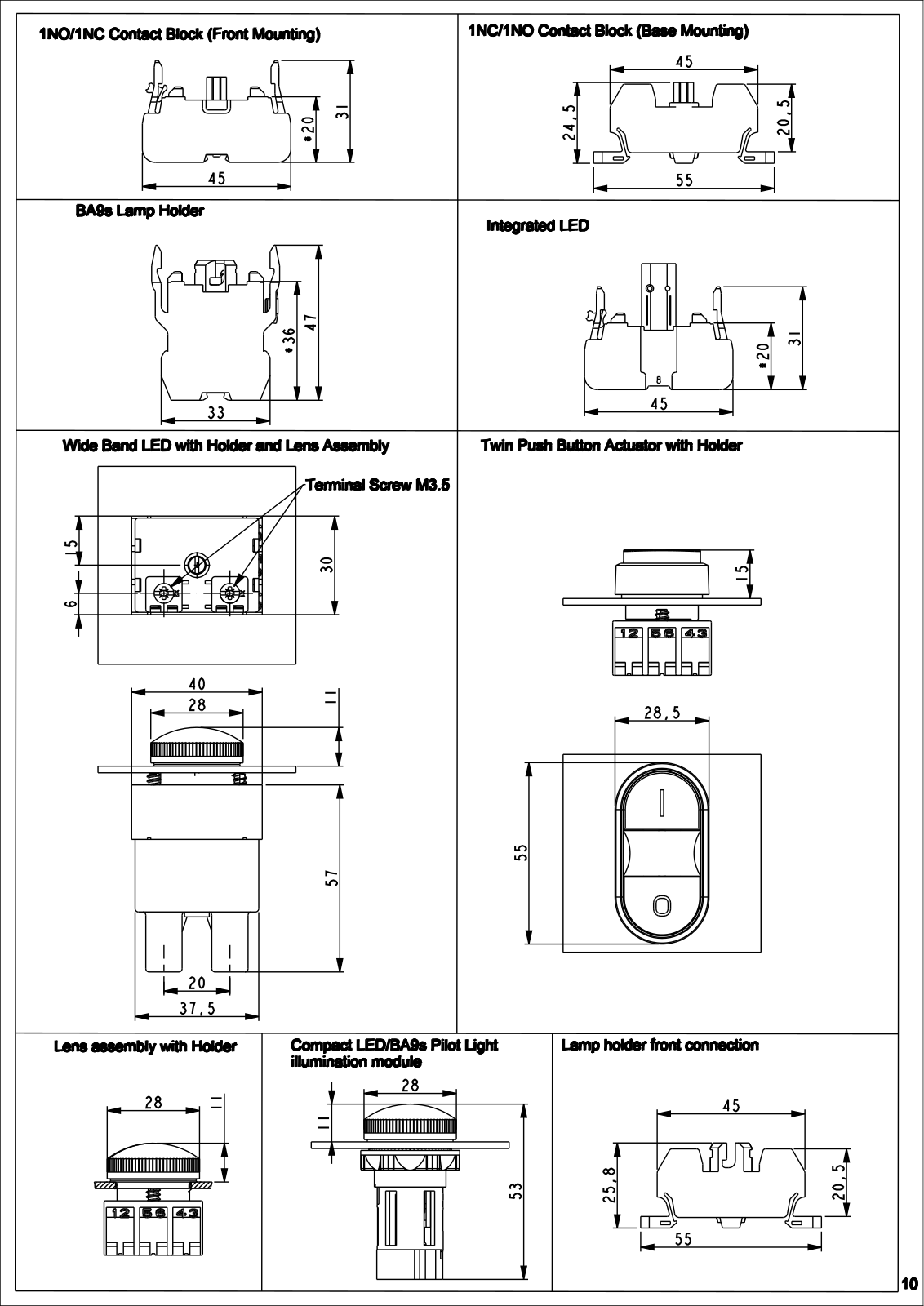

1NO/1NC Contact Block (Front Mounting)
*20
31
1NC/1NO Contact Block (Base Mounting)
45
24,5
20,5
45
BA9s Lamp Holder
47
*36
33
Wide Band LED with Holder and Lens Assembly
Terminal Screw M3.5
15
30
6
55
Integrated LED
31
*20
45
Twin Push Button Actuator with Holder
15
40
28
20
37,5
Lens assembly with Holder
28
11
11
57
Compact LED/BA9s Pilot Light
illumination module
28
11
28,5
55
Lamp holder front connection
45
53
25,8
20,5
55
10

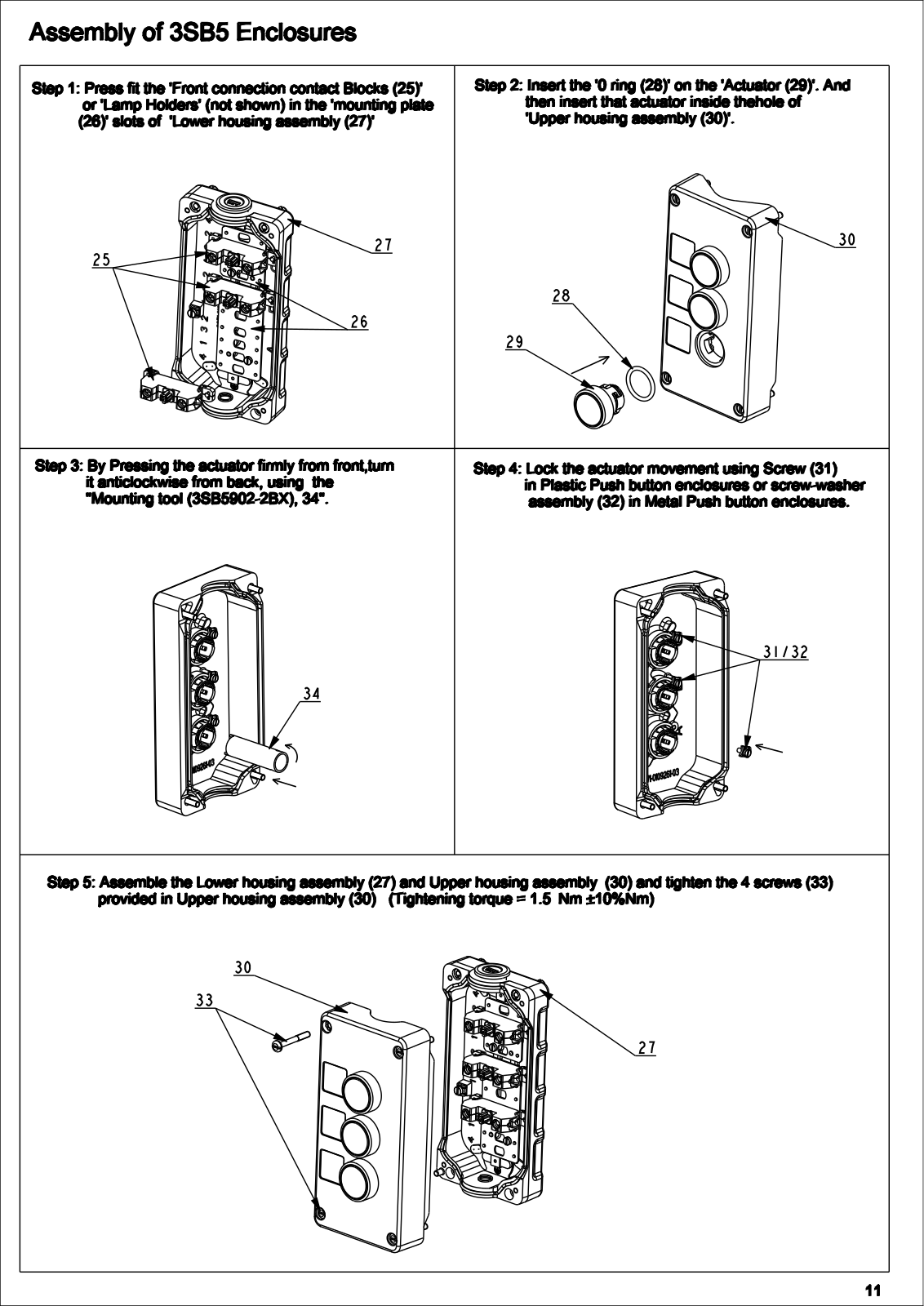

Assembly of 3SB5 Enclosures
Step 1: Press fit the 'Front connection contact Blocks (25)'
or 'Lamp Holders' (not shown) in the 'mounting plate
(26)' slots of 'Lower housing assembly (27)'
27
25
26
Step 3: By Pressing the actuator firmly from front,turn
it anticlockwise from back, using the
"Mounting tool (3SB5902-2BX), 34".
Step 2: Insert the '0 ring (28)' on the 'Actuator (29)'. And
then insert that actuator inside thehole of
'Upper housing assembly (30)'.
30
28
29
Step 4: Lock the actuator movement using Screw (31)
in Plastic Push button enclosures or screw-washer
assembly (32) in Metal Push button enclosures.
31/32
34
Step 5: Assemble the Lower housing assembly (27) and Upper housing assembly (30) and tighten the 4 screws (33)
provided in Upper housing assembly (30) (Tightening torque = 1.5 Nm ±10%Nm)
30
33
27
11

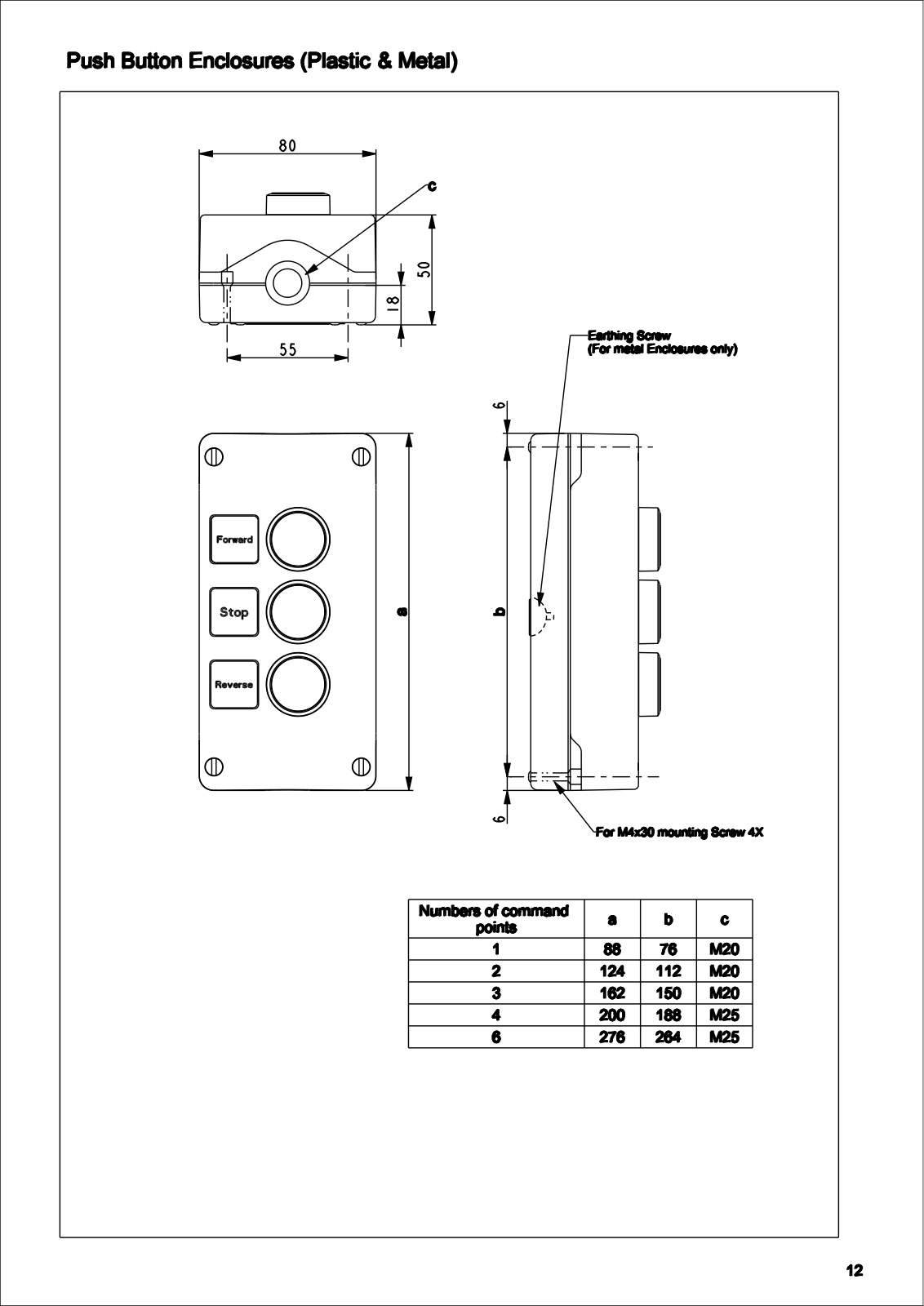

Push Button Enclosures (Plastic & Metal)
80
c
50
18
55
Earthing Screw
(For metal Enclosures only)
6
a
b
6
Numbers of command
points
1 88 76 M20
2 124 112 M20
3 162 150 M20
4 200 188 M25
6 276 264 M25
For M4x30 mounting Screw 4X
a b c
12

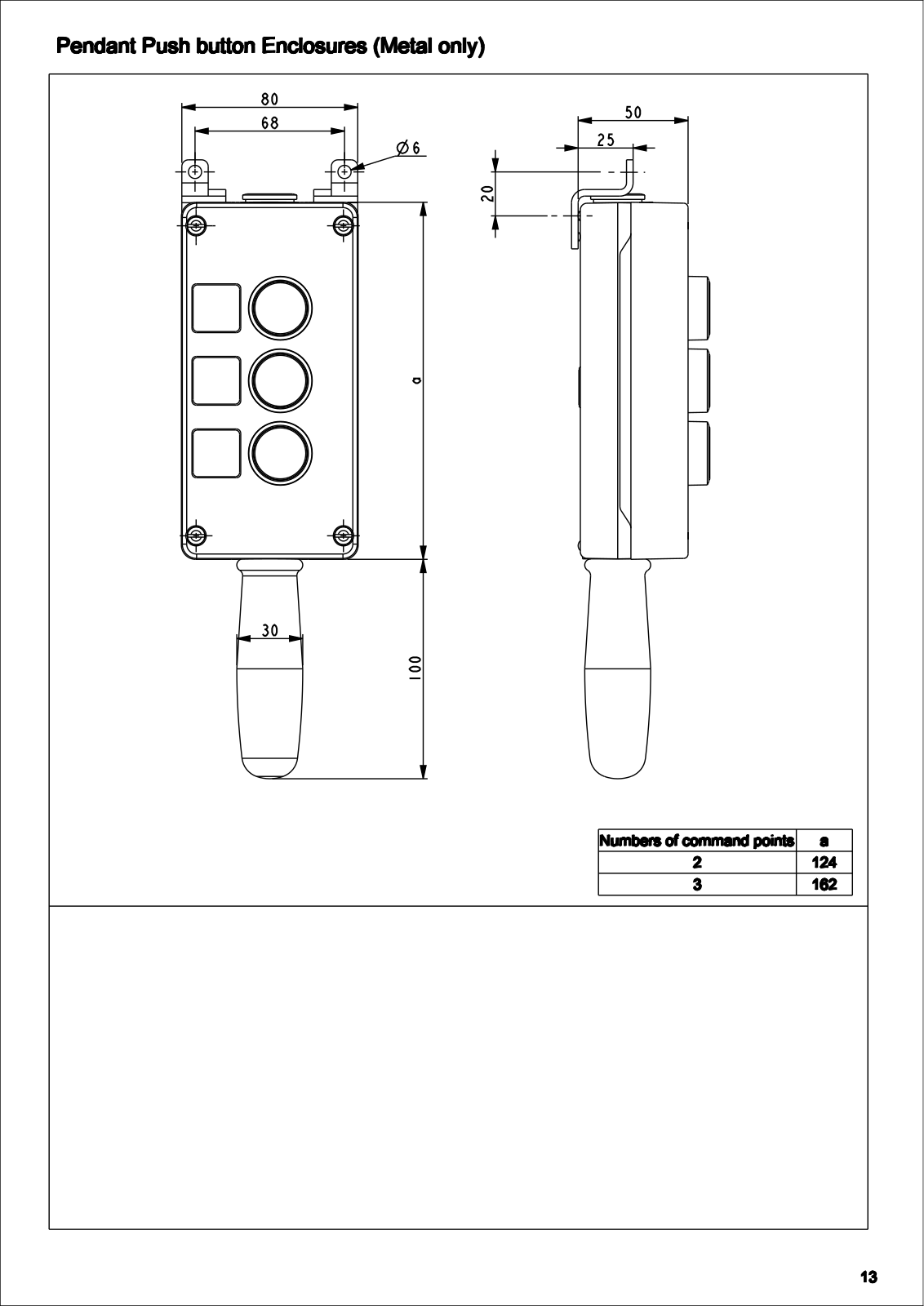

Pendant Push button Enclosures (Metal only)
80
68
6
50
25
20
a100
30
Numbers of command points a
2 124
3 162
13

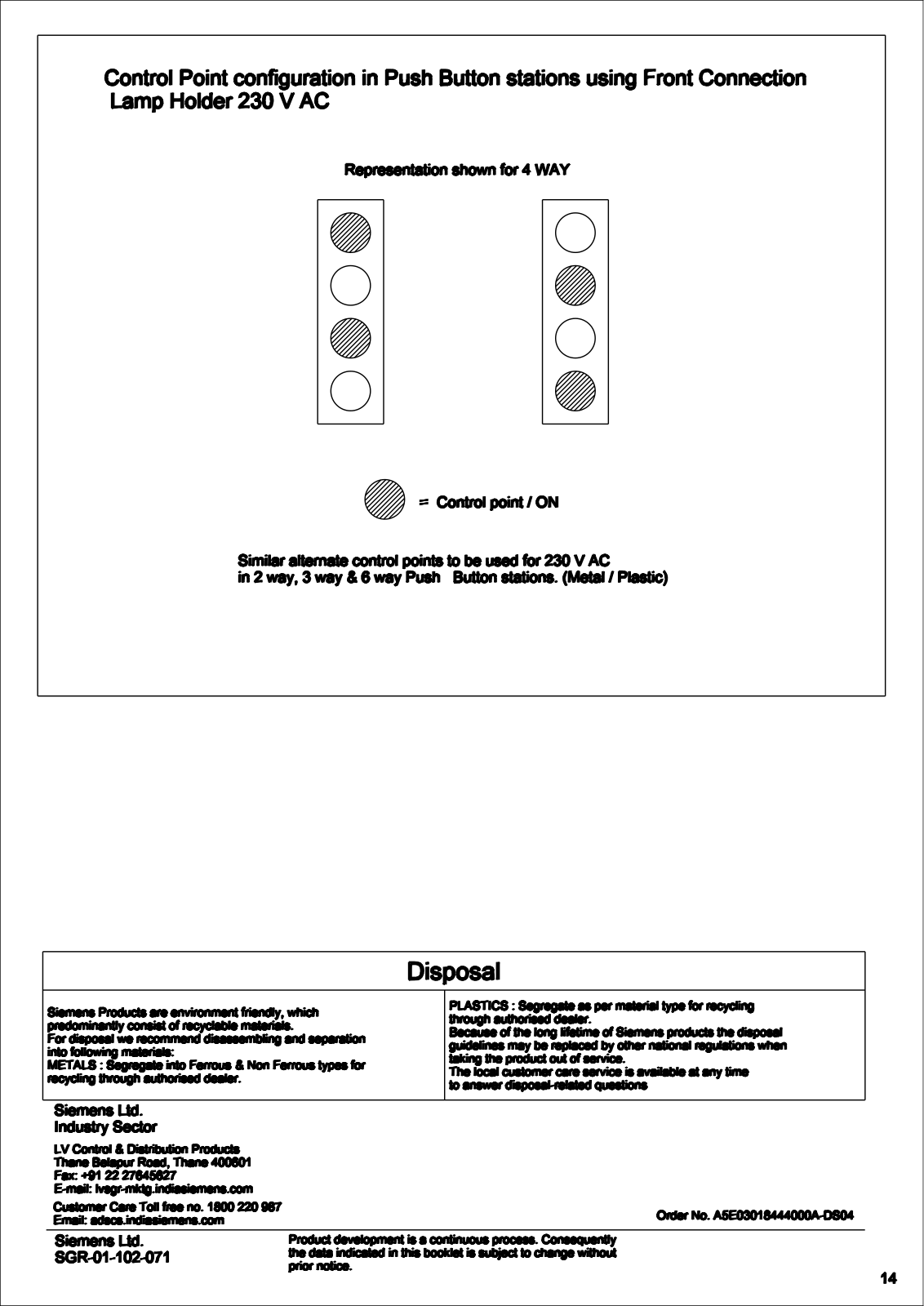

Control Point configuration in Push Button stations using Front Connection
Lamp Holder 230 V AC
Representation shown for 4 WAY
= Control point / ON
Similar alternate control points to be used for 230 V AC
in 2 way, 3 way & 6 way Push Button stations. (Metal / Plastic)
Siemens Products are environment friendly, which
predominantly consist of recyclable materials.
For disposal we recommend disassembling and separation
into following materials:
METALS : Segregate into Ferrous & Non Ferrous types for
recycling through authorised dealer.
Disposal
PLASTICS : Segregate as per material type for recycling
through authorised dealer.
Because of the long lifetime of Siemens products the disposal
guidelines may be replaced by other national regulations when
taking the product out of service.
The local customer care service is available at any time
to answer disposal-related questions
Siemens Ltd.
Industry Sector
LV Control & Distribution Products
Thane Belapur Road, Thane 400601
Fax: +91 22 27645627
E-mail: lvsgr-mktg.indiasiemens.com
Customer Care Toll free no. 1800 220 987
Email: adscs.indiasiemens.com
Siemens Ltd.
SGR-01-102-071
Order No. A5E03018444000A-DS04
