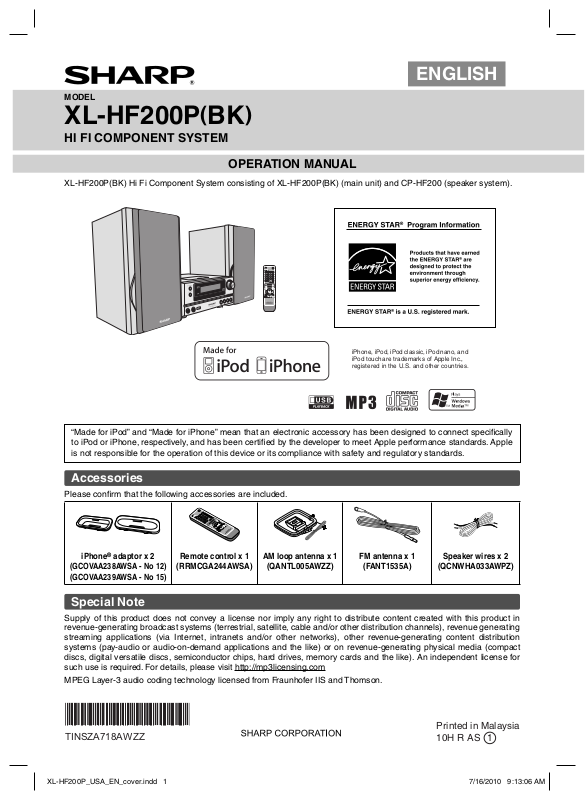

Sharp XL-HF200P(BK) Installation Manual

ENGLISH

MODEL

XL-HF200P(BK

HI FI COMPONENT SYSTEM

XL-HF200P(BK) Hi Fi Component System consisting of XL-HF200P(BK) (main unit) and CP-HF200 (speaker system).

“Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect speciﬁ cally to iPod or iPhone, respectively, and has been certiﬁ ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

)

OPERATION MANUAL

RRMCGA232AWSA

iPhone, iPod, iPod classic, iPod nano, and

are trademarks of Apple Inc.,

iPod touch registered in the U.S. and other countries.

Accessories

Please conﬁ rm that the following accessories are included.

A S

W A 2 3 2

A G

C M R R

iPhone® adaptor x 2

(GCOVAA238AWSA - No 12)

Remote control x 1

(RRMCGA244AWSA)

AM loop antenna x 1

(QANTL005AWZZ)

FM antenna x 1

(FANT1535A)

Speaker wires x 2

(QCNWHA033AWPZ)

(GCOVAA239AWSA - No 15)

Special Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com

MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

TINSZA718AWZZ

Printed in Malaysia 10H R AS

SPECIAL NOTES

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Explanation of Graphical Symbols:

WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

This product is classiﬁ ed as a CLASS 1 LASER PRODUCT Caution - Use of any controls, adjustments or procedures other than those speciﬁ ed herein may result in hazardous radiation exposure.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, speciﬁ es that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

The lightning ﬂ ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁ cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

●

Increase the separation between the equipment and

●

receiver. Connect the equipment into an outlet on a circuit

●

different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV

●

technician for help.

WARNING

FCC Regulations state that any unauthorized changes or modiﬁ cations to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

Note:

Licensed under one or more of U.S. Pat. 4,972,484,

●

5,214,678, 5,323,396, 5,530,655, 5,539,829, 5,544,247, 5,606,618, 5,610,985, 5,740,317, 5,777,992, 5,878,080 or 5,960,037.

For your assistance in reporting this unit in case of loss or theft, please record below the model number and serial number which are located on the rear of the unit. Please retain this information.

Model number ..............................................

Serial number ..............................................

Date of purchase ..............................................

Place of purchase ..............................................

FOR YOUR RECORDS

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or ﬁ re. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of this product, please read the following precautions carefully before use.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁ ers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁ t into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

E-1

IMPORTANT SAFETY INSTRUCTIONS (continued)

11) Only use attachments/accessories speciﬁ ed by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table speciﬁ ed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualiﬁ ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Information

15) Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For product intended to operate from battery power, or other sources, refer to the operating instructions.

16) Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of ﬁ re or electric shock.

17) Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁ re or electric shock. Never spill liquid of any kind on the product.

18) Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualiﬁ ed service personnel under the following conditions:

When the AC cord or plug is damaged,

If liquid has been spilled, or objects have fallen

into the product, If the product has been exposed to rain or water,

If the product does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁ ed technician to restore the product to its normal operation, If the product has been dropped or damaged in

any way, and When the product exhibits a distinct change in

performance - this indicates a need for service.

19) Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts speciﬁ ed by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in ﬁ re, electric shock, or other hazards.

20) Safety Check - Upon completion of any service or

21) Wall or ceiling mounting - When mounting the product

22) Power Lines - An outside antenna system should not

23) Outdoor Antenna Grounding - If an outside antenna

24) Protective Attachment Plug - The product is equipped

25) Stand - Do not place the product on an unstable

repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article810 of the National Electrical Code, ANSI/NFPA 70, provides information with regards to proper grounding of the mast and supporting structure, grounding of the cord-in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Example of antenna grounding asper National Electrical Code, ANSI/NFPA 70

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC - NATIONAL ELECTRICAL CODE S2898A

ANTENNA CORD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART250, PARTH)

with an attachment plug having overload protection. This is a safety feature. See Instruction Manual for replacement or resetting of protective device. If replacement of the plug is required, be sure the service technician has used a replacement plug speciﬁ ed by the manufacturer that has the same overload protection as the original plug.

cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

E-2

For U.S. customer only

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the "Product"), when ship in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Item(s) Excluded from Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

XL-HF200P(BK) HI FI COMPONENT SYSTEM

(Be sure to have this information available when you need service for your Product.)

One (1) year parts and labor from the date of purchase.

Non-functional accessories, supplies, and consumable items.

At a Sharp Authorized Servicer located in the United States. To find a location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.

Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163

System connections

Precautions■

Please ensure that the equipment is positioned in a well ventilated area

●

and ensure that there is at least 4” (10 cm) of free space along the sides, top and back of the equipment.

4” (10 cm)

●

Use the unit on a ﬁ rm, level surface free from vibration.

●

Place the speakers at least 12” (30 cm) away from any CRT TV to avoid color variations across the TV screen. If the variations persist, move the speakers further away from the TV. LCD TV is not prone to such variation. Keep the unit away from direct sunlight, strong magnetic ﬁ elds, excessive

●

dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise. Do not place anything on top of the unit.

●

4” (10 cm)

Do not expose the unit to moisture, to temperatures higher than 140˚F

●

(60˚C) or to extremely low temperatures. If your system does not work properly, disconnect the AC power cord

●

from the AC outlet. Plug the AC power cord back in, and then turn on your system. In case of an electrical storm, unplug the unit for safety.

●

Hold the AC power plug by the head when removing it from the AC outlet,

●

as pulling the cord can damage internal wires. The AC power plug is used as a disconnect device and shall always

●

remain readily operable.

Do not remove the outer cover, as this may result in electric shock.

●

Refer internal service to your local SHARP service facility.

This unit should only be used within the range of 41˚F - 95˚F (5˚C -

●

35˚C).

Warning:

The voltage used must be the same as that speciﬁ ed on this unit. Using this product with a higher voltage other than that which is speciﬁ ed is dangerous and may result in a ﬁ re or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is speciﬁ ed.

E-3

System connections (continued)

Make sure to unplug the AC power cord before making any connections.

Installing the AM loop antenna

< Assembling >

FM antenna

AC outlet (AC 120 V ~ 60 Hz)

Right

speaker

AM loop antenna

Volume control■

The sound level at a given volume setting depends on speaker efﬁ ciency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on. Listen to music at moderate levels. Excessive sound pressure from earphones and headphones can cause hearing loss.

Speaker connection■

Connect the black wire to the minus (–) terminal,

●

and the red wire to the plus (+) terminal.

●

Use speakers with an impedance of 4 ohms or more, as lower impedance speakers can damage the unit.

●

Do not make a mistake when connecting the right and left speakers. The right speaker is the one on the right side when you face the unit.

●

Do not let the bare speaker wires touch each other.

●

Do not allow any objects to fall into or to be placed in the bass reﬂ ex ducts.

●

Do not stand or sit on the speakers. You may be injured.

Incorrect

Using other subwoofer■

You can connect a subwoofer with an ampliﬁ er to the SUBWOOFER PRE OUT jack.

Audio cable (commercially available)

Main unit

Commercially available subwoofer

(ampliﬁ er built in)

Audio signal

To audio input jack

To SUBWOOFER PRE OUT jack

< Attaching to the wall >

wall

screws (not supplied)

Video cable (not supplied)

To video input jack

Left speaker

Red Black

Connecting a TV, etc.■

Connect to the TV using an audio cable.

Main unit

To select Line In function:

On main unit: Press FUNCTION button repeatedly until Line In is

●

On remote control: Press AUDIO/LINE (INPUT) button repeatedly until

●

displayed.

Line In is displayed.

To audio output jack

Audio cable (commercially available)

Audio signal

To LINE input jack

Notes:

●

No sound is heard from the subwoofer without a built-in ampliﬁ er.

●

Subwoofer Pre-out (audio signal): 200mV / 10k ohms at 70 Hz.

E-4
