Sharp SH-07F User Guide
SH-07F
INSTRUCTION MANUAL
’14.5
Thank you for purchasing “SH-07F”. Before
The explanations in this manual are based on
the case when Kisekae tool is set for the
handset color “Green”.
The screens and illustrations in this manual
are shown as examples. The actual screens
and illustrations may differ.
Note that “SH-07F” is referred to as the
“FOMA terminal” in this manual.
Reproduction of this manual in part or in
whole without prior permission is prohibited.
The contents of this manual are subject to
change without prior notice.
Introduction
use of SH-07F, be sure to read this manual
to ensure proper operation.
Explanation for operation of SH-07F
Other than this manual, “Guide” (contained
in the FOMA terminal) and “Manual (detailed
edition)” (in PDF format) explain how to
operate SH-07F.
“Manual” (this manual)
Explanations for contents displayed on
the screen and operations of basic
functions
“Guide” (in Japanese only) (contained in
the FOMA terminal)
Explanations for the outline and
operations of frequently-used functions
From SH-07F In the Normal menu,
[Tool]/[Guide]/select an item
“Manual (detailed edition)” (in Japanese
only) (in PDF format)
Explanations for the detailed guidance
and operations of all functions
From a PC Download from the DOCOMO
website
(https://www.nttdocomo.co.jp/support/trouble/
manual/download/index.html) (in Japanese
only)
※ The URL and contents are subject to
change without prior notice.
Basic package
Battery Pack SH39
SH-07F
(includes warranty)
Back Cover SH73
For details on optional parts compatible with the
FOMA terminal nP. 87
Desktop Holder SH46
Manual
(Japanese version)
Contents
Introduction
More
Convenient
Others
Enjoy
Search
Basic
Operation
Connect
FOMA Terminal ............................ 2
Part Names and Functions .......... 3
Precautions (ALWAYS FOLLOW
THESE DIRECTIONS) ................... 5
Handling Precautions .................15
Waterproof/Dustproof...................
18
Before Using ............................... 24
Screen Explanation .................... 28
Character Entry........................... 34
Sound/Screen Setting.................35
Lock/Security............................... 39
Call ............................................... 45
Mail............................................... 51
Phonebook................................... 55
i-mode/Full Browser ................... 57 i-channel ......................................60
Camera......................................... 61
1Seg ............................................. 65
Music............................................ 68
i-appli/i-Widget ............................70
i-motion ........................................71
Osaifu-Keitai................................ 72
i-concier....................................... 73
Convenient Tools ........................74
Data Management .......................76
Support ........................................81
Appendix...................................... 88
Index .............................................98
Introduction
1
FOMA Terminal
SH-07F supports W-CDMA and GSM/GPRS
systems.
Because the FOMA terminal relies on radio
signals, it cannot be used in a place with no
signal (such as tunnels, underground or in
buildings), in places with a weak signal or
outside the FOMA service area. You may not
use the FOMA terminal in the upper floors of a
building even with no obstructions in sight.
There may also be times when the signal is
strong and you are not moving but the call is
interrupted.
Because the FOMA terminal uses radio waves,
it is possible for a third party to listen in on a
conversation. However, since the W-CDMA and
GSM/GPRS systems automatically apply a
private call feature to every call, a third party that
tries to listen in only hears noise.
The FOMA terminal converts conversations into
a digital signal and sends it to the other party
over the radio. If the signal cannot be
reconverted properly by such as moving to an
area with a weak signal, the voice may not be
heard correctly.
Take notes of information (e.g. the phonebook,
schedule, memo, record message, voice memo)
stored on the FOMA terminal or save the
information to external memory devices such as
microSD Cards periodically. If you own a PC,
you can also transfer and store the information
such as a phonebook, mail and schedule to your
PC using DOCOMO keitai datalink. DOCOMO
shall not be liable for any loss of content due to a
failure, repair, model change or other handling of
the FOMA terminal.
The user hereby agrees that the user shall be
solely responsible for the result of the use of
SSL/TLS. Neither DOCOMO nor the certifier as
listed herein makes any representation and
warranty as for the security in the use of SSL/
TLS. In the event that the user shall sustain
damage or loss due to the use of SSL/TLS,
neither DOCOMO nor the certifier shall be liable
for any such damage or loss.
Certifier: VeriSign Japan K.K., Cybertrust Japan
Co., Ltd., GlobalSign K.K., RSA
Security Japan Ltd., SECOM Trust
Systems Co., Ltd., Comodo CA Ltd.,
Entrust, Inc., Go Daddy, Inc.
The FOMA terminal supports the FOMA
Plus-Area and the FOMA HIGH-SPEED Area.
The display is manufactured using
high-precision technology, but it may contain
dots that fail to light or that remain permanently
lit on some areas. This is a characteristic of
display and not a malfunction.
Note that DOCOMO shall not guarantee
operation of commercially available optional
parts.
Introduction
2
Part Names and Functions
Key illustrations may look different from actual keys.
Introduction
3
Using earphone
Connect an earphone compatible with the
external connector terminal (sold separately).
In addition, when using an earphone which
does not support the external connector
terminal, connect with a plug adapter (sold
separately).
AC adapter (charging) and Stereo Earphone
Set 01 (earphone/microphone terminal) share
the same slot.
Example of connecting Stereo Earphone
Set 01 (sold separately) for the external
connector terminal
Stereo
Earphone
Set 01
AC adapter
1 Earpiece
2 Air vent
A vent to remove excess air from the FOMA
terminal.
3 Main display (nP. 28)
4 z: MENU/Operation guidance key (nP. 30,
P. 36)
5 m: Mail/Operation guidance key (nP. 30,
P. 52)
Introduction
4
6 s: Start/Hands-free key (nP. 45)
7 1 to 9, *, 0 and #: Dial/Character
entry keys
8 $: Multi/i-Widget key
9 wt: Multi-guide key (nP. 30)
a C: Camera/Operation guidance key
(nP. 30, P. 62)
b i (,): i-mode/Operation guidance key
(nP. 30, P. 57)
c c (J): i-channel/Clear key (nP. 60)
Displays the channel list.
Returns to the previous screen.
d H: Power/End key (nP. 27)
Press for at least 2 seconds to turn the power
on/off.
Use to end the function being activated and
return to the stand-by display.
e y: Bright/TV key (nP. 39)
Activates the bright mode.
Activates 1Seg.
f Mouthpiece/Microphone
g Charger terminal (nP. 25)
Use for charging with the included desktop
holder.
rnal connector terminal
h Exte
Integrated terminal for cha
an earphone/microphone, etc.
i Sub display (nP. 29)
j Called/Charging LED
Flashes while receiving a call etc.
Illuminates while charging.
Illuminates/Flashes while activating the
camera/shooting with the camera.
k docomo mini UIM card slot (nP. 24)
l microSD Card slot (nP. 77)
m &: Side key
Use to shoot still pictures or moving pictures.
rging, connecting
n Camera
Use to shoot still pictures or moving pictures.

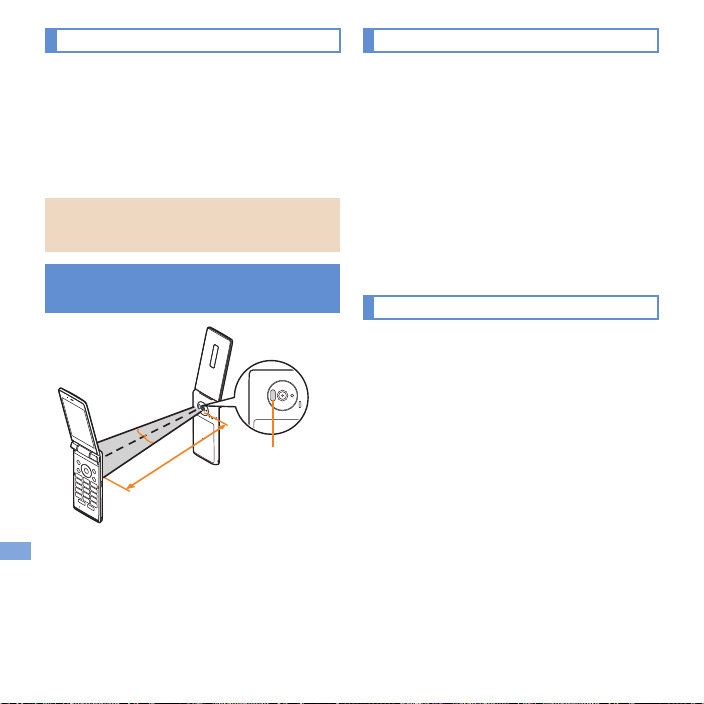

o Infrared port (nP. 78)
p FOMA antenna*
q Strap hole
r Speaker
s Back cover (nP. 20)
Do not peel off the sticker pasted on the back
of the back cover. May adversely affect the
wireless function.
t b mark (nP. 72, P. 79)
* The antenna is built into the main body.
Covering the antenna area with your hand may
influence the quality.
The 1Seg antenna is built into the main body.
The whole FOMA terminal works as the
antenna.
Precautions (ALWAYS
FOLLOW THESE
DIRECTIONS)
Before use, read these “Precautions” carefully and
use your FOMA terminal properly.
Keep this manual in a safe place for future
reference.
These precautions contain information intended to
prevent bodily injury to the user and to surrounding
people, as well as damage to property, and must be
observed at all times.
The following symbols indicate the different
degrees of injury or damage that may occur if
information provided is not observed and the
FOMA terminal is used improperly.
This symbol indicates
that “death or serious
Danger
Warning
Caution
bodily injury may
directly and
immediately result
from improper use”.
This symbol indicates
that “death or serious
bodily injury may
result from improper
use”.
This symbol indicates
that “minor injury and/
or property damage
may result from
improper use”.
Introduction
5
The following symbols indicate specific
Danger
directions.
Indicates a prohibited action.
Indicates not to disassemble the
device.
Indicates not to use the device near
water or get it wet.
Indicates not to handle the device with
wet hands.
Indicates that instructions
specified are compulsory (must
be followed).
Indicates that the power cord must be
unplugged from the outlet.
“Precautions” is explained in the following
seven sections.
Handling the FOMA terminal, battery pack,
adapters, desktop holder and docomo mini UIM card
(general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 6
Handling the FOMA terminal . . . . . . . . . . . . . . .P. 8
Handling battery pack . . . . . . . . . . . . . . . . . . . .P. 10
Handling adapters and desktop holder. . . . . . .P. 11
Handling docomo mini UIM card. . . . . . . . . . . . P. 13
Handling near electronic medical equipment
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 13
Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 14
Introduction
6
Handling the FOMA terminal, battery
pack, adapters, desktop holder and
docomo mini UIM card (general)
Do not use, store or leave the
equipment in locations subject to high
temperatures (near a fire or heating
unit, in a kotatsu, under direct sunlight,
inside a vehicle on a hot day, etc.).
May cause fires, burns or bodily injury.
Do not place the equipment inside
cooking appliances such as microwave
ovens or pressure cookers.
May cause fires, burns, bodily injury or
electric shock.
Do not attempt to disassemble or
modify the equipment.
May cause fires, burns, bodily injury or
electric shock.
Do not get the equipment wet with
water, drinking water, pet urine,
sweat, etc.
May cause fires, burns, bodily injury or
electric shock.
Refer to the following for details on
waterproofness.
n“Waterproof/Dustproof” on P. 18
Do not allow liquids (water, drinking
water, pet urine, sweat, etc.) to get
inside the charger terminal or
external connector terminal.
May cause fires, burns, bodily injury or
electric shock.
Use only optional parts specified by
Warning
Caution
NTT DOCOMO for use with the
FOMA terminal.
May cause fires, burns, bodily injury or
electric shock.
Do not subject the equipment to
strong force or impacts or throw it.
May cause fires, burns, bodily injury or
electric shock.
Do not allow conductive materials
(such as metal objects and pencil
lead) to come into contact with the
charger terminal or external
connector terminal. In addition, do
not insert such objects.
May cause fires, burns, bodily injury or
electric shock.
Do not cover or wrap the equipment
with bedding etc. when using or
charging.
May cause fires or burns.
Be sure to turn off the FOMA
terminal and not to charge the
battery in locations such as gas
stations where flammable gas is
generated.
May cause a gas explosion or fire.
To use Osaifu-Keitai in locations such as
gas stations, be sure to turn off the power
in advance (If the IC card lock is set,
disable the lock before turning off the
power).
If you notice anything unusual, such
as an unusual odor, overheating,
discoloration or deformation during
use, charging or storage,
immediately follow the instructions
below.
Unplug the power plug from the
outlet or cigarette lighter socket.
Turn off the FOMA terminal.
Remove the battery pack from the
FOMA terminal.
May cause fires, burns, bodily injury or
electric shock.
Do not leave the equipment on
unstable surfaces, such as on a
wobbly table or sloped surface.
May fall and cause injury.
Do not store the equipment in
locations that are subject to
humidity, dust or high temperatures.
May cause fires, burns or electric shock.
If being used by a child, have a
guardian teach him/her the proper
handling procedures. In addition,
check that the child is using the
equipment as directed.
May result in bodily injury etc.
Keep the equipment out of the reach
of young children.
A young child may swallow the equipment
or suffer bodily injury etc.
Introduction
7
Be very careful when using the
Warning
FOMA terminal connected to an
adapter continuously for a long time.
The FOMA terminal, battery pack or
adapter may become warm if i-appli,
videophone, 1Seg, etc. is used for a long
time while charging.
Touching high temperature areas for a
long time may cause skin irritations,
itchiness or low-temperature burns in
some people.
Handling the FOMA terminal
Do not aim the infrared port towards
the eyes.
May have harmful effects on the eyes.
Do not aim the infrared port towards
home electric appliances with an
infrared device during infrared
communication.
May interfere with the operation of infrared
devices and cause an accident.
Do not allow water or other liquids,
metal, flammable material or other
foreign objects to enter the docomo
mini UIM card slot or microSD Card
slot on the FOMA terminal.
May cause fires, burns, bodily injury or
electric shock.
Turn off the FOMA terminal in areas
where the use of mobile phones is
prohibited, such as in aircraft or
hospitals.
May interfere with the operation of
electronic devices and electronic medical
equipment.
In addition, if auto power on function is set
to on, disable this function before turning
off your mobile phone.
Follow the instructions given by the
respective medical facilities regarding the
use of mobile phones on their premises.
Actions such as using a mobile phone
aboard aircraft are prohibited and
punishable by law.
However, follow the instructions on use of
the FOMA terminal given by the airline if
the FOMA terminal can be used aboard
aircraft by setting the FOMA terminal not to
emit radio wave etc.
Keep the FOMA terminal away from
the ears during a call in which
hands-free is set or while the
ringtone is ringing.
When you attach the earphone/
microphone etc. to the FOMA
terminal to play games, music, etc.,
do not make the volume too loud.
Excessively high volume may damage
your hearing.
Also, it may prevent you from hearing
ambient sounds and cause an accident.
If you have a weak heart, take extra
precautions when setting functions
such as the vibrator and ringtone
volume for incoming calls.
May have harmful effects on your heart.
Introduction
8
If you are using electronic medical
Caution
equipment, contact the respective
manufacturer or dealer to check
whether the operation of the
equipment is affected by signals.
May interfere with the operation of
electronic medical equipment etc.
Turn off the FOMA terminal near
high-precision electronic devices or
devices that use weak electronic
signals.
May interfere with the operation of
electronic devices.
Take particular care with the
following devices
Hearing aids, implanted cardiac
pacemakers, implanted
cardioverter-defibrillators or other
electronic medical equipment. Fire alarms,
automatic doors, and other equipment
controlled by electronic signals. If you use
an implanted cardiac pacemaker,
implanted cardioverter-defibrillator or other
electronic medical equipment, contact the
respective manufacturer or dealer to check
whether the operation of the equipment is
affected by signals.
If the display part or camera lens is
damaged, be careful of broken glass
and the exposed inside of the FOMA
terminal.
The surfaces of the display and the
camera lens are covered by plastic panels
so as to minimize the possibility of glass
scattering. However, touching the broken
or exposed parts may cause bodily injury.
Make sure to keep your ears away
from the FOMA terminal when you
intend to use the personal alarm.
May damage your hearing.
Do not swing the FOMA terminal by
its strap etc.
May hit you or others around you, resulting
in an accident such as bodily injury.
Do not use a damaged FOMA terminal.
May cause fires, burns, bodily injury or
electric shock.
If the display is broken and internal
substances such as liquid crystal
then leak, do not get them on your
skin (face, hands, etc.).
May result in loss of eyesight or harm to
your skin.
If internal substances such as liquid crystal
come into contact with your eyes or mouth,
immediately rinse your eyes or mouth with
clean water and see a doctor.
If they come into contact with your skin or
clothes, immediately wipe it off with
alcohol, and wash with water and soap .
If you use the FOMA terminal in a
vehicle, contact the vehicle
manufacturer or dealer to check
whether the operation of the vehicle
is affected by signals.
May interfere with the operation of
electronic equipment in some vehicle
models. In this case, stop using the FOMA
terminal.
Introduction
9
Use of the FOMA terminal may cause
Danger
Warning
skin irritations such as itchiness,
rashes or eczema in some people. If
this occurs, immediately stop using
the FOMA terminal and seek medical
treatment.
For details on materials of each part
n“Material list” on P. 14
Do not close the FOMA terminal with
your fingers or objects such as a
strap caught inside.
May result in bodily injury.
Look at the display in a well-lit place,
keeping a certain distance from the
screen.
Otherwise, eyesight may be weakened.
Handling battery pack
Check the type of battery using the information
printed on the battery pack label.
Label Battery type
Li-ion00 Lithium-ion
Do not touch terminals with metallic
objects such as wires. In addition,
do not carry or store the battery
pack with metallic necklaces etc.
The battery pack may catch fire, explode,
overheat or leak.
Check that the battery pack is facing
the correct direction before you
attach it to the FOMA terminal. If you
are having difficulty fitting the
battery pack to the FOMA terminal,
do not use excessive pressure to
force the battery into place.
The battery pack may catch fire, explode,
overheat or leak.
Do not throw the battery pack into a
fire or heat it.
The battery pack may catch fire, explode,
overheat or leak.
Do not apply excessive force on the
battery pack such as by puncturing
it, hitting it with a hammer or
stepping on it.
The battery pack may catch fire, explode,
overheat or leak.
If the battery fluid etc. comes into
contact with your eyes, do not rub
your eyes but immediately rinse
your eyes with clean water. Then
seek prompt medical treatment.
May result in loss of eyesight.
If any trouble such as a deformation
or scratches caused by dropping the
battery pack is found, never use it.
The battery pack may catch fire, explode,
overheat or leak.
10
Introduction
If the battery pack leaks or emits an
Caution
Warning
unusual odor, immediately stop
using it and move it away from any
naked flames or fire.
The battery fluid is flammable and could
ignite, causing a fire or explosion.
Do not allow a pet to bite the battery
pack.
The battery pack may catch fire, explode,
overheat or leak.
Do not dispose of used battery
packs in ordinary garbage.
May cause fires or damage to the
environment. Place tape over the terminals
to insulate unnecessary battery packs, and
take them to a sales outlet such as a
docomo Shop or follow the instructions by a
local institution th at handles used batteries.
Do not use or charge a wet battery
pack.
The battery pack may catch fire, explode,
overheat or leak.
If the battery fluid etc. leaks, do not
get the liquid on your skin (face,
hands, etc.).
May result in loss of eyesight or harm to
your skin.
If the liquid etc. comes into contact with
your eyes, mouth, skin or clothes,
immediately rinse them with clean water.
If the liquid etc. comes into contact with your
eyes or mouth, see a doctor immediately
after rinsing your eyes or mouth.
Handling adapters and desktop
holder
Do not use if the cord of the adapter
is damaged.
May cause fires, burns or electric shock.
Never use the AC adapter or the
desktop holder in humid locations
such as a bathroom.
May cause fires, burns or electric shock.
The DC adapter should only be used
in negative grounded vehicles.
Never use it in positive grounded
vehicles.
May cause fires, burns or electric shock.
Do not touch adapters if you hear
thunder.
May cause electric shock.
Take care not to short-circuit the
charger terminal when connected to
an outlet or cigarette lighter socket.
Also, take care not to allow any part
of your body (hands, fingers, etc.) to
come into contact with the charger
terminal.
May cause fires, burns or electric shock.
Do not place heavy objects on the
cord of the adapter.
May cause fires, burns or electric shock.
Introduction
11
When plugging/unplugging an AC
adapter into/from the outlet, do not
allow metallic straps or other
metallic objects to come into contact
with the prongs of the plug.
May cause fires, burns or electric shock.
Do not apply excessive force on an
adapter by moving it up/down or to
the left/right with the adapter
connected to the FOMA terminal.
May cause fires, burns, bodily injury or
electric shock.
Do not handle the cord or charger
terminal of the adapters, desktop
holder or outlet with wet hands.
May cause fires, burns or electric shock.
Always use the specified power
supply and voltage.
When using overseas, use the AC
adapter that is available overseas.
Using the incorrect voltage may cause
fires, burns or electric shock.
AC adapter: 100V AC
DC adapter: 12/24V DC (for negative
grounded vehicles only)
AC adapter available overseas: 100 to
240V AC (Connect only with a household
AC outlet)
If the fuse in the DC adapter blows,
always replace it with a fuse of the
specified type.
May cause fires, burns or electric shock.
Refer to the respective manuals for
information on the correct fuse
specifications.
Wipe off any dust on the power plug.
May cause fires, burns or electric shock.
Fully plug the AC adapter into the
outlet.
May cause fires, burns or electric shock.
Always grasp the adapters when
unplugging the power plug from the
outlet or cigarette lighter socket. Do
not forcibly pull by the cord of the
adapter.
May cause fires, burns or electric shock.
When plugging/unplugging an
adapter into/from the FOMA
terminal, plug/unplug the adapter
horizontally and straightly, not
applying excessive force on it.
May cause fires, burns, bodily injury or
electric shock.
Unplug the power plug from the
outlet or cigarette lighter socket
when not using for a long time.
May cause fires, burns or electric shock.
Should water or other liquids enter
the equipment, remove the power
plug from the outlet or cigarette
lighter socket immediately.
May cause fires, burns or electric shock.
Always unplug the power plug from
the outlet or cigarette lighter socket
before cleaning the equipment.
May cause fires, burns or electric shock.
12
Introduction
Handling docomo mini UIM card
Caution
Warning
Be careful with the cutting surface
when handling the docomo mini UIM
card.
May cause bodily injury.
Handling near electronic medical
equipment
If you have electronic medical
equipment such as an implanted
cardiac pacemaker or an implanted
cardioverter-defibrillator, always
carry or use your FOMA terminal at
least 15 cm away from your implant.
Electromagnetic signals may have harmful
effects on the operation of the electronic
medical equipment.
Patients receiving medical treatment
away from a hospital or medical
facility (e.g. home treatment) who
are using electronic medical
equipment other than implanted
cardiac pacemakers or implanted
cardioverter-defibrillators should
consult the respective
manufacturers for information
regarding the effects of signals on
the equipment.
Electromagnetic signals may have harmful
effects on the operation of the electronic
medical equipment.
If there is any chance that the
distance between the FOMA terminal
and a person closest to you may get
shorter than 15 cm such as when
you cannot freely move around, set
the handset not to emit radio wave in
advance (by setting Self mode,
turning the power off, etc.).
Somebody nearby may be equipped with
electronic medical equipment such as an
implanted cardiac pacemaker or an
implanted cardioverter-defibrilla tor.
Electromagnetic signals may have harmful
effects on the operation of the electronic
medical equipment.
Follow the instructions given by the
respective medical facilities
regarding the use of the FOMA
terminal on their premises.
Introduction
13
Material list
Handset
Part
Display side
Back of display side
(sub display side)
Sub display
Surface
of
FOMA
terminal
Camera
panel
Protective
cover
Operation key (including
ornament)
Side key
Side surface of
display side,
Surrounding area
of keyboard side
Back of keyboard
side
Keyboard side UV cured resin
Hinge section, Side
surface of hinge
section
Camera panel
Protective
projection for
camera panel
Keyboard side
Hinge section
Material/Surface
treatment
PC, PMMA resin/
Hard coating
Aluminum/
Anodizing
PMMA resin/Hard
coating
Polyamide resin
with glass/UV
coating
PC+ABS-GF20
resin/UV coating
ABS resin/UV
coating
PMMA resin/Hard
coating
PC+ABS-GF20
resin/UV coating
PET resin/UV
cured resin
Polyamide resin
with glass/UV
coating
UV cured resin
PC resin/UV
coating
Part
External connector
terminal
External
connector
Cover
terminal
Gasket
Charger terminal SUS/au plating
Infrared port
Jack sheet PET
Metal section SUS
microSD
Card
slot
Resin section
Lever Nylon 46
docomo
mini UIM
card slot
Resin section ABS resin
Sticker PET
Battery
storage
side
Resin section
Surrounding area
of battery storage
Battery
section
storage
section
Screw
Battery terminal
connector
Battery
terminal
Battery terminal
Material/Surface
treatment
SUS/Ni plating
PC resin,
Elastomer resin/
UV coating
EPDM/Low
friction coating
PMMA resin/Hard
coating
Polyamide resin
with glass
Polyamide resin
with glass
Polyamide resin
with glass
SUS/Passivation
coating
PA4T
Copper alloy/Gold
plating
14
Introduction
Back Cover SH73
Part
Back cover
Radio frequency prevention
sticker
Gasket
Material/Surface
treatment
PC+ABS-GF20
resin/UV coating
IFL 12 (Magnetic
powder + urethane
resin)/PET
EPDM/Low
friction coating
Battery Pack SH39
Part
Battery pack
Terminal section
Material/Surface
treatment
PC resin/Spark
erosion
Copper alloy/Full
surface Ni with
plating base, Gold
plating
Desktop Holder SH46
Part
Material/Surface
treatment
Main body ABS
Tab POM
Switch POM
Charger terminal
Metal section of connector
terminal
Resin section of connector
terminal
Au 0.5 μ/Sealing
treatment
Au 0.3 μ/Sealing
treatment
PPS
Screw SWCH
Stopper PORON
Handling Precautions
General notes
SH-07F is waterproof/dustproof, however, do
not allow water or dust to get inside the
FOMA terminal and do not allow accessories
or optional parts to get wet or do not allow
dust to adhere.
The battery pack, adapter, desktop holder and
docomo mini UIM card are not waterproof/dustproo f.
Do not use in humid or steamy areas such as
bathrooms and avoid exposing to rain and other
forms of moisture. If they are carried close to the
skin, perspiration may cause internal components to
corrode and result in malfunction. Note that if a
problem is found to be due to moisture, the handset
and parts are not covered by warranty and in some
cases may be irreparable. Even when repairs are
possible, repair charges will be incurred, since the
damage is not covered by warranty.
Clean only with a soft and dry cloth (such as
the type used for eyeglasses).
• Forceful rubbing of the LCD with a dry cloth may
scratch its surface.
• Note also that LCD coating may stain if moisture
or soiling is left on the surface for a long period.
• Never use chemicals such as alcohol, thinners,
benzene or detergents, as these agents may
erase the printing or cause discoloration.
Occasionally clean terminals with a dry
cotton swab etc.
Dirty terminals may result in poor connections and
loss of power or insufficient battery charge. Keep the
terminals clean with a dry cotton swab etc.
®
Be careful with the terminals while cleaning them.
Introduction
15
Do not place the equipment near an air
conditioning vent.
Condensation formed due to rapid changes in temperature
may cause internal corrosion and lead to a malfunction.
Do not apply excessive force to the FOMA
terminal, battery pack, etc. when using them.
Carrying the handset in a tightly packed bag or
sitting on the handset in your pocket may cause
damage to the display, internal components, battery
pack, etc. or result in a malfunction.
Keeping an external connector device plugged into
the external connector terminal (earphone/
microphone terminal) may cause damage to the
connector or result in a malfunction.
Do not rub or scratch the display with metal
etc.
May scratch it and cause malfunction or damage.
Read the respective manuals or user’s guides
supplied with the optional parts carefully.
Notes about the FOMA terminal
Avoid using the handset in extremely high or
low temperatures.
Use the FOMA terminal within the range of a
temperature between 5°C and 40°C (for temperatures
of 36°C or higher, limit usage to a short period of
time) and a humidity bet ween 45% and 85%.
Using the handset close to land-line phones,
TVs, radios, etc. may have harmful effects on
the operation of such equipment. Move as far
away as possible from such items before use.
Keep a separate memo noting information
stored on the FOMA terminal.
DOCOMO shall not be liable for an y loss of content.
Do not drop or otherwise subject the FOMA
terminal to severe impact.
May damage the handset or cause a malfunction.
When connecting an external connector device
to the external connector terminal (earphone/
microphone terminal), do not put it in obliquely
and do not pull it while it is plugged in.
May damage the handset or cause a malfunction.
Do not close the FOMA terminal with a strap
etc. caught inside.
May damage the handset or cause a malfunction.
The FOMA terminal becomes warm during
use or charging but this is not a malfunction.
Do not leave the camera in direct sunlight.
May cause discoloration or burn-in of pixels.
Use the FOMA terminal with the external
connector terminal cover closed.
Dust, water, etc. may get inside and cause a malfunction.
Do not use the FOMA terminal without the
back cover.
May remove the battery pack or cause a malfunction
or damage.
Do not cover the surface of the display or
keys with an extremely thick sticker etc.
May cause a malfunction, damage or error.
While using a microSD Card, do not remove
the card or turn off the FOMA terminal.
May cause data loss or a malfunction.
Never place a magnetic card near the FOMA
terminal or pinch it.
The stored magnetic data on cash cards, credit cards,
telephone cards, floppy disks, etc. may be erased.
Never place magnetized items near the
FOMA terminal.
Putting highly magnetized items closer may cause
an error.
The surface of the FOMA terminal uses the
aluminum material. Note that dent and
abrasion are easily remained as aluminum is
a soft material.
16
Introduction
Notes about the battery pack
The battery pack is a consumable product.
Though the battery life varies with use, change the battery
if the battery life is extremely short even after being fully
charged. Purchase a specified new battery pack.
Charge battery in areas where ambient
temperature is between 5°C and 35°C.
The battery life depends on the usage and
deterioration of the battery.
Depending on usage, the battery pack may
swell as it approaches the end of its usable
life, but this will not cause problems.
Avoid the following situations when the
battery pack is stored.
Storage with the battery pack fully charged
(immediately after charging is comp leted)
Storage with no battery level (cannot turn the
main body on)
May lower the performance or shorten the usable life
of the battery pack.
The second level of the battery icon or
approximately 40% is recommended as the proper
battery level for storage.
Notes about adapters
Charge the battery in areas where the ambient
temperature is between 5°C and 35°C.
Do not charge the battery pack in the
following locations.
Areas with high humidity or dust, or in areas
exposed to frequent vibrations
Close to land-line phones, TVs, radios, etc.
Adapters may become warm during charging
but this is not a malfunction.
Do not use the DC adapter to charge the
battery when the car engine is not running.
May cause the car battery to run down.
When using an outlet with a feature to
prevent the plug from being removed
accidentally, follow the instructions in the
outlet user’s guide.
Do not subject to strong force or impacts.
Also, do not deform the charger terminals.
May cause a malfunction.
Notes about docomo mini UIM card
Do not apply unnecessary force when
inserting/removing the docomo mini UIM card.
Customer is responsible for malfunctions
arising from inserting docomo mini UIM card
into a different IC card reader/writer etc.
Always keep IC area clean.
Clean only with a soft and dry cloth (such as
the type used for eyeglasses).
Keep a separate memo and note information
stored on the docomo mini UIM card.
DOCOMO shall not be liable for any loss of content.
To protect the environment, please take any
unneeded docomo mini UIM cards to a sales
outlet such as a docomo Shop.
Do not damage, touch haphazardly or
short-circuit the IC.
May cause data loss or a malfunction.
Do not drop or otherwise subject the
docomo mini UIM card to severe impact.
May cause a malfunction.
Never bend the docomo mini UIM card or
place heavy objects on it.
May cause a malfunction.
Do not insert the docomo mini UIM card to
the FOMA terminal with a label or sticker
attached on the card.
May cause a malfunction.
Introduction
17
FeliCa reader/writer
The FeliCa reader/writer function of the
FOMA terminal uses weak radio waves
whose handling does not require a license of
radio station.
The frequency in use is the 13.56 MHz band.
When another reader/writer function is being
used nearby, keep enough distance from it.
Make sure that there is no radio station using
the same frequency band in the nearby area.
For use in an aircraft, contact the airline
beforehand. Use of FeliCa reader/writer
function may be restricted in some countries.
Check conditions such as regulations of the
country/region to use the function.
Be careful when using the FOMA terminal
while driving a motor vehicle.
Using a mobile phone in hand while driving is
regarded as a punishable act.
However, the punishment has no application in
some cases such as when rescuing sick and injured
people or maintaining public safety.
Use the FeliCa reader/writer function only in
Japan.
The FeliCa reader/writer function of the FOMA
terminal conforms to the domestic radio wave
standards. Using the function overseas may result in
punishment.
Never change the basic software improperly.
This may be regarded as a conversion of software
and repairs may be refused.
Caution
Never use the FOMA terminal that is
modified. Using a modified device violates
the Radio Law and/or the
Telecommunications Business Law.
The FOMA terminal follows the regulations regarding
the certification of conformity with technical
regulations for specific radio station etc. based on
the Radio Law and authentication of conformity with
technical regulations for devices etc. based on the
Telecommunications Business Law, and the
“Technical Conformity Mark ” is printed on the
model nameplate of the FOMA terminal as a proof.
If the screws of FOMA terminal are removed and a
modification is given to the inside, the certification of
conformity with technical regulations etc. will
become invalid.
Never use the FOMA terminal without the valid
certification etc. Doing so violates the Radio Law
and/or the Telecommunications Business Law.
Introduction
18
Waterproof/Dustproof
SH-07F is waterproof to IPX5*1 and IPX7*2
standards, and dustproof to IP5X
if the external connector terminal cover is
securely closed as well as the back cover is
attached.
*1 IPX5 means that phone keeps functioning after
being subjected to a jet flow (12.5 liters/min)
discharged from a nozzle (inner diameter: 6.3
mm), from all directions (approximately 3 m
from the handset) for 3 minutes or more.
*2 IPX7 means that SH-07F phone keeps
functioning after it is slowly submerged to depth
of 1 m in static tap water at room temperature,
left there for approximately 30 minutes and
then taken out.
*3
standard
*3 IP5X means the level of dust protection. Phone
keeps functioning in safety after it is left in the
device containing dust (diameter: 75 μm or
smaller) for 8 hours, agitated and then taken
out.
What you can do with
waterproof/dustproof of SH-07F
You can call or watch 1Seg programs without
using an umbrella in the rain (for rainfall of
approximately 20 mm per hour).
You can rinse off dirt from the FOMA terminal.
Wash the FOMA terminal with low-pressure water
flow (6 liters/min or lower and tap water at room
temperature (between 5°C and 35°C)), holding it
approximately 10 cm below faucet or shower
head. Wash by using only your hands, not a
brush or sponge, with the back cover attached,
and the external connector terminal cover held in
position. Drain the handset before use (
You can use the FOMA terminal at a poolside.
Do not throw water in a swimming pool on the
FOMA terminal or soak the FOMA terminal in
the water of a swimming pool.
n
P. 22).
Things to keep in mind
To maintain waterproof/dustproof
performance, check the followings.
Securely close the external connector terminal
cover and back cover. Be careful not to apply
excessive force on the rubber gasket when
opening and closing.
Make sure that the external connector terminal
cover and back cover are completely closed
without floating.
To maintain waterproof/dustproof performance,
the FOMA terminal has the external connector
terminal cover and the back cover that allow you
to close securely. May cause injuries to your
nails or fingers if you try to open them forcibly.
Opening external connector
terminal cover
Hook the tip of a finger into the slot to open.
Slot
Closing external connector
terminal cover
Stow the joint of the external connector terminal
cover (1) and push the cover in the direction of the
arrow to close it so that gaps are not left between
the FOMA terminal and the cover (2). When
closing it, push the A areas securely (3).
Joint
Introduction
19
Attaching back cover
Back cover
Slot
Ta b
Securely push tab
areas down with
both hands
Slot
To maintain waterproof/dustproof
performance, replacement of parts is
recommended every 2 years regardless of
whether the FOMA terminal appears
normal or abnormal. DOCOMO replaces
the parts as a chargeable service. Bring the
handset to a repair counter that DOCOMO
specifies.
Insert the tab of the top of the back
1
cover into the FOMA terminal slot
(1), attach it in the direction of the
arrow (2) and securely push down
with both hands (3)
The back of the back cover has also nine
tabs to insert the back cover. Securely push
tab areas down with both hands so that
gaps are not left between the FOMA
terminal and the back cover.
Introduction
20
Removing back cover
Hook the tip of a finger into the
1
FOMA terminal slot to remove the
back cover upward
Precautions
When your hands or the FOMA terminal is wet,
do not attach/remove the back cover or open/
close the external connector terminal cover.
Close the external connector terminal cover and
back cover securely. Even a fine obstacle (one
hair, one grain of sand, tiny fiber, etc.) put
between contact surfaces may allow water or
dust to get inside.
If the FOMA terminal gets wet with water or
Soap/
Detergent/
Bath powder
Seawater
Swimming
pool
Sand/DirtHot spring
other liquids with the external connector terminal
cover or back cover opened, the liquid may get
inside causing electric shocks or malfunction.
Stop using the FOMA terminal, turn off the
power, remove the battery pack and contact a
repair counter that DOCOMO specifies.
The rubber gaskets of contact surfaces between
the main body and the external connector
terminal cover/back cover play an important role
in maintaining waterproof/dustproof
performance. Do not remove or scratch them.
Also, prevent dust from adhering to them.
If a rubber gasket is damaged or deformed,
replace it at a repair counter that DOCOMO
specifies.
Do not insert a pointed object through the
external connector terminal cover or back cover
gaps. It may cause damage to the rubber gasket
and allow water or dust to get inside.
If the back cover is damaged, replace it. Water
may get inside from a damaged section causing
troubles such as electric shocks or corrosion of
the battery.
Do not use the FOMA terminal underwater
(including opening/closing and key operations).
May cause malfunction.
Do not apply water flow stronger than allowed
(nP. 18) (over 6 liters/min). May cause
malfunction though SH-07F provides waterproof
performance of IPX5.
Do not let the FOMA terminal get wet with liquids
other than water at room temperature (between
5°C and 35°C) or do not soak the FOMA
terminal in the liquids.
Do not wash the FOMA terminal in a washing
To prevent condensation, do not bring the
Never soak the FOMA terminal in hot spring
machine etc.
FOMA terminal from a cold place to a warm
place without letting the FOMA terminal warmed
to room temperature.
water or water containing soap, detergent or
bath powder.
Do not soak the FOMA terminal in hot water, use
it in a sauna or apply hot air (from a hair dryer
etc.) to it.
Do not soak the FOMA terminal in seawater.
Do not put the FOMA terminal directly on sand/
dirt.
Do not leave the FOMA terminal wet. In cold
places, water may freeze and cause malfunction.
The FOMA terminal does not float on water.
Do not let the FOMA terminal fall. It may become
scratched and cause the waterproof/dustproof
performance to degrade.
Do not leave water on the mouthpiece/
microphone, earpiece or speaker. Such water
may interfere with talking.
Do not poke the mouthpiece/microphone,
earpiece, speaker, air vent, etc. with a pointed
object.
Accessories and optional parts are not waterproof/
dustproof. When the FOMA terminal is set on the
included desktop holder, do not use it in rooms
where water is regularly in use such as bathroom,
shower room, kitchen or lavatory even if the AC
adapter is not connected to it.
Introduction
21
Draining water when the FOMA
DOCOMO does not guarantee actual
operations under all states. Malfunctions
deemed to be caused by inappropriate
operation by the customer are not covered
by the warranty.
terminal gets wet
When the FOMA terminal is wet, water may
flow out after wiping it off. Drain the water
by following the steps below.
Wipe off water on the FOMA
1
terminal surface with dry and clean
cloth etc.
If a strap is attached, dry the strap as well.
Shake the FOMA terminal
2
approximately 20 times, securely
holding its hinge section, until
there is no more water splattering
To drain water off the speaker,
shake the FOMA terminal with
the speaker turned up
Introduction
22
Softly press the FOMA terminal
3
against dry and clean cloth etc. to
wipe off water remaining in the
grooves of the mouthpiece/
microphone, earpiece, speaker,
keys, air vent, hinge section, etc.
Pat the opening with cloth to remove water
because there may be any water remaining
in the grooves of each part.
Wipe off water oozing from the
4
FOMA terminal with dry and clean
cloth etc.
Water, if any, remaining in the main body
may ooze after wiping off.
Charging
Accessories and optional parts are not
waterproof/dustproof. Check the followings
before and after charging.
Make sure that the FOMA terminal is not wet. If
the FOMA terminal is wet or after the FOMA
terminal is wet, adequately drain it and wipe off
water with dry and clean cloth etc. before setting
it on the desktop holder or opening the external
connector terminal cover.
When the external connector terminal cover is
opened for charging, close the cover securely
after charging. It is recommended that the
desktop holder be used for charging to prevent
water or dust from getting inside from the
external connector terminal.
Never try to charge the battery when the FOMA
terminal is wet.
Do not touch the AC adapter or the desktop
holder with your hands wet. May cause electric
shock.
Do not use the AC adapter or the desktop
holder in a place subject to water. Do not use it
in rooms where water is regularly in use such
as bathroom, shower room, kitchen or lavatory.
May cause fires or electric shock.
Introduction
23
Before Using
Basic Operation
Notch
Tabs
With recycle
mark side up
Inserting docomo mini UIM card
A docomo mini UIM card is an IC card that
records personal information, such as
phone numbers.
You cannot use the docomo mini UIM card with
devices other than compatible ones and may not
be able to use a part of the website and data
when you change from the UIM.
The FOMA terminal supports only docomo mini
UIM card. Change the UIM at a docomo Shop.
Hold the docomo mini
1
UIM card with the IC
(gold) side turned up
and set it into the
docomo mini UIM card
slot (1)
Push the docomo mini UIM card all the way
in (2).
Notch
IC (gold)
Make sure not to touch or damage the IC (gold)
of the docomo mini UIM card when handling it.
Also, note that pulling forcibly or adding forces
on the lever may damage it.
Note that inserting or removing the docomo
mini UIM card forcibly may damage it.
Attaching battery pack
For attaching the battery pack, turn the FOMA
terminal off, close it and hold it with your hand.
The battery pack is not waterproof/dustproof.
Remove the back cover (nP. 20)
1
Attach the battery pack
2
With the recycle mark side turned up, place
the tabs of the FOMA terminal to those of
the battery pack and attach the battery
pack.
Attach the back cover (nP. 20)
3
Using unnecessary force when attaching or
removing the battery pack may damage the
connector terminal for the battery pack
(charger terminal) on the FOMA terminal.
Basic Operation
24
Securely attach the back cover. If not attached
Connector
(with the arrow
side up)
100V AC
outlet
FOMA AC
Adapter 01/02
Charging LED
securely, the back cover may come off and the
battery pack may fall out due to vibration. Also,
the waterproof/dustproof performance may be
impaired, resulting in allowing water or dust to
get inside.
Charging
It is recommended that the included desktop
holder be used for charging to prevent water or
dust from getting inside caused by forgetting to
close the external connector terminal cover.
The AC adapter (sold separately) and desktop
holder are not waterproof/dustproof. Never try to
charge the battery when the FOMA terminal is
wet. For precautions about the waterproof/
dustproof when charging nP. 23
Charging by using desktop holder
Turn the arrow side of the AC
1
2
adapter connector up and insert it
horizontally into the connector
terminal of the desktop holder (1)
Keep the connector parallel with the
desktop holder and securely push all the
way in until a click is heard.
Insert the AC adapter power plug
into an outlet (2)
When placing the FOMA terminal
3
on the desktop holder, the charge
alert is heard, the charging LED
illuminates and charging starts
Place the FOMA terminal in the direction of
the arrow and make sure that a click is
heard (3).
When charging is complete, the
4
charge alert is heard and the
charging LED turns off
Hold the desktop holder and lift the FOMA
terminal after tilting it towards you.
Remove the AC adapter power
5
plug from the outlet
Basic Operation
25
Keep holding the release buttons
Release buttons
6
on both sides of the AC adapter
connector (1) and unplug it
horizontally (2)
When the charge alert is not heard or when the
charging LED does not illuminate, check that
the FOMA terminal is placed securely on the
desktop holder (except when the handset is
turned off, the manner mode is set or Charge
alert is [OFF]).
When placing the FOMA terminal on the
desktop holder, be careful not to let a strap etc.
caught.
Charging by using AC adapter
Read the user’s guide of FOMA AC Adapter 01/
02 (sold separately).
Open the external connector
1
terminal cover, turn the arrow side
of the AC adapter connector up
and insert it horizontally into the
external connector terminal (1)
Charging LED
External
connector
terminal
External connector terminal cover
Connector (with the arrow side up)
When inserting the AC adapter
2
power plug into an outlet, the
charge alert is heard, the charging
LED illuminates and charging starts
100V AC
outlet
When charging is complete, the
3
charge alert is heard and the
charging LED turns off
Remove the AC adapter power
4
plug from the outlet
Basic Operation
26
Keep holding the release buttons
5
on both sides of the AC adapter
connector (1), unplug it
horizontally (2) and close the
external connector terminal cover
Release buttons
Using unnecessary force when inserting or
removing the equipment may cause damage to
the external connector terminal and the
connector or result in a malfunction.
Turning power on
H (for at least 2 seconds)
1
Stand-by display appears when initial
settings are complete.
Press H for at least 2 seconds to turn the
power off.
Changing screen display to English
In the Normal menu, [本体設定]
1
(Setting)/[文字表示/入力] (Text
display/input)/[Select
language]/[English]
Making initial setting
If the setting of Password is not complete, the
setting screen appears every time the power is
turned on.
Alternatively, in the Normal menu, [Setting]/
[Other setting]/[Initial setting] to display the
setting screen.
[Date and time setting]/set the
1
date and time
[Password]/register a terminal
2
security code
[Keypad sound]/set the keypad
3
sound
[Text size]/set the font size
4
collectively
C
5
Notifying the other party of your
phone number
You can display your phone number (caller
ID) on the other party’s phone (display)
when you make a voice or videophone call.
When you hear a message requesting caller ID,
activate Caller ID notification or put “186” and
make a call again.
In the Normal menu, [TEL
1
function]/[Dial/Receive call
setting]/[Caller ID notification]
[Setting]/select the setting/[OK]
2
Basic Operation
27
Checking your own phone
Icon display area
number
In the Normal menu, [Profile]
1
Saving your own name and image
In the Normal menu, [Profile]
1
C/enter the terminal security
2
code
Set each item/
3
C
Changing mail address or
configuring spam mail prevention
You can connect to the i-mode site for changing
mail address, configuring spam mail prevention,
etc. Refer to the DOCOMO website for details on
setting method.
In stand-by, m/[Mail setting]/
1
[Address/Spam setting]
[YES]
2
Basic Operation
28
Screen Explanation
Viewing display
Main icons
Battery level
(High Low)
Signal strength
Strong Weak
(
When [ ] appears, the
i-mode
Kid-safe mode
Infrared communication
Hands-free
i-mode mail/SMS/Area Mail/
Information received
i-appli
Alarm/Schedule
Software update
microSD Card
IC card lock
bbbb
bbb
)
handset is outside the
service area or in a place
with no signal.
Loading...
