Sharp SH-04G User Guide

SH-04G

INSTRUCTION MANUAL

’15.6

Introduction

Notes on usage (in Japanese only)

Thank you for purchasing “SH-04G”. Be sure to read this manual before and during use to ensure proper operation.

Checking operation method

Quick Start Guide (Basic package) (in Japanese only)

This guide describes operations of basic functions.

User's Manual (App of the handset) (in Japanese only)

This manual describes detailed guidance and operations of functions. In the home screen, [R]/[Instruction Manual]

User's Manual (in PDF format)

This manual describes detailed guidance and operations of functions. Download from the DOCOMO website

(https://www.nttdocomo.co.jp/english/support/

trouble/manual/download/index.html)

※ The URL and contents are subject to change without

prior notice.

The screens and illustrations in this manual are shown as

examples. The actual screens and illustrations may differ.

The explanations in this manual are based on the case when

the home app is docomo LIVE UX and the setting of kisekae is [Gold]. If you change the home app, operation procedures etc. may be different from the explanations of this manual.

Note that “SH-04G” is referred to as “handset” in this manual. This manual refers to microSD Card or microSDHC Card as

“microSD Card” or “microSD”.

Reproduction of this manual in part or in whole without prior

permission is prohibited.

The contents of this manual are subject to change without

prior notice.

Basic package

Quick Start Guide (in Japanese only)

SH-04G (includes warranty)

For optional parts (sold separately) compatible with the handset,

refer to the DOCOMO website.

(https://www.nttdocomo.co.jp/product/option/) (in Japanese only)

Using the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Precautions (ALWAYS FOLLOW THESE DIRECTIONS). . . .4

Handling precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Waterproof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Before Using the Handset

Part names and functions . . . . . . . . . . . . . . . . . . . . . . . . . . .13

docomo nano UIM card . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Turning power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Basic operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Character entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Changing screen display to English . . . . . . . . . . . . . . . . . . .21

Initial settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Incoming/Charging lamp . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Screen display/Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Quick Launcher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Recent Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Home applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

docomo LIVE UX

Home screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

App screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Installing recommended apps . . . . . . . . . . . . . . . . . . . . . . . .31

Backing up/Restoring the home screen. . . . . . . . . . . . . . . . .31

Displaying all apps. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

My magazine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Information on apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Call

Making a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Operation during a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Outgoing/Incoming call history . . . . . . . . . . . . . . . . . . . . . . .36

Voice/Answering memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Call settings/Other . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Phonebook . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Mail/Web Browser

docomo mail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

SMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

™ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Gmail

Early Warning “Area Mail” . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Chrome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Apps

dmenu. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

dmarket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Play Store . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Osaifu-Keitai . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

SH Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Translation finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Search finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Album . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

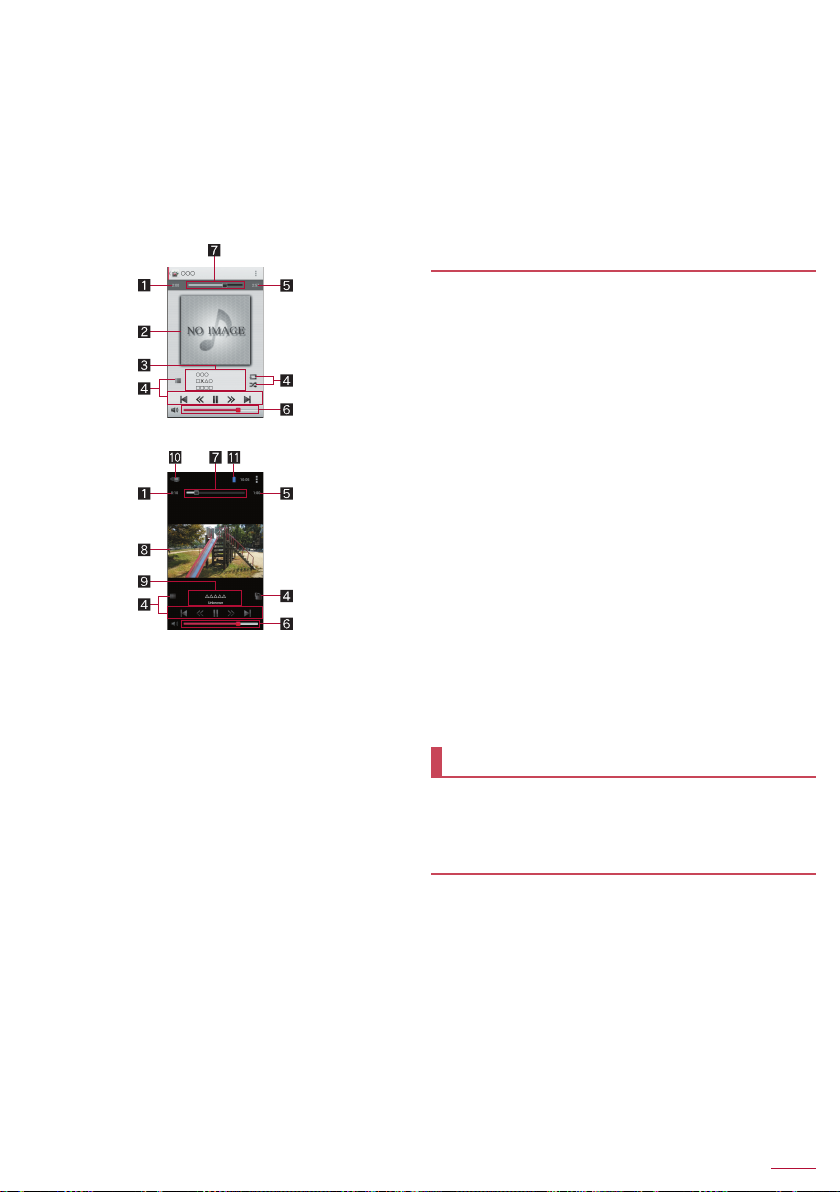

Media Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

GPS/Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Clock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Schedule. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Memo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

SH tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

docomo backup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Handset Settings

Setting menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Sound/notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Battery & energy saving . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Useful . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Data usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

docomo service/cloud . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Location services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Lock & security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Language & input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Backup & reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Date & time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Accessibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

About phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

File Management

Storage structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Contents Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Data Communication

Infrared communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Bluetooth

NFC communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Contents/Precautions

External Device Connection

PC connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Printing/Saving by print service . . . . . . . . . . . . . . . . . . . . . . .74

USB host function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

Wireless output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

VPN (Virtual Private Network) . . . . . . . . . . . . . . . . . . . . . . . .75

International Roaming

Outline of international roaming (WORLD WING). . . . . . . . .76

Available services overseas . . . . . . . . . . . . . . . . . . . . . . . . .76

Before use overseas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Settings for use overseas . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Making/Receiving a call in your country of stay . . . . . . 77

Setting international roaming . . . . . . . . . . . . . . . . . . . . 78

Checking after homecoming . . . . . . . . . . . . . . . . . . . . 78

Appendix/Index

Troubleshooting (FAQ) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Anshin Enkaku Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Warranty and After-Sales Service . . . . . . . . . . . . . . . . . . . . .81

Software update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82

Main specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

Specific Absorption Rate (SAR) of Mobile Phones . . . . . . . .85

Export Administration Regulations . . . . . . . . . . . . . . . . . . . .86

Intellectual Property Right . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Unlocking SIM lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .88

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .89

Contents/Precautions

Using the handset

The handset supports LTE, W-CDMA and wireless LAN systems. Because the handset relies on radio signals, it cannot be used in

a place with no signal (such as tunnels, underground or in buildings), in places with a weak signal or outside the Xi service area or FOMA service area. You may not use the handset in the upper floors of a building even with no obstructions in sight. There may also be times when the signal is strong and you are not moving but the call is interrupted.

Because the handset uses radio waves, it is possible for a third

party to listen in on a conversation. However, since the LTE and W-CDMA systems automatically apply a private call feature to every call, a third party that tries to listen in only hears noise.

The handset converts conversations into a digital signal and

sends it to the other party over the radio. If the signal cannot be reconverted properly by such as moving to an area with a weak signal, the voice may not be heard correctly.

Take notes of information (e.g. the phonebook, calendar, note,

voice memo, answering memo) stored on the handset or save the information to external memory devices such as microSD Cards and PCs periodically. DOCOMO shall not be liable for any loss of content due to a failure, repair, model change or other handling of the handset.

As with PCs, some user-installed apps etc. may disrupt the

stability of your handset performance or unexpectedly transmit information via the Internet causing improper use of your location information, personal information stored on the handset, etc. Therefore, verify the supplier and operating conditions of the apps etc. to be used before using them.

The handset supports the FOMA Plus-Area and the FOMA

HIGH-SPEED Area.

When the available space on the microSD Card or the handset is

insufficient, apps in use may not work properly. In this case, delete saved data.

The handset does not support connection to i-mode website

(program), i-appli, etc.

The handset does not support providers other than sp-mode,

mopera U and Business mopera Internet.

In the home screen, [R]/[Settings]/[Profile] to check your

phone number (own number).

The handset does not support Public Mode (Drive Mode). Setting the handset to the manner mode does not mute sounds

(camera shutter sound etc.) other than the ringtone, operation sound, and various notification sounds.

The handset automatically performs communication for some

functions, for example, to synchronize data, check the latest software version or maintain connection with the server. Also, making a communication with large-volume data such as downloading apps or watching videos will lead to higher packet communication charges. Subscription to Packet Pack/flat-rate packet communication services is highly recommended.

Even while the Wi-Fi connection is set, packet communication

charges may be incurred depending on the app and service you use.

Software on the handset can be updated to up-to-date status

(nP. 82 “Software update”).

For details on software version of your handset nP. 68 “About

phone”

New functions may be added to the handset or the operation

method may change by upgrading the OS version. Check the DOCOMO website for the latest information on these additions and changes.

If the OS is upgraded, some apps used in the previous OS

version may not be available or some unintended bugs may occur.

Secure the security of the handset by setting Screen lock in case

you lose it (nP. 63 “Lock & security”).

If your handset is lost, change your password for each account

using a PC to prevent other persons from using Google services such as Gmail and Google Play SNS.

Apps and their service contents are subject to change without

prior notice.

Read the terms of service of Google Inc. for details on Google

services. Also, read each terms of service for details on other web services.

Subscription to sp-mode is required to use tethering. Subscription to Packet Pack/flat-rate packet communication

services is highly recommended to use tethering.

For details on usage fees etc., refer to the DOCOMO website. The display is manufactured using high-precision technology, but

it may contain dots that fail to light or that remain permanently lit on some areas. This is a characteristic of LCD and not a malfunction.

The battery is built into the handset and you cannot replace it by

yourself.

Note that DOCOMO shall not guarantee operation of

commercially available optional parts.

™

, and services such as

™

Contents/Precautions

Precautions (ALWAYS FOLLOW

Danger

Warning

THESE DIRECTIONS)

Before use, read these “Precautions” carefully and use your

handset properly. Keep this manual in a safe place for future reference.

These precautions contain information intended to prevent bodily

injury to the user and to surrounding people, as well as damage to property, and must be observed at all times.

The following symbols indicate the different degrees of injury or damage that may occur if information provided is not observed and the handset is used improperly.

This symbol indicates that

Danger

Warning

Caution

The following symbols indicate specific directions.

Indicates a prohibited action.

Indicates not to disassemble the device.

Indicates not to use the device near water or get it wet.

“Precautions” is explained in the following six sections.

Handling the handset, adapters and docomo nano UIM card

(general) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4

Handling the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 5

Handling adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 6

Handling docomo nano UIM card . . . . . . . . . . . . . . . . . . . . . P. 7

Handling near electronic medical equipment . . . . . . . . . . . . P. 7

Material list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 7

“death or serious bodily injury may directly and immediately result from improper use”.

This symbol indicates that “death or serious bodily injury may result from improper use”.

This symbol indicates that “minor injury and/or property damage may result from improper use”.

Indicates not to handle the device with wet hands.

Indicates that instructions specified are compulsory (must be followed).

Indicates that the power cord must be unplugged from the outlet.

Handling the handset, adapters and docomo nano UIM card (general)

Do not use, store or leave the equipment in locations subject to high temperatures (near a fire or heating unit, in a kotatsu, under direct sunlight, inside a vehicle on a hot day, etc.).

May cause fires, burns or bodily injury.

Do not place the equipment inside cooking appliances such as microwave ovens or pressure cookers.

May cause fires, burns, bodily injury or electric shock.

Do not attempt to disassemble or modify the equipment.

May cause fires, burns, bodily injury or electric shock.

Do not get the equipment wet with water, drinking water, pet urine, sweat, etc.

May cause fires, burns, bodily injury or electric shock. Refer to the following for details on waterproofness. nP. 10 “Waterproof”

Do not allow liquids (water, drinking water, pet urine, sweat, etc.) to get inside the charger terminal, external connector terminal or earphone/ microphone terminal.

May cause fires, burns, bodily injury or electric shock. Refer to the following for details on waterproofness. nP. 10 “Waterproof”

Use only optional parts specified by NTT DOCOMO for use with the handset.

May cause fires, burns, bodily injury or electric shock.

Do not subject the equipment to strong force or impacts or throw it.

May cause fires, burns, bodily injury or electric shock.

Do not allow conductive materials (such as metal objects and pencil lead) to come into contact with the charger terminal, external connector terminal or earphone/microphone terminal. In addition, do not insert such objects.

May cause fires, burns, bodily injury or electric shock.

Do not cover or wrap the equipment with bedding etc. when using or charging.

May cause fires or burns.

Be sure to turn off the handset and not to charge the battery in locations such as gas stations where flammable gas may be generated.

May cause a gas explosion or fire. To use Osaifu-Keitai in locations such as gas stations, be sure to turn off the power in advance (If NFC/Osaifu-Keitai lock is set, disable the lock before turning off the power).

If you notice anything unusual, such as an unusual odor, overheating, discoloration or deformation during use, charging or storage, immediately follow the instructions below. Unplug the power plug from the outlet or

cigarette lighter socket.

Turn off the handset.

May cause fires, burns, bodily injury or electric shock.

Contents/Precautions

Caution

Do not leave the equipment on unstable surfaces,

Danger

Warning

such as on a wobbly table or sloped surface.

May fall and cause injury.

Do not store the equipment in locations that are subject to humidity, dust or high temperatures.

May cause fires, burns or electric shock.

If being used by a child, have a guardian teach him/ her the proper handling procedures. In addition, check that the child is using the equipment as directed.

May result in bodily injury etc.

Keep the equipment out of the reach of young children.

A young child may swallow the equipment, or suffer bodily injury or electric shock.

Be very careful when using the handset connected to an adapter continuously for a long time.

The handset or adapter may become warm if you use an app or video call, watch a video, etc. for a long time while charging. Directly touching a warmed part for a long time may cause redness, itching, rashes, etc. on your skin, or result in low-temperature burns depending on your constitution or health condition.

Handling the handset

The following is the type of the internal battery built into the handset.

Label Battery type

Li-ion00 Lithium-ion

Do not throw the handset into a fire or heat it.

The internal battery may catch fire, explode, overheat or leak.

Do not apply excessive force on the handset such as by puncturing it, hitting it with a hammer or stepping on it.

The internal battery may catch fire, explode, overheat or leak.

If the battery fluid etc. comes into contact with your eyes, do not rub your eyes but immediately rinse your eyes with clean water. Then seek prompt medical treatment.

May result in loss of eyesight.

Do not aim the infrared port towards the eyes.

May have harmful effects on the eyes.

Do not aim the infrared port towards home electric appliances with an infrared device during infrared communication.

May interfere with the operation of infrared devices and cause an accident.

Do not point the illuminated light directly at someone's eyes. Especially when you shoot still pictures or videos of young children, keep 1 m or more distance from them.

Do not use Mobile light near people's faces. Eyesight may be temporarily affected leading to accidents.

Do not allow water or other liquids, metal, flammable material or other foreign objects to enter the docomo nano UIM card slot or microSD Card slot on the handset.

May cause fires, burns, bodily injury or electric shock.

Do not shine the mobile light at anyone driving a car or other vehicles.

May prevent a driver from driving safely and cause a traffic accident.

Turn off the handset or set it to Airplane mode before going aboard an airplane.

Since using the handset on airplanes is restricted, follow the instructions given by the respective airlines. May interfere with the operation of electronic devices installed on the airplane. If you commit a prohibited act while using the handset on an airplane, you may be punished by law.

Follow the instructions given by the respective medical facility regarding the use of the handset in a hospital.

Turn off the handset in areas where the use of mobile phones is prohibited. May interfere with the operation of electronic devices and electronic medical equipment.

Keep the handset away from the ears during a call in which hands-free is set or while the ringtone is ringing. When you attach the earphone/microphone etc. to the handset to play games, music, etc., do not make the volume too loud.

Excessively high volume may damage your hearing. Also, it may prevent you from hearing ambient sounds and cause an accident.

If you have a weak heart, take extra precautions when setting functions such as the vibrator and ringtone volume for incoming calls.

May have harmful effects on your heart.

If you are using electronic medical equipment etc., contact the respective manufacturer or dealer to check whether the operation of the equipment is affected by signals.

May interfere with the operation of electronic medical equipment etc.

Turn off the handset near high-precision electronic devices or devices that use weak electronic signals.

May interfere with the operation of electronic devices.

※ Take particular care with the following devices

Hearing aids, implanted cardiac pacemakers, implanted cardioverter-defibrillators or other electronic medical equipment. Fire alarms, automatic doors, and other equipment controlled by electronic signals. If you use an implanted cardiac pacemaker, implanted cardioverter-defibrillator or other electronic medical equipment, contact the respective manufacturer or dealer to check whether the operation of the equipment is affected by signals.

Contents/Precautions

If the display part or camera lens is damaged, be

Caution

Warning

careful of broken glass and the exposed inside of the handset.

Tape is pasted on the back of the display while the surface of the display is covered by a protective film and the surface of the camera lens is covered by a plastic panel so as to minimize the possibility of glass scattering. However, touching the broken or exposed parts may cause bodily injury.

If the internal battery leaks or emits an unusual odor, immediately stop using the handset and move it away from any naked flames or fire.

The battery fluid is flammable and could ignite, causing a fire or explosion.

Do not swing the handset by its strap etc.

May hit you or others around you, resulting in an accident such as bodily injury.

Do not use a damaged handset.

May cause fires, burns, bodily injury or electric shock.

For using a motion sensor and geomagnetic sensor, check the safety around, hold the handset and do not swing it more than necessary.

May cause an accident such as bodily injury.

If the display is broken and the liquid crystal then leaks, do not get the liquid on your skin (face, hands, etc.).

May result in loss of eyesight or harm to your skin. If the liquid crystal comes into contact with your eyes or mouth, immediately rinse the contacted area with clean water and seek medical treatment. If the liquid crystal comes into contact with your skin or clothes, immediately wipe the liquid crystal off with alcohol etc., and rinse the contacted area with soap etc.

The surface of the display is covered with a protective film for ensuring the security (shatterproof property of reinforced glass panel) against any damages caused by the handset being dropped or receiving a strong impact etc. Do not remove the film forcibly or damage it.

Using the handset with the film removed may cause bodily injury if the display gets damaged.

Do not dispose of the handset in ordinary garbage.

May cause fires or damage to the environment. Take the unnecessary handset to a sales outlet such as a docomo Shop or follow the instructions by a local institution that handles used handsets.

If you use the handset in a vehicle, contact the vehicle manufacturer or dealer to check whether the operation of the vehicle is affected by signals.

May interfere with the operation of electronic equipment in some vehicle models. In this case, stop using the handset.

Use of the handset may cause itching, rashes, eczema, etc. depending on your constitution or health condition. If this occurs, immediately stop using the handset and seek medical treatment.

For details on materials of each part nP. 7 “Material list”

Look at the display in a well-lit place, keeping a certain distance from the screen.

Otherwise, eyesight may be weakened.

If the battery fluid etc. leaks, do not get the liquid on your skin (face, hands, etc.).

May result in loss of eyesight or harm to your skin. If the liquid etc. comes into contact with your eyes, mouth, skin or clothes, immediately rinse the contacted area with clean water. If the liquid etc. comes into contact with your eyes or mouth, seek medical treatment immediately after rinsing the contacted area.

Handling adapters

Do not use if the cord of the adapter is damaged.

May cause fires, burns or electric shock.

Never use the AC adapter in humid locations such as a bathroom.

May cause fires, burns or electric shock.

The DC adapter should only be used in negative grounded vehicles. Never use it in positive grounded vehicles.

May cause fires, burns or electric shock.

Do not touch adapters if you hear thunder.

May cause electric shock.

Do not short-circuit the charger terminal when connected to an outlet or cigarette lighter socket. Also, do not allow any part of your body (hands, fingers, etc.) to come into contact with the charger terminal.

May cause fires, burns or electric shock.

Do not place heavy objects on the cord of the adapter.

May cause fires, burns or electric shock.

When plugging/unplugging an AC adapter into/from the outlet, do not allow metallic straps or other metallic objects to come into contact with the prongs of the plug.

May cause fires, burns or electric shock.

Do not apply excessive force on an adapter by moving it up/down or to the left/right with the adapter connected to the handset.

May cause fires, burns, bodily injury or electric shock.

Never try to connect the microUSB plug when the handset or AC adapter is wet.

Inserting the microUSB plug while the equipment is wet may cause short circuit when you ch arge the battery and lead to abnormal overheat, malfunction, fires or burns due to water, foreign objects, etc. adhering to the handset or microUSB plug though the handset provides waterproof performance.

Do not handle the cord or charger terminal of the adapters or outlet with wet hands.

May cause fires, burns or electric shock.

Contents/Precautions

Always use the specified power supply and voltage.

Caution

Warning

When using overseas, use the AC adapter that is available overseas.

Using the incorrect voltage may cause fires, burns or electric shock. AC adapter: 100V AC DC adapter: 12/24V DC (for negative grounded vehicles only) AC adapter available overseas: 100 to 240V AC (Connect only with a household AC outlet)

If the fuse in the DC adapter blows, always replace it with a specified fuse.

May cause fires, burns or electric shock. Refer to the respective manuals for information on specified fuses.

Wipe off any dust on the power plug.

May cause fires, burns or electric shock.

Fully plug the AC adapter into the outlet.

May cause fires, burns or electric shock.

Always grasp the adapters when unplugging the power plug from the outlet or cigarette lighter socket. Do not forcibly pull by the cord of the adapter.

May cause fires, burns or electric shock.

When plugging/unplugging an adapter into/from the handset, plug/unplug the adapter horizontally and straightly, not applying excessive force on it.

May cause fires, burns, bodily injury or electric shock.

Unplug the power plug from the outlet or cigarette lighter socket when not using for a long time.

May cause fires, burns or electric shock.

Should water or other liquids enter the equipment, remove the power plug from the outlet or cigarette lighter socket immediately.

May cause fires, burns or electric shock.

Always unplug the power plug from the outlet or cigarette lighter socket before cleaning the equipment.

May cause fires, burns or electric shock.

Do not touch the adapter for a long time when connected to an outlet or cigarette lighter socket.

May cause burns etc.

Handling docomo nano UIM card

Be careful with the cutting surface when handling the docomo nano UIM card.

May cause bodily injury.

Handling near electronic medical equipment

If you have electronic medical equipment such as an implanted cardiac pacemaker or an implanted cardioverter-defibrillator, always carry or use your handset at least 15 cm away from your implant.

Electromagnetic signals may have harmful effects on the operation of the electronic medical equipment.

Patients receiving medical treatment away from a medical facility (e.g. home treatment) who are using electronic medical equipment other than implanted cardiac pacemakers or implanted cardioverter-defibrillators should consult the respective manufacturers etc. for information regarding the effects of signals on the equipment.

Electromagnetic signals may have harmful effects on the operation of the electronic medical equipment.

If there is any chance that the distance between the handset and a person closest to you may get shorter than 15 cm such as when you cannot freely move around, set the handset not to emit radio wave in advance (by setting Airplane mode, turning the power off, etc.).

Somebody nearby may be equipped with electronic medical equipment such as an implanted cardiac pacemaker or an implanted cardioverter-defibrillator. Electromagnetic signals may have harmful effects on the operation of the electronic medical equipment.

Follow the instructions given by the respective medical facilities regarding the use of the handset on their premises.

Material list

Handset

Part Material/Surface treatment

Display side

Surrounding area of display side

Upper surface

Bottom surface

Sides

Back

Surrounding area of back

docomo nano UIM card slot SUS/Ni plating

microSD Card slot SUS/Ni plating

docomo nano UIM card/microSD Card slot cover

Gasket of docomo nano UIM card/microSD Card slot cover

Sticker indicating position for inserting docomo nano UIM card/ microSD Card

Reinforced glass/Shatterproof sheet of surface

PA resin/UV coating for surface

PC resin/UV coating for surface

PMMA + PC resin/Hard coating for surface

PA resin/UV coating for surface

PC resin/UV coating for surface

Silicon rubber

PET resin/Printing on the back

Contents/Precautions

Tray for inserting docomo nano UIM card

POM resin

IMEI plate PET resin

Part Material/Surface treatment

Power key

Side key

Camera panel

PC resin/Deposition, UV coating

PMMA + PC resin/Hard coating for surface

Decoration of camera Aluminum/Anodizing

External connector terminal

SUS/Sn plating, Copper alloy/ Gold plating

Strap pin SUS/Ni plating

Handling precautions

General notes

SH-04G is waterproof, however, do not allow water to get

inside the handset and do not allow optional parts to get wet.

The adapter and docomo nano UIM card are not waterproof. Do not use in humid or steamy areas such as bathrooms and avoid exposing to rain and other forms of moisture. If they are carried close to the skin, perspiration may cause internal components to corrode and result in malfunction. Note that if a problem is found to be due to moisture, the handset and parts are not covered by warranty and in some cases may be irreparable. Even when repairs are possible, repair charges will be incurred, since the damage is not covered by warranty.

Clean only with a soft and dry cloth (such as the type used

for eyeglasses).

･ Forceful rubbing of the display with a dry cloth etc. may scratch its

surface.

･ Water drops, dirt, etc. left on the display may cause stains to form

on its surface.

･ Never use chemicals such as alcohol, thinners, benzene or

detergents, as these agents may erase the printing or cause discoloration.

Occasionally clean terminals with a dry cotton swab etc.

Dirty terminals may result in poor connections and loss of power or insufficient battery charge. Keep the terminals clean with a dry cotton swab etc. Be careful with the terminals while cleaning them.

Do not place the equipment near an air conditioning vent.

Condensation formed due to rapid changes in temperature may cause internal corrosion and lead to a malfunction.

Do not apply excessive force on the handset etc. when

using it.

Carrying the equipment in a tightly packed bag or sitting on it put in your pocket may cause damage to the display, internal components, etc. or result in a malfunction. Keeping an external connector device plugged into the external connector terminal or earphone/microphone terminal may cause damage or a malfunction.

Do not rub or scratch the display with metal etc.

May scratch it and cause a malfunct ion or damage.

Read the respective user's guides supplied with supported

optional parts carefully.

Notes about the handset

Do not forcefully press the surface of the touch panel or

operate with a pointed object such as a fingernail, ballpoint pen or pin.

May damage the touch panel.

Avoid using the handset in extremely high or low

temperatures.

Use the handset within the range of a temperature between 5°C and 35°C and a humidity between 45% and 85%.

Using the handset close to land-line phones, TVs, radios,

etc. may have harmful effects on the operation of such equipment. Move as far away as possible from such items before use.

Keep a separate memo noting information stored on the

handset.

DOCOMO shall not be liable for any loss of content.

Do not drop or otherwise subject the handset to severe

impact.

May cause a malfunction or damage.

When connecting an external connector device to the

external connector terminal or earphone/microphone terminal, do not put it in obliquely and do not pull it while it is plugged in.

May cause a malfunction or damage.

The handset becomes warm during use or charging but this

is not a malfunction.

Do not leave the camera in direct sunlight.

May cause discoloration or burn-in of pixels.

Use the handset with the docomo nano UIM card/microSD

Card slot cover closed.

Dust, water, etc. may get inside and cause a malfunction.

While using a microSD Card, do not remove the card or turn

off the handset.

May cause data loss or a malfunction.

Never place a magnetic card near the handset.

The stored magnetic data in cash cards, credit cards, telephone cards, floppy disks, etc. may be erased.

Never place magnetized items near the handset.

Putting highly magnetized items closer may cause an error.

The internal battery is a consumable product.

Though the battery life varies with use, change the battery if the battery life is extremely short even after being fully charged. For details on replacing the internal battery, contact the number listed in “Repairs” (in Japanese only) on the last page or a repair counter that DOCOMO specifies.

Charge battery in areas where ambient temperature is

between 5°C and 35°C.

The battery life depends on the usage and deterioration of

the battery.

Avoid the following situations when the handset is stored.

 Storage with the internal battery fully charged (immediately after

charging is completed)  Storage with no battery level (cannot turn the handset on) May lower the performance or shorten the usable life of the internal battery. Approximately 40% is recommended as the proper battery level for storage.

The surface of the handset uses the aluminum material.

Note that dent and abrasion are easily remained as aluminum is a soft material.

Notes about adapters

Charge the battery in areas where the ambient temperature

is between 5°C and 35°C.

Do not charge the internal battery in the following locations.

 Areas with high humidity or dust, or in areas exposed to frequent

vibrations  Close to land-line phones, TVs, radios, etc.

Contents/Precautions

Adapters may become warm during charging but this is not

① ② ③ ④

⑤

a malfunction.

Do not use the DC adapter to charge the battery when the

car engine is not running.

May cause the car battery to run down.

When using an outlet with a feature to prevent the plug from

being removed accidentally, follow the instructions in the outlet user's guide.

Do not subject to strong impacts. Also, do not deform the

charger terminals.

May cause a malfunction.

Notes about docomo nano UIM card

Do not apply unnecessary force when inserting/removing

the docomo nano UIM card.

Customer is responsible for malfunctions arising from

inserting docomo nano UIM card into a different IC card reader/writer etc.

Always keep IC area clean. Clean only with a soft and dry cloth (such as the type used

for eyeglasses).

Keep a separate memo and note information stored on the

docomo nano UIM card.

DOCOMO shall not be liable for any loss of content.

To protect the environment, please take any unneeded

docomo nano UIM cards to a sales outlet such as a docomo Shop.

Do not damage, touch haphazardly or short-circuit the IC.

May cause data loss or a malfunction.

Do not drop or otherwise subject the docomo nano UIM

card to severe impact.

May cause a malfunction.

Never bend the docomo nano UIM card or place heavy

objects on it.

May cause a malfunction.

Do not insert the docomo nano UIM card to the handset with

a label, sticker, etc. attached on the card.

May cause a malfunction.

Notes on using Bluetooth function

The handset supports the security function that meets the

Bluetooth specification for security during communication using Bluetooth functions. However, the security may not be sufficient depending on the configuration etc. Take care of the security while making communication using Bluetooth function.

Even if any leak of data or information occurs while making

communication using Bluetooth function, DOCOMO shall not be liable for any loss of content.

Radio frequencies

In the home screen, [R]/[Settings]/[About phone]/ [Authentication] to confirm the radio frequencies the Bluetooth function of the handset uses. The followings are the descriptions:

① ② ③ ④ ⑤

① 2.4: This radio equipment uses the 2,400 MHz band. ② FH: The modulation system is the FH-SS system. ③ 1: The estimated coverage distance is 10 m or less. ④ XX: Another modulation system is used. ⑤ 4: The estimated coverage distance is 40 m or less. ⑥ : All radio frequencies between 2,400 MHz and

2,483.5 MHz are used and the frequencies for mobile object identifiers cannot be avoided.

⑥

Cautions on using Bluetooth devices

Bluetooth operates at radio frequencies assigned to the in-house radio stations for a mobile object identifier that have to be licensed and are used in production lines of a factory, specific unlicensed low power radio stations, and amateur radio stations (hereafter, referred to as “another radio station”) in addition to industrial, scientific and medical devices or home electric appliances such as microwave ovens.

1. Before using the handset, make sure that “another radio

station” is not operating nearby.

2. If radio interference between the handset and “another

radio station” occurs, avoid interference by moving

immediately to another place or “turning off the power”.

3. Contact the number listed in “General Inquiries” on the

last page for further details.

Notes about wireless LAN (WLAN)

Wireless LAN (WLAN) uses radio waves to communicate

information. Therefore, it has an advantage of freely connecting to the LAN within the service area. On the other hand, if security setting is not set, it is possible for a malicious third party to intercept the communication contents or hack. It is recommended to set security setting at your own risk and judgement.

Wireless LAN

Do not use wireless LAN near magnetic devices such as electric appliances or AV/OA devices or in radio waves. ･ Magnetism or radio waves may increase noises or disable

communications (especially when using a microwave oven).

･ When used near TV, radio, etc., reception interference may occur

or channels on the TV screen may be disturbed.

･ If there are multiple wireless LAN access points nearby and the

same channel is used, search may not work correctly.

Radio frequencies

In the home screen, [R]/[Settings]/[About phone]/ [Authentication] to confirm the radio frequencies the WLAN-installed devices use. The followings are the descriptions:

① 2.4: This radio equipment uses the 2,400 MHz band. ② DS: The modulation system is the DS-SS system. ③ OF: The modulation system is the OFDM system. ④ 4: The estimated coverage distance is 40 m or less. ⑤ : All radio frequencies between 2,400 MHz

and 2,483.5 MHz are used and the frequencies for mobile object

identifiers can be avoided. Available channels for the handset's wireless LAN are between 1 and

13. Note that other channel access points cannot be connected. Available channels may vary depending on the country. For use in an aircraft, contact the airline beforehand.

Cautions on using 2.4 GHz devices

WLAN-installed devices operate at radio frequencies assigned to the in-house radio stations for a mobile object identifier (radio stations requiring a license) used in production lines of a factory, specific low power radio stations (radio stations requiring no license), and amateur radio stations (radio stations requiring a license) in addition to industrial, scientific and medical devices or home electric appliances such as microwave ovens.

1. Before using this device, make sure that the in-house

radio stations for a mobile object identifier, specific low

power radio stations and amateur radio stations are not

operating nearby.

Contents/Precautions

If the device causes harmful radio interference to the

2. in-house radio stations for a mobile object identifier, immediately change the radio frequency or stop use, and contact the number listed in “General Inquiries” on the last page for crosstalk avoidance, etc. (e.g. partition setup).

3. If the device causes radio interference to specific low power radio stations for a mobile object identifier or amateur radio stations, contact the number listed in “General Inquiries” on the last page for further details.

FeliCa and NFC reader/writer

The FeliCa, NFC reader/writer and P2P function of the

handset use weak radio waves whose handling does not require a license of radio station.

The frequency in use is the 13.56 MHz band. When another

reader/writer or P2P function is being used nearby, keep enough distance from it. Make sure that there is no radio station using the same frequency band in the nearby area.

For use in an aircraft, contact the airline beforehand. Use of

the function may be restricted in some countries. Check conditions such as regulations of the country/region to use the function.

Caution

Never use the handset that is modified. Using a modified

device violates the Radio Law and/or the Telecommunications Business Law.

The handset follows the regulations regarding the certification of conformity with technical regulations for specific radio stations etc. based on the Radio Law and authentication of conformity with technical regulations for devices etc. based on the Telecommunications Business Law, and the “Technical Conformity Mark ” can be displayed on the electronic nameplate of the handset as a proof. You can see it by operating as follows. In the home screen, [R]/[Settings]/[About phone]/ [Authentication] If the screws of the handset are removed and a modification is given to the inside, the certification of conformity with technical regulations etc. will become invalid. Never use the handset without the valid certification etc. Doing so violate s the Radio Law and/or the Telecommunications Business Law.

Be careful when using the handset while driving a motor

vehicle.

Using the handset in hand while driving is regarded as a punishable act. However, the punishment has no application in some cases such as when rescuing sick and injured people or maintaining public safety.

Use the FeliCa reader/writer function only in Japan.

The FeliCa reader/writer function of the handset conforms to the domestic radio wave standards. Using the function overseas may result in punishment.

Never change the basic software improperly.

This may be regarded as a conversion of software and repairs may be refused.

Waterproof

SH-04G is waterproof to IPX5*1 and IPX7*2 standards if the docomo nano UIM card/microSD Card slot cover is securely closed.

*1 IPX5 means that phone keeps functioning after being subjected

to a jet flow (12.5 liters/min) discharged from a nozzle (inner diameter: 6.3 mm), from all directions (approximately 3 m from the handset) for 3 minutes or more.

*2 IPX7 means that SH-04G phone keeps functioning after it is

slowly submerged to depth of 1 m in static tap water at room temperature, left there for approximately 30 minutes and then taken out.

What you can do with waterproof of SH-04G

You can call without using an umbrella in the rain (for rainfall of

approximately 20 mm per hour).

You can rinse off dirt from the handset. Wash the handset with

low-pressure water flow (6 liters/min or lower and tap water at room temperature (between 5°C and 35°C)), holding it approximately 10 cm below faucet or shower head. Wash by using only your hands, not a brush or sponge, with the docomo nano UIM card/microSD Card slot cover held in position. Drain the handset before use (nP. 11 “Draining water when the handset gets wet”).

You can use the handset at a poolside. Do not throw water in a

swimming pool on the handset or soak the handset in the water of a swimming pool.

Things to keep in mind

To maintain waterproof performance, check the followings.

Securely close the docomo nano UIM card/microSD Card slot

cover. Be careful not to apply excessive force on the rubber gasket when opening and closing.

Make sure that the docomo nano UIM card/microSD Card slot

cover is completely closed without floating.

To maintain waterproof performance, the handset has the

docomo nano UIM card/microSD Card slot cover that allows you to close securely. Note that opening it forcibly may cause injuries to your nails, fingers, etc.

For details on how to open/close the docomo nano UIM card/

microSD Card slot cover nP. 14 “Inserting docomo nano UIM card”

To maintain waterproof performance, replacement of parts is

recommended every 2 years regardless of whether the handset appears normal or abnormal. DOCOMO replaces the parts as a chargeable service. Bring the handset to a repair counter that DOCOMO specifies.

Precautions

When your hands or the handset is wet, do not open/close the

docomo nano UIM card/microSD Card slot cover.

Close the docomo nano UIM card/microSD Card slot cover

securely. Even a fine obstacle (one hair, one grain of sand, tiny fiber, etc.) put between contact surfaces may allow water to get inside.

If the handset gets wet with water or other liquids with the

docomo nano UIM card/microSD Card slot cover opened, the liquid may get inside causing electric shocks or malfunction. Stop using the handset, turn off the power and contact a repair counter that DOCOMO specifies.

Contents/Precautions

The rubber gasket of the contact surface between the main body

and docomo nano UIM card/microSD Card slot cover plays an important role in maintaining waterproof performance. Do not remove or scratch it. Also, prevent dust from adhering to it. If the rubber gasket is damaged or deformed, replace it at a repair counter that DOCOMO specifies.

Do not insert a pointed object through the docomo nano UIM

card/microSD Card slot cover gaps. It may cause damage to the rubber gasket and allow water to get inside.

Do not use the handset underwater (including key operations).

May cause malfunction.

Do not directly apply water flow stronger than allowed (over 6

liters/min). May cause malfunction though SH-04G provides waterproof performance of IPX5.

Do not let the handset get wet with liquids other than water at

room temperature (between 5°C and 35°C) or do not soak the handset in the liquids. If you let the handset get wet with liquids other than water at room temperature or soak the handset in the liquids, stop using the handset and wash it with water at room temperature.

Do not wash the handset in a washing machine etc. To prevent condensation, do not bring the handset from a cold

place to a warm place without letting the handset warmed to room temperature.

Never soak the handset in hot spring water or water containing

soap, detergent or bath powder.

Do not soak the handset in hot water, use it in a sauna or apply

hot air (from a hair dryer etc.) to it.

Do not soak the handset in seawater. Do not put the handset directly on sand/dirt. Do not leave the handset wet. In cold places, water may freeze

and cause malfunction.

The handset does not float on water. Do not let the handset fall. It may become scratched and cause

the waterproof performance to degrade.

Do not leave water on the mouthpiece/microphone, earpiece,

speaker or earphone/microphone terminal. Such water may interfere with talking.

Do not poke the mouthpiece/microphone, earpiece, speaker, air

vent, external connector terminal, earphone/microphone terminal, etc. with a pointed object.

Do not insert an earphone/microphone to the handset while the

handset is wet. May cause malfunction.

Optional parts are not waterproof. Do not use them in rooms

where water is regularly in use such as bathroom, shower room, kitchen or lavatory.

Soap/Detergent/ Bath powder

Seawater

Swimming pool

Draining water when the handset gets wet

When the handset is wet, water may flow out after wiping it off. Drain the water by following the steps below.

Wipe off water on the handset surface with dry

and clean cloth etc.

: If a strap is attached, dry the strap as well.

Shake the handset approximately 20 times,

securely holding it, until there is no more water splattering

To drain water off the speaker, shake the handset with the speaker turned down

Softly press the handset against dry and clean

cloth etc. to wipe off water remaining in the grooves of the mouthpiece/microphone, earpiece, speaker, keys, air vent, external connector terminal, earphone/microphone terminal, strap hole, etc.

Pat the opening with cloth etc. to remove water because there may be any water remaining in the grooves of each part.

To drain water off the earpiece, shake the handset with the earpiece turned down

Hot spring Sand/Dirt

DOCOMO does not guarantee actual operations under all

states. Malfunctions deemed to be caused by inappropriate operation by the customer are not covered by the warranty.

Contents/Precautions

Wipe off water oozing from the handset with dry

and clean cloth etc. and leave it for a while to dry it

: Water, if any, remaining in the main body may ooze after

wiping off.

: Pat the opening with cloth etc. again to remove water

because you may not be able to hear sounds well if drainage is insufficient.

Charging

Optional parts are not waterproof. Check the followings before and after charging.

Make sure that the handset is not wet. If the handset is wet or

after the handset is wet, adequately drain it and wipe off water with dry and clean cloth etc. then leave it for a while to dry it before opening the docomo nano UIM card/microSD Card slot cover.

Warning

Never try to connect the microUSB plug when the handset is wet.

Inserting the microUSB plug while the equipment is wet may

cause short circuit when you charge the battery and lead to abnormal overheat, malfunction, fires or burns due to water, foreign objects, etc. adhering to the handset or microUSB plug though the handset provides waterproof performance.

Do not touch an AC adapter (sold separately) with your hands

wet. May cause electric shock.

Do not use the AC adapter in a place subject to water. Do not

use it in rooms where water is regularly in use such as bathroom, shower room, kitchen or lavatory. May cause fires or electric shock.

Contents/Precautions

Before Using the Handset

Part names and functions

d x/y: Volume UP/DOWN key

Adjusts the volume in each function.

e Strap hole f docomo nano UIM card/microSD Card slot cover g Air vent

A vent to remove excess air from the handset.

h Back camera i Speaker

Ringtone, music, etc. can be heard from here. The other party's voice can be heard from here during a

hands-free call.

j a mark

IC card is contained (It cannot be removed).

k FOMA/Xi antenna l Mouthpiece/Microphone m GPS/Wi-Fi/Bluetooth antenna n FOMA/Xi sub antenna

*1 Do not cover the sensor area with your hand or paste a sticker

etc. on the sensor area. The sensor may not work properly.

*2 The antenna is built into the main body. Covering the antenna

area with your hand may influence the quality.

Earphone/Microphone terminal

For details on the corresponding earphone/microphone, refer to

the following website.

(http://k-tai.sharp.co.jp/support/d/sh04g/peripherals.html#!/

earphone_support) (in Japanese only)

docomo nano UIM card

A docomo nano UIM card is an IC card that records personal information, such as your phone number.

You cannot use functions such as the phone or packet

communication without inserting a docomo nano UIM card.

In Japan, you cannot call to the emergency number (110, 119 or

118) without inserting a docomo nano UIM card.

A docomo nano UIM card has a security code called PIN code

(nP. 65 “PIN code”).

The handset supports only docomo nano UIM card. If you have a

docomo mini UIM card, UIM or FOMA card, bring it to a docomo Shop to replace.

Before inserting or removing the docomo nano UIM card, turn off

the power. Hold the handset securely with your hand.

1 External connector terminal 2 Display/Touch panel 3 Incoming/Charging lamp 4 Earpiece 5 Proximity sensor/Brightness sensor

The proximity sensor detects the distance to the face and

prevents inadvertent operation of touch panel during a call.

The brightness sensor detects the brightness of the

surrounding area and adjusts the brightness of the backlight.

6 Infrared port 7 Front camera 8 docomo nano UIM card slot

The tray for inserting the docomo nano UIM card is stowed.

9 microSD Card slot a Earphone/Microphone terminal b Mobile light c H: Power key

Use to turn the power on/off, etc. Use to turn the display on/off.

Before Using the Handset

■ Inserting docomo nano UIM card

Slot

Notch

IC (gold)

docomo nano UIM card slot (display side)

Open the docomo nano UIM card/microSD Card

slot cover

: Hook the tip of a finger into the slot to open.

Remove the tray from the docomo nano UIM

card slot

: Hook the tip of a finger into the tray to remove it by slowly

pulling it straight out.

Hold the docomo nano UIM card with the IC

(gold) side turned up and set it on the tray

Insert the tray slowly into the docomo nano UIM

card slot

Close the docomo nano UIM card/microSD Card

slot cover

: To prevent gaps from being left between the handset and the

docomo nano UIM card/microSD Card slot cover, close it in the direction of the arrow (1) and push the A areas securely (2).

■ Removing docomo nano UIM card

Open the docomo nano UIM card/microSD Card

slot cover

Remove the tray from the docomo nano UIM

card slot

Remove the docomo nano UIM card from the

tray

Insert the tray slowly into the docomo nano UIM

card slot

: The docomo nano UIM card slot is below the microSD Card

slot. When you insert the tray, be careful not to insert it to the microSD Card slot.

: Do not forcibly insert the tray at an angle or with the wrong

side up. The docomo nano UIM card slot or tray may be damaged.

Close the docomo nano UIM card/microSD Card

slot cover

Do not allow the docomo nano UIM card or tray to fall when

removing them.

Make sure not to touch or damage the IC (gold) of the docomo

nano UIM card when handling it. Also, note that inserting or removing the docomo nano UIM card forcibly may damage it or deform the tray.

Refer to the docomo nano UIM card user's guide for more

information on the docomo nano UIM card.

Do not misplace the docomo nano UIM card once it is removed.

IMEI plate

A plate on which the IMEI number (International Mobile

Equipment Identifier) is printed is stowed near the microSD Card slot. The IMEI number is required when you contact a repair counter that DOCOMO specifies, so do not pull it out.

Note that pulling out the IMEI plate forcibly or adding forces on

it may damage the plate.

If you accidentally pull out the IMEI plate, push it back slowly

towards inside.

Before Using the Handset

Charging

The internal battery is not fully charged at the time of purchase. Be sure to charge the battery before use.

■ Cautions while charging

For details on the estimated charge time nP. 84 “Main

specifications”

The battery can also be charged with the handset turned on

(While charging, the battery icon appears with [w] superimposed).

Do not charge for a long time with the power left turned on. If the

handset is left turned on after charging is complete, the internal battery charge level decreases. In this case, an AC or DC adapter (sold separately) charges the battery again. However, depending on the time when the handset is disconnected from the AC or DC adapter, the battery charge level may be low or the battery may only be usable for a short time.

If the handset is left for a long time even after the charging is

completed, the battery level may decrease.

When the battery is empty and the handset is being charged, the

charging lamp may not illuminate immediately. However, charging is in progress.

If the battery empty alert is displayed and the power cannot be

turned on, charge the battery for a while.

While charging, the handset may not be turned on even when the

charging lamp is illuminated in red. Charge longer and try turning the power on again.

Frequently recharging the battery when its power is still

remaining enough may shorten the usable life of the internal battery. It is recommended to use the battery to a certain level (e.g. after the battery level decreases) before recharging.

When the battery becomes warm, charging may automatically

stop even if the battery has not been fully charged. Charging automatically resumes after the temperature lowers to an appropriate temperature.

■ Estimated battery life when fully charged

Continuous talk time

Continuous stand-by time

For details on the battery life nP. 84 “Main specifications”

■ Internal battery usable life

Internal battery is a consumable product. Battery life per charge

is gradually reduced every time the battery is charged.

When battery life per charge is reduced to approximately half of

the default time, this means that the internal battery is approaching the end of its usable life. In this case, it is recommended to replace the battery as soon as possible. For details on replacing the internal battery, contact the number listed in “Repairs” (in Japanese only) on the last page or a repair counter that DOCOMO specifies.

FOMA/3G

Approx. 910 min

VoLTE (Voice call)

Approx. 960 min

FOMA/3G

At rest: Approx. 710 hr (Preferred network type: LTE/3G(Auto))

LTE

At rest: Approx. 620 hr (Preferred network type: LTE/3G(Auto))

If you watch video etc. while charging for a long time, the usable

life of the internal battery may become shorter than estimated.

■ AC adapter and DC adapter

Refer to user's guide of AC Adapter 05 (sold separately) or DC

Adapter 04 (sold separately).

AC Adapter 05 covers from 100 to 240V AC. The shape of the plug for the AC adapter is for 100V AC (for

domestic use). To use the AC adapter of 100 to 240V AC overseas, a conversion plug adapter applicable to your country of stay is required. Do not use a voltage converter for overseas travel to charge the battery.

Charging with AC adapter/DC adapter

[Read the user's guides of AC Adapter 05 (sold separately) and DC Adapter 04 (sold separately)]

Following operations describe how to charge with AC Adapter 05

or DC Adapter 04.

Insert the microUSB plug of the AC adapter/DC

adapter horizontally into the external connector terminal on the handset with the side marked with “B” turned up

: Check the direction (front or rear) of the microUSB plug and

insert it horizontally.

Charging lamp

microUSB plug

External connector

Keep side marked with “B” up

When you erect the AC adapter power plug and

insert it into an outlet or insert the DC adapter power plug into a car cigarette lighter socket, the charging lamp illuminates and charging starts

Power plug

100V AC outlet

AC adapter DC adapter

terminal

Power plug

Cigarette lighter socket

Before Using the Handset

When charging is complete, the charging lamp

turns off

Remove the AC adapter power plug from the

outlet, or remove the DC adapter power plug from the car cigarette lighter socket

Remove the microUSB plug of the AC adapter/

DC adapter horizontally from the external connector terminal

Note that inserting or removing the equipment forcibly may

cause damage to the external connector terminal and the microUSB plug or result in a malfunction.

When using a DC adapter

The DC adapter should only be used in negative grounded

vehicles (12 and 24V DC).

Do not use with the car engine shut off. May drain the car

battery.

The DC adapter fuse is a consumable product. For

replacement, purchase a new fuse at a nearest auto parts retailer etc.

Refer to the user's guide of DC Adapter 04 for details.

Charging with Micro USB Cable 01

You can charge the handset by connecting the handset to a PC with Micro USB Cable 01 (sold separately).

For details on connecting to a PC nP. 74 “Connecting the

handset and PC”

Turning power on/off

■ Turning power on

H (for at least 2 seconds)

: When you turn the power on for the first time, make the initial

settings (nP. 21 “Initial settings”).

■ Turning power off

H (for at least 1 second)/[Power off]/[OK]

■ Turning power off forcibly

You can forcibly turn the power off if the screen does not respond or the power cannot be turned off.

H (for at least 8 seconds)

: Release your finger after the vibrator is activated to turn the

power off.

■ Turning display on/off

The display is turned off when H is pressed or the handset is not in use for a set length of time. Press H while the display is turned off to turn it on.

■ Touch panel lock

When the power or the display is turned on, the touch panel is locked. Touch [J] to unlock.

Operations in touch panel lock screen

To set/disable the manner mode: y (for at least 2 seconds) To turn on/off the mobile light: x (for at least 2 seconds) To activate SH Camera: [K] To activate しゃべってコンシェル (Shabette-Concier): [W] To display the detailed information on notifications: Drag the

clock down

To display the status panel: Drag the status bar down

The notifications are displayed in the lock screen of the touch

panel. You can make settings for displaying of notifications in [When device is locked] (nP. 59 “Sound/notification”).

Mobile light

The mobile light may be automatically turned off if you use the

handset for a long time or the handset becomes warm after the mobile light is turned on. Also, you may not be able to use the mobile light if the handset is warm.

Basic operation

The followings describe basic operations of the handset such as operations of the touch panel and navigation keys, and operations for shooting screenshot.

Operation of touch panel

The followings describe the operations to use the display (touch panel).

Operations may differ depending on the function and screen in

use.

Cautions when using the touch panel

The touch panel is designed to be lightly touched with your

finger. Do not forcefully press with your finger or a pointed object (fingernail, ballpoint pen, pin, etc.).

In the following cases, the touch panel may not work even if

you touch it. May cause a malfunction.

Operation with a gloved finger Operation with the tip of a fingernail Operation with foreign objects placed on the operation pad Operation on the touch panel on which a protective sheet,

sticker, etc. is put

Operation while the touch panel is wet Operation with fingers wet with sweat, water, etc.

Operations may be interrupted if you touch an area other than a

confirmation screen or the status bar while the confirmation screen etc. is displayed.

Before Using the Handset

■ Touch

Touch a key or an item displayed on the screen and then release your finger from it to select or set it.

■ Touch and hold

When you keep your finger on the touch panel, a menu may appear depending on the function and screen in use.

■ Slide (Swipe)/Drag

Move your finger while keeping it on the touch panel to scroll the screen or move an icon, a widget, etc. to the desired position. In addition, when you touch a menu or an item by mistake, move your finger away from it to cancel the selection.

■ Flick

Move your finger like sweeping the touch panel in the home screen etc. to switch pages.

■ Pinch out/Pinch in

You may be able to zoom the screen in/out etc. by putting two fingers on the touch panel and moving them with putting a distance between two fingers apart (pinch out)/closer (pinch in) depending on the function and screen in use.

■ Using user-aid function

You can quickly activate apps supporting the user-aid function.

Slide any of the navigation keys up/slide it to

the left/right until [Google] is displayed

: If there are multiple apps supporting the user-aid function,

[q] is displayed and you can select an app to activate.

■ Full-screen shrink mode

You can reduce the screen to operate the handset with one hand.

Slide any of the navigation keys up/slide it to

the left/right until [r]/[p] is displayed

: Repeat the same operation as that done when reducing the

screen to return it to the original size.

: Touch [C] to move the reduced screen or change the size.

You may not be able to reduce the screen depending on the

screen being displayed.

The Full-screen shrink mode is disabled if you switch to

horizontal display or the display is turned off while the Full-screen shrink mode is set.

■ Retrieving menu

When you touch [{]/[z]/[|] etc., slide the left edge of the screen to the right or touch and hold the screen, functions (menus) available in that screen appear.

Example: App screen

Operation while using function

■ Navigation keys

Use the navigation keys displayed at the bottom of the screen to perform the basic operations.

1 {/v: Back key/Close key

Return to the previous screen. Close the keyboard.

2 |: Home key

Display the home screen.

3 }: Recent Apps key

Display Quick Launcher or Recent Apps (nP. 26 “Quick

Launcher”, P. 27 “Recent Apps”).

■ Switching the settings

When a check box etc. is displayed beside the setting item, you can set it enabled/disabled or ON/OFF by touching it.

Example: Call settings screen, Backup & reset screen

[0]: Enabled, [1]: Disabled

[t]: ON, [u]: OFF

Before Using the Handset

■ Vertical/Horizontal display

12 keyboard

The screen display is switched when you tilt the handset. Vertical/Horizontal display may not be switched even if the

handset is turned depending on the screen being displayed.

Vertical/Horizontal display is not switched if the handset is turned

while it is positioned parallel to the ground.

The screen display may not be switched properly when a sound

or a vibration is being activated.

Vertical/Horizontal display may not be switched properly right

after the display or power is turned on.

You can set the display not to automatically switch

(nP. 60 “Display”).

Screens may be displayed in the full screen depending on the

app when you switch from vertical display to horizontal display.

Shooting screenshot

Hold H + y down for at least 1 second to shoot the screen being displayed as an image.

Shot images are saved on the handset memory and you can

check them by using Album etc.

Data cannot be saved while displaying e-books etc.

Data may not be saved completely or partially depending on the

app.

Emergency mode

You can save the internal battery by restricting settings and functions on the handset.

H (for at least 1 second)/[Emergency

mode]/[OK]

: The handset restarts and it switches to Emergency mode.

■ Disabling Emergency mode

H (for at least 1 second)/[Emergency

mode]/[OK]

: Alternatively, in the Emergency mode screen, [Stop

saving]/[OK] to disable Emergency mode.

: The handset restarts and Emergency mode is disabled.

Searching information on the handset and websites

In the home screen, select “Google” folder/

[Google]

: If the confirmation screen for Google Now™ is displayed,

check the content, follow the instructions on the screen and operate.

: Quick search box appears.

Enter the keyword

Select the search result

: When a search result is an app, the corresponding app is

activated.

: If [Images] etc. is displayed, you can search by selecting a

genre.

: When you cannot see search results hidden behind the

keyboard, touch [v] to close the keyboard.

■ Search settings

In the quick search box, slide the left edge of

the screen to the right/[Settings]

: Alternatively, if [s] is displayed in the quick search box,

[s]/[Settings] to carry out search settings.

Select an item

Accounts & privacy: Make settings for account or privacy

such as Google Account and SafeSearch filter used for searching.

Search language: Set language when displaying the results

of keyword search.

Voice: Make settings for the voice input. Phone search: Set the range for subjects to search. Now cards: Make settings for Google Now. About: Confirm the version of this app and legal.

Character entry

You can enter characters using the QWERTY keyboard, 12 keyboard, voices and kuten codes.

When entering characters, touch [D] at the bottom of the

screen to set the input software to use. The explanations are based on the case when [S-Shoin] is set here.

Keyboard layouts

You can use the following two types of the keyboards.

QWERTY keyboard

12 keyboard Several characters are assigned to one

You can enter a displayed character by touching the character entry key. Use romaji for entry.

character entry key. Enter characters by flicking a character entry key up/down or to the left/right. You can enter characters by touching a

character entry key until a character which you want to enter is displayed.

QWERTY keyboard

1 Search box

Enter the keyword to search with. When the keyword is entered, apps, data, etc. whose

names start with the entered characters are searched and displayed as a list.

2 Switch to Voice Search

Alternatively, say “Ok Google” at the microphone to

switch to Voice Search.

Each key may change depending on the settings and the condition.

※

Before Using the Handset

1 Shift key

Touch to switch between upper/lower case characters etc.

･ When [*] is displayed, lower case characters are entered.

When [+] is displayed, the first character to be entered becomes upper case one. When [,] is displayed, upper case characters are entered.

･ Symbols that can be entered using the keyboard change

when you switch the upper/lower case characters.

2 Input mode switching key

Switch input modes.

･ Touch to switch input modes in the order of Half Numeric b

Hiragana/Kanji b Half Alphabet. Slide to the right to switch input modes in the order of Hiragana/Kanji b Half Numeric b Half Alphabet.

･ Slide up to select an input mode other than Hiragana/Kanji,

Half Alphabet and Half Numeric as well.

･ The keyboard set in each input mode is displayed.

3 Delete key

Delete characters displayed in a direction set in Delete key

behavior.

4 Enter key

Insert a line feed. Determine the entered characters. Execute operations entered in an entry field such as the

search box.

Move to the next entry field. Touch and hold to close the keyboard.

5 Symbol key

Display the pictogram/Deco-mail pictogram/symbol/emoticon

list. ･ You cannot enter these symbols in some apps.

Slide to the right to display Quote apps list.

6 Katakana and alphabet key

Display katakana of the entered characters or conversion

candidates (katakana and alphabet conversion candidates) of alphabets or symbols assigned to a touched key.

Slide to the right to display Quote apps list.

7 Undo key

Undo the previous operation.

8 Setting key

Display setting menu.

9 Space key

Enter a space.

a Conversion key

Convert the input characters.

b Cursor key

Move the cursor or change the range of characters to be

converted.

c Move position

Touch [1]/[2] to

field, etc. to the left/right.

d Katakana and alphanumeric key

Display katakana of the entere

candidates (katakana and alphanumeric conversion candidates) of alphanumerics or symbols assigned to a touched key.

Slide to the right to display Quote apps list.

e Reverse toggle key

Display characters assigned to the same key in the inverse

order.

f Character switching key

Touch to switch the upper/lower case characters. Touch to add dakuten/handakuten.

move the keyboard, conversion candidates

d characters or conversion

■ Switching keyboards

Example: In Hiragana/Kanji input mode on vertical display

In the character entry screen, [T]/[Input UI]/

[QWERTY keyboard]/[12 keyboard]

: Alternatively, slide [T] up to switch keyboards.

Setting character entry

■ Display/Layout

In the character entry screen, [T]/[Display /

Layout]

Select an item

Keyboard layout: Make settings for the keyboard size, the

number of lines of the conversion candidates field, alignment, the key top guides and design.

Emoji/Symbol list rows: Set the number of columns of

pictograms list/symbols list.

Key input guide: Set whether to zoom in the selected key and

to display the guide of flick input.

Software keyboard display setting: Set whether to display the

character entry screen when you connect a commercially available keyboard using the Bluetooth function etc. and enter characters.

■ Input assistance

In the character entry screen, [T]/[Input

assistance]

Select an item

Flick sensitivity: Set the sensitivity of the keyboard for when

selecting characters with flick input.

Guide display speed: Set how fast the guide is displayed

while entering characters with flick input.

Toggle input: Set whether to use the toggle input. Sound on key press: Set whether or not to enable operation

sounds of entering characters.

Vibrate on key press: Set whether to activate the vibrator

when entering characters.

Vibration time on key press: Set how long Vibrate on key

press keeps the vibrator activated.

Voice input provider: Set where to connect when using the

voice input.

Delete key behavior: Set the operations of the delete key. Romaji input assistance: Set to prevent unnecessary keys

from being touched when entering Japanese with romaji.

Auto cursor move: Set the speed for the cursor to

automatically move to the right side after entering characters.

Emoji/Symb/:) continuous input: Set whether to keep the

pictogram/symbol/emoticon list displayed after selecting a candidate from it.

[Delete key behavior]

When the cursor is on a character, delete the character. When

[Left-delete (Backspace)] is set and the cursor is at the beginning of a text, you can delete characters on the right side of the cursor. When [Right-delete (Clear)] is set and the cursor is at the end of a text, you can delete characters on the left side of the cursor.

■ Conversion

In the character entry screen, [T]/[Other

settings]/[Conversion]

Select an item

Word prediction: Set whether to use the predictive

conversion.

Next word guess: Display relational predictive candidates

immediately after an entry is determined.

Wildcard prediction: Set whether to use the wildcard

prediction.

Typing error correction: Set Typing error correction.

Before Using the Handset

Beginning prediction for mail: Display text candidates to use

at the beginning of a message when entering the message for a mail.

Internet conversion engine: Display conversion candidates

by using a conversion engine on the Internet.

Auto capitalization: In half-width alphabet entry, enter an

initial character at the head of a text with upper case one.

Auto space input: In half-width alphabet entry, automatically

insert a half-width space after selecting an English word.

[Auto capitalization]

This function may not follow the setting depending on the app in

use.

■ Dictionary

In the character entry screen, [T]/[Other

settings]/[Dictionary]

Select an item

User dictionary: Edit words in the user dictionary. Download dictionary: Register/Cancel/Delete downloaded

dictionaries.

Update conversion dictionary: Update or download

conversion dictionaries.

Contacts name collaboration: Add name data of the

phonebook to the dictionary or reset the name data in the dictionary.

■ Slide operation

In the character entry screen, [T]/[Other

settings]/[Slide operation]

Select an item

Upward slide: Set the operations available when you slide

the keyboard from its bottom to top.

Downward slide: Set the operations available when you slide

the keyboard from its top to bottom.

Rightward slide: Set the operations available when you slide

the keyboard from its left edge to right edge.

Leftward slide: Set the operations available when you slide

the keyboard from its right edge to left edge.

■ Reset

In the character entry screen, [T]/[Other

settings]/[Reset]

Select an item

Set the default settings: Reset the settings of S-Shoin. Clear learning dictionary: Reset the learning dictionary. Reset facemark list: Reset the contents of the emoticon list.

Entering characters

Example: When entering “文字”

In the character entry screen, enter “もじ”

1 Enlarge/Reduce

Enlarge/Reduce the conversion candidates field.

2 Conversion candidates field

Displayed when [Word prediction] is enabled. Touch one of conversion candidates to enter. If you set an Internet conversion engine, [Net conv] is

displayed. Touch it to display conversion candidates searched by the conversion engine on the Internet.

[Convert]

In the conversion candidates field, select “文字”

1 Range reduction/Range enlargement

Reduce/Enlarge the range of characters to convert. Displayed only when available.

2 Close

Close the conversion candidates field.

3 Conversion candidates field

Touch one of conversion candidates to enter. If you set an Internet conversion engine, [Net conv] is

displayed. Touch it to display conversion candidates searched by the conversion engine on the Internet.

4 Determine

Determine the conversion.

5 Predictive candidates

Predictive candidates are displayed.

6 Conversion candidates

Conversion candidates are displayed.

7 Katakana and alphanumeric

Katakana and alphanumeric conversion candidates are

displayed.

■ Wildcard prediction

Conversion candidates are predicted according to the number of the entered characters and appear.

Enable [Wildcard prediction] in advance (nP. 19 “Conversion”). This function is available in the Hiragana/Kanji input mode and

the Half Alphabet input mode.

Example: When entering “アナウンス”

In the character entry screen, enter “あな”

[S]/[S]/[S]

: Each time you touch [S], [*] is entered and the predictive

candidates appear according to the number of characters.

In the conversion candidates field, select “アナ

ウンス”

■ Inputting with kuten codes

You can use four-digit kuten codes assigned to each character for entering kanji, hiragana, katakana, symbol, alphanumeric characters, etc.

In the character entry screen, slide the input

mode switching key up/[Character Code]

Before Using the Handset

Input a kuten code

: After the fourth digit is entered, the corresponding character

appears.

: After the fourth digit is entered, the input mode is switched to

the previous one.

■ Inputting with voices

You can enter characters with voices.

In the character entry screen, [T]/[Input UI]/

[Voice Input]

: Alternatively, slide [T] to the right while the QWERTY

keyboard is used or slide [T] down while the 12 keyboard is used to switch to the voice input.

Speak at the microphone

In the following cases, the voice input may not work properly.

When the voice is too loud When the surrounding noise is big When the phonation is not clear When the phonation is not natural When the pronunciation is too fast When any key is pressed or the microphone is touched

■ Editing characters

You can perform operations such as cutting, copying or pasting by selecting the entered characters.

Touch and hold the entered characters

Edit the characters

: To specify the selection range: Drag [d]/[e] or [b]/[c] : To display the history of cut and copied characters: [T]/

[Quote apps]/[Copy History SH]

1 Select all

Select all the entered characters.

2 Cut

Cut the selected characters.

3 Copy

Copy the selected characters.

4 Paste

Paste the cut or copied characters. Alternatively, touch and hold the character entry field/

[PASTE] to paste them.

Touch and hold the character entry field/

[CLIPBOARD]/select characters to enter to paste them from the history.

Up to 10 history items of cut and copied characters can be

saved.

If the number of history items of cut and copied characters

exceeds the maximum number to be saved, they are deleted from the oldest one.

Changing screen display to English

In the home screen, [R]/[設定] (Settings)/[言

語と文字入力] (Language & input)/[言語 (Language)を選択] (Select language)/[English]

Initial settings

When you turn the power on for the first time, the initial settings screen is displayed. Follow the instructions on the screen and operate.

The following items can be set. However, items to be displayed

may differ depending on the Google account settings.

Language setting Wi-Fi settings (nP. 22 “Wi-Fi settings”) Check software update Google account settings by Tap & Go Google account settings (nP. 23 “Setting up Google account

etc.”)

Set up payment info Get your apps & data Owner's information of the handset Google services Google Now setting

The confirmation screens for sending device error information

and for software update are also displayed.

■ Initial settings for docomo service

When the initial settings screen for docomo

service is displayed, [Agree to all]/[Start settings]

Make the initial settings

: The following items can be set.

docomo ID docomo cloud docomo apps password docomo location information Remote Initialization Service Install all apps

* This is not displayed when you have not set a docomo

apps password.

[Start using]

Setting an access point

An access point (sp-mode) for Internet connection is registered by default. You can add other access points and change them if necessary. For details on sp-mode, refer to the DOCOMO website. If you want to use mopera U or Business mopera Internet, add an access point of either provider manually. For details on mopera U, refer to the mopera U website.

■ Checking an access point in use

In the home screen, [R]/[Settings]/[More]/

[Cellular networks]/[Access Point Names]

Before Using the Handset

■ Setting additional access points

Never set the MCC to a figure other than 440 or the MNC to a

figure other than 10. Otherwise the added access point disappears from the screen.

In the home screen, [R]/[Settings]/[More]/

[Cellular networks]/[Access Point Names]/ [m]

[Name]/enter the name of the network profile

to create/[OK] [APN]/enter the access point name/[OK]

Enter other items required by network

operators/[z]/[Save]

If the settings of MCC and MNC are changed and the added

access point disappears from the screen, reset the settings or set the access point manually.

Resetting an access point

Reset an access point to default setting.

In the home screen, [R]/[Settings]/[More]/

[Cellular networks]/[Access Point Names] [z]/[Reset to default]

When sp-mode is not subscribed or if you fail to make

automatic setting of an access point due to signal status such as outside the service area, you are required to set the access point again manually.

Wi-Fi settings

If you use Wi-Fi function of the handset, you can use mail or Internet by connecting to access points of your home, corporate network or public wireless LAN service.

Radio interference with Bluetooth devices

Wireless LANs (IEEE 802.11b/g/n) use the same frequency

band (2.4 GHz) as Bluetooth devices. Therefore, using the wireless LAN device near a Bluetooth device may cause radio interference, lowering of communication speed, noise or connection failure. In this case, turn off the Bluetooth device or keep the handset and the wireless LAN device at least approximately 10 m away from the Bluetooth device.

Packet communication is also available while [Wi-Fi] is set to On.

Wi-Fi connection is prioritized while Wi-Fi connection is set, but the connection is automatically switched to that of LTE/3G network once Wi-Fi connection is terminated. Note that packet communication charges may be incurred in this case.

Refer to the manual of your wireless LAN base unit when using

the access point at home etc.

Operate access point registration near the access point. If you use the docomo service by using Wi-Fi function, set a

docomo ID in advance. In the home screen, [R]/[Settings]/ [docomo service/cloud]/[docomo ID設定] (Set docomo ID) to

set it.

In the home screen, [R]/[Settings]/[Wi-Fi]

Set to On

Select an access point

: If you select an access point protected by security, enter the

password (security key) and select [CONNECT].

: To register access points manually: [z]/[Add network]/

enter the network name/set security/[SAVE]

: WPS compatible access points can be easily registered. In

the home screen, [R]/[Settings]/[Wi-Fi]/[z]/[Easy Settings]/[WPS Push Button]/[WPS Pin Entry] to register an access point.

: Alternatively, in the home screen, [R]/[Settings]/[Wi-Fi]/

[z]/[Easy Settings]/[AOSS] to connect to an access point. Follow the instructions on the screen and operate after this step.

When you select an access point and connect to it with a wrong

password (security key), [Avoided poor Internet connection] or [Authentication problem] is displayed. Confirm the password (security key). When [Avoided poor Internet connection] is displayed after entering the correct password (security key), you may not have acquired the correct IP address. Connect to the access point again after confirming signal status.

The registration process using WPS takes a few minutes. After

completion of the registration of the access point, check that the proper connection to the access point is acquired.

As for the manual registration of an access point, this function

supports WEP, WPA/WPA2 PSK and 802.1xEAP as the security setting.

If you connect to an access point which is not connected to the

Internet, [5] is displayed and the communication may be made by mobile networks, not Wi-Fi connection. To make Wi-Fi communication by using such an access point, enable [Using this AP without internet connection] of Advanced options before connecting to the access point.

■ Detailed settings

In the home screen, [R]/[Settings]/[Wi-Fi]

[z]/[Advanced]

Select an item

Network notification: Set whether to display a notification

icon when an open network is detected. ･ Set it after setting [Wi-Fi] to On.

Scanning always available: Set whether to scan networks by

the location information service and other apps even when [Wi-Fi] is set to Off.

Wi-Fi sleep policy: Set whether to disconnect Wi-Fi when the

display is turned off.

Avoid poor connections: Set whether to use the Wi-Fi

function only when stable Internet connections are available.

Handover: Set whether to automatically switch access points

to use if you use the handset while moving.

Install certificates: Install certificates. Wi-Fi Direct: Make settings for Wi-Fi Direct. Passpoint: Set whether to automatically connect to the

available Passpoint compatible access points when [Wi-Fi] is set to On.

MAC address: Confirm the MAC address. IP address: Confirm the IP address.

■ Disconnecting

In the home screen, [R]/[Settings]/[Wi-Fi]

Select the connected access point/

[DISCONNECT]

: Disconnect with the password retained. The access point

may be automatically connected again such as when the display is turned on.

Before Using the Handset

Tethering

You can use the tethering function that connects Wi-Fi compatible devices, or PCs etc. connected via Micro USB Cable 01 (sold separately) or Bluetooth communication to the Internet by using the handset as an access point.

You can connect up to 16 devices in total at the same time: a PC

connected via Micro USB Cable 01, 10 Wi-Fi compatible devices and five Bluetooth devices.

The handset supports dial-up connections via DUN profile. Before using Bluetooth tethering, register the other party's

Bluetooth device in advance (nP. 72 “Using Bluetooth function”). As for the settings on the Bluetooth device, refer to its manual.

In the home screen, [R]/[Settings]/[More]/

[Tethering]

Select an item

USB tethering: Set whether to use the USB tethering. Wi-Fi tethering: Set whether to use the Wi-Fi tethering. Set up Wi-Fi hotspot: Make settings for Wi-Fi tethering such

as network name and security.

Wi-Fi tethering Easy Connection: Set whether to use the

tethering by connecting to WPS compatible access points.

Bluetooth tethering: Set whether to use the Bluetooth

tethering.

[USB tethering]

The tethering function is available on Windows Vista, Windows

7, Windows 8, Windows 8.1 and Linux.

A microSD Card inserted in the handset cannot be mounted on

a PC during USB tethering.

For details on USB tethering, refer to the following website.

(http://www.android.com/tether#usb)

[Wi-Fi tethering]

While the handset is functioning as an access point, it cannot

access the Internet via Wi-Fi connection.

Make settings for Wi-Fi access points in [Set up Wi-Fi hotspot].

For details on Wi-Fi tethering, refer to the following website.

(http://www.android.com/tether#wifi)

[Set up Wi-Fi hotspot]

At the time of purchase, Network name is set to [SH-04G_AP]

and Security is set to [WPA2 PSK] while Password is set randomly. Change the settings if necessary.

Setting up mail account

In the home screen, [R]/[Email]

: When you use this for the first time, you must agree to

“Privacy policy”.

: Only when an account is not set up, the account setup

screen appears.

Enter mail address/[a]

Enter password/[a]

: Provider information is preset for some mail accounts, and a

receiving mail server and a sending mail server are automatically set.

: When you use an account whose provider information is not

preset, it is necessary to set a receiving mail server and a sending mail server manually. For details on those settings, contact the Internet service provider you use.

Set up an account/[a]

Enter an account name and your name/[a]

Setting up Google account etc.

In the home screen, [R]/[Settings]/

[Accounts]/[Add account]

Select an account type

Set up an account

: In the home screen, [R]/[Settings]/[Accounts] to find the

added account on the displayed menu.

When activating the app that requires an account without

setting one up, the account setup screen appears.

Keep a separate memo of the set account and password.

■ Deleting your account

In the home screen, [R]/[Settings]/

[Accounts] Select an account/[z]/[Remove account]/

[REMOVE ACCOUNT]

: Operation methods may differ depending on the account.

■ Retrieving your Google account password

If you forget your Google account password, retrieve it.

In the home screen, [o]

Enter “(https://www.google.com/ncr) ” in the URL

entry field/[Go]/[Sign in]/[Need help?]/ follow the instructions on the screen and operate

■ Synchronizing data

You can synchronize data between the handset and online services. You can access the same personal information as those stored in online services from the handset and PC, and you can use and update data by synchronizing them.

When synchronizing automatically

Set whether to automatically synchronize items set in each account.

In the home screen, [R]/[Settings]/

[Accounts]

: To set items to synchronize: Select an account type/select

an account/select an item

[z]/[Auto-sync data]/[OK]

the phonebook of the handset memory with contacts on the online services even if you synchronize with an account other than Google account.

When synchronizing manually

When Auto-sync data is disabled, you can synchronize selected

items manually.

In the home screen, [R]/[Settings]/

[Accounts] Select an account type/select an account

Select items to be synchronized

Before Using the Handset

Importing/Exporting phonebook

■ Importing from docomo nano UIM card

In the home screen, select “ドコモクラウド”

(docomo cloud) folder/[docomo phonebook]/[Contacts]

[|]/[Import/Export]

[Import from SIM card]

: If there are multiple accounts, the screen for selecting to

which account to register is displayed.

Select the contact to import

: To import all contacts: [}]/[Import all]

■ Importing from microSD Card

In the home screen, select “ドコモクラウド”

(docomo cloud) folder/[docomo phonebook]/[Contacts]

[|]/[Import/Export]

[Import from SD card]

: If there are multiple accounts, the screen for selecting to

which account to register is displayed.

: If there is only one phonebook data saved on the microSD

Card, the data is automatically imported.

Select the phonebook data to import/[OK]

■ Exporting to microSD Card

In the home screen, select “ドコモクラウド”

(docomo cloud) folder/[docomo phonebook]/[Contacts]

[|]/[Import/Export]

[Export to SD card]

Select the contact to export/[OK]/[OK]

Incoming/Charging lamp

The incoming/charging lamp notifies you that there is a missed call, the handset is being charged, etc. by illuminating/ flashing.

State of lamp Color State of handset

Illuminating Ruby (Red) Charging in progress (Battery

Illuminating Emerald (Green) Charging in progress (Battery

Flashing Ruby (Red) Charging unavailable

Flashing Emerald (Green) During an incoming call/Call

Flashing Prism (White) New mail received

Flashing Sapphire (Blue) New docomo mail received

When the display is on, the incoming lamp which notifies you of

missed calls, new mails and new docomo mails does not flash. Check them with notification icons. When notification icons do not appear since you play videos with Media Player on horizontal display etc., check them on a screen with the status bar appearing.

level is approx. 94% or less)

level is approx. 95% or more)

missed

Screen display/Icons

Icons displayed on the status bar at the top of the screen give you various kinds of information, such as the status of the handset or the presence of missed calls. You can check the detailed information by displaying the status panel.

Viewing icons

Two kinds of icons are displayed.

Notification icon: Notifies you of missed calls, new mails, etc. Status icon: Display the status of the handset such as the

battery level or the signal status.

Status iconNotification icon

Status bar

■ Main notification icon list

Some notification icons appear with their number superimposed.

+: Missed call

?: New SMS #: New mail $: New Gmail C: New message from Hangouts k: New Area Mail !: Error

Displayed when an error has occurred.

x: Authentication of docomo ID setting failed =: Data communication disabled

Displayed when a data communication limit has been reached.

.: Alarm sounding/Snooze enabled/Missed alarm

&: Schedule notification from Calendar K: Playing music with Media Player ,: Making a call/Receiving a call/Talking on the handset/Putting

a call on hold

.: Answering memo @: Voice mail message

microSD Card

3: Preparing microSD Card 2: Unmounted

1: Available space on the handset memory being run out

G: Omakase Lock set

Bluetooth ;: Receiving registration/connection request from Bluetooth device

:: Data reception request <: DUN connection request/DUN connecting

%: USB connection (in Card reader mode connecting)

Data transmission and reception

8: Transmission H: Reception

App

:: App update available 9: Finished installing app

E: Open network h: [USB tethering] enabled J: [Wi-Fi tethering] enabled g: [Bluetooth tethering] enabled i: Multiple tethering enabled \: Bright Keep set to [ON (Notify)]

Before Using the Handset

;: VPN connected A: Software update available

J: Smart Lock

>: Notification icon (not appearing)

■ Main status icon list

.: Alarm set

Battery level

8 to 7: Approx. 100 to 6% >: Approx. 5% or less

While charging, the battery icon appears with [w]

superimposed.

Percentage of the remaining battery level appears on the left

side of the battery icon. Display/Hide the percentage with [Display left percents of Battery] (nP. 60 “Display”).

Signal strength

!: Level 4 #: Level 3 $: Level 2 %: Level 1 &: Level 0 (: Outside the service area

): Airplane mode

3G data communication status

0: 3G available 1: Receiving data via 3G 2: Sending data via 3G 3: Sending and receiving data via 3G

LTE data communication status

k: LTE available m: Receiving data via LTE n: Se

nding data via LTE

o: Sending and receiving data via LT

HSPA data communication status

p: HSPA available q: Receiving data via HSPA r: Sending data via HSPA s: Sending and receiving data via HSPA

U: International roaming

NFC/Osaifu-Keitai lock status

d: Handset or docomo nano UIM card locked e: Handset and docomo nano UIM card locked

Omakase Lock status

f: Handset or docomo nano UIM card locked by remote control g: Handset and docomo nano UIM card locked by remote control

S: [Reader/Writer, P2P] enabled

Character input mode

!: Hiragana/Kanji %: Half Alphabet (: Half Numeric $: Full Alphabet &: Full Numeric ): Character Code

,: [Allow only priority interruptions] set

Manner mode status

+: Standard manner *: Standard manner ([Allow only priority interruptions] set)

-: Silent manner A: Talking with a speaker B: Mute set

Wi-Fi signal strength

(: Level 4 ): Level 3 *: Level 2 +: Level 1 ,: Level 0

The Wi-Fi signal strength icon appears with [6] superimposed

like [5] while you connect to an access point which is not connected to the Internet.

Bluetooth

#: Connection stand-by $: Connected

6: Measuring location information frequently

Answering memo

P: No answering memo when the answering memo is set Q: One to nine answering memos when the answering memo is

set R: 10 answering memos when the answering memo is set

Using the status panel

Drag the status bar down with your two fingers

at the same time

: Alternatively, touch and hold [}] to display the status panel.

Use the status panel

1 Function button

Make settings for use of the manner mode, Wi-Fi

function, location information, etc. Touch [Customize] to rearrange, add and delete the function buttons. ･ If you touch [Location], the confirmation screens for the

use of location information are displayed. The mode to be set may differ depending on whether you select [DISAGREE] or [AGREE] (nP. 63 “Location services”). [N] is displayed when Mode is set to [High accuracy]/[Device only] while [M] is displayed when Mode is set to [Battery saving].

Slide the screen up/down or touch the top of the screen to

display/hide function buttons after second line.

2 Detailed information on notifications

You can check the state of the handset or content of

notifications.

The following operations are available depending on the

type of detailed information. ･ To activate or operate a corresponding app: Touch the

detailed information or the function

･ To switch detailed display/simplified display*: Slide the

detailed information up/down with your two fingers at the same time or pinch out/in

･ To delete detailed information: Flick the detailed

information to the left/right

･ To set [App notifications]: Touch and hold the detailed

information/[z]

* This operation is available when function buttons after

second line are hidden.

Before Using the Handset

3 Network operator

Connected network operator is displayed.

4 Clear all

When there is a corresponding app, touch it to delete the

detailed information on notifications and notification icons.

Some detailed information cannot be deleted.

5 Signal status

Check the signal status.

6 Battery level

Check the battery usage etc. by touching it while function

buttons after second line are being displayed.

7 Settings

Activate the “Settings” app.

If the number of missed calls is one, [CALL] and [SEND SMS]

are displayed by switching the detailed information on notification to detailed display. You can make a call or send an SMS by touching them.

Quick Launcher

You can quickly use app usage history items, the apps/ shortcuts/function buttons set in Favorites or mini apps/ widgets by switching tabs.

Set Recent apps key to [Quick Launcher] in advance

(nP. 61 “Useful”).

History

You can activate apps by displaying the history of recently used apps.

[}]/[History]

Use a history item

Favorites

You can quickly activate apps or switch settings on the handset just by touching apps, shortcuts and function buttons set in Favorites.

[}]/[Favorites]

Select an app/a shortcut/a function button

■ Adding apps/shortcuts/function buttons

[}]/[Favorites]

[+]

Select an app/a shortcut/a function button to

add

■ Moving apps/shortcuts/function buttons

[}]/[Favorites]

Touch and hold an app/a shortcut/a function

button/drag it to the destination

■ Managing apps/shortcuts/function buttons

[}]/[Favorites]

Touch and hold an app/a shortcut/a function

button

: Release your finger to display the menu.

Select an item

Delete application: Uninstall the app. Peel off: Hide the app, shortcut or function button.

Mini app/Widget

You can use mini apps and widgets which enable you to watch videos, YouTube, etc. while using another app.

[}]/[Mini apps]

Select a mini app/widget

Use the mini app/widget

1 App usage history item

Touch it to activate the app. Flick it down to delete the history item. Touch and hold it to delete the history item and check

information on the app.

2 Screen pinning

This is displayed when [Screen pinning] is set to On. For

details on Screen pinning nP. 63 “Lock & security”

Touch it to restrict the use of apps other than the app

being displayed. ･ To disable Screen pinning: Touch and hold [{] + [}]

3 Clear all

Touch it to delete all app usage history items.

Some apps may not be displayed in the history.

1 Title bar

Drag it to the destination to move the mini app/widget. The following operations are available with displayed

keys.

･ To activate a usual app: [k] ･ To minimize the mini app/return it to the original size:

[s]/[j] ･ To end the mini app/widget: [c] * As for the mini video, touch [m] to return it to the mini

app.

Before Using the Handset

2 Mini app/Widget display

Touch it to display the title bar and controller when they

are not displayed.

Touch and hold it and drag it to another app such as the

“Email” app while the app is running to copy characters, images, etc. and paste them.

3 Controller

The following operations are available with displayed

keys. ･ To change the size of the mini app/widget: Drag [a]

Operations on mini video

･ To pause/play the data: [e]/[f] ･ To display the data list screen: [d]

When you play videos with another app while a mini app is

being used, videos may not be displayed properly.

■ Adding mini apps/widgets

[}]/[Mini apps]

[+]

[Add mini application]/[Add widget]

Select a mini app/widget to add

: Touch [Add from Play Store] to download an uninstalled mini

app again.

■ Moving mini apps/widgets

[}]/[Mini apps]

Touch and hold a mini app/widget/drag it to

the destination

■ Managing mini apps/widgets

[}]/[Mini apps]

Touch and hold a mini app/widget

: Release your finger to display the menu.

Select an item

Delete application: Uninstall the app. Peel off: Hide the mini app or widget. Change name: Change the name of the widget.

Recent Apps

You can activate apps by displaying the history of recently used apps.

Set Recent apps key to [Recent applications] in advance

(nP. 61 “Useful”).

[}]

Use a history item

1 Search

Touch it to use quick search box (nP. 18 “Searching

information on the handset and websites”).

2 App usage history item

Touch it to activate the app. Flick it to the left/right to delete the history item.

3 Delete history item

Touch it to delete app usage history item.

4 Screen pinning

This is displayed in the latest history item when [Screen

pinning] is set to On. For details on Screen pinning nP. 63 “Lock & security”

Touch it to restrict the use of apps other than selected

app. ･ To disable Screen pinning: Touch and hold [{] + [}]

Some apps may not be displayed in the history.

Home applications

Switch lock screens or home apps to use.

The following home apps are registered on the handset by

default. docomo LIVE UX

A home app optimized for smartphones provided by DOCOMO.

docomo Simple UI

A home app which is designed to enable customers having been using i-mode mobile phones (feature phones) to use smartphones easily.

Feel Home

A home app which enables you to find intended apps quickly and operate the handset intuitively. Just by flicking your finger to the left/right, you can choose and use whichever sheet that fits your preferences from between Desktop Sheet or Apps Sheet.

Google Now Launcher

You can check Google Now in the home screen when you use Google Now. Also, you can use voice search just by saying “Ok Google” while the home screen is displayed.

In the home screen, [R]/[Settings]/[Home

applications]

Select an item

Batch change lock screen/ home application: Switch lock

screens and home apps.

Home applications: Switch home apps.

Before Using the Handset

docomo LIVE UX

Home screen

Home screen layout

In the home screen, you can activate apps by selecting apps or the quick menu or use widgets.

If you install a new app, its icon is added to the home screen.

1 Machi-Chara 2 App 3 Indicator

Indicates the displayed page with [U].

4 App button

Display the app screen.

5 Widget

Use simple functions such as a calendar or pedometer.

6 Folder

When a folder is added, you can store apps into the folder.

7 My magazine button

Use My magazine (nP. 32 “My magazine”).

8 Quick menu

Quickly activate an app from any page of the home screen.

Pinch in on the home screen to display the home screen list. Flick the home screen down to display the app screen. Flick the home screen up to use My magazine.

Managing the home screen

■ Setting the home screen

Touch and hold the home screen

Select an item

Show apps: Display the Apps tab of the app screen. Show widgets: Display the Widgets tab of the app screen. Create folder: Add a folder. Change Kisekae: Change the kisekae. For details on kisekae

nP. 28 “Changing kisekae”

Change wallpaper: Display the Wallpapers tab of the app

screen. For details on wallpapers nP. 28 “Changing wallpapers”

Machi-Chara display setting: Make settings for Machi-Chara. Home screens: Display the home screen list. For details on

the home screen list nP. 29 “Managing pages”

■ Moving apps etc.

In the home screen, touch and hold an app etc.

Drag it to the destination

: If you drag it to the end of the page, the previous/next page is

displayed and you can move it to the previous/next page.

: Drag an app onto another one to create a folder storing the

two apps.

■ Restoring apps to the app screen

In the home screen, touch and hold an app

Drag it to [Back to apps list]

■ Deleting widgets etc.

In the home screen, touch and hold a widget

etc.

Drag it to [Remove from Home]

Apps are not uninstalled even if the folder storing the apps is

deleted.

■ Uninstalling apps

In the home screen, touch and hold an app

Drag it to [Uninstall]/[OK]

■ Renaming folders

In the home screen, select a folder

Touch the folder name

Enter a folder name

■ Setting quick menu

You can set apps etc. in the quick menu. You can set up to three apps etc. in the quick menu.

In the home screen, touch and hold an app etc.

Drag it to the quick menu

Changing kisekae

Touch and hold the home screen/[Change

Kisekae] Select kisekae/[SET]

Changing wallpapers

Touch and hold the home screen/[Change

wallpaper] Select data/[For all screens]/[Just for this

screen]/[OK]

: Touch [See more wallpapers] to select a wallpaper from

among photos, images and other apps. ･ As for [Contents Manager], [Album] or [Photos], set each

item and select [OK].

･ As for [Wallpapers] or [Wallpaper gallery], select [Set

wallpaper].

･ As for [Live Wallpapers], select [SET WALLPAPER]. ･ As for [Contents Manager(wallpaper)] or

[Album(wallpaper)], select the parts to cut and select [SAVE].

･ As for [Preset wallpaper], select [SET TO WALLPAPER].

: Touch [See Kisekae] to change the kisekae.

docomo LIVE UX
