Sharp R-85ST-A User Manual

ENGLISH

900 W (IEC 60705)

Important

R-85ST-A

MICROWAVE OVEN WITH TOP & BOTTOM

GRILLS AND CONVECTION

OPERATION MANUAL WITH COOKBOOK

OPERATION MANUAL

This operation manual contains important information which you should read carefully before using

your microwave oven.

IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven

is modified so that it operates with the door open.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page A

Congratulations on acquiring your new combination microwave oven with top & bottom grill and convection, which from now on will make your kitchen chores considerably easier. You will be pleasantly surprised by the kinds of things you can do with your combined microwave oven. Not only can you use it for rapid defrosting or heating up of food, you can also prepare whole meals. The combination of microwave, convection and double grill means that food can cook and brown at the same time, and much faster, than by using the conventional method. In our test kitchen our microwave team has gathered together a selection of the most delicious international recipes which are quick and simple to prepare. Be inspired by the recipes we have included and prepare your own favourite dishes in your microwave oven. There are so many advantages to having a microwave oven which we are sure you will find exciting:

● Food can be prepared directly in the serving dishes, leaving less to wash up.

● Shorter cooking times and the use of little water and fat ensure that many vitamins, minerals and

characteristic flavours are preserved. We advise you to read the cookery book guide and operating instructions carefully. You will then easily understand how to use your oven.

Dear Customer,

Enjoy using your combined microwave oven and trying out the delicious recipes.

Your Microwave-Team

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page B

A. Information on Disposal for Users

(private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*.

In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details. If your used electrical or electronic equipment has batteries or accumulators,

please dispose of these separately beforehand according to local requirements. By disposing of this product correctly you will help ensure that the waste

undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it: Please contact your SHARP dealer who will inform you about the take-back of

the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Attention:

Your product is

marked with this

symbol.

It means that used

electrical and

electronic products

should not be mixed

with general

household waste.

There is a separate

collection system for

these products.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 1

CONTENTS

Operation manual

DEAR CUSTOMER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

INFORMATION ON PROPER DISPOSAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

OVEN AND ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-1-3

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-3

BEFORE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-4

USING THE STOP KEY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-4

ENERGY SAVE MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-4

SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-5

MICROWAVE POWER LEVELS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-5

MICROWAVE COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-6

HEATING WITHOUT FOOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-6

GRILL COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-7

CONVECTION COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-8-9

DUAL COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-10-11

OTHER CONVENIENT FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-12-14

AUTOMATIC OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-15

AUTOMATIC COOKING CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-16-17

AUTOMATIC DEFROST CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-18

CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-19

SERVICE CALL CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-20

Cookbook

WHAT ARE MICROWAVES? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-21

THIS IS WHAT YOUR NEW COMBINATION MICROWAVE OVEN CAN DO . . . . . . . . . .GB-21

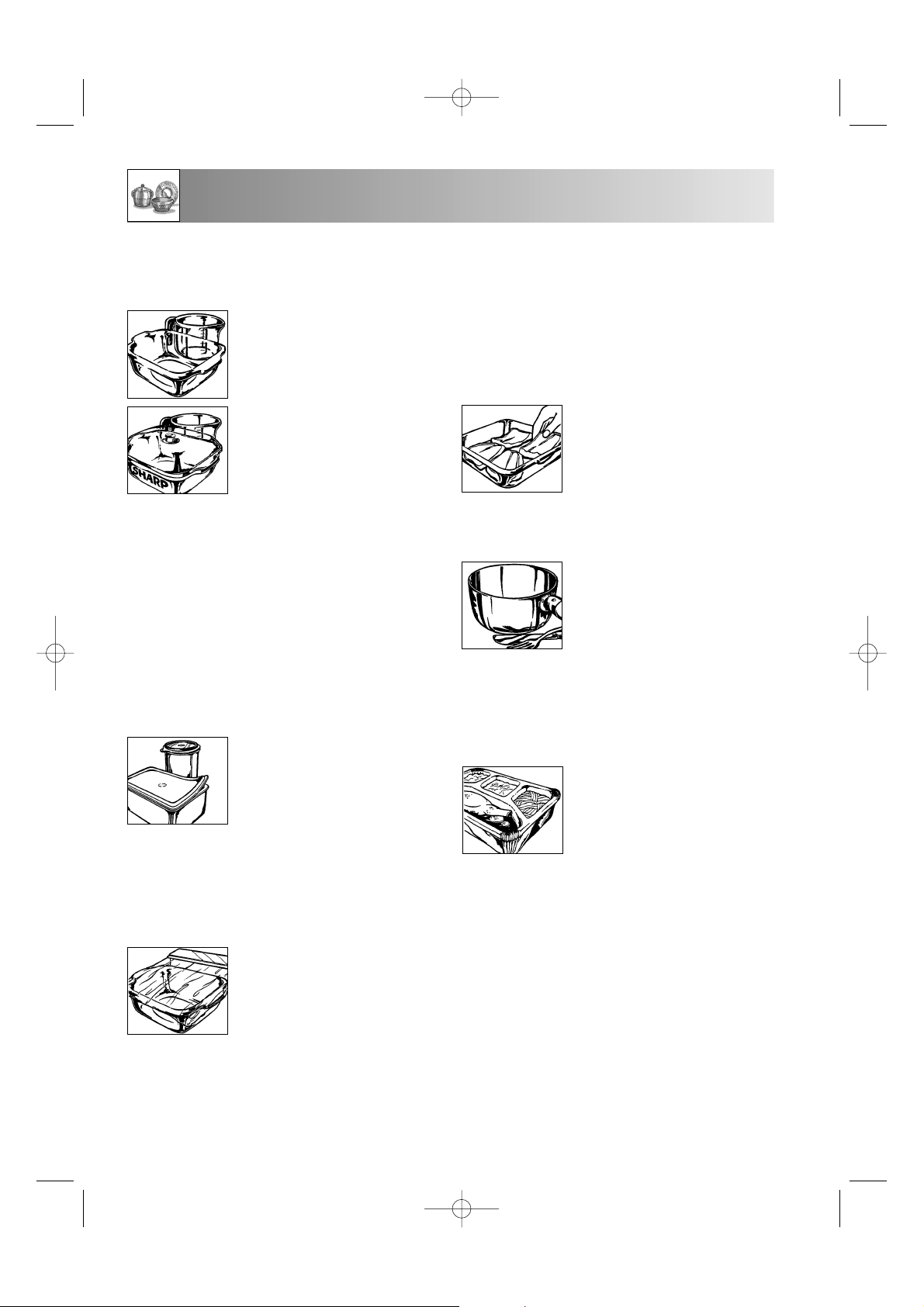

SUITABLE OVENWARE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-22-23

TIPS AND ADVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-23-25

HEATING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-26

DEFROSTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-26

DEFROSTING AND COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-27

COOKING MEAT, FISH AND POULTRY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-27

COOKING FRESH VEGETABLES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-27

SYMBOL EXPLANATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-28

COOKING CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-29-31

RECIPES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .GB-32-53

SERVICE ADDRESSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-12

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 2

OVEN AND ACCESSORIES

ENGLISH

1 Grill heating element (top grill) 2 Convection Fan 3 Oven lamp 4 Control panel 5 Door open button 6 Waveguide cover 7 Oven cavity 8 Turntable motor shaft 9 Grill heating element (bottom grill) 10 Ventilation openings 11 Door seals and sealing surfaces 12 Power cord 13 Outer cabinet

ACCESSORIES:

Check to make sure the following accessories are provided:

14 Turntable 15 Low rack (height: 2,5 cm) 16 High rack (height: 10,5 cm)

Place the turntable over the turntable shaft in the floor of the cavity. Before first using the turntable and racks, clean with mild soapy water. Do not cut or scratch the turntable.

Warning:

The accessories (e.g. turntable) will become very hot during GRILL, DUAL, CONVECTION and AUTOMATIC (except Defrost) modes. Always use thick oven gloves when removing the food or turntable from the oven to prevent burns.

NOTE: When you order accessories, please mention the following two items: Part name and model name to your dealer or SHARP authorised service agent.

678910

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 3

CONTROL PANEL

Digital display and indicators:

1. MICROWAVE indicator

2. CONVECTION indicator

3. BOTTOM GRILL indicator

4. TOP GRILL indicator

5. CLOCK SET indicator

6. LESS/MORE indicators

7. COOKING IN PROGRESS indicator

8. WEIGHT (kg) indicator

Operating keys:

9. AUTOMATIC keys

10. LESS/MORE keys

11. TIME keys

12. CONVECTION key

Press to change the convection setting

13. DUAL MODE key:

1 PRESS = MICROWAVE &

CONVECTION

2 PRESSES = MICROWAVE &

TOP GRILL

3 PRESSES = MICROWAVE &

BOTTOM GRILL

14. START/+1min key

15. DOOR OPEN button

16. STOP key

17. GRILL MODE key:

1 PRESS = TOP GRILL 2 PRESSES = BOTTOM GRILL 3 PRESSES = TOP & BOTTOM GRILL

18. MICROWAVE POWER LEVEL key

Press to change the microwave power setting

19. CLOCK SETTING key

4 3

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 4

GB-1

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

To avoid overheating and fire, special care must be taken when cooking or reheating foods with a high sugar or fat content, for example, Sausage rolls, Pies or Christmas pudding. See the corresponding hints in operation manual and the cookery book section.

To avoid the possibility of injury

WARNING:

Do not operate the oven if it is damaged or malfunctioning. Check the following before use: a)The door; make sure the door closes properly and

ensure it is not misaligned or warped.

b)The hinges and safety door latches; check to make sure

they are not broken or loose.

c) The door seals and sealing surfaces; ensure that they

have not been damaged.

d)Inside the oven cavity or on the door; make sure there

are no dents.

e) The power supply cord and plug; ensure that they are

not damaged. If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

Never adjust , repair or modify the oven yourself. It is hazardous for anyone other than a competent person to carry out any service or repair operation which involves the removal of a cover which gives protection against exposure to microwave energy.

Do not operate the oven with the door open or alter the door safety latches in any way. Do not operate the oven if there is an object between the door seals and sealing surfaces.

Do not allow grease or dirt to build up on the door seals and adjacent parts. Clean the oven at regular intervals and remove any food deposits. Follow the instructions for “Care and Cleaning” on page GB-19. Failure to maintain the oven in a clean condition could lead to a deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

Individuals with PACEMAKERS should check with their doctor or the manufacturer of the pacemaker for precautions regarding microwave ovens.

To avoid the possibility of electric shock

Under no circumstances should you remove the outer cabinet. Never spill or insert any objects into the door lock openings or ventilation openings. In the event of a spill, turn off and unplug the oven immediately, and call an authorised SHARP service agent. Do not immerse the power supply cord or plug in water or any other liquid. Do not let the power supply cord hang over the edge of a table or work surface.

IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE To avoid the danger of fire.

The microwave oven should not be left unattended during operation. Power levels that are too high, or cooking times that are too long, may overheat foods resulting in a fire.

This oven is designed for counter top or built-in use. Do not place the oven in a cabinet. When the oven is to be built-in, the installation frame EBR-47ST licensed by SHARP must be used. This is available from your dealer. Refer to the frame installation instructions or ask your dealer for the proper instruction procedure. Only the use of this frame will guarantee the safety and quality of the product. The electrical outlet must be readily accessible so that the unit can be unplugged easily in an emergency. The AC power supply must be 230V, 50Hz, with a minimum 16A distribution line fuse, or a minimum 16A distribution circuit breaker. A separate circuit serving only this appliance should be provided. Do not place the oven in areas where heat is generated. For example, close to a conventional oven. Do not install the oven in an area of high humidity or where moisture may collect. Do not store or use the oven outdoors.

If smoke is observed, switch off or unplug the oven and keep the door closed in order to stifle any flames.

Utensils should be checked to ensure that they are suitable for use in the oven. See Page GB-27-28. Use only microwave safe containers and utensils on microwave modes.

When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

Clean the waveguide cover, the oven cavity and the turntable after use. These must be dry and free from grease. Built-up grease may overheat and begin to smoke or catch fire.

Do not place flammable materials near the oven or ventilation openings. Do not block the ventilation openings. Remove all metallic seals, wire twists, etc., from food and food packages. Arcing on metallic surfaces may cause a fire. Do not use the microwave oven to heat oil for deep frying. The temperature cannot be controlled and the oil may catch fire. To make popcorn, use only special microwave popcorn makers. Do not store food or any other items inside the oven. Check the settings after you start the oven to ensure the oven is operating as desired.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 5

GB-2

IMPORTANT SAFETY INSTRUCTIONS

To avoid the possibility of burns

WARNING: The contents of feeding bottles and baby food jars must be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

Use pot holders or oven gloves when removing food from the oven to prevent burns. Always open containers, popcorn makers, oven cooking bags, etc., away from the face and hands to avoid steam burns and eruption of boiling.

To avoid burns, always test food temperature and stir before serving and pay special attention to the temperature of food and drink given to babies, children or the elderly.

Accessible parts may become hot during use. Young children should be kept away.

Temperature of the container is not a true indication of the temperature of the food or drink; always check the food temperature. Always stand back from the oven door when opening it to avoid burns from escaping steam and heat. Slice stuffed baked foods after heating to release steam and avoid burns.

To avoid misuse by children

WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.

When the appliance is operated in the GRILL, CONVECTION, DUAL, and AUTOMATIC modes (except AUTOMATIC DEFROST), children should only use the oven under adult supervision due to the temperature generated.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not lean or swing on the oven door. Do not play with the oven or use it as a toy. Children should be taught all important safety instructions: use of pot holders, careful removal of food coverings; paying special attention to packaging (e.g.

Keep the power supply cord away from heated surfaces, including the rear of the oven. Do not attempt to replace the oven lamp yourself or allow anyone who is not an electrician authorised by SHARP to do so. If the oven lamp fails, please consult your dealer or an authorised SHARP service agent. If the power supply cord of this appliance is damaged, it must be replaced with a special cord. The exchange must be made by an authorised SHARP service agent.

To avoid the possibility of explosion and sudden boiling:

WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

Never use sealed containers. Remove seals and lids before use. Sealed containers can explode due to a build up of pressure even after the oven has been turned off. Take care when microwaving liquids. Use a widemouthed container to allow bubbles to escape.

Never heat liquids in narrow necked containers such as baby bottles, as this may result in the contents erupting from the container when heated and cause burns.

To prevent sudden eruption of boiling liquid and possible scalding:

1. Do not use excessive amount of time (See page

GB-30).

2. Stir liquid prior to heating/reheating.

3. It is advisable to insert a glass rod or similar

utensil (not metal) into the liquid whilst reheating.

4. Let liquid stand for at least 20 seconds in the

oven at the end of cooking time to prevent delayed eruptive boiling.

Do not cook eggs in their shells, and whole hard boiled eggs should not be heated in microwave ovens since they may explode even after microwave cooking has ended. To cook or reheat eggs which have not been scrambled or mixed, pierce the yolks and the whites, or the eggs may explode. Shell and slice hard boiled eggs before reheating them in the microwave oven.

Pierce the skin of such foods as potatoes, sausages and fruit before cooking, or they may explode.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 6

GB-3

IMPORTANT SAFETY INSTRUCTIONS

ENGLISH

INSTALLATION

1. Remove all packing materials from the inside of the

oven cavity. Discard the loose polythene sheet from between the door and cavity. Remove the feature sticker, if attached, from the outside of the door.

2. Check the oven carefully for any signs of damage.

3. Place the oven on a flat, level surface strong

enough to support the oven’s weight plus the heaviest item likely to be cooked. This oven is designed to be used on a countertop or built into a kitchen cabinet. When building the oven into a kitchen cabinet, see “To avoid damage of the fire” on page GB-1.

Remove this film

4. The oven door may become hot during cooking. Place or mount the oven so that the bottom of the oven is 85 cm or more above the floor. Keep children away from the door to prevent them burning themselves.

5. Do not allow the power supply cord to run over any hot or sharp surfaces, such as the hot air vent area at the top rear of the oven.

6. Ensure there is a minium of free space above

the oven of 19 cm.

7. Securely connect the plug of the oven to a standard earthed (grounded) household electrical outlet.

19cm

Use only the turntable designed for this oven. Do not use the oven without the turntable. Do not place anything on the outer cabinet during operation. Do not use plastic containers for microwaving if the oven is still hot from using the

GRILL,

CONVECTION, DUAL and AUTOMATIC modes

(except AUTOMATIC DEFROST) because they may melt. Plastic containers must not be used during above modes unless the container manufacturer says they are suitable.

NOTE:

If you are unsure how to connect your oven, please consult an authorised, qualified electrician. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the correct electrical connection procedure. Water vapour or drops may occasionally form on the oven walls or around the door seals and sealing surfaces. This is a normal occurrence and is not an indication of microwave leakage or a malfunction.

self-heating materials) designed to make food crisp, as they may be extra hot.

Other warnings

Never modify the oven in any way. Do not move the oven while it is in operation. This oven is for home food preparation only and may only be used for cooking food. It is not suitable for commercial or laboratory use.

To promote trouble-free use of your oven and avoid damage.

Never operate the oven when it is empty except where recommended in the operation manual, see Page GB-6. Doing so may damage the oven. When using a browning dish or self-heating material, always place a heat-resistant insulator such as a porcelain plate under it to prevent damage to the turntable due to heat stress. The preheating time specified in the dish’s instructions must not be exceeded. Do not use metal utensils, which reflect microwaves and may cause electrical arcing. Do not put cans in the oven.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 7

GB-4

BEFORE OPERATION

USING THE STOP KEY

ENERGY SAVE MODE

Use the STOP key to:

1. Erase a mistake during programming.

2. Stop the oven temporarily during cooking.

3. Cancel a programme during cooking, press

the STOP key twice.

Your oven has an energy save mode. Plug in the oven. Nothing will appear on the display at this time.

1. Open the door. The oven display will show “ENERGY SAVE MODE”.

2. Close the door. The display will show “.0”. If you set the clock, “energy save mode” does not work. If you keep “energy save mode” go to step 4.

3. Set the clock (See page GB-5).

4. Heat the oven without food (See page GB-6).

Your oven comes set for the energy save mode. If you do nothing for 2 minutes after a preceding operation, i.e. plugging in or at the end of cooking, the power will go off automatically. To restore power on, open and then close the door. If you set the clock, energy save mode does not work. To start energy save mode, follow the instructions below.

Example:

To start the energy save mode, (the current time is 23:35):

1. Make sure the correct time appears on the display.

3. Press the 1 MIN

key once.

2. Press the CLOCK SETTING key.

4. Press START/+1min

key. The power will be off and the display will show nothing.

Display:

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 8

GB-5

SETTING THE CLOCK

MICROWAVE POWER LEVELS

ENGLISH

If this occurs during cooking, the programme will be erased. The time of day will also be erased.

4. When you want to reset the time of day, follow the

above example again.

5. If you do not set the clock, press the STOP key

once will appear on the display. When the operation of the oven is finished, will reappear on the display instead of the time of day.

6. If you set the clock, energy save mode does

not work.

There are two setting modes: 12 hour clock and 24 hour clock.

Step 1.

1. To set the 12 hour clock, press the CLOCK SETTING key once, as in Step 1 opposite.

2. To set the 24 hour clock, press the CLOCK SETTING key twice, as in Step 2 opposite.

Step 2.

Example: To set the 24 hour clock to 23:35:

1. Choose the 24 hour clock by pressing the CLOCK SETTING key twice.

3. Change from hours to mins by pressing the CLOCK SETTING key once.

Check the display.

4. Set the minutes:

Press 10 MIN key three times. Press 1 MIN key five times.

2. Set the hours: Press the 10 MIN key twice. Press the 1 MIN key three times.

5. Start the clock.

NNOOTTEESS::

1. Press the STOP key if you make a mistake during

programming.

2. If the oven is in cooking or minute timer mode and

you wish to know the time of day, touch the CLOCK SETTING key. As long as your finger is touching the key, the time of day will be displayed.

3. If the electrical power supply to your microwave

oven is interrupted, plug in the oven again, then open and close the door. The display will show “ENERGY SAVE MODE”.

Your oven has 5 power levels. To choose the power level, follow the advice given in the cookbook.

900 WATT = 100 % output 630 WATT = 70 % output 450 WATT = 50 % output

• To set the power, touch the MICROWAVE POWER LEVEL key until the desired level is displayed.

• If the MICROWAVE POWER LEVEL key is touched once, will be displayed. If you miss your desired level, continue touching the MICROWAVE POWER LEVEL key until you reach the level again.

• If the level is not selected, the level 900 W (100 %) is automatically set.

270 WATT = 30 % output 90 WATT = 10 % output

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 9

GB-6

MICROWAVE COOKING

HEATING WITHOUT FOOD

NOTES:

1. When the door is opened during the cooking process, the cooking time on the digital display stops

automatically. The cooking time starts to count down again when the door is closed and the

START/+1min key is pressed.

2. If you wish to know the power level during cooking, press the MICROWAVE POWER LEVEL key.

As long as your finger is pressing the MICROWAVE POWER LEVEL key, the power level will be displayed.

3. When the operation of the oven is finished, the time of day will reappear, if set, on the display. NOTE FOR REHEATING READY MEALS:

Place the ready meal in a heat-resistant flan dish on the low rack.

Example: Suppose you want to heat soup for 2 minutes and 30 seconds on 630 W microwave power.

1. Set the time:

Press 1 MIN key twice and the 10 SEC key three times.

2. Choose desired power

630 W by pressing

MICROWAVE POWER LEVEL key twice.

Your oven can be programmed for up to 99.90 minutes. (99.90).

WARNING: The oven door, outer cabinet and oven cavity will become hot. Take care to avoid burns when cooling the oven down after operation.

You may detect smoke or a burning smell when using the grill(s), dual grill or convection for the first time. This is normal and not a sign that the oven is out of order. To avoid this problem, when first using the oven, operate both top and bottom grills without food for 20 minutes. IMPORTANT: During grill operation, to allow smoke or smells to disperse open a window or switch the kitchen ventilation on. Make sure there is no food in the oven.

1. Enter the required

heating time (20 min) by pressing the 10

MIN key twice.

2. Press the GRILL MODE key

three times.

The oven will count down. When the oven has finished cooking, open the door to cool the oven cavity.

Check the display

3. Start cooking.

3. Start heating.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 10

GB-7

GRILL COOKING

ENGLISH

1. Enter the desired

cooking time by pressing the 1 MIN key five times.

2. Choose TOP GRILL

function by pressing GRILL MODE key once.

Example:

Suppose you want to cook for 5 minutes using the TOP GRILL only.

NOTES:

1. The high or low racks are recommended when grilling.

2. You may detect smoke or a burning smell when using the grill for the first time, this is normal and not a

sign that the oven is out of order. Please see heating without food on the previous page.

3. After cooking using TOP GRILL and BOTTOM GRILL the display may show ‘NOW COOLING’.

Your oven has 2 grill heating elements, and a combination of 3 grill cooking modes. Input the time first then select the desired grill mode by pressing the GRILL MODE key as indicated below.

Press GRILL MODE key

SYMBOL

GRILL HEATING ELEMENT IN USE

Top Grill

Bottom Grill

Top & Bottom Grill together

Check the display

3. Start cooking.

WARNING:

The oven cavity, door, outer cabinet, turntable, racks, dishes and especially the bottom grill will become very hot, always use thick oven gloves when removing the food or turntable from the oven to prevent burns.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 11

GB-8

CONVECTION COOKING

This microwave oven has 10 pre-set oven temperatures which use a combination of the top and bottom grills.

Example 1: To cook with preheating

Suppose you want to pre-heat to 180o C and cook for 20 minutes at 180o C.

NOTES:

1. After preheating, if you want to cook at a different temperature press the CONVECTION key until

the desired setting appears on the display. In the example above, to change the temperature you would press the CONVECTION key after entering the cooking time.

2. When the oven reaches the programmed temperature, it will automatically hold at the pre-heated

temperature for 30 minutes. After 30 minutes the display will change to time of day, if set and the convection temperature will be cancelled.

3. After cooking, the display may show “NOW COOLING”.

1. Enter the desired convection

temperature by pressing the CONVECTION key five times. The display will show 180° C.

Check the display

3. Enter the cooking time.

Press the 10 MIN key twice.

4. Press the START/+1min key.

2. Press the START/+1min

key to start pre-heating. The display shows “PREHEAT”

When the pre-heated temperature has been reached the audible signal sounds. The display will show “180C” . Open the door and place the food inside the oven. Close the door.

Note:

Temperature measurements taken whilst the oven is in convection mode will differ from the displayed level. This is due to the grill elements turning on and off in order to regulate the oven temperature. This will not affect the cooking results as long as the operation manual and cook book are followed correctly.

Press CONVECTION key

Oven Temperature (° C)

12345678910

250 230 220 200 180 160 130 100 70 40

WARNING:

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 12

GB-9

CONVECTION COOKING

ENGLISH

Example 2: To cook without preheating

Suppose you want to cook at 250o C for 20 minutes.

1. Enter the desired

cooking time (20 min.) by pressing the 10 MIN key twice.

Check the display

3. Press the START/+1min key.

2. Select the desired

cooking temperature. (250o C).

NOTES:

1. After cooking, the oven will automatically cool and the display may show “NOW COOLING”.

2. To change the convection temperature, press the CONVECTION key until the desired temperature appears

on the display.

WARNING:

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 13

GB-10

DUAL COOKING

Your oven has 3 DUAL cooking modes combining the heat of the grill(s) with the power of the microwave. To select the DUAL cooking mode, press the DUAL MODE key until the desired setting appears in the display. Generally, dual cooking time shortens the total cooking time.

NOTES:

• To adjust the microwave power, press the MICROWAVE POWER LEVEL key.

• To adjust the convection temperature, press the CONVECTION key until the desired temperature

appears on the display.

• For DUAL 1 the oven temperature can be changed from 40° C to 250° C in ten levels.

Press DUAL MODE key

Cooking method

MICRO 270 W

CONV 250° C

MICRO 270 W

TOP GRILL MICRO 270 W BOTTOM GRILL

Microwave Power Range

90 W - 450 W

90 W - 900 W

Symbol

Example 1:

Suppose you want to cook for 20 minutes using DUAL 1 (90 W microwave power and 200o C CONVECTION).

1. Enter the desired

cooking time (20 min.) by pressing the

10 MIN key twice.

2. Press the DUAL MODE key once.

3. Press the MICROWAVE POWER LEVEL key

once (90 W).

5. Start cooking.

x2 x3

4. Press CONVECTION

key three times (200o C).

Check the display

NOTE: After cooking, the display may show “NOW COOLING”.

DUAL 1

DUAL 2

DUAL 3

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 14

GB-11

DUAL COOKING

ENGLISH

1. Enter the desired

cooking time by pressing the 10

MIN key twice.

2. Press DUAL MODE key

twice.

3. Press the MICROWAVE POWER LEVEL

key once (90 W).

Example 2:

Suppose you want to cook for 20 minutes on DUAL 2, using 90 W microwave power and TOP GRILL.

NOTE: After cooking, the display may show “NOW COOLING”.

WARNING:

4. Start cooking.

Check the display

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 15

GB-12

OTHER CONVENIENT FUNCTIONS

STAGE 3

6. Enter the desired

cooking time (20 minutes) by pressing the 10 MIN key twice.

7. Select TOP GRILL by pressing the GRILL

MODE key once.

8. Start to cook by

pressing the

START/+1min

key.

Check the display

Example: Stage 1: 10 minutes at 450 W power Stage 2: 5 minutes Dual 2 at 90 W Stage 3: 20 minutes using the TOP GRILL.

1. MULTIPLE SEQUENCE COOKING. A sequence of 4 stages (maximum) can be programmed which may combine the MICROWAVE, GRILL, DUAL or CONVECTION modes.

EXAMPLES OF SEQUENCE COOKING:

1. Micro or Preheat + Micro + Micro + Dual or Convection or Grill or Micro

2. Micro or Preheat + Dual or Convection or Grill or Micro + Dual or Convection or Grill or Micro

3. Dual or Convection or Grill or Micro + Micro + Dual or Convection or Grill or Micro

STAGE 1

1. Enter the desired cooking

time (10 minutes) by pressing the 10 MIN key once.

2. Select 450 W microwave

power by pressing the

MICROWAVE POWER LEVEL key three times.

AGE 2

3. Enter the desired cooking

time (5 minutes) by pressing the 1 MIN key five times.

4. Select DUAL MODE 2

only, by pressing the

DUAL MODE key twice.

5. Select 90 W low power by pressing the MICROWAVE POWER LEVEL key once.

x2 x1

x1 x1

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 16

GB-13

OTHER CONVENIENT FUNCTIONS

ENGLISH

2. LESS / MORE keys. The LESS ( ▼ ) and MORE ( ▲ ) keys allow you to easily decrease or increase programmed setting times, (for a less well or more well cooked result), used for AUTOMATIC operations or when cooking is underway.

a) Changing the pre-programmed time setting.

Example: Suppose you want to cook 0,9 kg Roast chicken using the AUTOMATIC and MORE ( ▲ ) keys.

NOTES:

To cancel LESS or MORE press the same key again. To change MORE to LESS simply press the LESS ( ▼ ) key. To change LESS to MORE simply press the MORE ( ▲ ) key.

b) Changing the heating time while the oven is operating:-

The cooking time can be decreased or increased in 1 minute steps each time the LESS ( ▼ ) and MORE ( ▲ ) keys are pressed.

2. Choose the desired result

(well cooked) by pressing the MORE key once within 2 seconds.

1. Choose the AUTOMATIC

menu for Roast chicken by pressing the

AUTOMATIC key once.

3. The oven will start to

cook automatically.

3. +1 min function The +1min function allows you to operate the following functions:

a) Direct Start

You can start to cook directly on full microwave power (900 W) and in 1 minute steps by pressing the

START/+1min key.

NOTE: To avoid children’s misuse, the START/+1min key can be used only within 2 minutes after a preceding operation, i.e., closing the door or pressing the STOP key.

b) Extending the cooking time.

You can extend the cooking time in multiples of 1 minute, by pressing the START/+1min key, during the cooking process.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 17

GB-14

OTHER CONVENIENT FUNCTIONS

4. TO CHECK SETTINGS WHILE THE OVEN IS OPERATING

You can check the power level, oven temperature, the programmed and actual oven temperatures ie: when pre-heating.

TO CHECK THE POWER LEVEL:

To check the microwave power level during cooking press the MICROWAVE POWER LEVEL key. The oven continues to count down, although the display shows the power level.

As long as your finger is pressing the key, the power level will be displayed.

TO CHECK THE CONVECTION TEMPERATURE:

To check the convection temperature during cooking press the CONVECTION key. When the oven is preheating, you can check the actual oven temperature.

As long as your finger is pressing the key, the convection temperature in ° C will be displayed.

TO CHECK THE TIME OF DAY:

Firstly, the clock must already be set, see page GB-5. To check the time of day during cooking, press the CLOCK SETTING key.

As long as your finger is pressing the key, the time of day will be displayed.

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 18

GB-15

AUTOMATIC OPERATION

ENGLISH

The AUTOMATIC keys automatically work out the correct cooking mode and cooking time of the foods illustrated below.

NOTE:

When manipulation is required (eg: to turn food over) the oven will stop and the audible signal will sound, the display will show the necessary action. To continue cooking, press the START/+1min key. The final temperature of the food will vary according to its initial temperature. Check food is piping hot after cooking. If necessary, you can extend the cooking time. Always refer to the cooking charts given in the cookery book section.

What you need to know when using the AUTOMATIC keys:

1. Input the menu by pressing the desired key. The AUTOMATIC keys can only be input within 2 minutes after cooking completion, closing the door or pressing the STOP key.

2. To increase the weight press the selected key until the desired weight is displayed. Enter the weight of the food only. Do not include the weight of the container. For food weighing more or less than the weights/quantities given in the cooking charts (see cookery book section) cook using manual operation.

3. The programmed cooking times are average times. If you want to alter the cooking times of AUTOMATIC programmes, use the LESS ( ▼ ) or MORE ( ▲ ) keys.

For best results use the cooking chart instructions (see cookery book section).

4. The oven will start to cook instantly after the weight has been input.

FRESH PIZZA/FRESH QUICHE

BOILED/JACKET POTATOES

FROZEN PIZZA/

FROZEN QUICHE

FRENCH FRIED POTATO

Example: Suppose you want to cook 200 g of French Fried Potatoes.

Choose the menu and quantity by pressing the FRENCH FRIED POTATO key once.

The oven will instantly begin to cook.

ROAST CHICKEN

FISH FINGERS

ROAST PORK

GRILL SKEWERS CAKE AUTOMATIC DEFROST

WARNING:

R-85ST-A_En Ckbk.qxd 7/2/07 2:42 PM Page 19

+ 47 hidden pages
