Sharp R-732 OPERATION MANUAL
ENGLISH
Important
KG
R-732
R-732
MICROWAVE OVEN WITH GRILL
OPERATION MANUAL WITH COOKBOOK
900 W (IEC 705)
OPERATION MANUAL
This operation manual contains important information which you should read carefully before using
your microwave oven.
IMPORTANT: There may be a serious risk to health if this operation manual is not followed or if the oven
is modified so that it operates with the door open.
Dear Customer,
Congratulations on acquiring your new microwave oven with grill, which from now on will make your kitchen
chores considerably easier.
You will be pleasantly surprised by the kinds of things you can do with a microwave. Not only can you use it for
rapid defrosting or heating up of food, you can also prepare whole meals.
In our test kitchen our microwave team has gathered together a selection of the most delicious international
recipes which are quick and simple to prepare.
Be inspired by the recipes we have included and prepare your own favourite dishes in your microwave oven.
There are so many advantages to having a microwave oven which we are sure you will find exciting:
● Food can be prepared directly in the serving dishes, leaving less to wash up.
● Shorter cooking times and the use of little water and fat ensure that many vitamins, minerals and
characteristic flavours are preserved.
We advise you to read the cookery book guide and operating instructions carefully.
You will then easily understand how to use your oven.
Enjoy using your microwave oven and trying out the delicious recipes.
OVEN AND ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-6
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
BEFORE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

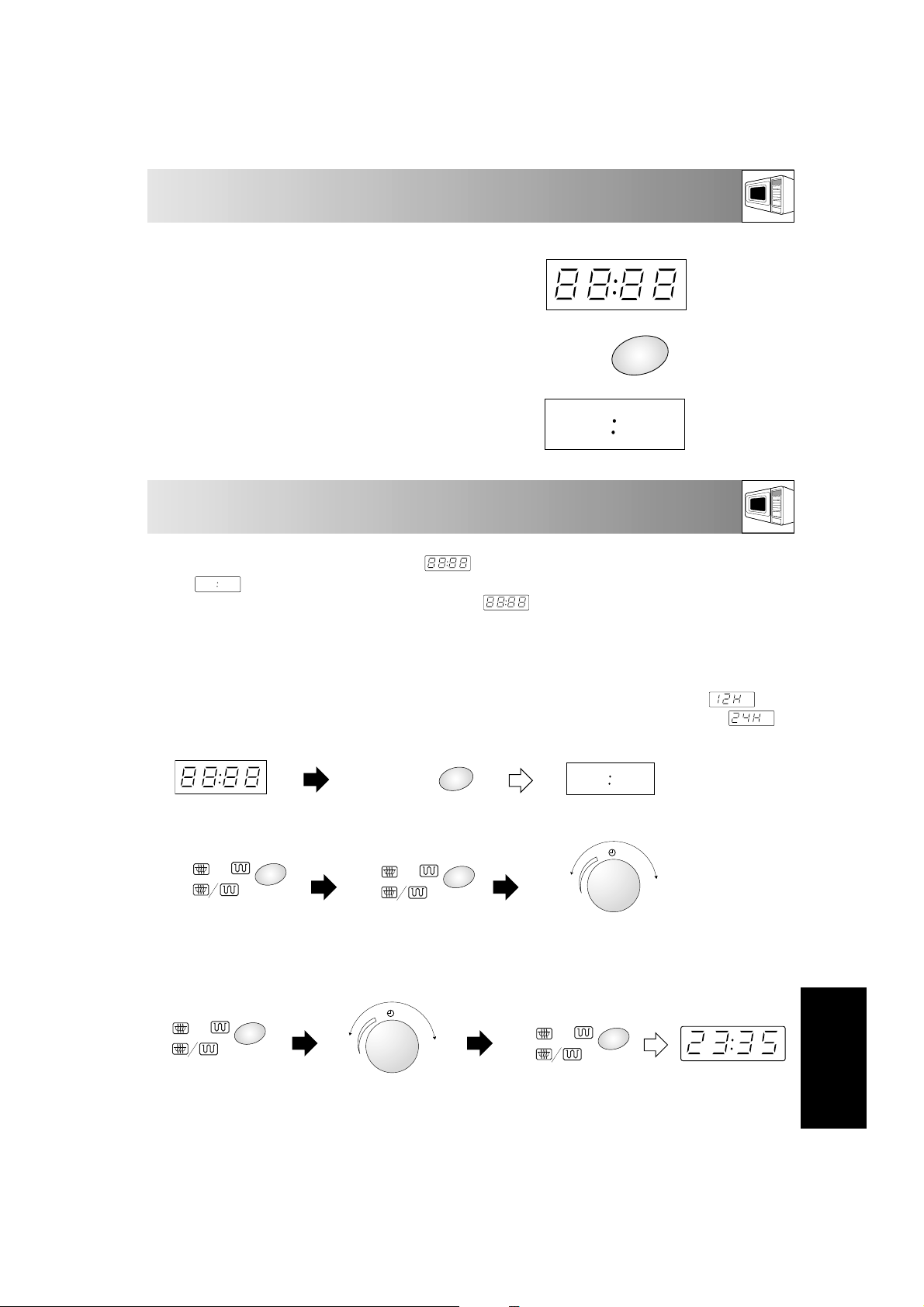

SETTING THE CLOCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
MICROWAVE POWER LEVEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

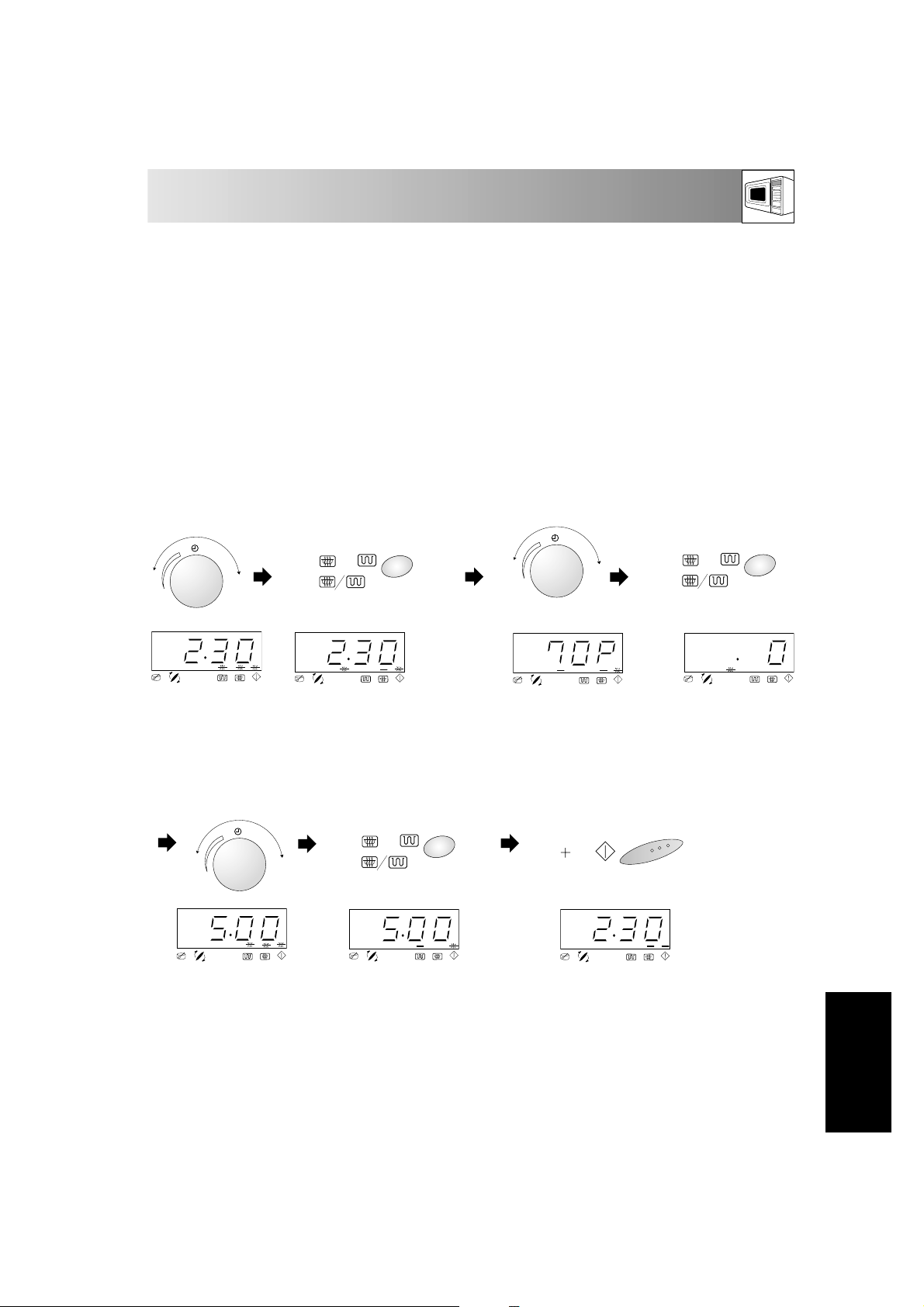

MICROWAVE COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
GRILL COOKING/DUAL GRILL COOKING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
OTHER CONVENIENT FUNCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-12

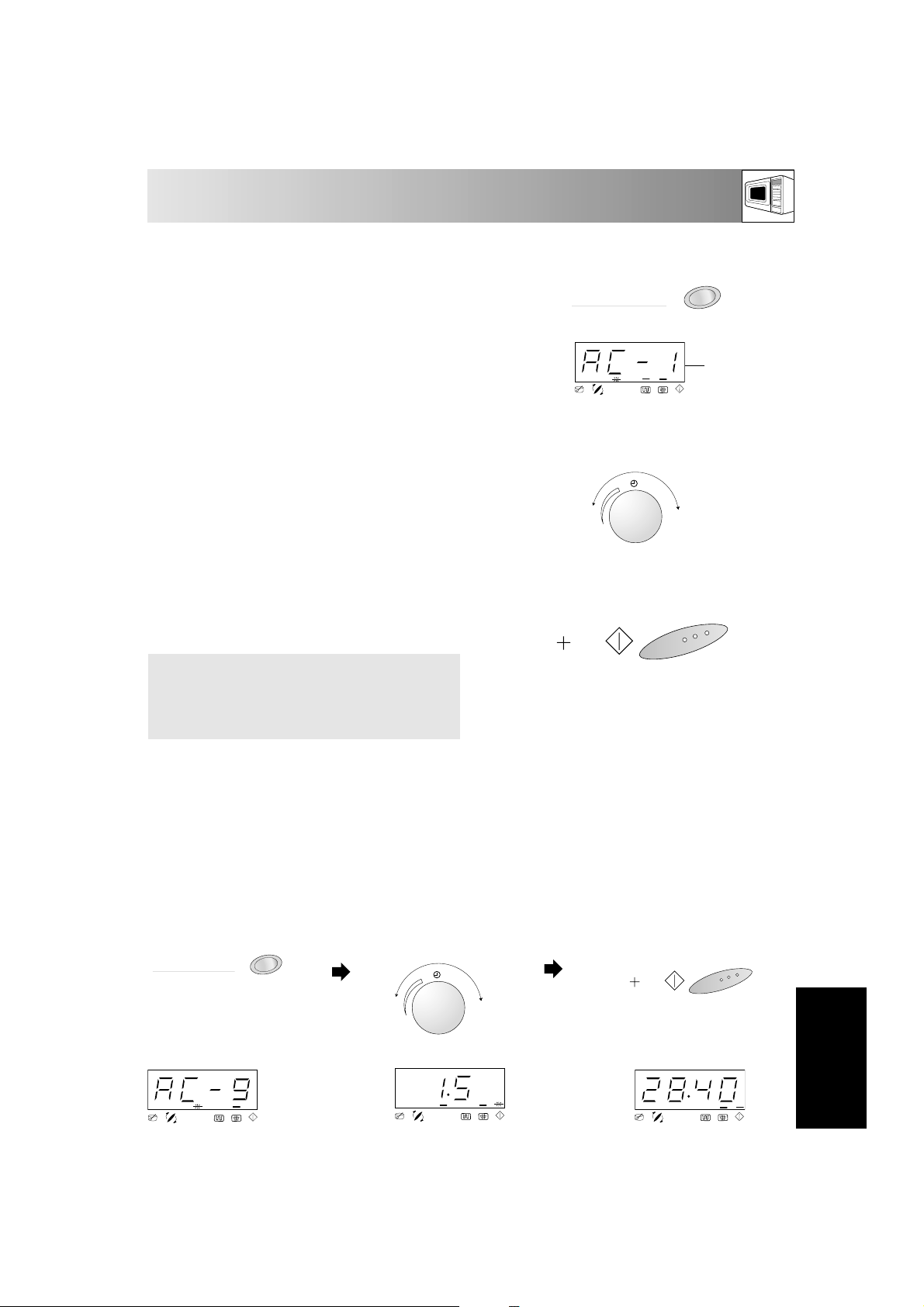

AUTO COOK OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
AUTO COOK CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-16
RECIPES FOR AUTO COOK AC-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
SERVICE CALL CHECK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
SERVICE ADDRESSES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19-22
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
1
CONTENTS
ENGLISH
2
OVEN AND ACCESSORIES
1 Door
2 Door hinges
3 Grill heating element
4 Oven lamp
5 Waveguide cover
6 Control panel
7 Coupling
8 Door lock openings
9 Oven cavity
10 Door seals and sealing surfaces
11 Door safety latches
12 Ventilation openings
13 Outer cabinet
14 Back plate
15 Rear cabinet
16 Power supply cord
17
18
19
1
2
3
9
8
7
6
5
4
10
11
12
13
14
15
16
OVEN
ACCESSORIES:
Check to make sure the following accessories are
provided:
(17) Turntable (18) Roller stay (19) Coupling
(20) High Rack (21) Low Rack.
Place the roller stay on the floor of the cavity.
Place the turntable on the roller stay so that it fits over
coupling.
To avoid turntable damage, ensure dishes or
containers are lifted clear of the turntable rim when
removing them from the oven.
NOTE: When you order accessories, please
mention two items: part name and model name to
your dealer or SHARP authorised service agent.
This microwave will be supplied with 2 racks (High
and Low).
20
21
3
CONTROL PANEL
ENGLISH
1 Digital Display
2 Symbols and Indicators
The appropriate indicator will flash or light up,
just above each symbol according to the
instruction. When an indicator is flashing, press
the suitable button (having the same symbol)
or do the necessary operation.
Stir
Turn over
Weight/power level
Grill
Microwave indicator
Cooking in progress
3 AUTO COOK button
Press to select one of the ten automatic
programmes.
4 COOKING MODE button
Press to select either microwave,
grill or dual grill.
x 1 press once to select microwave function
x 2 press twice to select the grill
x 3 press three times to select dual mode,
microwave with grill
5 STOP button
6 +1min/START button
7 TIMER/WEIGHT/POWER knob
8 DOOR OPEN button
KG/%
1
2
3
4
5
6
7
8
KG
R-732
4
IMPORTANT SAFETY INSTRUCTIONS
To avoid the danger of fire
The microwave oven should not be left
unattended during operation. Power
levels that are too high or cooking times
that are too long may overheat foods
resulting in a fire.
In cases where the oven is to be installed into kitchen
cabinet, the installation frame EBR-4500 (B)/(W)
licensed by SHARP must be used. This is available
from your dealer. Refer to the frame installation
instructions for B type models or ask your dealer for the
proper instruction procedure. Only the use of this frame
will guarantee the safety and quality of the product.
The electrical outlet must be readily accessible so that
the unit can be unplugged easily in an emergency.
The AC power supply must be 230V, 50Hz, with a
minimum 16A distribution line fuse, or a minimum
16A distribution circuit breaker.
It is recommended that a separate circuit serving
only this appliance be provided.
Do not place the oven in areas where heat is
generated. For example, close to a conventional oven.
Do not install the oven in an area of high humidity
or where moisture may collect.
Do not store or use the oven outdoors.
If food being heated begins to smoke,
DO NOT OPEN THE DOOR. Turn off and
unplug the oven and wait until the food
has stopped smoking. Opening the door
while food is smoking may cause a fire.
Use only microwave-safe containers and
utensils. See Page X.
Do not leave the oven unattended when
using disposable plastic, paper or other
combustible food containers.
Clean the waveguide cover, the oven
cavity, the turntable and roller stay after
use. These must be dry and free from
grease. Built-up grease may overheat
and begin to smoke or catch fire.
Do not place flammable materials near the oven or
ventilation openings. Do not block the ventilation
openings.
Remove all metallic seals, wire twists, etc., from
food and food packages. Arcing on metallic
surfaces may cause a fire.
Do not use the microwave oven to heat oil for deep
frying. The temperature cannot be controlled and
the oil may catch fire.
To make popcorn, use only special microwave
popcorn makers.
Do not store food or any other items inside the oven.
Check the settings after you start the oven to ensure
the oven is operating as desired.
See the corresponding hints in the cookery book section.
To avoid the possibility of injury
WARNING:
Do not operate the oven if it is damaged or
malfunctioning. Check the following before use:
a)The door; make sure the door closes properly and
ensure it is not misaligned or warped.
b)The hinges and safety door latches; check to make sure
they are not broken or loose.
c) The door seals and sealing surfaces; ensure that they
have not been damaged.
d)Inside the oven cavity or on the door; make sure there
are no dents.
e) The power supply cord and plug; ensure that they are
not damaged.
Never adjust , repair or modify the oven
yourself. It is hazardous for anyone
other than a competent person to carry
out any service or repair operation
which involves the removal of a cover
which gives protection against exposure
to microwave energy.
Do not operate the oven with the door open or
alter the door safety latches in any way.
Do not operate the oven if there is an object
between the door seals and sealing surfaces.
Do not allow grease or dirt to build up
on the door seals and adjacent parts.
Follow instructions for “Care and
Cleaning”, Page 18.
Individuals with PACEMAKERS should check with
their doctor or the manufacturer of the pacemaker
for precautions regarding microwave ovens.
To avoid the possibility of electric shock
Under no circumstances should you remove the
outer cabinet.
Never spill or insert any objects into the door lock
openings or ventilation openings. In the event of a
spill, turn off and unplug the oven immediately, and
call an authorised SHARP service agent.
Do not immerse the power supply cord or plug in
water or any other liquid.
Do not let the power supply cord hang over the
edge of a table or work surface.
IMPORTANT SAFETY INSTRUCTIONS: READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
5
IMPORTANT SAFETY INSTRUCTIONS
ENGLISH
To avoid burns, always test food
temperature and stir before serving and
pay special attention to the temperature
of food and drink given to babies,
children or the elderly.
Temperature of the container is not a true
indication of the temperature of the food or drink;
always check the food temperature.
Always stand back from the oven door when opening
it, to avoid burns from escaping steam and heat.
Slice stuffed baked foods after heating to release
steam and avoid burns.
Keep children away from the door to prevent them
burning themselves.
Do not touch the oven door, outer cabinet, rear
cabinet, oven cavity, ventilation openings, accessories
and dishes during GRILL mode, DUAL mode and
AUTO COOK operation as they will become hot.
Before cleaning make sure they are not hot.
To avoid misuse by children
WARNING: Only allow children to use
the oven without supervision when
adequate instructions have been given
so that the child is able to use the oven
in a safe way and understands the
hazards of improper use.
Do not lean or swing on the oven door. Do not
play with the oven or use it as a toy.
Children should be taught all important safety
instructions: use of pot holders, careful removal of
food coverings; paying special attention to
packaging (e.g. self-heating materials) designed to
make food crisp, as they may be extra hot.
Other warnings
Never modify the oven in any way.
Do not move the oven while it is in operation.
This oven is for home food preparation only and
may only be used for cooking food. It is not
suitable for commercial or laboratory use.
To promote trouble-free use of your oven
and avoid damage.
Never operate the oven when it is empty except
where recommended in the operation manual, see
Pages 6 and 10. Doing so may damage the oven.
When using a browning dish or self-heating
material, always place a heat-resistant insulator
such as a porcelain plate under it to prevent
damage to the turntable and roller stay due to heat
stress. The preheating time specified in the dish’s
instructions must not be exceeded.
Keep the power supply cord away from heated
surfaces, including the rear of the oven.
Do not attempt to replace the oven lamp yourself
or allow anyone who is not an electrician
authorised by SHARP to do so. If the oven lamp fails,
please consult your dealer or an authorised SHARP
service agent.
If the power supply cord of this appliance is
damaged, it must be replaced with a special cord.
The exchange must be made by an authorised
SHARP service agent.
To avoid the possibility of explosion and
sudden boiling:
WARNING: Liquids and other foods must
not be heated in sealed containers since
they are liable to explode.
Never use sealed containers. Remove seals and
lids before use. Sealed containers can explode due
to a build up of pressure even after the oven has
been turned off.
Take care when microwaving liquids. Use a widemouthed container to allow bubbles to escape.
Never heat liquids in narrow necked
containers such as baby bottles, as this
may result in the contents erupting from the
container when heated and cause burns.
To prevent sudden eruption of boiling liquid and
possible scalding:
1. Stir liquid prior to heating/reheating.
2. It is advisable to insert a glass rod or similar utensil
into the liquid whilst reheating.
3. Let liquid stand in the oven at the end of cooking
time to prevent delayed eruptive boiling.
Do not cook eggs in their shells, and whole
hard boiled eggs should not be heated in
microwave ovens since they may explode
even after microwave cooking has ended.
To cook or reheat eggs which have not
been scrambled or mixed, pierce the yolks
and the whites, or the eggs may explode.
Shell and slice hard boiled eggs before
reheating them in the microwave oven.
Pierce the skin of such foods as potatoes, sausages
and fruit before cooking, or they may explode.
To avoid the possibility of burns
Use pot holders or oven gloves when removing food
from the oven to prevent burns.
Always open containers, popcorn makers, oven
cooking bags, etc., away from the face and hands to
avoid steam burns.
6
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION
The door may become hot during
cooking, place or mount the oven so that
the bottom of the oven is 85cm or more
above the floor.
4. Ensure there is a minimum free space above the
oven of 19 cm.
5. Securely connect the plug of the oven to a
standard earthed (grounded) household electrical
outlet.
You may detect smoke or a burning smell when using the grill for the first time, this is normal and not a
sign that the oven is out of order.
To avoid this problem, when first using the oven, operate the grill without food for 20 minutes. Refer to
page 10 on how to operate the grill.
IMPORTANT: During grill operation, to allow smoke or smells to disperse, open a window or switch the
kitchen ventilation on.
HEATING WITHOUT FOOD
1. Remove all packing materials from the inside of
the oven cavity. Discard the loose polythene sheet
from between the door and cavity. Remove the
feature sticker, if attached, from the outside of the
oven door.
Do not remove the protective film attached to the
inside of the door
2. Check the oven carefully for any signs of damage.
3. Place the oven on a flat, level surface strong
enough to support the oven’s weight plus the
heaviest item likely to be cooked.
0
2
3
1
4
5
8
9
10
11
12
13
14
15
20
25
30
7
6
✓
✗
may melt. Plastic containers must not be used
during above modes unless the container
manufacturer says they are suitable.
NOTE:
If you are unsure how to connect your oven, please
consult an authorised, qualified electrician.
Neither the manufacturer nor the dealer can accept
any liability for damage to the oven or personal
injury resulting from failure to observe the correct
electrical connection procedure.
Water vapour or drops may occasionally form on
the oven walls or around the door seals and
sealing surfaces. This is a normal occurrence and is
not an indication of microwave leakage or a
malfunction.
Do not use metal utensils, which reflect microwaves
and may cause electrical arcing. Do not put cans
in the oven.
Use only the turntable and the roller stay designed
for this oven.
To prevent the turntable from breaking:
(a)Before cleaning the turntable with water, leave
the turntable to cool.
(b)Do not put hot foods or hot utensils on a cold
turntable.
(c) Do not put cold foods or cold utensils on a hot
turntable.
Do not place anything on the outer cabinet during
operation.
Do not use plastic containers for microwaving if the
oven is still hot from using the GRILL mode, DUAL
mode and AUTO COOK operation, because they
19cm
Loading...
