SERVICE MANUAL

S92M198R1405E

OVER THE RANGE

MICROWAVE OVEN

R-1405 R-1406

MODELS

R-1405 R-1406

R-1405

In the interest of user-safety the oven should be restored to its original condition and only parts identical to those specified should be used.

WARNING TO SERVICE PERSONNEL: Microwave ovens contain circuitry capable of producing very high voltage and current. Contact with the following parts may result in a severe, possibly fatal, electrical shock. (High Voltage Capacitor, High Voltage Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..)

TABLE OF CONTENTS

Page PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO

AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ................... INSIDE FRONT COVER

BEFORE SERVICING ...................................................................................................... INSIDE FRONT COVER

WARNING TO SERVICE PERSONNEL ................................................................................................................1

MICROWAVE MEASUREMENT PROCEDURE.....................................................................................................2

FOREWORD AND WARNING................................................................................................................................3

PRODUCT SPECIFICATIONS...............................................................................................................................4

GENERAL INFORMATION ...................................................................................................................................4

OPERATION .........................................................................................................................................................7

TROUBLESHOOTING GUIDE .............................................................................................................................11

TEST PROCEDURE ............................................................................................................................................13

TOUCH CONTROL PANEL ASSEMBLY .............................................................................................................22

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE ..................................................................26

PICTORIAL DIAGRAM ........................................................................................................................................34

POWER UNIT CIRCUIT.......................................................................................................................................35

LSI UNIT CIRCUIT...............................................................................................................................................36

PRINTED WIRING BOARD .................................................................................................................................37

PARTS LIST........................................................................................................................................................38

PACKING AND ACCESSORIES .........................................................................................................................40

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

R-1405 R-1406

PRECAUTIONS TO BE OBSERVED BEFORE AND DURING SERVICING TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not operate or allow the oven to be operated with the door open. (b) Make the following safety checks on all ovens to be serviced before activating the magnetron or other

microwave source, and make repairs as necessary: (1) interlock operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and other damage), (4) damage to or loosening of hinges and latches, (5) evidence of dropping or abuse.

compartments, check the magnetron, wave guide or transmission line, and cavity for proper alignment, integrity, and connections.

(d) Any defective or misadjusted components in the interlock, monitor, door seal, and microwave generation

and transmission systems shall be repaired, replaced, or adjusted by procedures described in this manual before the oven is released to the owner.

(e) A microwave leakage check to verify compliance with the Federal Performance Standard should be

performed on each oven prior to release to the owner.

BEFORE SERVICING

Before servicing an operative unit, perform a microwave emission check as per the Microwave Measurement Procedure outlined in this service manual. If microwave emissions level is in excess of the specified limit, contact SHARP ELECTRONICS CORPORATION immediately @1-800-237-4277.

If the unit operates with the door open, service person should 1) tell the user not to operate the oven and 2) contact SHARP ELECTRONICS CORPORATION and Food and Drug Administration's Center for Devices and Radiological Health immediately.

Service personnel should inform SHARP ELECTRONICS CORPORATION of any certified unit found with emissions in excess of 4mW/cm2. The owner of the unit should be instructed not to use the unit until the oven has been brought into compliance.

WARNING TO SERVICE PERSONNEL

Microwave ovens contain circuitry capable of producing very high voltage and current, contact with following parts fatal, electrical shock.

(Example) High Voltage Capacitor, High Voltage Power Trans-

former, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..

Read the Service Manual carefully and follow all instructions.

may result in a severe, possibly

Don't Touch ! Danger High Voltage

R-1405 R-1406

Before Servicing

1. Disconnect the power supply cord , and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

WARNING:RISK OF ELECTRIC SHOCK.

DISCHARGE THE HIGH-VOLTAGE CAPACITOR BEFORE SERVICING.

The high-voltage capacitor remains charged about 60 seconds after the oven has been switched off. Wait for 60 seconds and then short-circuit the connection of the highvoltage capacitor (that is the connecting lead of the highvoltage rectifier) against the chassis with the use of an insulated screwdriver.

Whenever troubleshooting is performed the power supply must be disconnected. It may, in some cases, be necessary to connect the power supply after the outer case has been removed, in this event,

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the leads to the primary of the power transformer.

5. Ensure that these leads remain isolated from other components and oven chassis by using insulation tape.

6. After that procedure, reconnect the power supply cord.

When the testing is completed,

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Reconnect the leads to the primary of the power transformer.

5. Reinstall the outer case (cabinet).

6. Reconnect the power supply cord after the outer case is installed.

7. Run the oven and check all functions.

After repairing

1. Reconnect all leads removed from components during testing.

2. Reinstall the outer case (cabinet).

3. Reconnect the power supply cord after the outer case is installed.

4. Run the oven and check all functions.

Microwave ovens should not be run empty. To test for the presence of microwave energy within a cavity, place a cup of cold water on the oven turntable, close the door and set the power to HIGH and set the microwave timer for two (2) minutes. When the two minutes has elapsed (timer at zero) carefully check that the water is now hot. If the water remains cold carry out Before Servicing procedure and re- examine the connections to the component being tested.

When all service work is completed and the oven is fully assembled, the microwave power output should be checked and microwave leakage test should be carried out.

R-1405 R-1406

MICROWAVE MEASUREMENT PROCEDURE

A. Requirements:

1) Microwave leakage limit (Power density limit): The power density of microwave radiation emitted by a microwave oven should not exceed 1mW/cm2 at any point 5cm or more from the external surface of the oven, measured prior to acquisition by a purchaser, and thereafter (through the useful life of the oven), 5 mW/cm2 at any point 5cm or more from the external surface of the oven.

2) Safety interlock switches: Primary interlock switch shall prevent microwave radiation emission in excess of the requirement as above mentioned, secondary interlock relay and door sensing switch shall prevent microwave radiation emission in excess of 5 mW/cm2 at any point 5cm or more from the external surface of the oven.

B. Preparation for testing: Before beginning the actual measurement of leakage, proceed as follows:

1) Make sure that the actual instrument is operating normally as specified in its instruction booklet. Important:

Survey instruments that comply with the requirement for instrumentation as prescribed by the performance standard for microwave ovens, 21 CFR 1030.10(c)(3)(i), must be used for testing.

2) Place the oven tray in the oven cavity.

3) Place the load of 275±15 ml (9.8 oz) of tap water initially at 20±5½C (68½F) in the center of the oven cavity. The water container shall be a low form of 600 ml (20 oz) beaker with an inside diameter of approx. 8.5 cm (3-1/2 in.) and made of an electrically nonconductive material such as glass or plastic. The placing of this standard load in the oven is important not only to protect the oven, but also to insure that any leakage is measured accurately.

4) Set the cooking control on Full Power Cooking Mode

5) Close the door and select a cook cycle of several minutes. If the water begins to boil before the survey is completed, replace it with 275 ml of cool water.

C. Leakage test:

Closed-door leakage test (microwave measurement)

1) Grasp the probe of the survey instrument and hold it perpendicular to the gap between the door and the body of the oven.

2) Move the probe slowly, not faster than 1 in./sec. (2.5 cm/sec.) along the gap, watching for the maximum indication on the meter.

3) Check for leakage at the door screen, sheet metal seams and other accessible positions where the continuity of the metal has been breached (eg., around the switches, indicator, and vents). While testing for leakage around the door pull the door away from the front of the oven as far as is permitted by the closed latch assembly.

4) Measure carefully at the point of highest leakage and make sure that the highest leakage is no greater than 4mW/cm2, and that the primary interlock switch does turn the oven OFF before any door movement.

NOTE: After servicing, record data on service invoice and microwave leakage report.

SERVICE MANUAL

OVER THE RANGE

MICROWAVE OVEN

PRODUCT DESCRIPTION

R-1405 R-1406

R-1405/ R-1406

FOREWORD

This Manual has been prepared to provide Sharp Electronics Corp. Service Personnel with Operation and Service Information for the SHARP OVER THE RANGE MICROWAVE OVEN, R-1405 and R-

1406. It is recommended that service personnel carefully study the entire text

of this manual so that they will be qualified to render satisfactory customer service.

Check the interlock switches and the door seal carefully. Special attention should be given to avoid electrical shock and microwave radiation hazard.

WARNING

Never operate the oven until the following points are ensured. (A) The door is tightly closed. (B) The door brackets and hinges are not defective. (C) The door packing is not damaged. (D) The door is not deformed or warped. (E) There is not any other visible damage with the oven.

GENERAL INFORMATION

OPERATION

TROUBLESHOOTING GUIDE AND TEST PROCEDURE

TOUCH CONTROL PANEL

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE

WIRING DIAGRAM

Servicing and repair work must be carried out only by trained service personnel.

DANGER

Certain initial parts are intentionally not grounded and present a risk of electrical shock only during servicing. Service personnel - Do not contact the following parts while the appliance is energized; High Voltage Capacitor, Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness; If provided, Vent Hood, Fan assembly, Cooling Fan Motor.

All the parts marked “*” on parts list are used at voltages more than 250V.

Removal of the outer wrap gives access to voltage above 250V. All the parts marked “Ð” on parts list may cause undue microwave

exposure, by themselves, or when they are damaged, loosened or removed.

SHARP ELECTRONICS CORPORATION

SHARP PLAZA, MAHWAH,

NEW JERSEY 07430-2135

PARTS LIST

R-1405 R-1406

PRODUCT SPECIFICATION

ITEM DESCRIPTION

Power Requirements 120 Volts / 13.5 Amperes

60 Hertz Single phase, 3 wire grounded

Power Output 950 watts (IEC TEST PROCEDURE)

Operating frequency of 2450MHz

Case Dimensions Width 29-15/16"

Height 15- 9/16" Depth 16-1/4"

Cooking Cavity Dimensions Width 17-1/2"

Height 14-15/16"

1.5 Cubic Feet Depth 9-7/8" Hood lamp 2 bulbs, 20W x 2, Incandescent light bulbs Hood fan Approx. 300 C.F.M. Control Complement Touch Control System

Clock ( 1:00 - 12:59 ) Timer (0 - 99 min. 99 seconds)

Microwave Power for Variable Cooking Repetition Rate;

P-HI .................................................. Full power throughout the cooking time

P-90 .................................................................... approx. 90% of Full Power

P-80 .................................................................... approx. 80% of Full Power

P-70 .................................................................... approx. 70% of Full Power

P-60 .................................................................... approx. 60% of Full Power

P-50 .................................................................... approx. 50% of Full Power

P-40 .................................................................... approx. 40% of Full Power

P-30 .................................................................... approx. 30% of Full Power

P-20 .................................................................... approx. 20% of Full Power

P-10 .................................................................... approx. 10% of Full Power

P-0......................................................No power throughout the cooking time

KEEP WARM pad, POPCORN pad, HOT WATER pad REHEAT CENTER pads, COOK CENTER pads DEFROST CENTER pads, Number selection pads POWER LEVEL pad, TIMER / CLOCK pad LIGHT button, FAN button, STOP/CLEAR button, START/ MINUTE PLUS button,

Oven Cavity Light 20W x 1 Incandescent light bulb Safety Standard UL Listed FCC Authorized

DHHS Rules, CFR, Title 21, Chapter 1, Subchapter J

Weight Approx. 55 lbs.

GENERAL INFORMATION

GROUNDING INSTRUCTIONS

This oven is equipped with a three prong grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

WARNING: Improper use of the grounding plug can result in a risk of electric shock.

Electrical Requirements The oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG. The power supply cord and plug must be connected to a separate 120 Volt AC, 60 Hz, 15 Amp. or more dedicated line, using a grounded receptacle. The receptacle should be located inside the cabinet directly above the Microwave Oven/Hood system mounting location.

3-Pronged Plug

Grounded Receptacle Box

Grounding Pin

3-Pronged Receptacle

R-1405 R-1406

OVEN DIAGRAM

1. Oven door with see-through window.

2. Door hinges.

3. Waveguide cover.

4. Turntable motor shaft.

5. Oven lamp. It will light when oven is operating or door is open.

6. Door latches. The oven will not operate unless the door is securely closed.

7. One touch door open button.

8. Auto Touch control panel

9. Time display: Digital display, 99 minutes 99 seconds.

10.Ventilation openings.

11.Light Cover.

12.Grease filters.

13.Removable turntable. The turntable will rotate clockwise or counterclockwise. Only remove for cleaning.

14.Removable turntable support.

15. Power supply cord

R-1405 R-1406

CONTROL PANEL

NOTE: Some one-touch cooking features such as "MINUTE PLUS" are disabled after three minutes when the oven is not

used. These features are automatically enabled when the door is opened and closed or STOP/CLEAR button is pressed.

OPERATION

DESCRIPTION OF OPERATING SEQUENCE

R-1405 R-1406

The following is a description of component functions during oven operation.

OFF CONDITION

Closing the door activates the door sensing switch and primary interlock switch. (In this condition, the monitor switch contacts are opened.) When oven is plugged in, 120 volts A.C. is supplied to the control unit. (Figure O-1).

1. The display will show flashing "88 : 88". To set any program or set the clock, you must first touch the STOP/CLEAR button. The display will clear, and " : " will appear .

COOKING CONDITION

Program desired cooking time touching the NUMBER pads. When the START button is touched, the following operations occur:

1. The contacts of relays are closed and components connected to the relays are turned on as follows. (For details, refer to Figure O-2)

RELAY CONNECTED COMPONENTS RY 1 Oven lamp / Fan motor / Turntable motor RY2 Power transformer RY3, RY4 Hood fan motor RY5, RY6 Hood lamp

2. 120 volts A.C. is supplied to the primary winding of the power transformer and is converted to about 3.3 volts A.C. output on the filament winding, and approximately 2000 volts A.C. on the high voltage winding.

3. The filament winding voltage heats the magnetron filament and the H.V. winding voltage is sent to a voltage doubler circuit.

4. The microwave energy produced by the magnetron is channelled through the waveguide into the cavity feedbox, and then into the cavity where the food is placed to be cooked.

5. Upon completion of the cooking time, the power transformer, oven lamp, etc. are turned off, and the generation of microwave energy is stopped. The oven will revert to the OFF condition.

6. When the door is opened during a cook cycle, monitor switch, door sensing switch, primary interlock switch, relay (RY1) and secondary interlock relay (RY2) are activated with the following results. The circuits to the cooling fan motor, the turntable motor, and the high voltage components are de-energized, the oven lamp remains on, and the digital read-out displays the time still remaining in the cook cycle when the door was opened.

7. The monitor switch is electrically monitoring the operation of the primary interlock switch and secondary interlock

relay (RY2) and is mechanically associated with the door so that it will function in the following sequence. (1) When the door opens from a closed position, the

secondary interlock relay (RY2) and primary interlock switch open their contacts. And contacts of the relay (RY1) remains closed. Then the monitor switch contacts close.

(2 ) When the door is closed from the open position, the

monitor switch contacts first open, and then the contacts of the primary interlock switch and door sensing switch close. And contacts of the relay (RY1)

open. If the primary interlock switch and secondary interlock relay (RY2) fail with their contacts closed when the door is opened, the closing of the monitor switch contacts will form a short circuit through the monitor fuse, primary interlock switch, relay (RY1) and secondary interlock relay (RY2), causing the monitor fuse to blow.

POWER LEVEL P-0 TO P-90 COOKING

When Variable Cooking Power is programmed, the 120 volts A.C. is supplied to the power transformer intermittently through the contacts of relay (RY2) which is operated by the control unit within an interval second time base. Microwave power operation is as follows:

VARI-MODE ON TIME OFF TIME Power 10(P-HI) 32 sec. 0 sec.

(100% power) Power 9(P-90) 30 sec. 2 sec.

(approx. 90% power) Power 8(P-80) 26 sec. 6 sec.

(approx. 80% power) Power 7(P-70) 24 sec. 8 sec. (approx. 70% power)

Power 6(P-60) 22 sec. 10 sec. (approx. 60% power)

Power 5(P-50) 18 sec. 14 sec. (approx. 50% power)

Power 4(P-40) 16 sec. 16 sec. (approx. 40% power)

Power 3(P-30) 12 sec. 20 sec. (approx. 30% power)

Power 2(P-20) 8 sec. 24 sec. (approx. 20% power)

Power 1(P-10) 6 sec. 26 sec. (approx. 10% power)

Power 0(P-0) 0 sec. 32 sec. (0% power)

Note: The ON/OFF time ratio does not correspond with the

percentage of microwave power, because approx. 3 seconds are needed for heating of the magnetron filament.

R-1405 R-1406

VENTILATION METHODS HOT AIR EXHAUST

1. VERTICAL VENTING For this venting method, hot air rising from the conventional range below is drawn in by the hood fan motor through the grease filters at the right and left sides of the base cover, up through the right and left sides of the oven cavity, then discharged vertically at rear center top of the oven, into the customer's vent system.

To Duct

Hood Fan Motor

Hood Intake Duct R

Grease Filter

2. HORIZONTAL VENTING The air handing is the same as VERTICAL VENTING except that the final air discharge is directed horizontally out from the top rear of the oven into the customer's vent system.

Hood Fan Motor

Hood Intake Duct R

To Duct

Grease Filter

3. RE-CIRCULATION (INSIDE VENTING) The air handing is the same as VERTICAL VENTING except that the final air discharge is directed horizontally through the upper front of the oven into the kitchen. IN this case, the accessory charcoal filter RK-240 must be provided to filter the air before it leaves the oven.

Hood Fan Motor

Hood Exhaust Louver

Hood Intake Duct R

Charcoal Filter

FUSE 20A

120VAC 60Hz

ORG

RED

BLK

GRN

GND

WHT

BLU

NOTE: " " indicates components with potential above 250V.

CAVITY THERMAL CUTOUT

PPL

ORG

HOOD FAN THERMAL CUT OUT

BLU

YLW

BLK

RED

HOOD MOTOR

BLK

WHT

HOOD CAPACITOR

RED

RY4

BRN

YLW

WHT

MAGNETRON TEMPERATURE FUSE

CONTROL UNIT

RY5

N.O.

BRN

WHT

HOOD LAMP

WHT

OVEN LAMP RELAY

(RY1)

COM.

GRY

WHT

GRY

RED BLK

N.O.

ORG

BRN

ORG

OVEN LAMP

GRY

PRIMARY INTERLOCK SWITCH

BLK

ORG

(RY2)

SECONDARY INTERLOCK RELAY

TTM

WHT WHT

BRN

TURN TABLE MOTOR

WHT

COM.

RED ORG

RED

AH SENSOR

RED

FMOL

WHT

DOOR SENSING SWITCH

FAN MOTOR

MONITOR SWITCH

WHT

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

2. CLOCK APPEARS ON DISPLAY.

POWER TRANSFORMER

RED

WHT

HIGH VOLTAGE CAPACITOR xx uF

MAGNETRON

R-1405 R-1406

FUSE 20A

120VAC 60Hz

BLK

ORG

RED

BLK

GRN

GND

WHT

BLU

CAVITY THERMAL CUTOUT

PPL

ORG

HOOD FAN THERMAL CUT OUT

BLU

YLW

BLK

RED

BLK

HOOD MOTOR

WHT

RED

RY4

HOOD CAPACITOR

RED

YLW

Figure O-1. Oven Schematic-Off Condition

MAGNETRON TEMPERATURE FUSE

CONTROL UNIT

RY5

BRN

HOOD LAMP

WHT

OVEN LAMP RELAY

N.O.

GRY

WHT

(RY1)

COM.

GRY

RED BLK

N.O.

ORG

BRN

ORG

OVEN LAMP

GRY

PRIMARY INTERLOCK SWITCH

BLK

ORG

(RY2)

SECONDARY INTERLOCK RELAY

TTM

WHT WHT

COM.

BRN

TURN TABLE MOTOR

WHT

RED

ORG

RED

DOOR SENSING SWITCH

AH SENSOR

RED

FMOL

WHT

FAN MOTOR

MONITOR SWITCH

WHT

SCHEMATIC

NOTE: CONDITION OF OVEN

1. DOOR CLOSED.

2. COOKING TIME PROGRAMMED.

3. VARIABLE COOKING CONTROL "HIGH".

4. "START" BUTTON PRESSED.

POWER TRANSFORMER

RED

MAGNETRON

RED

HIGH VOLTAGE

WHT

CAPACITOR xx uF

WHT

Figure O-2. Oven Schematic-Cooking Condition

R-1405 R-1406

DESCRIPTION AND FUNCTION OF COMPONENTS

DOOR OPEN MECHANISM

The door is opened by pushing the open button on the control panel, refer to the Figure D-1. When the open button is pushed, the open button pushes up the open lever, and then the open lever pushes up the latch head. The latch heads are moved upward and released from latch hook. Now the door will open.

Latch heads

Latch hook

Door sensing

Door

Open lever

switch

Monitor switch

Primary interlock switch

Figure D-1. Door Open Mechanism

DOOR SENSING AND PRIMARY INTERLOCK SWITCHES

The primary interlock switch is mounted in the lower position of the latch hook and the door sensing switch in the secondary interlock system is mounted in the upper position of the latch hook. They are activated by the latch heads on the door. When the door is opened, the switches interrupt the circuit to all components. A cook cycle cannot take place until the door is firmly closed thereby activating both interlock switches. The secondary interlock system consists of the door sensing switch and secondary interlock relay located on the control circuit board.

MONITOR SWITCH

The monitor switch is activated (the contacts opened) by the latch head on the door while the door is closed. The switch is intended to render the oven inoperative by means of blowing the monitor fuse when the contacts of the secondary interlock relay (RY2) and primary interlock switch fail to open when the door is opened.

Functions:

1. When the door is opened, the monitor switch contact close (to the ON condition) due to their being normally closed. At this time the secondary interlock relay (RY2) and primary interlock switch are in the OFF condition (contacts open) due to their being normally open contact switches. And the contacts of relay (RY1) are in the ON condition (contacts close).

2. As the door goes to a closed position, the monitor switch contacts are first opened and then the door sensing switch and the primary interlock switch contacts close. (On opening the door, each of these switches operate inversely.)

3. If the door is opened, and the secondary interlock relay (RY2) and primary interlock switch contacts fail to open, the monitor fuse blows simultaneously with closing of the monitor switch contacts.

CAUTION: BEFORE REPLACING A BLOWN MONITOR

FUSE TEST THE DOOR SENSING SWITCH, SECONDARY INTERLOCK RELAY (RY2), RELAY (RY1), PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH FOR PROPER OPERATION. (REFER TO CHAPTER "TEST PROCEDURE").

NOTE: MONITOR FUSE AND SWITCH ARE REPLACED

AS AN ASSEMBLY

TEMPERATURE FUSE (MG)

The temperature fuse located on the fan duct assembly is designed to prevent damage to the magnetron if an over heated condition develops in the tube due to cooling fan failure, obstructed air guide, dirty or blocked air intake, etc. Under normal operation, the temperature fuse remains closed. However, the temperature fuse will open at 302½F (150½C) causing the oven to shut down.

NOTE: This is a fuse. It does not reset.

THERMAL CUT-OUT (HOOD )

This thermal cut-out located on the right base plate flange (turntable motor side). It is designed to automatically turn on the hood fan motor whenever the hot air rising from the conventional range below causes the temperature at the thermal cut-out to rise to 140½F (60½C) or higher, thus removing this hot air from around microwave oven. When the temperature around the thermal cut-out drops to 113½F (45½C) or lower, the thermal cut-out shuts off the hood fan motor.

THERMAL CUT-OUT (CAVITY )

This thermal cut-out is located on the bottom of the oven cavity. It is designed to prevent damage to the oven unit if the food in the oven catches fire due to overheating produced by improper setting of cooking time or failure of control unit. Under normal operation, the thermal cut-out remains closed. However, the thermal cut-out will open at 293½F (145½C) causing the oven to shut down. The defective thermal cut-out must be replaced with a new one.

TURNTABLE MOTOR

The turntable motor rotates the turntable located on the bottom of the oven cavity, so that the foods on the turntable cook evenly during cooking. Turntable will turn in either direction. The turntable motor can be turned off by touching TURNTABLE ON/OFF pad.

COOLING FAN MOTOR

The cooling fan motor drives a blade which draws external cool air. This cool air is directed through the air vanes surrounding the magnetron and cools the magnetron. This air is channelled through the oven cavity to remove steam and

R-1405 R-1406

vapors given off from the heating foods. It is then exhausted

supplied duct system, or discharged back into the kitchen.

through the exhausting air vents at the oven cavity.

HOOD LAMP

HOOD FAN MOTOR

The hood fan motor is a one-speed, single-phase, double pole induction type, requiring a hood fan capacitor. It is located outside the upper rear part of the oven cavity, is to remove, from around the oven, hot air rising from the conventional electric or gas range over which it is installed. This air is then expelled either vertically or horizontally through the customer

The hood lamps are mounted at the hood lamp angle on the base cover. The hood lamps can be turned off and on by touching the LIGHT button.

TROUBLESHOOTING GUIDE

Never touch any part in the circuit with your hand or an uninsulated tool while the power supply is connected.

When troubleshooting the microwave oven, it is helpful to follow the Sequence of Operation in performing the checks. Many of the possible causes of trouble will require that a specific test be performed. These tests are given a procedure letter which will be found in the "Test Procedure "section.

IMPORTANT: If the oven becomes inoperative because of a blown monitor fuse, check the monitor switch, relay (RY1)

secondary interlock relay (RY2), door sensing switch and primary interlock switch before replacing the monitor fuse. If monitor fuse is replaced, the monitor switch must also be replaced. Use part FFS-BA016/ KiT as an assembly.

IMPORTANT: Whenever troubleshooting is performed with the power supply cord disconnected. It may in, some cases,

be necessary to connect the power supply cord after the outer case has been removed, in this event,

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the leads to the primary of the power transformer.

5. Ensure that the leads remain isolated from other components and oven chassis by using insulation tape.

6. After that procedure, reconnect the power supply cord.

When the testing is completed

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Reconnect the leads to the primary of the power transformer.

5. Reinstall the outer case (cabinet).

6. Reconnect the power supply cord after the outer case is installed.

7. Run the oven and check all functions.

TEST PROCEDURE

D HIGH VOLTAGE CAPACITOR

C H.V. RECTIFIER

B POWER TRANSFORMER

A MAGNETRON

POSSIBLE CASE AND

DEFECTIVE PARTS

F PRIMARY INTERLOCK SWITCH

SECONDARY INTERLOCK SYSTEM

TEMPERATURE FUSE OR THERMAL CUT-OUT

J HOOD HERMAL CUT-OUT

I MONITOR FUSE

H MONITOR SWITCH

M KEY UNIT

L CONTROL UNIT

K HOOD FAN MOTOR

N RELAY (RY-2)

N RELAY (RY-1)

N RELAY (RY-3)

O DEFROST CENTER

N RELAYS (RY-5), (TY6)

N RELAY (RY-4)

P FOIL PATERN ON P.W.B.

RE SHORT IN POWER CORD

CK OPENED OR SHORTED WIRING

CK HOOD MOTOR CAPACITOR

RE HOOD LAMP OR SOCKET

RE TURNTABLE MOTOR

RE FAN MOTOR

RE OVEN LAMP OR SOCKET

R-1405

R-1406

CK LOW VOLTAGE

CK NO POWER AT OUTLET

CONDITION

OFF

CONDITION

IDLE

CONDITION

MICROWAVE

COOKING CONDITION

PROBLEM

Home fuse blows when power cord is plugged into wall receptacle. Monitor fuse blows when power cord is plugged into wall receptacle. Display does not illuminate when power cord is first plugged into wall

receptacle. Display does not operate properly when STOP/CLEAR button is touched.

(The time of day should appear on the display with beep sound during normal condition.)

Oven lamp does not light with door is opened. Hood fan motor operates when power cord is first plugged into wall

receptacle. Temperature of oven base seems more than 140ûF (60ûC) because of

operation of the range below. But hood fan motor does not turn on automatically. (Normally, food fan motor should be operating at low speed.)

Hood lights do not turn on when LIGHT button is pressed.

Hood fan motor does not rotate at all with touched FAN button.

Oven lamp does not light in cook cycle. (But it does light when door is opened.)

Fan motor does not operate. (Oven lamp and turntable motor operate.) Turntable motor does not operate (Oven lamp lights and fan motor

operate.) Oven does not go into cook cycle when START button is touched Oven seems to be operating but little or no heat is produced in oven load.

(Food incompletely cooked or not cooked at all at end of cook cycle.) Oven goes into a cook cycle but extremely uneven heating is produced in

oven load (food). Variable cooking does not operate properly except Cooking Power 10 (P-

HI) mode. Function of DEFROST CENTER does not operate properly. Oven goes into DEFROST CENTER but food is not defrosted well.

CK = Check / RE = Replace

TEST PROCEDURES

R-1405 R-1406

PROCEDURE

LETTER

A MAGNETRON ASSEMBLY TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. To test for an open filament, isolate the magnetron from the high voltage circuit. A continuity check across the magnetron filament leads should indicate less than 1 ohm.

5. To test for a shorted magnetron, connect the ohmmeter leads between the magnetron filament leads and chassis ground. This test should indicate an infinite resistance. If there is little or no resistance the magnetron is grounded and must be replaced.

6. Reconnect all leads removed from components during testing.

7. Reinstall the outer case (cabinet).

8. Reconnect the power supply cord after the outer case is installed.

9. Run the oven and check all functions.

MICROWAVE OUTPUT POWER

The following test procedure should be carried out with the microwave oven in a fully assembled condition (outer case fitted).

HIGH VOLTAGES ARE PRESENT DURING THE COOK CYCLE, SO EXTREME CAUTION SHOULD BE OBSERVED.

Power output of the magnetron can be measured by performing a water temperature rise test. This test should only be used if above tests do not indicate a faulty magnetron and there is no defect in the following components or wiring: silicon rectifier, high voltage capacitor and power transformer. This test will require a 16 ounce (453cc) measuring cup and an accurate mercury thermometer or thermocouple type temperature tester. For accurate results, the following procedure must be followed carefully:

1. Fill the measuring cup with 16 oz. (453cc) of tap water and measure the temperature of the water with a thermometer or thermocouple temperature tester. Stir the thermometer or thermocouple through the water until the temperature stabilizes. Record the temperature of the water.

2. Place the cup of water in the oven. Operate oven at POWER 10(HIGH) selecting more than 60 seconds cook time. Allow the water to heat for 60 seconds, measuring with a stop watch, second hand of a watch or the digital read-out countdown.

3. Remove the cup from the oven and again measure the temperature, making sure to stir the thermometer or thermocouple through the water until the maximum temperature is recorded.

4. Subtract the cold water temperature from the hot water temperature. The normal result should be 29.2 to 54.2½F(16.2 to 30.1½C) rise in temperature. If the water temperatures are accurately measured and tested for the required time period the test results will indicate if the magnetron tube has low power output (low rise in water temperature) which would extend cooking time or high power output (high rise in water temperature) which would reduce cooking time. Because cooking time can be adjusted to compensate for power output, the magnetron tube assembly should be replaced only if the water temperature rise test indicates a power output well beyond the normal limits. The test is only accurate if the power supply line voltage is 120 volts and the oven cavity is clean.

COMPONENT TEST

B POWER TRANSFORMER TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect the primary input terminals and measure the resistance of the transformer with an ohmmeter. Check for continuity of the coils with an ohmmeter. On the R x 1 scale, the resistance of the primary coil should be less than 1 ohm and the resistance of the high voltage coil should be approximately 83 ohms; the resistance of the filament coil should be less than 1 ohm.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

R-1405 R-1406

TEST PROCEDURES

PROCEDURE

LETTER

(HIGH VOLTAGES ARE PRESENT AT THE HIGH VOLTAGE TERMINAL, SO DO NOT ATTEMPT TO MEASURE THE FILAMENT AND HIGH VOLTAGE.)

C HIGH VOLTAGE RECTIFIER TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Isolate the rectifier from the circuit. Using the highest ohm scale of the meter, read the resistance across the terminals and observe, reverse the leads to the rectifier terminals and observe meter reading. If a short is indicated in both directions, or if an infinite resistance is read in both directions, the rectifier is probably defective and should be replaced.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

NOTE: Be sure to use an ohmmeter that will supply a forward bias voltage of more than 6.3 volts.

D HIGH VOLTAGE CAPACITOR TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. If the capacitor is open, no high voltage will be available to the magnetron. Disconnect input leads and check for short or open between the terminals using an ohmmeter. Checking with a high ohm scale, if the high voltage capacitor is normal, the meter will indicate continuity for a short time and should indicate an open circuit once the capacitor is charged. If the above is not the case, check the capacitor with an ohmmeter to see if it is shorted between either of the terminals and case. If it is shorted, replace the capacitor.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

COMPONENT TEST

E CAVITY THERMAL CUT-OUT TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. A continuity check across the thermal cut-out terminals should indicate a closed circuit unless the temperature of the thermal cut-out reaches approximately 293½F(145½C). An open thermal cut-out indicates overheating of the oven, exchange the oven thermal cut-out and check inside of oven cavity and for improper setting of cooking time or operation of control unit. Check for restricted air flow through the vent holes of the oven cavity, especially the cooling fan and air guide.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

MAGNETRON TEMPERATURE FUSE TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. A continuity check across the temperature fuse terminals should indicate a closed circuit. If the temperature of the magnetron reaches approximately 302½F(150½C), the temperature fuse opens. An open temperature fuse indicates overheating of the magnetron. Check for restricted air flow to the magnetron, especially the cooling fan air guide.

5. Reconnect all leads removed from components during testing.

TEST PROCEDURES

R-1405 R-1406

PROCEDURE

LETTER

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions. CAUTION: IF THE THERMAL CUT-OUT OR TEMPERATURE FUSE INDICATES AN OPEN CIRCUIT

AT ROOM TEMPERATURE, REPLACE THERMAL CUT-OUT OR TEMPERATURE FUSE.

F PRIMARY INTERLOCK SWITCH TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Isolate the switch and connect the ohmmeter to the common (COM.) and normally open (NO) terminal of the switch. The meter should indicate an open circuit with the door open and a closed circuit with the door closed. If improper operation is indicated, replace the secondary interlock switch.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

G SECONDARY INTERLOCK SYSTEM TEST

DOOR SENSING SWITCH

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

NOTE: If the door sensing switch contacts fail in the open position and the door is closed, the cooling fan

motor, stirrer motor and oven light will be activated by RY1.

COMPONENT TEST

SECONDARY INTERLOCK RELAY (RY2)

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Disconnect two (2) wire leads from the male tab terminals of the Secondary Interlock Relay. Check the state of the relay contacts using a ohmmeter. The relay contacts should be open. If the relay contacts are closed, replace the circuit board entirely or the relay itself.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

H MONITOR SWITCH TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. Before performing this test, make sure that the primary interlock switch and the secondary interlock relay are operating properly, according to the above Switch and Interlock system Test Procedures. Disconnect the wire lead from the monitor switch (COM) terminal. Check the monitor switch operation by using the ohmmeter as follows. When the door is open, the meter should indicate a closed circuit. When the monitor switch actuator is pushed by a screw driver through the lower latch hole on the front

R-1405 R-1406

TEST PROCEDURES

PROCEDURE

LETTER

plate of the oven cavity with the door opened (in this condition the plunger of the monitor switch is pushed in), the meter should indicate an open circuit. If improper operation is indicated, the switch may be defective. After testing the monitor switch, reconnect the wire lead to the monitor switch (COM) terminal and check the continuity of the monitor circuit.

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

I BLOWN MONITOR FUSE TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. If the monitor fuse is blown when the door is opened, check the secondary interlock relay, primary interlock switch and monitor switch according to the "TEST PROCEDURE" for those switches before replacing the blown monitor fuse.

CAUTION: BEFORE REPLACING A BLOWN MONITOR FUSE, TEST THE SECONDARY INTERLOCK

RELAY, PRIMARY INTERLOCK SWITCH, DOOR SENSING SWITCH AND MONITOR

SWITCH FOR PROPER OPERATION. If the monitor fuse is blown by improper switch operation, the monitor fuse and monitor switch must be replaced with "monitor fuse and monitor switch assembly" part number FFS-BA016/KiT, even if the monitor switch operates normally. The monitor fuse and monitor switch assembly is comprised of a 20 ampere fuse and switch.

5. Reconnect all leads removed from components during testing.

6. Re-install the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

COMPONENT TEST

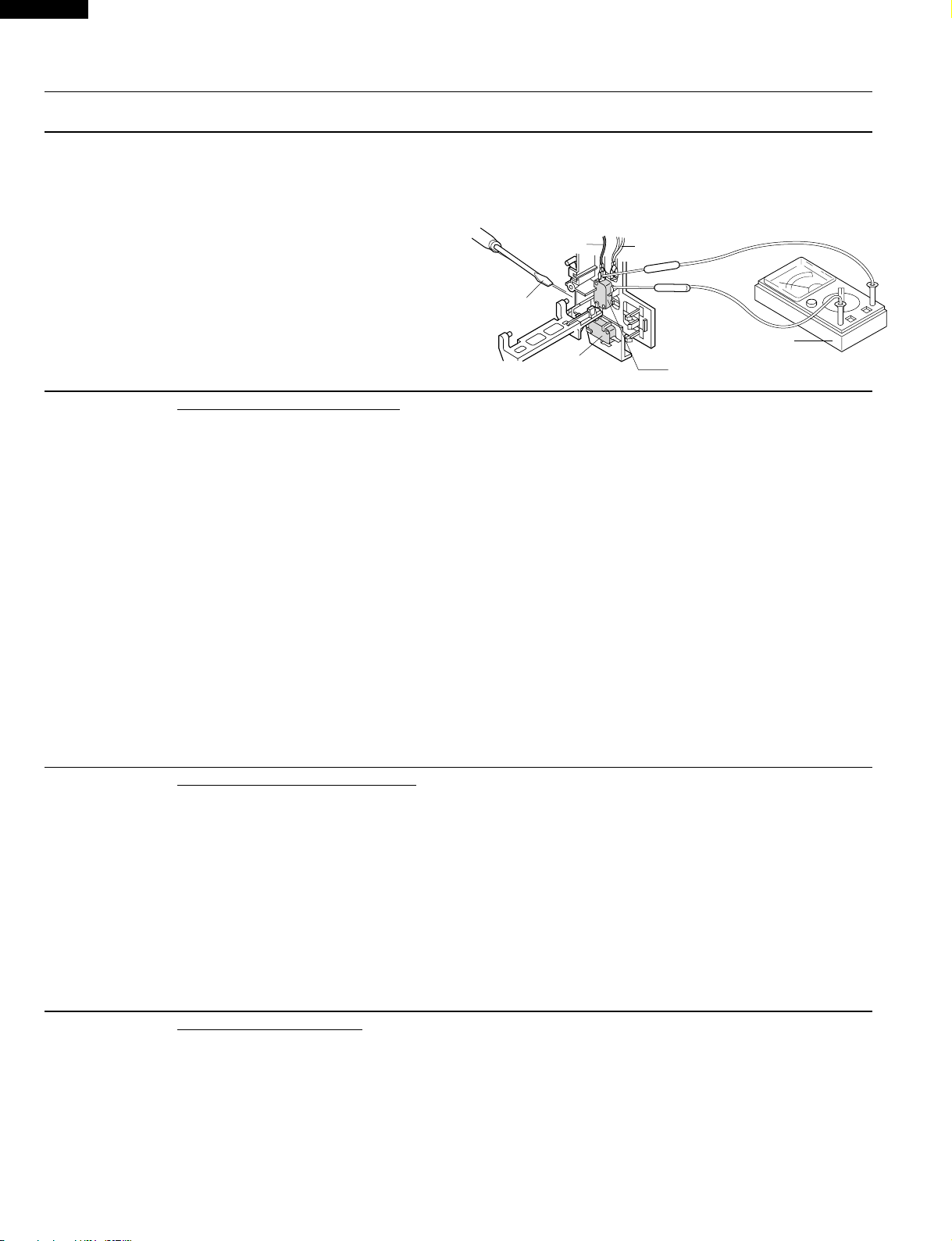

Red

Screw Driver

Primary Interlock Switch

White/ White

Ohmmeter

Monitor Switch

J HOOD THERMAL CUT-OUT TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. A continuity check across the thermal cut-out terminals should indicate an open circuit unless the temperature of the thermal cut-out reaches approximately 140½F(60½C) or more. At that temperature, the contacts will close. The thermal cut-out opens automatically at approximately 113½F(45½C).

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

K HOOD FAN MOTOR TEST

1. Disconnect the power supply cord, and then remove outer case.

2. Open the door and block it open.

3. Discharge high voltage capacitor.

4. If the motor does not turn, touch the FAN button once and check voltage between pins "1" and "2" (Blue and Black wires) of the 6 pin connector. If 120 Volts appear and the hood capacitor is good, replace the hood fan assembly. If 120 Volts does not appear, check the motor circuit. The resistance values of motor terminals are as follows:

TEST PROCEDURES

R-1405 R-1406

PROCEDURE

LETTER

HOOD FAN CAPACITOR

RED

COMPONENT TEST

YLW

BLU

BLU (1) AND YLW (4) = 0Ω (Shorted) BLK (2) AND YLW (4) = 60Ω BLU (1) AN D BLK (2) = 60Ω

MAIN

60 Ω

120 v

60 Hz

RED(5) AND BLU (1) = 162Ω RED(5) AND BLK (2) = 102Ω YLW(4) AND RED (5) = 162Ω

SUB

102 Ω

BLK

6-PIN CONNECTOR OF HOOD FAN MOTOR

5. Reconnect all leads removed from components during testing.

6. Reinstall the outer case (cabinet).

7. Reconnect the power supply cord after the outer case is installed.

8. Run the oven and check all functions.

Resistance between;

BLU BLK

1 2

4 5

YLW RED

R-1405 R-1406

TEST PROCEDURES

PROCEDURE

LETTER

L TOUCH CONTROL PANEL ASSEMBLY TEST

The touch control panel consists of circuits including semiconductors such as LSI, ICs, etc. Therefore, unlike conventional microwave ovens, proper maintenance cannot be performed with only a voltmeter and ohmmeter. In this service manual, the touch control panel assembly is divided into two units, Control Unit and Key Unit, and also the Control Unit is divided into two units, LSI Unit and Power Unit, and troubleshooting by unit replacement is described according to the symptoms indicated.

Before testing,

1) Disconnect the power supply cord, and then remove outer case. Refer to procedure of " HOOD

EXHAUST LOUVER REMOVAL ", " REMOVAL OF OVEN FROM WALL " and " OUTER CASE REMOVAL ".

2) Open the door and block it open.

3) To discharge high voltage capacitor, wait for 60 seconds.

4) Remove two (2) screws holding the hood intake duct R to the ovencavity top plate and the base plate

R. And remove the hood intake duct R.

5) Disconnect the leads to the primary of the power transformer.

6) Ensure that these leads remain isolated from other components and oven chassis by using

insulation tape.

1. Key Unit. NOTE ;

1) Check key unit ribbon connection before replacement.

2) Reconnect all leads removed from components during testing.

3) Re-install the hood intake duct R with two (2) screws.

4) Re-install the outer case (cabinet).

5) Reconnect the power supply cord after the outer case is installed.

6) Run the oven and check all functions.

The following symptoms indicate a defective key unit. a) When touching the pads, a certain pad produces no signal at all. b) When touching a number pad, two figures or more are displayed. c) When touching the pads, sometimes a pad produces no signal. If the key unit is defective.

1) Disconnect the power supply cord, and then remove outer case.

2) Open the door and block it open.

3) To discharge high voltage capacitor, wait for 60 seconds.

4) Replace the key unit.

5) Reconnect all leads removed from components during testing.

6) Re-install the outer case (cabinet).

7) Reconnect the power supply cord after the outer case is installed.

8) Run the oven and check all functions.

2. Control Unit. The following symptoms indicate a defective control unit. Before replacing the control unit, perform the Key unit test (Procedure M) to determine if control unit is faulty.

2- 1 In connection with pads.

a) When touching the pads, a certain group of pads do not produce a signal. b) When touching the pads, no pads produce a signal.

2- 2 In connection with indicators

a) At a certain digit, all or some segments do not light up. b) At a certain digit, brightness is low. c) Only one indicator does not light. d) The corresponding segments of all digits do not light up; or they continue to light up. e) Wrong figure appears. f) A certain group of indicators do not light up. g) The figure of all digits flicker.

2- 3 Other possible problems caused by defective control unit.

a) Buzzer does not sound or continues to sound. b) Clock does not operate properly. c) Cooking is not possible.

COMPONENT TEST

TEST PROCEDURES

R-1405 R-1406

PROCEDURE

LETTER

When testing is completed,

M KEY UNIT TEST

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge high voltage capacitor, wait for 60 seconds.

4. Remove the control panel assembly.

5. If the display fails to clear when the STOP/CLEAR pad is depressed, first verify the flat ribbon cable

6. Reconnect all leads removed from components during testing.

7. Re-install the control panel assembly.

8. Reconnect the power supply cord.

9. Run the oven and check all functions.

COMPONENT TEST

1) Disconnect the power supply cord.

2) Open the door and block it open.

3) To discharge high voltage capacitor, wait for 60 seconds.

4) Reconnect all leads removed from components during testing.

5) Re-install the hood intake duct R.

6) Re-install the outer case (cabinet).

7) Reconnect the power supply cord after the outer case is installed.

8) Run the oven and check all functions.

is making good contact, verify that the door sensing switch (stop switch) operates properly; that is the contacts are closed when the door is closed and open when the door is open. If the door sensing switch (stop switch) is good, disconnect the flat ribbon cable that connects the key unit to the control unit and make sure the door sensing switch is closed (either close the door or short the door sensing switch connecter). Use the Key unit matrix indicated on the control panel schematic and place a jumper wire between the pins that correspond to the STOP/CLEAR pad making momentary contact. If the control unit responds by clearing with a beep the key unit is faulty and must be replaced. If the control unit does not respond, it is faulty and must be replaced. If a specific pad does not respond, the above method may be used (after clearing the control unit) to determine if the control unit or key pad is at fault.

G10

G11G12 G 9

N RELAY TEST

1. Disconnect the power supply cord, and then remove outer case. Refer to procedure of " HOOD EXHAUST LOUVER REMOVAL ", " REMOVAL OF OVEN FROM WALL " and " OUTER CASE REMOVAL ".

2. Open the door and block it open.

3. To discharge high voltage capacitor, wait for 60 seconds.

4. Remove the hood intake duct R.

5. Disconnect the leads to the primary of the power transformer.

6. Ensure that these leads remain isolated from other components and oven chassis by using insulation tape.

G 8

G 7 G 6 G 5 G 4 G 3 G 2 G 1

REHEAT

COOK

DEFROST

POWER

LEVEL

KEY UNIT

POPCORN

TIMER

CLOCK

LIGHT

FAN

STOP

CLEAR START

MINUTE

PLUS

R-1405 R-1406

TEST PROCEDURES

PROCEDURE

LETTER

COMPONENT TEST

7. After that procedure, re-connect the power supply cord.

8. Check voltage between normal open terminal of the relay RY2 and the normal open terminal of the relay RY1 on the control unit with an A.C. voltmeter. The meter should indicate 120 volts, if not check oven circuit.

RY1, RY2, RY4, and RY5 Relay Test

These relays are operated by D.C. voltage Check voltage at the relay coil with a D.C. voltmeter during the microwave cooking operation.

DC. voltage indicated .................... Defective relay.

DC. voltage not indicated .............. Check diode which is connected to the relay coil. If diode

is good, control unit is defective.

RELAY SYMBOL OPERATIONAL VOLTAGE CONNECTED COMPONENTS

RY1 Approx. 26.6V D.C. Oven lamp / Fan motor / Turntable motor RY2(COOK) Approx. 26.0V D.C. Power transformer RY4 Approx. 26.6V D.C. Hood motor RY5 Approx. 26.6V D.C. Hood lamp

9. Disconnect the power supply cord.

10. Open the door and block it open.

11. To discharge high voltage capacitor, wait for 60 seconds.

12. Reconnect all leads removed from components during testing.

13. Re-install the hood intake duct R.

14. Re-install the outer case (cabinet).

15. Reconnect the power supply cord after the outer case is installed.

16. Run the oven and check all functions.

O DEFROST CENTER TEST

(1 ) Open the door. (2) Place one cup of water in the center of the turntable tray in the oven cavity. (3 ) Close the door. (4 ) Touch the " DEFROST" pad once. (5 ) Touch the number pad "2". (6 ) Touch the number pad "5". (7) Touch the " START " button. (8 ) The oven is in Defrost center cooking condition. (9 ) The oven will operate as follows.

Menu 1ST STAGE 2ND STAGE

Steaks/Chops LEVEL TIME LEVEL TIME

0.5lbs 60% 57sec. 40% 17sec.

(8 ) If improper operation is indicated, the control unit is probably defective and should be checked.

P FOIL PATTERN ON THE PRINTED WIRING BOARD TEST

To protect the electronic circuits, this model is provided with a fine foil pattern added to the primary on the PWB, this foil pattern acts as a fuse.

1. Foil pattern check and repairs.

1) Disconnect the power supply cord.

2) Open the door and block it open.

3) To discharge high voltage capacitor, wait for 60 seconds.

4) Remove the control unit, referring to the procedure of " CONTROL PANEL ASSEMBLY, CONTROL

UNIT AND KEY UNIT REMOVAL ".

5) Follow the troubleshooting guide given below for repair.

TEST PROCEDURES

R-1405 R-1406

PROCEDURE

LETTER

10) Run the oven and check all functions.

2. Follow the troubleshooting guide given below, if indicator does not light up after above check and repairs

10 ) Open the door and block it open. 11 ) To discharge high voltage capacitor, wait for 60 seconds. 12 ) Reconnect all leads removed from components during testing. 13 ) Re-install the hood intake duct R. 14 ) Re-install the outer case (cabinet). 15 ) Reconnect the power supply cord after the outer case is installed.

16) Run the oven and check all functions.

COMPONENT TEST

STEPS OCCURRENCE CAUSE OR CORRECTION

1 Only pattern at "a" is broken. *Insert jumper wire J1 and solder. 2 Pattern at "a" and "b" are broken. *Insert the coil RCILF2003YAZZ between "c" and "d".

6) Make a visual inspection of the varistor. Check for burned damage and examine

VRS1

the transformer with a tester for the presence of layer short-circuit (check the primary coil resistance which is approximately 215ý ± 10%). If any abnormal condition is detected, replace the defective parts.

QKITPB035

RY2

7) Reconnect all leads removed from components during testing.

8) Re-install the control unit to the control panel and re-install the control panel to the oven.

9) Reconnect the power supply cord.

are finished.

1) Disconnect the power supply cord, and then remove outer case. Refer to procedure of " HOOD EXHAUST LOUVER REMOVAL ", " REMOVAL OF OVEN FROM WALL " and " OUTER CASE REMOVAL ".

2) Open the door and block it open.

3) To discharge high voltage capacitor, wait for 60 seconds.

4) Remove the hood intake duct R.

5) Disconnect the leads to the primary of the power transformer.

6) Ensure that these leads remain isolated from other components and oven chassis by using insulation tape.

7) After that procedure, re-connect the power supply cord.

8) Follow the troubleshooting guide given below for repair.

STEPS OCCURRENCE CAUSE OR CORRECTION

The rated AC voltage is not present between

1 the normal open terminal of the relay RY2 and Check supply voltage and oven power cord.

the normal open terminal of the relay RY1.

2 The rated AC voltage is present at primary Low voltage transformer or secondary circuit defective.

side of low voltage transformer. Check and repair.

9) Disconnect the power supply cord.

R-1405 R-1406

TOUCH CONTROL PANEL ASSEMBLY

OUTLINE OF TOUCH CONTROL PANEL

The touch control section consists of the following units as shown in the touch control panel circuit.

(1) Key Unit (2) Control Unit (The Control unit consists of LSI Unit and

Power U nit)

The principal functions of these units and the signals communicated among them are explained below.

Key Unit

The key unit is composed of a matrix, signals generated in the LSI are sent to the key unit through P20, P21, P22, P25, and P26. When a key pad is touched, a signal is completed through the key unit and passed back to the LSI through P43, P44, P45 and P46 to perform the function that was requested.

Control Unit

Control unit consists of LSI, power source circuit, synchronizing signal circuit, reset circuit, buzzer circuit, relay circuit indicator circuit and back light circuit.

1) LSI

This LSI controls the key strobe signal, relay driving signal for oven function and indicator signal.

2) Power Source Circuit

This circuit generates voltages necessary for the control unit from the AC line voltage. In addition, the synchronizing signal is available in order to compose a basic standard time in the clock circuit.

Symbol Voltage Application VC -5.3V LSI(IC1)

3) Synchronizing Signal Circuit

The power source synchronizing signal is available in order to compose a basic standard time in the clock circuit. It incorporates a very small error because it works on commercial frequency.

4) Reset Circuit

A circuit to generate a signals which resetting the LSI to the initial state when power is applied.

5) Buzzer Circuit

The buzzer is responds to signals from the LSI to emit audible sounds (key touch sound and completion sound).

6) Door Sensing Switch

A switch to inform the LSI if the door is open or closed.

7) Relay Circuit

To drive the magnetron, fan motor, turntable motor, hood motor, and light the oven lamp and hood lamp.

8) Indicator Circuit

This circuit consists of 22 segments and 3 common electrodes using a Light Crystal Display.

9) Back Light Circuit

A circuit to drive the back light (Light emitting diodes LD1LD4).

DESCRIPTION OF LSI

LSI

The I/O signal of the LSI is detailed in the following table.

Pin No. Signal I/O Description

1-2 VL2-VL1 IN Power source voltage input terminal.

Standard voltage for LCD.

3-6 AN7-AN4 IN

Terminal to change cooking input according to the Model.

By using the A/D converter contained in the LSI, DC voltage in accordance with the Model in operation is applied to set up its cooking constant.

Pin No. Signal I/O Description

16.7 msec.

H : GND

L : -5V

7 AN3 OUT Back light circuit (Light emitting diodes) driving signal. 8 AN2 IN

To input signal which communicates the door open/close information to LSI.

Door close "H" level signal (0V). Door open "L" level signal (-5V). 9-10 AN1-AN0 OUT Terminal not used. 11-13 P57-P55 OUT Terminal not used. 14 CNTR0 OUT

Signal to sound buzzer (2.0 kHz).

A: key touch sound. B: Completion sound.

0.1 sec.

2.0 sec.

15 P53 OUT Terminal not used.

16 P52 OUT

Oven lamp, fan motor and turntable motor driving signal

To turn on and off shut off relay (RY1). The square waveform voltage is delivered to the RY1 driving circuit and RY2 control circuit.

17-18 P51-P50 OUT Terminal not used. 19 P47 OUT

Magnetron high-voltage circuit driving signal.

To turn on and off the cook relay (RY2). The signals holds "L" level during microwave cooking and "H" level while not cooking. In other cooking modes (variable cooking) the signal turns to "H" level and "L" level in repetition according to the power level.

16.7 msec.

During cooking

OFF

Maximum output

OFF OFF

70% of maximum output

24 sec.

H : GND

L : -5V

H : GND

L : -5V

8 sec.

H : GND

L : -5V

H : GND

L : -5V

H : GND

L : -5V

R-1405 R-1406

(ON and OFF times for other power level.)

20 P46 IN

Signal coming from touch key.

When either G12 line on key matrix is touched, a corresponding signal out of P20, P21, P22, P25 and P26 will be input into P46. When no key is touched, the signal is held at "H" level.

21 P45 IN

Signal similar to P46.

When either G11 line on key matrix is touched, a corresponding signal will be input into P45.

22 P44 IN

Signal similar to P46.

When either G10 line on key matrix is touched, a corresponding signal will be input into P44.

23 P43 IN

Signal similar to P46.

When either G9 line on key matrix is touched, a corresponding signal will be input into P43.

24 INT0 IN

Signal synchronized with commercial power source frequency.

This is the basic timing for time processing of LSI.

25 P41 OUT Terminal not used. 26 P40 IN Connected to GND through the pull-down resistor R100. 27

RESET

Auto clear terminal.

Signal is input to reset the LSI to the initial state when power is applied. 28-29 P71-P70 OUT Terminal not used. 30 XIN IN

Internal clock oscillation frequency input setting.

The internal clock frequency is set by inserting the ceramic filter oscillation circuit with

respect to XOUT terminal. 31 XOUT OUT

Internal clock oscillation frequency control output.

Output to control oscillation input of XIN. 32 VSS IN

Power source voltage: -5.0V.

VC voltage of power source circuit input. 33 P27 OUT Terminal not used.

R-1405 R-1406

Pin No. Signal I/O Description

34 P26 OUT Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one of G7 line keys on key matrix is touched.

35 P25 OUT

Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one

of G6 line keys on key matrix is touched. 36 P24 OUT Terminal not used. 37 P23 OUT Terminal not used. 38 P22 OUT

Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one

of G3 line keys on key matrix is touched. 39 P21 OUT

Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one

of G2 line keys on key matrix is touched. 40 P20 OUT

Key strobe signal.

Signal applied to touch-key section. A pulse signal is input to P43-P46 terminal while one

of G1 line keys on key matrix is touched. 41 P17 OUT Terminal not used. 42 P16 OUT

Hood lamp driving signal.

To turn on and off relay(RY5). " L " level: During

Hood lamp ON. "H" level: During Hood lamp

OFF. 43 P15 OUT Terminal not used. 44 P14 OUT

Hood motor driving signal.

To turn on and off relay(RY4). "L" level: During

Hood motor ON. "H" level: During Hood motor

OFF. 45-47 P13-P11 OUT Terminal not used. 48-50 51-72

SEG24-SEG22

SEG21-SEG0

OUT Terminal not used. OUT Segment data signal.

Connected to LCD.

The relation between signals are as follows:

LSI signal (Pin No.) LCD (Pin No.) LSI signal (Pin No.) LCD (Pin No.) SEG 21 (51) ------------------- SEG21 ( 1) SEG 10 (62) -------------------- SEG10 (12) SEG 20 (52) ------------------- SEG20 ( 2) SEG 9 (63) --------------------- SEG 9 (13) SEG 19 (53) ------------------- SEG19 ( 3) SEG 8 (64) --------------------- SEG 8 (14) SEG 18 (54) ------------------- SEG18 ( 4) SEG 7 (65) --------------------- SEG 7 (15) SEG 17 (55) ------------------- SEG17 ( 5) SEG 6 (66) --------------------- SEG 6 (16) SEG 16 (56) ------------------- SEG16 ( 6) SEG 5 (67) --------------------- SEG 5 (17) SEG 15 (57) ------------------- SEG15 ( 7) SEG 4 (68) --------------------- SEG 4 (18) SEG 14 (58) ------------------- SEG14 ( 8) SEG 3 (69) --------------------- SEG 3 (19) SEG 13 (59) ------------------- SEG13 ( 9) SEG 2 (70) --------------------- SEG 2 (20) SEG 12 (60) ------------------ SEG12 (10) SEG 1 (71) --------------------- SEG 1 (21) SEG 11 (61) ------------------ SEG11 (11) SEG 0 (72) --------------------- SEG 0 (22)

73/74 VCC/VREF IN Connected to GND. 75 AVSS IN Connected to VC. 76 COM3 OUT Terminal not used. 77 COM2 OUT

Common data signal: COM2.

Connected to LCD signal COM2. 78 COM1 OUT

Common data signal: COM1.

Connected to LCD signal COM1. 79 COM0 OUT

Common data signal: COM0.

Connected to LCD signal COM0. 80 VL3 IN

Power source voltage input terminal.

Standard voltage for LCD.

OFF

H : GND

SERVICING

R-1405 R-1406

1. Precautions for Handling Electronic Components

This unit uses CMOS LSI in the integral part of the circuits. When handling these parts, the following precautions should be strictly followed. CMOS LSI have extremely high impedance at its input and output terminals. For this reason, it is easily influenced by the surrounding high voltage power source, static electricity charge in clothes, etc. and sometimes it is not fully protected by the built-in protection circuit. In order to protect CMOS LSI.

1) When storing and transporting, thoroughly wrap them in aluminium foil. Also wrap all PW boards containing them in aluminium foil.

2) When soldering, ground the technician as shown in the figure and use grounded soldering iron and work table.

approx. 1M ohm

2. Shapes of Electronic Components

Transistor KRC243M

3. Servicing of Touch Control Panel

We describe the procedures to permit servicing of the touch control panel of the microwave oven and the precautions you must take when doing so. To perform the servicing, power to the touch control panel is available either from the power line of the oven itself or from an external power source.

(1 ) Servicing the touch control panel with power supply

of the oven: CAUTION: THE HIGH VOLTAGE TRANSFORMER OF THE MICROWAVE OVEN IS STILL LIVE DURING SERVICING AND PRESENTS A HAZARD.

Therefore, before checking the performance of the touch control panel,

1) Disconnect the power supply cord, and then remove

outer case.

2) Open the door and block it open.

3) Discharge high voltage capacitor.

4) Disconnect the leads to the primary of the power

transformer.

5) Ensure that these leads remain isolated from other

components and oven chassis by using insulation tape.

6) After that procedure, re-connect the power supply

cord.

After checking the performance of the touch control panel,

1) Disconnect the power supply cord.

2) Open the door and block it open.

3) Re-connect the leads to the primary of the power

transformer.

4) Re-install the outer case (cabinet).

5) Re-connect the power supply cord after the outer case is installed.

6) Run the oven and check all functions.

A. On some models, the power supply cord between the

touch control panel and the oven itself is so short that the two can’t be separated. For those models, check and repair all the controls (sensor-related ones included) of the touch control panel while keeping it connected to the oven.

B. On some models, the power supply cord between the

touch control panel and the oven proper is long enough that they may be separated from each other. For those models, it is possible to check and repair the controls of the touch control panel while keeping it apart from the oven proper; in this case you must short both ends of the door sensing switch (on PWB) of the touch control panel with a jumper, which activates an operational state that is equivalent to the oven door being closed. As for the sensor-related controls of the touch control panel, checking them is possible if dummy resistor(s) with resistance equal to that of the controls are used.

(2 ) Servicing the touch control panel with power supply

from an external power source:

Disconnect the touch control panel completely from the oven proper, and short both ends of the door sensing switch (on PWB) of the touch control panel, which activates an operational state that is equivalent to the oven door being closed. Connect an external power source to the power input terminal of the touch control panel, then it is possible to check and repair the controls of the touch control panel it is also possible to check the sensorrelated controls of the touch control panel by using the dummy resistor(s).

4. Servicing Tools

Tools required to service the touch control panel assembly.

1) Soldering iron: 30W (It is recommended to use a soldering iron with a grounding terminal.)

2) Oscilloscope: Single beam, frequency range: DC10MHz type or more advanced model.

3) Others: Hand tools

5. Other Precautions

1) Before turning on the power source of the control unit, remove the aluminium foil applied for preventing static electricity.

2) Connect the connectors of the key unit to the control unit being sure that the lead wires are not twisted.

3) After aluminium foil is removed, be careful that abnormal voltage due to static electricity etc. is not applied to the input or output terminals.

4) Attach connectors, electrolytic capacitors, etc. to PWB, making sure that all connections are tight.

5) Be sure to use specified components where high precision is required.

R-1405 R-1406

COMPONENT REPLACEMENT AND ADJUSTMENT PROCEDURE

WARNING AGAINST HIGH VOLTAGE:

Microwave ovens contain circuitry capable of producing very high voltage and current, contact with following parts may result in severe, possibly fatal, electric shock. (Example) High Voltage Capacitor, Power Transformer, Magnetron, High Voltage Rectifier Assembly, High Voltage Harness etc..

WARNING:

1. Disconnect the power supply cord.

2. Make sure that a definite” click” can be heard when the microwave oven door is unlatched. (Hold the door in a closed position with one hand, then push the door open button with the other, this causes the latch leads to rise, it is then possible to hear a “click’ as the door switches operate.)

3. Visually check the door and cavity face plate for damage (dents, cracks, signs of arcing etc.).

Carry out any remedial work that is necessary before operating the oven. Do not operate the oven if any of the following conditions exist;

Avoid possible exposure to microwave energy. Please follow the instructions below before operating the oven.

WARNING FOR WIRING

To prevent an electric shock, take the following precautions.

1. Before wiring,

1) Disconnect the power supply cord.

2) Open the door block it open.

3) Discharge the high voltage capacitor and wait for 60 seconds.

2. Don’t let the wire leads touch to the followiong parts;

1) High voltage parts: Magnetron, High voltage transformer, High voltage capacitor and High voltage rectifier assembly.

2) Hot parts: Oven lamp, Magnetron, High voltage transformer and Oven cavity.

1. Door does not close firmly.

2. Door hinge, support or latch hook is damaged.

3. The door gasket or seal is damaged.

4. The door is bent or warped.

5. There are defective parts in the door interlock system.

6. There are defective parts in the microwave generating and transmission assembly.

7. There is visible damage to the oven.

Do not operate the oven:

1. Without the RF gasket (Magnetron).

2. If the wave guide or oven cavity are not intact.

3. If the door is not closed.

4. If the outer case (cabinet) is not fitted.

3) Sharp edge:

Bottom plate, Oven cavity, Waveguide flange, Chassis support and other metallic plate.

4) Movable parts (to prevent a fault)

Fan blade, Fan motor, Switch, Open lever, Open button.

3. Do not catch the wire leads in the outer case cabinet.

4. Insert the positive lock connector until its pin is locked

and make sure that the wire leads do not come off even if the wire leads are pulled.

5. To prevent an error function, connect the wire leads

correctly, referring to the Pictorial Diagram.

Please refer to ‘OVEN PARTS, CABINET PARTS, CONTROL PANAL PARTS, DOOR PARTS’, when carrying out any of the following removal procedures:

THE FOLLOWING ADJUSTMENTS OR COMPONENT REPLACEMENT CAN BE PERFORMED

WITHOUT REMOVING THE OVEN FROM THE WALL

1. Hood lamps, sockets, grease filter and charcoal filter.

2. Base cover and hood lamp glass assembly.

3. Turntable motor.

4. Hood exhaust louver.

5. Control panel assembly or components.

HOOD EXHAUST LOUVER REMOVAL

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60

seconds.

4. Remove the three (3) screws holding the hood exhaust louver to the oven cavity front face plate.

R-1405 R-1406

5. Pull the hood exhaust louver from the oven cavity by pushing the right and left tabs of the hood exhaust louver to remove.

6. Now, the hood exhaust louver is free.

Screw

Left tab

Hood exhaust louver

Right tab

Screw

REMOVAL OF OVEN FROM WALL (Two persons recommended to remove the oven)

1. Disconnect the power supply cord, and uncoil the power supply cord.

2. To discharge the high voltage capacitor, wait for 60 seconds.

3. Remove the turntable tray and support from the oven cavity.

4. If the exhaust damper assembly is installed, remove the one (1) screw holding the exhaust damper assembly to the rear stay, and remove the exhaust damper assembly by sliding it backward.

5. Remove the two (2) screws holding the oven (outer case

cabinet) to the top cabinet.

6. While supporting the front of the oven, pull down the two (2) mounting levers and release the oven from the unit mounting plate.

7. Pull the power cord out of the wall cabinet and remove the oven.

8. The oven is now free and can be placed on the work surface selected for servicing the oven.

9. Installation is the reverse of this procedure.

OUTER CASE REMOVAL

Remove the oven from the wall, referring to "REMOVAL OF OVEN FROM WALL" and proceed as follows;

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove four (4) screws holding the rear stay to the hood fan motor or the oven, and remove it.

5. Remove the six (6) screws from the rear of the outer case cabinet and one (1) screw at front.

6. Slide the outer case cabinet back about 1 inch (3 cm) to free it from retaining clips on the cavity face plate.

7. Disconnect the three (3) pin connector of the power

supply cord from the wiring harness and remove the power supply cord together with the outer case.

8. Nip the cord bushing with bushing pliers and release it from the outer case cabinet.

9. Remove the cord bushing and the power supply cord from the outer case cabinet.

10.Now, the power supply cord is free.

CAUTION: 1. DISCONNECT OVEN FROM POWER

SUPPLY BEFORE REMOVING OUTER CASE.

2. DISCHARGE THE HIGH VOLTAGE CAPACITOR BEFORE TOUCHING ANY OVEN COMPONENTS OR WIRING.

POWER TRANSFORMER REMOVAL

1. Disconnect the power supply cord, remove the oven from wall, and remove outer case. (Refer to procedure of "REMOVAL OF OVEN FROM WALL" AND "OUTER CASE REMOVAL".) And proceed as follows.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Disconnect main wire harness from transformer.

6. Disconnect high voltage wire A from the transformer.

7. Disconnect filament leads of transformer from the magnetron and capacitor.

8. Remove two (2) screws holding the transformer to base plate R.

HOOD FAN MOTOR REMOVAL

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

Re-install

1. Install by sliding the transformer on the base plate R with its primary terminals toward the outer case.

2. Secure the transformer with two (2) screws to base plate R.

3. Re-connect wire leads (primary and high voltage) to the transformer and filament leads of transformer to magnetron and high voltage capacitor. Refer to "PICTORIAL DIAGRAM".

4. Re-install the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct with three (3) screws.

5. Re-install the outer case and check that oven is operating properly.

CAUTION: MAKE SURE THE WIRE LEADS NEVER

TOUCH THE FAN BLADE.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

R-1405 R-1406

4. Disconnect the 6-pin connector of the hood fan motor from the main wire harness located at the right edge of the oven cavity top plate and release the snap band from the hood duct.

MAGNETRON REMOVAL

1. Disconnect the power supply cord , remove the oven from wall and remove outer case (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal".)

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Disconnect the high voltage wire lead of the high voltage rectifier assembly from the magnetron.

6. Disconnect the filament lead of the transformer from the magnetron.

7. Remove the one (1) screw holding the hood duct R to the oven cavity top plate. And remove the hood duct R from

HIGH VOLTAGE RECTIFIER AND HIGH VOLTAGE CAPACITOR REMOVAL

1. Disconnect the power supply cord , remove the oven from wall and remove outer case (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal".)

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Disconnect the high voltage wire lead with high voltage rectifier from the magnetron.

6. Disconnect filament lead of the transformer from high voltage capacitor.

7. Disconnect high voltage wire A from capacitor.

5. Remove the hood fan motor from the oven cavity top plate by lifting it up.

6. Now, the hood fan motor is free.

the oven cavity top plate R.

8. Remove the magnetron duct from the oven cavity, by releasing the tab of the magnetron duct from the oven cavity top plate.

9. Carefully remove four (4) mounting screws holding the magnetron to waveguide. When removing the screws hold the magnetron to prevent it from falling.

10.Remove the magnetron from the unit with care so the magnetron tube should not be hit by any metal object around the tube.

CAUTION: WHEN REPLACING THE MAGNETRON, BE

SURE THE R.F. GASKET IS IN PLACE AND MOUNTING SCREWS ARE TIGHTENED SECURELY.

8. Remove the fan duct assembly from the oven cavity, referring to the procedure of "COOLING FAN MOTOR REMOVAL"

9. Remove one (1) screw holding capacitor holder and high voltage rectifier to the fan duct.

10.Disconnect the high voltage rectifier assembly from the high voltage capacitor.

11.Now, the high voltage rectifier assembly is free.

12.Remove capacitor from the holder.

13.Now, the high voltage capacitor is free.

CAUTION: WHEN REPLACING THE HIGH VOLTAGE

RECTIFIER ASSEMBLY, THE GROUND SIDE TERMINAL MUST BE SECURED FIRMLY WITH A GROUNDING SCREW.

HOOD FAN THERMAL CUT-OUT REMOVAL

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange

THERMAL CUT-OUT (CAVITY) REMOVAL

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

and the fan duct. And remove the hood intake duct R.

5. Disconnect the wire leads from the hood fan thermal cut-out.

6. Remove one (1) screw holding the thermal cut-out to the flange of base plate R (turntable motor side).

7. Remove the hood fan thermal cut-out from the base plate R.

8. Now, the hood fan thermal cut-out is free.

4. Disconnect the wire leads from the thermal cut-out (cavity).

5. Remove the thermal cut-out (cavity) from the holder at the oven cavity bottom plate.

6. Now, the thermal cut-out (cavity) is free.

TEMPERATURE FUSE (MAGNETRON) REMOVAL

Shaft

Table

Center of bracket

R-1405 R-1406

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the fan duct assembly from the oven cavity,

COOLING FAN MOTOR REMOVAL

1. Disconnect the power supply cord, remove the oven from wall and remove outer case (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal".)

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Remove the one (1) screw holding the hood duct R to the oven cavity top plate. And remove the hood duct R.

6. Disconnect the wire leads from the fan motor.

7. Disconnect the high voltage wire lead with the high voltage rectifier from the magnetron.

8. Disconnect the filament lead of the transformer from the high voltage capacitor.

9. Disconnect the high voltage wire A from the capacitor.

10.Release the wire leads from the hole of the fan duct.

11.Remove two (2) screws holding the fan duct to oven cavity top plate and the base plate R.

12. Remove the fan duct assembly from the oven cavity.

13.Remove the fan blade from the fan motor shaft according the following procedure.

14.Hold the edge of the rotor of the fan motor by using a pair of groove joint pliers.

CAUTION: * Make sure that any pieces do not enter the gap

between the rotor and the stator of the fan motor because the rotor is easily shaven by pliers and metal pieces may be produced.

* Do not touch the pliers to the coil of the fan motor

because the coil may be cut or damaged.

* Do not disfigure the bracket by touching with the

pliers.

Rear View

referring to the procedure of " COOLING FAN MOTOR REMOVAL".

5. Disconnect the wire leads from the temperature fuse (Magnetron).

6. Remove the one (1) screw holding the temperature fuse (Magnetron) to the fan duct.

7. Now, the temperature fuse (Magnetron) is free.

15.Remove the fan blade from the shaft of the fan motor by pulling and rotating the fan blade with your hand.

16. Now, the fan blade will be free.

CAUTION: * Do not reuse the removed fan blade because the

hole (for shaft) may be larger than normal.

17.Remove the two (2) screws holding the fan motor to the fan duct.

18.Now, the fan motor is free.

INSTALLATION

1. Install the fan blade to the fan motor shaft according to the following procedure.

2. Hold the center of the bracket which supports the shaft of the fan motor on the flat table.

3. Install the fan blade to the shaft of fan motor by pushing the fan blade with a small, light weight, ball peen hammer or rubber mallet.

4. Install the fan motor to the hood duct with the two (2) screws.

CAUTION: * Do not hit the fan blade with excesive force when

installing because the bracket may be disfigured.

* Make sure that the fan blade rotates smooth after

installation.

* Make sure that the axis of the shaft is not slanted.

5. Install the fan duct to the oven cavity top plate and base plate R with the two (2) screws.

6. Reconnect the wire leads to the fan motor, magnetron and high voltage capacitor, referring to the pictorial diagram.

7. Re-install the wire leads to the hole of the fan duct.

8. Re-install the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct with the three (3) screws.

9. Refer to procedure of "OUTER CASE REMOVAL". And reverse their procedure. And re-install the outer case.

Coil

Stator

Gap Bracket

Rotor

Groove joint pliers

Axis

Shaft

Stator

Rotor

These are the areas that should be held with a pliers

Side View

R-1405

Terminal

Push

Pull down

Lever

Positive lock¨ connector

R-1406

TURNTABLE MOTOR AND FOOD LAMP SOCKETS REMOVAL

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the one (1) screw holding the base cover to the oven cavity back plate.

5. Remove the three (3) screws holding the base cover to the oven cavity front face plate.

6. Open the base cover.

7. Release the two hood lamp sockets from the base cover.

8. Remove the base cover from the oven cavity by pulling down and moving to the left slightly.

OVEN LAMP AND LAMP SOCKET REMOVAL

1. Disconnect the power supply cord, remove the oven from the wall and remove the outer case. (Refer to procedure of "REMOVAL OF OVEN FROM WALL" and "OUTER CASE REMOVAL".). And proceed as follows.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Turn the lamp socket and release it from the magnetron duct.

6. Screw the oven lamp off from the lamp socket.

7. Now, the oven lamp is free.

TURNTABLE MOTOR

9. Disconnect the wire leads from the turntable motor.

10.Remove one (1) screw holding turntable motor to the oven cavity.

11.Now the turntable motor is free.

HOOD LAMP SOCKET

9. Screw the hood lamp off from the lamp socket.

10.Disconnect the wire leads from the lamp socket by pushing the terminal hole of the lamp socket with the small flat type screw driver.

11. Now, the lamp socket is free.

8. Pull the wire leads from the oven lamp socket by pushing the terminal hole of the oven lamp socket with the small flat type screw driver.

9. Now, the oven lamp socket is free.

Oven lamp socket

Terminal

Wire lead

Terminal hole

Flat type small screw driver

POSITIVE LOCK

CONNECTOR (NO-CASE TYPE) REMOVAL

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Push the lever of positive lock® connector.

5. Pull down on the positive lock® connector.

CAUTION: WHEN CONNECTING THE POSITIVE LOCK

CONNECTORS TO THE TERMINALS, INSTALL THE POSITIVE LOCK® SO THAT THE LEVER FACES YOU.

CONTROL PANEL ASSEMBLY, CONTROL UNIT AND KEY UNIT REMOVAL

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove three (3) screws holding the hood exhaust louver to oven cavity front face plate.

5. Remove the hood exhaust louver from the oven by pushing the right and left tabs of the hood exhaust louver. (Refer to procedure of "HOOD EXHAUST LOUVER REMOVAL")

Positive lock® connector

6. Remove one (1) screw holding the control panel to the oven cavity front face plate.

7. Release the control panel from the oven cavity front face plate by lifting it up.

8. Disconnect the wire leads from the relays RY1 and RY2.

9. Disconnect the connectors CN-A, CN-B and CN-E from the control unit.

10. Remove the control panel assembly from the oven.

11.Now, the control panel assembly is free.

12.Disconnect the connector CN-G from the control unit.

R-1405 R-1406

13.Remove the two (2) screws holding the LCD holder to the key fixing plate.

14.Remove two (2) screws holding the power unit to the key fixing plate.

15.Release the two (2) tabs holding the power unit to the key fixing plate.

16.Release the three (3) tabs holding the LCD to the LCD holder.

2. Before attaching a new key unit, wipe off remaining adhesive on the key fixing plate surfaces completely with a soft cloth soaked in alcohol.

3. When attaching the key unit to the key fixing plate, adjust the upper edge and right edge of the key unit to the correct position of key fixing plate. See key unit location.

4. Stick the key unit firmly to the key fixing plate by rubbing with soft cloth not to scratch.

17.Release the two (2) tabs holding the LSI unit to the LCD holder.

18.Remove the LCD holder and the LED sheet.

19.Now, the control unit is free.

20.Remove the one (1) screw holding the key fixing plate to the control panel.

21.Release the six (6) tabs holding the key fixing plate to the

Key unit

control panel.

22.Remove the key fixing plate from the control panel.

23.Remove the key unit from the key fixing plate.

24.Now, the key unit is free

NOTES FOR KEY UNIT REPLACEMENT

1. Do not reuse the torn key unit because the performance of the adhesive becomes weak.

Key unit location

Key fixing plate

DOOR SENSING SWITCH, PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH REMOVAL

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Remove the control panel assembly, referring to the procedure of "CONTROL PANEL ASSEMBLY , CONTROL UNIT AND KEY UNIT REMOVAL".

6. Remove the two (2) screws holding the latch hook to the oven cavity front flange.

7. Remove the latch hook from the oven cavity front flange.

9. Remove each switch from the latch hook by pushing the one (1) stopper tab holding each switch.

10.Now, each switch is free.

Re-install

1. Re-install each switch in its place. The primary interlock switch is in the lower position, door sensing switch is in the upper position and the monitor switch is in the middle position.

2. Re-connect wire leads to each switch. Refer to pictorial diagram.

3. Secure the latch hook (with two (2) mounting screws) to oven cavity front flange.

4. Make sure that the monitor switch is operating properly and check continuity of the monitor circuit. Refer to chapter "Test Procedure" and "Adjustment procedure".

8. Disconnect the wire leads of each switch.

DOOR SENSING SWITCH, PRIMARY INTERLOCK SWITCH AND MONITOR SWITCH ADJUSTMENT

1. Disconnect the power supply cord and remove the oven from wall and remove outer case. (Refer to procedure of "Removal of Oven from Wall" and "Outer case Removal")

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood intake duct R to the oven cavity top plate, the oven cavity front flange and the fan duct. And remove the hood intake duct R.

5. Remove the control panel assembly, referring to the procedure of "CONTROL PANEL ASSEMBLY , CONTROL UNIT AND KEY UNIT REMOVAL".

If the door sensing switch, primary interlock switch and monitor switch do not operate properly due to a misadjustment, the following adjustment should be made.

6. Loosen the two (2) screws holding latch hook to the oven cavity front flange.

7. With door closed, adjust latch hook by moving it back and forth, and up and down. In and out play of the door allowed by the upper and lower position of the latch hook should be less than 0.5mm. The vertical position of the latch hook should be adjusted so that the door sensing switch and primary interlock switch are activated with the door closed. The horizontal position of the latch hook should be adjusted so that the monitor switch is activated with the door closed.

8. Secure the screws with washers firmly.

9. Check all of the switches operation. If any switch has not activated with the door closed, loosen screw and adjust the latch hook position.

R-1405 R-1406

After adjustment, check the following.

1. In and out play of door remains less than 0.5mm when in the latched position. First check upper position of latch hook, pushing and pulling upper portion of door toward the oven face. Then check lower portion of the latch hook, pushing and pulling lower portion of the door toward the oven face. Both results (play in the door) should be less than 0.5mm.

2. The door sensing switch and primary interlock switch interrupt the circuit before the door can be opened.

3. Monitor switch contacts close when door is opened.

4. Re-install outer case and check for microwave leakage around door with an approved microwave survey meter. (Refer to Microwave Measurement Procedure.)

DOOR REPLACEMENT

DOOR ASSEMBLY REMOVAL

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood exhaust louver to the oven cavity front face plate.

5. Remove the hood exhaust louver from the oven cavity by pushing the right and left tabs of the hood exhaust louver. (Refer to the procedure of "HOOD EXHAUST LOUVER REMOVAL".)

6. Insert a putty knife (thickness of about 0.5mm) into the gap A between the door stopper and the choke cover as shown in Figure C-3 to free engaging parts.

7. Lift up the door stopper.

8. Now, the door stopper is free from the door assembly.

9. Lift up the door assembly to release the upper and lower door hinge pins from the upper and lower oven hinges.

10.Now, the door assembly is free.

Note: When the individual parts are replaced, refer to

"Door Disassembly".

Latch heads

Latch hook

Door sensing

Door

Open lever

switch

Monitor switch

Primary interlock switch

Figure C-1. Latch Switch Adjustments

After any servicing, make sure of the following :

1. Door latch heads smoothly catch latch hook through latch holes and that latch head goes through center of latch hole.

2. Deviation of door alignment from horizontal line of cavity face plate is to be less than 1.0mm.

3. Door is positioned with its face pressed toward cavity face plate.

4. Re-install outer case and check for microwave leakage around door with an approved microwave survey meter. (Refer to Microwave Measurement Procedure.)

Note: The door on a microwave oven is designed to

act as an electronic seal preventing the leakage of microwave energy from oven cavity during cook cycle. This function does not require that door be air-tight, moisture (condensation)-tight or light-tight. Therefore, occasional appearance of moisture, light or sensing of gentle warm air movement around oven door is not abnormal and do not of themselves indicate a leakage of microwave energy from oven cavity.

DOOR ASSEMBLY RE-INSTALL

1. On re-installing door, insert the lower oven hinge to lower door hinge pin.

2. Insert the upper oven hinge to the upper door hinge pin.

3. Shut the door (close the contacts of interlock switches).

4. Make sure upper and lower oven hinges are inserted into the upper an lower door hinge pins.

5. Make sure the door is parallel with oven face lines (left and upper side lines) and door latch heads pass through latch holes correctly.

6. Re-install the door stopper to the door assembly.

7. Re-install the hood exhaust louver to the oven cavity front face plate with the three (3) screws.

Note: After any service to the door; (A) Make sure that door sensing switch and primary

interlock switch are operating properly. (Refer to chapter "Test Procedures".)

(B) An approved microwave survey meter should be

used to assure compliance with proper microwave radiation emission limitation standards.

Upper door hinge pin

RE-INSTALL

Door assembly

Latch heads

Screw

RE-INSTALL

Screw

Upper oven hinge

Lower door hinge pin

Lower oven hinge

Left tab

Hood exhaust louver

Right tab

Screw

Door stopper

Figure C-2. Door Replacement and adjustment

DOOR DISASSEMBLY

R-1405 R-1406

1. Disconnect the power supply cord.

2. Open the door and block it open.

3. To discharge the high voltage capacitor, wait for 60 seconds.

4. Remove the three (3) screws holding the hood exhaust louver to the oven cavity front face plate.

5. Remove the hood exhaust louver from the oven cavity by pushing the right and left tabs of the hood exhaust louver. (Refer to the procedure of "HOOD EXHAUST LOUVER REMOVAL".)

6. Remove door assembly, referring to "DOOR REPLACEMENT". Replacement of door components are as follows:

7. Place door assembly on a soft cloth with latches facing up.

Note: As the engaging part of choke cover and door frame

are provided at 15 places, do not force any particular part.

CHOKE COVER

8. Insert a putty knife (thickness of about 0.5mm) into the gap A between the choke cover and door stopper and between the choke cover and the door frame as shown Figure C-3 to free engaging parts.

9. Pry the choke cover by inserting a putty knife in order shown in Figure C-3.

10.Now choke cover is free from door panel and door frame.

NOTE: When carrying out any repair to the door, do not

bend or warp the slit choke (tabs on the door panel assembly) to prevent microwave leakage.

DOOR FRAME ASSEMBLY

11.Remove two (2) screws holding the door panel to the door frame assembly.

12.Release the door panel from the door frame assembly.

NOTE: It is easier to release the engaging parts of the upper

or lower door hinge pin side at first.

13.Now, door frame assembly is free.

LATCH SPRING, LATCH HEAD AND DOOR PANEL

14.Release the latch spring from the tab of the latch head and tab of the door frame.

15.Release the latch head from the door frame.

16.Now, the latch spring and latch head are free.

Door stopper

Choke cover

Putty knife

Door frame

Figure C-3. Door Disassembly

R-1405 R-1406

AGE T

WHT

E I

O V

HIGH

RECT

R E

ORM F

RANS

POWER

WHT

wer Supp Po

GRN

BLU

GRN

V 60

d 120 cor

K BL

RED

RON

MAGNET

TEMPERATURE

FUSE

Blue

BRN

ORG

Marking

RED

CAVITY

GRY

AMP &

OVEN L

OUT

THERMAL

CUT-

HT W

D RE

SOCKET

AGE

WIRE A

T L

O V

HIGH

CAPACITOR

AGE

RON

AGNET M

T L

O V

HIGH

A F

HIGH VOLTAGE COMPONENTS

RED

HOOD FAN MOTOR

RED

BLU

BRN

HT W

TURNTABLE

MOTOR

PPL

K BL

HERM

HOOD

OUT

CUT

RN G

ght Ri

Plate

Base to

arking

WHT

Blue M

RN B

WHT

AMP & L

HOOD

SOCKET

P &

AM L

HOOD

WHT

CN-

CN-G

K BL

RED

FUSE &

ORG

HOLDER

RED

CN-A

WHT

N.O.

ARY

PRIM

COM.

OCK

NTERL I

SWIT

GRY

WHT

COM.

N.C.

D RE

ONITO M

SWITCH

CN-B

N.O.

K BL

BRN

C10

N.O.

HT W

CN-

OCK REL

ERL

NT I

COM.

SECONDARY :

RY2:

RY2

K BL

RED

ORG

RY5

RY4

CN-

PPL

CN-

CN-E

COM.

Y1 R

GRY

RED

GRN

N.O.

COM.

DOOR SENSING SWITCH

RED

GRN

CN-E

CONTROL UNIT

SOCKET

Figure S-1. Pictorial Diagram

R-1405

N.O

C 1

C 7

C 3

C 5

C12

C 4

C 9

C 2

C 8

C 6

C13

C14

E 2

E 1

C11

C10

N.O

COM

B 3

B 1

A 5

A 3

A 1

–

VRS1

(J1)

R30 3.3k

JVR-10S471J

D21

1SS270A

D22

1SS270A

D24

1SS270A

D25

1SS270A

D40 1SS270A

D20 1SS270A

C1 0.1µ/50v

C2 1000µ/35v

D3 D1

R1 390 2w

SP1 PKM22EPT

Q21 KRC243M

C21 10µ/35v

D1-D4 1N4002

C100

7µ/230v

R2 750 1w

AC(N)

OVEN LAMP TURNTABLE MOTOR FAN MOTOR

CN-C 14pin WIRE HARNESS

BUZZER

MICRO.

N.C.

GND

INT

HOOD THERMAL CUT-OUT

AC(H)

MICRO.

CN-B

CN-A

CN-E

HOOD MOTOR COM.

HOOD LAMP

Q22

DOOR SENSING SWITCH

HOOD LAMP

MOTOR RUN CAPACITOR

NOTE

RY1

RY2

RY4

RY5

: IF NOT SPECIFIED, 1/4W ± 5%

R-1406

Figure S-2. Power Unit Circuit

R-1405

R-1406

C 5

INT

GND

N.C.

H. MOTOR

COM.

HOOD

LAMP

N.C.

BUZZER

OVEN LAMP TURNTABLE

MOTOR

FAN MOTOR

MICRO.

Q22

DOOR

SENSING

SWITCH

C 1

C 7

C 2

C10

C 9

C 8

C 3

LD1 LD2 LD3 LD4

C 6

C 4

C12

C11

C13

C14

–

C10 47µ/16v

C11 0.1µ/50v

R4 82

Q2 KTA1661

R5 4.7k

R6 4.7k

Q24 DTA143EAK

Q25 DTA143EAK

Q30 DTA143EAK

Q21 DTA143EAK

Q22 DTA143EAK

C12

0.1µ/50v

Q11 DTA143EKA

R12

15k

C20 0.1µ/50v

CPU UNIT

C13

0.01µ/25v

R40 4.7k

R41 15k

ZD10

R10

Q10 2SA1037AK

UDZ4.3B

C40 0.01µ/25v

C14

0.01µ

R11

/25v

15k

(J10)

(J11)

4.7k

LIQUID CRYSTAL DISPLAY

(J13) (J12)

10k

4.7k

(J15) (J14)

10k

4.7k

(J17) (J16)

3.6k

4.7k

NO.

SEG15

SEG16

SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21

SEG17

SEG18

SEG19

CUPS. KGOZ.

LBS.

SEG20

SEG21

CF1 CSTS4.00MG03

R13

4.7k

GND

R14

4.7k

R15 4.7k

164

VL1 AN7 AN6 AN5 AN4 AN3 AN2 AN1 AN0 P57 P56 P55

CNTR0

P53 P52 P51 P50 P47 P46 P45 P44 P43 INT0

24 41

R100

4.7k

COOK DEFROST SENSOR AUTO %

SEG0

SEG1

SEG2

SEG3

SEG4

SEG5

SEG6

SEG7

SEG8

SEG3

P24

SEG4

P23

SEG5

P22

SEG6

P21

SEG7

P20

SEG9

SEG8VL2

SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24

P11 P12 P13 P14 P15 P16 P17

SEG10

SEG11

SEG12

COM0

COM1

COM2

26 1

COM0(LCD)

COM1(LCD)

COM2(LCD)

COM0(LCD)

COM1(LCD)

COM2(LCD)

80 65

VL2P41

COM0

COM1

COM2

COM3

AVSS

VREF

VCC

SEG0

SEG1

SEG2

IC1

XIN

P27

P26

P40

P71

RESET

25 40

P25

P70

VSS

XOUT

SEG13

SEG14

R80

NOTE : : IF NOT SPECIFIED, 1/16W ± 5%

R71 15k

R70 15k

R69 15k

R68 15k

C60 330p/50v

C61 330p/50v

C62 330p/50v

G 8

C63 330p/50v

R72 270k

R73 270k

R74 270k

G10

G11G12 G 9

R75 270k

R66

15k

R65

15k

R62

15k

R61

G 7 G 6 G 5 G 4 G 3 G 2 G 1

REHEAT

COOK

DEFROST

POPCORN

POWER

LEVEL

TIMER

CLOCK

KEY UNIT

15k

LIGHT

FAN

STOP

CLEAR

START

MINUTE

PLUS

R60

15k

Figure S-3. LSI Unit Circuit

R-1405 R-1406

CN-C

D21

R M

RY1

27A 94V 0

B F

BFB

CS M

D40 D20

DIP

CN-E

C21

Q21

SP1

R30

B ZD1

VRS1

D1 D3

QKITPB035MRE0

RY2

C100

RY5

D22

LOT NO.

RY3

D23

D24

D25

D26

RY4

RY6

CN-A

CN-B

Figure S-4. Printed Wiring Board

R-1405 R-1406

PARTS LIST

Note: The parts marked “

∆∆

∆” may cause undue microwave exposure.

∆∆

The parts marked “*” are used in voltage more than 250V. "§" MARK: PARTS DELIVERY SECTION

REF. NO. PART NO. § DESCRIPTION Q'TY CODE

ELECTRIC PARTS

1- 1 FH-DZB016MRY0 M High voltage rectifier assembly 1 A H 1- 2 RC-QZA234WRE0 M High voltage capacitor 1 AP 1- 3 QFS-TA013WRE0 M Temperature fuse 150½C (Magnetron) 1 AE 1- 4 RMOTDA211WRE0 M Turntable motor 1 AL 1- 5 RTHM-A070WRE0 M Thermal cut-out 145½C (Cavity) 1 AF 1- 6 RTHM-0044MRE0 M Thermal cut-out N.O. 60½C (Hood Fan) 1 AH 1- 7 RTRN-B076MRE0 M Power transformer 1 AY 1- 8 RV-MZA288WRE0 M Magnetron 1 BK 1- 9 QFSHDB003MRE0 M Fuse holder 1 AD 1-10 QSW-MA085WRE0 M Primary interlock and door sensing switches 2 AE 1-11 FFS-BA016/KIT M Monitor switch (V-16G-2C25) with fuse (20A) assembly 1 AF 1-12 FACCDB011MRE0 M Power supply cord 1 AQ 1-13 QSOCLB006MRE0 M Oven lamp socket 3 AE 1-14 FMOTEA469WRKZ M Hood fan motor 1 BA 1-15 RMOTEB031MRE0 M Fan motor 1 AT 1-16 RLMPTA068WRE0 M Oven lamp 3 AE

CABINET PARTS

2- 1 LSTY-B026MRP0 M Rear stay 1 AE 2- 2 PDIF-B030MRF0 M Hood exhaust louver [R-1405] 1 AQ 2- 2 PDIF-B031MRF0 M Hood exhaust louver [R-1406] 1 AQ 2- 3 GDAI-B065MRP0A M Base plate R 1 AG 2- 4 HDECQB027MRF0 M Front panel L [R-1405] 1 AL 2- 4 HDECQB028MRF0 M Front panel L [R-1406] 1 AL 2- 5 GCABUB103MRP0 M Outer case cabinet [R-1405] 1 AZ 2- 5 GCABUB105MRP0 M Outer case cabinet [R-1406] 1 AZ 2- 6 TMAPCB074MRR0 M Schematic diagram 1 AB 2- 7 FANGKB009MRY0 M Hood lamp glass assembly [R-1405] 1 AN 2- 7 FANGKB010MRY0 M Hood lamp glass assembly [R-1406] 1 AM 2-7-1 LANGQB016MRP0 M Hood lamp glass angle [R-1405] 1 AG 2-7-1 LANGQB020MRP0 M Hood lamp glass angle [R-1406] 1 AG 2-7-2 PGLSPB004MRE0 M Hood lamp glass 1 AH 2- 8 PCOVPB096MRT0 M Base cover [R-1405] 1 AV 2- 8 PCOVPB097MRT0 M Base cover [R-1406] 1 AV

CONTROL PANEL PARTS

3- 1 CPWBFB069MRU0 M Control unit 1 BE 3- 1A QCNCMA017JDZZ M 3-pin connector CN-A 1 AA 3- 1B QCNCMA431DRE0 J 2-pin connector CN-B 1 AA 3- 1C QCNCMA275DRE0 J 2-pin connector CN-E 1 AB 3- 1D FW-VZB189MRE0 M Lead wire harness CN-C 1 AB C1 RC-KZA087DRE0 J Capacitor 0.1 uF 50V 1 AB C2 VCEAB31VW108M J Capacitor 1000 uF 35V 1 AF C21 VCEAB31VW106M J Capacitor 10 uF 35V 1 AB C100 RC-QZB014MRE0 M Capacitor 7 uF 230V 1 AK D1-4 RH-DZA006PRE0 J Diode (1N4002) 4 AD D20-22 VHD1SS270A/-1 J Diode (1SS270A) 3 AA D24-25 VHD1SS270A/-1 J Diode (1SS270A) 2 AA D40 VHD1SS270A/-1 J Diode (1SS270A) 1 AA Q21 VSKRC243M//-3 J Transistor (KRC243M) 1 AB R1 VRS-L63DA391J J Resistor 390 ohm 2W 1 AB R2 VRS-B13AA751J J Resistor 750 ohm 1W 1 AB R30 VRD-B12EF332J J Resistor 3.3k ohm 1/4W 1 AA RY1-2 RRLY-A113DRE0 M Relay (DU24D1-1PR(M)) 2 AG RY4-5 RRLY-B004MRE0 M Relay (FTR-F3AA024E) 2 AG SP1 RALM-A014DRE0 J Buzzer (PKM22EPT) 1 AG T1 RTRNPB018MRE0 M Transformer 1 AS VRS1 RH-VZB002MRE0+ M Varistor (JVR-10S471J) 1 AE 3- 1-1 LHLD-B018MRF0 M LCD holder 1 AC 3- 1-2 PSHEPB023MRE0 M LED sheet 1 AR 3- 2 FPNLCB424MRK0 M Control panel sub. assembly [R-1405] 1 AX 3- 2 FPNLCB425MRK0 M Control panel sub, assembly [R-1406] 1 AX 3- 2-1 FUNTKB368MRE0 M Key unit [R-1405] 1 AQ 3- 2-1 FUNTKB367MRE0 M Key unit [R-1406] 1 AQ 3- 2-2 JBTN-B140MRF0 M Open button [R-1405] 1 AE

REF. NO. PART NO. § DESCRIPTION Q'TY CODE

3- 2-2 JBTN-B141MRF0 M Open button [R-1406] 1 AE 3- 2-3 HPNLCB172MRF0 M Control panel frame [R-1405] 1 AT 3- 2-3 HPNLCB173MRF0 M Control panel frame [R-1406] 1 AT 3- 2-4 MSPRTA050WRE0 M Button spring 1 AA 3- 3 XEPSD30P10XS0 M Screw; 3mm x 10mm 5 AB

OVEN PARTS

4- 1 LSTPPB038MRF0 M Door stopper 1 AB 4- 2 FROLPB025MRK0 M Turntable support assembly 1 AN 4- 3 NTNT-A108WRE0 M Turntable tray 1 AM 4- 4 LBNDKB009MRP0 M Capacitor holder 1 AB 4- 5 PDUC-B111MRF0 M Magnetron duct 1 AF 4- 6 MLEVPB016MRF0 M Open lever 1 AD 4- 7 ************* M Oven cavity (Not replaceable part) 1 -4- 8 PPACGB014MRF0 M Turntable motor packing 1 AA 4- 9 PHOK-B018MRF0 M Latch hook 1 AF 4-10 FANGTB005MRY0 M Unit mounting plate assembly 1 AS 4-11 NFANPB006MRE0 M Fan blade 1 AC 4-12 LBSHC0037WRE0 M Cord bushing 1 AB 4-13 MLEVFB007MRP0 M Mounting lever 2 AC 4-14 PDUC-B112MRP0 M Hood intake duct R 1 AG 4-15 PCOVPB085MRP0 M Waveguide cover 1 AH 4-16 MSPRTA046WRE0 M Latch spring 2 AB 4-17 LANGTB055MRP0 M Chassis support 2 AD 4-18 PDUC-B115MRF0 M Hood duct R 1 AQ 4-19 PDUC-B114MRF0 M Hood duct L 1 AQ 4-20 PDUC-B113MRP0 M Fan duct 1 AH 4-21 PDUC-B117MRF0 M Orifice 1 AC 4-22 PCUSGB043MRP0 M Transformer cushion 1 AC

DOOR PARTS

5 CDORFB321MRK0 M Door assembly [R-1405] 1 BB 5 CDORFB322MRK0 M Door assembly [R-1406] 1 BB 5- 1 FDORFB070MRT0 M Door panel assembly 1 AW 5- 2 FCOV-B225MRK0 M Door frame assembly [R-1405] 1 AY 5- 2 FCOV-B226MRK0 M Door frame assembly [R-1406] 1 AY 5-2-1 LSTPPB023MRF0 M Latch head 1 AC 5-2-2 MSPRTA046WRE0 M Latch spring 1 AB 5- 3 GCOVHB044MRF0 M Choke cover 1 AG 5- 4 PSHEPB021MRE0 M Sealer film 1 AE 5- 5 HPNL-B102MRE0 M Door screen 1 AH 5- 6 XCPSD40P08000 M Screw : 4mm x 8mm 2 AA

MISCELLANEOUS

6- 1 CFZK-B460MRK0 M Installation material assembly 1 AH 6-1-1 LBSHC0040MRE0 M Grommet 1 AC 6-1-2 LX-BZ0195WRE0 M Toggle screw 4 AC 6-1-3 LX-MZB001MRE0 M Cord holder 1 AB 6-1-4 XBRSD50P60000 M Screw : 5mm x 60mm 2 AA 6-1-5 XOTSD40P12000 M Screw : 4mm x 12mm 3 AA 6-1-6 XTSSD50P35000 M Screw : 5mm x 35mm 6 AA 6-1-7 XWHSD50-16300 M Washer 2 AA 6-1-8 LANG-B002MRP0 M Scale plate 2 AD 6- 2 TINSEB318MRK0 M Operation manual 1 AD 6- 3 TINSKB081MRR0 M Top template 1 AB 6- 4 QW-QZB025MRE0 M High voltage wire A 1 AT 6- 5 FW-VZB202MRE0 M Main harness 1 AT 6- 6 TCAUAB041MRR0 M DHHS service caution label 2 AA 6- 7 TCAUAB045MRR0 M Monitor caution label 1 AA 6- 8 TCAUAB005MRR0 M Revised DHHS/GRD C/label 1 AB 6- 9 FW-VZB189MRE0 M Low voltage harness 1 AT 6-10 PFIL-B002MRE0 M Grease filter 2 AF 6-11 FFTA-B005MRK0 M Exhaust damper assembly 1 AH

R-1405 R-1406

REF. NO. PART NO. § DESCRIPTION Q'TY CODE

SCREWS,NUTS AND WASHERS

7- 1 LX-CZB004MRE0 M Special screw (R-1405) 3 AA 7- 1 LX-CZB016MRE0 M Special screw (R-1406) 3 AA 7- 2 XOTSE40P12000 M Screw : 4mm x 12mm (R-1405) 5 AA 7- 2 XOTSF40P12000 M Screw : 4mm x 12mm (R-1406) 5 AB 7- 3 XOTSD40P12000 M Screw : 4mm x 12mm 18 AA 7- 4 XHTSD40P08RV0 M Screw : 4mm x 8mm 4 AA 7- 5 LX-CZA038WRE0 M Special screw 9 AA 7- 6 LX-CZ0052WRE0 M Special screw 2 AA 7- 7 XCPSD30P08000 M Screw : 4mm x 8mm 2 AA 7- 8 LX-BZA041WRE0 M Special screw 5 AA 7- 9 XCBSD30P08000 M Screw : 3mm x 8mm 1 AA

HOW TO ORDER REPLACEMENT PARTS

To have your order filled promptly and correctly, please furnish the following information.

1. MODEL NUMBER 2. REF. NO. 3. PART NO. 4. DESCRIPTION

Order Parts from the authorized SHARP parts Distributor for your area. Defective parts requiring return should be returned as indicated in the Service Policy.

PACKING AND ACCESSORIES

4-3

TOP PAD

DOOR PROTECTOR

WRAP COVER

SPADFA020WRE0

DOOR PAD

TURNTABLE TRAY

BOTTOM PAD

6-10

GREASE FILTER (x 2)

6-3

TOP/WALL TEMPLATE

6-2

OPERATION MANUAL

INSTALL MATERIAL ASSEMBLY

6-1

6-11

EXHAUST DAMPER ASSEMBLY

ACCESSORY PACK

Non-replaceable items

PACKING CASE

R-1405 R-1406

OVEN AND CABINET PARTS

4-17

4-16

4-13

7-3

4-19

4-18

1-14

6-1-5

6-11

4-10

2-1

7-3

2-5

7-5

7-3

4-12

1-12

7-5

7-3

2-6

7-3

4-17

2-2

2-4

4-7

7-3

6-8

7-7

4-16

1-8

1-7

1-6

4-13

1-16

1-13

7-1

4-3

6-6

1-16

4-15

4-8

1-4

7-9

1-5

1-11

4-6

2-8

1-9

7-6

1-10

6-7

4-5

4-9

1-10

1-11

7-7

1-13

4-21

4-11

4-20

7-8

1-3

7-4

4-22

1-15

1-2

4-14

4-4

1-1

7-3

7-8

4-2

7-3

7-2

2-3

7-3

6-10

2-7

2-7-2

2-7-1

6-10

7-2

R-1405 R-1406

CONTROL PANEL PARTS

7-3

3-2-2

3-2

3-2-4

3-2-1

3-2-3

3-1-2

3-1-1

3-3

3-1

3-3

DOOR PARTS

5-3

5-5

5-1

5-2-2

5-2-1

5-6

5-4

5-2

MISCELLANEOUS

6-1-1

6-1-2

6-1-3

6-1-4

6-1-5

6-1-6

6-1-7

6-1-8

6-1

6-9

Actual wire harness may be different from illustration.

6-4

6-5

NOTES

R-1405 R-1406

NOTES

R-1405 R-1406

No part of this publication may be reproduced, stored in retrieval systems, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

'02 SHARP CORP. (9S2.420E) Printed in U.S.A

SHARP R-1405, R1406 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
