PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can
result in harmful exposure to microwave energy . It is important not to defeat or tamper with
the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner
residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken
or loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
2
CONTENTS
For Customer Assistance..........................2
Precautions to Avoid Possible
Exposure to Excessive
Microwave Energy ..................................2
Auto-Touch Guide ........................... Back Cover
3
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand
product (the “Product”), when shipped in its original container, will be free from defective workmanship
and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product
or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for
the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s)
set forth below nor to any Product the exterior of which has been damaged or defaced, which has been
subjected to misuse, abnormal service or handling, or which has been altered or modified in design or
construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth
below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted
to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANT ABILITY AND FITNESS FOR USE ARE LIMITED T O THE PERIOD(S) FROM THE DA TE OF
PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty
lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other
than those described herein, or to extend the duration of any warranties beyond the time period described
above on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be
the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the
period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of
Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims,
whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in
any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any
way responsible for any incidental or consequential economic or property damage. Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE.
Your Product Model Number
& Description:
Warranty Period for this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP OR VISIT www.sharpusa.com.
SAVE THE PROOF OF PURCHASE AS IT IS NEEDED SHOULD YOUR OVEN EVER REQUIRE WARRANTY SERVICE.
R-1405 or R-1406 Home Use Carousel™ Microwave Oven. (Be sure
to have this information available when you need service for your
Product.)
One (1) year parts and labor in-home service. The warranty period
continues for an additional six (6) years, for a total of seven (7)
years, with respect to the magnetron tube in the Product for parts
only. Labor and the servicer trip charge are not provided free of
charge for this additional period.
Non-functional accessories, turntable and light bulbs.
From a Sharp Authorized Servicer located In the United States. Be
sure to have Proof of Purchase available. For in-home service,
the servicer will come to the unit’s location. If it is necessary to remove the unit for repair, the servicer will reinstall the unit at no extra
charge, provided it was installed according to Sharp’s Installation
Instructions. To find the location of the nearest Sharp Authorized
Servicer, call Sharp toll free at 1-800-BE-SHARP (1-800-237-4277).
PRODUCT INFORMATION CARD
The product information card should be completed within ten days of purchase and returned. It is necessary to write
the model and serial numbers, found on the nameplate in the oven cavity , on the product information card. W e will
keep it on file and help you access the information in case of loss, damage or theft. This will also enable us to
contact you in the unlikely event that any adjustments or modifications are ever required for your oven.
4
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to
excessive microwave energy:
1. READ ALL INSTRUCTIONS BEFORE
USING THE APPLIANCE.
2. Read and follow the specific “PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY”
3. This appliance must be grounded. Connect
only to properly grounded outlet. See
on inside front cover.
“GROUNDING INSTRUCTIONS” on
page 7.
4. Install or locate this appliance only in
accordance with the provided installation
instructions.
5. Some products such as whole eggs and
sealed containers —for example, closed glass
jars—may explode and should not be
heated in this oven.
6. Stir liquids briskly before heating and allow
to stand 20 seconds after heating before
stirring or drinking to avoid eruption.
7. Use this appliance only for its intended use
as described in this manual. Do not use
corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
8. As with any appliance, close supervision is
necessary when used by children.
9. Do not operate this appliance if it has a
damaged cord or plug, if it is not working
properly or if it has been damaged or dropped.
10. This appliance should be serviced only by
qualified service personnel. Contact nearest
Sharp Authorized Servicer for examination,
repair or adjustment.
11. Do not cover or block any openings on the
appliance.
12. Do not store or use this appliance outdoors.
Do not use this product near water—for
example, near a kitchen sink, in a wet
basement or near a swimming pool, and
the like.
13. Do not immerse cord or plug in water.
14. Keep cord away from heated surfaces.
15. Do not let cord hang over edge of table or
counter.
16. See door surface cleaning instructions on
page 28.
17. To reduce the risk of fire in the oven cavity:
a. Do not overcook food. Carefully attend
appliance if paper, plastic or other
combustible materials are placed inside
the oven to facilitate cooking.
b. Remove wire twist-ties from paper or
plastic bags before placing bag in oven.
c. If materials inside the oven should
ignite, keep oven door closed, turn
oven off and disconnect the power
cord or shut off power at the fuse or
circuit breaker panel.
d. Do not use the cavity for storage
purposes. Do not leave paper products,
cooking utensils or food in the cavity
when not in use.
18. Clean ventilation openings and grease filters
frequently—Grease should not be allowed to
accumulate on ventilation openings, louver
or grease filters.
19. Use care when cleaning the louver and the
grease filters. Corrosive cleaning agents,
such as lye-based oven cleaners, may damage the louver and the grease filters.
20. When flaming food under the hood, turn the
fan on.
21. This appliance is suitable for use above both
gas and electric cooking equipment 36” wide
or less.
SAVE THESE INSTRUCTIONS
5
UNPACKING AND INSTALLATION INSTRUCTIONS
UNPACKING AND EXAMINING YOUR OVEN
Open the bottom of the carton, bend the carton flaps back and tilt the oven
over to rest on plasticfoam pad. Lift carton off oven and remove all packing
materials, WALL and TOP CABINET TEMPLATE, Turntable, and Turntable
Support. SAVE THE CARTON AS IT MAY MAKE INSTALLATION EASIER.
1. Remove the feature sticker from the outside of the door, if there is one.
2. DO NOT REMOVE THE WAVEGUIDE COVER, which is located on the
right side wall of the oven cavity . Check to see that there is a WALL TEMPLATE and TOP CABINET TEMPLATE. Read enclosures and SAVE the
Safety
door
latches
Hinges
Operation Manual.
Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surfaces,
broken or loose door hinges and latches and dents inside the cavity or on the door. If there is any damage, do not
operate the oven and contact your dealer or SHARP AUTHORIZED SERVICER. See Installation Instructions for
more details.
Please read all instructions thoroughly before installing the Over the Range Microwave Oven/Hood
System. Two people are recommended to install this product.
If a new electrical outlet is required, its installation should be completed by a qualified electrician
before the Microwave Oven/Hood is installed. See 3 ELECTRICAL GROUNDING INSTRUCTIONS on
page 7.
Oven cavity
Door seals
and sealing
surfaces
Waveguide cover
1 MOUNTING SPACE
This Microwave Oven/Hood requires a mounting space on
a wall as shown in Figure 1. It is designed to be used with
standard 12-inch wall cabinets.
12"
Backsplash
At least 2"
30"
15.5"
30" or more from
cooking surface
If the space between the wall cabinets is 36 or 42 inches, a
Filler Panel Kit can be used to fill the gap. The metal filler
panels come in 3-inch wide pairs. One set is needed for a
36-inch opening and 2 sets for a 42-inch opening. See page
15 for ordering information. The Filler Panel Kit should be
installed before the Microwave Oven/Hood is installed.
66" or more
from floor
Figure 1
2 WALL CONSTRUCTION
This Microwave Oven/Hood should be mounted against and supported by a flat vertical wall. The wall must be flat
for proper installation. If the wall is not flat, use spacers to fill in the gaps. Wall construction should be a minimum of
2” x 4” wood studding and 3/8” or more thick dry wall or plaster/lath. The mounting surfaces must be capable of
supporting weight of 110 pounds—the oven and contents—AND the weight of all items which would normally be
stored in the top cabinet above the unit.
The unit should be attached to a minimum of one 2” x 4” wall stud.
To find the location of the studs, one of the following methods may be used:
A. Use a stud finder, a magnetic device which locates the nails in the stud.
B. Use a hammer to tap lightly across the mounting surface to find a solid sound. This will indicate stud location.
The center of the stud can be located by probing the wall with a small nail to find the edges of the stud and then
placing a mark halfway between the edges. The center of any adjacent studs will normally be 16” or 24” to either
side of this mark.
6
UNPACKING AND INSTALLATION INSTRUCTIONS
3 ELECTRICAL GROUNDING INSTRUCTIONS
This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding
plug. It must be plugged into a wall receptacle that is properly installed and grounded in accordance with the
National Electrical Code and local codes and ordinances. In the event of an electrical short circuit, grounding
reduces risk of electric shock by providing an escape wire for the electric current.
WARNING - Improper use of the grounding plug can result in a risk of electric shock.
Electrical Requirements
The oven is equipped with a 3-prong grounding plug. DO NOT UNDER ANY
CIRCUMSTANCES CUT OR REMOVE THE GROUNDING PIN FROM THE PLUG.
The Power Supply Cord and plug must be connected to a separate 120 Volt AC,
60 Hz, 15 Amp, or more branch circuit, single grounded receptacle. The receptacle
should be located inside the cabinet directly above the Microwave Oven mounting
location as shown in Figure 2.
NOTE:
1. If you have any questions about the grounding or electrical
instructions, consult a qualified electrician or serviceperson.
2. Neither Sharp nor the dealer can accept any liability for
damage to the oven or personal injury resulting from failure to
observe the correct electrical connection procedures.
Radio or TV Interference
Should there be any interference caused by the microwave oven
to your radio or TV, check that the microwave oven is on a
different electrical circuit, relocate the radio or TV as far away
from the oven as feasible or check position and signal of
receiving antenna.
Figure 2
Ground
Receptacle
Opening for
Power Cord
4 HOOD EXHAUST DUCT
When the hood is vented to the outside, a hood exhaust duct is required. All ductwork must be metal; absolutely do
not use plastic duct. Check that all connections are made securely. Please read the following carefully:
Exhaust connection: The hood exhaust has been designed to connect to a standard 3-1/4” X 10” rectangular
duct. If round duct is required, a rectangular-to-round adapter must be used.
Rear exhaust: If a rear or horizontal exhaust is to be used, care should be taken to align the exhaust with the space
between the studs, or wall should be prepared at the time it is constructed by leaving enough space between wall
studs to accommodate exhaust.
Maximum duct length: For satisfactory air movement, the total duct length of 3-1/4” X 10” rectangular or 6”
diameter round duct should not exceed 140 feet.
Elbows, adapters, wall caps, roof caps, etc. present
additional resistance to air flow and are equivalent to
a section of straight duct which is longer than their
actual physical size. When calculating the total length,
add the equivalent lengths of all transitions and
adapters plus the length of all straight duct sections.
Figure 3 shows the approximate feet of equivalent
length of some typical ductwork parts. Use the values
in parentheses for calculating air flow resistance
equivalent, which should total less than 140 feet.
Figure 3
7
UNPACKING AND INSTALLATION INSTRUCTIONS
5 TOOLS RECOMMENDED FOR INSTALLATION
• Phillips Screwdriver
• Electric Drill
• 1/2”, 5/8” and 3/32” Drill Bits
• 1-1/2” Wood Bit or Metal Hole
Cutter (if metal cabinet is used)
• Saw to cut exhaust opening
(if needed)
• Protective Drop Cloth for product
and range - you may also use
carton for protection
• Scissors
• Pencil
• Measure
• Tape
6 INSTALLATION HARDWARE
The INSTALLATION HARDWARE items 1 - 7 are in a small bag. Items 8 - " are packed separately. All items
are in a small carton packed below the oven.
ITEMNAMEQUANTITYPART CODE
1Wood Screw 5 X 30 mm6XTSSD50P35000
2Toggle Bolt with nuts #10 - 24 X 50 mm4LX-BZ0195WRE0
3Top Cabinet Screw 5 X 60 mm2XBRSD50P60000
4Power Cord Hanger1LX-MZB001MRE0
5Tapping Screw 4 x 12 mm3XOTSD40P12000
6Flat Washer 30 mm diameter2XWHSD50-16300
7Grommet1LBSHC0040MRE0
8Rear Cushion1PCUSUB059MRP0
9Exhaust Damper Assembly1FFTA-B005MRK0
!Scale Plate2LANG-B002MRP0
"Grease Filter2PFIL-B002MRE0
Figure 4
Parts shown not to common scale.
8
UNPACKING AND INSTALLATION INSTRUCTIONS
7 PREPARATION OF THE OVEN
1. Turn oven on the side. See Figure 5.
2. Follow steps (A)-(D) to remove mounting plate from the back of the oven as shown in Figure 5.
(A) Release mounting plate by pulling out the lever that is on the bottom of the oven. See Figure 6.
(B) When lever is out, pull that side of the mounting plate away from the oven. See Figure 5.
(C) Repeat step (A) on other side.
(D) Repeat step (B) on other side.
Figure 5
(A)
(B)
Use screwdriver to
assist in releasing
mounting plate.
(D)
(C)
Figure 6
(A)
Mounting Plate
Bottom of
Microwave
9
UNPACKING AND INSTALLATION INSTRUCTIONS
8 VENTILATION SYSTEM (PREPARING OVEN FOR
INSTALLATION)
This Microwave Oven/Hood is designed for adaptation to three types of hood ventilation systems. Select the type
required for your installation.
Recirculating — non-vented, ductless. Follow installation procedure (A). Recirculating requires the use of the
Charcoal Filter.
NOTE:1. The Exhaust Damper Assembly 9 is not required for recirculating operation.
2. The Charcoal Filter should be replaced every 6 to 12 months, depending on use.
3. The Charcoal Filter RK-240 is sold as an accessory. See Page 14 for ordering information.

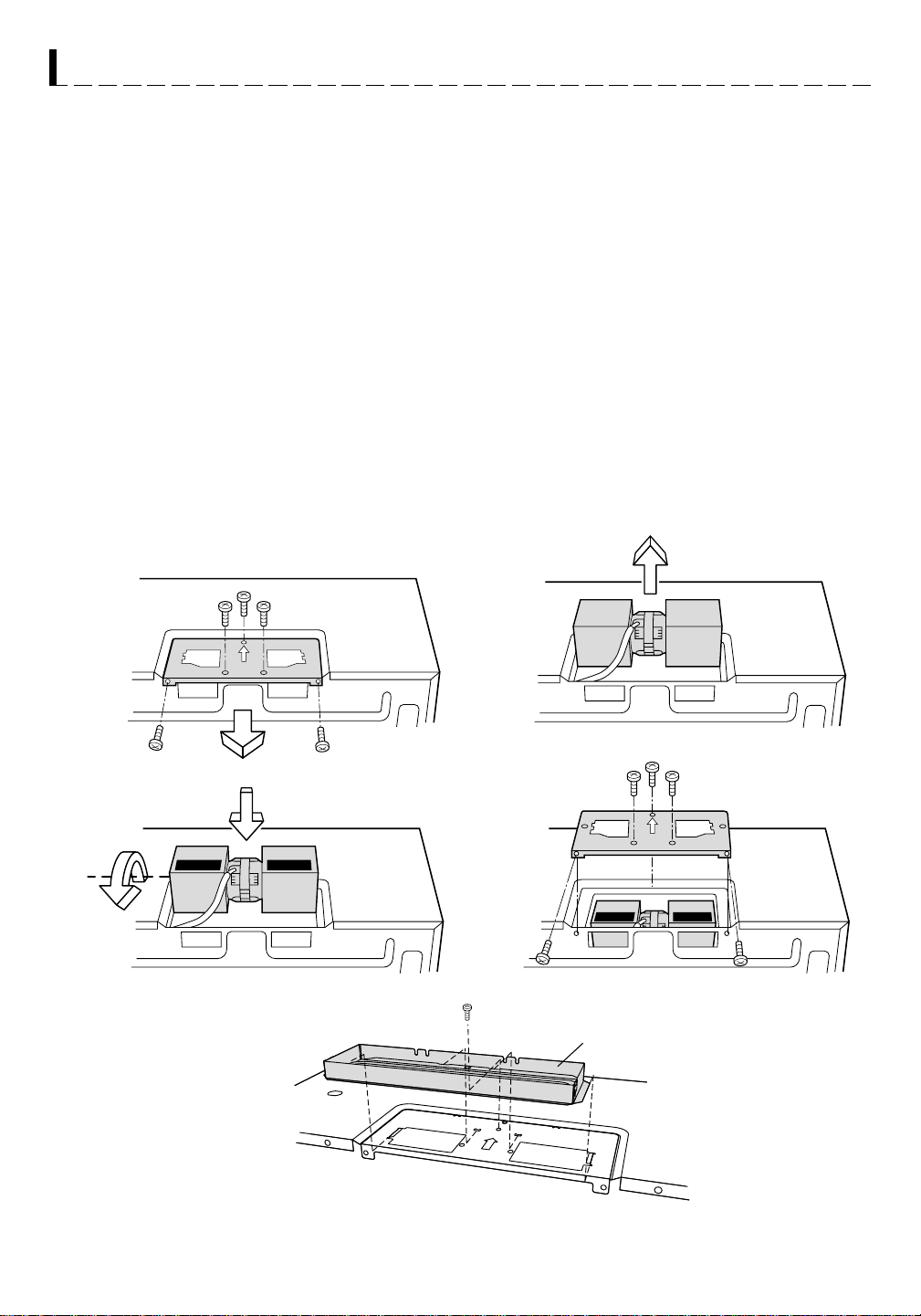

(B) HORIZONTAL EXHAUST: OUTSIDE VENTILATION
1. Remove 2 screws from back edge and 3 screws from the top center of Fan Cover Bracket. Save 2 screws to be
used later and discard remaining 3. Remove Fan Cover Bracket by sliding it in the opposite direction of the arrow
on the Fan Cover Bracket, as shown in Figure 7.
2. Lift Hood Fan Unit carefully and slip wires out of cavity. See Figure 8. CAUTION: Do not pull or stretch hood fan
wiring.
3. Rotate the Hood Fan Unit 180˚ so that the fan blade openings are facing the back of the oven. See Figure 9 (A).
Replace Hood Fan Unit into the oven. Be careful not to pinch the wire and the Hood Fan Unit. See Figure 9 (B).
4. Put the wire back into the cavity. See Figure 10.
Figure 7
(A) Rotate 180˚
Figure 8
Figure 9Figure 10
(B)
10
Save fan cover bracket for
future instructions.
Loading...
+ 22 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
