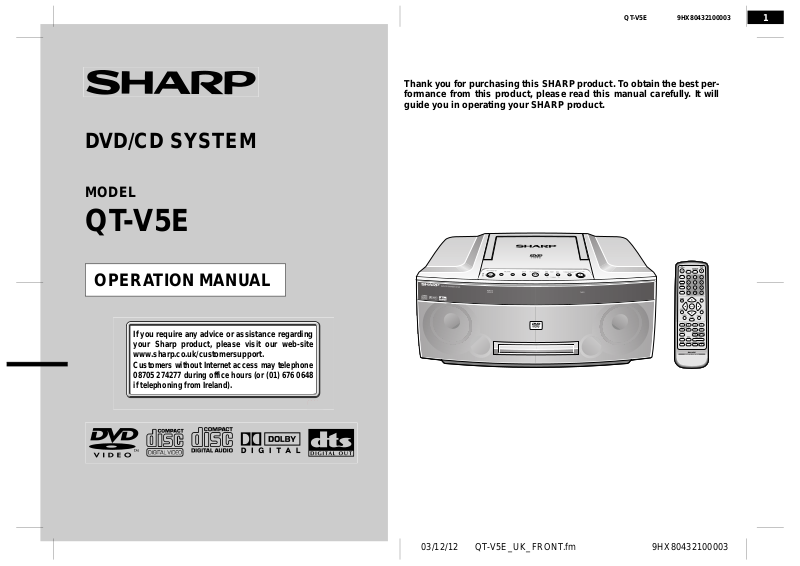

DVD/CD SYSTEM
MODEL
QT-V5E
OPERATION MANUAL
QT-V5E 9HX80432100003
Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will
guide you in operating your SHARP product.
1
If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/customersupport.
Customers without Internet access may telephone
08705 274277 during office hours (or (01) 676 0648
if telephoning from Ireland).
0301
QT-V5E_UK_FRONT.fm03/12/12
9HX80432100003
QT-V5E
Special notes
NOTES FOR USERS IN THE U.K. AND IRELAND
The mains lead of this product is fitted with a non-rewireable (moulded)
plug incorporating a 3A fuse. Should the fuse need to be replaced, a BSI
or ASTA approved BS 1362 fuse marked
above, which is also indicated on the pin face of the plug must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug
without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut-off the mains plug and fit an appropriate
type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug
destroyed immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere
into a 13A socket outlet as a serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
- Special notes -
Important Instruction
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following
code:
Blue : Neutral
Brown : Live
As the colours of the wires in the mains lead of this product may not
correspond with the coloured markings identifying the terminals in your
plug, proceed as follows:
The wire which is coloured blue must be connected to the plug terminal
which is marked N or coloured black.
The wire which is coloured brown must be connected to the plug termi-
nal which is marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth
terminal in your three pin plug.
or and of the same rating as
Before replacing the plug cover, make sure that:
If the new fitted plug contains a fuse, its value is the same as that
removed from the cut-off plug.
The cord grip is clamped over the sheath of the mains lead and not
simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
SERVICE INFORMATION
In the unlikely event of your equipment requiring repair, please contact
the dealer or supplier from whom it was purchased. Where this is not
possible, please visit our web-site www.sharp.co.uk/customersupport.
Customers without internet access may telephone 08705 274277 during office hours (or (01) 676 0648 if telephoning from lreland).
Please note; all calls will be charged at local rate.
Certain replacement parts and accessories may be obtained from our
main parts distributor.
WILLOW VALE ELECTRONICS LTD.
0121 766 5414
In the unlikely event of this equipment requiring repair during the guarantee period, you will need to provide proof of the date of purchase to the
repairing company.
Please keep your invoice or receipt, which is supplied at the time of purchase.
0301
2
04/6/8
QT-V5E_UK_1.fm
9HX80432100003
QT -V5E
WARNING
! When the ON/STAND-BY switch is set at position, mains voltage is still
present inside the unit. When the ON/STAN D-BY switch is set at O N position,
the unit may be brought into operation by the remote control.
! This unit contains no user serviceable parts. Never remov e covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from
the socket before any service operation and when not in use for a long period.
! To prevent fire or shock hazard, do not expose this appliance to dripping or splash-
ing. No objects filled with liquids, such as vases, should be placed on the apparatus.
NOTE
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.
CAUTION
! This product is classified as a CLASS 1 LASER product.
! Use of controls, adjustments or performance of procedures other than those spec-
ified herein may result in hazardous radiation exposure.
As the laser beam used in this compact disc player is harmful to the eyes, do not
attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
Laser Diode Properties
Material: AlGaAs/AlGalnP
Wavelength: 785 nm/650 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
1
2
3
4
5
- Special notes -
6
Important Instruction
04/6/8
QT-V5E_UK_1.fm
7
8
3
9HX80432100003
QT-V5E
Contents
Page
" G eneral Information
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Types of playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 8
Description of discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 10
" Video CD and Super Video CD Operation
Video CD and Super Video CD playback
Video CD with P.B.C. (playback control) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . . . . . 25
" CD, CD-R and CD-RW Operation
Page
CD operation
" Preparation for Use
System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
To play in the d e sired order (program med play) . . . . . . . . . . . . . . . . . . . . . . . . 25
To play in random order (ra ndom play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
MP3 and JPEG disc operation
MP3 and JPEG disc playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Zoom function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Rotating a picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
" Radio Operation
" DVD Operation
DVD playback
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
Resume play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
DVD mode operation indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Basic operation
- Contents -
To locate the beginning of a chapt e r/track (skip) . . . . . . . . . . . . . . . . . . . . . . . 18
Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
To star t playback from the des ir e d point (dire c t play) . . . . . . . . . . . . . . . . . . . 19
Useful operation
General Information
4
Still picture/Frame advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
To change the angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To zoom images (zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To play repeatedly (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To play the contents between the specified points repeatedly (A-B repeat) . . . 21
To select a title from the top men u of the disc . . . . . . . . . . . . . . . . . . . . . . . . . 21
To select a su b t itle or audio la n guage from the di s c m e nu . . . . . . . . . . . . . . 21
Various settings
To chang e the s ubtitle lang u age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
To change the audio language (audio output) . . . . . . . . . . . . . . . . . . . . . . . . . 22
To change the TV system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To chang e the display on TV scr e e n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 29
" Advanced Features
Changing the setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 - 33
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 35
Connecting other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
" References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37, 38
Error indicators and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
TERMS OF GUARANTEE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
Icons used in this operation manual
Some functions may not be available depending on discs. The following icons
indicate the discs that can be used in the section.
...Indicates DVDs.
...Indicates super video CDs.
...Indicates video CDs.
...Indicates audio CDs.
...Indicates CD-R/RW with MP3 recording.
...Indicates CD-R/RW with JPEG recording.
Some operations may not be performed depending on discs even if they
are described in this manual.
During operation, " " may be displayed on the screen.
This means that the operations described in this manual are not possible
at this time.
04/6/8
QT-V5E_UK_1.fm
9HX80432100003
QT-V5E 9HX80432100003
2
Accessories
Please confirm that the following accessories are included.
Remote control 1 AC power lead 1
"AAA" size battery (UM-4, R03, HP-16
or similar) 2
Yellow
Video cable 1 Audio cable 1
"AA" size battery (UM/SUM-3, R6,
HP-7 or similar) 2
Types of playable discs
The unit can play back discs bearing any of the following marks:
Disc type Disc contents Disc size
DVD-Video Disc Audio and video
(movies)
Or DVD-R/DVD-RW recorded in
video mode (*1)
Super Video CD Audio and video
(movies)
Video CD Audio and video
(movies)
Audio CD Audio 12 cm
Or CDV (*2)
CD-R/CD-RW (*3) Audio and picture 12 cm
12 cm
8 cm
12 cm
8 cm
12 cm
8 cm
8 cm
8 cm
QT -V5E
1
2
3
4
5
Note:
Only the above accessories are included.
Or CD-R/CD-RW recorded in MP3
format (*4), JPEG format (*5)
(*1): All discs including DVD-R/DVD-RW may not be played back due to properties
and scratches on the disc, dirty optical pickup lens, etc.
(*2): Only the audio on the CDV can be played.
(*3): The CD-R/CD-RW may not be played back properly depending on the recording
equipment or the disc.
(*4) If the sampling frequency is 44.1 or 48.1 kHz and the fixed bit rate is 128 kbps or
higher, MPEG 1 Audio Layer 3 (MP3) files can be played. However, some of them
may not be played depending on their conditions or formats.
(*5) JPEG or JPG picture discs also play on this unit. However, pictures may not be
clear (depends on resolution and recording method).
! For unplayable discs, see page 9.
04/6/8
QT-V5E_UK_1.fm
9HX80432100003
General Information
6
- Accessories / Types of playable discs -
7
8
5
QT-V5E
Precautions
General Information
" General
! Please ensure that the equipment is positioned in a well ventilated area and that
there is at least 10 cm of free space along the sides and back. There must also be
a minimum of 20 cm of free space on the top of the unit.
20 cm
10 cm 10 cm
! Use the unit on a firm, level surface free from vibra-
tion.
! Keep the unit away from direct sunlight, strong mag-
netic fields, excessive dust, humidity and electronic/
electrical equipment (home computers, facsimiles,
etc.) which generate electrical noise.
! Do not place anything on the unit.
! Do not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.
! If the unit does not work properly, unplug and plug it in again. Then turn on the unit.
- Precautions -
! In case of an electrical storm, unplug the unit for safe-
ty.
! Hold the AC power plug by the head when removing it
from the wall socket, as pulling the lead can damage
internal wires.
! Do not remove the outer cover, as this may result
in electric shock. Refer internal service to your local SHARP service facility.
! The ventilation openings should not be impeded by
covering them with items, such as newspapers, tablecloths, curtains, etc.
10 cm
! No naked flame sources, such as lighted candles, should be placed on the appa-
ratus.
! Attention should be drawn to the environmental aspects of battery disposal.
! The apparatus is designed for use in moderate climate.
! This unit should only be used within the range of 5°C - 35°C (41°F - 95°F).
Warning:
The voltage used must be the same as that specified by this unit. Using this product
with a higher voltage other than that specified is dangerous and may result in a fire or
other types of accident, causing damage. SHARP will not be held responsible for any
damage resulting from the use of this unit with a voltage other than that specified.
" Volume control
It is advisable to av oid e xposure to high volume levels, which occurs whilst turning the
unit on with the volume control setting up high, or whilst continually listening at high
volumes.
Copyright Information:
! Unauthorised copying, broadcast, public display, transmission, public perform-
ance and rental (regardless of whether or not such activities are for profit) of disc
contents are prohibited by law.
! This system is equipped with copy protection technology that causes substantial
degradation of images when the contents of a disc are copied to a videotape.
Copy Protection:
This unit supports Macrovision copy protection.
On DVD discs that include a copy protection code, if the contents of the DVD disc are
copied using a VCR, the copy protection code prevents the videotape copy from playing normally.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098 and
4,907,093 licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
0403
"DTS" and "DTS Digital Out" are trademarks of Digital Theater Systems, Inc.
Manufactured under license from Dolby Laboratories. "Dolby" and the double-D
6
symbol are trademarks of Dolby Laboratories.
04/6/8
QT-V5E_UK_1.fm
9HX80432100003
Controls and indicators
QT -V5E
1 2 3 4 5 6 7 8
9
10 11
12 13 14 15 16 17 18 19 20
21 22 23
24
25 26 27 2928 30
<The bottom of the unit>
DVD / CD SYSTEM
AC 230-240V 50Hz 23W
DC 12 V
FREQUENCY RANGE :
FM 87.5 - 108 MHz
AM 522 - 1620 kHz
SERIAL NO.
31 32
SHARP CORPORATION MADE IN CHINA
MODEL NO. QT-V5E
...
(UM / SUM-1 or R20) 8
" Main uni t
Reference page
1.On/Stand-by Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
4.Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17
5.Chapter (track) Skip Down or Tuning Down Button . . . . . . . . 18, 28
6.Chapter (track) Skip Up or Tuning Up Button . . . . . . . . . . . . . 18, 28
7.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
8.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
9.Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
10.Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
11.Timer Set Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
12.Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
13.Random Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
14.Repeat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
15.Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
16.Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
17.Surround Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
18.Stereo Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
19.Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
20.Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
21.Preset Equaliser Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
22.CD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
23.MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
24.FM Telescopic Rod Aerial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
25.SCART Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
26.S-video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
27.Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
28.Audio Output Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
29.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
30.Optical Digital Audio Output Socket . . . . . . . . . . . . . . . . . . . . . . . 36
31.Battery Compartment cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
32.AC Power Input Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
General Information
1
2
3
4
5
- Controls and indicators -
6
7
8
04/6/8
QT-V5E_UK_1.fm
7
9HX80432100003
QT-V5E
General Information
Controls and indicators (continued)
1
2
3
4
5
6
7
8
9
10
11
12
13
- Controls and indicators -
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
" Rem ote control
Reference page
1.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.On-Screen Display Select Button . . . . . . . . . . . . . . . . . . . . . . . 14, 23
3.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.Subtitle Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.Audio Language Select or Audio Output Select Button . . . . . . . . 22
6.Angle Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 27
This button works as the ZOOM button when pressed with the SHIFT button.
7.Top Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
9.Return Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10.Cursor Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
11.1/ALL Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 26
12.A - B Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
13.PBC On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
14.Slow-motion Play Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
15.Fast Reverse/Tuner Preset Down and Fast Forward/
Tuner Preset Up Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . .18, 27, 29
16.Programme Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 29
17.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
18.Shift Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20, 23, 27
19.Timer/Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 35
20.Sound Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
21.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
22.Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 23
This button works as the NTSC/PAL select button when pressed with the SHIFT
button.
23.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
24.Direct Number Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 25
25.Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 30
26.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
27.GOTO Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 25
28.Random Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
29.Still/Frame Advance Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
30.Chapter (Track) Skip Up and Down Buttons . . . . . . . . . . . 18, 24, 28
31.Play/Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17, 24
32.Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 17, 24
33.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8
04/6/8
QT-V5E_UK_1.fm
9HX80432100003
Description of discs
QT -V5E
" Discs that cannot be played
! DVDs without the region number "2" or
"ALL".
! DVDs with SECAM system ! Photo CD
! DVDs with MPEG sound ! CD-ROM
! DVD-ROM ! SACD
! DVD-RAM ! Discs recorded in special formats, etc.
! The discs above cannot be played at all, or no sound is heard although images
appear on the screen or vice versa.
! Incorrect operation may damage the speakers and can have an negative effect on
your hearing when played at high volume settings.
! You cannot play illegally produced discs.
Notes:
! A disc with scratches or fingerprints may not play properly. Refer to "Care of discs
(page 39)" and clean the disc.
! Do not play the discs of special shapes (heart or octagon shaped) as they can be
ejected whilst rotating and cause injury.
! DVD-Audio
! CDG
" Titl e , chapter and track
DVDs are divided into "titles" and "chapters". If the disc has more than one movie on
it, each movie is a separate "title". "Chapters" are subdivisions of titles.
Title 1 Title 2
Chapter 1 Chapter 2 Chapter 3 Chapter 1 Chapter 2
Video CD and audio CD are composed of "tracks". Tracks are equivalent to songs on
a CD.
Track 3Track 2Track 1 Track 5Track 4
Note:
Title, chapter, or track numbers may not be recorded on some discs.
MP3, JPEG discs consist of "folders" and "tracks".
MP3
disc
JPEG
disc
Folder 1 Folder 2
Track 1
Track 2 Track 3 Track 1 Track 2
" Icons used on DVD discs
Check the icons on the DVD case before play ing your discs.
Display Description
Region number (playable area
number)
2
Format recorded on the DVD
Recorded in 4:3.
You can enjoy wide images on a wide-screen TV and letterbox size images on the 4:3 size TV.
You can enjoy wide images on a wide-screen TV and 4:3 images with
the side edges cut on the 4:3 size TV.
Type of subtitles recorded
Example: Language can be selected with the SUBTI-
2
1: English
2: French
Number of camera angles
2
Number of audio tracks and
audio recording systems
Example:
1: Original <English>
(Dolby Digital 5.1 Surround)
2: English (Dolby Digital
2 Surround)
ALL
DVD discs are programmed with region numbers indicating countries in which they can be
played. This system can play discs with region number "2" or "ALL".
To adapt the video format to the connected
TVs ("wide-screen TV" or "4:3 size TV").
Recorded subtitle languages.
TLE button.
Number of angles recorded on the DVD.
Angles can be selected with the ANGLE but-
ton.
The number of audio tracks and audio recording systems are indicated.
! The audio recorded on the DVD can be
switched by using the AUDIO button.
! The number of audio tracks and recording
systems vary depending on the DVD.
Check them in the DVD's manual.
General Information
1
2
3
4
5
- Description of discs -
6
7
8
04/6/8
QT-V5E_UK_1.fm
9
9HX80432100003
QT-V5E
Description of discs (continued)
General Information
The list below shows the countries covered by region number 2.
Common names Names of nations and areas
Albania Republic of Albania
Andorra Principality of Andorra
Austria Republic of Austria
Bahrain State of Bahrain
Belgium Kingdom of Belgium
Bosnia and Herzegovina Bosnia and Herzegovina
Bulgaria Republic of Bulgaria
Channel Islands *Channel Islands
Croatia Republic of Croatia
Cyprus Republic of Cyprus
Czech The Czech Republic
Denmark Kingdom of Denmark
Egypt Arab Republic of Egypt
Faeroe Islands *Faeroe Islands
Finland Republic of Finland
France French Republic
Germany Federal Republic of Germany
Gibraltar *Gibraltar
Greece Hellenic Republic
Greenland *Greenland
- Description of discs -
Hungary Republic of Hungary
Iceland Republic of Iceland
Iran Islamic Republic of Iran
Iraq Republic of Iraq
Ireland Ireland
Isle of Man *Isle of Man
Israel State of Israel
Italy Italian Republic
Japan Japan
Jordan Hashemite Kingdom of Jordan
Kuwait State of Kuwait
Common names Names of nations and areas
Lebanon Republic of Lebanon
Lesotho Kingdom of Lesotho
Liechtenstein Principality of Liechtenstein
Luxembourg Grand Duchy of Luxembourg
Macedonia Republic of Macedonia
Malta Republic of Malta
Monaco Principality of Monaco
Netherlands Kingdom of the Netherlands
Norway Kingdom of Norway
Oman Sultanate of Oman
Poland Republic of Poland
Portugal Portuguese Republic
Qatar State of Qatar
Romania Romania
San Marino Republic of San Marino
Saudi Arabia Kingdom of Saudi Arabia
Slovakia The Slovak Republic
Slovenia Republic of Slovenia
South Africa Republic of South Africa
Spain Kingdom of Spain
Svalbard and Jan Mayen Islands *Svalbard and Jan Mayen Islands
Swaziland Kingdom of Swaziland
Sweden Kingdom of Sweden
Switzerland Swiss Confederation
Syrian Arab Republic Syrian Arab Republic
Turkey Republic of Turkey
United Arab Emirates United Arab Emirates
United Kingdom United Kingdom of Great Britain and North-
ern Ireland
Vatican City State State of the City of Vatican
Yemen Republic of Yemen
Yugoslavia Federal Republic of Yugoslavia
* represents area name.
10
04/6/8
QT-V5E_UK_1.fm
9HX80432100003
System connections
QT -V5E
Unplug all equipment before making any connections.
" Connecting to a TV with a video input
socket
You can enjoy DVD images by connecting your TV and this unit with a video cable.
Use an audio cable for the connection to enjoy DVD sound through the TV speakers.
To audio
input
sockets
Audio cable
(supplied)
Audio signal
Video signal
Video cable (supplied)
TV
To video
input socket
" Connecting to a TV with an S-video or
SCART input socket
If your TV is equipped with an S-video input socket, you can enjoy higher quality
images by connecting it with an S-video cable (not supplied).
You can enjoy DVD images by connecting your TV and this unit with the SCART
cable.
To SCART
input socket
TV
To S-video
input socket
Audio cable
(supplied)
Audio signal
S-Video cable
(commercially available)
To audio
input
sockets
Video signal
SCART cable
(commercially available)
Notes:
! Change the TV input in accordance with the connected socket.
! Do not connect other equipment (VCR, etc.) between the TV and this unit. Pic-
tures may be distorted.
! Refer to the operation manual of the equipment to be connected.
! Insert the plugs fully to avoid fuzzy pictures or noise.
! When playing a disc in DTS mode, no sound will be heard from the speakers. To
listen to the sound, select another audio output in the "To change the audio language (audio output)" on page 22.
" Magnetically shielded speakers
The speakers are magnetically shielded.
Therefore, they do not affect the display even you use them near the TV. However,
some colour variation may occur, depending on the type of TV used.
If discolouration occurs...
Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.
If the discolouration is still present...
Move the unit further away from the TV.
If any kind of magnet or an electromagnet is placed too close to the TV and the sys-
tem, irregular colours may appear on the TV screen.
Preparation for Use
1
2
3
4
5
- System connections -
6
7
8
04/6/8
QT-V5E_UK_2.fm
11
9HX80432100003
QT-V5E
1243
5 7 6
Power source
Preparation for Use
" In serting memory batteries
Memory batteries maintain the clock setting and preset stations for the tuner.
1
Open the battery compartment.
2
Insert the 2 supplied "AA" size batteries (UM/SUM-3, R6, HP-7 or
similar) into the battery compartment.
1 2
Insertion and removal:
Push the battery toward to insert or remove.
3
- Power source -
Close the battery compartment.
Notes:
! If memory batteries are not inser ted or low, preset stations and the clock setting
will be lost.
! Replace memory batteries approximately once a year.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
" Using with the main batteries
Playing a disc consumes more battery power than listening to the radio. It is recommended to use the AC power.
1
Disconnect the AC power lead, and open the battery compartm ent.
2
Insert 8 "D" size batteries (UM/SU M-1, R20, HP-2 or similar) in to the
battery compartment.
! "D" size batteries (UM/SUM-1, R20, HP-2 or similar) are not included.
! It is recommended to use alkaline batteries.
8
Insertion and removal:
! Push the batteries and toward to insert or remove.
! Placing the batteries incorrectly can cause the unit to malfunction.
3
Close the battery compartment.
Battery replacement:
Replace the batteries when they become weak and playback is impaired. This may
occur even though radio broadcasts are audible.
" Using with the AC power lead
After checking all the connections, connect the AC power lead to the AC power input
socket, then to the wall socket.
Before connecting the AC pow er lead, remove the cardboard from the AC power plug.
12
Precautions for battery use:
! Insert the batteries according to the direction indicated in the rear panel.
! Remove the batteries if weak or if the unit is not in use for long periods to prevent
potential damage due to battery leakage.
! Replace all batteries with new ones at the same time.
! Do not mix old and new batteries.
Wall socket
(AC 230 - 240 V,
50 Hz)
Notes:
! Unplug the AC power lead from the wall socket if the unit will not be used f or a pro-
longed period of time.
! Connecting the AC power lead to the unit disconnects the batteries.
! Use only the supplied AC power lead. Using other AC power leads may cause an
electric shock or fire.
04/6/8
QT-V5E_UK_2.fm
9HX80432100003
QT-V5E 9HX80432100003
3
Battery installation
1
Remove the battery cover.
2
Insert the 2 supplied "AAA" size batteries (UM-4, R03, HP-16 or similar) according to the direction indicated in the battery compart-
ment.
When inserting or removing the batteries, push them towards the battery terminals.
3
Replace the cover.
Precautions for battery use:
! Replace all old batteries with new ones at the same time.
! Do not mix old and new batteries.
! Remove the batteries if the unit is not to be used for long periods of time. This will
prevent potential damage due to battery leakage.
Caution:
! Do not use rechargeable batteries (nickel-cadmium battery, etc.).
! Incorrect installation may cause the unit to malfunction.
Turning the power on
" To turn the power on
1
Set the ON/STAND-BY switch on the main unit to ON.
2
When the ON/STAND-BY switch on the main unit is set to ON, you
can also turn the power on or put the unit in the stand-by mode
using the ON/STAND-BY button on the remote control.
1
2
After use:
When not using this unit, set the ON/STAND-BY switch on the main unit to .
" Test of the remote control
The remote control can be used within the range shown below:
Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy music.
QT -V5E
1
2
3
4
5
Notes concerning use:
! Replace the batteries if the operating distance is reduced or if the operation
becomes erratic. Purchase 2 "AAA" size batteries (UM-4, R03, HP-16 or similar).
! Periodically clean the transmitter on the remote control and the sensor on the unit
with a soft cloth.
! Exposing the sensor on the unit to strong light may interfere with operation.
Change the lighting or the direction of the unit.
! Keep the remote control away from moisture, heat, shock, and vibrations.
0.2 m - 6 m
04/6/8
Remote sensor
QT-V5E_UK_2.fm
Preparation for Use
13
9HX80432100003
6
- Battery installation / Turning the power on -
7
8
QT-V5E
Preparation for Use
Setting the clock
- Setting the clock -
The clock can only be set using the buttons on the remote control.
In this example, the clock is set for the 12-hour (AM 12:00) display.
1
Press the ON/STAND-BY sw itch o n the main u nit to tu rn th e power
on.
2
Press the CLOCK button.
3
Within 5 seconds, press the button to select the hour.
4
Within 5 seconds, press the or button
to adjust the hour.
Press the or button once to advance the time by
1 hour. Hold it down to advance continuously.
5
Within 5 seconds, press the button to select the minute.
6
Within 5 seconds, press the or button
to adjust the minute.
Press the or button once to advance the time by 1 minute. Hold it down to
advance continuously.
7
Within 5 seconds, press the ENTER button.
To confirm the time display:
Press the CLOCK button for less than 0.5 seconds whilst the main unit turns the
power on.
The time display will appear for about 5 seconds.
To readjust the clock:
Perform "Setting the clock" from step 1.
To change the 12-hour or 24-hour display:
When the time is displayed, press the DISPLAY button for 0.5 seconds or more to select the 12-hour or 24-hour display.
"AM 12:00" The 12-hour display will appear.
"0:00" The 24-hour display will appear.
Note:
Insert memor y batter ies to keep the clock setting even after unplugging the unit.
(AM 12:00 - PM 11:59)
(0:00 - 23:59)
14
04/6/8
QT-V5E_UK_2.fm
9HX80432100003
General control
QT -V5E
Some of these functions are only available on the remote control.
" To change the display brightness (3 leve ls)
You can switch the display brightness by pressing the DIMMER button.
Each time the button is pressed, the display brightness changes in the following
order.
Brightened OFF Dimmed
" Adjusting the volume
Press the VOLUME + button to increase the volume and
the VOLUME - button to decrease the volume.
You can also use the VOLUME + or VOLUME - button on
the main unit.
00 01 31 32
" Setting surround effects
1
Press the SOUND MODE button repeatedly to select "SUR OFF".
2
Within 5 seconds, press the or button to select "SUR ON".
To cancel the surround, select "SUR OFF".
" Changing the sound quality
1
Press the SOUND MODE button repeatedly to select "FLAT".
2
Within 5 seconds, press the or button to select the desired
sound quality "FLAT", "CUSTOM", "ROCK", "POP", "JAZZ" or
"CLASSIC".
FLAT CUSTOM ROCK POP JAZZ CLASSIC
FLAT : The sound is not modified.
CUSTOM : Customise the bass and treble levels.
When "CUSTOM" is selected in step 2, you can adjust the bass and
treble.
1 Press the or button to select "TREB", or "BASS".
2 Within 5 seconds, press the or button to adjust the treble or the bass.
Preparation for Use
1
2
3
4
5
- General control -
6
" Em ph asis ing the bass
1
Press the SOUND MODE button repeatedly to select "XBS OFF".
2
Within 5 seconds, press the or button to select "XBS ON".
Increase Unchanged
To cancel, select "XBS OFF".
04/6/8
7
QT-V5E_UK_2.fm
-7
7-7
9HX80432100003
7
8
15
QT-V5E
DVD playback
Turn on the TV, and switch the input to the "VIDEO 1", "VIDEO 2", etc.
accordingly.
- DVD playback -
DVD Operation
" Playback
1
Press the ON/STAND-BY switch on the
main unit to turn the power on.
! The startup screen appears.
! When the disc input mode is not selected, press
the STOP button to display the startup screen.
! If the startup screen does not appear, make sure
the correct video input is selected on the TV .
! If the initial setting screen is blurred, press the NTSC/PAL button repeatedly
whilst holding down the SHIFT button to change the TV type (see page 23).
2
Press the OPEN/CLOSE button to open the disc tray.
3
Place the disc on the disc tray, label side up.
Be sure to place 8 cm discs in the middle of the tray.
4
Press the OPEN/CLOSE button to close the disc tray.
Discs supporting auto start will start to play once you close the disc tray even if
you do not press the PLAY/PAUSE / button.
5
If playback does not start, press the PLAY/PAUSE / button.
NO DISC
Label side
Disc tray
DVD
VideoCD
CD
Audio Visual
Entertainment
16
04/6/8
QT-V5E_UK_3.fm
9HX80432100003
QT -V5E
To interrupt playback
Press the PLAY/PAUSE / button.
Playback is paused.
To resume playback from the same point, press the PLAY/PAUS E / button.
Playback resumes.
To stop playback
DVD:
Press the STOP button twice.
SVCD/VCD/CD/MP3/JPEG:
Press the STOP button.
To remove the disc
1 In the stop mode, press the OPEN/
CLOSE button.
2 Remove the disc.
3 After removing the disc, press the OPEN/
CLOSE button again.
Caution:
! Close the disc tray when not in use. Otherwise, dust may accumulate inside and
cause malfunction.
! When attempting to play discs with scratches or of a different region number, or
unplayable or restricted (*1) discs, an error message will appear on the TV display
and the disc will not play.
(*1)Viewing is prohibited on some DVDs according to the audience age.
Notes:
! When the unit is turned on, no operation is possible for 10 seconds as the unit is
proceeding the initial setting.
! Stop positions may be recorded on some discs. When you play such a disc, play-
back stops there.
! During an operation, " " may appear indicating that the operation is disabled.
" Resume play
You can resume playback from the point where it was stopped.
1
Whilst the disc is playing, press the STOP
button.
The unit stores the point.
2
To resume playback, press the PLAY/PAUSE / button.
Playback resumes from the point you left off.
PRESS PLAY TO CONTINUE
DVD
VideoCD
CD
Audio Visual
Entertainment
To cancel the resume playback:
Press the STOP button twice.
Notes:
! The resume play feature is disabled on some discs.
! Depending on the disc, playback may resume slightly before the position where it
was stopped.
" DVD mode operation indicators
The following are examples of indicators that appear during DVD playback.
Operation TV screen Unit display
When the power is on
without a disc
Disc data is being
read
Stop
Play
Pause
NO DISC
DISC LOADING
STOP
PLAY
PAUSE
1
2
3
4
5
- DVD playback -
DVD Operation
6
7
8
04/6/8
QT-V5E_UK_3.fm
17
9HX80432100003
QT-V5E
Basic operation
Some of these functions are only available on the remote control.
" To locate the beginning of a chapter/track
- Basic operation -
DVD Operation
You can skip the current chapter (track) to the next or previous.
Whilst a disc is playing, press the or button.
Notes:
! Some discs do not display the chapter (track) and the skip feature is disabled.
! On a DVD, you cannot skip between titles.
! When operating SVCD/VCD with the P.B.C. function, set the P.B.C. to off (see
(skip)
! You can also use the or button on the main unit.
! Press the button to skip to the next chapter (track).
! Press the button to skip to the beginning of the current chapter (track).
Press the button again to skip to the beginning of the previous chapter
(track).
page 24).
" Fast forward/Fast reverse (search)
You can search the desired point as you play the disc.
1
Whilst a disc is playing, press the or button.
Example: When the button is pressed
FF 2 X
PLAY (Normal play)
The disc is forwarded by the button and reversed by the button.
2
Press the PLAY/PAUSE / button to return to normal playback.
Notes:
! On some discs, the search function is disabled.
! On a DVD, search does not operate between titles.
! On MP3 discs, the search is not possible across tracks.
! Sound output and the appearance of subtitles differ depending on the disc.
! When search is performed during the DVD playback, pictures may not be for-
warded or reversed in the search speed specified in this manual, depending on the
disc or the scene being played.
2 X 8 X4 X 6 X
18
04/6/8
QT-V5E_UK_3.fm
9HX80432100003
Useful operation
QT -V5E
" To start playback from the desired point
(direct play)
To select a nd play the desired title and chapter:
1
In the playback mode, press the GOTO button.
TV screen
TITLE 01/02 CHAPTER 001/002
2
Within 10 seconds, select the title or chapter by pressing the or
button and enter the title or chapter number using the direct
number buttons.
If the track number is 2 digits or more, press "+10" and enter the number.
Example:
To select chapter 12, press "+10" and "2".
To select chapter 22, press "+10", "+10" and "2".
3
Within 10 seconds, press the ENTER button.
Notes:
! Direct play feature is disabled on some discs.
! With DVDs, you can specify the desired point only in the current title and not in
another title.
To play by specifying time (time search):
You can play back from the desired point by specifying the time.
1
In the playback mode, press the GOTO button twice.
TITLE 02/12 TIME __:__:
If the "_ _:_ _:_ _" is not highlighted, press the or button repeatedly.
2
Within 10 seconds, specify the time with the direct number buttons, and then press the ENTER button.
TITLE 02/12 TIME 01:23:40
! To specify 1 hour 23 minutes and 40 seconds, enter "012340".
! If you enter the wrong number, start over from step 1.
Notes:
! Some discs cannot play from the specified point.
! Time search feature is disabled on some discs.
__
Some of these functions are only available on the remote control.
" Still picture/Frame advance
You can freeze the image and advance frame by frame.
1
Whilst a disc is playing, press the STEP or button.
Playback is paused.
2
Each press of the STEP or button advances the frame.
The button does not allow you to operate this function on SVCD/VCD.
3
Press the PLAY/PAUSE / button to return to normal playback.
Note:
Still and frame advance features are disabled on some discs.
" Sl ow-motion play
You can slow down the playback speed.
1
Whilst a disc is playing, pres s the SLO W
or button.
Each time the button is pressed, the speed of slow-motion play changes in the
following sequence.
DVD: SVCD/VCD:
SF 2 / SR 2
SF 4 / SR 4
SF 6 / SR 6
SF 8 / SR 8
Play
2
Press the PLAY/PAUSE / button to return to normal playback.
Notes:
! On some discs, slow-motion play function is disabled.
! The button does not allow you to operate slow-motion play on SVCD/VCD.
SF 2
SF 4
SF 6
SF 8
Play
SF 2 X
1
2
3
4
5
DVD Operation
6
- Basic operation / Useful operation -
7
8
04/6/8
QT-V5E_UK_3.fm
19
9HX80432100003
QT-V5E
Useful operation (continued)
" To change the angle
You can change the angle of view when playing a DV D disc that contains scenes
recorded from multiple angles.
When " " is displayed in the upper right corner of the TV screen, press th e ANGL E button
repeatedly to select the desired angle
number.
Notes:
! Refer to the manual of the disc as the operation may vary depending on the disc.
! Some DVDs prohibit changing the angle.
! The angle number is not displayed if there is no other angle recorded. " " is dis-
" To zoom images (zoom)
You can magnify images during playback.
1
2
- Useful operation -
DVD Operation
played instead.
During playback, press the ZOOM button
whilst holding down the SHIFT button.
Each press cycles through the zoom settings as follows:
ZOOM X 1.5
ZOOM X 2
ZOOM X 3
To shift t he view and display th e desired
part of a zoomed image, press the , , or
button repeatedly.
ZOOM X 1.5
ZOOM OFF
1/2
" To play repeatedly (repeat play)
You can play a chapter (track) or a title repeatedly by specifying it during playback.
1
Whilst the disc is playing, press the 1/ALL REPEAT button.
TV screen Unit display
CHAPTER REPEAT ON
The repeat play mode changes as follows on DVD:
"CHAPTER REPEAT ON"
"TITLE REPEAT ON"
"REPEAT OFF"
The repeat play mode changes as follows on SVCD/VCD/audio CD:
"REP-ONE"
"REP-ALL"
"REPEAT OFF"
2
To return to the normal playback, p r ess the 1 /ALL REPEAT butto n
repeatedly and select "REPEAT OFF".
Caution:
After performing repeat play, be sure to press the STOP button. Otherwise, the disc
will play continuously.
Repeats the chapter currently playing.
Repeats the title currently playing.
Normal playback.
Repeats the track currently playing.
Repeats the disc currently playing.
Normal playback.
20
To return to normal view:
! Whilst holding down the SHIFT button, press the ZOOM button repeatedly to
select "ZOOM OFF".
! When you cancel the zoom function, you cannot shift the view.
Notes:
! Images may become distorted when zoomed.
! Subtitles cannot be zoomed.
Notes:
! On some discs, the repeat play function is disabled.
! During random play operation, repeat play is not possible.
! When operating SVCD/VCD with the P.B.C. function, set the P.B.C. to off (see
page 24).
04/6/8
QT-V5E_UK_3.fm
9HX80432100003
" T o pla y the contents between the specified
QT -V5E
1
" To select a title from the top menu of the
points repeatedly (A-B repeat)
You can play the desired portion repeatedly by specifying it during playback.
1
Whilst the disc is playing, press the A-B REPEAT button.
TV screen
A TO B SET A
The start point (A) is created.
2
Press the A-B REPEAT button again to enter the end point (B).
A TO B REPEAT ON
A-B repeat plays from the start point (A) to the end point (B).
3
Press the A-B REPEAT button to return to normal playback.
Notes:
! A-B repeat play is disabled on some discs.
! A-B repeat play for DVD is possible only within a title.
! A-B repeat play for a SVCD, VCD and audio CD is possible only within a track.
! Some scenes on DVD may not allow A-B repeat play.
disc
On a DVD with multiple titles, you can select a title from the top menu.
1
In the stop or playback mode, press the
TOP MENU button to display the title
menu.
2
Use the , , or button to select a title, and then press the ENTER button.
! The selected title plays.
! You can also use the direct number buttons for some discs.
Note:
The procedure shown here provides only general steps. The actual procedure for
using the title menu depends on the disc. See the disc jacket for details.
Example
21 Drama Action
43 SF Comedy
" T o select a subtitle or audio language fr om
the disc menu
You can select the desired subtitle or audio language (sound system) on your DVD if
it has a disc menu.
1
In the playback mode, press the MENU button to display the disc menu.
2
Press the , , or button to change the setting and press the
ENTER button.
You can also use the direct number buttons for some discs.
Note:
The procedure shown here provides only general steps. The actual procedure for
using the disc menu depends on the disc you are using. S ee the disc jacket for
details.
Example
1.Highlights
2.Start Movie
2
3
4
5
- Useful operation -
DVD Operation
6
7
8
04/6/8
QT-V5E_UK_3.fm
21
9HX80432100003
QT-V5E
Various settings
The subtitle language, audio language and TV type you select during playback are
reset each time you enter the stop mode. To keep your own settings, set them in the
setup menu (see page 30).
Some of these functions are only available on the remote control.
" To change the subtit l e language
- Various settings -
DVD Operation
You can change the subtitle language or hide subtitles during playback.
1
2
Notes:
! On some discs, the subtitle language cannot be changed.
! If no subtitles are recorded on the disc, " " is displayed.
! It may take time to switch the subtitle language to the selected one.
! Subtitles cannot be hidden on some discs.
Whilst a disc is playing, press the SUBTITLE button.
Press the SUBTITLE button repeatedly to
select the desired subtitle language.
To hide subtitles on the screen, press the SUBTITLE button repeatedly to select
"SUBTITLE OFF".
SUBTITLE 01/03: ENGLISH
" To change the audio language (audio out-
put)
During playback, you can change the audio language (audio output).
1
Whilst a disc is playing, press the AUDIO button.
AUDIO 2/8: DOLBY D5.1ENGLISH
2
Within 3 seconds, pres s the AUDI O butto n repeate dly to select the
desired audio language (audio output).
When playing DVD, the language changes as follows:
ENGLISH SPANISHFRENCH
The audio output changes as follows on SVCD/VCD:
STEREO
MONO RIGHT
The audio output changes as follows on audio CD:
Notes:
! On some discs, the audio language cannot be changed.
! For the audio language and audio system, refer to the manual of the disc.
! This unit does not play sound when playing DTS discs. Change the audio lan-
guage to listen to the sound through the speakers. Only the 2 channel sound can
be reproduced even if you select other audio languages (Dolby Digital 5.1 channel
or Dolby Digital 2 channel, etc.). Alternatively, connect to a DTS digital audio
decoder, etc. to produce the sound from the speakers (see page 36).
LEFT VOCAL
MONO LEFTSTEREO MONO RIGHT
...
RIGHT VOCAL
MONO LEFT
22
04/6/8
QT-V5E_UK_3.fm
9HX80432100003
" To change the TV system
You can select a TV type.
Whilst holding down the SHIFT button in the stop mode, press the
NTSC/PAL button repeatedly to select a TV type.
MULTI. SYSTEMPAL NTSC
Indicator Setting
PAL Select this mode for the PAL TV.
MULTI. SYSTEM Select this mode for the multi-system TV.
NTSC Select this mode for the NTSC TV.
" To change the display on TV screen
You can display or hide the operation indicators on the TV screen.
Whilst the disc is playing, press the DISPLAY button. (The display is changed
at each press.)
DVD: SVCD/VCD/Audio CD:
TITLE 02/05 CHAPTER 001 / 008
00:30:21
Elapsed playback time for the current title
TITLE REMAIN
00:45:00
Remaining playback time for the current title
CHAPTER ELAPSED
00:01:23
Elapsed playback time for the current chapter
CHAPTER REMAIN
00:03:03
Remaining playback time for the current chapter
OFF
MP3:
CHAPTER ELAPSED 00:05:21
Elapsed playback time for the current track
CHAPTER REMAIN 00:02:35
Remaining playback time for the current track
OFF
Current chapter numberCurrent title number
Total number of chapters
Total number of titles
SINGLE ELAPSED
00:01:16
Elapsed playback time for the current track
SINGLE REMAIN
00:03:21
Remaining playback time for the current track
TOTAL ELAPSED
00:12:40
Total elapsed playback time for the disc
TOTAL REMAIN
00:48:54
Total remaining playback time for the disc
OFF
Note:
When P.B.C. is set to ON for SVCD or
VCD, total playback time and total
remaining playback time do not appear.
QT -V5E
1
2
3
4
5
- Various settings -
DVD Operation
6
7
8
04/6/8
QT-V5E_UK_3.fm
23
9HX80432100003
QT-V5E
Video CD and Super Video CD playback
- Video CD and Super Video CD playback -
Video CD and Super Video CD Operation
The following playback functions are the same as DVD or CD operations.
Page
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To locate the beginning of a chapt e r/track (skip) . . . . . . . . . . . . . . . . . . . . . . . 18
Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Still picture/Frame advance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
To zoom images (zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To play repeatedly (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
To play the contents between the specified points repeatedly (A-B repeat) . . . 21
To chang e the s ubtitle lang u age . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
To change the audio language (audio output) . . . . . . . . . . . . . . . . . . . . . . . . . 22
To change the TV system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To chang e the display on TV scr e e n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To play in the desired order (programmed play) . . . . . . . . . . . . . . . . . . . . . . . 25
To play in random order (random play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
" Video CD with P.B.C. (playback contr o l)
1
Press the PLAY/PAUSE / button.
! You can also use the PLAY/PAUSE button on
the main unit.
! The menu appears on the TV and playback is
paused.
2
Select the desired menu num ber using the direct number buttons.
! Playback starts.
! After playback stops, the menu returns. Select the menu number to play.
To interrupt playback:
Press the PLAY/PAUSE / button.
To resume playback from the same point, press the PLAY/PAUSE / button.
To stop playback:
Press the STOP button.
You can also use the STOP button on the main unit.
To stop the current operation and return to the menu:
Press the RETURN button.
To scroll the m enu screen (me nu screen with more than 1 page):
Press the or button.
You can also use the or button on the main unit.
Notes:
! Subtitles and sounds on the super video CD can be switched (see page 22).
! The menu screen cannot be scrolled on some discs.
Switching P.B.C. function
When playing back SVCD/VCD with P.B.C. function, use the PBC ON/OFF button to
activate or deactivate the function.
When the P.B.C. function is deactivated, the men u screen will not appear.
The disc will be played in the same way as a SVCD/VCD without P.B.C.
Whilst the disc is playing, press the PBC ON/
OFF button.
Each time you press the button, the setting switches on
and off.
Example
1
2
PBC ON
PBC OFF
24
Note:
Some SVCD/VCD with P.B.C. cannot be played back when the P.B.C. mode is off.
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
CD operation
QT -V5E
" To start playback from the desired point
(direct play)
This function is only available on the remote control.
To select and play the desired track:
When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 24).
In the stop or playback mode, press the direct number buttons to select the track number.
TV screen
SELECT: 14
If the track number is 2 digits or more, press "+10" and enter the number.
Example:
To select track 14, press "+10" and "4".
Notes:
! Direct play feature is disabled on some discs.
! Some discs cannot play from the specified point.
To play by specifying time (time search):
When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 24).
1
Whilst playing the desired track, press the GOTO button.
GO TO __:__
2
Specify the time with the direct number buttons.
! Enter minutes and seconds.
! To specify 3 minutes and 30 seconds, enter "0330".
! If you enter the wrong number, start over from step 1.
Notes:
! Time search is not possible across tracks.
! Time search feature is disabled on some discs.
! Time search feature is not available on MP3 and JPEG discs.
The following playback functions are the same as DVD or VCD operations.
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To locate the beginning of a chapter/track (skip) . . . . . . . . . . . . . . . . . . . . . . . 18
Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
To play repeat e d ly (r e peat play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 0
To play the contents between the specified points repeatedly (A-B repeat) . . . 21
To change the audio language (audio output) . . . . . . . . . . . . . . . . . . . . . . . . . 22
To change the display on TV screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To start playback from the desi r e d point (direct pl ay) . . . . . . . . . . . . . . . . . . . 25
Page
" To play in the desired order (programmed
play)
You can play back the desired tracks in a specific order.
Maximum of 99 tracks can be programmed.
When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 24).
1
In the stop mode, press the PROGRAM
button.
2
Enter a track number with the direct
number buttons.
! Repeat the procedure above to enter other track numbers.
! If you make a mistake, the programmed tracks can be cleared by pressing the
CLEAR button.
! If the track number is 2 digits or more, press "+10" and enter the number.
Example:
To select track 14, press "+10" and "4".
3
Press the PLAY/PAUSE / button to start play.
To change the programmed contents:
Repeat the above procedures from step 1.
Programmed contents are cleared when you perform the following
operations:
! Open the disc tray.
! Set the unit to the stand-by mode.
Notes:
! Programming is not possible in the pause or playback mode.
! Sequential programming does not work if the disc disables programming or does
not have track information.
! During programmed play, repeat play can be performed by pressing the 1/ALL
REPEAT button (see page 20).
! For MP3 discs, programmed play is not available.
TV screen
PROGRAM P00:00
PROGRAM P01:02
CD, CD-R and CD-RW Operation
- Video CD and Super Video CD playback / CD operation -
25
1
2
3
4
5
6
7
8
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
QT-V5E
CD, CD-R and CD-RW Operation
CD operation (continued)
" To play in random order (random play)
Tracks on the disc can be played in random order automatically.
1
Whilst stopped, press the RANDOM button.
TV screen Unit display
RANDOM ON
2
- CD operation / MP3 and JPEG disc operation -
Press the PLAY/PAUSE / button.
To cancel random play:
In the stop mode, press the RANDOM button to disappear the random indicator.
Notes:
! On some discs, this function cannot be used.
! During repeat play, random play is not possible.
! You cannot set the random play whilst in the playback or pause mode.
! When operating SVCD/VCD with the P.B.C. function, set the P.B.C. to off (see
page 24).
MP3 and JPEG disc operation
The following playback functions are the same as DVD, VCD or CD
operations.
Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
To locate the beginning of a chapter/track (skip) . . . . . . . . . . . . . . . . . . . . . . . 18
Fast forward/F ast re verse (search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
To change the display on TV scre e n . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . . . . . 25
" MP3 and JPEG disc playback
You can play CD-R/RW recorded in the MP3 and JPEG formats.
1
Load a disc containing MP3 and JPEG
tracks.
A menu screen appears.
Indicates folders.
Indicates MP3 data.
Indicates JPEG data.
2
Press the , , or button to select a folder or a track and press
the ENTER or PLAY/PAUSE / button.
! Playback starts when you select a track.
! When the format is JPEG, the next file is automatically displayed after a while.
! Using the direct number buttons, you can open files or folders directly. Enter
the number on the right of the display.
Caution:
If you convert MP3 data to "audio CD" data to record on a CD-R/RW, play it as an
audio CD. The MP3 operation cannot be performed.
Note:
Up to 18 characters can be displayed f or a f older name and a trac k name . Underlines,
asterisks, and spaces may not be displayed.
Repeat play on the MP3 menu screen:
Whilst a disc is playing, press the 1/ALL REPEAT button.
Each time the button is pressed, the repeat play mode changes in the following order.
"REP-ONE"
"FOLDER REPEAT"
"OFF"
Repeat the currently playing track.
Repeat the currently playing folder (directory).
Repeat play is cancelled.
SMART NAVI
ROOT
ROOT
MP3 JPEG BEST
ROCK
JAZZ
TRACK
Page
0
1
2
3
4
5
26
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
QT -V5E
" Zoom function
This function is only available on the remote control.
1
Whilst holding down the SHIFT button during playback, press the
ZOOM button.
2
Press the or button.
Each press of the or button cycles through the zoom setting as follows.
ZOOM 025 PCT ZOOM 050 PCT ZOOM 100 PCT
ZOOM 150 PCTZOOM 200 PCT
3
To shift the view and display the desired part of a zoomed image,
press the , , or button repeatedly.
Press the button.
Press the button.
Press the button.
Press the button.
" Rotating a picture
When images are smaller than the TV screen, you can rotate them.
This function is only available on the remote control.
During playback, press the , , or button.
The image rotates as shown below.
button: 90° rotation in a clockwise direction.
button: 90° rotation in an anti-clockwise direction.
button: Vertical mirror image.
- MP3 and JPEG disc operation -
1
2
3
4
5
6
To return to normal view:
Whilst holding down the SHIFT button, press the ZOOM button again. "ZOOM OFF"
appears on the screen.
button: Horizontal mirror image.
04/6/8
QT-V5E_UK_4.fm
CD, CD-R and CD-RW Operation
27
9HX80432100003
7
8
QT-V5E
- Listening to the radio -
Radio Operation
Listening to the radio
Aerial adjustment
For FM broadcasts, raise and extend the telescopic rod aerial, then adjust the position and length for the best reception. Fo r AM, simply move or rotate the unit for the
best sound (the telescopic rod aerial does not affect the reception).
FM AM
" Tuning
1
Press the ON/STAND-BY switc h on th e mai n u nit to tu rn the power
on.
2
Press the TUNER/BAND button repeatedly to select the desired
frequency band (FM or AM).
FM stereo mode FM monaural mode AM mode
3
Press the or button to tune in to the desired station.
Manual tuning:
Press the TUNING or ( or ) button as many times as required to tune
in to the desired station.
Auto tuning:
When the TUNING or ( or ) button is pressed for more than 0.5 seconds, scanning starts automatically and the tuner stops at the first receivable
broadcast station.
Notes:
! When radio interference occurs, auto scan tuning may stop automatically at that
point.
! Auto scan tuning will skip weak signal stations.
! To stop the auto tuning, press the TUNING or ( or ) button again.
When the FM stereo mode is selected:
! "STEREO" will appear when an FM broadcast is in stereo. FM stereo receiving
indicator
28
! If the FM reception is weak, press the TUNER/BAND button to select the FM mon-
aural mode. The reception changes to mono, and the sound becomes clearer.
Disappear
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
QT -V5E
" Memorising a station
You can store 10 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)
If memory batteries are not inserted or low, preset stations will be lost.
1
Perform steps 1 - 3 in "Tuning" on page 28.
2
Press the PROGRAM button for 0.5 seconds or more to enter the
preset tuning saving mode.
3
Within 10 seconds, press the TUNER PRESET or button to select the preset channel number.
Store the stations in memory, in order, starting with preset channel 1.
4
Within 10 seconds, press the PROGRAM button to store that station in memory.
If the "MEMORY" and preset number indicators go out before the station is memorised, repeat the operation from step 2.
5
Repeat steps 1 - 4 to set other stations, or to change a preset station.
When a new station is stored in memory, the station previously memorised will
be erased.
Note:
Insert memory batter ies to keep preset stations even after unplugging the unit.
" To recall a memorised station
Press the TUNER PRESET or button to select the desired station.
1
2
3
4
5
- Listening to the radio -
Radio Operation
6
7
04/6/8
QT-V5E_UK_4.fm
8
29
9HX80432100003
QT-V5E
Changing the setup menu
Turn on the TV, and switch the input to the "VIDEO 1 ", "VIDEO 2" , etc. accordingly.
- Changing the setup menu -
Advanced Features
1
After pressing the STOP button, press the MENU button.
2
Press the or button to select a menu
and press the ENTER button.
See the list on page 31 for setup menu.
3
Press the , , or button to change the
setting and press the ENTER button.
! See the list on page 31 for the selectable param-
eters.
! Select "MAIN PAGE" and press the ENTER but-
ton to return to the main page.
4
Press the MENU button.
! The new setting is memorised.
! To change other settings, begin from step 2.
SETUP MENU -- MAIN PAGE
GENERAL SETUP
AUDIO SETUP
PREFERENCES
EXIT SETUP
GOTO GENERAL SETUP PAGE
-- GENERAL PAGE --
ANGLE MARK
OSD LANG
MAIN PAGE
SET OSD LANGUAGE
Notes:
! During playback, no setti ng s c a n be changed.
! During resume play, "PREFERENCES" settings can not be changed.
ENGLISH
FRENCH
SPANISH
30
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
QT -V5E
Setup menu Selectable parameters (* indicates default settings.) Description
GENERAL SETUP ANGLE MARK ON * You can switch camera angles if recorded on the disc.
OFF The angle mark does not appear.
OSD LANG ENGLISH *
FRENCH
AUDIO SETUP SPDIF OUTPUT SPDIF/RAW *
SPDIF/PCM
LPCM OUTPUT LPCM 48K *
LPCM 96K
DYNAMIC FULL * Dynamic range is fully compressed.
7/8
1/8
OFF No compression to dynamic range.
PREFERENCES TV DISPLAY NORMAL/PS *
NORMAL/LB
WIDE
TV TYPE MULTI. SYSTEM
NTSC
PAL *
AUDIO ENGLISH *
FRENCH
SPANISH
SUBTITLE ENGLISH *
FRENCH
SPANISH
DISC MENU ENGLISH *
FRENCH
SPANISH
PARENTAL 1
2
3
4
PASSWORD CHANGE Change the password (for details, see page 33).
DEFAULTS RESET This resets all settings, except for PARENTAL and PASSWORD, to the factory defaults.
EXIT SETUP The startup screen returns.
SPANISH You can select the desired OSD (On Screen Display) language for the setup menu or play-
CHINESE
JAPANESE
CHINESE
JAPANESE
OFF
CHINESE
JAPANESE
5
6
7
8*
back control screen (for details, see page 32).
Select the audio output according to the external equipment connected to the audio digital
output socket (for details, see page 36).
If LPCM 48K is selected, PCM sound signals recorded in 96 kHz are converted to 48 kHz.
Dynamic range is partially compressed.
The screen mode should be set according to the connected TV type (for details, see page
32).
Selects the correct TV system (for details, see page 32).
Selects the language audible from the speakers.
Selects the subtitle displayed on the TV screen.
Selects the disc menu language.
Set a restriction level for DVD viewing (for details, see page 33).
Enter a 4-digit password (0000 by default).
- Changing the setup menu -
Advanced Features
1
2
3
4
5
6
7
8
04/6/8
QT-V5E_UK_4.fm
31
9HX80432100003
QT-V5E
Changing the setup menu (continued)
! Language ! TV display setting
Indicator Setting
OSD LANG A language for screen display can be set, such as for initial settings
AUDIO A language for audio can be set.
SUBTITLE A language for subtitle can be set.
- Changing the setup menu -
Advanced Features
DISC MENU A language for disc menus can be set.
or messages.
English French
DISC LOADING DISQUE CHARGEMENT
You can specify a language for dialogues and narration.
English French
Thank you
The subtitles are displayed in a specified language.
English French
Thank you
Menu screens are displayed in a specified language.
English French
CAST
STAFF
Merci
ACTEURS
PERSONNEL
Merci
Indicator Setting
NORMAL/
PS
NORMAL/
LB
WIDE
When playing a wide image (16:9) disc,
the left and right sides of the image are
cut (pan scan) to display a natural-looking 4:3 size image.
A wide image disc without pan scan
is played back in 4:3 letterbox.
A 4:3 disc is played in 4:3.
When playing a wide image (16:9) disc,
black bands are inserted at the top and
bottom and you can enjoy full wide images (16:9) on a 4:3 size TV.
A 4:3 disc is played in 4:3.
A wide image (16:9) is displayed when
playing a wide image (16:9) disc.
" When playing a 4:3 image disc, the image size depends on the
setting of the connected TV.
" If you play back a wide image (16:9) disc with the unit connected
to a 4:3 TV, images appear stretched vertically.
Note:
When playing the disc with a fixed video format, it will not change even if the TV
screen size is changed.
! TV system setting
Indicator Setting
MULTI. SYSTEM Select this mode for the multi-system TV.
NTSC Select this mode for the NTSC TV.
PAL Select this mode for the PAL TV.
32
04/6/15
QT-V5E_UK_4.fm
9HX80432100003
" Parental setting
1
Select "PREFERENCES" on the setup menu screen (see steps 1 2 on page 30).
2
After selecting "PARENTAL" ( step 3 o n pa ge 3 0), sel ect a pa renta l
level and press the ENTER button.
3
Enter a 4-digit password using the direct number buttons and
press the ENTER button.
If this is the first time, enter "0000".
Indicator Setting
1 Only DVD software intended for children can be played back.
2 to 7 Only DVD software intended for general use and children can
8 DVD software of any grade (adult/general/children) can be
Note:
Whilst playing a disc with parental lock, the display may appear requesting a password in order to watch some restricted scenes. In such a case, enter the password to
temporarily change the rating level.
be played back.
played back.
" Password setting
From the setup menu, select "PREFERENCES", "PASSWORD" and then
"CHANGE".
-- PREFERENCES PAGE --
TV DISPLAY
TV TYPE
AUDIO
SUBTITLE
DISC MENU
PARENTAL
PASSWORD
DEFAULTS
CHANGE PASSWORD
1
Enter the old password using the direct number buttons.
If this is your first time, enter "0000" as a password.
2
Enter the new password using the direct number buttons.
3
Enter the new password again for confirmation.
CHANGE
Note:
When you forget your password
1 Open the disc tray.
2 Select "PREFERENCES", "DEFAULTS" and then "RESET".
3 Enter "1397" using the direct number buttons.
4 Press the ENTER button.
All settings return to the default then password is reset to "0000".
PASSWORD CHANGE PAGE
OLD PASSWORD:
NEW PASSWORD:
CONFIRM :
PLEASE ENTER OLD PASSWORD
QT -V5E
1
2
3
4
5
04/6/8
QT-V5E_UK_4.fm
Advanced Features
33
9HX80432100003
- Changing the setup menu -
6
7
8
QT-V5E
Timer and sleep operation
Timer playback:
The unit plays CDs, etc. or turns on the radio at the set time. Once set, the timer performs the operation every day.
Example:
You want to use the timer as a wake up call, or listen to the radio at the same time
every day.
Sleep operation:
The radio and disc can all be turned off automatically.
- Timer and sleep operation -
Advanced Features
" Ti me r playback
Before setting timer:
1 Press the CLOCK button to check that the clock is set to the correct time.
2 Load a disc to be played.
1
Press the ON/STAND-BY switch on the main unit to turn the power
on.
2
Press the STOP or TUNER/BAND button to select the desired
function.
When you select the TUNER, tune into the desired station.
3
Adjust the volume using the VOLUME buttons.
Do not turn the volume up too high.
4
Press the TIMER/SLEEP button repeatedly
to light up the TIMER indicator.
5
Within 5 seconds, press the button to select the hour.
6
Within 5 seconds, press the or button
to adjust the hour.
34
7
Within 5 seconds, press the button to select the minute.
8
Within 5 seconds, press the or button
to adjust the minute.
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
9
Press the ENTER button.
Timer set indicator will light up.
Timer set indicator
10
Press the ON/STAND-BY button on the remote control to enter the
power stand-by mode.
A timer setting remains once you have created it. Set the unit to the stand-by
mode with the ON/STAND-BY button on the remote control. You can start the
timer at the set time every day.
11
When the preset time is reached, playback will start.
! The volume is the same as before you enter the timer stand-by
mode.
! During timer play, the timer set indicator flashes.
12
The unit will enter the stand-by mode one hour after the timer
playback starts.
Notes:
! The timer operates at the same time every day until the setting is cancelled. Can-
cel the timer when it is not in use.
! When you use the timer to play a DVD with a menu screen, playback stops at the
menu screen.
To reset or change the timer setting:
Perf orm "Timer playbac k" from the beginning.
To cancel the timer setting:
1 Press the ON/STAND-BY switch on the main unit to turn the power on.
2 Press the TIMER/SLEEP button repeatedly to select the timer start time.
3 Press the button to select "ALM OFF".
Timer set indicator goes off.
" Sleep operation
1
Play back the desired sound source.
2
Press the TIMER/SLEEP button repeatedly
to select "SLP OFF".
3
Press the button.
(Maximum: 2 hours - Minimum: 15 minutes)
4
Press the ENTER button.
The sleep indicator will light up.
5
Your system will enter the power stand-by mode automatically after the preset time has elapsed.
To cancel the sleep operation:
Press the ON/STAND-BY button on the remote control whilst the sleep timer is set.
To confirm the remaining sleep time:
Press the TIMER/SLEEP button repeatedly whilst the sleep timer is set.
The remaining sleep time is displayed for about 5 seconds.
OFF 15 30
120
90
45
60
" To use timer and sleep operation together
Example: Fall asleep and wake up to the same radio station
You can play back the same source only (the function cannot be switched).
1
Set the sleep time (steps 1 - 4).
2
Whilst the sleep timer is set, set the desired playback time (steps
4 - 9, pages 34 - 35).
1.Sleep timer setting
2.Timer playback setting
15 minutes - 2 hours
Sleep operation will
automatically stop.
Timer playback
start time
QT -V5E
- Timer and sleep operation -
Advanced Features
1
2
3
4
5
6
7
8
04/6/8
QT-V5E_UK_4.fm
35
9HX80432100003
QT-V5E
Connecting other equipment
Caution:
Turn off all equipment before making this connection.
" Di gital connection to a digital audio
decoder, etc.
Selecting a sound signal type
- Connecting other equipment -
Advanced Features
When connecting other equipment to the digital audio
output, adjust the audio output setting accordingly (see
page 31).
SPDIF/RAW:
Choose this when connecting the unit to a Dolby Digital
(5.1ch) decoder or DTS (5.1ch) decoder. When playing
a DVD recorded in Dolby Digital or DTS, bitstream output allows you to enjoy the 5.1ch surround sound.
SPDIF/PCM:
Choose this for PCM output. When playing a DVD recorded in Dolby Digital, the output converts to 2 channel
PCM. When a DVD recorded in DTS is played back, signals are sent in bitstream.
Digital audio decoder, etc.
Audio signal
Optical digital cable
(commercially available)
To the optical
digital audio input socket
-- AUDIO PAGE --
SPDIF OUPUT
LPCM OUTPUT
DYNAMIC
MAIN PAGE
SET SPDIF OUTPUT
SPDIF/RAW
SPDIF/PCM
" Headphones
! Before plugging in or unplugging the headphones, reduce the volume.
! Be sure your headphones have a 3.5 mm diameter plug and impedance between
16 and 50 ohms. The recommended impedance is 32 ohms.
! Plugging in the headphones disconnects the speakers automatically. Adjust the
volume using the VOLUME control.
! Do not plug in or unplug headphones whilst recording. The sound may skip.
36
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
Troubleshooting chart
QT -V5E
Many potential problems can be resolved by the owner without cal ling a service technician.
If something is wrong with this product, check the followi ng bef ore calling y our authorised SHARP dealer or service centre.
" General
Symptom Possible cause Reference
No sound is heard. ! Is the volume level set to "0"? P. 15
Noise is heard during playback.
When a button is pressed, the
unit does not respond.
The power is not turned on. ! Is the unit unplugged? P. 12
No images are displayed. ! Is TV turned on?
! Are the headphones connected? P. 36
! Move the unit away from any comput-
ers or mobile phones.
! Set this unit to the power stand-by
mode and then turn it back on.
! Check that the TV is switched to the
correct input.
page
P. 38
P. 16
" DVD pla yer
Symptom Possible cause Reference
Even though a disc is loaded,
"NO DISC" is displayed.
Playback sounds are skipped. ! Does the disc satisfy the standards?
The control buttons do not
function. Music or video playback is interrupted.
Pictures and sound are
skipped.
The unit does not operate
even if the power is on.
Image cannot be played back.
(Sound is not heard.)
! Is the disc loaded upside down?
! Is the disc very dirty?
! Is the unit located near excessive vi-
brations?
! Has condensation formed inside the
unit?
! Is the disc very dirty?
! Does the disc satisfy the standards?
! Is the unit located near excessive vi-
brations?
! Has condensation formed inside the
unit?
! Is the disc very dirty?
! Is the unit located near excessive vi-
brations?
! Has condensation formed inside the
unit?
! Is a disc other than a DVD (region
number 2 or ALL), SVCD, VCD, audio CD, CD-R or CD-RW loaded?
! Are the video and audio cables con-
nected improperly?
! Is a disc other than a DVD (region
number 2 or ALL), SVCD, VCD, audio CD, CD-R or CD-RW loaded?
! Is the disc very dirty?
! Is the disc loaded upside down?
! Clean the optical pickup if it is dirty. P. 39
! Is the TV input set to "VIDEO 1/VID-
EO 2", etc.?
! Is the unit turned on? P. 13
page
P. 38
P. 38
P. 38
P. 9
P. 11
P. 9
P. 16
1
2
3
4
5
References
- Troubleshooting chart -
6
04/6/8
QT-V5E_UK_4.fm
7
8
37
9HX80432100003
QT-V5E
Troubleshooting chart (continued)
" Tuner
The radio makes unusual
noises continuously.
The preset channel cannot be
recalled.
" Rem ote control
The remote control does not
operate properly.
References
The unit cannot be turned on
with the remote control.
- Troubleshooting chart -
Symptom Possible cause Reference
! Is the unit placed near the TV or com-
puter?
! Did you remove the plug from the wall
socket, or did a power failure occur?
Set the channel again.
! Are the memory batteries low? P. 12
Symptom Possible cause Reference
! Are the batteries inserted correctly? P. 13
! Are the batteries dead?
! Is the distance or angle incorrect? P. 13
! Are there any obstructions in front of
the unit?
! Is the remote control sensor exposed
to strong light (inverter fluorescent
light, direct sunlight, etc.)?
! Is another remote control being used
at the same time?
! Is the unit unplugged? P. 12
! Are the batteries inserted? P. 13
! Is the ON/STAND-BY switch on the
main unit set to ?
page
P. 29
page
P. 13
P. 13
" If trouble occurs
When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.
If such a problem occurs, do the following:
1 Set the ON/STAND-BY switch on the main unit to and turn the power on again.
2 If the unit is not restored to normal operation, unplug it for a while, then reconnect
the power.
" Before transpor ting the unit
1 Set the ON/STAND-BY switch on the main unit to ON.
2 Press the STOP button.
3 Press the OPEN/CLOSE button to open the disc tray.
Remove the disc in the unit.
4 Press the OPEN/CLOSE button to close the disc tray.
Make sure that "NO DISC" is displayed.
5 Set the ON/STAND-BY switch on the main unit to , and then unplug the AC
power lead from the wall socket.
" Con densation
Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (laser pickup, etc.) or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens, leave the power on
with no disc in the unit until normal playback is possible (about 1 hour). Wipe off any
condensation on the transmitter (see page 8) with a soft cloth before operating the
unit.
38
04/6/8
QT-V5E_UK_4.fm
9HX80432100003
Error indicators and warnings
Specifications
QT -V5E
When you load an unplayable disc or fail to perform operations properly, the following
messages are displayed on the TV screen.
TV screen Meaning
The region number of the DVD is not 2 or ALL.
WRONG REGION
Maintenance
! Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a
dry cloth.
" Do not use chemicals for cleaning (petrol, paint thinner, etc.). It may damage the
cabinet finish.
" Do not apply oil to the inside of the equipment as this may cause malfunctions.
! Cleaning the laser pickup lens
Poor perf ormance during D VD/CD pla y bac k (skipping or jumping) can be caused by a
dirty or contaminated laser pick up lens. If this happens then the use of a commercially available lens cleaning discs may restore normal operation. Contact your supplier or local DVD software dealer to obtain lens cleaning discs. Ensure all included
instructions/documentation are carefully followed.
! Care of discs
Discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your disc collection and player.
" Do not write on either side of the disc, par ticularly the non-label side from which
signals are read. Do not mark this surface.
" Keep your discs away from direct sunlight, heat, and excessive moisture.
" Always hold the discs by the edges. Fingerprints, dirt, or water on the discs can
cause noise or mistracking. If a disc is dirty or does not play properly, clean it with
a soft, dry cloth, wiping straight out from the centre, along the radius.
NO YES
Correct
As part of our policy of continuous improvement, SHARP reserves the right to make
design and specification changes for product improvement without prior notice. The
performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
Power source AC 230 - 240 V, 50 Hz
DC 12 V ["D" size (UM/SUM-1, R20 or HP-2) battery 8]
DC 3 V ["AA" size (UM/SUM-3, R6 or HP-7) battery 2 for
memory]
Power consumption 23 W
Output power RMS: 10 W (5 W + 5 W) (10 % T.H.D., 1 kHz)
Speakers 8 cm full-range speaker 2
Dimensions Width: 420 mm
Weight 5.2 kg
Signal system PAL/NTSC colour
Supported disc types DVD (region number 2 or ALL), SVCD, VCD, audio CD,
Video signal Horizontal resolution: 500 lines
Audio signal Frequency character-
Audio outpu t te r m inals
Video output terminals
Frequency range FM: 87.5 - 108 MHz
Height: 150 mm
Depth: 260 mm
CD-R, CD-RW, MP3
S/N ratio: 50 dB
istics
S/N ratio CD: 80 dB (1 kHz)
Dynamic range Linear PCM DVD: 70 dB
Total harmonic distor tion ratio
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Optical digital output: Square type 1
Analogue output: RCA type 1 pair (L/R)
SCART output: SCART terminal 1
Video output: RCA type 1
S-video output: S-terminal 1
AM: 522 - 1,620 kHz
Linear PCM DVD:
20 Hz to 20 kHz (sampling rate:
48 kHz)
20 Hz to 20 kHz (sampling rate:
96 kHz)
CD: 20 Hz to 20 kHz
CD: 70 dB
0.01 % maximum
1
2
3
4
5
References
6
7
- Error indicators and warnings / Maintenance / Specifications -
8
04/6/15
QT-V5E_UK_4.fm
39
9HX80432100003
TERMS OF GUARANTEE
Sharp Electronics (UK) Ltd. (“Sharp”) guarantees to provide for the repair, or at its option the replacement, of this product subject to the conditions listed below:-
1.
This guarantee shall only apply to faults which are due to inferior workmanship or materials. It does
not cover faults or damage caused by accident, misuse, fair wear and tear, neglect, tampering with
the product, or repair other than by a Service Facility appointed by Sharp.
2.
As this product is intended for private domestic use only, the guarantee will not apply if the product
is used in the course of a business, trade or profession.
3.
To benefit from this guarantee, any fault which occurs must be notified to Sharp, or its appointed
Service Facility within one year from the date this product was purchased. Proof of purchase must
be provided.
The guarantee does not cover carriage costs, audio tapes, compact discs or batteries.
4.
In the unlikely event of this product requiring repair, please contact the supplier from whom it was
5.
purchased. Where this is not possible, please contact the Sharp Customer Information Centre on
the telephone number given below.
6.
No person has any authority to vary the terms or conditions of this guarantee.
7.
This guarantee is offered as an additional benefit to your statutory rights, and does not af fect these
rights in any way
If you have any difficulty operating this product, or would like information on other Sharp products,
please telephone the Sharp Customer Information Centre on the number given below.
.
Sharp Customer Information Centre -Telephone 08705 274277
(or (01) 676 0648 if telephoning from Ireland)
SHARP ELECTRONICS (U.K.) LTD.
Sharp House,Thorp Road, Newton Heath, Manchester, M40 5BE
SHARP CORPORATION
QT-V5E_UK_BACK.fm03/12/12
9906
0404
9HX80432100003
04F AO 1
9HX80432100003
Loading...
