RADIO CASSETTE RECORDER
1
MODEL
QT-222W(B) 92L20101550040
QT-222W(S)/QT-222W(BK
OPERA TION MANUAL
Thank you for purchasing this SHARP product.
)
QT-222W(B)_FRONT.pm 03.10.24, 11:34 AM1
ENGLISH
Please refer to pages E-1 to E-6.
QT-222W(B) 92L20101550040
Special Notes
ENGLISH
● Audio-visual material may consist of copyrighted works which must not be recorded
without the authority of the owner of the
copyright.
Please refer to the relevant laws in your
country.
●
When the FUNCTION switch is set at STANDBY position, mains voltage is still present inside the unit.
● The letters in brackets contained in the
model number indicate the colour of the
product only. Operation and specifications
are unaffected.
Accessory
AC power lead x 1
Precautions
● Do not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.
● Keep the unit away from direct sunlight,
strong magnetic fields, excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which
generates electrical noise.
● Hold the AC power plug by the head when
removing it from the AC socket as pulling
the lead can damage internal wires.
● When cleaning the heads, pinch roller, etc.,
remove the AC power lead from the AC
socket as the unit contains high voltages.
Do not remove the outer cover, as this may
result in electric shock. For internal service,
refer to your local SHARP service facility.
● Use the unit on a firm, level surface free
from vibration, and do not place anything
on the top of the unit.
● If the unit does not work properly, set the
FUNCTION switch to STAND-BY and then
to ON again.
Warning:
This unit contains no user serviceable parts.
Never remove covers unless qualified to do so.
This unit contains dangerous voltages, always
remove mains plug from the socket before any
service operation and when not in use for a
long period.
Warning:
T o prevent fire or shock hazard, do not expose
this appliance to dripping or splashing. No objects filled with liquids, such as vases, shall be
placed on the apparatus.
Note:
● Only the accessory in the drawing is included.
● In case of an electrical storm, unplug the
unit for safety.
● This unit should only be used within the
range of 5°C - 35°C (41°F - 95°F).
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, tablecloths, curtains,
etc.
● No naked flame sources, such as lighted
candles, should be placed on the apparatus.
● Attention should be drawn to the environmental aspects of battery disposal.
Warning:
The voltage used must be the same as that
specified on this unit. Using this product with a
higher voltage other than that specified is dangerous and may result in a fire or other type of
accident causing damage. SHARP will not be
held responsible for any damage resulting from
use of this unit with a voltage other than that
specified.
QT-222W(B)_E.pm 03.10.24, 11:55 AM8
E-1
QT-222W(B) 92L20101550040
Controls and Indicators
1
23 45 6 7
8 9 10 11 12 13 14
15 16 17 18
Operation with AC Power
01. Earphone Socket
02. Built-in Microphone
03. Function Switch
04. Band Selector
05. Fine Tuning Control
06. Volume Control
07. Tuning Control
08. Pause Button
09. Stop/Eject Button
10. Cassette Compartment
11. Fast Forward Button
12. Rewind Button
13. Play Button
14. Record Button
15. Battery Compartment
16. AC Input Socket
17. AC Voltage Selector
18. FM/SW Telescopic Rod Aerial
T o AC INPUT
Check the setting of the AC voltage selector located on the rear panel before plugging the unit into an AC socket. If necessary, adjust the selector to match the AC
power voltage used in your area.
Selector adjustment:
Slide the selector with a screwdriver to the appropriate voltage number. (AC 110 - 127 V or
AC 220 - 240 V)
QT-222W(B)_E.pm 03.10.24, 11:55 AM9
Wall socket
Notes:
● If the unit will not be used for a long period
of time, remove the AC power lead from the
AC socket.
● Connection of the AC power lead to the unit
disconnects the batteries.
●
Use only the supplied AC power lead. Using
other power leads may cause an electric
shock or fire.
E-2
QT-222W(B) 92L20101550040
Operation with Batteries
1
2
3
4
To remove the
batteries:
1 Disconnect the AC power lead, and re-
move the battery compartment cover.
2 Insert 4 “D” size batteries (UM/SUM-1,
R20, HP-2 or similar) into the battery
compartment.
● Insert the batteries according to the direction indicated on the rear panel.
● When inserting or removing the batteries, push them toward the ë battery terminals.
● Installing the batteries incorrectly may
cause the unit to malfunction.
3 Replace the battery compartment cover.
Battery replacement:
Replace the batteries when they become weak
and/or recording or playback is impaired. This
may occur even though radio broadcasts are audible.
Notes:
● Replace all old batteries with new ones at
● Do not mix old and new batteries.
● Remove the batteries if they are weak or if
● Batteries are not included.
Caution:
Do not use rechargeable batteries (nickel-cadmium battery, etc.).
Listening to the Radio
STAND-BY
the same time.
the unit will not be used for long periods of
time. This will prevent potential damage due
to battery leakage.
1 Set the FUNCTION switch to RADIO.
2 Set the BAND SELECTOR switch to FM,
MW, SW1 or SW2.
3 T urn the TUNING control to tune in to the
desired station. The FINE TUNING control functions only for SW1 and SW2
bands.
4 Turn the VOLUME control to increase or
decrease the volume.
QT-222W(B)_E.pm 03.10.24, 11:55 AM10
Aerial adjustment:
FM
After use:
Set the FUNCTION switch to STAND-BY.
MW
E-3
QT-222W(B) 92L20101550040
SW1 and SW2
Listening to a Cassette Tape
STAND-BY
1 Set the FUNCTION switch to TAPE.
2 Open the cassette compartment by
77
7 button.
ing the STOP/EJECT ■
77
push-
3 Load a cassette into the cassette com-
partment with the side to be played facing you.
4 Press the PLAY
5 To advance the tape, press the
EJECT
■
33
FWD
3 button. To rewind, press the
33
STOP/EJECT
REWIND 2 button.
To interrupt playback:
Press the PAUSE
Press the PAUSE
playback.
To stop playback:
Press the STOP/EJECT ■7 button.
Precautions:
● Be sure not to press the PLAY
WIND 2 buttons simultaneously, or the
tape will become damaged.
● Before changing from one tape operation
to another, press the STOP/EJECT
button.
● Do not press the P AUSE 6 button whilst the
fast forward or rewind operations are in
progress. The F FWD 3 or REWIND 2
button will not be released when the tape
end is reached. Once this occurs, press the
STOP/EJECT ■7 button.
11
1 button.
11
77
7 button, then press the F
77
77
7 button, then press the
77
■
66
6 button during playback.
66
66
6 button again to resume
66
STOP/
11
1 and RE-
11
■
■ Cassette tape
● For playback, use normal or low-noise tapes
for the best sound. (Metal or CrO2 tapes are
not recommended.) For recording, use only
normal tapes.
● Do not use C-120 tapes, or poor-quality
tapes, as they may cause malfunctions.
● Before loading a tape into the cassette compartment, tighten the slack with a pen or
pencil.
● Cassettes have removable tabs that prevent
accidental recording or erasing. Removing
the tab will protect the corresponding side
from being erased. Cover the tab holes with
adhesive tape to erase or record again.
Side A (1)
Tab for side B (2) Tab for side A (1)
77
7
77
■ Earphone
● Before plugging in or unplugging the ear-
phone, make sure the volume level is reduced.
● Be sure your earphone has a 3.5 mm (1/8")
diameter plug and impedance between 16
ohms and 50 ohms. The recommended impedance is 32 ohms.
●
When the earphone is connected, the
speaker is disconnected automatically . Adjust
the VOLUME control for the desired volume.
QT-222W(B)_E.pm 03.10.24, 11:55 AM11
E-4
QT-222W(B) 92L20101550040
Recording on a Cassette Tape
Before recording:
● When recording important selections, make
a preliminary test to ensure that the desired
material is properly recorded.
● SHARP is not liable for damage or loss of
your recording arising from malfunction of
this unit.
STAND-BY
■ Recording from the radio
1 Set the FUNCTION switch to RADIO.
2 Set the BAND SELECTOR switch to FM,
MW, SW1 or SW2.
3 Tune in to the station to be recorded.
4 Load a blank cassette into the cassette
compartment with the side to be recorded on facing you.
5 Press the PAUSE
66
6 button.
66
6 Press the RECORD ● button.
7 Press the PAUSE
gin recording.
To stop recording:
Press the STOP/EJECT ■7 button.
66
6 button again to be-
66
● The ALC (Automatic Record Level Control)
circuit automatically controls the level of the
input signal used for recording.
● The VOLUME control may be adjusted with
no effect on the recorded signal. (Variable
Sound Monitor)
● Metal and CrO
recording.
2
tapes cannot be used for
■ Recording from the built-in
microphone
1 Set the FUNCTION switch to TAPE.
2 Load a cassette into the cassette com-
partment.
3 Press the PAUSE
66
6 button.
66
4 Press the RECORD ● button.
5 Press the PAUSE
gin recording.
Note:
● Monitoring of the recording is not possible.
66
6 button again to be-
66
QT-222W(B)_E.pm 03.10.24, 11:55 AM12
E-5
QT-222W(B) 92L20101550040
Maintenance
■ Cleaning the tape-handling
parts
● Dirty heads, capstan or pinch roller can cause
poor sound and tape jams. Clean these parts
with a cotton swab moistened with commercial head/pinch roller cleaner or isopropyl alcohol.
● After long use, the deck’s heads and cap-
stan may become magnetised, causing poor
sound. Demagnetise these parts once every 30 hours of playing/recording by using a
commercial tape head demagnetiser. Read
the demagnetiser’s instructions carefully before use.
■ Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth
and a diluted soap solution, then wipe with a
dry cloth.
Caution:
● Do not use chemicals for cleaning (petrol,
paint thinner, etc.). It may damage the cabinet finish.
● Do not apply oil to the inside of the unit. It
may cause malfunctions.
■ Condensation
Sudden temperature changes, storage or operation in an extremely humid environment may
cause condensation inside the cabinet (tape
heads, etc.).
Condensation can cause the unit to malfunction.
If this happens, leave the power on with no
cassette in the unit until normal playback is
possible (about 1 hour).
Specifications
SHARP reserves the right to make design and specification changes for product improvement
without prior notice.
■
General
Power source
Power consumption
Output power
Speaker
Output terminal
Dimensions
Weight
AC 110-127/220-240 V, 50/60 Hz
DC 6 V [“D” size (UM/SUM-1, R20 or HP-2) battery x 4]
7 W
MPO: 3 W (AC operation, 10 % T.H.D.)
RMS: 1.5 W (DC operation, 10 % T.H.D.)
9.2 cm (3-5/8”) full range speaker x 1
Earphone: 16-50 ohms (recommended: 32 ohms)
Width: 305 mm (12”)
Height: 155 mm (6-1/8”)
Depth: 120 mm (4-3/4”)
1.48 kg (3.3 lbs.) without batteries
■ Radio
Frequency range
■ Tape recorder
Frequency response
Signal/noise ratio
Wow and flutter
Motor
Bias system
Erase system
QT-222W(B)_E.pm 03.10.24, 11:55 AM13
FM: 88 - 108 MHz
SW1: 2.3 - 7.3 MHz
SW2: 7.3 - 22 MHz
MW: 526.5 - 1,606.5 kHz
60 - 12,000 Hz (Normal tape)
40 dB
0.3 % (WRMS)
DC 6 V electric governor
DC bias
Magnet erase
E-6
QT-222W(B) 92L20101550040
QT-222W(B)_WIRNING.pm 03.10.24, 11:54 AM14
QT-222W(B) 92L20101550040
●

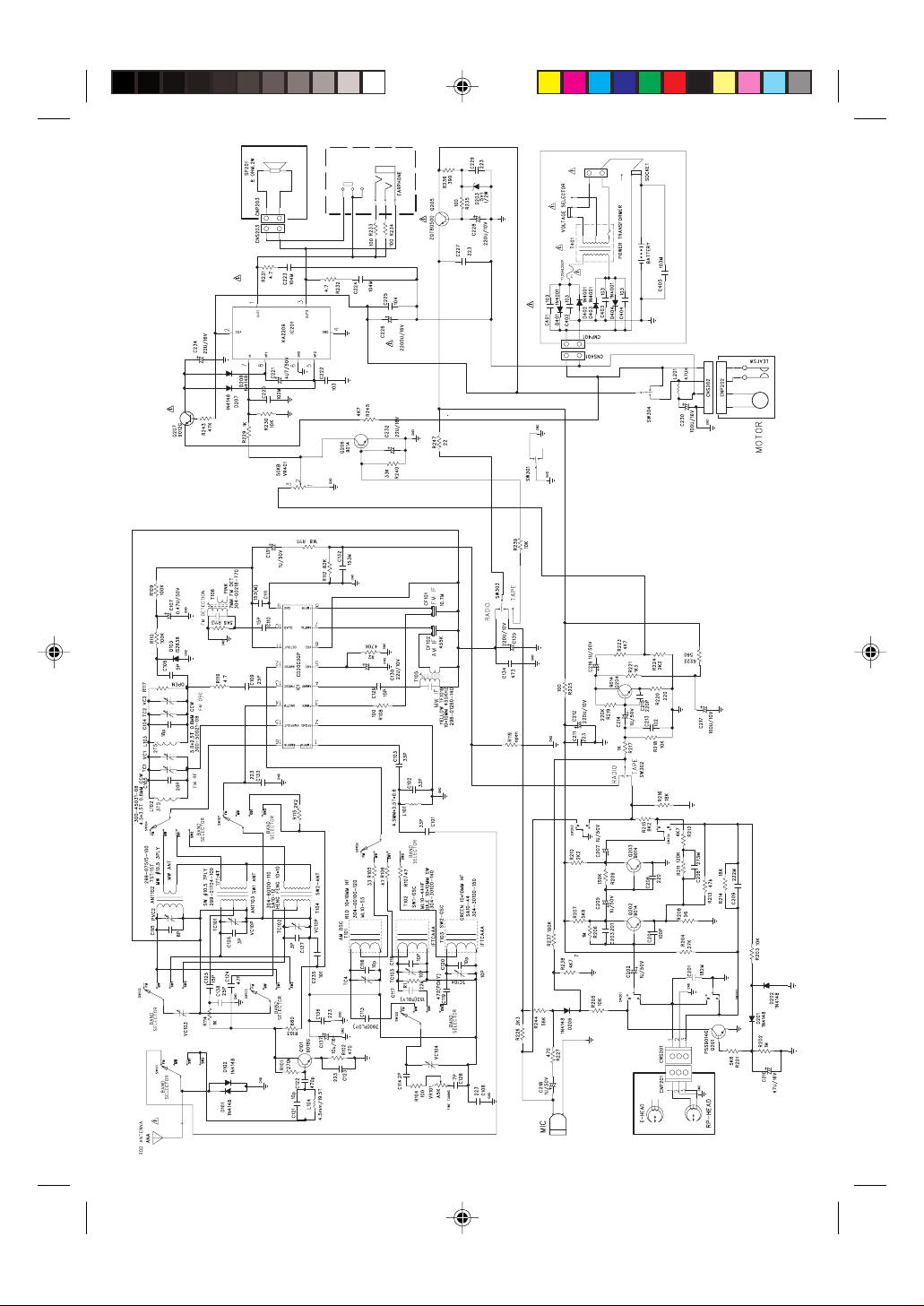

● Wiring diagram of this model is subject to change for improvement without prior notice.
QT-222W(B)_WIRNING.pm 03.10.24, 11:54 AM15
QT-222W(B) 92L20101550040
0205
92L20101550040
03K R AO 1
QT-222W(B)_BACK.pm 03.10.24, 11:35 AM16
QT-222W(B) 92L20101550040
Loading...
