LC-52LE920UN/LC-60LE920UN

SHARP SERVICE MANUAL

No. S701560LE920U/

LCD COLOR TELEVISION

LC-52LE920UN

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig-

inal condition and only parts identical to those specified should be used.

LC-60LE920UN

F CONTENTS

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY

PRECAUTION .................................................... i

PRECAUTIONS A PRENDRE LORS DE

LA REPARATION .............................................. ii

PRECAUTIONS FOR USING LEAD-FREE

SOLDER .......................................................... iii

OUTLINE

MAJOR SERVICE PARTS ............................... iv

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS ........................................ 1-1

[2] REMOVING OF MAJOR PARTS

(LC-60LE920UN) ........................................... 4-6

[3] Caution Cleaning Glass ............................... 4-11

[4] How to replace the touch keysensor PWB...... 4-13

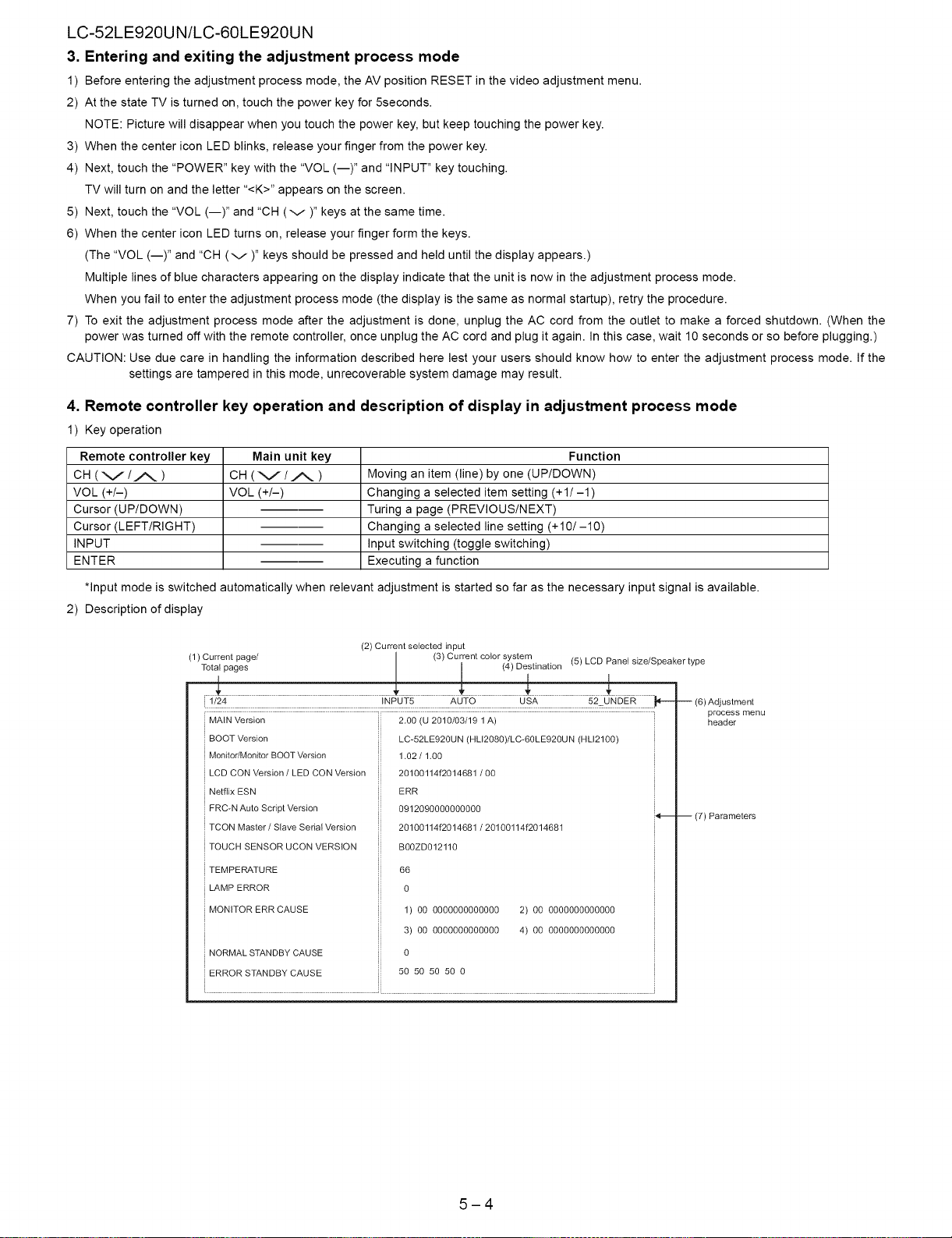

CHAPTER 5. ADJUSTMENT

[1] ADJUSTMENT PROCEDURE ...................... 5-1

[2] PUBLIC MODE SETTING PROCEDURE ...... 5-15

CHAPTER 6. TROUBLESHOOTING TABLE

[1] TROUBLESHOOTING TABLE ...................... 6-1

[2] LED flashing specification at the time of an

error (Center icon LED used) ...................... 6-14

CHAPTER 2. OPERATION MANUAL

[1] Parts Name ................................................... 2-1

[2] OPERATION MANUAL ................................. 2-3

CHAPTER 3. DIMENSIONS

[1] DIMENSIONS (LC-52LE920UN) ................... 3-1

[2] DIMENSIONS (LC-60LE920UN) ................... 3-2

CHAPTER 4. REMOVING OF MAJOR PARTS

[1] REMOVING OF MAJOR PARTS

(LC-52LE920UN) .......................................... 4-1

CHAPTER 7. MAJOR IC INFORMATIONS

[1] MAJOR IC INFORMATIONS ......................... 7-1

CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK DIAGRAM

[1] OVERALL WIRING DIAGRAM ...................... 8-1

[2] SYSTEM BLOCK DIAGRAM ......................... 8-2

Parts Guide

Parts marked with "Z_._ " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used for

SHARP CORPORATION

after sales service only. The contents are subject to change without notice.

LC-52LE920UN/LC-60LE920UN

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY PRECAUTION

[] Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the

servicing guidelines which follow:

==WARNING

1. For continued safety, no modification of any circuit should be

attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED PROTECTION

AGAINST A RISK OF FIRE REPLACE ONLY WITH

SAME TYPE FUSE,

F7000 (250V 5A) F7001 (250V 5A)

==BEFORE RETURNING THE RECEIVER (Fire &

Shock Hazard)

Before returning the receiver to the user, perform the following

safety checks:

3. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

4. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical

insulators, etc.

5. To be sure that no shock hazard exists, check for leakage current in the following manner.

Plug the AC cord directly into a 120 volt AC outlet.

Using two clip leads, connect a 1.5k ohm, 10 watt resistor paral- leled by a 0.15f_F capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or elec- trical ground connected to an earth ground.

Use an AC voltmeter having with 5000 ohm per volt, or higher, sen- sitivity or measure the AC voltage drop across the resistor.

Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor.

All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.)

Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

II-I-I-I-I-N oooo I

/ DVM /

rt.o ACSCALE o_-_

/ 1.5k ohm |

EOT15RbFBE

TO EXPOSED CONNECT TO METAL PARTS KNOWN EARTH

GROUND

__________________________________________________________________________________________________________________________________________________________________________________________________________________________________________

SAFETY NOTICE

Many electrical and mechanical parts in LCD color television have

special safety-related characteristics. These characteristics are often not evident from visual inspection, nor

can protection afforded by them be necessarily increased by using

replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are

identified in this manual; electrical components having such features

are identified by "/i',," and shaded areas in the Replacement Parts List and Schematic Diagrams.

For continued protection, replacement parts must be identical to those used in the original circuit.

The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts

shown in this service manual, may create shock, fire or other hazards.

LC-52LE920UN/LC-60LE920UN

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

• Ne peut effectuer la r_paration qu' un technicien sp_cialis6 qui s'est parfaiternent accoutume a toute v_rification de s6curite et aux conseils suivants.

• AVERTISSEMENT

1. N'entreprendre aucune modification de tout circuit. C'est danger- eux.

2. Debrancher le r6cepteur avant toute r6paration.

PRECAUTION: POUR LA PROTECTION CON-

TINUE CONTRE LES RISQUES D'INCENDIE,

REMPLACER LE FUSIBLE

F7000 (250V 5A) F7001 (250V 5A)

=VERIFICATIONS CONTRE L'INCEN=DIE ET LE

CHOC ELECTRIQUE

Avant de rendre le r_cepteur a I'utilisateur, effectuer les v_rifica- tions suivantes.

3. Inspecter tousles faisceaux de c_bles pour s'assurer que les ills ne soient pas pinces ou qu'un outil ne soit pas place entre le chas-

sis et les autres pi_ces m6talliques du recepteur.

4. Inspecter tousles dispositifs de protection comme les boutons de commande non-m6talliques, les isolants, le dos du coffret, les cou-

vercles ou blindages de r6glage et de compartiment, les r6seaux de r6sistancecapacit6, les isolateurs m6caniques, etc.

5. S'assurer qu'il n'y ait pas de danger d'61ectrocution en v6rifiant la fuite de courant, de la facon suivante:

Brancher le cordon d'alimentation directem-ent _ une prise de cou- rant de 120V. (Ne pas utiliser de transformateur d'isolation pour

cet essai).

A I'aide de deux ills _ pinces, brancher une r6sistance de 1.5 k__

10 watts en parall_le avec un condensateur de 0.15f.LF en s@ie avec toutes les pi_ces m6talliques expos6es du coffret et une terre connue comme une conduite 61ectrique ou une prise de terre branchee _ la terre.

Utiliser un voltm_tre CA d'une sensibilit6 d'au moins 5000_dV pour mesurer la chute de tension en travers de la r6sistance.

Toucher avec la sonde d'essai les pi6ces m6talliques expos6es qui pr6sentent une vole de retour au chassis (antenne, coffret m6talli-

que, t6te des vis, arbres de commande et des boutons, 6cusson, etc.) et mesurer la chute de tension CA en-travers de la r6sistance.

Toutes les v@ifications doivent 6tre refaites apr6s avoir invers6 la

fiche du cordon d'alimentation. (Si necessaire, une prise

d'adpatation non polaris6e peut _tre utilis6e dans le but de termin- er ces v@ifications.)

La tension de pointe mesur6e ne dolt pas depasser 0.75V (corre- spondante au courant CA de pointe de 0.5mA).

Dans le cas contraire, il y a une possibilit6 de choc 61ectrique qui dolt _tre supprim6e avant de rendre le r6cepteur au client.

l-i-i-i-i-i-i oooo i

DVM |

ECHELLE CA o1"-1

1.5k ohm /

AUX PIECES \ METALLIQUES TERRE CONNUE

EXPOSEES

BRAN( ;HER A UNE

AVIS POUR LA SECURITE

De nombreuses pi6ces, electriques et m6caniques, dans les t616vi- seur ACL pr6sentent des caract@istiques sp6ciales relatives _ la s6-

curit6, qui ne sont souvent pas 6videntes _ vue. Le degr6 de protec- tion ne peut pas 6tre n6cessairement augment6e en utilisant des pi6ces de remplacement 6talonn6es pour haute tension, puissance, etc.

Les pi_ces de remplacement qui pr6sentent ces caract@istiques sont identifi6es dans ce manuel; les pi_ces 61ectriques qui presentent ces particularit6s sont identifiees par la marque "Z_" et hachur_es dans la

liste des pi_ces de remplacement et les diagrammes sch_matiques.

Pour assurer la protection, ces pi_ces doivent @re identiques _ celles utilis_es dans le circuit d'origine. L'utilisation de pi_ces qui n'ont pas

les m_mes caract@istiques que les pi_ces recommand_es par I'usine, indiqu_es dans ce manuel, peut provoquer des _lectrocutions, incen-

dies, radiations X ou autres accidents.

LC-52LE920UN/LC-60LE920UN PRECAUTIONS FOR USING LEAD-FREE SOLDER

='Employing lead-free solder

"PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.

Example:

a a/a

Sn-Ag-Cu

Indicates lead-free solder of tin, silver and copper.

Sn-Ag-Cu

='Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause dam- age or accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

='Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition.

Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required.

If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it. When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

PARTS CODE

ZHNDAi123250E BL J ZHNDAi126500E BK J ZHNDAi12801KE BM J

PRICE PART RANK DELIVERY

DESCRIPTION

#0.3mm 250g (1roll) #0.6mm 500g (1roll) #1.0mm lkg (1roll)

OUTLINE

MAJOR SERVICE PARTS

mPWB UNIT

Ref No. Part No. Discription

N DKEYMF452FM20 MAIN Unit*l N DUNTKF493FM01 ICON Unit N DUNTKF493FM02 LOGO Unit N DUNTKF494FM01 R/C, LED Unit N RUNTKA690WJQZ TOUCH SENSOR Unit*2 N RDENCA395WJQZ POWER Unit N RUNTK4570TPZA LCD CONTROL Unit

N RUNTK4433TPZA LED DRIVE Unit (LC-52LE920UN) N RUNTK4433TPZZ LED DRIVE Unit (LC-60LE920UN)

NOTE: "1

mOTHER UNIT

Replace MAIN PWB Units (DKEYMF452FM20) in case of IC8455, IC8401 or IC3302 failure.

TOUCH SENSOR Unit (RUNTKA690WJQZ) reuse will be impossible, once it is stuck on front glass and exfoliates.

Therefore, please exchange of a touch sensor unit in the case of front glass exchange.

Ref No. Part No. Description

N R1LK520D3LWB0Z 52" LCD Panel Module Unit (LK520D3LWB0Z) (LC-52LE920UN) N R1LK600D3LW30Z 60" LCD Panel Module Unit (LK600D3LW30Z) (LC-60LE920UN)

LC-52LE920UN/LC-60LE920UN

talC FOR EXCLUSIVE USE OF THE SERVICE

Ref No. Part No. Description Q'ty

IC509 VHiR24002AS1YS R1EX24002ASAS0A RGB EDID 1 IC2002 RH-iXC786WJNHQ R5F364A6NFB Monitor Microcomputer 1

==SERVICE JIGS

Ref No. Part No. Discription Q'ty

N QCNW-C222WJQZ Connecting Cord L=1000mm 80pin LCD Control Unit to LCD Panel Unit 2 N QCNW-H184WJQZ Connecting Cord L=1000mm 12pin Main to Power Unit (PD) 1 N QCNW-F676WJQZ Connecting Cord L=1000mm 41pin Main to LCD Control Unit (LW) 1 N QCNW-G405WJQZ Connecting Cord L=1000mm 4pin Power to LCD Control Unit (PL) 1 N QCNW-G394WJQZ Connecting Cord L=1000mm 9pin Main to LED Drive Unit (LB) 1 N QCNW-K593WJQZ Connecting Cord L=1000mm 13pin Power to LED Drive Unit (LA) 1

LC-52LE920UN/LC-60LE920UN

CHAPTER 1. SPECIFICATIONS

[1] SPECIFICATIONS

Item

LCD panel

TV Function

Audio out

Terminals

OSD language Power Requirement Power Consumption

Weight

Dimension .2 (WxHxD)

Operating temperature +32°F to +104°F (0°C to +40°C)

Size Resolution

TV-standard (CCIR)

VHF/UHF CATV

Receiving Digital Terrestrial Channel Broadcast (8VSB)

Digital cable .1 (64/256 QAM)

Audio multi )lex

VIDEO

PC IN

HDMI 1 HDMI 2 HDMI 3

Back panel

vertical

inputs

Back panel horizontal

inputs

HDMI 4 AUDIO IN AUDIO OUT

DIGITALAUDIOOUTPUT

ETHERNET

USB 1

USB 2

COMPONENT ANT/CABLE

RS-232C

TV + stand TV only

Model: LC-52LE920UN Model: LC-60LE920UN

52" Class (52 1/32"Diagonal) 60" Class (60 _/32"Diagonal) 2,073,600 pixels (1,920 x 1,080) American TV Standard ATSC/NTSC System VHF 2-13ch, UHF 14-69ch 1-135ch (non-scrambled channel only)

2-69ch

1-135ch (non-scrambled channel only)

BTSC System 10W x 2 + 15 W (WF)

AV in (0 3.5 mm to 3 RCA AV cable)

ANALOG RGB (PC) in (15-pin mini D-sub female connector), Audio in (0 3.5 mm stereo jack)

HDMI in with HDCP, Audio in (0 3.5 mm stereo jack) HDMI in with HDCP

HDMI in with HDCP HDMI in with HDCP

Audio in (0 3.5 mm stereo jack) Audio out (0 3.5 mm stereo jack) Optical Digital audio output x 1 (PCM/Dolby Digital)

Network connector Photo/Music/Video mode, Software update

Photo/Music/Video mode, Software update COMPONENT in

75 _ Unbalance, F Type g 1 for Analog (VHF/UHF/CATV)and Digital (AIR/CABLE) 9-pin D-sub male connector English/French/Spanish

AC 120 V, 60 Hz 180 W (0.5 W Standby with AC 120 V 230 W (0.5 W Standby with AC 120 V)

86.0 Ibs./39.0 kg 121.3 Ibs./55.0 kg

73.9 Ibs./33.5 kg 98.1 Ibs./44.5 kg 49 5/8x33 29/32x13 25/64inch 56 2_/32x 38 25/64x 14 _/2inch 49 5/8x 31 _5/16x 1 35/64inch 56 2_/32x 35 6_/64x 1 9/_6inch

-1 Emergency alert messages via Cable are unreceivable. *2The dimensional drawings are shown on the inside back cover. , As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for

product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

1-1

CHAPTER 2. OPERATION MANUAL

[1] Parts Name

Center Ic°n illumin!ti°n"_ _" !

VOL--/+ NPUT POWER 2

OH v/A MENU

LC-52LE920UN/LC-60LE920UN

Remote control sensor

OPC sensor "I

"10PC: Optical Picture Control *2 Using the touch sensor panel.

Antenna/Cable in 1 RS-232C terminal

COMPONENT terminals

usB_ USB 1 terminal

(10/100)

ETHERNET --

_} AUDIO OUT

® VIDEO _

AUDIO (L/R)

ANALOG

ETHERNET terminal

AUDIO OUT terminal

VIDEO terminal

PC IN terminal

AUDIO IN

AUDIO IN terminal

(shared for PC IN and HDMI I) *2 HDMI 1 terminal

ARC: Audio Return Channel

HDMI 2 terminal

HDMI 3 terminal

D H_rlrH _

AUO,O-- DIGITAL AUDIO OUTPUT termina

DIGITAL J

OUTPUT

HDMI 4 terminal

usB2 USB 2 terminal

"1 External equipment connection. *2 Details on the Audio Select function.

2-1

LC-52LE920UN/LC-60LE920UN

I 18

TV STB DVD'VCRAUDIO

4 OPTION SLEEP PAOIWEGR 20

5 _ .....................................................21

7 8

11 12

14 15

iii_i

ii,iFAV0R,TE_--FAVAPP3--qo

16 17_

° 19

OREC

APPS

_28

POWER: Switch the TV power on or enter standby.

TV, STB, DVD.VCR, AUDIO: Switches the remote

control for TV, STB, DVD, BD, VCR and AUDIO operation. * To enter the code registration mode, you need to press

an appropriate button (STB, DVD.VCR or AUDIO) and DISPLAY at the same time.

External equipment operational buttons: Operate the external equipment.

OPTION: Display the Link Operation Menu screen. This button will function only when AQUOS LINK is used.

SLEEP: Set the sleep timer.

0-9: Set the channel.

, (DOT):

CC: Display captions from a closed-caption source.

AV MODE: Select an audio or video setting.

MUTE: Mute the sound.

VOL +/- : Set the volume.

MENU: Display the menu screen.

AQUOS NET: Switches the display to the Sidebar Widget, TV + Web, Web or TV screen.

A/T/_ / I_ ,ENTER: Select a desired item on the screen.

EXIT: Turn off the menu screen.

FAVORITE OH: Set the favorite channels.

A, B, C, D: Select 4 preset favorite channels in 4 different

categories.

While watching, you can toggle the selected channels by

pressing A,B,C and D.

DISPLAY: Display the channel information.

POWER (SOURCE): Turns the power of the external equipment on and off.

FREEZE: Set the still image. Press again to return to normal screen.

POWER SAVING: Select Power Saving settings.

ENT: Jumps to a channel after selecting with the 0-9 buttons.

FLASHBACK: Return to the previous channel or external input mode.

VIEW MODE: Select the screen size.

INPUT: Select a TV input source. (TV, COMPONENT,

VIDEO, PC IN, HDMI 1, HDMI 2, HDMI 3, HDMI 4, USB)

CH v/A : Select the channel.

APPS: Display the application window.

RETURN: Return to the previous menu screen.

FAV APP 1, 2, 3: You can assign your favorite applications to these buttons.

, When using the remote control unit, point it at the TV.

2-2

LC-52LE920UN/LC-60LE920UN

[2] OPERATION MANUAL

° Before attaching (or detaching) the stand, unplug the AC cord.

• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

• Attach the stand in the correct direction.

• Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.

• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

1 Confirm that there are 9 screws (5 short screws 4

and 4 long screws) supplied with the stand unit.

Attach the supporting post for the stand unit onto

the base using the box for the stand unit as shown

below.

• The supporting post attaches to the base at an off- centered location on the base. Be sure to attach the

supporting post in the direction indicated below and

attach the stand to the TV with the wider side of the base facing forward.

_ _-_11_ Long screws

Insert the stand into the openings on the rear of the

TV.

Soft cushion

Insert and tighten the 4 screws into the 4 holes on

the rear of the stand unit.

_it_ Short screws

,5 (_ Insert the stand cover.

(_ Insert the screw to secure the stand cover.

Short screw _!!_

2-3

To detach the stand, perform the steps in reverse order.

LC-52LE920UN/LC-60LE920UN

CHAPTER 3. DIMENSIONS

[1] DIMENSIONS (LC-52LE920UN)

49 5/8 (1260)

459/16(1157) I

Unit: inch (mm)

l ]

21 17/64 (540) D,,

#: I _q,

1 35/64 6 15/64

(39) _ (158)

13 25/64(340)

AN-52AG4

2 41/64 I

4 11/64

(106)_

3-1

[2] DIMENSIONS (LC-60LE920UN)

56 21/32 (1439)

LC-52LE920UN/LC-60LE920UN

Unit: inch (mm)

LO cO

LJ i _--

! !

15 3/4 (400)

1 9/16 6 55/64

(39.7) (174)

141j2j(368)

t ]

22 27/32 (580)

AN =52AG4

2 41/64 I 1 9/16

_7)

4 13/64

(106.7)

3-2

LC-52LE920UN/LC-60LE920UN

CHAPTER 4. REMOVING OF MAJOR PARTS

[1] REMOVING OF MAJOR PARTS (LC-52LE920UN)

1. Removing of Stand Unit and Rear Cabinet Ass'y.

1. Remove the 1 lock screw _ and detach the Support Cover ®.

2. Remove the 4 lock screws ® and detach the Stand Unit _.

3. Remove the 1 lock screw ® and detach the AC Cord Cover Ch.

4. Disconnect AC Cord _.

5. Remove the 4 lock screws ¢_, 4 lock screws ®, 1 lock screw _0_and 18 lock screws _ and detach the Rear Cabinet Ass'y @.

Rear Cabinet Ass'y

AC Cord Cover (_

Support Cover

Stand Unit

4-1

2. Removing of Speaker-L/R.

1. Remove the 2 lock screws d_ and detach the Stand Cover _.

2. Disconnect SP wire.

3. Detach the Speaker-L ®, Speaker-R ®.

LC-52LE920UN/LC-60LE920UN

MAiN Unit

Speaker-R (_.

[sP]

_) Speaker-L

Cover

4-2

LC-52LE920UN/LC-60LE920UN

3. Removing of Connectors

1. Disconnect the following connectors from the MAIN Unit. (SB, LB, PD, LW, RA, RL)

2. Disconnect the following connectors from the POWER/LED Drive Unit. (LA, PD, PL)

3. Disconnect the following connectors from the LCD Control Unit. (LW, PL)

POWER Unit MAIN Unit

o o[

m_,,[LA]

[SB]

I_ [PD]

[PL]

4-3

LC-52LE920UN/LC-60LE920UN

4. Removing

1. Remove

2. Remove

3. Remove

4. Remove

5. Remove

6. Remove

7. Remove the

8. Remove the

9. Remove the

10.Remove the

11.Remove the

12.Remove the

13.Remove the

14.Remove the

the 7 lock screws d) and detach the MAIN Unit @. the 2 lock screws @ and detach the Terminal Cover (Bottom) ®.

the 2 lock screws ® and detach the Terminal Cover (Side) ®. the 6 lock screws ® and detach the POWER Unit ®.

the 4 lock screws ® and detach the Sub Woofer @. the 1 lock screw © and detach the LCD Fixing Angle (Bottom-R) @.

of MAIN Unit, POWER Unit, Woofer, Stand Angle, 52" LCD Panel Module Unit.

2 lock screws @ and detach the LCD Fixing Angle (Top-L) @. 2 lock screws @ and 2 lock screws @ and

2 lock screws @ and 2 lock screws ® and

8 lock screws @ and 3 lock screws ® and

6 lock screws @ and

detach the LCD Fixing Angle (Top-R) @. detach the LCD Fixing Angle (Bottom-L) @. detach the LCD Fixing Angle (B-MA) ®. detach the LCD Fixing Angle (B-MB) @. detach the Stand Angle @.

detach the BL Support Angle @. detach the 52" LCD Panel Module Unit @.

LCD Fixing Angle _\ (Top-L) _i

1_/1_f_5 LCD Fixing Angle

(Top-R)

Sub Woofer

LCD

Fixing Angle

(Bottom-L)

BL Support

Angle

tLCDFixing

Angle

(B-MA)

8' Module Unit

Stand Angle

_-j @LOD Fixing Angle

_@ @ LCD Fixing Angle

(B-MB)

52" LCD Panel

(Bottom-R)

Cover

4-4

LC-52LE920UN/LC-60LE920UN

5. Removing of RIO, LED Unit, ICON Unit, LOGO Unit, Front Cabinet Ass'y, Glass Front Panel Ass'y, TOUCH SENSOR Unit.

1. Detach the R/C, LED Unit _).

2. Detach the ICON Unit ®.

3. Detach the LOGO Unit _).

4. Remove the 28 Hooks _) and detach the Front Cabinet Ass'y (57

5. Detach the Glass Front Panel Ass'y ®).

6. Detach the Touch Sensor Unit _7._. NOTE: The Touch Sensor unit (t) removed once is not reusable.

i_ \/

[RIAi'_ -_ ICON Unit [Rt]_) LOGO Unit

R/C, LEDUnit Glass Front Panel Ass'y

1_...................... ........................] ................................................J f........................ ........................J

[RK] "(_)TOUCH SENSOR Unit

4-5

LC-52LE920UN/LC-60LE920UN

[2] REMOVING OF MAJOR PARTS (LC-60LE920UN)

1. Removing of Stand Unit and Rear Cabinet Ass'y.

1. Remove the 3 lock screw _ and detach the Support Cover _2_.

2. Remove the 4 lock screws ® and detach the Stand Unit #_.

3. Remove the 1 lock screw ® and detach the AC Cord Cover ®.

4. Disconnect AC Cord ®.

5. Remove the 4 lock screws ¢_, 7 lock screws ®7,2 lock screws _ and 18 lock screws @ and detach the Rear Cabinet Ass'y @.

Rear Cabinet Ass'y

AC Cord Cover __

Support Cover

Stand Unit

4-6

LC-52LE920UN/LC-60LE920UN

2. Removing of Speaker-L/R.

1. Remove the 2 lock screws d) and detach the Stand Cover _).

2. Disconnect SP wire.

3. Detach the Speaker-L ®, Speaker-R ®.

[SP]

Speaker-R (_. :_;..........................................................._

Speaker-L

Cover

4-7

3. Removing of Connectors

1. Disconnect the following connectors from the MAIN Unit. (SB, LB, PD, LW, RA, RL)

2. Disconnect the following connectors from the POWER/LED Drive Unit. (LA, PD, PL)

3. Disconnect the following connectors from the LCD Control Unit. (LW, PL)

POWER Unit LED Drive Unit

POWER Unit

LC-52LE920UN/LC-60LE920UN

MAIN Unit

m_ [LA]

[PD] .m

,,[PD]

[PL] [LW] u

[RA]

[SB]

4-8

LC-52LE920UN/LC-60LE920UN

4. Removing of MAIN Unit, POWER Unit, Woofer, Stand Angle,60" LCD Panel Module Unit.

1. Remove the 7 lock screws d) and detach the MAIN Unit _).

2. Remove

3. Remove

4. Remove

5. Remove

6. Remove

7. Remove

8. Remove

9. Remove

10.Remove

11.Remove

12.Remove

13.Remove

the 2 lock the 2 lock the 6 lock

the 4 lock the 1 lock

the 2 lock the 2 lock the 2 lock

the 4 lock screws @ 2 lock screws @ and detach the 2 LCD Fixing Angle (B-MA) ® and 2 Fixing Angle (B-M2) _. the 12 lock screws @ and detach the 2 Stand Angle ®. the 3 lock screws @ and detach the BL Support Angle ©.

the 11 lock screws @ and detach the 60" LCD Panel Module Unit @.

screws ® and detach the Terminal Cover (Bottom) ®. screws ® and detach the Terminal Cover (Side) ®.

screws ® and detach the POWER Unit ®. screws ® and detach the Sub Woofer @.

screw @ and detach the LCD Fixing Angle (Bottom-R) @. screws @ and detach the LCD Fixing Angle (Top-L) @.

screws @ and detach the LCD Fixing Angle (Top-R) @. screws @ and detach the LCD Fixing Angle (Bottom-L) @.

LCD

Fixing Angle

(Top-L)

_¢@ @_1_(_ LCD Fixing Angle

(Top-R)

LCD

Fixing Angle _\

(Bottom-L)

)TERMINAL Cover

(Bottom)

60" LCD Panel Module Unit

,_,1 :_ "-"

Stand ,_

2_ Angle (2_

,1_i) LCD Fixing Angle

_] (Bottom-R)

LCDFixingAngle '\ (B-M2) @ @ LCD Fixing Angle

LCD Fixing Angle (B-MA)

_(B-MA)

4-9

LC-52LE920UN/LC-60LE920UN

5. Removing of RIO, LED Unit, ICON Unit, LOGO Unit, Front Cabinet Ass'y, Glass Front Panel Ass'y, TOUCH SENSOR Unit.

1. Detach the R/C, LED Unit _.

2. Detach the ICON Unit ®.

3. Detach the LOGO Unit _}.

4. Remove the 28 Hooks _band detach the Front Cabinet Ass'y @

5. Detach the Glass Front Panel Ass'y ¢_.

6. Detach the Touch Sensor Unit ®. NOTE: The Touch Sensor unit _hremoved once is not reusable.

(_ Front Cabinet Ass'y

[RIA]"(_) [tR]]c p ICON Unit [RL] "_ LOGO Unit

R/C, LED

Unit _ Glass Front Panel Ass'y

:i ............................................... ........................ .............................

_ o , _ o ; _ _ _ , _ ; _ _ o _ _ ; ::::::::::::::::::::::::::::::::

IRK] ('7)TOUCH SENSOR Unit

4-10

LC-52LE920UN/LC-60LE920UN [3] Caution Cleaning Glass

1. Glass handling

CAUTION: (1) As for handling, wear clean gloves, protective footwear

and mask.

protective

(2) Inner gloves are covered in the Nitrile gloves.

[Inner gloves ] INitrile gloves ]

(5) Two people have handling equally by the work.

(Maintain it so that glass is not warped.)

(6) When it is put horizontally, it is put on the flat mat.

(3) Nitrile gloves are exchanged with the following

standard.

When it touched a face and so on. When another work was done.

By the work of fifty times. In the time for recess.

When it became dirty. When it tore.

changed to new Nitrile gloves

(7) A cushion material is put between glass.

It doesn't touch it [the front and the front]. It can be put to two glass.

cushion material ]

(8) It has a module part before the CAB-B installation.

(It has a module part.)

(4) It has a black mask part.

You must not have a clear surface.

4-11

2. Glass cleaning

CAUTION: (1) Visual inspection is done on the black mat.

(2) Dust and trash are taken with an air blow.

LC-52LE920UN/LC-60LE920UN

(3) Dirt is wiped out with cloth.

Front side: Moufas Back side: Cotton (clean wiper SF-30C)

(4) When dirt doesn't clean, it is wiped out with Alcohol.

(5) Dirt is wiped out with the Ethanol and clean cloth.

When wipe off a dirt the trace which wiped do not be left.

4-12

LC-52LE920UN/LC-60LE920UN

[4] How to replace the touch key sensor PWB

1. Replace the touch key sensor PWB in a clean room.

Be sure to remove the dust from the unit before carrying it into the clean room.

2. Remove the touch key sensor PWB from the front glass.

3. Clean the bonding surface with alcohol.

Depending on the dirt, water solution of 80%vol can be effective.

4. Adhere a spacer before bonding the touch unit.

Product Manual Touch Sensor with ITO (Transparent Electrode)

Pull tap of double-sided tape Pull tap of protective sheet

i) Remove the touch sensor from the front glass.

ii) Adhere the spacer to the back of the FPCB section.

i f.j Space

Release paper

* When peeling the ITO section, check that there is no glue

residue on the front glass. If glue residue, dirt, fingerprints, etc. are found, wipe them

off with anhydrous alcohol.

Do not apply anhydrous alcohol to the double-sided tape

on the metal part attaching to the glass.

ii-1. Peel the release paper of the double-sided

tape on the FPCB section.

ii-2. Adhere the spacer to the FPCB section.

(Use the right and upper sides of the FPCB section as a reference.)

* Check that the spacer does not contact with

the ITO section.

4-13

iii) Adhere the ITO section to the front glass. (Use the positioning jig.)

Tape fixing the FPCB and ITO sections (Adhered by the supplier)

iii-1. Peel the release paper of the double-sided tape

iii-2. Slowly adhere it from the end using a roller.

* Check that there are no bubbles in the ITO section

after adhered.

* Adhering error: _+1.0mm

iv) Adhere the FPCB section to the front glass.

iv-1. Lift the FPCB section to peel the release paper of the

ill:iiiii

* Be careful not to apply stress to the joint of FPCB and ITO.

iv-2. Adhere the FPCB section to the front glass.

* Be careful not to apply stress to the joint of FPCB and ITO.

LC-52LE920UN/LC-60LE920UN

on the ITO section.

(Position the touch sensor using the jig.)

double-sided tape on the spacer.

iv-3. Peel the tape fixing the FPCB and ITO sections.

5. Attach the touch unit bonding procedure.

It includes peeling of the protective sheet. How to mount the touch sensor

i) Adhere after positioned using the positioning jig. ii) Peel the protective sheet by means of the pull tap for peeling the protective sheet.

iii) Adhere the FPCB to the glass. (Do not warp the FPCB if possible.)

Pull tap for peeling the protective sheet of the double-sided tape in the FPCB section. ]

--4

4-14

S:q 4

0000000

",,Glass outline

LC-52LE920UN/LC-60LE920UN

iv) Peel the protective sheet of the OCA.

Lift the ITO section, then peel the protective sheet by about half by means of the pull tap.

* Peeling it completely reduces workability.

Check the order due to workability.

v) Contact the FPCB and joint end of the transparent electrode film with the glass.

* Grasp the opposite end. Note that the ITO is positioned by adhering.

*Note: Do not bend the PWB (FPCB section)

and sheet (ITO section).

vi) Adhere the transparent electrode completely.

lPull tap for peeling the front protective sheet I

Peel the front protective sheet.

If bubbles are found, press those portions with glass cleaning cloth, etc. to remove them as much as possible.

Use a rubber roller since pressure exerted by it removes bubbles easily. See photo below.

For the TOUCH SENSOR Unit positioning figure, see page 5-1, 5-2, 5-3, 5-4.

4-15

LC-52LE920UN/LC-60LE920UN

CHAPTER 5. ADJUSTMENT

[1] ADJUSTMENT PROCEDURE

The adjustment values are set to the optimum conditions at the factory before shipping. If a value should become improper or an adjustment is

required due to part replacement, make an adjustment according to the following procedure.

1. After replacement of any PWB unit and/or IC for repair, please note the following.

• When replacing the following units, make sure to prepare the new units loaded with updated software.

MAIN Unit: DKEYMF452FM20

• When replacing the LCD control PWB, perform the VCOM adjustment.

2. Upgrading of each microprocessor software

CAUTION: Never "POWER OFF" the unit when software upgrade is ongoing.

Otherwise the system may be damaged beyond recovery.

2.1. Software version upgrade

The model employs the following software.

Main software (please use a software version after HLI2Bxxx.USB).

Monitor microprocessor software (please use a software version after HLI2Bxxx.USB and HLNIMxxx.BIN.) The main software, monitor microprocessor software can be upgraded by using a general-purpose USB Memory. The followings are the procedures for upgrading, explained separately for the main software, monitor microprocessor software.

2.2. Main software version upgrade

2.2.1 Get ready before you start

USB Memory of 128MB or higher capacity.

PC running on Windows 98/98SE/ME/2000/XP operating system.

USB Memory reader/writer or PC with a USB port.

The file system of a USB memory is FAT. (FAT32 supports)

Use the USB memory without other functions. (lock and memory reader...etc)

2.2.2 Preparations To upgrade the main software, it is necessary to get ready the USB Memory for version upgrade before you start.

Follow the steps below and create the USB Memory for version upgrade.

1. Copy the file HLI2Bxxx.USB for version upgrade to the root directory (folder) of the USB Memory. NOTE: In the USB Memory drive, do not store other folders or unrelated files, or more than one file for version upgrade.

Now the USB Memory for version upgrade is ready.

5-1

LC-52LE920UN/LC-60LE920UN

2.2.3 How to upgrade the software

1. Plug AC cord and turn on the TV.

2. After picture displayed, touch the power key for 5seconds.

NOTE: Picture will disappear when you touch the power key, but keep touching it.

3. When the center icon LED blinks, release your finger from the power key.

4. Next, touch the "POWER" and "CH (/-,,)" keys at the same time.

5. When the center icon LED turns on, release your finger form the keys.

6. After the unit startup, the system upgrade screen as shown below within 20-40 seconds.

7. Even a single failure in the process will trigger the upgrade failure screen.

NOTE: In the event of a failure, repeat the upgrade process. If the process repeatedly fails, it is likely that the hardware need fixing.

8. Upon completion of the whole process, the upgrade success screen as shown below appears. You can check the new software version on this screen. The version information appears after the upgrade is complete.

9. Unplug the AC cord and remove the USB Memory for version upgrade.

10.Now the software version upgrade is complete.

NOTE: When you are done with the software version upgrade, start the set, go to the top page of the adjustment process screen and check the main

software version information.

5-2

LC-52LE920UN/LC-60LE920UN

2.3. Monitor microprocessor software version upgrade Create the USB memory for monitor microprocessor software version upgrade in the same manner as explained in the "Main software version

upgrade". Copy the file HLI2Bxxx.USB and HLNIMxxx.BIN (named temporarily) for monitor microprocessor software version upgrade to the USB memory.

2.3.1 How to upgrade the software

1. Plug AC cord and turn on the TV.

2. After picture displayed, touch the power key for 5seconds. NOTE: Picture will disappear when you touch the power key, but keep touching it.

3. When the center icon LED blinks, release your finger from the power key.

4. Next, touch the "POWER" key with the "CH (/'_)" key touching.

5. When the center icon LED turns on, release your finger form the keys. CAUTION: • The moment this operation is done, the upgrading of the monitor microprocessor software starts. While the upgrade is ongoing, never

6. After the unit startup, the upgrade starts. The power led will blink continuously. Also, an upgrade screen will be shown during a minor upgrade.

power off the unit. Otherwise the upgrade will fail and the system may be serious damaged beyond recovery (inability to start).

• After the monitor microprocessor software is upgraded, also perform the 'Industry Init'.

7. If the upgrade fails, power led will stop blinking. Also, the upgrade failure screen will be shown if upgrade screen was shown at 5.

NOTE: In the event of a transient failure, upgrade will be automatically retried up to three times. If the process repeatedly fails, hardware may be the

cause.

8. The upgrade success screen will be shown if upgrade screen was shown at 5.

9. Unplug the AC cord and remove the USB Memory for version upgrade.

10.Now the software version upgrade is complete. NOTE: When you are done with the software version upgrade, start the set, go to the top page of the adjustment process screen and check the mon-

itor microprocessor software version information and panel size information.

5-3

LC-52LE920UN/LC-60LE920UN

3. Entering and exiting the adjustment process mode

1) Before entering the adjustment process mode, the AV position RESET in the video adjustment menu.

2) At the state TV is turned on, touch the power key for 5seconds.

NOTE: Picture will disappear when you touch the power key, but keep touching the power key.

3) When the center icon LED blinks, release your finger from the power key.

4) Next, touch the "POWER" key with the "VOL (1)" and "INPUT" key touching.

TV will turn on and the letter "<K>" appears on the screen.

5) Next, touch the "VOL (1)" and "CH (v)" keys at the same time.

6) When the center icon LED turns on, release your finger form the keys.

(The "VOL (1)" and "CH (v)" keys should be pressed and held until the display appears.) Multiple lines of blue characters appearing on the display indicate that the unit is now in the adjustment process mode. When you fail to enter the adjustment process mode (the display is the same as normal startup), retry the procedure.

7) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the

power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)

CAUTION: Use due care in handling the information described here lest your users should know how to enter the adjustment process mode. If the

settings are tampered in this mode, unrecoverable system damage may result.

4. Remote controller key operation and description of display in adjustment process mode

1) Key operation

Remote controller key

CH (V/_-, )

VOL (+/-)

Cursor (UP/DOWN) Cursor (LEFT/RIGHT)

INPUT ENTER

Main unit key

CH (V //'\ )

VOL (+/-)

Moving an item (line) by one (UP/DOWN) Changing a selected item setting (+1/-1 )

Turing a page (PREVIOUS/NEXT) Changing a selected line setting (+10/-10) Input switching (toggle switching) Executing a function

*Input mode is switched automatically when relevant adjustment is started so far as the necessary input signal is available.

2) Description of display

Function

(1) Current page/

Total pages

i?/24 !NPUT5 AUTO USA 52 UNDER _--

BOOT Version LC-52LE920UN (HLI2080)/LC-60LE920UN (HLI2100) Monitor/Monitor BOOT Version

LCD CON Version / LED CON Version Netflix ESN FRC-N Auto Scrip! Version

! TCON Master / Slave Serial Version

TOUCH SENSOR UCON VERSION

TEMPERATURE LAMP ERROR

MONITOR ERR CAUSE

NORMAL STANDBY CAUSE

ERROR STANDBY CAUSE

(2) Current selected input

(3) Current color system

J (4) Destination (5) LCD Panel size/Speaker type

1.02 / 1.00

20100114f2014681/00 ERR

0912090000000000 20100114f2014681/20100114f2014681

B00ZD012110

1) 00 0000000000000 2) 00 0000000000000

3) 00 0000000000000 4) 00 0000000000000

50 50 50 50 0

[

(6) Adjustment

process menu header

I (7) Parameters

5-4

5. List of adjustment process mode menu

The character string in brackets [ ] will appear as a page title in the adjustment process menu header.

Page Line Item

1 1 MAIN Version

2 BOOT Version 3 Monitor/Monitor BOOT Version

4 LCD CON Version / LED CON Ver-

sion

5 Netflix ESN 6 FRC-N Auto Script Version

7 TCON Master/Slave Serial Version 8 TOUCH SENSOR UCON VERSION

9 TEMPERATURE

10 LAMP ERROR

11 MONITOR ERR CAUSE 12 NORMAL STANDBY CAUSE 13 ERROR STANDBY CAUSE

2 1 INDUSTRY INIT

2 INDUSTRY INIT(-Public) 3 PUBLIC MODE

4 Center Acutime 5 RESET

6 Backlight Acutime 7 RESET

8 LAMP ERROR RESET 9 VIC XPOS

10 VIC YPOS

11 VIC COLOR 12 VIC SIGNAL TYPE 13 VIC READ

3 1 N358 ALL ADJ(INPUT2)

2 N358 MAIN ADJ(INPUT2) 3 TUNER DAC ADJ 4 N358 CONTRAST A GAIN

5 N358 CONTRAST D GAIN 6 N358 CONTRAST OFFSET

7 TUNER CONTRAST A GAIN 8 TUNER CONTRAST D GAIN 9 TUNER CONTRAST OFFSET

4 1 TUNER VCHIP TEST(69ch)

2 TUNER VCHIP TEST(7ch) 3 TUNER VCHIP TEST(10ch) 4 TUNER VCHIP TEST(15ch)

5 INSPECT USB TERM 6 HDMI EDID WRITE

7 HDMI CEC TEST

5 1 COMP15K ADJ(INPUT1)

2 COMP15K Y A GAIN 3 COMP15K Cb A GAIN 4 COMP15K Cr A GAIN 5 COMP15K Y OFFSET

6 COMP15K Cb OFFSET 7 COMP15K Cr OFFSET

6 1 COM P33K ADJ(IN PUT1 )

2 COMP33K Y A GAIN 3 COMP33K Cb A GAIN 4 COMP33K Cr A GAIN

5 COMP33K Y OFFSET 6 COMP33K Cb OFFSET

7 COMP33K Cr OFFSET

Main software version

Monitor and monitor boot software version LCD controller software version

Audio data checksum

Panel temperature Number of termination due to lamp error

Initialization to factory settings

Public mode Accumulated main operation time

Reset Accumulated monitor operation time

Reset Reset LAMP ERROR

X-coordinate setting for VIC READ Y-coordinate setting for VIC READ Collected color data setting for VIC READ Signal type setting for VIC READ Picture level acquisition function CVBS and TUNER signal level adjustment CVBS signal level adjustment TUNER signal level adjustment

Tuning test and VCHIP test (69ch) Tuning test and VCHIP test (7ch) Tuning test and VCHIP test (10ch) Tuning test and VCHIP test (15ch)

Component 15K picture level adjustment (main)

Component 33K picture level adjustment (main)

Description

LC-52LE920UN/LC-60LE920UN

Remarks (adjustment detail, etc.)

Versions are always '090626000T0001 '.

Refer to "1 under the list for details Refer to *2 under the list for details

Level appears in green on the upper right

5-5

LC-52LE920UN/LC-60LE920UN

Page Line Item

7 1 ANALOG RGB ADJ

2 R A GAIN 3 G A GAIN

4 B A GAIN 5 R OFFSET 6 G OFFSET 7 B OFFSET

8 1 VCOM ADJ 9 1 LEV1

2 LEV2 3 LEV3 4 LEV4 5 LEV5 6 LEV6

10 1 MG1R

2 MG1G 3 MG1B 4 MG1Y 5 MG2R 6 MG2G 7 MG2B 8 MG2Y 9 MG3R

10 MG3G

11 MG3B 12 MG3Y

11 1 MG4R

2 MG4G 3 MG4B 4 MG4Y 5 MG5R 6 MG5G

7 MG5B 8 MG5Y

9 MG6R

10 MG6G

11 MG6B 12 MG6Y

13 MG6Y OFFSET

12 1 MODE SELECT

2 POS SELECT 3 POS MIN 4 POS MID1

5 POS MID2 6 POS MID3

7 POS MID4 8 POS MID5 9 POS MID6

10 POS MAX

13 1 CD MIN

2 CD MID1 3 CD MID2

4 CD MID3 5 CD MID4 6 CD MID5

7 CD MID6 8 CD MAX

Description

Analog RGB picture level adjustment

VCOM adjustment value Standard value 1

Standard value 2 Standard value 3 Standard value 4 Standard value 5 Standard value 6

WB adjustment Point 1, R adjustment value WB adjustment Point 1, G adjustment value WB adjustment Point 1, B adjustment value WB adjustment Point 1, Y adjustment value WB adjustment Point 2, R adjustment value WB adjustment Point 2, G adjustment value WB adjustment Point 2, B adjustment value WB adjustment Point 2, Y adjustment value WB adjustment Point 3, R adjustment value WB adjustment Point 3, G adjustment value WB adjustment Point 3, B adjustment value WB adjustment Point 3, Y adjustment value WB adjustment Point 4, R adjustment value WB adjustment Point 4, G adjustment value WB adjustment Point 4, B adjustment value WB adjustment Point 4, Y adjustment value WB adjustment Point 5, R adjustment value WB adjustment Point 5, G adjustment value WB adjustment Point 5, B adjustment value WB adjustment Point 5, Y adjustment value WB adjustment Point 6, R adjustment value WB adjustment Point 6, G adjustment value WB adjustment Point 6, B adjustment value WB adjustment Point 6, Y adjustment value

Remarks (adjustment detail, etc.)

Adjustment gradation setting.

Parameter for six-point adjustment

5-6

LC-52LE920UN/LC-60LE920UN

Page Line

14 1 CAL C

2 RESET 3 VAL1

4 VAL2 5 VAL3 6 VAL4 7 VAL5 8 VAL6

15 1 MONITOR TIME OUT

2 MONITOR MAX TEMP 3 MONITOR ERROR CAUSE RESET

16 1 LCD TEST PATTERN

2 LCD TEST PATTERN1 3 LCD TEST PATTERN2 4 LCD TEST PATTERN3 5 LCD TEST PATTERN4 6 TV TEST PATTERN 1 7 TV TEST PATTERN 2

17 1 FRC-N Firmware Version

2 FRC-N Boot Script Version 3 FRC-N Device Version

4 TCON FPGA1 Serial Flash Version 5 TCON FPGA2 Serial Flash Version

6 TCON FPGA1 Config Rom Version 7 TCON FPGA2 Config Rom Version

18 1 READ/WRITE

2 SLAVE ADDRESS 3 RESISTER ADDRESS UPPER 4 RESISTER ADDRESS LOWER 5 WRITE DATA UPPER 6 WRITE DATA LOWER 7 READ DATA UPPER

8 READ DATA LOWER

19 1 POWER LED BRIGHTNESS

2 MENU LED BRIGHTNESS 3 INPUT LED BRIGHTNESS 4 CH UP LED BRIGHTNESS

5 CH DOWN LED BRIGHTNESS 6 VOL UP LED BRIGHTNESS

7 VOL DOWN LED BRIGHTNESS 8 LOGO LED BRIGHTNESS 9 ICON LED BRIGHTNESS

10 ICON LED BRIGHTNESS

(STANDBY)

20 1 POWER KEY SENSITIVITY

2 MENU KEY SENSITIVITY 3 INPUT KEY SENSITIVITY 4 CH UP KEY SENSITIVITY

5 CH DOWN KEY SENSITIVITY 6 VOL UP KEY SENSITIVITY

7 VOL DOWN KEY SENSITIVITY

21 1 KEY STRENGTH GET MODE

2 POWER KEY STRENGTH 3 MENU KEY STRENGTH

4 INPUT KEY STRENGTH 5 CH UP KEY STRENGTH

6 CH DOWN KEY STRENGTH 7 VOL UP KEY STRENGTH 8 VOL DOWN KEY STRENGTH

22 1 KEY LOCK (1217)

2 KOUTEI AREA ALL CLEAR 3 A MODE AREA CLEAR

4 BACKUP AREA CLEAR 5 B MODE AREA CLEAR 6 EXECUTION

Item Description

Remarks (adjustment detail, etc.)

5-7

LC-52LE920UN/LC-60LE920UN

Line Item

Page

1 ERROR STANDBY CAUSE1

2 ERROR STANDBY CAUSE2 3 ERROR STANDBY CAUSE3

4 ERROR STANDBY CAUSE4 5 ERROR STANDBY CAUSE5 6 ERROR STANDBY CAUSE RESET

1 EEP SAVE

2 EEP RECOVER 3 MODEL NAME

4 PANEL SIZE 5 SETTING FOR ADJ 6 PANEL LIMIT 7 PANEL RANGE LIMIT 8 SHORT CHECK MODE 9 SHORT CHECK CURRENT

10 CURRENT SW

Description Remarks (adjustment detail, etc.)

Writing setting values to EEPROM Reading setting values from EEPROM

"1 Details

*2 Details

of P1.9 (NORMAL STANDBY CAUSE)

2 No operation off 3 No signal off 4 PC power management mode 1 5 PC power management mode 2

6 Off timer 8 Command from RS232C

of P1.10 (ERROR STANDBY CAUSE)

11 Prolonged unspecified-signal input in PC mode 17 Temperature error

1A Monitor trouble detected

22 LCD controller Rom error

in the cause of "no operation off" in the cause of "no signal off" in the cause of "Standby mode MODEl" in the cause of "Standby mode MODE2"

in the cause of "SLEEP timer" in the cause of command by RS-232C

in the cause of continuous "out of range", PC input mode

in the cause of abnormal temperature

in the cause of abnormal monitor mode

in the cause of software abnormality of LCD controller

6. Special features

* STANDBY CAUSE (Page 1/24)

Display of a cause (code) of the last standby The cause of the last standby is recorded in EEPROM whenever possible. Checking this code will be useful in finding a problem when you repair the troubled set.

* EEP SAVE (Page 24/24)

Storage of EEP adjustment value

* EEP RECOVER (Page 24/24)

Retrieval of EEP adjustment value from storage area

5-8

LC-52LE920UN/LC-60LE920UN

7. Microprocessor software writing

7.1. Main microprocessor/monitor microprocessor software writing (Main PWB: QPWBXF452WJZZ)

Adjustment item Adjustment conditions

Main microprocessor/moni- tor microprocessor soft- ware writing

7.2. Model/inch discrimination writing (Main PWB: QPWBXF452WJZZ)

When writing the sub microprocessor software, the model data is configured with the software from the USB memory mounted to the checker. Reference and setting change are enabled through the process menu and RS-232C communication.

Software Version Up

File version check USB memory check

* When IC is failure

1. Insert a USB memory for the main/monitor microprocessor into the service con- Rector.

2. Supply AC power and write the main software to IC8401 and the monitor micro- processor software to IC2002.

3. Check that writing is normally completed and turn off the power.

CAUTION: When the USB memory is not inserted or reading error occurs, nothing

is written. (The former models have read the main software from the writing jig. However, this model reads the main/monitor software from the USB memory.)

Please exchange to another PWB unit when IC8401 (NAND Flash) is failure. (Because the software can't be written with USB memory, when the new IC is exchanged from broken IC)

Adjustment procedure

8. Signal adjustment

8.1. LCD section adjustment [LCD module adjustment]

Adjustment item

Opposite bias adjustment (LCD module adjustment item)

Adjustment conditions

Adjustment in the center position of the panel

Adjustment procedure

1. Enter the process mode using the process adjustment remote control.

2. Select [VCOM ADJ] using the Channel ./_/v keys on the remote control.

3. Press the Enter key to check that the pattern for adjustment is displayed.

4. Make adjustment so that the flicker located in the center of the screen is mini- mized using the Volume +/- keys on the remote control.

5. Ifthe optimum condition is obtained in step 4, press the Enter key to turn off the pattern.

CAUTION: * Make adjustment with no ANT signal (since the brightness is

changed by the active backlight).

[Adjustment position]

3/4

//I

8.2. Image adjustment

8.2.1 Device check

[] Before adjustment, check that the adjustment jig and signal source are set for Sharp LCD US.

Signal adjustment works at only the default View Mode. Before adjustment, confirm the View Mode is set as follows.

Adjustment Type Default View Mode Composite/Tuner S.Stretch

Compl 5k S.Stretch Comp33k Stretch Analog RGB Stretch

5-9

i i

LC-52LE920UN/LC-60LE920UN

[] Signal generator level adjustment check (Adjust to the standard value level.)

•Composite signal:

• 15K component signal:

•33K component signal:

•Analog RGB:

8.2.2 Process mode

Adjustment point Adjustment conditions Adjustment procedure

Process mode Enter the process adjustment mode using the process adjustment remote control.

8.2.3 Composite N358 signal/tuner adjustment

Y level: PB/PR level: Y level: PB/PR level:

RGB level:

0.714Vp-p + 0.02Vp-p (Pedestal to white)

0.714Vp-p+ 0.02Vp-p (Pedestal to white)

0.7Vp-p + 0.02Vp-p

0.7Vp-p + 0.02Vp-p (Pedestal to white)

0.7Vp-p + 0.02Vp-p

0.7Vp-p + 0.02Vp-p (Pedestal to white)

Adjustment point

1 Setting

2 Automatic adjustment exe- Point the cursor to [111N358ALL ADJ(INPUT2)] and press the [Enter] key.

cution The adjustment is complete when [mN358 ALL ADJ(INPUT2) OK] is displayed.

8.2.4 Component 15K signal adjustment

Adjustment point Adjustment conditions Adjustment procedure

1 Setting 480i signal ,Send the 100% color bar signal to the Video 1 component input.

Adjustment conditions

N358 signal US-10ch

Adjustment procedure

•Send the N358 color bar (color saturation: 75%) signal to the Video 2 video input.

•Send the in-house signal (use US-10ch) to TUNER.

[Video input signal]

Color saturation: 75%

1`100% white

1" 100% white 1"0% black

1"0% black 1"100% white

[In-house US-10ch]

100% color bar

480i

2 Automatic adjustment exe- Point the cursor to [mCOMP15K ADJ(INPUT1 )] and press the [Enter] key.

cution The adjustment is complete when [1!1COMP15K ADJ(INPUT1) OK] is displayed.

8.2.5 COMPONENT 33K signal adjustment

Adjustment point Adjustment conditions Adjustment procedure

1 Setting 1080i signal ,Send the 100% color bar signal to the Video 1 component input.

Color saturation: 100% 1080i

__ 100% color bar

1" 100% white 1`0% black

2 Automatic adjustment exe- Point the cursor to [mCOMP33K ADJ(INPUT1)] and press the [Enter] key.

cution The adjustment is complete when [mCOMP33K ADJ(INPUT1 ) OK] is displayed.

5-10

8.2.6 Analog RGB signal adjustment

LC-52LE920UN/LC-60LE920UN

Adjustment point

Setting

2 Automatic adjustment exe- Point the cursor to [mANALOG RGB ADJ] and press the [Enter] key.

cution The adjustment is complete when [IIIANALOG RGB ADJ OK] is displayed.

8.2.7 Tuner/V-CHIP adjustment

Adjustment point Adjustment conditions Adjustment procedure

1 Setting NTSC RF signal ,Send the NTSC signal to the RF antenna input.

2 Automatic adjustment exe- Point the cursor to [mTUNER VCHIP TEST(*07ch)] and press the [Enter] key. (*

cution Adjust the selected channel to the in-house signal.)

Adjustment conditions

Signal: XGA (1024x768) 60Hz SYNC: HV separate

US-7(AIR)ch

Adjustment procedure

•Send the 100% color bar signal to the Video 4 analog RGB input.

XGA (1024x768)

100% color bar

1" 100% white

The adjustment is OK when [mA-OK(***.**)/VM-OK] is displayed in green. (NG when A-NG/VM-NG is displayed in red.)

It is OK when the deviation from the center frequency is +0.0625MHz or less.

1"0% black

5-11

LC-52LE920UN/LC-60LE920UN

9. White balance adjustment

9.1. White balance adjustment (For details about the adjustment procedure, refer to "Kameyama Model Integrated Monitor WB Adjustment Specification Vl.92".)

Adjustment Adjustment conditions Adjustment procedure

point

1 Setting

Automatic adjustment exe-

cution

[Command] [Adjustment procedure] Process mode 1) Send the "adjustment process" code using the remote control. KRSW0001 2) Set the point 6 to the specified gradation, specify the strongest color as the fixed KKT10037 color, and adjust the RGB so that it becomes the standard value through negative

Setting value in the following conditions. KYOF0000 R > G: Ye = G x 1.05

0SDS0001 R < G: Ye = R x 1.05 SBSL0016 * If the Ye value exceeds the initial value (input gradation x 4), it is rounded to that

Multi-point adjustment mode 3) Set the point 5 to the specified gradation, set the G correction value (692 x G value of MSET0011 point 6/916) (fractions rounded off) and the Ye correction value (692 x Ye value of

Point 6 LEV60229

MG6G ....

MG6B ....

MG6R ....

MG6Y ....

Point 5 LEV50173

MG5G ....

MG5B ....

MG5R ....

MG5Y ....

Point 4 LEV40133

MG4G ....

MG4B ....

MG4R ....

MG4Y ....

Point 3 LEV30116

MG3G ....

MG3B ....

MG3R ....

MG3Y ....

1) Set the unit to the following conditions. AV MODE: [DYNAMIC] Backlight: +16

OPC: OFF Active Contrast: OFF

Power Saving: OFF Aging Time: Min. 60 minutes

2) Connect the unit with the white balance adjustment jig.

adjustment. Then compare the R and G values; based on the result, calculate the Ye

value or less.

point 6/916) (fractions rounded off), and adjust the RB so that it becomes the stan- dard value.

4) Set the point 4 to the specified gradation, set the G correction value (532 x G value of point 6/916) (fractions rounded off) and the Ye correction value (532 x Ye value of point 6/916) (fractions rounded off), and adjust the RB so that it becomes the stan-

dard value.

5) Set the point 3 to the specified gradation, set the G correction value (464 x G value of point 6/916) (fractions rounded off) and the Ye correction value (464 x Ye value of point 6/916) (fractions rounded off), and adjust the RB so that it becomes the stan-

dard value.

6) Set the point 2 to the specified gradation, set the G correction value (296 x G value of point 6/916) (fractions rounded off) and the Ye correction value (296 x Ye value of point 6/916) (fractions rounded off), and adjust the RB pattern so that it becomes the

standard value.

7) Set the point 1 to the specified gradation, set the G correction value (180 x G value of point 6/916) (fractions rounded off) and the Ye correction value (180 x Ye value of point 6/916) (fractions rounded off), and adjust the RB so that it becomes the stan-

dard value.

8) Write the adjustment value by the MSET0003 command and turn off the AC power.

* RGB initial value of point 6: Set gradation 916 * RGB initial value of points 1 to 5: G correction value of each point

(At each point, make adjustment so that the remainder of the RGB adjustment value/ 4 is equal.)

[Adjustment value]

* According to the "Standard settings" submitted by the Technical Department

[LC52LE920UN] LE920 model teaching set

Point 2 LEV20074

MG2G ....

MG2B ....

MG2R ....

MG2Y ....

Point 1 LEV 10045

MG1G ....

MG1B ....

MG1R ....

MG1Y ....

Writing MSET0003

5-12

LC-52LE920UN/LC-60LE920UN

Adjustment Adjustment conditions Adjustment procedure

point

[Adjustment standard value] Measuring instrument: [Minolta CA-210] Technical measuring instrument

Point 6

Point 5

Point 4

Point 3

Point 2

Point 1 Remarks

Level Reference value Adjustment spec Inspection spec

916

692

532

464

296

180

X=0.272 y=0.277

Setting conditions for inspection AV MODE: [DYNAMIC] (Reset)

Monochro: ON OPC: OFF Active Contrast: OFF

Power Saving: OFF Aging Time: Min. 60 minutes

±0.0010

±0.0015

±0.0020

±0.0030

±0.004

±0.0020

±0.0030

±0.0040

±0.0060

±0.0080

10. Key writing

10.1. EDID writing (Main PWB: QPWBXF452WJZZ)

Adjustment point

HDMI EDID writing (Main PWB)

Analog RGB EDID writing

(Main PWB)

Adjustment conditions Process mode Model discrimination check

Inspection mode File version check

Adjustment procedure

1) Enter the process mode.

2) Point the cursor to [HDMI EDID WRITE] and press the [ENT] key. The writing is complete when [OK] is displayed. (If not written, HDMI does not function.)

CAUTION: Perform the data writing after setting the model discrimi-

nation. The data based on the model discrimination information is recorded in EEPROM.

1) Write the EDID data for analog RGB into IC509 mounted on the main PWB using the checker. TL511 *** 12C clock, TL508 *** 12Cdata

TL544 *** 5V, TL507 *** GND TL585 °°° Write protection (H: WP, L: write enable)

2) Perform the data writing before making inspection using the checker.

5-13

LC-52LE920UN/LC-60LE920UN

11. Factory setting

After completing the factory setting, pull out the AC cord to complete the setting.

CAUTION: Do not turn on the power after completinq the factory settinq. If the power is turned on, confiqure the factory settinq aqain.

Adjustment point

1 Factory setting

Adjustment conditions

Complete the setting by pulling out the AC cord.

Adjustment procedure

• Point the cursor to [INDUSTRY INIT], set to "ON" using [+]/[-] of the [VOL] key, and press the [ENT] key. The version confirmation screen appears on the green screen. It iscompleted when [SUC- CESS] is displayed at the top. (if error occurs, [ERROR] is displayed on the red screen.)

• Turn off the AC power. The following items are initialized when configuring the factory setting.

1) User set value

2) Channel data (broadcasting frequency, etc.)

3) Password setting value

4) Operating time

5) StandbyCause

6) Auto installation flag

7) V-CHIP block setting value

12. Software version

1. Main microcomputer

2. Monitor microcomputer

3. EDID data (Analog RGB)

4. (Reference: File name in the Technical Department) For analog RGB Input3: IC509: edid_dsub15_fullhd v6 256.BIN

13. Writing the inch and model name onto EEPROM

Writing method

1. Pull out the AC cord.

2. Copy the application for writing inch/model name (HLI2MA01 .USB) and model/inch file (52LE920.MDL) to the USB memory.

3. Hold down the power button and insert the AC cord.

4. Release the power button after 5 seconds.

5. Update starts.

LE920

The inch and model name are displayed.

UPGRADE SUCCESS

6. Pull out the AC cord.

Model/inch file

52LE920.MDL 60LE920.MDL

* 32 inch is not necessary.

NOTE: When replacing the main PWB, make sure to perform the writing the inch and model name onto EEPROM

5-14

[2] PUBLIC MODE SETTING PROCEDURE

1. How to start Public Mode

• There are the following 3 ways to get the public mode setup screen displayed. In the adjustment process mode, turn on "PUBLIC MODE"

1) Plug AC cord and turn on the TV.

2) After picture displayed, touch the "POWER" key for 5seconds.

NOTE: Picture will disappear when you touch the power key, but keep touching it.

3) When the center icon LED blinks, release your finger from the power key.

4) Next, touch the "POWER" key with the "CH (/-_)" key and "VOL (+)" key touching.

5) When the center icon LED turns on, release your finger form the keys.

® It's same as (_ from 1) to 3)

4) Next, touch the "POWER" key with the "INPUT" key and "CH (/-,-)" key touching.

5) When the center icon LED turns on, release your finger form the keys.

6) Get the password input screen displayed.

Procedure

,, The input starts with the leftmost digit.

• Use the numeric keys [1] thru [9] and [0] keys on the remote controller. The other keys are not acceptable.

• With a numeric-key input, "-" will change to "_". The input position will move one digit to the right.

• With all the 3 digits entered, the password will be verified.

LC-52LE920UN/LC-60LE920UN

7) The 3-digit password is now verified. The password [0] [2] [7] provides for the public mode screen. (This screen comes on with whatever adjustment process settings.) With any other passwords, the screen changes to the normal mode.

2. How to exit Public Mode

There are the following ways to quit the public mode setup screen.

• Turn off "PUBLIC MODE" in the adjustment process mode. (-#) _ This way alone is not for quitting the setup screen, but for quitting the mode itself.

• Turn off the power with the "POWER" key. (-k)

• Select "EXECUTE". (-k)

-k ... "PUBLIC MODE" stays on in the adjustment process mode.

#... The settings will be back to the factory ones.

3. Public Mode Setting Values

• With the factory settings made, the public mode settings get initialized. (The adjustment process remains intact.)

5-15

LC-52LE920UN/LC-60LE920UN

4. Public Mode Menu

The guidance is not displayed on screen.

Setup procedure

• To move the cursor up and down, use the "cursor UP/DOWN" key (remote controller) and "CH ( _ )/( V )" key (remote controller and set).

• To change the settings, use the "cursor RIGHT/LEFT" key (remote controller) and "VOL (+)/(-)" key (remote controller and set).

• To save new settings, keep the cursor at "EXECUTE" and use "ENTER" key (remote controller and set).

PUBLIC MODE POWER ON FIXED [VARIABLE

MAXIMUM VOLUME [ 60 VOLUME FIXED [VARIABLE VOLUME FIXED LEVEL [ 20

RC BUTTON [RESPOND

PANEL BUTTON [RESPOND

MENU BUTTON [RESPOND AV POSITION FIXED [VARIABLE

ON SCREEN DISPLAY [YES

INPUT MODE START [NORMAL

INPUT MODE FIXED [VARIABLE

LOUD SPEAKER [ON

RC_PATH_THROUGH [OFF 232C POWON [DISABLE

PUBLIC MODE [OFF

RESET

EXECUTE

] ]

] ] ] ]

] ] ] ] ]

] ] ] ]

5-16

LC-52LE920UN/LC-60LE920UN

5. On Setting Items

* "EZ-SETUP" discussed below indicates "EZ-SETUP after the first power-on".

1) POWER ON FIXED Selection Selection between "Variable" and "Fixed" (loop provided)

Default - (Variable) Explanation In "Fixed" setting, the power-off by the power key of the unit is invalidated and the image is kept being received. The power can

be turned off by stopping the power supply from AC. Limit in Setting Refer to the "Power-On Fixed" sheet. Exception None Remarks • In "Variable" setting, the power operation is in wait for 1 sec. and then turned off when the main power switch is off.

2) MAXIMUM VOLUME Selection Adjustment from 0 to 60 (no loop)

Default 60 Explanation Sound volume can not be adjusted higher than the preset value.

Limit in Setting • When the sound volume is set lower than 59, only figures are displayed and the sound volume bar is not displayed.

• The maximum sound volume for ON-timer (Wake up timer) is limited also to the preset value. Exception Remarks • When the sound volume is set higher than the MAX setting by the adjusting process, the sound volume control operation is

prohibited for turn-up and the sound volume should be turned down to MAX in this state.

3) VOLUME FIXED Selection Selection between "Variable", "Fixed", "ACON (AC CTRL)" and "AC/RCON (AC/RC CTRL)" (loop provided)

Default Variable Explanation • FIXED: Fixed at the level adjusted for a fixed volume.

• AC CTRL: Start-up at the level specified for a fixed volume at ACON.

• AC/RC CTRL: Start-up at the level specified for a fixed volume at start.

Limit in Setting • The sound volume for the ON-timer (Wake up timer) is fixed also without display of menu. Besides, the setting is made

impossible. (Basically, the menu is not displayed.)

• The following keys become invalid:

• Sound volume Up/Down (VOL +!-) [for both remote control and the unit]

• Mute (MUTE) Exception • In the item "VOLUME" of adjustment process, the sound volume can be set freely irrespective of this setting. Remarks • As for sound volume fixing and sound volume MAX level, the sound volume fixing has priority.

• Once the sound volume has been changed by adjustment process, it should be set back to the sound volume preset by sound volume fixing level when the adjustment process ends.

4) VOLUME FIXED LEVEL Selection Adjustment from 1 to 60 (no loop)

Default 20 Explanation The sound volume to be fixed by "Volume fixed" is determined.

Limit in Setting None Exception None Remarks Setting is valid only when "Volume fixed" is selected for "fixed".

5) RC BUTTON Selection Selection between "Respond", "No Respond" and "Limited" (loop provided)

Default Respond Explanation Making the remote controller settings.

• At the "No Respond" setting, the remote controller keys are disabled. Its power key (reception/standby key) is disabled too.

• At the "Limited" setting, some channel-related keys alone are operative. All the other remote controller keys (power, volume

• ! V, channel • ! V, light control (brightness sensor), broadcast select) are inoperative. Limit in Setting _ In "No respond" setting, all the keys (including the power key) are not accepted. Exception • Adjustment process, inspection process and hotel only keys are valid irrespective of setting.

• All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting.

Remarks

5-17

LC-52LE920UN/LC-60LE920UN

6) PANEL BUTTON Selection Selection between "Respond" and "No respond" (loop provided)

Default Respond Explanation All the operations by keys (except the power key) of the unit can be invalidated. Limit in Setting Exception • Adjustment process, inspection mode and hotel menu mode can be started irrespective of setting.

• All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting.

Remarks

7) MENU BUTTON Selection Selection between "Respond" and "No respond" (loop provided)

Default Respond Explanation In "No respond" setting, the menu operation by the menu key of the remote control and the menu key of the unit are invali-

Limit in Setting Exception • Adjustment process, inspection mode and hotel menu mode can be started irrespective of setting.

Remarks

8) ON SCREEN DISPLAY Selection

Default Explanation

Limit in Setting

Others

Exception

Remarks

dated.

• All the keys can be used in adjustment process, inspection mode and hotel menu irrespective of setting.

Selection between "Yes", "No" (loop provided) Yes

• At the "No" setting, the following items are not displayed on screen: register, setting, adjustment menu, channel call and vol- ume bar.

On the wide-screen models, an input selection is immediately made because the menu is not displayed.

• At the "Limited" setting, some items cannot be displayed on screen. On the Japan-destined models, the channel call "Message" alone cannot be displayed. (This is because the channel call mes- sage may be confused with a message being sent from the hotel.) On the North America-destined models, the OSD works the same as at the "No" setting.

• Keys falling under any of the following items become invalid. _Appearance of screen changes and the sound changes.

_2bPersonal functions which are hard to restore. Screen display, menu, OFF-timer, ON-timer, AV MODE, screen size switching, clock setting, treble emphasis, AUDIO ONLY, sound changeover, LANGUAGE, CLOSED CAPTION

• Simple input switching is generated. Those which are restored soon after leaving as they are and may be requested for change by customer are not prohibited. Brightness sensor (BACKLIGHT) and PIC. FLIP

• Such a caution which is displayed independently is displayed as it is. Non-responding signal caution

• When CC has already been ON, CLOSED CAPTION is displayed.

9) INPUT MODE START

Selection Selection between "Normal", "Air (_)", "INPUT 1/2/3", "PC", "HDMI 1/2/3/4/5", "DVI" (loop provided) Default Normal

Explanation In power-ON, the input source to be started or channel can be set.

(In standard mode, the operation follows the last memory.)

About options • All the input sources in the model are made selectable.

• In TV mode, the channel to be set follows the last memory and the content of the last memory is included in the notation by

options. Ex.) Air (2), Cable (98.1) etc. Limit in Setting • The display of channel setting menu and the channel setting operation are prohibited. Exception Remarks • In setting at "Normal", the setting of "Input mode fixed" is changed to "Variable" and selection should be prohibited.

5-18

10)INPUT MODE FIXED Selection

Default Explanation

Limit in Setting

Exception Remarks

11)RC_PATH_THROUGH Selection Selection between "OFF", "ON: TV RCE" and "ON: TV RCD" (loop provided)

Default OFF Explanation Function to feed the remote controller-received signal to Pin 9 (open) on the RS232C.

Limit in Setting None Exception None

Remarks None

Selection between "Variable", "Fixed", "ACON (AC CTRL)" and "AC/RCON (AC/RC CTRL)" (loop provided)

- (Variable)

• At the "Fixed" setting, the TV set gets started with the settings of "Input mode start", and then any other channels and inputs are not accepted.

• At the "ACON (AC CTRL)" setting, the TV set gets started with the settings of "Input mode start" under AC control.

• At the "AC/RCON (AC/RC CTRL)" setting, the TV set gets started with the settings of "Input mode start" under either control.

• With the execution of hotel mode, the input source is forced to change to that set by "Input mode start" and the channel switching and input switching are prohibited thereafter.

• ON-timer's (Wake-up timer) channel items are not displayed or the operation is prohibited. (Basically, they are not displayed.)

• The following keys are invalidated. CH • / V, direct tuning button, FLASHBACK, input

However, the keys (input switching and CH • / • keys) of the unit for menu operation remain valid.

None

• In the following case, setting is cancelled and mode is changed to "Variable". _When the setting of "Input mode start" is set to "Normal".

LC-52LE920UN/LC-60LE920UN

12)AV POSITION FIXED Selection Selection between "Variable" and "Fixed" (loop provided)

Default Variable Explanation In case of "Fixed" setting,

- Menu "Picture" and "Audio" setting can't be changed like "Dynamic (Fixed)".

- When "AV Mode" key is pressed, TV just displays current AV Mode (cannot be changed.). Limit in Setting None Exception None Remarks • When receiving with AV Position key, OPC, Dolby key and other direct audio select keys, the current display stays on and no

setting can be changed.

• Even by initializing personal information, the hotel-mode settings are kept intact. In this way, the AV positions, video and audio adjustment settings are not initialized.

13)LOUD SPEAKER (ON/OFF) Selection Selection between "ON" and "OFF" (loop provided)

Default ON Explanation If "OFF" is selected, TV stops Speaker output even without Headphone connected.

Limit in Setting None Exception None Remarks • Press the volume UP/DOWN key, and the mute icon appears for 4 seconds.

• The mute key and audio-related keys are displayed with caution.

• Usually, the headphones and monitor audio outputs can be adjustable.

14)232C POWON Selection Selection between "Disable" and "Enable" (loop provided)

Default Disable Explanation In the standby mode, the power-on by the 232C command is enabled or disabled.

Limit in Setting None Exception None

Remarks None

5-19

LC-52LE920UN/LC-60LE920UN

15)PUBLIC MODE (ON!OFF) Selection Selection between "ON" and "OFF" (loop provided)

Default OFF Explanation In case of "ON", public mode settings are effected.

Limit in Setting None Exception None Remarks The public-mode settings are operable only when this item is set at ON.

5-20

LC-52LE920UN/LC-60LE920UN

CHAPTER 6. TROUBLESHOOTING TABLE

[1] TROUBLESHOOTING TABLE

I NO vide° 11) I

I COMPOSITE: No external input video IINPUT-2] ........ I

[ Is INPUT-2 selected on the input select menu screen? ]

J' NO

Select INPUT-2 on the input select menu

YES

Is there the COMPOSITE signal input at pin (AE29) of IC3302

(CPU)?

YES

Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC3302?

LVDS TX 0 DATA0_P/N (C14/D14), LVDS TX 0 DATAI_P/N (C15/D15), LVDS TX 0 DATA2_P/N (C16/D16), LVDS TX 0 DATA3_P/N (C18/D18), LVDS TX 0 DATA4_P/N (C19/D19), LVDS TX 0 CLK P/N (C17/D17), LVDS TX 1 DATA0_P/N (A14/B14), LVDS TX 1 DATAI_P/N (A15/B15), LVDS TX 1 DATA2_P/N (A16/B16), LVDS TX 1 DATA3_P/N (A18/B18), LVDS TX 1 DATA4_P/N (A19/B19), LVDS TX 1 CLK_P/N (A17/B17).

screen for the right input signal.

_' NO

[ Check the line between pin (3) °f J505 and pinI(AE29) of IC3302.

Check IC3302 and its peripheral circuits. (IC3501/IC3502, etc.)

_' YES

[ Check the panel module.

6-1

LC-52LE920UN/LC-60LE920UN

I Novideo12) I

I COMPONENT: No external input video IINPUT-1] .... I

Is INPUT-] selected on the input select menu screen? Is the INPUT-SELECT for the input signal?

_' NO

Select INPUT-] on the input select menu screen for the right input signal.

Does the COMPI_PLUG detection function?

Check the line between pin (4) of input terminal (J506) and pin (D30) of IC3302 (CPU).

YES

Are there the COMPONENT video signal inputs at pins (AJ21) (Y)/

(AJ22) (Pb) and (AH22) (Pr) of IC3302 (CPU)?

_' NO

Check the line between the input terminals of J506 and IC3302.

(_J506 pin (5) (Y) pin (6) (Pb) pin (7) (Pr) _1C3302 pin (AJ21) pin (AJ22) pin (AH22)

YES

Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of

IC3302? LVDS TX 0 DATA0_P/N (C14/D14), LVDS TX 0 DATAI_P/N (C15/D15),

LVDS TX 0 DATA2_P/N (C16/D16), LVDS TX 0 DATA3_P/N (C18/D18), LVDS TX 0 DATA4_P/N (C19/D19), LVDS TX 0 CLK P/N (C17/D17), LVDS TX 1 DATA0_P/N (A14/B14), LVDS TX 1 DATAI_P/N (A15/B15), LVDS TX 1 DATA2_P/N (A16/B16), LVDS TX 1 DATA3_P/N (A18/B18), LVDS TX 1 DATA4_P/N (A19/B19), LVDS TX 1 CLK_P/N (A17/B17).

Check IC3302 and its peripheral circuits. (IC3501/IC3502, etc.)

_' YES

[ Check the panel module.

6-2

LC-52LE920UN/LC-60LE920UN

I .ovideo 13) I

I No video at UHFNHF broadcast si_lnal reception I

I Is the specified TV signal selected on the input select menu screen?

Is there the analog video signal output (VIDEO) at pin (15) of tuner (TUl102)?

_' NO

Check TUl102 and its peripheral circuits (TUN_SDA: Pin6 of TUl102 TUN_SCL: Pin7 of TUl102, etc.).

YES

Is there the analog video signal input at pin (AD29) of IC3302 (CPU)?

_' NO

Check the line between IC3302 and TUl102, and their peripheral circuits.

YES YES

Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC3302?

LVDS TX 0 DATA0_P/N (C14/D14), LVDS TX 0 DATAI_P/N (C15/D15), LVDS TX 0 DATA2_P/N (C16/D16), LVDS TX 0 DATA3_P/N (C18/D18),

LVDS TX 0 DATA4_P/N (C19/D19), LVDS TX 0 CLK P/N (C17/D17), LVDS TX 1 DATA0_P/N (A14/B14), LVDS TX 1 DATAI_P/N (A15/B15),

LVDS TX 1 DATA2_P/N (A16/B16), LVDS TX 1 DATA3_P/N (A18/B18), LVDS TX 1 DATA4_P/N (A19/B19), LVDS TX 1 CLK_P/N (A17/B17).

I No video at di_lital broadcast si_lnal reception I

Are there the video signal outputs (IF_P/N) at the pins (9) and (10) of tuner (TUl102)?

Are there the video signal inputs at pin (AA29) and (AB29) of IC3302 (CPU)?

YES

_r NO

Check TUl102 and its peripheral circuits (TUN_SDA: Pin6 of TUl102

TUN_SCL: Pin7 of TUl102, etc.).

_' NO

Check the line between IC3302 and TUl102, and

their peripheral circuits (Cl129/Cl130, etc.).

Check IC3302 and its peripheral circuits. (IC3501/IC3502, etc.)

_' YES

[ Check the panel module.

6-3

LC-52LE920UN/LC-60LE920UN

I .ovideo14) I

I PC: No external input video [INPUT-3] I

I Is INPUT-3 selected on the input select menu screen? I

_' NO

Select INPUT-3 on the input select menu screen for the right input signal.

Is IC509 (EEPROM) accessed by 12C,with PC connected, to read the DDC_I2C SCL/SDA data?

YES

Are there the video signal inputs at pins (AK16) (G), (AH15) (B) and (AK17) (R) of IC3302 (CPU)? Are there the VSYNC/HSYNC signal inputs at pins (AJ14) and (AK14) of IC3302?

YES

Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC3302?

LVDS TX 0 DATA0_P/N (C14/D14), LVDS TX 0 DATAI_P/N (C15/D15), LVDS TX 0 DATA2_P/N (C16/D16), LVDS TX 0 DATA3_P/N (C18/D18),

LVDS TX 0 DATA4_P/N (C19/D19), LVDS TX 0 CLK P/N (C17/D17), LVDS TX 1 DATA0_P/N (A14/B14), LVDS TX 1 DATAI_P/N (A15/B15),

LVDS TX 1 DATA2_P/N (A16/B16), LVDS TX 1 DATA3_P/N (A18/B18), LVDS TX 1 DATA4_P/N (A19/B19), LVDS TX 1 CLK_P/N (A17/B17).

Check the DDC line and its peripheral circuits. (IC509 and its peripherals).

_' NO

I Check the line between SC501 and IC3302.

YES

I Check the panel module.

_' NO

I Check IC3302 and its peripheral circuits. (IC3501/IC3502, etc.)

6-4

LC-52LE920UN/LC-60LE920UN

I <HDMI input> No video 15)-1 I

I HDMI: No external input video [INPUT-4] I

Is INPUT-4 selected on the input select menu screen?

_' NO

Select INPUT-4 on the input select menu screen for the right input signal.

YES

Does the HOT PLUG detection function? Does the DDC5V signal come from pin (18) of SC1503 to pin (46) of

IC1504 (HDMI_SW)?

Check the line between the input terminals of SC1503

and IC1504.

Check IC1504 and its peripheral circuits (SDA0_400K: pin53 of IC1504/SCL0_400K: pin54 of

YES IC1504, etc.).

Does the HPD signal come from pin (45) of IC1504 to pin (19) of

SC1503?

_ NO

Check the line between the pin (45) of IC1504 and the pin (19) of SC1503. Check IC1504 and its peripheral circuits

(SDA0_400K: pin53 of IC1504/SCL0_400K: pin54 of

YES IC1504, etc.).

I HDMI: No external input video [INPUT-5] I

I Is INPUT-5 selected on the input select menu screen? I

_' NO

Select INPUT-5 on the input select menu screen for the right input signal.

YES Does the HOT PLUG detection function? Does the DDC5V signal come from pin (18) of SC1502 to pin (42) of

IC1504 (HDMI_SW)?

_ NO

Check the line between the input terminals of SC1502 and IC1504.

Check IC1504 and its peripheral circuits (SDA0_400K: pin53 of IC1504/SCL0_400K: pin54 of

YES IC1504, etc.).

Does the HPD signal come from pin (41) of IC1504 to pin (19) of SC1502?

_ NO

Check the line between the pin (41) of IC1504 and the pin (19) of SC1502. Check IC1504 and its peripheral circuits

(SDA0_400K: pin53 of IC1504/SCL0_400K: pin54 of

YES IC1504, etc.).

I Are there the TMDS signal inputs at pins (19/20) (CLK-/+), (21/22)

(D0-/+), (23/24) (D1-/+), (25/26) (D2-/+), all of IC1504?

J' NO

Is IC1504 (pin43/pin44) accessed by 12C,with HDMI

connected, to read the DDC_I2C SDA/SCL data?

Are there the TMDS signal inputs at pins (11/12) (CLK-/+), (13/14)

(D0-/+), (15/16) (D1-/+), (17/18) (D2-/+), all of IC1504?

_ NO

Check the DDC line and its peripheral circuits. (IC1504 and its peripherals).

YES YES

AK8) (D1-/+), (AJ9/AK9) (D2-/+), all of IC3302 (CPU)?

Are there the TMDS signal inputs at pins (AJ6/AK6) (CLK-/+), (AJ7/AK7) (D0-/+), (AJ8/

_' YES

Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC3302?

LVDS TX 0 DATA0_P/N (C14/D14), LVDS TX 0 DATAI_P/N (C15/D15), LVDS TX 0 DATA2_P/N (C16/D16), LVDS TX 0 DATA3_P/N (C18/D18),

LVDS TX 0 DATA4_P/N (C19/D19), LVDS TX 0 CLK P/N (C17/D17), LVDS TX 1 DATA0_P/N (A14/B14), LVDS TX 1 DATAI_P/N (A15/B15),

LVDS TX 1 DATA2_P/N (A16/B16), LVDS TX 1 DATA3_P/N (A18/B18), LVDS TX 1 DATA4_P/N (A19/B19), LVDS TX 1 CLK_P/N (A17/B17).

_' YES

Check the panel module.

_ NO

Is IC1504(pin39/pin40) accessed by 12C, with HDMI

connected, to read the DDC_I2C SDA/SCL data?

_ NO

Check the DDC line and its peripheral circuits. (IC1504 and its peripherals).

NO Check IC1504, IC3302 and their peripheral

circuits.

Check IC3302 and its peripheral circuits. (IC3501/IC3502, etc.)

6-5

LC-52LE920UN/LC-60LE920UN

I <HDMI input> No video 15)-2 I

I HDMI: No external input video [INPUT-6] I

Is INPUT-6 selected on the input select menu screen?

_' NO

Select INPUT-6 on the input select menu screen for the right input signal.

YES

Does the HOT PLUG detection function? Does the DDC5V signal come from pin (18) of SC1501 to pin (36) of

IC1504 (HDMI_SW)?

J_ NO

Check the line between the input terminals of SC1501

and IC1504.

Check IC1504 and its peripheral circuits. (SDA0_400K: pin53 of IC1504/SCL0_400K: pin54 of

YES IC1504, etc.).

Does the HPD signal come from pin (35) of IC1504 to pin (19) of

SC1501?

_ NO

Check the line between the pin (31) of IC1504 and the pin (19) of SC1501. Check IC1504 and its peripheral circuits

(SDA0_400K: pin53 of IC1504/SCL0_400K: pin54 of

YES IC1504, etc.).

I HDMI: No external input video [INPUT-7] I

I Is INPUT-7 selected on the input select menu screen? I

_' NO

Select INPUT-7 on the input select menu screen for the right input signal.

YES Does the HOT PLUG detection function? Does the DDC5V signal come from pin (18) of SC1505 to pin (32) of

IC1504 (HDMI_SW)?

_ NO

Check the line between the input terminals of SC1505 and IC1504.

Check IC1504 and its peripheral circuits (pin53 of IC1504/SCL1 : pin54 of IC1504, etc.).

YES

Does the HPD signal come from pin (31) of IC1504 to pin (19) of SC1505?

_ NO

Check the line between the pin (41) of IC1504 and the pin (19) of SC1505. Check IC1504 and its peripheral circuits

pin53 of IC1504/SCL1 : pin54 of IC1504, etc.).

YES

I Are there the TMDS signal inputs at pins (1/2) (CLK-/+), (3/4) (D0-/

+), (5/6) (D1-/+), (7/8) (D2-/+), all of IC1504?

Are there the TMDS signal inputs at pins (65/66) (CLK-/+), (67/68)

(D0-/+), (69/70) (D1-/+), (71/72) (D2-/+), all of IC1504?

_ NO

Is IC1504 (pin33/pin34) accessed by 12C,with HDMI

connected, to read the DDC_I2C SDA/SCL data?

_ NO

Check the DDC line and its peripheral circuits. (IC1504 and its peripherals).

YES

Are there the TMDS signal inputs at pins (AJ6/AK6) (CLK-/+), (AJ7/AK7) (D0-/+), (AJ8/ ]

AK8) (D1-/+), (AJ9/AK9) (D2-/+), all of IC3302 (CPU)? J

J' NO

I Check IC1504, IC3302 and their peripheral circuits. I

YES YES

Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC3302?

_' YES

[ Check the panel module.

YES

_ NO

Is IC1504 (pin29/pin30) accessed by 12C,with HDMI

connected, to read the DDC_I2C SDA/SCL data?

_ NO

Check the DDC line and its peripheral circuits. (IC1504 and its peripherals)

Check IC3302 and its peripheral circuits. (IC3501/IC3502, etc.)

6-6

LC-52LE920UN/LC-60LE920UN

I Noaudio11) I

€

I INPUT-1Noaudio, I

I INPUT-2 No audio, I

[ Is INPUT-1 selected on the input select menu screen? ]

_' NO

YES

[ Is the audio output selected for "VARIABLE" on the menu screen? ]

YES

Does the audio signal come from pins (4) (L) and (3) (P,)of input

terminal (J507) to pins (U29)(L) and (U28) (P,)of IC3302 (CPU)?

YES YES

Does the digital audio signal come from pins (F28/F3O/G28) (AUBCK/AULP,CK/AOSDATA0) of IC3302 (CPU) to pin (8/9/7) (SP_BCLK/SP_LP,CLK/SP_DATA) of IC2701 (Audio DSP)?

[ Refer to ": No external input video [INPUT-I]". ]

_' NO

Set the audio "FIXED".output

_' NO

[ Check the line between J507 and IC3302. ]

_' NO

Check the line between IC3302 and IC2701,

and their peripheral circuits.

Is INPUT-2 selected on the input select menu screen? I

YES

Is the audio output selected for "VARIABLE" on the menu screen? I

YES

Does the audio signal come from pins (4) (L) and (1) (P,) of input terminal (J505) to pins (P,28) (L) and (T26) (P,)of IC3302 (CPU)?

I Refer to " No external input video [INPUT-2]". I

_' NO

I Set the audio output to "FIXED".

_' NO

I Check the line between J505 and IC3302.

YES

• About the L/P, Speakers. Does the digital audio signal come from pins (47/43/44/45) of IC2701 (Audio DSP) to pin (5/8/7/6) of IC2703 (AMP for L/P,)?

• About the Subwoofer speaker. Does the digital audio signal come from pins (47/43/44/46) of IC2701 (Audio DSP) to pin (5/8/7/6) of IC2702 (AMP for SW)?

_' YES

• About the L/P, Speakers. Is the audio output from IC2703 as specified?

• About the Subwoofer Speaker. IS the audio output from IC2702 as specified?

_' Yes

• About the L!P, Speakers. Check the connector (P2701) L/P,speakers and their peripheral cir-

cuits.

• About the Subwoofer Speaker. Check the connector (P2702), subwoofer speaker and their periph-

eral.

Check IC2701 and its peripheral circuits. (X2701, etc.).

• About the L/P, Speakers. Check IC2703 and its peripheral circuits.

• About the Subwoofer Speaker. Check IC2702 and its peripheral circuits.

6-7

LC-52LE920UN/LC-60LE920UN

I Noaudio12) I

I [PC analo_l audio input] INPUT-3 No audio, I

Is INPUT-3 selected on the input select menu screen?

_' NO

I Refer to ": No external input video [INPUT-3]".

YES

Is the audio output selected for "VARIABLE" on the menu screen?

_' NO

YES

Is the "PC input" - "Audio select for "Video + Audio" on the menu

screen?

YES YES

Does the digital audio signal come from pins (F28/F30/G28) (AUBCK/AULRCK/AOSDATA0) of

IC3302 (CPU) to pin (8/9/7) (SP_BCLK/SP_LRCLK/SP_DATA) of IC2701 (Audio DSP)?

I Set the audio output to "FIXED".

J' NO

Set the "PC input" - "Analog select" to "Video +

Audio".

_' NO

Check the line between IC3302 and IC2701,

and their peripheral circuits.

I [HDMI analo_l audio input] INPUT-4 No audio. I

Is INPUT-4 selected on the input select menu screen? I

YES

Is the audio output selected for "VARIABLE" on the menu screen?

YES

Is the "PC input" -"Audio select" selected for "HDMI + Analog" on the menu screen?

I Refer to ": No external input video

_' NO

I Set the audio output to "FIXED".

_' NO

Set the "PC input" - "Analog select" to "HDMI +

Analog.

[IN PUT-4]".

I I

YES

• About the L/R Speakers. Does the digital audio signal come from pins (47/43/44/45) of IC2701 (Audio DSP) to pin (5!8!7!6) of IC2703 (AMP for L/R)?

• About the Subwoofer speaker. Does the digital audio signal come from pins (47/43/44/46) of IC2701 (Audio DSP) to pin (5!8!7!6) of IC2702 (AMP for SW)?

_' YES

• About the L/R Speakers. Is the audio output from IC2703 as specified?

• About the Subwoofer Speaker. IS the audio output from IC2702 as specified?

_' Yes

• About the L!R Speakers. Check the connector (P2701) L/R speakers and their peripheral cir-

cuits.

• About the Subwoofer Speaker. Check the connector (P2702), subwoofer speaker and their periph-

eral.

Check IC2701 and its peripheral circuits. (X2701, etc.).

• About the L!R Speakers. Check IC2703 and its peripheral circuits.

• About the Subwoofer Speaker. Check IC2702 and its peripheral circuits.

6-8

LC-52LE920UN/LC-60LE920UN

I .o audio13) I

I No audio at UHFNHF broadcast si_lnal reception, I

I Is TV selected on the input select menu screen? I

_' NO

Refer to "No video at UHF/VHF broadcast signal reception".

YES

Is the audio output selected for "VARIABLE" on the menu screen?

_' NO

I Set the audio output to "FIXED". Is the audio output selected for "VARIABLE" on the menu screen? ]

YES

I Is there the SlF signal output at pin (14) of tuner (TUl102)? I

_ NO

Check the tuner (TUl102) and its peripheral cir- cuits.

(12C line: TUNEP,_SCL/TUNEP,_SDA, etc.)

YES

Does the SIF signal come from pin (14) of tuner (TUl102) to pin (AB27) of IC3302 (CPU)?

I No audio at di_lital broadcast si_lnal reception, I

Is TV selected on the input select menu screen? ]

_' NO

Refer to "No video at digital broadcast signal reception".

YES

If no video appears, refer to "No video at digital broadcast signal reception".

_' NO

I Set the audio output to "FIXED".

_ NO

Check the line between TUl102 and IC3302, and their peripheral circuits (Ql101, Ql102, etc.).

YES YES

Does the digital audio signal come from pins (F28/F30/G28) (AUBCK/AULP,CK/AOSDATA0) of

IC3302 (CPU) to pin (8/9/7) (SP_BCLK/SP_LP,CLK/SP_DATA) of IC2701 (Audio DSP)?

_' NO

Check the line between IC3302 and IC2701, and their peripheral circuits.

YES

• About the L/R Speakers. Does the digital audio signal come from pins (47/43/44/45) of IC2701 (Audio DSP) to pin (5/8/7/6) of IC2703 (AMP for L/P,)?

• About the Subwoofer speaker. Does the digital audio signal come from pins (47/43/44/46) of IC2701 (Audio DSP) to pin (5/8/7/6) of IC2702 (AMP for SW)?

_' YES

• About the L/R Speakers. Is the audio output from IC2703 as specified?

• About the Subwoofer Speaker. IS the audio output from IC2702 as specified?

_' Yes

• About the L!R Speakers. Check the connector (P2701) L/P, speakers and their peripheral cir-

cuits.

• About the Subwoofer Speaker. Check the connector (P2702), subwoofer speaker and their periph-

eral.

==-=.I_

Check IC2701 and its peripheral circuits. (X2701, etc.).

• About the L/R Speakers. Check IC2703 and its peripheral circuits.

• About the Subwoofer Speaker. Check IC2702 and its peripheral circuits.

6-9

LC-52LE920UN/LC-60LE920UN

I .o audio14) I

INPUT-5 No audio IHDMI connected I

I INPUT-4 No audio IHDMI connected I

[INPUT-4 input] Is INPUT-4 selected on the input select menu screen?

[INPUT-5 input] Is INPUT-5 selected on the input select menu screen?

[INPUT-6 input] Is INPUT-6 selected on the input select menu screen?

[INPUT-7 input] Is INPUT-7 selected on the input select menu screen?

YES

[INPUT-4 input] If no video appears, refer to "No external input video (HDMI) [INPUT-4]".

[INPUT-5 input] If no video appears, refer to "No external input video (HDMI) [INPUT-5]". [INPUT-6 input]

If no video appears, refer to "No external input video (HDMI) [INPUT-6]". [INPUT-7 input] If no video appears, refer to "No external input video (HDMI) [INPUT-7]".

INPUT-6 No audio IHDMI connected I INPUT-7 No audio IHDMI connected I

_' NO

I Refer to ": No external input video [INPUT-4/5/6/7]".

[ Is the audio output selected for "VARIABLE" on the menu screen? ]

_' NO

I Set the audio output to "FIXED".

YES

Does the digital audio signal come from pins (F28/F30/G28) (AUBCK/AULRCK/AOSDATA0) of IC3302

(CPU) to pin (8/9/7) (SP_BCLK/SP_LRCLK/SP_DATA) of IC2701 (Audio DSP)?

_" NO

Check the line between IC3302 and

IC2701, and their peripheral circuits.

YES

• About the L/R Speakers. Does the digital audio signal come from pins (47/43/44/45) of IC2701 (Audio DSP) to pin (5/8/7/6) of IC2703 (AMP for L/R)?

• About the Subwoofer speaker. Does the digital audio signal come from pins (47/43/44/46) of IC2701 (Audio DSP) to pin (5/8/7/6) of IC2702 (AMP for SW)?

_' YES

• About the L/R Speakers. Is the audio output from IC2703 as specified?

• About the Subwoofer Speaker. IS the audio output from IC2702 as specified?

_' Yes

• About the L!R Speakers. Check the connector (P2701) L/R speakers and their periph-

eral circuits.

• About the Subwoofer Speaker. Check the connector (P2702), subwoofer speaker and their peripheral.

NO --_

Check IC2701 and its peripheral circuits. (X2701, etc.).

• About the L/R Speakers. Check IC2703 and its peripheral circuits.

• About the Subwoofer Speaker. Check IC2702 and its peripheral circuits.

6-10

LC-52LE920UN/LC-60LE920UN

I No audio si_lnal at Di_lital Audio Output terminal IAnalo_l sound heard I I

I NoINPUT-4151617IHDMI)audio. I

If no video appears, refer to "No external input video (HDMI) [INPUT-4/5/6/7]".

I Is there the SPDIF signal output (OPT_OUT) at pin (J28) of IC3302 (CPU)?

YES

I Is there the SPDIF signal (OPT_OUT) input at pin (2) of IC503 (SPDIF BUFFER & SPDIF-MUTE)? I

YES

I Is there the MUTE signal input at pin (7) of IC503? (usual: High, Mute: Low) I

YES

I Is there the SPDIF signal input at pin (1) of D520 (OPTICAL OUTPUT)? I

_' YES

[ Check the speakers and the optical cable. I

I Check the IC3302 and its peripheral circuits.

I Check the line between IC3302 and IC503.

Check the MUTE A ALL and SPDIF-MUTE signals, and their peripheral cir- cuits (Q505, D530, etc.).

Check D520 and its peripheral circuits. No optical output under the following conditions as per HDMI requirements.

* Audio contents protected. * Audio frequency beyond 48kHz. * Audio bit length beyond 16bits.

I No audio at di_lital broadcast si_lnal reception. I

If no video appears, refer to "No video at digital broadcast signal reception".

_' NO

6-11

LC-52LE920UN/LC-60LE920UN

I No monitor audio output I

[ Is the audio output from the monitor set at "VARIABLE" or "FIXED" on the menu screen? ]

I Check IC3302 (CPU) and its peripheral circuits.

YES

I Are there the audio signal outputs at pins (M28) (HP/MONI_L) and (M27) (HP/MONI_R) of IC3302 (CPU)?

_' NO

YES

I Does the audio signal come from pins (M28) (HP/MONI_L) and (M27) (HP/MONI_R) of IC3302 to pins (2) (L) and (3) (R) of J504?

YES

Check the connector (J504) and their peripheral circuits, and speakers and the Cable. ]

I No connect network I

I Check IC3302 (CPU) and its peripheral circuits.

_' NO

Check the line between IC3302 and J504 and their peripheral circuits. Check the MUTE A AU and HP/MONI_MUTE lines and its peripheral circuits

(Q506, D527, etc.).

I I

Does the signal come to 1pin of LAN-jack J9501 ? (see fig-l, fig-2)

Does the signal come to 12pin of IC9501 ? (see fig-2) (IC9501 : KSZS041T)

J' NO

Does the 3.3Vdc come to VDDA_3.3/VDDIO_3.3 of IC9501 ? Does the 2.5Vdc come to VDD_1.8/VDDA_1.8 of IC9501 ?

_' YES

Does the clock signal come to 15pin of IC9501 ? (25MHz, 3.3V)

_' YES

I Check IC9501 and its peripheral circuits.

fig-1 LAN-jack J9501

YES I Check the interface device and peripheral circuits.

I (power-LED of hub, LINK-LED of hub)

YES [ Check the line between J9501 and IC9501.

I Check the LAN-jack J9501.

NO I Check the power-circuits of D3.3V.

I Check 7pin (V1.8_out) of IC9501.

NO I Check the line between X9501 and IC9501.

I Check the crystal X9501. (SCA219WJ)

fig-2

1pin

6-12

LC-52LE920UN/LC-60LE920UN

I If it is not an error of power supply/LED driver,

I Do you start? I

I Does all LED of one line are not lighting? I

YES

TP1 of LED board on the power supply side is confirmed. Does the voltage hang?

YES

I Is the LED board connected with CN2?

_' YES

TP1 of the next LED board connected with CN2 isconfirmed. Does the voltage hang?

It is start-up in the lamp error disre_lard mode,

_' YES

I It doesn't light in 1 piece.

I All LED boards including LED that doesn't light

I harnessexchange

Even if the short-circuit connector is exchanged, do not you light?

_' NO

are

exchanged.

_' NO

; YEs ; .o ; YEs ; .o

I The next LED board is seen. I ILED board exchange. I ITHEEND.

I I

I If it is not an error of power supply/LED driver,

[ Do you start? ]

[ Is connected connector (LA1) with the first high LED board of the power supply board removed and do it start? ]

; YES

I All LED boards and the harness connected with LA1 are exchanged. I

I Is connected connector (LA2) with the LED board second on the power supply board removed and do it start? I

; YES

I All LED boards and the harness connected with LA2 are exchanged. I

I Is connected connector (LA3) with the LED board third on the power supply board removed and do it start? I

All LED boards and the harness connected with LA3 are exchanged.

It is start-up in the lamp error disre_lard mode,

J' YES

All LED boards are exchanged. ]

6-13

LC-52LE920UN/LC-60LE920UN

i Trouble Shootin_l Panel Module i

When C-S FPC(2 pieces) is replaced, does screen display normally? ]

; YES

[ Replace C-S FPC(2 pieces).

When C-PWB is replaced, does screen display normally?

_' YES

Replace C-PWB.

Replace Panel HIRAKI. (Adjust "VCOM ADJ" after replace Panel HIRAKI)

(Adjust "VCOM ADJ" after replace C-PWB)

[2] LED flashing specification at the time of an error (Center icon LED used)

1. Display method

Since only the center icon LED can be used, slow flashing and fast flashing are combined. Refer to Table 1.

The Start from the detail display. (No outline display) After recovering from an error, if the same error cannot be generated again, refer to MONITOR ERR CAUSE on the process screen. During version upgrade, the brightness of the flashing LED changes smoothly. When completing version upgrade, the brightness of the LED changes in a staircase pattern.

] ]

2. LED flashing method

Error flashing

Center icon .............................................................................................................................................................................................................................o.

i i i j J J J i

oFF

14oo s"t"4oo s' ,,iT,, oo s,

100ms

Flashing during Verup

Center icon I::F

, ,_

500ms

Flashing when completing Verup

Center icon __ .................................._:::_

lO00ms lO00ms lO00ms lO00ms

6-14

Table 1. Concrete flashing pattern

Item

Inverter/Lamp system failure Power PWB

failure

(Power failure, etc.) Main PWB

failure

(Communication

failure, etc.)

Others

VerUP executing Flashes smoothly VerUP succeeded Flashes in a staircase pattern

VerU P failed None

ROM data failure None

*2: They depend on the system. Power supply error is defined from product to product. *3: For details, refer to ERROR STANDBY CAUSE on the adjustment process screen. *4: If the boot section is abnormal, there is no flashing (flashing impossible).

Slow flashing Fast flashing

Flashes once Flashes once Flashes twice Flashes twice

Flashes 3 times

Flashes 4 times

Detail display

Flashes 3 times Flashes 5 times

Flashes once Flashes twice Flashes 3 times Flashes 5 times Flashes once

Flashes twice Flashes 3 times

None None

Flashes continuously Flashes continuously

3. New method

LC-52LE920UN/LC-60LE920UN

Cause

Lamp error Power supply error 2 (*2) UR+13V error Power supply error 3 (*2) D3.3V error Panel power supply error

Initial communication error Start-up confirmation communication error

Regular communication error Other communication error

Temperature error Sync error Notification from the main microcomputer (*3) Version upgrading Version upgrade succeeded Version upgrade failed Start-up after failing version upgrade (*4)

Center icon

, , , i 1600ms ' ' ', ', 1600ms

400ms

400ms 300ms

• Flashing during Verup

Center icon

'F 5ooms

500ms

• Flashing when completing Verup

Center icon _ _

1000ms 1000ms 1000ms 1000ms

rL_A.JIJ!

lOOms

,r-q.j-q

6-15

LC-52LE920UN/LC-60LE920UN

LED flashing timing chart at the time of an error

100ms 400ms 1.6sec

1) Inverter/Lamp failure details (Flashes slowly once and flashes fast) Note

Center icon LED operationError type

Lamp failure Flashes fast once

2) Power failure details

Error type

SM POW Main 13V failure Flashes fast twice

D POW Digital 3.3V failure

Flashes fast 3 times

PANEL POW Panel 12V failure Flashes fast 5 times

3) Communication failure details (Flashes slowly 3 times and flashes fast) Note

Error type

Initial communica- tion reception failure

Flashes fast once

Start-up confirma- tion reception failure

Flashes fast twice

Regular communica- tion failure

Flashes fast 3 times

Other communica- tion failure Flashes fast 5 times

H: On

L: Off

Flashes slowly twice and flashes fast)

Center icon LED operation

H: On

rq_q I

L: Off H: On

R FLY[

L: Off H: On

_ R_ RTL F1

L: Off

Center icon LED operation

H: On

L: Off H: On

FLR

L: Off H: On

F1 RTI

L: Off H: On

_ H Iq RZI

L: Off

Pins are monitor microcomputer pins unless other- wise specified.

ERR_PNL(40pin): Hi failure. Confirmed after 8 consecu- tive detections at 64msec intervals (detected only when the backlight is on). Note that after five detection counts, the lamp cannot be activated except in the monitor process. Accumulated counts are cleared to 0 by the setting in the process A.

Note

Pins are monitor microcomputer pins unless other- wise specified.

DET_13V(38pin) failure (L). Main 13V is not applied.

If error is detected during start-up or operation, the power is turned on again by polling.

DET_D3V3(36pin) failure (L). Digital 3.3V is not applied.

If error is detected during start-up or operation, the power is turned on again by polling.

DET_PNL12V(35pin) failure (L). Panel power is not applied.

Detection is started after turning on the panel power and receiving command; the power is turned off by polling.

Basically, debug print logs are analyzed or commu- nication logs are analyzed by a bus monitor.

Initial communication from the main CPU is not received. (Request for the monitor model No. is not

received.)

--> Communication line failure or main CPU start-up fail- ure

Start-up reason confirmation from the main CPU cannot be received. (Start-up communication until start-up rea-

son notification command is not received.)

--> Main CPU start-up failure or monitor microcomputer reception failure

Regular communication that is performed at 1 second intervals in the normal operation is interrupted.

--> Main CPU operation failure or monitor microcom- puter reception failure

When a request (PM_REQ=H) is sent from the main

microcomputer, the request command is not output

from the main CPU, etc.

--> Main CPU operation failure or monitor microcom- puter reception failure

6-16

4) Other failure details (Flashes slowly 4 times and flashes fast) Error type

Monitor temperature

failure

Flashes fast once

Main failure Flashes fast 3 times

H: On

r_ [q

L: Off

H: On

L: Off

Center icon LED operation

4. Monitor ERR STBY table

LC-52LE920UN/LC-60LE920UN

Note

Pins are monitor microcomputer pins unless other-

wise specified.

If the panel temperature is 60°C or more for 15 seconds

or more in a row, CAUTION appears on the OSD

(flashes in red in the lower right screen). If the panel temperature is 60°C or more for 25 seconds

or more in a row, error standby is activated.

(MONITOR MAX TEMP on page 23 of the process A: Change of temperature failure AD value): Thermistor

Main microcomputer detection error (CPU temperature error, etc.) The details are displayed on page 1 of the process A of the main microcomputer.

Outline:

Location:

Communication/Power failure detected by the monitor microcomputer is stored on EEPROM, and the last 4 abnormal states can be confirmed in the process mode A.

Page 1 of the process mode A: MONITOR ERR CAUSE "0" if there is no error. It iscleared to 0 on the last page of the process mode A.

Display Error description

02 Start-up communication error 2 Initial communication from the main CPU is not received. 03 Start-up communication error 3 Only the initial communication is received. 04 Start-up communication error 4 Until panel information request reception 05 Start-up communication error 5 Until initialization completion reception 06 Start-up communication error 6 Until version notification transmission 07 Start-up communication error 7 Until start-up information notification transmission 08 Start-up communication error 8 Until start-up information response reception 09 Start-up communication error 9 Until time-out setting reception

0A Communication error A REQ time-out

0B Communication error B Restart time-out during the beginning of time acquisition start-up 0C Communication error C Ending sequence time-out 0D Communication error D Preset start-up time-out during completion

0E Communication error E download, start-up time-out

OF Communication error F Time acquisition time-out

11 Communication error H Regular communication time-out

16 Panel-related error Lamp failure 1A Other error 2 Monitor temperature failure 1E Power supply error 2 D_POW (DET_13V) failure

1F Power supply error 3 D_POW (DET_D3V3) failure 21 Power supply error 5 Panel power failure 23 Other error 3 Error standby request from the main CPU

6-17

LC-52LE920UN/LC-60LE920UN

CHAPTER 7. MAJOR IC INFORMATIONS

[1] MAJOR IC INFORMATIONS

1. MAJOR IC INFORMATIONS

1.1. IC1504 (VHiSii9287+-1Q)

This IC is 4 input and 1output HDMI port processor.

It integrated TMDS receiver and transmitter cores capable of receiving and transmitting at 2.25Gbps. (Supports video resolutions up to 1080p, 60Hz, 12bit.)

The Equalizer circuits to adapt long cable are integrated in This IC.

EDID and DDC support for 4 HDMI/DVI ports and 1 VGA port.(This IC includes 256-byte NVRAM and 256-byte SRAM for each port(5 total).)

1.2. IC2002 (RH-iXC786WJQZQ)

The monitor microprocessor is intended to communicate with the main microprocessor and to operate the system.

It also controls power of the entire system.

1.3. IC2702, IC2703 (VHiYDA164QZ-1Y)

The Class-D type digital audio power amplifier YDA164QZ gives maximum continuous output of 10 W/ch or woofer output 15W.

1.4. IC3302 (RH-iXC951WJNIQ)

This LSI is FULL HIGH-DEFINITION 1080P DIGITAL TV SYSTEM-ON-A-CHIE

It combines a cable/terrestrial 64/256-QAM and 8-VSB receiver, a transport processor, a digital audio processor, a high definition (HD) MPEG video

decoder, 2D graphics processing, digital processing of analog video and audio, analog video digitizer and DAC functions, stereo high-fidelity audio

DACs, HDMI receivers for 1080p 60 inputs, a 625-MHz processor, and a peripheral control unit providing a variety of television control functions. The cable/terrestrial receiver directly samples a tuner output with an analog-to-digital converter (ADC). The LSI digitally resample and demodulates the signal with recovered clock and carrier timing, filters and equalizes the data, and passes soft deci-

sions to an ATSC/A74 and ITU-T J.83 Annex B-compatible decoder.

It has an MPEG-2 Digital Video Broadcasting (DVB)-compliant transport processor with advanced section filtering capability, DVB descrambler, and an MPEG-2 (MP@HL profile) video decoder.

Audio support includes a BTSC and a Dolby AC3/MPEG-2 Layer 1, 2, audio decoder. The LSI provides analog and digital audio/video outputs. A SPDIF output and a pair of analog outputs (L-R) are provided via the integrated audio DACs. The NTSC analog video decoder is supported by its own motion adaptive deinterlacing and 3D comb filtering, including 1080i deinterlacing. The LSI includes advanced 2D graphics processing.

One transport stream input is included. The LSI incorporates a complete ARM11-based microprocessor subsystem including caches with bridging to memory and a local bus, where external

peripherals can be attached.

Integrated peripherals include two USB 2.0, three UARTs, counter/timers and GPIO controllers.

In this time, H264 decode/VC-I decode/secure boot function are added to this IC.

1.5. IC3501/IC3502 (RH-iXC754WJQZQ)

These are 1G bit (64M x 16bit) DDR2-1066 synchronous DRAM.

1.6. IC8401 (RH-iXD047WJQZQ)

The 512M-bit NAND flash memory device stores the main CPU program.

1.7. IC8455 (VHiR24064AS-1Y)

This is 64k-bit EEPROM device including the user setting.

1.8. IC506 (VHiM3221EiP-1Y)

This IC is a high speed, single-channel RS-232 transceiver interface device that operates from a single 3.3V power supply. The device provides the electrical interface between an asynchronous communication controller and the serial-port connector. This device operate at data signaling rates up to 460kbit/s. All RS-232(Tout and Rin) and CMOS (Tin and Rout) inputs and outputs are protected against electrostatic discharge (up to +/- 15kV ESD protection).

1.9. IC9501 (VHi KSZS041T-1Y)

This IC is a single supply 10Base-T/100Base-TX Physical Layer Transceiver, which provides MII/RMII/SMII interfaces to transmit and receive data.

7-1

LC-52LE920UN/LC-60LE920UN

1.10. IC2701 (VHiYSS951VZ-lY)

Audio DSP (YSS951VZ) has digital audio adjustment function (for example, PEQ, bass/treble, balance, bass enhancer, etc.) and adjusts TVs audio quality.

7-2

LC-52LE920UN/LC-60LE920UN

-- MEMO --

7-3

CHAPTER 8. OVERALL WIRING/SYSTEM BLOCK DIAGRAM

[1] OVERALL WIRING DIAGRAM

OVERALL WIRING DIAGRAM

LC-52LE920UN/LC-60LE920UN

MODULE

WOOFER: RSP-ZA482WJZZ

[LA]

LED DRIVE Unit

52":RUKITK4433TPZA 60":RUNTK4433TPZZ

POWER Unit

[AC]

RDENCA395WJQZ

[PL]

[PD][_

[SP]

[SB] [LB]

[PD]

MABN Unit

DKEYMF452FM20

HP/Audio Out

PC Audio IN

[

[LW]

_ D

IRA]

Digital Audio Output

LCD CTL Unit

RUNTK4570TPZA

RUNTKA690WJQZ IRK]

i _°Uc"s_"s°_°itr_q

R/C, LED Unit [RA]=_

_ DUNTKF494FM01 151

• 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

Rch: RSP-ZA456WJZZ

[

[LW]

RCONUnit

DUNTKF493FM01

[PL]

[RL] LOGO Unit

DUNTKF493FM02

Lch: RSP-ZA456WJZZ

8-1

LC-52LE920UN/LC-60LE920UN

[2] SYSTEM BLOCK DIAGRAM

SYSTEM BLOCK DIAGRAM

tC2701

(YSS951)

DSP

IC2002

M16C!64A IXC786WJ

SUB MCU

INPUT

3/4

_NPUT DDC0

6 HDMi0

INPUT DbC1

5 NDMII IC1504

4 HDMi2

iNPUT

3 HDMi3

DDC 2

DDC 3

HDM_SW SH9287

TUNER 12C 12C0

12C1 12C2

RGB HV(AK14,AJ 14) RGB _n(AKI 7) tC3302

DDC 12c _ MT5391W(FHD) HDMil " H,264 / VC-1

Digital AV deo3de & Main CPU

1C8451/tC8452

PWM0 PWMI

INT0

A/D

• t 2 :3 4 5 6 7 8 9 18 tl t2 t3 t4 t5 t6 t7 t8 t9

8-2

LC-52LE920UN/LC-60LE920UN

SHARP PARTS GUIDE

No. S701560LE920U/

LCD COLOR TELEVISION

LC-52LE920UN

MODELS

[1] PRINTED WIRING BOARD

ASSEMBLIES

[2] LCD PANEL MODULE UNIT

[3] CABINET PARTS (LC-52LE920UN)

[4] CABINET PARTS (LC-60LE920UN)

[5] SUPPLIED ACCESSORIES

CONTENTS

LC-60LE920UN

PACKING PARTS

[6]

(NOT REPLACEMENT ITEM) (LC-52LE920UN)

PACKING PARTS

[7]

(NOT REPLACEMENT ITEM) (LC-60LE920UN)

[8] SERVICE JIGS

(USE FOR SERVICING)

Parts marked with "_" are important for maintaining the safety of the set. Be sure to replace these

parts with specified ones for maintaining the safety and performance of the set.

This document has been published to be used

SHARP CORPORATION for after sales service only.

The contents are subject to change without notice.

LC-52LE920UN/LC-60LE920U N

NO. PARTS CODE RANK MARK DELVERY

PRICE NEW PART

[1] PRINTED WIRING BOARD ASSEMBLIES

DKEYMF452FM20 BW

DUNTKF493FM01 AE

DUNTKF493FM02 AF

DUNTKF494FM01 AG

RUNTKA690WJQZ AZ

RDENCA395WJQZ BP

RUNTK4570TPZA BU

RUNTK4433TPZA BS

RUNTK4433TPZZ BS

[2] LCD PANEL MODULE UNIT

N R1LK520D3LWBOZ DX N R1LK600D3LW30Z EK

DESCRIPTION

X MAIN Unit J ICON Unit J LOGO Unit J R/C, LED Unit J TOUCH SENSOR Unit X POWER Unit X LCD CONTROL Unit

X LED DRIVE Unit (LC-52LE920UN) X LED DRIVE Unit (LC-60LE920UN)

X 52" LCD Panel Module Unit (LK520D3LWB0Z) (LC-52LE920UN) X 60" LCD Panel Module Unit (LK600D3LW30Z) (LC-60LE920UN)

[3] CABINET PARTS (LC-52LE920UN)

LC-52LE920UN/LC-60LE920UN

' 1 2 3 4 5 6 7 8 9 10

LC-52LE920UN/LC-60LE920U N

NO. PARTS CODE RANK MARK DELVERY

PRICE NEW PART

[3] CABINET PARTS (LC-52LE920UN)

CCABAC610WJ31 BQ N X

I-I

Not Avai lable N -

I-2

HDECQB420WJ3A AB X

I-3

HDECZA051WJSA AY N X

I-4

Not Available

I-5

PSPAGA908WJZZ AE J

I-6

PSPAHC201WJZZ AA X

I-7

Not Available

CCABBB695WE32 BQ X

2-1

Not Available

2-2

HiNDPD923WJSA AF N X

2-3

HiNDPD992WJSA AP N X

2-4

LX-WZA068WJF7 AB N X

2-5

PSPAHC152WJ3Z AA X

2-6

PSPAHC159WJZZ AA X

2-7

PSPAHC160WJZZ AC J

2-8

PSPAHC194WJZZ AA X

2-9

PSPAHC309WJZZ AB N X

2-1o

PZETKA539WJKZ AZ X

CPNLHA021WE02 N X GCOVAD734WJ00 AF X

4 5

GCOVAD735WJ00 AE X

LANGFA808WJFW AE N X

LANGKC694WJFW AD X

LANGKC696WJFW AD X

LANGKC697WJFW AD X

LANGKC698WJFW AB X

LANGKC810WJFW AC X

LANGKD013WJ3W AR N X

LHLDWA175WJUZ AC J

LHLDWA176WJUZ AC J

LHLDWA289WJKZ AC J

LHLDZA587WJKZ AC J

LX-BZA364WJF7 AB J

NSFTZA362WJFW AB J

PCLiCA014WJKZ AA X

PMLT-A632WJZZ AC X

PSPAGA888WJZZ AB J

PSPAGA913WJKZ AB N X

PSPAGA934WJKZ AB N X

PZETKA538WJKZ AW X

QCNW-K549WJQZ AF N X

QCNW-K574WJQZ AF J

QCNW-K577WJQZ AR J

QCNW-K976WJQZ AG J

QCNW-K977WJQZ AE J

QCNW-K978WJQZ AF J

QEARZA186WJZZ AD X

RSP-ZA482WJZZ AX N X

XBPS730P06WS0 AA J GCOVAD699WJ3A AC X

34 35

GCOVAD816WJ3A AE N X

HiNDPD925WJSA AB N X

LANGKD010WJFW AD N X

LHLDKA011WJKZ AD J

LHLDWA176WJUZ AC J

LX-BZA170WJF9 AC J

PCUSGA142WJKZ AF J

PSPAKA474WJKZ AB N X

PZETKA562WJKZ AC X

QCNW-K562WJQZ AW J

QCNW-K565WJQZ AE J

QCNW-K579WJQZ AK J

RSP-ZA456WJZZ AY N J

TLABZC586WJZZ AF J

TLABZC618WJZZ AB N X

TLABZC619WJZZ AE N X

XBPS730P06WS0 AA J

XBPS830P06WS0 AA J

XBPS830P14WS0 AB N J

XEBS940P10000 AB J

QACCDA074WJPZ AG X

TLABNB037WJZZ AB X

Not Available

Front Cabinet Ass'y Front Cabinet

R/C Decoration Cover Front Decoration Plate

Coner Tape, x4 Front Cab Spacer

Himelon, x4 Spacer, x4

Rear Cabinet Ass'y Rear Cabinet

Terminal Label (Bottom) Terminal Label (Side)

Washer Spacer

Himelon Himelon

Himelon, x3 Himelon, x4

Barrier Sheet Glass Front Panel Ass'y

Terminal Cover (Side) Terminal Cover (Bottom) BL Support Angle LCD Fixing Angle B-L LCD Fixing Angle T-L LCD Fixing Angle T-R LCD Fixing Angle B-MA LCD Fixing Angle B-MB Stand Angle

Holder, x8 Holder, x5 Holder, x6

PWB Spacer, x6 Screw, x4

Shaft, x4 Clip, x2

Absorber Spacer, x4

Spacer, x2 Spacer, x2

Insulator Connecting Cord (LA:POW-DRIVE)

Connecting Cord (SB:MAIN-WOOFER) Connecting Cord (LW:MAIN-LCD_CTL) Connecting Cord (PD:POW-MAIN) Connecting Cord (PL:POW-LCD_CTL) Connecting Cord (LB:MAIN-DRIVE)

Ground Part, x2 Speaker (Sub Woofer)

Screw, x27 AC Cord Cover

Stand Cover Model Label LCD Fixing Angle B-R

AC Cord Band Holder, x2

Screw, x4 Rubber Bush, x2

KEY PWB Spacer AC Barrier

Connecting Cord (RA:MAN-EN/KY/RC) Connecting Cord (RL:MAIN-LOGO) Connecting Cord (SP:MAN-SP(L/R)) Speaker, x2 (L/R)

Quattron Label Dolby Label

Pop Label Screw, x14

Screw, x19 Screw, x4 Screw, x4 AC Cord

Serial Label (Back) Serial Label (Side)

DESCRIPTION

[4] CABINET PARTS (LC-60LE920UN)

LC-52LE920UN/LC-60LE920UN

R/C,

LOGO

] Unit

[]

SENSOR

Unit

[]

\60" LCD @ i

Panel @

Module Unit

' 1 2 3 4 5 6 7 8 9 10

LC-52LE920UN/LC-60LE920U N

NO. PARTS CODE RANK MARK DELVERY

PRICE NEW PART

[4] CABINET PARTS (LC-60LE920UN)

CCABAC609WJ31

I-I

Not Available

1-2

HDECQB420WJ3A

1-3

HDECZA050WJSA

1-4

Not Available

1-5

PSPAGA909WJZZ

1-6

PSPAHC201WJZZ

1-7

Not Available

CCABBB696WE32

2-I

Not Available

2-2

HiNDPD923WJSA

2-3

HiNDPD984WJSA

2-4

LX-WZA068WJF7

2-5

PSPAHC152WJ3Z

2-6

PSPAHC159WJZZ

2-7

PSPAHC160WJZZ

2-8

PSPAHC194WJZZ

2-9

PSPAHC309WJZZ

2-I0

PZETKA539WJKZ

CPNLHA022WE02 4 GCOVAD734WJ 5 GCOVAD735WJ 6 LANGFA808WJ

7 LANGKC698WJ 8 LANGKC701WJ

9 LANGKD023WJ

10 LHLDWA133WJ 11 LHLDWA175WJ

12 LHLDWA176WJ 13 LHLDWA289WJ

14 LHLDZA587WJ 15 LX-BZA364WJ

16 NSFTZA362WJ 17 PCLiCA014WJ

18 PMLT-A636WJ 19 PMLT-A648WJ

20 PSPAGA888WJ 21 PSPAGA913WJ

22 PSPAGA934WJ 23 PZETKA538WJ

24 QCNW-K549WJ 25 QCNW-K570WJ 26 QCNW-K578WJ 27 QCNW-K977WJ 28 QCNW-K979WJ 29 QCNW-K980WJQZ 30 RSP-ZA482WJZZ 31 XBBS740P06000

32 XBPS730P06WS0 33 GCOVAD699WJ3A 34 GCOVAD702WJKA 35 GCOVAD864WJ3A

36 HiNDPD924WJSA 37 LANGKC694WJFW

38 LANGKC696WJFW 39 LANGKC697WJFW

40 LANGKD010WJFW 41 LHLDKA01 lWJKZ

42 LHLDWA175WJUZ 43 LX-BZA170WJF9

44 LX-BZA313WJM1 45 LX-BZA366WJZZ

46 PCUSGA142WJKZ 47 PSPAKA474WJKZ

48 PZETKA562WJKZ 49 QCNW-K555WJQZ

50 QCNW-K567WJQZ 51 QCNW-K568WJQZ 52 RSP-ZA456WJZZ

53 TLABZC587WJZZ 54 TLABZC618WJZZ

56 XBPS730P06WS0 57 XBPS830P06WS0

58 XBPS830P14WS0 59 XBPS840P12000

60 XBPS950P12KS0 61 XEBS940P10000

62 CANGKC709WJ01 63 CDAi-A711WJ02

64 QACCDA074WJPZ 65 XWHS830-05080 66 TLABNB037WJZZ 67 Not Available

00 00

FW FW

KZ UZ

UZ KZ

KZ F7

FW KZ

ZZ ZZ

ZZ KZ

KZ KZ

QZ QZ QZ QZ QZ

BQ N X

AB X AZ N X

AC X AA X

BQ X

AF N X AP N X

AB N X AA X

AA X AC J

AA X AB N X

AZ X

AF X AE X

AE N X AB X

AF X AB N X

AC J AC J

AC J AB J

AB J AA X

AD X AB N X

AB J AB N X

AB N X AW X

AF N X AG J AQ X AE J AE X

AE X AX N X

AA J AA J

AC X AR X

AM N X AB N X

AD X AD X

AD X AD N X

AD J AC J

AC J AC N J

AA X AF J

AB N X AC X

AF J AR X

AG X AY J

AB X AB N X

AA J AA J

AB N J AA X

AA X AB J

AY X

BN N X

AG X AA N X AB X

N X

Front Cabinet Ass'y Front Cabinet

R/C Decoration Cover Front Decoration Plate

Coner Tape, x4 Front Cab Spacer

Himelon, x4 Spacer, x6

Rear Cabinet Ass'y Rear Cabinet

Terminal Label (Bottom) Terminal Label (Side)

Washer, x2 Spacer

Himelon Himelon

Himelon, x2 Himelon, x5

Barrier Sheet Glass Front Panel Ass'y

Terminal Cover (Side) Terminal Cover (Bottom) LB Support Angle LCD Fixing Angle B-MA, x2 Stand Angle, x2 LCD Fixing Angle B-M2, x2

Holder Holder, x7 Holder, x4 Holder, x3

PWB Spacer, x6 Screw, x4

Shaft, x4 Clip, x4

Absorber Absorber, x2

Spacer, x4 Spacer, x2 Spacer, x2

Insulator Connecting Cord (LA:POW-DRIVE)

Connecting Cord (SB:MAIN-WOOFER) Connecting Cord (LW:MAIN-LCD_CTL) Connecting Cord (PL:POW-LCD_CTL) Connecting Cord (PD:POW-MAIN) Connecting Cord (LB:MAIN-DRIVE) Speaker (Sub Woofer)

Screw, x12 Screw, x18 AC Cord Cover

Support Cover Stand Cover

Model Label LCD Fixing Angle B-L

LCD Fixing Angle T-L LCD Fixing Angle T-R LCD Fixing Angle B-R

AC Cord Band Holder, x6

Screw, x4 Screw, x2 Screw, x6 Rubber Bush, x2

KEY PWB Spacer AC Barrier

Connecting Cord (RL:MAIN-LOGO) Connecting Cord (RA:MAN-EN/KY/RC) Connecting Cord (SP:MAN-SP(L/R)) Speaker, x2 (L/R)

Quattron Label Dolby Label

Screw, x21 Screw, x19 Screw, x4 Screw, x3 Screw, x4 Screw, x7

Support Ass'y Stand Base Ass'y

AC Cord Washer, x2

Serial Label (Back) Serial Label (Side)

DESCRIPTION

[5] SUPPLIED ACCESSORIES

Remote control unit

(x1)

Wireless LAN USB adapter

(x 1)

X13

"AAA"size battery

(x 2)

Xll Connection guide (x 1)

X12

Cable clamp

(x 1)

LC-52LE920UN/LC-60LE920UN

Stand unit

LC-52LE920UN Only

I X1-1 X1-2 I X2

×3-1 ×3-2 ×3-3

NO. PARTS CODE

[5] SUPPLIED ACCESSORIES

Xl CANGKC708WJ01 X1-1 CANGKC708WJ03 X1-2 GCOVAD701WJKA

X2 CDAi-A710WJ04

CX-BZA363WJ01 AF J

LX-BZA363WJZZ N X

X3-1

LX-BZA370WJZZ N X

X3-2

XBBS840P08000 AB J

X3-3

Ki-OUA001WJZZ BD N X

RRMCGA889WJSA AR N X

TCADEA243WJZZ AB X

Not Avai lable - -

TiNS-E586WJZZ AN N X

TMAN-A030WJZZ AB X

X10

TMAN-A038WJZZ AB N X

Xll

LHLDWA298WJKA AD N J

X12

UBATUA024WJZZ AD J

X13

X9 Operation manual (x 1)

PRICE NEW PART

RANK MARK DELVERY

AX J

N X N X

BK N X

Stand Support Ass'y (LC-52LE920UN) Plate Support Support Cover Stand Base Ass'y (LC-52LE920UN) Stand Screw Ass'y (LC-52LE920UN)

Set Screw, x4 Stand Screw, x4 Screw

Wi-Fi Dongle Remote Control

Enquete Card Caution Label

Guarantee Card Operation Manual

Netflix Handbill Connection Guide

Cable clamp "AAA" size battery

DESCRIPTION

LC-52LE920UN/LC-60LE920U N

[6] PACKING PARTS (NOT REPLACEMENT ITEM) (LC-52LE920UN)

S8 X9 X6 XIO X8 XI 1

S10 X3

$6 XI

I'k Not Replacement item I

_Sll

LC-52LE920UN/LC-60LE920UN

NO. PARTS CODE RANK MARK DELVERY

PRICE NEW PART

[6] PACKING PARTS (NOT REPLACEMENT ITEM) (LC-52LE920UN)

SPAKCF913WJZZ - N - Packing Case

SPAKCF474WJZZ - - Bottom Case

SPAKPA992WJZZ - - Wrapping Paper

SPAKXC910WJZZ - - Packing Add. (Top)

SPAKXC915WJZZ - - Packing Add. (Bottom)

Not Ava i Iab I e - N - Wrapping Paper

Not Ava i Iab I e - - Wrapping Paper

SSAKA0101GJ ZZ - - Polyethylene Bag

SSAKAA032WJZZ - - Polyethylene Bag

$10

SSAKKA008WJZZ - N - Polyethylene Bag

$11

TLABKA009WJZZ - - Case No. Label

DESCRIPTION

LC-52LE920UN/LC-60LE920UN

[7] PACKING PARTS (NOT REPLACEMENT ITEM) (LC-60LE920UN)

x5_t¢[._,

_S8

X6 X8 X9

_rS7

_$1o

_r $7

I _r Not Replacement item I

LC-52LE920UN/LC-60LE920UN

NO. / PARTS CODE I PRICEI NEW I PARTI

[7] PACKING PARTS (NOT REPLACEMENT ITEM) (LC-60LE920UN)

$1 SPAKCF782WJZZ

$2 SPAKCF475WJZZ

$3 SPAKAA625WJZZ

$4 SPAKPB427WJZZ

$5 SPAKPB518WJZZ

$6 SPAKXC911WJZZ

$7 SPAKXC916WJZZ

$8 SSAKA0101GJZZ

$9 SSAKAA032WJZZ

$10 TLABKA009WJZZ

[81 SERVICE JIGS

N QCNW-C222WJQZ N QCNW-H184WJQZ N QCNW-F676WJQZ N QCNW-G405WJQZ N QCNW-G394WJQZ N QCNW-K593WJQZ

(USE FOR SERVICING)

- N - Packing Case

- - Bottom Case

- - Packing Add. (Rear)

- N - Wrapping Paper

- - Wrapping Paper

- - Packing Add. (Top)

- - Packing Add. (Bottom)

- - Polyethylene Bag

- - Case No. Label

Connecting Cord L=1000mm 80pin LCD Control Unit to LCD Panel Unit, x2 Connecting Cord L=1000mm 12pin Main to Power Unit (PD)

Connecting Cord L=1000mm 41pin Main to LCD Control Unit (LW) Connecting Cord L=1000mm 4pin Main to LCD Control Unit (PL)

Connecting Cord L=1000mm 9pin Main to LED Drive Unit (LB) Connecting Cord L=1000mm 13pin Power toLED Drive Unit(LA)

DESCRIPTION

LC-52 LE920 UN/LC-60 L E920 UN

SHARP

No Part of this publication may be reproduced, stored in a retrieval system, or transmitted in any from or by any means, electronic, mechanical,

photocopying, recording, or otherwise, without

prior written permission of the publisher.

Jul. 2010 SH. DS

SHARP CORPORATION AV Systems Group

CS Promotion Center Yaita,Tochigi 329-2193, Japan
