LC-52SB55U

LIQUID CRYSTAL

TELEVISION

OPERATION MANUAL

ENGLISH

IMPORTANT : Please read this operation manual before starting operating the equipment.

Supplied Accessories

Make sure the following accessories are provided with the product.

Remote control unit (g1)

“AA” size battery (g2)

AC cord (g1)

Cable clamp (g1)

Stand unit (g1)

Page 8

Page 9

Page 8

Cable tie (g1)

Page 7

■ Operation manual (g3 languages)

Page 8

•Always use the AC cord supplied with the TV.

•AC cord enclosed in this product is for 110-125V. In using it on the 125-240V AC, please consult the following.

SHARP ELECTRONICS CORPORATION, LATIN AMERICA GROUP 6100 Blue Lagoon Drive, Suite 150, Miami, Florida 33126, U.S.A.

To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are available directly from Sharp in single (00Z-LCD-CLOTH) or triple (00Z-LCD- CLOTH-3) packs. Call 1-800-BE-SHARP for ordering, or VISIT www.sharpusa.com/SharpDirect.

1

IMPORTANT:

To aid reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located at the rear of the TV.

Model No.:

Serial No.:

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors

for connections.

Printed in Mexico

TINS-D774WJZZ

2	08P06-MX-NM

IMPORTANT INFORMATION

DECLARATION OF CONFORMITY:

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-52SB55U

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RESPONSIBLE PARTY:

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163 TEL: 1-800-BE-SHARP

For Business Customers: URL http://www.sharpusa.com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities, the Electronic Industries Alliance: www.eiae.org, the lamp recycling organization: www.lamprecycle.org or

Sharp at 1-800-BE-SHARP (For U.S.A. only)

Trademarks

•Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

•"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

•Products that have earned the ENERGY STARare designed to protect the environment through superior energy efficiency.

3

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Instructions carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product.

1)Read these instructions.

2)Keep these instructions.

3)Heed all warnings.

4)Follow all instructions.

5)Do not use this apparatus near water.

6)Clean only with dry cloth.

7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Additional Safety Information

15)Power Sources—This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16)Overloading—Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17)Object and Liquid Entry—Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18)Damage Requiring Service—Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a)When the AC cord or plug is damaged,

b)If liquid has been spilled, or objects have fallen into the product,

c)If the product has been exposed to rain or water,

d)If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,

e)If the product has been dropped or damaged in any way, and

f)When the product exhibits a distinct change in performance - this indicates a need for service.

19)Replacement Parts—When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20)Safety Check—Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21)Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

4

IMPORTANT SAFETY INSTRUCTIONS

•Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges.

Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

		ANTENNA
		LEAD IN WIRE
	GROUND	ANTENNA
	CLAMP
		DISCHARGE UNIT
		(NEC SECTION 810-20)
ELECTRIC
SERVICE		GROUNDING
EQUIPMENT		CONDUCTORS

(NEC SECTION 810-21) GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

•Turn off the main power and unplug the AC cord from the wall outlet before handling.

•Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

•Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.)

•If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

•To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface.

•To clean the outer cabinet, use the same method. Do not use liquid or aerosol cleaners.

•Water and Moisture — Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

•Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

•Selecting the location — Select a place with no direct sunlight and good ventilation.

•Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insuffi cient ventilation can cause overheating and/or shorten the life of the product. Do not place

the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

•The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

•Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifi ers) that produce heat.

•The Liquid Crystal panel is a very high technology product with 2,073,600 pixels, giving you fi ne picture details. Occasionally, a few non-active pixels may appear on the screen as a fi xed point of blue, green or red. Please note that this does not affect the performance of your product.

•Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

•Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

•To prevent fi re, never place any type of candle or fl ames on the top or near the TV set.

•To prevent fi re or shock hazard, do not place the AC cord under the TV set or other heavy items.

•Do not display a still picture for a long time, as this could cause an afterimage to remain.

•To prevent fi re or shock hazard, do not expose this product to dripping or splashing. No objects fi lled with liquids, such as vases, should be placed on the product.

•Do not insert foreign objects into the product. Inserting objects in the air vents or other openings may result in fi re or electric shock. Exercise special caution when using the product around children.

Precautions when transporting the TV

•When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry the TV by two people holding it with two hands — one hand on each side of the TV.

5

IMPORTANT SAFETY INSTRUCTIONS

CHILD SAFETY:

It Makes A Difference How and Where You Use Your Flat Panel Display

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE

• The home theater entertainment experience is a growing trend and larger fl at panel displays are popular purchases. However, fl at panel displays are not always supported on the proper stands or installed according to the manufacturer’s recommendations.

•Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks, speakers, chests or carts may fall over and cause injury.

THIS MANUFACTURER CARES!

• The consumer electronics industry is committed to making home entertainment enjoyable and safe.

TUNE INTO SAFETY

•One size does NOT fi t all. Follow the manufacturer’s recommendations for the safe installation and use of your fl at panel display.

•Carefully read and understand all enclosed instructions for proper use of this product.

•Don’t allow children to climb on or play with furniture and television sets.

•Don’t place fl at panel displays on furniture that can easily be used as steps, such as a chest of drawers.

•Remember that children can become excited while watching a program, especially on a “larger than life” fl at panel display. Care should be taken to place or install the display where it cannot be pushed, pulled over, or knocked down.

•Care should be taken to route all cords and cables connected to the fl at panel display so that they cannot be pulled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

• Use a mount that has been recommended by the display manufacturer and/or listed by an independent laboratory (such as UL, CSA, ETL).

• Follow all instructions supplied by the display and wall mount manufacturers.

•If you have any doubts about your ability to safely install your fl at panel display, contact your retailer about professional installation.

•Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

•A minimum of two people are required for installation. Flat panel displays can be heavy.

Note: CEA is the preeminent trade association promoting growth in the $161 billion U.S. consumer electronics industry. More than 2,200 companies enjoy the benefi ts of CEA membership, including legislative advocacy, market research, technical training and education, industry promotion and the fostering of business and strategic relationships.

6

QUICK REFERENCE

Attaching/Detaching the Stand

•Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

•Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.

CAUTION

•Attach the stand in the correct direction.

•Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.

•Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

1Confi rm that there are 12 screws (all the same size) and a hex key supplied with the stand unit.

21 Set the post for the stand unit onto the box. 2 Attach the base to the post.

3 Insert and tighten the 8 screws into the 8 holes on the bottom of the base.

Hex key

3

Screws

2

Setting the TV on the Wall

CAUTION

•This TV should be mounted on the wall only with the AN-52AG4 (SHARP) wall mount bracket. The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.

•Installing the TV requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the TV

•You can ask a qualifi ed service professional about using an optional AN-52AG4 bracket to mount the TV to the wall.

•Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-52AG4 wall mount bracket.

(See the bracket instructions for details.)

Vertical mounting

Angular mounting

About setting the TV angle

1

1

31 Insert the stand into the openings on the bottom of the TV.

2 Insert and tighten the 4 screws into the 4 holes on the rear of the TV.

	Hex key
2	Screws	2
	Soft cushion

1

1

•To detach the stand, perform the steps in reverse order.

0/5/10/15/20

°

•The center of the display: 19/64 inch (7.3 mm) under the “ f ” position.

•Refer to the operation manual of AN-52AG4 for details.

•Detach the cable clamp on the rear of the TV when using the optional mount bracket.

•To use this TV mounted on a wall, remove the covers at the 4 locations on the rear of the TV, and then use the screws supplied with the wall mount bracket to secure the bracket to the rear of the TV.

7

QUICK REFERENCE

QUICK INSTALLATION TIPS

1Attach your antenna to the back of the television. (See page 9.)

2Connect the AC plug for the television into the AC outlet.

AC outlet

•Place the TV close to the AC outlet, and keep the power plug within reach.

•TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

3Place the Ferrite core in the space indicated in the below fi gure and bundle the cords properly with the cable clamp and the cable tie.

Ferrite core

Using the Remote Control Unit

Use the remote control unit by pointing it towards the remote control sensor on the TV. Objects between the remote control unit and the remote control sensor may prevent proper operation.

Remote Control sensor

30º

17´ (5 m)

30º 30º

30º

■ Cautions regarding the remote control unit

•Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

•Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit.

•The remote control unit may not work properly if the remote control sensor on the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting

or the TV, or operate the remote control unit closer to the remote control sensor.

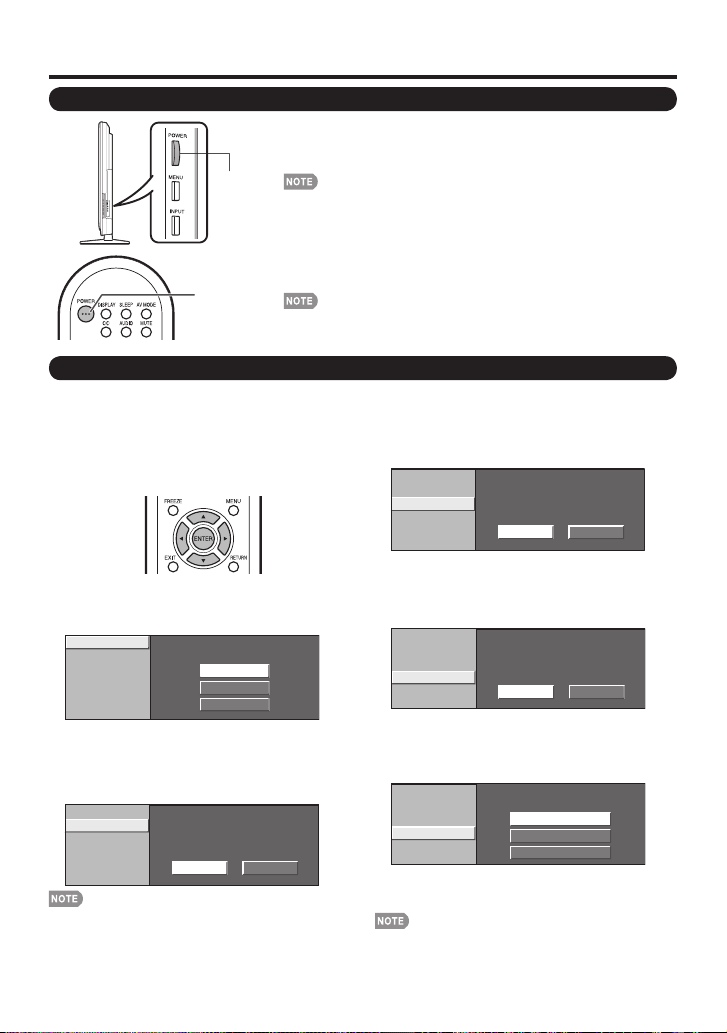

4How to turn on the television for the fi rst time.

A)Press POWER on the television.

POWER

B)The POWER indicator on the front of the television lights GREEN.

IMPORTANT:

The POWER indicator on the television should light GREEN indicating you have power to the television.

If the POWER indicator on the television still does not light up, press POWER on the remote control to turn the power on.

IMPORTANT:

IF THE UNIT DOES NOT POWER ON - UNPLUG THE TELEVISION FROM THE OUTLET AND REPEAT THE INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT US AT 1-800-BE-SHARP.

POWER indicator

•Speakers cannot be detached from the TV.

•TV angle cannot be adjusted.

8

Preparation

Antennas

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the TV set.

1.A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available).

2.A 300-ohm system is a fl at “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available).

F-type connector

75-ohm coaxial cable (round)

300-ohm twin-lead cable (fl at)

NOTICE F-type connector should be finger-tightened only.

When connecting the RF cable to the TV set, do not tighten F-type connector with tools.

If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.)

Connecting Antenna Cable

F-type connector

75-ohm coaxial cable

• Connect the antenna cable to the TV using one of the methods in the illustration as shown (1, 2, 3 or 4).

1Cable without a CATV converter

2VHF/UHF antenna

3Combination VHF/ UHF antenna

4Separate VHF/UHF antenna

			Home Antenna
	Cable TV lead-In		terminal (75-ohm)
			Coaxial cable
			(commercially available)
			Home Antenna
	75-ohm coaxial cable (round)		terminal (75-ohm)
			Coaxial cable
			(commercially available)
	75-ohm coaxial cable (round)
			or
			300/75-ohm adapter
	300-ohm twin-lead cable (flat)		(commercially available)
	UHF	300-ohm
VHF	ANTENNA
		twin-lead cable	IN	OUT
ANTENNA
			Combiner
			(commercially available)

300-ohm twin-lead cable	To TV antenna
or 75-ohm coaxial cable	terminal

Installing Batteries in the Remote Control Unit

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.

1 Open the battery cover.	2 Insert two “AA” size batteries	3 Close the battery cover.
	(supplied with the product).

•Place the batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

•Do not mix batteries of different types. Different types of batteries have different characteristics.

•Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

•Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a rash. If you fi nd any chemical leakage, wipe thoroughly with a cloth.

•The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

•If you will not be using the remote control unit for an extended period of time, remove batteries from it.

9

Part Names

TV (Front)

Remote control sensor

OPC sensor* (See page 18.)

OPC indicator (See page 18.)

SLEEP indicator (See page 13.)

POWER indicator (See page 12.)

* OPC: Optical Picture Control

TV (Rear/Side)

*2

POWER button

MENU button

INPUT button

Channel buttons (CHU/V)

Volume buttons (VOLk/l)

*1

INPUT 5 terminal (HDMI)

INPUT 3 terminals

SERVICE terminal

INPUT 4 terminal (PC-IN)

AUDIO terminal (shared for INPUT 4 and INPUT 6) *4

INPUT 6 terminal (HDMI)

*1 See page 11 for external equipment connection.

*2 See page 17 for button operations.

*3 See page 8 for connecting the AC cord.

*4 See page 24 for details on the PC Audio Select function.

*3

AC INPUT terminal

*1

INPUT 7 terminal (HDMI)

DIGITAL AUDIO

OUTPUT terminal

INPUT 8 terminal (HDMI)

AUDIO OUTPUT terminals

Antenna/Cable in

INPUT 1 terminals

INPUT 2 terminals

RS-232C terminal

• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

10
