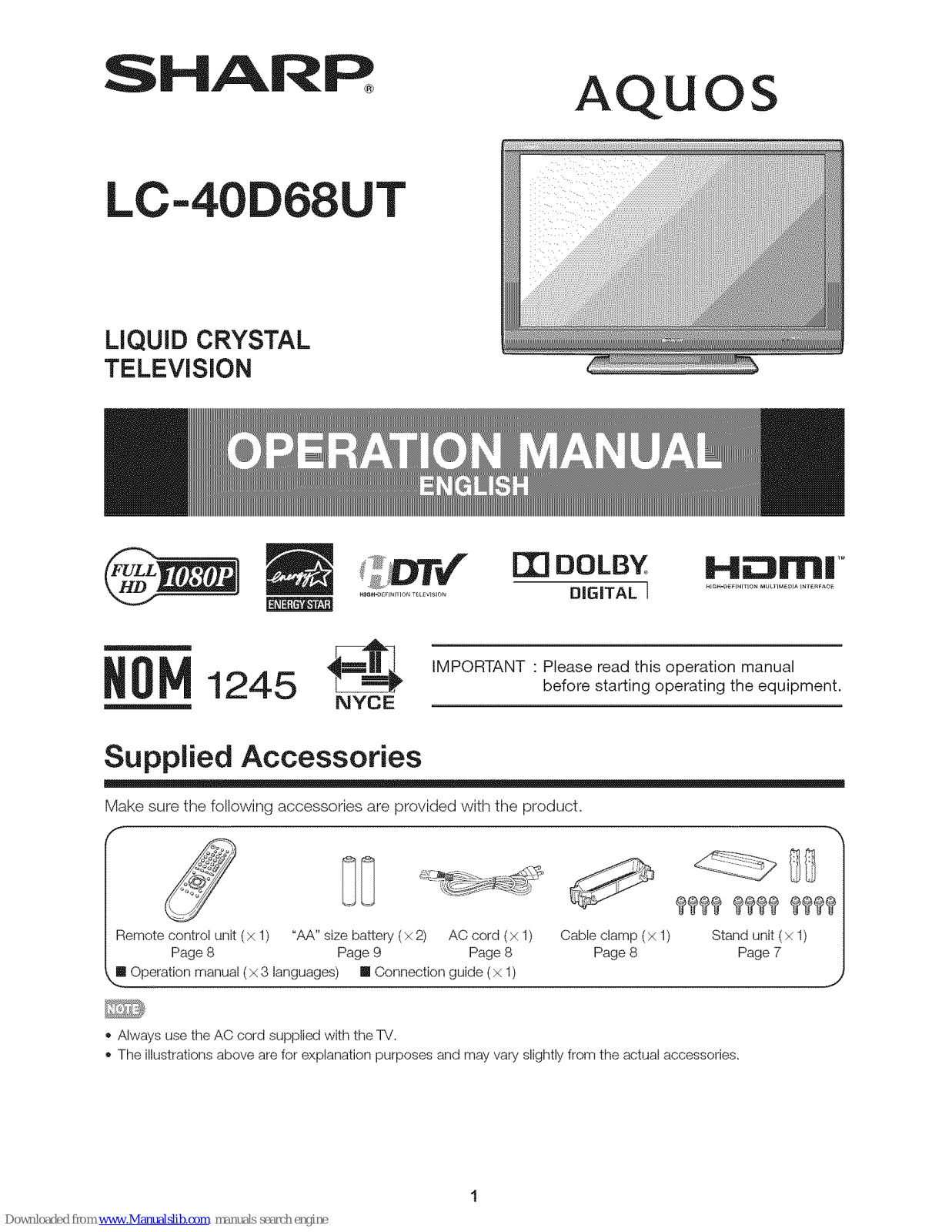

Sharp AQUOS LC-40D68UT, LC40D68UN Operation Manual

SHARR AQUOS

LC-40D68UT

LIQUID CRYSTAL

TELEVISION

r][] OOLBY HE3m| TM

DIGITAL ] ................... ,,.........._......

1245

NYCE

IMPORTANT : Please read this operation manual

before starting operating the equipment.

Supplied Accessories

Make sure the following accessories are provk_ed with the product,

emote control unit (x 1) "AA" size battery ( x 2) AC cord (x 1)

| Page 8 Page 9 Page 8
_,[] Operation manual (x 3 languages) [] Connection guide (x 1)

Always use the AC cord supplied with the TV.

Cable clamp (× 1) Stand unit (x 1) |

Page 8 Page 7 |

J

The illustrations above are for explanation purposes and may vary slightly from the actual accessories.

IMPORTANT:

To aid reporting in case of loss or theft, please record
the TV's model and serial numbers in the space

provided. The numbers are located at the rear of the TM.

Model No.:
Serial No.:

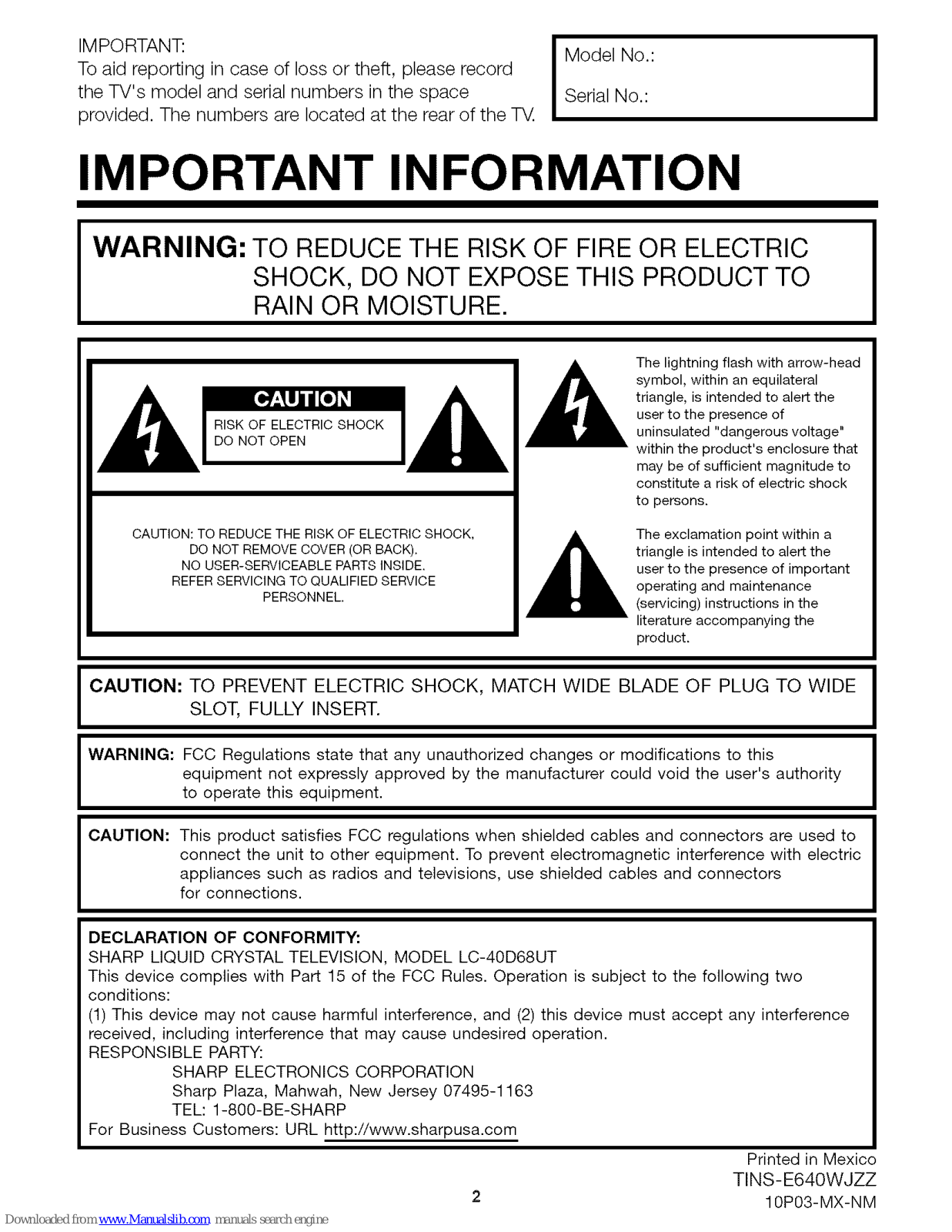

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

[*,,]'__UJi [o]ZI

RISK OF ELECTRIC SHOCK

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrow-head
symbol, within an equilateral
triangle, is intended to alert the

user to the presence of
uninsulated "dangerous voltage"
within the product's enclosure that
may be of sufficient magnitude to

constitute a risk of electric shock
to persons.

The exclamation point within a
triangle is intended to alert the
user to the presence of important
operating and maintenance

(servicing) instructions in the
literature accompanying the
product.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE

SLOT, FULLY INSERT.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this

equipment not expressly approved by the manufacturer could void the user's authority
to operate this equipment.

CAUTION: This product satisfies FCC regulations when shielded cables and connectors are used to

connect the unit to other equipment. To prevent electromagnetic interference with electric
appliances such as radios and televisions, use shielded cables and connectors

for connections.

DECLARATION OF CONFORMITY:
SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-40D68UT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.
RESPONSIBLE PARTY:

SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07495-1163

TEL: 1-800-BE-SHARP

For Business Customers: URL http://www.sharpusa.com

Printed in Mexico

TINS-E640WJZZ

10P03-MX-NM

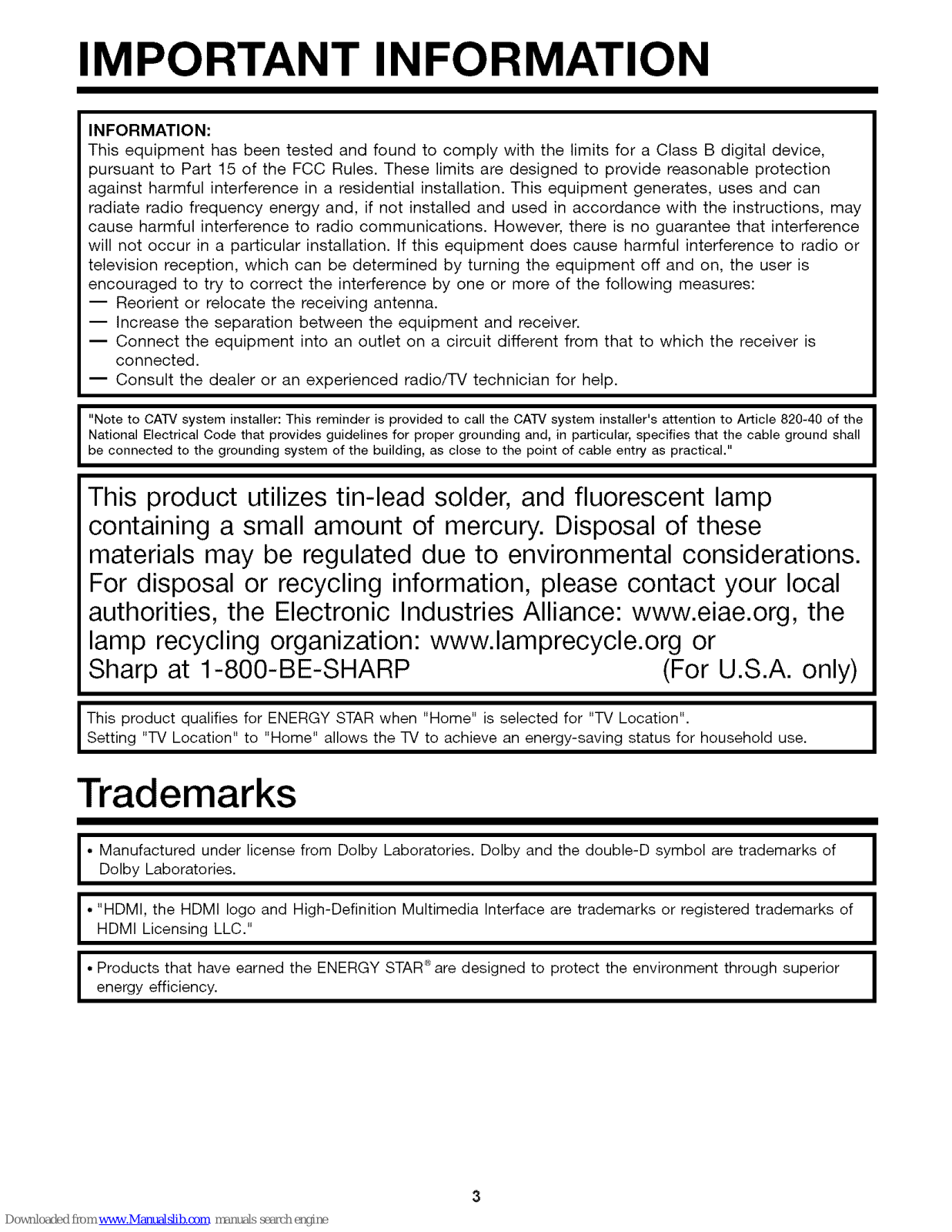

IMPORTANT INFORMATION

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio er
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by ene er more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

-- Consult the dealer or an experienced radio/TV technician for help.

"Note to CATV system installer: This reminder is provided to call the CATV system instalier's attention to Article 820-40 of the
National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall

be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp

containing a small amount of mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities, the Electronic Industries Alliance: www.eiae.org, the
lamp recycling organization: www.lamprecycle.org or
Sharp at 1-800-BE-SHARP (For U.S.A. only)

This product qualifies for ENERGY STAR when "Home" is selected for "TV Location".
Setting "TV Location" to "Home" allows the TV to achieve an energy-saving status for household use.

Trademarks

° Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks ofDolby Laboratories.

I

° "HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of

HDMI Licensing LLC."

I

° Products that have earned the ENERGY STAR®are designed to protect the environment through superior

energy efficiency.

I

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years

of trouble-free operation of your product, p_ease read the important Safety instructions carefully before
using this product,

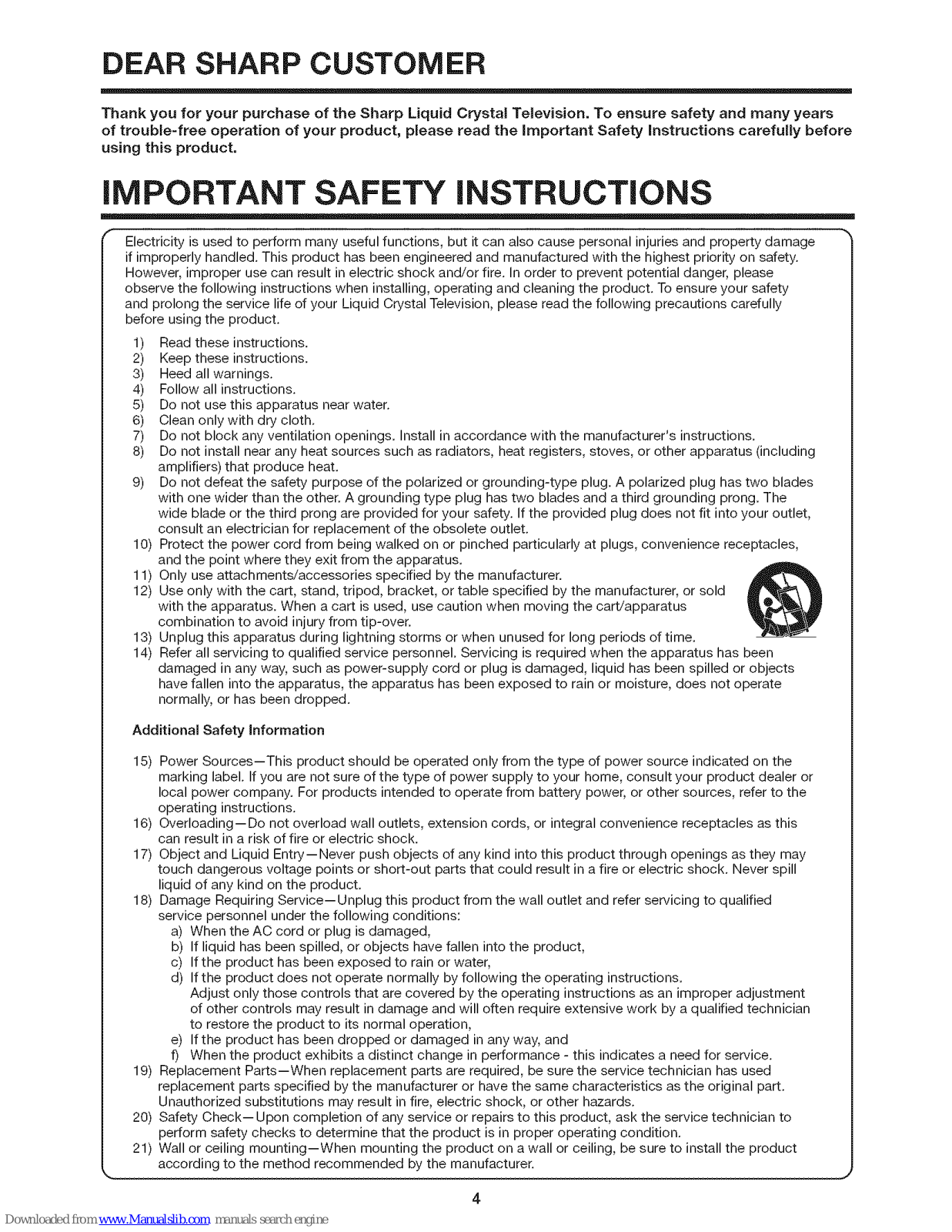

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage
if improperly handled. This product has been engineered and manufactured with the highest priority on safety.

However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please
observe the following instructions when installing, operating and cleaning the product. To ensure your safety

and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully
before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The

wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.

Additional Safety Information

15) Power Sources--This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult your product dealer or

local power company. For products intended to operate from battery power, or other sources, refer to the
operating instructions.

16) Overloading--Do not overload wall outlets, extension cords, or integral convenience receptacles as this
can result in a risk of fire or electric shock.

17) Object and Liquid Entry--Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill

liquid of any kind on the product.

18) Damage Requiring Service--Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:

a) When the AC cord or plug is damaged,

b) If liquid has been spilled, or objects have fallen into the product,

c) If the product has been exposed to rain or water,
d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment
of other controls may result in damage and will often require extensive work by a qualified technician

to restore the product to its normal operation,
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this indicates a need for service.

19) Replacement Parts--When replacement parts are required, be sure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.

Unauthorized substitutions may result infire, electric shock, or other hazards.

20) Safety Check-- Upon completion of any service or repairs to this product, ask the service technician to
perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting--When mounting the product on a wall or ceiling, be sure to install the product
according to the method recommended by the manufacturer.

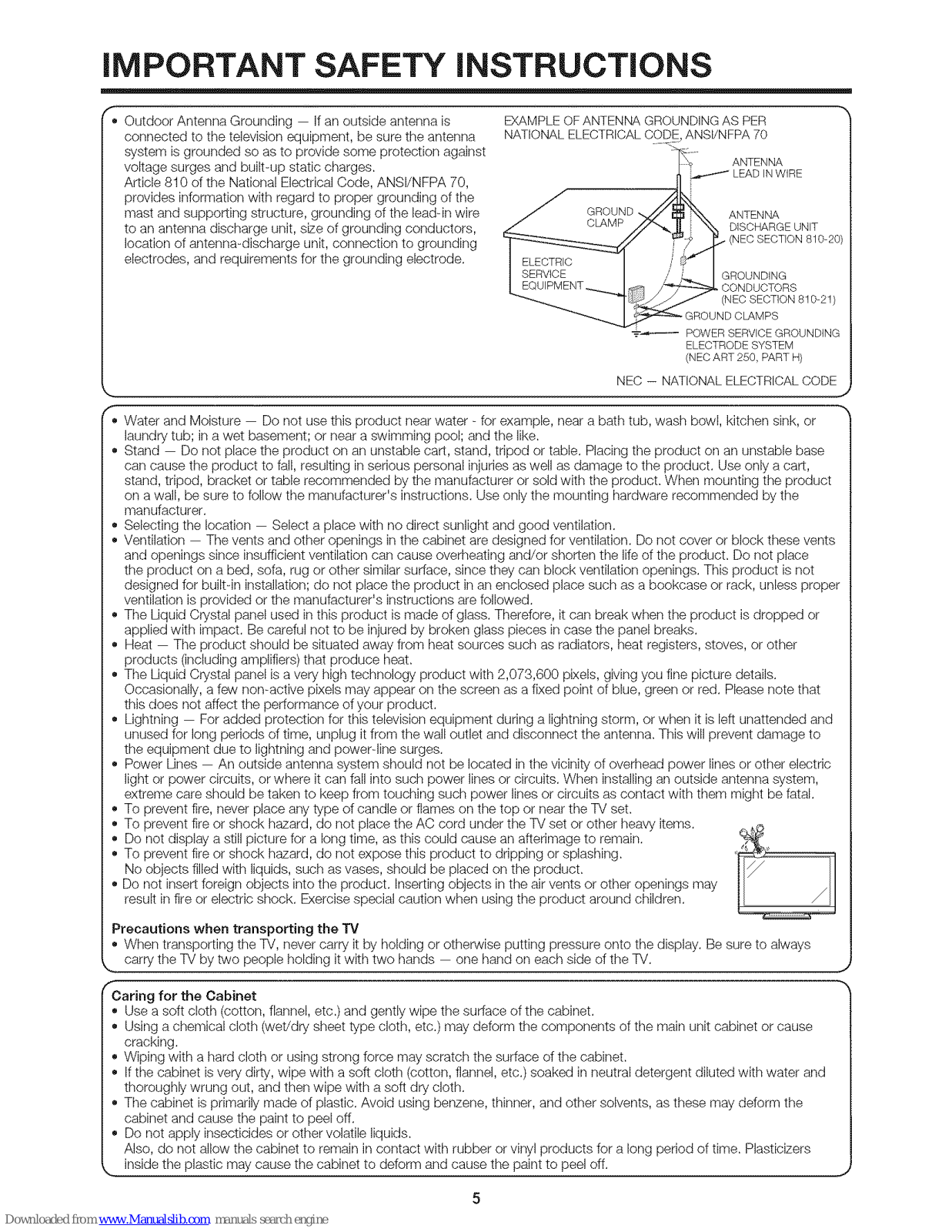

iMPORTANT SAFETY iNSTRUCTiONS

t_o Outdoor Antenna Grounding If an outside antenna is

connected to the television equipment, be sure the antenna
system is grounded so as to provide some protection against

voltage surges and built-up static charges.
Article 810 of the National Electrical Code, ANSVNFPA 70,

provides information with regard to proper grounding of the
mast and supporting structure, grounding of the leaddn wire

to an antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to grounding

electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER
NATIONAL ELECTRICAL CODE ANSVNFPA 70

_ ANTENNA

ELECTRODE SYSTEM
(NEC ART 250, PART Hi

NEC -- NATIONAL ELECTRICAL CODE

• .J

fro Water and Moisture Do not use this product near water - for example, near a bath tub, wash bowl, kitchen sink, or

laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base
can cause the product to fall, resulting in serious personal injuries as weft as damage to the product. Use only a cart,
stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product
on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the
manufacturer.

• Selecting the location Select a place with no direct sunlight and good ventilation.

• Ventilation The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents
and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place

the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not
designed for builtdn installation; do not place the product inan enclosed place such as a bookcase or rack, unless proper
ventilation is provided or the manufacturer's instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or
applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat The product should be situated away from heat sources such as radiators, heat registers, stoves, or other
products (including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 2,073,600 pixels, giving you fine picture details.
Occasionally, a few non-ective pixels may appear on the screen as a fixed point of blue, green or red. Please note that

this does not affect the performance of your product.

• Lightning For added protection for this television equipment during a lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to

the equipment due to lightning and powerdine surges.

• Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system,
extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• To prevent fire or shock hazard, do not expose this product to dripping or splashing.
No objects filled with liquids, such as vases, should be placed on the product.

• Do not insert foreign objects into the product. Inserting objects in the air vents or other openings may
result in fire or electric shock, Exercise special caution when using the product around children,

Precautions when transporting the TV

• When transporting the TV, never carry it by holding or otherwise putting pressure onto the display, Be sure to always
carry the TV by two people holding it with two hands one hand on each side of the TV.

f_Oaring for the Cabinet

• Use a soft cloth (cotton, flannel, etc.) and gently wipe the surface of the cabinet,

• Using a chemical cloth (wet!dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause
cracking.

• Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.

• If the cabinet is very dirty, wipe with a soft cloth (cotton, flannel, etc.) soaked in neutral detergent diluted with water and
thorough_/wrung out, and then wipe with a soft dry cloth.

• The cabinet is primarily made of plastic. Avoid using benzene, thinner, and other solvents, as these may deform the
cabinet and cause the paint to peel off.

• Do not apply insecticides or other volatile liquids.
Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers

inside the plastic may cause the cabinet to deform and cause the paint to peel off.

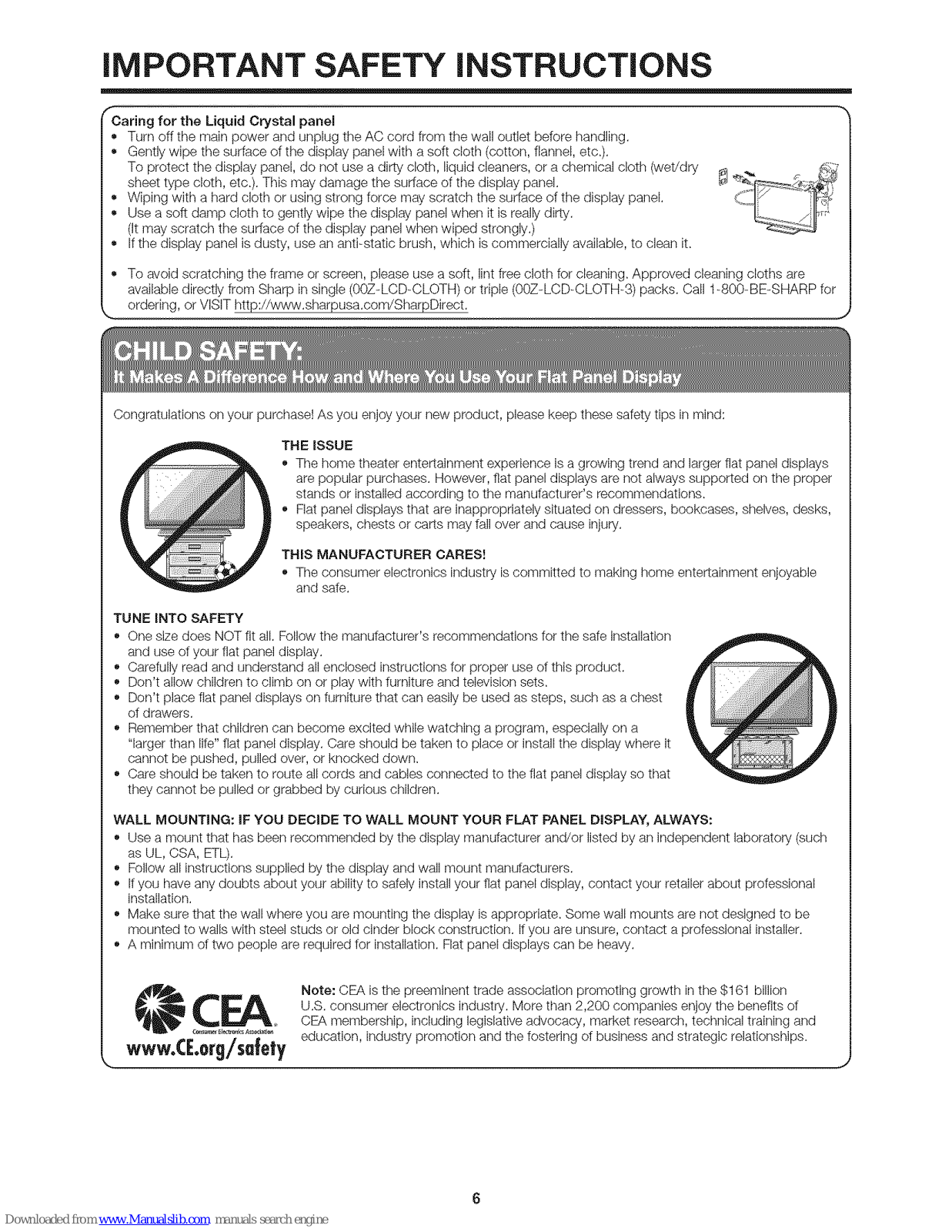

iMPORTANT SAFETY iNSTRUCTiONS

f -

Caring for the Liquid Crystal panel
, Turn off the main power and unplug the AC cord from the wall outlet before handling.

, Gently wipe the surface of the display panel with a soft cloth (cotton, flannel, etc.).

To protect the display panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet!dry

sheet type cloth, etc.). This may damage the surface of the display panel.
, Wiping with a hard cloth or using strong force may scratch the surface of the disphy panel
, Use a soft damp cloth to gently wipe the display panel when it is really dirty.

(It may scratch the surface of the display panel when wiped strongly.)
, Ifthe display panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To avoid scratching the frame or screen, please use a soft, lint free cloth for cleaning. Approved cleaning cloths are

available directly from Sharp insingle (00Z-LCD-CLOTH) or triple (00Z-LCD-CLOTH-3) packs. Call f-800 BE-SHARP for

Congratulations on your purchase! As you enjoy your new product, please keep these safety tips in mind:

THE ISSUE
o The home theater entertainment experience is a growing trend and larger flat panel displays

are popular purchases. However, flat panel displays are not always supported on the proper
stands or installed according to the manutacturer's recommendations.

o Flat panel displays that are inappropriately situated on dressers, bookcases, shelves, desks,

speakers, chests or carts may tall over and cause injury.

THIS MANUFACTURER CARES!

o The consumer electronics industry is committed to making home entertainment enjoyable

and safe.

TUNE INTO SAFETY

o One size does NOT fit all. Follow the manutacturer's recommendations for the safe installation

and use of your flat panel display.

o Carefully read and understand all enclosed instructions for proper use ot this product.
o Don't allow children to climb on or play with furniture and television sets.

o Don't place flat panel displays on furniture that can easily be used as steps, such as a chest

of drawers.

o Remember that children can become excited while watching a program, especially on a

"larger than lite" flat panel display. Care should be taken to place or install the display where it

cannot be pushed, palled over, or knocked down.

o Care should be taken to route all cords and cables connected to the flat panel display so that

they cannot be palled or grabbed by curious children.

WALL MOUNTING: IF YOU DECIDE TO WALL MOUNT YOUR FLAT PANEL DISPLAY, ALWAYS:

e Use a mount that has been recommended by the display manufacturer and!or listed by an independent laboratory (such

as UL, CSA, ETL).

o Follow all instructions supplied by the display and wall mount manlJtacturers.
o Ifyou have any doubts about your ability to safely install your flat panel display, contact your retailer about professional

installation.

o Make sure that the wall where you are mounting the display is appropriate. Some wall mounts are not designed to be

mounted to walls with steel studs or old cinder block construction. If you are unsure, contact a professional installer.

o A minimum of two people are required tot installation. Flat panel displays can be heavy.

Note: CEA is the preeminent trade association promoting growth in the $161 billion
U.S. consumer electronics industry. More than 2,200 companies enjoy the benefits ot

CEA membership, inclading legislative advocacy, market research, technical training and
education, industry promotion and the fostering ot business and strategic relationships.

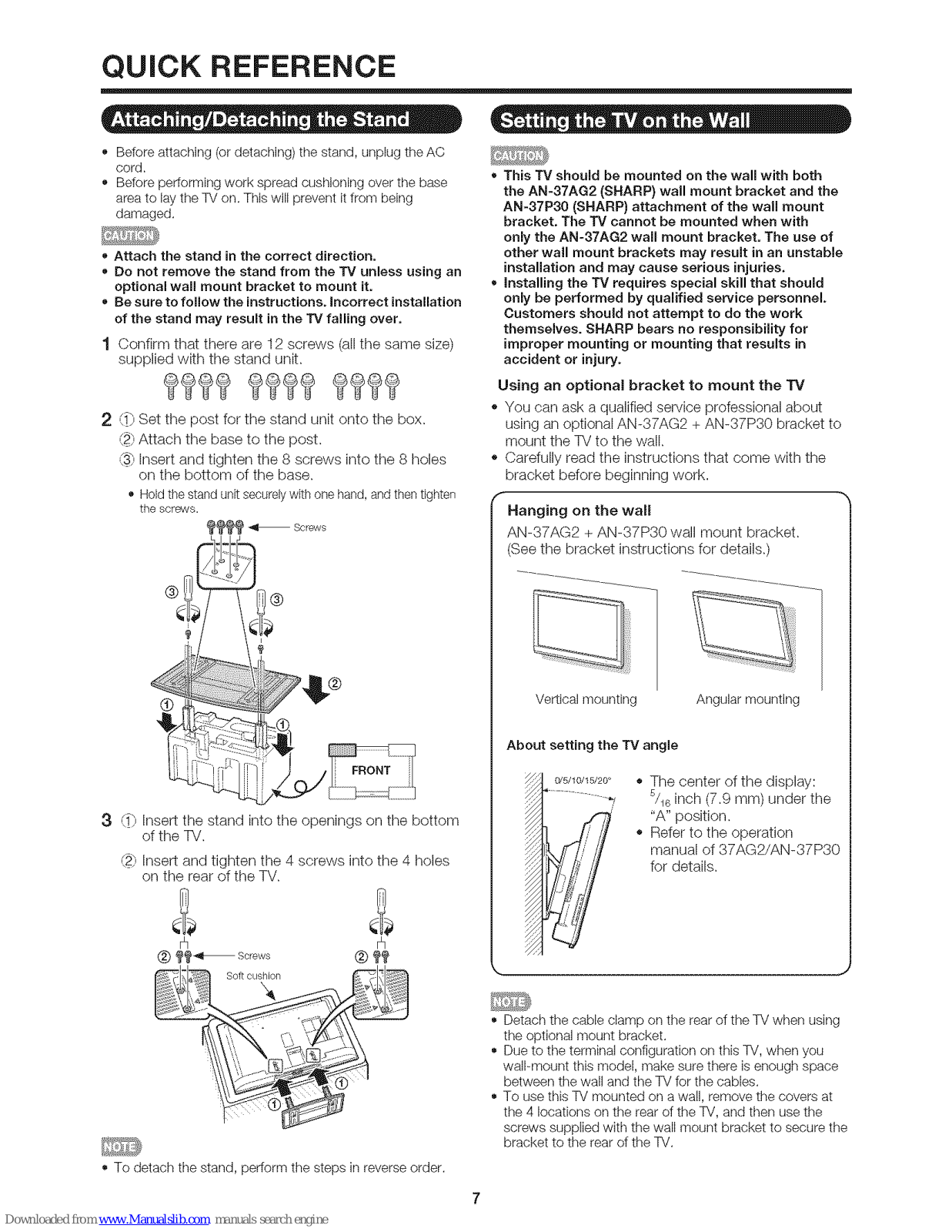

QUICK REFERENCE

o Before attaching (or detaching) the stand, unplug the AC

cord.

o Before performing work spread cushioning over the base

area to lay the TV on. This will prevent it from being
damaged.

o Attach the stand Jnthe correct direction.
o Do not remove the stand from the iV unless using an

optional wall mount bracket to mount it.

o Be sure to follow the instructions. Incorrect installation

of the stand may result in the "IV falling over.

1 Confirm that there are 12 screws (all the same size)

supplied with the stand unit.

????

2 (1) Set tile post for the stand unit onto tile box.

_,_,Attach the base to the post.
,_3_,Insert and tighten the 8 screws into the 8 holes

on the bottom of the base.

o Hold thestand unit securelywithone hand and then tighten

thescrews.

d

®

3 (_) Insert the stand into the openings on the bottom

of the TV.

(_" Insert and tighten the 4 screws into the 4 holes

on the rear of the TV.

To detach the stand, perform the steps in reverse order.

" • |" o| l" J -

• This TV shouJd be mounted on the wall with both
the AN-g7AG2 (SHARP) wall mount bracket and the
AN-g7PgO (SHARP) attachment of the wall mount

bracket. The "IV cannot be mounted when with
only the AN-gTAG2 wall mount bracket. The use of
other wall mount brackets may resuJt in an unetaMe

installation and may cause serious injuries.

• Installing the TV requires special skill that should

only be performed by qualified service personnel.
Customers should not attempt to do the work

themselves. SHARP bears no responsibility for

improper mounting or mounting that results in
accident or injury.

Using an optional bracket to mount the iV

You can ask a qualified service professional about
using an optional AN-37AG2 + AN-37P30 bracket to

mount the TV to the wall.
Carefully read the instructions that come with the

bracket before beginning work.

f %

Hanging on the wall
AN-37AG2 + AN-37P30 wall mount bracket.
(See the bracket instructions for details.)

Vertical mounting Angular mounting

About setting the TV angle

* The center of the display:

s/_6inch (7.9 ram) under the
"A" position.

* Refer to the operation

manual of 37AG2/AN-37P30
for details.

• Detach the cable clamp on the rear of the TV when using
the optional mount bracket.

• Due to the terminal configuration on this TV, when you
walhr_ount this model, make sure there is enough space

between the wall and the TV for the cables.

• To use this TV mounted on a wall, remove the covers at
the 4 locations on the rear of the TV, and then use the
screws supplied with the wall mount bracket to secure the

bracket to the rear of the TV.

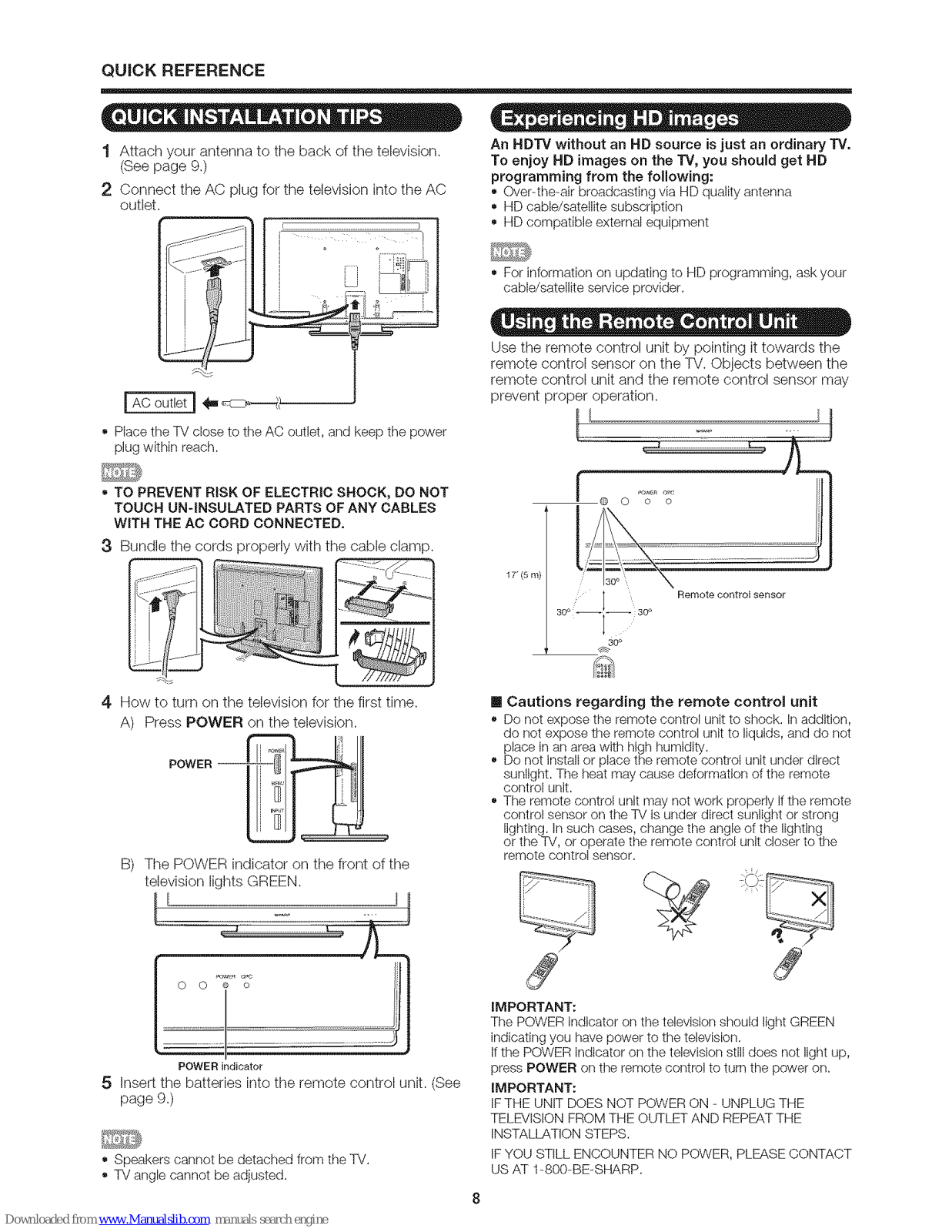

QUICK REFERENCE

• = • =

1 Attach your antenna to the back of the television.

(See page 9.)

2 Connect the AC plug for the television into the AC

outlet.

An HDTV without an HD source is just an ordinary "iV.
To enjoy HD images on the TV, yau should get HD

programming from the following:

• Over_the_air broadcasting via HD quality antenna

• HD cable/satellite subscription

• HD compatible external equipment

• For information on updating to HD programming, ask your
cable/satellite service provider.

• I" _ "l|o " ol • J

Use the remote control unit by pointing it towards the
remote control sensor on the TV. Objects between the

remote control unit and the remote control sensor may
prevent proper operation.

• Place the TV close to the AC outlet, and keep the power
plug within reach.

• TO PREVENT RiSK OF ELECTRIC SHOCK, DO NOT
TOUCH UN-INSULATED PARTS OF ANY CABLES

WITH THE AC CORD CONNECTED.

3 Bundle the cords properly with the cable clamp.

soo_ 3o ° Remote control sensor

Wo°

4 How to turn on the television for the first time.

A) Press POWER on the television.

powER................._----

B) The POWER indicator on the front of the

television lights GREEN.

I

0 0 o I

POWERindicator

5 Insert the batteries into the remote control unit. (See

page 9.)

• Speakers cannot be detached from the -[V.

TV angle cannot be adjusted.

[] Cautions regarding the remote control unit
e Do not expose the remote control unit to shock. Inaddition,

do not expose the remote control unit to liquids, and do not

place in an area with high humidity.

o Do not install or place the remote control unit under direct

sunlight. The heat may cause deformation of the remote
control unit.

o The remote control unit may not work properly if the remote

control sensor on the TV is under direct sunlight or strong

lighting, in such cases, change the angle of the lighting

or the TV, or operate the remote control unit closer to the

remote control sensor.

IMPORTANT=
The POWER indicator on the television should light GREEN

indicating you have power to the television.
If the POWER indicator on the television still does not light up,

press POWER on the remote control to turn the power on.
IMPORTANT:
IF THE UNIT DOES NOT POWER ON UNPLUG THE

TELEVISION FROM THE OUTLET AND REPEAT THE
INSTALLATION STEPS.

IF YOU STILL ENCOUNTER NO POWER, PLEASE CONTACT
US AT 1 800 BE-SHARP.

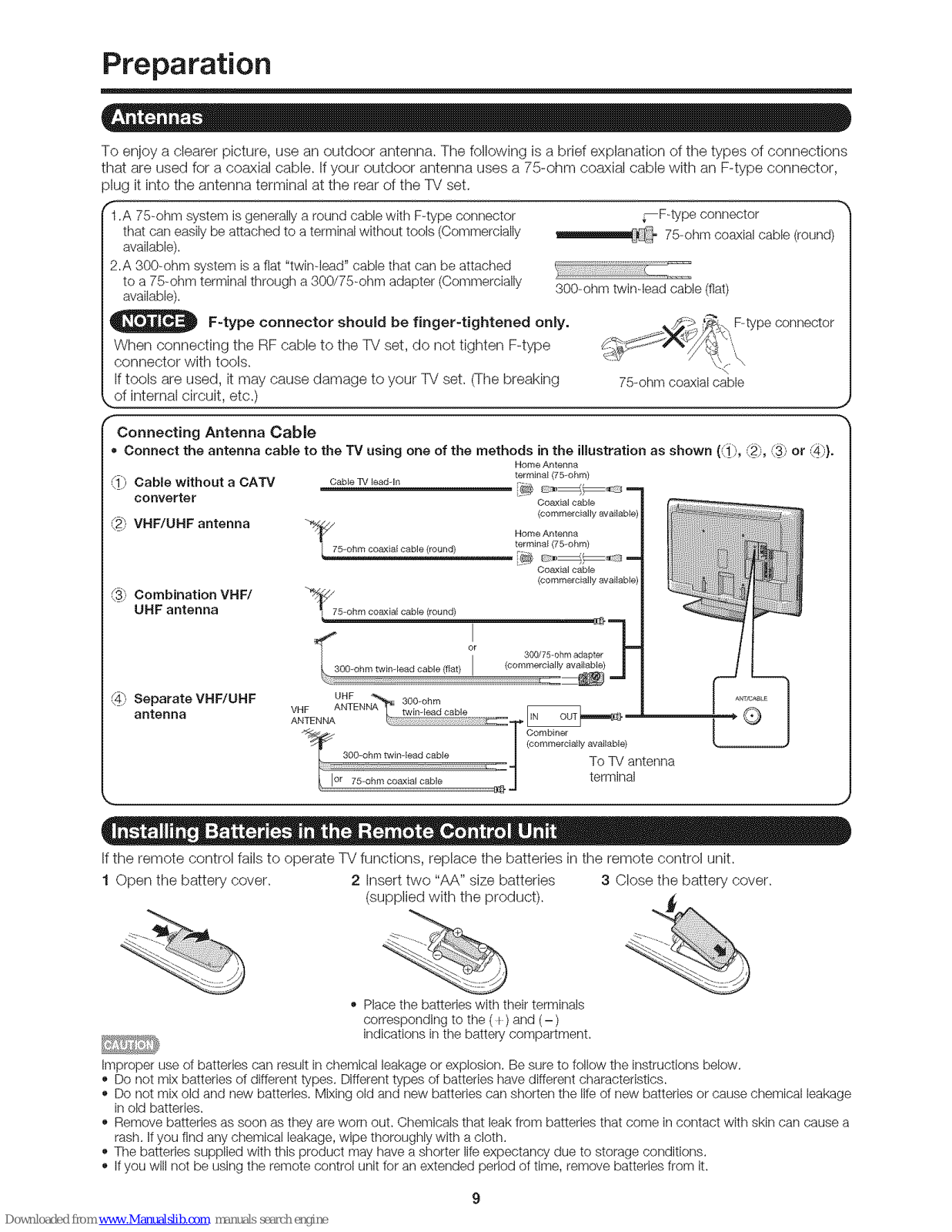

Preparation

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of tile types of connections
that are used for a coaxial cable. If your outdoor antenna uses a 75-ohrn coaxial cable with an F-type connector,

plug it into the antenna terminal at the rear of the TV set.

"-1.A 75_ohm system is generally a round cable with F4ype connector _F4ype connector "_

that can easily be attached to a terminal without tools (Commercially _ 75 ohm coaxial cable (round)
avaNable).

2.A 300-ohm system is a flat "twindead" cable that can be attached
to a 75-ohm terminal through a 300/75-ohm adapter (Commercially
available). 300 ohm twindead cable (fiat)

F-type connector should be finger-tightened only.

When connecting the RF cable to the TV set, do not tighten F-type

connector with tools.
If tools are used, it may cause damage to your TV set. (The breaking 75-ohm coaxial cable

of internal circuit, etc.)

Connecting Antenna Cable

• Connect the antenna came to the "IV using one of the methods in the illustration as shown (<1), ,2), 3, or ,,'4;).

Home Antenna
ter mina_ (75-ohm)

_1) Cable without a CATV Cable W leaddn ;;2 [-m_ m

converter ....

_,2_ VHF/UHF antenna

,,3, Combination VHF/

UHF antenna

_,4) Separate VHF/UHF

antenna

If the remote control fails to operate TV functions, replace the batteries in the remote control unit.
I Open the battery cover. 2 Insert two "AA" size batteries 3 Close the battery cover.

(supplied with the product).

o Place the batteries with their terminals

corresponding to the ( I ) and (-)

_*_J_[_F,_ indications in the battery compartment.
Improper use of batteries can resuR in chemical leakage or explosion. Be sure to follow the instructions below.

o Do not mix batteries of different types. Different types of batteries have different characteristics.
o Do not mix old and new batteries. Mixing old and new batteries can shorten the lite ot new batteries or cause chemical leakage

in old batteries.

o Remove batteries as soon as they are worn out. Chemicals that leak from batteries that come in contact with skin can cause a

rash. If you find any chemical leakage, wipe thoroughly with a cloth.
o The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
o if you will not be using the remote control unit tot an extended period of time, remove batteries from it.

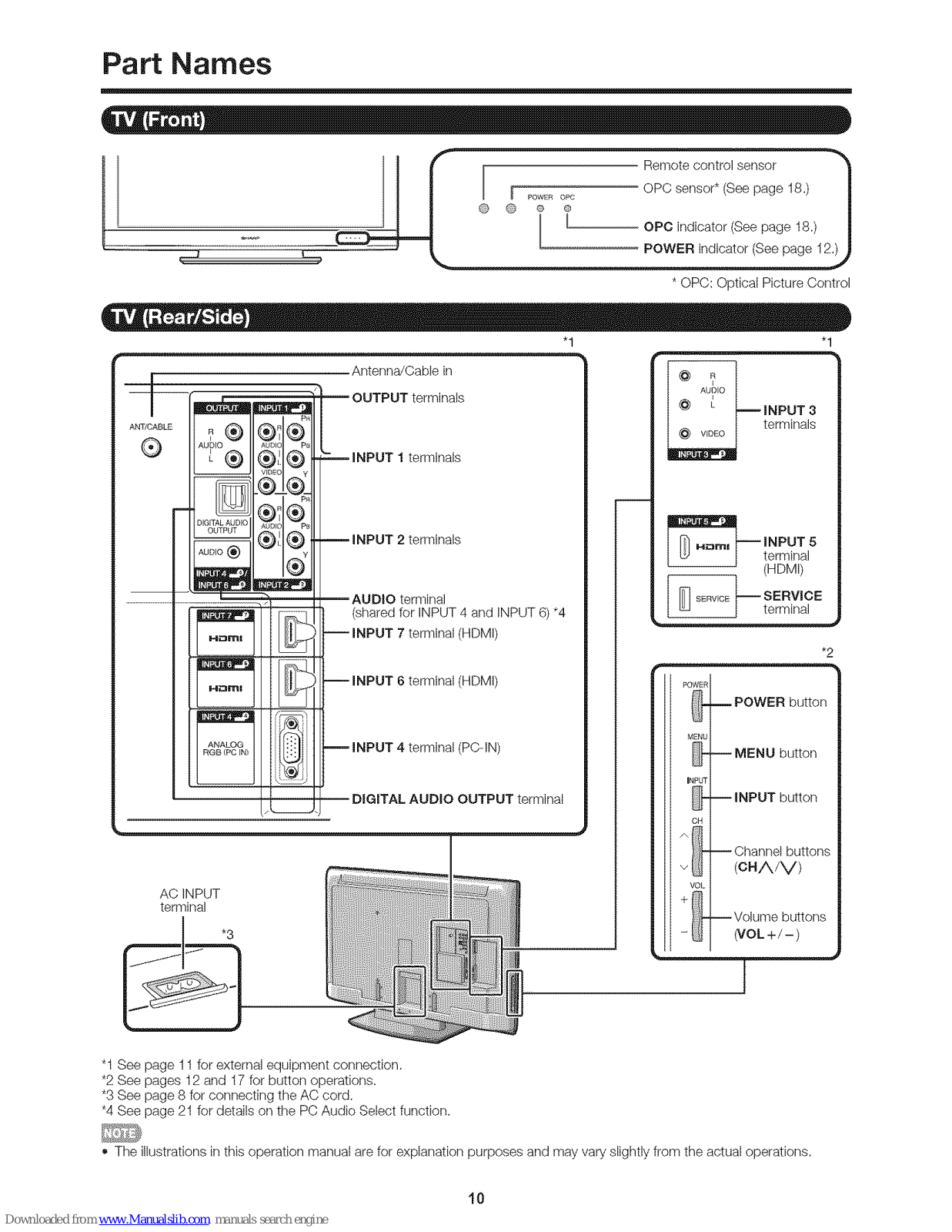

Part Names

Remote control sensor _}_

[ [ ....... oPc ....... *(Seepage 18,) /

O O o ®

l [-- OPO indicator (See page 18,) |

POWER indicator (See page 12,)_

* QPO: Optical Picture Control

T [ml

Antenna/Cabb in

_3Ftr:ll_ I OUTPUT termina,s

iqL

Zl® p--,NPUT,term'na'e

9,'1®it+_"PUT 2terminals

1r ]l" and INPUT 6)'4

I- INPUT 7 ten'ninal (HDMI)

J INPUT 6 terminal (HDMI)

DIGITAL AUDIO OUTPUT terminal

"1

INPUT 3

terminals

INPUT 5
terminal

(HDMI)

_ ERVICE

terminal

*2

_ POWER button

MENUI

[]_- MENU button

_,NPUT button

AC INPUT

terminal

_ l/_-'_ i Channel buttons

/l I (CHA/V)

-_II (VOL +/-)

'1 See page 11 for external equipment connection.
*2 See pages 12 and 17 for button operations.
'3 See page 8 for connecting the AC cord.

*4 See page 21 for details on the PC Audio Select function.

o The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.

10

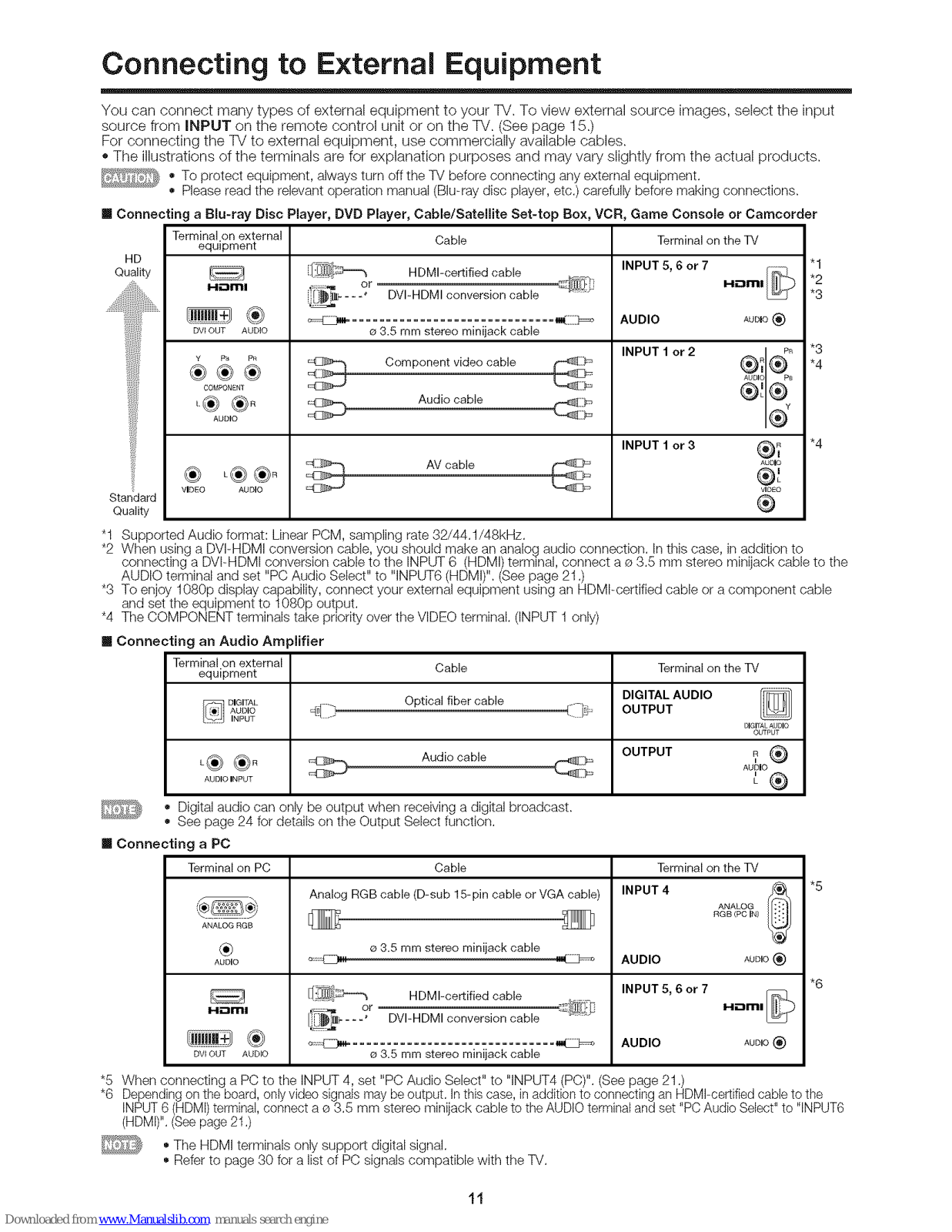

Connecting to External Equipment

You can connect many types of external equipment to your TV. To view external source images, select the input
source from INPUT on the remote control unit or on the TV. (See page 1 5.)

For connecting the TV to external equipment, use commercially available cables.

The illustrations of the terminals are for explanation purposes and may vary slightly from the actual products.

¢_ • To protect equipment, always turn off the TV before connecting any external equipment.

• Please read the relevant operation manual (Bu-ray disc player, etc.) carefully before making connections.

[] Connecting a Blu-ray Disc Player, DVD Player, Cable/Satellite Set-top Box, VOR, Game Console or Cameorder

Terminalon external

equipment

HD

_®

DW OUT AUDIO

COt]PONENr

_® ®_

AUDIO

® L®®_

vpEo ,_uDio

Standard

Quality

Cable Terminal on the TV

/:_!:_ HDMI-certified cable

_ or

][]_ .... DVI-HDMI ......... i..... bJe

o_ .............................. w,(Z:b=

e) 3.5 mm stere<) minijack cable

Component video cable

AV cable

INPUT 5, 6 or 7

AUDIO

INPUT 1 or 2

INPUT 1 or 3

AUDIO ®

PB

®_®

d

®;

Audio

®

"1
*2

*3

*f Supported Audio format: Linear PCM, sampling rate 32/44.1/48kHz.
*2 When using a DVI-HDMI conversion cable, you should make an analog audio connection. In this case, in addition to

connecting a DVI-HDMI conversion cable to the INPUT 6 (HDMI) terminal, connect a _ 3.5 mm stereo minijack cable to the

AUDIO terminal and set "PC Audio Select" to "INPUT6 (HDMI)". (See page 21 .)

*3 To enjoy 1080p display capability, connect your external equipment using an HDMI-certified cable or a component cable

and set the equipment to f 080p output.

*4 The COMPONENT terminals take priority over the VIDEO terminal (INPUT 1 only)
[] Connecting an Audio Amplifier

Terminal on external Cable Terminal on theTV

equipment

DIGITAL AUDIO

diJ_ Optical fiber cable OUTPUT

_GII_ AU_IO

OUTPUT

_® ®n _ Audiocable ,--_T;_ OUTPUT AUD,OIn®

Digital audio can only be output when receiving a digital broadcast,
See page 24 for details on the Output Select function.

[] Connecting a PC

Terminal on PC

ANALOGRGB

®

AUOlO

H_ml

DV_ OUT AUDIO

Cable Terminal on the TV

INPUT 4

Anak)g RGB cable (D-sub 15-pin cable or VGA cable)

e 3.5 mm stereo minijack cable

o_,CCIIII lUiZLLr_

[!; _'_-_ HDMk;ertified cable
{L_ - - -' DVI-HDMI conversion ()able

_dZ_ .............................. _42LLr_

e)3.5 mm stereo minijack cable

AUDIO

INPUT 5, 6 or 7

AUDIO

ANALOG /_ *5

RGB (PC IN)

AUDIO _)

*6

H_Ilrll @

AUDIO _)

*5 When connecting a PC to the INPUT 4, set "PC Audio Select" to "INPUT4 (PC)". (See page 21 .)
*6 Depending on the board, only video signals may be output. In this case, in addition to connecting an HDMI certified cable to the

INPUT6 (HDMI)terminal, connect a e 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select" to "INPUT6
(HDMI)". (Seepage 21.)

*_,

The HDMI terminals only support digital signal.

Refer to page 30 for a list of PC signals compatible with the TV.

11

Watching TV

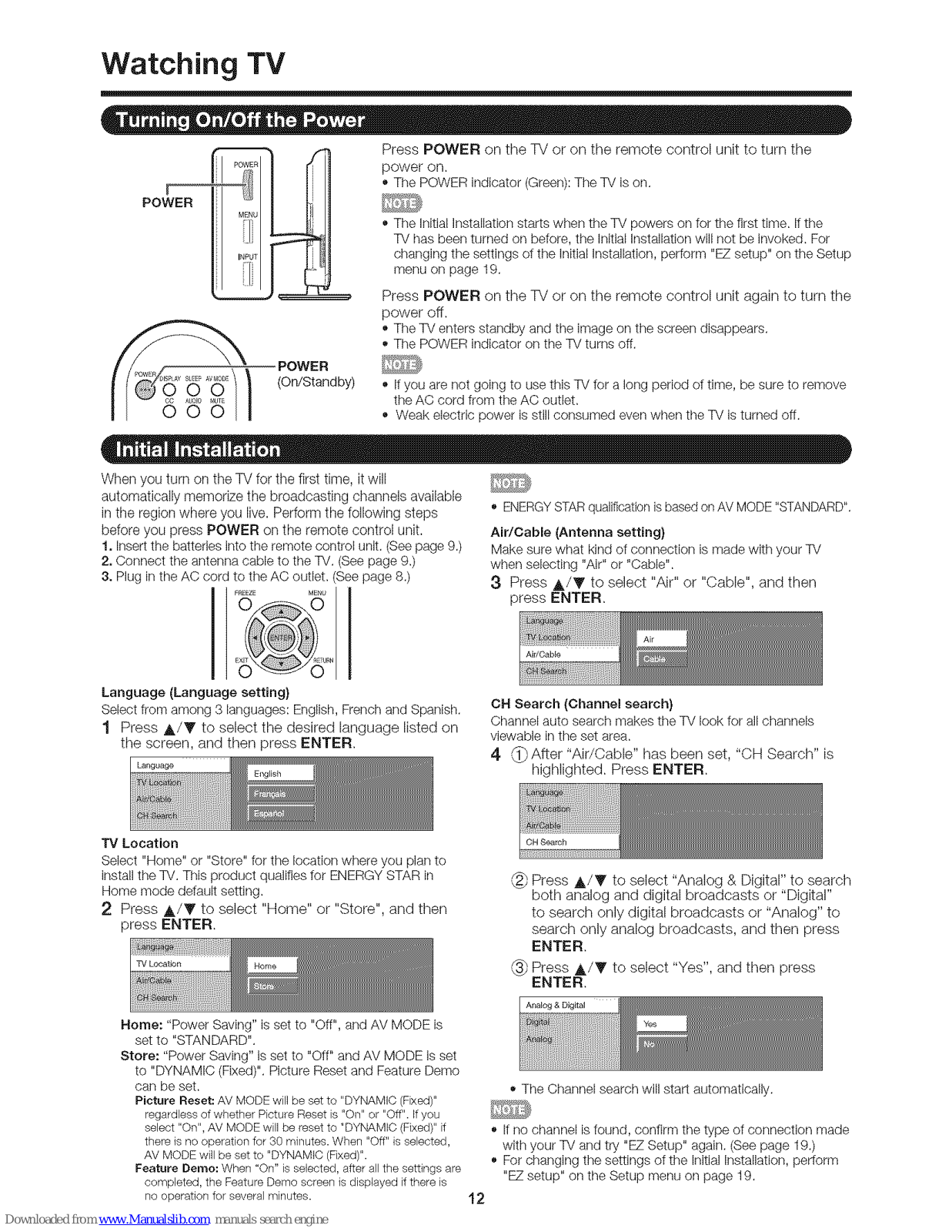

Press POWER on the TV or on the remote control unit to turn the
power on.

o The POWER indicator (Green): The TV is on.

o The Initial Installation starts when the TV powers on for the first time. If the

TV has been turned on before, the Initial Installation will not be invoked. For

changing the settings of the initial installation, perform "EZ setup" on the Setup
menu on page 19.

Press POWER on the TV or on the remote control unit again to turn the
power off.

o The TV enters standby and the image on the screen disappears.

• The POWER indicator on the TV turns of/.

POWER

(On/Standby) o If you are not going to use this TV for a long period of time, be sure to remove

t _ -- 60 6 I theAC cord from the AC outlet.

o Weak electric power is still consumed even when the TV is turned of/.

When you turn on the TV for the first time, it will
automatically memorize the broadcasting channels available

in the region where you live. Perform the following steps
before you press POWER on the remote control unit.

1. Insert the batteries into the remote control unit. (See page 9.}

2. Connect the antenna cable to the TV. (See page 9.)
3, Plug in the AC cord to the AC outlet. (See page 8.)

_6E M6_

Language (Language setting)
Select from among 3 languages: English, French and Spanish.

1 Press A/_' to select the desired language listed on

the screen, and then press ENTER.

o ENERGY STARqualificationis based on AV MODE "STANDARD".
Air/Cable (Antenna setting}

Make sure what kind of connection is made with your TV
when selecting "Air" or "Cable".

3 Press A/Y to select "Air" or "(}able", and then

press ENTER.

CH Search (Channel search)
Channel auto search makes the TV look for all channels
viewable in the set area.

4 S_0After "Air/Cable" has been set, "CH Search" is

highlighted. Press ENTER.

TV Location
Select "Home" or "Store" for the location where you plan to

install the TV. This product qualifbs tot ENERGY STAR in
Home mode dstault setting.
2 Press ,I_/Y to select "Home" or "Store", and then

press ENTER.

Press A/_" to select "Analog & Digital" to search
both analog and digital broadcasts or "Digital"
to search only digital broadcasts or "Analog" to
search only analog broadcasts, and then press

ENTER.

Press A/_' to select "Yes", and then press
ENTER.

Rome: "Power Saving" is set to "Of/", and AV MODE is

set to "STANDARD".

Store: "Power Saving" is set to "Off" and AV MODE is set

to "DYNAMIC (Fixed)". Picture Reset and Feature Demo
can be set.

Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)"

regardless of whether Picture Reset is "On" or "Oft". If you
select "On", AV MODE will be reset to "DYNAMIC (Fixed)" if

there is no operation for 30 minutes. When "Off" is selected,
AV MODE will be set to "DYNAMIC (Fixed)".

Feature Demo: When "On" is selected, after all the settings are

completed, the Feature Demo screen is displayed if there is
no operation for several minutes.

• The Channel search will start automatbally.

o If no channel is found, confirm the type of connection made

with your TV and try "E7 Setup" again. (See page 19.)

o For changing the settings of the Initial Installation, perform

"E7 setup" on the Setup menu on page 19.

12

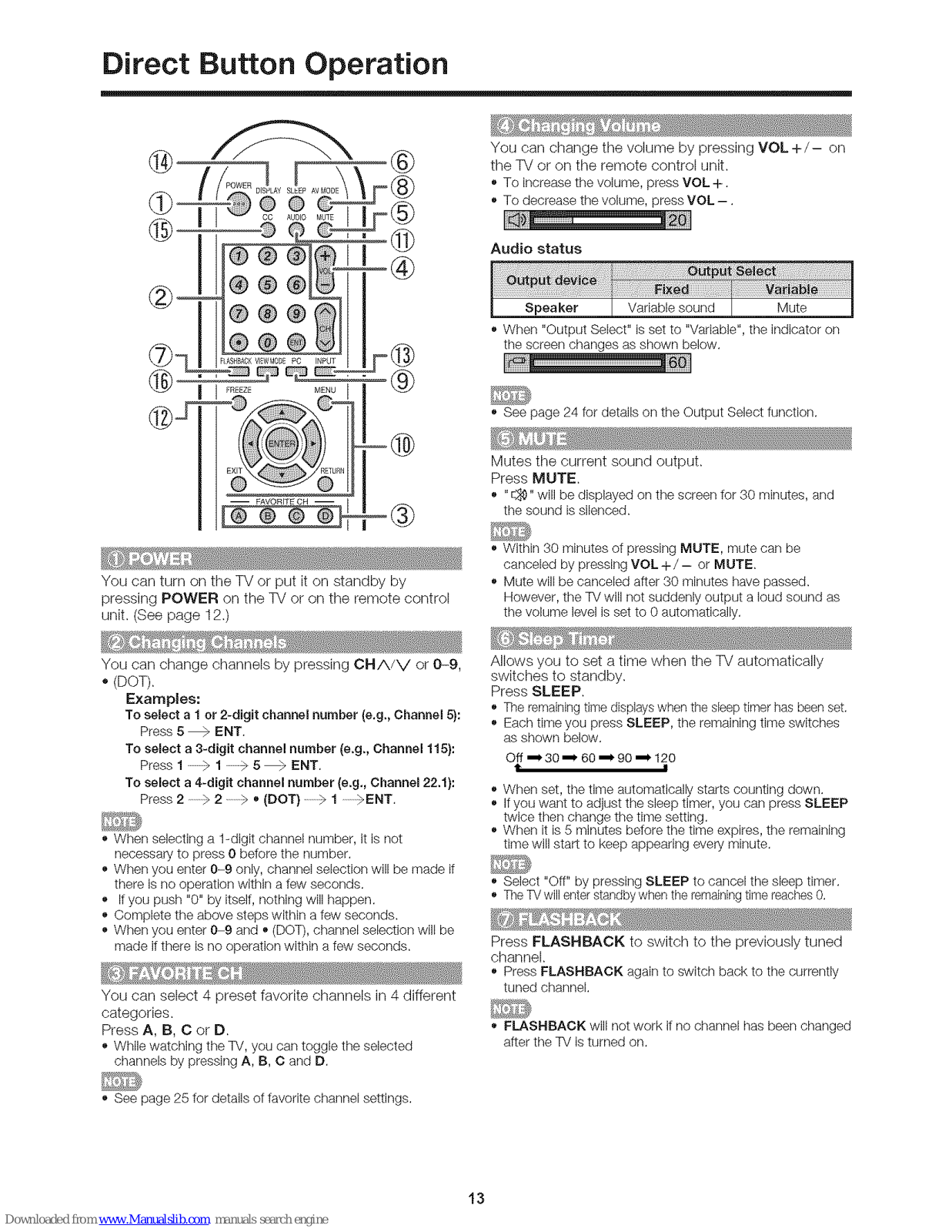

Direct Button Operation

You can change the volume by pressing VOL +/- on
tile TV or on the remote control unit.

o To increase the volume, press VOL +.
o To decrease the vokJme, press VOL -.

I<I_ _2_1

Audio status

You can turn on the TV or put it on standby by
pressing POWER on the TV or on tile remote control
unit. (See page 12.)

You can change channels by pressing CHA/V or 0-9,
, (DOT).

Examples:

To select a 1or 2-digit channel number (e.g., Channel 5):

Press 5 _ ENT.

To select a 3-digit channel number (e.g., Channel 115):

Press 1 _ 1 > 5 _ ENT.

To select a 4-digit channel number (e.g., Channel 22.1):

Press 2 2 o (DOT) 1 >ENT.

o When selecting a 1-digit channel number, it is not

necessary to press 0 before the number.
o When you enter 0-9 only, channel selection will be made if

there is no operation within a few seconds.
o Kyou push "0" by Kself, nothing will happen.

o Complete the above steps within a few seconds.
o When you enter 0 9 and o (DOT), channel selection will be

made if there is no operation within a few seconds.

D

You can select 4 preset favorite channels in 4 different
categories.
Press A, B, C or D.
o While watching the TV, you can toggle the selected

channels by pressing A, B, C and D.

o See page 25 for details of favorite channel settings.

o When "Output Select" is set to "Variable", the indicator on

the screen changes as shown below.

I , _18@1

o See page 24 for details on the Output Select function.

#11 '_ ....

Mutes the current sound output.
Press MUTE.
o ,,c:_" wi, be displayed on the screen for 30 minutes, and

the sound is silenced.

o Within 30 minutes of pressing MUTE, mute can be

canceled by pressing VOL + / - or MUTE.

o Mute will be canceled after 30 minutes have passed.

However, the TVwi, not suddenly output a loud sound as

the volume level is set to 0 automatically.

Allows you to set a time when the TV automatically
switches to standby.
Press SLEEP.

o The remaining time displays when the sleep timer has beenset.
o Each time you press SLEEP, the remaining time switches

as shown below.

Off _30 _ 60,_" 90,_ 120

1" I

o When set, the time automatically starts counting down.
o If you want to adjust the sleep timer, you can press SLEEP

twice then change the time setting.

o When it is 5 minutes before the time expires, the remaining

time will start to keep appearing every minute.

o Select "Oft" by pressing SLEEP to cancel the sleep timer.
o The TVwillenter standby when the remainingtime reaches0.

Press FLASHBACK to switch to the previously tuned
channel.

Press FLASHBACK again to switch back to the currently

tuned channel

FLASHBACK will not work if no channel has been changed

after the TV is turned on.

13

Direct Button Operation

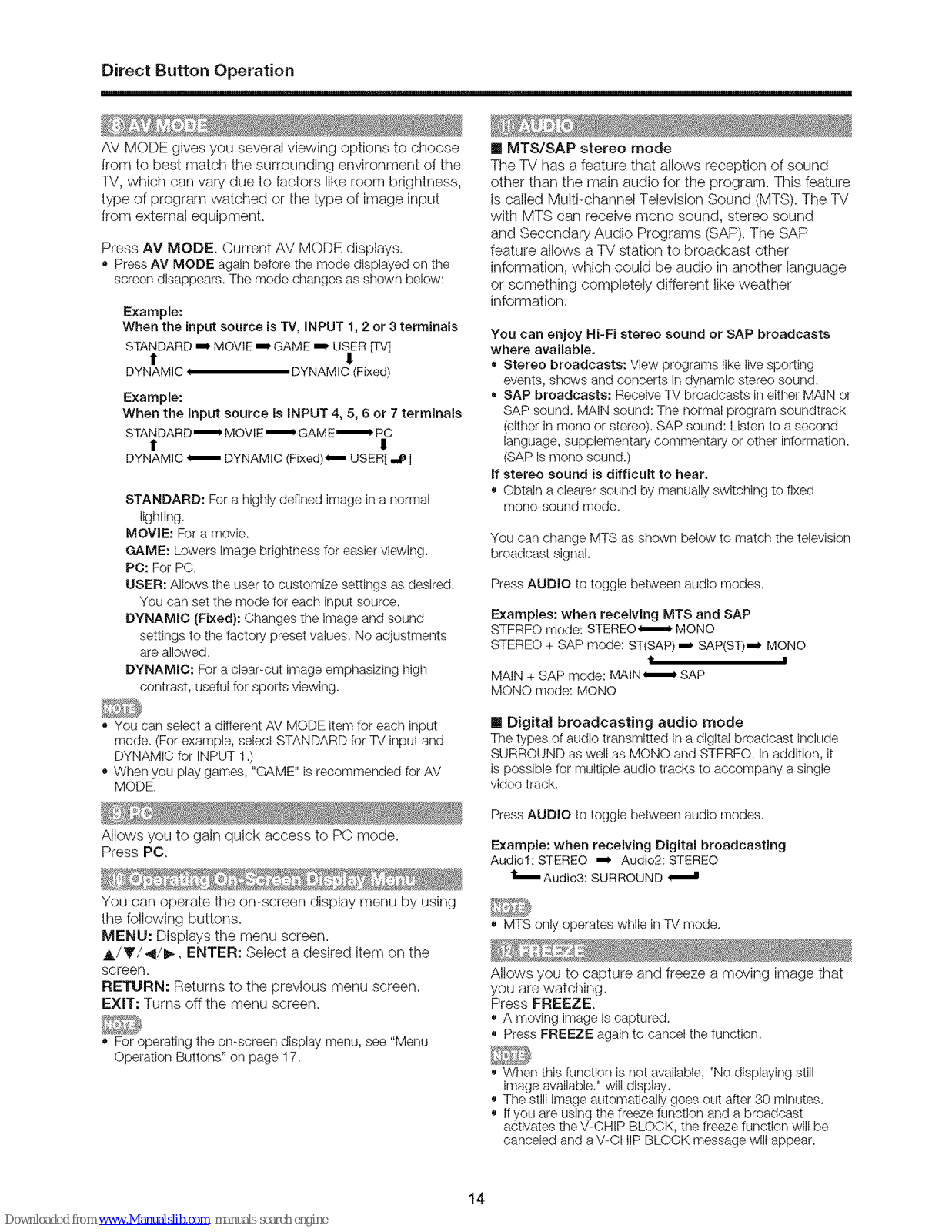

AV MODE gives you several viewing options to choose
from to best match the surrounding environment of the
TV, which can vary due to factors like room brightness,
type of program watched or the type of image input

from external equipment.

Press AV MODE. Current AV MODE displays.
o Press AV MODE again before the mode displayed on the

screen disappears. The mode changes as shown below:

Example:
When the input source is TV, INPUT 1, 2 or 3 terminals

S37_,NDARD_ MOVIE _GAME _ USER [TVI

f !

DYNAMIC i DYNAMIC (Fixed)

Example:
When the input source is INPUT 4, 5, 6 or 7 terminals

S37_,NDARD_ MOVIE _ GAME_ PC

f I

DYNAMIC _ DYNAMIC (Fixed)_ USER[..P]

STANDARD: For a highly defined image in a normal

lighting.

MOVIE: For a movie.

GAME: Lowers image brightness far easier viewing,
PC: For PC,

USER: ANows the user to customize settings as desired,

You can set the mode for each input source.

DYNAMIC (Fixed}: Changes the image and sound

settings to the factory preset vakJes. No adjustments
are allowed.

DYNAMIC: For a char-cut image emphasizing high

contrast, useful for sports viewing.

o You can select a different AV MODE item for each input

mode. (For example, select STANDARD for TV input and

DYNAMIC for INPUT 1.)
o When you play games, "GAME" is recommended for AV

MODE.

Allows you to gain quick access to PC mode.
Press PC.

You can operate the on-screen display menu by using
the following buttons.

MENU: Displays the menu screen.

lit/V/_l/l_, ENTER: Select a desired item on the

screen.
RETURN: Returns to the previous menu screen.

EXIT: Turns off the menu screen.

, Far operating the on-screen display menu, see "Menu

Operation Buttons" on page 17.

[] MTS/SAP stereo mode
The TV has a feature that allows reception of sound
other than the main audio for the program. This feature

is called Multi-channel Television Sound (MTS). The TV
with MTS can receive mono sound, stereo sound
and Secondary Audio Programs (SAP). The SAP

feature allows a TV station to broadcast other
information, which could be audio in another language

or something corrlpletely different like weather
information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts
where available.

• Stereo broadcasts: View programs like live sporting
events, shows and concerts in dynamic stereo sound.

• SAP broadcasts: Receive TV broadcasts in either MAIN or
SAP sound. MAIN sound: The normal program soundtrack

(either in mono or stereo). SAP sound: Listen to a second
language, supplementary commentary or other intormation.

(SAP is mono sound.)
If stereo sound is difficult to hear.
o Obtain a clearer sound by manually switching to fixed

mono sound mode.

You can change MTS as shown below to match the television
broadcast signal

Press AUDIO to toggb between audio modes.

Examples: when receiving MTS and SAP
STEREO mode: S_[EREO_ MONO

STEREO + SAP mode: S_[(SAP) ,_ SAP(Sf),_ MONO

tt i

MAIN + SAP mode: MAiN _ SAP
MONO mode: MONO

[] Digital broadcasting audio mode
The types of audio transmitted in a digital broadcast inckJde

SURROUND as well as MONO and STEREO. In addition, it
is possible tot muRiple audio tracks to accompany a single

video track.

Press AUDIO to toggb between audio modes.

Examples when receiving Digital broadcasting
Audio1: STEREO '_- Audio2: STEREO

_ Audio3: SURROUND

o MTS only operates while in TV mode.

_J _#>,_ s_,_ ...... '

Allows you to capture and freeze a moving image that
you are watching.
Press FREEZE.

o A moving image is captured.
o Press FREEZE again to cancel the function.

o When this function is not available, "No displaying still

image available." will display.
o The still image automatically goes out after 30 minutes.
o If you are using the freeze function and a broadcast

activates the V CHIP BLOCK, the freeze function will be
canceled and a V CHIP BLOCK message will appear.

14

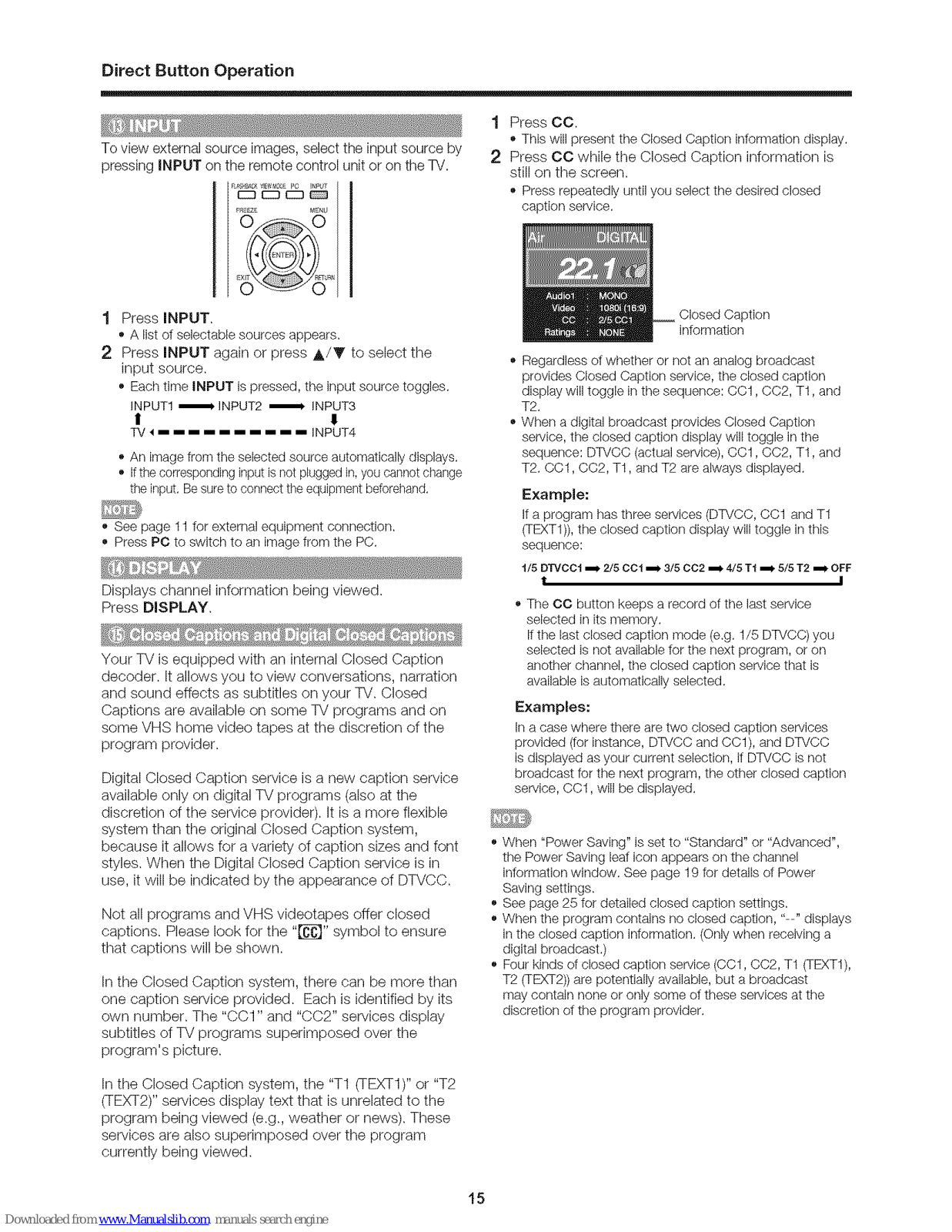

DirectButtonOperation

To view external source images, select the input source by
pressing INPUT on the remote control unit or on the TV.

1 Press CC.

o This will present the Closed Caption intormation display.

2 Press CC while the Closed Caption information is

still on the screen.
o Press repeatedly until you select the desired closed

caption service.

1 Press INPUT.

• A listd sebctabb sources appears.

2 Press INPUT again or press A/T" to select the

input source.

o Each time INPUT is pressed, the input source toggles.

INPUT1 ,_ INPUT2 ,_ INPUT3

I I

TV_ INPUT4

o An image from the selected source automatically displays.
o If thecorresponding input is not pluggedin, you cannot change

the input. Be sure toconnect the equipment beforehand.

o See page 11 tor external equipment connection.
o Press PC to switch to an image from the PC.

Displays channel information being viewed.
Press DISPLAY.

Your TV is equipped with an internal Closed Caption
decoder, it allows you to view conversations, narration
and sound effects as subtitles on your TV. Closed
Captions are available on some TV programs and on
some VHS home video tapes at the discretion of the
program provider.

Digital Closed Caption service is a new caption service
available only on digital TV programs (also at the
discretion of the service provider). It is a more flexible
system than the original Closed Caption system,
because it allows for a variety of caption sizes and font
styles. When the Digital Closed Caption service is in
use, it will be indicated by the appearance of DTVCC.

Not all programs and VHS videotapes offer closed
captions. Please look for the "[_]" symbol to ensure

that captions will be shown.

In the Closed Caption system, there can be more than
one caption service provided. Each is identified by its
own number. The "CC1" and "CC2" services display
subtitles of TV programs superimposed over the
program's picture.

In the Closed Caption system, the "T1 (TEXT1)" or "T2
(TEXT2)" services display text that is unrelated to the

program being viewed (e.g., weather or news). These
services are also superimposed over the program
currently being viewed.

intormation

o Regardless ot whether or not an analog broadcast

provides Closed Caption service, the closed caption
display will toggle in the sequence: CC1, CC2, Tt, and

T2.

o When a digital broadcast provides Closed Caption

service, the closed caption display will toggle in the
sequence: DTVCC (actual service), CC1, CC2, Tt, and

T2. CCt, CC2, Tt, and T2 are always displayed.

Example:

If a program has three services (DTVCC, CC1 and T1
(TEXTt)), the closed caption display will toggle in this

sequence:

t/5 OTVCCt _ 2/5 00t _ 315 002 ,_* 4/5 Tt ,_- 5/5 T2 ,_ OFF

t I

o The CC button keeps a record of the last service

selected in its memory.

Ifthe last closed caption mode (e.g. 1/5 DTVCC) you

selected is not available tor the next program, or on
another channel, the closed caption service that is

available is automatically selected.

Examples:
Ina case where there are two closed caption services

provided (tor instance, DTVCC and CC1), and DTVCC
is displayed as your current selection, if DTVCC is not

broadcast for the next program, the other closed caption
service, CC1, will be displayed.

o When "Power Saving" is set to "Standard" or "Advanced",

the Power Saving leaf icon appears on the channel
intormation window. See page 19 for details of Power

Saving settings.
o See page 25 for detailed closed caption settings.
o When the program contains no closed caption, " " displays

in the closed caption information. (Only when receiving a

digital broadcast.)
o Four kinds of closed caption service (CC1, CC2, Tt (TEXT1),

T2 (TEXT2)) are potentially available, but a broadcast

may contain none or only some ot these services at the

discretion d the program provider.

15

Direct Button Operation

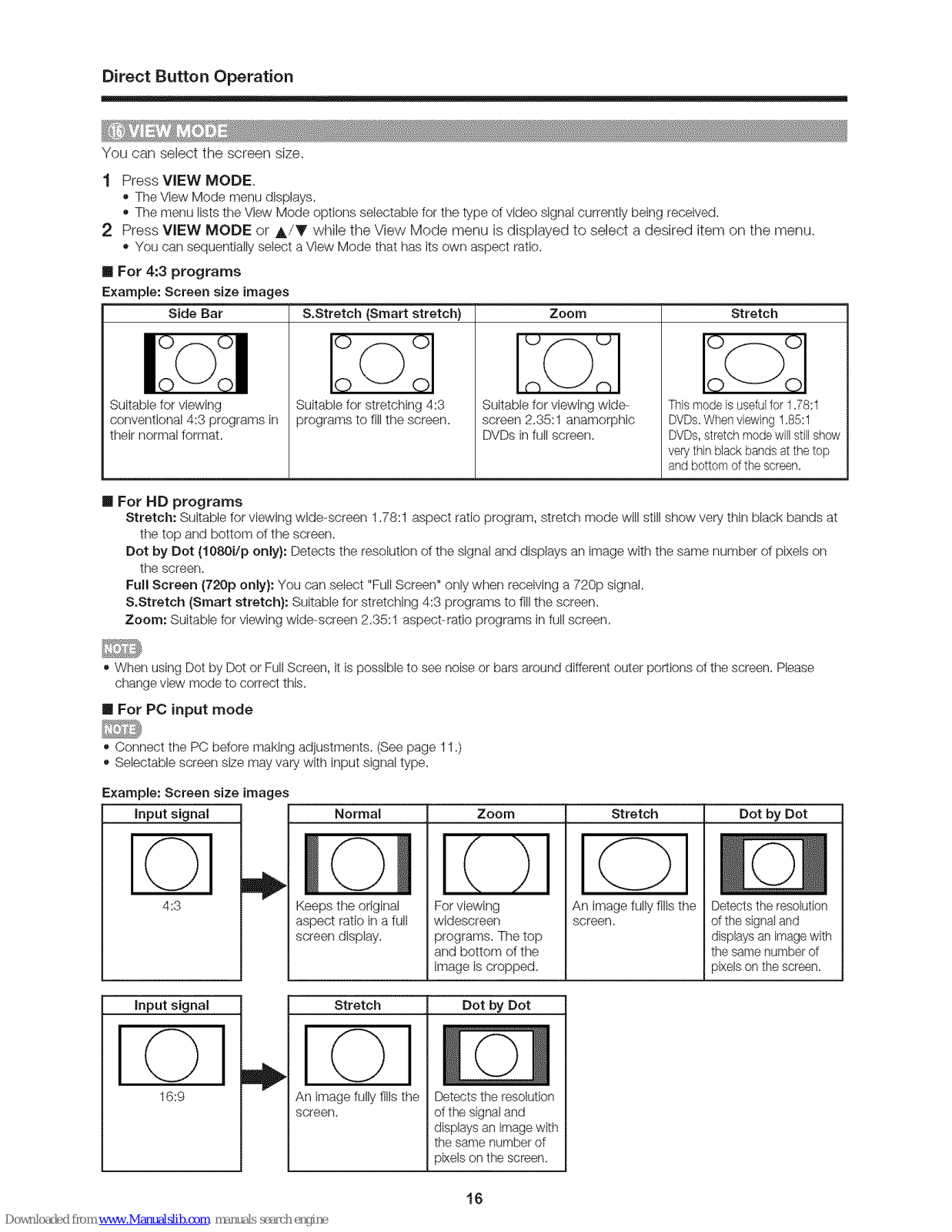

You can select the screen size.

1 PressVIEW MODE.

o The View Mode menu displays.
o The menu lists the View Mode options sebctable for the type of video signal currently being received.

2 Press VIEW MODE or _./Y while the View Mode menu is displayed to select a desired item on the menu.

• You can sequentially select a View Mode that has its own aspect ratio.

[] For 4:3 programs
Example: Screen size images

Side Bar

Suitable for viewing
conventional 4:3 programs in

their normal tormat.

S.Stretch (Smart stretch)

Suitable for stretching 4:3
programs to fill the screen.

Zoom

Suitabb for viewing wide

screen 2.35:1 anamorphic

DVDs in full screen.

Stretch

Thismode is usefulfor 1.78:1
DVDs.Whenviewing 1.85:1

DVDs,stretchmode willstillshow
verythinblack bands at the top

and bottomof the screen.

[] For HD programs

Stretch: Suitabb tor viewing wide-screen 1,78:1 aspect ratio program, stretch mode will still show very thin black bands at

the top and bottom ot the screen,

Dot by Dot (1080i/p only}: Detects the resolution ot the signal and displays an image with the same number ot pixels on

the screen.

Full Screen (720p only}: You can select "Full Screen" only when receiving a 720p signal.

S.Stretch (Smart stretch}: Suitabb tot stretching 4:3 programs to fill the screen.
Zoom: Suitable for viewing wide screen 2.35:1 aspect ratio programs in full screen.

o When using Dot by Dot or Full Screen, it is possible to see noise or bars around different outer portions ot the screen. Please

change view mode to correct this.

[] For PC input mode

o Connect the PC betore making adjustments. (See page 11.)
o Sebctabb screen size may vary with input signal type.

Example: Screen size images

Input signal

4:3

Normal Zoom Stretch

FO-1

Keeps the original
aspect ratio in a full

screen display.

R-3

For viewing
widescreen

programs. The top
and bottom ot the

image is cropped.

<b

An image fully fills the
screen.

Dot by Dot

El

Detects the resolution
of the signaland

dispbys an imagewith
thesame number of

I pixels orsthe screen.

Input signal

©

tg:9

Stretch

©

An image fully fills the
screen.

Dot by Dot

Detects the resolution
of the signal and

displays an irrsagewith
the same nunsber of

pixeb on the screen.

16

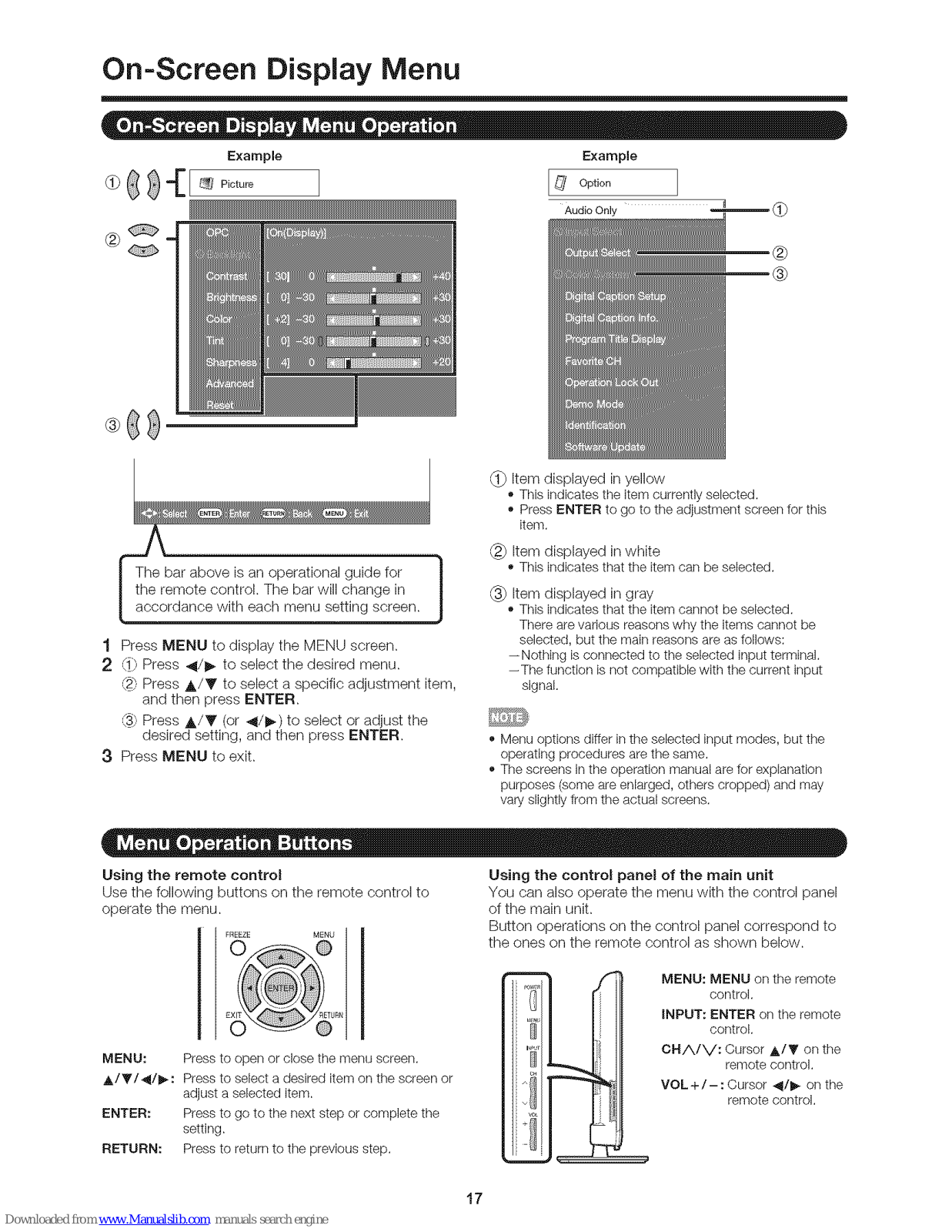

On-Screen Display Menu

' h, n

Example Example

Pi...... option

Audio Only

®

®
®

T_he bar above is an operational guide for

[ the_red'naOltceecwO'tt_I aTII'enba'ru_J''eti'_;'l_glsgeienen ' !

1 Press MENU to display the MENU screen.
2 ,'1 Press 41/1!_ to select the desired menu.

(2} Press ,_/V to select a specific adjustment item,

and then press ENTER.

{3_ Press A/_" (or 4/_) to select or adjust the

desired setting, and then press ENTER.

3 Press MENU to exit.

Item displayed in yellow

o This indicates the Rein currently selected.
o Press ENTER to go to the adjustment screen for this

item.

Item displayed in white

• This indicates that the item can be selected.
Item displayed in gray

o This indicates that the item cannot be selected.

There are various reasons why the items cannot be
selected, but the main reasons are as follows:

--Nothing is connected to the selected input teminal.

--The function is not compatible with the current input
signal.

o Menu options differ in the selected input modes, but the

operating procedures are the same.

o The screens in the operation manual are for explanation

purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.

Using the remote control
Use the following buttons on the remote control to

operate the menu.

Using the control panel of the main unit
You can also operate the menu with the control panel

of the main unit.
Button operations on the control panel correspond to

the ones on the remote control as shown below.

MENU: Press to open or close the menu screen.

,_./T/_I/I_: Press to select a desired item on the screen or

adjust a selected item.

ENTER: Press to go to the next step or complete the

setting.

RETURN: Press to return to the previous step.

m_L MENU: MENU on the remote

control.

ii ' ' INPUT: ENTER on the remotecontrol
ii "i_* CHA/V: Cursor A/_" on the

remote control

_ii VOL +/- : Cursor 41/t_- on the

remote control.

:i

17

On-Screen Display Menu

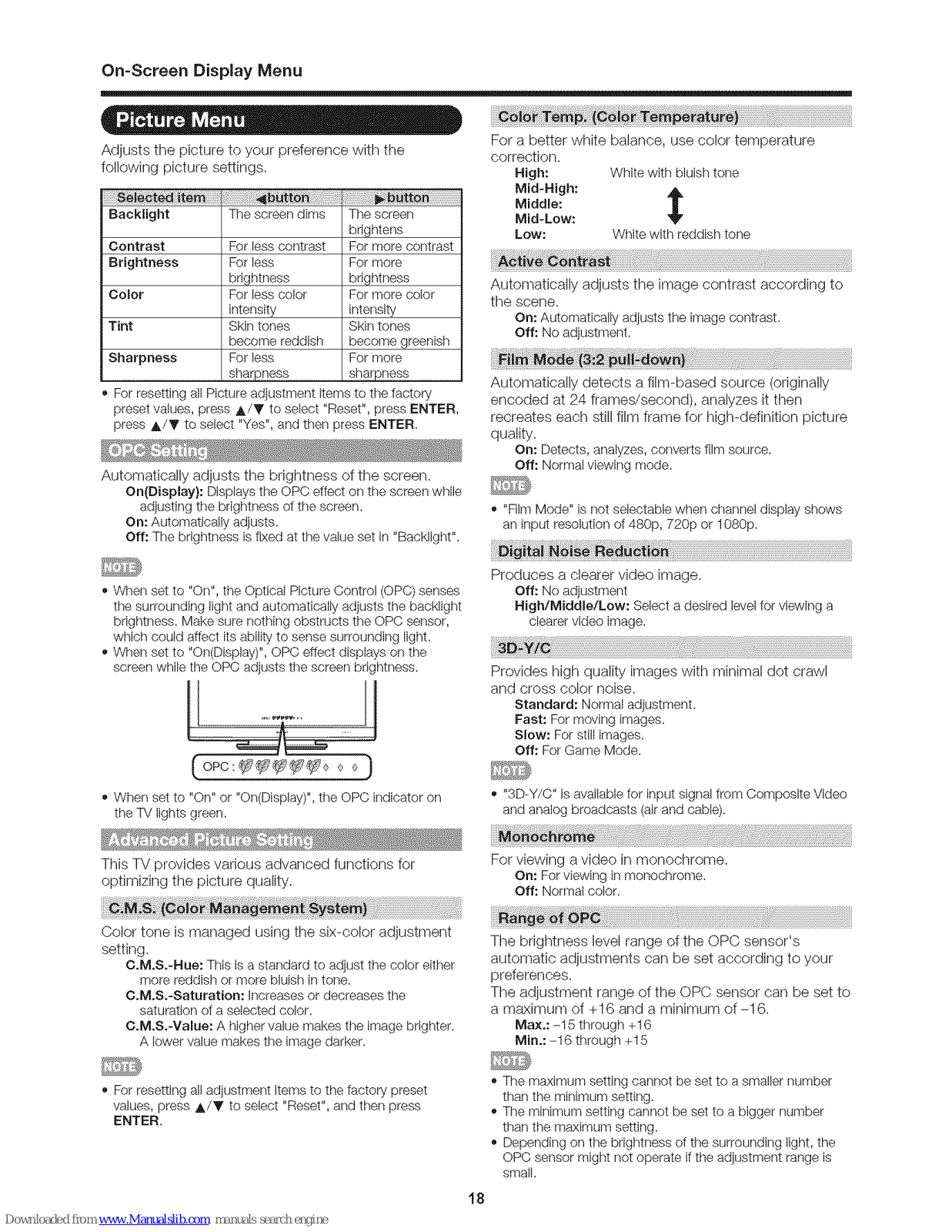

Adjusts the picture to your preference with the
following picture settings.

_i_d it_:_::::::

Backlight The screen dims The screen

brightens

Contrast For less contrast For more contrast
Brightness For less For more

brightness brightness

Color For less color For more color

intensity intensity

Tint Skin tones Skin tones

become reddish become greenish

Sharpness For less For more

sharpness sharpness

For resetting all Picture adjustment items to the tactory

preset vahJes, press A/T to select "Reset", press ENTER,
press A/T to select "Yes", and then press ENTER.

Automatically adjusts the brightness of the screen.

On(Display}: Displays the OPC effect on the screen while

adjusting the brightness of the screen.

On: Automatically adjusts.
Off: The brightness is fixed at the value set in "Backlight".

o When set to "On", the Optical Picture Control (OPC) senses

the surrounding light and automatically adjusts the bacHight
brightness. Make sure nothing obstnJcts the OPC sensor,

which could affect its ability to sense surrounding light.

o When set to "On(Display)", OPC effect displays on the

screen while the OPC adjusts the screen brightness.

o When set to "On" or "On(Display)", the OPC indicator on

the TV lights green.

This TV provides various advanced functions for
optimizing the picture quality.

Color tone is managed using the six-color adjustment
setting.

C.M.S.-Hue: This is a standard to adjust the color either

more reddish or more bluish in tone.

C.M.S.-Saturation: increases or decreases the

saturation of a selected color.

C.M,S.-Value: A higher value makes the image brighter.

A lower value makes the image darker.

o For resetting all adjustment items to the factory preset

values, press _./T to select "Reset", and then press
ENTER.

For a better white balance, use color temperature
correction.

High: White with bluish tone

Mid-High:

Middle:
Mid-Low:

Low: White with reddish tone

Automatically adjusts the image contrast according to
the scene.

On: Automatically adjusts the image contrast.
Off: No adjustment.

o_

Automatically detects a film-based source (originally
encoded at 24 frames/second), analyzes it then

recreates each still film frame for high-definition picture
quality.

On: Detects, analyzes, converts film soume.
Off: Normal viewing mode.

o "Film Mode" is not sebctabb when channel display shows

an input resolution of 480p, 720p or 1080p.

Produces a clearer video image.

Off: No adjustment
High/Middle/Low: Select a desired bvel for viewing a

clearer video image.

Provides high quality images with minimal dot crawl
and cross color noise.

Standard: Normal adjustment.
Fast: For moving images.

Slow: For still images.

Off: For Game Mode.

• "3D Y/C" is available for input signal from Composite Video
and analog broadcasts (air and cable).

For viewing a video in monochrome.

On: For viewing in monochrome.
Off: Normal color.

The brightness level range of the OPC sensoCs
automatic adjustments can be set according to your
preferences.
The adjustment range of the OPC sensor can be set to

a maximum of +16 and a minimum of-16.

Max,: -15 through +16

Min.: 16through +15

e The maximum setting cannot be set to a smaller number

than the minimum setting.

o The minimum setting cannot be set to a bigger number

than the maximum setting.

o Depending on the brightness of the surrounding light, the

OPC sensor might not operate if the adjustment range is
small.

18

On-Screen Display Menu

• • -

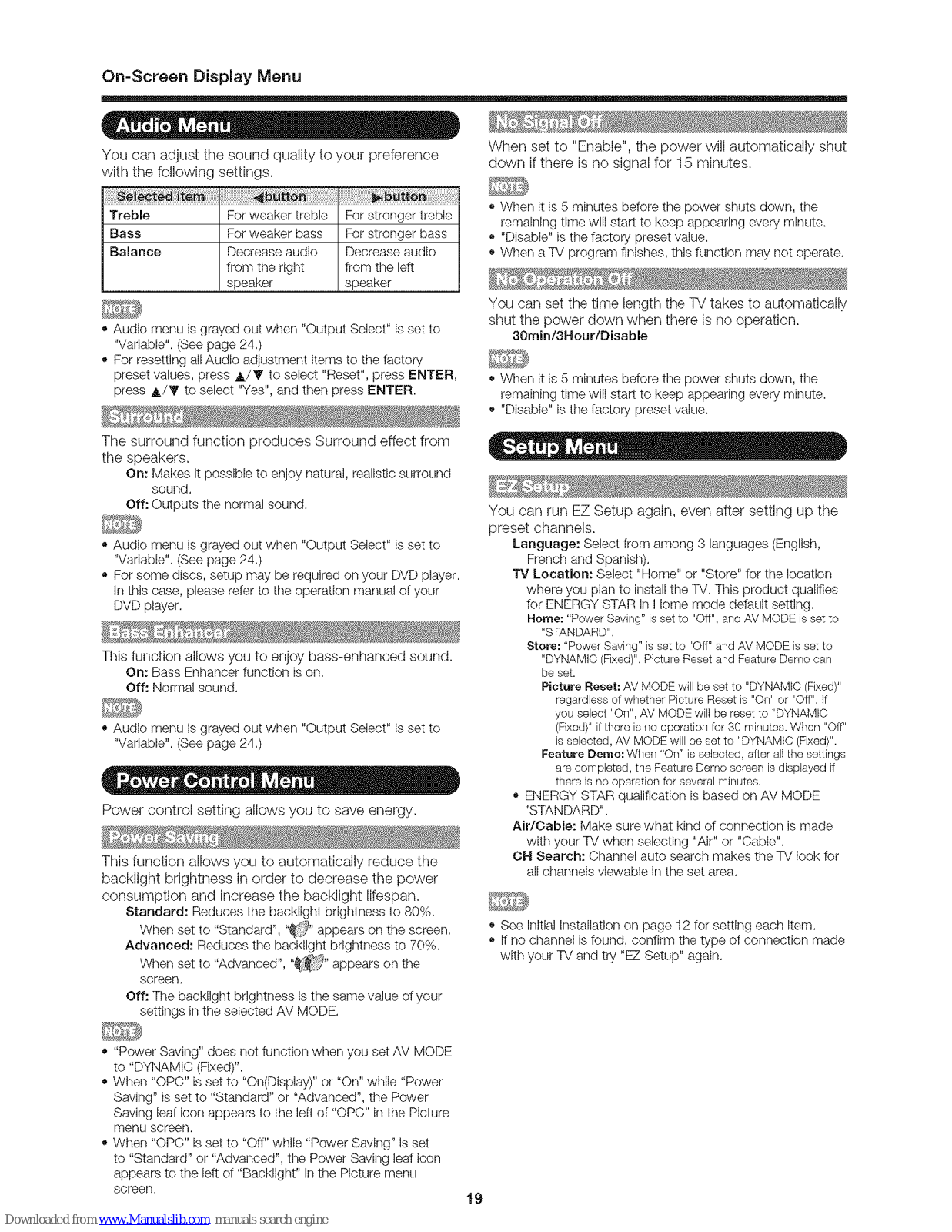

You can adjust the sound quality to your preference
with the following settings.

Treble For weaker treble

Bass For weaker bass
Balance Decrease audio

from the right
speaker

_y

For stronger treble
For stronger bass

Decrease audio

from the left
speaker

o Audio menu is grayed out when "Output Select" is set to

"Variable". (See page 24.)

o For resetting all AudEoadjustment items to the factory

preset values, press _k/T to select "Reset", press ENTER,
press A/T to select "Yes", and then press ENTER.

The surround function produces Surround effect from
the speakers.

On: Makes it possible to enjoy natural, realistic surround

sound,

Off: Outputs the normal sound.

o Audio menu is grayed out when "Output Select" is set to

"Variable". (See page 24.)

o For some discs, setup may be required on your DVD player.

In this case, please refer to the operation manual of your
DVD player.

_9_4 ::S_ _'_J_ ....

This function allows you to enjoy bass-enhanced sound.

On: Bass Enhancer function is on.
Off: Normal sound.

o Audio menu is grayed out when "Output Select" is set to

"Variable". (See page 24.)

Power control setting allows you to save energy.

This function allows you to automatically reduce the
backlight brightness in order to decrease the power
consumption and increase the baeklight lifespan.

Standard: Reduces the backfght brightness to 80%.

When set to "Standard", "_" appears on the screen.

Advanced: Reduces the backtght brightness to 70%.

When set to "Advanced", "_'_" appears on the
screen.

Off: The backfght brightness is the same value ofyour

settings in the selected AV MODE.

o "Power Saving" does not function when you set AV MODE

to "DYNAMIC (Fixed)".

o When "OPC" is set to "On(Display)" or "On" while "Power

Saving" is set to "Standard" or "Advanced", the Power
Saving leaf icon appears to the left of "OPC" in the Picture
menu screen.

o When "OPC" is set to "Off" while "Power Saving" is set

to "Standard" or "Advanced", the Power Saving leaf icon
appears to the left of "Backlght" in the Picture menu

screen.

When set to "Enable", the power will automatically shut
down if there is no signal for 15 minutes.

o When it is 5 minutes before the power shuts down, the

remaining time will start to keep appearing every minute.

o "Disable" is the factory preset value.
o When a TV program finishes, this function may not operate.

You can set the time length the TV takes to automatically
shut the power down when there is no operation.

30min/3Heur/Disable

. When it is 5 minutes before the power shuts down, the

remaining time will start to keep appearing every minute.

o "Disable" is the factory preset value.

You can run EZ Setup again, even after setting up the
preset channels.

Language: Select from among 3 languages (English,

French and Spanish).

TV Location: Select "Home" or "Store" tor the location

where you plan to install the TV. This product qualifies
tor ENERGY STAR in Home mode detault setting.

Home: "Power Saving" is set to "Oft", and AV MODE is set to

"STANDARD".

Store: "Power Saving" is set to "Off" and AV MODE is set to

"DYNAMIC (Fixed)". Picture Reset and Feature Demo can
be set.

Picture Reset: AV MODE will be set to "DYNAMIC (Rxed)"

regardless of whether Picture Reset is "On" or "Oft". If

you select "On", AV MODE will be reset to "DYNAMIC

(Fixed)" if there is no operation for 30 minutes. When "Oft"
is selected, AV MODE will be set to "DYNAMIC (Fixed)".

Feature Denlo: When "On" is selected, after all the settings

are completed, the Feature Demo screen is displayed if
there is no operation for several minutes.

ENERGY STAR quatlcation is based on AV MODE
"STANDARD".

Air/Cable: Make sure what kind ot connection is made

with your TV when selecting "Air" or "Cable".

CH Search: Channel auto search makes the TV look for

all channels viewable in the set area.

See Initial Instalation on page 12 for setting each item,
If no channel is found, confirm the type of connection made
with your TV and try "EZ Setup" again.

19

On-Screen Display Menu

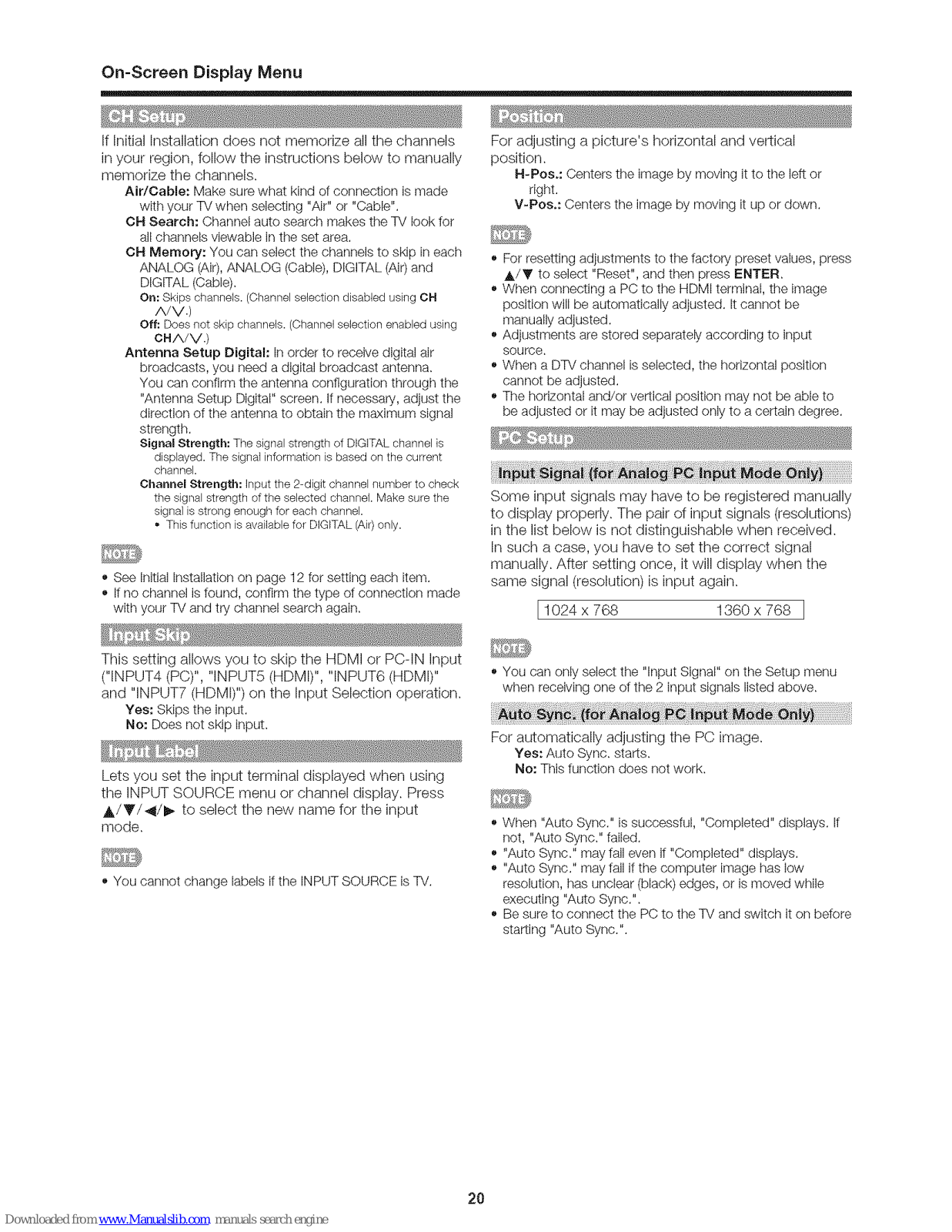

If Initial Installation does not memorize all the channels
in your region, follow the instructions below to manually

memorize the channels.

Air/Cable: Make sure what kind of connection is made

with your TV when selecting "Air" or "Cable".

OH Search: Channel auto search makes the TV look tot

all channels vbwabb in the set area.

OH Memory: You can select the channels to skip in each

ANALOG (Air), ANALOG (Cable), DIGITAL (Air) and

DIGITAL (Cable).

On: Skips channels.(Ollannelselectiondisabledusing CH

A/V.)

Off: Does not skip channels.(Channelselectionenabledusing

CHA/V.)

Antenna Setup Digital: In order to receive digital air

broadcasts, you need a digital broadcast antenna.
You can confims the antenna con%uration through the

"Antenna Setup Digital" screen. If necessary, adjust the

direction of the antenna to obtain the maximum signal
strength.

Signal Strength: The signalstrengthof DIGITALchannelis

displayed.The signalinformation isbased on the current
channel.

Channel Strength:Inputthe 2 digit channelnunlberto cheek

thesignal strengthofthe selectedchannel Makesure the
signalis strong enoughfor each channel.

• Thisfunction isavailableforDIGITAL(Air)only.

o See Initial Installation on page 12 for setting each item.
o If no channel is found, confirm the type of connection made

with your TV and try channel search again.

This setting allows you to skip the HDMI or PCqN Input
("INPUT4 (PC)", 'INPUT5 (HDMI)", "INPUT6 (HDMI)"
and "INPUT7 (HDMI)") on the Input Selection operation.

Yes: Skips the input.

No: Does not skip input.

Lets you set the input terminal displayed when using
the INPUT SOURCE menu or channel display. Press

A/T'/41/I_ to select the new name for the input

mode.

o You cannot change labels if the INPUT SOURCE is TV.

For adjusting a picture's horizontal and vertical
position.

H-Poe.: Centers the image by moving it to the left or

right.

V-Pee.: Centers the image by moving it up or down.

o For resetting adjustments to the factory preset values, press

A./T to select "Reset", and then press ENTER.

o When connecting a PC to the HDMI terminal, the image

position will be automatically adjusted. It cannot be
manually adjusted.

o Adjustments are stored separately according to input

source.

o When a DTV channel is selected, the horizontal position

cannot be adjusted.

o The horizontal and/or vertical position may not be able to

be adjusted or it may be adjusted only to a certain degree.

Some input signals may have to be registered manually
to display properly. The pair of input signals (resolutions)
in the list below is not distinguishable when received.
In such a case, you have to set the correct signal
manually. After setting once, it will display when the
same signal (resolution) is input again.

J1024 x 768 1360 x 768

o You can only select the "Input Signal" on the Setup menu

when receiving one of the 2 input signals listed above.

For automatically adjusting the PC image.

Yes: Auto Sync. starts.

No: This function does not work.

o When "Auto Sync." is successful, "Completed" displays. If

not, "Auto Sync." failed.

o "Auto Sync." may fail even if "Completed" displays.
o "Auto Sync." may fail if the computer image has low

resolution, has uncbar (black) edges, or is moved while
executing "Auto Sync.".

o Be sure to connect the PC to the TV and switch it on before

starting "Auto Sync.".

2O

On-Screen Display Menu

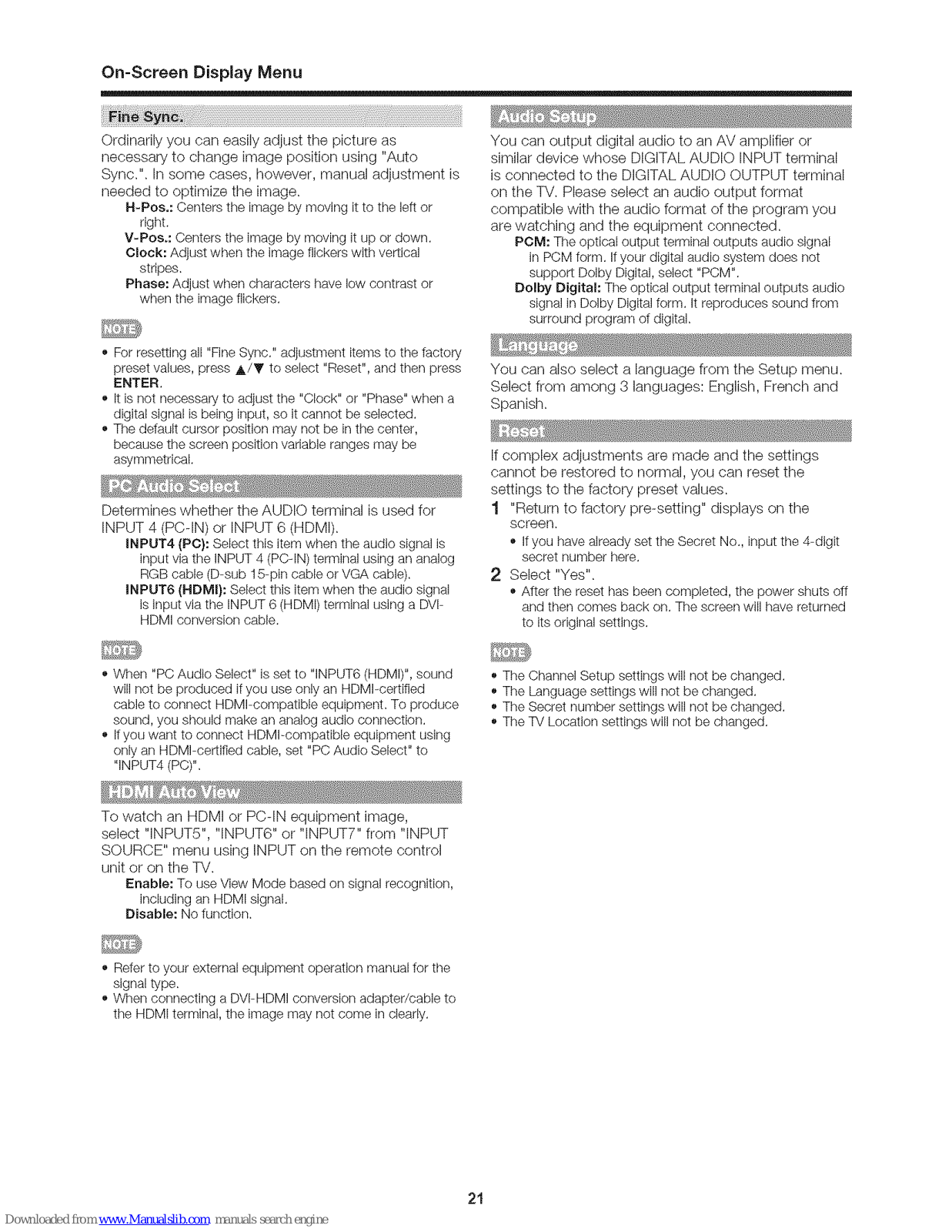

iii_ijii_i_!!_i_ii_i_i_iiii_i¸_!_!_iiiiiiiiiiiii_i_!i!#!i_i_ii_ii_ii_ii_ii_ii_ii_ii_i_!i!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!!_!_i!!i!ii!!_!_i!!_!_i!i_!_!!i!!i!!i!!i_!_!ii!!i!_i!!_!!i!i!_i!_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_i_!ii!_i_ii_i_!_i

Ordinarily you can easily adjust tile picture as
necessary to change image position using "Auto
Sync.". In some cases, however, manual adjustment is
needed to optimize the irrlage.

H-Poez Centers the image by moving it to the left or

right.

V-Pos.: Centers the image by moving it up or down.
Clock: Adjust when the image flickers with vertical

stripes.

Phase: Adjust when characters have lew contrast or

when the image flickers.

o For resetting all "Fine Sync." adjustment items to the factory

preset vakJes, press A/T to select "Reset". and then press
ENTER.

o It is not necessary to adjust the "Clock" or "Phase" when a

digital signal is being input, so it cannot be selected.

o The default cursor position may net be in the center.

because the screen position variable ranges may be
asymmetrical

Determines whether the AUDIO terminal is used for
INPUT 4 (PCqN) or INPUT 6 (HDMI).

INPUT4 (PC): Select this item when the audio signal is

input via the INPUT 4 (PCqN) terminal using an analog

RGB cable (D sub 15 pin cable or VGA cable).

INPUT6 (HDMI}: Select this item when the audio signal

is input via the INPUT 6 (HDMI) terminal using a DVI

HDMI conversion cable.

When "PC Audio Select" isset to "INPUT6 (HDMI)". sound
will not be produced ifyou use only an HDMI-certified

cable to connect HDMI compatible equipment. To produce
sound, you should make an analog audio connection.

Kyou want to connect HDMl-cempatible equipment using

only an HDMI certified cable, set "PC Audio Select" to

"INPUT4 (PC)".

To watch an HDMI or PCqN equipment image.
select "INPUTS". "INPUT6" or "INPUT7" from "INPUT
SOURCE" menu using INPUT on the remote control

unit or on the TV.

Enable: To use View Mode based on signal recognition.

including an HDMI signal.

Disable: No function.

You can output digital audio to an AV amplifier or
similar device whose DIGITAL AUDIO INPUT terminal
is connected to the DIGITAL AUDIO OUTPUT terminal

on the TV. Please select an audio output format
compatible with the audio format of the program you
are watching and the equipment connected.

PCM: The optical output terminal outputs audio signal

in PCM form. If your digital audio system does not

support Delby Digital. select "PCM".

Dolby Digital: The optical output terminal outputs audio

signal in Delby Digital form. It reproduces sound from
surround program of digital.

You can also select a language from the Setup menu.
Select from among 3 languages: English. French and
Spanish.

If complex adjustments are made and the settings
cannot be restored to normal, you can reset the
settings to the factory preset values.

1 "Return to factory pre-setting" displays on the

screen.

If you have already set the Secret No.. input the 4 digit
secret number here.

2 Select "Yes".

After the reset has been completed, the power shuts off
and then comes back on. The screen wi, have returned

to its odginal settings.

_W

The Channel Setup settings will net be changed.
The Language settings wi, not be changed.

The Secret number settings will not be changed.
The TV Location settings wi, not be changed.

Refer to your external equipment operation manual for the

signal type.

. When connecting a DVI HDMI conversion adapter/cable to

the HDMI terminal, the image may not come inclearly.

21

On-Screen Display Menu

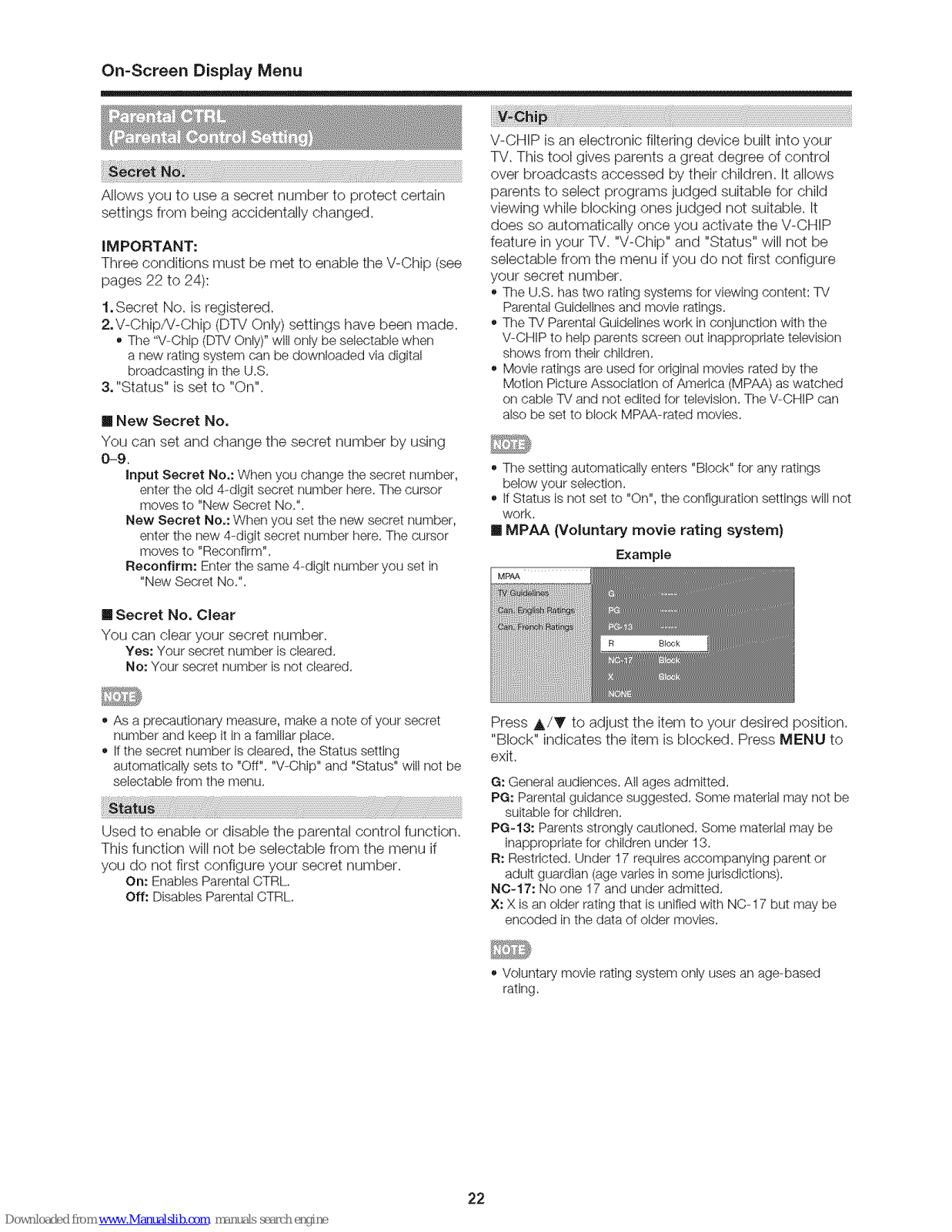

V-CHIP is an electronic filtering device built into your
TV. This tool gives parents a great degree of control
over broadcasts accessed by their children. It allows

Allows you to use a secret number to protect certain
settings from being accidentally changed.

iMPORTANT:
Three conditions must be met to enable the V-Chip (see
pages 22 to 24):

1. Secret No. is registered.

2.V-Chip/V-Chip (DTV Only) settings have been made.
o The "V Chip (DTV Only)" will only be selectable when

a new rating system can be downloaded via digital
broadcasting in the U.S.

3. "Status" is set to "On".

[] New Secret No.
You carl set and change the secret number by using

0-9,

Input Secret No.: When you change the secret number,

enter the old 4-digit secret number here. The cursor
moves to "New Secret No.".

New Secret Ne.: When you set the new secret number,

enter the new 4-digit secret number here. The cursor
moves to "Reconfirm".

Reconfirm: Enter the same 4 digit number you set in

"New Secret No.".

parents to select programs judged suitable for child
viewing while blocking ones judged not suitable. It
does so automatically once you activate the V-CHIP
feature in your TV. "V-Chip" and "Status" will not be

selectable from the menu if you do not first configure
your secret number.
o The U.S. has two rating systems tor viewing content: TV

Parental Guidelines and movie ratings.

o The TV Parental Guidelines work in conjunction with the

V CHIP to help parents screen out inappropriate television
shows from their children.

o Movie ratings are used tor original movies rated by the

Motion Picture Association of America (MPM) as watched
on cable TV and not edited for television. The V CHIP can

also be set to block MPM rated movies.

o The setting automatically enters "Block" for any ratings

below your selection.

o If Status is not set to "On", the configuration settings will not

work.

[] MPAA (Voluntary movie rating system}

Example

[] Secret No. Clear
You carl clear your secret number.

Yes: Your secret number is cleared.

No: Your secret number is not cleared.

, As a precautionary measure, make a note ot your secret

number and keep it in a tamiliar place.

o Ifthe secret number is cleared, the Status setting

automatically sets to "Of/". "V-Chip" and "Status" wi, not be
selectable from the menu.

Used to enable or disable the parental control function.
This function will not be selectable from the menu if

you do not first configure your secret number.

On: Enables Parental CTRL.
Off: Disables Parental CTRL.

Press A/_' to adjust the item to your desired position.
"Block" indicates the item is blocked. Press MENU to
exit.

G: General audbnces. All ages admitted.
PC: Parental guidance suggested. Some material may not be

suitable for children.

PG-13: Parents strongly cautioned. Some material may be

inappropriate for children under 13.

R: Restricted. Under 17 requires accompanying parent or

adult guardian (age varies in some jurisdictions).

NC-t 7: No one 17 and under admitted.
X: X is an older rating that is unified with NC 17 but may be

encoded in the data of older movies.

o Voluntary movie rating system only uses an age based

rating.

22

On-Screen Display Menu

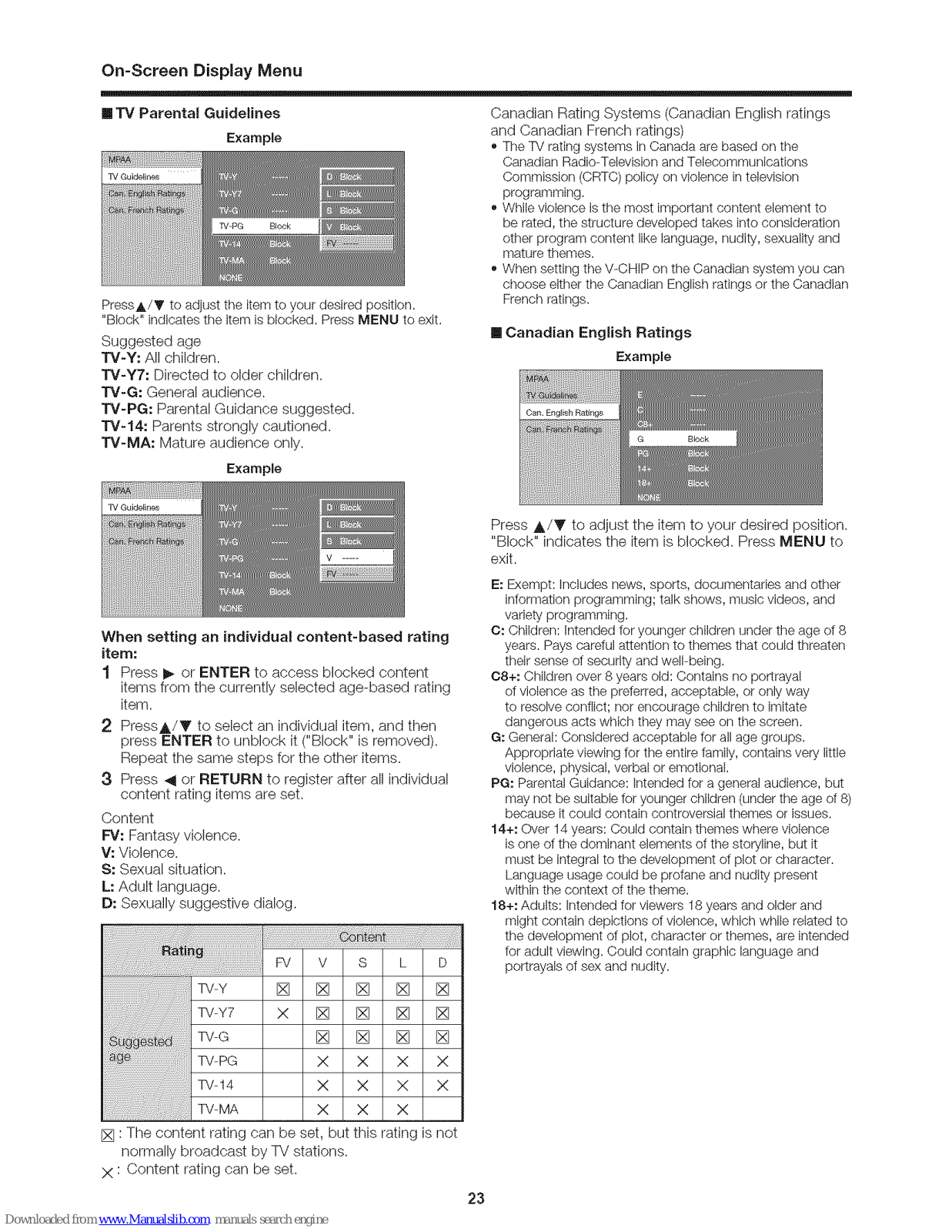

[] TV Parental Guidelines

Example

PressA/T to adjust the item to your desired position.
"Block" indicates the item is blocked. Press MENU to exit.

Suggested age
TV-Y: All children.

TV-Y7: Directed to older children.
"J'V-G: General audience.

TV-PG: Parental Guidance suggested.
TV-14: Parents strongly cautioned.
TV-MA: Mature audience only.

Example

Canadian Rating Systems (Canadian English ratings
and Canadian French ratings)
o The TV rating systems in Canada are based on the

Canadian Radio Tebvision and Tebcommanbations
Commission (CRTC) policy on violence in tebvision
programming.

o While violence is the most important content element to

be rated, the structure developed takes into consideration
other program content like language, nudity, sexuality and

mature themes.

o When setting the V-CHIP on the Canadian system you can

choose either the Canadian English ratings or the Canadian
French ratings.

[] Canadian English Ratings

Example

When setting an individual content-based rating

item:

1 Press I_ or ENTER to access blocked content

items from the currently selected age-based rating
item.

2 Press,A/_" to select an individual item, and then

press ENTER to unbleck it ("Block" is removed).
Repeat the same steps for the other items.

3 Press ,,q or RETURN to register after all individual

content rating items are set.

Content
FV: Fantasy violence.

V: Violence.
S: Sexual situation.

L: Adult language.
D: Sexually suggestive dialog.

TVY [] [] [] [] []
TV Y7 X [] [] [] []

TVG [] [] [] []
TV PG X X X X

TV14 X X X X
TV MA X X X

[] : The content rating can be set, but this rating is not

normally broadcast by TV stations.

X : Content rating can be set.

Press A/_' to adjust the item to your desired position.
"Block" indicates the item is blocked. Press MENU to

exit.
E: Exempt: Includes news, sports, docamentades and other

intormation programming; talk shows, music videos, and
variety programming.

C: Children: Intended tot younger children under the age of 8

years. Pays careful attention to themes that could threaten
their sense d security and well being.

C8+: Children over 8 years old: Contains no portrayal

of violence as the preterred, acceptable, or only way
to resolve conflict; nor encourage chikJren to imitate

dangerous acts which they may see on the screen.

G: General: Considered acceptable tot all age groups.

Appropriate viewing tot the entire tamily, contains very little
violence, physical, verbal or emotional

PG: Parental Guidance: Intended for a general audience, but

may not be suitable tot younger children (under the age of 8)
because it could contain controversial themes or issues.

14+: Over 14 years: Could contain themes where violence

is one ot the dominant ebments of the storyline, but it
must be integral to the development ot plot or character.

Language usage could be profane and nudity present
within the context of the theme.

18+: Adults: Intended for viewers 18 years and older and

might contain depictions ot violence, which while related to
the development ot plot, character or themes, are intended

tot adult viewing. Could contain graphic language and
portrayals of sex and nudity.

23

On-Screen Display Menu

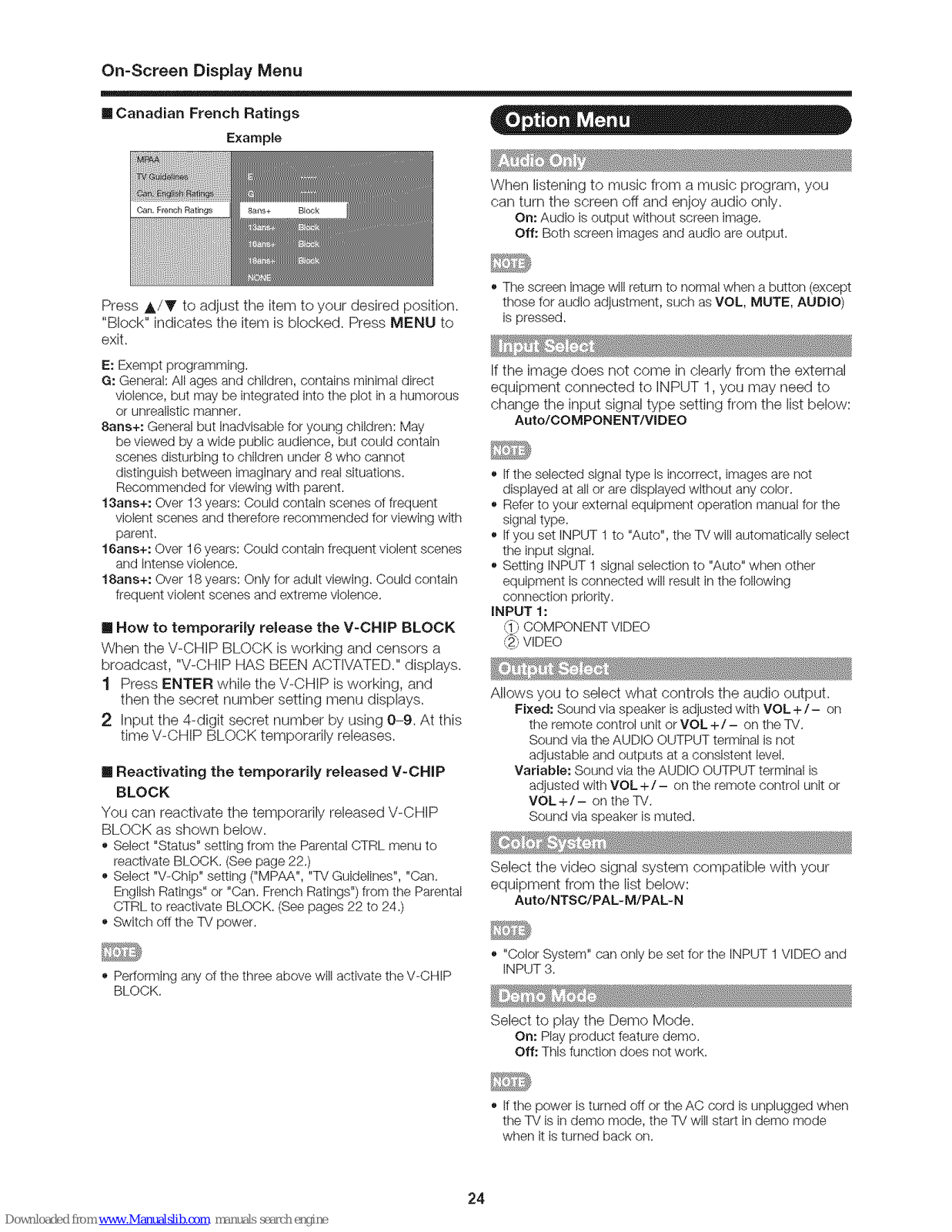

[] Canadian French Ratings

Example

Press A/Y to adjust the item to your desired position.
"Block" indicates the item is blocked. Press MENU to

exit.
E: Exempt programming.

G: General: All ages and children, contains minimal direct

violence, but may be integrated into the plot in a humorous
or unreaHstb manner.

8arts+: General but inadvisabb for young children: May

be viewed by a wide public audbnce, but could contain
scenes disturbing to children under 8 who cannot

distinguish between imaginary and real situations.
Recommended for viewing with parent.

13ans+: Over 13 years: Could contain scenes of frequent

violent scenes and therefore recommended tot viewing with
parent.

16arts+: Over 16 years: Could contain frequent violent scenes

and intense violence.

18ans+: Over 18 years: One/tot adult viewing. Could contain

frequent violent scenes and extreme vJobnce.

[] How to temporarily release the V-CHIP BLOCK
When the V-CHIP BLOCK is working and censors a

broadcast, "V-CHIP HAS BEEN ACTIVATED." displays.
1 Press ENTER while the V-CHIP is working, and

then the secret number setting menu displays.

2 Input the 4-digit secret number by using 0-9. At this

time V-CHIP BLOCK temporarily releases.

[] Reactivating the temporarily released V-CHIP

BLOCK

You can reactivate the temporarily released V-CHIP
BLOCK as shown below.

o Select "Status" setting from the Parental CTRL menu to

reactivate BLOCK. (See page 22.)

o Select "V-Chip" setting ("MPAA", "TV Guidelines", "Can.

English Ratings" or "Can. French Ratings") from the Parental

CTRL to reactivate BLOCK. (See pages 22 to 24.)

o Switch off the TV power.

o Peflorming any ot the three above will activate the WCHIP

BLOCK.

• • • -

When listening to music from a music program, you
can turn the screen off and enjoy audio only.

On: Audio is output without screen image.
Off: Both screen images and audio are output.

o The screen image will return to normal when a button (except

those tot audio adjustment, such as VOL, MUTE, AUDIO)
is pressed.

If the irrlage does not come in clearly from the external
equipment connected to INPUT 1, you may need to
change the input signal type setting from the list below:

Auto/COMPONENT/VIDEO

o If the selected signal type is incorrect, images are not

displayed at all or are displayed without any color.

o Reter to your external equipment operation manual forthe

signal type.

o If you set INPUT 1 to "Auto", the TV will automatically select

the input signal.

o Setting INPUT 1 signal selection to "Auto" when other

equipment is connected will result in the tollowing
connection priority.

INPUT 1:

,_1COMPONENT VIDEO
% VIDEO

Allows you to select what controls the audio output.

Fixed: Sound via speaker is adjusted with VOL+/- on

the remote control unit or VOL +/- on the TV.
Sound via the AUDIO OUTPUT terminal is not

adjustable and outputs at a consistent level.

Variable: Sound via the AUDIO OUTPUT terminal is

adjusted with VOL+/- on the remote control unit or
VOL+/- on the TV.

Sound via speaker is muted.

Select the video signal system corrlpatible with your
equipment from the list below:

Auto/NTSC/PAL- M/PAL- N

o "Color System" can only be set tor the INPUT 1 VIDEO and

INPUT 3.

_&_ _ .....

Select to play the Demo Mode.

On: Play product teature demo.
Off: This function does not work.

o If the power is turned oft or the AC cord is unplugged when

the TV is in demo mode, the TV will start in demo mode
when it is turned back on.

24

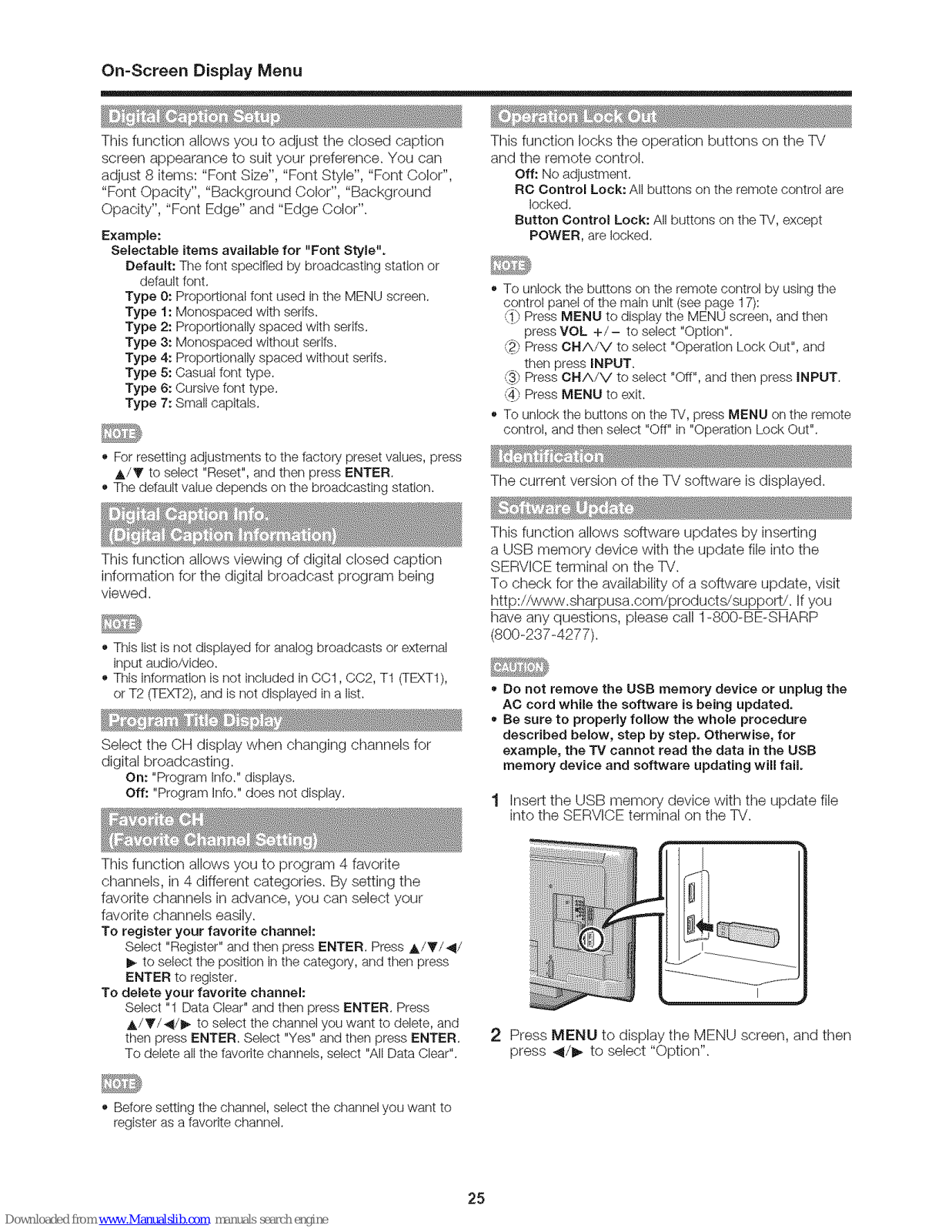

On-Screen Display Menu

This function allows you to adjust the closed caption
screen appearance to suit your preference. You can

adjust 8 items: "Font Size", "Font Style", "Font Color",
"Font Opacity", "Background Color", "Background
Opacity", "Font Edge" and "Edge Color".

Example:

Selectable items available for "Font Style".

Default: The font specified by broadcasting station or

default font.
Type 0: Proportional font used in the MENU screen.
Type 1: Monospaced with serifs.

Type 2: Proportionally spaced with serifs.
Type 3: Monospaced without serifs.

Type 4: Proportionally spaced without serifs.
Type 5: Casual font type.

Type 6: Cursive font type.
Type 7: Small capitals.

o For resetting adjustments to the factory preset values, press

_,/T to select "Reset", and then press ENTER.

o The default value depends on the broadcasting station.

This function allows viewing of digital closed caption
information for the digital broadcast program being
viewed.

o This list is not displayed for analog broadcasts or external

input audio/video.

o This information is not included in CC1, CC2, Tt (TEXTt),

or T2 (TEXT2), and is not displayed in a list.

Select the CH display when changing channels for
digital broadcasting.

On: "Program Info." displays.
Off: "Program Info." does not display.

This function locks the operation buttons on the TV
and the remote control.

Off: No adjustment.
RC Control Lock: All buttons on the remote control are

locked.

Button Control Lock: All buttons on the TV, except

POWER, are locked.

o To unlock the buttons on the remote control by using the

control panel of the main unit (see page 17):

(1_Press MENU to display the MENU screen, and then

press VOL +/- to select "Option".

(2) Press ON/X./V to select "Operation Lock Out", and

then press INPUT.

,:3) Press ON/X./V to select "Off", and then press INPUT.
,:z!)Press MENU to exit.

o To unlock the buttons on the TV, press MENU on the remote

control, and then select "Off" in "Operation Lock Out".

The current version of the TV software is displayed.

This function allows software updates by inserting
a USB memory device with the update file into the
SERVICE terminal on the TV.
To check for the availability of a software update, visit
http://www.sharpusa.cem/products/suppert/. If you
have any questions, please call 1-800-BE-SHARP

(800-237-4277).

• Do not remove the USB memory device or unplug the
AC cord while the software is being updated.

• Be sure to properly follow the whole procedure
described below, step by step. Otherwise, for

example, the "IV cannot read the data in the USB
memory device and software updating will fail

1 Insert the USB memory device with the update file

into the SERVICE terminal on the TV.

This function allows you to program 4 favorite
channels, in 4 different categories. By setting the
favorite channels in advance, you can select your
favorite channels easily.
To register your favorite channel:

Select "Register" and then press ENTER. Press A/T/41/

I_ to select the position in the category, and then press

ENTER to register.

To delete your favorite channel:

Select "1 Data Clear" and then press ENTER. Press

A/V/_/i_ to select the channel you want to delete, and
then press ENTER. Select "Yes" and then press ENTER.
To delete all the tavorite channels, select "All Data Clear".

o Before setting the channel, select the channel you want to

register as a favorite channel.

2 Press MENU to display the MENU screen, and then

press 41/1_ to select "Option".

25

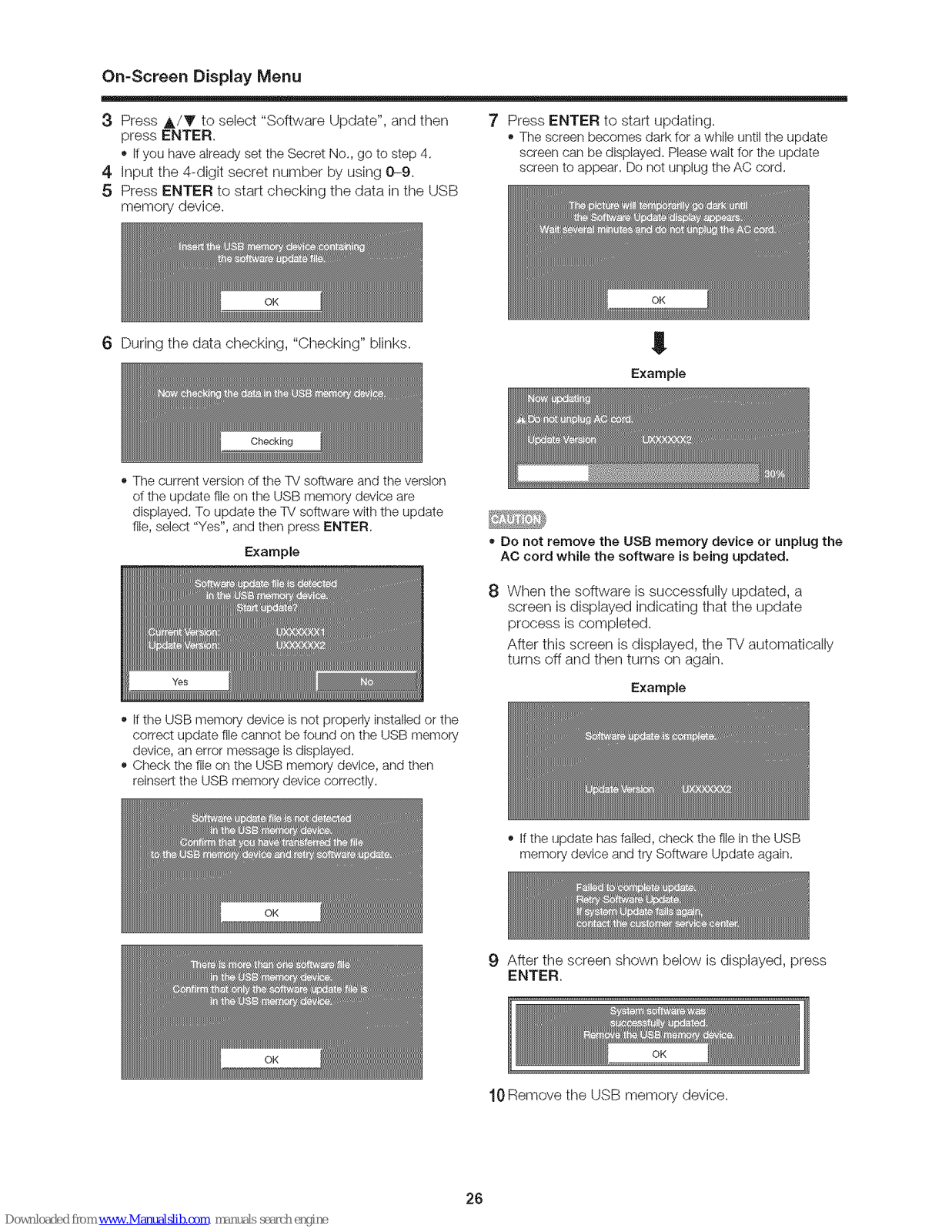

On-Screen Display Menu

3 Press A/Y to select "Software Update", and then

press ENTER.

• If you have already set the Secret No., go to step 4.
4 Input the 4-digit secret number by using 0-9.
5 Press ENTER to start checking the data in the USB

memory device.

7 Press ENTER to start updating.

o The screen becomes dark tot a while until the update

screen can be displayed. Please wait tot the update
screen to appear. Do not unplug the AC cord.

6 During the data checking, "Checking" blinks. !l

Example

o The current version ot the TV so.are and the version

ot the update file on the USB memory device are
displayed. To update the TV software with the update

file, select "Yes", and then press ENTER.

Example

o If the USB memory device is not properly instalbd or the

correct update file cannot be found on the USB memory
device, an error message is displayed.

o Check the file on the USB memory device, and then

reinsert the USB memory device correctly.

• DO not remove the USB memory device or unplug the
AC cord while the software is being updated.

8 When the software is successfully updated, a

screen is displayed indicating that the update
process is cornpleted.

After this screen is displayed, the TV automatically
turns off and then turns on again.

Example

o If the update has failed, check the file in the USB

memory device and try Sotlware Update again.

g After the screen shown below is displayed, press

ENTER.

10 Remove the USB memory device.

26

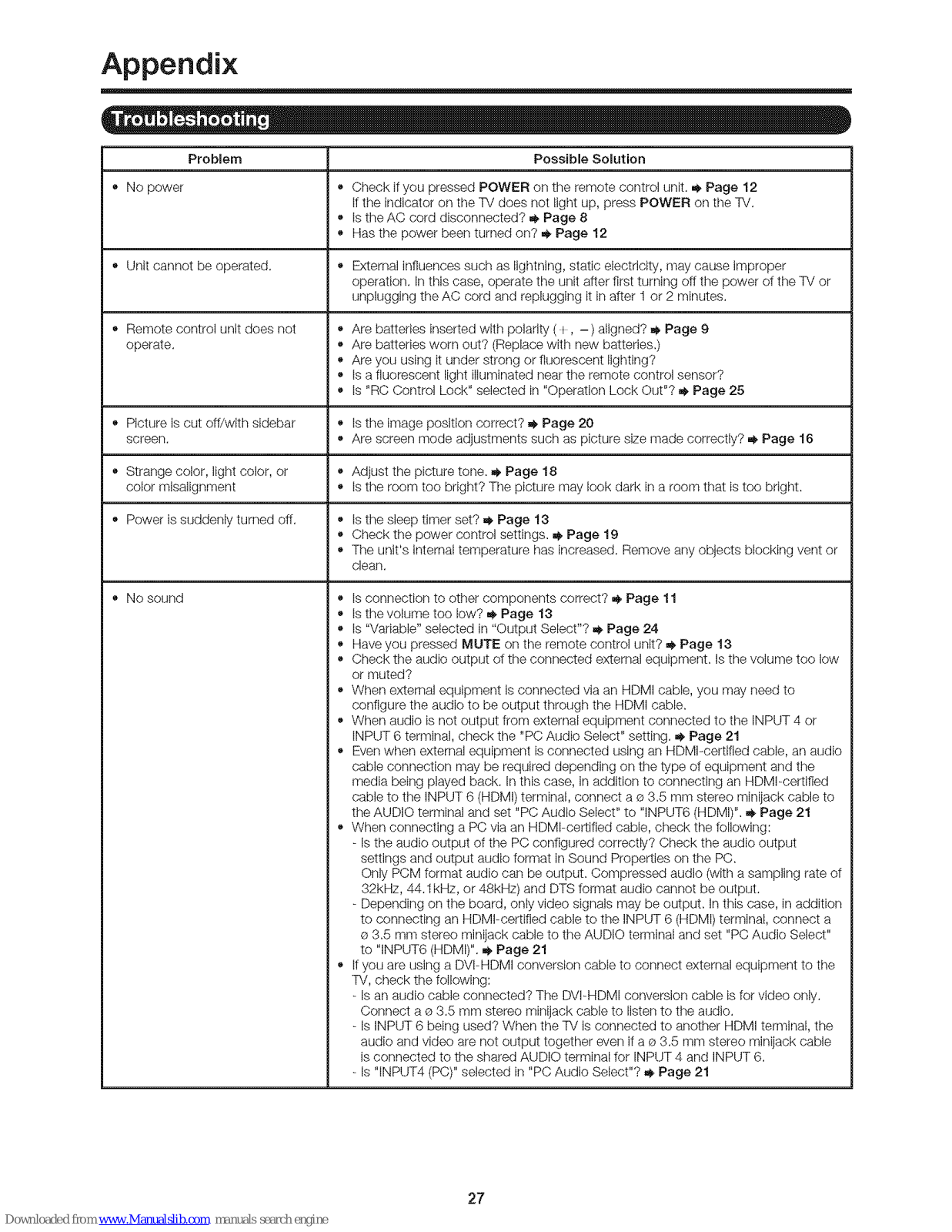

Appendix

Problem Possible Solution

o No power o Chock if you pressed POWER on the remote control unit. _ Page 12

If the indicator on the TV does not light up, press POWER on the TV.

o Is the AC cord disconnected? _ Page 8
o Has the power been turned on? .,YPage 12

o Unit cannot be operated, o External influences such as lightning, static electricity, may cause improper

operation. Inthis case, operate the unit after first taming oft the power ot the TV or
unplugging the AC cord and replugging it in atter 1 or 2 minutes.

o Remote control unit does not o Are batteries inserted with polarity ( I , - ) aligned? _ Page 9

operate, o Are batteries worn out? (Replace with new batteries.)

o Are you using it under strong or fhJorescent lighting?
o Is a fluorescent light illuminated near the remote control sensor?

o Is "PC Control Lock" sebcted in "Operation Lock Oat"? ._ Page 25

o Picture is cut off/with sidebar o Is the image position correct? ._ Page 20

screen, o Are screen mode adjustments such as picture size made correctly? ,,_Page 16

o Strange color, light color, or o Adjust the picture tone.._ Page 18

color misalignment o Is the room too bright? The picture may look dark in a room that is too bright.

o Power is suddenly turned oft. o Is the sleep timer set? ,,_Page 13

o Check the power control settings. _ Page 19
o The unit's internal temperature has increased. Remove any objects blocking vent or

dean.

o No sound

o Is connection to other components correct? _ Page 11
o Is the volume too low? _ Page 13

o Is "Variable" selected in "Output Select"? ._ Page 24
o Have you pressed MUTE on the remote control unit? ,_ Page 13

o Check the audio output ot the connected external equipment, is the volume too low

or muted?

o When external equipment is connected via an HDMI cable, you may need to

configure the audio to be output through the HDMI cable.

o When audio is not output from external equipment connected to the INPUT 4 or

INPUT 6 terminal, check the "PC Audio Select" setting. ,_ Page 21

o Even when external equipment is connected using an HDMbcertifbd cable, an audio

cable connection may be required depending on the type ot equipment and the
media being played back. Inthis case, in addition to connecting an HDMi-certified
cable to the INPUT 6 (HDMI) terminal, connect a _ 3.5 mm stereo minijack cable to

the AUDIO terminal and set "PC Audio Select" to 'INPUT6 (HDMI)".._ Page 21

o When connecting a PC via an HDMI certified cable, check the tollowing:

Is the audio output of the PC configured correctS!? Check the audio output
settings and output audio format in Sound Properties on the PC.
Only PCM format audio can be output. Compressed audio (with a sampling rate of

32kHz, 44.1 kHz, or 48kHz) and DTS tormat audio cannot be output.
Depending on the board, only video signals may be output. Inthis case, in addition

to connecting an HDMI certified cable to the INPUT 6 (HDMI) terminal, connect a

® 3.5 mm stereo minijack cable to the AUDIO terminal and set "PC Audio Select"

to 'INPUT6 (HDMI)". ,_ Page 21

o If you are using a DVI HDMI conversion cable to connect external equipment to the

TV, check the following:

Is an audio cable connected? The DVI-HDMI conversion cable is for video only.
Connect a ®3.5 mm stereo minijack cable to listen to the audio.
Is INPUT 6 being used? When the TV is connected to another HDMI terminal, the

audio and video are not output together even if a _ 3.5 mm stereo minijack cable
is connected to the shared AUDIO terminal tot INPUT 4 and iNPUT 6.

Is 'qNPUT4 (PC)" selected in "PC Audio Select"? _ Page 21

27

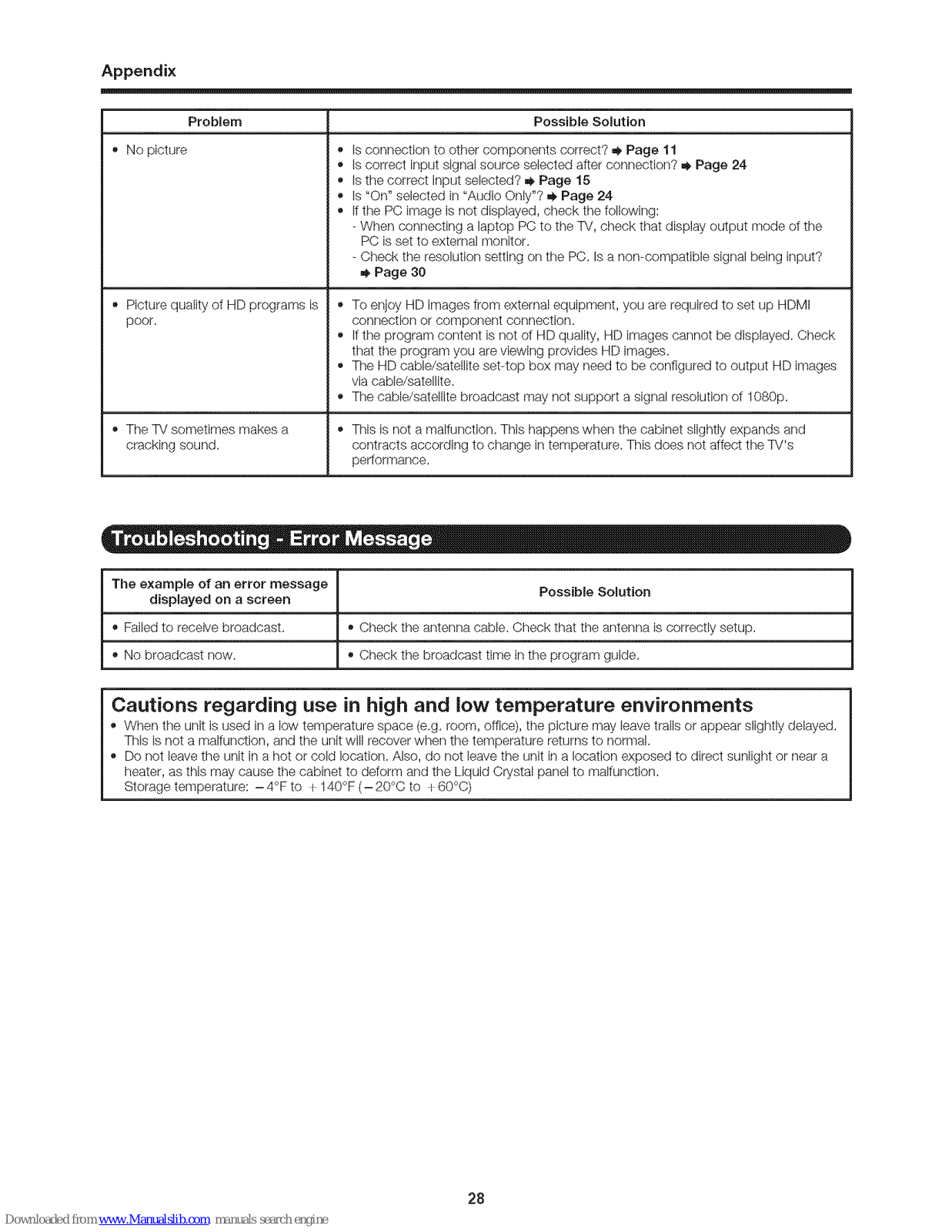

Appendix

Problem

o No picture

o Picture quality of HD programs is

poor.

o The TV sometimes makes a

cracking sound.

Possible Solution

o
o
o

o
o

Is connection to other components correct? _ Page 11
Is correct input signal source sebcted after connection? _ Page 24

Is the correct input sebcted? ,_ Page 15
Is "On" sebcted in "Audio Only"? _ Page 24
If the PC image is not displayed, check the fobwing:

When connecting a hptop PC to the TV, check that disphy output mode ot the

PC is set to external monitor.
Check the resolution setting on the PC. is a non-compatibb signal being input?

=_Page 80

o To eqoy HD images trom external equipment, you are required to set up HDMI

connection or component connection.

o If the program content is not ot HD quality, HD images cannot be displayed. Check

that the program you are viewing provides HD images.

o The HD cabb/satellite set top box may need to be configured to output HD images

via cabb/satellite.

o The cabb/satellJte broadcast may not support a signal resolution ot 1080p.

o This is not a malflJnction. This happens when the cabinet slightly expands and

contracts according to change in temperature. This does not affect the TV's
pertormance.

The example of an error message Possible Solution

displayed on a screen

o Failed to receive broadcast, o Check the antenna cable. Check that the antenna is correctly setup.
o No broadcast now. o Check the broadcast time in the program guide.

Cautions regarding use in high and low temperature environments

o When the unit is used in a low temperature space (e.g. room, of/be), the picture may leave trails or appear slightly delayed.

This is not a malfunction, and the unit will recover when the temperature returns to normal.

o Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a

heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.

h Storage temperature: - 4°F to I 140°F - 20°C to I 60°C

28

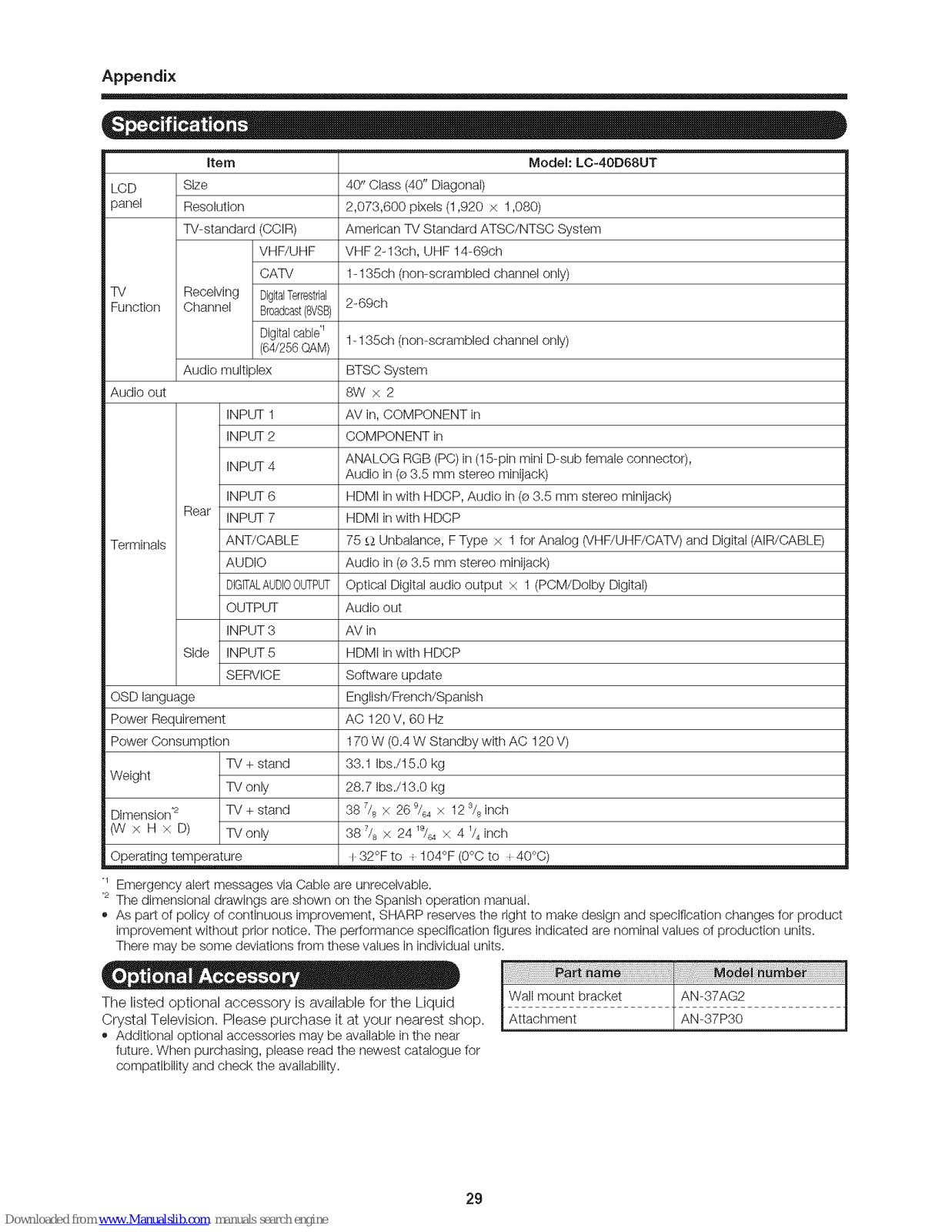

Appendix

Item Model: LC=40D68UT

LCD Size 40" Class (40" Diagonal)
panel Resolution 2,073,600 pixels (1,920 × 1,080)

TV standard (CCIR) American TV Standard ATSC/NTSC System

VHF/UHF VHF 2-13ch, UHF 14 69ch

CATV 1 135ch (non scrambled channel only)

TV Receiving DigitalTerrestrial
Function Channel Broadcast(SVSB)2-69ch

Digitalcable'_ 1_135ch (non scrambled channel only)
(64/256OAM)

Audio multiplex BTSC System

Audio out 8W × 2

INPUT 1 AV in, COMPONENT in
INPUT 2 COMPONENT in

INPUT 4 ANALOG RGB (PC) in (15 pin mini D sub female connector),

Audio in(_ 3.5 mm stereo minijack)

INPUT 6 HDMI in with HDCP, Audio in (_ 3.5 mm stereo minijack)

Rear INPUT 7 HDMI in with HDCP

Terminals ANT/CABLE 75 _. Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)

AUDIO Audio in (_ 3.5 mm stereo minijack)

DIGITALAUDIOOUTPUT Optical Digital audio output x 1 (PCM/Dolby Digital)
OUTPUT Audio out

INPUT 3 AV in

Side INPUT5 HDMI in with HDCP

SERVICE Sottware update

OSD language English/French/Spanish
Power Requirement AC 120 V, 60 Hz
Power Consumption 170 W (0.4 W Standby with AC 120 V)

TV + stand 33.1 Ibs./15.0 kg

Weight

TV only 28.7 Ibs./13.0 kg

Dimension*2 TV + stand 38 7/s>( 26 9/64x 12 s/sinch
ON x H x D) TV only 38 7/s x 24 _/_ x 4 _/4inch

Operating temperature I 32°Fto 104°F(0°Cto 40°C)

Emergency alert messages via Cable are unreceivable.

,2 The dimensional drawings are shown on the Spanish operation manual.
o As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes tor product

improvement without prior notice. The pertormance specification figures indicated are nominal vahJes ol production units.
There may be some deviations from these vahJes in individual units.

• • • _ • - •

The listed optional accessory is available for the Liquid
Crystal Television. Please purehase it at your nearest shop.
o Additional optional accessories may be available in the near

future. When purchasing, please read the newest catalogue tor
compatibility and check the availability.

29

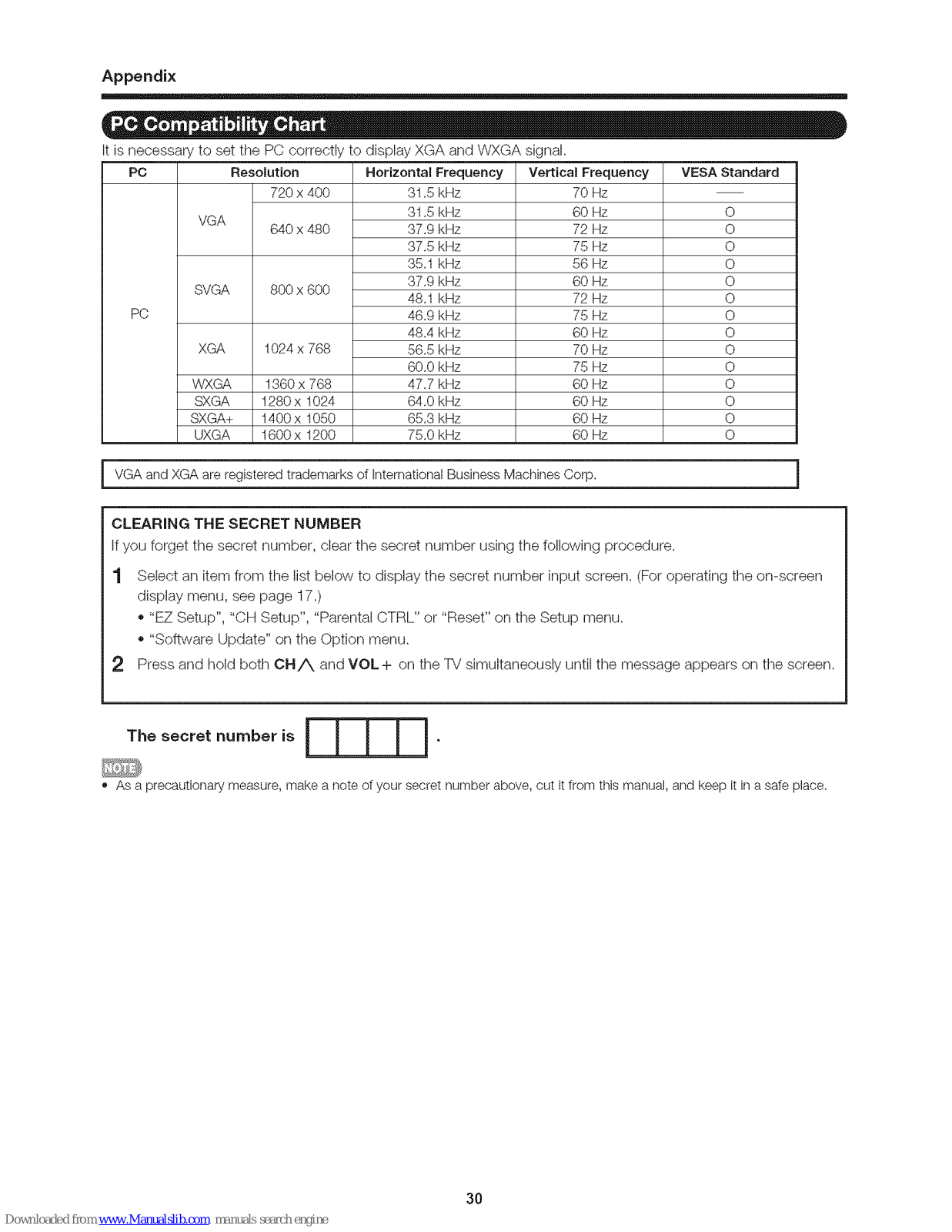

Appendix

m

It is necessary to set the PC correctly to display XGA and WXGA signal.

PC Resolution

720 x 400

VGA

PC

640 x 480

SVGA 800 x 600

XGA 1024 x 768

WXGA 1360 x 768

SXGA 1280x 1024

SXGA+ 1400x 1050

UXGA 1600x 1200

VGA and XGA are registered trademarks of International Business Machines Corp.

Horizontal Frequency

31.5 kHz

31.5 kHz

37.9 kHz

37.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

48.4 kHz

56.5 kHz

60.0 kHz

47.7 kHz

64.0 kHz

65.3 kHz

75.0 kHz

Vertical Frequency

70 Hz

60 Hz

72 Hz
75 Hz

56 Hz
60 Hz

72 Hz
75 Hz

60 Hz

70 Hz

75 Hz
60 Hz
60 Hz

60 Hz
60 Hz

VESA Standard

O
O
O

O
O
O
O

O
O
O
O
O

O
O

CLEARING THE SECRET NUMBER
If you forget the secret number, clear the secret number using the following procedure.

1 Select an item from the list below to display the secret number input screen. (For operating the on-screen

display menu, see page 17.)
, "EZ Setup", "CH Setup", "Parental CTRL" or "Reset" on the Setup menu.
, "Software Update" on the Option menu.

2 Press and hold both CHA and VOL+ on tile TV simultaneously until tile message appears on tile screen.

The secret number is I I I I I

M

o As a precautionary measure, make a note ot your secret number above, cut it from this manual, and keep it in a sate place.

3O

Calling for Service

For location of the nearest Sharp Authorized Sewice, or to obtaffl product literature, accessories, supplies, or
customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand Uqu_d Crystal Display product (the "Product"), when
shipped in its odg_nal container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the
defective Product or pert thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance Etems of the Product or if the serial number or model number affixed to the Product has been removed, defaced,
changed, altered or tampered wEth. This warranty does not cover _nst alEat_on or signal reception proMems. Th_s Eff_ted warranty will not apply if the Product has
been or is being used in a commerdal setting or application; tHs warranty _s meant solely for the non commercial, household use of the Product by consumers in
their beme or residence, if you _ntend to or already use this Product for commercial purposes or _n a commerciaJ setting, there are warranties avaElabEe to cover

_our use of this Product, the terms of which may vary. Please contact 1-888-GO-SHARP for further information.

In order to enforce your rights under this EimEted warranty, you should follow the steps set forth below. You must be able to provEde proof of purchase to the servEcer,

which proof must _nclude the date of purchase.

To the extent permitted by appEEcable state law, the warranties set forth are in lieu of, and exclusive of, all other warranties, express or implied. SpecEfically ALL
OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED, ALL EXPRESS AND

IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE
SPECIFICALLY EXCLUDED. IF, UNDER APPLICABLE STATE LAW, IMPLIED WARRANTIES MAY NOT VALIDLY BE DISCLAIMED OR EXCLUDED, THE DURATION
OF SUCH IMPLIED WARRANTIES IS LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. THIS WARRANTY GIVES YOU
SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

The warranties given herein shall be the sole and exclusive warrant_es granted by Sharp and shall be the sole and exclusive remedy available to the purchaser and
only for the time pebeds set forth here_n. No other representations or promises made by anyone are permitted. Correction of defects, in the manner and for the

_ebed of time described bere_n, shale constitute complete fulf[lff_ent of a]] E_ab[EEtiesand responsibEEEties of Sharp to the purchaser with respect to the Product, and
sbell constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. Sharp does not warrant nor shall Sharp be E_abEe,
or in any way
responsible, for Products which have been subject to abuse (including, but not limited to, improper voltage), accident, m_suse, negligence, lack of reasonable care,
alteration, modification, tampering, m_suse, improper operation or maff_tenance or any damages or defects _n the Product which were caused by repeErs or
attempted repairs performed by anyone other than a Sharp autberLzed serv_ce_ Nor shall Sharp be l_ab_e or _n any way responsible for any incidental or consequen
tial economic or property damage. Some states do not allow limits on warranties or on remedies for breach _n certain transactions; in such states, the _m_ts herein
may not apply.

THIS LIMITED WARRANTY IS VALID ONLY IN THE FIFTY (50} UNITED STATES, THE DISTRICT OF COLUMBIA AND PUERTO RICO,

Model Specific Section

Your Product Model Humber & Description:

LC-40D68UT LCD Color Television

(Be sure to have th_s _nformation available when you need service for your Product.)

Warranty Period for this Product:

Additional Exclusions from
Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

One (1) year parts and labor from the date of purchase.

In order for the Product to be sewiced, the Product must be readily available to the
sewicer, free and clear of any complex or non standard installation, mounting or other
encumbrance which would unreasonably _nterfere with servicing the Product. The
Servicer will remount the Product after service, provided that such remounting is not into
a complex or non standard _nstallation. Any additional labor and materials required to
remove and/or reinstall a Product above and beyond the foregoing are not covered by th_s
warranty, may result _n additional charges and are the responsibility of the consumer.
image Retention resulting from a fixed image being d_splayed for long periods of time _s
not covered by this Life,ted Warranty (see Operation Manual on how to prevent this).

From a Sharp Autber_ed Servicer located _nthe United States. To f_nd the location of the
nearest Sharp Autber_ed Servicer, please call Sharp toll free at 1 8OO BE-SHARR

Contact your Sharp Authorized Servicer to obtain in home service for this product. The
Servicer w_ll come to your location and if necessary remove the unit for repeir at the
Serv_cer's facility and return the set to you once completed. Be sure to have Proof of

Purchase available.

TO OBTAIN PRODUCT INFORMATION OR PURCHASE ACCESSORIES AND EXTENDED WARRANTIES CALL 1-800-BE-SHARP

OR VISIT www,sharpusa,com

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07495-1163

SHARP CORPORATION

31

VALID IN CANADA ONLY

LIMITED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

(hereinafter called 'Sharp") gives the following express warranty to the first consumer purchaser for this

Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such
defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as
specified herein.

This warranty shall not apply to:
(a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner's manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp's Authorized Service Centres

or Sharp's Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AO adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper.
(e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear.
(f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage.
(g) Any product received without appropriate model, serial number and CSA/cUL markings.
(h) Any products used for rental or commercial purposes.
(i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product
together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an
Authorized Sharp Servicing Dealer. in home warranty service may be provided at Sharp's discretion on any Sharp television with the
screen size of 27" or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is
authorized to extend, enlarge or transfer this warranty on behalf of Sharp. TO the extent the law permits, Sharp disclaims any and aH

liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a
defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss
of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of
defects, in the manner and period of time described herein, constitute complete fulfinment of all obligations and responsibilities of Sharp

to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict
Iiabimity or otherwise.

WARRANTY PERIODS: Parts & Labour (exceptions noted)

Audio Product 1 year
Camcorder 1 year

DVD Product 1 year
Projector 1 year (lamp 90 days)
LCD TV 1 year

Microwave Oven 1 year (magnetron component-4 additional years)
Air Purifier 1 year
Portable Air Conditioner 1 year

"li_ oblain the name and address of Ihe r_emest Audlorized Sharp Service Cenire or Dealer, please conlact:

SHARP ELECTRONICS OF CANADA I.TD 335 Britannia Road East, Mississauga, Ontario 1.4Z 1W9

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service SHARP

Locations, please call [phone] -4

Visit our Web site: www.sharp.ca -_.c&. SSRWCE_ _"

Revision 12/16/05

32
