LC-37GD4U LC-32GD4U LC-26GD4U

LIQUID CRYSTAL TELEVISION

ENGLISH

FRANÇAIS

TÉLÉVISEUR ACL TELEVISOR CON PANTALLA DE CRISTAL LIQUIDO

OPERATION MANUAL MODE D’EMPLOI MANUAL DE OPERACIÓN

ESPAÑOL

LC-37GD4U LC-32GD4U LC-26GD4U

LIQUID CRYSTAL TELEVISION

OPERATION MANUAL

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• Some items may be grayed out. They are not selectable.

IMPORTANT: To aid reporting in case of loss or theft, please record the TV’s model and serial numbers in the space provided. The numbers are located at the rear of the TV.

ENGLISH

Model No.:

Serial No.:

IMPORTANT INFORMATION

WARNING:TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrow-head

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT INFORMATION

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO

WIDE SLOT, FULLY INSERT.

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER’S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

DECLARATION OF CONFORMITY

SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-37GD4U SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-32GD4U SHARP LIQUID CRYSTAL TELEVISION, MODEL LC-26GD4U This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

RESPONSIBLE PARTY:

For Business Customers: URL

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP

http://www. sharpusa. com

INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help.

“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp Liquid Crystal Television. To ensure safety and many years of trouble-free operation of your product, please read the IMPORTANT SAFETY INSTRUCTIONS carefully before using this product.

IMPORTANT SAFETY INSTRUCTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your Liquid Crystal Television, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Power Sources — This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16) Overloading — Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry — Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Damage Requiring Service — Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to

restore the product to its normal operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

19) Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check — Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting — When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

IMPORTANT SAFETY INSTRUCTIONS

• Water and Moisture — Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

• Stand — Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

• The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

• Heat — The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

• The Liquid Crystal panel is a very high technology product with 3,147,264 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

Precautions when transporting the Display

When transporting the Display, never carry it by holding onto the speaker. Be sure to always carry the Display by two people holding it with two hands—one hand on each side of the Display.

• Lightning — For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

• Power Lines — An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

IMPORTANT SAFETY INSTRUCTIONS

• Outdoor Antenna Grounding — If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, Iocation of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA

ELECTRIC SERVICE EQUIPMENT

NEC —NATIONAL ELECTRICAL CODE

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)

DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

• To prevent fire, never place any type of candle or flames on the top or near the TV set.

• To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects filled with liquids, such as vases, should be placed on the product.

• To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy items.

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Use a soft cloth and gently wipe the surface of the display panel. Using a hard cloth may scratch the panel surface.

• Use a soft damp cloth to gently wipe the panel when it is really dirty. (It may scratch the panel surface when wiped strongly.)

• If the panel is dusty, use an anti-static brush, which is commercially available, to clean it.

• To protect the panel, do not use a dirty cloth, liquid cleaners or chemical cloth to clean it, such materials may damage the panel surface.

Contents

IMPORTANT INFORMATION ………………………1 DEAR SHARP CUSTOMER …………………………3 IMPORTANT SAFETY INSTRUCTIONS ……………3 Contents ………………………………………………6 Trademarks ……………………………………………7 COPYRIGHT AND LICENSE NOTICE ……………7 Patent Notice …………………………………………7 Supplied accessories ………………………………8 Preparation …………………………………………… 9

Where to place the TV …………………………… 9 Setting the TV ………………………………… 10 Attaching speakers …………………………… 11 Removing the stand …………………………… 12 Setting the Display on the wall ……………… 12 Inserting the batteries ………………………… 13 Using the remote control unit ………………… 13

Cautions regarding remote control unit … 13

Part names ………………………………………… 14

Display ………………………………………… 14 Remote control unit …………………………… 16

Watching TV ……………………………………… 17

Antennas ……………………………………… 17 Cable TV converter/VCR connection ………… 17 Outdoor antenna connection ………………… 19 Turning on the power ………………………… 20 Turning off the power ………………………… 20 Initial setup ……………………………………… 21 Changing channels Analog-TV ……………… 22 Changing channels Digital-TV ……………… 22 Changing volume/sound ……………………… 23 Setting MTS/SAP stereo mode ……………… 24 Connecting Digital Cable Module …………… 25

Basic adjustment settings ……………………… 26

AV input mode menu items …………………… 26 PC input mode menu items …………………… 26 EZ setup ………………………………………… 27 Channel setup ………………………………… 28 Favorite channel setting ……………………… 30 Language setting ……………………………… 30 Antenna Setup-DIGITAL ……………………… 31 Picture adjustments …………………………… 32

OPC setting ………………………………… 33 C.M.S. (Color Management System) …… 33 Color temperature ………………………… 34 Black ……………………………………… 34 3D-Y/C ……………………………………… 34 Monochrome ……………………………… 35 Film mode (3:2 pull-down) ……………… 35

I/P Setting ………………………………… 35 Sound adjustment ……………………………… 36 Dolby virtual …………………………………… 36 Power control …………………………………… 37

Power control for AV source ……………… 37

Power control for PC source……………… 37 Digital Setup …………………………………… 38

Video setup ………………………………… 38

Audio setup ………………………………… 39

Using memory card ……………………………… 40

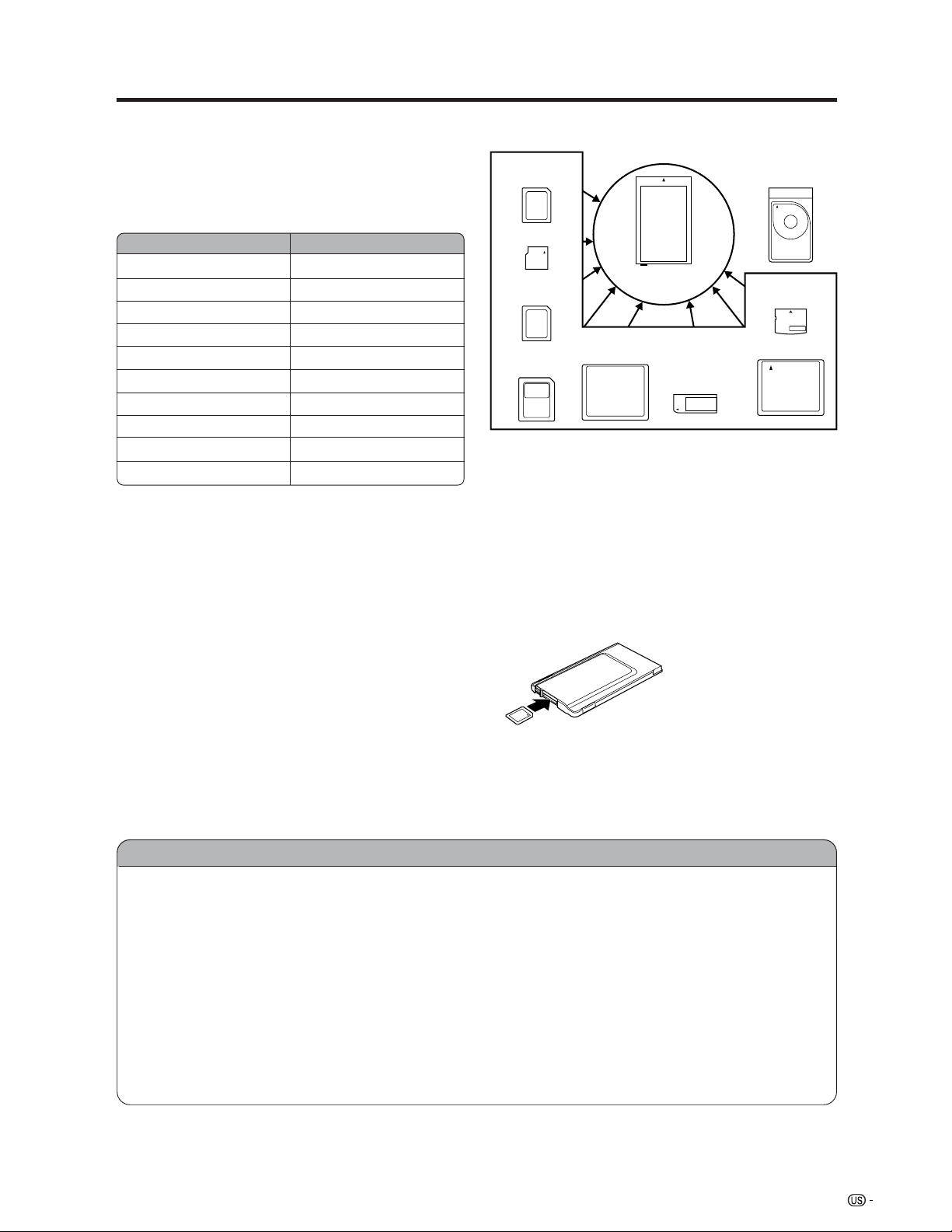

Important notes on using memory card …… 40 Card Setup mode menu items ……………… 42 Recording a still image ……………………… 44 Displaying a still image ……………………… 44 Displaying slide show ………………………… 44 Setting/unprotecting Slide Show …………… 45 My Program …………………………………… 45 Audio Select …………………………………… 45

Protecting/unprotecting still picture files …… 46 Deleting a still image file ……………………… 46 Deleting all still image files …………………… 46 Recording a motion picture …………………… 47 Displaying a motion picture ………………… 47 Rec. Mode ……………………………………… 47 Pre Record ……………………………………… 48 Repeat Play …………………………………… 48 Protecting/unprotecting motion picture files… 48 Deleting a motion picture file ………………… 49 Deleting all motion picture files ……………… 49 Format …………………………………………… 49

Using external equipment ……………………… 50

Displaying an external equipment image …… 50 Connecting a DVD player …………………… 51 Connecting a VCR …………………………… 52 Connecting a game console

or camcorder ……………………………… 52

Connecting a Digital TV STB ………………… 53

Connecting HDMI equipment …………… 54

Displaying an image from HDMI

equipment ………………………………… 54 Connecting a PC ……………………………… 55 Connecting D-VHS Decks

(i.LINK connection) ……………………… 56

About i.LINK ……………………………… 56

i.LINK connection ………………………… 56

Connecting two or more D-VHS decks … 56

Setting the recording mode ……………… 57

Setting the Stand-by Mode ……………… 57

Selecting a D-VHS deck (i.LINK) ………… 58

Disabling the TV’s operation of

a D-VHS deck (i.LINK) ………………… 58 Deleting a preset D-VHS deck (i.LINK) … 59 Controlling an i.LINK device……………… 59 Automatic input switching to i.LINK …… 60 Recording digital programs

with a D-VHS deck (i.LINK)…………… 61

Useful adjustment settings ……………………… 62

Image position (AV input mode only) ……… 62 Moving the picture on the screen …………… 62 Connecting external speakers ……………… 63 Audio Quality Control ………………………… 64 Auto Sync. adjustment (PC input mode only) … 65 Fine Sync. adjustment (PC input mode only) … 65 Input Select …………………………………… 66 Input label ……………………………………… 67 Picture flip ……………………………………… 67 AV MODE ……………………………………… 68 View mode for 4:3 Programs ………………… 68 View mode (for PC input mode) ……………… 69 Input signal (for PC input mode) …………… 70 Digital Noise Reduction ……………………… 70 Audio only ……………………………………… 70 Output Select …………………………………… 71 Quick shoot …………………………………… 71 Sleep timer ……………………………………… 71 Title Display Type ……………………………… 72 Closed caption ………………………………… 73

Caption Size ……………………………… 74 Font Style …………………………………… 74 Foreground Color ………………………… 75 Foreground Opacity ……………………… 75 Background Color ………………………… 75 Background Opacity ……………………… 76 Character Edge …………………………… 76

Contents

Secret number setting for parental control

(AV input mode only) ……………………… 77 Parental control (setting V-CHIP level) ……… 79 How to temporarily release

the V-CHIP BLOCK ……………………… 83 Reactivating the temporarily released

V-CHIP BLOCK …………………………… 83 Center Channel Input ………………………… 84

Other viewing options …………………………… 85

Viewing a list of Digital broadcast channels… 85 Viewing information of the program ………… 85 Twin picture functions ………………………… 86 Presetting remote control function …………… 86

Appendix ………………………………………… 92

Troubleshooting ………………………………… 92 PC compatibility chart ………………………… 93 RS-232C port specifications ………………… 94 Specifications ………………………………… 96 Optional accessory …………………………… 96

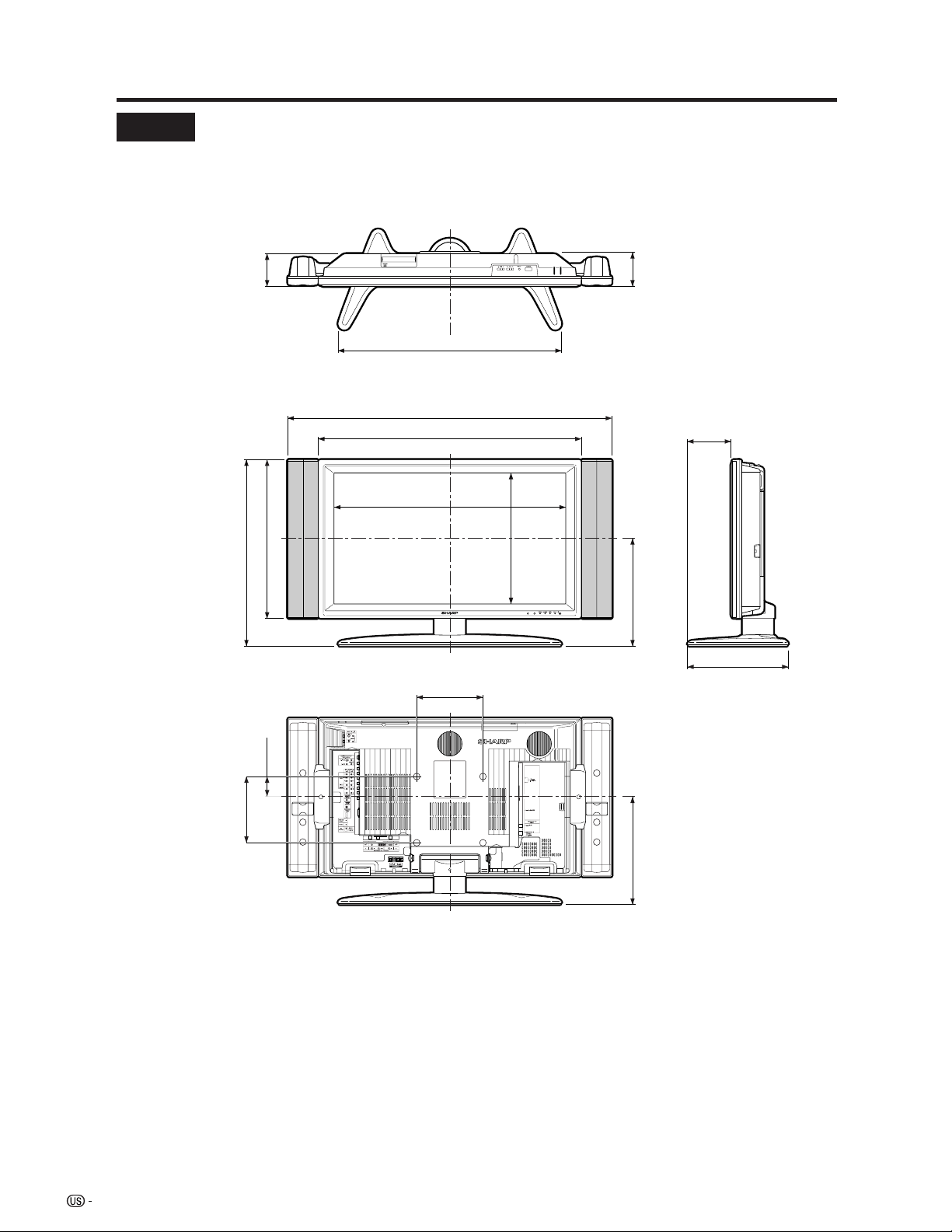

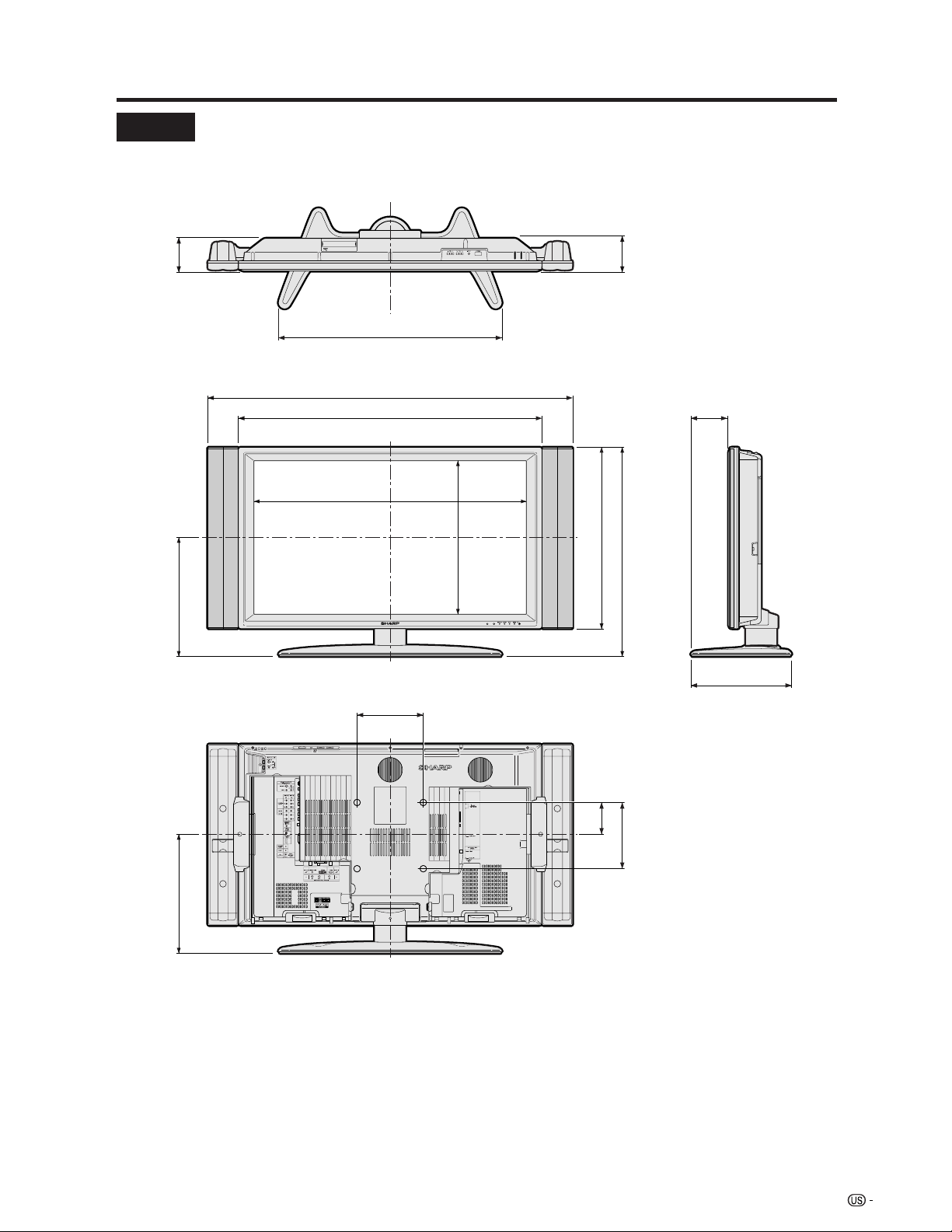

Dimensional drawings …………………………… 97

Trademarks

• Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

• Manufactured under license from BBE Sound, Inc.

Licensed by BBE Sound, Inc. under USP4638258, 5510752 and 5736897. BBE and BBE symbol are registered trademarks of BBE Sound, Inc.

• “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC.”

• It is the intent of Sharp that this product be used in full compliance with the copyright laws of the United States and that prior permission be obtained from copyright owners whenever necessary.

• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. U. S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448; 6,381,747; and 6,516,132.

• This digital television is capable of receiving analog basic, digital basic and digital premium cable television programming by direct connection to a cable system providing such programming. A security card provided by your cable operator is required to view encrypted digital programming. Certain advanced and interactive digital cable services such as videoon-demand, a cable operator's enhanced program guide and data-enhanced television services may require the use of a set-top box. For more information call your local cable operator.

Supplied accessories

Make sure the following accessories are provided with the product.

Remote control unit (g1)

RRMCGA264WJSA

Page 13

RF cable (g1)

“AAA” size battery (g2)

Page 13

Only included with the LC-32GD4U

and LC-37GD4U.

AC cord (g1)

QACCDA019WJPZ

Page 10

Operation manual (g1)Cable clamp (g1)

LC-37GD4U LC-32GD4U LC-26GD4U

QCNW-A342WJZZ

Pages 18 and 19

LHLDW0110CEZZ

Page 10

Bracket unit (g1)

The LC-26GD4U is shipped with the

The LC-26GD4U is shipped with the speakers attached.

speakers attached.

Left speaker

LC-37GD4U/LC-32GD4U:

GCOVAA856WJKB

Page 11

* The parts number for screws

Parts number

Speaker unit

Bracket unit BLACK 2

LX-BZA063WJ01

XEBSN40P08000

XEBS940P12000

LC-37GD4U: DSP-ZA079UJ07 LC-32GD4U: DSP-ZA076UJ07

Page 11

Color Q’ty

—4

SILVER 2

TINS-B241WJZZ

Speaker unit (g1)

Right speaker LC-37GD4U: DSP-ZA079UJ08 LC-32GD4U: DSP-ZA076UJ08

Page 11

** The parts number for speaker unit

Angle —2LHLDZA375WJKA

NOTE

• Always use the AC cord supplied with the LCD-TV.

Preparation

Where to place the TV

First select the location where to place the TV.

Selecting the location of the TV

• Select a place with no direct sunlight and good ventilation.

Display

Setting the TV in place

Handling the Display

CAUTION

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

• Keep enough space above and behind the Display.

• When you move TV, carry out by two people or more than it.

• When you move the Display, hold the portion of the Display, not the speaker.

4 inches

(10 cm) or more

CAUTION

Adjust the screen with both hands. Put one hand on the Display and tilt the screen while steadying the stand with your other hand.

Maximum Degree of Adjustment

Up Down Left/Right

LC-37GD4U

LC-32GD4U 6˚ 2˚ 10˚ each

LC-26GD4U 10˚ 5˚ 25˚ each

6˚ 2˚ 10˚ each

Preparation

Setting the TV

After putting the Display in place, connect the AC cord. Use the cable clamp for bundling the cables.

Removing the terminal cover

Display (rear view)

Press down the hooks to remove the cover toward you.

Connecting the AC cord to the Display

AC cord (with ferrite core)

• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE AC CORD CONNECTED.

Bundling the cables with the clamp

for LC-32GD4U/LC-37GD4U

CAUTION

Cable clamp

for LC-26GD4U

Preparation

Attaching speakers

The illustration shows the LC-32GD4U.

Remove the terminal cover as shown in the illustration.

Insert the projecting bulges on the side of the speakers into the corresponding slots in the display.

Attach the speaker terminal cover.

Align nub of the bracket with the groove and slot it into place.

Screw (SILVER)

Fasten the screw.

Fasten the speaker cable with the holder. Connect the ends of the cable to the speaker terminals as shown in the illustration.

Screw (BLACK)

Fasten the bracket with the screw.

Attach the terminal cover as shown in the illustration.

CAUTION

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

• Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from being damaged.

NOTE

• Perform the same steps for right speaker.

• To attach the speakers, perform the steps in reverse order.

Preparation

Removing the stand

Before detaching (or attaching) stand, unplug the AC cord from the AC input terminal.

CAUTION

• Do not remove the stand from the Display unless using an optional wall mount bracket to mount it.

Before attaching/detaching stand

• Before performing work make sure to turn off the TV.

• Before performing work spread cushioning over the base area to lay the Display on. This will prevent it from being damaged.

Unfasten the four screws used to secure the stand in place.

Detach the stand from the Display. (Hold the stand so it will not drop from the edge of the base area.)

CAUTION

• Do not remove the stand and speaker from the Display unless using an optional bracket to mount it.

NOTE

• To attach the stand, perform the above steps in reverse order.

Setting the Display on the wall

CAUTION

• Installing the Liquid Crystal Television requires special skill that should only be performed by qualified service personnel. Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that results in accident or injury.

Using an optional bracket to mount the Display

• You can ask a qualified service personnel about using an optional AN-37AG2 bracket to mount the Display to the wall.

• Carefully read the instructions that come with the bracket before beginning work.

Hanging on the wall

AN-37AG2 wall mount bracket. (See the bracket instructions for details.)

Vertical mounting Angular mounting

About setting the Display angle LC-37/32/26GD4U

•

You can set the Display on the wall up to 20 degrees forward when the speakers are attached and up to 20 degrees forward when the speakers are not attached. Do not set the angle outside those ranges.

Angle of Display

With Speakers

Removed

LC-37GD4U

LC-32GD4U 20˚ 20˚

•

We do not recommend attaching the LC-26GD4U to a wall surface.

10˚ 10˚

With Speakers

Attached

Preparation

Inserting the batteries

If the remote control fails to operate Liquid Crystal Television functions, replace the batteries in the remote control unit.

1 Open the battery cover. 2 Insert two “AAA” size batteries

(supplied with the product).

• Place the batteries with their terminals

corresponding to the (e) and (f) indications in the battery compartment.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Place the batteries with their terminals corresponding to the (e) and (f) indications.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

3 Close the battery cover.

Using the remote control unit

Use the remote control unit by pointing it towards the remote control sensor on the Display. Objects between the remote control unit and the remote control sensor may prevent proper operation.

Cautions regarding remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the remote control unit.

• The remote control unit may not work properly if the remote control sensor on the Display is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the Display, or operate the remote control unit closer to the remote control sensor.

Part names

Display

* The examples use throughout this manual are based on the 32GD4U model.

VOLUME buttons

(VOLl/k )

CHANNEL buttons

(CHs/r)

INPUT button

POWER button

Remote control sensor

OPC sensor POWER indicator

Headphone jack

CARD indicator

OPC indicator

SLEEP indicator

*OPC: Optical Picture Control

(See page 33.)

Part names

Display

INPUT 3

terminals

LC-37GD4U LC-32GD4U

i.LINK terminals

INPUT 1

terminals

LC-26GD4U

INPUT 3

terminals

INPUT 1

terminals

INPUT 2 terminals

DIGITAL AUDIO OUTPUT

SYSTEM RESET**

terminal

MONITOR OUTPUT terminals

INPUT 2 terminals

MONITOR OUTPUT terminals

CableCARD slot

ANT/CABLE 75 q

DIGITAL terminal

EXTERNAL SPEAKER terminals

CENTER CHANNEL INPUT terminal

* This terminal

looks different on the LC-26GD4U.

INPUT 5 terminals INPUT 4 terminal

* Instead of AIR IN and CABLE

IN terminals, the LC-26GD4U has an ANT/CABLE 75 q DIGITAL terminal.

AC INPUT terminal

DC OUTPUT

(Terminal for expanded

terminal

functionality in the near

future.)

* Press RESET if the system cannot return to its

original state after performing various operations.

• AV MODE resets to DYNAMIC (Fixed)

• TV channel returns to initial channel setting (Air:2ch, Cable:1 or 2ch)

• Twin picture resets to normal

• Audio setting initializes

• Dolby virtual resets to off

• Image position initializes

RS-232C terminal

RESET*

ANALOG A IN terminal

ANALOG A OUT terminal

ANALOG B IN terminal

** Press SYSTEM RESET if the system does not operate after starting up.

NOTE

• Pressing RESET will not work if the System is in standby mode (indicator lights red).

• Pressing RESET will not delete channel preset or secret number. See page 66 for clearing the secret number when you know it. See page 100 for initializing to the factory preset values when you forget your secret number.

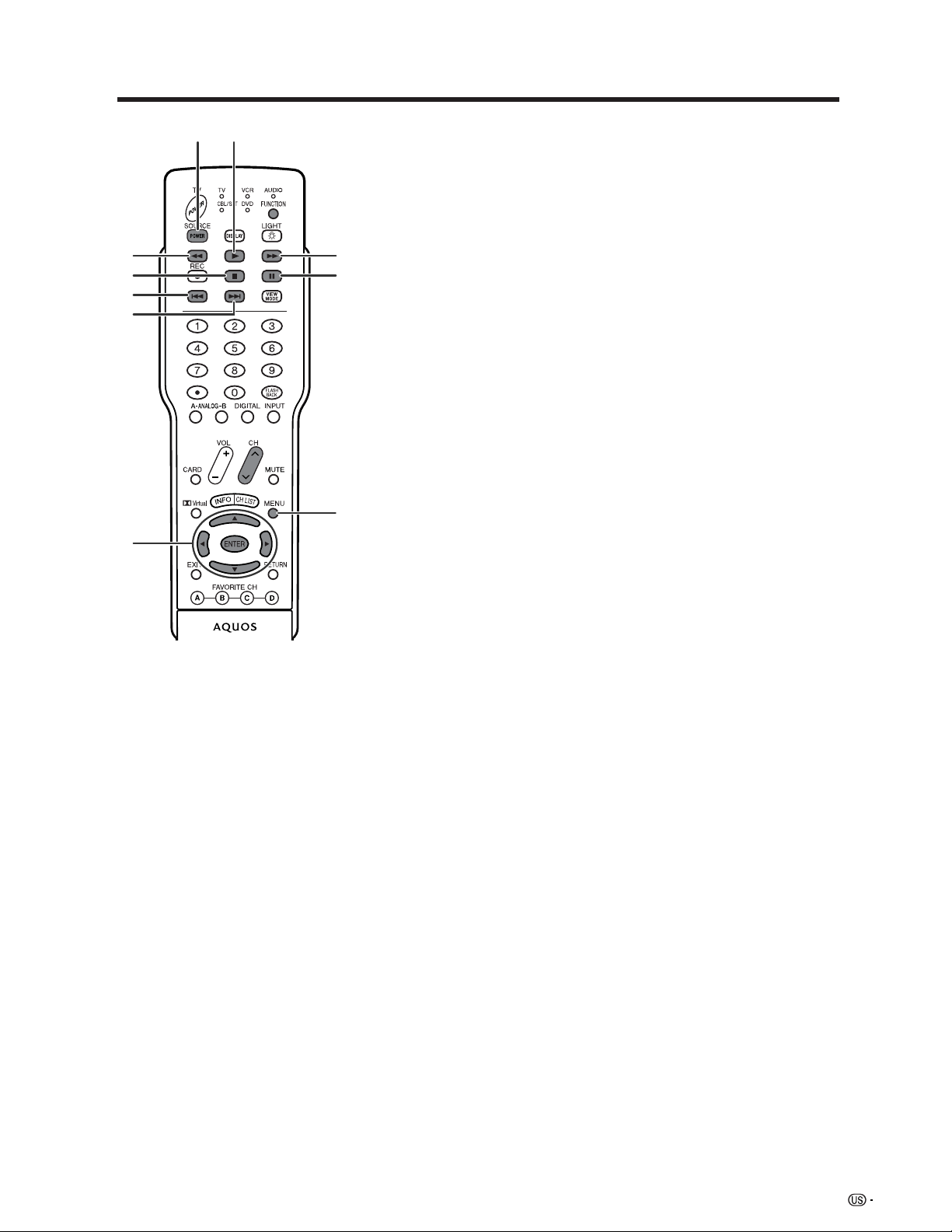

Part names

Remote control unit

117

2 3

7 824

925

10 26

11 28

12 13

14 15 16

20 21

22 23

29 30 31

1 TV POWER: Switches the Liquid Crystal Television

power on or Standby. (See page 20.)

2 DISPLAY: Displays the channel information. 3 SOURCE POWER: Turns the power of the external

equipment on and off.

4 External equipment operational buttons: Operates

the external equipment.

50 – 9: Sets the channel. 6 A-ANALOG-B: Each button selects the corresponding

antenna.

7VOL 8 CARD: Switches to card mode. 9 INFO: Displays the program information screen. (See

page 85.)

page 36.)

11 EXIT: Turns off the menu screen. 12 SELECT: Selects the active screen. (See page 85.) 13 TWIN PICTURE: Sets the twin picture mode.

Press again to return to normal screen. (See page

86.)

14 SLEEP: Sets the sleep timer. (See page 71.) 15 AUDIO: Selects the MTS/SAP. (See page 24.) 16 i.LINK: Displays the i.LINK panel. (See page 59.) 17 FUNCTION: Switches the remote control for TV, CBL/

SAT, VCR, DVD and AUDIO operation. Indicator lights up for the current mode. (See page 87 to 91 for details.)

will light. The lighting will turn off if no operations are performed within about 5 seconds. This button is used for performing operations in dark places.

19 VIEW MODE: Selects the screen size. (See pages 69

and 71.)

20 FLASHBACK: Returns to the previous channel or input

external mode. (See page 22.)

21 INPUT: Selects a Liquid Crystal Television input source.

(TV, INPUT 1, INPUT 2, INPUT 3, INPUT 4, INPUT 5, Card) (See pages 50 and 66.)

22 DIGITAL: Receives digital broadcasts. 23 CH 24 MUTE: Mutes the sound. (See page 23.) 25 CH LIST: Displays the channel list screen. 26 MENU: Displays the menu screen. 27 a/b/c/d: Selects a desired item on the screen. 28 RETURN: Returns to the previous menu screen. 29 FAVORITE CH

A, B, C, D: Selects four preset favorite channels in four

different categories. (See page 30 for details.)

l: Sets the volume. (See page 23.)

Virtual: Select Virtual Dolby Surround settings. (See

: When pressed all buttons on the remote control unit

s: Selects the channel.

While watching, you can toggle the selected channels by pressing A, B, C and D.

30 FREEZE: Sets the still image. Press again to return to

normal screen. (See page 86.)

31 CC: Displays captions during closed-caption source.

(See page 73.)

32 EDIT: Registers favorite channel. 33 AV MODE: Selects an audio or video setting. (See

page 68.) (AV mode: STANDARD, MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. PC mode: STANDARD, USER.)

Watching TV

Simple operations for watching a TV program

Antennas

To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of connections that are used for a coaxial cable. If your outdoor antenna uses a 75-ohm coaxial cable with an F-type connector, plug it into the antenna terminal at the rear of the AVC System.

NOTE

• The antenna and the cable converter cannot be connected at the same time.

1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (Commercially available).

75-ohm coaxial cable (round)

2. A 300-ohm system is a flat “twin-lead” cable that can be attached to a 75-ohm terminal through a 300/75-ohm adapter (Commercially available).

300-ohm twin-lead cable (flat)

F-type connector

Cable TV converter/VCR connection

• Be sure to connect the antenna or the cable converter as follows. Signal reception may fail if improperly connected.

• Be sure to remember what kind of connection is made with your System.

• The connection type will determine whether to select “Air” or “Cable” for both ANT-A and B when configuring “Air/Cable” settings.

A-1. Connecting with cable TV Converter and VCR

Coaxial Antenna Cable (commercially available)

2-way signal splitter (commercially available)

Cable lead-in

Coaxial Antenna Cable (commercially available)

Audio Cable (commercially available)

Video Cable (commercially available)

OUT IN

Cable TV converter

(commercially available)

VIDEO AUDIO OUT IN

VCR

NOTE

• Be sure to remember what kind of connection is made with your System.

• Shown here is the preferred method of connecting a VCR and CATV Converter to your TV if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from a stereo VCR.

• While in STANDBY, no signal outputs from ANT-A OUT.

Watching TV

Cable converter/VCR connection (continued)

A-2. Connecting with cable converter using AUX terminals for audio and video output.

(If your cable TV converter has both RF OUTPUT and AUX terminals, it is recommended to connect it as shown in example A-1.)

Coaxial Antenna Cable (commercially available)

signal splitter (commercially

Cable TV Converter

available)

RF Cable (Supplied)

OUT

VIDEO AUDIO

Cable lead-in

Audio Cable (commercially available)

Video Cable (commercially available)

VIDEO AUDIO OUT IN

NOTE

VCR

• Be sure to remember what kind of connection is made with your System.

B. Connecting with Cable Converter without VCR

Coaxial Antenna Cable (commercially available)

signal splitter (commercially

OUT IN

Cable TV converter

(commercially available)

available)

Cable lead-in

Coaxial Antenna Cable (commercially available)

NOTE

• Be sure to remember what kind of connection is made with your System.

• Switching between ANALOG-A and ANALOG-B is possible by pressing the A-ANALOG-B button on the remote control.

• A good color picture depends on a good TV signal. So does good multi-channel sound. Ask your dealer for advice on how to install your outdoor antenna to receive the best possible signal.

• If you subscribe to Cable TV or have a central antenna for your building, you may not need an outdoor antenna.

Watching TV

C. Connecting Antenna Cable with VCR

signal splitter

(commercially Coaxial Antenna Cable (commercially available)

RF Cable (Supplied)

Audio Cable (commercially available)

Video Cable (commercially available)

VIDEO AUDIO OUT IN

NOTE

VCR

• Be sure to remember what kind of connection is made with your System.

• Shown here is the preferred method of connecting a VCR to your TV if you are in an area with good signal reception. This way you can view either TV programs or VCR tapes and not be concerned about the position of the VCR’s TV/VCR switch and you can enjoy stereo tape playback from stereo VCR.

• If your lead cable is a 300-ohm twin-lead cable or UHF/VHF separate cable, use a 300/75-ohm adapter or combiner (output side is 75-ohm coaxial) to connect to the TV (see below).

available)

Cable lead-in

Outdoor antenna connection

Connecting Antenna Cable

Cable without a CATV

Separate VHF/UHF

NOTICE

converter

Combination

VHF/UHF antenna

antenna

F-type connector

75-ohm coaxial cable

Cable TV lead-In

75-ohm coaxial cable (round)

300-ohm twin-lead (flat)

VHF

UHF

ANTENNA

300-ohm twin-lead

75-ohm coaxial cable

300-ohm twin-lead

Home Antenna

terminal (75-ohm)

Coaxial cable (commercially

300/75-ohm adapter (commercially available)

Combiner (commercially available)

IN OUT

available)

RF Cable (Supplied)

F-type connector should be finger-tightened only.

When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV set. (The breaking of internal circuit, etc.)

Watching TV

POWER indicator

Display

POWER

Turning on the power

Press POWER on the Display.

• POWER indicator (Blue): The TV is on. (After a few seconds, a window appears with sound.)

• POWER indicator (Off): The TV is in standby. Press TV POWER on the remote control.

NOTE

• The initial setup starts when the TV powers on for the first time. If the TV has been turned on before, the EZ setup will not be invoked. See page XX to try EZ setup from the Setup menu.

Turning off the power

Press TV POWER on the remote control.

• The TV enters standby mode and the image on the screen disappears.

• The POWER indicator on the Display gradually turns off.

Press POWER on the Display.

• The POWER indicator on the Display gradually turns off.

• The Power will not turn off unless the AC cord is pulled out from the wall outlet.

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the power outlet.

Display status indicator

OFF (Standby)

Standby

TV Guide On Screen function is downloading data

CableCARD is downloading data.

CAUTION

• Please do not unplug the AC cord when the POWER indicator is

red.

w/o CableCARD

Lighting (Blue)

Lights off

Lighting (Red)

When CableCARD

inserted

Lighting (Blue)

Lights off

Lighting (Red)

Lighting (Red)—

Watching TV

Initial setup

When you turn on the TV for the first time, it will automatically memorize the broadcasting channels where you live. Perform the following steps before you press TV POWER on the remote control unit.

1. Insert the batteries into the remote control unit. (See page 13.)

2. Connect the antenna cable to the Display. (See pages 17 to 19.)

3. Plug in the AC cord to the AC outlet. (See page 10.)

Language setting

Select from among 3 languages: English, French and Spanish.

Press a/b to select the desired language listed on the screen, and then press ENTER.

Channel search

Channel auto search makes the System look for all channels viewable in the set area.

Press c/d to select “Yes” for ANALOG-A, then press a/b to move down. Press c/d to select “Yes” for ANALOG-B,

Language

TV Guide On Screen

Air/Cable

CH Search

English

Français

Español

Antenna setting

Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANALOG-A and B.

Press c/d to select “Air” or “Cable” for ANALOG-A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANALOG-B. Press c/d to select “Air” or “Cable” for DIGITAL (Cable), then press a/b to move

then press a/b to move down. Press c/d to select “Yes” for DIGITAL (AIR/ Cable), and press UP/DOWN to move down. Select “Search Start”, and then press ENTER.

Language

Air/Cable

CH Search

ANALOG-A

ANALOG-B

DIGITAL Yes No

Search Start

Yes

Yes No

Example

DIGITAL (Cable)

CH Search

ANALOG-A

[ ]25Air [ ]20Found

down. Press ENTER to enter the setting.

• This operation makes the System search for both ANALOG-A and B.

• There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select.

Example

Language

Air/Cable

CH Search

ANALOG-A

ANALOG-B

DIGITAL

Air

Cable (STD)

CH Search

ANALOG-B

CH Search

DIGITAL

[ ]25Cable [ ]20Found

ANALOG-A Air

Language

Air/Cable

CH Search

ANALOG-A

ANALOG-B

DIGITAL

Air

Cable STD

Audio : MONO

NOTE

• Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANALOG-A, B and DIGITAL.

• If no channel is found, make sure what kind of connection is made with your TV and try EZ setup again (see page

27).

Watching TV

Changing channels - Analog-TV

You can change channels in several ways.

NOTE

• While watching a broad cast, press A-ANALOG-B to view

the image received from the other tuner.

Method 1

Using CHr/s on the remote control unit or on the display.

Method 2

1. Press FLASHBACK to switch to the previously tuned channel.

2. Press FLASHBACK again to switch back to the currently tuned channel.

NOTE

• FLASHBACK will not work if no channel has been

changed after TV is turned on.

Method 3

Using remote control buttons (0-9 andENTER) to select

up to 125 channels for VHF/UHF/CATV.

To select a 1 or 2-digit channel number (e. g., Channel 5):

Press 5

s ENTER

ANALOG-A Air5ANALOG-A Air

Changing channels - Digital-TV

You can change channels in several ways.

NOTE

• While watching a broad cast, press DIGITAL.

Digital - Air/Cable

Method 1

When you press CHr/sor FLASHBACK, repeat the same steps for Analog-TV.

Method 2

1. Using remote control buttons (0-9, • (dot) and

ENTER) to select the channels including a decimal point.

To select a 3-digit channel number (e. g., Channel 22.1):

Press 2 s2s•(dot) s1s ENTER

Digital Air

22.

NOTE

• Complete the above steps within a few seconds.

• When you enter 0-9 and •(dot), channel selection will be made if there is no operation for 2 seconds.

• •(dot) can be used instead of ENTER.

• When entering a 2-part channel number, pushing •(dot) after the second part of the number has the same function as ENTER.

Digital Air

22.122.1

NOTE

• Complete the above steps within a few seconds.

• When selecting a 1-digit channel number, it is not necessary to press 0 before the number.

• When you enter 0-9 only, channel selection will be made if there is no operation for 2 seconds.

• •(dot) can be used instead of ENTER.

To select a 3-digit channel number (e. g., Channel 69):

Press 6

• Complete the above steps within a few seconds.

• When you enter 0-9 only, channel selection will be made

• If you push “0” by itself, nothing will happen

• •(dot) can be used instead of ENTER.

ANALOG-A Air

NOTE

if there is no operation for 2 seconds.

ANALOG-A Air

Digital - Cable (One-part Number)

Method 1

When you press CHr/sor FLASHBACK, repeat the same steps for Analog-TV.

Method 2

Using remote control buttons (0-9 and ENTER) to select

the channels including a decimal point.

To select a 5-digit channel number (e. g., Channel 310):

Press 3s1s0sENTER

Digital Cable

310

NOTE

• Complete the above steps within a few seconds.

• When you enter 0-9 only, channel selection will be made if there is no operation for 2 seconds.

• •(dot) can be used instead of ENTER.

• Digital Cable Channels are shown by a number with a maximum of 5 digits.

Digital Cable

310

Watching TV

Changing volume/sound

■ Changing the volume

You can change the volume on the Display or on the remote control unit.

■ Using VOL

• To increase the volume, press VOL

• To decrease the volume, press VOL

NOTE

Display

VOL l/k

Volume adjustment

■ Using MUTE on the remote control unit

Mutes the current sound output.

Press MUTE.

•“M” has been displayed on the screen for 30

minutes, and the sound is silenced.

Mute

NOTE

• Within 30 minutes of pressing MUTE, mute can be canceled by using one of the methods below.

• Mute will cancel if you press VOL l/k or MUTE.

• Mute will be canceled after 30 minutes have passed. However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically.

• VOL l/kon the Display operates the same as VOL k/l

on the remote control unit.

Audio status

* When “Output Select” is set to “Variable”, the indicator on

the screen changes as shown below.

specified

Output Select

VariableFixed

Mute

Variable sound

Output device

Speaker

MONITOR OUT

NOTE

Variable sound

Constant as

• See page XX for details on the output select function.

Watching TV

Setting MTS/SAP stereo mode

The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

• Stereo broadcasts

View programs like live sporting events, shows and concerts in dynamic stereo sound.

• SAP broadcasts

Receive TV broadcasts in either MAIN or SAP sound. MAIN sound: The normal program soundtrack (either in mono or stereo). SAP sound: Listen to second language, supplementary commentary and other information. (SAP is mono sound.)

If stereo sound is difficult to hear.

• Obtain a clearer sound by manually switching to fixed mono-sound mode.

NOTE

• MTS only operates while in TV mode.

You can change MTS as shown below to match the television broadcast signal.

Examples: when receiving MTS and SAP

STEREO mode MAINkSAP mode

ANALOG-A Air

Audio : STEREO

ANALOG-A Air

Audio : MONO

ANALOG-A Air

Audio : MAIN

ANALOG-A Air

Audio : SAP

STEREOkSAP mode MONO mode

ANALOG-A Air

Audio : ST(SAP)

ANALOG-A Air

Audio : MONO

Audio : SAP(ST)

ANALOG-A Air

Audio : MONO

Watching TV

Connecting Digital Cable Module

Digital Cable Module is called CableCARD. By attaching the CableCARD, you can receive various digital services provided by your Cable Company. To obtain and use a CableCARD you need to first submit an application. Please contact your cable company to discuss receiving and application. Digital Cable allow you to tune digital and high-definition cable channels through the cable antenna. This module is called the CableCARD.

Press MENU and the MENU screen appears.

Press c/d to select “Digital Setup”, a/b to select “CableCARD MENU”, a/b to select “Pairing Information”, and then press ENTER.

CableCARD slot

ANT/CABLE 75 q

DIGITAL

Conditional Access

Paring Information

Diagnostic Screen

ECM

• The words “Pairing Information” may be replaced by a different expression depending of the manufacturer of the CableCARD.

A message will appear on the screen. Call the number on the screen and tell the operator the CableCARD ID and Host ID numbers displayed on the screen.

CableCARD Dialog

CableCARD(tm) Pairing Status

In order to start cable service

Turn on the POWER.

Connect the cable antenna to ANT/CABLE 75 q DIGITAL IN.

Select “Cable” in “Antenna Setup”. (See page 30)

• If there is a white triangle at the right side of the screen, the screen is not showing the entire

for this device, please contact your cable provider 1-888-555-2222

CableCARD(tm) ID: 7-561-034-449-009 Host ID: 0-100-331-784-018

message. Press a/b on your remote control

Insert the CableCARD (upper side facing left) into the CableCARD slot.

• A message will appear on the screen. (It might take a couple of minutes before the message appears.) Call the number on the screen and tell the operator the CableCARD ID and Host ID numbers displayed on the screen.

CableCARD(tm) Pairing Status

In order to start cable service for this device, please contact your cable provider 1-888-555-2222

CableCARD™ ID: 7-561-034-449-009 Host ID: 0-100-331-784-018

to display the rest of the message.

• When there is a “LINK” button on the screen,

there is a link to the next page. Press ENTER to go to the next page.

CableCARD(tm) Diagnostic Information

Power: ON In band: O.K. Out of band: O.K. Video: O.K. Audio: O.K.

LINK

Removing CableCARD

• Turn on the POWER.

• Check that the CableCARD upgrade screen is not displayed. If it is displayed, wait until it

NOTE

• Do not insert a PCMCIA card into the CableCARD slot.

• Please do not pull the AC cord out while the CableCARD is inserted.

■ If the above procedure does not work,

please follow the following steps instead.

disappears.

• Remove the cableCARD.

Disconnecting the cable antenna

• Turn on the POWER.

• Check that the CableCARD upgrade screen is not displayed. If it is displayed, wait until it disappears.

• Disconnect the cable antenna.

Basic adjustment settings

Option

Audio

Digital Setup

AV input mode menu items

List of AV menu items to help you with operations


OPC ................................................ Page 33

Backlight ........................................ Page 32

Contrast ......................................... Page 32

Brightness ..................................... Page 32

Color ............................................... Page 32

Tint ................................................. Page 32

Sharpness...................................... Page 32

Advanced

C.M.S. ................................... Page 33

Color Temp. ......................... Page 33

Black .................................... Page 34

3D-Y/C .................................. Page 34

Monochrome ....................... Page 35

Film Mode ............................ Page 35

I/P Setting ............................ Page 35

Audio

Treble.............................................. Page 36

Bass ............................................... Page 36

Balance .......................................... Page 36

Dolby Virtual .................................. Page 36

Audio Only ..................................... Page 70

Digital Noise Reduction ............... Page 70

HDMI Setup .................................... Page 54

Input Select.................................... Page 66

Output Select................................. Page 71

Quick Shoot ................................... Page 71

Center Channel Input ................... Page 84

Caption Setup........................... Page 73-75

Title Display Type .......................... Page 72

CableCARD Menu ......................... Page 25

Video Setup ................................... Page 38

Audio Setup ................................... Page 39

i.LINK Setup................................... Page 58

*PC input mode menu items

List of PC menu items to help you with operations

*When INPUT4 is set to PC.


Power Control

No Signal Off ................................. Page 37

No Operation Off ........................... Page 37

Setup

EZ Setup ........................................ Page 27

CH Setup .................................Pages 28-29

Antenna Setup-DIGITAL ............... Page 31

Speaker Setup ............................... Page 64

Input Label ..................................... Page 64

Parental CTRL ........................Pages 79-83

Position .......................................... Page 62

Picture Flip .................................... Page 64

Language ....................................... Page 30

OPC ................................................ Page 33

Backlight ........................................ Page 32

Contrast ......................................... Page 32

Brightness ..................................... Page 32

Red ................................................. Page 32

Green .............................................. Page 32

Blue ................................................ Page 32

Advanced

C.M.S. ................................... Page 33

Treble.............................................. Page 36

Bass ............................................... Page 36

Balance .......................................... Page 36

Dolby Virtual .................................. Page 36

Basic adjustment settings

Power Control

Power Management ...................... Page 37

Setup

Speaker Setup ............................... Page 64

Input Signal ................................... Page 70

Auto Sync. ..................................... Page 65

Input Label ..................................... Page 67

Fine Sync. ...................................... Page 65

Picture Flip .................................... Page 64

Language ....................................... Page 30

Option

Audio Only ..................................... Page 70

Input Select.................................... Page 66

Output Select................................. Page 71

Quick Shoot ................................... Page 71

Center Channel Input ................... Page 84

Digital Setup

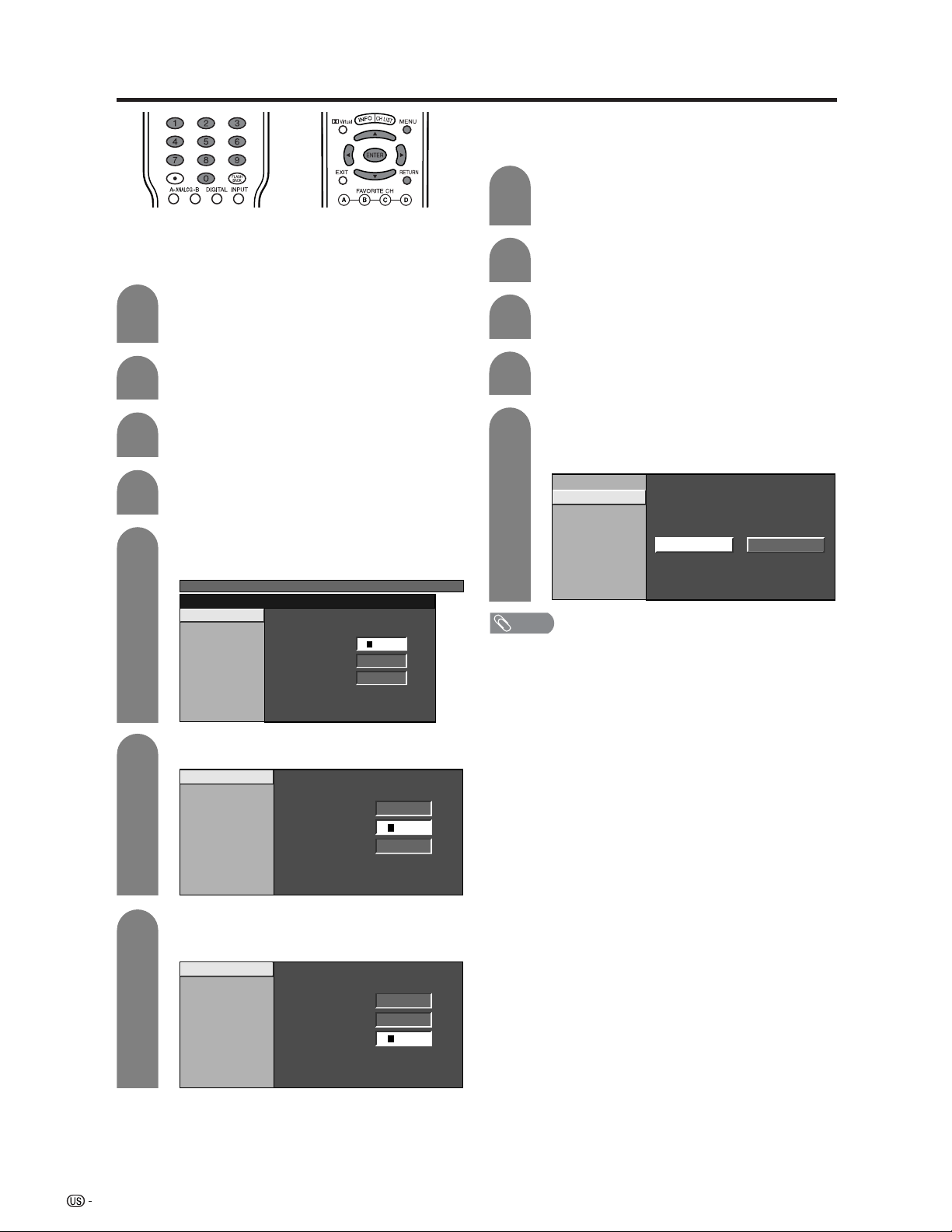

EZ setup

You can run EZ Setup again, even after setting up the preset channels.

Language setting

Select from among 3 languages: English, French and Spanish.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “EZ Setup”, and then press ENTER.

• If you already set the Secret No., go to step 4. If not, skip to step 5.

Input the 4-digit secret number by using 0 – 9.

...

[

Setup

Setup Option

Secret No.

EZ Setup

]

––––

i.LINK Setup................................... Page 25

Press a/b to select the desired language listed on the screen, and then press ENTER.

Language

Air/Cable

CH Search

English

Français

Español

Basic adjustment settings

Antenna setting

Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for ANALOG-A, B and DIGITAL.

Press c/d to select “Air” or “Cable” for

ANALOG-A, then press a/b to move down.

Press c/d to select “Air” or “Cable” for ANALOG-B. Press c/d to select “Cable (STD)”, “Cable (HRC)” or “Cable (IRC)” for DIGITAL (cable). Press ENTER to enter the setting.

• This operation makes the System search for both ANALOG-A and B.

• There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select.

Channel search

Channel auto search makes the System look for all channels viewable in the set area.

Press c/d to select “Yes” for ANALOG-A, then press a/b to move down. Press c/d to select “Yes” for ANALOG-B, then press a/b to move down. Press c/d to select “Cable (STD)”, “Cable (HRC)” or “Cable (IRC)” for DIGITAL (cable).

Language

Air/Cable

CH Search

ANALOG-A

ANALOG-B

DIGITAL Yes No

Search Start

Yes

Yes No

Searching TV channels

Example

ANALOG-A

[

Setup

...

EZ Setup

CH Search

[ ]25Air [ ]20Found

]

Channel setup

If initial setup does not memorize all the channels in your region, follow the instructions below to manually memorize the channels.

Antenna setting

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “CH Setup”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page XX for setting a secret number.

Air/Cable

CH Search

CH Memory

ANALOG-A

ANALOG-B

DIGITAL

Air

ANALOG-B

DIGITAL

[

Setup

[

Setup

...

EZ Setup

CH Search

[ ]2Cable [ ]20Found

...

CH Search

[ ]25Air [ ]20Found

]

NOTE

• If no channel is found, make sure what kind of connection is made with your TV and try EZ setup again.

• Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANALOG-A and B.

Press a/b to select “Air/Cable”, and then press ENTER.

Press c/d to select “Air” or “Cable” for ANALOG-A, then press a/b to move down. Press c/d to select “Air” or “Cable” for ANALOG-B. Press c/d to select “Air” or “Cable” for DIGITAL, then press a/b to move down. Press ENTER to enter the setting.

Example

Air/Cable

CH Search

CH Memory

ANALOG-A

ANALOG-B

DIGITAL

Air

Cable (Auto)

Air

Basic adjustment settings

NOTE

• Make sure what kind of connection is made with your TV when selecting “Air” or “Cable” for both ANALOG-A, B and DIGITAL.

• There are 3 kinds of CATV system, including Standard, HRC and IRC. Select the one matches to your TV. Select Auto when you do not know which one to select.

Channel search

Channel auto search makes the System look for all channels viewable in the set area.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “CH Setup”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page 66 for setting a secret number.

Press a/b to select “CH Search”, and then press ENTER.

Channel memory setting

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “CH Setup”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page 66 for setting a secret number.

Press a/b to select “CH Memory-ANALOG” or “CH Memory-DIGITAL”, and then press ENTER.

[

Setup

Air/Cable

CH Search

CH Memory

...

Example

]

CH Setup

Antenna ANALOG

Skip On Off

Air

Press c/d to select “Yes” for ANALOG-A, then press a/b to move down. Press c/d to select “Yes” for ANALOG-B, then press a/b to move down.

Press c/d to select ANALOG-A, B or DIGITAL.

Press c/d to select “Yes” for DIGITAL (Air/ Cable), and press a/b to move down. Select “Search Start”, and then press ENTER.

Air/Cable

CH Search

CH Memory

ANALOG-A

ANALOG-B

DIGITAL (Air)

Search Start

Yes

Yes No

ANTENNA-A

ANTENNA-B

DIGITAL

CableCARD

DIGITAL (Air)

Air [ 32] 2 69

Skip On Off

Yes No

Press a/b and press c/d to select the channel you want to skip or not.

Example: CH Search

...

[

ANALOG-A

ANALOG-B

Setup

[

Setup

...

EZ Setup

CH Search

[ ]25Air [ ]20Found

...

CH Search

[ ]2Cable [ ]20Found

]

• On: Skips channels. (Channel selection disabled using

• Off: Does not skip channels. (Channel selection enabled

using CH

]

• Make sure what kind of connection is made with your TV.

Press a/b to select “Skip”, and press c/d to select “On” or “Off”.

b.)

NOTE

DIGITAL

[

Setup

...

EZ Setup

CH Search

[ ]25Air [ ]20Found

]

NOTE

• Make sure what kind of connection is made with your TV.

Basic adjustment settings

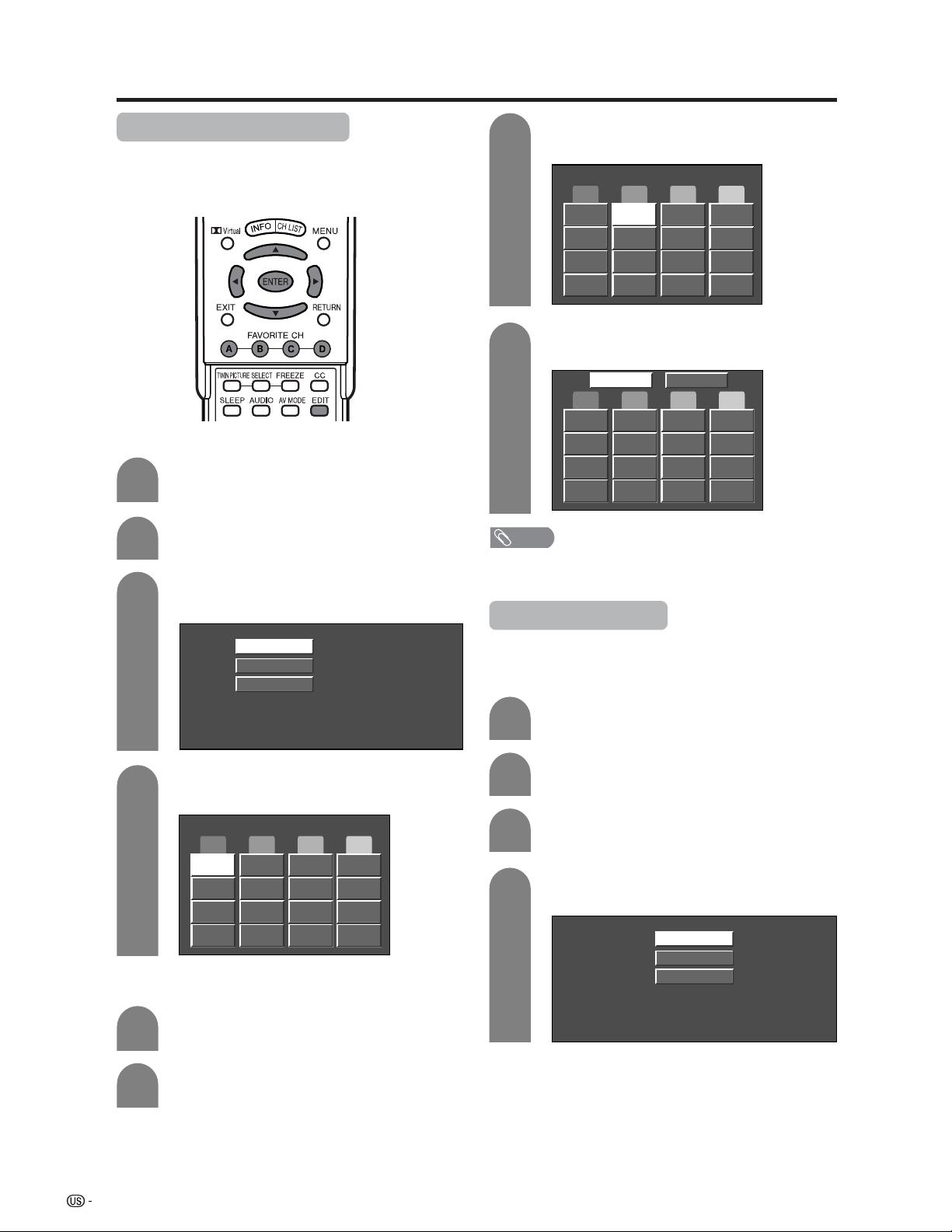

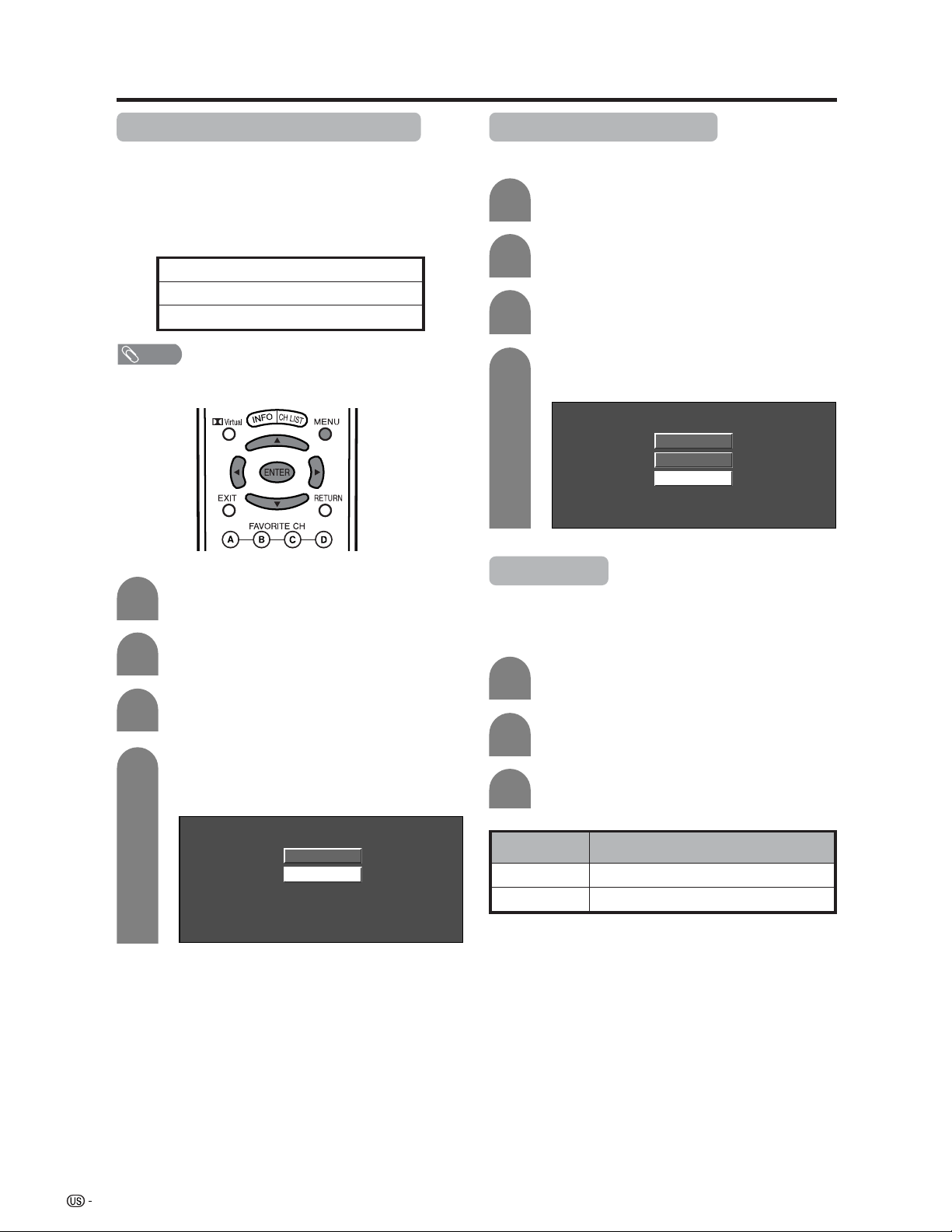

Favorite channel setting

This function allows you to program 4 favorite channels, in 4 different categories. By setting the favorite channels in advance, you can select your favorite channels easily.

Select the channel you want to register as a favorite channel.

Press EDIT.

Press a/b to select “Register”, and then press ENTER.

1 Data Clear

All Data Clear

Press a/b/c/d to select the channel you want to delete, and then press ENTER.

ABCD

ANALOG-A3ANALOG-A

ANALOG-B

ANALOG-A

125

DIGITAL

100

ANALOG-B

Press c/d to select “Yes”, and then press ENTER.

Yes No

ABCD

ANALOG-A

ANALOG-B

ANALOG-A

DIGITAL

100

125

ANALOG-B

NOTE

• You can delete all the favorite channels by selecting “All Data Clear” in step 2 in Delete favorite channel.

Language setting

You can also select a language from the Setup menu. Select from among 3 languages: English, French and Spanish.

Press MENU and the MENU screen displays.

Press a/b/c/d to select the position in the

Press c/d to select “Setup”.

area, and then press ENTER to register.

Press a/b to select “Language”, and then

ABCD

ANALOG-A

press ENTER.

Press a/b to select the desired language listed on the screen, and then press ENTER.

English

Français

Delete favorite channel

Press EDIT and the favorite channel screen

Español

displays.

Press a/b to select “1 Data Clear”, and then press ENTER.

Basic adjustment settings

Antenna Setup - DIGITAL

This function allows you to set the connected digital antenna.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Antenna Setup DIGITAL”, and then press ENTER.

• If you already set the Secret No., input the 4digit secret number here. See page 77 for setting a secret number.

Press a/b to select “Ant. Power Setup”, and press ENTER.

Ant. Power Setup

Frequency Setup

Signal Test

Signal Strength

Current

Max00

When the Lebel indicator is max, press

ENTER.

Press a/b to select “Frequency Setup”, and then press ENTER.

Press a/b to select “Signal Test”, and input a channnel number using 0-9.

Ant. Power Setup

Frequency Setup

Signal Test

Signal Strength

Current

Max0

Basic adjustment settings

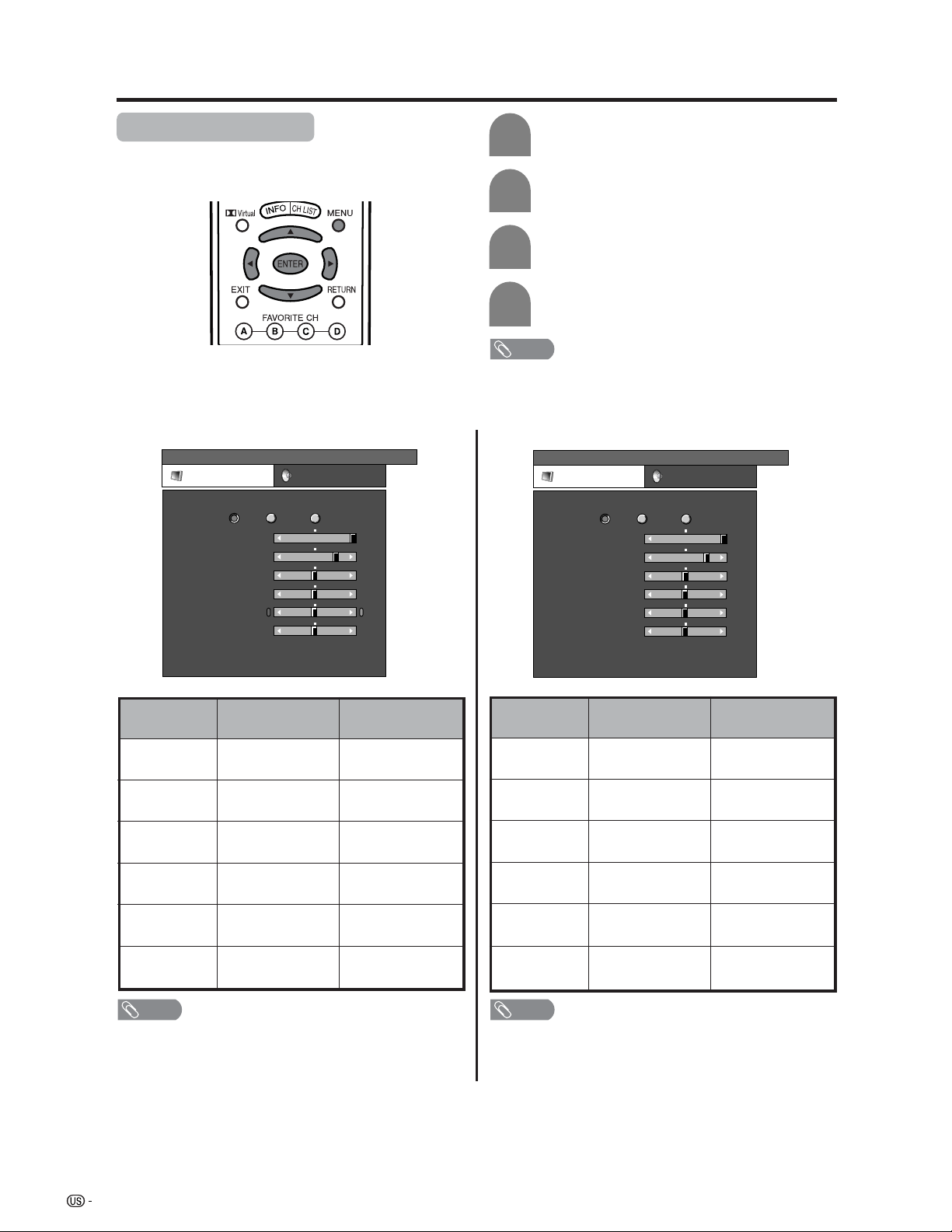

Picture adjustments

Adjusts the picture to your preference with the following picture settings.

Adjustments items for AV source

[

]


Picture Audio

OPC

Backlight [ +8] –8

Contrast

Brightness

Color

Tint

Sharpness

Advanced

Reset

[+30]

[ 0]

Off On

–30

–10

On : Display

+40

+30

+10

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

NOTE

• For resetting all adjustment items to factory preset values,

press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

Adjustments items for PC source

[


[+30]

[ 0]0–30

[ 0]

]

Off On

–30

On : Display

+40

+30

Picture Audio

OPC

Backlight [ +8] –8

Contrast

Brightness

Red

Green

Blue

Advanced

Reset

Selected item

Backlight

Contrast

Brightness

Color

Tint

Sharpness

cbutton

The screen dims

For less contrast

For less brightness

For less color intensity

Skin tones become purplish

For less sharpness

dbutton

The screen brightens

For more contrast

For more brightness

For more color intensity

Skin tones become greenish

For more sharpness

NOTE

• Select “Advanced” and then press ENTER to set “C.M.S-

Hue”, “C.M.S-Saturation”, “C.M.S-Value”, “Color Temp.”, “Black”, “3D-Y/C”, “Monochrome”, “Film Mode” or “I/P Setting”. See pages 33 to 35.

Selected item

Backlight

Contrast

Brightness

Red

Green

Blue

cbutton

The screen dims

For less contrast

For less brightness

For weaker red

For weaker green

For weaker blue

dbutton

The screen brightens

For more contrast

For more brightness

For stronger red

For stronger green

For stronger blue

NOTE

• Select “Advanced” and then press ENTER to set “C.M.S-

Hue”, “C.M.S-Saturation” and “C.M.S-Value”.

Basic adjustment settings

OPC setting

Automatically adjusts the brightness of the screen.

Selected item

Off

On On: Display

• When set to “On”, the OPC senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light.

• When set to “On: Display”, OPC effect displays on the screen while OPC is adjusting the screen brightness.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “OPC”.

Press c/d to select “On” or “On: Display”.

OPC

Backlight [ +8] –8

Contrast

Brightness

Color

Tint

Sharpness

Advanced

Reset

NOTE

Off On On : Display

[+30]

–30

[ 0]

–30

[ 0]

–30

[ 0]

–10

Description

The brightness is fixed at the value set in “Backlight” (see page XX).

Automatically adjusts

Displays the OPC effect on the screen while adjusting the brightness of the screen.

+40

+30

+10

C.M.S. (Color Management System)

Color tone is managed using the six-color adjustment setting.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “C.M.S-Hue”, and then press ENTER.

• You can select “C.M.S-Saturation” or “C.M.SValue” here instead of selecting “C.M.S-Hue”.

Press a/b to select a specific adjustment item. Press c/d to adjust the item to your desired position.

C. M. S.-Hue

C. M. S.-Saturation

C. M. S.-Value

magenta or yellow.

Selected item

C.M.S-Hue

C.M.SSaturation

C.M.SValue

Changing reds

closer to

This is a standard to adjust the color either more reddish or more bluish in tone.

Increases or decreases the saturation of a selected color.

A higher value makes the image brighter. A lower value makes the image darker.

[ 0]

[ 0] –30

Reset

Description

–30

NOTE

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, and then press ENTER.

+30

Basic adjustment settings

Color temperature

For a better white balance, use color temperature correction.

Selected item

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “Color Temp.”, and then press ENTER.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Color Temp.

Black

3D-Y/C

Monochrome

Film Mode

I/P Setting

High

Mid-High

Middle

Mid-Low

Low

Press a/b to select the desired level, and then press ENTER.

Description

Black

For easier viewing, change the viewing depth by selecting a level for automatically adjusting the dark portion of an image.

Repeat steps 1 to 3 in Color temperature.

Press a/b to select “Black”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item

Off On

No adjustment

For high detail in black portions

Description

3D-Y/C

Provides high quality images with minimal dot crawl and cross color noise.

Repeat steps 1 to 3 in Color temperature.

Press a/b to select “3D-Y/C”, and then press ENTER.

High Mid-High Middle Mid-Low Low

White with Bluish tone

White with Reddish tone

Press a/b to select the desired level, and then press ENTER.

Selected item

Standard Fast Slow

NOTE

• 3D-Y/C is not available for S-video, Component, DVI, HDMI, CARD, DIGITAL-TV or i.Link inputs.

Normal adjustment

For movie image

For still image

Description

Basic adjustment settings

Monochrome

For viewing a video in monochrome.

Press MENU and the MENU screen displays.

Press c/d to select “Picture”.

Press a/b to select “Advanced”, and then press ENTER.

Press a/b to select “Monochrome”, and then press ENTER.

C. M. S-Hue

C. M. S-Saturation

C. M. S-Value

Color Temp.

Black

3D-Y/C

Monochrome

Film Mode

I/P Setting

On Off

I/P Setting

Adjusting the image and input signal can give you a more beautiful picture.

Repeat steps 1 to 3 in Monochrome.

Press a/b to select “I/P Setting”, and then press ENTER.

Press c/d to select “Interlace” or “Progressive”, and then press ENTER.

NOTE

• I/P Setting is set to Progressive when Film Mode is “On”.

• “I/P Setting” is not selectable when channel display shows an input resolution of 480P, 720P or 1080I.

Press c/d to select “On”, and then press

ENTER.

Selected item

Off On

Normal color

For viewing in monochrome

Description

Film mode (3:2 pull-down)

Automatically detects a film-based source (originally encoded at 24 frames/second), analyzes it then recreates each still film frame for high-definition picture quality.

Repeat steps 1 to 3 in Monochrome.

Press a/b to select “Film Mode”, and then

press ENTER.

Press c/d to select “On”, and then press

ENTER.

Selected item

Off On

Normal viewing mode

Detects, analyzes, converts film source

Description

Basic adjustment settings

Sound adjustment

You can adjust the sound quality to your preference with the following settings.

Selected item

Treble

Bass

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

[

]

Audio

Audio Power Control

Treble

Bass

Balance

Dolby Virtual

Reset

[0] –15

[0]

–15

[0]

+15

[Off]

Press a/b to select a specific adjustment item.

Press c/d to adjust the item to your desired position.

cbutton

For weaker treble

For weaker bass

dbutton

For stronger treble

For stronger bass

Dolby virtual

You can enjoy the SURROUND 2ch stereo with Dolby Pro Logic II technology.

VIRTUAL DOLBY DIGITAL is a technology certified by Dolby Laboratories that creates a virtualized surround sound experience from two speakers using Dolby Pro Logic or Dolby Pro Logic II.

VIRTUAL DOLBY DIGITAL retains all the original multichannel audio information and provides the listener with the sensation of being surrounded by additional speakers.

Press MENU and the MENU screen displays.

Press c/d to select “Audio”.

Press a/b to select “Dolby Virtual”, and then press ENTER.

...

[

Audio

Audio Power Control

Treble

Bass

Balance

Dolby Virtual

Reset

Dolby Virtual

[0] –15

[0]

–15

[0]

]

+15

[Off]

Balance

Decrease audio from the right speaker

Decrease audio from the left speaker

Press c/d to select “On”, and then press

ENTER.

NOTE

• Audio menu is grayed out when Output Select is set to “Variable” or when headphones are in use.

• Balance and Audio Quality Control are grayed out when Dolby Virtual is set to “On”.

• For resetting all adjustment items to factory preset values, press a/b to select “Reset”, press ENTER, press c/d to select “Yes”, and then press ENTER.

• Audio menu is grayed out when Output Select is set to “Variable” or when headphones are in use.

• Balance and Audio Quality Control are grayed out when Dolby Virtual is set to “On”.

• For some discs, setup may be required on your DVD. In this case, please refer to the operation manual of your DVD player.

• You may not get the Dolby Virtual Surround effect if you adjust “Treble” or “Bass” setting.

Basic adjustment settings

Power control

Power control setting allows you to save energy.

Power control for AV source

No signal off

When set to “Enable”, the power will automatically shut down if no signal inputs for 15 minutes.

• “Disable” is factory preset value.

• When a TV program finishes, this function may not operate.

No operation off

When set to “Enable”, the power will automatically shut down if there is no operation for 3 hours.

Press MENU and the MENU screen displays.

Press c/d to select “Power Control”.

Press a/b to select “No Signal Off”, and then press ENTER.

Press c/d to select “Enable”, and then press ENTER.

DisableEnable

• Five minutes before the power shuts down, remaining time displays every minute.

NOTE

Power control for PC source

Power control setting allows you to save energy.

Power management

When set, the power will automatically shut down.

Repeat steps 1 and 2 in No signal off.

Press a/b to select “Power Management”, and then press ENTER.

Press a/b to select “Mode1” or “Mode2”, and then press ENTER.

Off

Mode1

Mode2

Selected item

Off

Mode1

Mode2

• No power management

• Factory preset value.

• If no signal inputs for 8 minutes, the power shuts down.

• Even if you start using the PC and the signal inputs again, the TV stays off.

• The TV turns on again by pressing TV POWER on the remote control unit. (See page 20).

• Press POWER on the display will have the same result.

• If no signal inputs for 8 seconds, the power shuts down.

• When you start using the PC and the signal inputs again, the TV turns on.

Description

Repeat steps 1 and 2 in No signal off.

Press a/b to select “No Operation Off”, and then press ENTER.

• “Disable” is factory preset value.

Press c/d to select “Enable”, and then press ENTER.

• Five minutes before the power shuts down, remaining time displays every minute.

NOTE

• When using a digital PC and setting “Mode2” in Power management, the power may not turn back on automatically even if the signal inputs again.

• If you turn off the power by disconnecting AC cord when setting “Mode2” in power management, the TV may not function properly after turning the power on again. In such case, press TV POWER on the remote control unit.

• Press POWER on the display will have the same result.

Basic adjustment settings (DIGITAL)

Digital Setup

This setting allows you to set the image of Digital broadcasting.

Video Setup

You can adjust the settings for Digital image.

Screen Size

Set the format of image of Digital broadcasting.

Press MENU and the MENU screen displays.

Press c/d to select “Digital Setup”.

Press a/b to select “Video Setup”, and then press ENTER.

Press a/b to select “Screen Size”, and then press ENTER.

Screen Size

REC Picture Size

Select the screen size to record on 16:9 video.

Press MENU and the MENU screen displays.

Press c/d to select “Digital Setup”.

Press a/b to select “Video Setup”, and then press ENTER.

Press a/b to select “REC Picture Size”, and then press ENTER.

Screen Size

REC Picture Size

4 : 3 TV 16 : 9 TV

Press c/d to select the desired picture size, and then press ENTER.

Manual Auto

Selected item Descroption

Manual

Auto

NOTE

• "Manual" is factory preset value.

Broadcasts in formats other than 480i will be converted and displayed in the 1080i format. With 480i broadcasts you can change the screen size to the size of your choice.

All broadcasts will be converted and displayed in the 1080i format.

Selected item Descroption

4:3 TV

16:9 TV

Bars may appear on the top and bottom with some programmes

Display the full screen and keep a picture quality

Basic adjustment settings (DIGITAL)

Audio setup

Select the optical digital audio of Digital broadcasting.

Selected item Descroption

PCM

Press MENU and the MENU screen displays.

Press c/d to select “Digital Setup”.

Press a/b to select “Audio Setup”, and then press ENTER.

Press a/b to select “PCM” or "Dolby Digital", and then press ENTER.

PCM

Dolby Digital

The optical putput terminal outputs audio signal by PCM form. If your digital audio sysytem does not support Dolby Digital, select "PCM".

Dolby Digital

The optical output terminal outputs audio signal by Dolby Digital form. It reproduces sound from surround program of digital.

Using memory card

Important notes on using memory cards

• We will not be liable for misuse of the LCD TV set, any troubles during use, or other problems, or any damages arising out of the use of the LCD TV set, except for the cases for which we are liable by statute.

• If you or other people misuse the LCD TV set, or the LCD TV set is affected by static electricity or electrical noise, the recorded data may be in danger of being changed or lost.

• If you are making a record of importance, run a test in advance to ensure that the recording would be performed correctly in terms of picture or sound quality.

• We do not capture responsibility nor compensate even if pictures or sound could not be recorded correctly because of troubles.

Duplicating images and music by copying and/or editing from videocassettes and/or TV programs that are subject to copyrights is only permitted when the edited or copied versions are used for personal pleasure. With the exception of cases when the user personally is the owner of the copyrights of the object in question or when specific and written permission has been obtained from the owner(s) of the object in question, the user is not permitted to make copies and/or duplications and/or edited versions as this constitutes a violation of the copyright laws, possible exposing the user to demands for compensation for damages. Therefore, strictly adhere to the existing copyright laws.

In addition when using image data that includes third parties, the use without prior permission of these images may constitute an intrusion on the privacy of third parties, so strictly refrain from such usage.

The recording formats

Still picture

Motion Picture

Recording/Playback file format Size of a captured still picture

Recording file format

Size of a recorded motion picture/number of frames

Playback file format

JPEG (DCF compliant) 640g480 dots

SP/LP... ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant)

EP........ ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

SP ... Size: 320g240 dots, Frame: approx. 30 frames/sec LP ... Size: 320g240 dots, Frame: approx. 30 frames/sec EP ... Size: 320g240 dots, Frame: approx. 15 frames/sec

ASF (Motion Picture: MPEG-4 compliant, Sound: WMA-compliant) ASF (Motion Picture: MPEG-4 compliant, Sound: G.726-compliant)

Approximate number of recordable pictures/time

Still Pictures

Picture size

Still picture

* Recordable numbers may vary depending on the receiving condition of the LCD TV set and/or content of images.

640g480

32MB

Approx. 300 pictures

Memory card

128MB

Approx. 1000 pictures

Motion pictures

Memory card capacity

256MB

Approx. 1h.

5GB

Approx. 4h. Approx. 10h. Approx. 25h.

Recordable time

Picture size

320g240 320g240

320g240

Recording mode

Approx. 10 min. Approx. 30 min.

• Recordable time may vary depending on receiving condition of the LCD TV set or content of images.

• The maximum amount of data you can record on a memory card is 1,024 pictures in total including still and motion pictures.

Using memory card

You can use memory cards (commercially available) for recording and playing back pictures.

• Please use an appropriate PC card adapter (commercially available) for each memory card.

• Following memory cards are available. (Note that names for memory cards vary depending on manufacturers.)

Memory card name

SD Memory Card

mini SD™ Card

CompactFlash

MultiMediaCard

SmartMedia

Memory Stick

Memory Stick PRO

Microdrive

xD Picture Card

PC Card Hard Disk

Storage capacity

512 MB or less

32 MB or less

2 GB or less

128 MB or less

1 GB or less

2 GB or less

128 MB or less

5 GB or less

* Each memory card name is a trademark. * The capacity of memory card is approximate. The

capacity varies depending on the manufacturer.

• To read picture files recorded with digital cameras, use the PC card adapter recommended by the corresponding manufacturer. (The names for PC card adapters vary depending on manufacturers.)

• For directions for use of digital cameras or PC card adapters, please refer to the operation manual provided for each product.

You can playback DCF compliant JPEG pictures captured with other devices in the card playback mode.

• DCF (Design rule for Camera File system) is a standard of the Japan Electronics and Information Technology Industries Association (JEITA). This standard specifies the image file format used for images shot with a digital camera.

• Some motion pictures recorded with other devices may not be played back correctly.

Commercially available memory cards

SD Memory

Card

miniSD™ Card

MultiMediaCard

CompactFlash

SmartMedia

• Please use an appropriate PC card adapter (commercially available) for each memory card.

Preparing a memory card

Insert a memory card (commercially available) into a PC card adapter (commercially available).

Example: Inserting the SD memory card into a PC card adapter.

PC card adapter

Memory Stick

PRO

PC Card Hard Disk

xD Picture Card

Microdrive

Notes on using memory cards and PC card adapter

Please note the following when using memory cards and PC card adapters to avoid corruption of data or malfunction of the LCD TV set.

• If you use memory cards other than those shown above, recording or playing back pictures are not guaranteed.

• Some PC card adapters have restrictions of memory card capacity. Refer to the relevant operation manual for such restrictions.

• Some pictures which have been created, modified, or copied on your PC may not be played back.

• Do not bend, drop or apply a shock to memory cards or PC card adapters.

• Keep memory cards or PC card adapters away from heat, water or direct sunlight.

• Do not dismantle or modify memory cards or PC card adapters.

• Refer to the appropriate operation manuals for details on using or keeping memory cards or PC card adapters.

• Do not turn the LCD TV set off while a memory card is in operation (e.g. playing back, recording or displaying a slideshow).

Using memory card

Card Setup mode menu items

Card Setup

CARD

Still Setup Slide Show

Interval

Order

Repeat

Video Setup

Format

My Program

Audio Select

File Operation

Rec. Mode

Pre Record

Repeat Play

File Operation

Yes/No

Setup/Delete All

Off/TV/Input1-Input5

Protect/Delete File/ Delete All

SP/LP/EP

On/Off

Off/File/All

Protect/Delete File/Delete All

Slide show operation panel Motion picture operation panel

12345

...

CARD

Mode : SP

00:15:25

VIDEO

Play

PLAY

0001/0045

...

STILL

SLIDE SHOW

0001/0045

ORDER:NORMAL REPEAT:OFF

PREV.

1-10/15/20/25/30/ 45/60 Sec.

15/30/60 Min.

Normal/Random/ My Program

On/Off

REPEAT:OFF

345 6

1 Rotate the image 2 Pause 3 Go to previous image 4 Start slide show 5 Stop slide show 6 Go to next image

6 7 8 9 1011 12 13

1 Action 2 Go back to the beginning of the file 3 Pause 4 Repeat playback setting 5 Go to the beginning of the next file 6 Recording mode 7 Counter 8 Current action 9 Reverse 10 Playback 11 Stop 12 Fast forward 13 Slow playback

Precautions when playing back PC image data on the LCD TV

Recording formats of image data:

When recording image data on the LCD TV, the recording formats are as follows.

• When recording motion pictures: The SD_VIDEO folder is created and the data is stored in. When playing the card,

• When recording still pictures: The DCIM folder is created and the data is stored in. When playing the card, the

When playing the card, record PC data in a recording format the LCD TV can recognize.

1. When copying motion pictures from a PC to a card recorded with the LCD TV, first place the pictures in the SD_VIDEO folder before playing them.

2. When copying still pictures from a PC to a card recorded with the LCD TV, first place the pictures in the DCIM folder before playing them.

3. When using a new card for copying motion pictures, first format the card and create an SD_VIDEO folder before placing the data in the folder for playback.

4. When using a new card for copying still pictures, first format the card and create a DCIM folder before placing the data in the folder for playback.

When creating, revising, or copying images using your PC, the edited images may not playback correctly.

the SD_VIDEO recording format is recognized.

DCIM recording format is recognized.

Using memory card

Opening the PC CARD slot cover

Use your fingertip to slide the catch in the direction of the arrow.

Inserting a PC card adapter

• Press in the EJECT button if it is popped out.

• Insert a memory card to a PC card adapter beforehand. (See page XX.)

• Insert the PC adapter card slowly.

PC CARD slot

Reverse side

CARD indicator

Ejecting the card

• Make sure the card indicator lights up green.

Press EJECT button.

• EJECT button is popped up.

EJECT button

Press EJECT button again.

NOTE

• Please do not insert a CableCARD (POD card) in the PC Card slot.

• When “Please insert a PC card” is displayed, eject the PC card adapter, and then insert the PC card adapter slowly all the way to the end.

• When over a thousand files are in a card, it takes several minutes to load. (approx. 5 minutes.)

• Even if the green light is on, you can not record on a card right after you inserted it.

• Make sure the CARD indicator lights green when you take out a card. Never take out a card when the CARD indicator lights red. This may damage the card.

• CARD indicator lights up green when the card is inserted.

Selecting Still and Video mode

Press CARD and the card mode screen displays.

Press c/d to select “Still” or “Video”, and then press ENTER.

• When in CARD mode, press 0-9, CH a/b, FAVORITE CH or INPUT to switch either TV or AV input mode.

Using memory card

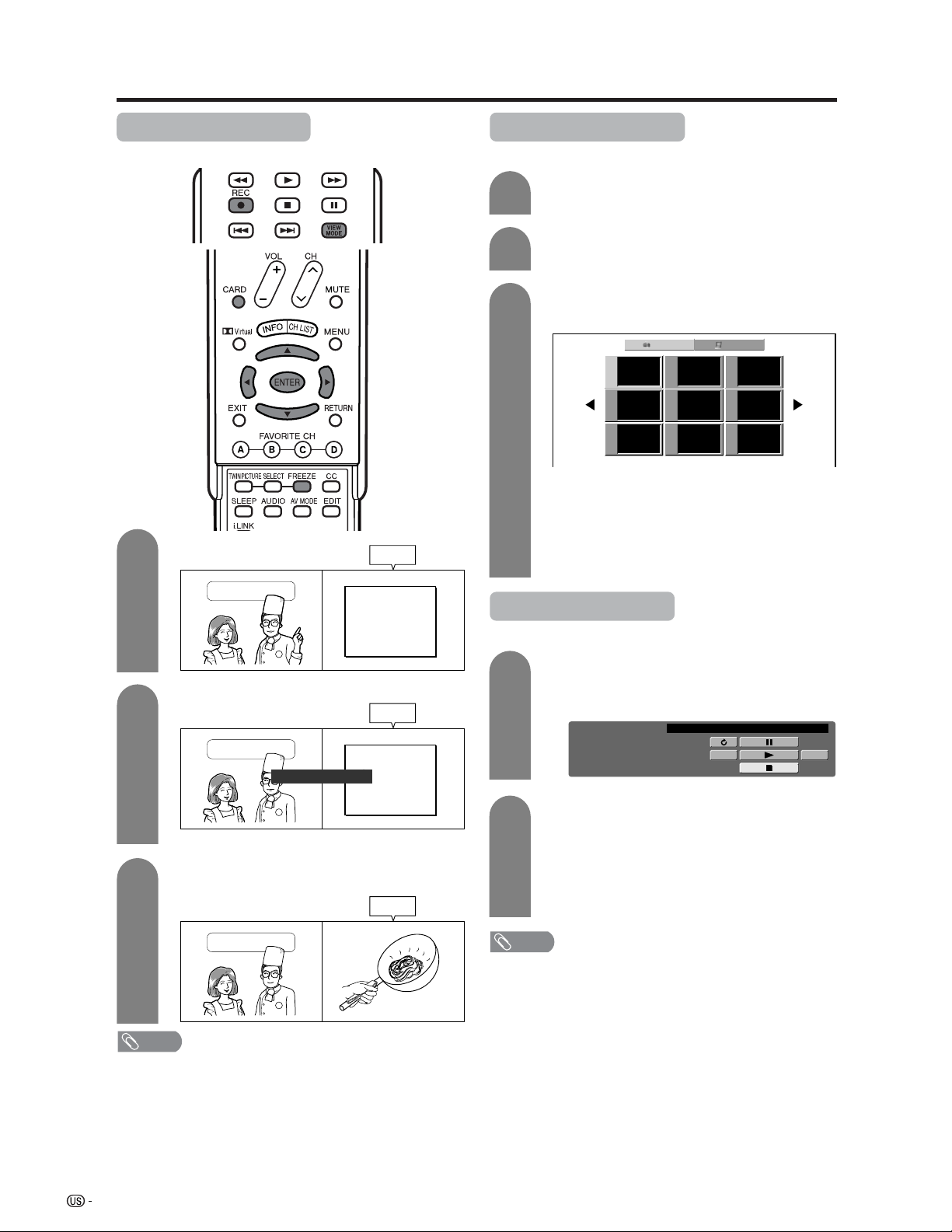

Recording a still image

You can record a still image on the card.

Press FREEZE.

Cooking Time

Onion Tomato Potato

Still

Displaying a still image

Press CARD and the card mode screen displays.

Press c/d to select “Still”, and then press ENTER.

Press a/b/c/d to select a file you want to display, and then press ENTER.

Still Video

File 1 File 2 File 3

File 4 File 5 File 6

File 7 File 8 File 9

• To display the files that are in the previous or next page, select c/d on the index screen and press ENTER.

• When viewing a still image, by pressing VIEW MODE the image size changes. Normal – Full. This function does not work when displaying the index screen.

x 1 x 1 x 1

Displaying slide show

Press REC.

Cooking Time

Still image captured on card.

Onion Tomato Potato

Still

• “Still image captured on card.” displays.

Press ENTER to update the still image.

Still

Cooking Time

NOTE

The list of broadcasting type or input signal not available for recording:

1 COMPONENT input 2 HDMI input 3 DVI-I input 4 Card picture 5 Copy guarded signal 6 V-chip blocked program 7 i.LINK input 8 DTV Program

Repeat steps 1 to 3 in Displaying a still image above.

• The operation panel displays.

...

CARD

STILL

x 1 x 1 x 1

0001/0045 ORDER:NORMAL

SLIDE SHOW STOP

PREV.

REPEAT:OFF

Press a/b/c/d to select d, and then press ENTER.

• Slide show starts.

• Operate slide show with the operation panel appears on the screen.

• To turn off the operation panel, press CARD on the remote control.

NOTE

• See page 42 for operation panel function.

• You can not rotate the image during slide show. Stop slide show to rotate the image.

Using memory card

Setting/unprotecting Slide Show

You can adjust the interval, order and repeat settings.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Still Setup”, and then press ENTER.

Press a/b to select “Slide Show”, and then press ENTER.

Slide Show

My Program

Audio Select

File Operation

Interval

Order

Repeat

5 Sec.

Normal

Off

My Program

You can select up to thirty-two pictures and specify the order for displaying in slide show.

Repeat steps 1 to 4 in Setting Slide Show.

Press a/b to select “My Program”, and then press ENTER.

Press c/d to select “Setup”, and then press ENTER.

Press a/b/c/d to select the files, and then press ENTER.

Repeats the operation in step 4. (You can select up to 32 files.)

After selecting all the files you want, press

RETURN to return to MENU.

To cancel My Program setting

Selected item

Interval

Order

Repeat

Press a/b/c/d to select the desired slide show setting, and then press ENTER.

Description

Set the frame interval for a slideshow.

Set the frame order for a slideshow. See the right column for My Program setting.

If set to On, the slideshow will play again after showing the last frame.

Performs step 1 and 2 in My Program.

Press c/d to select “Delete All”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• All the registered numbers are cleared.

Audio Select

You can enjoy the audio from TV or other external equipment during the still image playback.

Repeat steps 1 to 4 in Setting Slide Show.

Press a/b to select “Audio Select”, and then press ENTER.

Press a/b/c/d to select the desired sound output, and then press ENTER.

Using memory card

Protecting/unprotecting still picture files

You can protect any file you do not want to delete.

Repeat steps 1 to 4 in Audio Select.

Press a/b to select “File Operation”, and then press ENTER.

Slide Show

My Program

Audio Select

File Operation

Press a/b to select “Protect”, and then press ENTER.

Press a/b/c/d to select the file you want to protect, and then press ENTER.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

ENTER to cancel file protect.

Protect

Delete File

Delete All

Deleting all still image files

Repeat steps 1 to 5 in Protecting still picture files.

Press a/b to select “Delete All”, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

NOTE

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

• You cannot delete a protected file on the card.

Repeats the operation in step 4.

After setting the files you want to protect, press RETURN to return to MENU.

NOTE

Deleting a still image file

Repeat steps 1 to 5 in Protecting still picture files.

Press a/b to select “Delete File”, and then press ENTER.

Press a/b/c/d to select the file you want to delete, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

Repeat the operations in steps 7 and 8 above.

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

After deleting the images you no longer need, press RETURN to return to MENU.

NOTE

Using memory card

Displaying a motion picture

Press CARD and the card mode screen displays.

Recording a motion picture

Use this setting to record images you are currently watching. Record with the settings made in “Rec. Mode” and “Pre Record”.

Press REC to start recording.

• CARD indicator lights up red.

• Recording information displays in the lower right corner of the screen.

Press c/d to select “Video”, and then press ENTER.

Press a/b/c/d to select the file you want to play, and then press ENTER.

• Video playback starts.

Press CARD again to display the operation panel.

• See page XX for the operation panel information.

• When viewing a motion picture, by pressing VIEW MODE the picture size changes. Small – Medium – Large.

Rec. Mode

Use this setting for recording images you are currently watching. You can select the recording mode (picture quality) for a motion picture.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press H to stop recording.

NOTE

The list of broadcasting type or input signal not available for recording:

1 COMPONENT input 2 HDMI input 3 DVI-I input 4 Card picture 5 Copy guarded signal 6 V-chip blocked program 7 i.LINK input 8 DTV Program

To display the remaining record time.

Press DISPLAY while not recording.

• Remaining record time displays in the lower right corner of the screen.

NOTE

• Do not remove the AC cord from the socket.

• Recording stops if you press POWER on the remote control while recording.

• When card has no capacity for recording, “Card is full” displays and stops recording.

• You cannot change the channel or switch the input source while recording.

Press c/d to select “Card Setup”.

Press a/b to select “Video Setup” and then press ENTER.

Press a/b to select “Rec. Mode”, and then press ENTER.

Rec. Mode

Pre Record

Repeat Play

File Operation

Press a/b to select the desired mode, and then press ENTER.

Using memory card

Pre Record

You can record the picture slightly before the point where you pressed the record button, enabling you to record just the scene you wanted.

Repeat steps 1 to 4 in Rec. Mode.

Press a/b to select “Pre Record”, and then press ENTER.

Rec. Mode

Pre Record

Repeat Play

File Operation

On Off

Press c/d to select “On”, and then press

ENTER.

Repeat Play

You can specify one file or all files to replay repeatedly.

Protecting/unprotecting motion picture files

You can protect any file you do not want to delete.

Press CARD and the card mode screen displays.

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Video Setup”, and then press ENTER.

Press a/b to select “File Operation”, and then press ENTER.

Rec. Mode

Pre Record

Repeat Play

File Operation

Protect

Delete File

Delete All

Selected item

Off

File

All

Repeat steps 1 to 4 in Rec. Mode.

Press a/b to select “Repeat Play”, and then press ENTER.

Press a/b to select desired setting, and then press ENTER.

Description

No playback or repeat.

Plays back and repeats one file.

Plays back all movie files on the card then repeats.

Press a/b to select “Protect”, and then press ENTER.

Press a/b/c/d to select the file you want to protect, and then press ENTER.

• Protect mark ( ) displays.

• Select the file with a protect mark and press

ENTER to cancel file protect.

Repeats the operation in step 4.

After setting the files you want to protect, press RETURN to return to MENU.

Using memory card

Deleting a motion picture file

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting

a file. The card may malfunction.

Repeat step 1 to 5 in Protecting motion picture files.

Press a/b to select “Delete File”, and then press ENTER.

Press a/b/c/d to select the file you want to delete, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

Repeat the operations in steps 7 and 8 above.

After deleting the images you no longer need, press RETURN to return to MENU.

NOTE

Deleting all motion picture files

Format

Press MENU and the MENU screen displays.

Press c/d to select “Card Setup”.

Press a/b to select “Format” and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

NoYes

NOTE

• Formatting a card deletes all files including the ones which set to protect.

• Do not turn off the power or take out a card while it is being formatted.

• You cannot delete a protected file on the card.

• Do not turn off the power or take out a card when deleting a file. The card may malfunction.

Repeat step 1 to 5 in Protecting motion picture files.

Press a/b to select “Delete All”, and then press ENTER.

Press c/d to select “Yes”, and then press

ENTER.

NOTE

Using external equipment

You can connect many types of external equipment to your System, like a DVD player, VCR, Digital TV tuner, PC, HDMI equipment, game console and camcorder. To view external source images, select the input source from

INPUT on the remote control unit or on the Display.

Displaying an external equipment image

Explanation here is for the setting when connecting DVD to INPUT1 terminal.

INPUT button

To watch a DVD image, select “INPUT1” from “INPUT SOURCE” menu using INPUT on the remote control unit or on the Display. (See page XX.)

INPUT SOURCE TV

INPUT1

INPUT2 INPUT3 INPUT4 INPUT5 i.LINK CARD

NOTE

• If the image does not come in clearly, you may need to change the input signal type setting on the “Input Select” menu.

Selecting the INPUT signal

The setting is stored and can be selected on the “INPUT SOURCE” menu.

• To protect all equipment, always turn off the TV before connecting to a DVD player, VCR, Digital TV tuner, PC, HDMI equipment, game console, camcorder or other external equipment.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then press ENTER.

...

[

Audio Only

Digital Noise Reduction

Input Select

Output Select

Quick Shoot

Center Channel Input

Caption Setup

Title Display type

Option

Input Select

]

[Low]

[Auto]

[Fixed]

[Off]

[No]

Select the desired signal type.

For INPUT1 signal

...

CAUTION

[

Option

Auto

COMPONENT

Video

Input Select

]

NOTE

• See pages XX to XX for external equipment connection.

• Please refer to the relevant operation manual (DVD player, PC, etc.) carefully before making connections.

• Each time INPUT is pressed, the input source toggles.

• Refer to your external equipment operation manual for

the signal type.

Using external equipment

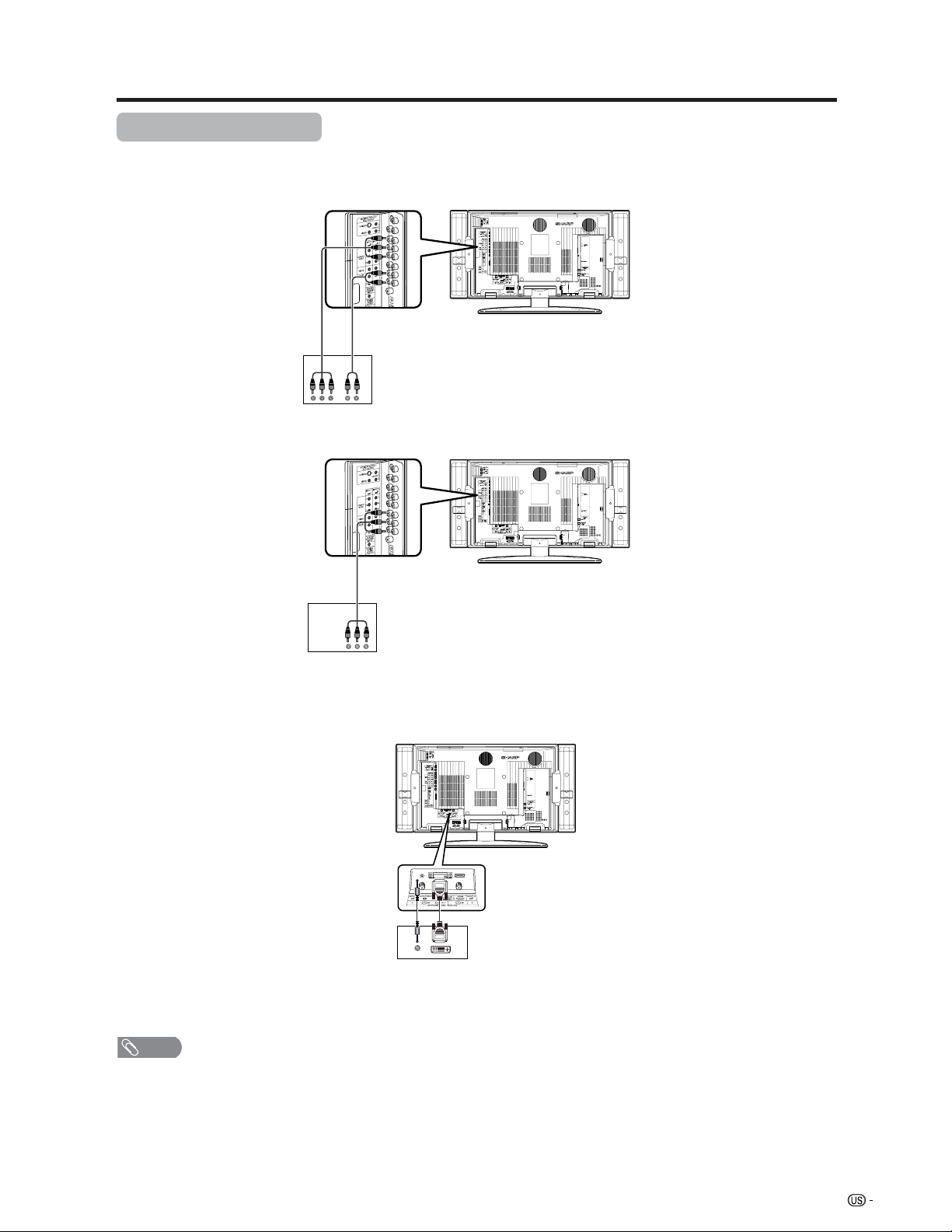

Connecting a DVD player

You can use the INPUT 1, INPUT 2, INPUT 4 or INPUT 5 terminals when connecting to a DVD player and other audiovisual equipment.

When using component cable.

Component video cable

(commercially

available)

DVD player

When using composite cable.

Audio cable (commercially available)

AV cable (commercially

available)

DVD player

When using DVI cable. (INPUT 5)

ø 3.5 mm stereo minijack cable

(commercially available)

DVI cable (Commercially available)

DVD player

NOTE

• See page 54 for connecting a DVD player with HDMI terminal.

Using external equipment

Connecting a VCR

You can use the INPUT 3 terminal when connecting a VCR and other audiovisual equipment.

NOTE

• The S-video terminal has priority over the video terminals.

S-video cable

(commercially

available)

AV cable (commercially available)

VCR

Connecting a game console or camcorder

A game console, camcorder and some other audiovisual equipment are conveniently connected using the INPUT 3 terminals.

NOTE

• The S-video terminal has priority over the video terminals.

S-video cable

(commercially

available)

AV cable (commercially available)

Game console/Camcorder

Using external equipment

Connecting a Digital TV STB

You can use the INPUT 1, INPUT 2, INPUT 4 or INPUT 5 terminals when connecting a Digital TV STB and other audiovisual equipment.

When using component cable.

Component video cable

(commercially available)

Digital TV STB

When using composite cable.

Audio cable (commercially available)

(commercially available)

AV cable

Digital TV STB

When using DVI cable. (INPUT 5)

ø 3.5 mm stereo minijack cable

(commercially available)

DVI cable (Commercially available)

Digital TV STB

NOTE

• See page 54 for connecting a Digital TV STB to HDMI terminal.

Using external equipment

Connecting HDMI equipment

You can use the INPUT 4 terminal when connecting an HDMI equipment.

HDMI equipment

HDMI cable (Commercially available)

Displaying an image from HDMI equipment

To watch an HDMI equipment image, select “INPUT4” from “INPUT SOURCE” menu

Press a/b to select the desired item and press ENTER.

using INPUT on the remote control unit or on the Display. (See page 66.)

INPUT SOURCE TV

INPUT1 INPUT2

HDMI Setup items

Signal Type

INPUT3

INPUT4

INPUT5INPUT5

Color Matrix

i.LINK CARD

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “HDMI Setup”, and then

press ENTER.

...

[

Option

Audio Only

Digital Noise Reduction

HDMI Setup

Output Select

Quick Shoot

Center Channel Input

Caption Setup

HDMI Setup

]

[Low]

[Fixed]

[Off]

Dynamic Range

Auto View

• Refer to your external equipment operation manual for the signal type.

Press a/b/c/d to select the desired setting and press ENTER.

Selectable items

Auto/RGB/YCbCr 4:4:4/YCbCr 4:2:2

Auto/ITU601/ ITU709

Standard/ Out of standard

Enable/Disable

NOTE

Description

Select the signal type from an HDMI terminal. Unless the image quality looks obviously poor, select Auto.

Select the internal color space conversion method when an RGB signal is input. Normally, select Auto.

Select the signal amplitude range. Normally, select Standard.

Set whether or not to use VIEW MODE based on signal recognition, including an HDMI signal.

Using external equipment

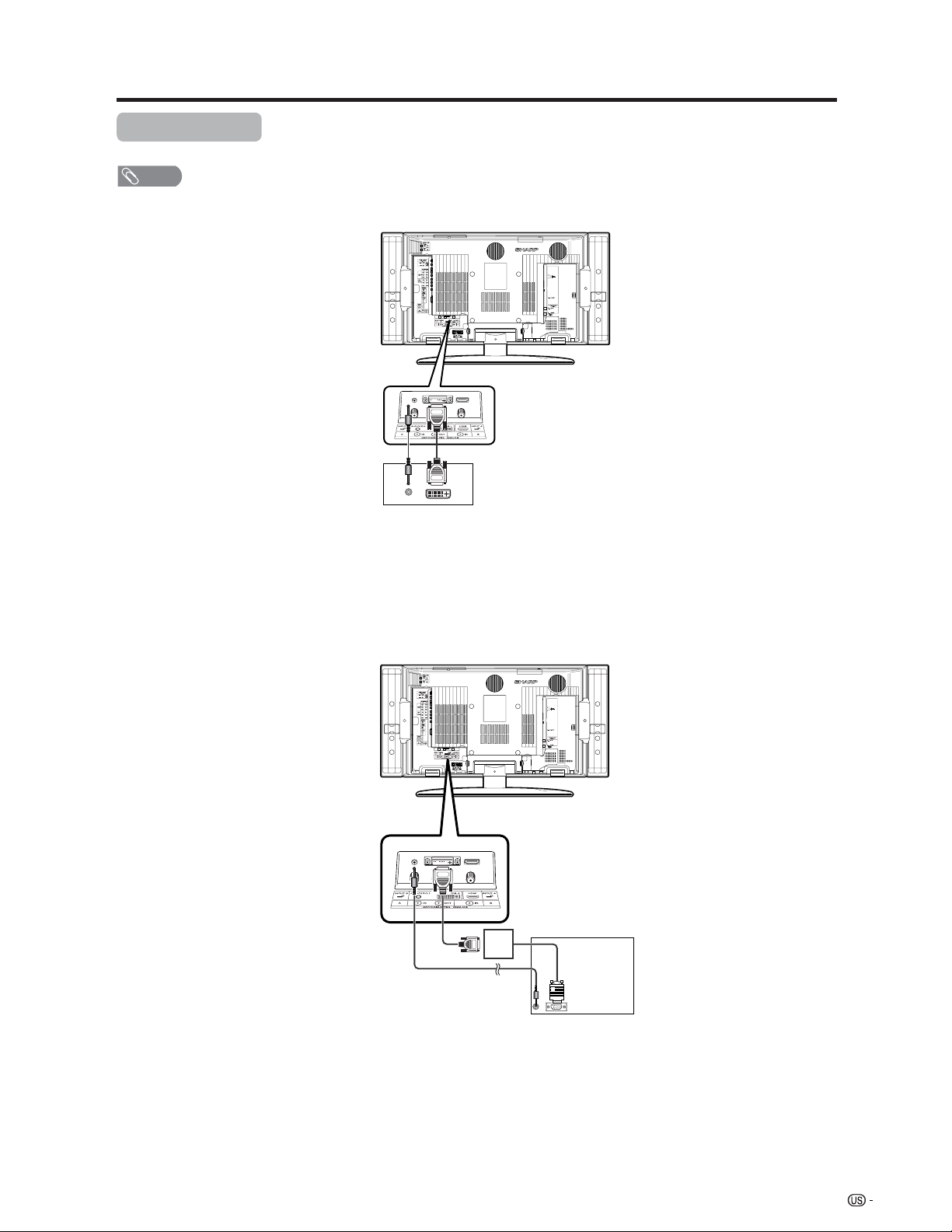

Connecting a PC

Use the INPUT 5 terminal to connect a PC.

NOTE

• Refer to page 81 for a list of PC signals compatible with the TV.

ø 3.5 mm stereo minijack cable

(commercially available)

PC with DVI terminal

DVI cable (Commercially available)

ø 3.5 mm stereo minijack cable (commercially available)

PC with analog RGB terminal

RGB/DVI conversion cable (Commercially available)

Using external equipment

Connecting D-VHS Decks (i.LINK connection)

About i.LINK

i.LINK is an interface connection using a serial transfer system and is able to transfer multimedia data, such as digital images and digital sound, between devices that have i.LINK terminals. i.LINK is a term defined in the IEEE 1394 (Institute of Electrical and Electronics Engineers) standard. Currently, the transfer speeds are at 100 Mbps, 200 Mbps and 400 Mbps, each of them expressed as S100, S200 and S400 respectively. On this TV, the maximum speed is 400 Mbps.

i. LINK devices that can be connected to this TV.

Only D-VHS decks can be connected to this TV. Other devices such as DVD recorders, digital video cameras, computers or computer peripheral devices do not meet the specifications for this TV and therefore, cannot be connected.

Materials that can be recorded with the i.LINK

Connecting two or more D-VHS decks

Up to 16 D-VHS decks can be connected using a daisy-chain connection with i.LINK cables.

When 3 or more D-VHS decks are connected, branch connection can be used. With branch connections, up to 62 D-VHS decks can be connected.

Only digital programs can be recorded by D-VHS decks connected to this TV using the i.LINK. i.LINK recording is not compatible with ground-wave broadcasts or external input signals (INPUT terminals 1 through 5).

i.LINK connection

E.g. When only one D-VHS deck is connected:

NOTE

• Please make sure the shapes of the terminal and the plug match, and insert the plug into the terminal straight, not on an angle.

• Use either one of the terminals. These two terminals do not differ in quality or function.

D-VHS deck

Only an i.LINK cable is needed to connect the TV and the D-VHS deck. (VIDEO, S-VIDEO, and AUDIO terminals need not be connected.)

Cautions regarding i.LINK connection

• Please use S400 type i.LINK cables.

• Some i.LINK devices may not relay data if their power is off. This TV can relay data during power off, by selecting “Yes” in the “Stand-by Mode” option in “i.LINK setup”. (See Page 57.)

• Please do NOT use a loop connection as shown in the diagram.

• When using the i.LINK, do not turn off the power of, or pull the cable from i.LINK devices, even if that i.LINK devices is not in use. This may affect the picture and the sound from a D-VHS deck in use.

• If devices such as a DVD recorders, digital video cameras, computers and computer peripheral devices which are not compatible with this TV, are connected to the TV using i.LINK, other i.LINK connections may be disrupted.

Using external equipment

Setting the recording mode (i.LINK)

• The function for automatically adjusting the recording mode of connected D-VHS decks can be turned on or off.

• Since most of the currently available D-VHS decks automatically recognize the transfer rates of the pictures and sound being recorded and control the recording mode accordingly, you should always set this Mode to “No” in normal circumstances.

• Depending on the D-VHS deck used and the type of broadcast being recorded, this TV may not adjust the recording mode properly. In this case, please set the “Recording Mode” to “No”.

Press MENU and the MENU screen displays.

Press c/d to select “Digital Setup”.

Press a/b to select “i.LINK Setup”, and then press ENTER.

Press a/b to select “Recording Mode”, and then press ENTER.

Press c/d to select “Yes” or “No”, and then press ENTER.

• Normally, this should be set to “No”.

Setting the Stand-by Mode (i.LINK)

• Power consumption during stand-by mode can be minimized by changing the setting of the “Standby Mode” in “i.LINK Setup”.

• When i.LINK is not in use, select “No” in “Stand-by Mode”.

Press MENU to display the MENU.

Press c/d to select “Digital Setup”.

Press a/b to select “i.LINK Setup”, and then press ENTER.

Press a/b to select “Stand-by Mode”, and then press ENTER.

Press c/d to select “Yes” or “No”, and then press ENTER.

“Yes”: Power continues to pass through the i.LINK circuit so data can be relayed. “No”: Power consumption is minimized during standby mode. Data cannot be sent at this setting.

NOTE

• When the main power of the TV is in standby mode (POWER indicator lights up in red), i.LINK control commands cannot be received from a D-VHS deck. This does not change even if the “Stand-by Mode” is set to “Yes”. To control the TV from a D-VHS deck, turn the TV power on (POWER indicator lights up in green).

• Data cannot be relayed between i.LINK devices when all the following conditions are met: 1) More than one i.LINK device is connected to the TV with i.LINK cables, 2) “Stand-by Mode” is set to “No”, and 3) The main power of the TV is in standby mode (POWER indicator lights up in red). When the TV is connected between two i.LINK devices in series, select “Yes” in “Stand-by Mode” or connect the TV at an end of the series as shown in the diagram.

Using external equipment

Selecting a D-VHS deck (i.LINK)

• In order to control a D-VHS deck from the TV, you must first choose the D-VHS deck to be controlled.

• One D-VHS deck can be chosen from up to 16 i.LINK connected decks.

• All D-VHS decks connected with i.LINK cables should automatically appear in the selection screen.

• When there is no D-VHS deck connected, the message “No i.LINK model is available” appears. In this case, please connect a D-VHS deck. (See page

57.)

• When there is no D-VHS deck selected, the selection screen appears. In this case, please go to step 3.

Press i.LINK to display the i.LINK control panel.

00:00:00

D-VHSStop

PWR

PLAY

Model Input

Press a/b/c/d to select “Model” and press ENTER.

• Selection screen appears.

NOTE

• Devices that cannot be used with this TV will not appear in the selection screen.

• When an item in the selection screen is grayed out, the item is not recognized by the TV and cannot be selected. (The item may not be connected properly.)

Disabling the TV’s operation of a D-VHS deck (i.LINK)

• By disabling the TV’s operation of a D-VHS deck, the deck can be operated from another i.LINK device.

Press i.LINK to display the i.LINK control panel.

00:00:00

PWR

PLAY

D-VHSStop

• When there is no D-VHS deck connected, “No i.LINK model is available” appears. Please connect one. (See page 57.)

• When there is no D-VHS deck selected, the selection screen appears. Please go to step 3.

Model Input

Type Maker Model

Press a/b/c/d to select “Model” and press ENTER.

• Selection screen appears.

Type Maker Model

Press a/b to select a device, and then press ENTER.

• The control panel for the D-VHS deck appears.

Press b to select “Cancel Connection” and press ENTER.

• Operation of the D-VHS deck from the TV is disabled.

Type

Maker Model

Cancel Connection

Using external equipment

Deleting a preset D-VHS deck (i.LINK)

• Preset D-VHS decks can be selected from a list.

• If a D-VHS deck is connected, it cannot be deleted from the list.

Press i.LINK to display the i.LINK control panel.

Press a/b/c/d to select “Selecting a device”, and then press ENTER.

00:00:00

D-VHSStop

PWR

PLAY

Model Input

Press a/b to select a device to be deleted, and then press ENTER.

Type Maker Model

Press c to select “Delete”, and then press ENTER.

• The selected D-VHS deck is deleted from the list.

• Select “Cancel” to undelete a device.

Type

Maker Model

Cancel Connection

Controlling an i.LINK device

• An i.LINK compatible D-VHS deck can be controlled from the TV using the i.LINK control panel on the screen.

• The steps in “i.LINK Setup” on page XX need to be completed beforehand.

• Please also refer to the operation manual of the DVHS deck to be used with this TV.

Basic operation

Press i.LINK to display the i.LINK control panel.

• The i.LINK button is also used to exit the i.LINK

control panel.

Press a/b/c/d to select a function, and then press ENTER.

The i.LINK control panel

i.LINK device

Status Display

Current operation

Tape Counter

(When the defeat tabs are broken recording is impossible)

number

(D-VHS recorder can not be

operated when timer is set)

Type of Videotape/Tape Format

Maker's name

00:00:00

Timer Status

Cassette inserted

D-VHS PLAY

Write Protect on

PWR

Model

PWR

Power On/Off

STOP

PLAY

PAUSE

REC START

Go to Model Selection screen

Model Input

Function selected with the cursor

Select input

Skip back

REWIND

FAST FORWARD

Skip forward

NOTE

• The input selection button is used to select either digital broadcasting or i.LINK input.

Using external equipment

NOTE

• Even when a connected D-VHS deck is playing, input signal can be switched to digital broadcasting by shifting the cursor to the input selection button and pressing ENTER.

• This TV may not be able to operate some D-VHS decks using the control panel, or to display picture and/or sound input from some D-VHS decks.

• Depending on the D-VHS deck, this TV’s i.LINK may not allow viewing of VHS and S-VHS tape or analog recorded D-VHS tape. In this case, connect the D-VHS deck’s analog output with the TV’s analog input, and switch the TV’s input mode to external input.

• If a D-VHS deck is operated with the TV’s control panel during timer recording, the recording may fail. Do not use the TV’s control panel to operate the D-VHS deck during timer recording.

• When the TV’s control panel is used to record a program, what is recorded with the D-VHS deck are the pictures and sound of the digital program that the TV is receiving.

• To record the picture and sound of a digital program which the TV is receiving, use D-VHS tape. VHS or S-VHS tape will not record.

• The i.LINK control panel cannot be used during timer recording.

• The i.LINK control panel cannot be displayed together with the TV Guide On Screen™or other menus.

• There may be some programs which D-VHS decks cannot record.

• With some D-VHS decks, the quality of the picture may be distorted during fast forwarding or rewinding.

• IEEE 1394 is the IEEE’s international standard.

• i.LINK and the i.LINK logo are registered trademarks of Sony Electronic, Inc.

• A copy protection technology is used on D-VHS decks that incorporate copyright protection. This technology has received the approval of the Digital Transmission Licensing Administrator (DTLA), an organization that administers copyright protection technologies. Some picture and sound data have restrictions on duplication. Such data cannot be digitally copied using the i.LINK. Some picture and sound data may not be able to be sent back and forth between a D-VHS deck that has DTLA copyright protection technology and one that does not.

Automatic input switching to i.LINK

• Input mode can be set to automatically switch to i.LINK when a D-VHS deck connected to the TV is played.

Press MENU to display the MENU screen.

Press c/d to select “Digital Setup”, and then press ENTER.

Press a/b to select “i.LINK setup”, and then press ENTER.

Press a/b select “i.LINK Autoswitch”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

i.LINK Autoswitch

Recording Mode

Stand-by Mode

Yes No

Using external equipment

Recording digital programs with a D-VHS deck (i.LINK)

• Before commencing this procedure, the steps in “i.LINK Setup” on page 58 need to be completed beforehand.

• Please also refer to the operation manual of the DVHS deck to be used with this TV.

Select a digital program to be recorded.

Press i.LINK to display the i.LINK control panel.

00:00:00

D-VHSStop

Press a/b/c/d to select E, and then press

PWR

PLAY

Model Input

ENTER.

• Recording starts.

• Select E and press ENTER to stop recording.

NOTE

• Input mode cannot be switched to i.LINK during recording.

• Some D-VHS decks may not be able to be operated using the TV’s i.LINK control panel.

• When a D-VHS deck connected to the TV is under timer recording, the deck cannot be operated using the TV’s control panel.

• When the TV’s control panel is used to record a program, what is recorded with the D-VHS deck are the pictures and sound of the digital program that the TV is receiving.

• To record the picture and sound of a digital program which the TV is receiving, use D-VHS tape. VHS or S-VHS tape will not record.

• The i.LINK control panel cannot be used during timer recording.

Useful adjustment settings

Image position (AV input mode only)

For adjusting a picture’s horizontal and vertical position.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Position”, and then press ENTER.

Press a/b to select “H-Pos.” or “V-Pos.”.

H-Pos. [0] –10 +10

V-Pos. [0] –20

Reset

+20

Press c/d to adjust the item to your desired position.

Moving the picture on the screen

You can move the picture around on the screen.

Press a/b/c/d to move an image on the screen to the desired position. Press ENTER to return to the initial image position.

NOTE

• While pressing a/b/ c/d, an on-screen image,

“Adjusting Position” displays to the desired position.

• This setting cannot be stored. Once the TV shuts down or enters standby mode, the setting is erased. To move the picture around the screen again, you must perform the above procedure again.

• The image position setting using the steps on page 63 can be stored. Select either according to your objectives.

• “TV”, “INPUT1”, “INPUT2”, “INPUT3” and “INPUT4” can each adjust the image position setting on this page. The same for view modes.

• An on-screen image from PC and card cannot be moved around.

• Even when the image fills the screen, its position can be adjusted with this function.

• Press ENTER to reset the image to original positions.

NOTE

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, and then press ENTER.

• Adjustments are stored separately according to input

source.

• You can easily move the image position as shown on this page, but when the power is switched off the image will return to the previously memorized position.

Selected item

H-Pos.

V-Pos.

Centers the image by moving it to the left or right.

Centers the image by moving it up or down.

Description

Useful adjustment settings

Connecting external speakers

Rear view

How to connect the

speaker cable

Push down the tab.

Insert the

end of the cable.

Lift the tab

back up.

When using external speakers

• Change the speaker setting to external speakers. (See page 64.)

Make sure to connect the speaker terminal and cable polarity (L, +) properly

• The speaker terminals have plus (L) and minus (+) polarity.

• Plus is red and minus is black.

• The cables are also divided into plus and minus.

• When connecting the left/right speakers, be sure to connect the plus/minus terminals with the correct cables.

NOTE

• Unplug the AC cord from the AC outlet before installing the speakers.

CAUTION

• Make sure external speakers have 4 ohm and 10 watt specifications.

• Connect the plus/minus terminals with the correct cables. Incorrect connection may cause a short.

Useful adjustment settings

Audio Quality Control

Audio Quality Control automatically optimizes the audio quality to suit internal (supplied) speakers.

Selected item

Equalizer

Flat

• When DOLBY Virtual is on, Audio Quality Control automatically sets to Flat.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Speaker Setup”, and then press ENTER.

Press a/b to select “Audio Quality Control”, and then press ENTER.

Press c/d to select “Equalizer” or “Flat”, and then press ENTER.

Description

Sets the optimum Audio Quality Control for the attached speakers.

When you are using your own speakers, output the original sound without using Audio Quality Control.

NOTE

Useful adjustment settings

Auto Sync. adjustment (PC input mode only)

For automatically adjusting the PC image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Auto Sync.”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• Auto Sync. starts and “Now adjusting the image” displays.

...

[

Setup

Auto Sync.

]

NoYes

Fine Sync. adjustment (PC input mode only)

Ordinarily you can easily adjust the picture as necessary to change image position using Auto Sync. In some cases, however, manual adjustment is needed to optimize the image.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Fine Sync.”, and then press ENTER.

Press a/b to select the specific adjustment item.

H-Pos. [90] – +

V-Pos.

Clock

Phase

Reset

[39]

[90]

[20]

–

Press c/d to adjust the item to your

30%

NOTE

• When Auto Sync. is successful, “Auto Sync completed successfully” displays. If not, Auto Sync. failed.

• Auto Sync. may fail even if “Auto Sync completed successfully” displays.

• Auto Sync. may fail if the computer image has low resolution, has unclear (black) edges, or is moved while executing Auto Sync.

• Be sure to connect the PC to the TV and switch it on before starting Auto Sync.

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, and then press

ENTER.

Selected item

H-Pos.

V-Pos.

Clock Phase

desired position.

NOTE

Description

Centers the image by moving it to the left or right.

Centers the image by moving it up or down.

Adjusts the clock frequency.

Adjusts the clock phase.

Useful adjustment settings

INPUT SOURCE TV

INPUT1 INPUT2 INPUT3 INPUT4

INPUT5INPUT5

i.LINK CARD

Input Select

Display

INPUT button

Selecting input source

Use this menu to select the input source.

Selecting input signal type

For setting the signal type of external equipment connected to INPUT 1 and Input 2 terminals.

Press INPUT.

• A list of selectable sources appears.

Press INPUT again to select the input source.

• An image from the selected source automatically displays.

• You can also select the input source by pressing a/b.

• If the corresponding input is not plugged in, you cannot change the input. Be sure to connect the equipment beforehand.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

DVI input signal setting

Press INPUT to select INPUT5.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Input Select”, and then press ENTER.

...

[

Option

Audio Only

Input Select

Output Select

Quick Shoot

Center Channel Input

Input Select

[ANALOG PC]

]

[Fixed]

[Off]

• If you set INPUT1 and INPUT2 to Auto, the TV will

• Check the operation manual of the external equipment

• Setting INPUT 1 and INPUT 2 signal selection to “Auto”

1. COMPONENT VIDEO

2. VIDEO

Press a/b to select “Input Select”, and then press ENTER.

Press a/b to select a signal type you want to set, and then press ENTER.

• If the selected signal type is incorrect, images are not displayed or displayed without any color.

NOTE

automatically select the input signal.

for the signal type.

when other equipment is connected will result in the following connectivity priority.

INPUT 1 and INPUT 2

Press a / b to select the equipment connected to INPUT 5 terminal, and then press ENTER.

...

[

Option

DIGITAL PC

ANALOG PC

DIGITAL AV

ANALOG AV

Input Select

]

Useful adjustment settings

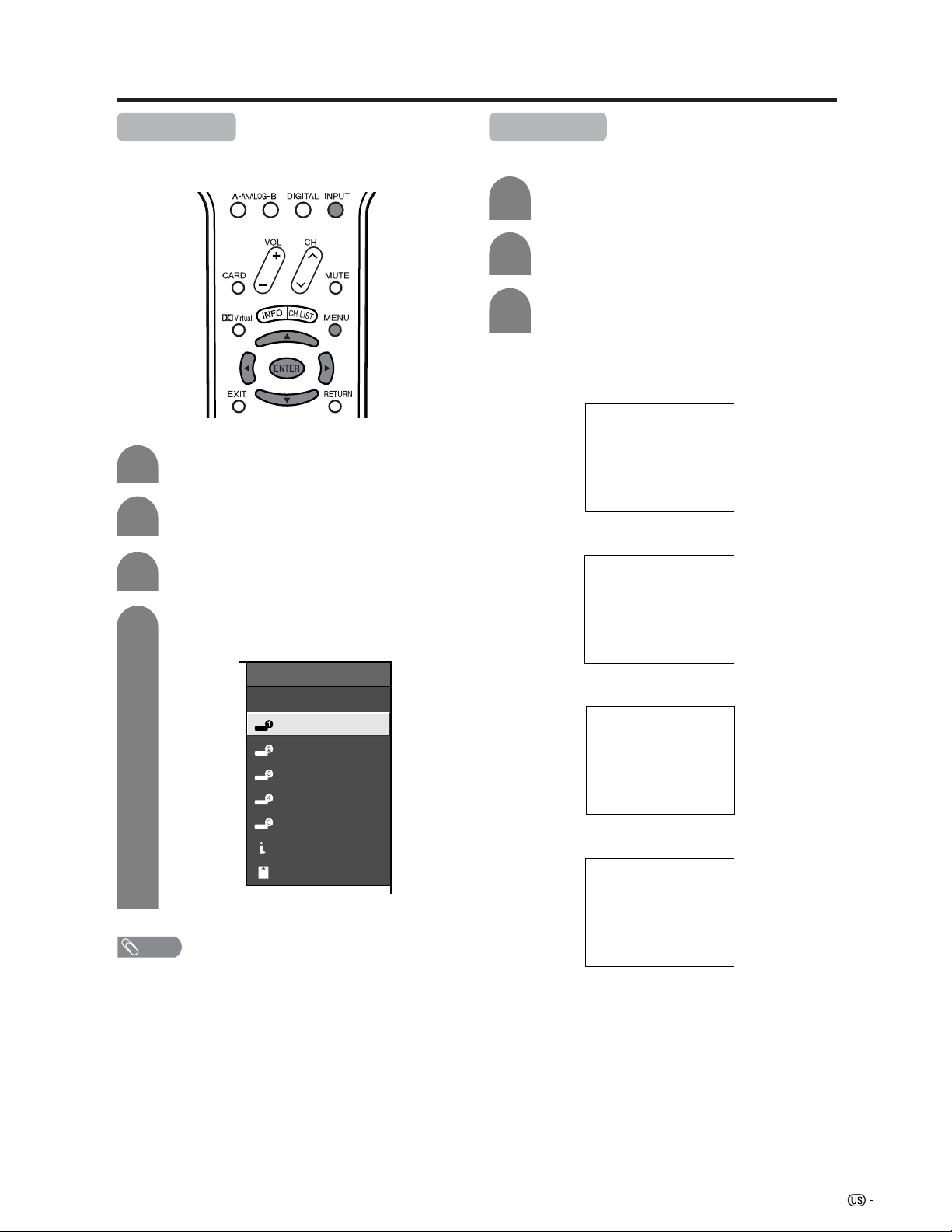

Input Label

Lets you set the input terminal displayed using the INPUT SOURCE menu or channel display.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Label”, and then press ENTER.

Picture Flip

You can set the orientation of the picture.

Repeat steps 1 and 2 in Input Label.

Press a/b to select “Picture Flip”, and then press ENTER.

Press a/b to select the desired mode, and then press ENTER.

[Standard]: normal image.

ABC

[Mirror]: mirror image.

• You cannot change labels if the INPUT SOURCE is TV, i.LINK or CARD.

Press a/b/c/d to select the new name for the channel, and then press ENTER.

INPUT SOURCE TV

DVD

INPUT2 INPUT3 INPUT4 INPUT5INPUT5 i.LINK CARD

(Example)

NOTE

ABC

[Upside Down]: upside down image.

ABC

[Rotate]: rotated image.

ABC

Useful adjustment settings

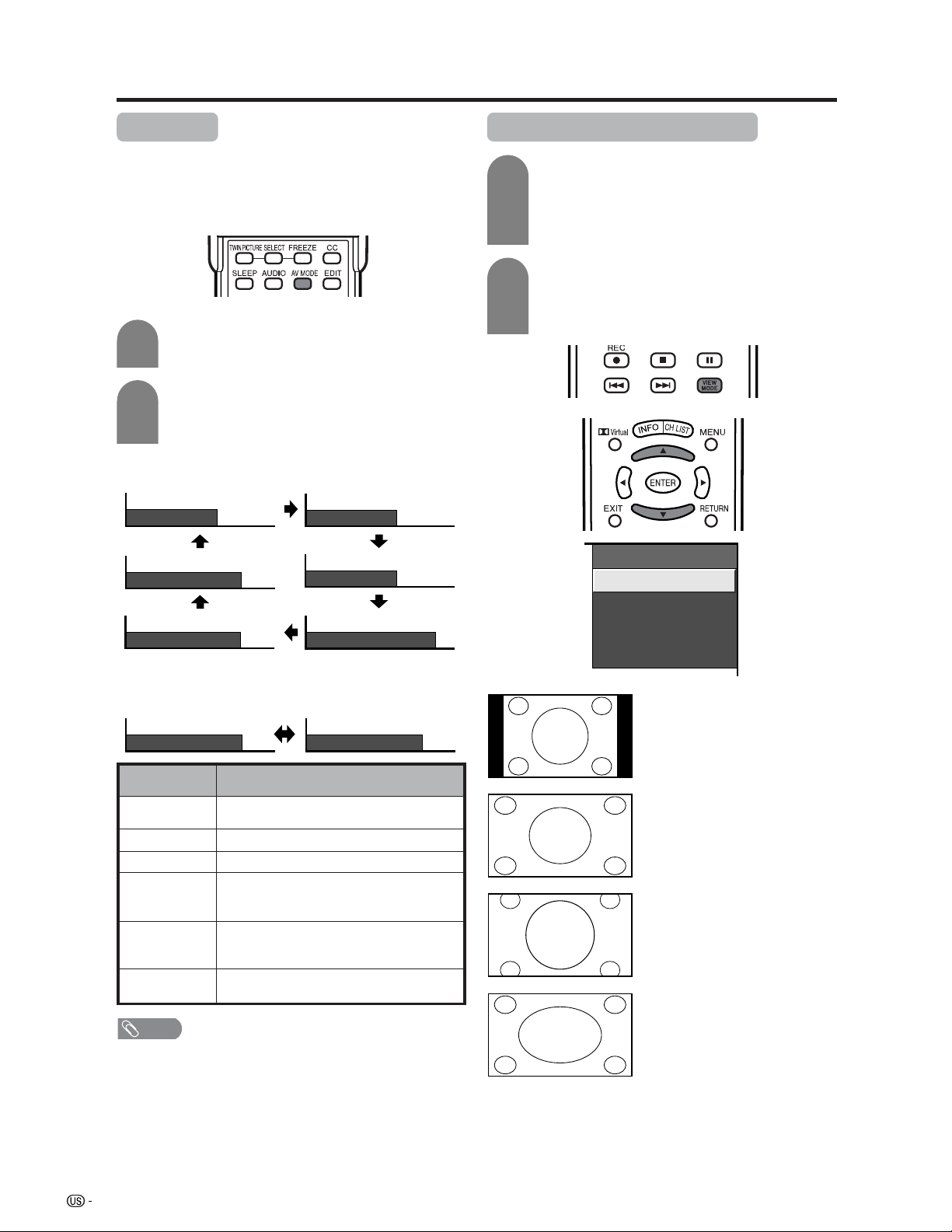

View Mode

Side Bar

S. Stretch Zoom Stretch

AV MODE

AV MODE gives you six viewing options to choose from to best match environment of the System, which can vary due to factors like room brightness, type of program watched or the type of image input from external equipment.

Mode selection for TV, INPUT 1 to 5, i.LINK and CARD

AV MODE: STANDARD

AV MODE: DYNAMIC

Press AV MODE.

• Present AV MODE displays.

Press AV MODE again before the mode displayed on the screen disappears.

• The mode changes as shown below.

mode (Example)

AV MODE: MOVIE

AV MODE: GAME

View mode for 4:3 Programs

Press VIEW MODE.

• The View mode menu displays.

• The menu lists the view mode options selectable for the type of video signal currently received.

Press VIEW MODE or a/b while the View mode menu is still on the screen.

• You can sequentially select a view mode that has its own aspect ratio.

AV MODE: DYNAMIC (Fixed)

AV MODE: USER [ANALOG-A]

Mode selection for the PC terminal

(Example)

AV MODE: STANDARD

Selected item

STANDARD

MOVIE GAME

USER

DYNAMIC (Fixed)

DYNAMIC

For a highly defined image in a normally bright room

For a movie

Lowers image brightness for easier viewing

Allows the user to customize settings as desired. You can set the mode for each input source.

Changing image and sound settings to factory preset values. No adjustments are allowed.

For a clear-cut image emphasizing high contrast for sports viewing

AV MODE: USER [PC]

Description

NOTE

• You can select a different AV MODE item for each input mode. (For example, select STANDARD for TV input and DYNAMIC for VIDEO input.)

• When AV MODE is set to DYNAMIC (Fixed), “No picture adjustments available in Dynamic (Fixed) mode” displays.

Side Bar: Suitable for viewing

S.Stretch: Suitable for stretching (Smart stretch)

Zoom: Suitable for viewing

Stretch: This mode is useful

conventional 4:3 programs in their normal format.

4:3 programs to fill the screen.

wide-screen 2.35:1 anamorphic DVDs in full screen.

for 1.78:1 DVDs. When viewing 1.85:1 DVDs, stretch mode will still show very thin black bands at the top and bottom of the screen.

Useful adjustment settings

Screen size images.

Input signal

(640m480)

View Mode

Normal

Zoom

View mode (for PC input mode)

You can select the screen size.

NOTE

• Connect the PC before making adjustments. (See page

55.)

• Selectable screen size may vary with input signal type.

Stretch Dot by Dot

Input signal (1024m768)

View Mode

Press VIEW MODE.

• The View mode menu displays.

Press VIEW MODE or a/b to select a desired item on the menu.

Zoom

Stretch Dot by Dot

Normal Zoom Stretch Dot by Dot

ex. 640g480 Keeps the original

Input signal

1024g768

aspect ratio in a full screen display.

Normal Zoom Stretch Dot by Dot

Keeps the original aspect ratio in a full screen display. The top and bottom of the image is slightly cropped.

An image fully fills the screen.

Detects the resolution of the signal and displays an image with the same number of pixels on the screen.

Useful adjustment settings

Input signal (for PC input mode)

• Some input signals may have to be registered manually to display properly.

• The pairs of input signals (resolutions) in the list below are not distinguishable when received. In such case, you have to set the correct signal manually. After setting once, it will display when the same signal (resolution) is input again.

640g400 640g480

1024g768

NOTE

• You can only select the “Input Signal” on the Setup menu when receiving one of the 6 input signals listed above.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Input Signal” and then press ENTER.

Press a/b to select the desired input signal on the display.

720g400 848g480

1280g768

Example

Digital Noise Reduction

Produces a clearer video image.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Digital Noise Reduction”, and then press ENTER.

Press a/b to select the desired level, and then press ENTER.

Off

High

Low

Audio Only

When listening to music from a music program, you can set the Liquid Crystal display off and enjoy audio only.

Repeat steps 1 and 2 in Digital Noise Reduction.

Press a/b to select “Audio Only”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

640 x 480

848 x 480

Selected item

Off

Description

Audio is output without screen image.

Both screen images and audio are output.

Useful adjustment settings

Sleep Timer: Remaining

Output Select

Allows you to select what controls the audio output.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Output Select”, and then press ENTER.

Press c/d to select “Fixed” or “Variable”, and then press ENTER.

Selected item

Fixed

Variable

• Sound via speaker is adjusted with VOL

k/l on the remote control unit or VOL l/ k on the Display.

• Sound via the MONITOR OUTPUT terminal is not adjustable and constantly outputs.

• Sound via the MONITOR OUTPUT terminal is adjusted with VOL k/l on the remote control unit or VOL l/k on the Display.

• Sound via speaker is muted.

Description

Quick Shoot

Use Quick Shoot Operation to record action video more clearly.

Sleep timer

Allows you to set a time when the TV automatically switches to standby.

Press SLEEP.

• Remaining time displays when sleep timer has been set.

Each time you press SLEEP, the remaining time switches as shown below.

• When set, the time automatically starts counting down.

• If you want to adjust the sleep timer, you can press SLEEP twice then change the time setting.

• Five minutes before time expires, the remaining time displays each minute.

Sleep Timer: Off

• Quick Shoot may cause image noise. If this occurs turn the function “Off”.

Repeat steps 1 and 2 in Output Select.

Press a/b to select “Quick Shoot”, and then press ENTER.

Press c/d to select “On”, and then press

ENTER.

NOTE

Sleep Timer:

NOTE

• Select “OFF” by pressing SLEEP to cancel the sleep timer.

• If the sleep timer is activated when set to zero, the TV will enter STANDBY mode.

120

Useful adjustment settings

Title Display Type

Select the CH display for Digital broadcasting.

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Selected item Descroption

Off

Press a/b to select “Title Display Type”, and then press ENTER.

Press c/d to select "On" or "Off", and then press ENTER.

"Channel call" displays

"Channel call" does not display

Useful adjustment settings

ANALOG-A Air

Audio : MONO

CC : 1/2 CC1

1/2 CC1 2/2 Text1 OFF

Closed caption

• Your TV is equipped with an internal closed caption decoder. Closed caption is the system which allows you to view conversations, narration, and sound effects in TV programs and home videos as subtitles on your Display.

• Not all programs and videos offer closed caption. Please look for the “N” symbol to ensure that captions will be shown.

• “CC1” or “CC2” displays subtitles of TV dramas and news programs while allowing a full view of the picture.

• “Text1” or “Text2” superimposes on the picture other information (e.g. TV guide, weather) that is independent of the TV in progress.

Press CC.

• Present Closed caption information displays.

Press CC while the Closed caption information in still on the screen.

• You can sequentially select a closed caption service which you prefer.

Closed caption information

• Depending on the signal, information such as 1/4 or 1/2 will appear. 1/2 shows the first of two services. Example: When a program has two services (CC1 and Text 1), closed caption will toggles like below.

NOTE

• See page 74 to 76 for the detailed closed caption settings.

• When using Twin Picture functions (see page 86), Closed Caption the program on the active screen will be displayed.

• When using Freeze functions, closed caption will not be displayed on the right screen (still image).

• When the program contains no closed caption, “ ––” displays in the closed caption information.

• Four kinds of closed caption service(CC1, CC2, Text1, Text2) are available. However, selectable service(CC1, CC2, Text1, Text2) are depends on the programs contains.

Useful adjustment settings

Caption Size

Select a caption size.

• Default: The caption size specified by broadcasting station or default size.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”.

Press a/b to select “Caption Size”.

Caption Size Default

Font Style

Foreground Color

ABC 123

Foreground Opacity

Background Color

Background Opacity

Character Edge

Reset

Press c/d to select the desired size.

NOTE

Default

Font Style

Select a font style.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”.

Press a/b to select “Font Style”.

Press c/d to select the desired style.

Selected item

Default

Type 0 Type 1 Type 2 Type 3 Type 4 Type 5 Type 6 Type 7

The font specified by broadcasting station or default font.

Proportional font used in the MENU screen.

Monospaced with serifs.

Proportionally spaced with serifs.

Monospaced without serifs.

Proportionally spaced without serifs.

Casual font type.

Cursive font type.

Small capitals.

Description

NOTE

• For resetting all adjustment items to the factory preset

values, press a/b to select “Reset”, and then press

ENTER.

Useful adjustment settings

Foreground Color

Select a character foreground color.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”.

Press a/b to select “Foreground Color”.

Caption Size Default

Font Style

Foreground Color

ABC 123

Foreground Opacity

Background Color

Background Opacity

Character Edge

Reset

Press c/d to select the desired color.

Default

Foreground Opacity

Select a foreground opacity value.

Repeat steps 1 to 3 in Foreground Color.

Press a/b to select “Foreground Opacity”.

Press c/d to select the desired value.

NOTE

• Default: The foreground opacity value specified by broadcasting station or default opacity value.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

Background Color

Select a character background color.

Repeat steps 1 to 3 in Foreground Color.

NOTE

• Default: The foreground color specified by broadcasting station or default color.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press

ENTER.

• Default: The background color specified by broadcasting station or default color.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

Press a/b to select “Background Color”.

Press c/d to select the desired color.

NOTE

Useful adjustment settings

Background Opacity

Select a background opacity value.

• Default: The background opacity value specified by broadcasting station or default opacity value.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”.

Press a/b to select “Background Opacity”.

Caption Size Default

Font Style

Foreground Color

ABC 123

Foreground Opacity

Background Color

Background Opacity

Character Edge

Reset

Press c/d to select the desired value.

NOTE

Default

Character Edge

Select a character edge.

• Default: The character edge specified by broadcasting station or default edge.

• For resetting all adjustment items to the factory preset values, press a/b to select “Reset”, and then press ENTER.

Press MENU and the MENU screen displays.

Press c/d to select “Option”.

Press a/b to select “Caption Setup”, and then press ENTER.

Press a/b to select “Character Edge”.

Press c/d to select the desired setting.

NOTE

Useful adjustment settings

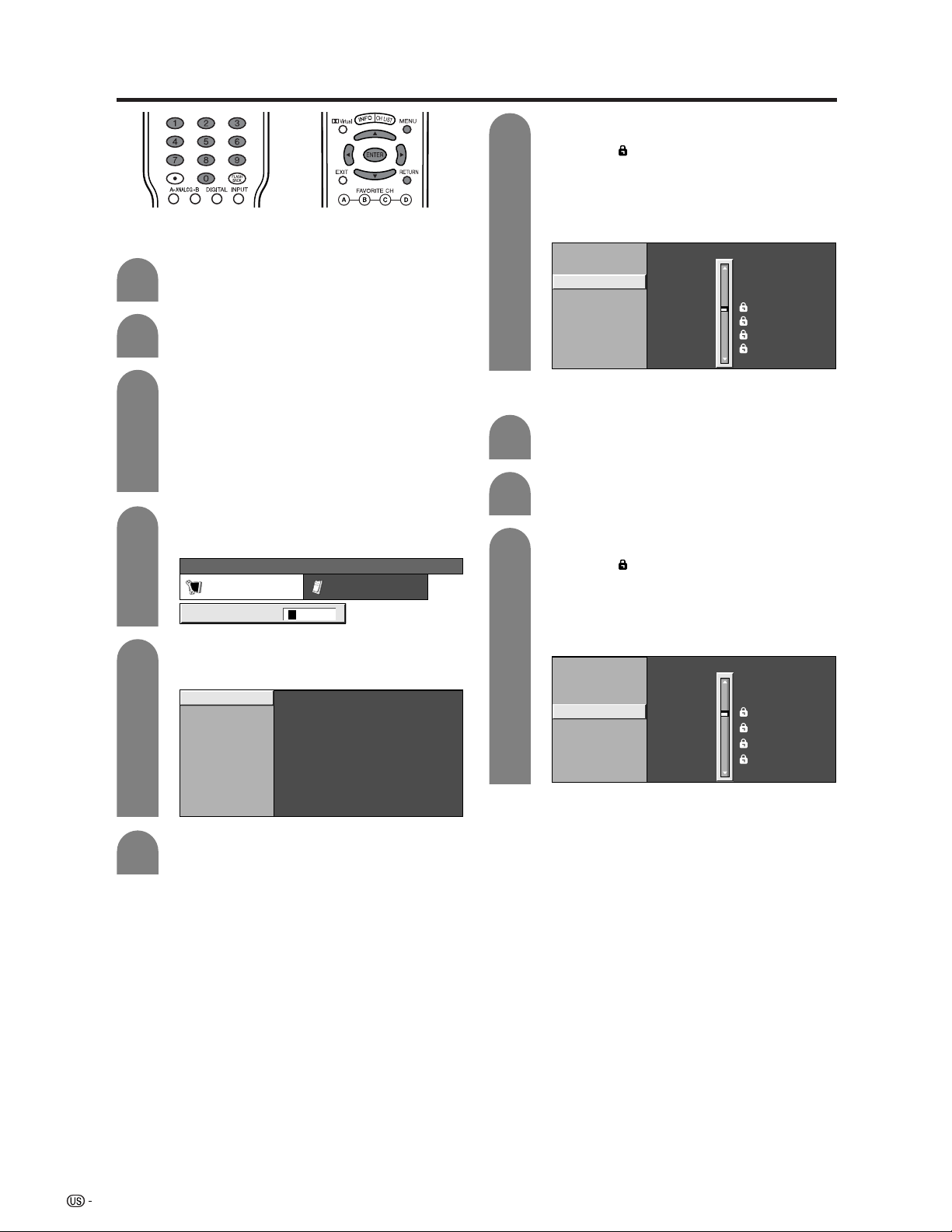

Secret number setting for parental control (AV input mode only)

Allows you to use a secret number to protect certain settings from being accidentally changed.

IMPORTANT:

Three conditions must be met to enable V-Chip (see pages 79 to 83):

1 Secret No. is registered. 2 V-Chip settings have been made. 3 “Status” is set to “On”.

Select “New Secret No.”, and then press ENTER. Input the new 4-digit secret number by using 0 – 9.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

Input the same 4-digit number on the “Reconfirm” screen as in step 5 to confirm.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

****

––––

Press RETURN to start configuring V-Chip settings. (See pages 80 and 82 for details.)

Setting parental control status

Used to enable or disable the parental control function.

Repeat steps 1 to 3 in Setting a secret number.

• Secret number setting menu displays.

Setting a secret number

Press MENU and MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Parental CTRL”, and then press ENTER.

Press a/b to select “Secret No.”, and then press ENTER.

...

TV MENU

V-Chip

Secret No.

Status

[

Setup

Parental CTRL

]

• You can skip step 1 and 2 above while in Parental CTRL screen.

Input the 4-digit secret number by using 0 –

Press a/b to select “Status”, and then press ENTER.

Press c/d to select “On” or “Off”, and then press ENTER.

• Select “On” to enable and “Off” to disable Parental CTRL.

V-Chip

Secret No.

Status

On Off

NOTE

Useful adjustment settings

1 3

Changing the secret number

Allows you to change your current secret number.

Clearing the secret number

Allows you to clear your secret number.

Repeat steps 1 to 3 in Setting a secret number.

• Secret number setting menu displays.

Input the 4-digit secret number by using 0 –

Repeat steps 1 to 3 in Setting a secret number.

• Secret number setting menu displays.

Input the 4-digit secret number by using 0 –

Press a/b to select “Secret No.”, and then press ENTER.

Press a/b to select “New Secret No.”, and then press ENTER.

Input the old 4-digit number you have set using 0 – 9.

...

[

Setup

New Secret No.

Secret No. Clear

Parental CTRL

]

Input Secret No.

New Secret No.

Reconfirm

––––

Input the new 4-digit number using 0 – 9.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

Press a/b to select “Secret No.”, and then press ENTER.

Press a/b to select “Secret No. Clear”, and then press ENTER.

Press c/d to select “Yes”, and then press ENTER.

• Your secret number is cleared.

New Secret No.

Secret No. Clear

Yes No

NOTE

• See page 77 for re-registering with a new secret number after being cleared.

• As a precautionary measure, make a note of your

secret number and keep it in a familiar place. If you lose or forget your secret number, initialize the Liquid Crystal Television to return all settings except for the TV channel settings to factory preset values. (See page 100.)

• If the secret number is cleared the Status setting automatically sets to “Off”. “V-Chip” and “Status” will not be selectable from the menu.

Input the same 4-digit number on the “Reconfirm” screen as in step 6 to confirm.

New Secret No.

Secret No. Clear

Input Secret No.

New Secret No.

Reconfirm

––––

****

––––

Useful adjustment settings

Parental control (setting V-CHIP level)

V-CHIP is an electronic filtering device built into your TV. This tool gives parents a great degree of control over broadcasts accessed by their children. It allows parents to select programs judged suitable for child viewing while blocking ones judged not suitable. It does so automatically once you activate the V-CHIP feature in your Liquid Crystal Television.

“V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 77 for Secret number setting for parental control.)

• The U.S. has two rating systems for viewing content: TV Parental Guidelines and movie ratings.

• The TV Parental Guidelines work in conjunction with the V-CHIP to help parents screen out inappropriate television shows from their children.

• Movie ratings are used for original movies rated by the Motion Picture Association of America (MPAA) as watched on cable TV and not edited for television. The V-CHIP can also be set to block MPAA-rated movies.

Voluntary movie rating system (MPAA)

Rating

PG-13

Age

NC-17

...

[

Setup

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

Parental CTRL

]

TV Parental Guidelines

Rating

Description

General audiences. All ages admitted.

Parental guidance suggested. Some material may not be suitable for children.

Parents strongly cautioned. Some material may be inappropriate for children under 13.

Restricted. Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions).

No one 17 and under admitted.

X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

• If you select “PG-13”, this will automatically block the higher ratings “R”, “NC-17” and “X”.

PG-13

NC-17

NONE

NOTE

• Voluntary movie rating system only uses an age-based rating.

Content

(Fantasy

violence)

(Violence)S(Sexual

situation)

(Adult

language)

(Sexually

suggestive

dialog)

TV-Y (All children)

TV-Y7 (Directed to older children)

Suggested age

TV-G (General audience)

TV-PG (Parental Guidance suggested)

TV-14 (Parents strongly cautioned)

TV-MA (Mature audience only)

X: Content rating can be set.

Useful adjustment settings

TV Parental Guidelines (TV Guidelines)

Repeat steps 1 to 5 in Voluntary movie rating system (MPAA).

Voluntary movie rating system (MPAA)

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Parental CTRL”, and then press ENTER.

• Secret number setting menu displays only when “Secret No.” is set. (See page 77.)

• “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 77.)

Input the 4-digit secret number by using 0 –

Press a/b to select “V-Chip”, and then press ENTER.

...

V-Chip

Secret No.

Status

[

Setup

Parental CTRL

]

Press a/b to select “MPAA”, and then press ENTER.

Press a/b to select “TV Guidelines”, and then press ENTER.

Press a/b to adjust the item to your desired position. “

• The setting automatically enters “Block” for any ratings below your selection.

” indicates the item is blocked.

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

NONE

When setting an individual content-based rating item, do as follows: 1 Press d to access block content items from

the currently selected age-based rating item.

2 Press a/b to select an individual item, and

then press ENTER to unblock (“

” is removed). Repeat the same steps for other items.

3 Press c or RETURN to register after all

individual content rating items are set.

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

• If Status is not set to “On” the configuration settings will not work. (See page 77.)

TV-Y

TV-Y7

TV-G

TV-PG

TV-14

TV-MA

NONE

Press a/b to adjust the item to your desired position. “

” indicates the item is blocked.

Press RETURN.

• The setting automatically enters “Block” for any ratings below your selection.

• If Status is not set to “On” the configuration settings will not work. (See page 77.)

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

PG-13

NC-17

NONE

Useful adjustment settings

Canadian Rating Systems

• The TV rating systems in Canada are based on the Canadian Radio-Television and Telecommunications Commission (CRTC) policy on violence in television programming.

• While violence is the most important content element to be rated, the structure developed takes into consideration other program content like language, nudity, sexuality and mature themes.

• When setting the V-CHIP on the Canadian system you can choose either the Canadian English ratings or the Canadian French ratings.

Canadian English ratings

Rating

Exempt: Includes news, sports, documentaries and other information programming; talk shows, music videos, and variety programming.

Children: Intended for younger children under the age of 8 years. Pays careful attention to themes that could threaten their sense of security and well-being.

Children over 8 years old: Contains no portrayal of violence as the preferred, acceptable, or only way to resolve conflict; nor encourage children to imitate dangerous acts which they may see on the screen.

General: Considered acceptable for all age groups. Appropriate viewing for the entire family, contains very little violence, physical, verbal or emotional.

Parental Guidance: Intended for a general audience, but may not be suitable for younger children (under the age of 8) because it could contain controversial themes or issues.

Over 14 Years: Could contain themes where violence is one of the dominant elements of the storyline, but it must be integral to the development of plot or character. Language usage could be profane and nudity present within the context of the theme.

Adults: Intended for viewers 18 years and older and might contain depictions of violence, which while related to the development of plot, character or themes, are intended for adult viewing. Could contain graphic language and portrayals of sex and nudity.

Age

C8e

14e

18e

Canadian French ratings

Rating

Description

Age

8anse

13anse

16anse

18anse

Exempt programming.

General: All ages and children, contains minimal direct violence, but may be integrated into the plot in a humorous or unrealistic manner.

General but inadvisable for young children: May be viewed by a wide public audience, but could contain scenes disturbing to children under 8 who cannot distinguish between imaginary and real situations. Recommended for viewing with parent.

Over 13 years: Could contain frequent violent scenes and therefore recommended for viewing with parent.

Over 16 years: Could contain frequent violent scenes and intense violence.

Over 18 years: Only for adult viewing. Could contain frequent violent scenes and extreme violence.

Useful adjustment settings

Canadian English ratings

Press MENU and the MENU screen displays.

Press c/d to select “Setup”.

Press a/b to select “Parental CTRL”, and then press ENTER.

• Secret number setting menu displays only when “Secret No.” is set. (See page 77.)

• “V-Chip” and “Status” will not be selectable from the menu if you do not first configure your secret number. (See page 77.)

Input the 4-digit secret number by using 0 –

...

[

Setup

Parental CTRL

Setup Option

Secret No.

Press a/b to select “V-Chip”, and then press ENTER.

V-Chip

Secret No.

Status

Press a/b to adjust the item to your desired position. “

” indicates the item is blocked.

• The setting automatically enters “Block” for any ratings below your selection.

• If Status is not set to “On” the configuration settings will not work. (See page 77.)

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

E C C8+ G PG 14+ 18+ NONE

Canadian French ratings

]

––––

Repeat steps 1 to 5 in Canadian English ratings.

Press a/b to select “Can. French Ratings”, and then press ENTER.

Press a/b to adjust the item to your desired position. “

• The setting automatically enters “Block” for any ratings below your selection.

• If Status is not set to “On” the configuration settings will not work. (See page 77.)

” indicates the item is blocked.

Example

MPAA

TV Guidelines

Can. English Ratings

Can. French Ratings

8ans+

13ans+

16ans+

18ans+

NONE

Press a/b to select “Can. English Ratings”, and then press ENTER.

Useful adjustment settings

How to temporarily release the V-CHIP BLOCK

• The V-CHIP BLOCK is working and censors a broadcast, “V-CHIP HAS BEEN ACTIVATED.” displays.

Press ENTER while the V-CHIP is working and then the secret number setting menu displays.

Enter your 4-digit secret number with 0 – 9 and then press ENTER. At this time V-CHIP BLOCK temporarily releases.

Reactivating the temporarily released V-CHIP BLOCK

• You can reactivate the temporarily released V-CHIP BLOCK as shown below.

Method 1:

Select “Status” setting from the Parental CTRL menu to reactivate BLOCK. See page 77.

Method 2:

Select “V-Chip” setting (“MPAA”, “TV Guidelines”, “Can. English Ratings” or “Can. French Ratings”) from the Parental CTRL to reactivate BLOCK. See pages 80 and 82.

Method 3:

Switch off the TV power.

NOTE

• Performing any of the three above will activate the V-CHIP BLOCK.

Useful adjustment settings

Center Channel Input

You can use the display speakers as center speaker when using 5.1ch surrounding sound system.

Display speaker

* Connect to external audio equipment

which supports 5.1ch surround sound system. Refer to your external equipment operation manual for details.

Press MENU and the MENU screen displays.

Press c/d to select “Option”, and then press ENTER.

Press a/b to select “Center Channel Input”, and then press ENTER.

• Sound from Center Channel Input terminal is output from the display speaker.

Press c/d to select “On” , and then press ENTER.

OffOn

NOTE

Other viewing options

WGBH-SD

WGBH DTV Broadcast Signal

Input Info.

Video Audio C.C. Rating

480i

Stereo

Optic. i.Link

REC RECOKOK

- -

Viewing a list of Digital broadcast channels

You can view a list of all currently watchable digital broadcast channels.

Broadcast

Number

Push CH LIST while watching a digital broadcast.

• A list of all digital channels (over-the-air or cable) currently watchable will be displayed.

Air/Cable

CH LIST

[DTV-Air]

station

CH.

WGBH-SD

PBS-HD

WGBH-DX

2.1

2.2

2.10

Viewing information of the program

You can view information about a digital broadcast you are currently watching.

Press INFO while watching a digital broadcast.

• Information of the current program will be displayed.

Broadcast station

Program

Program information

(Example) Channel List Screen for Over-theAir Broadcasts

Press a/b to select the channel you want to watch, and then press ENTER to display the selected channel.

Press c/d to scroll between pages of the Channel List.

Sample program information

NOTE

• Sometimes the name of the program is not broadcast. In that case, the program name will not be displayed.

Other viewing options

Twin picture functions

Allows you to display two pictures on the screen at one time.

Twin picture in all cases

You can display two same-sized pictures except when inputting from INPUT 4 (HDMI) and INPUT 5 (DVI-I) terminals and CARD.

Press TWIN PICTURE.

• Twin picture displays and a selected input source image displays.

Picture and still image

You can display two same-sized pictures – one moving and one still.

Press FREEZE.

• A moving image displays on the left screen and a still image displays on the right screen. The still image is one frame captured from a moving image at the moment you press FREEZE.

FREEZE

• This function does not work under the following input conditions:

1INPUT 4 (HDMI) 2INPUT 5 (DVI-I) 3CARD 4Two pictures from the same source (e.g. INPUT 1 and

5An image will appear on the right side only if it is a 480i

*An SDTV image has a 480p signal, so it will not appear

• When this function is not available, “No dual screen display available” will display.

• Pressing ANALOG-A, B, DIGITAL while viewing in Twin Picture mode (TV image and video image) with TV selected will display the TV image of the other tuner.Picture and still image

Press SELECT to set either screen to be active.

•“z” displays on the active screen, which has

sound output.

Press TWIN PICTURE to exit twin picture.

NOTE

INPUT 1)

signal.

either.

Update the still image by pressing ENTER.

• Each time you press ENTER, the image on the

right screen updates.

• If a PC card with enough capacity is inserted in the system, a message will appear on the screen asking you whether to save the image. Press REC on the remote control if you want to save. (See page 44.)

Press FREEZE to exit still image.

NOTE

• This function does not work in INPUT 4 (HDMI), INPUT 5 (DVI-I) and CARD.

• When this function is not available, “No displaying still image” will display.

• Another image can be saved if a PC card with enough capacity is inserted in the system.

• The still image is automatically erased after 30 minutes.

• If you are using FREEZE and a broadcast activates the VCHIP BLOCK, FREEZE will cancel and a block message will appear.

Other viewing options

Presetting remote control function

You can operate the connected AV products (AV Receiver, Cable Box, SAT tuner, DTV, VCR, DVD, LD) using the presetting manufacturer function for your remote control unit.

Presetting manufacturer codes

Press FUNCTION until the LED for your device lights up.

After the LED for your device lights up, if you press FUNCTION for three seconds and enter the code registration mode, the LED will blink.

Press 0 – 9 to enter the manufacturer code. (See page 88.)

• Preset mode is finished once the LED no longer lights up.

After registering the code, the LED will stop blinking then turn off after one second. (If you perform an incorrect operation, the LED will blink quickly then turn off.)

Other viewing options

Manufacturer codes

VCR BRAND

Akai Audio Broksonic Canon Capehart Craig Curtis Mathis Daewoo DBX Dynatech Emerson Fisher Funai G.E. Goldstar Hitachi Instant Replay JC Penney JVC Kenwood Lloyds Magnavox Magnin Marantz Memorex Minolta Mitsubishi Montgomery Ward Multitech NEC Panasonic Pentax Philco Philips RCA Realistic Samsung Sanyo Scott Sears Sharp Shintom Sony Sound Design Sylvania Symphonic Tatung Teac Teknika Thomas TMK Toshiba Video Concepts Yamaha Zenith

REMOTE CONTROL

CODE NUMBER

25, 26, 37 15, 22, 30 32 04 34 10, 31 04 34 15, 22, 30 29 21, 32, 35 09, 10, 11 28, 29 04 24 06, 47 04 04, 06, 24, 30 15, 41, 42, 53 14, 15 29 04, 05, 08 31 30 04, 10, 24, 29 06 17, 18, 39, 40 02, 43 29 15, 22, 30 44, 45 05, 06 05 05, 08 06, 07, 33, 51 01, 02, 10, 24 23, 31 10, 14, 52 20 06, 11, 24 01, 02, 03 36 12, 13, 38 29 05, 08 29 15 15, 29 27, 29 29 21 19, 20 30 15, 29, 30 16

DVD/LD BRAND

Denon JVC Kenwood Magnavox Marantz Mitsubishi Panasonic Philips Pioneer Proscan RCA Samsung Sharp Sony Toshiba Yamaha Zenith

CATV CONVERTER

BRAND

Anvision Cable Star Eagle General Instrument

Jerrold

Magnavox

Oak Sigma Panasonic Philips

Pioneer Randtek RCA Scientific Atlanta Sony Viewstar

Zenith

AUDIO BRAND

Sharp 01

02 09, 13 21 04 04 06 02, 22 04, 23 08, 11, 20 03 03, 24 07, 12 01, 10 05, 25 04 02 04

04, 05 04, 05 05 02, 03, 07, 12, 13, 14, 19, 22 02, 03, 07, 12, 13, 14, 19, 22, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40 04, 05, 09, 14, 17, 18, 20, 21, 24, 25 8 16, 23 04, 05, 09, 15, 17, 18, 20, 21, 24, 25 08, 10, 29, 30, 46 04, 05 16, 27, 44, 45 01, 26 28 04, 05, 09, 15, 17, 18, 20, 21, 24, 25 06, 14

REMOTE CONTROL

CODE NUMBER

REMOTE CONTROL

CODE NUMBER

REMOTE CONTROL

CODE NUMBER

Other viewing options

Cable control buttons

When the FUNCTION is set to CBL/SAT the cable converter connected to the Display can operate using

1 to 4.

1 SOURCE POWER

Turns the cable converter power on and off.

20 – 9

Press a button (or buttons) that corresponds to the channel that you wish to watch.

3 FLASHBACK *

Press to switch between the current channel and the channel you were watching immediately before.

4 CH a/b

Press CH a or CH b to tune in a higher or lower channel.

* Some manufacturers do not preset FLASHBACK.

NOTE

• CABLE and SAT cannot be selected at the same time.

SAT control buttons

1 SOURCE POWER

Turns the Satellite broadcast tuner power on and off.

20 – 9,

3 ENTER, a/b/c/d

• (DOT)

Press a button (or buttons) that corresponds to the channel that you wish to watch.

ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the SAT

GUIDE screen or SAT MENU screen.

NOTE

• CABLE and SAT cannot be selected at the same time.

Other viewing options

2 4

7 3

VCR control buttons

The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to VCR.

• When the input selector button having the same number as the input terminal connecting the VCR is pressed, the VCR can operate using 1 to 8.

1 CH a/b

Press to select the channel of the TV tuner on the VCR.

2 SOURCE POWER

Turns the power of the VCR on and off.

3 F

Sets pauses and still pictures.

4 G

Rewinds the tape and allows picture search.

5 H

Stops the tape transport.

6 REC

Starts recording.

7 J

Rapidly advances the tape and allows picture search.

8 I

Starts playback.

Other viewing options

3 10

5 6

4 2 1

7 8

DVD control buttons

The remote control unit button will function as follows when the FUNCTION of the remote control unit is set to DVD.

• When the input selector button having the same number as the input terminal connecting a DVD player is pressed, these players can operate using

1 to 10.

1 U

Pressing quickly once takes you to the start of the next chapter. Each time you press it, you move ahead to the start of the next chapter.

2 T

Pressing quickly once takes you to the start of the chapter currently playing. Each time you press it, you move back to the start of the previous chapter.

3 SOURCE POWER

Turns the power of the DVD player on and off.

4 F

Sets pauses and still pictures.

5 G

Continue pressing to go backward.

6 H

Playback stops when pressing once. With some DVD players, pressing the button twice may open the disc tray.

7 MENU

When this button is pressed, the DVD menu will display.

8 ENTER, a/b/c/d

ENTER: Press to activate the selected function. a/b/c/d: Press the button to select items on the DVD

MENU screen.

9 J

Continue pressing for fast forward.

10 I

Starts playback.

Appendix

Troubleshooting

Problem Possible Solution

• No power

• Check if you pressed TV POWER on the remote control unit. (See page 20.) If the indicator on the Display lights up red, press TV POWER on the remote control unit.

• Is the AC cord disconnected? (See page 10.)

• Has the main power been turned on? (See page 20.)

• Unit cannot be operated.

• Remote control unit does not operate.

• Picture is cut off/with sidebar screen.

• When playing back video in card mode, a part of the image is missing or the image is out of position.

• Strange color, light color, or color misalignment

• Power is suddenly turned off.

• External influences such as lightning, static electricity, may cause improper operation. In this case, operate the unit after first turning on the power of the Display or unplugging the AC cord and replugging it in after 1 or 2 minutes.

• Is the FUNCTION set correctly? Set it to the TV setting position.

• Are batteries inserted with polarity (e, f) aligned? (See page 13.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Is the image position correct? (See page 62.)

• Are screen mode adjustments such as picture size made correctly? (See pages 68 and 69)

• The video playback setting has been affected as a result of moving the image position when playing back a still image in card mode. It is recommended not to move the image position when playing back images from a card.

• Adjust the picture tone. (See pages 31 to 34.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the input signal setting. (See page 66.)

• Is the sleep timer set? (See page 71.)

• Check the power control settings. (See page 36.)

• The unit’s internal temperature has increased. Remove any objects blocking vent or clean the vent.

• No picture

• No sound

• The upgrade screen will continue to be displayed indefinitely. Alternatively, it may appear and disappear repeatedly.

• Is connection to other components correct? (See pages 51 to 57.)

• Is correct input signal source selected after connection? (See page 66.)

• Is the correct input selected? (See page 66.)

• Is a non-compatible signal being input? (See page 93.)

• Is picture adjustment correct? (See pages 31 to 34.)

• Is “On” selected in “Audio Only”? (See page 70.)

• Is the volume too low? (See page 23.)

• Is “Variable” selected in “Output Select”? (See page 71.)

• Is “On” selected in “Center Channel Input”? (See page 84.)

• Is the cable antenna connected? Remove the CableCARD, reconnect the Antenna correctly, and then reinsert the CableCARD. If the problem is still not resolved, contact your cable company.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction. Storage temperature: –4°F to +140°F (–20°C to +60°C)

Appendix

PC compatibility chart

PC/MAC Resolution Horizontal Frequency Vertical Frequency VESA Standard

MAC13" MAC16" MAC19"

640 x 400

720 x 400

VGA

640 x 480

WVGA 848 x 480

SVGA

800 x 600

1024 x 768XGA

WXGA

SXGA

VGA

SVGA

XGA

1280 x 720 1280 x 768

1280 x 1024

640 x 480 832 x 624

1024 x 768

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

31.5 kHz

37.9 kHz

37.5 kHz

43.3 kHz

31.5 kHz

35.1 kHz

37.9 kHz

48.1 kHz

46.9 kHz

53.7 kHz

48.4 kHz

56.5 kHz

60.0 kHz

68.7 kHz

45.0 kHz

48.1 kHz

64.0 kHz

34.9 kHz

49.7 kHz

60.2 kHz

60 Hz 85 Hz 60 Hz 85 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 56 Hz 60 Hz 72 Hz 75 Hz 85 Hz 60 Hz 70 Hz 75 Hz 85 Hz 60 Hz 60 Hz 60 Hz 67 Hz 75 Hz 75 Hz

O O O O O

O O O O O O O O O

Apple and Macintosh are registered trademarks of Apple Computer, Inc. DDC is a registered trademark of Video Electronics Standards Association. Power Management is a registered trademark of Sun Microsystems, Inc. VGA and XGA are registered trademarks of International Business Machines Co., Inc.

Appendix

RS-232C port specifications

PC Control of the System

• When a program is set, the Display can be controlled from the PC using the RS-232C terminal. The input signal (PC/AV) can be selected, the volume can be adjusted and various other adjustments and settings can be made, enabling automatic programmed playing.

• Attach an RS-232C cable cross-type (commercially available) to the supplied Din/D-Sub RS-232C for the

connections.

NOTE

• This operation system should be used by a person who is accustomed to using computers.

Communication conditions

Set the RS-232C communications settings on the PC to match the display’s communications conditions. The Display’s communications settings are as follows:

Baud rate: Data length: Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the RS-232C connector. The display operates according to the received command and sends a response message to the PC. Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the next command.

9,600 bps

8 bits None 1 bit None

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Parameter

Input the parameter values, aligning left, and fill with blank(s) for the remainder. (Be sure that 4 values are input for the parameter.) When the input parameter is not within an adjustable range, “ERR” returns. (Refer to “Response code format”.) Any numerical value can replace the “x” on the table.

Command 4-digits:Command. The text of four characters. Parameter 4-digits:Parameter 0 – 9, x, blank, ?

Return codeCommand 4-digits Parameter 4-digits

0009

⫺ 30

100

0055

When “?” is input for some commands, the present setting value responds.

????

Appendix

Response code format

Normal response

Return code (0DH)

Problem response (communication error or incorrect command)

ERR

Return code (0DH)

Command table

• Commands not indicated here are not guaranteed to operate.

CONTROL ITEM COMMAND

POWER SETTING It shifts to standby. INPUT SELECTION A TOGGLE

INPUT SELECTION B

AV MODE SELECTION

VOLUME

POSITION

VIEWMODE

MUTE

Dolby Virtual

AUDIO SELECTION SLEEP TIMER

CHANNEL

ANTENA SELECT

TV INPUT1-5 i.LINK CARD INPUT 1

INPUT 2

INPUT 5

H-POSITIONH-POSITION

V-POSITION

CLOCK PHASE

DIRECT CHANNEL (ANALOG) DIRECT CHANNEL (DIGITAL)

CH UP CH DOWN

POWR

ITGD ITVD IAVD

LINKx___

ICRD INP1

INP5

AVMD

VOLM HPOS

VPOS

CLCK PHSE

WIDE

MUT E 0

ACDV

ACHAx _ _ _ OFTM

DCCH

DA2 0 * * * *

DC2 0 * * * _

DC2 1 * * * _ DC1 0 * * * * DC1 1 * * * * CHUP CHDW

CLCP

PARAMETER

_ _

5 6

* *** *

* *

* 0

23_____

(Toggle)

_ _

Input terminal number (1–5)

AUTO

VIDEO

COMPONENT

AUTOINP2

AUTO

VIDEO

COMPONENT

DIGITAL PC

ANALOG PC

DIGITAL AV

ANALOG AV

(Toggle)

STANDARD

MOVIE

GAME

USER

DYNAMIC (Fixed)

DYNAMIC

Volume (0–60)

AV mode. (Ⳳ10)

INPUT5: AV mode. (Ⳳ90)***_ PC mode. (0–180)

AV mode. (Ⳳ20)

INPUT5: AV mode. (Ⳳ50)

PC mode. (0–100)

Only PC mode. (0–180)

Only PC mode. (0–40)

(Toggle) [AV]

Side Bar [AV]

S.Stretch [AV]

Zoom [AV]

Stretch [AV]

Normal [PC]

Zoom [PC]

Stretch [PC]

Dot by Dot [PC]

(Toggle)

Off

(Toggle)

Off

(Toggle) OFF

OFF TIMER – 30 MIN.

OFF TIMER – 60 MIN.

OFF TIMER – 90 MIN. OFF TIMER – 120 MIN. 4___ The channel number of TV

(1–125)

DA2P

DA2U

DA2L

The channel number of TV Ⳮ1

The channel number of TV ⳮ1

ANALOG-A1___ ANALOG-B2___ DIGITAL3___ (Toggle)

It input-switches by the toggle. (It is the same as an input change key) It input-switches to TV. (A channel remains as it is. (Last memory)) It input-switches to INPUT1~INPUT5. It input-switches to i.LINK. It shifts to CARD mode. An input change is also included.

Although it can choose now, it is toggle operation in inside.

An input change is included if it is not TV display. In Air, 2–69ch is effective. In Cable, 1–125ch is effective. DIGITAL Air (Two-Part numbers, 2-digit plus 2-digit) Front half of DIGITAL CABLE CHANNEL NO. (Designate major channel) DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit) Rear half of DIGITAL CABLE CHANNEL NO. (Designate minor channel) DIGITAL Cable (Two-Part numbers, 3-digit plus 3-digit) DIGITAL Cable (One-Part numbers, 5-digit, less than 10,000) DIGITAL Cable (One-Part numbers, 5-digit, more than 10,000) If it is not TV display, it will input-switch to TV. same function as CH+ If it is not TV display, it will input-switch to TV. same function as CHANALOG-A s ANALOG-B s DIGITAL(Toggle)ANT S 0 _ __

Toggle operation of a closed caption.

CONTROL CONTENTS

NOTE

• If an underbar (_) appears in the parameter column, enter a space.

• If an asterisk (*) appears, enter a value in the range indicated in brackets under CONTROL CONTENTS.

• As long as that from which the parameter (g) in the table is a numerical value, it may write anything.

Appendix

Specifications

Item Model: LC-37GD4U

LCD panel 37o Advanced Super

View & BLACK TFT LCD

Model: LC-32GD4U Model: LC-26GD4U

32o Advanced Super View & BLACK TFT LCD

26o Advanced Super View & BLACK TFT LCD

Number of dots 3,147,264 dots (1366 m 768 m 3 dots) TV

Function

TV-standard (CCIR) Receiving

Channel

VHF/UHF

CATV 1-125ch

Digital Terrestrial Broadcast (8VSB)

Digital cable (64/256 QAM)

American TV Standard ATSC/NTSC System

VHF 2-13ch, UHF 14-69ch

2-69ch

1-135ch

Audio multiplex BTSC System

Brightness 450 cd/m

Backlight 60,000 hours (at Backlight Standard position) Viewing angles H : 170° V : 170° Audio amplifier 10W m 2 Speakers Ø 8cm 2pcs, Ø 2.5cm 2pcs Terminals

Rear

INPUT 1 INPUT 2 INPUT 3 INPUT 4

AV in, COMPONENT in

S-VIDEO in, AV in

HDMI in (Type-A) with HDCP

INPUT 5 Audio in, DVI-I in with HDCP ANALOG ANTENNA DIGITAL ANTENNA MONITOR OUTPUT EXTERNAL SPEAKER

CENTER CHANNEL INPUT

DIGITAL AUDIO OUTPUT

75 q Unbalance, F Type for VHF/UHF/CATV in m 2, out m 1

75 q –for Digital Air/Cable in m 1

S-VIDEO out, AV out

4 q 10W (L/R)

RCA pin Optical Digital audio output m 1 (PCM/Dolby Digital)

i.LINK IEEE1394 m 2 with DTCP PC CARD slot Cable CARD slot DC OUTPUT Headphones Ø 3.5mm jack

Front

68 pin PCMCIA m 1 68 pin PCMCIA m 1 DC 9 V 7 W MAX

OSD language English/French/Spanish

Power Requirement Power Consumption

Weight

LC-37GD4U

AC 120 V, 60 Hz 224 W (0.2 W Standby

with AC 120 V)

182 W (0.2 W Standby with AC 120 V)

40.8 lbs./18.5 kg (Display only),

150 W (0.2 W Standby with AC 120 V)

51.6 lbs./23.4 kg (with Display and speaker),

60.8 lbs./27.6 kg (with Display, speaker and standby)

LC-32GD4U

36.4 lbs./16.5 kg (Display only),

46.1 lbs./20.9 kg (with Display and speaker),

55.3 lbs./25.1 kg (with Display, speaker and standby)

LC-26GD4U

XX.X lbs./XX.X kg (Display only), XX.X lbs./XX.X kg (with Display and speaker), XX.X lbs./XX.X kg (with Display, speaker and standby)

Accessories Operation manual (m1), Remote control unit (m1), AC cord (m1), “AAA” size

battery (m2), Cable clamp (m1), RF cable (m1), Speaker unit (m1), Bracket unit (m1) (only for LC-37GD4U/LC-32GD4U)

• As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Optional accessory

The listed optional accessory is available for the Liquid Crystal Television. Please purchase it at your nearest shop.

• Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility and check the availability.

for LC-37GD4U/LC-32GD4U

No.

1 AN-37AG2

Part name Part number

Wall mount bracket

Dimensional drawings

Display LC-37GD4U

822.6

671

1102

917

Unit: inch/(mm)

102

115

548

634

361

463.8

307

200

95.9

200

Dimensional drawings

Display LC-32GD4U

480

565

700.4

671

980

795

Unit: inch/(mm)

102

115

395.1

327

200

307

200

61.5

327

Dimensional drawings

Display LC-26GD4U

201 95

407

493

206

568

517

848

663

Unit: inch/(mm)

321

100 151

278

100

Sharp LC-26GD4U, LC-32GD4U, LC-37GD4U Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
