MODEL
LC-19A33X-BK
LC-19A33X-WH
LCD COLOUR TELEVISION
OPERATION MANUAL
OPERATION MANUAL
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of
trouble-free operation of your product, please read the Important Safety Precautions carefully before
using this product.
Contents
Introduction
Dear SHARP customer ................................................................................................ 1
Contents .......................................................................................................................1
Important Safety Precautions ..................................................................................... 3
Supplied accessories .................................................................................................. 4
Trademarks .................................................................................................................. 4
Preparation
Attaching the stand ..................................................................................................... 5
Part names ................................................................................................................... 6
Before turning on the power ....................................................................................... 9
Connecting external devices .................................................................................... 10
Inserting the batteries ............................................................................................... 12
Using the remote control unit ................................................................................... 12
Turning the TV on/off ................................................................................................. 13
About Menu operations ............................................................................................. 14
Watching TV
Setting channels automatically ................................................................................ 16
Selecting programmes .............................................................................................. 17
Adjusting the volume ................................................................................................. 17
Menu language settings ............................................................................................ 17
Setting channels to your preference ........................................................................ 18
Useful viewing functions ........................................................................................... 22
TV (Front/Side) ................................................................................................. 6
TV (Rear) ........................................................................................................... 7
Remote control unit .......................................................................................... 8
Connecting a VCR, game console or camcorder .......................................... 10
Connecting a DVD player ............................................................................... 10
Connecting a Digital TV STB (Set Top Box) ................................................... 11

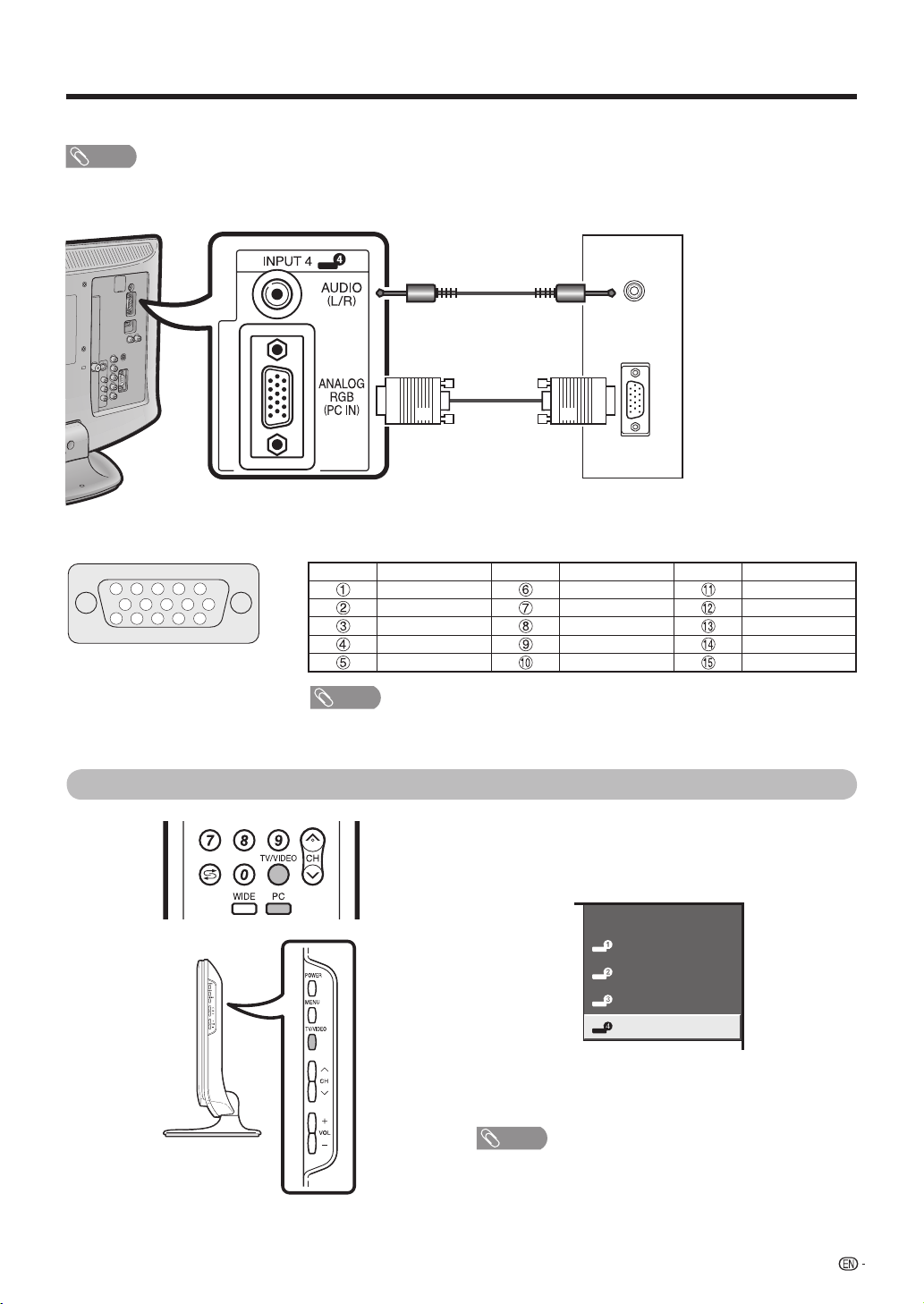

Connecting a PC ............................................................................................ 11
Cautions regarding the remote control unit ................................................... 12
Turning on the power ..................................................................................... 13
Turning off the power ..................................................................................... 13
What is Menu? ............................................................................................... 14
Basic Menu operations .................................................................................. 14
About Guide Display ...................................................................................... 14
TV/AV input mode menu items ...................................................................... 15
PC input mode menu items ........................................................................... 15
Auto search .................................................................................................... 18
Manual setting for each channel .................................................................... 18
Sorting programmes ...................................................................................... 20
Erasing programmes ...................................................................................... 21
Labelling programmes ................................................................................... 21
Returning to the previously selected channel ................................................ 22
Freezing the image ......................................................................................... 22
Muting the audio temporarily ......................................................................... 22
Outputting only audio ..................................................................................... 22
Switching the analogue audio format ............................................................ 23
Password setting for the child lock (For TV input mode) ............................... 24
1
Contents
Watching TV (Continued)
Energy conservation settings ................................................................................... 25
Picture size settings .................................................................................................. 27
Selecting a preset AV MODE .................................................................................... 29
Manual picture settings ............................................................................................. 30
Other picture settings................................................................................................ 32
Audio adjustment ....................................................................................................... 33
Auto power-off at a designated time ............................................................. 25
Auto power-off after the end of broadcast .................................................... 25
Auto power-off when there are no operations performed ............................. 25
Power Management ....................................................................................... 26
Selecting the Wide Screen Signalling (WSS) picture size automatically ........ 27
Selecting the Wide Screen Signalling (WSS) picture size manually ............... 27
Selecting the picture size manually ................................................................ 28
Picture adjustment ......................................................................................... 30
Advanced picture settings ............................................................................. 31
DNR (Digital Noise Reduction) ....................................................................... 32
Adjusting the image position .......................................................................... 32
Rotating the image ......................................................................................... 32
Settings when using external devices
Settings when using HDMI output devices ............................................................. 34
Selecting input source............................................................................................... 35
Labelling input sources ............................................................................................. 35
Colour system settings ............................................................................................. 36
Connecting a PC
Displaying a PC image on the screen ...................................................................... 37
Input resolution settings ........................................................................................... 40
PC Control of the TV .................................................................................................. 41
PC compatibility chart ............................................................................................... 42
RS-232C commands list ............................................................................................ 42
Selecting the picture size ............................................................................... 38
Adjusting the PC image automatically ........................................................... 39
Adjusting the PC image manually .................................................................. 39
Selecting the input resolution......................................................................... 40
Teletext function
About Teletext ............................................................................................................ 43
Displaying Subtitles ................................................................................................... 44
Displaying Subpages ................................................................................................. 44
Teletext language setting .......................................................................................... 45
Appendix
Troubleshooting ......................................................................................................... 46
Reset ........................................................................................................................... 47
Specifi cations ............................................................................................................. 48
Dimensional drawings ............................................................................................... 49
CLEARING THE PASSWORD .................................................................................... 50
2
Important Safety Precautions
• Cleaning — Unplug the AC cord
from the AC outlet before cleaning
the product. Use a damp cloth to
clean the product. Do not use liquid
cleaners or aerosol cleaners.
• Water and moisture — Do not use
the product near water, such as
bathtub, washbasin, kitchen sink,
laundry tub, swimming pool and in
a wet basement.
• Do not place vases or any other
water-fi lled containers on this product.
The water may spill onto the product
causing fi re or electric shock.
• Stand — Do not place the product
on an unstable cart, stand, tripod
or table. Doing so can cause the
product to fall, resulting in serious
personal injuries as well as damage
to the product. Use only a cart,
stand, tripod, bracket or table
recommended by the manufacturer
or sold with the product. When
mounting the product on a wall, be
sure to follow the manufacturer's
instructions. Use only the mounting
hardware recommended by the
manufacturer.
• The LCD panel used in this product
is made of glass. Therefore, it can
break when the product is struck
forcefully or with a sharp object. If
the LCD panel is broken, be careful
not to be injured by broken glass.
• Heat sources — Keep the product
away from heat sources such as
radiators, heaters, stoves and other
heat-generating products (including
amplifi ers).
• To prevent fi re, never place any type
of candle or naked fl ames on the
top or near the TV set.
• To prevent fi re or shock hazard, do
not place the AC power cord under
the TV set or other heavy items.
• Do not place heavy objects on this
product or stand on it. Doing so
could cause injury if the product
overturns. Take special care near
children and pets.
• When relocating the product
placed on a cart, it must be moved
with utmost care. Sudden stops,
excessive force and uneven fl oor
surface can cause the product to fall
from the cart.
• Ventilation — The vents and other
openings in the cabinet are designed
for ventilation. Do not cover or block
these vents and openings since
insuffi cient ventilation can cause
overheating and/or shorten the life
of the product. Do not place the
product on a bed, sofa, rug or other
similar surface, since they can block
ventilation openings. This product is
not designed for built-in installation;
do not place the product in an
enclosed place such as a bookcase
or rack, unless proper ventilation
is provided or the manufacturer's
instructions are followed.
The LCD panel is a very high technology product
with 3,147,264 thin fi lm transistors, giving you fi ne
picture details.
Due to the very large number of pixels, occasionally
a few non-active pixels may appear on the screen
as a fi xed point of blue, green or red.
This is within product specifi cations and does not
constitute a fault.
• Do not display a still picture for a long time, as this could
cause an afterimage to remain.
• Install the product on the place where the AC cord can
be unplugged easily from the AC outlet, or from the AC
INPUT terminal on the rear of the product.
3
Supplied accessories
Make sure the following accessories are provided with the product.
Remote control unit “AA” size battery (g2) AC cord
Used with batteries inserted.
Page 8 Page 12 Page 9
Cable clamp
For bundling cables.
Page 9
Operation manual
Stand
Always use the AC cord supplied with
the TV.
Stand unit
Screws (g3)
Page 5
Hex key
Trademarks
• “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC.”
4
Preparation
Attaching the stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being
damaged.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
Confi rm the 3 screws supplied with the TV.
1
Screws (g3)
(used in step 2)
Insert the stand into the openings on the bottom of the TV.
1
2
Insert and tighten the 3 screws into the 3 holes on the rear of the stand.
2
Soft cushion
NOTE
• To detach the stand, perform the steps in reverse order.
Screw
Hex key
CAUTION
• Adjust the screen with both hands. Put one hand on
the TV and tilt the screen while steadying the stand
with your other hand.
To change the vertical angle of the TV, tilt the screen up to
2.5 degrees forward or 10 degrees backward.
5
Preparation
Part names
TV (Front/Side)
POWER (On/Off) button
MENU button
TV/VIDEO button
Channel up (r)/down (s) buttons
Volume up (e)/down (f) buttons
Remote control sensor
OPC sensor
• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from the
actual operations.
6
POWER indicator**
OPC indicator*
*OPC: Optical Picture Control (See page 30)
** See page 13 for the TV status indicator.
Preparation
TV (Rear)
AC INPUT terminal
INPUT 4 (PC INPUT)
terminals
INPUT 3 (HDMI) terminals
Headphone jack
Antenna input terminal
INPUT 2 terminals
INPUT 1 terminals
Regarding the headphone jack
• Use headphones with a stereo mini plug (Ø 3.5 mm).
• Be sure to unplug headphones from the jack when they are not
in use.
• The speakers do not output volume when headphones are
plugged in.
• The “Audio” menu cannot be operated when headphones are
plugged in.
• You can set the volume to different levels for each input source.
RS-232C terminal
Volume display when headphones are plugged in
20
7
Preparation
Remote control unit
1
2
10
11
12
13
14
3
15
4
16
5
6
17
18
7
8
19
9
20
1 POWER (STANDBY/ON)
To switch the power on and off. (See page 13.)
2 DISPLAY
Display the channel or input information.
3 0 – 9
Set the channel. (See page 17.)
TELETEXT mode: Set the page. (See pages 43 and 44.)
4 A (Flashback)
Press to return to the previous selected channel or
external input mode. (See page 22.)
5 WIDE
Change the wide image mode. (See pages 28 and 38.)
6 FREEZE
Freeze a motion picture on the screen. (See page 22.)
a/b/c/d
7
Select a desired item on the setting screen.
ENTER
Execute a command.
8 EXIT
Return to the default screen.
9 Colour (Red/Green/Yellow/Blue)
TELETEXT mode: Select a page. (See page 43.)
10 AV MODE
Select an audio and video setting: AV MODE (STANDARD,
MOVIE, GAME, USER, DYNAMIC, DYNAMIC (FIXED)), PC
MODE (STANDARD, USER, PC). (See page 29.)
11 SLEEP
Set the Sleep timer. (See page 25.)
12 e (Mute)
Mute the sound. (See page 22.)
13 MPX
Select the sound multiplex mode. (See page 23.)
14 VOLk/VOL
Set the volume. (See page 17.)
15 CHr/CH
TV input mode: Select the channel. (See page 17.)
TELETEXT mode: Select the page. (See page 43.)
16 TV/VIDEO (INPUT SOURCE)
Select an input source. (TV, INPUT 1, INPUT 2, INPUT 3,
INPUT 4 (PC)) (See pages 10, 35 and 37.)
17 PC
Directly select the PC terminal. (See pages 35 and 37.)
18 MENU
Display the menu screen. (See page 14.)
19 RETURN
MENU mode: Return to the previous menu screen. (See
page 14.)
20 m (TELETEXT)
Select the TELETEXT mode. (all TV image, all TEXT image,
TV/TEXT image) (See pages 43 and 44.)
k
TELETEXT mode: Display hidden characters. (See page
43.)
[
To turn the subtitles on and off. (See page 44.)
3
TELETEXT mode: Stop updating Teletext pages
automatically. Press 3 again to release the hold mode.
(See pages 43 and 44.)
(Subpage)
1
Display the Teletext subpage directly. (See page 44.)
v
TELETEXT mode: Set the area of magnifi cation. (See
page 43.)
(Cursor)
l
s
(Reveal hidden for TELETEXT)
(SUBTITLE for TELETEXT)
(Hold)
(Top/Bottom/Full)
8
Preparation
Before turning on the power
Notes on installing the TV
• Avoid direct sunlight and place the TV in a well-ventilated location.
• Place the TV in a level location.
• Do not turn on the power of the TV before connecting the AC cord.
Connecting the antenna cable
1
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of
connections that are used for coaxial cable.
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
Antenna cable
(commercially available)
Room antenna terminal
(75-ohm type)
Connecting external devices
2
See pages 9 to 11 for connecting antennas and external equipment, such as a VCR and DVD player.
Connecting the AC cord
3
AC outlet
• Place the TV close to the AC outlet, and keep the power plug within reach.
• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.
Bundling the cables
4
Insert the cable clamp in the hole on the TV as shown.
To antenna
terminal
TV (rear view)
AC cord
Cable clamp
CAUTION
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.
9
Preparation
Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD
player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from TV/
VIDEO on the remote control unit or TV/VIDEO on the TV.
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player, Digital
TV STB (Set Top Box), PC or other external equipment.
• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.
Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected using
the INPUT 1 (component)/INPUT 2 terminals.
When using component cable
(commercially available)
Y
B
P
(CB)
PR
(CR)
L
AUDIO
R
VCR/
Game console/
Camcorder
When using composite cable or S-VIDEO
cable (commercially available)
S-VIDEO
or
VIDEO
L
AUDIO
R
VCR/
Game console/
Camcorder
Connecting a DVD player
You can use the INPUT 1 (component) or INPUT 3 (HDMI) terminal when connecting to a DVD player and other
audiovisual equipment.
NOTE
• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 3. (See page 34)
When using HDMI cable
(commercially available)
When using component cable
(commercially available)
Y
B
P
(CB)
PR
(CR)
DVD player
L
AUDIO
R
DVD player
10
Preparation
Connecting a Digital TV STB (Set Top Box)
You can use the INPUT 1 (component) or INPUT 3 (HDMI) terminal when connecting to a Digital TV STB (Set Top
Box) and other audiovisual equipment.
NOTE
• When using a DVI-HDMI conversion adaptor, input the Audio Signal from the AUDIO terminal of INPUT 3. (See page 34)
When using HDMI cable
(commercially available)
When using component cable
(commercially available)
Digital TV STB
(Set Top Box)
Connecting a PC
You can use the INPUT 4 (PC) terminal when connecting to a PC.
AUDIO
(L/R)
Y
B
P
(CB)
PR
(CR)
L
AUDIO
R
Digital TV STB
(Set Top Box)
ANALOG
PC
RGB
11
Preparation
Inserting the batteries
Before using the TV for the fi rst time, insert two “AA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AA” size batteries.
1 Open the battery cover.
CAUTION
Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.
• Do not mix batteries of different types. Different types of batteries have different characteristics.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage in old batteries.
• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you fi nd any
chemical leakage, wipe thoroughly with a cloth.
• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.
• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.
2 Insert the two supplied “AA” size
batteries.
• Place batteries with their terminals
corresponding to the (e) and (f)
indications in the battery compartment.
3 Close the battery cover.
Using the remote control unit
Use the remote control unit by pointing it towards the
remote sensor window.
Objects between the remote control unit and sensor
window may prevent proper operation.
Cautions regarding the remote control unit
• Do not subject the remote control unit to shock.
In addition, do not soak the remote control unit with liquids or place it in
an area with high humidity.
• Do not install or place the remote control unit under direct sunlight.
The heat may cause deformation of the unit.
• The remote control unit may not work properly if the remote sensor
window of the TV is under direct sunlight or strong lighting. In such
cases, change the angle of the lighting or TV, or operate the remote
control unit closer to the remote sensor window.
Remote control
sensor
30º
30º 30º
30º
5 m
12
Preparation
Turning the TV on/off
Turning on the power
Press POWER on the TV.
• POWER indicator (Green): The TV is on. (After a few
seconds, an image appears with sound.)
• After turning the power “ON” by pressing POWER on the
TV, you can turn the power ON/OFF by pressing POWER
on the remote control.
POWER button
Turning off the power
POWER button
Press POWER on the remote control.
• The TV enters standby mode and the image on the screen
disappears.
• The POWER indicator on the TV changes from green to
red.
Press POWER on the TV.
• The POWER indicator on the TV turns off.
• When the TV is turned off by POWER on the TV, you
cannot turn on the power by pressing POWER on the
remote control.
POWER indicator
Light off Power off
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
POWER indicator
NOTE
• If you are not going to use this TV for a long period of time,
be sure to remove the AC cord from the AC outlet.
•
Minor power is consumed when the unit is in standby mode.
13
Preparation
About Menu operations
What is Menu?
• You need to bring up the On-Screen Display to perform
settings for the TV. The On-Screen Display for the settings
is called “Menu”.
• The Menu enables various settings and adjustments. (See
page 15.)
• The Menu can be operated with the remote control unit.
Basic Menu operations
Press MENU and the MENU screen displays.
1
[
]
MENU
Picture Audio Power Control Setup
STANDARD
OPC
[Off]
Backlight [+16]
Contrast
[ 30]
Brightness
[ 0]
Colour
[ 0]
Tint
[ 0]
Sharpness
[ 0]
Advanced
Reset
Press c/d to select the desired menu, and
2
then press ENTER.
Audio
STANDARD
Treble
Bass
Balance
Sound Wide
Reset
Press a/b to select the desired menu item.
3
Press ENTER to proceed if necessary.
Treble
Bass
Balance
Sound Wide
Reset
[ 0] -
[ 0]
[ 0]-L
Audio
STANDARD
[ 0] -
[ 0]
[ 0]-L
+
+
+
+
Power Control
Power Control
+
+
R
+
+
R
Using the control panel of the TV
w
You can also operate the Menu using the control panel
of the TV.
Button operations on the control panel correspond to
the ones on the remote control as shown below.
TV control panel buttons Remote control buttons
TV/VIDEO ENTER
CH
r a
CH
s b
VOL
kd
VOL
lc
NOTE
• Menu options differ in the selected input modes, but the
operating procedures are the same.
• The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.
About Guide Display
The Guide Display at the bottom of the screen shows
operations with an On-Screen Display.
ENTER
: Select : Enter
RETURN
: Back
MENU
: End
Press a/b or c/d to select the desired item
4
or adjust the item to the desired level. Press
ENTER if necessary.
Press EXIT or MENU to exit the MENU.
5
Press RETURN as necessary to return to the
The bar above is an operational guide for
the remote control. The bar will change in
accordance with each menu setting screen.
previous MENUs.
14
Preparation
TV/AV input mode menu items
List of TV/AV menu items to help you with
operations
Picture Picture
AV Mode ..................................................................... Page 29
OPC ............................................................................. Page 30
Backlight .................................................................... Page 30
Contrast ...................................................................... Page 30
Brightness .................................................................. Page 30
Colour ......................................................................... Page 30
Tint .............................................................................. Page 30
Sharpness .................................................................. Page 30
Advanced
C. M. S. ............................................................ Page 31
Colour Temp. .................................................. Page 31
Film Mode ....................................................... Page 31
3D-Y/C ............................................................ Page 31
Monochrome .................................................. Page 31
I/P Setting ....................................................... Page 31
Reset ........................................................................... Page 30
Audio
AV Mode ..................................................................... Page 29
Treble .......................................................................... Page 33
Bass ............................................................................ Page 33
Balance ....................................................................... Page 33
Sound Wide ................................................................ Page 33
Reset ........................................................................... Page 33
PC input mode menu items
List of PC menu items to help you with operations
AV Mode ..................................................................... Page 29
OPC ............................................................................. Page 30
Backlight .................................................................... Page 30
Contrast ...................................................................... Page 30
Brightness .................................................................. Page 30
Advanced
C. M. S. ............................................................ Page 31
Colour Temp. .................................................. Page 31
Reset ........................................................................... Page 30
Audio
AV Mode ..................................................................... Page 29
Treble .......................................................................... Page 33
Bass ............................................................................ Page 33
Balance ....................................................................... Page 33
Sound Wide ................................................................ Page 33
Reset ........................................................................... Page 33
Power Control
No Operation Off ....................................................... Page 25
Power Management .................................................. Page 26
Power Control
No Signal Off .............................................................. Page 25
No Operation Off ....................................................... Page 25
Setup
Auto Installation ......................................................... Page 16
Programme Setup ..............................................Pages 18-21
Child Lock .................................................................. Page 24
Input Label ................................................................. Page 35
Position ....................................................................... Page 32
HDMI Audio Select .................................................... Page 34
HDMI Auto View ......................................................... Page 34
WSS ............................................................................ Page 27
4:3 Mode ..................................................................... Page 27
Rotate ......................................................................... Page 32
Language .................................................................... Page 17
Text Language ........................................................... Page 45
Reset ........................................................................... Page 47
Option
DNR ............................................................................. Page 32
Audio Only .................................................................. Page 22
Colour System ........................................................... Page 36
Setup
Input Label ................................................................. Page 35
PC Setup
Input Signal ..................................................... Page 40
Auto Sync. ...................................................... Page 39
Fine Sync. ....................................................... Page 39
Rotate ......................................................................... Page 32
Language .................................................................... Page 17
Text Language ........................................................... Page 45
Reset ........................................................................... Page 47
Option
Audio Only .................................................................. Page 22
NOTE
• Some menu items may not be displayed depending on the
selected input source.
• “AV Mode” settings cannot be operated on the “Menu”
screen.
15
Watching TV
Setting channels automatically
You can run auto installation again, even after setting
up the preset channels.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Auto Installation”, and
3
then press ENTER.
...
[
Setup
MENU
Setup Option
Auto Installation
Programme Setup
Child Lock
Input Label
Position
PC Setup
HDMI Audio Select
HDMI Auto View
WSS
4:3 Mode
Rotate
Language
Text Language
Reset
Auto Installation
]
If you have already set the password, enter it
4
here.
• See page 24 for setting a password.
Press a/b to select “Yes”, and then press
5
ENTER.
Press a/b to select the desired language
6
listed on the screen, and then press ENTER.
Press a/b to select the desired sound
system, and then press ENTER.
You do not need to do anything during the
auto search.
“Search is completed.” is displayed. Press
MENU to exit.
16
Watching TV
Selecting programmes Adjusting the volume
You can change channels in several ways.
Using CHr/s on the remote control unit
• Press CHr to increase the channel number.
• Press CHs to decrease the channel number.
NOTE
• CHr/s on the TV operates the same as CHr/s on
the remote control unit.
Changing the volume
You can change the volume on the TV or on the
remote control unit.
• To increase the volume, press VOLk.
• To decrease the volume, press VOLl.
Using 0 — 9 on the remote control unit
Select the channels directly by pressing buttons 0 to 9.
a
To select a 1-digit channel (e.g. channel 2):
• Press 0, followed by 2.
To select a 2-digit channel (e.g. channel 12):
• Press 1, followed by 2.
When viewing Teletext information
View a page directly which is 3-digit page number from
100 to 899 by pressing buttons 0 to 9.
Channel display
(Example)
SAT.1
12
PAL
B/G
MONO
20
NOTE
• “TV”, “INPUT1”, “INPUT2”, “INPUT3” and “INPUT4” (PC)
modes can store volume adjustment values separately.
Menu language settings
You can also select a language from setup menu.
Select from among 3 languages: English, Chinese and
Arabic.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Language”, and then
3
press ENTER.
Press a/b to select the desired language
4
listed on the screen, and then press ENTER.
17
Watching TV
Setting channels to your preference
You can run the auto search procedure again at any
time by accessing the Setup menu and Programme
Setup. Channels can be tuned automatically or
manually.
Auto search
You can also automatically search by performing
the procedure below. This is the same function as
programme auto search in auto installation.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you have already set the password, enter it
here.
• See page 24 for setting a password.
...
[
Setup
MENU
Setup Option
Auto Installation
Programme Setup
Child Lock
Input Label
Position
PC Setup
HDMI Audio Select
HDMI Auto View
WSS
4:3 Mode
Rotate
Language
Text Language
Reset
Press a/b to select “Auto Search”, and then
4
press ENTER.
Press a/b to select “Yes”, and then press
5
ENTER.
Programme Setup
Press a/b to select the desired sound
system, and then press ENTER.
“Search is completed.” is displayed. Press
MENU to exit.
]
Manual setting for each channel
You can set some channel items manually. They are
Search, Fine (TV frequency), Colour System, Sound
System and Skip.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you have already set the password, enter it
here.
• See page 24 for setting a password.
Press a/b to select “Manual Adjust”, and
4
then press ENTER.
Press a/b to select “Yes”, and then press
5
ENTER.
Programme Setup “Manual Adjust” menu
01 SAT.1 02 PR07 03 KABEL
You can select one of the following settings.
Search (See page 19.)
1
Fine (See page 19.)
2
Colour system (See page 19.)
3
Sound system (See page 19.)
4
Skip (See page 20.)
5
18
Watching TV
Manual setting for each channel (continued)
Search tuning
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Search”, and then press
2
ENTER.
MENU
Search
Fine
Colour System
Sound System
Skip
As ENTER is pressed, the next channels will
3
be searched in order.
Fine tuning
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Fine”, and then press
2
ENTER.
Press c/d to adjust the frequency, and then
3
press RETURN or MENU.
• Adjust while checking the background picture as
a reference.
Search
Fine
Colour System
Sound System
Skip
[
Setup
...
Programme Setup
]
179.25 MHz
NEXT
179.25 MHz
Colour system
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Colour System” and
2
then press ENTER.
• Receivable colour systems are listed.
Colour system menu
Search
Fine
Colour System
Sound System
Skip
Press a/b to select the optimum colour
3
system, and then press ENTER.
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
PAL-60
Sound system (Broadcasting system)
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information displays.
Press a/b to select “Sound System”, and
2
then press ENTER.
• Receivable sound systems (Broadcasting systems)
are listed.
Sound system menu
Search
Fine
Colour System
Sound System
Skip
B/G
D/K
I
M
• Instead of the method above, you can also set
by directly entering the frequency number of the
channel with 0 — 9.
• When setting a frequency on the “Fine” screen,
the last fi gure of the frequency needs to be “0” or
“5”.
a
• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.
• 49.25 MHz: Press 0 s 4 s 9 s 2 s 5.
Press a/b to select the optimum sound
3
system, and then press ENTER.
NOTE
• Check the sound system if the sound output were not
correct.
19
Watching TV
Manual setting for each channel (continued)
Skipping channels
Channels with “Skip” set to “On” are passed over
when using CHr/s even if selected while watching
the image from the TV.
Press a/b/c/d to select the channel you
1
want to edit, and then press ENTER.
• The selected channel information will be displayed.
Press a/b to select “Skip”, and then press
2
ENTER.
• Skip menu displays.
Skip menu
...
[
Setup
MENU
Search
Fine
Colour System
Sound System
Skip
Press a/b to set “Skip” to “On”, and then
3
press ENTER.
Programme Setup
]
Off
On
Sorting programmes
Channel positions can be sorted freely.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you already set the password, enter it here.
• See page 24 for setting a password.
Press a/b to select “Sort”, and then press
4
ENTER.
Press a/b to select “Yes”, and then press
5
ENTER.
Press a/b/c/d to select the channel you
6
want to move, and then press ENTER.
Move it to the desired position by pressing
7
a/b/c/d
Repeat the steps 6 and 7 until all desired
8
channels are sorted.
, and then press ENTER.
Sort menus
01 SAT.1
0106SAT.1 KABEL
11 12 13 14 15
16 17 18 19 20
0106SAT.1 KABEL
11 12 13 14 15
16 17 18 19 20
0106KABEL SAT.1
11 12 13 14 15
16 17 18 19 20
0302 04 05
07 08 09 10
01 02SAT.1 KABEL
0302 04 05
07 08 09 10
01 KABEL
0302 04 05
07 08 09 10
20
Watching TV
Erasing programmes
The individual programme can be erased.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you already set the password, enter it here.
• See page 24 for setting a password.
Press a/b to select “Erase Programme”, and
4
then press ENTER.
Press a/b to select “Yes”, and then press
5
ENTER.
Press a/b/c/d to select the channel you
6
want to erase, and then press ENTER.
Press ENTER again to erase the channel.
7
All the subsequent programmes move up.
Repeat the steps 6 and 7 until all desired
8
channels are erased.
Erase programme menus
Labelling programmes
Channels can be labelled freely.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Programme Setup”, and
3
then press ENTER.
If you already set the password, enter it here.
• See page 24 for setting a password.
Press a/b to select “Label”, and then press
4
ENTER.
...
[
Setup
MENU
Auto Search
Manual Adjust
Sort
Label
Erase Programme
Press a/b to select “Yes”, and then press
5
ENTER.
Press a/b/c/d to select the channel you
6
want to label, and then press ENTER.
Programme Setup
]
Yes
No
01
SAT.1 Pro702 KABEL03 04 05
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
01 SAT.1 03 KABELPro702
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
01 SAT.1 02 KABEL
06 07 08 09 10
11 12 13 14 15
16 17 18 19 20
04 05
03 04 05
Press a/b to select characters and c/d
7
to move to the desired digit, and then press
ENTER to complete the label setting.
21
Watching TV
Useful viewing functions
Returning to the previously selected channel
Press A to switch the currently tuned channel to the
previously tuned channel.
Press A again to switch back to the currently tuned
channel.
Press A to toggle between the currently selected
input source and the previously selected one.
Press A to return to the previous page in TELETEXT
mode.
Freezing the image
Allows you to capture and freeze one frame from a
moving image that you are watching.
Muting the audio temporarily
Using Mute (e) on the remote control unit
mutes the current sound output.
e
Press e.
1
• The sound is silenced.
• “M” is displayed while the mute function is on.
Mute
Press e again within 30 minutes to cancel the
2
mute.
• Before 30 minutes, the volume level returns to the
previous setting.
NOTE
• Mute will be cancelled after 30 minutes. However,
the TV will not suddenly output loud sound as the
volume level will be set to 0 automatically. Increase
the volume level by pressing VOLk.
Outputting only audio
When listening to music from a music programme, you
can set the display off and enjoy audio only.
Press FREEZE.
1
• Captures one frame from a moving image.
Press RETURN to cancel the function.
2
NOTE
• The still image automatically goes out after 30 minutes.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “Audio Only”, and then
3
press ENTER.
Press a/b to select “On”, and then press
4
ENTER.
Selected item Description
On Audio is output without screen image.
Off
NOTE
• When you make operations that change the picture on the
TV such as by changing the input source, the Audio Only
function is set to “Off”.
Both screen images and audio are output.
22
Watching TV
Switching the analogue audio format
You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between NICAM STEREO and MONO.
Stereo mode
BBC2
99
B/GPAL B/GPAL
STEREO
NICAM
When receiving a bilingual signal
Each time you press MPX, the mode switches among
NICAM CH A, NICAM CH B, NICAM CH AB and
MONO.
Bilingual mode
BBC2
99
PAL
NICAM
B/G
CH A
PAL
NICAM
BBC2
99
MONO
BBC2
99
B/G
CH B
In the TV mode of A2 TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between STEREO and MONO.
Stereo mode
PAL
BBC2
B/G
STEREO
99
PAL
BBC2
99
B/G
MONO
When receiving a bilingual signal
Each time you press MPX, the mode switches among
CH A, CH B and CH AB.
Bilingual mode
PAL
BBC2
B/G
CH A
99
BBC2
PAL
B/G
CH AB
PAL
99
BBC2
99
B/G
CH B
When receiving a monaural signal
When you press MPX, “MONO” displays.
Monaural mode
BBC2
99
MONO
NOTE
• “BBC2” and “99” are tentative network name and channel.
BBC2
99
MONO
NICAM
When receiving a monaural signal
Each time you press MPX, the mode switches
between NICAM MONO and MONO.
Monaural mode
BBC2
99
B/GPAL B/GPAL
MONO
NICAM
BBC2
B/GPALB/GPAL
CH AB
BBC2
MONO
99
99
23
Watching TV
Password setting for the child lock (For TV input mode)
Allows you to use a password to protect certain
settings from being accidentally changed.
Setting a password
Register a 4-digit password number to use the Child
Lock function.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Child Lock”, and then
3
press ENTER.
If you already set the password, enter it here.
4
Setting a channel
Repeat steps 1 to 4 in Setting a password.
1
Press a/b to select “Channel Setting”, and
2
then press ENTER.
Press a/b to select “Yes”, and then press
3
ENTER.
Change Password
Channel Setting
Reset
Press a/b/c/d to select the channel that
4
you wish to apply the Child Lock, and then
Yes
No
press ENTER.
Resetting the password
Allows you to reset your password.
Repeat steps 1 to 4 in Setting a password.
1
Press a/b to select “Change Password”, and
5
then press ENTER.
Change Password
Channel Setting
Reset
Enter the 4-digit number as a password using
6
0 — 9.
Change Password
Channel Setting
Reset
Enter the same 4-digit number as in step 6 to
7
confi rm.
NOTE
• To view a locked channel you must enter a password.
When you select a locked channel, a password prompt
message pops up.
New Password
Reconfirm
New Password
Reconfirm
Press a/b to select “Reset”, and then press
2
ENTER.
Press a/b to select “Yes”, and then press
3
ENTER.
Change Password
Channel Setting
Reset
NOTE
• As a precautionary measure, make a note of your
password on the back of this operation manual, cut
it out and keep it in a safe place that children cannot
reach.
• This function is only available for TV input mode.
• To relock a channel which has been temporarily unlocked
by inputting the correct password, turn power off and then
on again.
Yes
No
24
Watching TV
Energy conservation settings
Auto power-off at a designated time
This function is conveniently used when, for instance,
going to bed while watching TV.
Press SLEEP.
1
• Remaining time displays when sleep timer has
been set.
Sleep timer: Remain 2 hr. 00 min.
Each time you press SLEEP, the remaining
2
time switches as shown below.
0 hr. 30 min. 1 hr. 00 min. 1 hr. 30 min.
Off
NOTE
• When the time has been set, countdown automatically
starts.
• Five minutes before the preset of time expires, the
remaining time displays each minute.
• Select “Off” by pressing SLEEP to cancel the sleep timer.
2 hr. 30 min. 2 hr. 00 min.
Auto power-off after the end of broadcast
You can set the TV to automatically power off in about
15 minutes after the TV goes into a state of receiving
no programme signals, such as the end of a broadcast
day.
Press MENU and the MENU screen displays.
1
Press c/d to select “Power Control”, and
2
then press ENTER.
• Power control menu displays.
Press a/b to select “No Signal Off”, and then
3
press ENTER.
Press a/b to select “Enable”, and then press
4
ENTER.
• Five minutes before the power shuts down, the
remaining time displays every minute.
NOTE
• “Disable” is the factory preset value.
• When a TV programme fi nishes, and the TV receives signal
input, this function may not operate.
Auto power-off when there are no operations performed
You can set the TV to automatically power off when no
TV operation is performed for more than 30 minutes or
3 hours.
Press MENU and the MENU screen displays.
1
Press c/d to select “Power Control”, and
2
then press ENTER.
• Power control menu displays.
Press a/b to select “No Operation Off”, and
3
then press ENTER.
Press a/b to select “30 minutes” or “3 hour”,
4
and then press ENTER.
• Five minutes before the power shuts down, the
remaining time displays every minute.
NOTE
• “Disable” is the factory preset value.
25
Watching TV
Power Management
You can set the TV to automatically power off when no
image is displayed on PC.
Press MENU and the MENU screen displays.
1
Press c/d to select “Power Control”, and
2
then press ENTER.
• Power control menu displays.
Press a/b to select “Power Management”,
3
and then press ENTER.
Press a/b to select “Mode1” or “Mode2”,
4
and then press ENTER.
Off
Mode1
Mode2
Selected item
Off
Mode1
Mode2
NOTE
• If you turn off the power by disconnecting AC cord when
setting “Mode2” in power management, the TV may not
function properly after turning the power on again. In such
case, press POWER on the remote control unit.
• Pressing POWER on the TV will have the same result.
• No power management
• Factory preset value.
• If no signal inputs for approximately 8
minutes, the power shuts down.
• Even if you start using the PC and the
signal inputs again, the TV stays off.
• The TV turns on again by pressing
POWER. (See page 13.)
• If no signal inputs for approximately 8
seconds, the power shuts down.
• When you start using the PC and the
signal inputs again, the TV turns on.
• The TV turns on again by pressing
POWER. (See page 13.)
Description
26
Watching TV
Picture size settings
Selecting the Wide Screen Signalling (WSS) picture size automatically
WSS allows a television to switch automatically among
the different screen formats.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “WSS”, and then press
3
ENTER.
Press a/b to select “On” or “Off”, and then
4
press ENTER.
NOTE
• Try to set WIDE mode if an image does not switch to the
correct screen format. When the broadcast signal contains
no WSS information, the function will not work even if
enabled.
Selecting the Wide Screen Signalling (WSS) picture size manually
The WSS signal has 4:3 auto-switching that allows you
to select between Panorama and Normal.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “4:3 Mode”, and then
3
press ENTER.
Press a/b to select “Panorama” or “Normal”,
4
and then press ENTER.
WSS signal 4:3 screen
4:3 mode “Panorama” 4:3 mode “Normal”
Selected item Description
Panorama Wide image without side bars
Normal Normal range keeping 4:3 or 16:9 aspect
ratio
27
Watching TV
Selecting the picture size manually
Manual Selection
You can select different picture sizes that account for
the kind of each picture.
Press WIDE.
1
• The WIDE MODE menu displays.
• The menu lists the wide mode options selectable
for the type of video signal currently received.
WIDE MODE
Normal
Zoom 14:9
Panorama
Full
Cinema 16:9
Cinema 14:9
Auto Selection
If you set “WSS” and “4:3 Mode” in the Setup menu
on page 27, the optimum WIDE mode is automatically
chosen for every broadcast containing the WSS
information.
“WSS” menu
To enable Auto Selection, set “WSS” in the Setup
menu to “On”. (See page 27.)
“4:3 Mode” menu
To set the type of the wide screen, select “Panorama”
or “Normal” in the 4:3 Mode menu. (See page 27.)
4:3 Mode set to “Panorama” 4:3 Mode set to “Normal”
NOTE
• If the broadcast signal contains no WSS information, Auto
Selection will not function even when the WSS option is
enabled.
Press WIDE or a/b while the WIDE MODE
2
menu displays on the screen.
• As you toggle down the options, each mode is
immediately refl ected on the TV.
Selected item
Normal
Zoom 14:9
Panorama
Full
Cinema 16:9
Cinema 14:9
Normal
For 4:3 “standard” pictures. A side bar appears on each side.
For 14:9 letterbox pictures. A thin side bar appears on each side, and you may also see bars on the top and
bottom with some programmes.
In this mode the picture is progressively stretched toward each side of the screen.
For 16:9 squeeze pictures.
For 16:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
For 14:9 letterbox pictures. Bars may appear on the top and bottom with some programmes.
Zoom 14:9 Panorama
Description
NOTE
• Some picture sizes may not be
displayable depending on the
input signal.
Cinema 14:9 Cinema 16:9 Full
28
Watching TV
Selecting a preset AV MODE
The AV MODE function enables you to select
appropriate settings for audio and video to account for
the system environment which can vary due to factors
like room brightness, type of programme watched or
the type of image input from external equipment.
Using AV MODE on the remote control unit
Press AV MODE.
1
• Present AV MODE displays.
Press AV MODE again before the mode
2
displayed on the screen disappears.
• The mode changes as shown below.
AV input mode
AV Mode: STANDARD
AV Mode: MOVIE
Selected item Description
STANDARD For a highly defi ned image in a normally
bright room
MOVIE For a movie
GAME Lowers image brightness for easier
viewing.
USER Allows the user to customise settings as
desired. You can set the mode for each
input source.
PC For PC. (Available only when inputting an
RGB signal. The HDMI input (INPUT3) is
compatible with VGA.)
DYNAMIC For a clear-cut image emphasising high
contrast for sports viewing
DYNAMIC
(FIXED)
Changes the image and sound settings to
the factory preset values. No adjustments
are allowed.
NOTE
• You can select a different AV MODE item for each input
mode. (For example, select STANDARD for TV input and
DYNAMIC for VIDEO input.)
• During PC input mode, only “STANDARD”, “USER” and
“PC” can be selected under the AV mode selection.
AV Mode: DYNAMIC
AV Mode: DYNAMIC (FIXED)
AV Mode: STANDARD
AV Mode: DYNAMIC
AV Mode: DYNAMIC (FIXED)
AV Mode: USER ( )
AV Mode: STANDARD
AV Mode: GAME
AV Mode: USER (TV)
HDMI input mode
AV Mode: MOVIE
AV Mode: GAME
AV Mode: PC
PC input mode
AV Mode: PC
AV Mode: USER ( )
29
Watching TV
Manual picture settings
Picture adjustment
You can adjust the picture to your preference.
Follow the steps to adjust the picture.
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture”.
2
[
]
MENU
Picture Audio
STANDARD
OPC
Backlight [+16]
Contrast
Brightness
Colour
Tint
Sharpness
Advanced
Reset
[Off]
[ 30]
[ 0]
[ 0]
[ 0]
[ 0]
Selected item
OPC Sets whether or not the screen brightness
Backlight The screen dims The screen
Contrast For less contrast For more contrast
Brightness For less brightness
Colour For less colour
Tint Skin tones become
Sharpness For less sharpness
Advanced For fi ner picture adjustments. (See page
Reset Resets all picture adjustment items to the
+
+
+
+
OPC (Optical Picture Control) setting
w
You can set the TV to automatically adjust the screen
to suitable backlight brightness according to the
lighting conditions.
button
c
is automatically adjusted according to
the lighting condition in the room. (OPC
setting: See this page.)
intensity
purplish
31).
factory preset values.
button
d
brightens
For more brightness
For more colour
intensity
Skin tones become
greenish
For more sharpness
Press a/b to select the desired menu item.
3
Press ENTER to proceed if necessary.
Press a/b or c/d to select the desired item
4
or adjust the item to the desired level. Press
ENTER if necessary.
NOTE
• For resetting all adjustment items to factory preset values,
pressa/b to select “Reset”, press ENTER, press a/b to
select “Yes”, and then press ENTER.
• “Backlight” cannot be adjusted when “OPC” is set to “On”
or “On (Display)”.
• Select “Advanced” and then press ENTER to set “C.M.S”,
“Colour Temp.”, “Film Mode”, “3D-Y/C”, “Monochrome” or
“I/P Setting”. See page 31.
30
OPC indicator
Selected item Description
On (Display) Displays the OPC effect on the screen
On Automatically adjusts
Off The brightness is fi xed at the value set in
while adjusting the brightness of the
screen.
“Backlight” (See this page).
OPC indicator
Light off
Lighted (Green)
NOTE
• Make sure no object obstructs the OPC sensor, which
could affect its ability to sense surrounding light.
“Off” is selected in the OPC setting.
“On” or “On (Display)” is selected in the
OPC setting.
Watching TV
Advanced picture settings
The advanced settings enable you to set the picture
adjustment in more detail. There are six options you
can choose from.
Press MENU and the MENU screen displays.
1
Press c/d to select “Picture”.
2
Press a/b to select “Advanced”, and then
3
press ENTER.
Press a/b to select the desired menu, and
4
then press ENTER.
Press a/b or c/d to select the desired level,
5
and then press ENTER if necessary.
C.M.S. (Colour Management System)
w
Colour tone is managed using the six-colour
adjustment setting.
Selected item
C.M.S-Hue
This is a standard to adjust the colour
either more reddish or more bluish in tone.
Description
3D-Y/C
w
Provides high quality images with minimal dot crawl
and cross colour noise.
Selected item Description
Standard Normal adjustment
Fast For movie image
Slow For still image
Off 3D-Y/C off
NOTE
• 3D-Y/C is not selectable depending on the input signal
type.
• 3D-Y/C may not operate depending on the input signal
type or noisy input signal.
Monochrome
w
For viewing images in monochrome.
I/P Setting
w
Adjusting the image and input signal can give you a
more beautiful picture.
C.M.SSaturation
C.M.S-Value
NOTE
• For resetting all adjustment items to factory preset values,
press a/b to select “Reset”, and then press ENTER.
Colour Temp. (Colour Temperature)
w
Adjusts the colour temperature to give the best white
image.
Selected item Description
High
Mid-High
Middle
Mid-Low
Low
Film Mode
w
Automatically detects a fi lm-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each still
fi lm frame for high-defi nition picture quality.
Increases or decreases the saturation of a
selected colour.
A higher value makes the image brighter.
A lower value makes the image darker.
White with bluish tone
White with reddish tone
31
Watching TV
Other picture settings
DNR (Digital Noise Reduction)
Reduces noise on the screen and provides a clearer
video image.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “DNR”, and then press
3
ENTER.
Press a/b to select the desired level, and
4
then press ENTER.
Off
High
Low
Adjusting the image position
For adjusting a picture's horizontal and vertical position.
Press MENU and the MENU screen displays.
1
Rotating the image
You can set the orientation of the picture.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Rotate”, and then press
3
ENTER.
Press a/b to select the desired mode, and
4
then press ENTER.
Normal
Mirror
Upside Down
Rotate
[Normal]: normal image. [Mirror]: mirror image.
Press c/d to select “Setup”.
2
Press a/b to select “Position”, and then
3
press ENTER.
Press a/b to select “H-Position” or “V-Position”.
4
H-Position [ 0] +
V-Position [ 0]
Reset
Selected item Description
H-Position Centres the image by moving it to the left
V-Position Centres the image by moving it up or
Press c/d to adjust the item to your desired
5
position.
NOTE
• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press
ENTER.
• Adjustments are stored separately according to input
source.
• Images may not be displayed properly depending on the
settings and/or signals.
32
or right.
down.
+
ABC
[Rotate]: rotated image. [Upside Down]: upside
ABC
down image.
ABC
ABC
Watching TV
Audio adjustment
You can adjust the audio of the selected AV mode.
Press MENU and the MENU screen displays.
1
Press c/d to select “Audio”.
2
Audio
STANDARD
Treble
Bass
Balance
Sound Wide
Reset
Press a/b to select the desired menu item.
3
Press ENTER to proceed if necessary.
Press a/b or c/d to select the desired item
4
or adjust the item to the desired level. Press
[ 0] -
[ 0]
[ 0]-L
Power Control
+
+
R
ENTER if necessary.
Selected item
Treble For weaker treble For stronger treble
Bass For weaker bass For stronger bass
Balance Decrease audio from
button
c
the right speaker
dbutton
Decrease audio
from the left speaker
Sound Wide
w
This feature can increase the spread of the sound.
Press MENU and the MENU screen displays.
1
Press c/d to select “Audio”.
2
Press a/b to select “Sound Wide”, and then
3
press ENTER.
Press a/b to select “On”, and then press
4
ENTER.
Selected item
On
Off
Press MENU to exit.
5
Increases the spread of the sound.
Outputs the normal sound.
Description
NOTE
• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, press ENTER, press
to select “Yes”, and then press ENTER.
a/b
• The “Audio” menu cannot be operated when headphones
are plugged in.
33
Settings when using external devices
Settings when using HDMI output devices
HDMI terminals can carry audio and visual signals to the TV with an HDMI certifi ed cable. When you want to output
the audio and picture from an HDMI output device on the TV, select “INPUT3” by switching the input source.
Co
nnecting an HDMI output device
HDMI cable
(commercially available)
HDMI output
device
HDMI (High-Defi nition Multimedia Interface)
w
terminal selection
To watch an HDMI equipment image, select
1
“INPUT3” using TV/VIDEO on the remote
control unit or on the TV.
Press MENU and the MENU screen displays.
2
Press c/d to select “Setup”.
3
Press a/b to select “HDMI Audio Select” or
4
“HDMI Auto View”, and then press ENTER.
• The HDMI Audio Select and HDMI Auto View can
be selected only when “INPUT3” is selected.
MENU
Auto Installation
Programme Setup
Child Lock
Input Label
Position
PC Setup
HDMI Audio Select
HDMI Auto View
WSS
4:3 Mode
Rotate
Language
Text Language
Reset
Press a/b to select the desired item, and
5
then press ENTER.
34
...
[
Setup
HDMI Auto View
Setup Option
]
HDMI Setup
items
HDMI
Audio
Select
HDMI
Auto View
NOTE
• When connecting a DVI-HDMI conversion adaptor/cable to
the HDMI terminal, the image may not come in clearly.
Selectable
items
Digital/
Analogue
Enable/
Disable
Description
Select “Digital” for audio
signal via the HDMI terminal.
Select “Analogue” for audio
signal via the AUDIO jack.
Set whether or not to use
WIDE MODE based on
signal recognition, including
an HDMI signal.
Settings when using external devices
Selecting input source
Can use for selecting the input source.
Using TV/VIDEO on the remote control unit or on
the TV
TV/VIDEO allows you to choose from the available
input sources.
Labelling input sources
You can assign each input source a label as you prefer.
Press TV/VIDEO to select the desired input
1
source.
Press MENU and the MENU screen displays.
2
Press c/d to select “Setup”.
3
Press a/b to select “Input Label”, and then
4
press ENTER.
Press a/b to select characters and c/d
5
to move to the desired digit to label the input
source.
• When you want to change the input label that you
have already assigned to the default name, press
to move to “CLEAR” on the “Input Label”
c/d
screen, and then press ENTER.
Press TV/VIDEO on the remote control unit or
1
on the TV.
Press TV/VIDEO on the remote control unit or
2
on the TV to select the input source.
• The image and sound from the selected source
are output on the TV.
• You can also select the input source by pressing
.
a/b
Using PC on the remote control unit
PC allows you to directly select the PC.
Press PC on the remote control.
• The image and sound from the PC are output on the TV.
Repeat the above until the name is fully spelt
6
out, and then press MENU.
• The name can be 6 characters or less.
• When you want to set an input source name of
less than 6 characters, press MENU to exit from
the labelling menu.
TV
INPUT1
INPUT2
DVD
(Example)
NOTE
• You cannot change labels if the input source is TV.
35
Settings when using external devices
Colour system settings
You can change the colour system to one that is
compatible with the image on the screen.
Press MENU and the MENU screen displays.
1
Press c/d to select “Option”.
2
Press a/b to select “Colour System”, and
3
then press ENTER.
Press a/b to select a compatible video signal
4
system of your equipment, and then press
ENTER.
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
PAL-60
NOTE
• Factory preset value is “AUTO”.
• If “AUTO” is selected, colour system for each channel is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, NTSC 4.43).
36
Connecting a PC
Use the PC terminals to connect a PC.
NOTE
• The PC INPUT terminals are DDC1/2B-compatible.
• Refer to page 42 for a list of PC signals compatible with the TV.
Signal names for 15-pin mini D-sub connector
5
4 321
10
9
15
141312
6
7
8
11
Pin No. Signal name Pin No. Signal name Pin No. Signal name
Not connected +5V VD
NOTE
• Macintosh adaptor may be required for use for some Macintosh computers.
• Pin No. 5 is not used for inputting the signal.
Ø 3.5 mm stereo
minijack cable
(commercially available)
RGB cable
(commercially available)
R GND (Ground) Not connected
G GND (Ground) SDA
B GND (Ground) HD
CSYNC GND (Ground) SCL
AUDIO
(L/R)
ANALOG
RGB
PC
Displaying a PC image on the screen
To view an image from a PC, select “INPUT4” using
PC or TV/VIDEO on the remote control unit or TV/
VIDEO on the TV.
TV
INPUT1
INPUT2
INPUT3
INPUT4
When connecting to a PC, the correct input signal type
is automatically detected. (See page 40.)
NOTE
• Each time TV/VIDEO is pressed, the input source toggles.
37
Connecting a PC
Selecting the picture size
You can select the picture size as illustrated below.
NOTE
• Connect the PC before making adjustments.
• Selectable picture size may vary with input signal type.
Connecting a PC
AUDIO
(L/R)
ANALOG
RGB
PC
a
Picture size images.
Input Signal FullNormal
Keeps the original aspect
ratio in a full screen
display.
Press WIDE.
1
• The WIDE MODE menu displays.
WIDE MODE
Normal
Full
(Example)
Press WIDE or a/b to select a desired item
2
on the menu.
An image fully fi lls the
screen.
WIDE MODE
or
Full
Dot by Dot
Dot by Dot
Detects the resolution of
the signal and displays
an image with the same
number of pixels on the
screen.
38
Connecting a PC
Adjusting the PC image automatically Adjusting the PC image manually
This function enables the screen to be automatically
adjusted to its best possible condition when the
analogue terminals of the TV and PC are connected
with a commercially available RGB cable, etc.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “PC Setup”, and then
3
press ENTER.
Press a/b to select “Auto Sync.”, and then
4
press ENTER.
Press a/b to select “Yes”, and then press
5
ENTER.
• Auto Sync. starts.
...
MENU
Input Signal
Auto Sync.
Fine Sync.
[
Setup
PC Setup
]
Yes
No
Ordinarily you can easily adjust the picture as
necessary to change image position using Auto Sync.
In some cases, however, manual adjustment is needed
to optimise the image.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “PC Setup”, and then
3
press ENTER.
Press a/b to select “Fine Sync.”, and then
4
press ENTER.
Press a/b to select a specifi c adjustment
5
item among “H-Position”, “V-Position”, “Clock”
and “Phase”.
H-Position [ 90] ab
V-Position
[ 60]
ab
Clock
[ 90]
ab
Phase
[ 8]
ab
Reset
NOTE
• Auto Sync. is likely to succeed when an input PC image
has wide vertical stripes (e.g. pattern with high contrast
stripes, or cross-hatched).
It may fail when an input PC image is solid (low contrast).
• Be sure to connect the PC to the TV and switch it on
before starting Auto Sync.
Selected item Description
H-Position Centres the image by moving it to the left
V-Position Centres the image by moving it up or
Clock Adjusts when the image fl ickers with
Phase Adjusts when characters have low
Press
6
position.
or right.
down.
vertical stripes.
contrast or when the image fl ickers.
to adjust the item to your desired
c/d
NOTE
• For resetting all adjustment items to the factory preset
values, press a/b to select “Reset”, and then press
ENTER.
• Images may not be displayed properly depending on the
settings and/or input signals.
39
Connecting a PC
Input resolution settings
Selecting the input resolution
• Some input signals may have to be registered manually to
display properly.
• The input signals (resolutions) in the list below are not
distinguishable when received. In such case, you have to
set the correct signal manually. After setting once, it will
display when the same signal (resolution) is input again.
640 x 480 / 60 Hz
848 x 480 / 60 Hz
1024 x 768 / 60 Hz
1280 x 768 / 60 Hz
1360 x 768 / 60 Hz
NOTE
• You can only select the “Input Signal” on the Setup menu
when receiving one of the 5 input signals listed above.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “PC Setup”, and then
3
press ENTER.
Press a/b to select “Input Signal”, and then
4
press ENTER.
Press a/b to select the desired input signal
5
on the display, and then press ENTER.
1024 x 768
1280 x 768
1360 x 768
(Example)
40
Connecting a PC
PC Control of the TV
• When a programme is set, the TV can be controlled from the PC using the RS-232C terminal.
The input signal (PC/video) can be selected, the volume can be adjusted and various other adjustments and
settings can be made, enabling automatic programmed playing.
• Attach an RS-232C cable cross-type (commercially available) to the Din/D-sub RS-232C for the connections.
NOTE
• This operation system should be used by a person who is accustomed to using PCs.
Communication conditions
Set the RS-232C communications settings on the PC to match the communications conditions of the TV.
The communications settings of the TV are as follows:
Baud rate:
Data length:
Parity bit:
Stop bit:
Flow control:
9,600 bps
8 bits
None
1 bit
None
Communication procedure
Send the control commands from the PC via the RS-232C connector.
The TV operates according to the received command and sends a response message to the PC.
Do not send multiple commands at the same time. Wait until the PC receives the OK response before sending the
next command.
Command format
Eight ASCII codes e CR
C1 C2 C3 C4 P1 P2 P3 P4
Command 4-digits Parameter 4-digits Return code
Parameter
Input the parameter values, aligning left, and fi ll with space(s) for the remainder. (Be sure that four values are input for the
parameter.)
When the input parameter is not correct, “ERR” returns. (Refer to “Response code format”.)
Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 — 9, space, ?
0
0009
a 30
100
0055
When “?” is input for some commands, the present setting value responds.
?
????
Response code format
Normal response
OK
Return code (0DH)
Problem response (communication error or incorrect command)
ERR
Return code (0DH)
41
Connecting a PC
PC compatibility chart
Resolution
VGA
WVGA
SVGA
640 g 480
640 g 480
640 g 480
640 g 480
848 g480
800 g 600
800 g 600
800 g 600
800 g 600
800 g 600
Horizontal
Frequency
31.5 kHz
37.9 kHz
37.5 kHz
43.3 kHz
31.0 kHz
35.1 kHz
37.9 kHz
48.1 kHz
46.9 kHz
53.7 kHz
Vertical
Frequency
60 Hz
72 Hz
75 Hz
85 Hz
60 Hz
56 Hz
60 Hz
72 Hz
75 Hz
85 Hz
VESA
Standard
✓
✓
✓
✓
✓
✓
✓
✓
✓
RS-232C commands list
Commands
• Commands not indicated here are not guaranteed to operate.
CONTROL ITEM COMMAND PARAMETER
0
R
W
POWER SETTING
INPUT SELECTION A
CHANNEL
AV MODE
SELECTION
O
P
T
I
T
I
A
I
C
D
H
C
H
C
V
A
V
A
V
A
V
A
V
A
V
A
V
A
V
A
_
POWER OFF (STANDBY)
_
_
_
D
G
_
INPUT SWITCHING (TOGGLE)
_
_
_
D
V
_
TV (CHANNEL FIXED)
_
_
D
V
_
INPUT1—4 (1—4)
_
_
*
H
C
*
P
U
_
W
D
_
D
M
0
D
M
1
D
M
2
D
M
3
D
M
4
D
M
5
D
M
6
D
M
7
TV DIRECT CHANNEL (1—99)
_
_
*
CHANNEL UP
_
_
_
CHANNEL DOWN
_
_
_
TOGGLE
_
_
_
STANDARD
_
_
_
MOVIE
_
_
_
GAME
_
_
_
USER
_
_
_
DYNAMIC (Fixed)
_
_
_
DYNAMIC
_
_
_
PC
_
_
_
NOTE
• If an underbar (_) appears in the parameter column, enter a
space.
•
If an asterisk (*) appears, enter a value in the range indicated
in brackets under CONTROL CONTENTS.
CONTROL
CONTENTS
Resolution
Horizontal
Frequency
1024 g 768
1024 g 768
XGA
1024 g 768
WXGA
VOLUME
POSITION
WIDE MODE
MUTE
AUDIO CHANGE
SLEEP TIMER
1280 g 768
1360 g 768
CONTROL ITEM COMMAND PARAMETER
M
L
O
V
H
H
V
V
C
P
W
W
W
W
W
W
W
W
M
M
M
A
O
O
O
O
O
O
*
S
O
P
*
S
O
P
*
S
O
P
*
S
O
P
*
K
C
L
*
E
S
H
*
E
D
I
0
E
D
I
1
E
D
I
2
E
D
I
3
E
D
I
4
E
D
I
5
E
D
I
6
E
D
I
8
E
T
U
0
E
T
U
1
E
T
U
2
A
H
C
_
M
T
F
0
M
T
F
1
M
T
F
2
M
T
F
3
M
T
F
4
M
T
F
5
48.4 kHz
56.5 kHz
60.0 kHz
47.8 kHz
47.7 kHz
VOLUME (0—60)
_
_
*
H-POSITION (AV) (f10—e10)
_
*
*
H-POSITION (PC) (0—180)
_
*
*
V-POSITION (AV) (f20—e20)
_
*
*
V-POSITION (PC) (0—120)
_
*
*
CLOCK (0—180)
_
*
*
PHASE (0—15)
_
*
_
TOGGLE (AV)
_
_
_
NORMAL (AV/PC)
_
_
_
ZOOM 14:9 (AV)
_
_
_
PANORAMA (AV)
_
_
_
FULL (AV/PC)
_
_
_
CINEMA 16:9 (AV)
_
_
_
CINEMA 14:9 (AV)
_
_
_
DOT BY DOT (PC)
_
_
_
TOGGLE
_
_
_
MUTE ON
_
_
_
MUTE OFF
_
_
_
TOGGLE
_
_
_
OFF
_
_
_
SLEEP TIMER 30 MIN
_
_
_
SLEEP TIMER 1 HOUR
_
_
_
SLEEP TIMER 1 HOUR 30 MIN
_
_
_
SLEEP TIMER 2 HOUR
_
_
_
SLEEP TIMER 2 HOUR 30 MIN
_
_
_
Vertical
Frequency
60 Hz
70 Hz
75 Hz
60 Hz
60 Hz
CONTROL
CONTENTS
VESA
Standard
✓
✓
✓
✓
✓
42
Teletext function
About Teletext
What is Teletext?
Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
Your TV receives Teletext signals broadcast by a TV
network, and decodes them into graphical format for
viewing. News, weather reports, sports information,
stock exchange prices and programme previews are
among the many services available.
Teletext mode
Teletext is turned on/off with m on the remote control
unit. You can operate your TV in Teletext mode directly
by inputting commands with the remote control unit.
TELETEXT
TELETEXT
When viewing the Teletext information
• Press CHr to increase the page number.
• Press CHs to decrease the page number.
NOTE
• When you turn TELETEXT on and change a Teletext page
right after changing channels, the relevant page may not
be displayed until the TV fi nishes reading all the Teletext
information.
Button functions
Colour (Red/Green/Yellow/Blue):
You can select a group or block of pages displayed
in the coloured brackets at the bottom of the screen
by pressing the corresponding Colour (Red/Green/
Yellow/Blue) on the remote control unit.
Turning on and off Teletext
Select a TV channel or external input source
1
providing the Teletext programme.
Press m to display the Teletext.
2
Press m again to display the Teletext on
3
the right screen and normal image on the left
screen.
• Each time you press m, the screen switches as
shown upper right.
• If you select a programme with no Teletext signal,
“No Teletext available.” is displayed.
TELETEXT
Red Green Yellow Blue
0 — 9:
Directly select any page from 100 to 899 by using 0 — 9.
(Top/Bottom/Full):
v
Each time you press v, the TELETEXT image
switches as shown below.
Full (Displays in full screen)
Top (Displays in the upper half of the screen)
Bottom (Displays in the lower half of the screen)
(Reveal hidden for TELETEXT):
k
To reveal hidden information such as an answer to a
quiz, press k.
• Press k again to hide the information.
(Hold):
3
To stop updating Teletext pages automatically, press 3.
• Press 3 again to release the hold mode.
43
Teletext function
Displaying Subtitles
You can display subtitles as they are transmitted.
Press [ to display the subtitle.
1
• Subtitle is updated by information sent by the
broadcasting station.
• To stop updating subtitle automatically, press 3.
Press [ to exit the subtitle screen.
2
NOTE
• Subtitle will not be displayed when the service does not
contain subtitle information.
Displaying Subpages
You can display subpages as they are transmitted.
Press m to display Teletext.
1
Press 1 to display the subpage as shown
2
below.
Subpage screen
+
0002 00 01 02 03
Select the desired subpage by using c/d.
3
• 0 — 9 directly selects the desired subpage.
Press 1 to exit the subpage screen.
4
44
Teletext function
Teletext language setting
If Teletext information does not display correctly,
perform the procedure below.
Select from among 4 kinds of language tables: West
Europe, East Europe, Turkish/Greek, Arabic/Hebrew.
Each table is compatible with the Teletext languages
listed below.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Text Language”, and
3
then press ENTER.
Press a/b to select receivable teletext
4
broadcasting language in your country, and
then press ENTER.
...
MENU
[
Setup
Arabic/Hebrew
West Europe
East Europe
Turkish/Greek
Text Language
]
NOTE
• Teletext can display only when it is sent by a network. Not
used to convert between languages.
45
Appendix
Troubleshooting
The problems described below are not always caused by malfunctions. Check the TV again before having the TV
serviced.
Problem
• No power.
• Unit cannot be operated.
• Remote control unit does not
operate.
• Picture is cut off.
• Strange colour, light colour, or
dark, or colour misalignment.
• Power is suddenly turned off.
• No picture.
Possible Solution
• Check if you pressed POWER on the remote control unit. (See page 13.)
If the indicator on the TV lights up red, press POWER.
• Is the AC cord disconnected? (See page 9.)
• Has the power been turned on? (See page 13.)
• External infl uences such as lightning, static electricity, etc., may cause improper
operation. In this case, operate the unit after fi rst turning the power off the TV or
unplugging the AC cord and re-plugging it in after 1 or 2 minutes.
• Are batteries inserted with polarity (e, f) aligned? (See page 12.)
• Are batteries worn out? (Replace with new batteries.)
• Are you using it under strong or fl uorescent lighting?
• Is a fl uorescent light shining on the remote control sensor?
• Is the image position correct? (See page 32.)
• Are screen mode adjustments such as picture size made correctly? (See pages 27,
28 and 38.)
• Adjust the picture tone. (See pages 30 to 32.)
• Is the room too bright? The picture may look dark in a room that is too bright.
• Check the colour system setting. (See pages 19 and 36.)
• Check the input signal setting. (See page 40.)
• Check the HDMI Auto View setting. (See page 34.)
• The unit's internal temperature has increased.
Remove any objects blocking the vent or clean.
• Check the power control setting. (See pages 25 and 26.)
• Is the sleep timer set? (See page 25.)
• Is the connection to external equipment correct? (See pages 10, 11, 34, 37 and 38.)
• Has the input signal setup been performed correctly after connection? (See page
40.)
• Is the correct input selected? (See page 35.)
• Is the picture adjustment correct? (See pages 30 to 32.)
• Is the antenna connected properly? (See page 9.)
• Is “On” selected in “Audio Only”? (See page 22.)
• No sound.
• The TV sometimes makes a
cracking sound.
• Is the volume too low? (See page 17.)
• Make sure that headphones are not connected. (See page 7.)
• This is not a malfunction. This happens when the cabinet slightly expands and
contracts according to changes in temperature. This does not affect the TV's
performance.
Cautions regarding use in high and low temperature environments
• When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: f20°C to e60°C.
46
Appendix
Reset
If complex adjustments are made and the settings
cannot be restored to normal, you can reset the settings
to the factory preset values.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Reset”, and then press
3
ENTER.
Press a/b to select “Yes”, and then press
4
ENTER.
• When “Reset” is completed, the backlight will turn
off and then on in a short period of time.
• The screen will be returned to its original state.
• “Execute auto installation” displays on the screen.
Press a/b to select “Yes” and then press
5
ENTER.
• “Auto installation” will be executed.
NOTE
• If you execute “Reset” , all the settings such as Picture,
Audio, Programme and Language will be reset to the
factory preset values.
47
Appendix
Specifi cations
Model
Item
LCD panel
Number of dots 3,147,264 dots (1366 g 768 g 3 dots)
Video Colour System
TV
Function
Brightness
Backlight life
Viewing angles
Audio amplifi er
Speakers 30 g 75 mm 2pcs
Terminals
TV-Standard
Receiving
Channel
TV-Tuning System
STEREO/BILINGUAL
Rear
VHF/UHF
CATV
Antenna input
INPUT 1
INPUT 2
INPUT 3
18.5o (470 mm) LCD
PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
PAL: B/G, D/K, I SECAM: B/G, D/K, K/K1 NTSC: M
44.25—863.25 MHz
S1—S41ch (including Hyperband)
Auto Preset 99 ch
NICAM: B/G, I, D/K A2 stereo: B/G
300 cd/m
50,000 hours (at Backlight Standard position)
H : 160º V : 160º
2W g 2
UHF/VHF 75 q DIN type
COMPONENT in ( 480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,
1080I/60Hz ), AUDIO in
VIDEO in, S-VIDEO in, AUDIO in
HDMI (HDMI input) ( VGA, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz,
1080I/60Hz ), AUDIO in
2
LC-19A33X
INPUT4
RS-232C
Headphones Ø 3.5 mm jack (Audio output)
OSD language
Power Requirement
Power Consumption
Weight
Operating Temperature
• As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes for
product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of production
units. There may be some deviations from these values in individual units.
15 pin mini D-sub, AUDIO in (Ø 3.5 mm jack)
9 pin D-sub male connector
English/Chinese/Arabic
AC 110—240 V, 50/60 Hz
36 W (0.6 W Standby)
4.3 kg (without stand), 5.1 kg (with stand)
0°C — 40°C
48
Appendix
Dimensional drawings
Unit: mm
360
100
320
40
411.8
462
100
7569
232.4
218
196240
17.5
49
Appendix
CLEARING THE PASSWORD
If you forget the password, clear the password using the following procedure.
Press MENU and the MENU screen displays.
1
Press c/d to select “Setup”.
2
Press a/b to select “Child Lock”, and then press ENTER.
3
The password input screen displays.
4
Enter “3001” using 0 — 9.
5
The Child Lock setting menu displays.
The password is now reset.
The Password is .
NOTE
• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar place.
50
Memo
Memo
Loading...
