OPERATION MANUAL

ENGLISH

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble­free operation of your product, please read the Important Safety Precautions carefully before using this product.

• The LC-19A1E-BK model features a black cabinet.

• The LC-19A1E-WH model features a white cabinet.

• The illustrations and on-screen displays in this operation manual are for explanation purposes and may vary slightly from
the actual operations.

TV/AV only PC onlyAV only

TV only

: these icons used throughout this manual indicate the menu item

can be set or adjusted only in the selected input mode.

• “PC only” refers to the PC input EXT5 terminal and does not
include PC input (HDMI-PC input) on the EXT4 (HDMI) terminal.

• HDMI-PC: PC (RGB) input on the EXT4 (HDMI) terminal

Contents

ENGLISH

Dear SHARP customer …………………………………… 1
Contents …………………………………………………… 1
Important Safety Precautions ………………………… 2
Supplied accessories …………………………………… 2
Quick guide ………………………………………………… 3

Attaching the stand …………………………………… 3
Setting the TV ………………………………………… 3
Inserting the batteries ………………………………… 4
Using the remote control unit ………………………… 4
Cautions regarding the remote control unit … 4
Remote control unit …………………………………… 5
TV (Front/Side view) …………………………………… 6
TV (Rear view) ………………………………………… 6
Turning on the power ………………………………… 7
Standby mode ………………………………………… 7
Turning off the power ………………………………… 7
Initial auto installation ………………………………… 7
Using the programme list …………………………… 7

Using external equipment ……………………………… 8

Connecting a VCR …………………………………… 8
Connecting a game console or camcorder ………… 8
Connecting a DVD player …………………………… 8
Connecting a decoder ……………………………… 9
Connecting a PC ……………………………………… 9

Menu operations ………………………………………… 10

Menu operation buttons ……………………………… 10
On-Screen Display …………………………………… 10
About Guide Display ………………………………… 10
Common operations ………………………………… 11
Picture menu …………………………………………… 12

OPC ……………………………………………… 12
Picture adjustments ……………………………… 12
Advanced ………………………………………… 12

C. M. S. (Colour Management System) …… 13
Colour Temp. ………………………………… 13
Film Mode …………………………………… 13
3D-Y/C ……………………………………… 13
Monochrome ………………………………… 13
I/P Setting …………………………………… 13

Audio menu …………………………………………… 13

Audio adjustments ……………………………… 13
Sound Wide ……………………………………… 13

Power Control menu ………………………………… 14

No Signal Off ……………………………………… 14
No Operation Off ………………………………… 14
Power Management ……………………………… 14

Setup menu …………………………………………… 14

Auto Installation ………………………………… 14
Programme Setup………………………………… 14

Auto Search ………………………………… 15
Manual Adjust ……………………………… 15

Fine ……………………………………… 15
Colour sys. ……………………………… 15
Sound sys. (Broadcasting system)……15
Label …………………………………… 15
Skip ………………………………………15
Decoder ………………………………… 15

Lock ……………………………………… 15
Sort …………………………………………… 16
Erase Programme …………………………… 16

Child Lock ………………………………………… 16

Input Label ………………………………………… 16
Position …………………………………………… 16
PC Setup ………………………………………… 17

Input signal ………………………………… 17
Auto Sync. …………………………………… 17
Fine Sync. …………………………………… 17

HDMI Audio Select ……………………………… 17
HDMI Auto View ………………………………… 17
WSS (Wide Screen Signalling) ………………… 17
4:3 Mode ………………………………………… 17
Rotate …………………………………………… 18
Language ………………………………………… 18

Option menu …………………………………………… 18

DNR (Digital Noise Reduction) ………………… 18
Input Select ……………………………………… 18
Audio Only ………………………………………… 18
Colour System …………………………………… 18

Useful features …………………………………………… 19

WIDE MODE …………………………………………… 19
Freezing the image while watching ………………… 19
AV Mode …………………………………………… 20
Teletext function ……………………………………… 20

Appendix …………………………………………………… 21

Troubleshooting ……………………………………… 21
RS-232C port specifications ………………………… 22
Specifications ………………………………………… 23
PC compatibility chart (EXT 5 only) ………………… 23
End of life disposal …………………………………… 24

• “HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing LLC.”

• The “HD ready” Logo is a trademark of EICTA.

1

Important Safety Precautions

• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the
product. Do not use liquid cleaners or aerosol cleaners.

• Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub,
swimming pool and in a wet basement.

• Do not place vases or any other water-filled containers on this product.
The water may spill onto the product causing fire or electric shock.

• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can
cause the product to fall, resulting in serious personal injuries as well as damage to the product.
Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with
the product. When mounting the product on a wall, be sure to follow the manufacturer’s
instructions. Use only the mounting hardware recommended by the manufacturer.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops,
excessive force and uneven floor surface can cause the product to fall from the cart.

• Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since
they can block ventilation openings. This product is not designed for built-in installation; do not place the product
in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s
instructions are followed.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or
impact applied. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat­generating products (including amplifiers).

• To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• There is power consumption always if main plug is connected.

• Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and
other dangerous conditions. Request a qualified person to perform servicing.

The LCD panel is a very high technology product, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as
a fixed point of blue, green or red.
This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

When moving the TV, it should always be carried by two people, using both hands, be careful not to apply
pressure to the display.

Supplied accessories

Remote control unit (g1)

Pages 4 and 5

AC cord (g1)

Page 3

Cable clamp (g1)

• “AA” size battery (g2) ......... Page 4

2

Page 3

Stand unit (g1)

Page 3

• Operation manual (This publication)

Quick guide

Attaching the stand

Before performing work spread cushioning over the base area to lay the TV on, making sure the
area is completely flat. This will prevent it from being damaged.

Before attaching (or detaching) stand, unplug the AC cord from the AC INPUT terminal.

1 Confirm the 3 screws supplied with the TV.

Screws (m3)

(used in step 3)

NOTE

• To detach the stand, perform the above steps in reverse order.

2 Insert the stand into the opening on the bottom of

3 Insert and tighten the 3 screws on the bottom of

Setting the TV

*Ferrite Core

The Ferrite Core should be permanently attached
and never removed from the AC cord.

the TV. (1)

the TV as shown. (2)

Soft cushion

Alignment protrusions

Screw

Hex key

Ferrite Core*

AC cord

Place the TV close to the AC
outlet, and keep the power plug
within reach.

Standard DIN45325 plug
(IEC 169-2)
75-ohm coaxial cable

Cable clamp

3

Quick guide

Inserting the batteries

Before using the TV for the first time, insert two “AA” size batteries (supplied). When the batteries become
depleted and the remote control unit fails to operate, replace the batteries with new “AA” size batteries.

1 Hold in the tab on the battery cover and pull the

cover towards the direction of the arrow.

2 Insert two supplied “AA” size batteries.

• Place batteries with their terminals corresponding

to the (e) and (f) indications in the battery
compartment.

3 Insert the smaller tab of the battery cover into the

opening (1), and press down on the cover until
it clicks in place (2).

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical
leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any
chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

Using the remote control unit

Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote
control unit and sensor may prevent proper operation.

5 m

Remote control sensor

30°30°

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock.
In addition, do not expose the remote control unit to liquids, and do not
place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The
heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote control sensor
of the TV is under direct sunlight or strong lighting. In such case, change
the angle of the lighting or TV, or operate the remote control unit closer to
the remote control sensor.

4

Quick guide

Remote control unit

Enter standby mode or turn on the

B (Standby/On)

power. (See page 7.)

p (Display information)

Press to display the station information

(channel number, signal, etc.) in the

upper right corner of the screen.

2 (Sound mode)

Select the sound multiplex mode.

(See below.)

0–9

Set the channel in TV mode.

Set the page in Teletext mode.

A (Flashback)

Press to return to the previous

image in normal viewing mode.

f (WIDE MODE)

Select the wide mode. (See page 19.)

Z (Freeze)

Freeze a motion picture on the screen.

(See page 19.)

OK

Execute a command within the menu

screen. Display the programme list.

(Except external input.) (See page 7.)

SLEEP

Set the sleep timer on (in units of 30 min.
up to max. 2 hr. 30 min.) and off.

AV MODE

Select an audio and video setting:
AV MODE (STANDARD, MOVIE, GAME,
PC, USER, DYNAMIC,
DYNAMIC(FIXED)).(See page 20.)

e (Mute)

Switch the sound on and off.

i (k/l) (Volume)*
i (k) Increase the volume.
i (l) Decrease the volume.

P (r/s)

TV: Select the channel.
External: Switch to TV input mode.
Teletext: Move to the next/previous page.

b (INPUT SOURCE)

Select an input source.
(TV, EXT1, EXT2, EXT3, EXT4, EXT5)
(See pages 8 and 9.)

PC

Directly select the PC terminal.

MENU

Display the MENU screen.
(See page 10.)

Exit the menu screen.

Colour (Red/Green/Yellow/Blue)

(See page 20.)

m (Teletext)

(See page 20.)

(See page 20.)

1 (Subpage)

(See page 20.)

END

3 (Hold)

• Using 2 on the remote control unit

Each time you press 2, the mode switches as illustrated in the following tables.

NICAM TV broadcasts selection A2 TV broadcasts selection

Signal

Stereo

Bilingual

Monaural

Selectable items

NICAM STEREO, MONO

NICAM CH A, NICAM CH B,
NICAM CH AB, MONO

NICAM MONO, MONO

Signal

Stereo

Bilingual

Monaural

Selectable items

STEREO, MONO

CH A, CH B, CH AB

MONO

a/b/c/d (Cursor)
Select a desired item on the setting
screen.

RETURN

Return to the previous menu screen.

[ (Subtitle for Teletext)

(See page 20.)

k (Reveal hidden Teletext)

(See page 20.)

v (Top/Bottom/Full)

Switch the Teletext image to Top,
Bottom or Full.
(See page 20.)

* The volume can be individually set for the speaker and headphones output for each

input (TV, EXT 1, EXT 2, EXT 3, EXT 4, EXT 5).

5

Quick guide

20

TV (Front/Side view)

a Power button

MENU button

b (Input Source) button

P (r/s) (Channel
buttons)

i (e/f) (Volume
buttons)

OPC indicator

B (Standby/On) indicator

Remote control sensor

TV (Rear view)

AC INPUT terminal

Round lock for Kensington

Security Standard slot

Antenna input terminal

EXT 2 terminals

OPC sensor

EXT5 terminals

EXT4 (HDMI/AUDIO)
terminals

Headphone jack

EXT 1 (RGB) terminal

RS-232C terminal

EXT 3 (Component)
terminals

Regarding the headphone jack

• Use headphones with a stereo mini plug (Ø 3.5 mm).

• Be sure to unplug headphones from the jack when they
are not in use.

• The speakers do not output volume when headphones are
plugged in.

• You can set the volume to different levels for each input
source.

6

Volume display when headphones
are plugged in

Quick guide

Turning on the power

When the Power of the TV is OFF (B indicator is off),
Press a on the TV.

• The B indicator on the TV changes to green.

When the TV is in Standby ( B indicator is Red),
Press B on the remote control unit.

• The B indicator on the TV changes from red to green.

Standby mode

Press B on the remote control unit.

• The TV enters standby mode and the image on the screen
disappears.

• The B indicator on the TV changes from green to red.

Turning off the power

Press a on the TV.

• The B indicator on the TV turns off.

• When the TV is turned off by a, you cannot turn on the
power by pressing B on the remote control unit.

Display status indicator

Off

Red

Green

Power off

The TV is in standby mode.

The TV is on.

Initial auto installation

When the TV powers on for the first time after purchase,
the initial auto installation is invoked. You can
automatically set language, country and channels in
successive operations.

NOTE

• The initial auto installation functions only once. If the initial
auto installation is not completed, (ex: When menu screen
disappeared by not operating for a few minutes, when
the power shut down, etc.), try Auto Installation from the
Setup menu. (See page 14.)

• The initial auto installation stops by pressing RETURN.

1 Setting the on-screen display language

1 Press a/b/c/d to select the desired language

listed on the screen.

2 Press OK to enter the setting.

2 Setting the country or area

1 Press a/b/c/d to select your country or area

listed on the screen.

2 Press OK to enter the setting.

• The programme auto search starts at the same time.

After this setting, auto search starts with the following
order.

• Programme auto search

• Auto labelling

• Auto sorting

You do not need to do anything during the auto search.

NOTE

• If you are not going to use this TV for a long period of
time, be sure to remove the AC cord from the power outlet.

• Weak electric power is still consumed even when a is
turned off.

The setup menu disappears and you can watch the
programme on channel 1.

Using the programme list

You can also select the desired channel from
programme list instead of using 0-9 numeric buttons

rr

r/

rr

ss

s).

ss

or P (

1 Press OK when no other menu screen is

displayed. (Except external input.)

2 Press a/b to select the desired channel to tune

in, and then press OK.

7

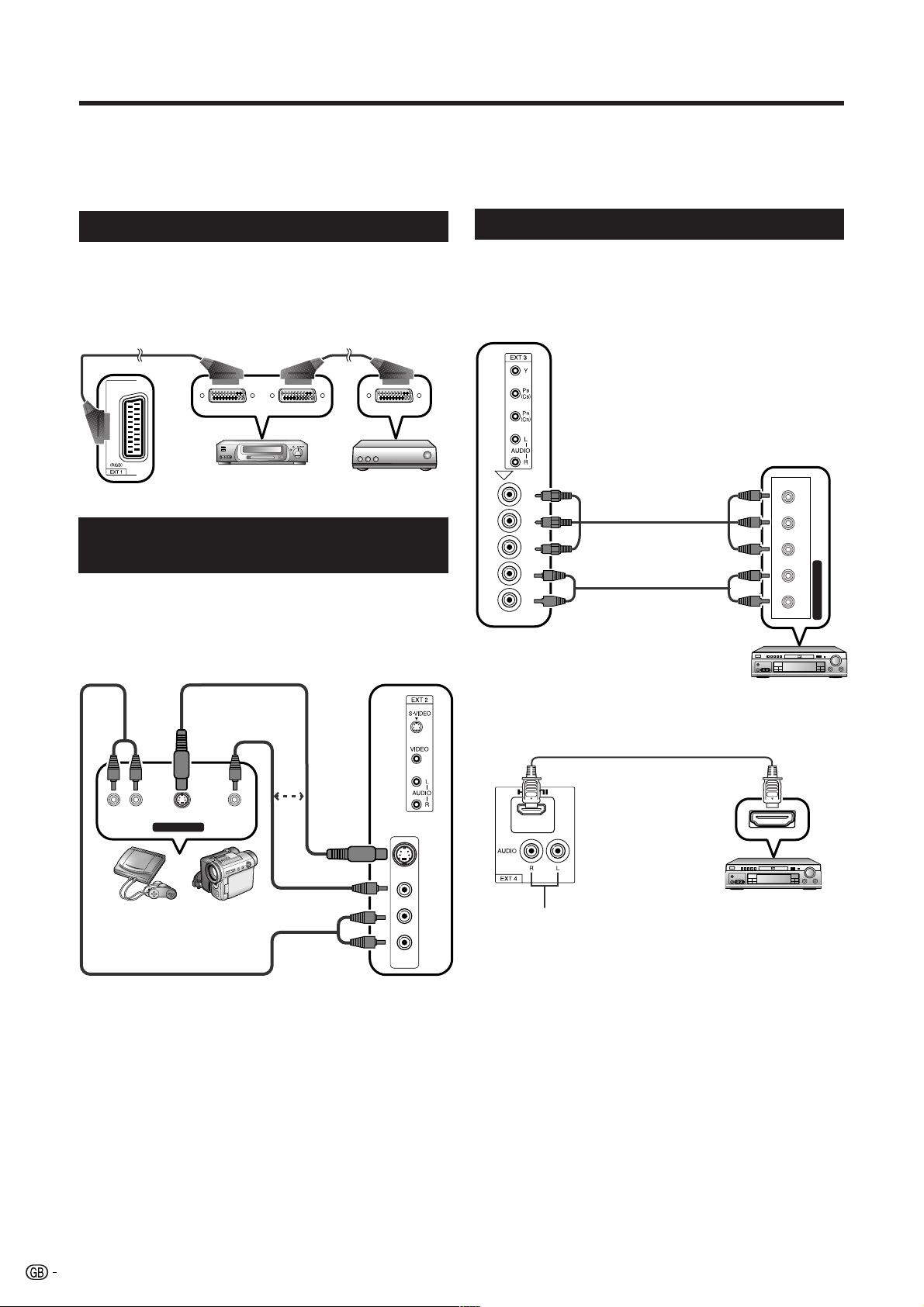

Using external equipment

Setting the input source

To view external source images, select the input source using b on the remote control unit or TV.

NOTE

• The cables marked with * are commercially available items.

Connecting a VCR

You can use the EXT 1 terminal when connecting a
VCR and other audiovisual equipment.

• When using SCART cable (EXT1)

SCART cable* SCART cable*

VCR

EXT 1

Decoder

Connecting a game console or camcorder

A game console, camcorder and some other
audiovisual equipment are conveniently connected
using the EXT 2 terminals.

• When using composite cable or S-video cable (EXT2)

S-video cable*

Composite
video cable*

Connecting a DVD player

You can use the EXT 1, 2, 3 or 4 (HDMI) terminals
when connecting to a DVD player and other
audiovisual equipment.

• When using component cable (EXT3)

YP

Component cable*

AUDIO cable*

EXT 3

• When using HDMI cable (EXT4)

HDMI cable*

B

P

R

COMPONENT

L-AUDIO-R

DVD player

or

AV OUTPUT

Game console Camcorder

AUDIO cable*

VIDEOS-VIDEOL-AUDIO-R

EXT 2

NOTE

• EXT 2: The S-VIDEO terminal has priority over the VIDEO
terminals.

EXT 4

DVD player

When using an HDMI-DVI
conversion adapter/cable, input the
Audio signal here.
Select “Analogue” in the “HDMI
Audio Select” of the Setup menu.
(See page 17)

NOTE

• When connecting an HDMI-DVI conversion adapter/cable
to the HDMI terminal, the image may not come in clearly.

8

Using external equipment

Connecting a decoder

You can use the EXT 1 terminal when connecting a
decoder and other audiovisual equipment.

EXT 1

SCART cable*

Decoder

NOTE

• In cases when the decoder needs to receive signal from
the TV, make sure to set “Decoder” to “EXT1” in the
Programme Setup “Manual Adjust” menu. (See page 15.)

Connecting a PC

Use the EXT 5 terminals to connect a PC.

EXT 5

ø 3.5 mm stereo minijack cable*

PC

RGB cable*

EXT 5

ø 3.5 mm stereo minijack cable*

RGB/DVI conversion cable*

NOTE

•

The cables marked with * are commercially available items.

• The PC input terminals are DDC1/2B-compatible.
Refer to page 23 for a list of PC signals compatible with the TV.

•

PC

9

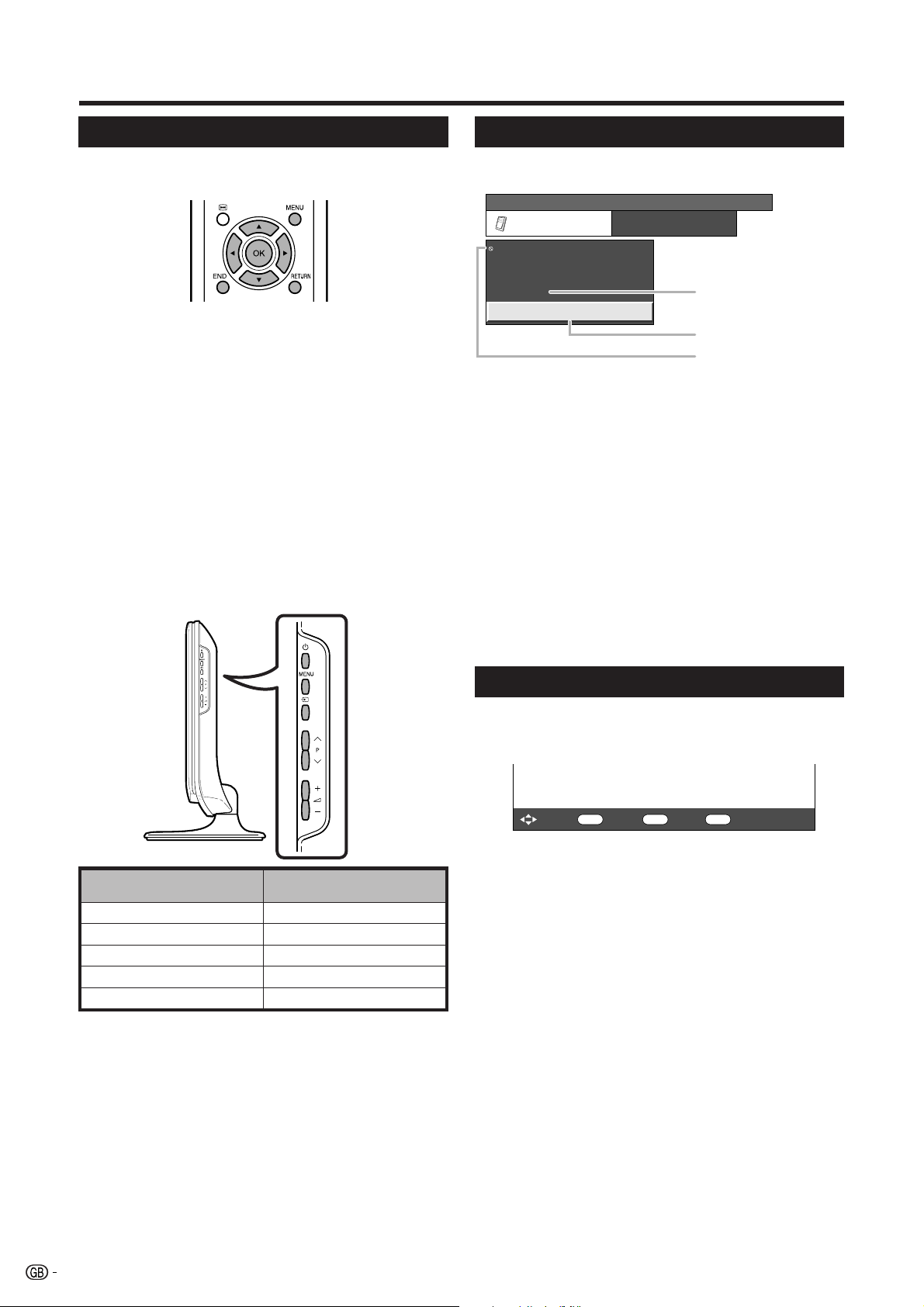

Menu operations

Menu operation buttons

Use the following buttons on the remote control unit to
operate the menu.

MENU: Press to open or close the menu screen.

a/b/c/d: Press to select a desired item on the screen

or adjust a selected item.

OK: Press to go to the next step or complete the

setting.

RETURN: Press to return to the previous step.

END: Press to exit the menu item.

E Using the control panel of the TV

You can also operate the Menu using the control panel of
the TV.
Button operations on the control panel correspond to the
ones on the remote control as shown below.

On-Screen Display

Example

...

[

Option

MENU

Option

DNR

Input Select

Audio Only

Colour System

Colour System

1 Item displayed in yellow

• This indicates the item currently selected.

2 Item displayed in white

• This indicates an item can be selected.

3 Item with 4 displayed in grey

• This indicates the item cannot be selected for various
reasons.

NOTE

• Menu options differ in the selected input modes, but the
operating procedures are the same.

• The screens in the operation manual are for explanation
purposes (some are enlarged, others cropped) and may
vary slightly from the actual screens.

]

2

1
3

TV control panel buttons

b OK

Pr
Ps

ik
il

Remote control buttons

a
b
d
c

About Guide Display

The Guide Display at the bottom of the menu screen
shows operations with an On-Screen Display.

: Select : Enter

OK

RETURN

The bar above is an operational guide for the remote control.
The bar will change in accordance with each menu setting
screen.

MENU

: End: Back

10

Menu operations

Colour Temp.

C. M. S.-Value

C. M. S.-Saturation

C. M. S.-Hue

Film Mode

3D - Y/C

Monochrome

I/P Setting

High

Mid-High

Middle

Mid-Low

Low

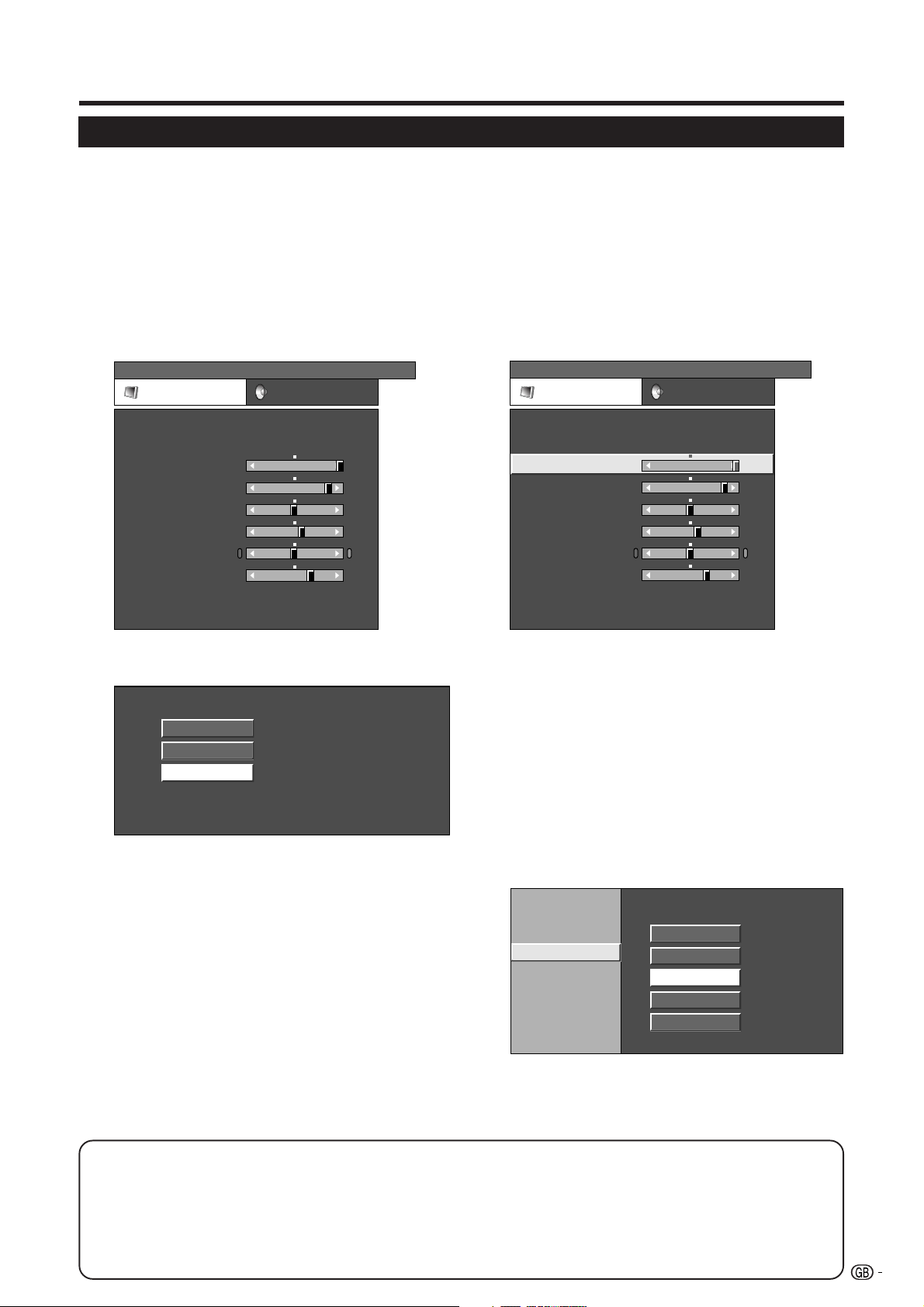

Common operations

The following are three examples of basic menu operations. Please operate the menu by using the following
three patterns as a reference.

Menu Operation: A

Menu Operation: B

1 Press MENU and the MENU screen displays.
2 Press c/d to select the desired menu.
3 Press a/b to select the desired menu item, and

then press OK (Example: OPC, etc).

• Select “Reset” under each MENU and for each Mode
to reset all adjustment items to the factory preset
values.

[

]

MENU

OPC

Backlight [+16] –

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset


Picture Audio

DYNAMIC

[Off]

[ 32]

[ 0]

–

[ +4]

–

[ 0]

[ +4]

–

+

+

+

+

4 Press a/b(c/d) to select the desired item,

*press OK if necessary. (Example: OPC setting)

1 Press MENU and the MENU screen displays.
2 Press c/d to select the desired menu.
3 Press a/b to select the desired menu item

(Example: Backlight, Contrast, etc).

4 Press c/d to adjust the item to your desired

position.

...

[

MENU

OPC

Backlight [+16] –

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset


Picture Audio

DYNAMIC

[Off]

[ 32]

[ 0]

[ +4]

[ 0]

[ +4]

Backlight

–

–

–

]

+

+

+

+

Menu Operation: C

1 Press MENU and the MENU screen displays.

On(Display)

On

Off

2 Press c/d to select the desired menu.
3 Press a/b to select the desired menu item, and

then press OK (Example: Advanced, etc).

4 Press a/b to select the desired menu item, and

then press OK (Example: Colour Temp., Film
Mode, etc).

• Select “Reset” under each MENU and for each Mode
to reset all adjustment items to the factory preset
values.

5 Press a/b(c/d) to select or adjust the desired

item, *press OK if necessary.

* When it is necessary to press OK when selecting and confirming a desired item, the OK button will appear in the guide

display.
When the OK button does not appear in the guide display, the selected item will immediately be confirmed after
selecting with a/b(c/d).

• Press MENU or END to exit Menu. Press RETURN to return to the previous display. (Follow the instructions of the
guide display.)

11

Menu operations

TitleB

Picture menu

Adjust the picture of each AV MODE to your preference
with the following picture settings (DYNAMIC (FIXED)
cannot be adjusted).

[

]

MENU

OPC

Backlight [+16] –

Contrast

Brightness

Colour

Tint

Sharpness

Advanced

Reset

OPC

Menu Operation: A (page 11)

Automatically adjust the brightness of the screen.

Item

On(Display): Displays the OPC effect on the screen while

adjusting the brightness of the screen.

On: Automatically adjusts.
Off: The brightness is fixed at the value set in Backlight.

NOTE

• When set to “On”, the TV senses the surrounding light
and automatically adjusts the backlight brightness. Make
sure no object obstructs the OPC sensor, which could
affect its ability to sense surrounding light.

• The OPC indicator lights green when OPC is “On” or “On
(Display)”. “Backlight” cannot be adjusted during this time.


Picture Audio

DYNAMIC

[Off]

[ 32]

[ 0]

–

[ +4]

–

[ 0]

[ +4]

–

+

+

+

+

Picture adjustments

Menu Operation: B (page 11)

Adjustment items

Selectable
items

Backlight The screen dims The screen

Contrast For less contrast For more contrast

Brightness For less brightness For more

Colour* For less colour

Tint* Skin tones

Sharpness* For less sharpness For more

c button d button

brightens

brightness

For more colour

intensity

intensity

Skin tones

become purplish

become greenish

sharpness

Items marked * cannot be adjusted when PC Input
(including HDMI-PC Input (see page 1)) is selected.

Advanced

Menu Operation: B or C (page 11)

This TV provides various advanced functions for
optimising the picture quality.

...

MENU

C. M. S.-Hue

C. M. S.-Saturation

C. M. S.-Value

Colour Temp.

Film Mode

*1

3D - Y/C

*1

Monochrome

*2

I/P Setting

*1

DYNAMIC

[


Advanced

]

Reset

R

[ 0]

Y

[ 0]

G

[ 0]

C

[ 0]

[ 0] –

B

[ 0] –

M

–

–

–

–

+

+

+

+

+

+

12

• Item marked *1 cannot be adjusted when EXT 4 or EXT 5
is selected.

• Item marked *2 cannot be adjusted when PC input
(including HDMI-PC Input (see page 1)) is selected.

Menu operations

C. M. S. (Colour Management System)

Colour tone is managed using the six-colour
adjustment setting.

Item

C. M. S.-Hue: This is a standard to adjust the colour

either more reddish or more bluish in tone.

C. M. S.-Saturation: Increases or decreases the saturation

of a selected colour.
C. M. S.-Value:
A lower value makes the image darker.

A higher value makes the image brighter.

Colour Temp.

Adjust the colour temperature to give the best white
image.

Item

High: White with bluish tone
Mid-High: Intermediate tone between High and Middle
Middle: Natural tone
Mid-Low: Intermediate tone between Middle and Low
Low: White with reddish tone

Film Mode

Automatically detect a film-based source (originally
encoded at 24/25 frames/second, depending on the
vertical frequency), analyses it then recreates each
still film frame for high-definition picture quality.

I/P Setting

Adjust the image and input signal can give you a more
beautiful picture.

Item

Interlace: Display finely detailed images for TV or video,

etc.

Progressive: Display smooth images for still images or

graphics, etc.

Audio menu

[

]

MENU

Treble

Bass

Balance

Sound Wide

Reset

Audio adjustments

Menu Operation: B (page 11)

You can adjust the sound quality of each AV MODE to
your preference with the following settings (DYNAMIC
(FIXED) cannot be adjusted).

Audio

Audio Power Control

DYNAMIC

[ 3]

[ 2]

[ 0]

–

–

L

+

+

R

3D-Y/C

Provide high quality images with minimal dot crawl and
cross colour noise by detecting changes in the image.

Item

Standard: Normal adjustment
Fast: Set the optimum image quality for fast-moving

images.
Slow: Set the optimum image quality for slow-moving

images.

Off: No detecting

NOTE

• 3D-Y/C may not operate depending on the input signal
type or noisy input signal.

• This function is only available when a CVBS signal is input.
(Except a SECAM CVBS signal.)

Monochrome

For viewing a video in monochrome.

Selectable
items

Treble For weaker treble For stronger treble

Bass For weaker bass For stronger bass

Balance Decrease audio

c button d button

from the right
speaker

Decrease audio
from the left
speaker

Sound Wide

Menu Operation: A (page 11)

This feature can increase the spread of the sound.

Item

On: Increases the spread of the sound.
Off: Outputs the normal sound.

NOTE

• This function is not available when using headphones.

13

Menu operations

Power Control menu

[

MENU

No Signal Off

No Operation Off

Power Management

Power Control

Audio Power Control

No Signal Off

Menu Operation: A (page 11)

When set to “Enable” the TV will automatically enter
the standby mode if there is no signal input for 15
minutes.

• Five minutes before the TV enters standby mode, the
remaining time displays every minute.

NOTE

• When a TV programme finishes, this function may not
operate.

• “Disable” is the factory preset value.

No Operation Off

Menu Operation: A (page 11)

When you select the desired time, the TV will
automatically enter the standby mode if no operation
is performed.

Item

30 min. / 3hr. / Disable

• Five minutes before the TV enters standby mode, the
remaining time displays every minute.

NOTE

• “Disable” is the factory preset value.

Power Management

Menu Operation: A (page 11)

When set, the TV will automatically enter the standby
mode.

Item

Off: • No power management

Mode1: • If there is no signal input for 8 minutes, the TV

Mode2: • If there is no signal input for 8 seconds, the

• Factory preset value

enters the standby mode.

• Even if you start using the PC and the signal
inputs again, the TV stays in standby mode.

• The TV turns on again by pressing a on the TV
or B on the remote control unit. (See page 7.)

TV enters the standby mode.

• When you start using the PC and the signal
inputs again, the TV turns on automatically.

• The TV turns on again by pressing a on the TV
or B on the remote control unit. (See page 7.)

]

TV/AV only

PC only

Setup menu

[

]

MENU

Auto Installation

Programme Setup

Child Lock

Input Label

Position

PC Setup

HDMI Audio Select

HDMI Auto View

WSS

4:3 Mode

Rotate

Lanugage

Reset

Setup

Setup Option

CAUTION

•

When selecting “Reset” in the Setup menu, all menus will be reset
to the factory preset values and “Auto Installation” will activate.

Auto Installation

TV only

You can run Auto Installation again, even after setting
up the preset channels.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Auto Installation”, and then

press OK.
If you have already set the PIN under “Child Lock”,
enter it here.

• See page 16 for setting PIN.

4 Press a/b to select “Ye s ”, and then press OK.
5 You can set language and country the same as in

the initial auto installation. Follow steps 1 and 2
on page 7.

Programme Setup

TV only

This section describes how to set up analogue TV
channels manually.

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Programme Setup”, and

then press OK.
If you have already set the PIN under “Child Lock”,
enter it here.

• See page 16 for setting PIN.

4

Press

a/b

to select “Auto Search”, “Manual Adjust”,

“Sort” or “Erase Programme”, and then press OK.

Auto Search

Manual Adjust

Sort

Erase Programme

Yes

No

14

Menu operations

Auto Search

You can automatically search for and download TV
channels by performing the procedure below. This is
the same function as from programme auto search to
auto sorting in Auto Installation.

1 Repeat steps 1 to 4 in Programme Setup.
2 Press a/b to select “Ye s ”, and then press OK.

Manual Adjust

You can set some channel items manually.

...

MENU

Fine

Colour Sys.

Sound Sys.

Label

Skip

Decoder

Lock

[

Setup

Programme Setup

]

179.25 MHz

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Programme Setup”, and

then press OK.
If you have already set the PIN under “Child Lock”,
enter it here.

• See page 16 for setting PIN.

4 Press a/b to select “Manual Adjust” and then

press OK.

5 Press a/b to select “Ye s ”, and then press OK.
6 Press a/b/c/d to select the channel you want

to edit, and then press OK.

• The selected channel information displays.

7 Press a/b to select the desired menu item, and

then press OK.

8 Press a/b (/0–9/c/d) to select or adjust.

Fine

You can adjust the frequency to your desired position.

NOTE

• Adjust while checking the background picture as a
reference.

• Instead of pressing c/d to adjust the frequency in step
8 above, you can set by directly entering the frequency
number of the channel with 0–9.

EXAMPLE

• 179.25 MHz: Press 1 s 7 s 9 s 2 s 5.

• 49.25 MHz: Press 0 s 4 s 9 s 2 s 5.

Colour sys.

Select the optimum colour systems to receive. (AUTO,
PAL, SECAM)

NOTE

• Factory preset value is “AUTO”.

• If “AUTO” is selected, colour system for each channel is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, SECAM).

Sound sys. (Broadcasting system)

Select the optimum sound systems (Broadcasting
systems) to receive. (B/G, D/K, I, L, L’)

Label

When a TV channel sends its Network Name, the Auto
Installation detects the information and assigns a name
to it. However, you can change individual channel
names.

1 Repeat steps 1 to 7 in Manual Adjust.
2 Press a/b to select characters and c/d to move

to the desired digit.

3 Repeat step 2 above until the name is fully spelt

out, and then press OK to complete the label
setting.

Skip

Channels with “Skip” set to “On” are passed over when
using Pr/Ps even if selected while watching the
image from the TV.

Decoder

When connecting a decoder to the unit, you need to
select EXT1.

NOTE

• “Off” is factory preset value.

Lock

You can block the viewing of any channel.

NOTE

• See page 16 for setting PIN.

• When Lock is set to “On” for a channel, “Child lock has
been activated.” displays, and the image and sound of
the channel are blocked.

• When pressing OK while “Child lock has been activated.”
displays, PIN input menu will display. Inputting the correct
PIN lifts the child lock temporarily until the power is turned
off.

15

Menu operations

Sort

Channel positions can be sorted freely.

1 Repeat steps 1 to 4 in Programme Setup.
2 Press a/b to select “Ye s ”, and then press OK.
3 Press a/b/c/d to select the channel you want

to move, and then press OK.

4 Press a/b/c/d to move it to the desired

position, and then press OK.

5 Repeat steps 3 and 4 until all desired channels

are sorted.

Erase Programme

An individual programme can be erased.

Resetting the PIN

Allow you to reset your PIN.

1 Repeat steps 1 to 3 in Changing the PIN.
2 Press a/b to select “Reset”, and then press OK.
3 Press a/b to select “Ye s ”, and then press OK.

NOTE

• As a precautionary measure, make a note of your PIN
on the back of this operation manual, cut it out and
keep it in a safe place that children cannot reach.

• See page 21 for resetting the current PIN if you lose or
forget your PIN.

• To relock a channel which has been temporarily
unlocked by inputting the correct PIN, turn power off
and then on again.

Input Label

1 Repeat steps 1 to 4 in Programme Setup.
2 Press a/b to select “Ye s ”, and then press OK.
3 Press a/b/c/d to select the channel you want

to erase, and then press OK.

4 Press OK to erase the selected programme. All

the subsequent programmes move up.

5 Repeat steps 3 and 4 until all desired channels

are erased.

Child Lock

Allow you to use a PIN to protect certain settings from
being accidentally changed.

TV only

Changing the PIN

1 Press MENU and the MENU screen displays.
2 Press c/d to select “Setup”.
3 Press a/b to select “Child Lock”, and then press

OK. If you have already set the PIN under “Child

Lock”, enter it here.

Change PIN

Reset

New PIN

Reconfirm

–––

–

––––

4 Press OK and enter the 4-digit number as a PIN

using 0 – 9.

5 Enter the same 4-digit number as in step 4 to

confirm.

• When setting the PIN, “Reset” in the Menu will be
selectable and operational.

NOTE

• To view a locked channel (Lock setting in Programme
Setup “Manual Adjust” is set to “On”), you must enter a
PIN. (See page 15.) When you select a locked channel, a
PIN prompt message pops up. Press OK to display the
PIN input window.

You can assign each input source a label you like.

1 Press b to select the desired input source.
2 Press MENU and the MENU screen displays.
3 Press c/d to select “Setup”.
4 Press a/b to select “Input Label”, and then press

OK.

5 Press a/b to select characters and c/d to move

to the desired digit to label the input source.

• When you want to change the input label that you
have already assigned to the default name, press
c/d to move to “CLEAR” on the “Input Label”
screen, and then press OK.

6 Repeat step 5 above until the name is fully spelt

out, and then press OK.

• The name can be 6 characters or less.

• When you want to set an input source name of less
than 6 characters, press MENU to exit from the
labelling menu.

NOTE

• You cannot change the label if the input source is TV.

Position

Menu Operation: C (Page 11)

For adjusting a picture’s horizontal and vertical
position.

Item

H-Pos.: Centres the image by moving it to the left or right.
V-Pos.: Centres the image by moving it up or down.

NOTE

• Adjustments are stored separately according to input

source.

• Depending on the input signal type a position setting may
not be available.

TV/AV only

16

Menu operations

PC Setup

For adjusting a PC image.

• Only “H-Pos.” and “V-Pos.” in “Fine Sync.” are available
when the HDMI-PC input (See page 1) is selected.

Input Signal

Menu Operation: C (Page 11)

Some input signals may have to be registered manually
to display properly.

The input signals (resolutions) in the list below are not
distinguishable when received. In such case, you have to
set the correct signal manually. After setting once, it will
display when the same signal (resolution) is input again.

640 g 400

640g 480

1024 g 768

720 g 400

848 g 480

1360 g 7681280 g 768

NOTE

• Depending on the graphics card, resolution of 1360 x 768
may not display correctly.

• You can only select the “Input Signal” on the Setup menu
when receiving one of the 7 input signals listed above.

• The above list will display in accordance with vertical
resolution of input signals.

Auto Sync.

Menu Operation: C (Page 11)

For automatically adjusting the PC image.

Item

Yes: Auto Sync. starts.
No: You have to set Fine Sync. later.

NOTE

• Auto Sync. is likely to succeed when an input PC image
has wide vertical stripes (ex. pattern with high contrast
stripes, or cross-hatched).

• It may fail when an input PC image is solid (low contrast).

• Be sure to connect the PC to the LCD-TV and switch it on
before starting Auto Sync.

PC only

PC only

HDMI Audio Select

Menu Operation: A (Page 11)

Select “Digital” for audio signal via the HDMI terminal.
Select “Analogue” for audio signal via the AUDIO jack.

NOTE

• This function is only available when EXT4 is selected.

HDMI Auto View

Menu Operation: A (Page 11)

Set whether or not to use WIDE MODE based on signal
recognition, including an HDMI signal.

NOTE

• This function is only available when EXT4 is selected.

WSS (Wide Screen Signalling)

Menu Operation: A (Page 11)

WSS allows a television to switch automatically among
the different screen formats.

NOTE

• Use WIDE MODE if an image does not switch to the correct
screen format. When the broadcast signal contains no
WSS information, the function will not work even if enabled.
(See page 19.)

4:3 Mode

Menu Operation: A (page 11)

The WSS signal has 4:3 auto-switching that allows you
to select between Normal and Panorama.

Item

Panorama: Wide image without side bars
Normal: Normal range keeping 4:3 or 16:9 aspect ratio

WSS signal 4:3 screen

4:3 mode “Normal”

4:3 mode “Panorama”

TV/AV only

TV/AV only

Fine Sync.

PC only

Menu Operation: C (Page 11)

Ordinarily, the TV automatically adjusts image positions coming
from PC (Auto Sync. function). In some cases, however, manual
adjustment is needed to optimise the image.

Item

H-Pos.: Centres the image by moving it to the left or right.
V-Pos.: Centres the image by moving it up or down.
Clock: Adjusts when the image flickers with vertical

stripes.

Phase: Adjusts when characters have low contrast or

when the image flickers.

NOTE

• If you need to adjust the image position, adjust the position
using your PC.

• “Clock” and “Phase” cannot be adjusted when the HDMI­PC input (See page 1) is selected.

17

Menu operations

Rotate

Menu Operation: A (page 11)

You can set the orientation of the picture.

Normal

Mirror

Upside Down

Rotate

(Normal): normal image (Mirror): mirror image

ABC

ABC

(Rotate): rotated image

Language

ABC

(Upside Down): upside

down image

Input Select

Menu Operation: A (page 11)

For setting the signal type for EXT1 only.
The signal type for EXT2, EXT3 and EXT5 is fixed and
cannot be changed.

Input source Signal type

EXT 1 Y/C, CVBS, RGB

NOTE

• “CVBS” is the factory preset value.

• If no (colour) image displays, try to change the other

signal type.

• Check the operation manual of the external equipment
for the signal type.

• If both CVBS and RGB signals are input to EXT 1 using a
SCART cable, the TV may output an RGB signal even
though you have designated CVBS for the respective

ABC

terminal. This happens due to the setting of your external
equipment.

• The signal type for EXT2 is automatically selected between
an S-VIDEO signal and a CVBS signal, with S-VIDEO given
priority.

Audio Only

Menu Operation: A (page 11)

When listening to music from a music programme, you
can set the display off and enjoy audio only.

Item

On: Audio is output without screen image.
Off: Both screen images and audio are output.

• “Audio Only” will automatically turn “Off” when an
operation other than Volume and Mute is performed.

Menu Operation: A (page 11)

You can select a language from the Setup menu. Select
from among 16 languages. (Czech, Dutch, English,
Finnish, French, German, Greek, Hungarian, Italian,
Polish, Portuguese, Russian, Slovak, Spanish,
Swedish, Turkish)

Option menu

[

]

MENU

DNR

Input Select

Audio Only

Colour System

DNR (Digital Noise Reduction)

Menu Operation: A (page 11)

Produce a clearer image. (Off, High, Low)

• This function is available when TV, EXT 1, EXT 2 or EXT 3
is selected.

Option

Option

TV/AV only

Colour System

Menu Operation: A (page 11)

You can change the colour system to one that is
compatible with the image on the screen. (AUTO, PAL,
SECAM, NTSC 3.58, NTSC 4.43, PAL-60)

NOTE

• Factory preset value is “AUTO”.

• If “AUTO” is selected, colour system for each channel is
automatically set. If an image does not display clearly,
select another colour system (e.g. PAL, SECAM).

• This function is only available when EXT 1 or EXT 2 is
selected.

18

Useful features

WIDE MODE

You can select the picture size. Selectable picture size
varies with the type of signal received.

Item (for SD (Standard-Definition) signal)

Normal: For 4:3 “standard” pictures. A side bar appears

on each side.

Zoom 14:9: For 14:9 letterbox pictures. A thin side bar

appears on each side, and you may see bars on the
top and bottom with some programmes.

Panorama: In this mode the picture is progressively

stretched toward each side of the screen.

Full: For 16:9 squeeze pictures.
Cinema 16:9: For 16:9 letterbox pictures. Bars may

appear on the top and bottom with some programmes.

Cinema 14:9: For 14:9 letterbox pictures. Bars may

appear on the top and bottom with some programmes.

Item (for HD (High-Definition) signal)

Full: Display with the Overscan image. Crop all sides of

screen.

TV/AV only

Manual Selection

1 Press f.

• The WIDE MODE menu displays.

• The menu lists the wide mode options selectable
for the type of video signal currently received.

2 Press f or a/b while the WIDE MODE menu

displays on the screen.

• As you toggle down the options, each is immediately
reflected on the screen. No need to press OK.

Auto Selection

If you set WSS and 4:3 Mode in the Setup menu on
page 17, the optimum WIDE MODE is automatically
chosen for every broadcast, VCR or DVD containing
the WSS information.

WIDE MODE

You can select the picture size.

PC only

1 Press f.

• The WIDE MODE menu displays.

2 Press f or a/b to select a desired item on the

menu.

NOTE

• Can also be adjustable when the HDMI-PC input (See
page 1) is selected.

• Connect the PC before making adjustments. (See page

9.)

• Selectable picture (Normal or Full, Full or Dot by Dot, Full
only) size may vary with input signal type.

Item

Normal: Keeps the original aspect ratio by filling the

screen up to the top and bottom.

Full: An image fully fills the screen.
Dot by Dot: Detects the resolution of the signal and

displays an image with the same number of pixels on
the screen.

Freezing the image while watching

Allows you to capture and freeze one frame from a
moving image that you are watching.

1 Press Z.

• Captures one frame from a moving image.

2 Press Z again (or press RETURN) to cancel the

function.

NOTE

• The still image automatically goes out after 30 minutes.

WSS menu

To enable Auto Selection, set WSS in the Setup menu
to “On”. (See page 17.)

4:3 Mode menu

To set the type of the wide screen, select “Normal” or
“Panorama” in the 4:3 Mode menu. (See page 17.)

4:3 Mode set to “Normal”

NOTE

• If the signal contains no WSS information, Auto Selection
will not function even when the WSS option is enabled.

4:3 Mode set to “Panorama”

19

Useful features

AV Mode

AV Mode gives you five viewing options to choose from
to best match the surrounding environment of the TV,
which can vary due to factors like room-brightness,
type of programme watched or the type of image input
from external equipment.

1 Press AV MODE.

• Current AV MODE displays.

(EXAMPLE)

AV Mode: DYNAMIC

2 Press AV MODE again before the mode displayed

on the screen disappears.

• The mode changes as shown below.

When the input source is TV, EXT 1, 2 or 3

STANDARD

DYNAMIC DYNAMIC(FIXED) USER

When the input source is EXT 4

STANDARD

DYNAMIC DYNAMIC(FIXED) USER

When the input source is EXT 5

STANDARD PC USER

Item

*STANDARD: For a highly defined image in a normally

bright room

*MOVIE: For a movie

GAME: Lowers image brightness for easier viewing.
PC: For a PC (Available only when inputting RGB signal.

The HDMI input (EXT4) is compatible with VGA.)
USER: Allows the user to customise settings as
desired. You can set the mode for each input source.

*DYNAMIC: For a clear-cut image emphasising high

contrast for sports viewing

**DYNAMIC(FIXED):

settings to the factory preset value. No adjustments are
allowed.

NOTE

• You can adjust the factory preset parameters given in
“STANDARD”, “MOVIE”, “GAME”, “PC” and “DYNAMIC”.
The parameters chosen affect each of the input sources.

• For the items marked with a *, Enhanced Picture Contrast
will activate when OPC is “Off”.
For the item marked with **, Enhanced Picture Contrast
always activate.

• Enhanced Picture Contrast technology detects the source
video characteristics and smoothly adjusts the screen.

MOVIE GAME

MOVIE PCGAME

Changes the image and sound

Teletext function

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
Your TV receives Teletext signals broadcast by a TV
network, and decodes them into graphical format for
viewing. News, weather and sports information, stock
exchange prices and programme previews are among
the many services available.

Turning on and off Teletext

1 Select a TV channel or external input source

providing the Teletext programme.

2 Press m to display the Teletext.
3 Press m again to display the Teletext on the right

screen and normal image on the left screen.

• Each time you press m, the screen switches as
shown below.

TELETEXT

• If you select a programme with no Teletext signal,
“No Teletext available.” displays.

• The same message displays during other modes if
no Teletext signal is available.

NOTE

• Teletext will not work if the selected signal type is RGB.
(See page 18.)

Button functions

Buttons

P (r/s)

Colour (Red/
Green/Yellow/
Blue)

0–9

v (Top/
Bottom/Full)

k

(Reveal

hidden Teletext)

3 (Hold)

[ (Subtitle

for Teletext)

Increase or decrease the page number.

Select a group or block of pages displayed in the
coloured brackets at the bottom of the screen by
pressing the corresponding Colour (Red/Green/
Yellow/Blue) on the remote control unit.

Directly select any page from 100 to 899 by
using 0–9.

Switch the Teletext image to Top, Bottom or
Full.

Reveal or hide hidden information such as
an answer to a quiz.

Stop updating Teletext pages automatically
or release the hold mode.

Display the subtitle or exit the subtitle screen.

•

Subtitle will not be displayed when the service
does not contain the subtitle information.

Description

TELETEXT

20

1 (Subpage)

Reveal or hide subpages.

• Red button: Move to the previous subpage.

• Green button: Move to the following subpage.

• These two buttons are shown on the screen
by the signs l and k.

Appendix

Troubleshooting

Problem Possible Solution

• No power.

• Unit cannot be operated.

• Remote control unit does not
operate.

• Picture is cut off.

• Strange colour, light colour, or
dark, or colour misalignment.

• Power is suddenly turned off.

• No picture.

• Check if you pressed B on the remote control unit. (See page 7.)
If the indicator on the TV lights up red, press B.

• Is the AC cord disconnected? (See page 3.)

• Check if you pressed a on the TV. (See page 7.)

• External influences such as lightning, static electricity, etc., may cause improper
operation. In this case, operate the unit after first turning the power off, or
unplugging the AC cord and re-plugging it in after 1 or 2 minutes.

• Are batteries inserted with polarity (e, f) aligned? (See page 4.)

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated to remote control sensor?

• Is the image position correct? (See page 16.)

• Are screen mode adjustments (4:3 Mode/WSS) such as picture size made
correctly? (See pages 17 and 19.)

• Adjust the picture tone. (See pages 12 and 13.)

• Is the room too bright? The picture may look dark in a room that is too bright.

• Check the colour system setting. (See pages 15 and 18.)

• The unit’s internal temperature has increased.
Remove any objects blocking vent or clean.

• Check the power control setting. (See page 14.)

• Is sleep timer set? Press SLEEP on the remote control unit until it sets to Off.

• Is connection to other components correct? (See pages 8 and 9.)

• Is input signal type selected correctly after connection? (See page 18.)

• Is the correct input source selected? (See page 8.)

• Is non-compatible signal being input? (See page 23.)

• Is picture adjustment correct? (See pages 12 and 13.)

• Is the antenna connected properly? (See page 3.)

• Is “On” selected in “Audio Only”? (See page 18.)

• No sound.

• The TV sometimes makes a
cracking sound.

• Is the volume too low? (See pages 5 and 6.)

• Make sure that headphones are not connected. (See page 6.)

• Check if you pressed e on the remote control unit. (See page 5.)

• This is not a malfunction. This happens when the cabinet slightly expands and
contracts according to change in temperature. This does not affect the TV’s
performance.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly
delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near
a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: –20°C to e60°C.

IMPORTANT NOTE ON RESETTING THE PIN

We suggest that you remove the following instruction from the operation manual to prevent children from
reading it. As this operation manual is multilingual, we also suggest the same with each language. Keep it in
a safe space for future reference.

1 Repeat steps 1 to 3 in Changing the PIN. (See page 16.)
2 Enter “3001” to cancel out the current PIN.

21

Appendix

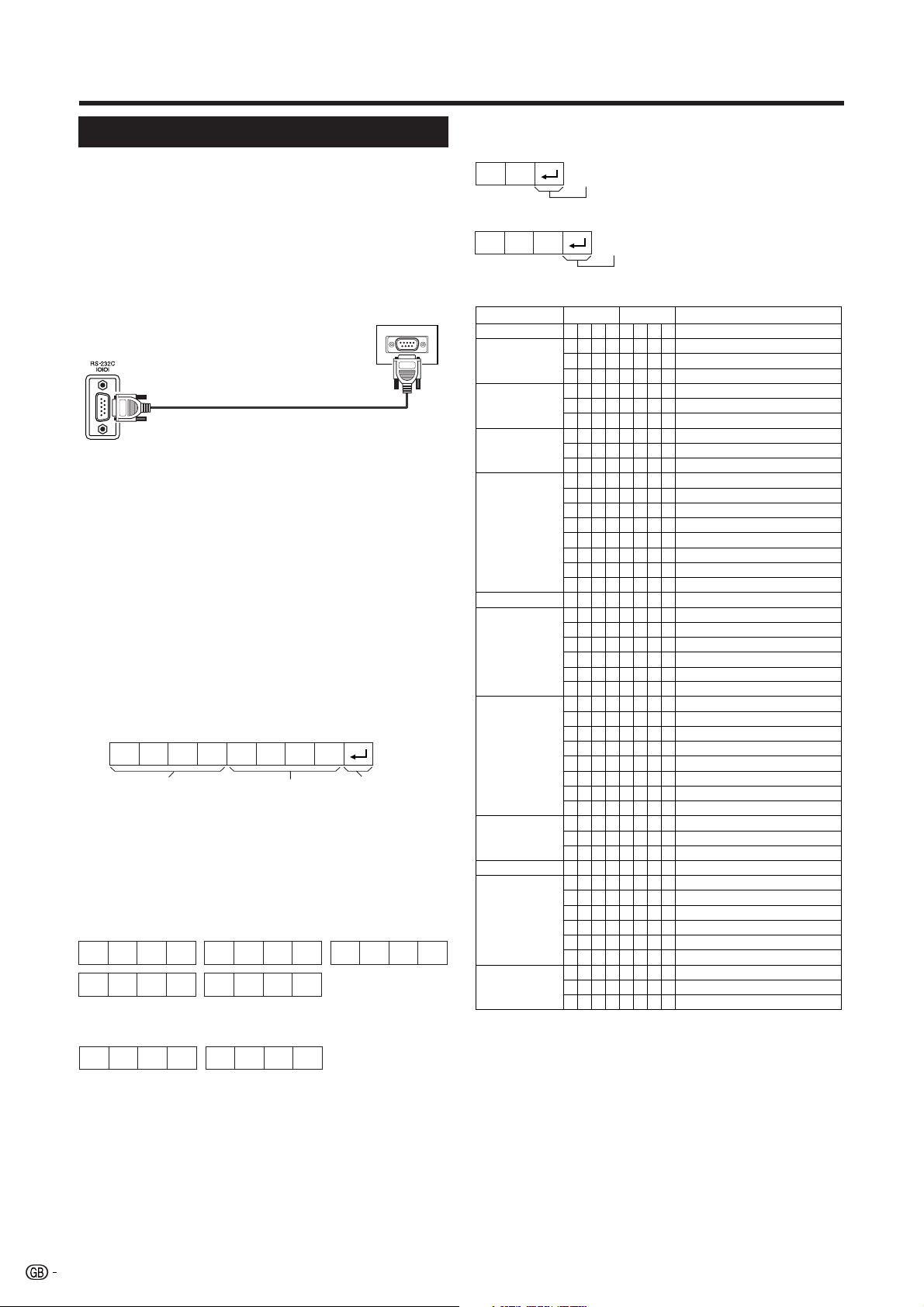

RS-232C port specifications

PC Control of the TV

When a program is set, the TV can be controlled from the PC
using the RS-232C terminal. The input signal (PC/video) can
be selected, the volume can be adjusted and various other
adjustments and settings can be made, enabling automatic
programmed playing. Attach an RS-232C cable cross-type
(commercially available) for the connections.

NOTE

• This operation system should be used by a person who is
accustomed to using PCs.

RS-232C serial control cable

(cross type, commercially available)

Communication conditions

Set the RS-232C communications settings on the PC to match
the TV’s communications conditions. The TV’s communications
settings are as follows:

• Baud rate: 9,600 bps

• Data length: 8 bits

• Parity bit: None

Communication procedure

Send the control commands from the PC via the RS-232C
connector.
The TV operates according to the received command and sends
a response message to the PC.
Do not send multiple commands at the same time. Wait until
the PC receives the OK response before sending the next
command.

Command format

Eight ASCII codes e CR

C1 C2 C3 C4 P1 P2 P3 P4

Command 4-digits: Command. The text of four characters.
Parameter 4-digits: Parameter 0 – 9, g, blank, ?

Parameter

Input the parameter values, aligning left, and fill with blank(s)
for the remainder. (Be sure that four values are input for the
parameter.)
When the input parameter is not within an adjustable range,
“ERR” returns. (Refer to “Response code format”.)

0

0009

– 30 0055

100

When “?” is input for some commands, the present setting value
responds.

? ????

• Stop bit: 1 bit

• Flow control: None

Return codeCommand 4-digits Parameter 4-digits

Response code format

Normal response

OK

Return code (0DH)

Problem response (communication error or incorrect command)

ERR

Return code (0DH)

Commands

CONTROL ITEM

POWER SETTING

INPUT SELECTION A

CHANNEL

INPUT SELECTION B

AV MODE
SELECTION

VOLUME

POSITION

WIDE MODE

MUTE

AUDIO CHANGE

SLEEP TIMER

TEXT

COMMAND PARAMETER

_

_

0

R

W

O

P

G

T

I

V

T

I

V

A

I

C

C

D

U

H

C

D

H

C

P

N

I

P

N

I

P

N

I

M

V

A

M

V

A

M

V

A

M

V

A

M

V

A

M

V

A

M

V

A

M

V

A

L

O

V

O

P

H

O

P

H

O

P

V

O

P

V

C

L

C

S

H

P

D

I

W

D

I

W

D

I

W

D

I

W

D

I

W

D

I

W

D

I

W

D

I

W

T

U

M

T

U

M

T

U

M

H

C

A

T

F

O

T

F

O

T

F

O

T

F

O

T

F

O

T

F

O

X

E

T

X

E

T

P

C

D

_

_

_

D

_

_

_

D

_

_

*

D

_

*

*

H

_

_

_

P

_

_

_

W

_

_

2

1

_

_

3

1

_

_

4

1

_

_

0

D

_

_

1

D

_

_

2

D

_

_

3

D

_

_

4

D

_

_

5

D

_

_

6

D

_

_

7

D

_

*

*

M

*

*

*

S

*

*

*

S

*

*

*

S

*

*

*

S

*

*

*

K

*

*

*

E

_

_

0

E

_

_

1

E

_

_

2

E

_

_

3

E

_

_

4

E

_

_

5

E

_

_

6

E

_

_

8

E

_

_

0

E

_

_

1

E

_

_

2

E

_

_

_

A

_

_

0

M

_

_

1

M

_

_

2

M

_

_

3

M

_

_

4

M

_

_

5

M

_

_

0

T

_

_

1

T

*

*

*

G

CONTROL CONTENTS

_

POWER OFF (STANDBY)

_

INPUT SWITCHING (Toggle)

_

TV (CHANNEL FIXED)

_

EXT1 – 5 (1 – 5)

_

TV DIRECT CHANNEL (1 – 99)

_

CHANNEL UP

_

CHANNEL DOWN

_

EXT1 (Y/C)

_

EXT1 (CVBS)

_

EXT1 (RGB)

_

AV MODE SELECTION (Toggle)

_

STANDARD

_

MOVIE

_

GAME

_

USER

_

DYNAMIC (FIXED)

_

DYNAMIC

_

PC

_

VOLUME (0 – 60)

_

H-POSITION AV (ⳮ10 – 10)

_

H-POSITION PC (0 – 180)

_

V-POSITION AV (ⳮ20 – 20)

_

V-POSITION PC (0 – 120)

_

CLOCK (0 – 180)

_

PHASE (0 – 15)

_

WIDE MODE (Toggle)

_

NORMAL (AV/PC)

_

ZOOM 14:9

_

PANORAMA

_

FULL (AV/PC)

_

CINEMA 16:9

_

CINEMA 14:9

_

DOT BY DOT (PC)

_

MUTE (Toggle)

_

MUTE ON

_

MUTE OFF

_

SOUND SELECT (ST/Bilingual/mono)

_

OFF

_

30 m

_

1 h 00 m

_

1 h 30 m

_

2 h 00 m

_

2 h 30 m

_

TEXT OFF

_

TEXT CHANGE (Toggle)

_

DIRECT PAGE JUMP (100 – 899)

NOTE

• If an underbar (_) appears in the parameter column, enter a
space.

• If an asterisk * appears, enter a value in the range indicated in
brackets under CONTROL CONTENTS.

22

Appendix

Specifications

Item

LCD panel
Number of dots 3,147,264 dots (1366 g 768 g 3 dots)
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL-60
TV

Function

Brightness 300 cd/m
Backlight life 50,000 hours (at Backlight Standard position)
Viewing angles H : 160° V : 160°
Audio amplifier 2W g 2
Speaker 75 mm g 30 mm
Terminals

OSD language Czech/Dutch/English/Finnish/French/German/Greek/Hungarian/Italian/Polish/Portuguese/

Power Requirement AC 220–240 V, 50 Hz
Power Consumption

Weight
Operating temperature 0°C to e40°C

Receiving
Channel

TV-Tuning System Auto Preset 99 ch, Auto Label, Auto Sort
STEREO/BILINGUAL NICAM/A2

Antenna input

Rear

RS-232C
EXT 1 SCART (AV input, Y/C input, RGB input, TV output)
EXT 2
EXT 3
EXT 4
EXT 5 Ø 3.5 mm jack (Audio input), 15 pin mini D-sub (PC)
Headphones

VHF/UHF E2–E69ch, F2–F10ch, I21–I69ch, IR A–IR Jch
CATV Hyper-band, S1–S41ch

18.5o LCD COLOUR TV, Model: LC-19A1E

18.5o Colour active matrix LCD panel incorporating amorphas silicon TFT

B/G, I, D/K, L, L’TV-Standard (CCIR)

2

UHF/VHF 75q Din type
9 pin D-sub male connector

S-VIDEO (Y/C input), RCA pin (AV input)
Audio in, Component in (480I, 576I, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz)

HDMI (VGA, 480P, 576P, 720P/50Hz, 720P/60Hz, 1080I/50Hz, 1080I/60Hz), RCA pin (Audio input)

Ø 3.5 mm jack (Audio output)

Russian/Slovak/Spanish/Swedish/Turkish

36 W (0.6 W Standby) (Method IEC60107)

4.7 kg (Display only), 5.2 kg (Display with stand)

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for
product improvement without prior notice. The performance specification figures indicated are nominal values of production
units. There may be some deviations from these values in individual units.

NOTE

• Refer to inside back cover for dimensional drawings.

PC compatibility chart (EXT 5 only)

Resolution

720 g 400
640 g 400

Horizontal

Frequency

31.5 kHz 70 Hz —

37.9 kHz 85 Hz ✓
720 g 400 37.9 kHz 85 Hz ✓
640 g 480VGA 31.5 kHz 60 Hz ✓
640 g 480 37.9 kHz 72 Hz ✓
640 g 480 37.5 kHz 75 Hz ✓
640 g 480 43.3 kHz 85 Hz ✓
848 g 480WVGA 31.0 kHz 60 Hz ✓
800 g 600 35.1 kHz 56 Hz ✓
800 g 600 37.9 kHz 60 Hz ✓
800 g 600SVGA 48.1 kHz 72 Hz ✓
800 g 600 46.9 kHz 75 Hz ✓
800 g 600 53.7 kHz 85 Hz ✓

Vertical

Frequency

VESA

Standard

Resolution

Horizontal

Frequency

Vertical

Frequency

VESA

Standard

1024 g 768 48.4 kHz 60 Hz ✓

XGA

1024 g 768

56.5 kHz 70 Hz ✓
1024 g 768 60.0 kHz 75 Hz ✓
1024 g 768 68.7 kHz 85 Hz ✓
1280 g 720 44.8 kHz 60 Hz —
1280 g 768WXGA 47.8 kHz 60 Hz ✓
1360 g 768 47.7 kHz 60 Hz ✓

VGA, WVGA, SVGA, XGA and WXGA are registered
trademarks of International Business Machines Corp.

NOTE

• This TV has only limited PC compatibility, correct operation
can only be guaranteed if the video card conforms exactly
to the VESA 60Hz standard. Any variations from this
standard will result in picture distortions.

23

Attention: Your product
is marked with this
symbol. It means that
used electrical and
electronic products
should not be mixed
with general household
waste. There is a
separate collection
system for these
products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that
requires proper treatment, recovery and recycling of used electrical and electronic equipment.
Following the implementation by member states, private households within the EU states may return their used
electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local
retailer may also take back your old product free of charge if you purchase a similar new one.
*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately
beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment,
recovery and recycling and thus prevent potential negative effects on the environment and human health which
could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you
don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or
www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged
for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your
local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used
products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of
disposal.

24

75.0

(75,0)

49.0

(49,0)

68.2

(68,2)

196.0

(196,0)

2.5˚

(2,5˚)

10.0˚

(10,0˚)

462.0

(462,0)

411.8

(411,8)

360.0

(360,0)

320.0

(320,0)

218.0

(218,0)

40.0

(40,0)

240.0

(240,0)

100.0

(100,0)

100.0

(100,0)

17.5

(17,5)

232.4

(232,4)

LC-19A1E

[mm]

PIN

Printed on environmentally friendly paper
Auf ökologischem Papier gedruckt
Imprimé sur papier écologique
Stampato su carta ecologica
Afgedrukt op ecologisch papier
Impreso en papel ecológico

Printed in Spain
Gedruckt in Spanien
Imprimé en Espagne
Stampato in Spagna
Gedrukt in Spanje
Impreso en España

TINS-D218WJZZ

07P09-SP-NG
