Sharp LC-15C3U, LC-20C3U User Manual

Download

LC-13C3U LC-15C3U

ENGLISH

LC-20C3U

LIQUID CRYSTAL TELEVISION TÉLÉVISEUR ACL TELEVISOR CON PANTALLA

DE CRISTAL LÍQUIDO

TELEVISOR DE CRISTAL

LÍQUIDO

OPERATION MANUAL MODE D’EMPLOI MANUAL DE OPERACIÓN MANUAL DE OPERAÇÃO

FRANÇAIS

ESPAÑOL

PORTUGUÊS

LC-13C3U LC-15C3U LC-20C3U

LIQUID CRYSTAL TELEVISION

ENGLISH

OPERATION MANUAL

IMPORTANT: To aid reporting in case of loss or theft, please record the TV’s model and serial numbers in the space provided. The numbers are located at the rear of the TV.

ENGLISH

Model No.:

Serial No.:

U.S.A. ONLY

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an equilat-

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

eral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT INFORMATION (Continued)

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment

not expressly approved by the manufacturer could void the user’s authority to operate this equipment.

U.S.A. ONLY

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF

PLUG TO WIDE SLOT, FULLY INSERT.

“Note to CATV system installer: This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.”

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

DEAR SHARP CUSTOMER

Thank you for your purchase of the Sharp LCD Color TV product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

IMPORTANT SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD color TV product, please read the following precautions carefully before using the product.

■ Read instructions—All operating instructions must be read and understood before the product is operated.

■ Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for future reference.

■ Observe warnings—All warnings on the product and in the instructions must be observed closely.

■ Follow instructions—All operating instructions must be followed.

■ Attachments—Do not use attachments not recommended by the manufacturer. Use of inad-

equate attachments can result in accidents.

■ Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions.

■ Power cord protection—The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.

■ If the AC adapter is misplaced or needs to be replaced, obtain the same type of adapter from a SHARP service center or your dealer.

■ Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.

■ Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.

■ Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.

■ Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs. a.When the power cord or plug is damaged. b.When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d.When the product does not operate properly as described in the operating instructions.

Do not touch the controls other than those described in the operating instructions. Improper

adjustment of controls not described in the instructions can cause damage, which often

requires extensive adjustment work by a qualified technician. e.When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product

indicates that the product needs servicing.

■ Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.

■ Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.

■ Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

■ Polarization—This AC adapter may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

IMPORTANT SAFETY PRECAUTIONS (Continued)

■ Cleaning—Unplug the power cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

■ Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.

■ Stand—Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

■ When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

■ Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.

■ The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.

■ Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

■ The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.

IMPORTANT SAFETY PRECAUTIONS (Continued)

(

)

■ If an outside antenna is connected to the television equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER

NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA

ELECTRIC SERVICE EQUIPMENT

NEC—NATIONAL ELECTRICAL CODE

GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM

NEC ART 250, PART H

DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

■ For added protection for this television equipment during a lightning storm, or when it is left unattended and unused for long period of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

■ An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

CONTENTS

IMPORTANT INFORMATION ....................................................................................................... 1, 2

DEAR SHARP CUSTOMER .............................................................................................................3

IMPORTANT SAFETY PRECAUTIONS ....................................................................................... 3-5

CONTENTS ....................................................................................................................................... 6

SUPPLIED ACCESSORIES ............................................................................................................. 7

PREPARATION ............................................................................................................................ 8-10

Using the Remote Control ......................................................................................................... 8

Batteries for the Remote Control .............................................................................................. 8

Antenna Connection .............................................................................................................9, 10

Power Connection .................................................................................................................... 10

DISPLAY AND CONTROL OVERVIEW .................................................................................. 11-13

Removing the Back Cover ....................................................................................................... 13

Listening with Headphones ..................................................................................................... 13

REMOTE CONTROL ...................................................................................................................... 14

EZ SETUP ....................................................................................................................................... 15

EZ SETUP during the First Power On .................................................................................... 15

BASIC OPERATION ................................................................................................................. 16-20

TV signals in your region ........................................................................................................ 16

Turning on POWER................................................................................................................... 17

Standby ...................................................................................................................................... 17

Switching TV/VIDEO [AV1/AV2/COMPONENT/TV] Modes ................................................... 18

Sound Volume ........................................................................................................................... 19

Changing Channels .................................................................................................................. 20

SELECTING MENU ITEMS ............................................................................................................21

Selecting Menu Items .............................................................................................................. 21

ADJUSTMENTS ........................................................................................................................ 22-42

Adjusting SLEEP TIMER Settings ........................................................................................... 22

Adjusting BRIGHTNESS Settings ........................................................................................... 23

Adjusting PICTURE FLIP Settings ..........................................................................................24

Adjusting PRESET Settings .................................................................................................... 25

Adjusting LANGUAGE Settings .............................................................................................. 26

Adjusting VIDEO ADJUST Settings ..................................................................................27, 28

Adjusting AUDIO ADJUST Settings .................................................................................. 29, 30

SET UP .................................................................................................................................31, 32

Adjusting BLUE SCREEN Settings ......................................................................................... 33

Adjusting CLOSED CAPTION Settings ............................................................................ 34, 35

Adjusting V-CHIP Settings .................................................................................................. 36-42

CONNECTING EXTERNAL DEVICES ..................................................................................... 43-45

Bundling Cables with Clamps ................................................................................................ 45

TROUBLESHOOTING ..............................................................................................................46, 47

SPECIFICATIONS........................................................................................................................... 48

DIMENSIONAL DRAWINGS .....................................................................................................49-51

CALLING FOR SERVICE ............................................................................................................... 52

LIMITED WARRANTY ..............................................................................................................52, 53

Page

SUPPLIED ACCESSORIES

Make sure the following accessories are provided with the product.

Remote Control

RRMCGA118WJSA

“AAA” size (UM/SUM-4) Dry Battery (×2)

AC CordAntenna Cable

QCNWG0003CEPA

AC Adapter

UADP-0212CEZZ

UADP-A009WJPZ (LC-13/15C3U)

UADP-0243CEPZ (LC-20C3U)

QACCD3097CEPA

Operation Manual

UBATU0026GEZZ

TINS-A419WJZZ

Cable Clamp (×2)

ENGLISHFRANÇAISESPAÑOLPORTUGUÊS

LHLDWA002WJSA

PREPARATION

Using the Remote Control

■ Use the remote control by pointing it towards the remote

control sensor window on the main unit. Objects between the remote control and sensor window may prevent proper operation.

Cautions regarding use of the remote control

■ Do not expose the remote control to shock.

In addition, do not expose the remote control to liquid, and do not place in an area with high humidity.

■ Do not install or place the remote control under direct

sunlight. The heat may cause deformation of the unit.

■ The remote control may not work properly if the remote

control sensor window of the main unit is under direct sunlight or strong lighting. In such case, change the angle of the lighting or LCD TV set, or operate the remote control closer to the remote control sensor window.

SLEEPPOWER

SLEEP indicator POWER indicator Remote control sensor

Batteries for the Remote Control

Before using the LCD TV set for the first time, install two (“AAA” size, UM/SUM-4) batteries (supplied). When the batteries become depleted and the remote control fails to operate, replace the batteries with new (“AAA” size, UM/SUM-4) batteries.

1 Open the battery

cover.

2 Insert two (“AAA” size, UM/

SUM-4) batteries.

3 Close the battery

cover.

–

■ Slide the cover while pressing the (b) part.

Caution!

■ Position the positive and negative ends of the batteries as indicated in the compartment.

■ Engage the claw on the cover into the battery housing and slide shut.

Cautions regarding batteries

Improper use of batteries can result in chemical leakage and/or explosion. Be sure to follow the instructions below.

• Place batteries with their terminals corresponding to the (+) and (–) as indicated in the compartment.

• Different types of batteries have different characteristics. Do not mix batteries of different types.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new

battery and/or cause the old battery to leak chemicals.

• Remove batteries when they become weak. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a cloth.

• The batteries supplied with the product may have a shorter life expectancy due to storage conditions.

• If the remote control will not be used for an extended period of time, remove the batteries from the

remote control.

PREPARATION (Continued)

Antenna Connection

ANTENNAS

• The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connections that are provided with the various antenna systems.

1. A 75-ohm system is generally a round cable with F-type

F-type connector

connector that can easily be attached to a terminal without tools (not supplied).

75-ohm coaxial cable (round)

2. A 300-ohm system is a flat “twin-lead” cable that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (not supplied).

300-ohm twin-lead cable (flat)

OUTDOOR ANTENNA CONNECTION

• Use one of the following two diagrams if you connect an outdoor antenna. A: Using a VHF/UHF combination outdoor antenna B: Using separate VHF and/or UHF outdoor antennas

• Connect the outdoor antenna cable lead-in to ANT. (Antenna terminal) on the rear of the TV set.

A. Combination VHF/UHF Antenna

300-75-ohm

adapter

VHF/UHF

antenna

300-ohm twin-lead

COMPONENT

O E D

I V

1 N

V A

O I

D U A

E D I V

O E

U O /

2 IN

V A

O I

U A

HEAD PHONE

UDIO A

ER W

13V

Antenna cable (supplied)

ANT.

POWER

INPUT DC13V

ANT. (Antenna terminal)

(not supplied)

B. Separate VHF and/or

UHF Antennas

300-ohm twin-lead

Combiner

(not supplied)

OUT IN

300-ohm twin-lead

75-ohm coaxial cable

VHF/UHF

antenna

75-ohm

coaxial cable

UHF

antenna

VHF

antenna

PREPARATION (Continued)

POWER

INPUT DC13V

Antenna Connection (Continued)

CABLE TV (CATV) CONNECTION

• A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75ohm coaxial cable to the set, screw the 75-ohm cable to the ANT. terminal.

• Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled channels. (Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown, consult your cable TV company.) For more specific instructions on installing cable TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by your cable TV company is explained below.

Please note: An RF switch provided with two inputs (A and B) is required (not supplied).

“A” position on the RF switch (not supplied): You can view all unscrambled channels by using the TV’s

channel keys.

“B” position on the RF switch (not supplied): You can view the scrambled channels via the converter/

descrambler by using the converter’s channel keys.

RF switch (not supplied)

OUT

Cable TV converter/

descrambler

(not supplied)

• Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that might be

required.

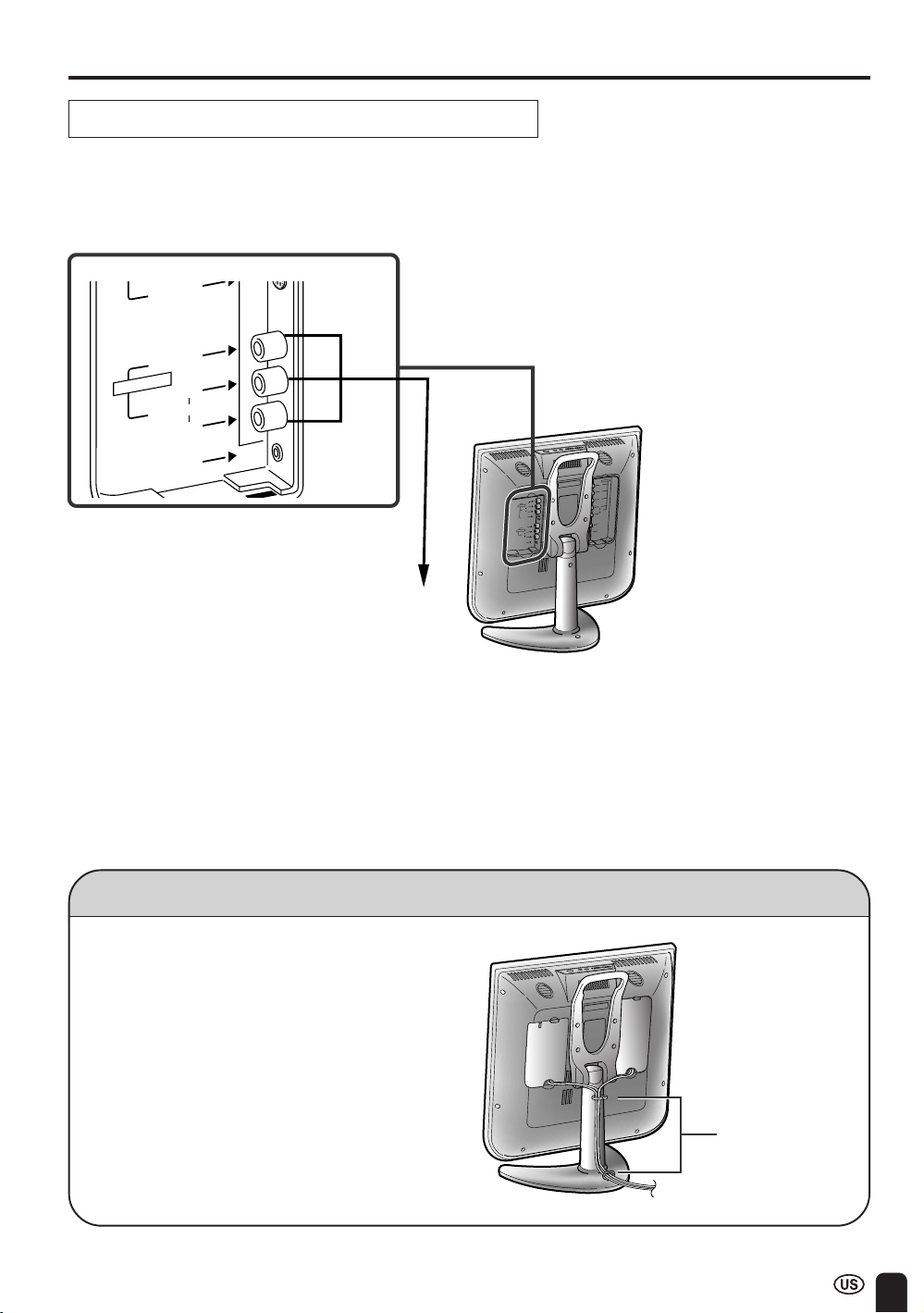

Two-set signal splitter (not supplied)

Cable TV Line

Power Connection

MAIN POWER

VIDEO

AUDIO

S-VIDEO

VIDEO

U /O 2

-IN V A

L IO

AUD

HEAD PHONE

N E N

O P

M O C

D U A

. T

N A

W O P

P IN

V 3 1

C D

Household power outlet

POWER INPUT terminal (DC12V:LC-13C3U

: LC-15C3U

DC13V: LC-20C3U)

AC adapter

AC cord

• Use a commercially available AC plug adapter, if necessary, depending on the design of the wall outlet.

• Always turn the MAIN POWER switch of the LCD TV set to off when connecting the AC adapter.

• Unplug the AC adapter from the product and power outlet when not using for a long period of time.

DISPLAY AND CONTROL OVERVIEW

Controls

Upper control panel

CHVOL

LC-20C3U

TV/VIDEO MAIN POWER

Speaker (Left)

LC-13C3U LC-15C3U

VOL (–)/(+)

CH ( )/( )

MAIN POWER

TV/VIDEO

CHVOL

TV/VIDEO MAIN POWER

To change the vertical angle of the LCD TV set, tilt the screen up to 2.5 degrees forward or 10 degrees backward. The TV set can also be rotated 25 degrees horizontally. Adjust the angle so that the TV set can be watched most comfortably.

Speaker (Right)

Subwoofer

SLEEP indicator

The SLEEP indicator lights up red when the SLEEP TIMER is set.

POWER indicator

Remote control sensor

* The examples used throughout this manual are based

• TV/VIDEO, CH ( )/( ), VOL (–)/(+), and MENU on the main unit have the same functions as the same buttons on the remote control. Basically, this operation manual provides a description based on operation with the remote control.

• The LC-13C3U, LC-15C3U and LC-20C3U have different external dimensions and the positions where the names of the buttons are displayed also differ but the same operating procedures are followed for all three models.

A green indicator lights when the power is on and a red indicator lights when in the standby mode (the indicator will not light when the main power is off).

on the LC-20C3U model.

DISPLAY AND CONTROL OVERVIEW (Continued)

Terminals

VIDEO

AV-IN1

AUDIO

S-VIDEO

VIDEO

AV-IN2/OUT

AUDIO

HEAD PHONE

VIDEO AUDIO (L)

AUDIO (R) S-VIDEO

VIDEO AUDIO (L) AUDIO (R)

HEADPHONE

AV-IN1

AV-IN2/OUT

-IN V A

AUDIO

S-VIDEO

VIDEO

T U

-IN

AUDIO

HEAD PHONE

● Adjusting the screen view angle

Hold the carrying handle and tilt the screen while steadying the stand with your other hand.

Carrying handle

N E N

O P

M O C

D U A

T N A

R E W

T U

V 3

COMPONENT

AUDIO (L)

AUDIO (R)

ANT. (Antenna terminal)

POWER INPUT

(DC12V: LC-13C3U

: LC-15C3U

DC13V: LC-20C3U)

PB P

COMPONENT

AUDIO

ANT.

POWER

INPUT

DC13V

DISPLAY AND CONTROL OVERVIEW (Continued)

-V

D P

-I

Removing the Back Cover

■ Before connecting cables and cords to the rear terminals, remove the back covers. Push in the tabs and pull out the back covers carefully.

■ To mount the cover, insert the 2 hooks on the bottom of the cover into the cabinet and press on the upper part of the back cover until the tab locks in place with a click.

Listening with Headphones

■ Plug the headphone mini-plug into the HEADPHONE jack located on the rear of the TV set.

▼ On-screen display

c Rear terminal

VOLUME

Adjust the sound volume

Headphones

E ID V

-IN V A

IO UD A

E ID

S-V

VID

2/O

V-IN

L DIO

D A

E H

E N O

H P

using VOL (e)/(f) on the remote control.

• Headphones are not included in the supplied accessories.

• No sound is heard from the main unit speakers when a headphone mini-plug is connected into the

HEADPHONE jack.

REMOTE CONTROL

POWER

ENTER

BRIGHT

CHVOL

SUB

TV/VIDEO

RETURN

2 3

SLEEP PIC. FLIP

DISPLAY MENU

MUTE

1 POWER (p. 17)

Switch the Liquid Crystal Television power on or off.

2 SUB (p. 29)

Switch the subwoofer on or off.

3 SLEEP (p. 22)

Set the sleep timer.

4 ENTER

Execute a command.

5 DISPLAY

Display the channel information.

6 BRIGHT (p. 23)

Adjust the brightness of the screen.

7 MUTE (p. 19)

Mute the sound.

8 VOL (+)/(–) (p. 19)

Set the volume.

9 CH ( )/( ) (p. 20)

Select channel.

10 MTS (p. 19)

Select audio settings.

11 PIC. FLIP (p. 24)

Set the orientation of the picture.

12 a/b/c/d (Cursor control) (p. 21)

Select a desired item on the screen.

13 MENU (p. 21)

Display the menu screen.

14 CC (p. 34)

Display Closed Caption subtitles.

15 TV/VIDEO (p. 18)

Select a Liquid Crystal Television input source.

16 RETURN

Return to the previous channel.

17 Channel Select (p. 20)

Set the channel.

EZ SETUP

EZ SETUP during the First Power On

Control section of main unit

MAIN POWER

TV/VIDEO

CHVOL

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

ENTER/

RETURN

CHVOL

a/b/c/d

■ When you turn on the TV for the first time, it will automatically memorize the broadcasting channels. Please perform the following instructions before you press MAIN POWER. (1) Insert the batteries into the remote control. (See page 8.) (2) Connect the antenna cable to the TV set. (See page 9.) (3) Connect the AC adapter to the POWER INPUT terminal of the

product and plug in the AC cord to the wall outlet. (See page 10.)

1 Press MAIN POWER, located on

the upper side of the main unit, to turn on the TV. The SELECT LANGUAGE mode will be dis-

SELECT LANGUAGE ENGLI SH ESPAÑOL FRANCAI S

played.

2 Press a/b to select “ENGLISH”,

“ESPAÑOL (SPANISH)” or “FRANCAIS (FRENCH)”.

SELECT : ENTER: EXIT:

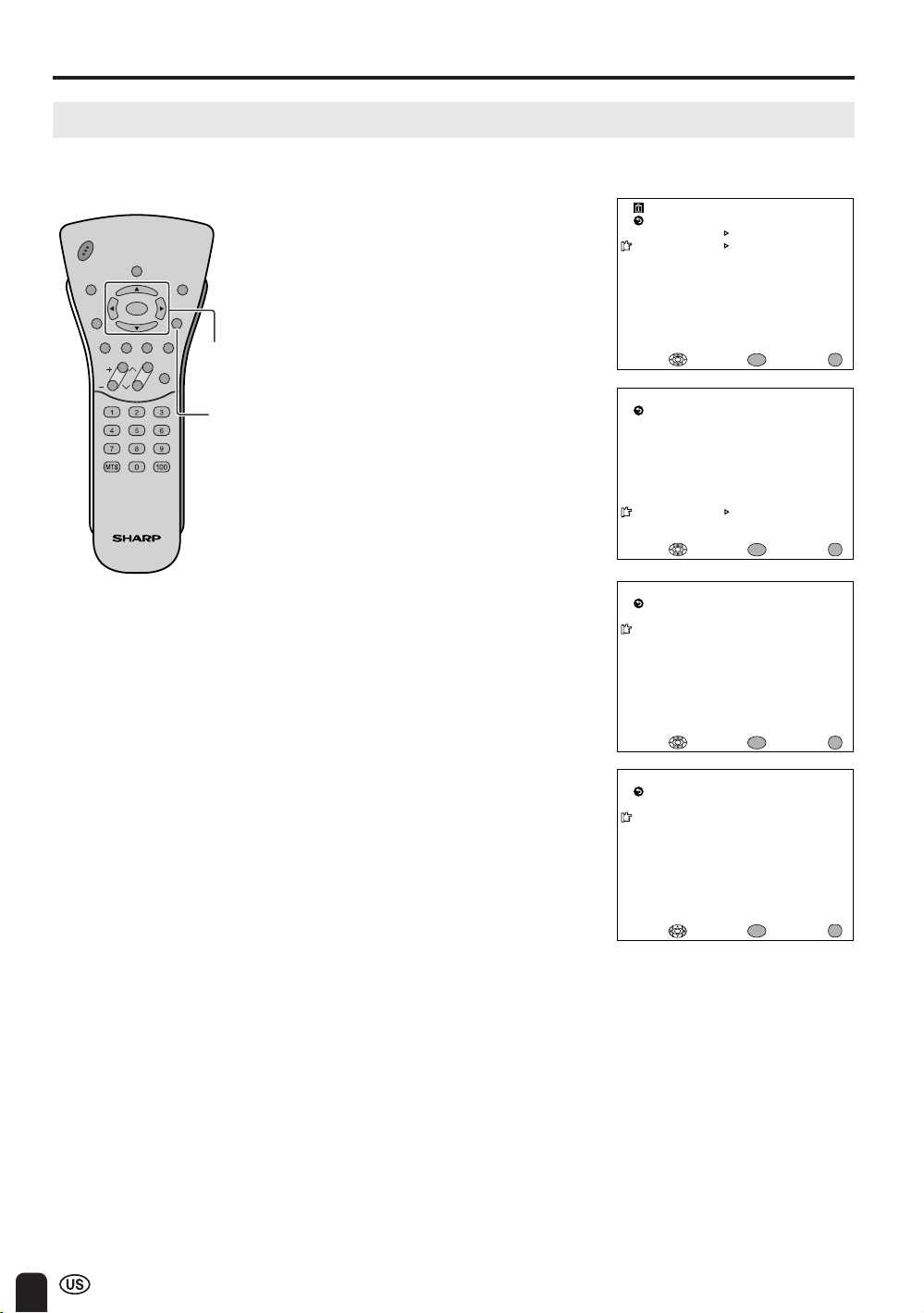

3 Press ENTER to access EZ

SETUP mode.

4 Press d.

The tuner will automatically search for the broadcasting and cable TV channels. (The CH No. will automatically increase when it appears.)

If you want to stop the EZ SETUP process once it has started, press c and it will be canceled. If you want to SET UP again, please refer to pages 31 and 32 on SET UP.

CONNECT ANTENNA OR CA BL E.

START EZ SETUP?

YES : NO : EXIT:

ENTER

To cancel EZ SETUP

Press c.

PLEASE WAIT

AUTO PROGRA

STOP:

ING

5 Once EZ SETUP is completed, the

lowest channel number memorized will be displayed.

• Do not let the EZ SETUP screen remain unattended for a long time.

• If EZ SETUP does not memorize all the channels in your region, please refer to pages 31 and 32 for more

information on manually memorizing the channels using CHANNEL SETTING.

• It may be difficult to preset when the broadcasting signals are weak, the channel cycle frequency is incorrect or the frequency jamming is occurring around the area. Please refer to pages 31 and 32 for more information on manually memorizing channels using CHANNEL SETTING.

BASIC OPERATION

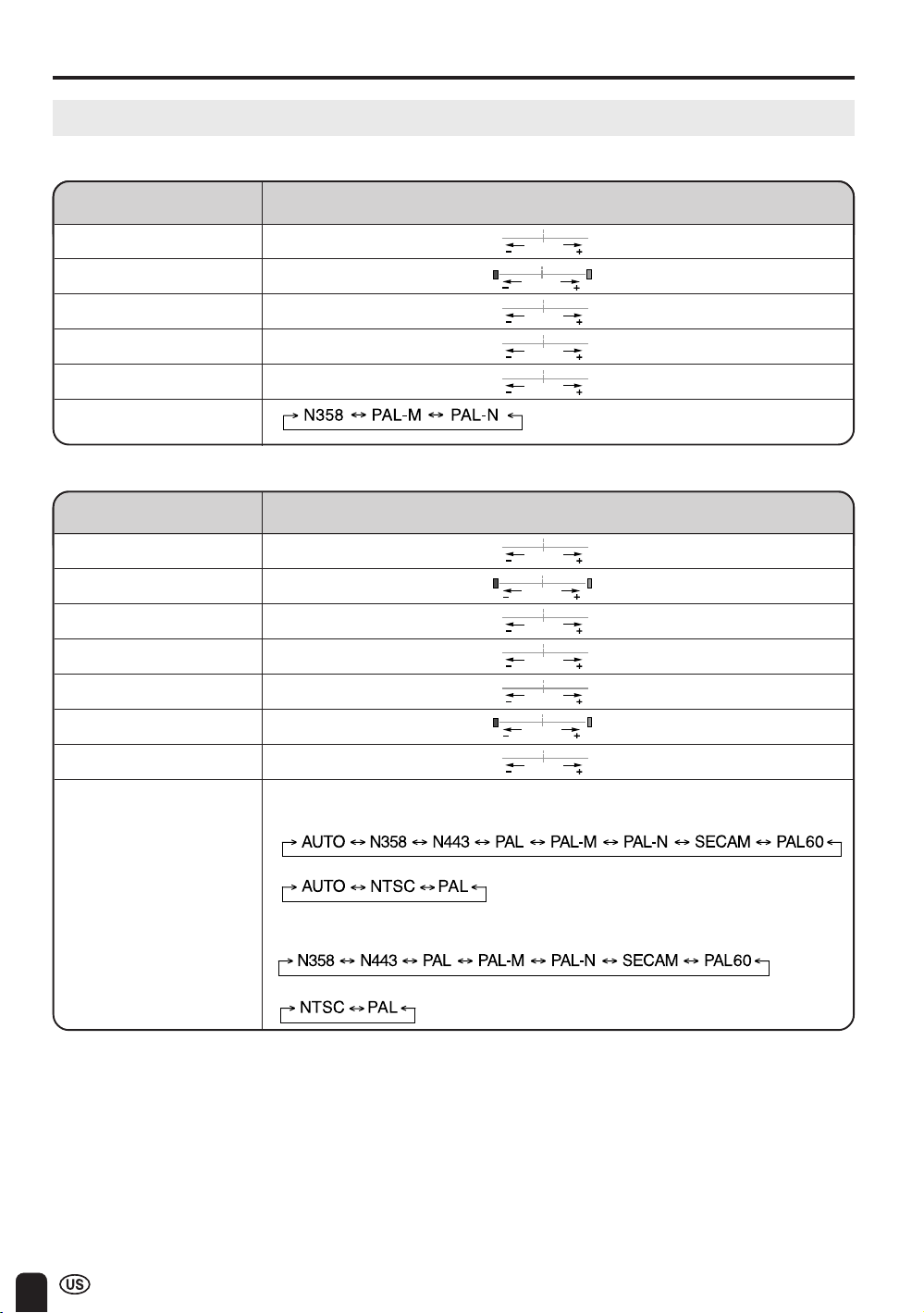

TV signals in your region

This product is factory set to comply with the TV broadcasting system in the United States. For Brazil, Argentina and Uruguay, set the color system according to the country before using this product by following the table below.

■ LC-13C3U, LC-15C3U

The VIDEO INPUT mode is compatible with color systems worldwide and is automatically set.

The World Multi Auto System

Country

U.S.A.

Canada, Mexico, Color: NTSC NTSC (N358) World Multi Latin America TV ch: US ch US ch Auto System

Brazil

Argentina, Color: PAL-N NTSC (N358) World Multi Set color system to Uruguay TV ch: US ch US ch Auto System PAL-N (see page 28)

TV broadcasting system

Color: NTSC NTSC (N358) World Multi

TV ch: US ch US ch Auto System

Color: PAL-M NTSC (N358) World Multi Set color system to TV ch: US ch US ch Auto System PAL-M (see page 28)

Factory setting of color system User setting

TV Video TV

Not required or N/A

is compatible with all color systems indicated below.

1 N358 2 N443 3 PAL 4 PAL-M 5 PAL-N 6 SECAM 7 PAL-60

■ LC-20C3U

Country

U.S.A.

Canada, Mexico, Color: NTSC NTSC (N358) NTSC (N358) Latin America TV ch: US ch US ch US ch

Brazil

Argentina, Color: PAL-N NTSC (N358) NTSC (N358) Set color system to Uruguay TV ch: US ch US ch US ch PAL-N (see page 28)

TV broadcasting system

Color: NTSC NTSC (N358) NTSC (N358)

TV ch: US ch US ch US ch

Color: PAL-M NTSC (N358) NTSC (N358) Set color system to TV ch: US ch US ch US ch PAL-M (see page 28)

• The 3 Dimensional Y/C separation circuit* only works when the color system is set to N358 in TV mode and Video mode. *The 3 Dimensional Y/C separation circuit is used to remove flickering and color bleeding.

Factory setting of color system User setting

TV Video TV/Video

Not required or N/A

BASIC OPERATION (Continued)

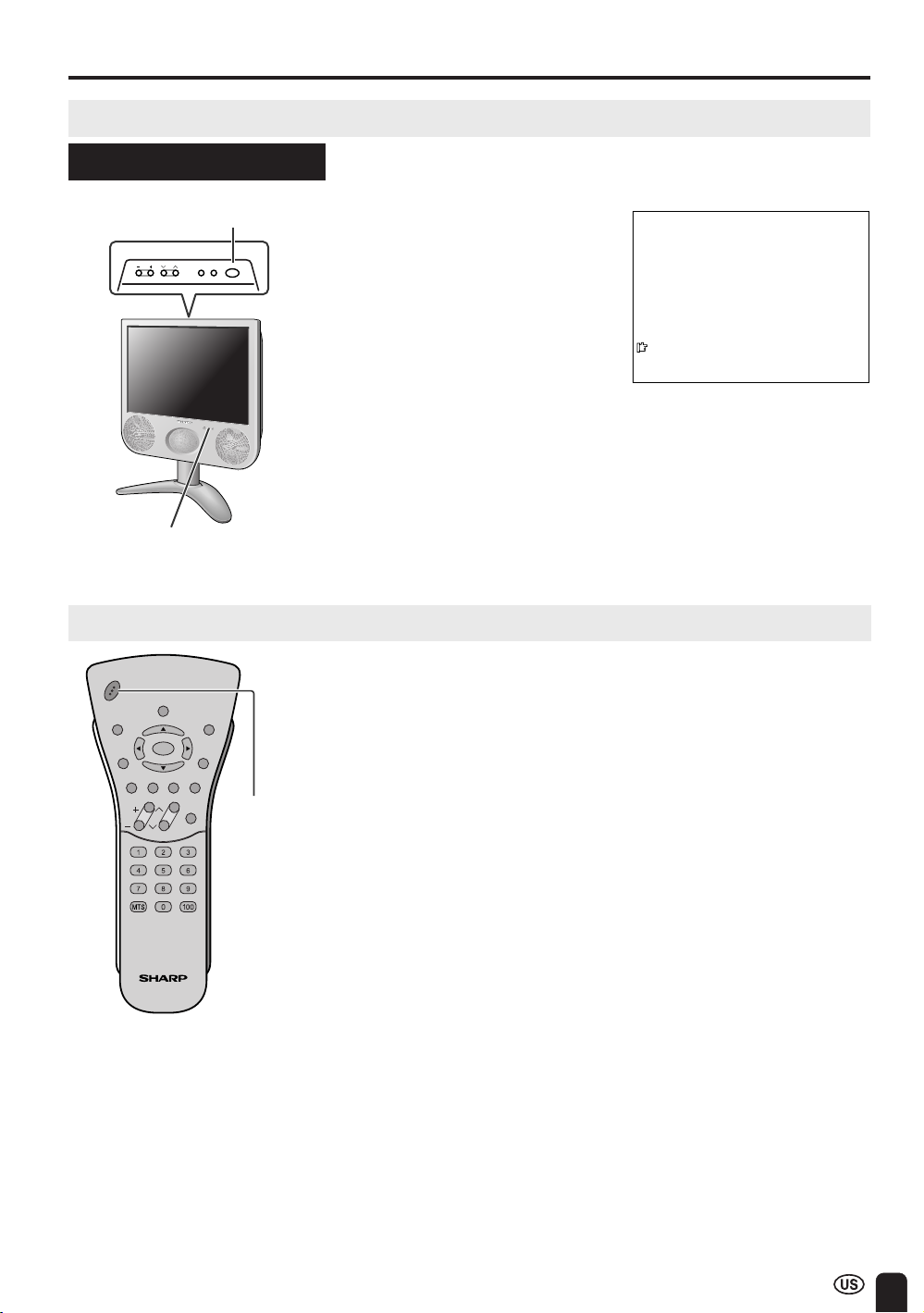

Turning on POWER

Control section of main unit

POWER indicator

Standby

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

CHVOL

MAIN POWER

TV/VIDEO

CHVOL

TV/VIDEO

RETURN

POWER

1 Press MAIN POWER, located on

the upper side of the main unit, to on.

2 The POWER indicator instantane-

ously changes from red to green and the main unit turns on.

• The On-screen indicator disappears after a few seconds.

Notes:

To turn off the LCD TV

Press POWER on the remote control. The POWER indicator turns red.

To turn the LCD TV back on

Press POWER again. The POWER indicator turns green.

▼ On-screen display

STEREO SAP M

ONO

BASIC OPERATION (Continued)

Switching TV/VIDEO [AV1/AV2/COMPONENT/TV] Modes

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

TV/VIDEO

1 Turn on the power of the con-

nected video equipment.

2 Press TV/VIDEO and select the

applicable input source. The screen displays AV1, AV2, COMPONENT or TV mode each time TV/VIDEO is pressed.

• The AV input mode indication remains for 3 seconds.

• AV1: Video equipment connected to the

AV-IN1 input terminals. An S-video input terminal is additionally provided for the AVIN1 input. If both the S-video terminal and normal video terminals are connected with cables, the S-video input terminal takes priority.

• AV2: AV2 mode is used to adjust the

preset settings and IN or OUT can be selected. AV2 indication is not displayed when OUT is selected. (For details on setting AV2 IN/OUT, see page 25.)

• COMPONENT:

Video equipment connected to the COMPONENT input terminals.

AV1 mode

AV1

AV2 mode

AV2

COMPONENT mode

COMPONE NT

TV mode

BASIC OPERATION (Continued)

Sound Volume

POWER

SLEEP PIC. FLIP

DISPLAY MENU

MUTE

BRIGHT

SUB

ENTER

CHVOL

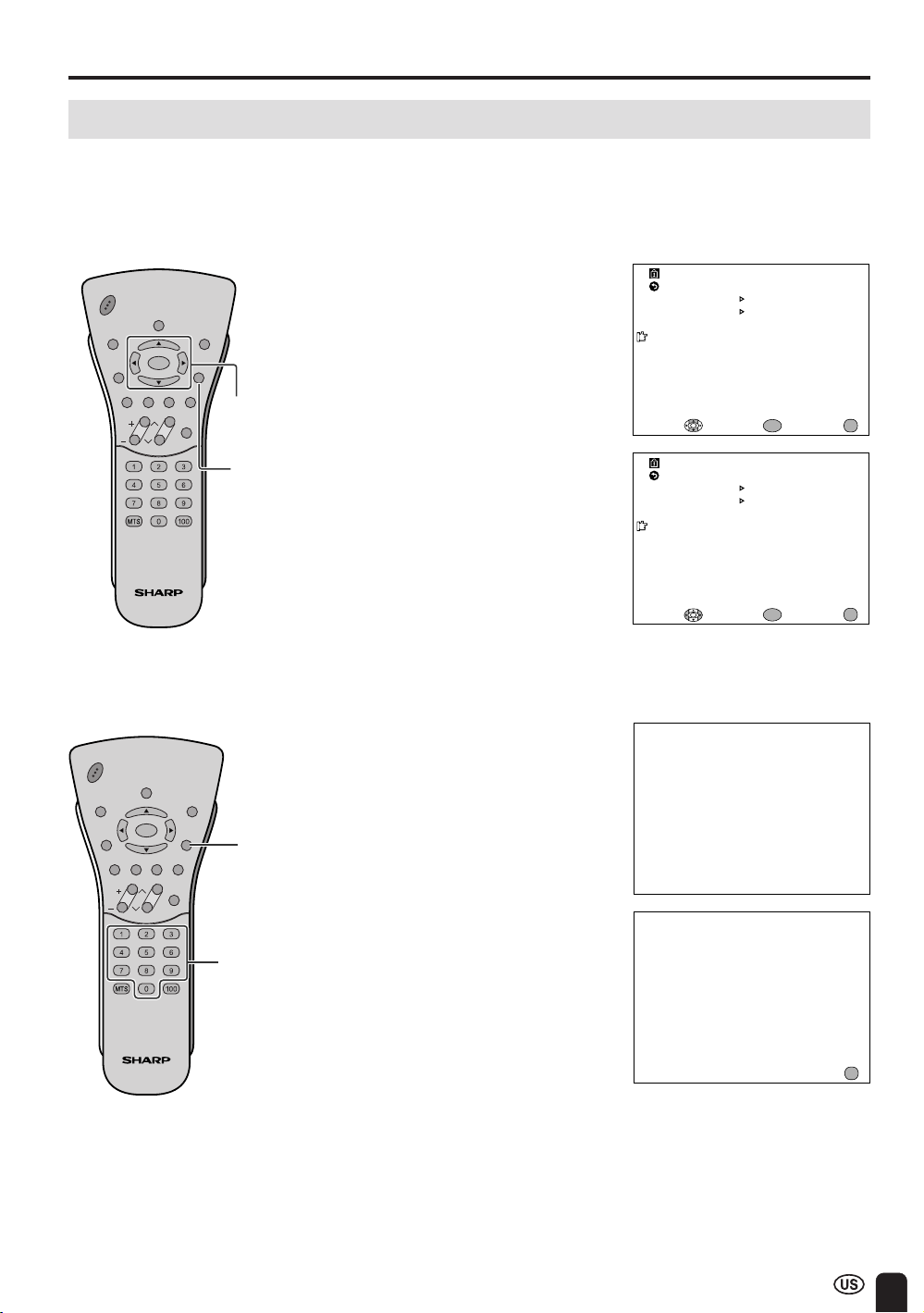

1 Press VOL (+) to increase the sound

volume. The bar indicator shifts right.

VOLUME

2 Press VOL (–) to decrease the sound

volume. The bar indicator shifts left.

TV/VIDEO

RETURN

MUTE

VOLUME

To mute the sound

VOL (+)/(–)

MTS

1 Press MUTE to temporarily turn off

the sound. The MUTE mark 4 seconds.

is displayed for

2 Press MUTE or VOL (+)/(–) to turn

the sound back to the previous level. The mute function is automatically turned off when any of the following buttons are pressed: POWER,

VOL (+)/(–) or MTS.

To select MTS (Multichannel TV Sound)

1 Press MTS to display the MTS

screen.

VOLUME

2 Press MTS to select the MTS

settings. STEREO: stereo audio SAP: secondary audio program MONO: monophonic audio

•<ON AIR appears when a STEREO or SAP

broadcast is being aired.

STEREO<ON A I R SAP M

ONO

BASIC OPERATION (Continued)

Changing Channels

Changing channels by using Channel Select on the remote control

• This LCD TV set allows you to select up to 125 channels (1 to 125). To select a channel, enter a 2or 3-digit number.

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

)/( )

(

Channel Select

To select a 1- or 2-digit channel number (e.g., Channel 5):

Complete the following procedure within 4 seconds.

1 Press the button. 2 Press the

• When selecting a 1-digit channel

number, do not fail to press the button first.

To select a 3-digit channel number (e.g., Channel 115):

Complete the following procedure within 4 seconds.

button.

1 Press the button. 2 Press the button. 3 Press the

• The 3-digit channel number can be

selected only when the receiving mode is set to CABLE in CH-SETTING. (For details on setting the receiving mode, see page 31.)

button.

0 –

1 ––

11–

115

Changing channels with CH ( )/( ) on the remote control

Air Press CH ( ) and the channels change in the order shown below:

2 → 3 → . . . → 68 → 69 → 2 → 3 → . . . Press CH (

) and the channels change in the order shown below:

3 → 2 → 69 → 68 → . . . → 3 → 2 → . . .

Cable Press CH (

) and the channels change in the order shown below: 1 → 2 → 3 → . . . → 125 →1 → 2 → 3 → . . . Press CH (

) and the channels change in the order shown below: 3 → 2 → 1 → 125 → . . . → 3 → 2 → 1 → . . .

SELECTING MENU ITEMS

Selecting Menu Items

• This LCD TV set allows you to adjust the various settings using the menu screen. Select the desired menu item by following the steps below and then refer to the indicated page for details.

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

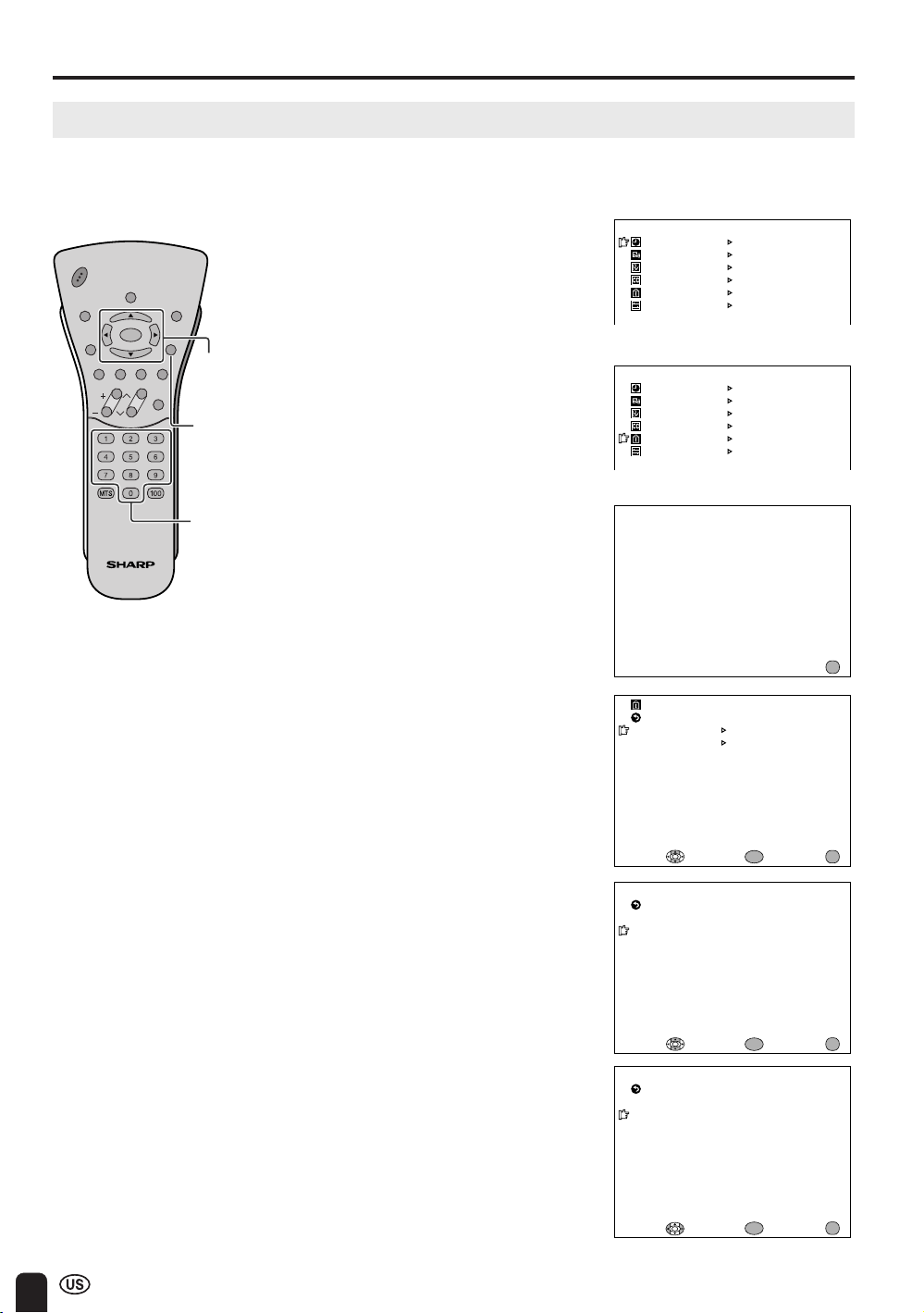

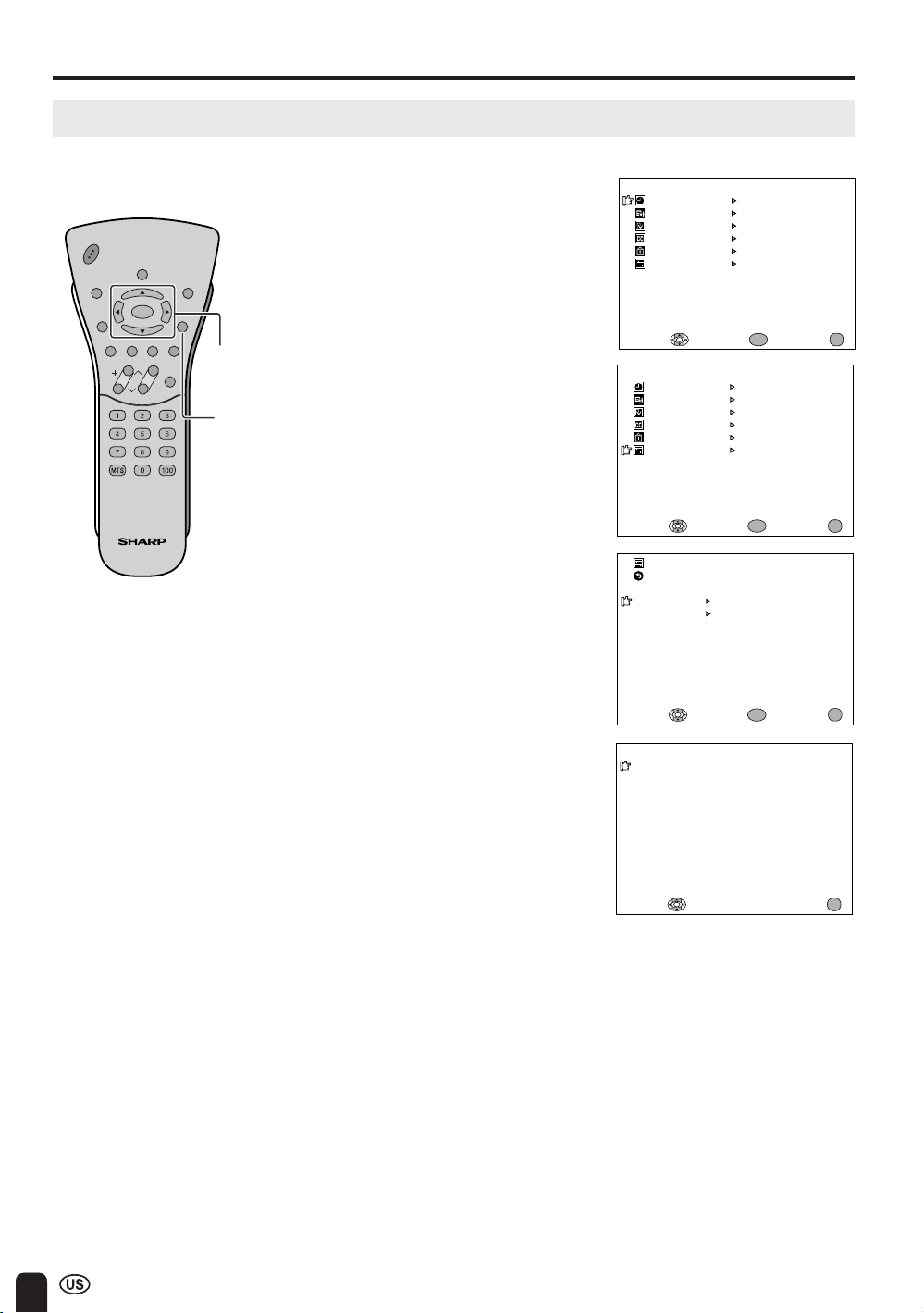

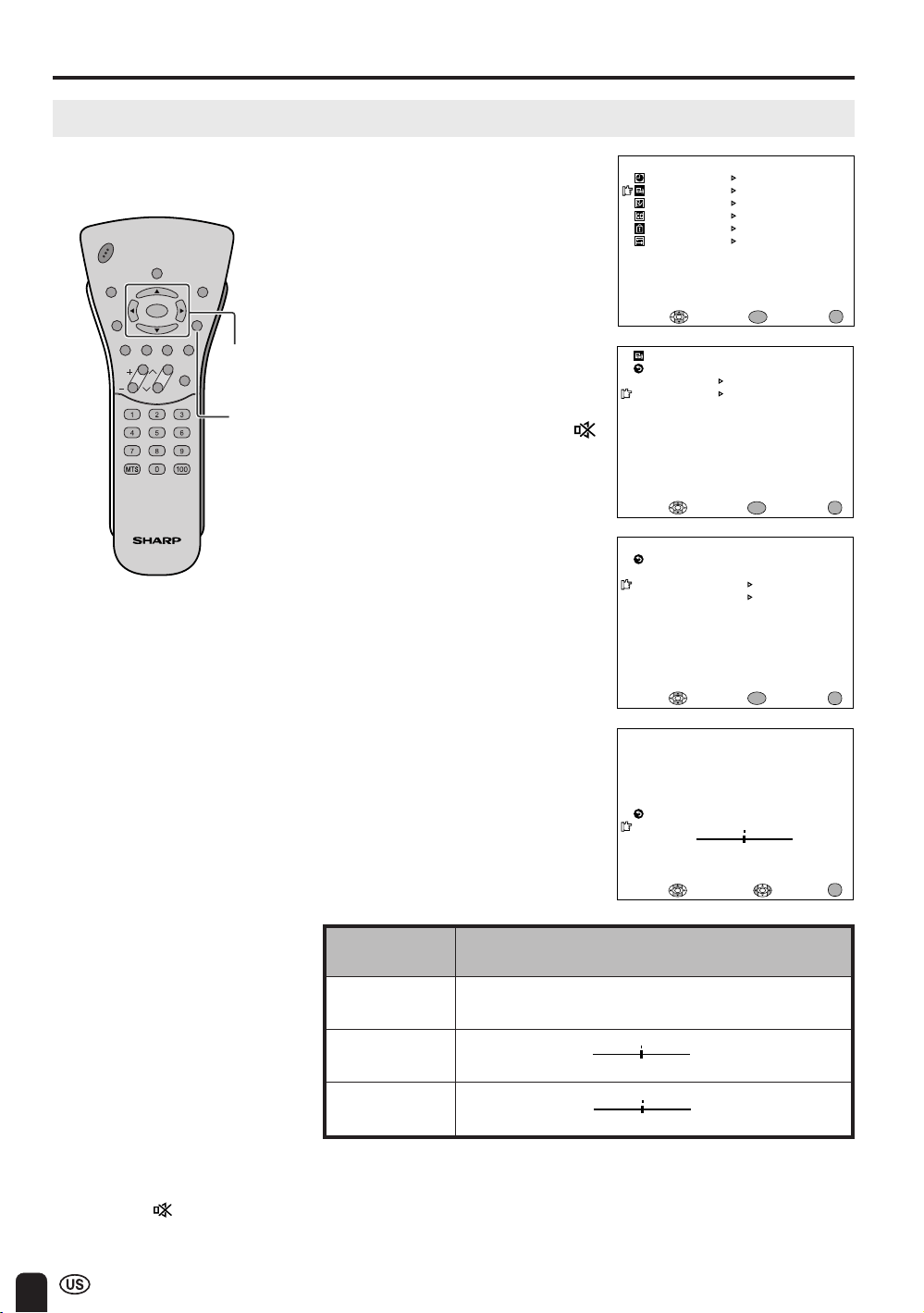

1 Press MENU to display the MENU

screen.

2 Press a/b to select the desired

menu item, and press ENTER.

3 Press MENU to exit.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : EXIT:

ENTER:

ENTER

• The displayed items differ depending on the setting conditions.

• The selected item changes to yellow.

• Items in magenta cannot be selected.

• TV mode

This product is factory set to comply with the color system in the United States (NTSC-N358). For Brazil (PAL-M), Argentina (PAL-N) and Uruguay (PAL-N), set the color system before using this product.

• To return to the previous screen, select RETURN.

• You can adjust some settings with the special buttons: SLEEP, BRIGHT, PIC. FLIP, SUB and CC (see pages 22–24, 29 and 34).

(Page 22)

SLEEP TIMER RETURN

ER [––– REMAIN]

SLEEP TI

SELECT : ENTER : EXIT:

ENTER

(Pages 27–30)

AV ADJUST

RETURN V IDEO ADJUST AUDI O ADJUST

SELECT : ENTER :

ENTER

(Pages 23–25)

PRESET RETURN BRI GHTNESS [ BRI GHT ]

ER OFF

ENTER:

[OFF ]

AL ]

[NOR [IN ]

ENTER

AUTO PO

PICTURE FLIP

AV2 IN/OUT

SELECT : EXIT:

(Page 34 and 35)

CLOSED CAPT ION RETURN

[OFF]

CC/ TEXT

SELECT : EXIT:

ENTER:

ENTER

(Pages 36–42)

EXIT:

* The characters in the diagram are made larger for easy reading.

INPUT SECRE T NO.

– – – –

(Pages 26, 31–33)

SET UP RETURN BLUE SCREEN [OFF] LANGUAGE CH–SE TT ING

ENTER

SELECT : EXIT:

ENTER:

EXIT:

ADJUSTMENTS

Adjusting SLEEP TIMER Settings

You can set the SLEEP TIMER to automatically turn off the TV.

Directly setting the SLEEP TIMER

1 Press SLEEP to display the SLEEP

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

RETURN

CHVOL

TV/VIDEO

SLEEP

TIMER screen.

2 Press SLEEP to set the sleep timer

(in minutes).

---

30 60

––– REMA I N

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

CHVOL

TV/VIDEO

RETURN

ENTER/ a/b/c/d

120

(minutes)

The SLEEP TIMER is turned off when --- is displayed.

• The SLEEP TIMER screen automatically disappears in 3 seconds.

Setting the SLEEP TIMER on the MENU screen

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

SLEEP TIMER.

3 Press ENTER to display the

SLEEP TIMER screen, and press

ENTER.

4 Press c/d to set the sleep timer

(in minutes), and press ENTER.

The time can be set in increments of 30 minutes and in the range between 30 and 120 minutes.

60 REMAIN

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : ENTER: EXIT:

SLEEP T IMER RETURN

SLEEP T I

ENTER

ER [––– REMAIN]

The SLEEP TIMER is turned off when --- is displayed.

5 Press MENU to return to the main

screen.

• When you set the SLEEP TIMER, the SLEEP indicator lights up red.

• After you set the SLEEP TIMER, pressing MAIN POWER on the TV set or POWER on the remote control will

cancel the SLEEP TIMER setting and the SLEEP indicator goes out.

• 5 minutes before the SLEEP TIMER turns off the TV, 5 REMAIN is displayed on the screen for 4 seconds. The SLEEP TIMER counts down and shows a similar 4-second display for each remaining minute until the timer turns off the TV.

SELECT : EXIT:

SLEEP T IMER RETURN SLEEP T I

ENTER:

ER [–60 REMAIN]

ENTER

ADJUSTMENTS (Continued)

Adjusting BRIGHTNESS Settings

You can adjust the brightness of the screen.

Directly setting the BRIGHTNESS

1 Press BRIGHT to display the

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

BRIGHT

BRIGHTNESS screen.

2 Press BRIGHT to change the

setting.

BRIGHT

DARK

• The BRIGHTNESS screen automatically disappears in 3 seconds.

• [BRIGHT]: maximum brightness [NORMAL]:60% brightness (Suitable for

viewing in a well-lit area. Saves energy.)

[DARK]: 10% brightness (Sufficiently

bright when viewing in dim areas.)

NORMAL

BRI GHTNESS [ BR I GHT]

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

Setting the BRIGHTNESS on the MENU screen

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

PRESET, and press ENTER.

3 Press a/b to move the cursor to

BRIGHTNESS, and press ENTER.

4 Press c/d to change setting, and

press ENTER.

5 Press MENU to return to the main

screen.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER

ER OFF

ENTER:

[OFF ]

AL ]

[NOR [IN ]

ENTER

EXIT:

SELECT : EXIT:

PRESET RETURN BRIGHTNESS [ BR I GHT] AUTO PO PICTURE FLIP AV2 IN/OUT

ADJ UST :

ADJUSTMENTS (Continued)

Adjusting PICTURE FLIP Settings

You can set the orientation of the picture.

Directly setting the PICTURE FLIP

1 Press PIC. FLIP to display the

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

PIC. FLIP

PICTURE FLIP screen.

2 Press PIC. FLIP to change the

setting.

MIRROR ROTATENORMAL

UPSIDE DOWN

• The PICTURE FLIP screen automatically disappears in 3 seconds.

• [NORMAL]: normal image [MIRROR]: mirror image [ROTATE]: rotated image [UPSIDE DOWN]: upside down image

ABC

P I CTURE F LI P [ NORMAL]

ABC

P I CTUR E FL I P [M I RROR]

P I CTURE F LI P [ ROTA TE ]

ABC

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

Setting the PICTURE FLIP on the MENU screen

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

PRESET, and press ENTER.

3 Press a/b to move the cursor to

PICTURE FLIP, and press

ENTER.

4 Press c/d to select the desired

picture flip setting, and press

ENTER.

5 Press MENU to return to the main

screen.

P IC TURE F LI P [ UPSI DE DOWN]

ABC

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER

SELECT : EXIT:

PRESET

RETURN

BRIGHTNESS [ BR I GHT] AUTO PO PICTURE FLIP AV2 IN/OUT

ADJ UST :

ENTER:

ER OFF

[OFF ] [NOR

[IN ]

ENTER

ENTER: EXIT:

AL ]

ADJUSTMENTS (Continued)

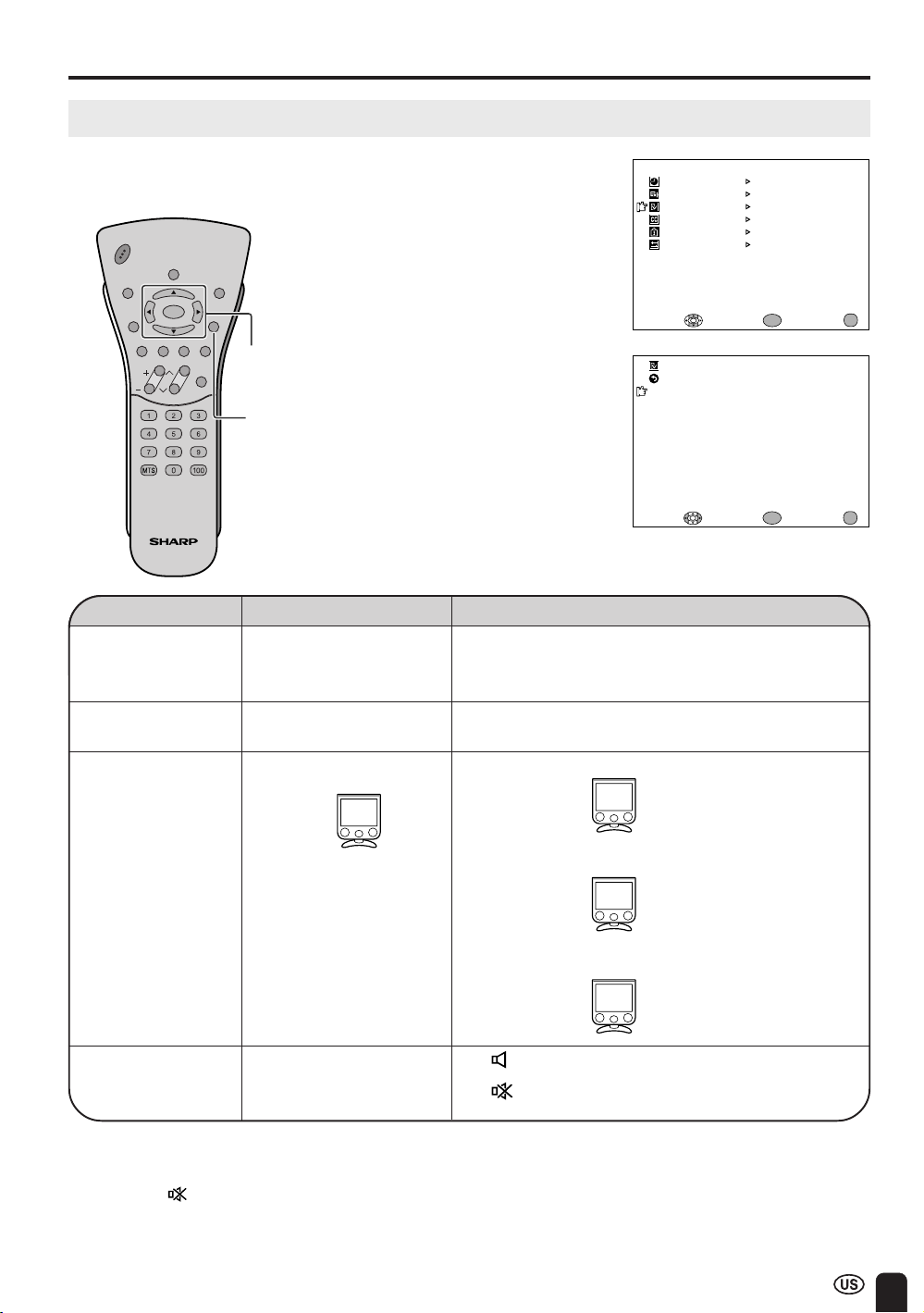

Adjusting PRESET Settings

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

PRESET, and press ENTER.

3 Press a/b to move the cursor to

the desired item, and press

ENTER.

4 Press c/d to change the setting,

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER

ER OFF

ENTER:

[OFF ]

AL ]

[NOR [IN ]

SELECT : EXIT:

PRESET RETURN BRIGHTNESS [ BR I GHT] AUTO PO PICTURE FLIP AV2 IN/OUT

and press ENTER.

5 Press MENU to return to the main

screen.

ADJ UST :

Selected item Factory setting Setting options

BRIGHTNESS [BRIGHT] Maximum brightness [NORMAL] Brightness 60% → Suitable for viewing in a well-lit area.

[DARK] Brightness 10%

AUTO POWER OFF [OFF] This feature is inactive. [ON] The power of the LCD TV set is turned off when there is (only TV mode) no signal for 5 minutes.

Saves energy.

→ Sufficiently bright when

viewing in dim areas.

ENTER:

ENTER

EXIT:

PICTURE FLIP [NORMAL] Normal image [MIRROR] Mirror image → To display mirror images for special uses.

orientation

ABC

[ROTATE] Rotated image → To display rotated images for special

uses.

ABC

[UPSIDE DOWN] Upside down image

→To display images upside

down for special uses.

ABC

AV2 IN/OUT [IN] AV-IN2 terminals selected [OUT ] Line Output is selected, Output volume is fixed, Speaker

as input terminals output is available.

[OUT

] Line Output is selected, Output volume is variable,

Speaker output is Mute.

• If AV-IN2/OUT is set to LINEOUT/VOL. VARIABLE, the subwoofer will not function, and the following message will display. “AV2 [OUT ] IS SELECTED! (LINEOUT/VOL. VARIABLE) SUBWOOFER DOES NOT FUNCTION”

ADJUSTMENTS (Continued)

Adjusting LANGUAGE Settings

The language for the On-Screen Display can be ENGLISH, SPANISH or FRENCH.

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

SET UP, and press ENTER.

3 Press a/b to move the cursor to

LANGUAGE, and press ENTER.

4 Press a/b to select the lan-

guage.

5 Press MENU to return to the main

screen.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER:

ENTER

SELECT : ENTER: EXIT:

ENU

SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : EXIT:

SET UP RETURN BLUE SCREEN [OFF] LANGUAGE CH–SETT ING

SELECT : EXIT:

LANGUAGE ENGLI SH ESPAÑOL FRANCAIS

SELECT : EXIT:

ADJUSTMENTS (Continued)

Adjusting VIDEO ADJUST Settings

Video adjustments have different selection items depending on TV mode or AV mode (signal from an external device). (See page 28.)

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

TV/VIDEO

RETURN

CHVOL

MUTE

ENTER/ a/b/c/d

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

AV ADJUST, and press ENTER.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : ENTER: EXIT:

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER

3 Press a/b to move the cursor to

VIDEO ADJUST, and press

ENTER.

4 Press a/b to move the cursor to

the desired item, and press

ENTER.

5 Press c/d to change the setting.

• See page 28 for the settings.

6 Press MENU to return to the main

screen.

SELECT : EXIT:

AV ADJUST RETURN VIDEO ADJUST AUDI O ADJUST

SELECT : EXIT:

V I DEO ADJUST ( TV ) RETURN PICTURE [ 30] TINT COLOR BLACK LEVEL SHARPNESS COLOR SYSTEM RESET

SELECT : ENTER: EXIT:

RETURN P ICTURE

ENTER

ENTER:

ENTER

ENTER:

[ 0] [ 0] [ 0] [ 0] [ N358]

ENTER

– +

■ LC-20C3U

SELECT :

ADJ UST :

• The TINT display only appears when the color system is set to N358 or N443 in the NTSC mode.

■ LC-13C3U/LC-15C3U

• The TINT display only appears when the color system is set to N358, N443 or AUTO in the NTSC mode.

• COLOR SYSTEM

When you set COLOR SYSTEM to AUTO, the AUTO mode automatically detects the receiving signal system and adjusts the reception system of the TV set. When the picture or sound is not stable, set a specific COLOR SYSTEM (not AUTO). The picture and sound may be improved.

EXIT:

ADJUSTMENTS (Continued)

Adjusting VIDEO ADJUST Settings (Continued)

TV mode

Selected item Press c Press d

PICTURE Decrease contrast Increase contrast

TINT Toward purple Toward green

COLOR Lower color intensity Higher color intensity

BLACK LEVEL Less brightness More brightness

SHARPNESS Soft picture Sharp picture

COLOR SYSTEM

AV mode

Selected item Press c Press d

PICTURE Decrease contrast Increase contrast

TINT Toward purple Toward green

COLOR Lower color intensity Higher color intensity

BLACK LEVEL Less brightness More brightness

SHARPNESS Soft picture Sharp picture

RED-BLUE Stronger red Stronger blue

GREEN Weaker green Stronger green

COLOR SYSTEM ■ LC-13C3U/LC-15C3U

• Press c/d to select the COLOR SYSTEM.

• When the COMPONENT mode is selected:

■ LC-20C3U

• Press c/d to select the COLOR SYSTEM.

• When the COMPONENT mode is selected:

• TINT is displayed only when N358 or N443 is selected.

• In BLUE SCREEN, AV ADJUST settings displayed in magenta cannot be selected.

• Selecting RESET will return all settings to the factory settings. (See page 27.)

• TV mode

This product is factory set to comply with the color system in the United States (NTSC-N358). For Brazil (PALM), Argentina (PAL-N) or Uruguay (PAL-N), adjust the color system before using this product.

■ LC-13C3U/LC-15C3U

• COLOR SYSTEM When you set COLOR SYSTEM to AUTO, the AUTO mode automatically detects the receiving signal system and adjusts the reception system of the TV set. When the picture or sound is not stable, set a specific COLOR SYSTEM (not AUTO). The picture and sound may be improved.

ADJUSTMENT (Continued)

Adjusting AUDIO ADJUST Settings

You can adjust the sound quality to suit the video, game or broadcasting content. The 2.1 channel speaker system delivers a dynamic bass and treble response.

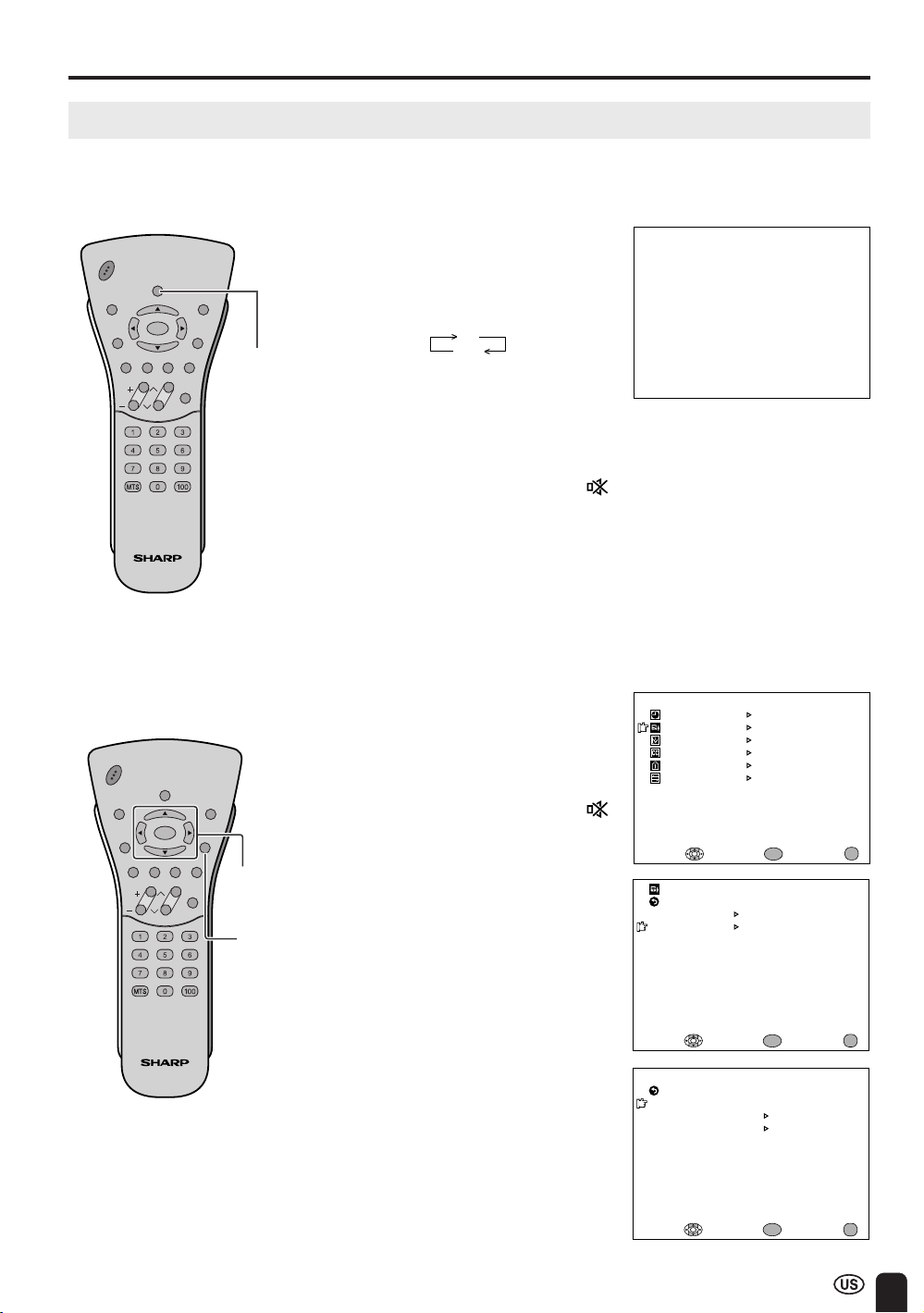

Directly setting the SUBWOOFER

1 Press SUB to display the

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

SUB

SUBWOOFER screen.

2 Press SUB to change the setting.

OFF

SUBWOOFER [ON ]

• The SUBWOOFER screen automatically disappears in 3 seconds.

• [ON]: Enhances the bass range [OFF]: Not enabled

• When AV-IN2/OUT is set to [OUT ], SUBWOOFER is not available.

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

Setting the SUBWOOFER on the MENU screen

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

AV ADJUST, and press ENTER.

• When AV-IN2/OUT is set to [OUT ], AUDIO ADJUST is not available.

3 Press a/b to move the cursor to

AUDIO ADJUST, and press

ENTER.

4 Press a/b to move the cursor to

SUBWOOFER, and press

ENTER.

5 Press c/d to change the

subwoofer setting.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : EXIT:

AV ADJUST

RETURN

VIDEO ADJUST AUDI O ADJUST

SELECT : EXIT:

AUDIO ADJUST( TV) RETURN SUBWOOFER [ON ]

TREBLE

BASS RESET

ENTER:

[ 0] [ 0]

ENTER

6 Press MENU to return to the main

screen.

SELECT : ENTER: EXIT:

ENTER

ADJUSTMENT (Continued)

Adjusting AUDIO ADJUST Settings (Continued)

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

TV/VIDEO

RETURN

CHVOL

MUTE

ENTER/ a/b/c/d

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

AV ADJUST, and press ENTER.

3 Press a/b to move the cursor to

AUDIO ADJUST, and press ENTER.

• When AV-IN2/OUT is set to [OUT ], AUDIO ADJUST is not available.

4 Press a/b to move the cursor to

the desired item, and press ENTER.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : EXIT:

AV ADJUST RETURN VIDEO ADJUST AUDI O ADJUST

SELECT : EXIT:

AUDIO ADJUST( TV) RETURN SUBWOOFER [ON ] TREBLE BASS RESET

SELECT : ENTER: EXIT:

ENTER:

[ 0] [ 0]

ENTER

5 Press c/d to change the setting.

RETURN

6 Press MENU to return to the main

screen.

Selected item Press c

SUBWOOFER

TREBLE

BASS

[ON] Enhances the bass range [OFF] Not enabled

For weaker treble

For weaker bass

TREBLE

SELECT :

– +

Press

EXIT:

ADJ UST :

For stronger treble

For stronger bass

ADJUSTMENTS (Continued)

SET UP

■ SETTING THE AIR/CABLE

It is necessary to set the receiving mode to AIR or CABLE channels to receive locally broadcast TV programs.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER

SELECT : EXIT:

SET UP RETURN BLUE SCREEN [OFF]

LANGUAGE

CH–SETT ING

ENTER:

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

TV/VIDEO

RETURN

CHVOL

MUTE

ENTER/ a/b/c/d

1 Switch the screen to TV mode and

press MENU to Display the MENU screen.

2 Press a/b to move the cursor to

SET UP, and press ENTER.

3 Press a/b to move the cursor to

CH-SETTING, and press ENTER.

• When the screen is not in TV mode, CH-SETTING is displayed in magenta and not available.

4 Press a/b to move the cursor to

AIR/CABLE, and press ENTER.

5 Press a/b to move the cursor to

the desired mode.

6 Press MENU to return to the main

screen.

SELECT : EXIT:

CH–SETT ING RETURN AIR/ CABLE CH SEARCH CH

MEM

ORY

SELECT : ENTER: EXIT:

AIR/CABLE AIR CABLE

SELECT :

ENTER:

ENTER

EXIT:

• Receivable channels of your TV set are: AIR channels: CABLE channels: VHF: 2 through 13 1 (HRC and IRC) UHF: 14 through 69 2 through 125 (STD, HRC and IRC)

ADJUSTMENTS (Continued)

SET UP (Continued)

■ Saving broadcast TV channels in the memory

1 Press MENU to display the MENU

screen, press a/b to move the cursor to SET UP, and press

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

ENTER.

2 Press a/b to move the cursor to

CH-SETTING, and press ENTER.

3 Press a/b to move the cursor to

CH SEARCH, and press ENTER.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SET UP RETURN BLUE SCREEN [OFF] LANGUAGE CH–SETT ING

CH–SETT ING RETURN AIR/ CABLE CH SEARCH CH

MEM

ORY

4 Press d. The tuner will search

through all available channels in your area and add them to the TV memory.

• To interrupt CH SEARCH, press c. CH SEARCH will stop at the current channel and will not add any higher channels.

5 Press MENU to exit.

■ Adding weak or additional channels or erasing unwanted channels from TV memory

CH SEARCH

AIR 2

START: EXIT:

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

Channel Select

1 Press MENU to display the MENU

screen, press a/b to move the cursor to SET UP, and press

ENTER.

2 Press a/b to move the cursor to

CH-SETTING, and press ENTER.

3 Press a/b to move the cursor to

CH MEMORY, and press ENTER.

4 Use a/b or Channel Select to

select each desired channel to add or erase.

5 Press d to add the channel to the

TV memory or press c to erase the channel from the TV memory.

6 Press MENU to exit.

• If CH SEARCH is performed again, the previously memorized channels will be lost.

CH–SETT ING RETURN AIR/ CABLE CH SEARCH CH

MEM

ORY

CH MEMORY

AIR 2

TO ADD: EXIT:

Press

to add channel 2 to the TV memory

CH MEMORY

AIR 2

TO ERASE: EXIT:

Press

to erase channel 2 from the TV memory

ADJUSTMENTS (Continued)

Adjusting BLUE SCREEN Settings

■ BLUE SCREEN

Automatically turns the screen blue if no broadcast signal is received.

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

TV/VIDEO

RETURN

CHVOL

MUTE

ENTER/ a/b/c/d

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

SET UP, and press ENTER.

3 Press a/b to move the cursor

to BLUE SCREEN, and press

ENTER.

4 Press c/d to select ON or OFF,

and press ENTER.

5 Press MENU to return to the main

screen.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

ENTER

SELECT : EXIT:

SET UP

RETURN

BLUE SCREEN [OFF] LANGUAGE CH–SETT ING

SELECT : EXIT:

SET UP

RETURN

BLUE SCREEN [ON ] LANGUAGE CH–SETT ING

ENTER:

ENTER

ADJ UST :

ENTER:

EXIT:

ENTER

• When received signals are weak or interfered with by some other signals, the BLUE SCREEN function may be activated. To watch the TV under such conditions, set BLUE SCREEN to OFF.

• The BLUE SCREEN function is activated when AV1, AV2 or COMPONENT input mode is selected with no signal being input.

ADJUSTMENTS (Continued)

Adjusting CLOSED CAPTION Settings

■ SETTING CLOSED CAPTION

• This TV set is equipped with an internal Closed Caption decoder. “Closed Caption” is a system which allows conversations, narration, and sound effects in TV programs and home videos to be viewed as captions on the TV screen (see the illustration).

• Not all programs and videos will offer closed captioning. Please look for the “ ” symbol to ensure that captions will be shown.

• The Closed Caption broadcasts can be viewed in two modes: CAPTION and TEXT. For each mode, two channels are available: CH1 and CH2. The CAPTION mode shows subscripts of dialogs and commentaries of TV dramas and news programs while allowing a clear view of the picture. The TEXT mode displays various information over the picture (such as TV program schedules and weather forecasts, etc.) that is independent of the TV programs.

Directly setting the CLOSED CAPTION

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

MUTE

• If a broadcast contains Closed Caption data and MUTE is pressed, the set enters CAPTION mode automatically. Pressing MUTE again will return the set to its previous condition.

• Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source. This does not necessarily indicate a problem with your set.

• If any button is pressed to call up the On-Screen Display while viewing a Closed Caption broadcast, the closed captions will disappear momentarily.

• If no TEXT broadcast is being received while viewing in the TEXT mode, the screen may become dark and blank for some programs. Should this occur, switch the Closed Caption mode to OFF.

1 Press CC to display the CC/TEXT

screen.

2 Press CC to change the setting.

CC 1 CC 2OFF T1 T2

• CC1: CAPTION mode for CH1 data CC2: CAPTION mode for CH2 data T1: TEXT mode for CH1 data T2: TEXT mode for CH2 data

CC/ TEXT [CC1]

ADJUSTMENTS (Continued)

Adjusting CLOSED CAPTION Settings (Continued)

■ SETTING CLOSED CAPTION

Setting the CLOSED CAPTION on the MENU screen

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor to

CLOSED CAPTION, and press ENTER.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

SELECT : ENTER: EXIT:

ENTER

MUTE

3 Press ENTER to change the

CLOSED CAPTION setting.

4 Press c/d to change the CLOSED

CAPTION setting, and press ENTER.

CC 1 CC 2OFF T1 T2

5 Press MENU to return to the main

screen.

CLOSED CAPT I ON

RETURN

[OFF]

CC/TEXT

[CC1]

ENTER:

ENTER

EXIT:

SELECT : EXIT:

CLOSED CAPT I ON

RETURN

CC/TEXT

ADJ UST :

ADJUSTMENTS (Continued)

Adjusting V-CHIP Settings

■ V-CHIP

• This function allows TV programs to be restricted and TV usage to be controlled based on FCC data. It prevents children from watching violent or sexual scenes that may be harmful.

• Restriction of TV programs includes two ratings that contain information about the program: the MPAA rating and the TV Parental Guidelines. The MPAA rating is restricted by age. TV Parental Guidelines are restricted by age and content.

• Since a TV program may use either the MPAA rating or the TV Guidelines, both should be adjusted for complete control.

[1] MPAA RATING

RATING

G GENERAL AUDIENCES. All ages admitted. PG PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children.

age

based

MPAA RATING

Example 1:

PG-13 in the age-based rating is blocked, this will also automatically block the higher ratings R, NC-17 and X.

PG-13 PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13. R RESTRICTED. Under 17 requires accompanying parent or adult guardian. NC-17 NO ONE 17 AND UNDER ADMITTED. X X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.:

Example 2:

R in the age-based rating is blocked, this will also automatically block the higher ratings NC-17 and X.

ote:

• The MPAA rating is only age-based.

ADJUSTMENTS (Continued)

Adjusting V-CHIP Settings (Continued)

[2] TV PARENTAL GUIDELINES

content based

⇐

RATING

TV-Y (All children)

TV-Y7 (Direct to Older Children) ✕

⇑

TV-G (General Audience) X

age

TV-PG (Parental Guidance

based

Suggested) xxx

⇓

TV-14 (Parents Strongly Cautioned) X

TV-MA (Mature Audience Only) X ✕✕ ✕

: The content rating can be set, but this rating is not normally broadcast by TV stations.

✕ : The content rating can be set.

TV PARENTAL GUIDELINES

Example 1:

When TV-Y7 in the age-based rating is set to BLOCK, this will automatically block the higher ratings: TV-G, TV-PG, TV-14 and TV-MA. In addition, D, L, S, V and FV in CONTENT are automatically blocked unless you manually set BLOCK CONTENT.

FV V S L D

(Fantasy (Violence) (Sexual (Adult (Sexually

Violence) Situation) Language) Suggestive

✕✕ ✕ ✕

⇒

Dialog)

Example 2:

When no item in the age-based rating is blocked, D in the content-based rating will be automatically blocked.

• Age-based ratings can be modified by the content-based ratings, but only in the combinations indicated by an X in the table above.

• Choosing a lower age-based rating blocks the higher age-based ratings regardless of content rating settings.

• If you set TV-Y and TV-Y7 to BLOCK, CONTENT will display all items.

ADJUSTMENTS (Continued)

Adjusting V-CHIP Settings (Continued)

■ SETTING V-CHIP

[1] MPAA RATING

POW

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

Channel Select

1 Press MENU to display the MENU

screen.

2 Press a/b to move the cursor

to V-CHIP BLOCK, and press

ENTER.

3 INPUT SECRET NO. will be

displayed. Input the 4-digit secret number by using

Channel Select, and press ENTER.

• When you input the secret number for the first time, press ENTER to register. Otherwise, continue to step 4.

4 Press a/b to move the cursor to

MPAA, and press ENTER.

ENU SLEEP T IMER AV ADJUST PRESET CLOSED CAPT I ON V–CHIP BLOCK SET UP

INPUT SECRET NO.

– – – –

V–CHIP BLOCK

RETURN M

PAA TV GUIDEL INES

STATUS

[OFF]

EXIT:

5 Press a/b to move the cursor

to PG, and press ENTER.

6 Press c/d to select BLOCK,

and press ENTER. If you set PG to BLOCK, PG-13, R, NC-17 and X are automatically blocked.

7 Press MENU to return to the

main screen.

• If you set G to BLOCK, all ratings are automatically blocked.

• If you set X to BLOCK, G, PG, PG-13, R and NC-17 are not blocked.

SELECT : EXIT:

PAA

RETURN G [ –––––]

PG [ ––––– ] PG– 13 [ –––––] R [ ––––– ]

NC–17 [––––– ]

X [ ––––– ]

SELECT :

PAA

RETURN G [ –––––]

PG [ BLOCK ] PG– 13 [BLOCK] R [BLOCK]

NC–17 [BLOCK]

X [BLOCK]

ADJ UST :

ENTER:

ENTER

EXIT:

ADJUSTMENTS (Continued)

Parent Control (V-CHIP Operation Continued)

Adjusting V-CHIP Settings (Continued)

[2] TV GUIDELINES

● Setting TV GUIDELINES

1 Repeat steps 1 to 3 of [1] MPAA

RATING. (See page 38.)

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

TV/VIDEO

RETURN

CHVOL

MUTE

ENTER/ a/b/c/d

2 Press a/b to move the cursor to

TV GUIDELINES, and press

ENTER.

3 Press a/b to move the cursor to

TV-Y7, and press ENTER.

4 Press c/d to select BLOCK, and

press ENTER. If you set TV-Y7 to BLOCK, TV-G, TV-PG, TV-14 and TV-MA are automatically blocked. In addition, D, L, S, V and FV in CONTENT are automatically blocked.

5 Press MENU to return to the main

screen.

V–CHIP BLOCK RETURN M

PAA

TV GUIDEL INES

STATUS

[OFF]

SELECT : EXIT:

TV GUI DEL INES RETURN

TV–Y [ –––––]

TV–Y7 [–––––]

TV–G [ –––––]

TV–PG [ ––––– ]

TV– 14 [––––– ]

TV–

A [ –––––]

BLOCK CONT ENT

[ ]

SELECT : EXIT:

TV GUI DEL INES RETURN

TV–Y [ –––––]

TV–Y7 [BLOCK]

TV–G [BLOCK ]

TV–PG [BLOCK]

TV– 14 [BLOCK]

TV–

A [BLOCK]

BLOCK CONT ENT

[D L S V FV ]

ADJ UST :

ENTER:

ENTER

EXIT:

ADJUSTMENTS (Continued)

Adjusting V-CHIP Settings (Continued)

■ Setting BLOCK CONTENT

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

1 Repeat steps 1 to 3 of [1] MPAA

RATING. (See page 38.)

2 Press a/b to move the cursor to

TV GUIDELINES, and press

ENTER.

3 Press a/b to move the cursor to

BLOCK CONTENT, and press

ENTER.

4 Press a/b to move the cursor to

the desired item, and press ENTER.

V–CHIP BLOCK RETURN M

PAA

TV GUIDEL INES

STATUS

[OFF]

SELECT : EXIT:

TV GUI DEL INES RETURN TV–Y [ –––––] TV–Y7 [–––––] TV–G [ –––––] TV–PG [ ––––– ] TV– 14 [––––– ] TV–

A [ –––––]

BLOCK CONT ENT

[ ]

SELECT : EXIT:

BLOCK CONTENT RETURN D [ –––––] L [ –––––] S [ –––––] V [ –––––] FV [–––––]

SELECT : EXIT:

ENTER:

ENTER

5 Press c/d to select BLOCK or

----- (unblock), and press ENTER.

BLOCK CONTENT RETURN D [ –––––] L [BLOCK] S [ –––––] V [ –––––] FV [–––––]

6 Press MENU to return to the

main screen.

ADJ UST :

• If you set TV-14 to BLOCK, TV-MA is automatically blocked. Contents D, L, S and V are automatically blocked by X in the table on page 37.

ENTER:

ENTER

EXIT:

ADJUSTMENTS (Continued)

Adjusting V-CHIP Settings (Continued)

[3] ACTIVATING V-CHIP BLOCK

● Setting STATUS

You can activate V-CHIP BLOCK after setting [1] MPAA RATING and/ or [2] TV GUIDELINES.

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

BRIGHT

MUTE

TV/VIDEO

RETURN

CHVOL

ENTER/ a/b/c/d

1 Repeat steps 1 to 3 of [1] MPAA

RATING. (See page 38.)

2 Press a/b to move the cursor to

STATUS, and press ENTER.

3 Press c/d to set STATUS to ON,

and press ENTER.

V–CHIP BLOCK RETURN M

PAA

TV GUIDEL INES

STATUS

[OFF]

SELECT : EXIT:

V–CHIP BLOCK RETURN M

PAA

TV GUIDEL INES

STATUS

[ON ]

ENTER:

ENTER

• If STATUS is set to OFF, V-CHIP BLOCK will not be activated.

4 Press MENU to return to the main

screen.

ADJ UST :

ENTER

ENTER: EXIT:

ENTER:

[4] CANCELING THE V-CHIP BLOCK SCREEN WHILE V-CHIP BLOCK IS ACTIVATED

1 V-CHIP HAS BEEN ACTIVATED

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

appears if you watch a program with the same Program Rating data you configured.

• V-CHIP HAS BEEN ACTIVATED will not be displayed if STATUS is not configured to ON.

V–CHI P HAS BEEN ACT I VATED

TV–Y

Channel Select

SECRET NO.

3 Input the 4-digit secret number by

using Channel Select; V-CHIP BLOCK is temporarily canceled. If you input an incorrect secret number, SECRET NO. IS INCORRECT is displayed. In this case, input the correct secret number.

• If you turn the power on from off, V-CHIP BLOCK will be activated again.

• If you select V-CHIP BLOCK again by using MENU, V-CHIP BLOCK will be turned on again.

2 Press MENU to display INPUT

INPUT SECRET NO.

– – – –

EXIT:

ADJUSTMENTS (Continued)

VOL

CH MENU

Adjusting V-CHIP Settings (Continued)

[5] CHANGING V-CHIP BLOCK SETTINGS

1 Repeat steps 1 to 2 of [1] MPAA

POWER

SUB

SLEEP PIC. FLIP

ENTER

DISPLAY MENU

MUTE

BRIGHT

TV/VIDEO

RETURN

CHVOL

Channel Select

RATING, then INPUT SECRET

NO. will be displayed.

2 Input the 4-digit secret number by

using Channel Select; the V- CHIP select mode will be displayed. Set V-CHIP BLOCK again.

INPUT SECRET NO.

– – – –

INPUT SECRET NO.

* * * *

EXIT:

[6] CHANGING OR CLEARING THE SECRET NUMBER

If you forget the secret number, clear the secret number as follows.

Upper control panel of the main unit

1 Repeat steps 1 to 2 of [1] MPAA

RATING, or 1 to 2 of [4] CANCELING THE V-CHIP BLOCK SCREEN WHILE V-CHIP BLOCK IS ACTIVATED, then

INPUT SECRET NO. will be displayed.

CH ( )

VOL (+)

2 Press and hold both CH ( ) and

VOL (+) on the TV set simultane-

ously until the message INPUT SECRET NO. blinks.

3 Press MENU to exit.

CONNECTING EXTERNAL DEVICES

You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals located on the rear of the TV set. When connecting an external device, turn off the power of the main unit first to prevent any possible damage.

Example of external devices that can be connected

To AV-IN1 terminal

• Camcorder

• Home video game system

* If your external device has an S-video terminal,

S-VIDEO connection is recommended.

To AV-IN2 terminal

• VCR

• Laser disc player

To COMPONENT terminal

• DVD Player, etc.

* If your external device has a component

terminal, COMPONENT connection is recommended (you can view high-quality pictures).

N E N

O P M

E ID V

V A

IO D U

O E ID

-V

2/O

-IN V A

L IO

HEAD PHONE

. T

T U

3 1 C

• PC connection is not possible.

• For the cable, use a commercially available audio/video cable.

• Only connect audio/video signals to AV-IN1 and 2 terminals. Connecting other signals may result in a malfunction.

• AV-IN1 has 2 video input terminals: VIDEO and S-VIDEO. When you connect external devices to both terminals

(and if you select AV-IN1), you can only view pictures from the S-VIDEO terminal. To view the picture from the VIDEO terminal, do not connect any external device to the S-VIDEO terminal.

• For more information about external device connections, see the manuals of your external devices.

CONNECTING EXTERNAL DEVICES (Continued)

Connecting a VCR, DVD player or a video camera (AV-IN1/2/COMPONENT)

To AV-IN1 terminal

VIDEO

AV-IN1

S-VIDEO

AV-IN2/OUT

V-IN

AUDIO

VIDEO

AUDIO

HEAD PHONE

VIDE

-IN V

L IO

D U A

E ID

-V S

E ID

T U

2/O

IO D

U A

D A

E H

N O

H P

To audio/video output terminal

To S-VIDEO input terminal

PONENT

COM

AUDIO

ANT.

POWER INPUT DC13V

To S-video output terminal

To AV-IN2 terminal

Video

Audio (L)

Audio (R)

S-video

Camcorder

VCR

Video Audio (L)

Audio (R)

To audio/video output terminal

COMPONENT

AUDIO

(Video) terminal

To COMPONENT input

VCR

Audio (L)

ANT.

POWER

INPUT DC13V

To COMPONENT input

Audio (R)

(Audio) terminal

DVD Player

• If your VCR (or other external devices) has an S-video terminal, S-VIDEO connection is recommended. (Use an S-video cable.)

• When you connect external devices to both S-VIDEO and VIDEO terminals (and if you select AV-IN1), you can only view pictures from the S-VIDEO terminal.

• You cannot view multiple or synthesized pictures by connecting two or more external devices. When connecting an external device, use care to connect the video and audio cables to the corresponding terminals.

• When AV-IN2/OUT is selected with Variable output setting, the Bass (subwoofer) sound cannot be output. Bass (subwoofer) can be output with Fixed output setting.

CONNECTING EXTERNAL DEVICES (Continued)

Outputting video and audio (video output)

You can output video and audio signals from the TV set through the AV output terminals (AV-OUT).

• When using AV2 as an output terminal, select PRESET in the MENU and set AV-IN2/OUT to OUT. (See page 25.)

• The factory setting for AV-IN2/OUT is IN.

S-VIDEO

VIDEO

AV-IN2/OUT

AUDIO

HEAD PHONE

COMPONENT

O IDE V

-IN V A

IO UD A

E ID

-V S

VIDE

/O V-IN2 A

L IO

A E H

E N O

H P

AUDIO

ANT.

POWER

INPUT

DC13V

Connect to a VCR, audio amplifier, etc.

• AV-IN2/OUT has 2 OUT modes (see page 25).

• When using the S-video input for AV-IN1, no video output will be made to the AV output terminal, but audio output

will be made for connection to external audio systems.

Bundling Cables with Clamps

• Secure cables and cords with the supplied cable clamps so that they do not get caught when mounting the covers.

N E N

P M O

VIDEO

1 N I

V A

AUDIO

S-VIDEO

VIDEO

AV-IN2/OUT

AUDIO

HEAD PHONE

AUDIO

ANT.

POWER INPUT DC13V

Cable clamps (x2)

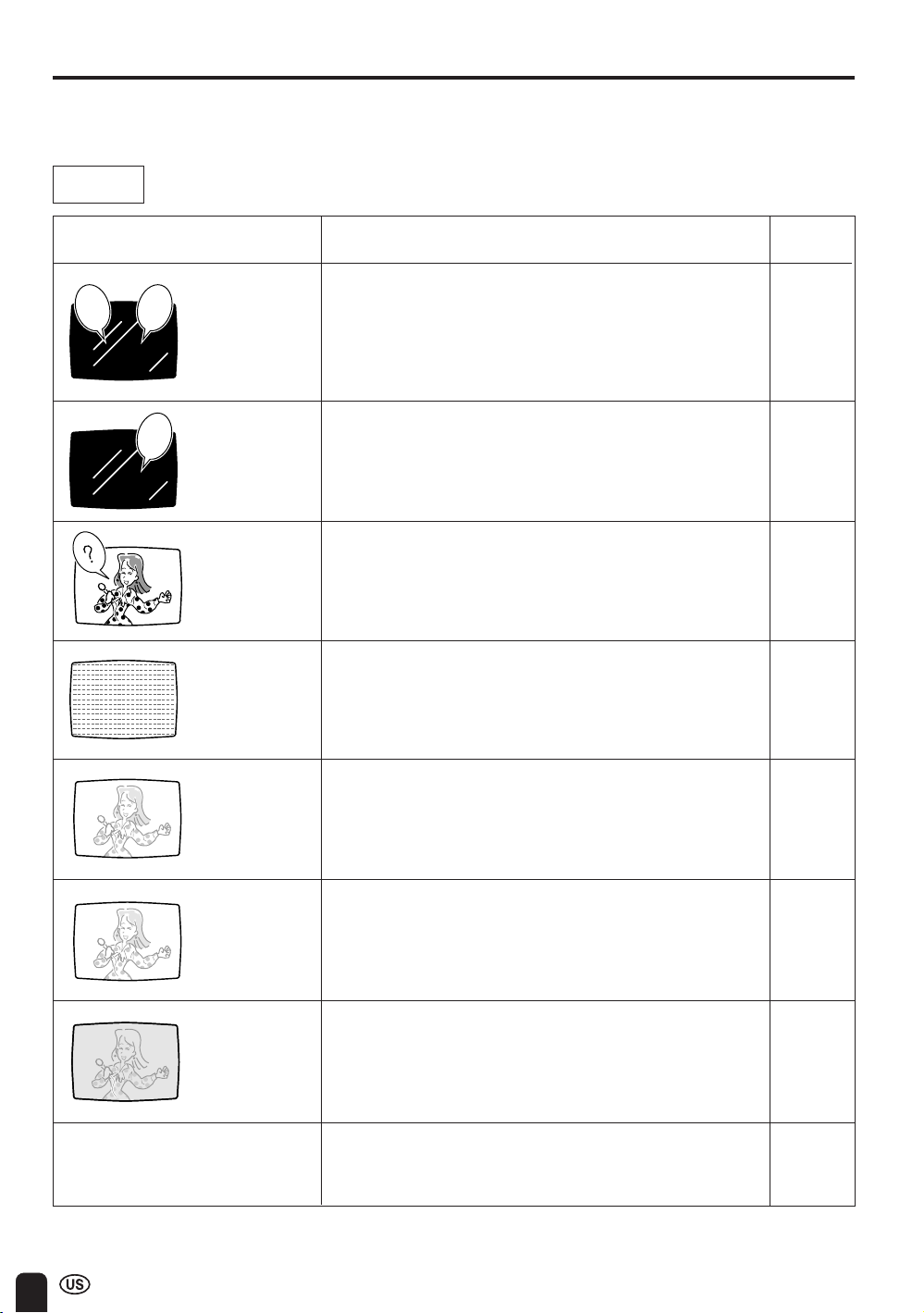

TROUBLESHOOTING

■ Before calling for repair services, make the following checks for possible remedies to the encountered symptoms.

TV set

Sound

Problem Check item

• Make sure the AC adapter is properly inserted in the


There is no picture or sound.

There is no picture. There is no picture from AV-IN1.

There is no sound.

There is no picture or sound, just noise.

power outlet.

• Reception other than those of broadcasting stations can be considered.

• Make sure the input mode is set to TV.

• Make sure the MAIN POWER switch of the main unit

is on.

• Make sure the BLACK LEVEL is properly adjusted.

• Fluorescent lamp may have reached the end of

service life.

• Make sure the S-VIDEO terminal has nothing connected.

• Make sure the volume is not set to minimum.

• Make sure the sound is not set to mute.

• Make sure that headphones are not connected.

• Make sure the antenna cable is properly connected.

• Bad reception could be the problem.

Reference

Pages

–

18 17

27, 28

19 19 13

–

Remote control does not work.

Picture is not clear.

Picture is light or improperly tinted.

The picture is too dark.

• Make sure the antenna cable is properly connected.

• Bad reception could be the problem.

• Check color adjustment.

• Check color system setting.

• Press the BRIGHT button or set the BRIGHTNESS

settings.

• Check PICTURE and BLACK LEVEL adjustment.

• Fluorescent lamp may have reached the end of

service life.

• Check the batteries of the remote control.

• Make sure the remote sensor window is not under

strong lighting.

–

27, 28 27, 28

27, 28

8 8

TROUBLESHOOTING (Continued)

Antenna

Problem Check item

• The reception may be weak.

• The quality of the broadcast may also be bad.

The picture is not sharp.

The picture moves.

The picture is doubled or tripled.

The picture is spotted.

• Make sure the antenna is facing the right direction.

• Make sure the outside antenna is connected.

• Make sure the antenna is facing the right direction.

• There may be reflected electric waves from mountains or

buildings.

• There may be interference from automobiles, trains, high

voltage lines, neon lights, etc.

• There may be interference between the antenna cable and AC

cord. Try positioning them further apart.

• Is the unit receiving interference from other devices?

There are stripes on the screen or colors fade.

Transmission antennas of radio broadcasting stations, transmission antennas of amateur radios and cellular phones may also cause interference.

• Use the unit as far apart as possible from devices that may

cause possible interference.

■ Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction. Storage temperature: –4°F to +140°F (–20°C to +60°C)

SPECIFICATIONS

Items

LCD panel

Number of dots 921,600 dots VGA Video color systems N358, N443, PAL, PAL-M, PAL-N, SECAM, PAL-60

Destination USA/Latin America/Taiwan TV Standard (CCIR) NTSC/PAL-M/PAL-N

TV function TV Tuning System PLL 181 ch.

STEREO MTS+SAP

CATV 125 ch. Y/C FILTER 4-LINE COMB FILTER Brightness 430 cd/m Lamp life (Fluorescent lamp) 60,000 hours Viewing angles H: 170° V: 170° Audio amplifier 2.1 W ⳯ 2 Ⳮ 3 W ⳯ 1 Speakers ø2 in. (ø5 cm), 3 pcs.

AV-IN1 AV-IN1, S-VIDEO-IN

AV-IN2 AV-IN2/AV-OUT Terminals COMPONENT COMPONENT-IN, AUDIO-IN

Antenna F-Type

Headphone Mini-jack for stereo (ø3.5 mm) OSD language English/French/Spanish Power supply DC 12 V, AC 110–240 V, 50/60 Hz Weight 11.2 lbs. (5.1 kg),

Accessories Remote control, Batteries (x2), Antenna cable, AC adapter,

Model

LC-13C3U LC-15C3U

13” Advanced Super View & BLACK TFT LCD

w/o accessories

AC cord, Cable clamps (x2), Operation manual

15” Advanced Super View & BLACK TFT LCD

13.0 lbs. (5.9 kg), w/o accessories

19.7” Advanced Super View & BLACK TFT LCD

3D Y/C FILTER

2.5 W ⳯ 2 Ⳮ 3.5 W ⳯ 1

DC 13V, AC 110-240V, 50/60Hz

19.8 lbs. (9.0 kg), w/o accessories

LC-20C3U

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

DIMENSIONAL DRAWINGS

■ LC-13C3U

/32 (439.1)

/64 (363.1)

/64 (134.4)

VOL CH

1019/32 (269.2)

1317/64 (337)

1033/64 (267)

TV/VIDEO MAIN POWER

Unit: inch (mm)

/32 (200.8)

POWER SLEEP

/8 (67)

229/64 (62.5)

551/64 (147.3)

/16 (198.6)

/64 (75)

/32 (1) 14

/32 (5.8)

/16 (100)

315/16 (100)

DIMENSIONAL DRAWINGS (Continued)

■ LC-15C3U

(478)

(394)

(149.5)

VOL CH

1149/

1459/

125/

(299.2)

(307)

(379)

TV/VIDEO MAIN POWER

POWER SLEEP

Unit: inch (mm)

(231)

(83)

(67.5)

229/

(62.5)

67/

(158)

(217)

(1) 15

(5)

(100)

DIMENSIONAL DRAWINGS (Continued)

■ LC-20C3U

(597)

/ 23

(501)

(191)

VOL CH

1549/

(400.4)

193/8 (492.4)

157/8 (403.6)

MENUTV/VIDEO

MAIN/POWER

Unit: inch (mm)

(301.1)

POWER SLEEP

(95)

(74.4)

243/

(67.9)

715/

(190)

(268.1)

(1) 19

(51.5)

(100)

/ 3

315/

(100)

CALLING FOR SERVICE

For location of the nearest Sharp Authorized Service, or to obtain product literature, accessories, supplies, or customer assistance, please call 1-800-BE-SHARP.

LIMITED WARRANTY

END-USER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first end user purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

To the extent permitted by applicable state law, the warranties set forth herein are in lieu of, and exclusive of, all other warranties, express or implied. Specifically, ALL OTHER WARRANTIES OTHER THAN THOSE SET FORTH ABOVE ARE EXCLUDED. ALL EXPRESS AND IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE, AND FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED. If, under applicable state law, implied warranties may not validly be disclaimed or excluded, the duration of such implied warranties is limited to the period(s) from the date of purchase set forth below.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow limits on warranties or on remedies for breach in certain transactions; in such states, the limits herein may not apply.

Model Specific Section

Your Product Model Number & Description: LC-13C3U LCD Color Television

Warranty Period for this Product: One (1) year parts and labor from the date of purchase.

Additional Item(s) Excluded from Warranty Coverage (if any): None

Where to Obtain Service: From a Sharp Authorized Servicer located in the United States.

What to do to Obtain Service: Ship prepaid or carry in your Product to a Sharp Authorized Servicer.

TO OBTAIN PRODUCT INFORMATION, CALL 1-888-LCD-SHARP OR VISIT www.sharpusa.com

LC-15C3U LCD Color Television LC-20C3U LCD Color Television (Be sure to have this information available when you need service for your Product.)

To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP.

Be sure to have Proof of Purchase available. If you ship the Product, be sure it is insured and packaged securely.

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

VALID IN CANADA ONLY

LIMITED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.

This warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner’s manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp’s Authorized Service Centres

or Sharp’s Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited to

head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including but

not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons, cables and

paper. (e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. (f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or liquid

spillage. (g) Any product received without appropriate model, serial number and CSA/cUL markings. (h) Any products used for rental or commercial purposes. (i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over-the-Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.

WARRANTY PERIODS: Parts & Labour (exceptions noted)

Audio Products 1 year Camcorder 1 year DVD Products 1 year LCD Projector 1 year (lamp 90 days) LCD TV 1 year Microwave Oven 2 years (magnetron component-3 additional years) Television Products 1 year (picture tube component-1 additional year) VCR Product 1 year Vacuum Cleaner 1 year

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East Mississauga, Ontario L4Z 1W9

For more information on this Warranty, Sharp Extended Warranty

Offers, Sharp Canada Products, Accessory Sales, Dealer or Service

Locations, please call (905) 568-7140

Visit our Web site: www.sharp.ca

SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135

SHARP CORPORATION

Printed on post-consumer recycled paper. Imprimé sur du papier recyclé. Impreso en papel reciclado. Impresso em papel reciclado pós utilização.

Printed in Japan Imprimé au Japon Impreso en Japón Impresso no Japão TINS-A419WJZZ 02P10-JKG

Sharp LC-15C3U, LC-20C3U User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
