SHARP LC-15C2EA User Manual

Download
ENGLISH
DEUTSCH
LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN
À CRISTAUX LIQUIDES (LCD) TELEVISORE A COLORI LCD TELEVISIÓN EN COLOR LCD
LCD-FÄRG-TV LCD-KLEURENTELEVISIE
OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI
FRANÇAIS
ITALIANO
ESPAÑOL
SVENSKA
MANUAL DE MANEJO BRUKSANVISNING GEBRUIKSAANWIJZING
NEDERLANDS
Contents
ENGLISH
LCD COLOUR TELEVISION
ENGLISH
OPERATION MANUAL
Page Page
Dear SHARP Customer.......................................... 2
Important Safety Precautions ................................. 2
Supplied Accessories ............................................. 4
Preparation ............................................................. 5
Installing Batteries in the Remote Control ...... 5
Using Remote Control ..................................... 5
Power Connection ........................................... 6
Antenna Connection ........................................ 6
First Installation................................................ 7
Part Names of Main Unit ........................................ 9
Part Names of Remote Control ............................ 11
Basic Operation .................................................... 12
Turning On and Off the Main Power ............. 12
Switching the TV/VIDEO (AV1/AV2/AVS/TV)
Mode ........................................................... 12
Sound Volume ............................................... 13
ON/OFF Standby ........................................... 13
Changing Channels ....................................... 14
Useful Features .................................................... 15
Adjusting Picture Settings ............................. 15
Adjusting Sound Settings .............................. 16
Using Programme Table................................ 17

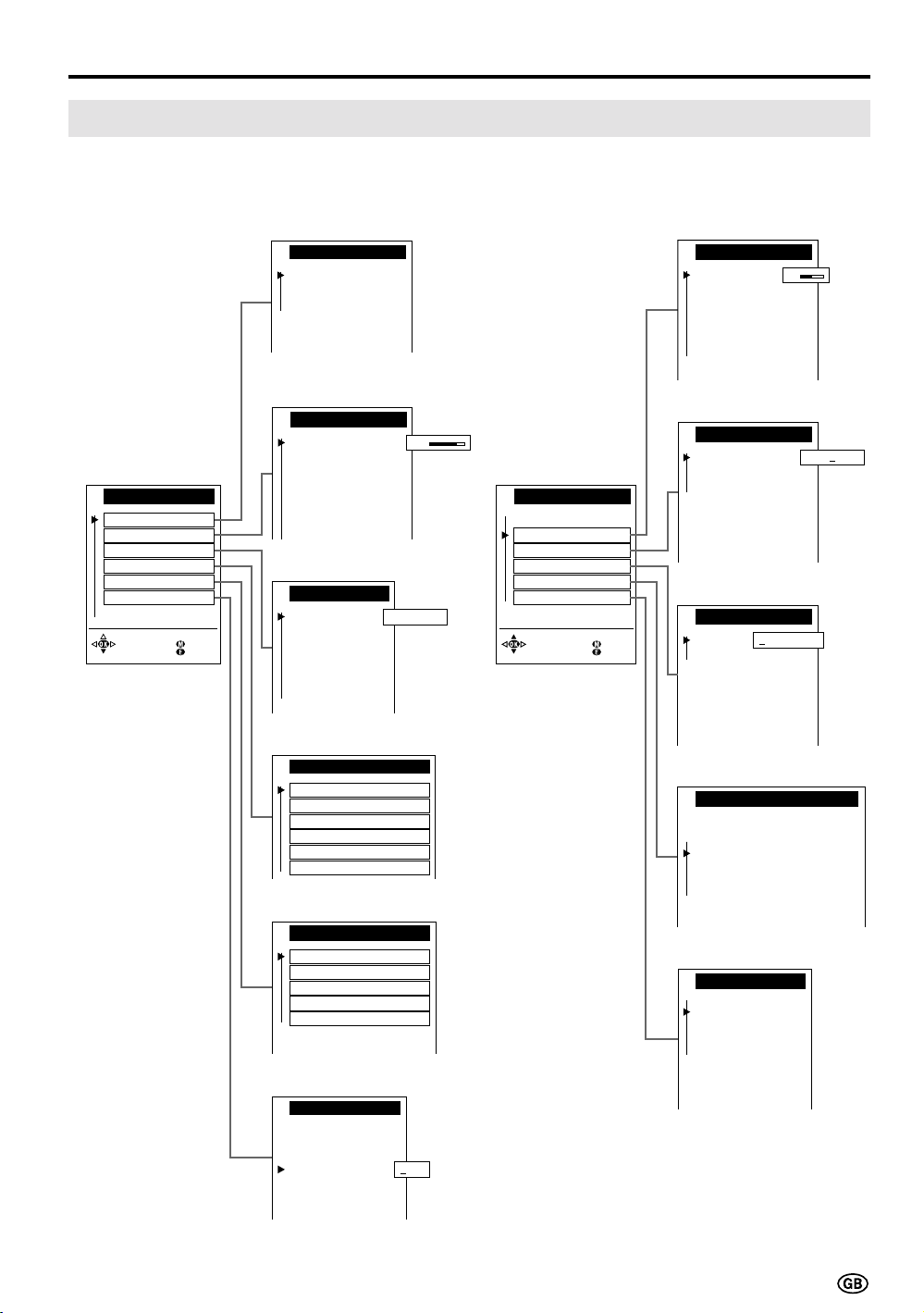

Selecting Menu Items .................................... 18
Standard Settings .......................................... 20
Programmes .................................................. 21
AV Connections ............................................. 28
Child Lock ...................................................... 31
On-screen Display ......................................... 36
Timer Functions ............................................. 37
Setting Time and Date (Manual) ................... 38
NICAM Broadcast Selection .......................... 39
IGR (German stereo system) Broadcasts..... 40
Teletext ................................................................. 41
Connecting External Devices ............................... 46
Examples of external devices that can be
connected ................................................... 46
21-pin Euro-SCART (RGB) ........................... 47
How to fix the cables ..................................... 49
Troubleshooting .................................................... 50
Specifications........................................................ 52
Dimensional Drawings.......................................... 53
Dear SHARP Customer
Thank you for your purchase of the SHARP LCD Colour TV product. To ensure safety and many years of trouble-free operation of your product, please read the Important Safety Precautions carefully before using this product.
Important Safety Precautions
Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV product, please read the following precautions carefully before using the product.
■ Read instructions—All operating instructions must be read and understood before the product is operated.
■ Keep this manual in a safe place—These safety and operating instructions must be kept in a safe place for
future reference.
■ Observe warnings—All warnings on the product and in the instructions must be observed closely.
■ Follow instructions—All operating instructions must be followed.
■ Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate attach-
ments can result in accidents.
■ Power source—This product must operate on a power source specified on the specification label. If you are not sure of the type of power supply used in your home, consult your dealer or local power company. For units designed to operate on batteries or another power source, refer to the operating instructions.
■ Power cord protection—The power cords must be routed properly to prevent people from stepping on them or objects from resting on them. Check the cords at the plugs and product.
■ If you plan to use a 12-VDC power supply unit other than the AC adapter supplied with the product, make sure the power supply unit provides stable voltage with minimum fluctuations. Unstable power supply can cause problems in the product.
■ Overloading—Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
■ Entering of objects and liquids—Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts. For the same reason, do not spill water or liquid on the product.
■ Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
■ Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs: a. When the power cord or plug is damaged. b. When a liquid was spilled on the product or when objects have fallen into the product. c. When the product has been exposed to rain or water. d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjust-
ment work by a qualified technician. e. When the product has been dropped or damaged. f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates
that the product needs servicing.
■ Replacement parts—In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
■ Safety checks—Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
■ Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.
2
Important Safety Precautions (Continued)
■ Cleaning—Unplug the power cord from the AC outlet before
cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
■ Water and moisture—Do not use the product near water, such
as bathtub, washbasin, kitchen sink and laundry tub, swimming pool and in a wet basement.
■ Stand—Do not place the product on an unstable cart, stand,
tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
■ When relocating the product placed on a cart, it must be moved
with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.
■ Ventilation—The vents and other openings in the cabinet are
designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.
■ The LCD panel used in this product is made of glass. Therefore,
it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the LCD panel breaks.
■ Heat sources—Keep the product away from heat sources such
as radiators, heaters, stoves and other heat-generating products (including amplifiers).
The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red. Please note that this does not affect the performance of your product.
3
Supplied Accessories
Make sure the following accessories are provided with the product.
Operation manual (×1) Wireless remote control (×1)
ENGLISHDEUTSCHFRANÇAISITALIANOESPAÑOLSVENSKA
LC-15C2E
LCD COLOUR TELEVISION LCD-FARBFERNSEHGERÄT TÉLÉVISION COULEUR À ÉCRAN
À CRISTAUX LIQUIDES (LCD) TELEVISORE A COLORI LCD TELEVISIÓN EN COLOR LCD LCD-FÄRG-TV LCD-KLEURENTELEVISIE
OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUALE DI ISTRUZIONI MANUAL DE MANEJO BRUKSANVISNING GEBRUIKSAANWIJZING
NEDERLANDS
AC adapter (×1)
Size AAA dry battery (×2)
AC cord (×1)
* Product shape varies in some countries.
Cable clamp (×2)
4
Preparation
Remote sensor window
Power/Standby indicator
Installing Batteries in the Remote Control
Before using the LCD TV set for the first time, install the two AAA batteries supplied in the remote control. When the batteries become depleted and the remote control fails to operate, replace the batteries with new AAA batteries.
1 Open the battery cover. 2 Insert two AAA batteries. 3 Replace the battery cover.
■ Raise the cover while pressing the ([) part.
■ Position the positive and negative ends of the batteries as indicated in the compartment.
■ Engaging the lower claw with the remote control, close the cover.
Caution!
Precautions regarding batteries
■ Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.
• Place batteries with their terminals corresponding to the (+) and (–) indications.
• Different types of batteries have different characteristics. Do not mix batteries of different types.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/
or cause old batteries to leak chemicals.
• Remove batteries as soon as they are depleted. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe it off with a cloth.
• The batteries supplied with the product may have a shorter life expectancy due to storage conditions.
• If the remote control is not to be used for an extended period of time, remove the batteries from the
remote control.
Using Remote Control
■ Use the remote control by pointing it towards the remote sensor window of the main unit. Objects between the remote control and sensor window may prevent proper operation.
Cautions regarding use of remote control
■ Do not expose the remote control to shock. In addition, do not expose the remote control to liquids, and do not place it in an area with high humidity.
■ Do not install or place the remote control under direct sunlight. The heat may cause deformation of the unit.
■ The remote control may not work properly if the remote sensor window is under direct sunlight or strong lighting. In such a case, change the angle of the lighting or main unit, or operate the remote control closer to the remote sensor window.
5
Preparation (Continued)
Power Connection
Connect to the DC input terminal of the product.
Household
power outlet
Plug into an AC outlet.
Pull down the hook to open the cover.
AC cord*
* Product shape varies in some countries.
Notes:
■ Always turn the MAIN POWER switch of the LCD TV set to OFF when connecting the AC adapter.
■ Unplug the AC adapter from the LCD TV set and power outlet when the LCD TV set is not to be used for a long
period of time.
AC adapter
To POWER INPUT DC 12 V terminal
Antenna Connection
To enjoy a clearer picture, we recommend that you use an outdoor antenna. The following is a brief explanation of the types of connection that are used for coaxial and feeder cables:
(1)If your outdoor antenna uses a 75-ohm coaxial
cable, change this for a new standard DIN45325 (IEC169-2) plug and plug it into the antenna terminal at the back of TV set via the antenna cable (not supplied).
(2)If your outdoor antenna uses a 300-ohm twin-lead
flat feeder, change this for a 300-ohm to 75-ohm impedance converter and plug it into the antenna terminal at the back of TV set via the antenna cable (not supplied).
6
75-ohm coaxial cable (round cable)
To antenna input terminal ( )
300-ohm twin-lead flat feeder
Please en ter t he TV set locat ion f or the co r rect TV st andar d and the appropriate programme c lassi f icat ion for the country:
Locat ion of TV set
Other . . . GB
I NL PL HU SL Other countr ies
Great Br i tai n Italy Net her l ands Pol and Hungary Slovenia
(
PAL- I
)
(
PAL- BG
)
(
PAL- BG
)
(
PAL-DK
)
(SECAM-DK) (
PAL-DK
)
(Auto,-BG)
Selec t and proceed wi th OK
Back End
Preparation (Continued)
First Installation
When you turn on the LCD TV set for the first time, the First Installation routine, which makes installation easier, is activated. Using this routine, you can select the on-screen display language, and automatically search for and store all the receivable channels.
1 Press the MAIN POWER switch.
The “First installation” screen with a list of the languages for the on-screen display appears.
MAIN POWER
SOUND
INFO
iE
OK
T
(
RED)(GREEN)(YELLOW)(CYAN
CH
TV/VIDEO
OK
END
]/[
MENUTEXT
M
)
2 Press ]/[ to select the desired
language, and then press OK. The “Location of TV set” screen appears in the language selected.
Note:
■ You can change the on-screen display language after the First Installation routine by selecting “Language” on the TV menu (see pages 18 and 19).
3 Press ]/[ to select the TV set
location, and then press OK. The
“Autom. programme search” screen appears.
4 Press ]/[ to select “Start
search.”
First installation
Whi ch l angua ge do you wan t
to use for operation?
Deutsch Engl ish Français Español
Italiano
Neder l ands
Svenska
Select and proceed
wi th OK
Autom. programme search
Your TV set sear ches wi th the
following settings:
Extent of search Al l prog r. Store progr . fr om Programme 001 Locat i on of TV set Other countr i
Change se t t ing s Star t search
Back End
7
Preparation (Continued)
First Installation (Continued)
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
CH
TV/VIDEO
END
MENUTEXT
M
OK
)
5 Press OK to begin the automatic
programme search. The bar on the screen shows the progress.
When the search is completed, the number of the programmes found is displayed. The new programmes found are displayed in blue on the programme list.
6 Press END to exit.
Sta rt search
Search is ac ti ve. Please wai t!
001 MHz Auto-BG
0 1 2 3 4 5 6 7 8 9
Start search
Search is complet ed.
19 Progr ammes f ound.
0
S01
1
S08
2
S10
3
S10
4
S11
5
E03
6
E05
7
E06
8
E09
9
E10
10 11 12 13 14 15 16 17 18 19
10
E11
11
E36
12
E37
13
E38
14
E50
15
E53
16
E54
17
E56
18
E57
19
20 21 22 23 24 25 26 27 28 29
20 21 22 23 24 25 26 27 28 29
Cancel
End
8
Part Names of Main Unit
Controls
Front view
Speaker
(Left)
To change the vertical angle of the LCD TV set, tilt the screen up to 5 degrees forward or 10 degrees backward. The TV set can also be rotated 40 degrees horizontally. Please adjust the angle so that the TV set can be watched most comfortably.
Speaker (Right)
Table stand
Control panel
CH
Headphones
Volume (+)/(–)
Note:
■ TV/VIDEO, CH( )/( ), and Volume (+)/(–) on the main unit have the same functions as the same buttons on
the remote control. Fundamentally, this operation manual provides a description based on operation using the remote control.
CH ( )/( )
TV/VIDEO
A green indicator lights when the power is on and a red indicator lights when in the standby mode (the indicator
will not light when the main power is off).
TV/VIDEO
MENU
MAIN POWER
MENU
Power/Standby indicator
Remote sensor window
9
Part Names of Main Unit (Continued)
Terminals
Antenna
A
V
-IN
1
R
G
B
T
U
O
IO
D
AU
L
R
R
E
W
O
P
T
U
P
IN
V
2
1
C
D
AV-IN1 (21-pin Euro­SCART)
AUDIO OUT (L)
AUDIO OUT (R) POWER INPUT DC 12 V
Rear view
Carring handle
-IN
V
A
ID
V
AUDIO
S-VIDEO
2
O
E
L
R
VIDEO
AUDIO (L) AUDIO (R)
S-VIDEO
10
Part Names of Remote Control
(Power)
SOUND
OK, Programme Table
Turns on the menu
INFO
information when
the menu is displayed.
TEXT
GREEN, Sound Menu
RED, Picture Menu
Volume (+)/(–)
INFO
iE
OK
T
(
)(
RED
GREEN)(YELLOW)(CYAN
CH
END
MENUTEXT
M
)
SOUND
Switches the sound mode.
END, Status Display
Turns on the status display when the menu is not displayed.
Upward / Downward Selection
MENU
Right / Left Selection
CYAN, Teletext Subtitle
YELLOW, Standard Value
Mute
Flashback
Returns to the
previous channel.
CH ( )/( )
Channel Select
TV/VIDEO
TV/VIDEO
11
Basic Operation
Turning On and Off the Main Power
Press the MAIN POWER switch.
|
The power indicator instantaneously changes from red to green and the main unit is turned on.
MAIN POWER
Power/Standby indicator
Note:
■ The display time of the on-screen indicators can be selected with “On­screen time” for the “On-screen display” menu item in the TV menu (see page 36).
To turn off the main power, press
|
the MAIN POWER switch.
Switching the TV/VIDEO (AV1/AV2/AVS/TV) Mode
1 Turn on the power of the
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
TV/ VIDEO
connected video equipment.
2 Press TV/VIDEO to select the
applicable input source. The screen displays AV1, AV2, AVS or TV mode each time TV/VIDEO is pressed.
Note:
■ About the video modes
• AV1: Select this when viewing the
signals from the video equipment connected to the AV-IN1 terminal.
• AV2: Select this when viewing the
signals from the video equipment connected to the AV-IN2 terminals using the VIDEO terminal for video input.
• AVS: Select this when viewing the
signals from the video equipment connected to the AV-IN2 terminals using the S-VIDEO terminal for video input.
On-screen display
1 S08
AV1 mode
199 AV1
AV2 mode
198 AV2
AVS mode
197 AVS
TV mode
1 S08
12
Basic Operation (Continued)
Changing Channels
You can select channels using Channel Select or CH ( )/( ).
• To handle the increasing number of channels available, this LCD TV set allows you to select up to 200 channels (0 to 199).
Using Channel Select
When selecting the channel using Channel Select, finish inputting the channel number by holding down the button for the last digit for a moment.
To select a one-digit channel (e.g.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
Channel 5):
1 Hold down the button.
Channel
TV/VIDEO
Select
To select a two/three-digit channel (e.g. Channel 15):
1 Press the button. 2 Hold down the button.
Using CH ( )/( )
Press CH ( ) and the channels change in the order shown below:
1 → 2 → 3 → . . . → 198 → 199 → 0 → 1 → 2 → 3 → . . .
Press CH (
) and the channels change in the order shown below:
3 → 2 → 1 → 0 → 199 → 198 → . . . → 3 → 2 → 1 → . . .
5
1
15
Note:
■ Channel “0” is prepared for RF output of VCR.
14
Basic Operation (Continued)
Changing Channels
You can select channels using Channel Select or CH ( )/( ).
• To handle the increasing number of channels available, this LCD TV set allows you to select up to 200 channels (0 to 199).
Using Channel Select
When selecting the channel using Channel Select, finish inputting the channel number by holding down the button for the last digit for a moment.
To select a one-digit channel (e.g.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
Channel 5):
1 Hold down the button.
Channel
TV/VIDEO
Select
To select a two/three-digit channel (e.g. Channel 15):
1 Press the button. 2 Hold down the button.
Using CH ( )/( )
Press CH ( ) and the channels change in the order shown below:
1 → 2 → 3 → . . . → 198 → 199 → 0 → 1 → 2 → 3 → . . .
Press CH (
) and the channels change in the order shown below:
3 → 2 → 1 → 0 → 199 → 198 → . . . → 3 → 2 → 1 → . . .
5
1
15
14
Contrast
Picture menu
Colour
Black level Shar pness Green co louri ng Red - bl ue co l ou r i ng
Other .. .
0
Back End
Useful Features
Adjusting Picture Settings
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
Adjustment item
Contrast
</>
END
]/[
RED
Press Volume (–)
Decrease contrast
1 Press RED to display the Picture
menu.
Note:
■ The Picture menu can also be displayed by selecting “Picture” in the TV menu (see pages 18 and
19).
2 Press ]/[ to select the desired
adjustment item.
• Select “Other...” to display the
other part of the Picture menu.
3 Press </> to make the
adjustment.
4 Press END to exit.
Choice/Value range
0 – 60
Pi c ture menu
Contrast Colour Black l evel Sharpness Green co louri ng Red - bl ue co l ou r i ng Other .. .
Press Volume (+)
Increase contrast
Back End
40
Colour
Black level
Sharpness
Green colouring
Red-blue colouring
Tint
Brightness
Rotate horizontally
Rotate vertically
Lower colour intensity
Less bright
Soft picture
Less green
More red
Toward purple
–
dark medium bright
–
–
-30 – 30
-30 – 30
0 – 5
-5 – 5
-5 – 5
-15 – 15
off on
off on
Higher colour intensity
More bright
Sharp picture
More green
More blue
Toward green
–
–
–
15
Useful Features (Continued)
Sound via
Sound menu
Headph. vol. Loudsp. sound Headph. sound
AV aud i o s i g .
Other .. .
TV Hi -fi
Back End
Sound via
Sound menu
Headph. vol. Loudsp. sound Headph. sound AV audio sig. Other .. .
Back End
20
Adjusting Sound Settings
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
Adjustment item
Sound via
</>
END
]/[
GREEN
1 Press GREEN to display the
Sound menu.
Note:
■ The Sound menu can also be displayed by selecting “Sound” in the TV menu (see pages 18 and
19).
2 Press ]/[ to select the desired
adjustment item.
• Select “Other...” to display the
other part of the Sound menu.
3 Press </> to make the
adjustment.
4 Press END to exit.
Press Volume (–)
–
Choice/Value range
TV Hi-fi
Press Volume (+)
–
Headph. vol.*
Decrease head­phones volume
0 – 60
Increase head­phones volume
Mono Mono!/Sound1
Loudsp. sound
–
Headph. sound*
AV audio sig.
Maximum volume*
Decrease maximum volume
Sound wide*
Balance*
* These items are not displayed when the “Sound via” item is set to “Hi-fi”.
Note:
■ In the “AV audio sig.” item, mono-video recorders should select “Sound1” or “Sound2”. Stereo-video recorders should select “Sound1+2” so that the desired sound can be selected when playing back the video.
Increase the volume of the left speaker
–
–
Sound2 Sound1+2 Mono!/
Stereo Mono!/Nicam Mono!
(*The choices differ depending on
whether or not a NICAM or IGR signal is received.)
Sound1 Sound2 Sound1+2
10 – 60
off on
-15 – 15
–
–
Increase maximum volume
–
Increase the volume of the right speaker
16
Useful Features (Continued)
Using Programme Table
The Programme table shows a list of all receivable programmes. They are located in channels 0 to 199. The currently selected programme is displayed in blue, and the child-locked programmes are displayed in red.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
]/[
OK
To select the desired programme
1 Press OK to display the
Programme table.
2 Press ]/[ and/or </> to select
the desired programme.
• To display the next or previous list of the Programme table, press ]/[ when the cursor is at a programme in the lower-right or upper-left position, or press </> when the cursor is at a pro­gramme in the right or left column.
3 Press OK to display the selected
programme.
Programme table
197
AVS
198
AV2
199
AV1
0
S01
1
S08
2
S10
3
S10
4
S11
5
E03
6
E05
7
E06
8
E09
9
E10 E11
10
Selec t an d proceed wi th OK
11
E36
12
E37
13
E38 E50
14 15
E53
16
E54 E56
17 18
E57 19 20 21 22 23 24
25 26 27 28 29 30 31 32 33 34 35 36 37 38
Back End
17
Useful Features (Continued)
Standard settings
TV menu
Picture Sound Programmes AV connec t ion s Ch i ld loc k
Back End
Other .. .

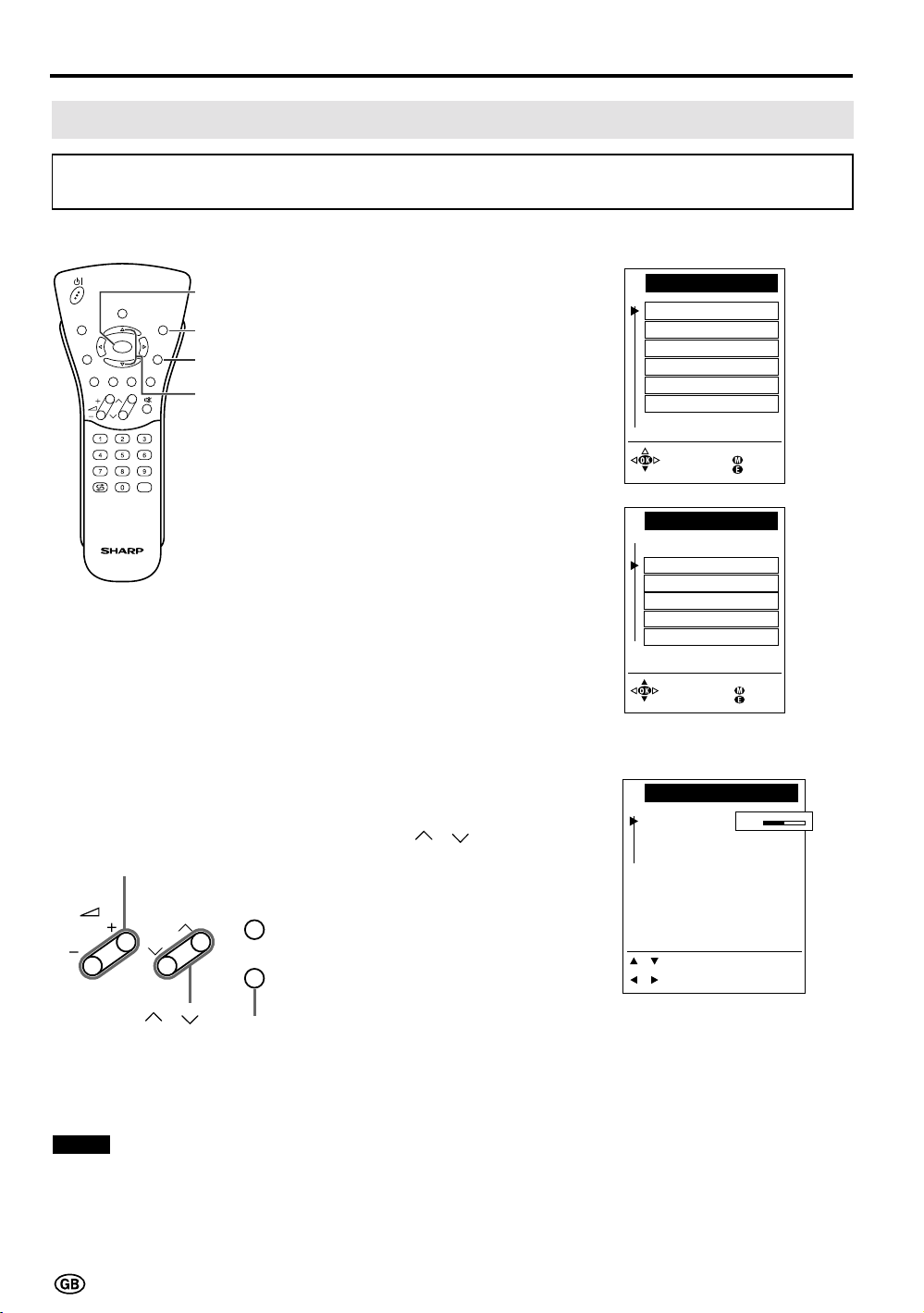

Selecting Menu Items
• The menus can be used to adjust the various settings of your LCD TV set. Select the desired menu item by following the steps below.
■ Using TV Menus
SOUND
INFO
iE
OK
T
(
RED)(GREEN)(YELLOW)(CYAN
CH
TV/VIDEO
OK
END
END
MENUTEXT
M
MENU
)
]/[
■ Using Direct Control Menu
Control panel of
the main unit
Volume (+)/(–)
TV/VIDEO
MENU
MENU
CH (
CH
)/( )
1 Press MENU on the remote
control to display the TV menu.
2 Press ]/[ to select the desired
menu item.
• The cursor moves up or down.
• The cursor indicates the selected
menu item.
• Select “Other...” to display the other part of the menu.
3 Press OK to display the setting
screen for the selected menu item.
• See the next page for a table of the setting screens.
4 Press MENU to return to the
previous screen or END to return to the normal screen.
1 Press MENU on the main unit to
display the Direct Control menu.
2 Press CH ( )/( ) to select the
desired menu item.
• The cursor moves up or down.
• The cursor indicates the selected
menu item.
3 Press Volume (+)/(–) to make the
adjustment.
• See page 15 for details on the use of each item.
4 Press MENU to turn off the Direct
Control menu.
TV menu
Other .. .
On-screen di splay Timer functions Time and date Fi rst installat ion Language
Back End
Direct control at TV
Black level
Cont r as t
Col ou r
: Selec t : Change
0
M: Back
E: End
Notes:
■ The items displayed differ depending on the setting conditions.
■ The item selected is displayed in blue.
■ The adjustment values and settings which were changed before the screen is restored are saved as is in the
memory.
18
Useful Features (Continued)
Selecting Menu Items (Continued)
■ TV Menu Setting Screens
For details on using each setting screen, refer to the page number indicated.
TV menu
Standard sett ings Picture Sound Programmes AV connect ions Ch il d l ock
Other .. .
Back End
(Page 20)
Standard set tings
User pref erences Sto re Factory setting
(Page 15)
Pi ct ure menu
Cont rast Col our Black level Shar pness Green co lour ing Red -b l ue c ol ou r i ng Other .. .
(Page 16)
Sound menu
Sou nd v i a Headph. vol. Loudsp. sound Headph. sound AV a ud i o s i g . Other .. .
(Pages 21 – 27)
Programmes
Automatic search
Manual ad jus tment
Sor t Er ase programme r ange Ent er/ change name Decoder programmes
(Pages 28 – 30)
AV connect ions
(programme
At AV1
(programme
At AV2
(programme
At AVS Decoder prog rammes For progr ammes 1.. . 196
40
TV Hi -f i
)
199
)
198
)
197
TV menu
Other .. .
On- sc r een di s pl ay Timer functions Time and date Fi rst instal lation Language
Back End
(Page 36)
On-screen display
On-sc reen Posi t ion Sound info Time Alarm t ime Sleep time
time
4
(Page 37)
Timer func t ions
Swi t ch of f Alarm Al arm volume
(Page 38)
Time and date
Time Da te
--:--:--
(Page 7)
First installation
Whi ch l angua ge do you want
t o use f or o pe ra t i on ?
Deutsch Engl ish Français Español Italiano Neder land s Svenska
(Page 7)
Language
Deutsch Engl ish Français Español Italiano
Neder land s
Svenska
no 00:00
(Pages 31 – 35)
Chi l d lock
Please def ine your PIN.
Chi ld l ock Please memor iz e
your PIN bef ore proceeding wi t h OK.
????
19
Useful Features (Continued)
St andard se tti ngs
TV menu
Picture Sound Programmes AV connect ions Ch i ld l oc k
Back End
Other .. .
Standard Settings
You can optionally set the standard settings for the following adjustments. You can also easily call up those standard settings or factory-preset settings.
• Mute
• Picture menu item: Contrast, Colour, Sharpness, Tint, Brightness
• Sound menu item: Volume, Hi-fi volume, Headph. vol., Balance
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
OK
END
MENU
]/[
1 Press MENU to display the TV
menu.
2 Press ]/[ to select “Standard
settings”, and then press OK to display the “Standard settings” screen.
3 Press ]/[ to select the desired
function.
■ User preferences: The standard settings are retrieved.
■ Store: The currently selected settings are stored as the standard settings.
■ Factory setting: The factory-preset settings are retrieved.
4 Press OK to execute the selected
function.
5 Press END to exit.
TV menu
Standard sett ings
User pref erences Sto re Factory sett ing
Ca l l wi t h OK
TV menu
Standard sett ings
User pref erences Sto re Factory sett ing
Back End
Val ues cal l ed!
Note:
■ You can also call up the standard settings by pressing YELLOW with the normal screen displayed.
20
Back End
Useful Features (Continued)
TV menu
Programmes
Automatic search
Manual ad justment
Sor t Erase programme range Ent er / change name Decoder programmes
Back End
Programmes
[1] Automatic search
Perform the procedure below to search for and store new programmes after the First Installation routine.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
OK
MENU
]/[
1 Press MENU to display the TV
menu.
2 Press ]/[ to select
“Programmes”, and then press
OK to display the “Programmes” screen.
3 Press ]/[ to select “Automatic
search”, and then press OK to display the “Autom. programme search” screen.
4 Press ]/[ to select “Change
settings”, and then press OK to display the “Extent of search” screen.
TV menu
Standard set tings Picture Sound Programmes AV connect ions Ch il d l ock
Other .. .
Back End
Autom. programme search
Your TV set sear ches wi th the
following sett ings:
Ext ent of search New pr . onl y Store progr. from Programme 019 Locat i on of TV set Other coun tr i
Change se t t ings Star t search
5 Press ]/[ to select the extent of
the programmes to be searched, and then press OK to display the “Store progr. from” screen.
Autom. programme sear ch
Extent of search
Please def i ne the ex tent of programmes for search:
Al l pr ogrammes New programmes onl y
Sel ec t and proceed wi th OK
Back End
Back End
21
Useful Features (Continued)
Programmes (Continued)
[1] Automatic search (Continued)
Press ]/[ and/or </> to select the
6
programme position from which the programmes are to be stored, and then press OK to display the “Location of TV set” screen.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
]/[
OK
7 Press ]/[ to select the TV set
location.
• Select “Other...” to display the other part of the country list.
A u t om . p r o g r a mme s e a r c h
Stor e progr . f rom
Please sel ect the progr amme position from which the programmes are to be stored:
0
S01 S02
1 2
S10
3
S10
4
S11
5
E03
6
E05
7
E06
8
E09
9
E10
Sel ec t an d
proceed wi th OK
Autom. programme sear ch
Locat ion of TV set
Please en ter t he TV set locat ion for the co r rect TV st andar d and the appropr iat e programme c lassi f icat ion f or the countr y:
A Aust ri a
B Bel gi um
CH Swi tzer land
CZ Czech Repub li c D Ge rmany E Spai n
F France
Other .. .
Sel ec t an d proceed wit h OK
E11
10 11
E36
12
E37
13
E38 E50
14 15
E53
16
E54 E56
17
E57
18 19
(
PAL- BG
(
PAL- BG
(
PAL- BG
(
PAL-DK
(
PAL- BG
(
PAL- BG
(
SECAM-L
20 21 22 23 24 25 26 27 28 29
) ) ) ) ) )
)
Back End
Back End
8 Press OK. The selected settings are
displayed.
9 Press ]/[ to select “Start search”,
and then press OK to begin the automatic programme search.
Note:
■ See pages 7 and 8 for details of the search process.
10 After the search is completed, press
END to exit.
Autom. programme search
Your TV set sear ches wi th the following sett ings:
Ext ent of search Al l progr . Stor e progr . from Progr amme 000 Locat i on of TV set D (PAL- BG)
Change se t t ings Star t search
Back End
22
Programmes (Continued)
[2] Manual adjustment
Individual settings of programmes can be adjusted.
Useful Features (Continued)
SOUND
INFO
iE
OK
T
(
RED)(GREEN)(YELLOW)(CYAN
CH
</>
END
MENUTEXT
M
]/[
)
OK
RED
TV/VIDEO
Channel Select
1 Perform steps 1 and 2 in [1]
Automatic search to display the
“Programmes” screen.
2 Press ]/[ to select “Manual
adjustment”, and then press OK to display the “Manual adjustment” screen.
3 Press ]/[ to select the item, and
then press </> to make the adjustment. (See the table on the next page for details.)
• You can also use Channel Select to adjust the “Channel” and
“Frequency” items.
• To adjust “Name”, first press OK
to activate the text input mode. Press </> to select the input position and press ]/[ to select the desired character. When you finish inputting, press OK to set the name.
TV menu
Programmes
Automatic search
Manual ad ju stment
Sor t Erase programme range Enter / change name Decoder pr ogrammes
Back End
Manual ad justment
Range VHF UHF Cab l e
Channel E36 Frequency 591.25 MHz Name E 36
TV st and. B/G Col. st. Autom.
Search Store
Back End
4 Press RED to store the adjusted
channel. The “Store” screen appears.
5 Press ]/[ and/or </> to select
the desired programme position to insert the channel.
Store
0 1 2 3 4 5 6 7 8 9
S01 S08
S10
S10 S11
E03 E05 E06 E09 E10
Insert
Overwri te
E11
10 11
E36
12
E37
13
E38 E50
14 15
E53
16
E54 E56
17 18
E57
19
20 21 22 23 24 25 26 27 28 29
Back End
23
Useful Features (Continued)
Programmes (Continued)
[2] Manual adjustment (Continued)
6
Press YELLOW to insert a free
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
END
RED
YELLOW
programme position for the channel, or press RED to overwrite the existing channel on the marked programme position.
• If you press YELLOW, all subsequent programmes including the marked one move one programme position back.
7 Press END to exit.
TV/VIDEO
Adjustment item
Range
Channel
Frequency
Name
TV stand.
Col. st.
Choice/Value range
VHF, UHF, Cable
E02 – E12 (VHF, B/G)
E21 – E69 (UHF)
S01 – S41 (Cable, B/G)
A – K (VHF, I), etc.
044 – 859 (MHz)
A – Z, +, -, ., !, /, 0 – 9
B/G, I, L, D/K, M, N
Autom., PAL, SECAM,
NTSC-V, PAL-V
NTSC, PAL(Norm
M), etc.
Description
Receivable ranges depending on TV norm and installation site
Receivable channels depending on TV norm, installation site, and range
Receivable frequencies depending on TV norm, installation site, and range
Programme name (up to five characters)
TV norm
Colour norm
24
Useful Features (Continued)
TV menu
Programmes
Automatic search
Manual ad jus tment
Sor t Er ase programme r ange Ent er / change name Decoder programmes
Back End
Programmes (Continued)
[3] Sort
The programme positions for individual programmes can be freely changed.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
]/[ CYAN
YELLOW OK
RED
1 Perform steps 1 and 2 in [1]
Automatic search to display the
“Programmes” screen.
2 Press ]/[ to select “Sort,” and
then press OK to display the “Sort” screen.
3 Press ]/[ and/or </> to select
the desired programme, and then press YELLOW, RED, or CYAN to sort.
• When YELLOW is pressed, a free programme position is inserted at the current cursor position. All subsequent programmes including the marked one move one pro­gramme position back.
• When RED is pressed, the currently marked programme is erased. All subsequent pro­grammes move one programme position up.
• When CYAN is pressed, the Move mode is activated. Press ]/[ to move the currently marked programme to the desired pro­gramme position. The marked programme is swapped with the programme at the selected programme position. Press CYAN to leave the Move mode.
Sor t
0 1 2 3 4 5 6 7 8 9
S01 S08 S10 S10 S11 E03 E05 E06 E09 E10
Move
Insert
Erase
E11
10 11
E36
12
E37
13
E38 E50
14 15
E53
16
E54 E56
17 18
E57
19
20 21 22 23 24 25 26 27 28 29
Back End
4 Press END to exit.
25
Useful Features (Continued)
TV menu
Programmes
Automatic search
Manual ad justment
Sor t Erase programme range Enter/ change name Decoder pr ogrammes
Back End
Programmes (Continued)
[4] Erase programme range
The individual programmes or programmes in a connected range can be erased.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
]/[
OK
1 Perform steps 1 and 2 in [1]
Automatic search to display the
“Programmes” screen.
2 Press ]/[ to select “Erase
programme range,” and then press OK to display the “Erase programme range” screen.
3 Press ]/[ and/or </> to select
the programme to be erased, and then press OK. The selected programme is shown in blue.
• If you want to erase programmes in a connected range, select the programme at the beginning of the desired range.
4 If you are erasing programmes in
a connected range, press ]/[ and/or </> to select the programme at the end of the range. The selected programmes are shown in blue.
Erase p rogramme range
0
S01
1
S08
2
S10
3
S10
4
S11
5
E03
6
E05
7
E06
8
E09
9
E10
Star t with OK, select end and er ase wi t h OK
Erase p rogramme range
0
S01
1
S08
2
S10
3
S10
4
S11
5
E03
6
E05
7
E06
8
E09
9
E10
Star t with OK, select end and er ase wi t h OK
E11
10 11
E36
12
E37
13
E38 E50
14 15
E53
16
E54 E56
17 18
E57
19
E11
10 11
E36
12
E37
13
E38 E50
14 15
E53
16
E54 E56
17 18
E57
19
20 21 22 23 24 25 26 27 28 29
Back End
20 21 22
23
24 25 26 27 28 29
Back End
26
5 Press OK to erase the selected
programme(s). All the subsequent programmes move up.
6 Press END to exit.
Erase programme range
0
E03
1
E05 E06
2 3
E09 E10
4 5
E11 E36
6
E37
7
E38
8 9
E50
Star t with OK,
select end
and er ase wi t h OK
E53
10 11
E54
12
E56
13
E57 14 15 16 17 18 19
20 21 22 23 24 25 26 27 28 29
Back End
Useful Features (Continued)
TV menu
Programmes
Automatic search
Manual ad justment
Sor t Er ase programme range Enter/ change name Decoder pr ogrammes
Back End
Programmes (Continued)
[5] Enter/change name
The name of an individual programme can be entered or changed.
SOUND
INFO
iE
OK
T
(
RED)(GREEN)(YELLOW)(CYAN
CH
</>
END
END
MENUTEXT
M
]/[
)
OK
TV/VIDEO
1 Perform steps 1 and 2 in [1]
Automatic search to display the
“Programmes” screen.
2 Press ]/[ to select “Enter/
change name,” and then press OK to display the “Enter/change name” screen.
3 Press ]/[ and/or </> to select
the desired programme, and then press OK. An underscore and question marks are displayed as an input prompt.
4 Press </> to select the input
position, and then press ]/[ to select the desired character.
Ent er /change name
19 7 AVS
AV2
198
AV1
199
S01
0
?08
1
S10
2
S10
3
S11
4
E03
5
E05
6
Star t with OK
then enter/change and end wit h OK
Ent er /change name
19 7 AVS
AV2
198
AV1
199
S01
0
S02
1
S10
2
S10
3
S11
4
E03
5
E05
6
Star t with OK
then enter/change and end wit h OK
10 11 12 13 14 15 16
10 11 12 13 14 15 16
E56
7
E06
8
E09 E10
9
E11 E36 E37 E38 E50 E53 E54
7
E06
8
E09 E10
9
E11 E36 E37 E38 E50 E53 E54
17
E57
18 19
20 21 22 23
24 25 26
Back End
E56
17
E57
18 19
20 21 22 23
24 25 26
Back End
5 Press OK to accept the name
entered, and then press END to exit.
Note:
■ See page 29 for information on how to use the “Decoder programmes” item.
Ent er /change name
19 7 AVS
AV2
198
AV1
199
S01
0
S02
1
S10
2
S10
3
S11
4
E03
5
E05
6
Star t with OK
then enter/change and end wit h OK
10 11 12 13 14 15 16
E56
7
E06 E09
8
E10
9
E11 E36 E37 E38 E50 E53 E54
17
E57
18 19
20 21 22 23
24 25 26
Back End
27
AV connect ions
Back End
At AV1 (programme 199)
Signal :
Sel ec t and proc eed wi th OK
Autom. -VHS/SVHS VCR, camcorder
Aut om. -CVBS/YC. DVD,SAT,decoder
Standard component (s) :
VHS/8mm.. .. .. .. VCR, camcorder
SVHS/Hi8....... VCR, camcorder
CVBS........... DVD,SAT,decoder
YC............. DVD,SAT,decoder
Useful Features (Continued)
At AV1
(programme
199
)
AV connect ions
At AV2
( p r og r amme
198
)
Decoder prog rammes For progr ammes 1.. . 196
Back End
At AVS
( p r og r amme
197
)
AV Connections
It is possible to manually adjust various settings for connections with external devices on the AV connec­tions screen.
[1] At AV1 (programme 199)/AV2 (programme 198)/AVS (programme 197)
Select the appropriate signal type and colour standard for the signals from the video equipment
connected to the AV1, AV2, or AVS terminal.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
OK
END
MENU
]/[
1 Press MENU to display the TV
menu.
2 Press ]/[ to select “AV
connections,” and then press OK to display the “AV connections” screen.
3 Press ]/[ to select “At AV1
(programme 199),” “At AV2 (programme 198),” or “At AVS (programme 197),” and then press OK to display the signal type selection screen.
4 Press ]/[ to select the desired
signal type, and then press OK. The colour standard selection screen appears.
TV menu
Standard set tings Picture Sound Programmes AV connect ions Ch il d l ock
Other .. .
Back End
28
5 Press ]/[ to select the desired
colour standard, and then press
OK.
6 Press END to exit.
AV connect ions
At AV1 (progr amme 199)
Col our s tanda rd:
Aut oma t ic PAL SECAM NTSC NTSC-V PAL-V PAL-M PAL-N
Se le ct and acce pt wi th OK
Back End
Useful Features (Continued)
At AV1
(programme
199
)
AV connec t ions
At AV2
( p r og r amme
198
)
Decoder prog rammes For progr ammes 1.. .196
Back End
At AVS
( p r og r amme
197
)
Decoder programmes
For decoder connected to AV1
Sound f r om AV1
Back End
AV Connections (Continued)
[2] Decoder programmes
When connecting a video device to the AV1 terminal, you need to adjust the decoder programme settings.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
MENU
]/[
OK
1 Perform steps 1 and 2 in [1] At
AV1 (programme 199)/AV2 (programme 198)/AVS (programme 197) to display the
“AV connections” screen.
2 Press ]/[ to select “Decoder
programmes,” and then press OK to display the “Decoder programmes” screen.
3 Press ]/[ to select “For decoder
connected to AV1,” and then press OK to display the decoder programme selection screen.
4 Press ]/[ and/or </> to select
the programme for the decoder, and then press OK. Repeat the same procedure if you want to specify other decoder programmes.
5 Press MENU to return to the
“Decoder programmes” screen.
Decoder programmes
For decoder connected t o AV1
0
S01
1
S08
Sound AV1
2
S10
3
S10
4
S11
5
E03
6
E05
7
E06
8
E09
9
E10
Select decoder programme and confirm wi t h OK
10 11 12 13 14 15 16 17 18 19
E11 E36 E37 E38 E50 E53 E54 E56 E57
20 21 22 23 24 25 26 27 28 29
Back End
Back End
6 Press ]/[ to select “Sound from
AV1”, and then press </> to select the desired sound source.
7 Press END to exit.
Decoder programmes
For decoder connected to AV1
Sound f r om AV1
Autom. Dec. TV
Back End
29
Useful Features (Continued)
AV connec t ions
Back End
For progr ammes 1.. .196
AV contr ol vol tage RGB on-screen display
no y es
At AV1
( p r og r amme
199
)
AV connec t ions
At AV2
(programme
198
)
Decoder prog rammes For progr ammes 1.. .196
Back End
At AVS
( p r og r amme
197
)
AV Connections (Continued)
[3] For programmes 1...196
The influence of the AV control voltage and of fast blank at programme positions from 1 to 196 can be set.
Perform steps 1 and 2 in [1] At
1
AV1 (programme 199)/AV2 (programme 198)/AVS (programme 197) to display the
“AV connections” screen.
2 Press ]/[ to select “For
programmes 1...196,” and then press OK to display the “For programmes 1...196” screen.
3 Press ]/[ to select the desired
item.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
]/[
OK
4 Press </> to select “yes” or “no.”
Notes:
■ If the item concerned is set to “yes”, the appropriate picture is through-connected at all pro­gramme positions from 1 to 196 when a control voltage/an RGB signal is applied.
■ When you use RGB mode (SCART). In on screen menu AV connections, selection For Programmes 1...196. Set “AV control voltage” to “yes”, and “RGB on-screen display” to “yes”. If “AV control voltage” is set to “no”, the function will not work correctly.
5 Press END to exit.
30
Useful Features (Continued)
Standard settings
TV menu
Picture Sound Programmes AV connect ions Ch i ld l oc k
Back End
Other .. .
Child Lock
The Child Lock function blocks the viewing of any channel for which the child lock has been set. To use the Child Lock function, you first need to define your PIN (Personal Identification Number).
[1] Defining a PIN
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
OK
MENU
]/[
Channel Select
1 Press MENU to display the TV
menu.
2 Press ]/[ to select “Child lock.”
3 Press OK to display the PIN input
screen.
4 Input the desired four-digit PIN
(e.g. 1234) with Channel Select.
Notes:
■ Be sure to make a note of your PIN
before pressing OK.
■ The PIN will not be set if MENU or END is pressed before the fourth
digit has been input.
5 Press OK to accept the entered
PIN.
TV menu
Chi l d lock
Please def i ne your PIN.
Chi ld l ock Please memori ze
your PIN bef ore proceedi ng wi t h OK.
0-9:Input
TV menu
Chi l d lock
Please def i ne your PIN.
Chi ld l ock Please memori ze
your PIN bef ore proceedi ng wi t h OK.
0-9:Input
Back End
Back End
????
1234
31
TV menu
Chi l d loc k
For al l progr ammes
For indi vi dual progr . onl y
Change PIN
Cancel PIN
Back End
Useful Features (Continued)
Child Lock (Continued)
[3] Setting Child Lock
There are four different ways of activating a child lock:
1. General child lock for all programmes immediately
2. General child lock for all programmes with daily time limit
3. General child lock for all programmes with single time limit
4. Programme-position related child lock without time limit The Child Lock comes into effect only after the LCD TV set has entered the standby mode and is then turned on again.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
</>
END
]/[
OK

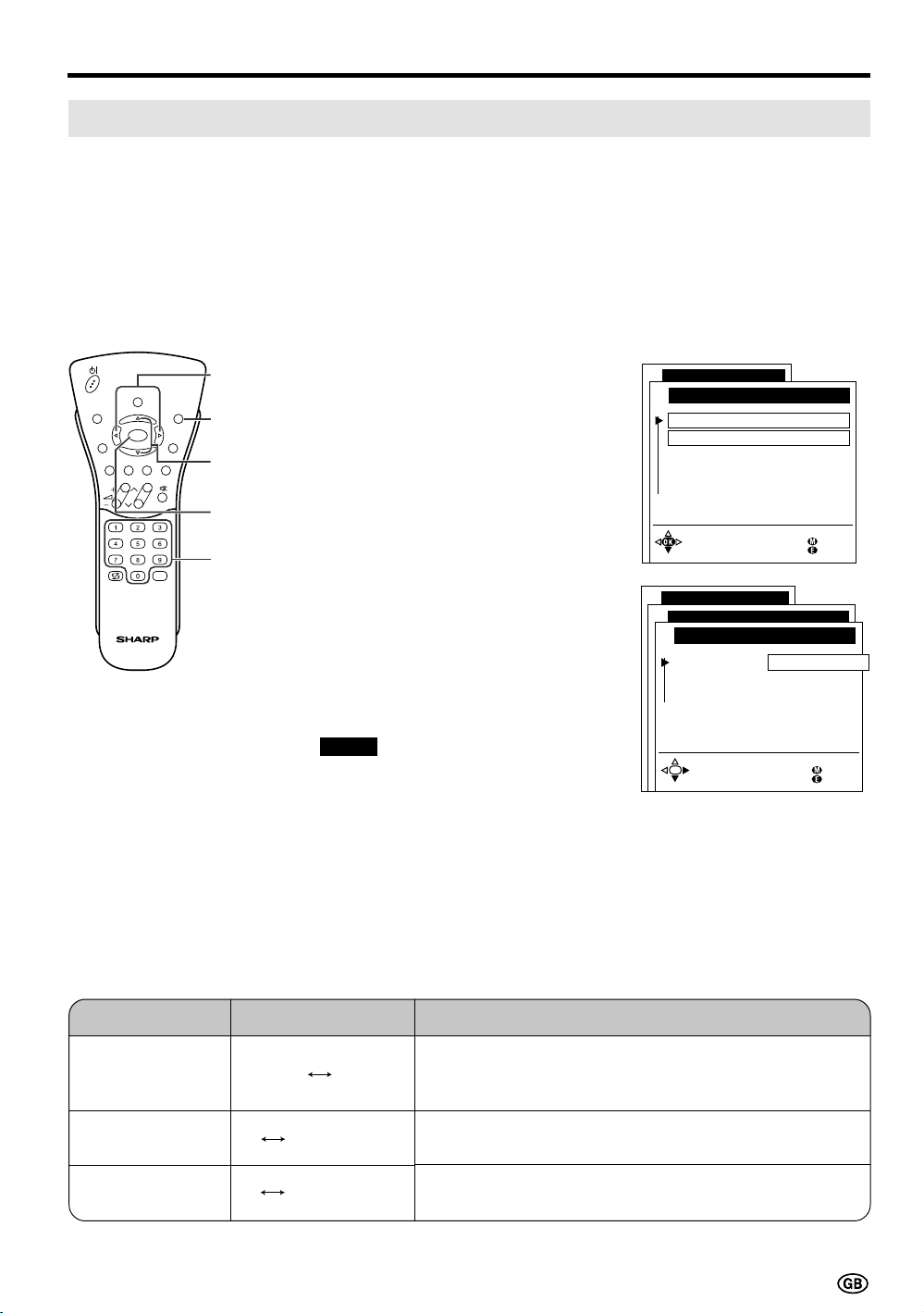

To set a Child Lock for all programmes with a time limit
1 Perform steps 1 to 3 in [2]
Changing/Cancelling a PIN to
display the “Child lock” screen.
2 Press ]/[ to select “For all
programmes,” and then press OK to display the “For all programmes” screen.
TV/VIDEO
Channel Select
3 Press ]/[ to select the desired
item. (See the table below.)
4 Press </> to select the desired
choice, and, if required, input digits with Channel Select.
TV menu
Chi l d l ock
For al l programmes
Immediately
Da i l y
Onc e
5 Press END to exit.
Notes:
■ If the current clock time is within the time limit, the Child Lock is activated immediately after the LCD TV set is turned off and on again. For example, if the current clock time is 9:00 and the time limit is specified from 22:00 to 14:00, the lock is effective from 9:00 to 14:00.
■ When a Child Lock is set for all pro­grammes with a time limit, the “Time and date” item is not displayed in the TV menu and cannot be selected.
Adjustment item
Immediately
Daily
Once
Warning:
■ The timer takes its clock information from the Teletext broadcast. The teletext broadcast may be different time zone and therefore childlock timer may not activate as expected. Concerning this detail, please refer to page 38.
Choice/Input value
no yes
no HH:MM-HH:MM
no HH:MM-HH:MM
Description
Select “yes” to activate the Child Lock immediately (after the LCD TV set has been turned off and on again). The lock remains effective until “no” is selected.
Input the start and end time for a daily-recurring Child Lock. The lock is activated everyday unless “no” is selected.
Input the start and end time for a once-only Child Lock. The length of the period should be up to 24 hours.
no yes
Back End
33
Useful Features (Continued)
Child Lock (Continued)
[3] Setting Child Lock
There are four different ways of activating a child lock:
1. General child lock for all programmes immediately
2. General child lock for all programmes with daily time limit
3. General child lock for all programmes with single time limit
4. Programme-position related child lock without time limit The Child Lock comes into effect only after the LCD TV set has entered the standby mode and is then turned on again.
To set a Child Lock for all programmes with a time limit
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
]/[
OK
Channel Select
1 Perform steps 1 to 3 in [2]
Changing/Cancelling a PIN to
display the “Child lock” screen.
2 Press ]/[ to select “For all
programmes,” and then press OK to display the “For all programmes” screen.
3 Press ]/[ to select the desired
item. (See the table below.)
4 Press </> to select the desired
choice, and, if required, input digits with Channel Select.
5 Press END to exit.
Notes:
■ If the current clock time is within the time limit, the Child Lock is activated immediately after the LCD TV set is turned off and on again. For example, if the current clock time is 9:00 and the time limit is specified from 22:00 to 14:00, the lock is effective from 9:00 to 14:00.
■ When a Child Lock is set for all pro­grammes with a time limit, the “Time and date” item is not displayed in the TV menu and cannot be selected.
TV menu
Chi l d lock
For al l progr ammes For indi vi dual progr . onl y
Change PIN Cancel PIN
TV menu
Chi l d lock
For al l programmes
Immediatel y
Da i ly Onc e
no yes
Back End
Back End
Adjustment item
Immediately
Daily
Once
Choice/Input value
no yes
no HH:MM-HH:MM
no HH:MM-HH:MM
Description
Select “yes” to activate the Child Lock immediately (after the LCD TV set has been turned off and on again). The lock remains effective until “no” is selected.
Input the start and end time for a daily-recurring Child Lock. The lock is activated everyday unless “no” is selected.
Input the start and end time for a once-only Child Lock. The length of the period should be up to 24 hours.
33
Useful Features (Continued)
Child Lock (Continued)
[3] Setting Child Lock (Continued)
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
]/[
OK
To set a Child Lock for individual programmes without time limit
1 Perform steps 1 to 3 in [2]
Changing/Cancelling a PIN to
display the “Child lock” screen.
2 Press ]/[ to select “For
individual progr. only,” and then press OK to display the “For individual progr. only” screen.
3 Press ]/[ and/or </> to select
the desired programme.
4 Press OK to lock the programme.
The locked programme is displayed in red.
Notes:
■ To unlock the programme, select
the programme and press OK.
■ The Child Lock remains effective until it is cancelled.
5 Press END to exit.
TV menu
Chi l d lock
For al l progr ammes For indi vi dual progr . onl y
Change PIN Cancel PIN
For indi vidual progr. only
7
197
AVS
198
AV2
199
AV1
0
S01
1
S08
2
S10
3
S10
4
S11
5
E03
6
E05
Select p rogramme and lock or unlock
wi th OK
E06
8
E09
9
E10 E11
10 11
E36
12
E37
13
E38 E50
14 15
E53
16
E54
Back End
E56
17
E57
18 19
20 21 22 23 24 25 26
Back End
Note:
■ When a Child Lock is activated, the “Programmes” item is not displayed in the TV menu and cannot be selected.
34
Useful Features (Continued)
Chi l d lock
Please ent er your PIN:
0-9:Input
Chi ld l ock
****
SOUND
Child Lock (Continued)
[4] Temporarily cancelling the Child Lock setting
You can view a programme for which a Child Lock has been set by temporarily cancelling the Child Lock setting. Perform the procedure below to input your PIN and cancel the Child Lock if you are prompted to do so.
When the PIN input screen
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
Channel Select
|
appears, input your PIN with Channel Select. The normal screen appears when the PIN is correctly entered.
Note:
■ If the PIN has been input incor­rectly, “Wrong PIN!” is displayed.
35
Useful Features (Continued)
On-screen Display
You can adjust various settings for on-screen displays.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
Adjustment item
</>
END
1 Press MENU to display the TV
2 Press ]/[
MENU
]/[ OK
3 Press ]/[
4 Press </> to make the
5 Press END to exit.
Choice/Value range
menu.
to select “On-screen
display,” and then press OK to display the “On-screen display” screen.
to select the desired adjustment item. (See the table below.)
adjustment.
Other .. .
Description
TV menu
On-screen di splay Timer functions Time and date Fi rst instal lat ion Language
Back End
TV menu
On-screen display
On-sc reen Posi t ion Sound i nfo Time Alarm time Sleep time
time
4
Back End
On-screen time
Position
Sound info
Time
Alarm time
Sleep time
36
2 – 9
bottom top
no yes
no yes
no yes
no yes
To select display time in seconds for the information windows (TV status, programme identification, volume, etc.), Direct Control menu, and certain messages.
To select display position of information windows.
To select information displays is selected to be turned on or off in the TV status window.
TV menu
On-screen di splay
Timer functi ons
Time and date
Fi rst instal lat ion
Other .. .
Back End
Language
Useful Features (Continued)
Setting Time and Date (Manual)
The time and the date can be manually set if the LCD TV set is unable to get these from the Teletext function.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
OK
END
MENU
]/[
Channel Select
1 Press MENU to display the TV
menu.
2 Press ]/[ to select “Time and
date,” and then press OK to display the “Time and date” screen.
3 Press ]/[ to select “Time.” 4 Input the current time
(HH:MM:SS) with Channel Select.
5 Press ]/[ to select “Date.” 6 Input the current date
(DD:MM:YYYY) with Channel Select.
7 Press END to exit.
TV menu
Time and date
Time
Date
0-9: Input
TV menu
Time and date
Time
Date
--:--:--
Back End
**.**.****
0-9: Input
Note:
■ When the LCD TV set receives Teletext signals from broadcasting of other countries, sometimes the time on the display may be wrong.
38
Back End
Useful Features (Continued)
Setting Time and Date (Manual)
The time and the date can be manually set if the LCD TV set is unable to get these from the Teletext function.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
OK
END MENU
]/[
Channel Select
1 Press MENU to display the TV
menu.
2 Press ]/[ to select “Time and
date,” and then press OK to display the “Time and date” screen.
3 Press ]/[ to select “Time.” 4 Input the current time
(HH:MM:SS) with Channel Select.
5 Press ]/[ to select “Date.” 6 Input the current date
(DD:MM:YYYY) with Channel Select.
7 Press END to exit.
TV menu
Other .. .
On-screen di splay Timer functions Time and date Fi rst instal lat ion Language
TV menu
Time and date
Time
Date
TV menu
Time and date
Time
Date
--:--:--
0-9: Input
**.**.****
Back End
Back End
38
0-9: Input
Back End
Mono!
Stereo
Sound 1
Sound 2
Sound 1+2
Mono!
Useful Features (Continued)
NICAM Broadcast Selection
This enables the selection of the reception mode when receiving a NICAM-I or NICAM-B/G signal. To let you enjoy NICAM broadcasting, this LCD TV set receives NICAM system stereo, bilingual, and monaural broadcasts.
Stereo
SOUND
INFO
iE
OK
T
(
RED)(GREEN)(YELLOW)(CYAN
CH
SOUND
END
MENUTEXT
M
)
The LCD TV set is receiving a stereo broadcast.
• Each time you press SOUND, the
mode changes between “Stereo” and “Mono!.”
• When “Mono!” is selected, the TV
sound is output monaurally.
TV/VIDEO
Bilingual
When the LCD TV set is receiving a bilingual programme, the “Sound 1” mode is automatically selected.
• Each time you press SOUND, the
mode changes as follows:
Sound 1 → Sound 2 → Sound 1+2 → Mono!
Monaural
The LCD TV set is receiving a monaural broadcast.
• Each time you press SOUND, the
mode changes between “Nicam” and “Mono!.”
Nicam
Mono!
Notes:
■ If approximately 3 seconds pass without a button being pressed, the mode setting is automatically terminated and
the LCD TV set returns to the normal mode.
■ The setting can be individually selected for each channel number.
■ You can also turn off the NICAM mode by setting the “Loudsp. sound” item to “Mono!” in the Sound screen, which is
displayed when you press GREEN (see page 16).
39
Teletext
■ What is Teletext?
Teletext is an information service organized like a magazine, which is provided by some TV stations in addition to regular television broadcasting. Your LCD TV set receives special Teletext signals broadcast by a TV station, processes the information and displays it graphically on the screen. News, weather and sports information, stock exchange prices, programme reviews and closed captioning for the deaf are among the many services available through Teletext.
■ Teletext mode
Teletext is activated with TEXT on the remote control and is also closed with it. The LCD TV set can be controlled in Tele­text mode directly by inputting commands with the remote control and indirectly through the on-screen display (menu system).
■ Operating instructions in Teletext mode
Only lines 0 to 23 (one transmitted Teletext page) can be displayed on the screen simultaneously. When you turn on a control line holding the operating instructions for TOP text or subpages, it is superimposed on line 23. Only one control line can be displayed at one time.
The function executed with a control line displayed is not implemented additionally. This means specifically:
• If FLOF Teletext is broadcast, a control line is transmitted as the 24th line, which cannot be displayed on the screen, so it is superimposed on line 23. To prevent constant loss of information on line 23, the control line is turned off. The appear time is depend on “On-screen time”. (refer to page 36.)
• The FLOF system for teletext is transmits in UK currently.
• The TOP system for teletext is transmits in Germany
currently.
• If TOP Teletext is broadcast, a control line, TOP line, can be displayed on the screen. The TOP line involves the operating instructions associated with all of the coloured buttons if TOP text is transmitted, or the operating instructions for only RED and GREEN if TOP text is not being transmitted.
• If there are subpages, a control line holding the operating instructions for subpages can be displayed on line 23.
369 SHARP- TEXT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
369 SHARP-TEXT
1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
---
--- ---
02: 52: 06
02:52:21
P6FE
Note:
■ The subtitles page may differ according to the country of operation and therefore must be set accordingly (e.g. page No. 150 in Germany, page No. 888 in UK.). And please confirm page 51.
41
Teletext
■ What is Teletext?
Teletext is an information service organized like a magazine, which is provided by some TV stations in addition to regular television broadcasting. Your LCD TV set receives special Teletext signals broadcast by a TV station, processes the information and displays it graphically on the screen. News, weather and sports information, stock exchange prices, programme reviews and closed captioning for the deaf are among the many services available through Teletext.
■ Teletext mode
Teletext is activated with TEXT on the remote control and is also closed with it. The LCD TV set can be controlled in Tele­text mode directly by inputting commands with the remote control and indirectly through the on-screen display (menu system).
■ Operating instructions in Teletext mode
Only lines 0 to 23 (one transmitted Teletext page) can be displayed on the screen simultaneously. When you turn on a control line holding the operating instructions for TOP text or subpages, it is superimposed on line 23. Only one control line can be displayed at one time.
The function executed with a control line displayed is not implemented additionally. This means specifically:
• If FLOF Teletext is broadcast, a control line is transmitted as
the 24th line, which cannot be displayed on the screen, so it is superimposed on line 23. To prevent constant loss of information on line 23. The appear time is depend on “On­screen time”. (refer to page 36.)
• The FLOF system for teletext is transmits in UK currently.
• The TOP system for teletext is transmits in Germany
currently.
• If TOP Teletext is broadcast, a control line, TOP line, can be
displayed on the screen. The TOP line involves the operating instructions associated with all of the coloured buttons if TOP text is transmitted, or the operating instructions for only RED and GREEN if TOP text is not being transmitted.
• If there are subpages, a control line holding the operating
instructions for subpages can be displayed on line 23.
• A page is entered very slowly depend on a contents of text
broadcast. And even if there is no entired page, sometimes the page is continued to search.
369 SHARP- TEXT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
369 SHARP- TEXT
1 2 3 4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
---
--- ---
02:52:06
02:52:21
P6FE
Note:
■ The subtitles page may differ according to the country of operation and therefore must be set accordingly.
41
Teletext (Continued)
[1] Turning on and off Teletext mode
369 SHARP-TEXT 1 2 3
4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
TEXT
1 Select a TV channel that is
broadcasting the Teletext programme.
2 Press TEXT. The Teletext screen
appears.
To turn off Teletext mode, press
|
TEXT again.
[2] Using the TOP line
When TOP Teletext is being broadcast, you can display the TOP line, which contains the operating instructions on the screen.
369 SHARP-TEXT 1 2 3
4
5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
---
--- ---
P6FE
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
END
Coloured buttons
1 Press any Coloured button to
display the TOP line.
2 Use the Coloured buttons to
operate the Teletext screen.
• Press RED to display the previous page and GREEN to display the next page. YELLOW and CYAN are as indicated on the TOP line.
3 Press END to turn off the TOP
TV/VIDEO
line.
02: 52: 06
02: 52: 21
42
Teletext (Continued)
[3] Changing subpages
If a page has been selected from among several subpages, you can display a control line which contains the subpage numbers.
1
Press </>. The control line with the subpage numbers is superimposed on line 23, and the number of the currently selected subpage is displayed in blue.
Note:
■ Page numbers can be displayed for up to eight subpages simultane­ously. If there are more than eight subpages attached to a page, the existing subpages are repeatedly overwritten.
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
</>
END
2 Press </> to select the desired
subpage number. The selected subpage is displayed.
3 Press END to turn off the control
line.
[4] Using the TOP table
When TOP Teletext is being broadcast, you can display the TOP table with the current programme data if one exist.
1 Press OK to display the TOP
table. The Teletext page is temporarily turned off.
2 Press ]/[ to select the desired
item. Press </> to select topics (column 1) or subtopics (column
2) if they exist.
3 Press OK. A page associated with
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
</>
]/[
OK
the selected item is displayed.
TV/VIDEO
43
Teletext (Continued)
News f la sh
Teletext menu
Reveal
Subpage
Sub- t i t le pages
Charact er set
Back End
Ac t iv at e wi th OK
[5] Using Teletext menu
SOUND
INFO
iE
T
(
RED)(GREEN)(YELLOW)(CYAN
END
OK
MENUTEXT
M
)
CH
TV/VIDEO
Item
Newsflash
Reveal
</>
END MENU
]/[ OK
You can activate Newsflash mode by pressing OK. To turn off Newsflash mode, press OK or MENU.
You can reveal hidden information (application e.g. in puzzle solutions or VPS times). Press </> to select “yes,” and then press OK. The last Teletext page is displayed with the Reveal function activated. The Reveal function applies to this page only once.
display the Teletext menu.
2 Press ]/[ to select the desired
item.
3 Perform the required operation for
the item. (See the table below.)
4 Press MENU or END to exit.
Description
1 Press MENU in Teletext mode to
Subpage
Character set
Sub-title pages
44
You can display the desired subpage by directly inputting a four-digit subpage number with number keys.
Press OK to display the “Character set” screen.
Press OK to display the “Sub-title pages” screen.
[5] Using Teletext menu (Continued)
Teletext (Continued)
SOUND
INFO
iE
OK
T
(
RED)(GREEN)(YELLOW)(CYAN
CH
</>
END
END
MENUTEXT
M
]/[
)
OK
TV/VIDEO
To select the character set
1 With the “Character set” screen
displayed, press ]/[ to select the desired character set, and then press OK.
2 Press END to exit.
To use the Sub-title pages screen
1 With the Sub-title pages screen
displayed, press ]/[ and/or </> to select the desired programme.
2 Press END to exit.
Notes:
■ To obtain the correct sub-title in other countries (page 150 default), it is necessary to input the transmitting­station-dependent numbers for these pages beforehand.
■ Moving the programme position in the Programme table also moves the sub­title page.
Te le tex t menu
Charact er set
St andard
Po l i sh
Tur ki sh
Accept wi th OK
Back End
[6] Useful Features for Teletext
1 The “0” key on the remote control
can be used to hold the current teletext page.
2 The “9” key on the remote control
can be used to zoom the current teletext page as below.
ABC
DEF
* The screen displays each mode
each time “9” is pressed.
ABC DEF
45
Connecting External Devices
It is possible to enjoy video and sound by connecting a VCR and home video game system to the termi­nals located on the rear of the main unit. When connecting an external device, turn off the power of the main unit and connecting device to prevent any possible damage.
To AV-IN1 or 2
terminal
Examples of external devices that can be connected
• Video camera
• Home video game system
• VCR
• Laser disc player
• DVD
AUX 1
TUNER/BAND
AUX 2
AUX 3
DVD
SURROUND
ON/OFF
* PC connection is not possible.
Notes:
■ Use a commercially available audio/video cord for the cable.
■ Only connect audio/video signals to AV-IN1 and 2 terminals. Connecting other signals may result in a malfunction.
■ The VIDEO input terminal and the S-VIDEO input terminal on the AV-IN2 side are shared connections with priority
given to the S-VIDEO terminal. If both terminals are connected, the video signals from the S-VIDEO input terminal are selected for the AV-IN2 input. When viewing video from the VIDEO input terminal, do not connect anything to the S-VIDEO input terminal.
■ For details concerning usage and connection of external devices, see the respective instruction manuals.
46
Connecting External Devices (Continued)
Connecting a Decorder through the 21-pin Euro-SCART (AV-IN1/RGB)
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
21-pin Euro-SCART (RGB)
A
V
-IN
1
RGB
T
U
O
IO
D
U
A
L
R
R
E
W
O
P
T
U
P
IN
V
2
1
C
D
1. Audio right output 8. Audio-video control 15. RED input
2. Audio right input 9. Earth for green 16. RED/GREEN/BLUE control
3. Audio left output 10. Not used 17. Earth for video
4. Common earth for audio 11. GREEN input 18. Earth for RED/GREEN/BLUE control
5. Earth for blue 12. Not used 19. Video output
6. Audio left input 13. Earth for red 20. Video input (PAL/SECAM/NTSC)
7. BLUE input 14. Not used 21. Plug shield
To AV-IN1 (21-pin Euro-
21-pin Euro-SCART
connector
Decoder
SCART) terminal
A
V
-IN
1
RGB
T
U
O
IO
D
U
A
L
R
R
E
W
O
P
T
U
P
IN
V
12
C
D
47
Connecting External Devices (Continued)
Connecting a VCR or a home video game system (AV-IN2)
AV-IN 2
O
E
ID
V
L
AUDIO
R
S-VIDEO
To S-VIDEO input terminal
S-Video cord
To S-Video output terminal
Video
Audio/video cord
To audio/video output terminals
Audio
Audio
(R)
(L)
To AV-IN2 terminals
Video
Audio
Audio/video cord
(R)
To AV-IN2 terminals
To audio/video output terminals
Audio
(L)
Home video game system
VCR
Notes:
■ When connecting to both the VIDEO input and S-VIDEO input terminals for AV-IN2, priority is given to the S-VIDEO input terminal.
48
Connecting External Devices (Continued)
Outputting audio (AUDIO OUT)
It is possible to output audio from the LCD TV set through the AUDIO OUT terminals.
A
V
-IN
1
RGB
T
U
O
IO
D
U
A
L
R
POWER
INPUT
DC12V
Connect an audio amplifier, etc.
How to fix the cables
• Secure cables and cords with the supplied cable clamps so that they do not get caught when mounting the cover.
Cable clamps
49
Troubleshooting
Before calling for repair services, make the following checks for possible remedies to the symptoms encountered.
LCD TV set
Sound
Problem Check item
• Make sure the AC adapter is properly inserted in the
There is no picture or sound.
There is no picture. There is no picture from AV­IN2.
There is no sound.
There is no picture or sound, just noise.
Picture is not clear.
power outlet.
• Reception other than that of broadcasting stations can be considered.
• Make sure the input mode is set to TV.
• Make sure the main power switch of the main unit is on.
• Make sure Picture adjustment is properly adjusted.
• The fluorescent lamp may have reached the end of its
service life.
• Make sure the S-Video terminal has nothing connected.
• Make sure the volume is not set to minimum.
• Make sure the sound is not set to mute.
• Make sure the headphones are not connected.
• Make sure the antenna cable is properly connected.
• Bad reception should be considered.
• Make sure the antenna cable is properly connected.
• Bad reception can be considered.
Reference
page
6
12 12
15
–
48
13 13
9
6
–
6
–
Remote control does not work.
50
Picture is too light or improperly tinted.
The picture is too dark.
• Check the colour adjustment. (NTSC mode)
• Check if “Brightness” is set to “dark.”
• Check “Contrast” and “Black level.”
• The fluorescent lamp may have reached the end of its
service life.
• Check if batteries in the remote control have sufficient power.
• Make sure the remote sensor window is not under strong lighting.
15
15 15
–
5
5
LCD TV set
Troubleshooting (Continued)
On-screen message Check item
No subtitles available!
Antenna
Problem Check item
The picture is not sharp.
The picture shakes.
• Referring to the “Sub-title pages” screen of the Teletext
menu check if the channel for the sub-title is set for your country.
• Check if a programme having sub-titles is received.
• The reception may be weak.
• The quality of the broadcast may also be bad.
• Make sure the antenna is facing the correct direction.
• Make sure the outside antenna has not been disconnected.
Reference
page
45
–
The picture has ghosts.
The picture is spotted.
There are stripes on the screen or colours fade.
• Make sure the antenna is facing the correct direction.
• Broadcast waves may be reflected from adjacent mountains or
buildings.
• There may be interference from automobiles, trains, high-voltage
lines, neon lights, etc.
• There may be interference between the antenna cable and power
cable. Try positioning them further apart.
• Is the unit receiving interference from other devices?
Transmission antennas of radio broadcasting stations and transmission antennas of amateur radios and cellular phones may also cause interference.
• Use the unit as far apart as possible from devices that may cause
possible interference.
51
Specifications
Items 15" LCD COLOUR TV, Model: LC-15C2E LCD panel 15" BLACK TFT LCD Number of pixels 921,600 dots Video colour system PAL/SECAM/NTSC TV TV-Standard (CCIR) BG/L/DK, I, M, N Function TV-Tuning System Auto preset 197 ch.
STEREO/BILINGUAL NICAM, IGR AUTO PRESET Yes
CATV ~Hyper Band Brightness 430 cd/m Lamp life 60,000 hours Viewing angles H: 160° V: 160° Audio amplifier 2.1 W × 2 Speakers 5 cm ø 2 pcs. Terminals AV-IN1 RGB
AV-IN2 S-VIDEO, VIDEO, AUDIO
OUT AUDIO
Antenna DIN
Headphones 3.5 mm ø jack (Front) OSD language English/German/French/Spanish/Italian/Swedish/Dutch Power requirement DC 12 V, AC 110 – 240 V, 50/60 Hz Weight 4.7 kg, incl. stand, excl. accessories Accessories Remote Control, Batteries, AC adapter, AC cord,
Cable clamp
2
■ Design and specifications are subject to change without notice.
52
Dimensional Drawings
301.6
436.8
142.5
231
369
305.3 307
229
Unit: mm
231
294.3
89.8
1
51
9
AV-IN 2
VIDEO
L
295.8
431.6
AV-IN 1
AUDIO OUT
POWER INPUT DC12V
100
RGB
L
R
S-VIDEO
AUDIO
R
0.5
7
149.5 198
18
9
48.5
135.8
107.3
1
53
IMPORTANT NOTE ON DISENGAGING ADVANCED CHILD LOCK
If you have forgotten your personal code number and cannot disengage ADVANCED CHILD LOCK, follow the procedure below.
1. Press MENU to display the TV menu.
2. Press ]/[ to select “Child lock,” then press OK.
3. The PIN input menu appears.
4. Input “3001” with Channel Select.
The Child lock setting menu appears and the PIN is cleared. A new PIN can now be input.
ADVANCED CHILD LOCK will now be disengaged. We suggest that you remove this instruction from the manual to prevent children from reading it. Keep it in a safe space for future reference.
54
SHARP CORPORATION
OSAKA, JAPAN
Printed on post-consumer recycled paper. Gedruckt auf Nachverbraucher-Recyclingpapier. Imprimé sur du papier recyclé. Stampato su carta riciclata. Impreso en papel reciclado. Tryckt på slutkonsumerat återanvänt papper. Gedrukt op na-verbruik recycled papier.
Printed in Japan Gedruckt in Japan Imprimé au Japon Stampato in Giappone Impreso en Japón Tryckt i Japan Gedrukt in Japan TINS-7411CEZZ
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
