Sharp LC-13S2US Schematic

LC-13S2U-S

SERVICE MANUAL

S83G8LC-13S2U

LCD COLOR TELEVISION

MODEL

In the interests of user-safety (Required by saf ety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

» IMPORTANT SERVICE SAFETY PRECAUTION .........................................................................................2

» SPECIFICATIONS ........................................................................................................................................5

» OPERATION MANUAL .................................................................................................................................6

» DIMENSIONS ...............................................................................................................................................8

» REMOVING OF MAJOR PARTS ..................................................................................................................9

» ADJUSTING PROCEDURE OF EACH SECTION .....................................................................................13

» PUBLIC MODE SETTING PROCEDURE .................................................................................................. 35

» TROUBLE SHOOTING TABLE ...................................................................................................................43

» CHASSIS LAYOUT .....................................................................................................................................47

» BLOCK DIAGRAM......................................................................................................................................48

» OVERALL WIRING DIAGRAM ...................................................................................................................50

» DESCRIPTION OF SCHEMATIC DIAGRAM .............................................................................................52

» SCHEMATIC DIAGRAM .............................................................................................................................53

» PRINTED WIRING BOARD ASSEMBLIES................................................................................................72

» REPLACEMENT PARTS LIST....................................................................................................................81

» PACKING OF THE SET..............................................................................................................................93

LC-13S2U-S

Page

SHARP CORPORATION

This document has been published to be used for after sales service only. The contents are subject to change without notice.

LC-13S2U-S

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED PROTECTION A GAINST A RISK OF FIRE REPLACE ONLY WITH SA ME TYPE F3701 (2.0A, 250V), F3301

A V

(1.25A, 250V), F6501 (1.25A, 250V) AND F6502 (1.25A, 250V) FUSE.

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

• Plug the AC cord directly into a 110~240 volt A C outlet, and connect the DC power cable into the receiv er's DC jack. (Do not use an isolation tr ansf ormer for this test).

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

• Use an AC voltmeter ha ving with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.) Any reading of 0.75V peak (this corresponds to 0.5 mA. peak AC.) or more is e xcessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

DVM

AC SCALE

1.5k ohm 10W

0.15 µF

TEST PROBE

TO EXPOSED METAL PARTS

CONNECT TO KNOWN EARTH GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in LCD television have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage , wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical

and shaded areas in the

Schematic Diagrams

For continued protection, replacement parts must be identical to those used in the original circuit. The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

components having such features are identified b y " å"

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

Replacement Parts Lists

and

LC-13S2U-S

PRECAUTIONS A PRENDRE LORS DE LA REPARATION

Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux conseils suivants.

AVERTISSEMENT

conduite électrique ou une prise de terre branchée à la terre.

1. N'entreprendre aucune modification de tout circuit. C'est dangereux.

2. Débrancher le récepteur av ant toute répar ation.

• Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour mesurer la chute de tension en travers de la résistance.

• Toucher avec la sonde d'essai les pièces métalliques

A V

PRECAUTION: POUR LA

PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE, REMPLACER LE FUSIBLE PAR UN FUSIBLE DE MEME TYPE F3701 (2.0A, 250V), F3301 (1.25A, 250V), F6501 (1.25A, 250V), F6502 (1.25A, 250V).

exposées qui présentent une voie de retour au châssis (antenne, coffret métallique, tête des vis, arbres de commande et des boutons, écusson, etc.) et mesurer la chute de tension CA en-travers de la résistance. T outes les vérifications doivent être ref aites après avoir inversé la fiche du cordon d'alimentation. (Si nécessaire, une prise d'adpatation non polarisée peut être utilisée dans le but de terminer ces vérifications.) Tous les courants mesurés ne doivent pas dépasser

VERIFICATIONS CONTRE L'INCEN-DIE ET LE CHOC ELECTRIQUE

Avant de rendre le récepteur à l'utilisateur, effectuer

0,5 mA. Dans le cas contraire, il y a une possibilité de choc électrique qui doit être supprimée avant de rendre le récepteur au client.

les vérifications suivantes.

1. Inspecter tous les faisceaux de câbles pour s'assurer que les fils ne soient pas pincés ou qu'un outil ne soit pas placé entre le châssis et les autres pièces métalliques du récepteur.

2. Inspecter tous les dispositifs de protection comme les boutons de commande non-métalliques, les isolants, le dos du coffret, les couvercles ou blindages de réglage et de compartiment, les réseaux de résistance-capacité,

VTVM

ECHELLE CA

1.5k ohm 10W

les isolateurs mécaniques, etc.

3. S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la fuite de courant, de la facon suivante:

• Brancher le cordon d'alimentation directem-ent à une prise de courant de 110-240V. (Ne pas utiliser de

0.15 µF

SONDE D'ESSAI

transformateur d'isolation pour cet essai).

• A l'aide de deux fils à pinces, brancher une résistance de 1.5kΩ 10 watts en parallèle avec un condensateur de 0,15µF en série avec toutes les pièces métalliques exposées du coffret et une terre connue comme une

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

AUX PIECES METALLIQUES EXPOSEES

BRANCHER A UNE TERRE CONNUE

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans les téléviseurs présentent des caractéristiques spéciales relatives à la sécurité, qui ne sont souvent pas évidentes à vue. Le degré de protection ne peut pas être nécessairement augmentée en utilisant des pièces de remplacement étalonnées pour haute tension, puissance, etc. Les pièces de remplacement qui présentent ces caractéristiques sont identifiées dans ce manuel; les pièces électriques qui présentent ces particularités sont

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

identifiées par la marque " å " et hachurées dans la liste des pièces de remplacement et les diagrammes schématiques. Pour assurer la protection, ces pièces doivent être identiques à celles utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas les mêmes caractéristiques que les pièces recommandées par l'usine, indiquées dans ce manuel, peut provoquer des électrocutions, incendies, radiations X ou autres accidents.

LC-13S2U-S

Precautions for using lead-free solder

1 Employing lead-free solder

"All PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder. Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks. As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you to use a dedicated soldering bit, if you are not familiar with ho w to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remov e the bit from the PWB as soon as you confirm the steady soldering condition. Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Mak e sure to turn on and off the power of the bit as required. If a different type of solder sta ys on the tip of the soldering bit, it is alloyed with lead-free solder . Clean the bit after every use of it. When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No, ★ Description Code ZHNDAi123250E J φ0.3mm 250g(1roll) BL ZHNDAi126500E J φ0.6mm 500g(1roll) BK ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

SPECIFICATIONS

LC-13S2U-S

Items

LCD panel Number of dots 921,600 dots VGA Video color systems N358, N443, PAL, PAL-M, PAL-N, SECAM, PAL-60

TV Standard (CCIR) NTSC/PAL-M/PAL-N

TV function

Y/C FILTER 3-LINE COMB FILTER Brightness 430 cd/m Lamp life (Fluorescent lamp) 60,000 hours Viewing angles H: 170° V: 170° Audio amplifier 2.1 W x 2 Speakers 3 x 7.5 cm, 2 pcs.

Terminals COMPONENT COMPONENT-IN, AUDIO-IN

OSD language English/French/Spanish Power supply DC 12 V, AC 110–240 V, 50/60 Hz (AC Adapter), AC 125V MAX (AC Cord) Weight 8.8 lbs. (4.0 kg),w/o accessories Accessories Remote control, Battery (x2), Antenna cable, AC adapter,

TV Tuning System PLL 181 ch. STEREO MTS+SAP CATV 125 ch.

AV-IN1 AV-IN1, S-VIDEO-IN AV-IN2 AV-IN2, S-VIDEO-IN/AV-OUT

Antenna F-Type Headphone Mini-jack for stereo (ø3.5 mm)

Model

LC-13S2U

13" Advanced Super View & BLACK TFT LCD

AC cord, Cable clamp (x2), Operation manual

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

LC-13S2U-S

• TV/VIDEO, CH (

)/( ), VOL (–)/(+), and MENU on the main unit have the same functions as the same buttons

on the remote control. Basically, this operation manual provides a description based on operation with the remote

control.

DISPLAY AND CONTROL OVERVIEW

MAIN POWER

TV/VIDEO

CH ( )/( )

VOL (–)/(+)

Upper control panel

Speaker

Controls

* The examples used throughout this manual are based

on the LC-20S2U model.

HEADPHONE jack

Plug the headphone mini-plug into the HEADPHONE

jack located on the front of the TV set.

OPC sensor

Remote control sensor

OPC indicator (Optical Picture Control)

The Optical Picture Control indicator lights up green

when the BRIGHTNESS is set to AUTO.

POWER indicator

A green indicator lights when the power is on and a red

indicator lights when in the standby mode (the indicator

will not light when the main power is off).

To change the vertical

angle of the LCD TV set,

tilt the screen up to 2.5

degrees forward or 10

degrees backward. The

TV set can also be

rotated 25 degrees

horizontally. Adjust the

angle so that the TV set

can be watched most

comfortably.

S-VIDEO

AUDIO (L)

VIDEO

AUDIO (R)

AUDIO (L)

COMPONENT

AUDIO (L)

AUDIO (R)

VIDEO

AV-IN1

Carrying handle

Terminals

AUDIO (R)

S-VIDEO

ANT. (Antenna terminal)

POWER INPUT

(DC12V)

AV-IN2/OUTAV-OUT

Hold the carrying handle and tilt the

screen while steadying the stand with

your other hand.

● Adjusting the screen view angle

Round lock for

Kensington Security

Standard Slot.

OPERATION MANUAL

CHVOL

POW

ENTER

BRIGHT

MUTE

SLEEP PIC. FLIP

AUDIO

ONLY

TV/VIDEO

FLASH-

BACK

DISPLAY MENU

REMOTE CONTROL

1 POWER

Switch the Liquid Crystal Television power

on or off.

2 SLEEP

Set the sleep timer.

3 ENTER

Execute a command.

4 DISPLAY

Display the channel and time information.

5 AUDIO ONLY

Output audio without screen image.

6 MUTE

Mute the sound.

7 VOL (+)/(–)

Set the volume.

8 CH (

)/(

)

Select channel.

9 MTS

Select audio settings.

10 BRIGHT

Adjust the brightness of the screen.

11 PIC. FLIP

Set the orientation of the picture.

(Cursor control)

Select a desired item on the screen.

13 MENU

Display the menu screen.

14 CC

Display Closed Caption subtitles.

15 TV/VIDEO

Select a Liquid Crystal Television input

source.

16 FLASHBACK

Return to the previous channel.

17 Channel Select

Set the channel.

PREPARATION

Batteries for the Remote Control

Before using the LCD TV set for the first time, install two (“AAA” size, UM/SUM-4) batteries (supplied).

When the batteries become depleted and the remote control fails to operate, replace the batteries with

new (“AAA” size, UM/SUM-4) batteries.

Open the battery

cover.

Insert two (“AAA” size, UM/

SUM-4) batteries.

Close the battery

cover.

■ Slide the cover while

pressing the ( ) part.

■ Position the positive and

negative ends of the batteries

as indicated in the compart-

ment.

–

■ Engage the claw on the

cover into the battery

housing and slide shut.

LC-13S2U-S

DIMENSIONS

(205)

(232)

(323)

Unit: inch (mm)

(267)

(293)

(200.8)

(97)

(59)

(134)

(366)

(100)

(38)

(100)

(358)

(168.7)

(7)

(1)

(123)

8(203)

REMOVING OF MAJOR PARTS

1. Remove the stand fixing screws (4 pcs.).

2. Remove the terminal cover.

3. Remove the terminal section fixing screws (2 pcs.).

4. Remove the cabinet B fixing screws (7 pcs.).

5. Remove the cabinet B after opening from the direction of an arrow.

6. Detach the connector from each PWB.

Terminal Cover

LC-13S2U-S

Sub PWB

Cabinet A

Cabinet B

Stand

P3601

SC3401

P3602

P3303

SC2001

P4003

R/C, LED

P3801

P2001

PWB

P3701

P701

P4001

P6500

P6501

P3603

P3302

SC1202

P1201

SC1203

Main PWB

LC-13S2U-S

7. Remove the 3 lock screws from the main PWB and undo the hooks a and b . Lifting the other PWBs close to the hooks, draw out the main PWB.

8. Remove the 5 lock screws from the sub PWB and undo the hooks c and d. Detach the chassis frame (r ight), together with its terminals, from the sub PWB. Undo the hooks e and f in the same w ay. Detach the chassis frame (left), together with its terminals, from the sub PWB.

9. Remove the 2 lock screws from the R/C, LED PWB and take out the R/C, LED PWB.

10. Remove the 3 lock screws each from the right and left speakers and take out both the speakers.

Chassis Frame (R)

Sub PWB

Main PWB

Chassis Frame (L)

LCD panel unit

Speaker (R)

R/C, LED PWB

Speaker (L)

» Precautions in handling the LCD panels

1. Work in a clean room (with humidities below 50%).

2. Be sure to wear an anti-static armband.

3. Handle the panels on an electro-conductive mat.

4. Be careful not to fall, shake and shock the panels.

11. Remove the LCD panel unit.

12. Detach the pr ism sheet, diffusion sheet and reflection/deflection sheet.

13. Detach the four reflection mirrors.

14. Remove the lamp unit.

15. Detach the Light guide plate.

16. Detach the two lamp reflection sheets.

Reflection Mirror

Reflection Sheet-1

(PSHEP0279CEZZ)

LC-13S2U-S

Back Shield

LCD Panel Unit

Reflection Sheet (Cover)

(PSHEP0306CEZZ)

Prism Sheet

(PSHEP0277CEZZ)

Reflection/deflection Sheet

(PSHEP0276CEZZ)

Diffusion Sheet

(PSHEP0278CEZZ)

Lamp Unit

(KLMP-0120CEZZ)

Reflection Mirror

Reflection Sheet-2

(PSHEP0280CEZZ)

Light Guide Plate

(PGiDMA010WJZZ)

LC-13S2U-S

Precautions at the time of the side B(back) service of Main unit.

1. Remove of the FFC for connection between Main unit (SC2001) and Sub unit(SC3401), and connect the extended cable (QCNW-A556WJZZ) for service.

2. Remove only SC1204 of the FFC for connection between Main unit (SC1204) and LCD panel unit, and connect the extended cable (QCNW-A553WJZZ) for service.

3. Remove the FFC for connection between Main unit (SC1203) and LCD panel unit, and connect the extended cable (QCNW-A556WJZZ) for service.

4. Remove the FFC for connection between Main unit (SC1202) and LCD panel unit, and connect the extended cable (QCNW-A555WJZZ) for service.

5. Remove the main unit fixing screws (3 pcs.), a substrate is reversed.

Sub PWB

P3701

P3801

SC3401

R/C, LED

SC1204

SC1203

PWB

P1201

Main PWB

(Side B)

SC1202

P4001

P701

P2001

SC2001

Step Part No. Description

1 QCNW-A556WJZZ Extension Cable 50-pin Main (SC2001)-Sub (SC3401) 2 QCNW-A553WJZZ Extension Cable 30-pin Main (SC1204)-LCD Panel 3 QCNW-A556WJZZ Extension Cable 50-pin Main (SC1203)-LCD Panel 4 QCNW-A555WJZZ Extension Cable 20-pin Main (SC1202)-LCD Panel

LC-13S2U-S

ADJUSTING PROCEDURE OF EACH SECTION

1. Pre-adjustment preparations

Use the specific AC adaptor or a stable DC power supply as power source.

LC-13/15/20S2U AC adaptor: UADP-A044WJPZ DC power supply: 12V, 5.0A

(1) Entering the adjustment process mode

There are two ways to call this mode.

» Press "MENU" and "TV/VIDEO" at once, and the power is turned on (inspection process started). Then press

"CHANNEL DOWN" and "VOLUME DOWN" at once.

» Set the KEY4 (pin (81) of microprocessor) or KEY5 (pin (82) of microprocessor) terminal to the "L" level. Now

turn on the power.

(2) Key operation in the adjustment process

Basic behavior

» Use the "CHANNEL UP/DOWN" key or the "DIRECT CHANNEL SELECT" key to choose a channel. » Use the "CURSOR UP/DOWN" key to select an item to adjust. (Let's say that the cursor is on the lowermost item

and the "CURSOR DOWN" key is pressed. The uppermost item on the next page will be selected. When the "CURSOR UP" key is pressed with the uppermost item being highlighted, on the other hand, the lowermost item on the preceding page will be selected.)

» Use the "VOLUME UP/DOWN" key or the "CURSOR RIGHT/LEFT" key to adjust the setting of a selected item. » Press the "MENU" key to go to the next item. (When this key is pressed with the lowermost item being

highlighted, the uppermost item on the next page will be selected.)

Hierarchical structure

» Press the "ENTER" key on any item other than I2C DATA on page 4, and the item's setup page will show up. » To quit the setup page, press the "FLASHBACK" key.

LC-13S2U-S

2.Adjusting procedure

(1) Getting initialized

1) Set pins (81) and (82) of the IC2001 microprocessor to GND. Turn on the power.

2) Make sure the model number is A622. * Note: The model number cannot be selected.

3) Select the screen size (13/15/20 inches). Select the inch size according to the 13" model.

(2) +B adjustment

1) Receive the standard color bar signal.

2) Rotate R3710 (semi-fixed variable resistor) to adjust the voltage at pin (4) of P3701 on the sub PWB to

5.00V±0.02V.

Note: Be sure to adjust this PWB in pairs with the main PWB.

Adjust to the 5.00V level as exactly as possible because this level is used as reference for all the other

supply voltages.

(3) Common bias adjustment

1) Adjust the "COM BIAS" setting on adjustment process page 2 so that the contrast goes to maximum (black most accentuated). (For this adjustment, receive a B/W broadcast channel.)

(4) White balance (cut-off and gain) adjustment

1) Receive the black signal (white 40%). Adjust the "RCUTOFF" and "BCUTOFF" settings on adjustment process page 3 to have the black color temperature as specified.

Adjustment Process Page 3

RCUTOFF 0 GCUTOFF 0 BCUTOFF 0 R-GAIN 0 G-GAIN 0 B-GAIN 0 D2 RCUTOFF 0 D2 GCUTOFF 0 D2 BCUTOFF 0 D2 R-GAIN 0 D2 G-GAIN 0 D2 B-GAIN 0

Red cut - off adjustment Green cut - off adjustment Blue cut - off adjustment White balance White balance White balance Red cut - off adjustment (D2:480P) Green cut - off adjustment (D2:480P) Blue cut - off adjustment (D2:480P) White balance (D2:480P) White balance (D2:480P) White balance (D2:480P)

2) Receive the white 80% signal. Adjust two of the "R-GAIN", "G-GAIN" and "B-GAIN" settings in the decreasing direction to have the white color temperature as specified. Note:Make sure at least one of the "R-GAIN", "G-GAIN" and "B-GAIN" settings is "0".

3) Check to see if the black and white color temperatures are as specified. If not, repeat the above steps 1) and

2).

4) 480P mode white balance adjustment Set the "D2 GCUTOFF" setting to -7. Check to see if the black and white color temperatures are as specified. If not, repeat the steps 1) thru 3). Adjust also the "D2 R/G/B CUTOFF" and "D2 R/G/B-GAIN" settings.

(5) Factory settings

1) Starting the factory process mode Press "MENU" and "TV/VIDEO" at once, and the power is turned on (inspection process started). Then press "CHANNEL UP" and "VOLUME UP" at once.

2) Factory settings at a glance

LAST CHANNEL 2ch

LAST TV/INPUT TV LAST AIR/CATV AIR

SKIP DATA CA TV ALL SKIP

SKIP DATA AIR ALL SKIP

VIDEO ADJUST (PICTURE) 50

VIDEO ADJUST (TINT) 0

VIDEO ADJUST (COLOR) 0

VIDEO ADJUST (BLACK LEVEL) 0

VIDEO ADJUST (SHARPNESS) 0

VIDEO ADJUST (RED-BLUE) 0

VIDEO ADJUST (GREEN) 0

LANGUAGE ENGLISH MTS MODE STEREO

BRIGHTNESS BRIGHT

AUTO POWER OFF OFF

PICTURE FLIP NORMAL

AV2 IN/OUT IN

MPAA RATING NONE

GUIDELINE RATING NONE

GUIDELINE CONTENTS ALL UNBLOCK

V-CHIP STATUS OFF

BLUE SCREEN OFF

EZ SETUP SELF-START ON

SLEEP TIMER CLEAR

SECRET No. CLEAR TV COLOR SYSTEM N358 AV COLOR SYSTEM AUTO

AUDIO ONLY OFF

AUTO CLOCK SEARCH OFF

LC-13S2U-S

Item 13S2U

VOLUME 20

CC/TEXT OFF

TREBLE 0

BASS 0

BALANCE 0

LC-13S2U-S

3. Test patterns in adjustment process mode

(1) IC801 (Video decoder) test patterns

1) Getting the test patterns displayed) Put the screen in AV1, AV2 or COMPONENT but keep out any signal. Call the adjustment process mode, select "TEST P AT MODE" in the 1st line of XVC 1, make the settings 1 thru 12, and the follo wing test patterns show up.

2) Test patterns

Pattern Mode Pattern Option TEST PAT PIC TEST PAT MODE Color Bar 100% Color bar 0 1

75% Color bar 1 1

Ramp Ramp 0 2

Mod Ramp 1 2

Rester White 0 3

Yellow 1 3 Cyan 2 3 Green 3 3 Magenta 4 3 Red 5 3 Blue 6 3 Black 7 3

(2) IC1201 (LCD controller) test pattern

1) Getting the test pattern displayed Put the screen in AV1, AV2 or COMPONENT but keep out any signal. Call the adjustment process mode, select "DPS TESTP" in the 3rd line of DPS 1, turn on the setting, and the follo wing test pattern shows up.

2) Test pattern The following test pattern appears.

Dark Dark Dark Red

Dark Dark

Black Gray White

Gray scale Bright

Green Blue

Gradation

Bright Bright Bright

Dark Dark Dark

Note: When the IC801 and IC1201 test pattern display commands are both turned on at the same time, the IC1201

test pattern is given priority.

Pin functions of microprocessor IC (IC2001) RH-iXA622WJN1Q

Pin No.

I/O Pin Name Function 1 I Vhold 2 I/O HLF 3 O 1 BIT_MUTE 4 O OPC_LED 5OVGH 6 I CSYNC 7 I IREM1 8 O BYTE 9 O CNVss

10 I Xcin 11 O Xout 12 I RESET 13 O Xout 14 I Vss 15 I Xin 16 I Vccl 17 I OSCin 18 O OSCout 19 I PSWin 20 O IRQN 21 O BLK 22 O OSD_1 23 O DAC1CS 24 O VDSW1 25 O D_SEL 26 O F_SEL 27 I MRDY 28 I/O SCL2 29 I/O SCL1 30 I/O SDA1 31 I/O SDA2 32 O OSD_R 33 O OSD_G 34 O OSD_B 35 O SUBDout 36 I SUBDin 37 I SCLK 38 O BUSY 39 O MAIN SW 40 O MON SW 41 I EPM 42 I L_ERR 43 O S IN/OUT 44 O PC/VD 45 O TIMELED 46 I CE 47 O AV1/AV2 48 O TV/AV 49 O TEXT-ON 50 O VSHOUT

For closed caption For closed caption N.C For OPC LED lighting For panel power supply control Composite sync signal Remote control GND GND ("H" at flash writing) 32 kHz oscillation input 32 kHz oscillation output Reset at "L" Microprocessor oscillator connection GND Microprocessor oscillator connection Power supply (3.3 V) Input of clock for OSD N.C Power supply monitor ("L" at power-ON) Spare OSD blanking output OSD Emphasis signal output Gradation control IC chip selection Video SW switching 1 output N.C N.C I2C bus open connection switching input I2C bus serial clock line 2 I2C bus serial clock line 1 I2C bus serial data line 1 I2C bus serial data line 2 OSD R signal output OSD G signal output OSD B signal output Sub-microprocessor data output (T x D at flash writing) Sub-microprocessor data input (R x D at flash writing) Clock input at flash writing BUSY output at flash writing Main switch ON "H"/OFF "L" (LED power supply control) N.C "L" at flash writing Fluorescent lamp error detection process (Error at "H") Audio input/output switching (Audio output at "L") N.C For LED lighting in working of timer "H" at flash writing AV selector switch AV selector switch N.C Panel gate driver voltage control

LC-13S2U-S

Pin No.

100 I CVin1

I/O Pin Name Function 51 I SSW2 52 O HPMUTE 53 O SP MUTE 1 54 O CVBS/Y 55 I HP DET 56 O SSTBY 57 I VSH IN 58 O LMUTE 59 O V IN/OUT 60 O SRESET 61 O C IN/OUT 62 I HSYNC 63 O MIX. 64 O VSYNC 65 O UP1 66 O UP0 67 O VDSW2 68 O EXT 69 O I2/UA 70 O POWout 71 O INV_POW 72 O POWout 73 I ADPPOW 74 O DACOUTCON 75 O MP_RCS 76 O MP_RDA 77 O MP_CS 78 O MP_DA 79 O MP_CLK 80 O DDC_RESET 81 I KEY4 82 I KEY5 83 O LED_POW 84 O SAW_SW 85 O MODE1 86 O MODE2 87 I POWin 88 I SSW 89 I AFT 90 I AGC 91 I KEY1 92 I KEY2 93 I C/N 94 O OPC_IN 95 I V HOLD2 96 I/O HLF2 97 I CVin2 98 I TVSETB 99 I VccE

S-terminal connection (S2-terminal at "L") Headphone mute Main speaker mute CVBS/Y switching Headphone detection (Headphone at "L") Speaker standby ("L" at standby) Panel gate driver voltage confirmation (Standby status maintained at "H") Line-out audio mute (Audio output mute at "H") Video input/output switching (Video output at "L") Stereo IC (MSP) ("L" output at reset) N.C OSD horizontal sync signal N.C OSD vertical sync signal N.C N.C Video switching 2 output N.C N.C N.C Separated exciting type inverter power supply control DC/DC control output Adaptor ON/OFF input For gradation control IC output control (Output at "H") Lead enable for QS-compliant controller Data input for QS-compliant controller Chip selection for QS-compliant controller QS-compliant controller or gradation control IC data output QS-compliant controller or gradation control IC clock output VPC, 3DY/C, DPS and QS-compliant controller ("L" output at reset) Key input 4 Key input 5 TV power supply LED control (Green at "H", red at "L") N.C N.C N.C DC/DC start detection (Detected at "H") S-terminal connection (S1-terminal at "L") AFT voltage input AGC input voltage Key input 1 Key input 2 N.C OPC sensor level input For closed caption For closed caption For closed caption Test input terminal (Fixed at "L") Power supply (5V) For closed caption

Table of Adjusting Process Defaults

Page No. Item

Basic settings

1 MODEL A622

INCH SIZE 13 ERROR NO RESET 0

PUBLIC MODE OFF V-CHIP 1 CANADIAN VCHIP OFF EXT CONTROL OFF

XVC SHARPNESS OFF

2 COM BIAS 118 3 RCUTOFF 0

GCUTOFF 0 BCUTOFF 0 R-GAIN 0 G-GAIN 0 B-GAIN 0 D2 RCUTOFF 0 D2 GCUTOFF 0 D2 BCUTOFF 0 D2 R-GAIN 0 D2 G-GAIN 0 D2 B-GAIN 0

4 I2C DATA 0

I2C DATA WAIT SOUND XVC DPS DAC TUNER OTHERS

LC-13S2U-S

Initial

Value (Do not change other items than designated.)

Model name selection (For prevention of malfunction, model name cannot be changed.) Inch size selection Lamp error count and reset For more than 5, adjustment process should be

Hotel mode setting VCHIP line MUTE setting Canadian VCHIP compliance setting Bus, UART open: ”ON” to ”OFF” (OSD display is not changed.) With or without SHARPNESS adjustment by XVC (480P is ineffective.) Common bias adjustment DAC OUT0A(00h) Red cutoff adjustment DSP control Green cutoff adjustment DSP control Blue cutoff adjustment DSP control White balance DSP control White balance DSP control White balance DSP control Red cutoff adjustment (D2) DSP control Green cutoff adjustment (D2) DSP control Blue cutoff adjustment (D2) DSP control White balance (D2) DSP control White balance (D2) DSP control White balance (D2) DSP control I2C BUS control IC Data WRITE & READ WRITE & READ execution Goes to SOUND adjustment page. Goes to XVC (XV 750) adjustment page. Goes to DPS adjustment page. Goes to DAC adjustment page. Goes to TUNER adjustment page. Goes to other adjustment page.

Function

Response precautions on servicing

started as soon as power is turned ON.

Sound volume

SOUND1 VOLUME 20

AVC OFF MSP DATA 0 MSP DATA WAIT CARRIER MUTE ON SP TEST OFF

SOUND2 PRESCALE SCART 27

PRESCALE FM/AM-M 31 IGR THR 12D

Sound volume AVC setting Audio IC MSP data WRITE & READ WRITE & READ execution Audio output setting for no TV sync For audio test Pre-scale setting (External input) Pre-scale setting (TV)

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

SOUND3 BASS EQ SET 0

TREB EQ SET 0 EQ LIMIT 00 00 EQ LIMIT 00 +12.0 EQ LIMIT 01 10 EQ LIMIT 01 +12.0 EQ LIMIT 02 20 EQ LIMIT 02 +12.0 EQ LIMIT 03 25 EQ LIMIT 03 +12.0 EQ LIMIT 04 30 EQ LIMIT 04 +12.0 EQ LIMIT 05 35 EQ LIMIT 05 +12.0 EQ LIMIT 06 40 EQ LIMIT 06 +12.0 EQ LIMIT 07 42 EQ LIMIT 07 +12.0 EQ LIMIT 08 44 EQ LIMIT 08 +12.0 EQ LIMIT 09 46 EQ LIMIT 09 +12.0 EQ LIMIT 10 48 EQ LIMIT 10 +12.0 EQ LIMIT 11 50 EQ LIMIT 11 +12.0 EQ LIMIT 12 52 EQ LIMIT 12 +12.0 EQ LIMIT 13 54 EQ LIMIT 13 +12.0 EQ LIMIT 14 56 EQ LIMIT 14 +12.0 EQ LIMIT 15 58 EQ LIMIT 15 +12.0

Function

User sound control bass value User sound control treble value Equalizer limit table 00 sound volume setting value Equalizer limit table 00 limit setting value Equalizer limit table 01 limit setting value Equalizer limit table 01 limit setting value Equalizer limit table 02 limit setting value Equalizer limit table 02 limit setting value Equalizer limit table 03 limit setting value Equalizer limit table 03 limit setting value Equalizer limit table 04 limit setting value Equalizer limit table 04 limit setting value Equalizer limit table 05 limit setting value Equalizer limit table 05 limit setting value Equalizer limit table 06 limit setting value Equalizer limit table 06 limit setting value Equalizer limit table 07 limit setting value Equalizer limit table 07 limit setting value Equalizer limit table 08 limit setting value Equalizer limit table 08 limit setting value Equalizer limit table 09 limit setting value Equalizer limit table 09 limit setting value Equalizer limit table 10 limit setting value Equalizer limit table 10 limit setting value Equalizer limit table 11 limit setting value Equalizer limit table 11 limit setting value Equalizer limit table 12 limit setting value Equalizer limit table 12 limit setting value Equalizer limit table 13 limit setting value Equalizer limit table 13 limit setting value Equalizer limit table 14 limit setting value Equalizer limit table 14 limit setting value Equalizer limit table 15 limit setting value Equalizer limit table 15 limit setting value

Response precautions on servicing

LC-13S2U-S

Page No. Item

Initial

Value (Do not change other items than designated.)

SOUND4 0 BAND1 +0250

0 BAND2 -0225 0 BAND3 -0375 0 BAND4 +0200 0 BAND5 +0150 1 BAND1 +0300 1 BAND2 -0225 1 BAND3 -0375 1 BAND4 +0200 1 BAND5 +0200 2 BAND1 +0350 2 BAND2 -0225 2 BAND3 -0375 2 BAND4 +0200 2 BAND5 +0250 3 BAND1 +0400 3 BAND2 -0225 3 BAND3 -0375 3 BAND4 +0200 3 BAND5 +0300 4 BAND1 +0450 4 BAND2 -0175 4 BAND3 -0375 4 BAND4 +0250 4 BAND5 +0350 5 BAND1 +0500 5 BAND2 -0125 5 BAND3 -0375 5 BAND4 +0300 5 BAND5 +0400 6 BAND1 +0600 6 BAND2 -0075 6 BAND3 -0375 6 BAND4 +0350 6 BAND5 +0500 7 BAND1 +0700 7 BAND2 0000 7 BAND3 -0375 7 BAND4 +0400 7 BAND5 +0600 8 BAND1 +0800 8 BAND2 +0075 8 BAND3 -0375 8 BAND4 +0450 8 BAND5 +0700 9 BAND1 +0900 9 BAND2 -0150 9 BAND3 -0375 9 BAND4 +0550 9 BAND5 +0800 10 BAND1 +1000 10 BAND2 +0225 10 BAND3 -0375 10 BAND4 +0650 10 BAND5 +0900

Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table Equalizer table

Function

Response precautions on servicing

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

SOUND5 0 BAND1 +0250

0 BAND2 -0225 0 BAND3 -0375 0 BAND4 +0200 0 BAND5 +0150

-1 BAND1 +0200

-1 BAND2 -0225

-1 BAND3 -0375

-1 BAND4 +0200

-1 BAND5 +0100

-2 BAND1 +0150

-2 BAND2 -0225

-2 BAND3 -0375

-2 BAND4 +0200

-2 BAND5 +0050

-3 BAND1 +0100

-3 BAND2 -0225

-3 BAND3 -0375

-3 BAND4 +0200

-3 BAND5 0000

-4 BAND1 +0050

-4 BAND2 -0275

-4 BAND3 -0375

-4 BAND4 +0150

-4 BAND5 -0050

-5 BAND1 0000

-5 BAND2 -0325

-5 BAND3 -0375

-5 BAND4 +0100

-5 BAND5 -0100

-6 BAND1 -0100

-6 BAND2 -0375

-6 BAND3 -0375

-6 BAND4 +0050

-6 BAND5 -0200

-7 BAND1 -0200

-7 BAND2 -0450

-7 BAND3 -0375

-7 BAND4 0000

-7 BAND5 -0300

-8 BAND1 -0300

-8 BAND2 -0525

-8 BAND3 -0375

-8 BAND4 -0050

-8 BAND5 -0400

-9 BAND1 -0400

-9 BAND2 -0600

-9 BAND3 -0375

-9 BAND4 -0150

-9 BAND5 -0500

-10 BAND1 -0500

-10 BAND2 -0675

-10 BAND3 -0375

-10 BAND4 -0250

-10 BAND5 -0600

Function

Response precautions on servicing

LC-13S2U-S

Page No. Item

Video setting (XV750)

XVC01 TEST PAT MODE 0

TEST PAT PICT 0 TEST PAT AMP 0 VCXO MODE A 1 VCXO MODE B 2 VCXO CTL DC OFST 0 VCXO CTL TC 11 SV PORT POL 0 BELL FLT SFT 0 BELL FLT SHRP 0 DE-EMPHASYS 0

XVC02 HSYNC DELAY 38

VSYNC DELAY 0 VSYNC LINE SHIFT 11 ACC TC 4 AGC TC 4 PEAK AGC SET TC 4 PEAK AGC RLS TC 4 PEAK AGC RLS LEV 6 PEDLEV DET TC 0 COLER KILL ACT LEVEL 1 COLER KILL RCV LEVEL 0

XVC03 TV AGC MODE 1

AV AGC MODE 1

DVD AGC MODE 1 TV PEAK AGC REF 3 AV PEAK AGC REF 10

DVD PEAK AGC REF 10

XVC04 TV Y DELAY 0

AVC Y DELAY 0 AVS Y DELAY 0 DVD Y DELA Y 0 TV C DELAY -1 AVC C DELAY -1 AVS C DELAY -1 DVD C DELAY -1

XVC05 TV V PEAKING FILTER 0

AVC V PEAKING FILTER 0 AVS V PEAKING FILTER 0 TV V PEAKING WEIT 0 AVC V PEAKING WEIT 0 AVS V PEAKING WEIT 0 TV V PEAKING CORING 0 AVC V PEAKING CORING 0 AVS V PEAKING CORING 0

XVC06 TV CONTRAST -10

AV CONTRAST -10 DVD CONTRAST -10 TV BRIGHTNESS -3 AV BRIGHTNESS -3 DVD BRIGHTNESS -3 TV TRAP FLT 2 AVC TRAP FLT 2 AVS TRAP FLT 2

Initial

Value (Do not change other items than designated.)

XV750 test pattern selection (Mode) XV750 test pattern selection (Picture) XV750 test pattern selection (Amplitude) Line lock mode setting (TV/AV) Line lock mode setting (DVD) VCXO control voltage DC offset Constant at VCXO control SV port control signal polarity setting (in bits) Bell filter shift characteristics Bell filter sharp characteristics De-emphasis filter characteristics H sync phase setting (in pixels) V sync phase setting (in pixels) V sync phase setting (in lines) Constant at ACC Constant at AGC Constant at peak AGC setup Constant at peak AGC release Peak AGC release level Constant at pedestal level detection Color killer level setting Color killer hysteresis setting AGC operation mode setting (TV) AGC operation mode setting (Composite, S Video) AGC operation mode setting (DVD) Peak AGC reference level (TV) Peak AGC reference level (Composite, S Video) Peak AGC reference level (DVD) Y phase setting (TV) Y phase setting (Composite) Y phase setting (S Video) Y phase setting (DVD) C phase setting (TV) C phase setting (Composite) C phase setting (S Video) C phase setting (DVD) Vertical edge correction OFF/ON (TV) Vertical edge correction OFF/ON (Composite) Vertical edge correction OFF/ON (S Video) Vertical edge corrected intensity (TV) Vertical edge corrected intensity (Composite) Vertical edge corrected intensity (S Video) Vertical edge correction coring (TV) Vertical edge correction coring (Composite) Vertical edge correction coring (S Video) Picture setting (TV) Picture setting (Composite, S Video) Picture setting (DVD) Brightness setting (TV) Brightness setting (Composite, S Video) Brightness setting (DVD) Trap filter Setting (TV) Trap filter Setting (Composite) Trap filter Setting (S Video)

Function

Response precautions on servicing

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

XVC07 N358 TV CHROMA BPF 0

N358 AVC CHROMA BPF 0 N358 AVS CHROMA BPF 0 N358 BPFS 0 N358 LUMA DIG FIX GAIN 191 N358 TV COLOR 35 N358 AV COLOR 35 N358 U 0 N358 V 0 N358 TINT 8 N358 UVOFST 0

XVC08 N358 TV PEAKING FILTER 0

N358 AVC PEAKING FILTER 0

N358 AVS PEAKING FILTER 0

N358 TV H-PEAKING 6 N358 AVC H-PEAKING 6 N358 AVS H-PEAKING 6 N358 TV CORING 3 N358 AVC CORING 3 N358 AVS CORING 3

XVC09 PAL-M TV CHROMA BPF 0

PAL-M AVC CHROMA BPF 0 PAL-M AVS CHROMA BPF 0 PAL-M BPFS 0 PAL-M LUMA DIG FIX GAIN 195 PAL-M TV COLOR 20 PAL-M AV COLOR 20 PAL-M U 0 PAL-M V 0 PAL-M TINT 0 PAL-M UVOFST 0

XVC10 PAL-M TV PEAKING FILTER 0

PAL-M AVC PEAKING FILTER 0

PAL-M AVS PEAKING FILTER 0

PAL-M TV H-PEAKING 6 PAL-M AVC H-PEAKING 6 PAL-M AVS H-PEAKING 6 PAL-M TV CORING 3 PAL-M AVC CORING 3 PAL-M AVS CORING 3

XVC11 PAL-N TV CHROMA BPF 0

PAL-N AVC CHROMA BPF 0 PAL-N AVS CHROMA BPF 0 PAL-N BPFS 0 PAL-N LUMA DIG FIX GAIN 195 PAL-N TV COLOR 20 PAL-N AV COLOR 20 PAL-N U 0 PAL-N V 0 PAL-N TINT 0 PAL-N UVOFST 0

Function

Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) COM filter setting Luminance fixation digital gain setting Color depth setting (TV) Color depth setting (Composite, S Video) Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Color tone setting (TV, composite, S Video) Color tone setting 2 (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video) Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) COM filter setting Luminance fixation digital gain setting Color depth setting (TV) Color depth setting (Composite, S Video) Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Color tone setting (TV, composite, S Video) Color tone setting 2 (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video) Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) COM filter setting Luminance fixation digital gain setting Color depth setting (TV) Color depth setting (Composite, S Video) Color depth U setting (TV, composite , S Video) Color depth V setting (TV, composite, S Video) Color tone setting (TV, composite, S Video) Color tone setting 2 (TV, composite, S Video)

Response precautions on servicing

LC-13S2U-S

Page No. Item

Initial

Value (Do not change other items than designated.)

XVC12 PAL-N TV PEAKING FILTER 0

PAL-N AVC PEAKING FILTER 0

PAL-N AVS PEAKING FILTER 0

PAL-N TV H-PEAKING 6 PAL-N AVC H-PEAKING 6 PAL-N AVS H-PEAKING 6 PAL-N TV CORING 3 PAL-N AVC CORING 3 PAL-N AVS CORING 3

XVC13 PAL TV CHROMA BPF 0

PAL AVC CHROMA BPF 0 PAL AVS CHROMA BPF 0 PAL BPFS 0 PAL LUMA DIG FIX GAIN 195 PAL TV COLOR 20 PAL AV COLOR 20 PAL U 0 PAL V 0 PAL TINT 0 PAL UVOFST 0

XVC14 PAL TV PEAKING FILTER 0

PAL AVC PEAKING FILTER 0

PAL AVS PEAKING FILTER 0

PAL TV H-PEAKING 6 PAL AVC H-PEAKING 6 PAL AVS H-PEAKING 6 PAL TV CORING 3 PAL AVC CORING 3 PAL AVS CORING 3

XVC15 SECAM TV CHROMA BPF 0

SECAM AVC CHROMA BPF 0 SECAM AVS CHROMA BPF 0 SECAM LUMA DIG FIX GAIN 195 SECAM U 0 SECAM V 0

XVC16 SECAM TV PEAKING FILTER 0

SECAM AVC PEAKING FILTER 0

SECAM AVS PEAKING FILTER 0

SECAM TV H-PEAKING 6 SECAM AVC H-PEAKING 6 SECAM AVS H-PEAKING 6 SECAM TV CORING 3 SECAM AVC CORING 3 SECAM AVS CORING 3

Function

Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video) Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) COM filter setting Luminance fixation digital gain setting Color depth setting (TV) Color depth setting (Composite, S Video) Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Color tone setting (TV, composite, S Video) Color tone setting 2 (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video) Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) Luminance fixation digital gain setting Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video)

Response precautions on servicing

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

XVC17 PAL60 TV CHROMA BPF 0

PAL60 AVC CHROMA BPF 0 PAL60 AVS CHROMA BPF 0 PAL60 LUMA DIG FIX GAIN 195 P AL60 TV COLOR 20 PAL60 AV COLOR 20 PAL60 U 0 P AL60 V 0 PAL60 TINT 0 PAL60 UVOFST 0

XVC18 PAL60 TV PEAKING FILTER 0

PAL60 AVC PEAKING FILTER 0

PAL60 AVS PEAKING FILTER 0

P AL60 TV H-PEAKING 6 PAL60 AVC H-PEAKING 6 PAL60 AVS H-PEAKING 6 P AL60 TV CORING 3 PAL60 AVC CORING 3 PAL60 AVS CORING 3

XVC19 N443 TV CHROMA BPF 0

N443 AVC CHROMA BPF 0 N443 AVS CHROMA BPF 0 N443 LUMA DIG FIX GAIN 191 N443 TV COLOR 20 N443 AV COLOR 20 N443 U 0 N443 V 0 N443 TINT 0 N443 UVOFST 0

XVC20 N443 TV PEAKING FILTER 0

N443 AVC PEAKING FILTER 0

N443 AVS PEAKING FILTER 0

N443 TV H-PEAKING 6 N443 AVC H-PEAKING 6 N443 AVS H-PEAKING 6 N443 TV CORING 3 N443 AVC CORING 3 N443 AVS CORING 3

XVC21 DVD LUMA DIG FIX GAIN 195

DVD U 0 DVD V 0

XVC22 DVD PEAKING FILTER 0

DVD H-PEAKING 6 DVD CORING 3 XVC DATA 0 XVC DATA WAIT

Function

Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) Luminance fixation digital gain setting Color depth setting (TV) Color depth setting (Composite, S Video) Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Color tone setting (TV, composite, S Video) Color tone setting 2 (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video) Chroma band-pass setting (TV) Chroma band-pass setting (Composite) Chroma band-pass setting (S Video) Luminance fixation digital gain setting Color depth setting (TV) Color depth setting (Composite, S Video) Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Color tone setting (TV, composite, S Video) Color tone setting 2 (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics (TV) Horizontal edge correction OFF/ON, F characteristics (Composite) Horizontal edge correction OFF/ON, F characteristics (S Video) Horizontal edge corrected amount (TV) Horizontal edge corrected amount (Composite) Horizontal edge corrected amount (S Video) Horizontal edge correction coring (TV) Horizontal edge correction coring (Composite) Horizontal edge correction coring (S Video) Luminance fixation digital gain setting Color depth U setting (TV, composite, S Video) Color depth V setting (TV, composite, S Video) Horizontal edge correction OFF/ON, F characteristics Horizontal edge corrected amount Horizontal edge correction coring XVC I2C BUS control data WRITE & READ WRITE (0XXYY) & READ (1XXYY) execution XX = Address, YY = Data

Response precautions on servicing

LC-13S2U-S

Page No. Item

Picture (DPS)

DPS01 DPS DATA 0

DPS DATA WAIT DPS TESTP OFF N358 TV COLOR 27 N358 AV COLOR 30

N358 TV TINT +8 N358 AV TINT +6

N358 BRIGHTNESS +9 N358 TV CONTRAST 55 N358 AV CONTRAST 55

DPS02 N358 TV PKLEVEL 5

N358 AV PKLEVEL 5

N358 TV PKCORRED7A 159 N358 AV PKCORRED7A 159

N358 TV PKCFSOFT7C 6 N358 AV PKCFSOFT7C 6

DPS03 N358 TV CTI7D 43

N358 AV CTI7D 43

N358 TV CTIBWLP7C 0 N358 AV CTIBWLP7C 0

DPS06 PAL-M TV COLOR 30

PAL-M AV COLOR 30

PAL-M TV TINT 0 PAL-M AV TINT 0

PAL-M BRIGHTNESS +9 PAL-M TV CONTRAST 54 PAL-M AV CONTTRAST 54

DPS07 PAL-M TV PKLEVEL 5

PAL-M AV PKLEVEL 5

PAL-M TV PKCORRED7A 159 PAL-M AV PKCORRED7A 159

PAL-M TV PKCFSOFT7C 6 PAL-M AV PKCFSOFT7C 6

DPS08 PAL-M TV CTI7D 153

PAL-M AV CTI7D 153

PAL-M TV CTIBWLP7C 0 PAL-M AV CTIBWLP7C 0

Initial

Value (Do not change other items than designated.)

Picture IC DPD data WRITE & READ Not used. WRITE & READ execution Not used. DPS pattern selection Color depth setting (TV) Not used. Color depth setting (Composite, S Video, for component 480I) Color tone setting (TV) Not used. Color tone setting (Composite, S Video, for component 480I) Brightness setting (TV, composite, S Video) Picture setting (TV) Not used. Picture setting (Composite, S Video, Not used. for component 480I) Picture quality setting (TV) Not used. Picture quality setting (Composite, Not used. S Video, for component 480I) Brightness peaking coring setting (TV) Not used. Brightness peaking coring setting Not used. (Composite, S Video, for component 480I) Brightness peaking center frequency (TV) Brightness peaking center frequency Not used. (Composite, S Video, for component 480I) CTI setting (TV) Not used. CTI setting (Composite, S Video, Not used. for component 480I) CTI band setting (TV) Not used. CTI band setting (Composite, S Video, Not used. for component 480I) Color depth setting (TV) Not used. Color depth setting (Composite, S Video, for component 480I) Color tone setting (TV) Not used. Color tone setting (Composite, S Video, Not used. for component 480I) Black level setting Not used. Picture setting (TV) Not used. Picture setting (Composite, S Video, Not used. for component 480I) Picture quality setting (TV) Not used. Picture quality setting (Composite, S Video, for component 480I) Brightness peaking coring setting (TV) Not used. Brightness peaking coring setting (Composite, S Video, for component 480I) Brightness peaking center frequency (TV) Brightness peaking center frequency Not used. (Composite, S Video, for component 480I) CTI setting (TV) Not used. CTI setting (Composite, S Video, Not used. for component 480I) CTI band setting (TV) Not used. CTI band setting (Composite, S Video, Not used. for component 480I)

Function

Response precautions on servicing

See the test pattern of adjustment process mode.

Not used.

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

DPS11 PAL-N TV COLOR 30

PAL-N AV COLOR 30

P AL-N TV TINT 0 PAL-N AV TINT 0

PAL-N BRIGHTNESS +9 P AL-N TV CONTRAST 54 PAL-N AV CONTTRAST 54

DPS12 PAL-N TV PKLEVEL 5

PAL-N AV PKLEVEL 5

P AL-N TV PKCORRED7A 159 PAL-N AV PKCORRED7A 159

P AL-N TV PKCFSOFT7C 6 PAL-N AV PKCFSOFT7C 6

DPS13 PAL-N TV CTI7D 153

PAL-N AV CTI7D 153

P AL-N TV CTIBWLP7C 0 PAL-N AV CTIBWLP7C 0

DPS16 PAL AV COLOR 30

PAL AV TINT 0

PAL BRIGHTNESS +9 PAL AV CONTTRAST 54

DPS17 PAL AV PKLEVEL 5

PAL AV PKCORRED7A 159

PAL AV PKCFSOFT7C 6

DPS18 PAL AV CTI7D 153

PAL AV CTIBWLP7C 0

DPS21 SECAM AV COLOR 30

SECAM AV TINT 0 SECAM BRIGHTNESS +9 SECAM AV CONTRAST 54

DPS22 SECAM AV PKLEVEL 5

SECAM AV PKCORRED7A 159

SECAM AV PKCFSOFT7C 6

DPS23 SECAM AV CTI7D 153

SECAM AV CTIBWLP7C 0

DPS26 PAL60 AV COLOR 30

PAL60 AV TINT 0

PAL60 BRIGHTNESS +9 PAL60 AV CONTRAST 54

Function

Color depth setting (TV) Not used. Color depth setting (Composite, S Video, for component 480I) Color tone setting (TV) Not used. Color tone setting (Composite, S Video, for component 480I) Black level setting Not used. Picture setting (TV) Not used. Picture setting (Composite, S Video, Not used. for component 480I) Picture quality setting (TV) Not used. Picture quality setting Not used. (Composite, S Video, for component 480I) Brightness peaking coring setting (TV) Not used. Brightness peaking coring setting (Composite, S Video, for component 480I) Brightness peaking center frequency (TV) Brightness peaking center frequency (Composite, S Video, for component 480I) CTI setting (TV) Not used. CTI setting (Composite, S Video, Not used. for component 480I) CTI band setting (TV) Not used. CTI band setting (Composite, S Video, Not used. for component 480I) Color depth setting (Composite, S Video, for component 480I) Color tone setting (Composite, S Video, for component 480I) Black level setting Not used. Picture setting (Composite, S Video, Not used. for component 480I) Picture quality setting (Composite, S Video, for component 480I) Brightness peaking coring setting (Composite, S Video, for component 480I) Brightness peaking center frequency (Composite, S Video, for component 480I) CTI setting (Composite, S Video, Not used. for component 480I) CTI band setting (Composite, S Video, Not used. for component 480I) Color depth setting (Composite, S Video) Color tone setting (Composite, S Video) Not used. Black level setting Not used. Picture setting (Composite, S Video) Not used. Picture quality setting (Composite, S Video) Brightness peaking coring setting Not used. (Composite, S Video) Brightness peaking center frequency (Composite, S Video) CTI setting (Composite, S Video) Not used. CTI band setting (Composite, S Video) Not used. Color depth setting (Composite, S Video, for component 480I) Color tone setting (Composite, S Video, Not used. for component 480I) Black level setting Not used. Picture setting (Composite, S Video, Not used. for component 480I)

Response precautions on servicing

Not used.

Not used. Not used.

Not used.

LC-13S2U-S

Page No. Item

Initial

Value (Do not change other items than designated.)

DPS27 PAL60 AV PKLEVEL 5

PAL60 AV PKCORRED7A 159

PAL60 AV PKCFSOFT7C 6

DPS28 PAL60 AV CTI7D 153

PAL60 AV CTIBWLP7C 0

DPS30 PAL60 HPRESC FIL42 0 DPS31 N443 AV COLOR 30

N443 AV TINT +3 N443 BRIGHTNESS +9 N443 AV CONTRAST 54

DPS32 N443 AV PKLEVEL 5

N443 AV PKCORRED7A 159

N443 AV PKCFSOFT7C 6

DPS33 N443 AV CTI7D 153

N443 AV CTIBWLP7C 0

DPS36 D2 AV COLOR 38

D2 AV TINT +2 D2 BRIGHTNESS -17 D2 AV CONTRAST 55

DPS37 D2 AV PKLEVEL 5

D2 AV PKCORRED7A 159

D2 AV PKCFSOFT7C 6

D2 VSTART1 20

D2 VSTOP1 21

D2 HSDEL 0

DPS38 D2 AV LTI 135

D2 AV LMODE79 191

D2 AV LMIX78 79

D2 AV CTI7D 0 D2 AV CTIBWLP7C 0

DPS39 D2 AV BLEMODE 3

D2 AV BGAINREF71 199

D2 AV POINT72 21

D2 AV MINFIL73 71

D2 AV CROP 7

Function

Picture quality setting (Composite, S Video, for component 480I) Brightness peaking coring setting Not used. (Composite, S Video, for component 480I) Brightness peaking center frequency (Composite, S Video, for component 480I) CTI setting (Composite, S Video, Not used. for component 480I) CTI band setting (Composite, S Video, Not used. for component 480I) Horizontal pre-scaler setting Not used. Color depth setting (Composite, S Video) Color tone setting (Composite, S Video) Not used. Black level setting Not used. Picture setting (Composite, S Video) Not used. Picture quality setting (Composite, S Video) Brightness peaking coring setting Not used. (Composite, S Video) Brightness peaking center frequency Not used. (Composite, S Video) CTI setting (Composite, S Video) Not used. CTI band setting (Composite, S Video) Not used. Color depth setting (For component 480P) Color tone setting (For component 480P) Black level setting (For component 480P) Picture setting (For component 480P) Not used. Picture quality setting (For component 480P) Brightness peaking coring setting Not used. (For component 480P) Brightness peaking center frequency Not used. (For component 480P) Screen vertical position setting Not used. (For component 480P) Screen vertical position setting Not used. (For component 480P) Horizontal sync input-to-output delay Not used. time setting (For component 480P) LTI setting (For component 480P) Not used. Brightness signal mixer setting Not used. (For component 480P) Variable mixing mode setting Not used. (For component 480P) CTI setting (For component 480P) Not used. CTI band setting (For component 480P) Not used. Black extension setting Not used. (For component 480P) Black extension gain setting Not used. (For component 480P) Black extension point setting Not used. (For component 480P) Black extension filter setting Not used. (For component 480P) Minimum measuring frame setting Not used. (For component 480P)

Response precautions on servicing

Not used.

Not used. Not used. Not used.

Not used.

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

DPS40 D2 HPRESC FIL42 48

D2 HSCPRESC 176

D2 HPOSC UPSF60 0

D2 HSCPOSC 4095

D2 VSCPOSC 4E 61

D2 VSCPOSC 4F 10

D2 VSCPOSC 50 0

D2 VOFPOSC 0

D2 VPOSC UPSF60 0

D2 PPLOP 820

D2 PPLOP REF

DPS41 D2 RGB BRT +16

D2 RGB CON 35

D2 RGB USAT 32

D2 RGB VSAT 32

D2 FBLOFFST 0

D2 FBLDEL 2

D2 MIXGAIN +21

D2 NALPFOP 18

D2 ALPFOP 488

D2 OSD VB 17

D2 OSD VE 18

DPS42 NTSC NAPPL 23

NTSC NALPF 8

NTSC NALPFOP 16

NTSC ALPFOP 510

NTSC OSD VB 16

NTSC OSD VE 17

NTSC APPL 360

NTSC NAPPH 0

Function

Horizontal pre-scaler setting Not used. (For component 480P) Horizontal pre-scaler sub-sampling setting (For component 480P) Horizontal UP sampling filter characteristics (For component 480P) Horizontal post-scaler setting Not used. (For component 480P) Vertical post-scaler setting Not used. (For component 480P) Vertical post-scaler setting Not used. (For component 480P) Vertical post-scaler setting Not used. (For component 480P)

Vertical edge flicker reduction setting Not used.

(For component 480P)

Vertical UP sampling filter characteristics (For component 480P) No. of pixels for one line setting Not used. (For component 480P) Display only RGB (YCbCr) black level setting Not used. (For component 480P) RGB (YCbCr) picture setting Not used. (For component 480P) RGB (YCbCr) color contrast U setting Not used. (For component 480P) RGB (YCbCr) color contrast V setting Not used. (For component 480P) RGB (YCbCr) first blank offset correction setting (For component 480P) RGB (YCbCr) first blank delay setting Not used. (For component 480P) RGB (YCbCr) first blank gain setting Not used. (For component 480P) No. of invalid lines for output 1 field Not used. (For component 480P) No. of valid lines for output 1 field Not used. (For component 480P) OSD VSYNC output pulse start position setting (For component 480P) OSD VSYNC output pulse stop position setting (For component 480P) No. of invalid pixels from horizontal sync signal to input data (TV, composite, S Video, for component 480I) No. of invalid lines for input 1 field (TV, composite, S Video, for component 480I) No. of invalid lines for output 1 field (TV, composite, S Video, for component 480I) No. of valid lines for output 1 field (TV, composite, S Video, for component 480I) OSD VSYNC output pulse start position setting (TV, composite, S Video, for component 480I) OSD VSYNC output pulse stop position setting (TV, composite, S Video, for component 480I) No. of valid pixels for input 1 field (TV, composite, S Video, for component 480I) CbYCrY phase shift setting (TV, composite, S Video, for component 480I)

Response precautions on servicing

Not used.

LC-13S2U-S

Page No. Item

Initial

Value (Do not change other items than designated.)

DPS42 NTSC HSPPL 2

NTSC VSLPF 0

DPS43 PAL NAPPL 60

PAL NALPF 8

PAL NALPFOP 33

PAL ALPFOP 520

PAL OSD VB 30

PAL OSD VE 31

PAL APPL 370

PAL NAPPH 0

PAL HSPPL 0

PAL VSLPF 0

DPS45 DPS NLC A6 EA

DPS NLC A8 EE DPS NLC AA 07 DPS NLC AC 33 DPS NLC AE 49 DPS NLC B0 62 DPS NLC B2 56 DPS NLC B4 3A DPS NLC B6 EA DPS NLC B8 EE DPS NLC BA 07 DPS NLC BC 33 DPS NLC BE 49 DPS NLC C0 62 DPS NLC C2 56 DPS NLC C4 3A DPS NLC C6 EA DPS NLC C8 EE DPS NLC CA 03 DPS NLC CC 25 DPS NLC CE 35 DPS NLC D0 62 DPS NLC D2 56 DPS NLC D4 3A

DPS46 NTSC VSTART1 19

NTSC VSTOP1 20 NTSC HSDEL 0

DPS47 NTSC TV L TI 135

NTSC AV LTI 135

NTSC TV LMODE79 191 NTSC AV LMODE79 191

Function

Horizontal shift pixel setting (TV, composite, S Video, for component 480I) Vertical shift line setting (TV, composite, S Video, for component 480I) No. of invalid pixels from horizontal sync signal to input data (TV, composite, S Video, for component 480I) No. of invalid lines for input 1 field (TV, composite, S Video, for component 480I) No. of invalid lines for output 1 field (TV, composite, S Video, for component 480I) No. of valid lines for output 1 field (TV, composite, S Video, for component 480I) OSD VSYNC output pulse start position setting (TV, composite, S Video, for component 480I) OSD VSYNC output pulse stop position setting (TV, composite, S Video, for component 480I) No. of valid pixels for input 1 field (TV, composite, S Video, for component 480I) CbYCrY phase shift setting (TV, composite, S Video, for component 480I) Horizontal shift pixel setting (TV, composite, S Video, for component 480I) Vertical shift line setting (TV, composite, S Video, for component 480I) Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Gamma setting Not used. Screen vertical position setting Not used. Screen vertical position setting Not used. Setting of delay time between horizontal Not used. sync input and output LTI setting (TV) Not used. LTI setting (Composite, S Video, Not used. for component 480I) Brightness signal mixer setting (TV) Not used. Brightness signal mixer setting (Composite, S Video, for component 480I)

Response precautions on servicing

Not used.

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

DPS47 NTSC TV LMIX78 79

NTSC AV LMIX78 79

DPS48 NTSC TV BLEMODE 3

NTSC AV BLEMODE 3

NTSC TV BGAINREF71 199 NTSC AV BGAINREF71 199

NTSC TV POINT72 21 NTSC AV POINT72 21

NTSC TV MINFIL73 71 NTSC AV MINFIL73 71

NTSC TV CROP 7 NTSC AV CROP 7

DPS49 NTSC HPRESC FIL42 48

NTSC HSCPRESC 500

NTSC HPOSC UPSF60 0

NTSC HSCPOSC 3812

NTSC VSCPOSC 4E 61

NTSC VSCPOSC 4F 9

NTSC VSCPOSC 50 0

NTSC VOFPOSC 0

NTSC VPOSC UPSF60 0

NTSC PPLOP 817

NTSC PPLOP REF

Display

DPS50 PAL VSTART1 33

PAL VSTOP1 34

PAL HSDEL 0

DPS51 PAL TV L TI 135

PAL AV LTI 135

PAL TV LMODE79 191 PAL AV LMODE79 191

PAL TV LMIX78 79 PAL AV LMIX78 79

Function

Variable mixing mode setting (TV) Not used. Variable mixing mode setting (Composite, S Video, for component 480I) Black extension setting (TV) Not used. Black extension setting (Composite, S Video, for component 480I) Black extension gain setting (TV) Not used. Black extension gain setting (Composite, S Video, for component 480I) Black extension point setting (TV) Not used. Black extension point setting (Composite, S Video, for component 480I) Black extension filter setting (TV) Not used. Black extension filter setting (Composite, S Video, for component 480I) Minimum measuring frame setting (TV) Not used. Minimum measuring frame setting Not used. (For composite, S Video and component 480I) Horizontal pre-scaler setting (TV, composite, S Video, for component 480I) Horizontal pre-scaler sub-sampling setting (TV, composite, S Video, for component 480I) Horizontal UP sampling filter characteristics (TV, composite, S Video, for component 480I) Horizontal post-scaler setting (TV, composite, S Video, for component 480I) Vertical post-scaler setting (TV, composite, S Video, for component 480I) Vertical post-scaler setting (TV, composite, S Video, for component 480I) Vertical post-scaler setting (TV, composite, S Video, for component 480I) Vertical edge flicker reduction setting (TV, composite, S Video, for component 480I) Vertical UP sampling filter characteristics (TV, composite, S Video, for component 480I) No. of pixels for one line setting (TV, composite, S Video, for component 480I) No. of pixels for one line setting (TV,

only

composite, S Video, for component 480I) Screen vertical position setting (TV, composite, S Video, for component 480I) Screen vertical position setting (TV, composite, S Video, for component 480I) Setting of delay time between horizontal sync input and output (TV, composite, S Video, for component 480I) LTI setting (TV) Not used. LTI setting (Composite, S Video, Not used. for component 480I) Brightness signal mixer setting (TV) Not used. Brightness signal mixer setting (Composite, S Video, for component 480I) Variable mixing mode setting (TV) Not used. Variable mixing mode setting (Composite, S Video, for component 480I)

Response precautions on servicing

Not used.

LC-13S2U-S

Page No. Item

Initial

Value (Do not change other items than designated.)

DPS52 PAL TV BLEMODE 3

PAL AV BLEMODE 3

PAL TV BGAINREF71 199 PAL AV BGAINREF71 199

PAL TV POINT72 21 PAL AV POINT72 21

PAL TV MINFIL73 71 PAL AV MINFIL73 71

PAL TV CROP 7 PAL AV CROP 7

DPS53 PAL HPRESC FIL42 0

PAL HSCPRESC 163

PAL HPOSC UPSF60 0

PAL HSCPOSC 4095

PAL VSCPOSC 4E 36

PAL VSCPOSC 4F 12

PAL VSCPOSC 50 0

PAL VOFPOSC 0

PAL VPOSC UPSF60 2

PAL PPLOP 970

Function

Black extension setting (TV) Not used. Black extension setting (Composite, Not used. S Video, for component 480I) Black extension gain setting (TV) Not used. Black extension gain setting (Composite, S Video, for component 480I) Black extension point setting (TV) Not used. Black extension point setting (Composite, S Video, for component 480I) Black extension filter setting (TV) Not used. Black extension filter setting (Composite, S Video, for component 480I) Minimum measuring frame setting (TV) Not used. Minimum measuring frame setting Not used. (For composite, S Video and component 480I) Horizontal pre-scaler setting (TV, Not used. composite, S Video, for component 480I) Horizontal pre-scaler sub-sampling setting (TV, composite, S Video, for component 480I) Horizontal UP sampling filter characteristics (TV, composite, S Video, for component 480I) Horizontal post-scaler setting (TV, composite, S Video, for component 480I) Vertical post-scaler setting (TV, composite, S Video, for component 480I) Vertical post-scaler setting (TV, composite, S Video, for component 480I) Vertical post-scaler setting (TV, composite, S Video, for component 480I) Vertical edge flicker reduction setting (TV, composite, S Video, for component 480I) Vertical UP sampling filter characteristics (TV, composite, S Video, for component 480I) No. of pixels for one line setting (TV, composite, S Video, for component 480I)

Response precautions on servicing

Not used.

LC-13S2U-S

Page No. Item

Initial Value (Do not change other items than designated.)

DAC

DAC 1 V0 H 240

V0 L 30 V7 H 213 V7 L 56 V21 H 200 V21 L 68 V64 H 183 V64 L 84

DAC 2 V112 H 164

V112 L 99 V176 H 128 V176 L 128 V235 H 45 V235 L 210 V255 H 0 V255 L 255

DAC 3 COM H 182

COM L 0 VGL COM H 215 VGL COM L 0 VGL ADJ 0

TUNER

TUNER1 AFT UP 1.8

AFT DOWN 1.2 LSYNC 625 HSYNC 655 AVSYNC 5000 AIR SERCH 1.6 SYSTEM OFF

EDS TEST 10

Function

DAC OUT2A(04h) DAC OUT2B(05h) DAC OUT3A(06h) DAC OUT3B(07h) DAC OUT4A(08h) DAC OUT4B(09h) DAC OUT5A(0Ah) DAC OUT5B(0Bh) DAC OUT6A(0Ch) DAC OUT6B(0Dh) DAC OUT7A(0Eh) DAC OUT7B(0Fh) DAC OUT8A(10h) DAC OUT8B(11h) DAC OUT9A(12h) DAC OUT9B(13h) DAC COM1A(14h) DAC COM1B(15h) DAC COM2A(16h) DAC COM2B(17h) DAC OUT0B(01h)

AFT voltage reference value AFT voltage reference value Sync judgment threshold value (TV) Sync judgment threshold value (TV) Sync judgment threshold value (External input) Last sync judgment frequency at AIR CH SEARCH With or without component system switching display Time (sec.) taken up to judgment of no EDS time data

Response precautions on servicing

OTHERS

OTHERS1 L_ERROR WAIT 15s

L ERROR H TIME 1.0s TV GAIN OFF TV OSD -27 NTSC PWM FREQ 9CB NTSC PWM DUTY 0 PAL PWM FREQ 9CB PAL PWM DUTY 0 OPC THRESHOLD 24

OTHERS2 CLOSED CAPTION 15

CCD ISO 16 EZ SETUP ON

OTHERS3 3D Y/C 0

3DY/C DATA 0 3DY/C DATA WAIT EXCSS – CDL – DYCOR – DYGAIN – DCCOR – DCGAIN – 08h – YHCOR –

1 sec. increments (Time taken up to identification of error port)

0.1 sec. increments (Time of H) Auto gain setting for TV Display position setting for other than card DPS PWMDIV(F5[7:0], F6[3:0]) 60Hz DPS PWM1VAL(F7[7:0]) 60Hz DPS PWMDIV(F5[7:0], F6[3:0]) 50Hz DPS PWM1VAL(F7[7:0]) 50Hz OPC operating threshold value (Difference between input level and current position) CLOSED CAPTION THRESHLEVEL CLOSED CAPTION phase setting With or without EZ SET UP display 3D ON/OFF setting 3D YC data WRITE & READ WRITE & READ execution External CSYNC sync input setting C-signal output delay fine-adjustment DY detection coring DY detection gain DY detection coring DY detection gain Non-standard detection sensitivity settings Y output high frequency coring processing setting

PUBLIC MODE SETTING PROCEDURE

1. How to start Public Mode

» There are the following tw o ways to get the public mode setup screen displayed.

1 In the adjustment process mode, turn on "PUBLIC MODE". Also press the [CH UP] and [V OL+] ke ys on the

set at once and turn on the power.

2 1) Press the [MENU] and [VOL+] keys on the set at once and turn on the power.

2) Get the password input screen displayed.

Procedure

» The input starts with the leftmost digit. » Use the numeric keys [1] thru [9] and [10/0] keys on the remote con-

troller. The other keys are not acceptable.

» With a numeric-key input, "–" will change to " ". The input position

will move one digit to the right.

» With all the 3 digits entered, the password will be verified.

LC-13S2U-S

3) The 3-digit password is now verified. The password [0] [2] [7] provides for the public mode screen. (This screen comes on with whatever adjustment process settings.) With any other passwords, the screen changes to the normal mode.

LC-13S2U-S

2. How to exit Public Mode

There are the following ways to quit the public mode setup screen. » Turn off "PUBLIC MODE" in the adjustment process mode. (✩) ← This way alone is not for quitting the setup

screen, but for quitting the mode itself.

» Turn off the power with the power key. (★) » Select "EXECUTE". (★) » Move the cursor to "RESET" and press the "FLASHBACK" key. (Back to the normal mode screen)(✩)

★ ... "PUBLIC MODE" stays on in the adjustment process mode. ✩ ... The settings will be back to the factory ones.

3. Public Mode Setting Values

» With the factory settings made, the public mode settings get initializ ed. (The adjustment process remains intact.)

4. Public Mode Menu

The guidance is not displayed onscreen. Setup procedure » To move the "CURSOR UP AND DOWN", use the "CURSOR UP/DOWN" key (remote controller) and "CHAN-

NEL UP/DOWN" key (remote controller and set).

» To change the settings, use the "CURSOR RIGHT/LEFT" key (remote controller) and "VOLUME UP/DOWN"

key (remote controller and set).

» To sa ve new settings, k eep the cursor at "EXECUTE" and use the "CURSOR RIGHT/LEFT" key (remote control-

ler) and "VOLUME UP/DOWN" key (remote controller and set).

MAXIMUM VOLUME [ 60 ] VOLUME FIXED [VARIABLE ] REMOTE CONTROL [RESPOND ] USER CONTROL [RESPOND ] MENU BUTTON [RESPOND] ON SCREEN DISPLAY [YES ] START MODE [NORMAL ] INPUT MODE FIXED [VARIABLE ] SOUND ONLY MODE [NO ] RESET ENTER

(PUBLIC MODE)

5. On Setting Items

* "EZ-SETUP" discussed below indicates "EZ-SETUP after the first power-on". (1) MAXIMUM VOLUME

Selection Default Function Exception Remarks

(2) VOLUME FIXED

Adjustable from 1 to 60 (no loop) 60 The volume control is limited to an adjusted level (for the main speakers and headphones).

» The VOLUME setting can be freely adjusted to a desired level in the adjustment process mode. » The volume can be preset from -60 to 0 in the line output regardless of the adjusted setting. » If the setting is below 59, the number alone is displayed. The volume bar does not appear.

LC-13S2U-S

Selection Default Function

Selection between "VARIABLE" and "FIXED" (loop provided) VARIABLE "FIXED" setting: 1 The volume control is fixed at a level, not adjustable (for the main speakers and headphones).

Exception Keys inoperative

» The VOLUME setting can be freely adjusted to a desired level in the adjustment process mode. » Volume up/down (VOL+/-) [on remote controller and set] » Mute (MUTE)

except for default setting Remarks

» The volume setting becomes 1 just after the selection of "NO (VARIABLE"). » The volume can be preset from -60 to 0 in the line output regardless of this setting. » Priority is given to the volume fixed over the maximum volume.

(3) REMOTE CONTROL

Selection Default Function

Exception

Selection between "RESPOND", "LIMITED" and "NO RESPOND" (loop provided) RESPOND Setting the remote control functions

1 "NO RESPOND" setting: The remote control keys are inoperative in the usual way. 2 "LIMITED" setting: All the remote control keys other than power, channel up/down, volume up/down and

brightness are inoperative.

» The adjustment process, factory setting, inspection process and public mode keys are operative regardless

of this setting.

» The remote control is operative all the time on the adjustment process, inspection process and public mode

setting screens as well as during EZ-SETUP regardless of this setting.

(4) USER CONTROL

Selection Default Function Exception

Selection between "RESPOND" and "NO RESPOND" (loop provided) Default Disabling the set's keys other than POWER

» The user control is operativ e at a start of inspection process, public mode and public pass w ord regardless of

this setting. (Note)

» The user control is operative all the time on the adjustment process, inspection process and public mode

setting screens as well as during EZ-SETUP regardless of this setting.

Note:

Inspection process start

Public mode start Public password start

..............

.......

...

Press "MENU" and "TV/VIDEO" at once and turn on the power. With the adjustment process public mode on, press "CH UP" and "VOL+" at once and turn on the power. Press "MENU" and "VOL+" at once and turn on the power.

LC-13S2U-S

(5) MENU BUTTON

Selection Default Function Exception

Selection between "RESPOND" and "NO RESPOND" (loop provided) RESPOND Disabling the MENU key both on the set and the remote controller

» The MENU button is oper ative at a start of inspection process and public passw ord regardless of this setting.

(See Note in (4) above.)

» The MENU button is operative all the time in the adjustment process and inspection process modes as well

as during EZ-SETUP regardless of this setting "OFF" and selection is made prohibited.

(6) ON SCREEN DISPLAY

Selection Default Function Exception

Keys inoperative except for default setting Remarks

Selection between "YES" and "NO" (loop provided) YES "NO" setting: The on-screen display does not appear.

» The V-CHIP block message and closed caption appear regardless of this setting. » The inspection process, factor y setting (including the EZ-SETUP screen), adjustment process and public

mode setting screens can appear regardless of this setting.

» Menu (MENU) [on remote controller and set] (operative when applied in the above exception, however) » Off-timer (SLEEP) » On-screen display (DISPLAY) » Closed caption » "NO" setting:

1 The off-timer (SLEEP TIMER) setting is cleared to --. 2 The no-signal power off (AUTO POWER OFF) setting is cleared to "OFF". 3 The sound mode (SOUND ONLY MODE) setting is changed to "NO" with selection disabled.

(7) START MODE

Selection

Default Function

Remarks

Selection between "NORMAL" and selectable input source/selectable channel (loop provided)

→[NORMAL]←→[AV1]←→[COMPONENT]← →

[CH1]

←→[CH2]←→···←→[CH69]←→

[CH70]

←→···←→

[CH125]

←

*The italic-font sources and channels are not selectable depending on the setting (Note 1). NORMAL With the power on, an input source or channel to start with is preset. In the NORMAL mode, the last memory comes first.

» In the "NORMAL" setting, the "INPUT MODE FIXED" setting is f orced to "VARIABLE", which does not allow

the selection.

(Note1:)

» With the channel set at AIR, the channels [CH1] and [CH70] thru [CH125] cannot be selected.

(8) INPUT MODE FIXED

Selection Default Function

Keys inoperative except for default setting

Remarks

Selection between "VARIABLE" and "FIXED" (loop provided) VARIABLE In the "FIXED" setting, the "START MODE" setting is forced up, which disables the s witching to other channels and input sources.

» Channel up/down (CH UP/DOWN) [on remote controller and set] » Direct channel buttons 1 thru 10/0 » Flashback (FLASHBACK) » Input select (TV/VIDEO) [on remote controller and set] » Channel button 100 » With the "START MODE" set at "NORMAL", this setting is disabled. (The setting will automatically be "VARI-

ABLE".)

(9) SOUND ONLY MODE

LC-13S2U-S

Selection Default Function Remarks

Selection between "NO" and "YES" (loop provided) NO Enabling or disabling the sound mode function

» In the "YES" setting, the "OFF" status is added while the BRIGHT button is being pressed. This "OFF" status

provides for the sound mode function.

» When the "ON SCREEN DISPLAY" setting is "NO", this setting is cancelled ("NO") and cannot be selected.

LC-13S2U-S

Sound only mode function specifications (Behavior of the remote control BRIGHT button)

1 The "OFF" setting is added while the remote control BRIGHT button is effective.

With "YES" selected in "SOUND ONLY MODE". BRIGHTNESS [BRIGHT]→BRIGHTNESS [NORMAL]→ BRIGHTNESS [DARK]→BRIGHTNESS [AUTO]→BRIGHTNESS [OFF]→BRIGHTNESS [BRIGHT]

2 When the "OFF" mode is selected, the screen becomes mute, the following message appears and the time is

counted down. (Sound only mode setup process) The time indication "IN 5 SEC" appearing in the message gets counted down. IN 5 SEC → IN 4 SEC → IN 3 SEC → IN 2 SEC → IN 1 SEC When the 5 seconds have passed, the backlight error detect function becomes off , the bac klight turns off and the message disappears. (Sound only mode process)

BRIGHTNESS [OFF] TURNS OFF IN 5 SECS

At a temporary reset, the count-down does not take place and the following message appears. (In this case too, the backlight error detect function becomes off, the backlight tur ns off and the message disappears in 5 seconds.)

BRIGHTNESS [OFF] PRESS BRIGHT TO CANCEL

3 The key functions in the sound only mode setup process and sound only mode process are referred to in

"Table of Key Allocation in Sound Only Mode" and "Table of Key Functions in Sound Only Mode"

4 To turn off the power with the power key, off-timer or no-signal power supply in the sound only mode, first end

the sound only mode, then call the BRIGHT mode, and finally turn off the power.

5 Let's suppose that the power is on and the BRIGHT mode is off. In this case, call the BRIGHT mode first and

then get started.

Screen mute

6 If the BRIGHT mode is turned off with the sound mute, the sound only mode setup process (caution displayed)

goes on with no sound. Once the sound only mode is set up, the sound mute gets cleared (just when the backlight turns off). The sound volume level at this clearing will be the same as before the sound mute action.

7 To activate the V-CHIP block, make a temporary reset and keep on the caution display until the block is

unlocked. The screen background will be black, not blue.

8 The closed caption is ignored (including the temporary reset).

Table of Key Allocation in Sound Only Mode (Unit keys/Remote control keys)

LC-13S2U-S

Key

Unit keys

Remote control

* When the VOLUME FIXED, INPUT MODE FIXED or other fixed status is set up, this status is given priority.

POWER TV/VIDEO MENU CH VOL POWER PIC.FLIP DISPLAY SLEEP MENU CURSOR ENTER BRIGHT MUTE MTS TV/VIDEO VOL AUDIO ONLY CH FLASHBACK CH1~10/0 CH100 CLOSED CAPTION

Released Temporary reset Released Temporary reset Temporary reset Released Released Temporary recovery Temporary reset Released Released Released Special reset Temporary reset Temporary reset Temporary reset Temporary reset Released Temporary reset Temporary reset Temporary reset Temporary reset Temporary reset

Allocation

LC-13S2U-S

Table of Key Functions in Sound Only Mode

Special reset key BRIGHT

Released key

Temporary reset key

Key

Functions

Sound only mode setup process Sound only mode process

» Mute cleared. » Backlight on. » Message deleted. » Backlight error detect on. » BRIGHT mode turned on. Sound only mode clear guide message

(Sound only mode ended) displayed.

(Current BRIGHT mode status displayed)

» Mute cleared. » Backlight on. » Message deleted. » Backlight error detect on. » BRIGHT mode turned on. » Mute cleared

(Sound only mode ended)

» BRIGHT mode turned on.

(Sound only mode ended)

» BRIGHT mode temporarily turned on » BRIGHT mode temporarily turned on

(Externally OFF). (Externally OFF).

» Message deleted. » Backlight on. » Description of pressed key displayed for 3 » Backlight error detect on.

seconds.

» Sound only mode setup message displayed. seconds.

(Current BRIGHT mode status displayed) »

» Description of pressed key displayed for 3

Sound only mode setup message displayed.

(Current BRIGHT mode status displayed)

TROUBLE SHOOTING TABLE

No or Wrong


Does the IC801

test pattern appear

properly?

Does the IC1201 test

pattern appear

properly?

Check the IC801 signal

output line, IC801 itself

and its peripheral

circuits.

Are the waveforms at

pins (8), (9), 26), and

(27) of IC1201 as

specified?

Check IC1201 and its

peripheral circuits as

well as the LCD panel

voltage and waveform.

Check the related lines,

IC801 itself and its

peripheral circuits.

Are the waveforms at the signal

input pins of IC801 as specified?

TV/Composite … Pins (116) and (118)

S Video … Pins (116) and (118)

Component … Pins (68), (116) and

(118)

Check the IC801 signal

input line.

Check IC801 and its

peripheral circuits.

Yes

No Power (Power LED indicator still in red)

Go to the adjustment process mode.

Move the cursor to ERROR NO RESET

and click on it (to reset to zero).

Turn off the power.

Is the power turned on again?

MODEL A622

INCH SIZE 13

ERROR NO RESET 0

PUBLIC MODE OFF

V-CHIP 1

CANADIAN VCHIP OFF

EXT CONTROL OFF

XVC SHARPNESS OFF

VER ROM 1.00A GAIBU 0.000

Note:

This model is equipped with the lamp error detection function that detects the current

flowing into the fluorescent lamp and protects the backlight lamp drive circuit.

If a lamp error is detected, the microprocessor interrupts the unit and the ERROR NO

RESET setting will go up.

When the ERROR NO RESET setting has reached "5", the microprocessor turns and

keeps off the unit's power. To resume the power, take the above procedure to clear the

ERROR NO RESET setting.

Check the following points.

(1) Backlight lamp

(2) Inverter circuit Sub PWB F6501, F6502, D6500, Q6500, Q6501, Q6502,

Q6503, Q6504, Q6505 and their peripheral parts as well as pin (121) of IC1201,

Q3709

(3) Lamp error detection circuit D3702, D3703, D3712, D3715, Q3706, Q3707 and

their peripheral parts as well as pin (42) of IC2001

LC-13S2U-S

Check all the settings on the microprocessor

’s adjust process menu.

No picture

at all

Yes

Check

IC1201, its

peripheral

circuits and

the LCD

panel.

Check IC801

and its

peripheral

circuits.

Yes

No VIDEO

1 or 2

output

Yes

Are input and

output of

IC3401, IC3402

as specified?

Check IC3401,

IC3402 and its

peripheral

parts.

Are inputs at

Pin (118) of

IC801

Check IC801,

V1_V line and

their

peripheral

parts.

Yes

Check IC802

and its

peripheral

parts.

Are inputs

and outputs

of IC802 as

specified?

Check pins

(48), (47)

and (54) of

IC2001.

No S

VIDEO 1 or

2 output

Yes

Are input and

output of

IC3402 and

IC3401 as

specified?

Check SC3411,

SC3412, SY

line, SC line

and peripheral

parts.

COMPONENT

output

Are inputs at

pins (108),

(116) and (118)

of IC801 as

specified?

Check J3404,

Y-I, Pb-I, Pr-I

and

peripheral

parts.

No TV

output

Yes

Are voltages

at Pins (6),

(7) and (9) of

tuner as

specified?

Check the

power line.

Yes

Is output at

Pin (19) of

tuner as

specified?

Check the

tuner and

its

peripheral

Is input at Pin

(5) of

IC3402

as specified?

Check the

line in

question.

Yes

Is Pin (4) of

IC3402

at “H”?

Is Pin (48)

IC2001 at

“H” ?

Yes

Check the

line in

question.

Check pins

(51), (88) of

IC2001 or

the SSW,

SSW2 line.

Are inputs

and outputs

of IC801 as

specified?

Does the LCD

controller test

pattern

appear?

Does the

video decoder

test pattern

appear?

Are inputs at

Pins (131),

(132) and (133)

of IC1201 as

specified?

Check P1201

YP line, Pb-P,

Pr-P line and

peripheral

parts.

Check C815

Check J3404, Y-P, Pb-P, Pr-P

and peripheral parts.

Check

QCNW-

B535WJZZ

Is input at Pin

(6) of IC804 as

specified?

Is an error

message

displayed?

Is the

progressive

input

coming?

Out-of-support

message "Yes"

Check

IC3402 and

its peripheral

parts.

Check

IC3402 and

its peripheral

parts.

Are inputs at

Pins (116) and

(118) of IC801

as specified?

TROUBLE SHOOTING TABLE (Continued)

No picture and sound

Yes

Do F3701 and F3301

function?

Check all the settings on the microprocessor

’s adjust process menu.

Are secondary outputs

(+34V, +9V, +5V, -11V) of

T3701 as specified?

Yes

Are the oscillation waveform

at T3701’s primary side as

specified?

Yes

Disconnect F3701.

Is the load side short-

circuited?

Yes

Is any of T3701

’s primary

side, Q3703 and S4053 short-

circuited?

Check J3701, its peripheral

parts and connection cable.

Replace F3701.

Check S4053 and

connection cable.

Check the secondary-side

load of T3701.

Fluorescent lamp

failure

Yes

Does F6501 and F6502

function?

Yes

Is Pin (120) of IC1201 at

“H”?

Yes

Are the oscillation waveforms

at the primary side of T6500,

T6502 as specified?

Yes

Replace F6501 and F6502.

Yes

Check the line, IC1201 and

its peripheral parts.

Yes

Check Q3709

Check Q6500, Q6501,

Q6503, Q6504, T6500,

T6502 and their peripheral

parts.

Replace the fluorescent lamp

and check the oscillation

waveform again.

No color

No TV color

No S-VIDEO color

NoNo

Is input at Pin (116) of IC801

as specified?

Check SC3411, SC3412, SC

line and peripheral parts.

Is input at Pin (118) of IC801 as specified?

Check V1_V LINE and IC802, IC808.

No VIDEO color

Check all the settings on the microprocessor

’s adjust process menu.

Interlace

No COMPONENT color

Is input at Pins (108) and

(116) of IC801 as specified?

Check J3404, Pb-I line, Pr-I

line and peripheral parts.

Progressive

No COMPONENT color

Is input at Pins (131) and

(133) of IC1201 as specified?

Check J3404, Pb-P line, Pr-P

line and peripheral parts.

LC-13S2U-S

No sound

from

speakers

Yes

Is pin (53) of

IC2001 at “L”?

Check all the settings on the microprocessor

’s adjust process menu.

No sound

Are outputs at

pins (1) and (7)

of IC3302/

IC3303/IC3304

as specified?

Yes

Are inputs at

pins (2) and (4)

as well as

outputs at pins

(8) and (12), all

of IC3305, as

specified?

Muting effect is

on. Check the

SP MUTE line.

Check IC3302,

IC3303, IC3304

and their

peripheral parts.

Yes

Are input and

output of

IC3301 as

specified?

Check IC3301

and its

peripheral parts.

Check the line

in question,

IC3305 and its

peripheral

parts.

Yes

Check the

speakers and

their peripheral

parts.

No sound

from

headphone

Check, J4021,

harness and

their peripheral

parts.

No sound

from output

line

Yes

Is pin (58) of

IC2001 at “L”?

Are outputs at

pins (14) and

(15) of IC3501

as specified?

Yes

Check the line

in question.

Check the

LMUTE line.

Check IC3501,

IC3301 and

their peripheral

parts.

TV sound

failure

Yes

Is output at Pins

(15) and (16) of

tuner as

specified?

Is input at pin

(67) of IC3301

as specified?

Yes

Check IC3301,

X3301 and

their peripheral

parts.

Check the

tuner and its

peripheral

parts.

Check Q3201,

Q3202 and

their peripheral

parts.

TROUBLE SHOOTING TABLE (Continued)

CHASSIS LAYOUT

LC-13S2U-S

SUB Unit

MAIN Unit

R/C, LED Unit

654321

LC-13S2U-S

BLOCK DIAGRAM

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

O VERALL WIRING DIA GRAM

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

DESCRIPTION OF SCHEMATIC DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. The voltages at test points are measured on exclusive A C adaptor and the stable supply v oltage of AC 120V. Signals are fed by a color bar signal generator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.

INDICATION OF RESISTOR & CAPACITOR:

RESISTOR

1. The unit of resistance “Ω” is omitted. (K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted. (J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/16W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise noted.

C : Solid S : Oxide Film T : Special N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted. (P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise noted.

(ML): Mylar (TA): Tantalum (PF): Polypro Film (ST): Styrol

: Cement

CAUTION:

This circuit diagram is original one, therefore there may be a slight difference from yours.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

AVIS DE SECURITE IMPORTANT:

LES PIECES MARQUEES “å” ( )SONT IMPORTANTES POUR MAINTENIR LA SECURITE DE L'APPAREIL. NE REMPLACER CES PIEDES QUE PAR DES PIECES DONT LE NUMERO EST SPECIFIE POUR MAINTENIR LA SECURITE ET PRO TEGER LE BON FONCTIONNEMENT DE L'APPAREIL.

SCHEMATIC DIAGRAM

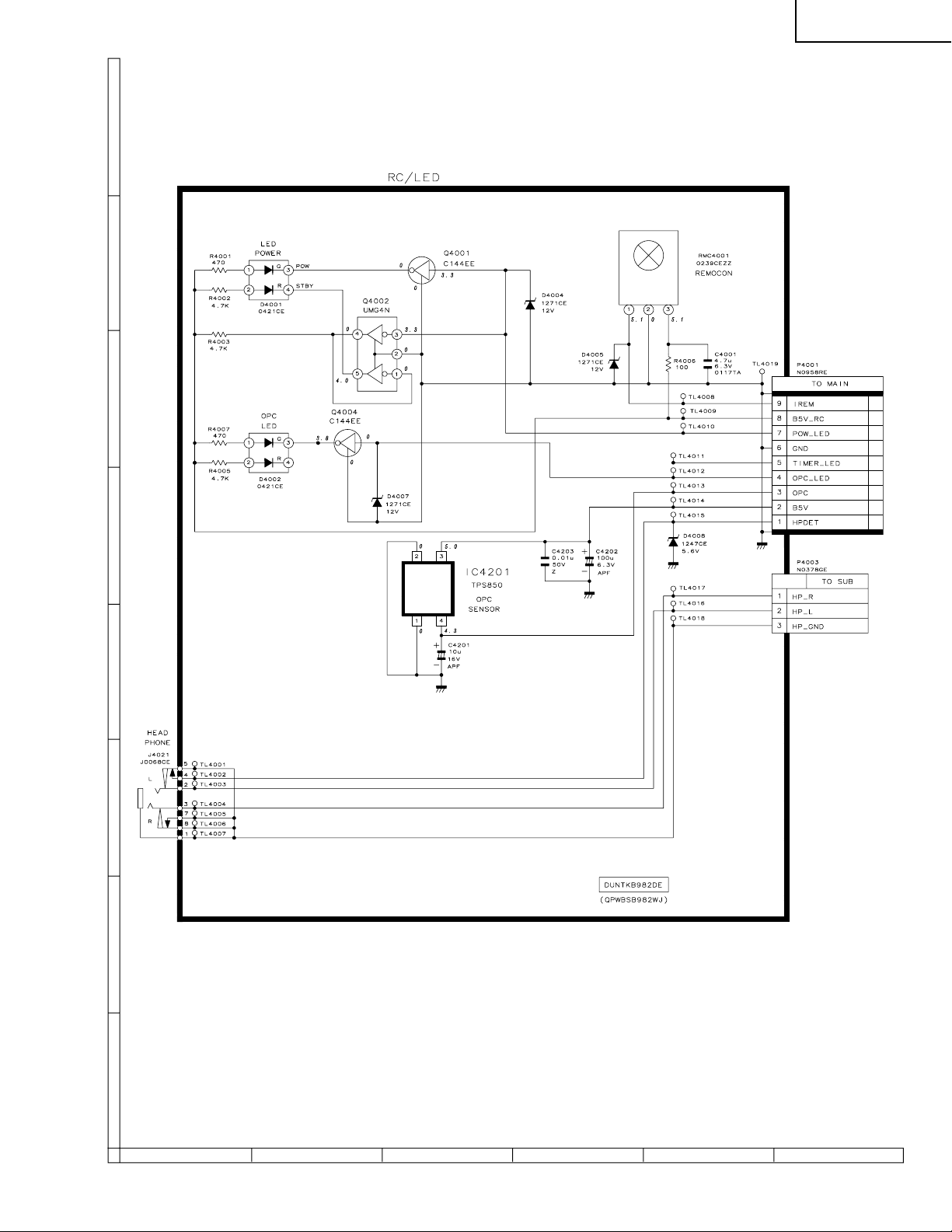

R/C, LED Unit

LC-13S2U-S

654321

LC-13S2U-S

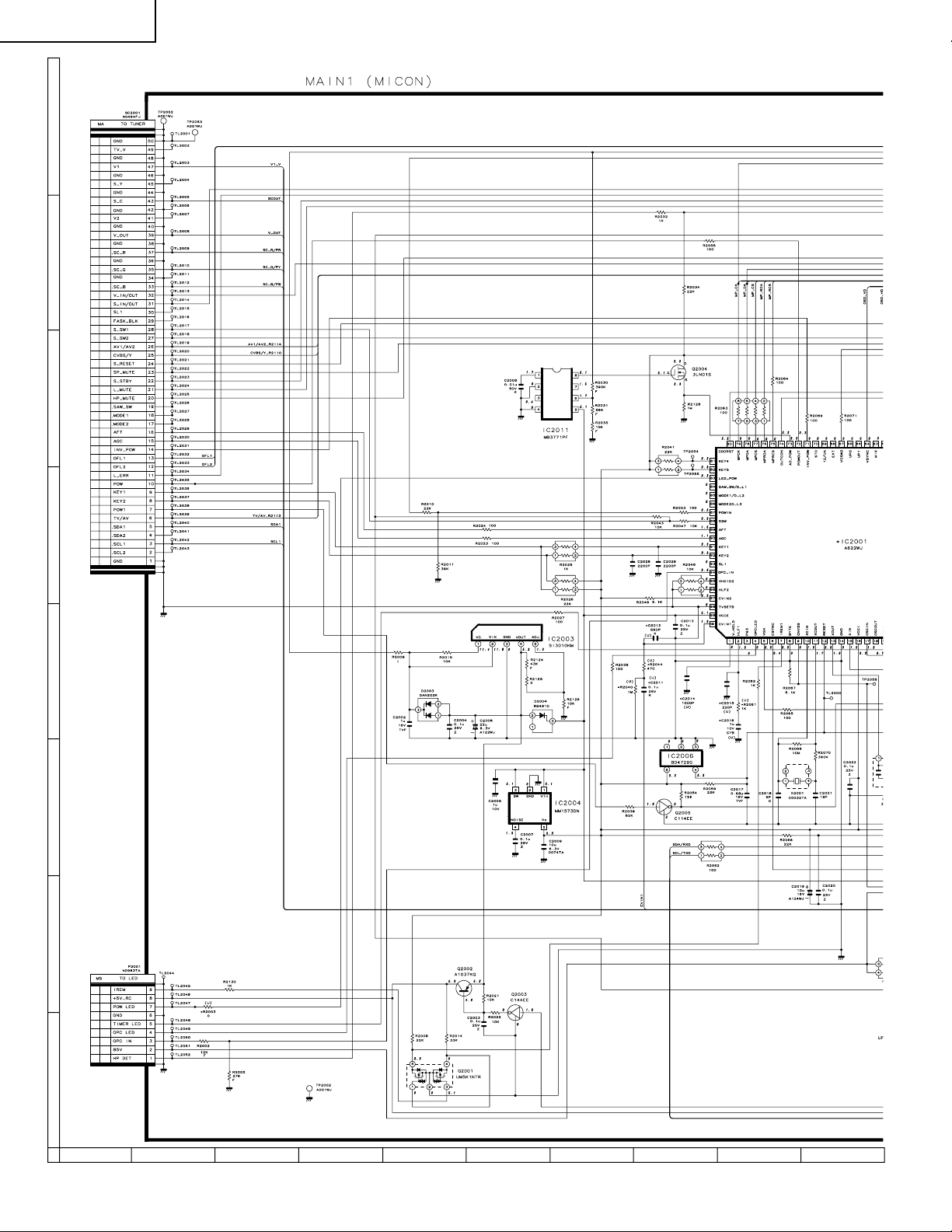

MAIN Unit-1/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

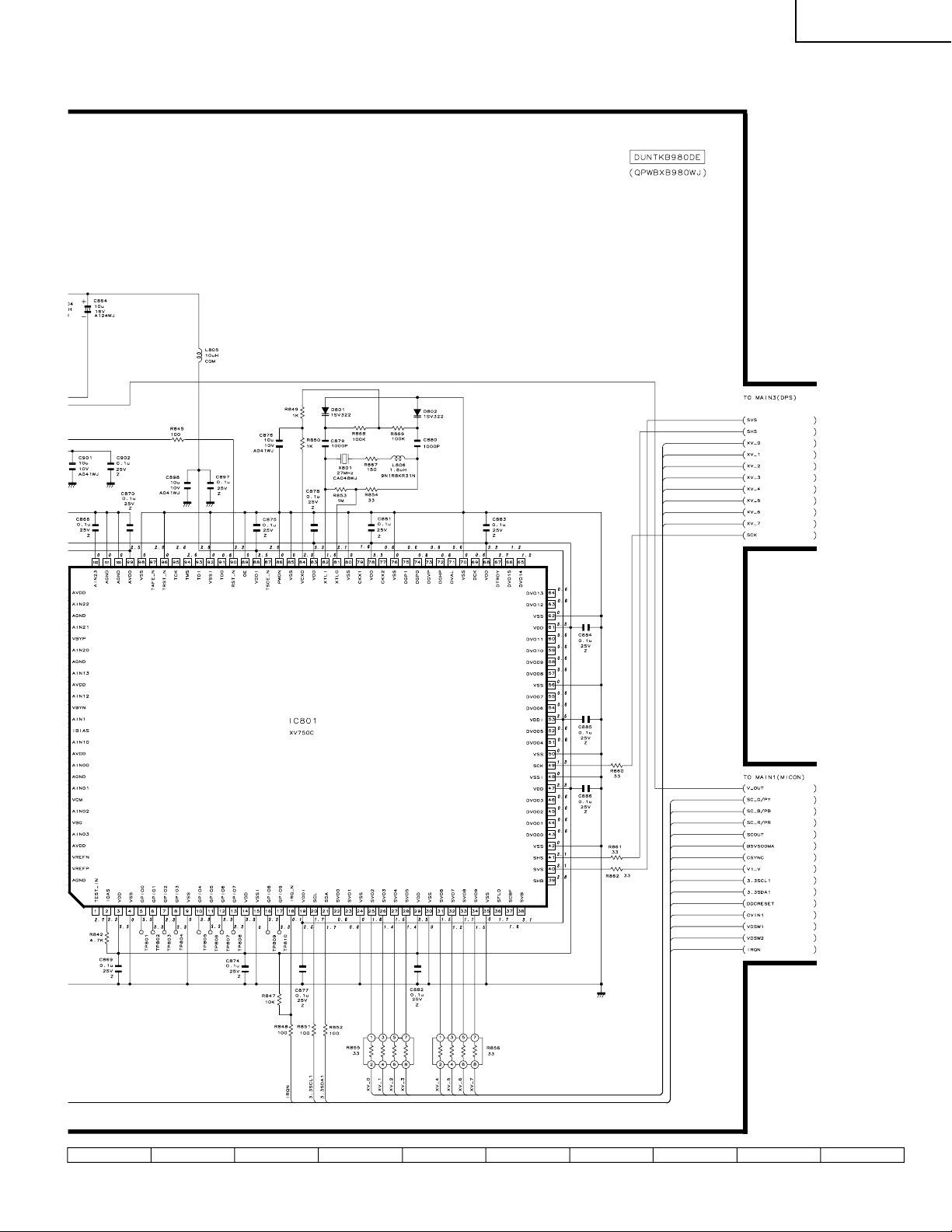

MAIN Unit-2/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

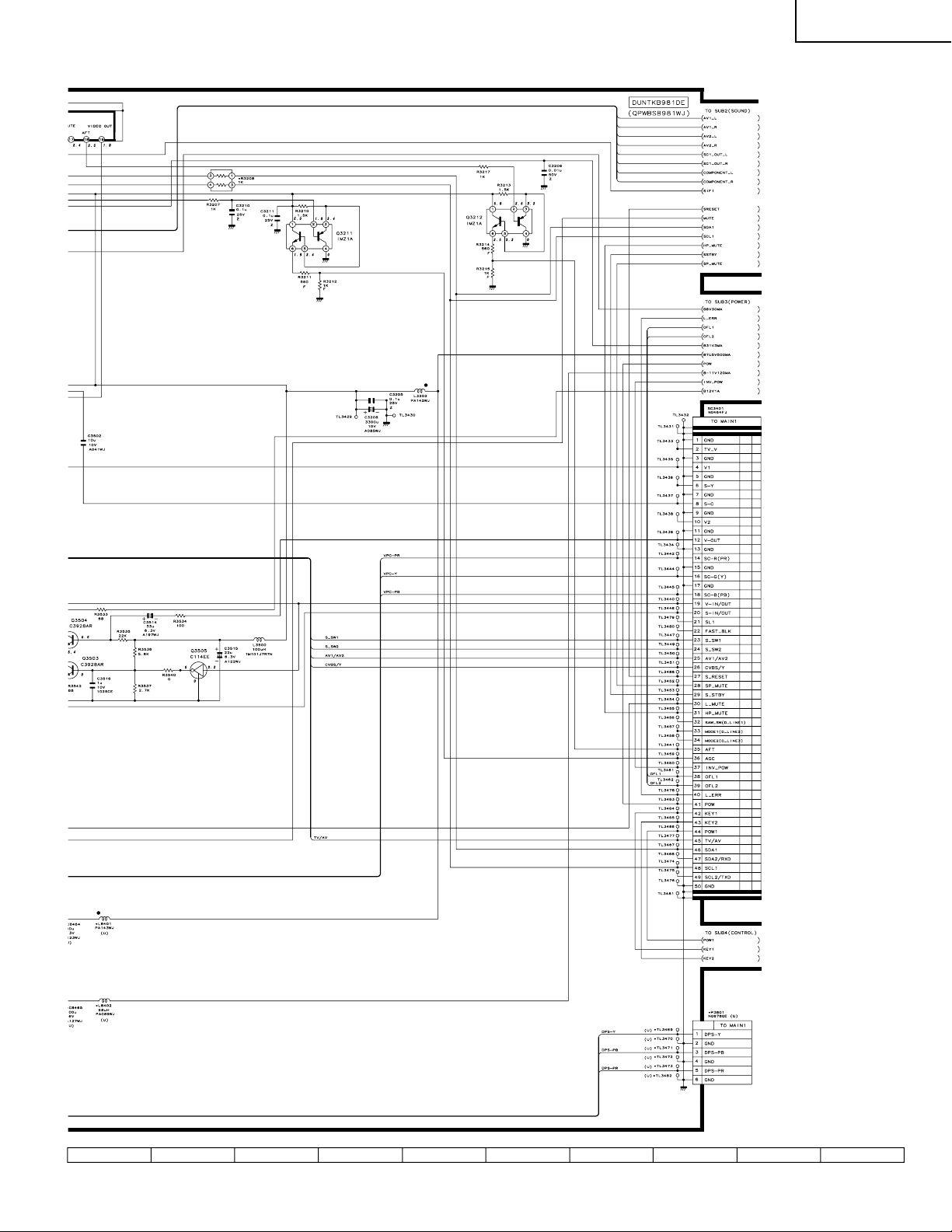

MAIN Unit-3/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

MAIN Unit-4/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

MAIN Unit-5/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

SUB Unit-1/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

SUB Unit-2/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

SUB Unit-3/5

87109654321

LC-13S2U-S

1716 1918151413121110

LC-13S2U-S

SUB Unit-4/5

654321

LC-13S2U-S

SUB Unit-5/5

654321

LC-13S2U-S

PRINTED WIRING BOARD ASSEMBLIES

MAIN Unit (Side-A)

654321

LC-13S2U-S

TP2002

C8245

C8248

C8247

L8206

C8239 C8240 C8241 C8246 C8244

R8229 R8228

C8234

C8232

P2001

C1101

D1104

C1122

C1102

C1109

C1107

SC1202

C8220 C8228 C8229

C8221

C8223

C8214

C727

C729

C1108

C1110

C1106

C1206

R1219

X1201

C1207

X8201

IC8201

C8222

C8224

IC1101

R1221 FB1201 R1222 R1223

R1224

R1227

R1231

SC1203

R1267

R8213

R1268 R1269

C8225

C8230

L701

R1218

R1220

C1209 C1210

C1212

C1214

C1215

C1217

TP2052

C8249

FB8203

FB8204

C738

C1105

R1101

C1104

C1119

R1217

R1208

C1226 C1225 C1224

R2120

C2011 R2040

R2044

C2012

X2001

C2018 R2068

C2021 R2070

FL2001

C2022

R2111

R2097

Q2011

R2108

R2123 R2122

C730

C1237 C1236

C1233

R1216

R1215

R1214

R1233

R2091

R2127

C723

IC1201

C1230

C1223

R2084

Q2007

C860

L1201

L1202

R1207 R1211 R1212 R1206

C1222

SC1204

C1229

C1221

R2088

C8231

C741

L1204 L1203

C1238

C1234

R1209

C1205 C1204 C1203 C1202 C1201

R1234

R2037

R2046

C2013

R2096 R2102

R2109

L702

C731

C735

C736

C861

IC812

C1235

C1232

R1210

C1228 C1227

C1220

C1218

C1219

R2026

R2048

R1213

R2112

R719

R1242

SC2001

R2025

IC2001

R2090

C1231

R1235

Q2003

R717

C709

R2024

R2047

R2093

C2019

C715

Q703

R1236

C720

C742

R2043

R2017

R2027

R2022

R1229 R1230 R1232

R2012

R2041

C2026 C2003

R2021

C1208

C1211

R859

C1213

C825

R1228

C823

C1216

C1242

Q2002

IC704

IC807

C708

C726

C833

C802

R2063

R2064 R2069

R2075

R2110 R2101 R2129 R2056

R2019

C705

C713

C712

C864

R2071

C2006

D710

R2099

Q2009

TP2053

FDC001

R2118

C702

P701

P1201

TP2001

MAIN Unit (Chip Parts Side-A)

654321

LC-13S2U-S

MAIN Unit (Side-B)

654321

LC-13S2U-S

FDC002

R2028

R2124

D2004

R2125

D2003

C2004

TL2043

R2031

R2128R2035

R2009

C2002

TL2042

IC2011

TL2040

TL2038

TL2041

TL2039

R2030

D2002

C2030

R2018

R2083

R2015

R2079

TL2036

TL2037

R2131

TL2034

TL2035

R2013

C2008

TP2054

Q2004

TL2032

TL2033

TL2031

R2055

R2032R2034

R2089

IC2003

R2126

C701

IC702

C707

R725

R707

TL713

TL712

TL711

TL710

TL709

TL708

TL705

TL703

TL701

TL704

TL702

TL1205

TL1204

C710

IC708

TL2076

TL2078

TL2080

TL707

IC707

L1207

TL1201

L1205

TL1203

TL2075

TL2077

TL2079

TP713

TL706

C718

R734

R703

Q704

R706

L1206

R714 R712

C724

D704

D703

C719

C722

C717

TL1289

TL1288

TL1287

TL1286

TL1260

TL1261

R709

C725

C714

C706

C1247R1203 C1246R1202 C1245R1201

IC705

L804

L807

L805

IC703

R819

R866

C1244

Q1206

Q701

C721

C711

R818

R821

C900

C902

C897

IC1202

R710 C704

IC706

C837

C846

R1261

C2009

IC2004

D708

R711

C703

C811

C899

C901

C898

C1243

TL2030

R2016

R2045

R2113

TP2058

R2119

R715 D709 R716

IC804

IC809

TL2028

TL2029

TL2027

R2033

TP2055

R2010

Q2008

R2114

C2007C2005

D707

IC701

R704 R701

R713

R815

R847

TL2026

TL2025

R2020

R2053

R2011

C2031

C805

TP808

TP810

R848

R1263

TL2024

TL2022

TL2023

R2042

R2029

Q2001

R2014

C2020

R2072

Q702

R708

C716

D702

R809

C815R875

R874

TP807

TL2020

TL2021

R2023

R2036

R2132

R852

TL2018

TL2019

C2029

D2005

D701

D705

D706

R829

C809

C845

TP803

TP804 TP805

TP809

TL1311

TL2016

TL2014

TL2017

TL2015

C2028

C2016

R2008

R2039

R2066

D713

D714

R705

R876

R823

C814

R873

TP801

TP802

TP806

R851

R856

R857 R858

TL1313

TL2012

TL2013

C2015 R2061 R2062 R2059 R2086

Q2005

R2077 R2078 R2080

R2095

Q802

C816

R855

C882

TL1308

TL1309

TL1310

R842

C869

C874

C877

TL2010

R721

Q801

TL1306

TL2009

TL2008

TL2011

C2025

R826

R825

C842

R863

D1205R1258

D1206R1259

Q1205

TL1307

TL1312

TL2006

R2057 C2014

R2038 R2065 R2067

R2054

R2052

R2092

D711

C890

R834

R1246

TL1303

TL1305

TL2007

TL2005

IC2006

C733

R723D712

R718

IC808

C835 L803

C831

C841

R862

TL1304

TL2004

TL2001

IC2009

R724

C836

R861

TL1302

TL2002

TL2003

C2017

R816

C857 C856C858

R860

R1237

R1260

R1247

TL1300

R2115

C807

C887

C806

C844

R1238

Q1207

TL1301

TL1299

C817

R1249

TL1298

TL2000

R810

R812

C854

IC801

R1248

TL1297

C803

IC802

C812

R837

C839C840

C838

R1264

TL1295

TL1296

IC709

R817

R835

C853

R1239

R1262

TL1292

TL1294

R806

C851 C850

C884C885C886

C1241

R1256

R1257

C810

C808

R813 C828

L802

C848C852C855C859C843

R1240

Q1204

TL1293

C829

C818

FB8206

FB8201

C801

C804

R1241

Q8201

R730R731R732

IC803

C813

C834

C849

D1202D1203

D1204

R832

C866

R845

R1205

Q8203

IC710

R811

C870

C875

C878

R853

C881

C883

Q1203

L8208

C739C740C732C734

C737FB702C728FB701

C895

C896

TL1291

R2121

R8209

R8205

C820

C893

R831C827

R854

R8201

R8217R8203 R8214R8206

IC805

IC811

C819

X801

R1254

R1255 C1239

R1253

R8212

C824

C876

R849R850

L8205

C8227

R733

R1114

R1113

R830

C830

Q1201

D1201

C832

L806

C8243

C8203

C8206

C8207

C879

R867

C8209R8202

C8226

L8207

C1116

R1112

R1250

R1265 R1266

Q8206

L8202

L801

R833

R868

R869

C880

R1204

R1251

C1240

L8201

C8218

TL1277

R1252

Q1202

FB8210

FB8211

Q8202

Q1105

Q1106

C822

C826

D801

D802

C8215

R8219

FB8202

R1117

R1118

TL1290

TL1225

TL1236

TL1246

TL1242

TL1254

Q8204

R8221 R8216

R8220

R8204 R8208

C1115

TL1228

TL1239

TL1233

TL1232

TL1244

TL1240

L8203

C8208

R8207

R1110

R1122

TL1266

TL1267

TL1269

TL1270

TL1272

TL1229

TL1226

TL1223

TL1237

TL1247

TL1243

TL1241

TL1274

TL1251

TL1252

C8219

Q8205

R8215

L8209

C1112

R1107 R1106

R1105 R1111 C1114

R1115

C1117

R1116

R1120

TL1265

TL1271

TL1230

TL1224

TL1238

TL1245

TL1273

TL1275

TL1253

C8233 R8230C8236

R8222

C8217

R8218

L8210

Q1101

R1121

TL1268

TL1249

TL1227

TL1234

TL1231

TL1318

TL1278

D1103

R1102

TL1215

TL1221

TL1314

TL1317

TP8202

Q8207

C8216

R2004

R2003 R2001

C1118

R1103

TL1211

TL1219

TL1283

R8233

R8231

C8235

C8238

TP8201

R8223

R8227

TL2044

Q1103

Q1102

R1125

TL1207

TL1281

TL1316

R8232C8237

R8225 R8224

Q8208

Q8209

R2002

R2005

R1109

D1101

R1104

R1124

R1123

R1126

TL1214

TL1218

TL1206

TL1282

TL1284

TL1250

P1202

Q8210

L8204

R8226

TL2051

TL2049

TL2046

R1119

C1111

R1127

TL1208

TL1210

TL1217

TL1285

TL1280

TL1315

Q1104

R1108

TL1213

TL1235

R2130

C1113

R1128

TL1279

TL1248

TL2052

TL2050

TL2048

TL2047

TL2045

TL1209

TL1222

TL1212

TL1216

TL1220

TL1276

MAIN Unit (Chip Parts Side-B)

654321

LC-13S2U-S

87109654321

LC-13S2U-S

SUB Unit (Side-A)

1716 1918151413121110

LC-13S2U-S

R3313

C3313

C3312 R3320

SW4052

R3761

FB3703

R3555

R3557

R3762

L3202

C3718

FB3702

F3301

FB3706

R3383

Q3513

D3502

R3556

R4051

R3702

C3359

C3703

R3706

R3358

C3704

R3705

R3714

R3361

P3303

R3703

R3773

R3715

R3717

C3711

C3708

Q3703

C3372

R3721

R3725

C3369

R3718

R3775

C3712

FB3701

Q3705

C3727

D4050

R3723

R3774

D3708

D3706

Q3704

R3763

D3302

TP3003

S4053

R3337 R3336 R3339

D4051

R3413

D3403

R3338

R3335

R3340

R3401

R3402

D3401

C3401

R3412

C3325

C3324

R3207

R3211

C3210

Q3211

R3212

R3210

R3213 R3214 R3215

C3208

Q3212

C3205

C3211

L3701

R3217

J3401

SC3411

SW4054

C3710

C3716

Q3701

FH3702

Q3702

R3719

FH3701

TU3201

C8459

R8465

R8468

R8459 R8461 C8458

C8452

C3404

IC3401

D3712 Q3706

D3715

Q3707

R8467 C8462

R8462

Q8452

C8457

C3502

C8434

C8461

R8453 C8453 C8454

R3552

C8433

C3408

D3501 R3543

R8455

R8456

C3411

C3522

R3411

C3406

IC3501

TP3001

C3407

R3544 C3518

R3209

R3410

C3517

Q3512

R3428

R8463

Q8455

R8472

R8466

R8484

Q8456

C8460

R3429

C8455

R8457

Q8453

R8471

R8460

R8458 C8456

R3704

R3701

R3348 R3347 R3349

P3601

R8451 R8452

R3724

R3430

C3405

R3352 R3350 R3351

C3715

D3703

D3702

Q8454

Q8451

R8454

R3741

C3403

R3404

C3717

C8451

R3409

C3410

D3404

C3714

C3713

J3404

J3409

J3701

R3432

R3529

R3545

C3412

IC3402

C3213

R3431

L3500

Q3511

R3219

Q3205

R3433

R3528

C3520

C3515

C3523

C3510

R3535 R3538

Q3203

C3521

R3341 R3344

Q3504

Q3510

R3564

R3563

C3514

C3509

D3405

C3206

R3533

R3536

R8470

C3524

C3413

C3512

R3537 R3540 C3516

Q3503

R3523

Q3501

P3602

R3524

R3539

R3342

R3542

C3409

R3534

Q3505

C3513

C3519

R3530

SC3401

R3531

Q3502

R3527

R1907

R3208

Q3204

SW4051

T3701

R3709

IC3701

C3705

R3360

C3771

R3710

L8401

L8402

R3711

C8464

C8465

R3359

Q3305

R3737

C3701

C3707

R3363

C3731

C3709

C3201 R3368

Q3304

R4050

FB3705

C3702 R3707 R3708 R3716

R3713

R3747 R3746 R3745

R3749 R3748

R3362

D3711

R3744

C3739

C3741 R3752

C3366

C3363

R3366

C3367 R3364

C3365

C3725

FB3707

FB3708

C3740

Q3711

R3751

C3742

Q3713

R3755

C3364

C3361

R3753

C3385

R3365

R3756 C3743

R3732

R3754

R3386

P3801

D3709

Q3712

R3760

R3387

C3362

SW4050

L3704

D3710

C3726

R3759 R3758

IC3702

R3757

R3766

C3387

C3770

C3733

C3706

R3764

C3744

R3398

R3739

C3732

C3209

D3717

C3745

L3301

C3389

IC3305

R3738

IC3304

R4052

C3728

C3734

L3702

R3733

R3734

C3737

C3729

C3368

C3360

L3703

C3304 R3311 R3310 R3388 C3386 R3389 R3346 R3399 C3388

C3371

SW4055

C3720

R3382

C3305 R3312

C3306

C3738

R3390

R3302

R3375

C3319

L6500

C3736

R3343

R3314

R3330 R3325 C3317

C3308

R337

C332

R3307

R3316

R3324 R3318

87109654321

LC-13S2U-S

R4053

SW4055

4052

D4052

SW4056

P6500

Q6501

T6500

C3352

R3319

C3309

C3314 C3310

IC3302

R3328

C3311

R3315

R3323 R3317

R3306 C3301 R3303

C3318

R3322

R3321

R3333

R3334

L3302

R3378

R3327

L6502

R3304

C3302 R3305

C3332

L3201

C3202

R1947 C3377 R3308

R3329

R3326

C3315

C3316

D302

Q3201

C3303

Q6500

R3201

C6510

R6510

R6500

C6502

Q6506

R6501

R6511

Q6502

R6503

C6503

R6502

R6512

C6505

R6516

Q6507

R6514

R6517

P3701

R3205 C3203 R3203 R3202

C3024

Q3202

R3204

C3351

R3206

C3354 C3355 C3356 C3357

X3301

R3357

C3358

C3330

R3369

C341

D301

R350

R351

C342

R6508

D6500

R6509

R6507 C6508 R6506

R6515

Q6505

C6512

C8466

R356

R357

R355

R3777

C3373 R3356

C6504

R3776

R3771

R3750 R3770

C3757

Q3714

C3329

C3345

C339

C3344

IC3301

C3343

C338

R358 R354

C3328

C3342

C3341

C3382

R346 R342 C336

C344

Q302

C3350

C3346

C3349

R341

C334

IC304

C340

Q6504

C6511

Q6503

R6504

C6507

R6513

P3604

R3767 R3768 R3769 C3756

C3339

C3340

R3354

C343

R353

D303

D3304

C3336 C3335

Q3708

C3334

R345

Q3709

C3338

C3337

D3305

D3719 D3720

C335

R3765

C3347

C3348

L6504

D3303

C6509

D3718

P3603

FH6501

R6518

C3333

FH6502

C3750

C3746

R3415

C3420

T6502

FH6504 FH6503

L6500

C3720

L3703

R3733

C3729

L3702

R3734

C3737

C3304 R3311 R3310 R3388 C3386

R3389 R3346 R3399 C3388

C3371

C3368

C3360

C3305 R3312

C3306

R3382

C3738

R3390

R3302

R3375

C3319

C3736

R3343

R3314

R3330 R3325 C3317

C3308

R3376

C3320

R3307

R3324 R3318

R3316

C3313

C3312 R3320

C3323

P3302

L6503

R3313

IC3303

C3375

D3402

R3414

R3416

TP3002

P6501

R3345

J3402

R3403

SC3412

SUB Unit (Chip Parts Side-A)

1716 1918151413121110

LC-13S2U-S

R/C, LED Unit (Side-A)

(QPWBSB982WJN1)

C4202

P4001

C4201

IC4201

D4008

C4203

C4001

R4006

RMC4001

D4005

R4001 R4002

D4004

D4001

Q4001

Q4002

R4003

R/C, LED Unit (Chip Parts Side-A)

R4007 R4005

D4006

D4007

D4002

Q4003

Q4004

R4009

R4008

P4003

J4021

(QPWBSB982WJN1)

654321

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

LISTE DES PIECES

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual ; electrical components having such features are identified by å and shaded areas in the Replacement Parts Lists and Schematic Diagrams. The use of a substitute replacement part which does no have the same safety char acteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

in USA: Contact your nearest SHARP Parts Distributor to order. F or

location of SHARP Parts Distributor, Please call Toll-Free; 1-800-BE-SHARP

★ MARK: SPARE PARTS-DELIVERY SECTION

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

Les pi`eces de rechange qui pr élelesentent ces caract éleristiques sp éleciales de s élecurit éle, sont identifi élees dans ce manuel : les pi`eces élelectriques qui pr élesentent ces particularit éles, sont rep éler élee par la marque å et sont hachur élees dans les listes de pi`eces et dans les diagrammes sch élematiques. La substitution d'une pi`ece de rechange par une autre qui ne pr éLesente pas les m éoemes caract éLeristiques de s élecurit éle que la pi`ece recommand élee parl'usine et dans ce manuel de service, peut provoquer une éLelectrocution, un incendie ou toutautre sinistre.

"COMMENT COMMANDER LES PIECES DE RECHANGE"

Pour que votre commande soit rapidement et correctement remplie, veuillez fournir les renseignements suivants.

1. NUMERO DU MODELE 2. NO. DE REF

3. NO. DE PIECE 4. DESCRIPTION

in CANADA: Contact SHARP Electronics of Canada Limited

★ MARQUE: SECTION LIVRAISON DES PIECES DERECHANGE

PRINTED WIRING BOARD ASSEMBLYS

(NOT REPLACEMENT ITEM)

DUNTKB980FE04 – MAIN Unit — DUNTKB981DE01 – SUB Unit — DUNTKB982DE01 – R/C,LED Unit —

LCD PANEL

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

RLCDTA023WJZZ J 13" LCD Panel Unit CQ

IC701 VSUMX2N++++-1Y J UMX2N AB IC704 VHiNJ79M08D-1Y J NJM79M08DL1A AF IC705 VHiNJU7662M-1Y J NJU7662M(TE2) AL IC706 VHiPQ1R34++-1Y J PQ1R34 AE IC707 VHiPQ1R33//-1Y J PQ1R33 AE IC708 VHiLM1117MJ-1Y J LM1117MPX-ADJ AF IC801 VHiXV750C++-1Q J XV750CQ1-01 AZ IC802 VHiNJM2235V-1Y J NJM2235V AE IC803 VHiNJM2235V-1Y J NJM2235V AE IC804 VHiBA7046F/-1Y J BA7046F AF IC805 VHiMM1509XN-1Y J MM1509XNRE AD IC807 VHiPQ1L333M-1Y J PQ1L333M2SP AD IC808 VHiMM1510XN-1Y J MM1510XNRE AE IC809 VHiPQ1L253M-1Y J PQ1L253M2SP AD IC811 VHiMM1509XN-1Y J MM1509XNRE AD IC1101 VHiBD8120FP-1Y J BD8120FP AX IC1201 VHiDPS9450+-1Q J DPS9450A-XZ-A1 BD IC1202 VHiTC4W66U/-1Y J TC4W66FU AE IC2001 RH-iXA622WJN1Q J M306V7FGFP BK IC2003 VHiSi3010KM-1Y J SI-3010KM-TL AF IC2004 VHiMM1573DN-1Y J MM1573DNRE AD IC2006 VHiBD4729G+-1Y J BD4729G-TR AD IC2009 VHiBR24L16F-1Y J BR24L16F-WE2 AF IC2011 VHiMB3771PF-1Y J MB3771PF-G-BND AG

CHANGE DES PIECES

Phone (416) 890-2100

DUNTKB980FE04

MAIN Unit

INTEGRATED CIRCUITS

Q701 VS2SA1037KQ-1Y J 2SA1037KQ AA Q702 VSDTC144EE/-1Y J DTC144EE AA Q703 VSFMMT718//-1Y J FMMT718 AE Q704 VSDTC144EE/-1Y J DTC144EE AA Q801 VS2SA1530AR-1Y J 2SA1530AR AB Q802 VS2SA1530AR-1Y J 2SA1530AR AB Q1101 VSFMMT718//-1Y J FMMT718 AE Q1102 VS2SC4520//-1Y J 2SC4520 AE Q1103 VS2SA1729//-1Y J 2SA1729 AF Q1104 VSDTC144EE/-1Y J DTC144EE AA Q1105 VS2SC4520//-1Y J 2SC4520 AE Q1106 VS2SA1729//-1Y J 2SA1729 AF Q1206 VSDTC144EE/-1Y J DTC144EE AA Q2001 VSUM5K1NTR+-1Y J UM5K1NTR AC Q2002 VS2SA1037KQ-1Y J 2SA1037KQ AA Q2003 VSDTC144EE/-1Y J DTC144EE AA

TRANSISTORS

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB980FE04

MAIN Unit (Continued)

Q2004 VS3LN01S///-1Y J 3LN01S AC Q2005 VSDTC114EE/-1Y J DTC114EE AB Q2007 VSUPA606T//-1Y J UPA606T AD Q2008 VSDTC114EE/-1Y J DTC114EE AB Q2009 VSUPA606T//-1Y J UPA606T AD Q2011 VSUPA606T//-1Y J UPA606T AD

DIODES

D701 RH-EX1247CEZZY J Zener Diode, 5.6V AB D702 VHDDAN222//-1Y J Diode AA D703 VHDDAN222//-1Y J Diode AA D704 RH-EX1245CEZZY J Zener Diode, 5.1V AB D705 VHDDAN222//-1Y J Diode AA D706 VHDDAN222//-1Y J Diode AA D707 VHDDAN222//-1Y J Diode AA D708 RH-EX1245CEZZY J Zener Diode, 5.1V AB D709 VHDDAN222//-1Y J Diode AA D710 VHDDAN202K/-1Y J Diode AB D711 VHD1SS250//1EY J Diode AB D712 VHDDAN222//-1Y J Diode AA D713 VHDRB481K++-1Y J Diode AD D714 VHDRB491D++-1Y J Diode AD D801 VHD1SV322++-1Y J Diode AD D802 VHD1SV322++-1Y J Diode AD D1101 VHD1SS250//1EY J Diode AB D1103 VHD1SS250//1EY J Diode AB D1104 VHD1SS250//1EY J Diode AB D2003 VHDDAN202K/-1Y J Diode AB D2004 VHDRB491D++-1Y J Diode AD

PACKAGED CIRCUITS

X801 RCRSCA048WJZZY J Crystal, 27MHz AH X1201 RCRSC0012CEZZY J Crystal AH X2001 RCRSC0032TAZZY J Cr ystal AG

FILTER AND COILS

FL2001 RFiLZ0169TAZZY J Filter AD L701 RCiLPA143WJZZY J Coil AD L702 VP-1M470J5R4NY J Peaking 47µH AC L801 VP-9N1R8KR31NY J Peaking 1.8µH AB L802 VP-9N1R8KR31NY J Peaking 1.8µH AB L803 VP-9N1R8KR31NY J Peaking 1.8µH AB L804 VPCGM100MR25NYJ Peaking 10µH AB L805 VPCGM100MR25NYJ Peaking 10µH AB L806 VP-9N1R8KR31NY J Peaking 1.8µH AB L807 VPCGM100MR25NYJ Peaking 10µH AB L1201 VPCGM220M0R5NY J Peaking 22µH AB L1202 VPCGM220M0R5NY J Peaking 22µH AB L1203 VPCGM220M0R5NY J Peaking 22µH AB L1204 VPCGM220M0R5NY J Peaking 22µH AB L1205 RCiLPA127WJZZY J Coil AC L1206 RCiLPA127WJZZY J Coil AC L1207 RCiLPA127WJZZY J Coil AC

CAPACITORS

C703 VCKYTV1CB105KY J 1 16V Ceramic AC C704 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C708 VCEASH1CN337MY J 330 16V Electrolytic AE C709 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C710 VCKYTV1CB105KY J 1 16V Ceramic AC C711 VCKYTV1CB105KY J 1 16V Ceramic AC C712 RC-KZ0075TAZZY J 2.2 16V Ceramic AC C713 RC-EZA132WJZZY J 10 50V Electrolytic AC C714 RC-KZA041WJZZY J 10 10V Ceramic AC C715 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C716 VCKYTV1CB105KY J 1 16V Ceramic AC C717 RC-KZA041WJZZY J 10 10V Ceramic AC C718 VCKYTV1CB105KY J 1 16V Ceramic AC C719 RC-KZA041WJZZY J 10 10V Ceramic AC C720 RC-EZA132WJZZY J 10 50V Electrolytic AC C721 RC-KZA041WJZZY J 10 10V Ceramic AC

C722 RC-KZA041WJZZY J 10 10V Ceramic AC C723 RC-EZA132WJZZY J 10 50V Electrolytic AC C724 VCKYTV1CB105KY J 1 16V Ceramic AC C725 RC-KZA041WJZZY J 10 10V Ceramic AC C726 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C727 VCEASH0JN227MY J 220 6.3V Electrolytic AC C729 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C731 RC-EZA131WJZZY J 4.7 50V Electrolytic AC C733 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C735 RC-EZA132WJZZY J 10 50V Electrolytic AC C736 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C742 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C801 RC-KZA041WJZZY J 10 10V Ceramic AC C802 RC-EZA135WJZZY J 47 6.3V Electrolytic AC C803 RC-KZA041WJZZY J 10 10V Ceramic AC C804 RC-KZA041WJZZY J 10 10V Ceramic AC C805 VCKYCY1AB105KY J 1 10V Ceramic AB C806 RC-KZA041WJZZY J 10 10V Ceramic AC C808 RC-KZA041WJZZY J 10 10V Ceramic AC C809 VCKYCY1HB222KY J 2200p 50V Ceramic AA C811 VCCCCY1HH101JY J 100p 50V Ceramic AA C812 VCKYCY1AB474KY J 0.47 10V Ceramic AC C813 VCKYCY1AB474KY J 0.47 10V Ceramic AC C814 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C815 VCKYCY1AB105KY J 1 10V Ceramic AB C820 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C822 VCCCCY1HH221JY J 220p 50V Ceramic AA C823 VCKYCY1AB105KY J 1 10V Ceramic AB C824 VCCCCY1HH180JY J 18p 50V Ceramic AA C825 VCKYCY1HB103KY J 0.01 50V Ceramic AA C826 VCCCCY1HH221JY J 220p 50V Ceramic AA C827 VCCCCY1HH221JY J 220p 50V Ceramic AA C828 VCCCCY1HH180JY J 18p 50V Ceramic AA C829 VCCCCY1HH221JY J 220p 50V Ceramic AA C830 RC-KZA041WJZZY J 10 10V Ceramic AC C831 VCCCCY1HH221JY J 220p 50V Ceramic AA C832 RC-KZA041WJZZY J 10 10V Ceramic AC C833 RC-EZA124WJZZY J 10 16V Electrolytic AB C834 RC-KZA041WJZZY J 10 10V Ceramic AC C835 VCCCCY1HH180JY J 18p 50V Ceramic AA C836 VCCCCY1HH221JY J 220p 50V Ceramic AA C837 VCKYCY1AB105KY J 1 10V Ceramic AB C838 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C839 RC-KZA041WJZZY J 10 10V Ceramic AC C840 RC-KZA041WJZZY J 10 10V Ceramic AC C841 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C842 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C843 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C844 RC-KZA041WJZZY J 10 10V Ceramic AC C845 RC-KZA041WJZZY J 10 10V Ceramic AC C846 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C848 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C849 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C850 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C851 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C852 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C853 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C854 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C855 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C856 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C857 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C858 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C859 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C864 RC-EZA124WJZZY J 10 16V Electrolytic AB C866 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C869 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C870 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C874 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C875 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C876 RC-KZA041WJZZY J 10 10V Ceramic AC C877 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C878 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C879 VCCCCY1EH102JY J 1000p 25V Ceramic AB C880 VCCCCY1EH102JY J 1000p 25V Ceramic AB C881 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB980FE04

MAIN Unit (Continued)

C882 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C883 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C884 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C885 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C886 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C887 RC-KZA041WJZZY J 10 10V Ceramic AC C890 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C893 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C897 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C898 RC-KZA041WJZZY J 10 10V Ceramic AC C899 RC-KZA041WJZZY J 10 10V Ceramic AC C900 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C901 RC-KZA041WJZZY J 10 10V Ceramic AC C902 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1101 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1102 RC-EZ1339CEZZY J 220 16V Electrolytic AD C1104 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1105 VCCCCY1HH181JY J 180p 50V Ceramic AA C1106 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1107 RC-KZA041WJZZY J 10 10V Ceramic AC C1108 VCCCCY1HH560JY J 56p 50V Ceramic AB C1109 RC-KZA041WJZZY J 10 10V Ceramic AC C1110 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1111 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1112 VCKYCY1HB103KY J 0.01 50V Ceramic AA C1113 VCKYCY1HB103KY J 0.01 50V Ceramic AA C1114 VCCCCY1HH560JY J 56p 50V Ceramic AB C1115 VCKYTV1CB334KY J 0.33 16V Ceramic AC C1116 VCKYTV1CB105KY J 1 16V Ceramic AC C1117 VCKYTV1CB105KY J 1 16V Ceramic AC C1118 VCKYTV1EB104KY J 0.1 25V Ceramic AB C1119 RC-KZA041WJZZY J 10 10V Ceramic AC C1122 RC-EZ1339CEZZY J 220 16V Electrolytic AD C1201 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1202 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1203 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1204 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1205 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1206 VCCCCY1HH180JY J 18p 50V Ceramic AA C1207 VCCCCY1HH180JY J 18p 50V Ceramic AA C1208 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1209 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1210 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1211 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1212 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1213 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1214 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1215 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1216 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1217 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1218 VCKYCY1CF474ZY J 0.47 16V Ceramic AB C1219 VCKYCY1CF474ZY J 0.47 16V Ceramic AB C1220 VCKYCY1CF474ZY J 0.47 16V Ceramic AB C1221 VCKYCY1CF474ZY J 0.47 16V Ceramic AB C1222 VCKYCY1CF474ZY J 0.47 16V Ceramic AB C1223 VCKYCY1CF474ZY J 0.47 16V Ceramic AB C1224 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1225 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1226 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1227 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1228 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1229 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1230 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1231 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C1232 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C1233 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C1234 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C1235 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1236 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1237 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1238 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

C1243 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1244 VCCCCY1HH220JY J 22p 50V Ceramic AA C1245 VCCCCY1HH820JY J 82p 50V Ceramic AA C1246 VCCCCY1HH820JY J 82p 50V Ceramic AA C1247 VCCCCY1HH820JY J 82p 50V Ceramic AA C2002 VCKYTV1CF105ZY J 1 16V Ceramic AB C2003 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2004 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2005 VCKYCY1AB105KY J 1 10V Ceramic AB C2006 RC-EZA122WJZZY J 22 6.3V Electrolytic AB C2007 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2008 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2009 RC-KZ0074TAZZY J 10 6.3V Ceramic AF C2011 VCKYCY1EB104KY J 0.1 25V Ceramic AB C2012 VCKYCY1HB561KY J 560p 50V Ceramic AA C2013 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2014 VCKYCY1HB102KY J 1000p 50V Ceramic AA C2015 VCCCCY1HH221JY J 220p 50V Ceramic AA C2016 VCKYCY1AB105KY J 1 10V Ceramic AB C2017 VCKYTV1CF684ZY J 0.68 16V Ceramic AB C2018 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C2019 RC-EZA124WJZZY J 10 16V Electrolytic AB C2020 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2021 VCCCCY1HH180JY J 18p 50V Ceramic AA C2022 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2025 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2026 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2028 VCKYCY1HB222KY J 2200p 50V Ceramic AA C2029 VCKYCY1HB222KY J 2200p 50V Ceramic AA C2030 VCKYCY1HB102KY J 1000p 50V Ceramic AA

RESISTORS

R701 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R704 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA R705 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R706 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA R708 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R709 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R710 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R711 VRS-TW2ED103JY J 10k 1/4W Metal Oxide AA R712 VRS-CY1JF680FY J 68 1/16W Metal Oxide AA R713 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R714 VRS-CY1JF151FY J 150 1/16W Metal Oxide AA R715 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R716 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R717 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R718 VRS-TW2HF330JY J 33 1/2W Metal Oxide AA R721 VRS-TV1JD562JY J 5.6k 1/10W Metal Oxide AA R723 VRS-TW2ED150JY J 15 1/4W Metal Oxide AA R724 VRS-TW2HF472JY J 4.7k 1/2W Metal Oxide AA R734 VRS-TW2HF6R8JY J 6.8 1/2W Metal Oxide AA R809 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R810 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R811 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R812 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R813 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R815 VRS-CY1JF474JY J 470k 1/16W Metal Oxide AA R816 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R817 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R818 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R819 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R821 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R823 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R825 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R826 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R829 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R830 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R832 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R833 VRS-TQ2BD681JY J 680 1/8W Metal Oxide AA R834 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R835 VRS-TQ2BD681JY J 680 1/8W Metal Oxide AA R837 VRS-TQ2BD681JY J 680 1/8W Metal Oxide AA R842 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R845 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R847 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB980FE04

MAIN Unit (Continued)

R848 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R849 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R850 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R851 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R852 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R853 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R854 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R855 VRS-CB1JF330JY J 33 1/16W Metal Oxide AC R856 VRS-CB1JF330JY J 33 1/16W Metal Oxide AC R860 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R861 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R862 VRS-CY1JF330JY J 33 1/16W Metal Oxide AA R867 VRS-CY1JF151JY J 150 1/16W Metal Oxide AA R868 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R869 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R873 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R876 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1101 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA R1102 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA R1103 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA R1104 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1105 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R1106 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1107 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R1108 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA R1109 VRS-TW2ED5R6JY J 5.6 1/4W Metal Oxide AA R1110 VRS-TW2ED8R2JY J 8.2 1/4W Metal Oxide AA R1111 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R1112 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA R1113 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1114 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA R1115 VRS-TW2HF100JY J 10 1/2W Metal Oxide AA R1117 VRS-TW2HF5R6JY J 5.6 1/2W Metal Oxide AA R1118 VRS-TW2HF5R6JY J 5.6 1/2W Metal Oxide AA R1119 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R1121 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1122 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1123 VRS-TW2HF000JY J 0 1/2W Metal Oxide AA R1124 VRS-TW2HF101JY J 100 1/2W Metal Oxide AA R1126 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1128 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1201 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R1202 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R1203 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R1206 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1207 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1208 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1209 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1210 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1213 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1214 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA R1215 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1216 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1217 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1218 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1219 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R1220 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R1221 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1222 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA R1223 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1224 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R1227 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R1228 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1229 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1230 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R1231 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R1232 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1233 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1234 VRS-CA1JF470JY J 47 1/16W Metal Oxide AB R1235 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1236 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA

R1237 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1238 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA R1239 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1240 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1241 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1242 VRS-CY1JF182JY J 1.8k 1/16W Metal Oxide AA R1248 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1257 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1261 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1264 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1267 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R1268 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R1269 VRS-CH1JF101JY J 100 1/16W Metal Oxide AA R2002 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R2003 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2005 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA R2008 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2009 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA R2010 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2011 VRS-CY1JF393JY J 39k 1/16W Metal Oxide AA R2014 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R2015 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2021 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2022 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2023 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2024 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2025 VRS-CA1JF102JY J 1k 1/16W Metal Oxide AA R2026 VRS-CA1JF223JY J 22k 1/16W Metal Oxide AA R2027 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2030 VRS-CY1JF394FY J 390k 1/16W Metal Oxide AA R2031 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA R2032 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2034 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2035 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R2038 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2039 VRS-CY1JF823JY J 82k 1/16W Metal Oxide AA R2040 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R2041 VRS-CA1JF223JY J 22k 1/16W Metal Oxide AA R2043 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2044 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R2046 VRS-CY1JF512JY J 5.1k 1/16W Metal Oxide AA R2047 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2048 VRS-CA1JF103JY J 10k 1/16W Metal Oxide AA R2052 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R2053 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2054 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R2055 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2056 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2059 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2061 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2062 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2063 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA R2064 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2065 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2066 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2067 VRS-CY1JF512JY J 5.1k 1/16W Metal Oxide AA R2068 VRS-CY1JF106JY J 10M 1/16W Metal Oxide AA R2069 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2070 VRS-CY1JF394JY J 390k 1/16W Metal Oxide AA R2071 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2072 VRS-CA1JF103JY J 10k 1/16W Metal Oxide AA R2075 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R2077 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2078 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2079 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2080 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2083 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R2084 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R2086 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2088 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2089 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2090 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2091 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2092 VRS-CA1JF153JY J 15k 1/16W Metal Oxide AB R2093 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB980FE04

MAIN Unit (Continued)

R2095 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R2096 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA R2097 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R2099 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2101 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2102 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA R2108 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2110 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2111 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R2113 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2114 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2115 VRS-CA1JF103JY J 10k 1/16W Metal Oxide AA R2118 VRS-CA1JF103JY J 10k 1/16W Metal Oxide AA R2119 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2124 VRS-CY1JF433FY J 43k 1/16W Metal Oxide AA R2125 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2126 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R2128 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R2129 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R2130 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R2132 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

FB1201 P701 QPLGN0185FJZZY J Plug, 13-pin(MB) AE P1201 QPLGN0178FJZZY J Plug, 6-pin(MC) AD P2001 QPLGN0963TAZZY J Plug, 9-pin(MS) AD SC1202 SC1203 SC1204 SC2001 TP2002 TP2052 TP2053

MISCELLANEOUS PARTS

RBLN-0083GEZZY J Ferrite Bead AB

QSOCNA002WJPZYJ Socket, 20-pin(LK) AD QSOCN0687FJZZY J Socket, 50-pin(LS) AF QSOCN0684FJZZY J Socket, 30-pin(LG) AF QSOCN0464FJZZY J Socket, 50-pin(MA) AH QLUGHA001WJZZY J Lug AD QLUGHA001WJZZY J Lug AD QLUGHA001WJZZY J Lug AD

DUNTKB981DE01

SUB Unit

TUNER

NOTE: THE PARTS HERES SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

TU3201 VTUVT2U5UF559 J Tuner BB

INTEGRATED CIRCUITS

IC304 VHiBH3543F+-1Y J BH3543F-E2 AE IC3301 RH-iX3370CEN1Q J MSP3440G-QA-B8 AY IC3302 VHiBA4560F+-1Y J BA4560F-E2 AD IC3303 VHiBA4560F+-1Y J BA4560F-E2 AD IC3304 VHiBA4560F+-1Y J BA4560F-E2 AD IC3305 VHiLA4635A+-1S J LA4635A AM IC3401 VHiNJM2283F-1Y J NJM2283M AF IC3402 VHiNJM2235V-1Y J NJM2235V AE IC3501 VHiTC4053BF1EY J TC4053BF AF IC3701 VHiNJM2377M-1Y J NJM2377M AK IC3702 VHiNJM2147M-1Y J NJM2147M-TE1 AF

TRANSISTORS

Q302 VSDTC144EKA-1Y J DTC144EKA AB Q3201 VS2SC3928AR-1Y J 2SC3928AR AB Q3202 VS2SC3928AR-1Y J 2SC3928AR AB Q3211 VSiMZ1A////-1Y J IMZ1A AC Q3212 VSiMZ1A////-1Y J IMZ1A AC Q3304 VSDTC314TK/-1Y J DTC314TK AC Q3305 VSDTC314TK/-1Y J DTC314TK AC Q3501 VSUMG4N++++-1Y J UMG4N AB Q3502 VSFDC6305N+-1Y J FDC6305N AD Q3503 VS2SC3928AR-1Y J 2SC3928AR AB Q3504 VS2SC3928AR-1Y J 2SC3928AR AB Q3505 VSDTC114EE/-1Y J DTC114EE AB Q3510 VSDTC314TK/-1Y J DTC314TK AC Q3511 VSDTC314TK/-1Y J DTC314TK AC Q3512 VS2SA1037KQ-1Y J 2SA1037KQ AA Q3513 VS2SC2712Y/-1Y J 2SC2712Y AB Q3701 VSDTC144EE/-1Y J DTC144EE AA Q3702 VSFMMT718//-1Y J FMMT718 AE Q3703 VSFMMT718//-1Y J FMMT718 AE Q3704 VS2SK2503//-1Y J 2SK2503 AE Q3705 VSDTC144EE/-1Y J DTC144EE AA Q3706 VSUM5K1NTR+-1Y J UM5K1NTR AC Q3707 VSUM5K1NTR+-1Y J UM5K1NTR AC Q3709 VSDTC114YE/-1Y J DTC114YE AB Q3711 VSFMMT619//-1Y J FMMT619 AE Q3712 VS2SC3928AR-1Y J 2SC3928AR AB Q3713 VSiMZ1A////-1Y J IMZ1A AC Q3714 VSiMZ1A////-1Y J IMZ1A AC Q6500 VS2SC5886++-1Y J 2SC5886 AE Q6501 VS2SC5886++-1Y J 2SC5886 AE Q6502 VS2SA1530AR-1Y J 2SA1530AR AB Q6503 VS2SC5886++-1Y J 2SC5886 AE Q6504 VS2SC5886++-1Y J 2SC5886 AE Q6505 VS2SA1530AR-1Y J 2SA1530AR AB Q8451 VS2SC4617//-1Y J 2SC4617 AB Q8452 VS2SC4617//-1Y J 2SC4617 AB Q8453 VS2SC4617//-1Y J 2SC4617 AB Q8454 VS2SC4617//-1Y J 2SC4617 AB Q8455 VS2SC4617//-1Y J 2SC4617 AB Q8456 VS2SC4617//-1Y J 2SC4617 AB

D301 VHDMA3120WA-1Y J Diode AD D302 VHDMA3120WA-1Y J Diode AD D303 VHDDAN222//-1Y J Diode AA D3302 VHDDAN222//-1Y J Diode AA D3304 RH-EX1271CEZZY J Zener Diode, 12V AB D3305 RH-EX1271CEZZY J Zener Diode, 12V AB D3401 RH-EX1271CEZZY J Zener Diode, 12V AB D3402 RH-EX1271CEZZY J Zener Diode, 12V AB D3403 RH-EX1271CEZZY J Zener Diode, 12V AB D3404 RH-EX1271CEZZY J Zener Diode, 12V AB

DIODES

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB981DE01

SUB Unit (Continued)

D3405 RH-EX1271CEZZY J Zener Diode, 12V AB D3501 VHDDAN222//-1Y J Diode AA D3502 RH-EX1396CEZZY J Zener Diode, 6.8V AB D3702 VHDiMN10///-1Y J Diode AB D3703 VHDiMN10///-1Y J Diode AB D3706 VHDSFPB56//2EY J Diode AC D3708 VHDSFPB74//2EY J Diode AD D3709 VHDSFPB74//2EY J Diode AD D3710 VHDDAN222//-1Y J Diode AA D3711 VHD1SS250//1EY J Diode AB D3712 VHDDAN222//-1Y J Diode AA D3715 VHDDAN222//-1Y J Diode AA D3717 VHDDAN222//-1Y J Diode AA D3718 VHDRB491D++-1Y J Diode AD D4050 RH-EX1271CEZZY J Zener Diode, 12V AB D4051 RH-EX1283CEZZY J Zener Diode, 18V AB D4052 RH-EX1271CEZZY J Zener Diode, 12V AB D6500 VHDDAN222//-1Y J Diode AA

PACKAGED CIRCUITS

X3301 RCRSB0307CEZZ J Crystal AG L3201 VP-1M220J2R9NY J Peaking 22µH AB L3202 RCiLPA142WJZZ J Coil AD L3301 VP-1M101J7R7NY J Peaking 100µH AC L3302 VPCGM4R7MR13NY J Peaking 4.7µH AB L3500 VP-1M101J7R7NY J Peaking 100µH AC L3701 RCiLPA026WJZZ J Coil AD L3702 RCiLPA144WJZZY J Coil AD L3703 RCiLPA143WJZZY J Coil AD L3704 RCiLPA026WJZZ J Coil AD L6500 RCiLPA093WJZZ J Coil AF L6502 RCiLPA093WJZZ J Coil AF L6503 RCiLPA034WJZZ J Coil AD L6504 RCiLPA034WJZZ J Coil AD L8401 RCiLPA143WJZZY J Coil AD L8402 RCiLPA089WJZZY J Coil AE

TRANSFORMERS

å T3701 RTRNWA090WJZZYJ Transformer AH å T6500 RTRNZA033WJZZQ J Transformer AQ å T6502 RTRNZA033WJZZQ J Transformer AQ

CONTROL

R3710 RVR-M0111CEZZY J 1k(B) +B Adj. AC

CAPACITORS

C334 VCKYTV1CF105ZY J 1 16V Ceramic AB C335 VCKYCY1HB682KY J 6800p 50V Ceramic AA C336 VCKYCY1HB682KY J 6800p 50V Ceramic AA C338 VCKYTV1CF105ZY J 1 16V Ceramic AB C339 RC-EZA135WJZZY J 47 6.3V Electrolytic AC C340 RC-KZ1025CEZZY J 1 10V Ceramic AB C341 RC-EZA134WJZZY J 220 6.3V Electrolytic AC C342 RC-EZA134WJZZY J 220 6.3V Electrolytic AC C343 RC-KZ0075TAZZY J 2.2 16V Ceramic AC C344 RC-KZ0044TAZZY J 4.7 10V Ceramic AD C3024 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3201 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3202 VCCCCY1HH330JY J 33p 50V Ceramic AA C3203 VCCCCY1HH330JY J 33p 50V Ceramic AA C3205 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3206 VCKYCY1HF103ZY J 0.01 50V Ceramic AA C3208 RC-EZA085WJZZ J 3300 10V Electrolytic AE C3209 RC-EZA128WJZZY J 1 50V Electrolytic AB C3210 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3211 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3301 VCKYCY1HB272KY J 2700p 50V Ceramic AA C3302 VCKYCY1HB272KY J 2700p 50V Ceramic AA C3303 VCKYCY1CB273KY J 0.027 16V Ceramic AB C3304 VCKYCY1HB272KY J 2700p 50V Ceramic AA

C3305 VCKYCY1HB272KY J 2700p 50V Ceramic AA C3306 VCKYCY1CB273KY J 0.027 16V Ceramic AB C3308 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3309 VCKYCY1EB223KY J 0.022 25V Ceramic AA C3310 VCKYCY1EB223KY J 0.022 25V Ceramic AA C3311 VCKYCY1CB273KY J 0.027 16V Ceramic AB C3312 VCKYCY1CB273KY J 0.027 16V Ceramic AB C3313 VCKYCY1EB223KY J 0.022 25V Ceramic AA C3314 VCKYCY1EB223KY J 0.022 25V Ceramic AA C3315 VCKYCY1CB473KY J 0.047 16V Ceramic AA C3316 VCKYCY1CB473KY J 0.047 16V Ceramic AA C3317 VCKYCY1CB473KY J 0.047 16V Ceramic AA C3318 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3319 VCKYCY1CB473KY J 0.047 16V Ceramic AA C3320 RC-EZA126WJZZY J 47 16V Electrolytic AC C3323 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3324 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C3325 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C3328 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C3329 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C3330 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3332 RC-EZ0417CEZZY J 150 16V Electrolytic AD C3333 RC-EZ0417CEZZY J 150 16V Electrolytic AD C3334 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3335 VCKYCY1HB222KY J 2200p 50V Ceramic AA C3336 VCKYCY1HB222KY J 2200p 50V Ceramic AA C3337 RC-KZA041WJZZY J 10 10V Ceramic AC C3338 RC-KZA041WJZZY J 10 10V Ceramic AC C3339 RC-EZA130WJZZY J 3.3 50V Electrolytic AB C3340 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3341 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3342 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3343 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3344 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3345 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3346 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3347 VCKYCY1HB223KY J 0.022 50V Ceramic AA C3348 VCKYCY1HB223KY J 0.022 50V Ceramic AA C3349 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3350 RC-KZA041WJZZY J 10 10V Ceramic AC C3351 RC-KZ1025CEZZY J 1 10V Ceramic AB C3352 RC-EZ0417CEZZY J 150 16V Electrolytic AD C3354 VCCCCY1HH560JY J 56p 50V Ceramic AB C3355 VCCCCY1HH560JY J 56p 50V Ceramic AB C3356 VCCCCY1HH560JY J 56p 50V Ceramic AB C3357 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C3358 VCCCCY1HH5R0CY J 5p 50V Ceramic AA C3359 RC-KZA041WJZZY J 10 10V Ceramic AC C3360 VCEAPF1CN107MY J 100 16V Electrolytic AD C3361 RC-EZA128WJZZY J 1 50V Electrolytic AB C3362 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3363 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C3364 RC-EZA128WJZZY J 1 50V Electrolytic AB C3365 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3366 RC-EZA129WJZZY J 2.2 50V Electrolytic AB C3367 RC-KZA041WJZZY J 10 10V Ceramic AC C3368 RC-EZA124WJZZY J 10 16V Electrolytic AB C3369 RC-EZ1274CEZZ J 1000 16V Electrolytic AD C3371 RC-EZ1274CEZZ J 1000 16V Electrolytic AD C3372 RC-EZ1274CEZZ J 1000 16V Electrolytic AD C3382 VCKYTV1CF105ZY J 1 16V Ceramic AB C3389 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3401 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3403 RC-KZA041WJZZY J 10 10V Ceramic AC C3404 VCKYTV1AB105KY J 1 10V Ceramic AC C3405 RC-KZA041WJZZY J 10 10V Ceramic AC C3406 VCKYTV1AB105KY J 1 10V Ceramic AC C3407 RC-KZA041WJZZY J 10 10V Ceramic AC C3408 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3409 RC-KZA041WJZZY J 10 10V Ceramic AC C3410 RC-KZA041WJZZY J 10 10V Ceramic AC C3411 RC-KZA041WJZZY J 10 10V Ceramic AC C3412 RC-KZA041WJZZY J 10 10V Ceramic AC C3420 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3502 RC-KZA041WJZZY J 10 10V Ceramic AC

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB981DE01

SUB Unit (Continued)

C3509 RC-EZA127WJZZY J 100 16V Electrolytic AC C3510 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3512 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3513 VCEASH1CN477MY J 470 16V Electrolytic AD C3514 RC-EZA197WJZZY J 33 6.3V Electrolytic AC C3515 RC-EZA122WJZZY J 22 6.3V Electrolytic AB C3516 RC-KZ1025CEZZY J 1 10V Ceramic AB C3520 RC-EZA140WJZZY J 4.7 25V Electrolytic AB C3521 RC-EZA140WJZZY J 4.7 25V Electrolytic AB C3522 RC-EZA124WJZZY J 10 16V Electrolytic AB C3702 RC-KZ1025CEZZY J 1 10V Ceramic AB C3704 VCKYCY1HB103KY J 0.01 50V Ceramic AA C3706 RC-EZA140WJZZY J 4.7 25V Electrolytic AB C3707 VCEAPT1CN226MY J 22 16V Electrolytic AC C3708 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3709 VCCCCY1HH471JY J 470p 50V Ceramic AA C3710 VCEASH1CN337MY J 330 16V Electrolytic AE C3711 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3712 VCKYCY1HB562KY J 5600p 50V Ceramic AA C3713 RC-KZ0072TAZZY J 1 25V Ceramic AC C3714 RC-KZ0072TAZZY J 1 25V Ceramic AC C3715 RC-KZ0072TAZZY J 1 25V Ceramic AC C3716 VCAAPD1CJ396MY J 39 16V Electrolytic AF C3717 RC-KZ0072TAZZY J 1 25V Ceramic AC C3718 VCKYCY1HB562KY J 5600p 50V Ceramic AA C3720 RC-EZ1339CEZZY J 220 16V Electrolytic AD C3725 VCCCCY1HH181JY J 180p 50V Ceramic AA C3726 VCEASH1HN476MY J 47 50V Electrolytic AD C3727 VCEASH1CN337MY J 330 16V Electrolytic AE C3728 VCAAPD0JJ127MY J 120 6.3V Electrolytic AF C3729 VCEASH1CN337MY J 330 16V Electrolytic AE C3731 VCKYTV1HF104ZY J 0.1 50V Ceramic AB C3732 VCKYTV1CF105ZY J 1 16V Ceramic AB C3733 VCKYTV1CF105ZY J 1 16V Ceramic AB C3734 VCKYTV1CF105ZY J 1 16V Ceramic AB C3736 VCEASH1CN477MY J 470 16V Electrolytic AD C3737 RC-EZ1339CEZZY J 220 16V Electrolytic AD C3738 VCKYTV1CF105ZY J 1 16V Ceramic AB C3739 VCKYTV1HF104ZY J 0.1 50V Ceramic AB C3740 VCKYTV1HF104ZY J 0.1 50V Ceramic AB C3741 RC-KZ1025CEZZY J 1 10V Ceramic AB C3742 RC-KZ1025CEZZY J 1 10V Ceramic AB C3743 VCKYCY1HF103ZY J 0.01 50V Ceramic AA C3744 RC-KZ0071TAZZY J 2.2 6.3V Ceramic AD C3745 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C3750 VCEA0A0JW228M J 2200 6.3V Electrolytic AD C3756 RC-KZ1025CEZZY J 1 10V Ceramic AB C3757 RC-KZ1025CEZZY J 1 10V Ceramic AB C3770 VCKYTV1CF105ZY J 1 16V Ceramic AB C3771 RC-EZ1274CEZZ J 1000 16V Electrolytic AD C6502 VCKYCY1CB473KY J 0.047 16V Ceramic AA C6503 VCKYCY1CB473KY J 0.047 16V Ceramic AA C6504 VCEA4A1CN228M J 2200 16V Electrolytic AF C6505 VCKYCY1CB333KY J 0.033 16V Ceramic AA C6507 VCKYCY1CB473KY J 0.047 16V Ceramic AA C6508 VCKYCY1CB473KY J 0.047 16V Ceramic AA C6509 VCEA4A1CN228M J 2200 16V Electrolytic AF C6510 RC-FZA107WJZZ J 0.1 250V Film AD C6511 RC-FZA107WJZZ J 0.1 250V Film AD C6512 VCKYCY1CB473KY J 0.047 16V Ceramic AA C8433 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8434 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8451 VCCCCY1HH330JY J 33p 50V Ceramic AA C8452 VCCCCY1HH330JY J 33p 50V Ceramic AA C8453 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8454 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8455 VCCCCY1HH330JY J 33p 50V Ceramic AA C8456 VCCCCY1HH330JY J 33p 50V Ceramic AA C8457 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8458 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8459 VCCCCY1HH330JY J 33p 50V Ceramic AA

C8460 VCCCCY1HH330JY J 33p 50V Ceramic AA C8461 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8462 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C8464 RC-EZA123WJZZY J 100 6.3V Electrolytic AC C8465 RC-EZA127WJZZY J 100 16V Electrolytic AC

RESISTORS

R341 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R342 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R345 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R346 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R350 VRS-CY1JF392JY J 3.9k 1/16W Metal Oxide AA R351 VRS-CY1JF392JY J 3.9k 1/16W Metal Oxide AA R353 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R354 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R355 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R356 VRS-TW2ED270JY J 27 1/4W Metal Oxide AA R357 VRS-TW2ED270JY J 27 1/4W Metal Oxide AA R358 VRS-CY1JF123JY J 12k 1/16W Metal Oxide AA R1907 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1947 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3201 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3202 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3203 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3204 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3205 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R3206 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3207 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3208 VRS-CA1JF102JY J 1k 1/16W Metal Oxide AA R3209 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3210 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3211 VRS-CY1JF561FY J 560 1/16W Metal Oxide AA R3212 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R3213 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3214 VRS-CY1JF561FY J 560 1/16W Metal Oxide AA R3215 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA R3217 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3303 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3304 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3305 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA R3307 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3308 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3311 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3312 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3315 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R3316 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3317 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R3318 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3319 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R3320 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R3321 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R3322 VRS-CY1JF392FY J 3.9k 1/16W Metal Oxide AA R3323 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R3324 VRS-CY1JF392FY J 3.9k 1/16W Metal Oxide AA R3325 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R3326 VRS-CY1JF153FY J 15k 1/16W Metal Oxide AA R3327 VRS-CY1JF683FY J 68k 1/16W Metal Oxide AA R3328 VRS-CY1JF683FY J 68k 1/16W Metal Oxide AA R3333 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R3334 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R3335 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3336 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3337 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3338 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3341 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R3342 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R3343 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA R3344 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3345 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3346 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA R3347 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3348 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3350 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3351 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3354 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB981DE01

SUB Unit (Continued)

R3357 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R3358 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R3359 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3360 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3361 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3362 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R3363 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R3364 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R3365 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3366 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R3369 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R3375 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3382 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3383 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3398 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3399 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3401 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3402 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3403 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3404 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3409 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3410 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3411 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3412 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3413 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3414 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3415 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3416 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3428 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3429 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3430 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA R3431 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R3432 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R3433 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R3523 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3524 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3528 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R3529 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R3530 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3531 VRS-TQ2BD680JY J 68 1/8W Metal Oxide AA R3533 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA R3534 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3535 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R3536 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R3537 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R3540 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3542 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA R3543 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R3544 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3545 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3552 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3555 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R3556 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA R3557 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3701 VRS-CB1JF222JY J 2.2k 1/16W Metal Oxide AC R3703 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA R3704 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3705 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA R3706 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R3707 VRS-CY1JF274JY J 270k 1/16W Metal Oxide AA R3708 VRS-CY1JF133FY J 13k 1/16W Metal Oxide AA R3711 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R3713 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R3714 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA R3716 VRS-CY1JF184JY J 180k 1/16W Metal Oxide AA R3717 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R3718 VRS-TW2HF000JY J 0 1/2W Metal Oxide AA R3719 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3721 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R3723 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA R3724 VRS-CB1JF824JY J 820k 1/16W Metal Oxide AC R3725 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

R3732 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA R3733 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R3737 VRS-TQ2BD683JY J 68k 1/8W Metal Oxide AA R3738 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R3741 VRS-CB1JF562JY J 5.6k 1/16W Metal Oxide AC R3744 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA R3745 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3746 VRS-CY1JF182FY J 1.8k 1/16W Metal Oxide AA R3747 VRS-CY1JF222FY J 2.2k 1/16W Metal Oxide AA R3748 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA R3749 VRS-CY1JF122FY J 1.2k 1/16W Metal Oxide AA R3750 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R3751 VRS-CY1JF223FY J 22k 1/16W Metal Oxide AA R3752 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3753 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3754 VRS-CY1JF163FY J 16k 1/16W Metal Oxide AA R3755 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R3756 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3757 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R3758 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA R3759 VRS-CY1JF622FY J 6.2k 1/16W Metal Oxide AA R3760 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA R3761 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3762 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3763 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3764 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3765 VRS-TW2HF101JY J 100 1/2W Metal Oxide AA R3766 VRS-TV1JD103JY J 10k 1/10W Metal Oxide AA R3767 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA R3768 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA R3769 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3770 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R3771 VRS-TV1JD103JY J 10k 1/10W Metal Oxide AA R3774 VRS-TW2HF391JY J 390 1/2W Metal Oxide AA R3775 VRS-TW2HF391JY J 390 1/2W Metal Oxide AA R4050 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA R4051 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4052 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA R4053 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R6500 VRS-TW2ED182JY J 1.8k 1/4W Metal Oxide AA R6501 VRS-TW2ED152JY J 1.5k 1/4W Metal Oxide AB R6502 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6503 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6504 VRS-TW2ED182JY J 1.8k 1/4W Metal Oxide AA R6506 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6507 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6513 VRS-TW2ED152JY J 1.5k 1/4W Metal Oxide AB R8451 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA R8452 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA R8453 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R8454 VRS-TV1JD332JY J 3.3k 1/10W Metal Oxide AA R8455 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R8456 VRS-TV1JD152JY J 1.5k 1/10W Metal Oxide AA R8457 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA R8458 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA R8459 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R8460 VRS-TV1JD332JY J 3.3k 1/10W Metal Oxide AA R8461 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R8462 VRS-TV1JD152JY J 1.5k 1/10W Metal Oxide AA R8463 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA R8465 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R8466 VRS-TV1JD332JY J 3.3k 1/10W Metal Oxide AA R8467 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA R8468 VRS-TV1JD152JY J 1.5k 1/10W Metal Oxide AA R8484 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA

SWITCHES

S4053 QSW-PA011WJZZ J MAIN POWER AF SW4050 SW4051 SW4052 SW4054 SW4055 SW4056

QSW-K0065GEZZY J CH(Ù)AD QSW-K0065GEZZY J CH(ù)AD QSW-K0065GEZZY J MENU AD QSW-K0065GEZZY J TV/VIDEO AD QSW-K0065GEZZY J VOL(+) AD QSW-K0065GEZZY J VOL(–) AD

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB981DE01

SUB Unit (Continued)

å F3301 QFS-ZA002WJZZ J Fuse, 1.25A/250V AD å F3701 QFS-D0008CEZZ J Fuse, 2.0A/250V AE å F6501 QFS-D0006CEZZ J Fuse, 1.25A/250V AF å F6502 QFS-D0006CEZZ J Fuse, 1.25A/250V AF

FH3701 QFSHD1002CEZZ J Fuse Holder AA FH3702 QFSHD1002CEZZ J Fuse Holder AA FH6501 QFSHD1002CEZZ J Fuse Holder AA FH6502 QFSHD1002CEZZ J Fuse Holder AA FH6503 QFSHD1002CEZZ J Fuse Holder AA FH6504 QFSHD1002CEZZ J Fuse Holder AA FB3701 RBLN-0095CEZZY J Ferrite Bead AD FB3702 RBLN-0095CEZZY J Ferrite Bead AD FB3703 RBLN-0095CEZZY J Ferrite Bead AD FB3705 RBLN-0051TAZZY J Ferrite Bead AC FB3706 RBLN-0254TAZZY J Ferrite Bead AB FB3707 RBLN-0254TAZZY J Ferrite Bead AB FB3708 RBLN-0254TAZZY J Ferrite Bead AB J3401 QJAKGA038WJZZ J AV -IN1 Terminal AE J3402 QJAKGA038WJZZ J AV-OUT(AV-IN2/OUT) AE J3404 QJAKGA039WJZZ J Y/PB/PR(COMPONENT) AE J3409 QJAKFA017WJZZ J J3701 QJAKCA010WJZZ J POWER INPUT(DC 12V) AF P3302 QPLGN0378GEZZ J Plug, 3-pin AB P3303 QPLGN0478GEZZ J Plug, 4-pin AB P3601 QPLGN0478GEZZ J Plug, 4-pin AB P3602 QCNW-B654WJQZ J Connecting Cord AD P3701 QCNW-B519WJQZ J Connecting Cord AH P3801 QPLGN0678GEZZ J Plug, 6-pin AB P6500 QPLGN0155FJZZY J Plug, 3-pin AE P6501 QPLGN0155FJZZY J Plug, 3-pin AE SC3401 SC3411 SC3412 TP3001 TP3002 TP3003

MISCELLANEOUS PARTS

AUDIO(L)/(R)(COMPONENT)

QSOCN0464FJZZY J Socket, 50-pin AH QSOCD0456CEZZ J S-VIDEO(AV-IN1) AE QSOCD0456CEZZ J S-VIDEO(AV-IN2/OUT) AE QLUGHA001WJZZY J Lug AD QLUGHA001WJZZY J Lug AD QLUGHA001WJZZY J Lug AD

DUNTKB982DE01

R/C, LED Unit

IC4201 VHiTPS850++-1Y J TPS850 AG

Q4001 VSDTC144EE/-1Y J DTC144EE AA Q4002 VSUMG4N++++-1Y J UMG4N AB Q4004 VSDTC144EE/-1Y J DTC144EE AA

D4001 RH-PX0421CEZZY J POWER Indicator AD D4002 RH-PX0421CEZZY J OPC Indicator AD D4004 RH-EX1271CEZZY J Zener Diode, 12V AB D4005 RH-EX1271CEZZY J Zener Diode, 12V AB D4007 RH-EX1271CEZZY J Zener Diode, 12V AB D4008 RH-EX1247CEZZY J Zener Diode, 5.6V AB

C4001 RC-KZ0117TAZZY J 4.7 6.3V Ceramic AD C4201 VCEAPF1CN106MY J 10 16V Electrolytic AD C4202 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C4203 VCKYCY1HF103ZY J 0.01 50V Ceramic AA

R4001 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R4002 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4003 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4005 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4006 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4007 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA

J4021 QJAKJ0068CEZZ J Headphone Jack AG P4001 QPLGN0958REZZY J Plug, 9-pin AC P4003 QPLGN0378GEZZ J Plug, 3-pin AB RMC4001

INTEGRATED CIRCUITS

TRANSISTORS

DIODES

CAPACITORS

RESISTORS

MISCELLANEOUS PARTS

RRMCU0239CEZZ J Remote Receiver AG

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

13 QCNW-B534WJQZ J Connecting Cord AF

CABINET AND MECHANICAL PARTS

1 CCABAA375WJ01 J Cabinet A Ass’y BM 1-1 1-2 HDECQA269WJSA J R/C, LED Cover AE 1-3 PSPAHA061WJZZ J Spacer(L), x2 AC 1-4 PSPAHA062WJZZ J Spacer(S), x2 AC 1-5 QCNW-B662WJQZ J Connecting Cord(SP) AH 1-6 QEARZ0047CEZZ J Grounding Part AC 1-7 VSP7530PB628B J Speaker, x2 AN 1-8 XEBSN30P08000 J Screw, x6 AA 1-9 PSPAHA288WJZZ J Spacer, x1 AB

2 CCABBA270WJ04 J Cabinet B Ass’y BC 2-1 2-2 GLEGGA027WJSA J Rubber Leg, x2 AF 2-3 HiNDPA655WJSA J Model Label AG 2-4 JBTN-A183WJKA J Control Button AK 2-5 JBTN-A186WJKA J Power Button AF 2-6 LANGF2155CEFW J Round Lock AD 2-7 LANGTA080WJFW J Reinforcement Angle AM 2-8 MSPRCA015WJFW J Power Button Spring AB 2-9 PMLT-A091WJZZ J Light Shielding Spacer, x1 AC 2-10 PMLT-0402CEZZ J Light Shielding Spacer, x1 AC 2-11 XEBSN30P08000 J Screw, x3 AA

Not Available

– Cabinet A —

– Cabinet B —

14 QCNW-B535WJZZ J Connecting Cord AG 15 16 XBBS930P05000 J Screw, x2 AA 17 XBPSN30P10JS0 J Screw, x5 AB 18 XBPSN30P18JS0 J Screw, x3 AA 19 XEBSN30P08000 J Screw, x2 AA 20 XEBS930P14000 J Screw, x7 AA 21 PMLT-0401CEZZ J Light Shielding Spacer AB 22 RCORFA009WJZZ J Core, x1 AH 23 RCORFA031WJZZ J Core, x1 AH 24 QEARZA045WJZZ J Grounding Part, x1 AF 25 PSPAKA031WJZZ J Spacer, x1 AD

Not Available

– Serial No. Label —

3 CDAi-A031WJ08 J Stand Ass’y BM 3-1 GDAi-A031WJSF J Stand, Base AX 3-2 CDAi-A009WJ03 J Stand Joint Ass’y AZ 3-2-1 3-2-2 PSPAZA083WJZZ J Cushion Spacer, x2 AB 3-3 GCOVA1945CESA J Stand Grip AK 3-4 GLEGGA014WJZZ J Rubber Leg, x8 AB 3-5 JHNDP0105CESH J Stand Handle AX 3-6 LANGGA037WJFW J Swivel Base AG 3-7 LANGGA038WJFW J Swivel Spacer AE 3-8 LANGGA039WJFW J Swivel Spacer AE 3-9 LX-NZ3185CEFN J Nut, x1 AD 3-10 MHNG-A051WJFW J Swivel Hinge AU 3-11 XESSN40P10000 J Screw, x8 AB 3-12 XESSN40P14000 J Screw, x4 AA 3-13 XUSSN40P20000 J Screw, x4 AA

4 4-1 RLCDTA023WJZZ J 13” LCD Panel Unit CQ 4-2 4-2-1 PSLDMA253WJFW J Back Shield AP 4-2-2 TCAUZA031WJZZ J Caution Label AB

å 4-3 KLMP-0120CEZZ J Lamp Unit BD

4-4 PGiDMA010WJZZ J Light Guide Plate AY 4-5 PMiR-0292CEZZ J Reflection Mirror(L), x2 AG 4-6 PMiR-0293CEZZ J Reflection Mirror(S), x2 AF 4-7 PSHEP0276CEZZ J Reflection/Deflection Sheet BB 4-8 PSHEP0277CEZZ J Prism Sheet AV 4-9 PSHEP0278CEZZ J Diffusion Sheet AL 4-10 PSHEP0279CEZZ J Reflection Sheet-1 AG 4-11 PSHEP0280CEZZ J Reflection Sheet-2 AG 4-12 PSHEP0306CEZZ J Reflection Sheet(Cover) AC 4-13 PSLDMA284WJZZ J Shield, x2 AE 4-14 PSPAKA014WJZZ J Spacer, x1 AD 4-15 QCNW-B779WJQZ J Connecting Cord AE 4-16 QCNW-B531WJQZ J Connecting Cord AD 4-17 QCNW-B532WJQZ J Connecting Cord AF 4-18 PMLT-A074WJZZ J Light Shielding Spacer, x1 AD

Not Available

Not Available Not Available

– Stand Joint —

– 13” LCD Panel Unit Ass’y — – Back Shield Ass’y —

5 GCOVAA502WJKA J Terminal Cover AH 6 GCOVAA505WJKA J Terminal Decoration Cover AD 7 LCHSMA050WJKA J Chassis Frame(R) AK 8 LCHSMA055WJKA J Chassis Frame(L) AL 9 LHLDZA251WJKZ J Power Button Holder AD 10 LX-BZ3442CEF9 J Screw, x4 AB 11 QCNW-B528WJQZ J Connecting Cord AG 12 QCNW-B529WJQZ J Connecting Cord AG

CABINET AND MECHANICAL PARTS

2-11

2-2

2-6

2-9

2-10

2-7

2-1

2-11

2-4

2-5

2-8

2-3

3-1

3-7

3-13

3-6

3-12

3-10

3-8

3-2

3-2-1

3-2-2

3-11

3-5

3-3

3-9

3-4

Main PWB

Sub PWB

HGI

4-1

4-7

4-8

4-9

4-12

4-3

4-4

4-10

4-11

4-5

4-18

4-2

4-6

4-5

4-2-1

4-2-2

4-6

4-15

4-17

4-16

4-13

4-14

1-1

1-6

1-3

1-4

1-3

1-4

1-2

1-7

1-8

1-5

1-8

1-7

1-9

R/C,LED PWB

LC-13S2U-S

654321

LC-13S2U-S

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

SUPPLIED ACCESORIES

LHLDWA002WJSB J Cable Clamp, x2 AC

å QACCDA023WJPA J AC Cord AK

QCNWG0003CEPA J Antenna Cable AM RRMCGA174WJSA J Infrared R/C Unit AS TCADEA028WJZZ J Questionnaire Card AE TiNS-A965WJZZ J Operation Manual AS

å UADP-A044WJPZ J AC Adaptor BC

SERVICE JIGS

(USE FOR SERVICING)

QCNW-A553WJZZ J Extension Cable 30-pin BA

(SC1204-LCD)

QCNW-A555WJZZ J Extension Cable 20-pin AU

(SC1202-LCD)

QCNW-A556WJZZ J Extension Cable 50-pin AU

(SC2001-SC3401)

PACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKCA973WJZZ – Packing Case — SPAKFA374WJZZ – SPAKPA229WJZZ – Wrapping Paper — SPAKXA343WJZZ – Buffer Material — SSAKA0160CEZZ – Polyethylene Bag — TLABK0001TAZZ – Carton Label —

Buffer Material(Accessories)

—

Infrared R/C Unit (RRMCGA174WJSA) Antenna Cable (QCNWG0003CEPA)

LC-13S2U-S

PACKING OF THE SET

★ Polyethylene Bag (SSAKA0160CEZZ)

Operation Manual (TiNS-A965WJZZ) Questionnaire Card (TCADEA028WJZZ) Cable Clamp (2pcs.) (LHLDWA002WJSB)

★ "AAA" size Battery (2pcs.)

★ Buffer Material (Accessories)

(SPAKFA374WJZZ)

AC Adapter (UADP-A044WJPZ) AC Cord (QACCDA023WJPA)

★ Buffer Material (SPAKXA343WJZZ)

★ Carton Label (TLABK0001TAZZ)

★ Wrapping Paper (SPAKPA229WJZZ)

★ Buffer Material (SPAKXA343WJZZ)

★ Packing Case (SPAKCA973WJZZ)

LC-13S2U-S

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

TQ1613-S

Sep. 2003 Printed in Japan

Design and Production Information

Design : Japan Production : Japan

MI. KG

SHARP CORPORATION AV Systems Group Quality & Reliability Control Center Yaita, Tochigi 329-2193, Japan

Sharp LC-13S2US Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
