SHARP LC-13S1E Service Manual

LC-13S1E LC-15S1E

SERVICE MANUAL

S93I1LC-13S1E

LCD COLOUR TELEVISION

LC-13S1E

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

» IMPORTANT SERVICE SAFETY PRECAUTION .........................................................................................2

» SPECIFICATIONS ........................................................................................................................................4

» OPERATION MANUAL .................................................................................................................................5

» DIMENSIONS ...............................................................................................................................................7

» REMOVING OF MAJOR PARTS ..................................................................................................................9

» ADJUSTING PROCEDURE OF EACH SECTION .....................................................................................13

» TROUBLE SHOOTING TABLE...................................................................................................................17

» CHASSIS LAYOUT .....................................................................................................................................23

» BLOCK DIAGRAM......................................................................................................................................24

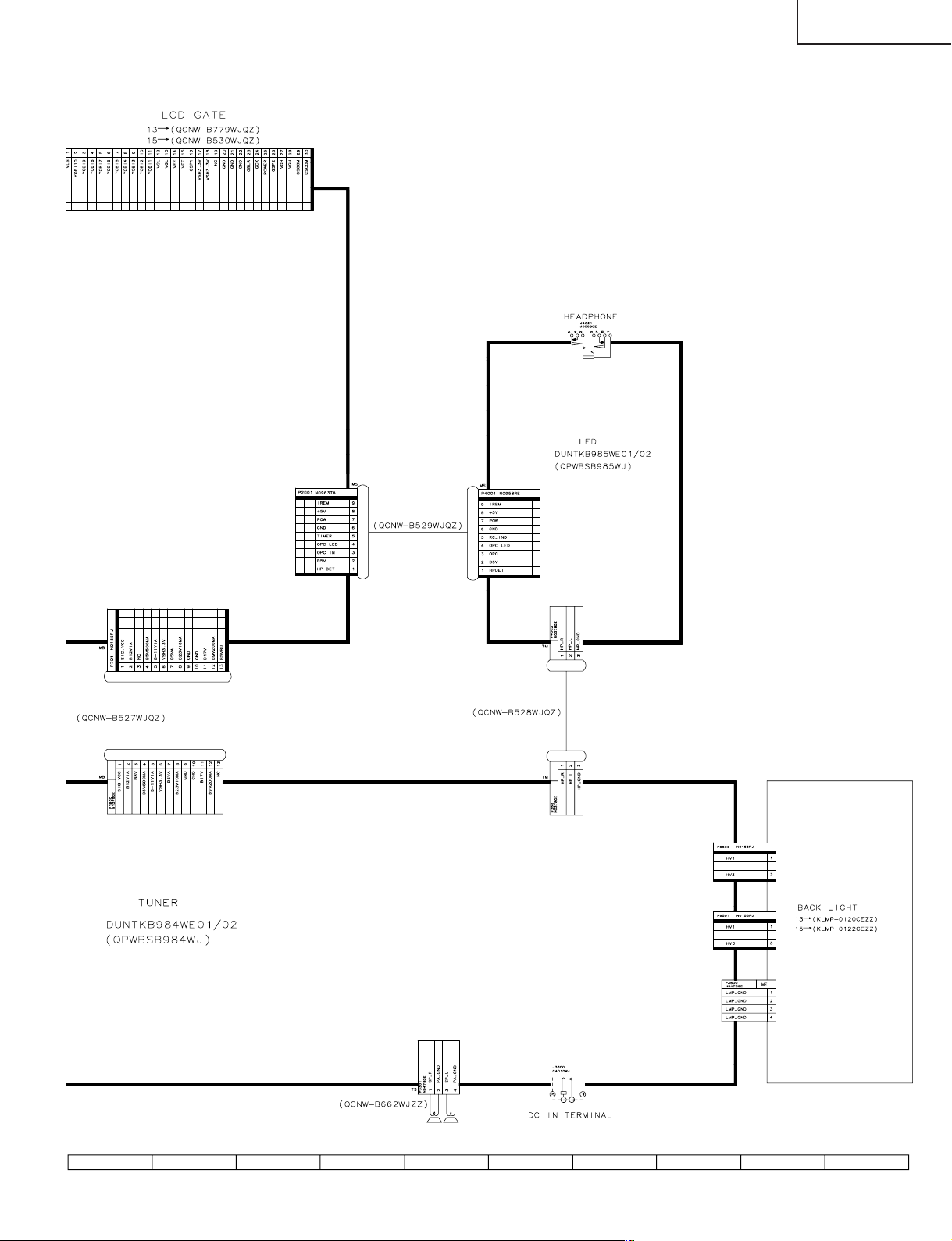

» OVERALL WIRING DIAGRAM ...................................................................................................................26

» DESCRIPTION OF SCHEMATIC DIAGRAM .............................................................................................28

» SCHEMATIC DIAGRAM .............................................................................................................................29

» PRINTED WIRING BOARD ASSEMBLIES................................................................................................56

» REPLACEMENT PARTS LIST....................................................................................................................65

» PACKING OF THE SET ..............................................................................................................................79

LC-15S1E

Page

SHARP CORPORATION

LC-13S1E LC-15S1E

ADJUSTING PROCEDURE OF EACH SECTION

The best adjustment is made before shipping. If any position deviation is found or after part replace is performed, adjust as follows.

Preparation for adjustments

Use the dedicated AC adaptor or stable DC power supply. LC-13/15S1E AC adaptor: UADP-A043WJPZ DC power supply: 12V 5.0A

1.Adjusting procedure

• Checker adjustment Power ON (Adjustment processing mode) → +B adjustment → Counter bias adjustment → TAMP (Contrast) adjustment → White balance adjustment

2.Entering the adjustment processing mode

There are the following two methods.

• Setting the pin (81)(KEY4) or pin (82)(KEY5) of IC2001 (microprocessor) to GND, turn on the power.

• A "POWER" ke y is made on with pushing an "TV/VIDEO" and "MENU" k e ys at the same time .(K of the inspection

process mode is displayed b y the upper left of the image plane.) → Ne xt, "CH (Ù)" and "VOL (–)" ke ys are pushed

at the same time.(It becomes the image plane of the adjustment process mode.).....When it is canceled, it is made

to turn it off.(Even off in the "MAIN POWER" key, off with R/C are good.)

3.Key operation in the adjustment process mode

• The receiving channel UP/DOWN is performed with the "CH (ù)/(Ù)" keys. One push ... The UP/DOWN tuning is performed per channel. Continuous push ... The UP/DOWN search is performed until a next receivable station is found.

• V arious adjustments The adjustment is performed for each item by the "MENU", "Menu cursor", "CH (ù)/(Ù)" or "VOL (+)/(–)" keys (LCD TV set and remote control).

• Adjustment item is chosen with the Menu cursor upward/downward keys.

• The adjustment item makes a toggle operation with the "MENU" key input. (Next item)

If the "MENU" key is input while the bottom item is selected, it moves to the top item on the next page.

• Press the auto preset button on the remote controller in the adjustment process mode, and the top item of the next page will show up regardless of which item appears now. Page 1 → Page 2 → ... → Page 66 → Page 1

• Press the manual memory button on the remote controller in the adjustment process mode, and the top item of the same page will show up.

• UP/DOWN of each adjustment vale selected is performed with the VOL (+)/(–) keys input.

LC-13S1E LC-15S1E

4.Initialization

When the microprocessor (IC2001) or the EEPROM (IC2007, IC2009) has been replaced or when the EEPROM has been initialized, readjust the each adjustments. 4-1. Connect the pins (81) and (82) of IC2001 (microprocessor) to GND, and turn on the power. 4-2. Check that the model name is (A661). 4-3. Select the inch size (13) : (LC-13S1E) and (15) : (LC-15S1E). 4-4. LED changes green from red after setting finish and about 15 seconds, initialization is completed, and it

becomes adjustment mode.

4-5. Writing the model-by-model data

For the Ver.1.00A microprocessor, get it initialized first and then make the settings, listed below, on it. (The microprocessor version is indicated at the bottom of Adjustment Process Page 1.)

Ver.1.00A data reprogramming (INCH SIZE [13]) (LC-13S1E / E(K) / E(R))

Adjustment process page

12 47 47

–

Ver.1.00A data reprogramming (INCH SIZE [13]) (Only for LC-13S1E(K))

Adjustment process page

12 11 11 11 11 11

PAL TV PKCFSOFT7C PAL TV LDL Y PAL AV LDLY DPS 2DH

PAL TV PKCFSOFT7C PAL TV COLOR PAL AV COLOR PAL TV TINT PAL AV TINT PAL BRIGHTNESS

Item

OSD settings

6 → 4 0 → +1 0 → +1

–

OSD settings

4 → 6

41 → 37 41 → 37

–2→ +1 –2→ +1

–15→ –3

Ver.1.00A data reprogramming (INCH SIZE [15]) (LC-13S1E / E(K) / E(R))

Adjustment process page

11 11 11 11 12 47 47

Ver.1.00A data reprogramming (INCH SIZE [15]) (Only for LC-15S1E(K))

Adjustment process page

11 11 11 11 12

PAL BRIGHTNESS PAL-M BRIGHTNESS PAL-N BRIGHTNESS PAL60 BRIGHTNESS PAL TV PKCFSOFT7C PAL TV LDL Y PAL AV LDLY

PAL TV COLOR PAL AV COLOR PAL TV TINT PAL AV TINT PAL TV PKCFSOFT7C

Item

OSD settings

0 → –8 0 → –8 0 → –8 0 → –8

6 → 4 0 → +1 0 → +1

OSD settings

38→ 37 38→ 37

–2→ +1 –2→ +1

4 → 6

5.Adjustment

5-1. +B adjustment...Page 1 +B-ADJ

Adjust the voltage of the pin (4) of P1900 to 5.00 ±0.02V with R3714. Note: Since 5.0V is a reference voltage of all power voltage, adjust it precisely.

5-2. Counter-bias adjustment

Vary the "COM BIAS" setting on Page 2 of the adjustment process mode so that the contrast be sharpest (black looks most sinking).

5-3. TAMP adjustment

1) Receive the upper left of 75% white half colour bar signal.

2) See if the "Y" reading on page 2 of the adjustment process mode is somewhere following. If not, make the "PAL TAMP" adjustment to get the "Y" reading in the range of AE thru BD.

3) If the adjustment of "PAL TAMP" is executed, write its adjustment value to the "SECAM TAMP" manually.

(Screen of the page 2 of the adjustment processing menu OSD)

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

0 1 2 3 4 5 6

7 8

10 11

12 13

COM B I AS 9 0 PAL TAMP 27

SECAM TAMP 27 RCUTOF F GCU TOF F

BCU TOF F RGA I GG BGA I

TAMP TAMP

N 0 N

LC-13S1E LC-15S1E

0 0 0

0 0

Y Data

(White 75%)

5-4. White balance adjustment

Adjust "RCUTOFF", "BCUTOFF", "RGAIN" and "BGAIN" on the page 2 of the adjustment processing so as to obtain the colour of the same level as the standard set.

LC-13S1E LC-15S1E

6. Factory Setting

6-1. Perform a factory setting after completing all adjustments. 6-2. A "POWER" keys is made on with pushing an "TV/VIDEO" and "MENU" keys at the same time. 6-3. "K" of the inspection process mode is displayed on the screen upper left. 6-4. CH (ù) and VOL (+) keys are pushed about 2 seconds at the same time. 6-5. Release keys, if "E" is displayed on the screen upper left and "COMPLETE" is displayed on the bottom of it. 6-6. After a while, a power will be in a standby mode and a setup will be finished. Note: "First installation" serves on "Deutsch".

7. Lamp error detection

7-1. Functional description

This LCD colour television has a function (lamp error detection) to be turned OFF automatically for safety when the lamp or lamp circuit is abnormal. If the lamp or lamp circuit is abnormal, or some other errors happen, and the lamp error detection is executed, the followings occur. 1 The main unit of television is turned OFF 5 seconds after it is turned ON. (The power LED on the front

side of TV turns from green to red.)

2 If the situation 1 happens 5 times sequentially, television can not be turned ON. (The power LED remains

red.)

7-2. Countermeasures 7-2-1.Check when turning OFF the lamp error detection

When television is turned OFF by the lamp error detection mentioned above, it enters the adjustment process with the power LED red. Entering the adjustment process turns OFF the error detection and turns ON TV. This enables the operation check to detect errors in the lamp or lamp circuit. Check whether "ERROR NO RESET" on line 3, page 1 of the adjustment process is 1 or more. If it is 1 or more, it indicates the lamp error detection was executed.

7-2-2.Resetting of the lamp error count

After confirming that the lamp or lamp circuit is normal, reset the lamp error count. Select "ERROR NO RESET" on line 3, page 1 of the adjustment process and set the number to 0 using the volume button.

Page 1 of the adjustment process

M O D E L A661 INCH SIZE ~ ERROR NO RESET 5 PUBLIC MODE OFF EXT CONTROL OFF EXT MODE UART UPDATE MODE NORMAL TEXT RESET OFF

Reset 0

V E R R O M 1 . 0 0 A

Note~:13=LC-13S1E, 15=LC-15S1E

Afterwards, perform the operation check to confirm that the lamp error detection does not function.

TROUBLE SHOOTING TABLE

No picture and No sound

Check all the settings microprocessor's adjust process menu.

Do F3301 and F3302

function?

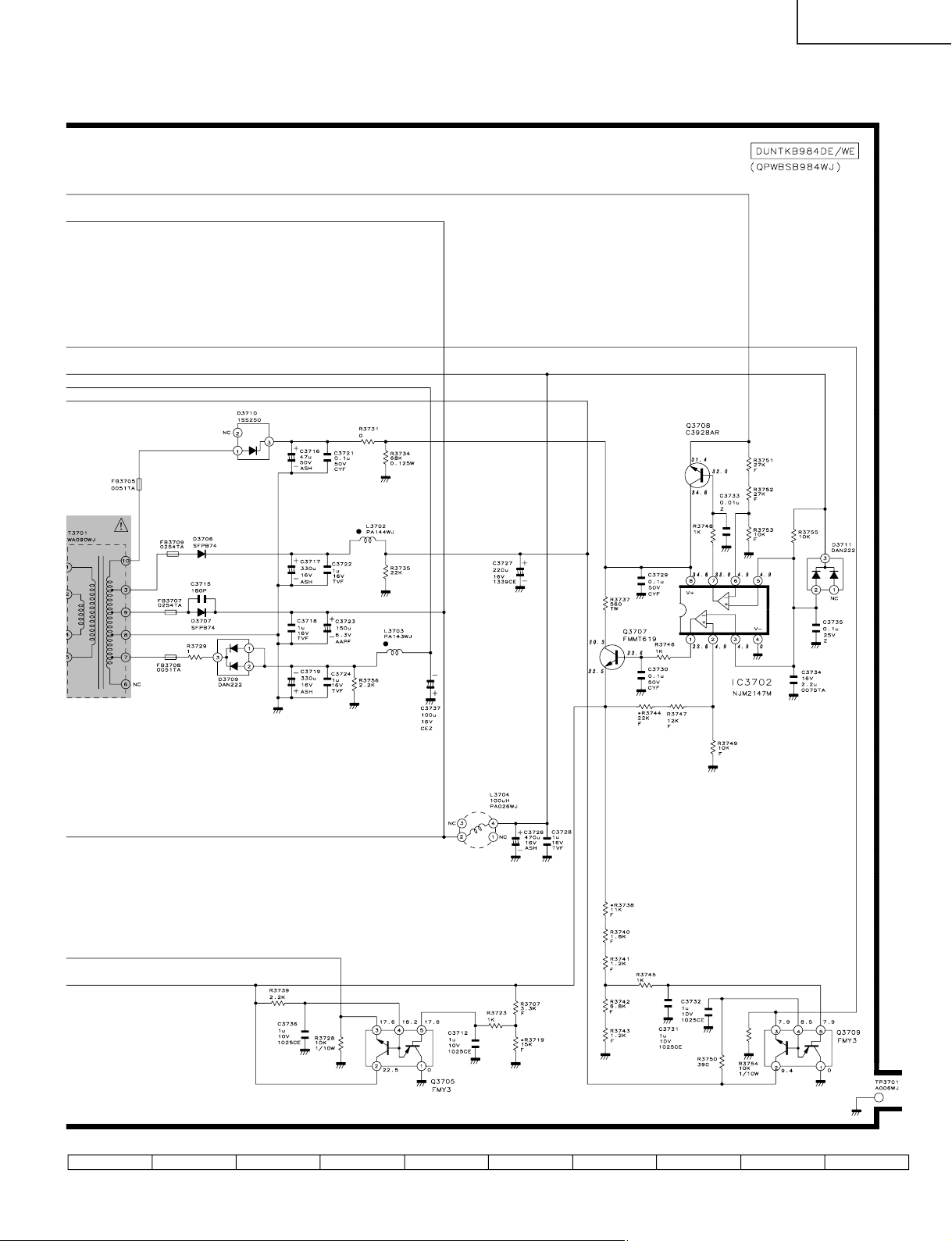

Are T3701's secondary

outputs, +34V, +9V, +5V

and -110V normal?

Replace F3301 and F3302.

Check S4001 and

connection cable.

Is T3701's primary oscillator

waveform normal?

Check T3701's secondary

load.

Yes Yes

No No

Yes

Check J3300 periphery and

connection cable.

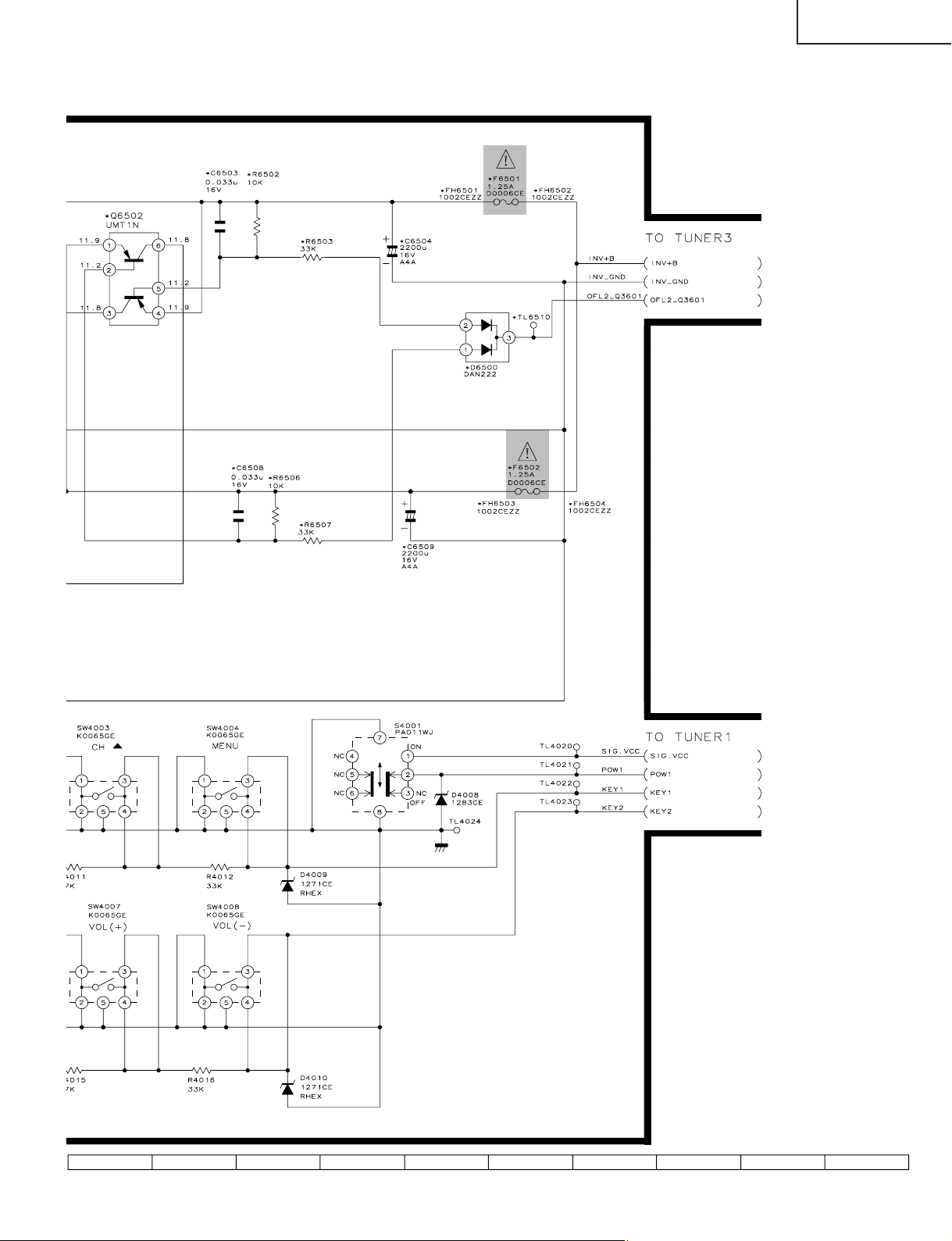

Replace F6501 and F6502.

Yes

Back light lamp failure to light up

Is the primary side of

T6500, T6502 periphery

short-circuiting?

Replace the back light lamp

with new one and check

again.

Remove F3301 and F3302

and check the load side.

Is there short-circuiting?

Is there short-circuiting of

T3701 primary side periphery,

Q3701, Q3703 and S4001.

Is the pin(121) of IC1201 in

the "H" state?

Is the output of Q3601 in the

state?

Check the OFL2 line, IC1201

and their peripheral parts.

Check the OFL2 line, Q3601

and their peripheral parts.

Check T6500, T6502, Q6500

~ Q6704 and connection

cable.

LC-13S1E LC-15S1E

LC-13S1E

No picture (1/3)

Check all the settings microprocessor's adjust process menu.

Is in/output of

IC801 normal?

Is in/output of

IC1201 normal?

Check IC801

and its

peripheral parts.

Check IC1201

and its

peripheral parts.

Check LCD

panel voltages

and waveform.

Yes

No picture

at all

Is voltages at

pins (6), (7) and

(18) of tuner

normal?

Is output at pin

(13) of tuner

normal?

Check the

power line.

Check tuner

and its

peripheral parts.

Is input at pin

(16) of IC802

normal?

Is the pin (3)

of IC802 at "H"

state?

Yes

No TV output

Is the pin (48)

of IC2001 at

"H" state?

Yes

Check the its

line.

Check the its

line.

Check IC802

and its

peripheral parts.

Is input at pin

(7) of IC802

normal?

Check V1_V

line and its

peripheral parts.

No VIDEO 2

output

LC-15S1E

TROUBLE SHOOTING TABLE (Continued)

No picture (2/3)

Check all the settings microprocessor

’s adjust process menu.

Is input at pin

(14) of IC802

normal?

Check the V2_V

line and its

peripheral parts.

No VIDEO 1

output

Check the SY-line,

SC-line and their

peripheral parts.

Is input at pin (9)

of IC802 and pin

(1) of IC805

normal?

No S-VIDEO

output

Check IC1201

and its

peripheral parts.

Yes

No TELETEXT

output

Is input at pins (136),

(137), (138), and

(142) of IC1201

normal?

Check the R, G

and B line.

Is output at pins

(57)~(59) of IC1601

normal?

Yes

Check Vout line and

its peripheral parts.

Is input at pin (21) of

IC1601 normal?

Check IC1601 and its

peripheral parts.

LC-13S1E LC-15S1E

LC-13S1E

No picture (3/3)

Check all the settings microprocessor's adjust process menu.

Is output of

R0~R7

normal?

Is output of

G0~G7

normal?

Is output of

B0~B7

normal?

Yes

Colour is

unusual

Is in/output of

SPIO and

SPOI normal?

No picture


inversion

Gradation

defect

Is output of U/D

normal?

Yes

Check R1224, R1227

and their peripheral

parts.

Check R1234 and

its peripheral parts.

Check IC1202, Q1206

and their peripheral

parts.

Check R1231, R1267

and their peripheral

parts.

Check R1268, R1269

and their peripheral

parts.

Is output V0, V7, V21,

V64, V112, V176,

V235 and V255

normal?

Check IC1101 and its

peripheral parts.

LC-15S1E

TROUBLE SHOOTING TABLE (Continued)

No sound (1/2)

Check all the settings microprocessor's adjust process menu.

Is the pin (53) of

IC2001 in the

"L" state?

Is output at pins

(27) and (28) of

IC1900 normal?

Yes

No sound

from front

speakers

Yes

Muting effect is

on. Check the

FSMUTE line.

Check IC1900

and its

peripheral parts.

Is the pin (52) of

IC2001 in the

"L" state?

Is output at pins

(24) and (25) of

IC1900 normal?

Is output at pins

(1) and (7) of

IC350 normal?

Yes

Muting effect is

on. Check the

HP_MUTE line.

Check IC1900

and its

peripheral parts.

Check IC350

and its

peripheral parts.

No sound

from

headphone

TV sound

failure

Is output at pins

(33) and (34) of

IC1900 normal?

Is output at pins

(1) and (7) of

IC3500 normal?

Check IC1900

and its

peripheral parts.

Check IC3500

and its

peripheral parts.

Yes

No sound

from output

line

Check the tuner

and its

peripheral parts.

Yes

Is output at pin

(11) of Tuner

normal?

Is input at pin

(67) of IC1900.

Check IC1900

and its

peripheral

parts.

Check

Headphone Jack

and connection

cable.

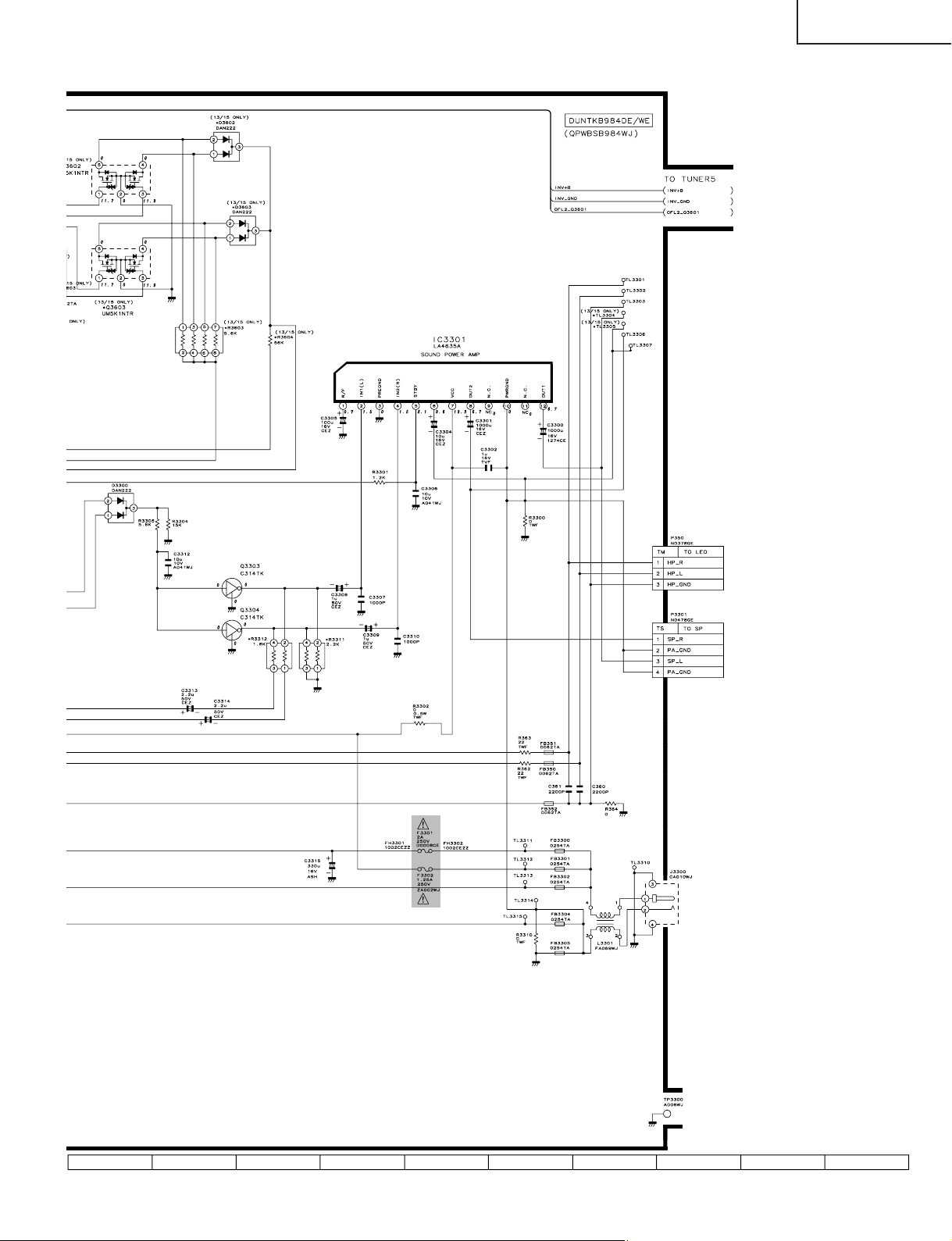

Is output at pins

(8) and (12) of

IC3301 normal?

Check IC3301

and its

peripheral parts.

Check front

speaker and

connection

cable.

Yes

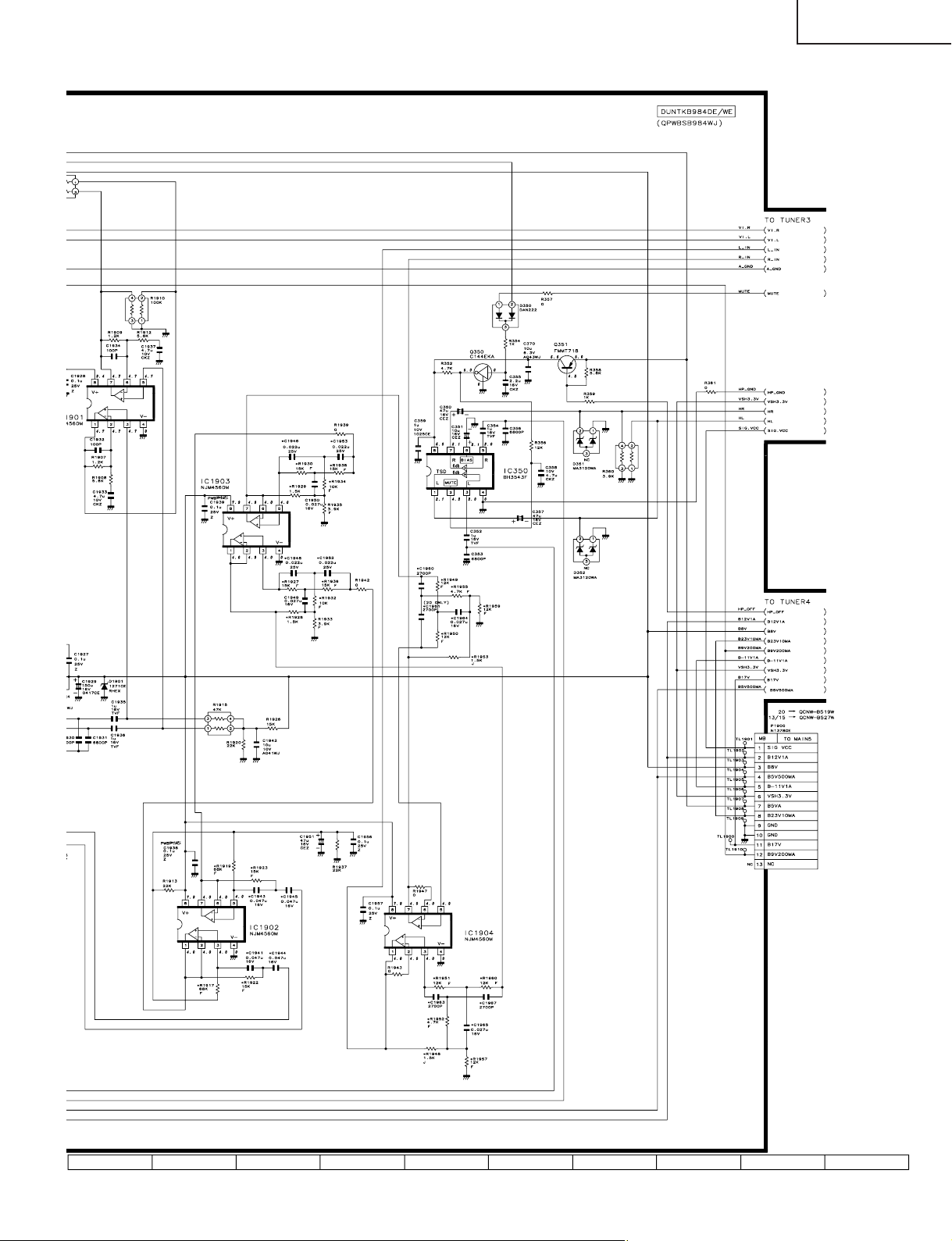

Is output at pins (1)

and (7) of IC1902,

IC1903 and IC1904

normal?

Check IC1902,

IC1903, IC1904 and

their peripheral parts.

LC-13S1E LC-15S1E

LC-13S1E

No sound (2/2)

Check all the settings microprocessor

’s adjust process menu.

Yes

No sound from SCART

SCART sound failure

Yes

Check IC1900 and its

peripheral parts.

Is output at pins (36) and (37) of

IC1900 normal?

Check IC1901 and its

peripheral parts.

Is output at pins (1) and (7) of

IC1901 normal?

Check their lines and their

peripheral parts.

Is input at pins (53) and (54) of

IC1900 normal?

Check IC1900 and its

peripheral parts.

Is output at pins (27) and (28) of

IC1900 normal?

LC-15S1E

TROUBLE SHOOTING TABLE (Continued)

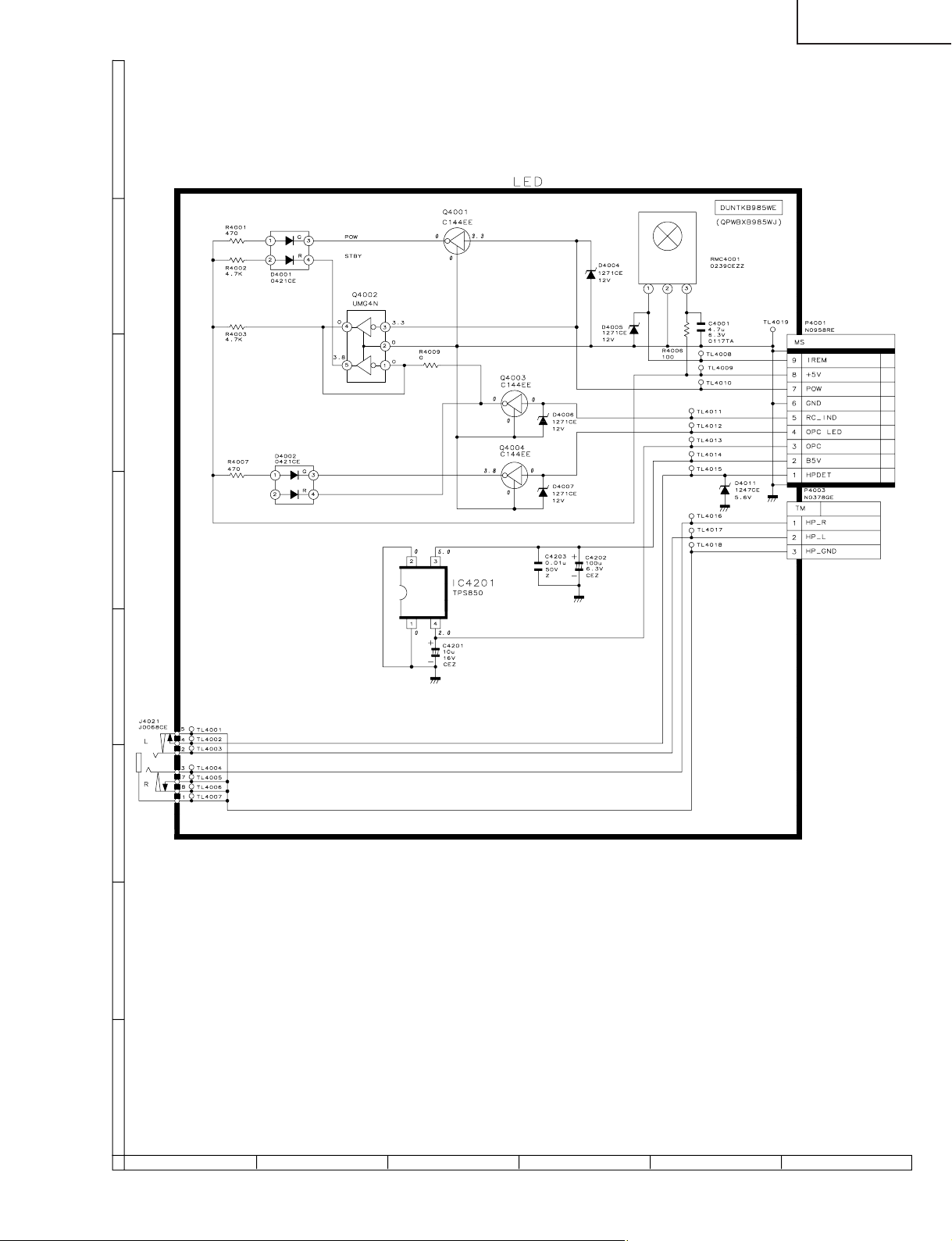

R/C, LED Unit

SUB Unit

MAIN Unit

LC-13S1E LC-15S1E

CHASSIS LAYOUT

654321

LC-13S1E

—

LC-15S1E

BLOCK DIAGRAM

ANTENNA

SC3902 SCART

(AV1)

AUDIO IN

J5000

AUDIO OUT VIDEO OUT

SDA/RXD

SCL/TXD

VIDEO IN

SC_R/G/B

(AV2) INPUT

VIDEOJ5001 (AV2) INPUT

AUDIO (AV2) INPUT

C/UART

V1_V

V1.L/R

TV_V

TUNER

SC_L/RO

TV/AV

SELECTOR

IC802

CHROMA

SELECTOR

IC805

SIF1 AI_L/R

AUDIO AMP

IC1901

AMP

IC803(1/2)

ANA_IN1+ SC2_IN_L/R

SC1_OUT_L/R SC1_IN_L/R

CVBS/SY_IN

R/G/B_IN

AMP

IC803(1/2)

SC_IN

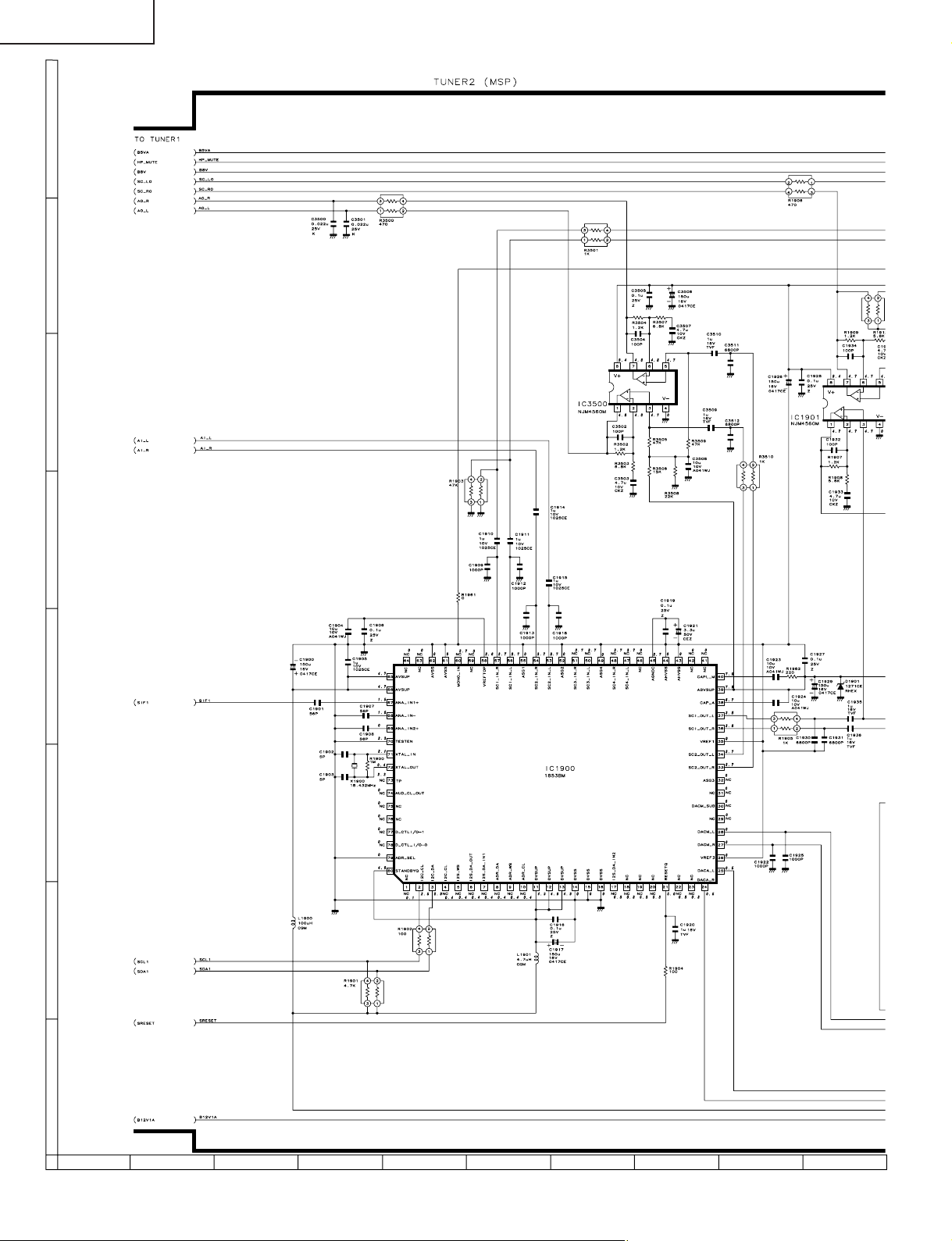

MSP

IC1900

VPC

IC801

VOUT

SYNC SEP

IC804

UART

CSYNC

DACM_L/R

DACA_L/R

SC2_OUT_L/R

PROM

IC2009

MICON IC2001

VPC_

CONT

L_E

Q3707

IC3702

Q3708

+3.3V

+9V +8V

+5V +1.8V

+3.3V

+32V —11V

Q3705

+23V +17V

VOLTAGE

CONVERTER

IC705

REG IC704

REG IC710

+3.

+2.

REG IC2004

J3300

DC12V

REG IC2003

INPUT

VCC

REG IC706

DC/DC

SIGVCC

VCC

CONVERTER

T3701

PWM IC3701

INV+B

KEY

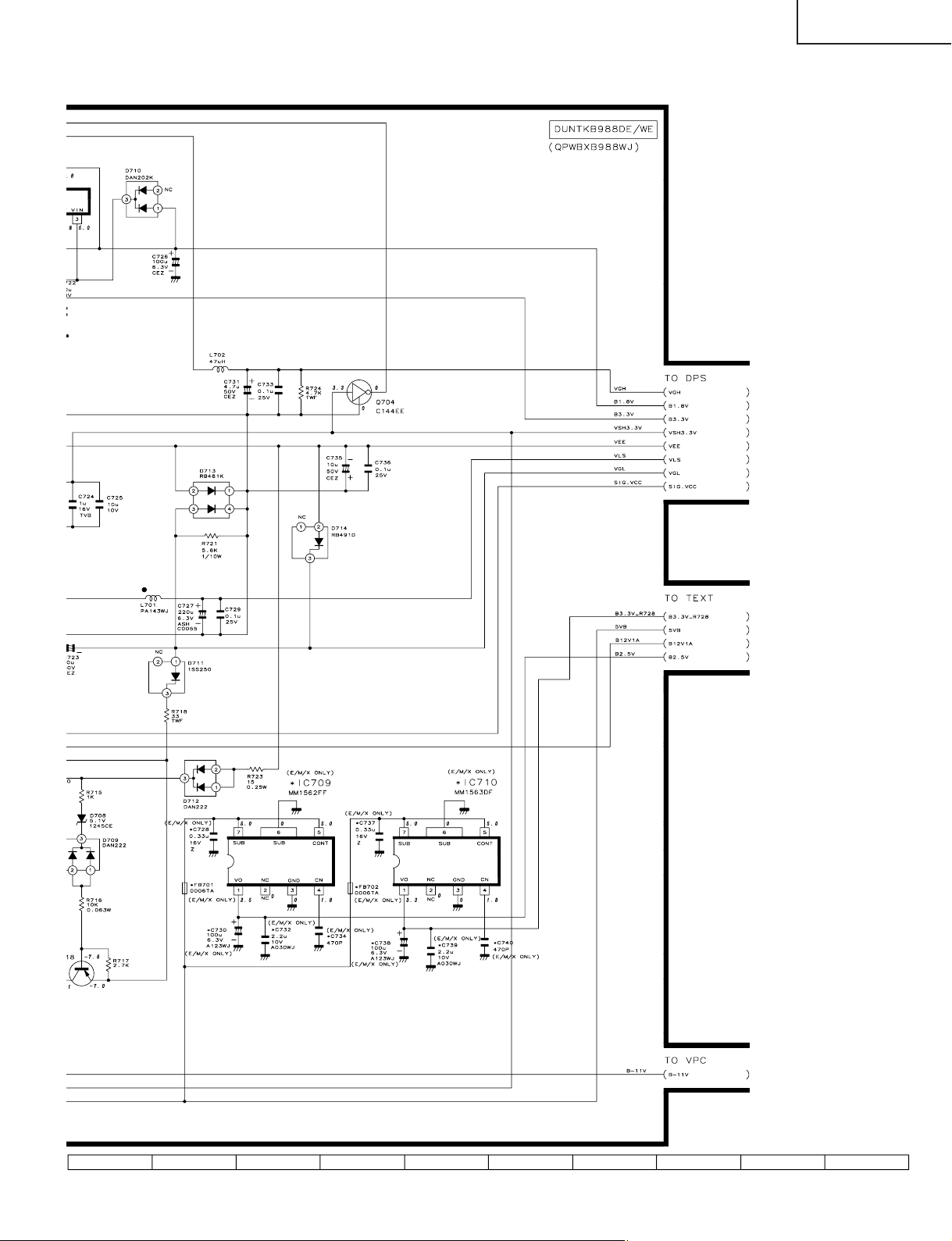

Q3703 REG IC702 REG IC709

+5V

+3.4V

+34V

Q3709

REG IC708

REG IC806

REG IC707

B12V1A

87109654321

+ 30 hidden pages

SHARP LC-13S1E Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
