Sharp LC-13E1, LC-15E1 Schematic

LC-13E1H/M
LC-15E1H/M

SERVICE MANUAL

S92P7LC-13E1H

LCD COLOUR TELEVISION

LC-13E1H/M

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.

CONTENTS

» IMPORTANT SERVICE SAFETY PRECAUTION ................................................................................... 2

» SPECIFICATIONS ................................................................................................................................... 4

» OPERA TION MANUAL ............................................................................................................................ 5

» DIMENSIONS .......................................................................................................................................... 8

» REMOVING OF MAJOR PARTS........................................................................................................... 10

» ADJUSTING PROCEDURE OF EACH SECTION ................................................................................ 14

» TROUBLE SHOOTING TABLE .............................................................................................................. 19

» CHASSIS LA YOUT ................................................................................................................................ 23

» BLOCK DIAGRAM ................................................................................................................................. 24

» OVERALL WIRING DIAGRAM .............................................................................................................. 26

» DESCRIPTION OF SCHEMATIC DIAGRAM ........................................................................................ 30

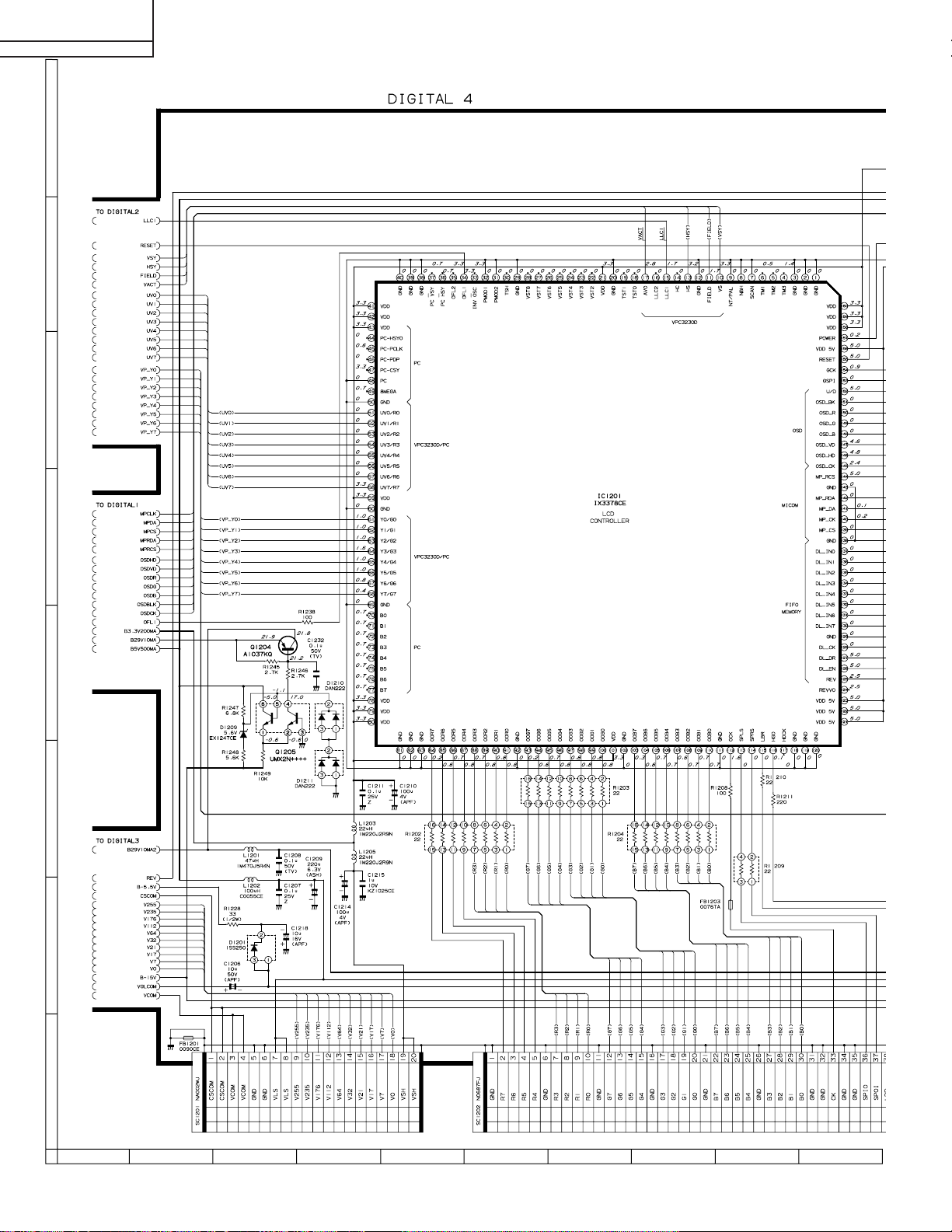

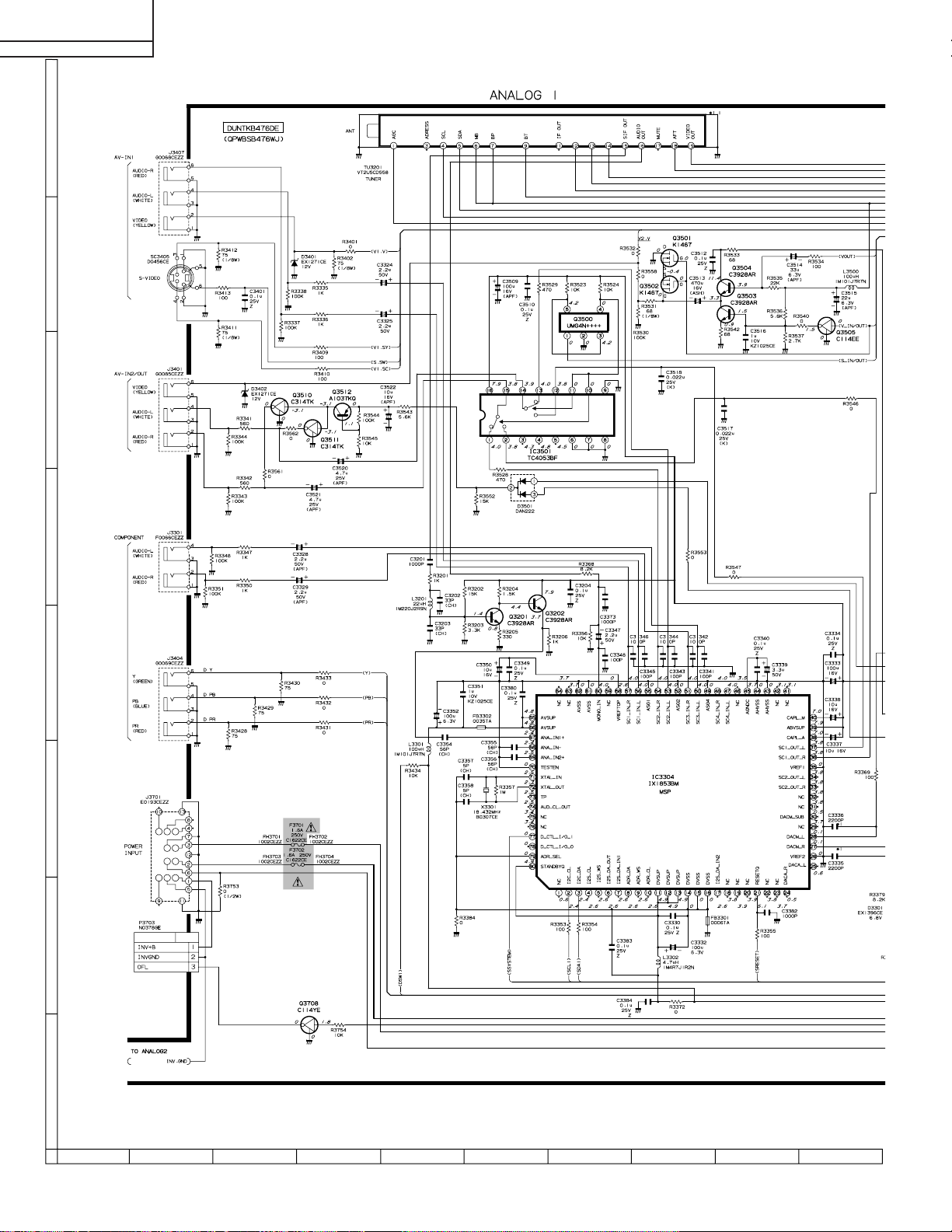

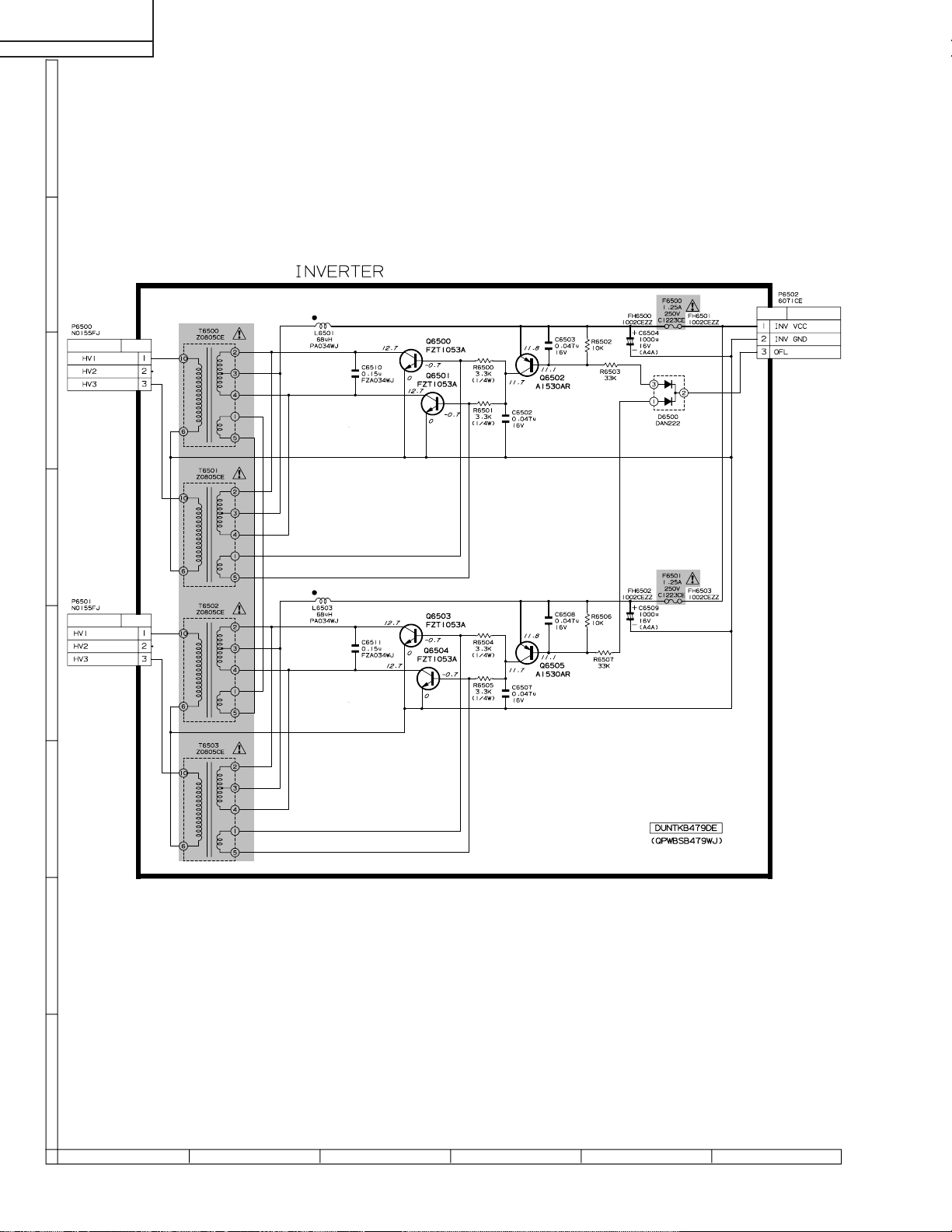

» SCHEMA TIC DIAGRAM ........................................................................................................................ 31

» PRINTED WIRING BOARD ASSEMBLIES........................................................................................... 49

» REPLACEMENT PARTS LIST............................................................................................................... 59

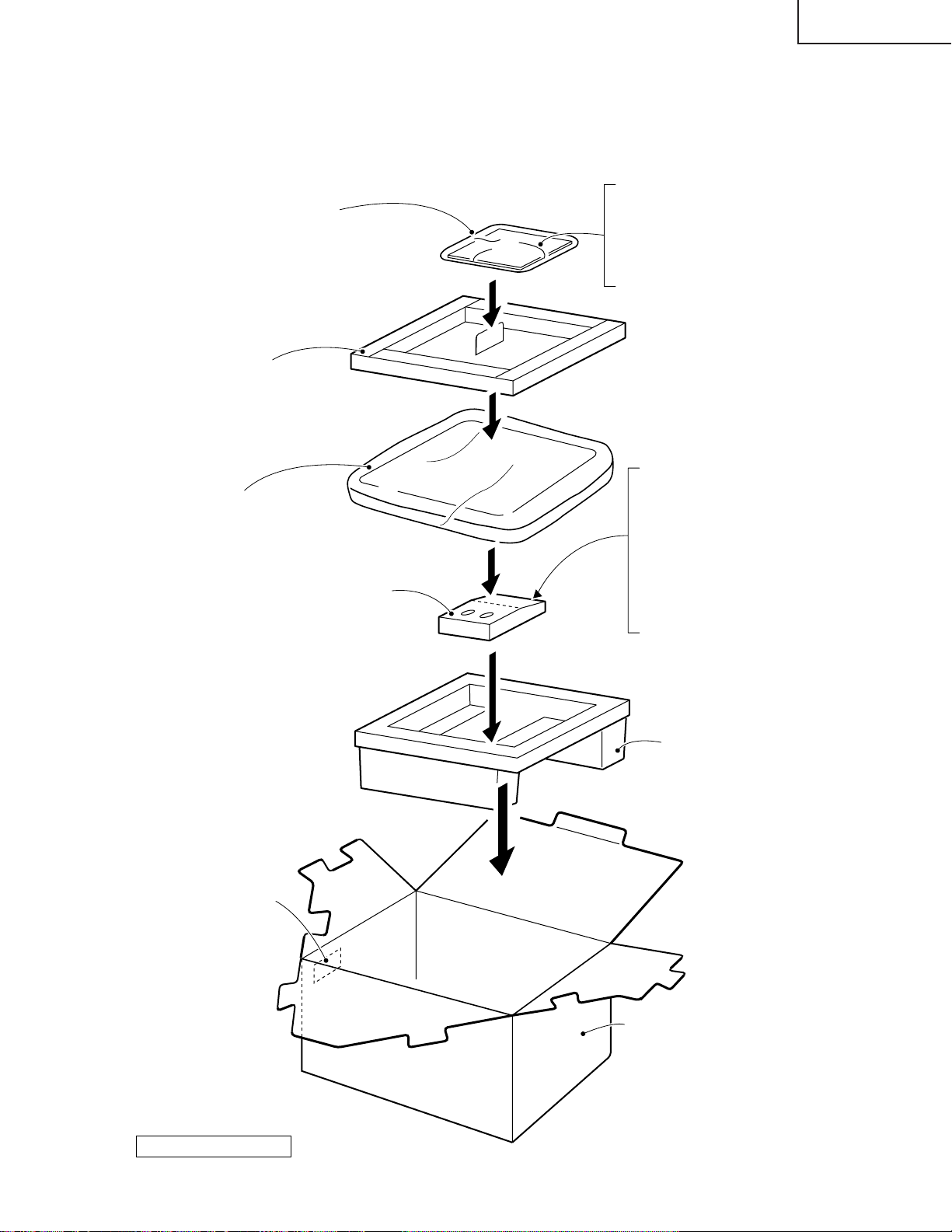

» P ACKING OF THE SET......................................................................................................................... 71

LC-15E1H/M

Page

SHARP CORPORATION

LC-13E1H/M

2

2

LC-15E1H/M

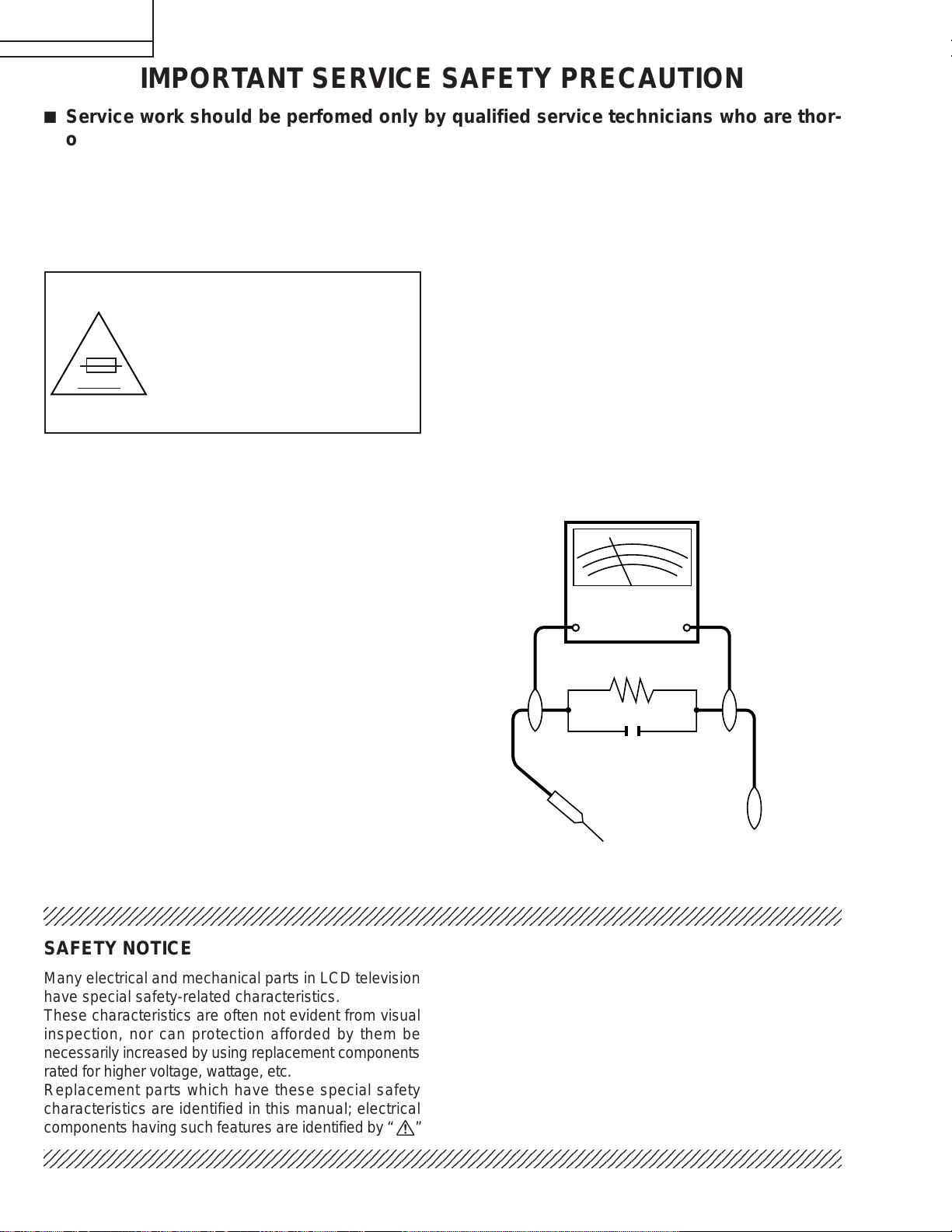

IMPORTANT SERVICE SAFETY PRECAUTION

Ë

Service work should be perfomed only by qualified service technicians who are thor­oughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED
PROTECTION AGAINST A RISK OF
FIRE REPLACE ONL Y WITH SAME
TYPE F3701 (1.6A, 250V),
F3702(1.6A, 250V), F6500 (1.25A,

A V

250V) AND F6510 (1.25A, 250V)
FUSE.

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform
the following safety checks:

1. Inspect all lead dress to make certain that leads are
not pinched, and check that hardware is not lodged
between the chassis and other metal parts in the
receiver.

2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.

• Plug the AC cord directly into a 110~240 volt AC outlet,
and connect the DC power cable into the receiver's
DC jack. (Do not use an isolation transformer for this
test).

• Using two clip leads, connect a 50k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth

ground, such as electrical conduit or electrical ground
connected to an earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or
higher, sensitivity or measure the AC voltage drop
across the resisor.

• Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
All checks must be repeated with the AC cord plug
connection reversed. (If necessary, a nonpolarized
adaptor plug must be used only for the purpose of
completing these checks.)
Any reading of 0.75V peak (this corresponds to 0.5
milliamp. peak AC.) or more is excessive and indicates
a potential shock hazard which must be corrected
before returning the monitor to the owner.

DVM

AC SCALE

50k ohm

10W

0.15 µF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO
KNOWN EARTH
GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in LCD television
have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by “ å”

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

and shaded areas in the Replacement Parts Lists and
Schematic Diagrams.

For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of a substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire or other hazards.

2

LC-13E1H/M
LC-15E1H/M

Precautions for using lead-free solder

1 Employing lead-free solder

"All PWBs" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on
the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional
lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40ºC, we recommend
you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldening
bit, contact our service station or service ranch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead
solder by 40°C, and as it has poor solder wettabillty , you may be apt to keep the soldering bit in contact with the
PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance
temperature of parts may be excoeded, remove the bit from the PWB as soon as you conurm the steady soldering
condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to tum on
and off the power of the bit as required.
if a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after
every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Becareful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No, ★ Description Code
ZHNDAi123250E J φ0.3mm 250g(1roll) BL
ZHNDAi126500E J φ0.6mm 500g(1roll) BK
ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

3

LC-13E1H/M
LC-15E1H/M

SPECIFICATIONS

MODEL

ITEMS

LCD panel
Number of dots

Video colour systems

TV Standard
TV T uning System

TV
FUNCTION

4-LINE DIGITAL COMB FILTER
Brightness
Lamp life
Viewing angles
Audio output
Speakers

Terminals

Headphone jack
OSD LANGUAGE
Power requirement
Weight
Accessories

STEREO/BILINGUAL
Universal R/C for TV only
AUTO PRESET
CATV

AV2 IN/OUT

Component

LC-13E1H/M

13" Advanced Super Vie w &
BLACK TFT LCD

921,600 dots VGA
World multi system
I/DK/M/BG
Auto preset tuning
NICAM-BG, I, DK/IGR-BG
Yes
Yes
S1~S41 ch. Hyper Band
Yes
430 cd/m
60,000 Hours
H: 170° V: 170°

2.1W×2
(3 × 7.5 cm), 2 pcs

AV1

Composite Video, S-Video, Audio
Composite Video/Audio
Y, P

3.5 mm ø jack (Rear)
English/Chinese/Arabic
DC 12 V, AC110-240 V, 50/60Hz

3.8kg w/o accessories
Wireless Remote Contorol, Batteries, Cable clamp, AC adapter, AC cord,

Operation manual, Antenna cable

2

B

, PR/Audio

15" Advanced Super Vie w &
BLACK TFT LCD

4.5kg w/o accessories

LC-15E1H/M

Specifications are subject to change without prior notice.

4

OPERATION MANUAL

CH

MENU

TV/VIDEO MAIN POWER

PRESET

1

2

CH

VOL

VOL

MENU

TV/VIDEO

PRESET

1

2

MAIN POWER

PO

W

ER

SLEEP

Upper control panel

LC-20E1H/M

LC-13E1H/M

LC-15E1H/M

MENU

MAIN POWER

TV/VIDEO

CH( )/( )

VOL (

-

)/(+)

LOCATION OF USERS CONTROL

SLEEP indicator

The SLEEP indicator lights up red when the SLEEP

TIMER is set to on.

Remote sensor window

The screen can be

adjusted backwards to an

angle between 12 de-

grees and 35 degrees.

The screen cannot be set

up straight. When

changing the angle, make

sure to hold the stand and

adjust the screen to the

best viewable angle.

Power/Standby indicator

A green indicator lights when the power is on and a red

indicator lights when in the standby mode (the indicator

will not light when the main power is off).

Note:

•

TV/VIDEO, CH (

)/( ), and VOL (–)/(+) on the main unit have the same functions as the same buttons on the remote

control. Fundamentally, this operation manual provides a description based on operation with the remote control.

Main unit (front view)

* The examples used throughout this manual are based on the LC-20E1H/M

model. There may be a slight difference in the illustrations, if you are

using the LC-13E1H/M and LC-15E1H/M models.

Speaker

Adjustable range

Main unit (rear view)

Y

P

B

C

O

M

P

ON

E

N

T

P

R

L

L

R

A

V

-

I

N

2

/

O

U

T

V

ID

E

O

A

U

D

I

O

R

A

U

D

I

O

A

V-

I

N

1

L

R

A

U

D

I

O

S

-

V

I

D

E

O

A

N

T

.

V

I

D

EO

P

O

W

E

R

I

N

P

U

T

D

C

13V

H

E

A

D

P

H

O

N

E

AN

T.

VID

EO

S-VI

D

EO

AUD

IO

L

R

H

EAD

P

H

ON

E

P

O

W

ER

IN

PUT

D

C

13V

AV-IN1

VIDEO

AV-IN1

AUDIO (L)

AUDIO (R)

S-VIDEO

HEADPHONE

Antenna terminal

POWER INPUT

DC 12V(LC-13E1H/M,

LC-15E1H/M)

DC 13V(LC-20E1H/M)

Carrying handle

V

ID

E

O

A

U

D

I

O

L

Y

P

B

P

R

R

A

U

D

IO

L

R

C

O

M

P

O

N

E

N

T

A

V

-IN

2

/OU

T

VIDEO

AV-IN2/OUT

COMPONENT

AUDIO (L)

AUDIO (R)

Y

P

B

P

R

AUDIO (L)

AUDIO (R)

LC-13E1H/M
LC-15E1H/M

5

LC-13E1H/M

Listening with Headphones

LOCATION OF USERS CONTROL (Continued)

Ë Before connecting a connection cord into the rear terminal, remove the

back cover. Push in the tab and pull out the back cover carefully.

Ë To mount the cover, insert the 2 hooks on the bottom of the cover

into the cabinet and press on the upper part of the back cover until

the tab locks in place with a click.

Removing the Back Cover

Ë

Plug the headphone mini-plug into the HEADPHONE jack located on the rear of the TV set.

Headphones

Note:

• Headphones are not included in the supplied accessories.

• No sound will be heard from the main unit speakers when a headphone mini-plug is connected into the

HEADPHONE jack.

" On-screen display

\

Rear terminal

A

V

-

I

N

1

L

R

A

U

D

I

O

S

-V

I

D

E

O

A

N

T

.
V

I

D

E

O

P

O

W

E

R

I

N

P

U

T

D

C

1

2

V

H

E

AD

P

H

O

N

E

Y

P

B

C

OM

P

O

N

E

N

T

P

R

L

L

R

A

V

-

IN

2

/

OU

T

V

I

D

E

O

A

U

D

IO

R

A

U

D

IO

60

VOLUME

A

V

-

I

N

1

L

R

AU

D

I

O

S

-

V

I

D

E

O

A

N

T

.
V

I

D

E

O

P

O

W

E

R

I

N

P

U

T

D

C

1

3

V

H

E

A

D

P

H

O

N

E

Remote control

CH

VOL

LANGUAGE DIS.MODE

DISPLAY

BRIGHTSLEEP

MENU

POWER

MPX

-/--

TV

VIDEO

MENU SLEEP

MENU cursor

(Right/Left Selection)

VOL (+)/(–)

LANGUAGE

POWER

TV VIDEO

DIS.MODE

MENU cursor

(Upward/Downward Selection)

CHANNEL SELECT

CH ( )/( )

Selects next higher channel.

Selects next lower channel.

FLASHBACK

Returns to previous channel.

DISPLAY

Press....Displays receiving channel for 10 seconds.

Channel indication reduces in size after

about 10 seconds.

Press again...Removes display.

Press....Stops sound.

Press again...Returns

sound to previous level.

MPX

Switches Audio mode.

BRIGHT

The brightness can be

switched between 3 levels.

MUTE

LC-15E1H/M

6

LC-13E1H/M

CONNECTING WITH EXTERNAL DEVICES

You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals

located on the rear of the TV set.

When connecting an external device, turn off the power of the main unit first to prevent any possible

damage.

Note:

:

• For the cable, use a commercially available audio/video cord.

• Only connect audio/video signals to AV-IN1 and AV-IN2/OUT terminals. Connecting other signals may result in

a malfunction.

• AV-IN1 has 2 video input terminals: VIDEO and S-VIDEO. When you connect external devices to both terminals

(and if you select AV-IN1), you can only view pictures from the S-VIDEO terminal. To view the picture from the

VIDEO terminal, do not connect any external devices to the S-VIDEO terminal.

• For more information about external device connections, see the manuals of your external devices.

<Example>

• Camcorder

• Home video game system

External devices that can be connected

to COMPONENT terminal

Example of external devices that can be connected

External devices that can be connected

to AV-IN2 terminal

* If your external device has a component

terminal, COMPONENT connection is

recommended (you can view high-quality

pictures).

<Example>

• DVD, etc.

<Example>

• VCR

* If your external device has an S-Video terminal,

S-VIDEO connection is recommended.

External devices that can be connected

to AV-IN1 terminal

Y

P

B

C

O

M

P

O

N

E

N

T

P

R

L

L

R

A

V

-I

N

2

/

O

U

T

V

I

D

E

O

A

U

D

I

O

R

A

U

D

I

O

A

V

-

IN

1

L

R

A

U

D

I

O

S

-

V

ID

E

O

A

N

T

.

V

I

D

E

O

P

O

W

E

R

I

N

P

U

T

D

C

1

2

V

H

E

A

D

P

H

O

N

E

CH

VOL

LANGUAGE DIS.MODE

DISPLAY

BRIGHTSLEEP

MENU

POWER

MPX

-/--

TV

VIDEO

MENU

'

/

"

\

/

|

MENU

MENU

SLEEP TIMER


FEATURE

CH-SETTING

SELECT: ENTER:

EXIT:

SELECTING THE MENU ITEMS

• This LCD TV set allows you to adjust the picture and sound, and set the channels and other features

using the On-Screen Display. Select the desired menu item by following the steps below and then refer

to the indicated page for details.

SLEEP TIMER

menu

PICTURE menu

(TV mode)

FEATURE menu

CH-SETTING

menu

1

Press MENU to display the MENU

screen.

2

Press

'

/

"

to select the desired

menu item.

•

The “

” mark moves up or down.

•

The “

” mark indicates the selected

menu item.

3

Press

\

/

|

to enter.

• The TINT display only appears when

the COLOUR SYSTEM sets N358 or

N443 in the NTSC mode.

• The displayed items differ depending

on the setting conditions.

• The selected item changes to yellow.

• Items in purple cannot be selected.

(AV mode)

Selecting a Menu Item

Note:

* The screen indications shown above are larger than actual for easy reading.

MENU

SELECT:

ADJUST:

EXIT:

CH-SETTING

RETURN

POSITION [CH15 ]

COLOUR SYSTEM [AUTO ]

SOUND SYSTEM [B/G ]

SKIP [OFF ]

FINE [783.25MHz]

NICAM [ON ]

IGR [ON ]

PICTURE (TV)

RETURN

CONTRAST [ 3 0 ]

COLOUR [ 0 ]

BLACK LEVEL [ 0 ]

SHARPNESS [ 0 ]

RED-BLUE [ 0 ]

GREEN [ 0 ]

RESET

MENU

SELECT: ENTER:

EXIT:

00000

0

PICTURE (AV1/AV2/COMPONENT)

RETURN

CONTRAST [ 3 0 ]

COLOUR SYSTEM [AUTO]

COLOUR [ 0 ]

BLACK LEVEL [ 0 ]

SHARPNESS [ 0 ]

RED-BLUE [ 0 ]

GREEN [ 0 ]

RESET

MENU

SELECT: ENTER:

EXIT:

TINT [ 0 ]

0000000

FEATURE

RETURN

BRIGHTNESS [BRIGHT ]

AUTO POWER OFF [OFF ]

DISPLAY MODE [NORMAL ]

AV2 IN/OUT [IN ]

BLUE BACK [ON ]

LANGUAGE [ENGLISH]

MENU

SELECT:

ADJUST:

EXIT:

SLEEP TIMER

RETURN

SLEEP TIMER [---REMAIN]

MENU

SELECT:

ADJUST:

EXIT:

LC-15E1H/M

7

LC-13E1H/M
LC-15E1H/M

DIMENSIONS

ËLC-13E1H/M

Unit: mm

2

VOL

1

PRESET

MAIN POWER

337

59

97

320

VIDEO

AV-IN 2/OUT

AUDIO

COMPONENT

P

P

AUDIO

180

P

SLE

O

W

E

EP

R

157 129

59

5

100

L

R

Y

B

R

L

R

S-VIDEO

VIDEO

AV-IN1

L

AUDIO

R

HEAD

PHONE

ANT.

POWER
INPUT
DC12V

33

100

147

8

LC-13E1H/M
LC-15E1H/M

ËLC-15E1H/M

Unit: mm

2

VOL

1

PRESET

MAIN POWER

379

59

97

352

VIDEO

AV-IN 2/OUT

AUDIO

COMPONENT

AUDIO

198

P

S

OW

L

EE

E

P

R

5

100

L

R

Y

P

B

P

R

L

R

VIDEO

AUDIO

S-VIDEO

L

R

HEAD
PHONE

ANT.

POWER
INPUT
DC12V

AV-IN1

35.2

100

59

156

173 131

9

LC-13E1H/M
LC-15E1H/M

REMOVING OF MAJOR PARTS

1. Remove the table stand fixing screws (4 pcs.).

2. Remove the two terminal covers.

3. Remove the terminal section fixing screws (2 pcs.).

4. Remove the cabinet B fixing screws (6 pcs.).

5. Cabinet A is opend order of 5-1 to 5-6 , and detach the Cabinet B.

6. Remove the top cover fixing screws (2 pcs.).

7. Remove the control PWB fixing screws (2 pcs.).

8. Detach the connector from each PWB.

4

Terminal
Caver (S)

4

5-4

5-5

2

5-6

Cabinet A

5-3

5-2

2

5-1

3

1

Stand

6

8

8

P4001

SC1201SC1202

8

8

P2003SC1203

Digital PWB

P2004

8

4

Cabinet B

Control PWB

8

7

Inverter PWB

P6502

8

SC2001

8

P3703

SC3100

P3702

P6500

8

Terminal
Caver (L)

8

P6501

Analog PWB

8

P3501P3501

8

R/C,LED PWB

P3601P3500

8

8

10

9. Remove the inverter PWB fixing screws (2 pcs.).

10. Remove the digital PWB fixing screws (2 pcs.) (LC-13E1H/M).

10. Remove the digital PWB fixing screws (3 pcs.) (LC-15E1H/M).

11. Remove the analog PWB fixing screws (4 pcs.) and detatch the chassis frame cover fixing hooks.

12. Remove the R/C, LED PWB fixing screws (2 pcs.).

13. Remove the LCD panel unit fixing screws (2 pcs.).

10

(LC-15E1H/M)

9

LC-13E1H/M
LC-15E1H/M

Chassis Frame

Digital PWB

10

Analog PWB

Inverter PWB

11

11

Chassis Frame Cover

12

11

LCD Panel Unit

13

R/C,LED PWB

11

LC-13E1H/M
LC-15E1H/M

» Precautions in handling the LCD panels

1. Work in a clean room (with humidities below 50%).

2. Be sure to wear an anti-static armband.

3. Handle the panels on an electroconductive mat.

4. Be careful not to fall, shake and shock the panels.

14. Remove the LCD panel unit fixing screws (4 pcs.) (LC-15E1H/M).

14. Remove the LCD panel unit fixing screws (2 pcs.) (~LC-13E1H/M).

15. Detach the Prism, diffusion sheets and reflection/deflection sheet.

16. Detach the four reflection mirrors.

17. Remove the lamp unit.

18. Detach the lamp guide plate.

19. Detach the two lamp reflection sheets.

16

Light Guide Plate
(PGiDM0069CEZZ): LC-13E1H/M

Lamp Unit
(KLMP-0120CEZZ): LC-13E1H/M
(KLMP-0122CEZZ): LC-15E1H/M

Lamp Reflection Sheet (Cover)
(PSHEP0306CEZZ): LC-13E1H/M
(PSHEP0307CEZZ): LC-15E1H/M

(PGiDM0070CEZZ): LC-15E1H/M

18

17

Reflection Mirror

Sheilding Plate
(PSLDMA024WJFW): LC13E1H/M
(PSLDM4689CEFW): LC-15E1H/M

Prism Sheet
(PSHEP0277CEZZ): LC-13E1H/M
(PSHEP0282CEZZ): LC-15E1H/M

14

14 ~

14

~

LCD Panel Unit

14

15

Diffusion Sheet
(PSHEP0278CEZZ): LC-13E1H/M
(PSHEP0283CEZZ): LC-15E1H/M

Reflection/deflection Sheet
(PSHEP0276CEZZ): LC-13E1H/M
(PSHEP0281CEZZ): LC-15E1H/M

16

Reflection Mirror

Lamp Reflection Sheet-1

19

(PSHEP0279CEZZ): LC-13E1H/M
(PSHEP0284CEZZ): LC-15E1H/M

Lamp Reflection Sheet-2
(PSHEP0280CEZZ): LC-13E1H/M
(PSHEP0285CEZZ): LC-15E1H/M

12

LC-13E1H/M

P3501

LC-15E1H/M

Precautions at the time of the side B(back) service of digital unit.

1. Remove only SC2001 of the FFC for connection between Digital unit(SC2001) and Analog unit(SC3403), and
connect the extended cable (QCNW-A324WJZZ) for service.

2. Remove only P2004 of the Cable for connection between Digital unit(P2004) and Analog unit(P3702), and connect
the extended cable (QCNW-A552WJZZ) for service.

3. Remove the R/C, LED unit.
3-1. Remove a lead from a wire holder.
3-2. Remove the R/C, LED unit fixing screws(2 pcs.).

4. Remove the main unit fixing screws(3 pcs.), a substrate is reversed.

Digital PWB
(Side B)

P4001

SC1201SC1202

Digital PWB

P2003SC1203

P2004

Analog PWB

P3501

P3501

P3601P3500

4

P6501

P6500

Inverter PWB

P6502

1

SC2001

2

P3703

SC3100

P3702

R/C,LED PWB

3-2

3-1

Wire Holder

13

LC-13E1H/M
LC-15E1H/M

ADJUSTING PROCEDURE OF EACH SECTION

Preparation for Adjustments

Use the dedicated AC adaptor or stable DC power supply.
AC adaptor: UADP-A021WJPZ
DC power supply: 12 ± 0.5V, 4.0 (A)

[1] Adjusting procedure

1-1. Checker adjustment

Power ON (initialization) → Setting of model and inch size → Model data transfer to the setting E2PROM (I2C)
→ Adjustment processing mode → Adjustment (+B adjustment)

1-2. Finish processing adjustment

Setup → Power ON → Adjustment processing mode (Remote control) → Counter bias, TV contrast and white
balance adjustments

[2] Entering the adjustment processing mode

There are the following two methods.

• Setting the pin (81) (KEY4) or pin (82) (KEY5) of IC2001 (microprocessor) to "L", turn on the power.

• When service is given: POWER button is made on with pushing TV/VIDEO and MENU buttons at the same

time.(K of the inspection process mode is displayed by the upper left of the image plane.) → Next, CH (Ù) and
VOL (–) buttons are pushed at the same time.(It becomes the image plane of the adjustment process

mode.).....When it is canceled, it is made to turn it off.(Even off in the POWER button, off with R/C are good.)

[3] Key operation in the adjustment processing

Selection of the receiving channel

• The receiving channel UP/DOWN is performed with the CH (ù)/(Ù) buttons.
One push ... The UP/DOWN tuning is performed per channel.
Continuous push ... The UP/DOWN search is performed until a next receivable station is found.

• Various adjustments
The adjustment is performed for each item by the MENU, VOL (+)/(–) buttons (main body and remote control).

• Adjustment item is chosen with the MENU cursor UP/DOWN buttons.

• The adjustment item makes a toggle operation with the MENU button input. (Next item)

If the MENU button is input while the bottom item is selected, it moves to the top item on the next page.

[4] Initialization

4-1. Connect the pins (81) and (82) of IC2001 (microprocessor) to GND, and turn on the power.
4-2. Select the model name (E1H).
4-3. Select the inch size (13):LC-13E1H/M and (15):LC-15E1H/M.

14

[5] Adjustment

5-1. +B adjustment...R3760 and a half fixations VOL

1) Receive the colour bar signal.

2) Adjust the voltage of the pin (2) of P3702 to 5.00±0.02V.
Note: Since 5.0V is a reference voltage of all power voltage, adjust it precisely.

5-2. Counter-bias adjustment...Page 2 COM BIAS

Vary the "COM BIAS" setting on Page 2 of the adjustment process so that the contrast be sharpest (black looks
most sinking). The adjustment guideline is around "115" for models LC-13E1H/M and "113" for models LC­15E1H/M.

5-3. TAMP adjustment

1) Receive the colour bar signal.

2) When reading value of adjustment process the page 2 "Y" is not within value of the bottom table, the adjustment
of "NTSC TAMP" of the same page is done, and reading value of "Y" is made to be within value of "BF" to
"C9".

3) If the adjustment of "NTSC TAMP" is executed, write its adjustment value to the followings manually.

"PAL TAMP"
"SECAM TAMP"
"PAL-M TAMP"
"PAL-N TAMP"

LC-13E1H/M
LC-15E1H/M

(Screen of the page 2 of the adjustment processing menu OSD)

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

0
1
2
3
4
5
6

7
8

9

10
11

12
13

2

COM B I AS
NTSC T AMP 24

PAL TAMP 24
SECAM TAMP 24

PAL - M TAMP 24

PAL - N TAMP 24
RCUTOF F
GCUTOF F

BCU TOF
G3 B3 R3 00 00 00
G1 B4 Y 0 0 00 CO

TAMP H

TAMP L

~:115=LC-13E1H/M, 113=LC-15E1H/M

F

Y Data

(White 75%)

~

–

7
0

– 3

C9
BF

5-4. White balance adjustment

1) Receive the monoscope pattern signal.

2) Adjust "RCUT OFF" and "BCUTOFF" on the page 2 of the adjustment processing so as to obtain the colour of
the same level as the standard set.
Caution: For the adjustment processing of "RCUTOFF" and "BCUTOFF", adjust them in the indication value
range of ... –9, –7, ... –1, +1, ... +7, +9.
When it becomes even-numbered value, side favor noise sometimes occurs in the monochrome signal of the
specific gradation.

15

LC-13E1H/M
LC-15E1H/M

5-5. Screen position adjustment (Only for LC-13/15E1H)

1) Set the value of "PAL SFIF" setting in page 13 of adjustment process as "11" from "7".

(Page 13 of adjustment process OSD)

0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

0
1
2
3
4
5
6

7
8

9

10
11

12
13

31

PAL TV COLOR
PAL AV COLOR
PAL TV T I NT
PAL TV
PAL BR I GHTNESS
PAL
PAL TV H - PEAK I NG
PAL AV
PAL TV AVO TSRTA
PAL SF I F
PAL SC I NC1
PAL TV LDL Y
PAL TV

­PEAKING F I LTER

-

TINT

H-PEAKING

LDLY

3100
3100

+70
+70

+8

0
3

3

512

7

9513

-2

-2

Set the "PAL SFIF"
setting to "7"

16

[6] Lamp error detection

6-1. Functional description

This LCD colour television has a function (lamp error detection) to be turned OFF automatically for safety
when the lamp or lamp circuit is abnormal.
If the lamp or lamp circuit is abnormal, or some other errors happen, and the lamp error detection is executed,
the followings occur.
1 The main unit of television is turned OFF 5 seconds after it is turned ON. (The power LED on the front side

of TV turns from green to red.)

2 If the situation 1 happens 5 times sequentially , television can not be turned ON. (The power LED remains

red.)

6-2. Countermeasures
6-2-1. Check when turning OFF the lamp error detection

When television is turned OFF by the lamp error detection mentioned above, it enters the adjustment
process with the power LED red. Entering the adjustment process turns OFF the error detection and turns
ON TV.
This enables the operation check to detect errors in the lamp or lamp circuit.
Check whether "ERROR NO RESET" on line 8, page 1 of the adjustment process is 1 or more. If it is 1 or
more, it indicates the lamp error detection was executed.

6-2-2. Resetting of the lamp error count

After confirming that the lamp or lamp circuit is normal, reset the lamp error count. Select "ERROR NO
RESET" on line 8, page 1 of the adjustment process and set the number to 0 using the volume button.

LC-13E1H/M
LC-15E1H/M

Page 1 of the adjustment process

1

M O D E L E1H
I N C H S I Z E ~1
N T S C P W M F R E Q 0C0
P A L P W M F R E Q 0BD
N T S C P W M D U T Y 0
P A L P W M DU T Y 0
T V G A I N OFF
E R R O R N O R E S E T 5
P U B L I C M O D E ON

E 1 H V E R 1 . 0 0

Reset 0

~1 : 13=LC-13E1H/M, 15=LC-15E1H/M

Afterwards, perform the operation check to confirm that the lamp error detection does not function.

17

LC-13E1H/M
LC-15E1H/M

[7] PUBLIC MODE

• How to enter into PUBLIC MODE

1.Turn off TV by pressing MAIN POWER switch.

2.While pressing VOL(+) key and CH(ù) buttons at the same time, press MAIN POWER switch.
For more than 2 seconds.
TV will turn on, and you will see the screen display a setting of PUBLIC MODE.

• Setting screen of "PUBLIC MODE"

PUBLIC MODE
MAXIMUM VOLUME [ 60]
VOLUME FIXED [VARIABLE]
REMOTE CONTROL [RESPOND]
USER CONTROL [RESPOND]
ON SCREEN DISPLAY [YES ]
AV1 INPUT [NORMAL ]
RESET
ENTER

1 ↔ 2 ··· ↔ 59 ↔ 60
VARIABLE ↔ FIXED
RESPOND ↔ LIMITED
RESPOND ↔ NO RESPOND
YES ↔ NO
NORMAL ↔ START ↔ AV1 FIXED

Factory setting

Adjust setting

1. You can select each item of functions by pressing cursor UP/DOWN buttons on the remote control or CH(ù)/
(Ù) buttons on the LCD TV. The letter of selected item turns to yellow colour when you selected it.

2.The setting position of each item of functions are made by pressing MENU cursor RIGHT/LEFT buttons on
the remote control or VOL(+)/(–) buttons on the LCD TV.

3.Select ENTER position after you set all functions, and press MENU cursor RIGHT/LEFT buttons on the
remote control or VOL(+)/(–) buttons on the LCD TV for confirmation.
Unless otherwise you make ENTER confirmation, the settings will not be memorized.

6-functions of Public Mode settings expand for public application.

1. MAXIMUM VOLUME(1--------60)
You can set the maximum volume at your desire level.

2. VOLUME FIXED (VARIABLE/FIXED)
You can fix the sound volume at your desire level.
When you set to "FIXED", the sound volume which you just set is fixed.

3. REMOTE CONTROL (RESPOND/LIMITED)
If you set "LIMITED", remote control button of POWER, CH(ù)/(Ù), VOL(–)/(+) and BRIGHT are responded,
but other buttons are not responded.
This is a position that you can not make MENU adjustments.

4. USER CONTROL (RESPOND/NO RESPOND)
"NO RESPOND" means that the TV does not respond when you press a user control buttons except POWER
button on the main unit.

5. ON SCREEN DISPLAY (YES/NO)
If you set "NO" position, OSD will not appear.

6. AV1 INPUT (NORMAL/START/AV1 FIXED)
Some application use DVD or VCR connecting to AV1 input of our monitor and you will not want to change it to
other mode, such as Component or AV2 input.
You can set the position of input "AV1 FIXED".
For other application that you want to start AV1 every time when you press POWER button, and you may select
other input mode after then, set it at "START" position.

7. RESET
You can cancel all Public Mode settings. (It returns to the factory setting.)

8. ENTER
You make sure after you have specified all functions, then press the enter key. Unless otherwise you press the
enter key, all positions that you have selected will not be set.

18

TROUBLE SHOOTING TABLE

No or Wrong

LC-13E1H/M
LC-15E1H/M

Does the IC801
test pattern appear
properly?

Yes

Check the IC801 signal
output line, IC801 itself
and its peripheral
circuits.

Are the waveforms at the signal
input pins of IC801 as specified?
TV/Composite … Pin (73)
S Video … Pins (71) and (72)
Component … Pins (4), (5), (6)
and (75)

Yes

No

Does the IC1201 test
pattern appear
properly?

Yes

Check IC1201 and its
peripheral circuits as
well as the LCD panel
voltage and waveform.

No

Are the waveforms at
pins (10), (11), (13),
(15) and (17) of IC1201
as specified?

Yes

No

No

Check the related lines,
IC801 itself and its
peripheral circuits.

Check IC801 and its
peripheral circuits.

Check the IC801 signal
input line.

19

LC-13E1H/M

No picture

at all

Yes

No

Are inputs

and outputs

of IC801 as

specified?

Check all the settings on the microprocessor

’s adjust process menu.

No picture

Check IC801

and its

peripheral

parts.

Yes

No

Are inputs

and outputs

of IC1201 as

specified?

Check

IC1201 and

its peripheral

parts.

Check LCD

panel voltage

and

waveform.

No TV and

VIDEO 1

output

Yes

No

Are inputs

and outputs

of IC402 as

specified?

Check IC402

and its

peripheral

parts.

No

Is input at pin

(73) of IC801

as specified?

Check IC801,

AV1 line and

their

peripheral

parts.

No TV

output

Yes

No

Are voltages

at pins (6), (7)

and (9) of

tuner as

specified?

Check the

power line.

Yes

No

Is output at

pin (19) of

tuner as

specified?

Check the

tuner and its

peripheral

parts.

No

Is input at pin

(3) of IC402

as specified?

Check the

line in

question.

Yes

Check IC402

and its

peripheral

parts.

Yes

No

Are pins (2)

and (4) of

IC402 at “H”

and “L”

respectively?

Are pins (65)

and (66) of

IC2001 at “H”

and “L”

respectively?

No VIDEO

1 or 2

output

Yes

No

Are inputs

and outputs

of IC402 as

specified?

Check IC402

and its

peripheral

parts.

No

No S

VIDEO

output

No

Are inputs at

pins (71) and

(72) of IC801

as specified?

Check

SC3405, SY

line, SC line

and

peripheral

parts.

No

COMPONENT

output

No

Is input at

pins (4), (5),

(6) and (75)

of IC801 as

specified?

Check J3404,

DVD-Y line,

PB line, PR

line and

peripheral

parts.

Yes

Check the

line in

question.

Is input at Pin

(73) of IC801

as specified?

Check IC801,

AV1 line and

their

peripheral

parts.

LC-15E1H/M

TROUBLE SHOOTING TABLE (Continued)

20

TROUBLE SHOOTING TABLE (Continued)

No picture and sound

Yes

No

Do F3701 and F3702

function?

Check all the settings on the microprocessor s adjust process menu.

No

Are secondary outputs

(+33V, +9V, +5V, -8V, -20V)

of T3701 as specified?

Yes

Are the oscillation waveform

at T3701 s primary side as

specified?

Yes

No

Disconnect F3701 and

F3702. Is the load side

short-circuited?

Yes

No

Is any of T3701 s primary

side, Q3700 and S4701 short-

circuited?

Check J3701, its peripheral

parts and connection cable.

Replace F3701 and F3702.

Check S4701 and

connection cable.

Check the secondary-side

load of T3701.

Fluorescent lamp

Yes

No

Do F6500 and F6501

function?

Yes

No

Is pin (34) of IC1201 at H ?

Yes

No

Are the oscillation waveforms

at the primary side of T6500

and T6502 as specified?

Yes

Replace F6500 and F6501.

Yes

Check the line, IC1201 and

its peripheral parts.

Check D6500, Q6500 ~

Q6505, T6500 ~ T6503

peripheral parts.

Replace the fluorescent lamp

and check the oscillation

waveform again.

No colour

No TV colour

No S-VIDEO colour

No

Is input at pin (71) of IC801

as specified?

Check SC3405, SC line and

peripheral parts.

No VIDEO colour

Check all the settings on the microprocessor s adjust process menu.

No COMPONENT colour

No

Is input at pins (4) and (6) of

IC801 as specified?

Check J3404, PB line, PR line

and peripheral parts.

LC-13E1H/M
LC-15E1H/M

21

LC-13E1H/M

No sound

from

speakers

Yes

No

Is pin (53) of

IC2001 at L ?

Check all the settings on the microprocessor s adjust process menu.

No sound

No

Are outputs at

pins (1) and (7)

of IC3301/IC3302

/IC3303 as

specified?

Yes

No

Are inputs at

pins (2) and (4)

as well as

outputs at pins

(8) and (12), all

of IC3305, as

specified?

Muting effect is

on. Check the

FSMUTE line.

Check IC3301,

IC3302, IC3303

and their

peripheral parts.

Check the line

in question,

IC3305 and its

peripheral

parts.

Yes

Check the

speakers and

their peripheral

parts.

No sound

from

headphone

Yes

No

Is pin (55) of

IC2001 at L ?

Check the

headphone and

its peripheral

parts.

Check Q2007,

J3500 and their

peripheral

parts.

No sound

from output

line

Yes

No

Is pin (58) of

IC2001 at L ?

No

Are outputs at

pins (14) and

(15) of IC3501

as specified?

Yes

Check the line

in question.

Check the

LMUTE line.

Check IC3501,

IC3304 and its

peripheral

parts.

TV sound

failure

Yes

No

Is output at pins

(15) and (16) of

tuner as

specified?

No

Is input at pin

(67) of IC3304

as specified?

Yes

Check IC3304,

X3301 and

their peripheral

parts.

Check the

tuner and its

peripheral

parts.

Check Q3201,

Q3202 and

their peripheral

parts.

LC-15E1H/M

TROUBLE SHOOTING TABLE (Continued)

22

CHASSIS LAYOUT

H

CONTROL Unit

G

LC-13E1H/M
LC-15E1H/M

DIGITAL Unit

INVERTER Unit

F

E

ANALOG Unit

D

C

B

R/C, LED Unit

A

654321

23

LC-13E1H/M

5

Q

C

R

E

LC-15E1H/M

BLOCK DIAGRAM

H

G

E

I2C

TUNER

TU3201

AV1

S-VIDEO

INPUT

AV2

INPUT

OUTPUT

F

COMPONENT

INPUT

DC IN

DC12V

TV- V

SIF

SY, SC

V1

L1, R1

L2, R2

Y, PB, PR

DL, DR

AUDIO
IN/OUT
SWITCH
IC3501

Q3500

DECODER

AUDIO

(MSP)

IC3304

I2C

SIF-AMP.

Q3201
Q3202

V2/VO

VIDEO
IN/OUT
SWITCH

Q3501-Q3505

ANALOG UNIT

V2

VOUT

AUDIO

FILTER

IC3301
IC3302
IC3303

TV- V
V1
V2

VIDEO

SWITCH

IC402

SYNC

SEPARATER.

Q401

IC 401

CVIN

REGULATOR

IC 3702

HOT

38V

9V

5V

-8V

-20V

INVERTER UNIT

INVERTER

Q6500, Q6501

T6500, T6501

Q6503, Q6504

T6502, T6503

31V

Q3707

29V

3704

8V

Q3706

AUDIO

AMPLIFIER

IC3305

HEAD

PHONE

JACK

SP-L

SP-R

IREMI, POWOUT TIM

D4014
D4015

DC/DC

D

C

B

A

T3701

IC3701

Q3700
Q3701
Q3702

LAMP

CHECK

LAMPS

COLD

CSYN

L_E

LED

LED U

87109654321

24

VIDEO

WITCH

IC402

SY, SC

LC-13E1H/M
LC-15E1H/M

DIGITAL UNIT

I2C

V

VIDEO

DECODER

(VPC)
IC801

FIFO

IC1202

LCD

CONTROLLER

IC1201

LCD

PANEL

NC
RATER.
401

401

CVIN

CSYNC

POWOUT TIMED

L_ERR

5V REG

IC703

BUFFER

Q402

IC

MPU

2001

3.3V REG.
IC 702

CK, VD, HD, OSD-RGB

3WIRE

BUS-SWITCH

KEY1, KEY2, PSWIN

RESET

IC2002

IC 2003

E2PROM

IC 2004

I2C

DAC
IC1101
IC1111

GRADUATION

POWER FOR

LCD

IC1102-IC1108

IC1110
IC1112
IC1114
IC1115

COMMON

IC1113
IC1109

Q1101
Q1102
Q1108
Q1109

LCD
POWER
TIMING

IC1116

Q1103
Q1104
Q1105

LED
D4014
D4015

RECEIVER

RMC4002

LED UNIT

R/C

POWER

SWITCH

OPERATION UNIT

CONTROL

KEYS

25

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

MODELS LC-13E1H/M OVERALL WIRING DIAGRAM

H

G

F

E

D

C

B

A

87109654321

26

LC-13E1H/M
LC-15E1H/M

27

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

MODELS LC-15E1H/M OVERALL WIRING DIAGRAM

H

G

F

E

D

C

B

A

87109654321

28

LC-13E1H/M
LC-15E1H/M

29

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

DESCRIPTION OF SCHEMATIC DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. The voltages at test points are measured on
exclusive AC adaptor and the stble supply voltage
of AC 120V. Signals are fed by a color bar signal
generator for servicing purpose and the above
voltages are measured with a 20k ohm/V tester.

INDICATION OF RESISTOR & CAPACI­TOR:

RESISTOR

1. The unit of resistance “Ω” is omitted.
(K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted.
(J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/16W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise
noted.

C

: Solid
S : Oxide Film T : Special
N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted.
(P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise
noted.

(ML): Mylar (TA): Tantalum
(PF): Polypro Film (ST): Styrol

W

: Cement

CAUTION:

This circuit diagram is original one, therefore there may be a
slight difference from yours.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE
IMPORTANT FOR MAINTAINING THE SAFETY OF
THE SET. BE SURE TO REPLACE THESE PARTS
WITH SPECIFIED ONES FOR MAINTAINING THE
SAFETY AND PERFORMANCE OF THE SET.

30

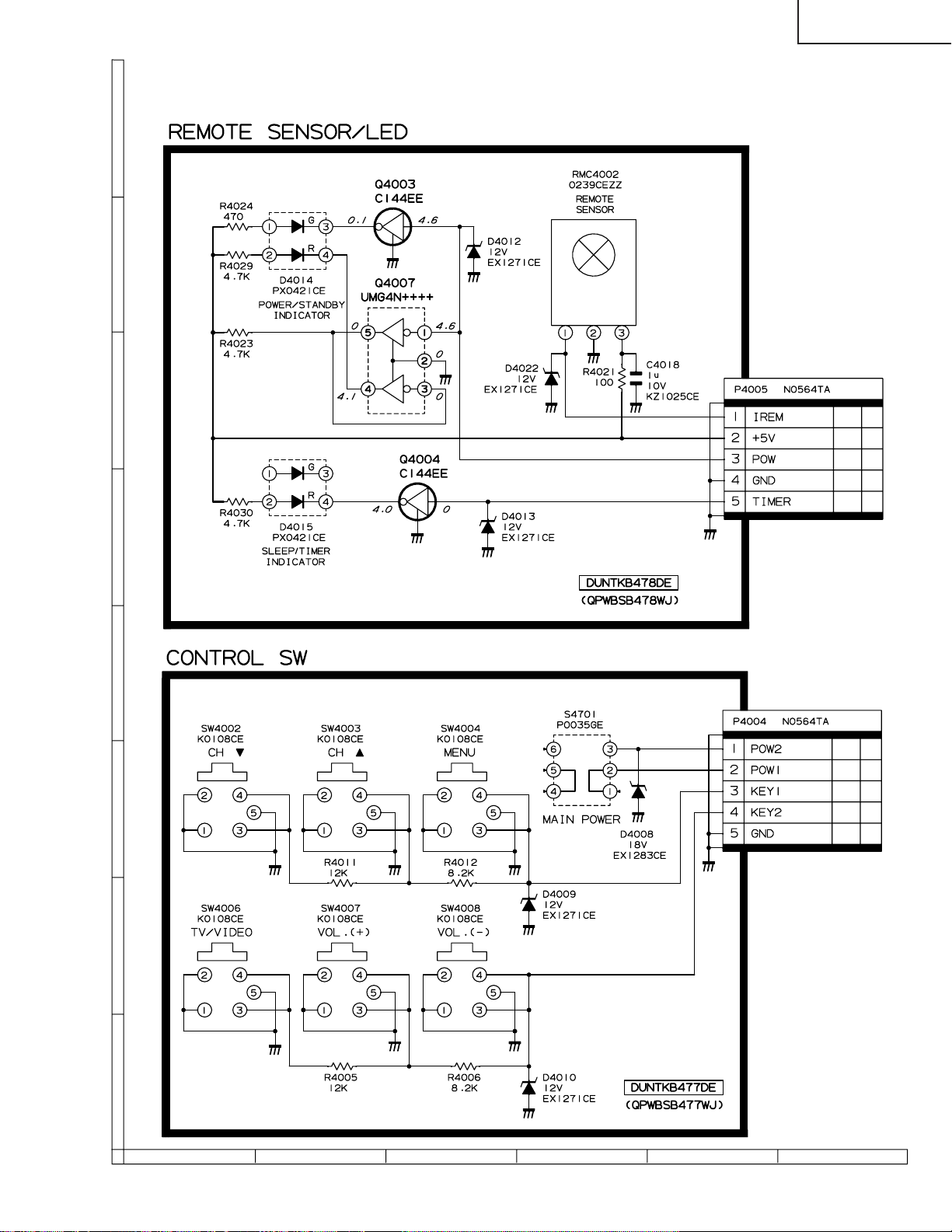

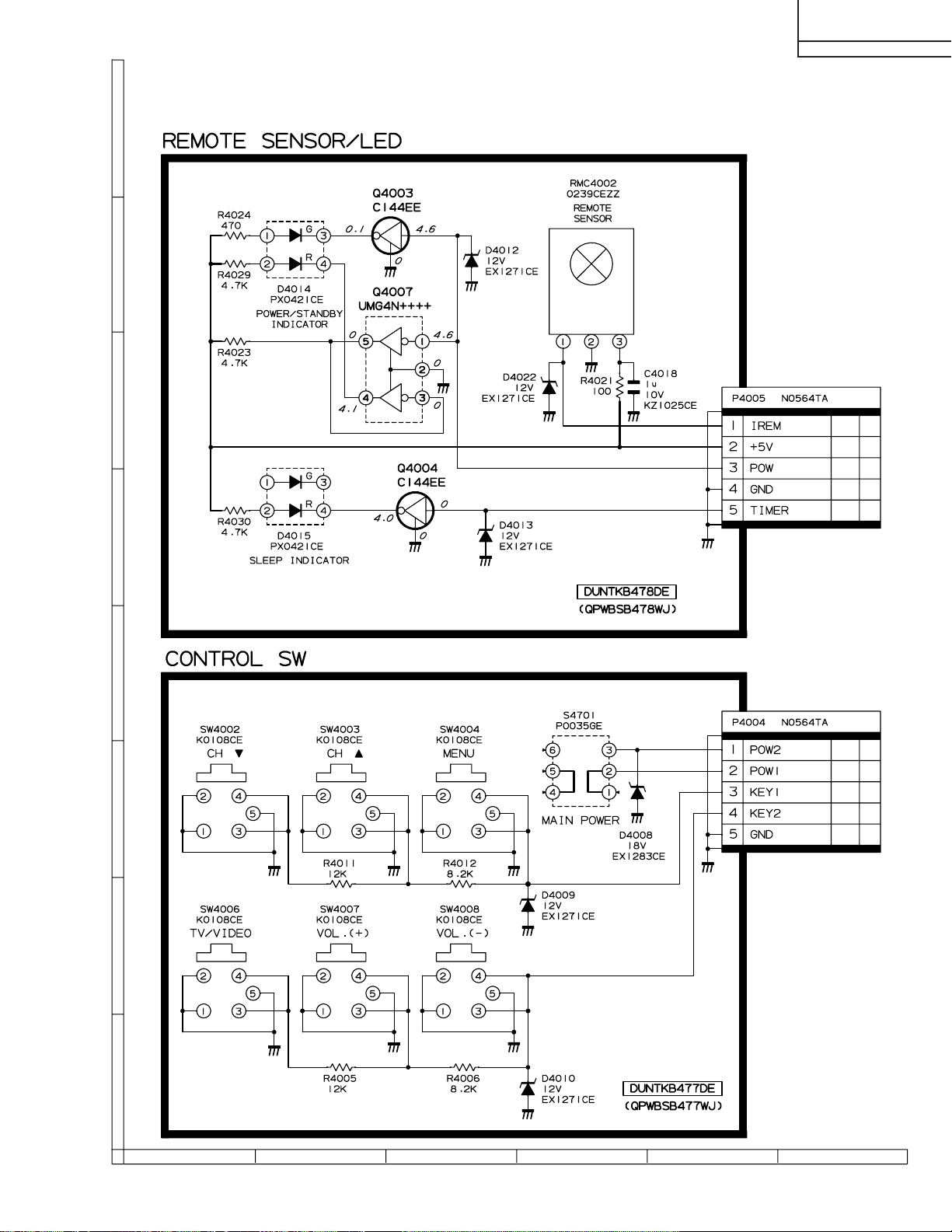

SCHEMATIC DIAGRAM

Ë

R/C, LED and CONTROL Unit

H

G

F

LC-13E1H/M
LC-15E1H/M

E

D

C

B

A

654321

31

LC-13E1H/M
LC-15E1H/M

Ë

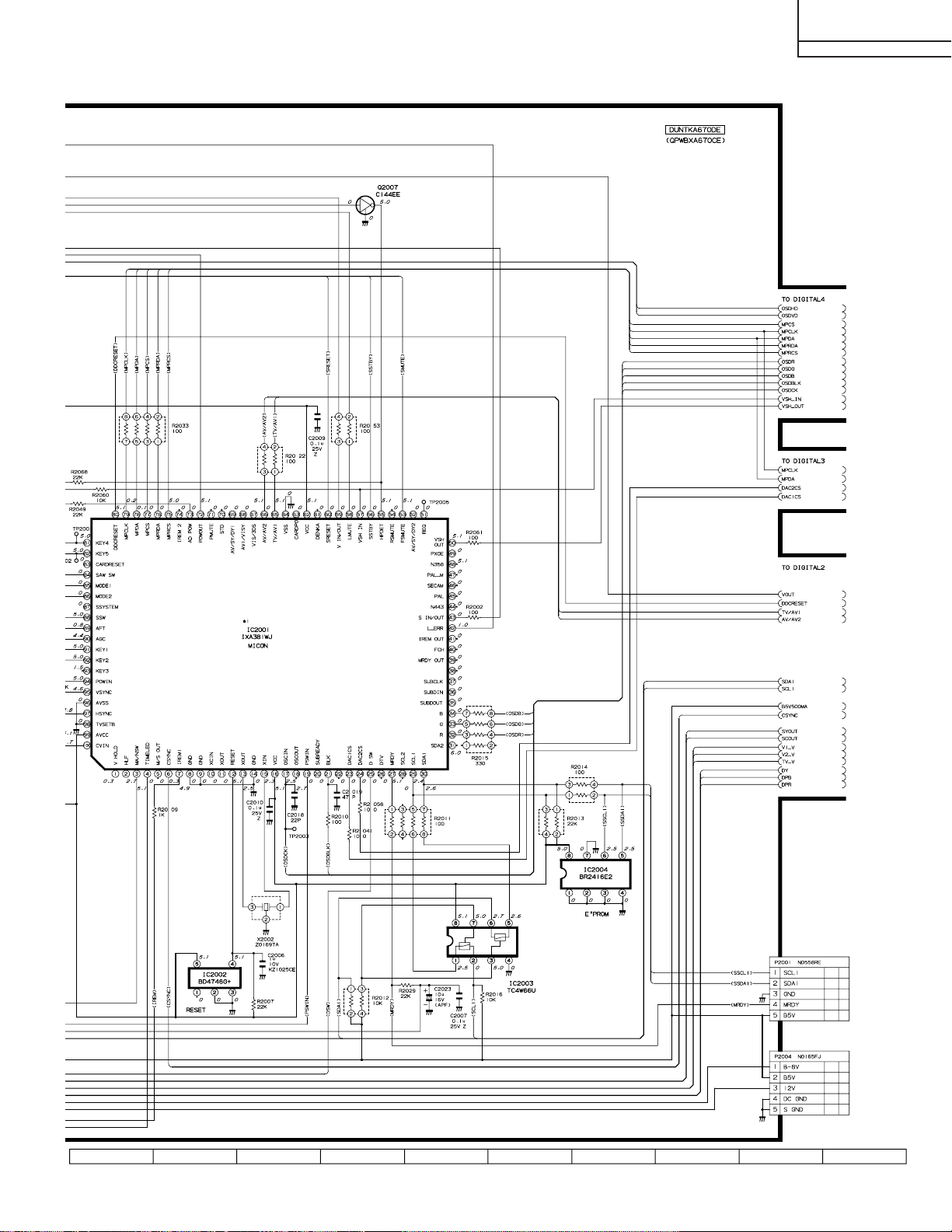

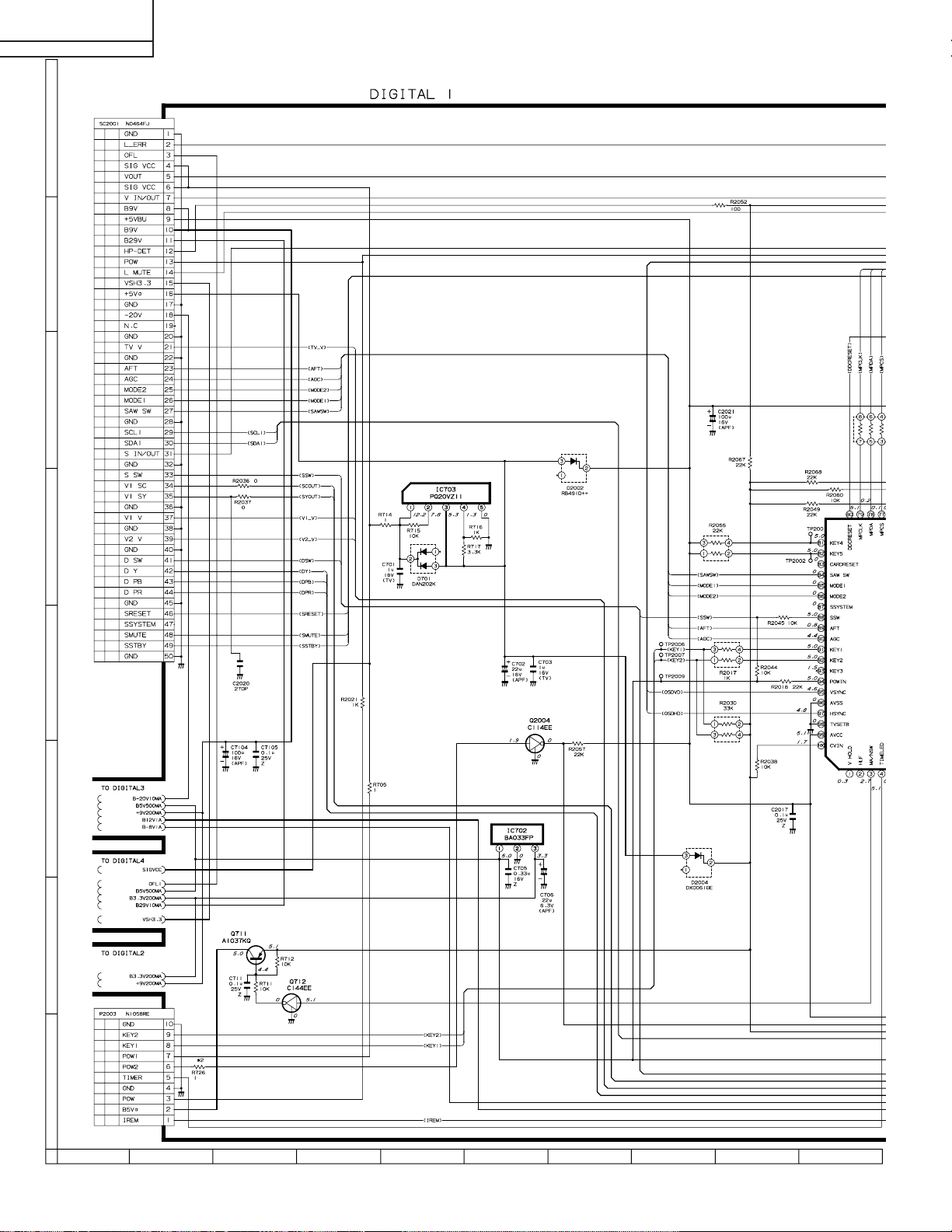

DIGITAL Unit-1/4

H

G

F

E

D

C

B

A

87109654321

32

LC-13E1H/M
LC-15E1H/M

33

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

DIGITAL Unit-2/4

H

G

F

E

D

C

B

A

87109654321

34

LC-13E1H/M
LC-15E1H/M

35

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

DIGITAL Unit-3/4

H

G

F

E

D

C

B

A

87109654321

36

LC-13E1H/M
LC-15E1H/M

37

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

DIGITAL Unit-4/4

H

G

F

E

D

C

B

A

87109654321

38

LC-13E1H/M
LC-15E1H/M

39

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

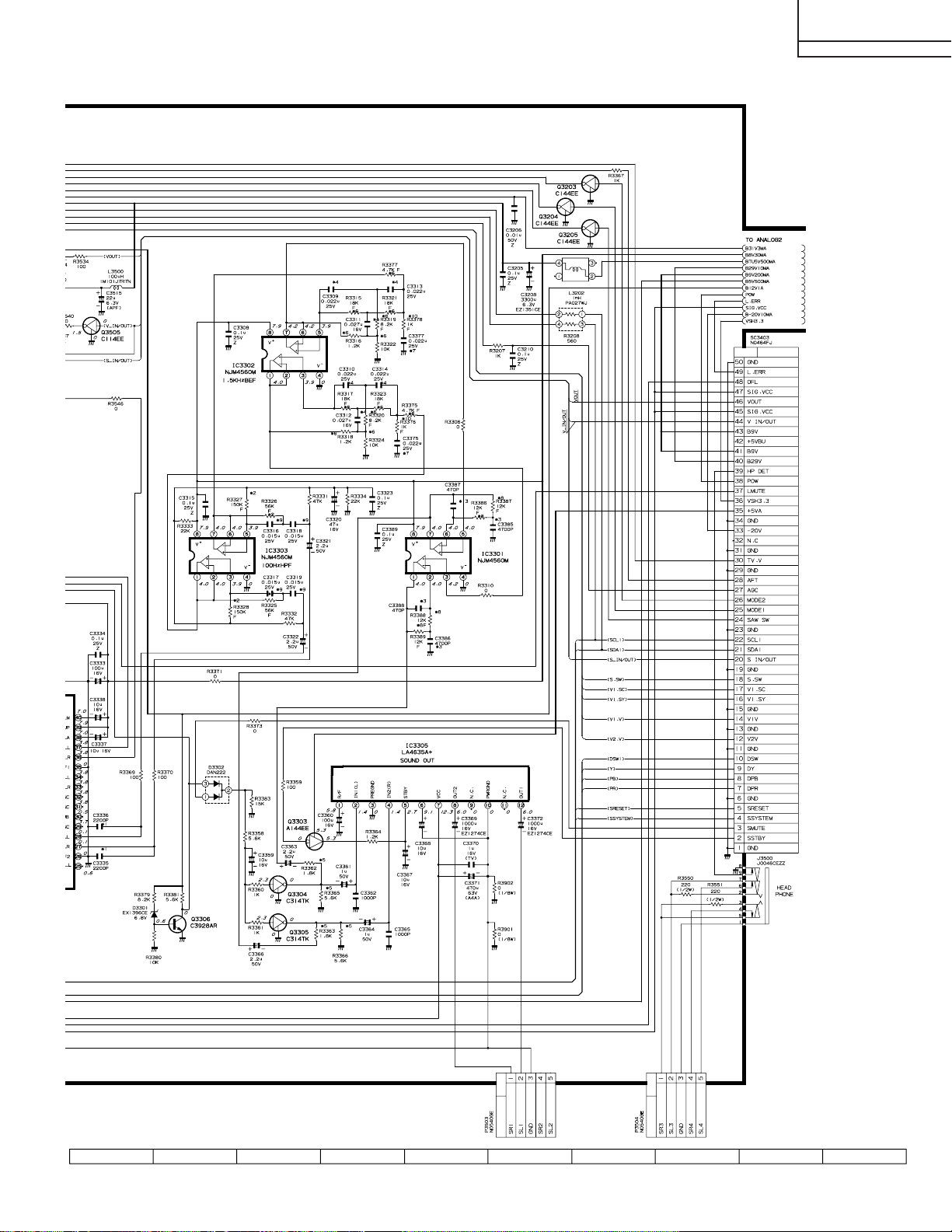

ANALOG Unit-1/2 (LC-13E1H/M)

H

G

F

E

D

C

B

A

87109654321

40

LC-13E1H/M
LC-15E1H/M

41

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

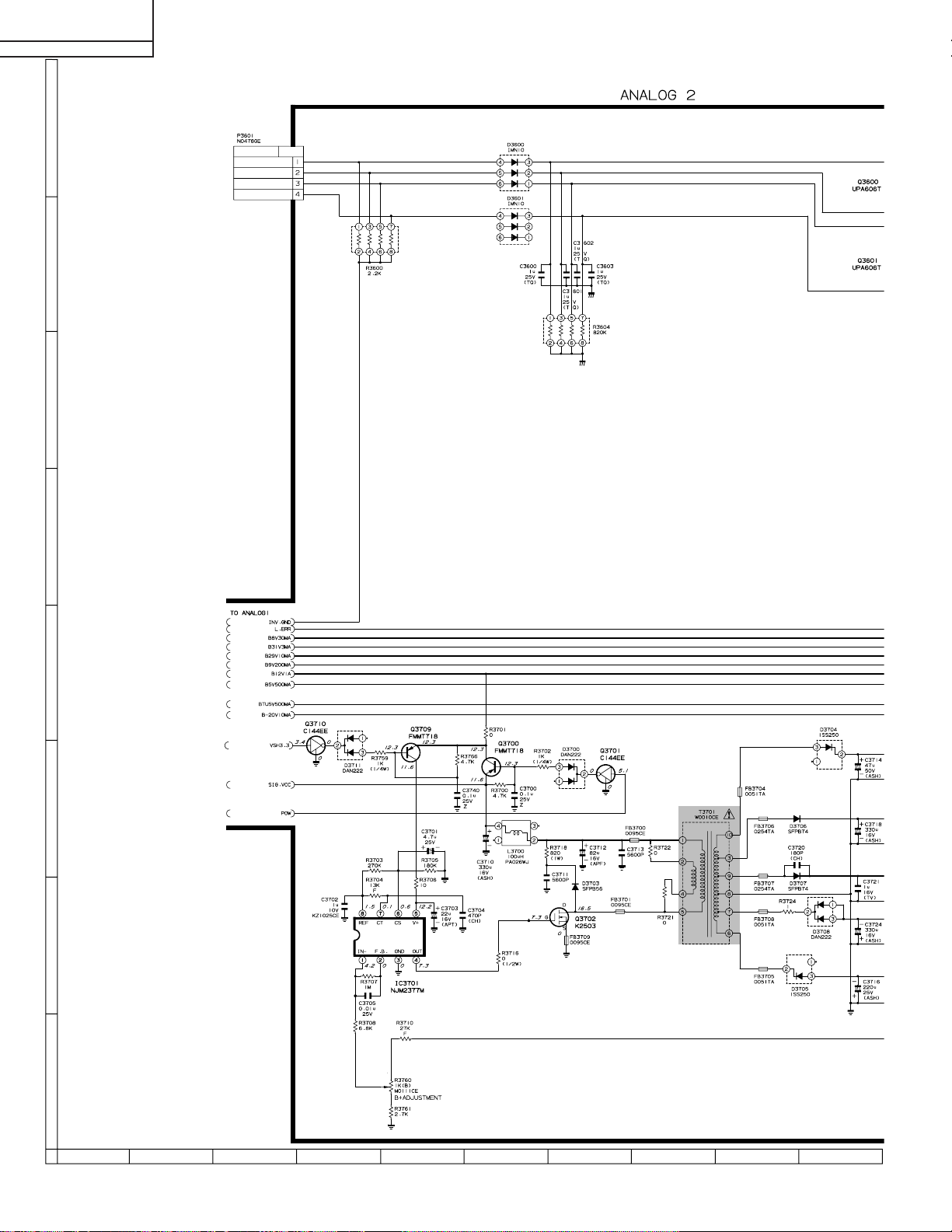

ANALOG Unit-2/2 (LC-13E1H/M)

H

G

F

E

D

C

B

A

87109654321

42

LC-13E1H/M
LC-15E1H/M

43

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

ANALOG Unit-1/2 (LC-15E1H/M)

H

G

F

E

D

C

B

A

87109654321

44

LC-13E1H/M
LC-15E1H/M

45

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

ANALOG Unit-2/2 (LC-15E1H/M)

H

G

F

E

D

C

B

A

87109654321

46

LC-13E1H/M
LC-15E1H/M

47

1716 1918151413121110

LC-13E1H/M
LC-15E1H/M

Ë

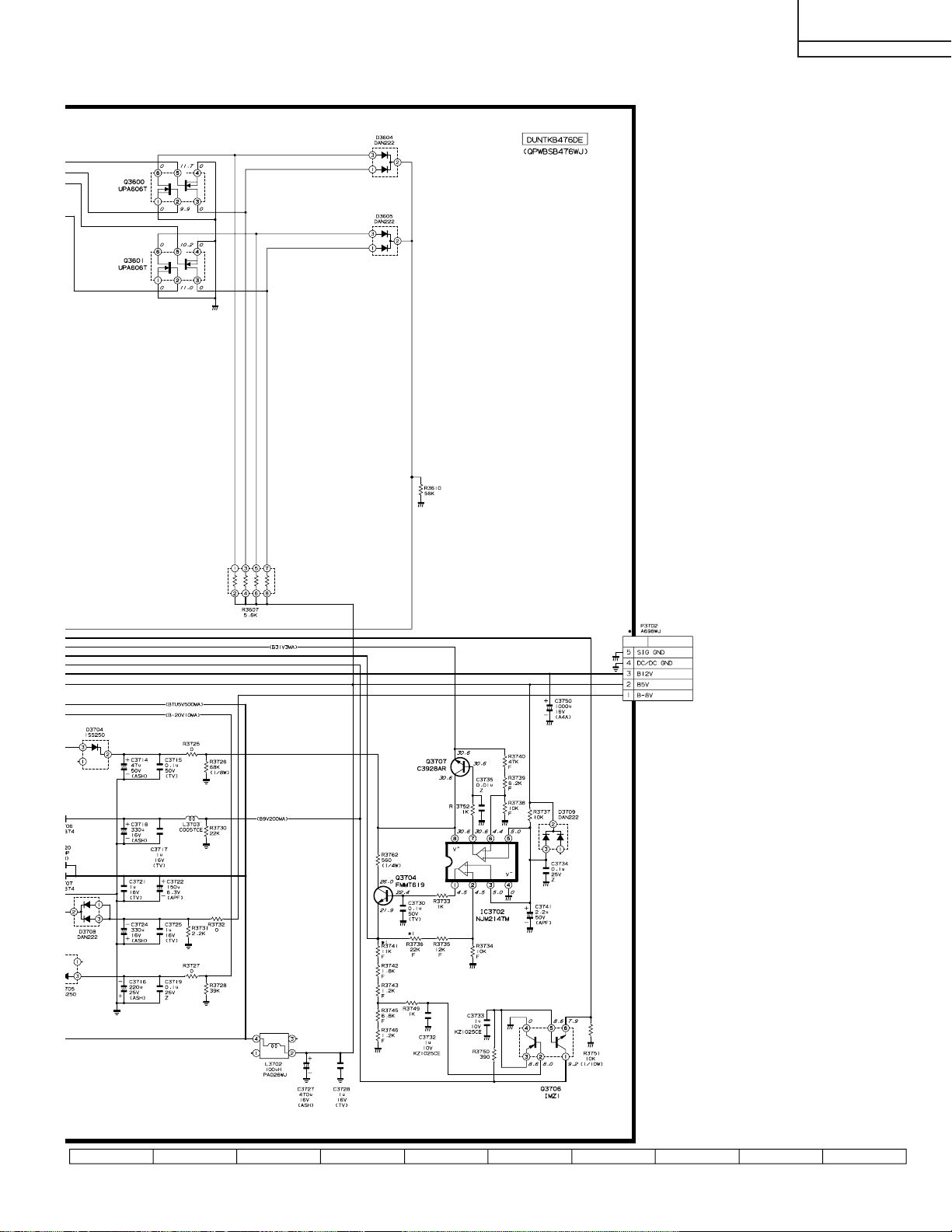

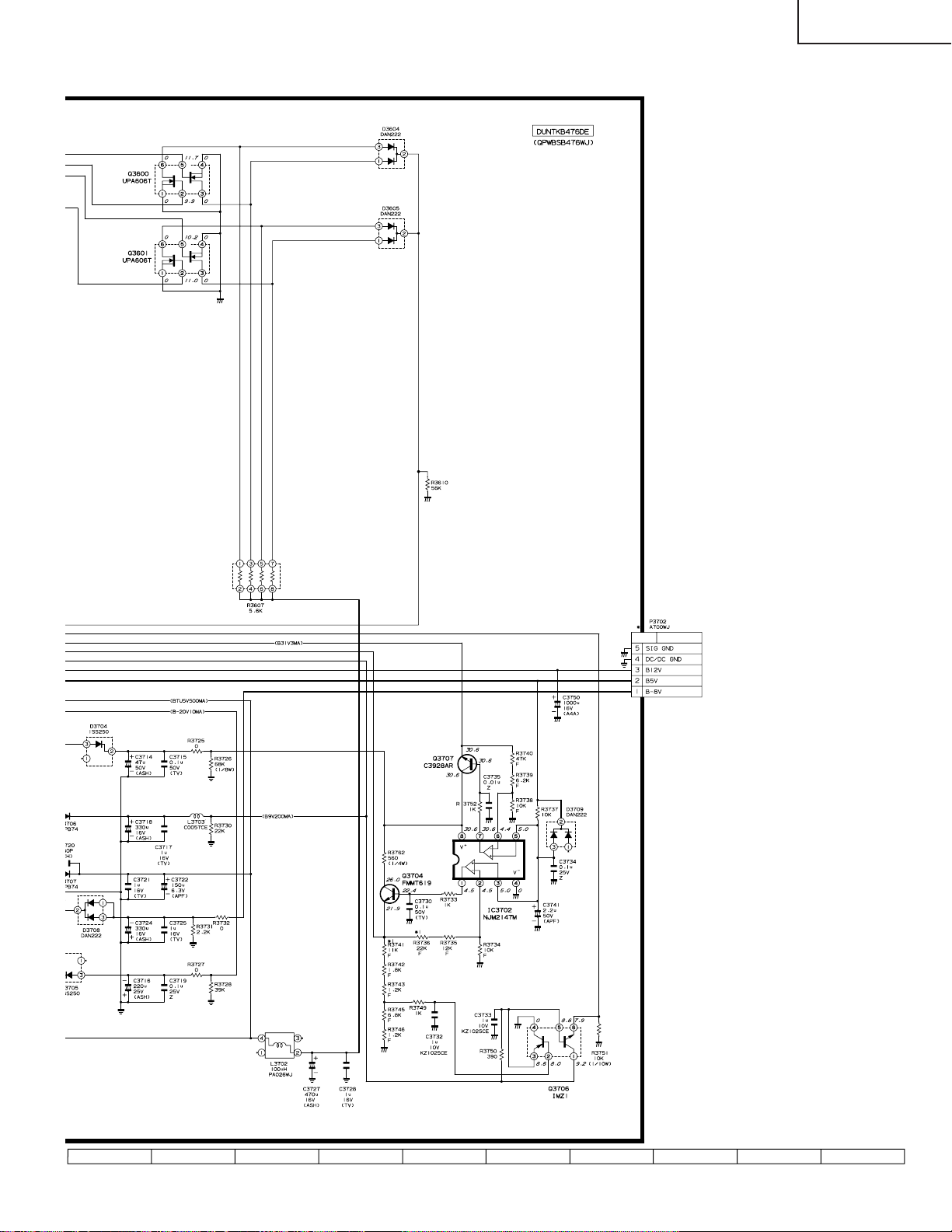

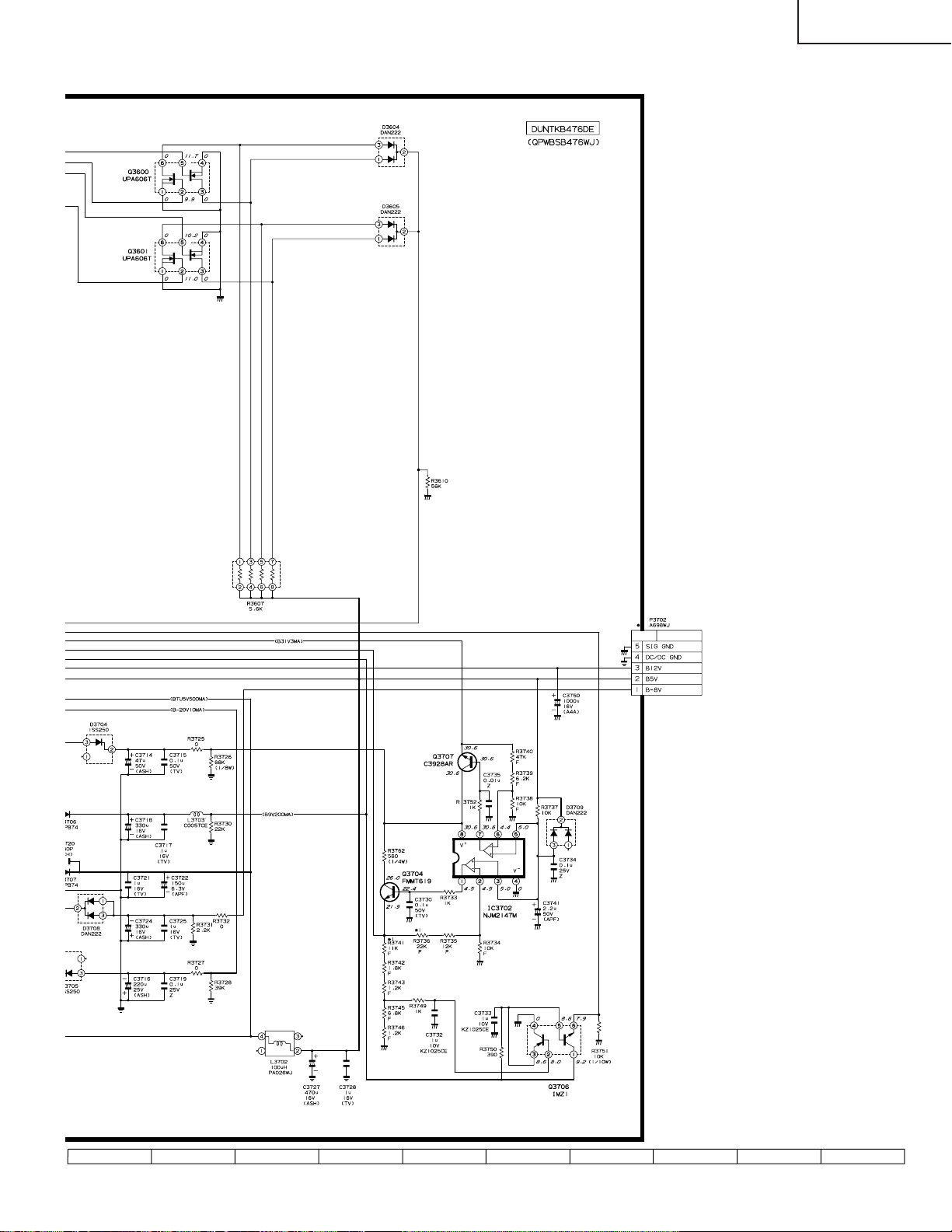

INVERTER Unit

H

G

F

E

D

C

B

A

654321

48

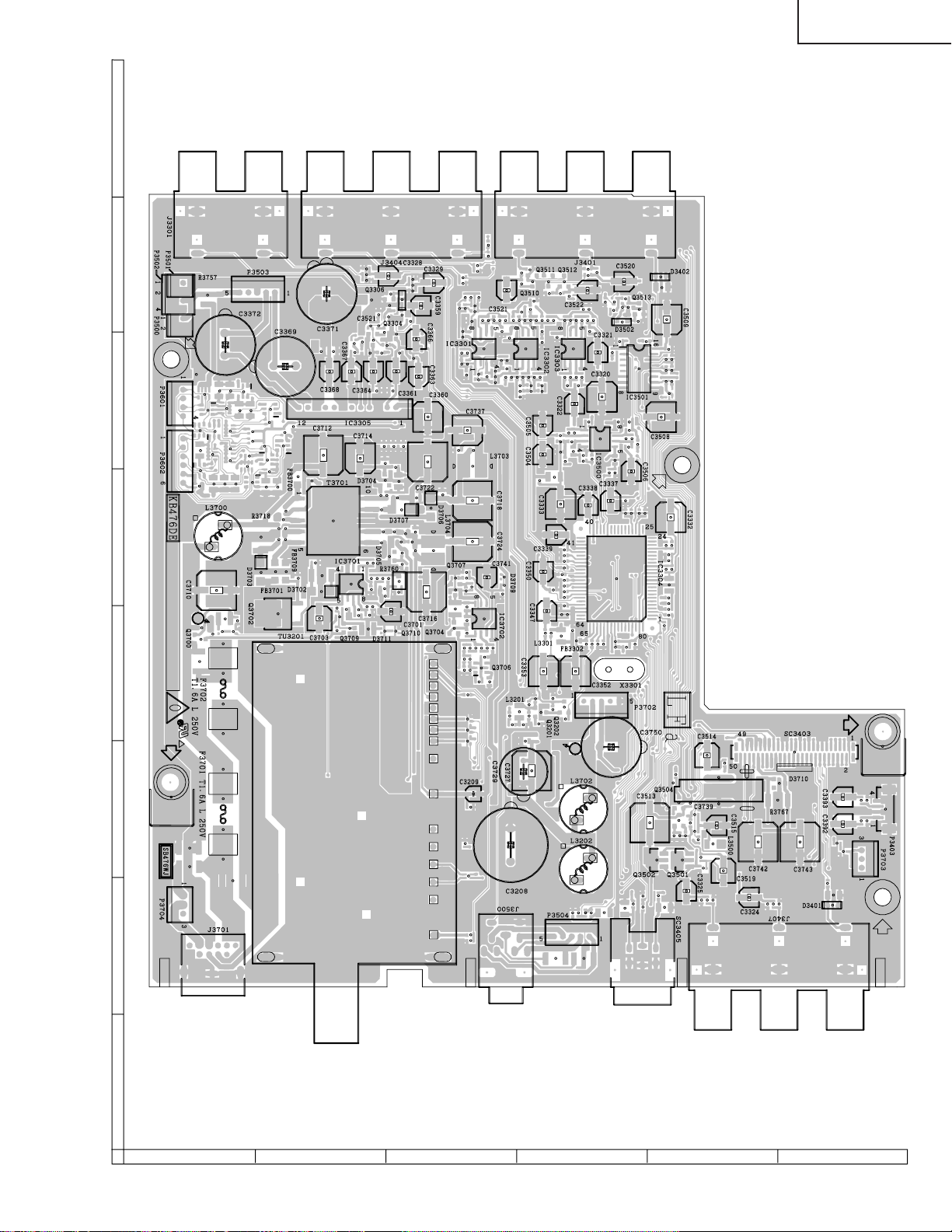

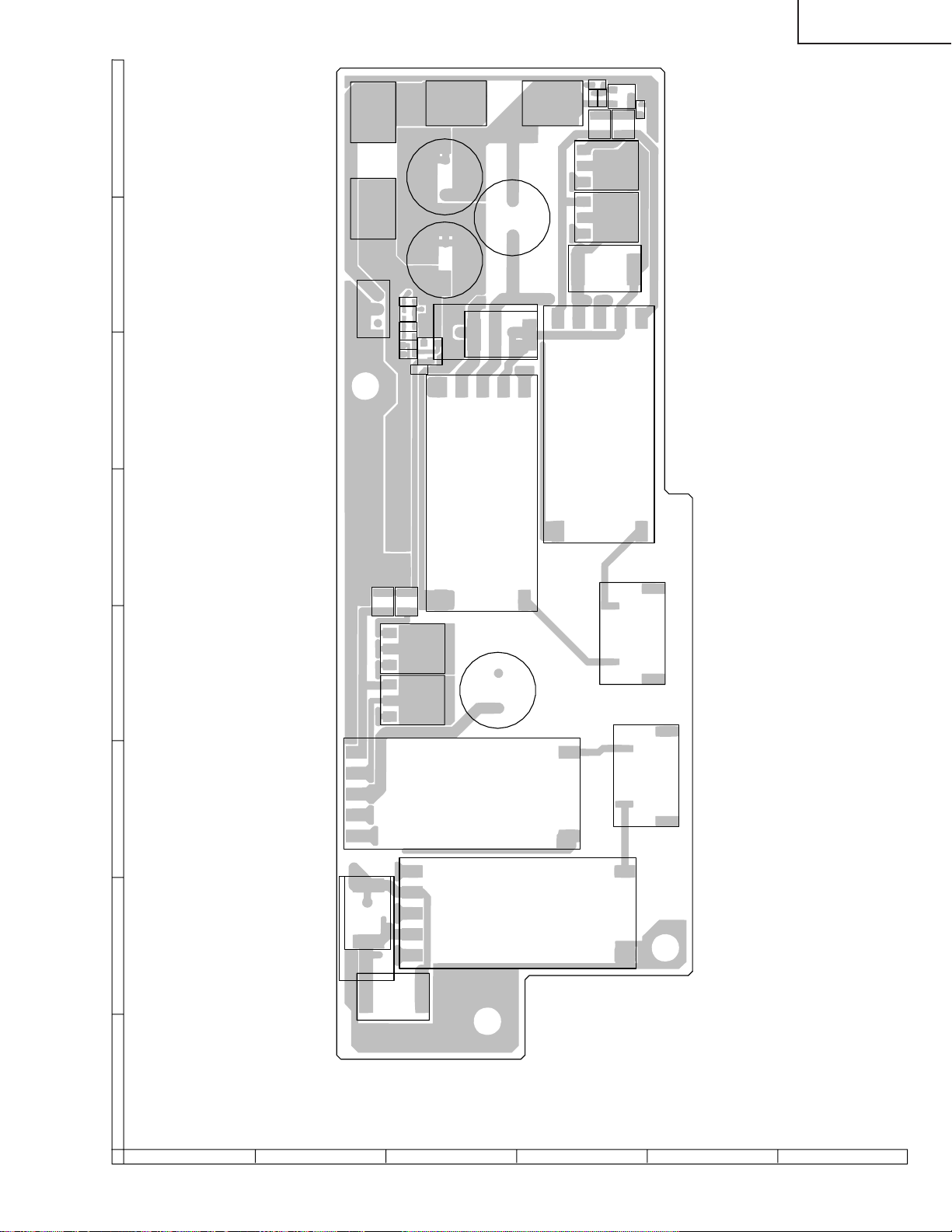

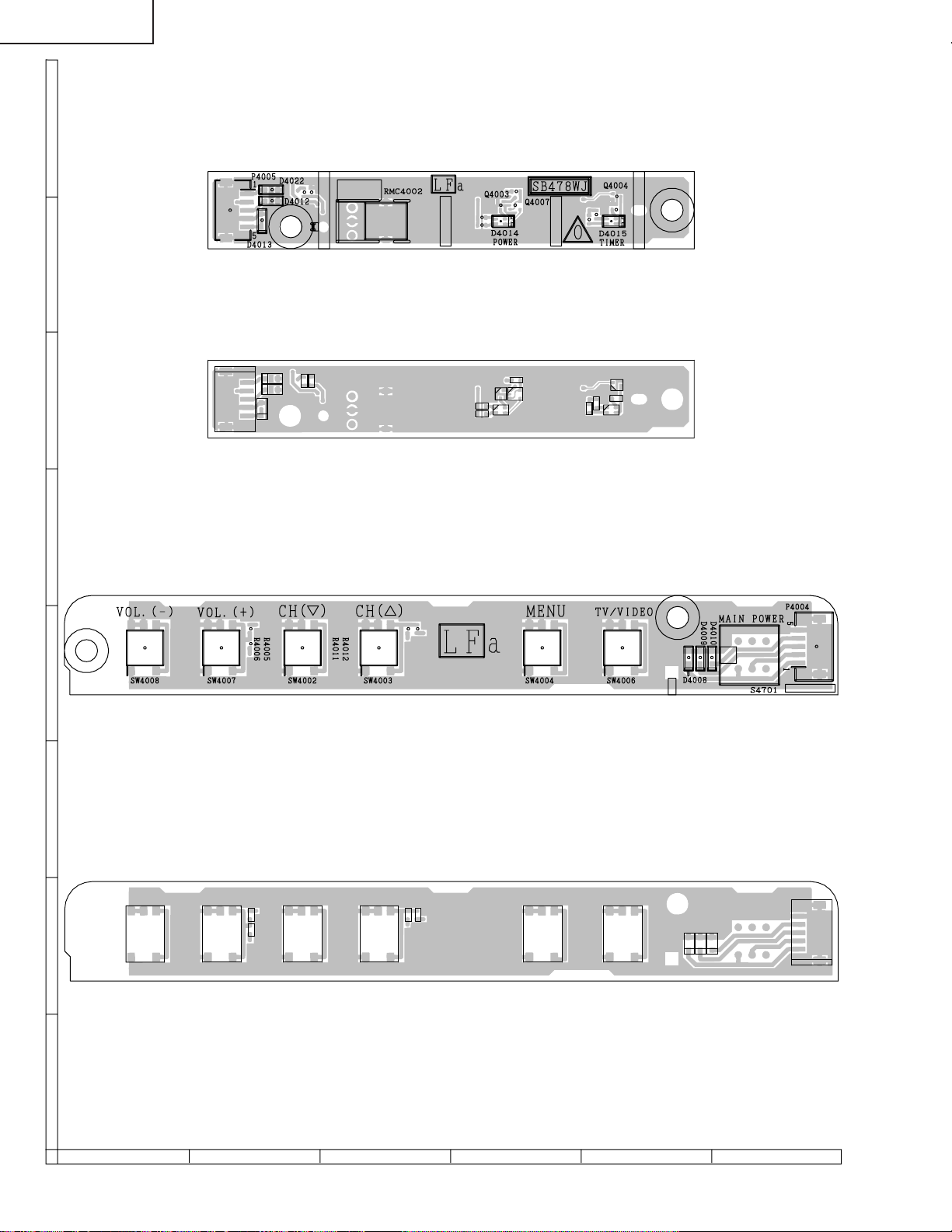

PRINTED WIRING BOARD ASSEMBLIES

H

G

F

LC-13E1H/M
LC-15E1H/M

E

D

C

B

A

ANALOG Unit (Side-A)

654321

49

LC-13E1H/M

FB3706

3

LC-15E1H/M

C3206

C3513

Q3503 Q3504

R3535

R3538 R3539

C3515

R3767

W1

Q3700

C3733

R3741
R3736
R3735
R3734

R3701

D3700

Q3701

R3768 R3706

D3711

Q3710

Q3704

R3733 C3730 C3738

R3368
R3434

L3301

FB3302

C3351

C3380
C3354
C3355
C3356

R3357

C3357

C3358

R3384

R3759

R3353

R3700

Q3709

C3700

C3703

IC3702

R3702

R3356
C3373

R3766

C3704

C3702

C3347

R3354

Q3702

R3762

C3701

C3740

R3704

R3703
R3705

C3384

C3348

R3372

D3702

C3706 R3708

R3710

R3761

C3716

Q3707

R3752

C3734

C3346

C3345

C3383

C3710

C3735

C3349

IC3701

C3708

L3302

R3737

C3344

R3760

R3717

R3711
C3707
R3709

IC3304

C3741

C3343

FB3701

FB3709

R3740

R3739

D3709

D3703

R3716

C3350

C3342

R3738

C3330
C3381

R3707
C3705

C3719

C3341

R3719

C3390

FB3301

R3718

C3711 C3713
R3721 R3720

FB3705

D3705

R3728

R3727

R3731

R3732 C3725

L3704

C3724

C3391

C3340

R3385

C3382
R3355

T3701

FB3708

R3724

D3708

C3339

C

C3209

C3512

D3710

R3533

C3727

C3729

R3534

C3514

SC3403

Q3205

C3728

Q3204

Q3203

R3201

C3201

C3202

C3203 R3202

R3205

R3206

L3201

Q3201

R3204 C3204

Q3202

P3702

R3203

R3367

R3750

R3751

C3353

C3352

R3756

R3746 R3745 R3743
C3732 R3749 R3742

Q3706

H

P3704

R3758

R3755

R3753

G

F

C3210

R3207

R3208

C3205

E

J3500

R3550

P3504

D

R3551

C

B

R3530
C3511

R3532
R3558

R3531

R3411

R3413 C3401

R3410

R3412

R3340
R3335
R3338

R3339
R3336
R3337

R3409

C3324

C3325

C3519

Q3505

Q3502

Q3501

R3540

C3742

C3743

L3500

R3527

C3516
R3537
R3542

R3536

D3401

R3402

R3401

A

P3703

Q3708

R3754

C3392

R3391 R3392
R3393 R3394

P3403

C3393

W2

87109654321

50

LC-13E1H/M

7

LC-15E1H/M

P3602 P3601

R3602

D3602 C3607

C3606

C3605

C3604

D3603

D3703

FB3701

FB3709

17

R3716

08
11
07
09

0

741

D3709

C3350

04

C3342

R3718

FB3706

C3711 C3713
R3721 R3720

R3722

R3719

T3701

R3707
C3705

FB3705

D3705

C3719

R3727

R3732 C3725

L3704

R3738

C3341

C3390

C3391

C3340

R3385

FB3301

C3330

C3382 R3523 C3518 R3559
R3355 R3524 R3529 R3525

C3381

R3728

R3731

C3724

FB3708

R3724

D3708

C3339

FB3707

D3707

D3706

C3333

C3338

C3336 C3334
R3369 C3506

R3370
C3335

C3332

C3337

FB3704
R3723

C3718

C3720

C3721

C3717

C3608

C3609

FB3700

FB3703

D3704 C3715

R3726

R3371

R3606

R3725

L3303

R3501
C3500 C3502

D3601

Q3602

D3606

D3605

D3604

D3608

R3610

C3360

C3737

R3507

R3513

R3510

R3506
C3526 C3322

R3509

IC3500

C3507

R3508

C3517

C3525
R3504

D3600

R3604

C3601

C3600

Q3600

C3508

R3605

R3609

R3608 R3607

R3601

R3603

Q3603

D3607

Q3604

C3712

C3714

R3763

R3765

R3764

C3722

R3730

L3703

R3729

C3504 C3505

R3512

R3511

C3503 IC3303

R3500

C3501

R3547

R3505

R3546

R3600

C3603

C3602

Q3601

R3324

C3320

Q3500

C3368

C3367

C3365

C3364 Q3305

C3362

C3361

C3363

C3386

R3345

C3304

C3305

R3310

R3302
R3314

R3320

C3312

R3318
R3317

C3314

R3323

C3310
C3374

R3376

C3375

R3375

C3319

R3330
R3325

R3332

C3317
R3328

R3901

R3346

R3311

R3312

IC3501

R3389 C3388
R3388 R3399

C3306
R3382

R3366

R3363

R3365

R3362

IC3301

IC3302

C3321

R3528

P3500 P3502P3501

R3374

C3370

R3364

Q3303

R3359

D3302
R3358 R3383

R3373

R3381

R3361

Q3306

Q3304

R3379 D3301

R3360

C3366

C3308

C3377

C3315

R3526

R3560

C3510

C3359

R3307

R3308

R3305
C3303 C3302

C3389

C3301

R3303

R3309
C3387 R3430 R3433
R3386
R3387

C3385

R3390
R3316

R3319

R3313
C3309

C3311

R3315
R3321

R3378 C3313

C3376
R3377

R3333
R3327
R3326
C3316

R3334

C3318

C3323

R3329

R3331

R3552

R3553

D3501

D3502

R3556
R3555

R3557

Q3513

C3509

R3902

R3304
R3306

R3322

R3757

R3543

R3554

R3380

R3352

C3521

R3545

R3544

C3522

P3503

R3348

R3350

R3351

C3329

R3428

R3431

R3561 R3342

Q3510

Q3511

Q3512

C3520

R3455

C3328

R3562

R3341

D3402

R3347

R3429

R3349

R3432

R3343

R3344

ANALOG Unit (Chip Parts Side-A)

1716 1918151413121110

51

LC-13E1H/M
LC-15E1H/M

H

G

F

E

D

C

B

A

DIGITAL Unit (Side-A)

654321

52

LC-13E1H/M
LC-15E1H/M

H

C2020

R1258

C7101

R2018

R2028

R422

SC2001

C701

R705

R714

R417

R418

L401

L402

C412

R425

R2044

R2045

R2002

C1230

SC1203

R2036

FB7105

R2026

C1231

C413

C408

C411

R416

R414

R423

IC402

R424

C410

C2021

R1030

R2055

R2033

R2062

R2022

C2009

R2053

R2042

R2061

R2054

C901

C910

C902

R1243

D1205

D1206

C1234

C1227

IC1208

C1228

C1229

Q403

FL401

R2017

IC2001

R2063

R1257

C7105

R419

C414

C409

R415

D2002

D1105

Q2006

Q2007

R2067

R2024

R2023

R2057

R2060

R2068

R1018

R1019

L901

R1253
R1252

C1217

Q1203

R1231

FB1202

D2003

R2027

Q2004

C1208

Q2005

R712

D2004

C7104

R2050

R1247

Q711

R2009

R2021

D701

C703

C702

Z1

P2004

P2003

R726

C908

L902

C1216

C1226

C7024

C7025

R7023 R7024

G

R7003

C7055

C7005

Q7001

C7059

C7056

R7048

R7042

R7043

FL7102

R7025

IC7001

FL7101

F

C1148 R1187

R1196
R1199

C1142

C1141

C1136

R1194
R1195

C1137

C1138

C1135

E

R1192
R1193

C1114

C1134

C1112

R1190
R1191 R1151

C1111

C1133

C1109

R1153
R1189

C1107

R1188

R1185

R1186

R1183

R1184

R1117

R1182

R1116

R1115

C1113

C1139

C1110

IC1112

IC1113

IC1110

IC1105

R1152

D

SC1201

L1202

C1209

R1259

R1212

SC1202

FD1

C1214

C1211

FB1203

R1260 R1210

FB1201

R1211

R1208
R1209

R1202 R1203

R1204

C

B

R1126
R1131
R1132
R1128

C1213

C1126

R1125

C1212

R1176

R1114

R1162

C1206

R1164

R1175

R1112

R1163

R1127

C1210

IC1104

C1123

C1147

IC1103

C1104

L1204

R1171

R1172

R1107

R1161

R1108

R1160

R1144 R1143

R1140 C1152

R1124

C1117

C1121

R1170

R1154
R1111

R1110

C1156

IC1109

R1169

R1106

R1119

R1142

C1118

C7047

R1024

R1141

R1029

R1214

C7027

IC1201

C7030

C1101

C1129

FB7003

FL7004

C7048

FB7004

C7701

R7052

R7051

C7015

C7031

C7113

R7012

C1149
R1001

R1157

C1130

R1133

C1144

R1129

C1125

C706

C838

L805

R1223

R1218

R1222

R1232

R1013

C826

C834

C7054

D7701

C7046

C7053

C7036

R7112

FL7001

R7016 R7021

FL7002

R7030 R7022
C7033
R7019 R7020

Q1103

D1108

R1017

R1006

R1007

Q1104

R1015

R1118

D1109

R1014

C1218

P2001

D1106 Q1107

R916

R918

SC901

R917

R1238

C1205

R826

R1010

FL7003

C7029

R1016

Q1105

C2007

C7108

C7106

D1110

R1008

R1009

X2001

C2005 R2006

X2002

R2029

C2023

C909

C809

C801

C821

C7205

R2040
R2041
R2056

R7201

C7122

C7204

IC7202

R7202

C7123

C711

C2004 R2005

R2011

R7203

C7203
R7204
C7201

C7202

R7001
R7106

R7102

C7124 C7102

C404

R2020

R711

C2015
R2038

Q712

C2017

R2051

R2015

R901

IC7201

C7107 FB7104 R2037

C7103 FB7103

C2016

R2019

R2047

R2031

R2032

L804

C835

R1201
R1226

A

DIGITAL Unit (Chip Parts Side-A)

654321

53

LC-13E1H/M
LC-15E1H/M

H

G

F

E

D

C

B

A

DIGITAL Unit (Side-B)

654321

54

LC-13E1H/M
LC-15E1H/M

R7110

R7114

R914

R915

Q402

TP2006

R2030

R2059

IC2004

R413

TP2007

TP2009

R412

IC2002

R411

R407

IC7101

FB7102

R7113

R406

TP2003

R2013R2014

C2002

Q401

R2001

C2006
R2007
C2010
C2018

C2019R2010

R7705

R7103R7104

FB7101

Q7101Q7102

R7101

R404

R408

R409

C406

R410

C405

R401

C407

R402

C2001

C2003

R2058

R2016

R2012

H

R717
R719

R715

R716

G

IC703

R2052

Z2

F

R2065D2005

R2064

R2066

TP2002

TP2001

R2003

E

D

FB902

FB901FB903

IC901

R910

D901

R912

R911

C903

R2049

R2043

TP2005

C

R1254

R1225

C841

IC1207

C812

C815

C816

C817

R815
C819

C840

C820

Q1201

C1204

C1223C1224

R1248

D1209

D902

R1249

Q1205

R1237

R1239

Q1204

R1246D1210

R1245

C1232

L1201

C1225

R1240

D1203

R1241

R1230

D1212

R1251

R1250

D1208

D1213

C1233

R1255

D1211

B

D1204

IC7102

C7121

R7701

R7703

R7702

R7704

Q7009

R7038

R7040

R7039

R7037

Q7007

R7035

R7036

R7046

R7017R7018

C7111

IC7003

C402R405

C401

C403

C1145

IC401

R403

R812

R837

C814

R838

R831

R832
R833
R834

R1256

R1134

R1228

D1201

IC2003

C2008

R908

R904

R905

R913

R907
R909
R902

R906

R835

R836

C804

C803

X801

C810

C828

C824

R809

R807

L803

L801

IC1206

L7003

C7062

C7041

L7002

TP801

R1002

C7042

C7037

C802

C825

R808

R7050

C7021
C7020
C7018
C7017
C7032

C7014
C7013

R1156

IC7002

R7047

C7072

R7053

C7004
C7058

TP7001

C7010

R7004

R7005

TP7002

C7009

R1146

Q1101

C7006

R7044

R7045

IC7004

R7049

R1167

R1168

C1131

C1132

C1124

R1104

R1150

C1103

R1158
R1102

IC1102

R1198

C1120

C1102

R1109R1173

C1119

Q1102

C1122

C1155

R1148R1147

L1203

IC1202

R1235

R7007

Q7002R7006

Q7003

Q7004

R7010

C1105

R1178

R1179

R1034
R1027

R1028

R1155

C1146

R1025

R1033

R1032

R1031

C1154

Q1109

C1116

R1121

R1120

R1122

R1130

R1123

C1151

FB801

R810

C813

R813

C818
R816

C839

C822

FB802

C7007

C7001

C7002

C7003

L7001

C7060
C7061

C7008

R7002

C7085

FB7001

FB7002

C1143

IC1115

IC1114

C1115

IC1108

IC1107

IC1106

C1108

C1207

L1205

C1215

C1202

R1236

C7702

IC7701

R7029

C7023

Q7010

C7019

C7022

C7016

R7041

C7035

C7043

C7012

Q7008

R7034

C7038

R7015

R7014

R7032
R7031
C7050

C1157

R1003

C1150

IC1116

IC702

C705

R919

C905

IC903

TP802

IC801

C827C830
C837C831

C808

C836C832
C823C807

C811

L802

R7008
R7009

C7028

R7013

C7112

C7026
R7011

Q7005

R7033

Q7006

R1166
R1177R1174

IC1111

R1005

R1026

IC1101

Q1108

C1153

R1145

D1101

D1107

R1023

R1022

Q1106

R1020

R1021

R803R802R801

C806

C805

R804

R819

R814

R1217

C1203

R1220
C1201

R1233

R1221

R1234

R811

A

DIGITAL Unit (Chip Parts Side-B)

654321

55

LC-13E1H/M
LC-15E1H/M

H

G

F

E

D

C

B

A

INVERTER Unit (Side-A)

654321

56

LC-13E1H/M
LC-15E1H/M

R6503

R6502

C6503

FH6503

FH6501

FH6500

H

R6501

Q6502

C6502

R6500

C6504

FH6502

C6509

L6501

G

P6502

R6508
D6500
R6509

R6507
R6506
C6508

Q6505

C6507

C6510

C6500

F

T6500

Q6500

Q6501

C6501

T6501

E

R6504

R6505

P6500

Q6504

D

Q6503

L6503

P6501

T6503

C

C6505

C6511

T6502

B

C6506

A

INVERTER Unit (Chip Parts Side-A)

654321

57

LC-13E1H/M
LC-15E1H/M

H

G

LED Unit (Side-A)

D4022

R4021

C4018

D4012

F

P4005

D4013

R4023

Q4007

Q4003

R4024

D4014

R4029

Q4004

R4032

R4031

D4015

R4030

LED Unit (Chip Parts Side-A)

E

D

CONTROL Unit (Side-A)

(QPWBSB477WJZZ)

C

R4011

B

SW4008

SW4007

R4006 R4005

SW4002

SW4003

R4012

SW4004

SW4006

D4008

D4009

D4010

P4004

CONTROL Unit (Chip Parts Side-A)

(QPWBSB477WJZZ)

A

654321

58

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33(LC-13E1H/M)

PARTS LIST

DUNTKA670FE34(LC-15E1H/M)

DIGITAL UNIT

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.

å and shaded areas in the Replacement Parts Lists

"HOW TO ORDER REPLACEMENT P ARTS"

To have your order filled promptly and correctly, please furnish the
following informations.

1. MODEL NUMBER 2. REF. NO.

3. P AR T NO . 4. DESCRIPTION

★ MARK: SPARE PARTS-DELIVERY SECTION

Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTKA670FE33 – DIGITAL Unit —
DUNTKB476DE01 – ANALOG Unit —
DUNTKB477DE01 – CONTROL Unit —
DUNTKB478DE01 – R/C, LED Unit —
DUNTKB479DE01 – INVERTER Unit —

DUNTKA670FE34 – DIGITAL Unit —
DUNTKB476DE02 – ANALOG Unit —
DUNTKB477DE02 – CONTROL Unit —
DUNTKB478DE02 – R/C, LED Unit —
DUNTKB479DE02 – INVERTER Unit —

LC-13E1H/M

LC-15E1H/M

LCD PANEL

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

RLCDTA012WJZZ J 13" LCD Panel Unit CV
RLCDTA013WJZZ J 15" LCD Panel Unit DB

IC401 VHiBA7046F/-1Y J BA7046F AF
IC402 VHiNJM2235V-1Y J NJM2235V AE
IC702 VHiBA033FP/-1Y J BA033FP-E2 AG
IC703 VHiPQ20VZ11-1Y J PQ20VZ11 AG
IC801 VHiVPC3230D1EQ J VPC3230D-QA-B3 BD
IC1101 VHiMB8346BV-1Y J MB88346BPFV AN
IC1102 VHiNJM4565V-1Y J NJM4565V AF
IC1103 VHiNJM2060V-1Y J NJM2060V AF
IC1104 VHiNJM2060V-1Y J NJM2060V AF
IC1105 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1106 VHiNJM4580V-1Y J NJM4580V AE
IC1107 VHiNJM4580V-1Y J NJM4580V AE
IC1108 VHiNJM4580V-1Y J NJM4580V AE
IC1109 VHiNJM353M/-1Y J NJM353M AG
IC1110 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1111 VHiMB8346BV-1Y J MB88346BPFV AN
IC1112 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1113 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1114 VHiNJM4580V-1Y J NJM4580V AE
IC1115 VHiNJM4580V-1Y J NJM4580V AE
IC1116 VHiNJM2147M-1Y J NJM2147M-TE1 AF
IC1201 RH-iX3378CEN1Q J LR38815 AY
IC1202 VHiPD485505-2Y J UPD485505G-25 AY
IC1206 VHiLVX125FT-1Y J TC74LVX125FT AG
IC1207 VHiTC4W66U/-1Y J TC4W66FU AE
IC1208 VHiPQ1R34++-1Y J PQ1R34 AE
IC2001 RH-iXA381WJZZQ J M306V0ME-181FP AZ
IC2002 VHiBD4746G+-1Y J BD4746G-TR AD
IC2003 VHiTC4W66U/-1Y J TC4W66FU AE
IC2004 VHiBR2416E2-1Y J BR24C16F AK

Q401 VS2SC3928AR-1Y J 2SC3928AR AB
Q402 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q711 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q712 VSDTC144EE/-1Y J DTC144EE AA
Q1101 VS2SA1729//-1Y J 2SA1729 AF
Q1102 VS2SC4520//-1Y J 2SC4520 AE
Q1103 VS2SA1036K/-1Y J 2SA1036K AC
Q1104 VS2SA1036K/-1Y J 2SA1036K AC
Q1105 VS2SA1036K/-1Y J 2SA1036K AC
Q1106 VSFMMT718//-1Y J FMMT718 AE
Q1107 VSDTC144EE/-1Y J DTC144EE AA
Q1108 VS2SC4520//-1Y J 2SC4520 AE
Q1109 VS2SA1729//-1Y J 2SA1729 AF
Q1201 VSDTC144EE/-1Y J DTC144EE AA
Q1203 VSDTC144EE/-1Y J DTC144EE AA
Q1204 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q1205 VSUMX2N++++-1Y J UMX2N++++ AB
Q2004 VSDTC114EE/-1Y J DTC144EE AB
Q2007 VSDTC144EE/-1Y J DTC144EE AA

D701 VHDDAN202K/-1Y J Diode AB
D1101 VHD1SS250//1EY J Diode AB
D1106 VHDDAN222//-1Y J Diode AA
D1107 VHD1SS250//1EY J Diode AB
D1108 VHDDAN222//-1Y J Diode AA
D1109 VHDDAN222//-1Y J Diode AA
D1110 VHDDAN222//-1Y J Diode AA
D1201 VHD1SS250//1EY J Diode AB
D1203 VHDRB491D++-1Y J Diode AD
D1205 VHDDAN222//-1Y J Diode AA
D1206 RH-EX0227CEZZY J Zener Diode AB
D1208 VHDDAN222//-1Y J Diode AA
D1209 RH-EX1247CEZZY J Zener Diode, 5.6V AB
D1210 VHDDAN222//-1Y J Diode AA
D1211 VHDDAN222//-1Y J Diode AA
D1212 VHDRB481K++-1Y J Diode AD
D2002 VHDRB491D++-1Y J Diode AD
D2004 RH-DX0061GEZZY J Diode AD

INTEGRATED CIRCUITS

TRANSISTORS

DIODES

59

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33(LC-13E1H/M)
DUNTKA670FE34(LC-15E1H/M)

DIGITAL UNIT(Continued)

PACKAGED CIRCUITS

X801 RCRSC0012CEZZY J Crystal AH
X2002 RFiLZ0169TAZZY J Filter AD

COILS

L401 VP-9N4R7KR56NY J Peaking 4.7µH AC
L402 VP-9N4R7KR56NY J Peaking 4.7µH AC
L801 VP-9N3R3KR46NY J Peaking 3.3µH AC
L802 VP-9N3R3KR46NY J Peaking 3.3µH AC
L803 VP-9N3R3KR46NY J Peaking 3.3µH AC
L804 RCiLC0055CEZZY J Coil AD
L805 RCiLC0055CEZZY J Coil AD
L1201 VP-1M470J5R4NY J Peaking 47µH AC
L1202 RCiLC0055CEZZY J Coil AD
L1203 VP-1M220J2R9NY J Peaking 22µH AB
L1204 VP-1M220J2R9NY J Peaking 22µH AB
L1205 VP-1M220J2R9NY J Peaking 22µH AB

CAPACITORS

C401 VCKYTV1AB105KY J 1 10V Ceramic AC
C402 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C403 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C404 VCEAPF0JW476MY J 47 6.3V Electrolytic AB
C405 VCKYCY1HB222KY J 2200p 50V Ceramic AA
C406 VCKYTV1AB105KY J 1 10V Ceramic AC
C407 VCCCCY1HH101JY J 100p 50V Ceramic AA
C408 VCKYTV1AB105KY J 1 10V Ceramic AC
C409 VCKYTV1AB105KY J 1 10V Ceramic AC
C410 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C411 VCKYTV1AB105KY J 1 10V Ceramic AC
C412 VCCCCY1HH331JY J 330p 50V Ceramic AA
C413 VCCCCY1HH331JY J 330p 50V Ceramic AA
C414 VCCCCY1HH331JY J 330p 50V Ceramic AA
C701 VCKYTV1CF105ZY J 1 16V Ceramic AB
C702 VCEAPF1CN226MY J 22 16V Electrolytic AD
C703 VCKYTV1CF105ZY J 1 16V Ceramic AB
C705 VCKYCY1CF334ZY J 0.33 16V Ceramic AB
C706 VCEAPF0JN226MY J 22 6.3V Electrolytic AD
C711 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C801 VCEAPF1CN106MY J 10 16V Electrolytic AD
C802 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C803 VCCCCY1HH7R0DY J 7p 50V Ceramic AA
C804 VCCCCY1HH7R0DY J 7p 50V Ceramic AA
C805 RC-KZ1025CEZZY J 1 10V Ceramic AB
C806 RC-KZ1025CEZZY J 1 10V Ceramic AB
C807 VCKYCY1HB331KY J 330p 50V Ceramic AA
C808 VCKYCY1HB331KY J 330p 50V Ceramic AA
C809 VCEAPF1CN107MY J 100 16V Electrolytic AD
C810 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C811 VCKYCY1HB331KY J 330p 50V Ceramic AA
C812 RC-KZ1025CEZZY J 1 10V Ceramic AB
C813 RC-KZ1025CEZZY J 1 10V Ceramic AB
C814 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C815 VCKYTV1CF684ZY J 0.68 16V Ceramic AB
C816 VCKYTV1CF684ZY J 0.68 16V Ceramic AB
C817 VCKYTV1CF105ZY J 1 16V Ceramic AB
C818 RC-KZ1025CEZZY J 1 10V Ceramic AB
C819 RC-KZ1025CEZZY J 1 10V Ceramic AB
C820 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C821 VCEAPF1CN107MY J 100 16V Electrolytic AD
C822 RC-KZ1025CEZZY J 1 10V Ceramic AB
C823 RC-KZ1025CEZZY J 1 10V Ceramic AB
C824 VCKYCY1AB224KY J 0.22 10V Ceramic AB
C825 VCKYCY1AB224KY J 0.22 10V Ceramic AB
C826 VCEAPF0GW227MY J 220 4V Electrolytic AD
C827 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C828 VCKYCY1AB224KY J 0.22 10V Ceramic AB
C830 VCKYCY1CF224ZY J 0.22 16V Ceramic AB
C831 VCKYCY1CF224ZY J 0.22 16V Ceramic AB
C832 VCKYCY1CF224ZY J 0.22 16V Ceramic AB
C834 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C835 VCEAPF1CW107MY J 100 16V Electrolytic AC

C836 RC-KZ1025CEZZY J 1 10V Ceramic AB
C837 RC-KZ1025CEZZY J 1 10V Ceramic AB
C838 VCEAPF0GW107MY J 100 4V Electrolytic AC
C839 RC-KZ1025CEZZY J 1 10V Ceramic AB
C840 VCKYTV1CF684ZY J 0.68 16V Ceramic AB
C1101 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1102 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1103 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1104 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1105 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1107 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1108 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1109 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1110 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1111 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1112 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1113 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1114 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1115 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1116 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1117 VCCCCY1HH560JY J 56p 50V Ceramic AB
C1118 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1119 VCKYTV1CF105ZY J 1 16V Ceramic AB
C1120 VCKYTV1EF104ZY J 0.1 25V Ceramic AB
C1122 VCKYTV1CF105ZY J 1 16V Ceramic AB
C1123 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1124 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1125 VCEAPF1CN107MY J 100 16V Electrolytic AD
C1126 RC-EZ1339CEZZY J 220 16V Electrolytic AD
C1130 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1131 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1132 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1133 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1134 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1135 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1136 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1137 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1138 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1139 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1141 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1142 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1143 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1144 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1145 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1146 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1147 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1148 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1149 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1150 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1151 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1152 VCCCCY1HH181JY J 180p 50V Ceramic AA
C1153 VCKYTV1HB103KY J 0.01 50V Ceramic AA
C1154 VCKYTV1HB103KY J 0.01 50V Ceramic AA
C1155 VCKYTV1CB334KY J 0.33 16V Ceramic AC
C1156 VCCCCY1HH560JY J 56p 50V Ceramic AB
C1157 VCKYTV1CB105KY J 1 16V Ceramic AC
C1202 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1204 VCCCCY1HH220JY J 22p 50V Ceramic AA
C1205 VCCCCY1HH220JY J 22p 50V Ceramic AA
C1206 VCEAPF1HN106MY J 10 50V Electrolytic AD
C1207 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1208 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C1209 VCEASH0JN227MY J 220 6.3V Electrolytic AC
C1210 VCEAPF0GW107MY J 100 4V Electrolytic AC
C1211 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1212 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1213 VCEAPF1CW107MY J 100 16V Electrolytic AC
C1214 VCEAPF0GW107MY J 100 4V Electrolytic AC
C1215 RC-KZ1025CEZZY J 1 10V Ceramic AB
C1217 VCEAPF1HN475MY J 4.7 50V Electrolytic AC
C1218 VCEAPF1CN106MY J 10 16V Electrolytic AD
C1223 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1224 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1225 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1226 VCEAPF1HN106MY J 10 50V Electrolytic AD
C1227 VCKYTV1CB105KY J 1 16V Ceramic AC

60

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33(LC-13E1H/M)
DUNTKA670FE34(LC-15E1H/M)

DIGITAL UNIT(Continued)

C1228 RC-KZ1025CEZZY J 1 10V Ceramic AB
C1229 VCEAPF1CN226MY J 22 16V Electrolytic AD
C1230 VCKYTV1CB105KY J 1 16V Ceramic AC
C1231 VCEAPF1CN107MY J 100 16V Electrolytic AD
C1232 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C2006 RC-KZ1025CEZZY J 1 10V Ceramic AB
C2007 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2009 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2010 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2017 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2018 VCCCCY1HH220JY J 22p 50V Ceramic AA
C2019 VCCCCY1HH470JY J 47p 50V Ceramic AA
C2020 VCKYCY1HB271KY J 270p 50V Ceramic AA
C2021 VCEAPF1CW107MY J 100 16V Electrolytic AC
C2023 VCEAPF1CN106MY J 10 16V Electrolytic AD
C7104 VCEAPF1CN107MY J 100 16V Electrolytic AD
C7105 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

RESISTORS

R401 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R402 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R403 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R404 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R405 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R406 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R407 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R408 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R409 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R410 VRS-CY1JF474JY J 470k 1/16W Metal Oxide AA
R412 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R414 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R415 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R416 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R417 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R418 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R419 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R423 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R705 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R711 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R712 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R714 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R715 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R716 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R717 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R726 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R801 VRS-CB1JF221JY J 220 1/16W Metal Oxide AC
R802 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R803 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R804 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R807 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R808 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R809 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R810 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R811 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA
R812 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R813 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R814 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R815 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R816 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA
R819 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R826 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R831 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R832 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R833 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R834 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R836 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R838 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R905 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R1001 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1002 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1003 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1005 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA

R1006 VRS-CY1JF243FY J 24k 1/16W Metal Oxide AA
R1007 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R1008 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA
R1009 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA
R1013 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1014 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R1016 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R1017 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R1019 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA
R1020 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R1021 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA
R1022 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1024 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1025 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1026 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1027 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1028 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1029 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1030 VRS-TW2ED150JY J 15 1/4W Metal Oxide AA
R1031 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1032 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1033 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1034 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1102 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1104 VRS-CA1JF333JY J 33k 1/16W Metal Oxide AA
R1106 VRS-CF1JP333JY J 33k 1/16W Metal Oxide AC
R1107 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1108 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1109 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R1110 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R1111 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1112 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1114 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1115 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1116 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1117 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1118 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R1119 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA
R1120 VRS-TX2HF5R6JY J 5.6 1/2W Metal Oxide AB
R1121 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA
R1123 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA
R1124 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA
R1125 VRS-TX2HF101JY J 100 1/2W Metal Oxide AA
R1126 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1127 VRS-TX2HF1R8JY J 1.8 1/2W Metal Oxide AB
R1128 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R1129 VRS-CY1JF363FY J 36k 1/16W Metal Oxide AA
R1130 VRS-TX2HF5R6JY J 5.6 1/2W Metal Oxide AB
R1131 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R1132 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1134 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1140 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA
R1142 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1143 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R1144 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R1145 VRS-TW2ED5R6JY J 5.6 1/4W Metal Oxide AA
R1146 VRS-TW2ED8R2JY J 8.2 1/4W Metal Oxide AA
R1147 VRS-TX2HF000JY J 0 1/2W Metal Oxide AB
R1148 VRS-TX2HF100JY J 10 1/2W Metal Oxide AB
R1150 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1151 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1152 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R1153 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA
R1154 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1157 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1158 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1160 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1161 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1162 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1163 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1164 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1166 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R1167 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1168 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1169 VRS-CF1JP333JY J 33k 1/16W Metal Oxide AC
R1170 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA

61

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33(LC-13E1H/M)
DUNTKA670FE34(LC-15E1H/M)

DIGITAL UNIT(Continued)

R1171 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1172 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1173 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R1174 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1175 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1176 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1177 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1178 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1179 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1182 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1183 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1184 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1185 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1186 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1187 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1188 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1189 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1190 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1193 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA
R1194 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1195 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1196 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1198 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1199 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1201 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1202 VRS-CF1JP220JY J 22 1/16W Metal Oxide AC
R1203 VRS-CF1JP220JY J 22 1/16W Metal Oxide AC
R1204 VRS-CF1JP220JY J 22 1/16W Metal Oxide AC
R1208 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1209 VRS-CA1JF220JY J 22 1/16W Metal Oxide AA
R1210 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA
R1211 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA
R1212 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1214 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA
R1217 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1218 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R1221 VRS-CB1JF332JY J 3.3k 1/16W Metal Oxide AC
R1222 VRS-CB1JF000JY J 0 1/16W Metal Oxide AC
R1223 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R1225 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R1226 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1228 VRS-TX2HF330JY J 33 1/2W Metal Oxide AB
R1230 VRS-TV1JD562JY J 5.6k 1/10W Metal Oxide AA
R1231 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1232 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1233 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1235 VRS-CB1JF473JY J 47k 1/16W Metal Oxide AC
R1236 VRS-CB1JF473JY J 47k 1/16W Metal Oxide AC
R1237 VRS-TX2HF472JY J 4.7k 1/2W Metal Oxide AB
R1238 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1240 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1243 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R1245 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R1246 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R1247 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA
R1248 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R1249 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R1250 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1251 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1252 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1260 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1261 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2002 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2007 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2009 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R2010 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2011 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA
R2012 VRS-CA1JF103JY J 10k 1/16W Metal Oxide AA
R2013 VRS-CA1JF223JY J 22k 1/16W Metal Oxide AA
R2014 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R2015 VRS-CB1JF331JY J 330 1/16W Metal Oxide AC
R2016 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

R2017 VRS-CA1JF102JY J 1k 1/16W Metal Oxide AA
R2018 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2021 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R2022 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R2029 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2030 VRS-CA1JF333JY J 33k 1/16W Metal Oxide AA
R2033 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA
R2036 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2037 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2038 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2041 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2044 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2045 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2049 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2052 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2053 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R2055 VRS-CA1JF223JY J 22k 1/16W Metal Oxide AA
R2056 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2057 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2058 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2060 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2061 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2067 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2068 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

FB801 RBLN-0090CEZZY J Ferrite Bead AD
FB802 RBLN-0090CEZZY J Ferrite Bead AD
FB1201 RBLN-0090CEZZY J Ferrite Bead AD
FB1202 RBLN-0006TAZZY J Ferrite Bead AB
FB1203 RBLN-0076TAZZY J Ferrite Bead AC
P2001 QPLGN0558REZZY J Plug, 5-pin AE
P2003 QPLGN1058REZZY J Plug, 10-pin AD
P2004 QPLGN0165FJZZY J Plug, 5-pin AD
SC1201 QSOCNA002WJPZY J Socket, 20-pin AD
SC1202 QSOCN0687FJZZY J Socket, 50-pin AF
SC1203 QSOCN0206FJZZY J Socket, 30-pin AF
SC2001 QSOCN0464FJZZY J Socket, 50-pin AH

62

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB476DE01(LC-13E1H/M)
DUNTKB476DE02(LC-15E1H/M)

ANALOG UNIT

TUNER

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

TU3201 VTUVT2U5CD553 J Tuner BD

INTEGRATED CIRCUITS

IC3301 VHiNJM4560M-1Y J NJM4560M AG
IC3302 VHiNJM4560M-1Y J NJM4560M AG
IC3303 VHiNJM4560M-1Y J NJM4560M AG
IC3304 RH-iX1853BMZZQ J MSP3410G-QG-B8 BB
IC3305 VHiLA4635A+-1S J LA4635A AM
IC3501 VHiTC4053BF1EY J TC4053BF AF
IC3701 VHiNJM2377M-1Y J NJM2377M AK
IC3702 VHiNJM2147M-1Y J NJM2147M-TE1 AF

TRANSISTORS

Q3201 VS2SC3928AR-1Y J 2SC3928AR AB
Q3202 VS2SC3928AR-1Y J 2SC3928AR AB
Q3203 VSDTC144EE/-1Y J DTC144EE AA
Q3204 VSDTC144EE/-1Y J DTC144EE AA
Q3205 VSDTC144EE/-1Y J DTC144EE AA
Q3303 VSDTA144EE/-1Y J DTA144EE AA
Q3304 VSDTC314TK/-1Y J DTC144EE AC
Q3305 VSDTC314TK/-1Y J DTC144EE AC
Q3306 VS2SC3928AR-1Y J 2SC3928AR AB
Q3500 VSUMG4N++++-1Y J UMG4N++++ AB
Q3501 VS2SK1467//-1Y J 2SK1467 AE
Q3502 VS2SK1467//-1Y J 2SK1467 AE
Q3503 VS2SC3928AR-1Y J 2SC3928AR AB
Q3504 VS2SC3928AR-1Y J 2SC3928AR AB
Q3505 VSDTC114EE/-1Y J DTC144EE AB
Q3510 VSDTC314TK/-1Y J DTC314TK AC
Q3511 VSDTC314TK/-1Y J DTC314TK AC
Q3512 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q3600 VSUPA606T//-1Y J UPA606T AD
Q3601 VSUPA606T//-1Y J UPA606T AD
Q3700 VSFMMT718//-1Y J FMMT718 AE
Q3701 VSDTC144EE/-1Y J DTC144EE AA
Q3702 VS2SK2503//-1Y J 2SK2503 AE
Q3704 VSFMMT619//-1Y J FMMT619 AE
Q3706 VSiMZ1/////-1Y J IMZ1 AB
Q3707 VS2SC3928AR-1Y J 2SC3928AR AB
Q3708 VSDTC114YE/-1Y J DTC114YE AB
Q3709 VSFMMT718//-1Y J FMMT718 AE
Q3710 VSDTC144EE/-1Y J DTC144EE AA

DIODES

D3301 RH-EX1396CEZZY J Zener Diode, 6.8V AB
D3302 VHDDAN222//-1Y J Diode AA
D3401 RH-EX1271CEZZY J Zener Diode, 12V AB
D3402 RH-EX1271CEZZY J Zener Diode, 12V AB
D3501 VHDDAN222//-1Y J Diode AA
D3600 VHDiMN10///-1Y J Diode AB
D3601 VHDiMN10///-1Y J Diode AB
D3604 VHDDAN222//-1Y J Diode AA
D3605 VHDDAN222//-1Y J Diode AA
D3700 VHDDAN222//-1Y J Diode AA
D3703 VHDSFPB56//2EY J Diode AC
D3704 VHD1SS250//1EY J Diode AB
D3705 VHD1SS250//1EY J Diode AB
D3706 VHDSFPB74//2EY J Diode AD
D3707 VHDSFPB74//2EY J Diode AD
D3708 VHDDAN222//-1Y J Diode AA
D3709 VHDDAN222//-1Y J Diode AA
D3711 VHDDAN222//-1Y J Diode AA

PACKAGED CIRCUIT

X3301 RCRSB0307CEZZ J Crystal, 18.432MHz AG

COILS

L3201 VP-1M220J2R9NY J Peaking 22µH AB
L3202 RCiLPA027WJZZ J Coil AD

L3301 VP-1M101J7R7NY J Peaking 100µH AC
L3302 VP-1M4R7J1R2NY J Peaking 4.7µH AB
L3500 VP-1M101J7R7NY J Peaking 100µH AC
L3700 RCiLPA026WJZZ J Coil AD
L3702 RCiLPA026WJZZ J Coil AD
L3703 RCiLC0057CEZZY J Coil AD

TRANSFORMER

å T3701 RTRNW0010CEZZY J Transformer AL

CONTROL

R3760 RVR-M0111CEZZY J 1k(B) B+ Adj. AC

CAPACITORS

C3201 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3202 VCCCCY1HH330JY J 33p 50V Ceramic AA
C3203 VCCCCY1HH330JY J 33p 50V Ceramic AA
C3204 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3205 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3206 VCKYCY1HF103ZY J 0.01 50V Ceramic AA
C3208 RC-EZ1351CEZZ J 3300 6.3V Electrolytic AF
C3210 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3301 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1H/M)

C3302 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1H/M)

C3303 VCKYCY1EB822KY J 8200p 25V Ceramic AA

(LC-15E1H/M)

C3304 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1H/M)

C3305 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1H/M)

C3306 VCKYCY1EB822KY J 8200p 25V Ceramic AA

(LC-15E1H/M)
C3308 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3309 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1H/M)
C3309 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1H/M)
C3310 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1H/M)
C3310 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1H/M)
C3311 VCKYCY1CB273KY J 0.027 16V Ceramic AB
C3312 VCKYCY1CB273KY J 0.027 16V Ceramic AB
C3313 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1H/M)
C3313 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1H/M)
C3314 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1H/M)
C3314 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1H/M)
C3315 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3316 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3317 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3318 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3319 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3320 VCEAPF1CN476MY J 47 16V Electrolytic AD
C3321 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3322 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3323 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3324 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3325 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3328 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3329 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3330 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3332 VCEAPF0JN107MY J 100 6.3V Electrolytic AD
C3333 VCEAPF1CN107MY J 100 16V Electrolytic AD
C3334 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3335 VCKYCY1HB222KY J 2200p 50V Ceramic AA
C3336 VCKYCY1HB222KY J 2200p 50V Ceramic AA
C3337 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3338 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3339 VCEAPF1HN335MY J 3.3 50V Electrolytic AD
C3340 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

63

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB476DE01(LC-13E1H/M)
DUNTKB476DE02(LC-15E1H/M)

ANALOG UNIT (Continued)

C3341 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3342 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3343 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3344 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3345 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3346 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3347 VCEAPF1HW225MY J 2.2 50V Electrolytic AB
C3348 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3349 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3350 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3351 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3352 VCEAPF0JN107MY J 100 6.3V Electrolytic AD
C3354 VCCCCY1HH560JY J 56p 50V Ceramic AB
C3355 VCCCCY1HH560JY J 56p 50V Ceramic AB
C3356 VCCCCY1HH560JY J 56p 50V Ceramic AB
C3357 VCCCCY1HH5R0CY J 5p 50V Ceramic AA
C3358 VCCCCY1HH5R0CY J 5p 50V Ceramic AA
C3359 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3360 VCEAPF1CN107MY J 100 16V Electrolytic AD
C3361 VCEAPF1HN105MY J 1 50V Electrolytic AD
C3362 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3363 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3364 VCEAPF1HN105MY J 1 50V Electrolytic AD
C3365 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3366 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3367 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3368 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3369 RC-EZ1274CEZZ J 1000 16V Electrolytic AD
C3370 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3371 VCEA4A1JN477M J 470 63V Electrolytic AE
C3372 RC-EZ1274CEZZ J 1000 16V Electrolytic AD
C3373 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3375 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1H/M)

C3377 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1H/M)
C3380 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3382 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3383 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3384 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3385 VCKYCY1HB472KY J 4700p 50V Ceramic AA

(LC-13E1H/M)
C3386 VCKYCY1HB472KY J 4700p 50V Ceramic AA

(LC-13E1H/M)
C3387 VCKYCY1HB471KY J 470p 50V Ceramic AA

(LC-13E1H/M)
C3388 VCKYCY1HB471KY J 470p 50V Ceramic AA

(LC-13E1H/M)
C3389 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3401 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3509 VCEAPF1CW107MY J 100 16V Electrolytic AC
C3510 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3512 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3513 VCEASH1CN477MY J 470 16V Electrolytic AD
C3514 VCEAPF0JW336MY J 33 6.3V Electrolytic AB
C3515 VCEAPF0JW226MY J 22 6.3V Electrolytic AB
C3516 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3517 VCKYCY1EB223KY J 0.022 25V Ceramic AA
C3518 VCKYCY1EB223KY J 0.022 25V Ceramic AA
C3520 VCEAPF1EW475MY J 4.7 25V Electrolytic AB
C3521 VCEAPF1EW475MY J 4.7 25V Electrolytic AB
C3522 VCEAPF1CW106MY J 10 16V Electrolytic AB
C3600 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3601 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3602 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3603 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3700 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3701 VCEAPF1EW475MY J 4.7 25V Electrolytic AB
C3702 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3703 VCEAPT1CN226MY J 22 16V Electrolytic AC
C3704 VCCCCY1HH471JY J 470p 50V Ceramic AA
C3705 VCKYCY1EB103KY J 0.01 25V Ceramic AA

C3710 VCEASH1CN337MY J 330 16V Electrolytic AE
C3711 VCKYCY1HB562KY J 5600p 50V Ceramic AA
C3712 VCAAPF1CJ826MY J 82 16V Electrolytic AG
C3713 VCKYCY1HB562KY J 5600p 50V Ceramic AA
C3714 VCEASH1HN476MY J 47 50V Electrolytic AD
C3715 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C3716 VCEASH1EN227MY J 220 25V Electrolytic AE
C3717 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3718 VCEASH1CN337MY J 330 16V Electrolytic AE
C3719 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3720 VCCCCY1HH181JY J 180p 50V Ceramic AA
C3721 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3722 VCAAPF0JJ157MY J 150 6.3V Electrolytic AG
C3724 VCEASH1CN337MY J 330 16V Electrolytic AE
C3725 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3727 VCEASH1CN477MY J 470 16V Electrolytic AD
C3728 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3730 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C3732 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3733 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3734 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3735 VCKYCY1HF103ZY J 0.01 50V Ceramic AA
C3740 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3741 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3750 VCEA4A1CN108M J 1000 16V Electrolytic AD

RESISTORS

R3201 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3202 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA
R3203 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R3204 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA
R3205 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA
R3206 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3207 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3208 VRS-CA1JF561JY J 560 1/16W Metal Oxide AA
R3303 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3304 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3305 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3306 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-13E1H/M)

R3307 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3308 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3309 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-15E1H/M)

R3310 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-13E1H/M)

R3311 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3312 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3315 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3316 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA
R3317 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3318 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA
R3319 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA
R3320 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA
R3321 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3322 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3322 VRS-CY1JF183JY J 18k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3323 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3324 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3324 VRS-CY1JF183JY J 18k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3325 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R3326 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R3327 VRS-CY1JF154FY J 150k 1/16W Metal Oxide AA
R3328 VRS-CY1JF154FY J 150k 1/16W Metal Oxide AA
R3331 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA

64

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB476DE01(LC-13E1H/M)
DUNTKB476DE02(LC-15E1H/M)

ANALOG UNIT (Continued)

R3332 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA
R3333 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R3334 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R3335 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3336 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3337 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3338 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3341 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA
R3342 VRS-CY1JF561JY J 560 1/16W Metal Oxide AA
R3343 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3344 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3345 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA

(LC-15E1H/M)

R3346 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3347 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3348 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3350 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3351 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3353 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3354 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3355 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3356 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3357 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R3358 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R3359 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3360 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3361 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3362 VRS-CY1JF182JY J 1.8k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3362 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3363 VRS-CY1JF182JY J 1.8k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3363 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3364 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA
R3365 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3365 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3366 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3366 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3367 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3368 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA
R3369 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3370 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3371 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3372 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3373 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3375 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-15E1H/M)
R3375 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3376 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3377 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-15E1H/M)
R3377 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3378 VRS-CY1JF102FY J 1k 1/16W Metal Oxide AA

(LC-13E1H/M)
R3379 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA
R3380 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3381 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R3382 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-15E1H/M)
R3383 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA
R3384 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

R3386 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-13E1H/M)

R3387 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-13E1H/M)

R3388 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-13E1H/M)

R3389 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-13E1H/M)

R3399 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-15E1H/M)
R3401 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3402 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA
R3409 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3410 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3411 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA
R3412 VRS-TQ2BD750JY J 75 1/8W Metal Oxide AA
R3413 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3428 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R3429 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R3430 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R3431 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3432 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3433 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3434 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3523 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3524 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3528 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA
R3529 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA
R3530 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3531 VRS-TQ2BD680JY J 68 1/8W Metal Oxide AA
R3532 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3533 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA
R3534 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R3535 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R3536 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R3537 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R3540 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3542 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA
R3543 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R3544 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R3545 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3546 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3547 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3550 VRS-TX2HF221JY J 220 1/2W Metal Oxide AB
R3551 VRS-TX2HF221JY J 220 1/2W Metal Oxide AB
R3552 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA
R3553 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3558 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3561 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3562 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3600 VRS-CB1JF222JY J 2.2k 1/16W Metal Oxide AC
R3604 VRS-CB1JF824JY J 820k 1/16W Metal Oxide AC
R3607 VRS-CB1JF562JY J 5.6k 1/16W Metal Oxide AC
R3610 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA
R3700 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R3701 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3702 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA
R3703 VRS-CY1JF274JY J 270k 1/16W Metal Oxide AA
R3704 VRS-CY1JF133FY J 13k 1/16W Metal Oxide AA
R3705 VRS-CY1JF184JY J 180k 1/16W Metal Oxide AA
R3706 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA
R3707 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R3708 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA
R3710 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA
R3716 VRS-TX2HF000JY J 0 1/2W Metal Oxide AB
R3718 VRS-CE3AF821JY J 820 1W Metal Oxide AC
R3721 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3722 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3724 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R3725 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3726 VRS-TQ2BD683JY J 68k 1/8W Metal Oxide AA
R3727 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R3728 VRS-CY1JF393JY J 39k 1/16W Metal Oxide AA
R3730 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R3731 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA
R3732 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

65

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB476DE01(LC-13E1H/M)
DUNTKB476DE02(LC-15E1H/M)

ANALOG UNIT (Continued)

R3733 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3734 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R3735 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R3736 VRS-CY1JF223FY J 22k 1/16W Metal Oxide AA
R3737 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3738 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R3739 VRS-CY1JF622FY J 6.2k 1/16W Metal Oxide AA
R3740 VRS-CY1JF473FY J 47k 1/16W Metal Oxide AA
R3741 VRS-CY1JF113FY J 11k 1/16W Metal Oxide AA
R3742 VRS-CY1JF182FY J 1.8k 1/16W Metal Oxide AA
R3743 VRS-CY1JF122FY J 1.2k 1/16W Metal Oxide AA
R3745 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA
R3746 VRS-CY1JF122FY J 1.2k 1/16W Metal Oxide AA
R3749 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3750 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R3751 VRS-TV1JD103JY J 10k 1/10W Metal Oxide AA
R3752 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3753 VRS-TX2HF000JY J 0 1/2W Metal Oxide AB
R3754 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R3759 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA
R3761 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R3762 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA
R3766 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R3901 VRS-TQ2BD000JY J 0 1/8W Metal Oxide AA
R3902 VRS-TQ2BD000JY J 0 1/8W Metal Oxide AA

MIISCELLANEOUS PARTS

å F3701 QFS-C1622CEZZ J Fuse, 1.6A/250V AD
å F3702 QFS-C1622CEZZ J Fuse, 1.6A/250V AD

FH3701 QFSHD1002CEZZ J Fuse Holder AA
FH3702 QFSHD1002CEZZ J Fuse Holder AA
FH3703 QFSHD1002CEZZ J Fuse Holder AA
FH3704 QFSHD1002CEZZ J Fuse Holder AA
FB3301 RBLN-0006TAZZY J Ferrite Bead AB
FB3302 RBLN-0035TAZZY J Ferrite Bead AB
FB3700 RBLN-0095CEZZY J Ferrite Bead AD
FB3701 RBLN-0095CEZZY J Ferrite Bead AD
FB3704 RBLN-0051TAZZY J Ferrite Bead AC
FB3705 RBLN-0051TAZZY J Ferrite Bead AC
FB3706 RBLN-0254TAZZY J Ferrite Bead AB
FB3707 RBLN-0254TAZZY J Ferrite Bead AB
FB3708 RBLN-0051TAZZY J Ferrite Bead AC
FB3709 RBLN-0095CEZZY J Ferrite Bead AD
J3301 QJAKF0066CEZZ J AUDIO(L)/(R)(Component) AE
J3401 QJAKG0085CEZZ J AV-IN2/OUT AG
J3404 QJAKG0069CEZZ J Y/PB/PR(Component) AG
J3407 QJAKG0068CEZZ J AV-IN1 AG
J3500 QJAKJ0046CEZZ J HEADPHONE AE
J3701 QJAKE0193CEZZ J POWER INPUT(DC 12V) AK
P3500 QPLGN0278GEZZ J Plug, 2-pin AA
P3501 QPLGN0278GEZZ J Plug, 2-pin AA
P3503 QCNW-A267WJZZ J Connecting Cord, 5-pin AK
P3601 QPLGN0478GEZZ J Plug, 4-pin AB
P3702 QCNW-A698WJZZ J Connecting Cord, 5-pin AD

(LC-15E1H/M)

P3702 QCNW-A700WJZZ J Connecting Cord, 5-pin AD

(LC-13E1H/M)
P3703 QPLGN0378GEZZ J Plug, 3-pin AB
SC3403 QSOCN0464FJZZY J Socket, 50-pin AH
SC3405 QSOCD0456CEZZ J S-VIDEO(AV-IN1) AE

DUNTKB477DE01(LC-13E1H/M)
DUNTKB477DE02(LC-15E1H/M)

CONTOL UNIT

D4008 RH-EX1283CEZZY J Zener Diode, 18V AB
D4009 RH-EX1271CEZZY J Zener Diode, 12V AB
D4010 RH-EX1271CEZZY J Zener Diode, 12V AB

R4005 VRS-CY1JF123JY J 12k 1/16W Metal Oxide AA
R4006 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA
R4011 VRS-CY1JF123JY J 12k 1/16W Metal Oxide AA
R4012 VRS-CY1JF822JY J 8.2k 1/16W Metal Oxide AA

S4701 QSW-P0035GEZZ J Switch, MAIN POWER AF
SW4002QSW-K0108CEZZY J Switch, CH(Ù)AD
SW4003QSW-K0108CEZZY J Switch, CH(ù)AD
SW4004QSW-K0108CEZZY J Switch, MENU AD
SW4006QSW-K0108CEZZY J Switch, TV/VIDEO AD
SW4007QSW-K0108CEZZY J Switch, VOL(+) AD
SW4008QSW-K0108CEZZY J Switch, VOL(–) AD

MISCELLANEOUS PARTS

P4004 QPLGN0564TAZZY J Plug, 5-pin AC

DIODES

RESISTORS

SWITDHES

DUNTKB478DE01(LC-13E1H/M)
DUNTKB478DE02(LC-15E1H/M)

R/C, LED UNIT

Q4003 VSDTC144EE/-1Y J DTC144EE AA
Q4004 VSDTC144EE/-1Y J DTC144EE AA
Q4007 VSUMG4N++++-1Y J UMG4N++++ AB

D4012 RH-EX1271CEZZY J Zener Diode, 12V AB
D4013 RH-EX1271CEZZY J Zener Diode, 12V AB
D4014 RH-PX0421CEZZY J Power/Standby Indicator AD
D4015 RH-PX0421CEZZY J Sleep Indicator AD
D4022 RH-EX1271CEZZY J Zener Diode, 12V AB

C4018 RC-KZ1025CEZZY J 1 10V Ceramic AB

R4021 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R4023 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R4024 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA
R4029 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R4030 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA

RMC4002
P4005 QPLGN0564TAZZY J Plug, 5-pin AC

RRMCU0239CEZZ J R/C Receiver AG

TRANSISTORS

DIODE

CAPACITORS

RESISTORS

MISCELLANEOUS PARTS

66

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB479DE01(LC-13E1H/M)
DUNTKB479DE02(LC-15E1H/M)

INVERTER UNIT

TRANSISTORS

Q6500 VSFZT1053A/-1Y J FZT1053A AG
Q6501 VSFZT1053A/-1Y J FZT1053A AG
Q6502 VS2SA1530AR-1Y J 2SA1530AR AB
Q6503 VSFZT1053A/-1Y J FZT1053A AG
Q6504 VSFZT1053A/-1Y J FZT1053A AG
Q6505 VS2SA1530AR-1Y J 2SA1530AR AB

DIODE

D6500 VHDDAN222//-1Y J Diode AA

COILS

L6501 RCiLPA034WJZZ J Coil AD
L6503 RCiLPA034WJZZ J Coil AD

TRANSFORMERS

å T6500 RTRNZ0805CEZZQ J Transformer AM
å T6501 RTRNZ0805CEZZQ J Transformer AM
å T6502 RTRNZ0805CEZZQ J Transformer AM
å T6503 RTRNZ0805CEZZQ J Transformer AM

CAPACITORS

C6502 VCKYCY1CB473KY J 0.047 16V Ceramic AA
C6503 VCKYCY1CB473KY J 0.047 16V Ceramic AA
C6504 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6507 VCKYCY1CB473KY J 0.047 16V Ceramic AA
C6508 VCKYCY1CB473KY J 0.047 16V Ceramic AA
C6509 VCEA4A1CN108M J 1000 16V Electrolytic AD
C6510 RC-FZA034WJZZ J 0.15 250V Film AE
C6511 RC-FZA034WJZZ J 0.15 250V Film AE

RESISTORS

R6500 VRS-TW2ED332JY J 3.3k 1/4W Metal Oxide AB
R6501 VRS-TW2ED332JY J 3.3k 1/4W Metal Oxide AB
R6502 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R6503 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R6504 VRS-TW2ED332JY J 3.3k 1/4W Metal Oxide AB
R6505 VRS-TW2ED332JY J 3.3k 1/4W Metal Oxide AB
R6506 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R6507 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA

MISCELLANEOUS PARTS

å F6500 QFS-C1223CEZZ J Fuse, 1.25A/250V AD
å F6501 QFS-C1223CEZZ J Fuse, 1.25A/250V AD

FH6500 QFSHD1002CEZZ J Fuse Holder AA
FH6501 QFSHD1002CEZZ J Fuse Holder AA
FH6502 QFSHD1002CEZZ J Fuse Holder AA
FH6503 QFSHD1002CEZZ J Fuse Holder AA
P6500 QPLGN0155FJZZY J Plug, 3-pin AE
P6501 QPLGN0155FJZZY J Plug, 3-pin AE
P6502 QCNW-6071CEZZ J Connecting Cord, 3-pin AD

CABINET AND MECHANICAL PARTS

MODEL : LC-13E1H/M

1 CCABAA092WJ01 J Cabinet A Ass’y BG
1-1

1-2 GCOVA2020CEZZ J R/C, LED Cover AF
1-3
1-4 PSPAGA031WJZZ J Spacer, x4 AB
1-5 PSPAGA033WJZZ J Spacer, x4 AB
1-6 PSPAH0719CEZZ J Spacer, x2 AC
1-7 PSPAH0606CEZZ J Spacer, x2 AD
1-9 PSPAHA073WJZZ J Spacer, x2 AB
1-10 QEARZ0047CEZZ J Grounding Part AC
1-11 VSP7530PB588B J Speaker(L) AS
1-12 VSP7530PB598B J Speaker(R) AS
1-13 XEBSD30P08000 J Screw, x6 AA
1-15 PSPAH0623CEZZ J Spacer, x1 AB

2 CCABBA058WJ06 J
2 CCABBA058WJ07 J
2-1
2-2 GLEGGA009WJSA J Leg, x2 AG
2-3 HiNDPA216WJSA J Model Label(LC-13E1H) AG
2-3 HiNDPA217WJSA J Model Label(LC-13E1M) AG
2-4 LANGTA013WJFW J Reinforcement Angle AL
2-5 PSPAGA043WJZZ J Spacer, x2 AC
2-6 XEBSD30P08000 J Screw, x1 AA

3 CDAi-A021WJ01 J Stand BF
3-1
3-2 GCOVA1945CESA J Stand Grip AK
3-3 GLEGGA004WJSA J Leg, x1 AH
3-4 JHNDP0105CESA J Stand Handle AW
3-5 PSPAZ0415CEZZ J Spacer, x2 AB
3-6 XESSN40P10000 J Screw, x8 AB

4 CCOVAA221WJ01 J Top Cover Ass’yAR
4-1
4-2 GCOVA1943CEKA J Button Cover(VOL) AD
4-3 GCOVA1943CEKB J Button Cover(CH) AD
4-4 JBTN-2076CEKA J Operation Button AE
4-5 JBTN-A012WJKA J Power Button AE
4-6 LHLDZA027WJKZ J Power Button Holder AE
4-7 MSPRCA014WJFW J Power Button Spring AB
4-8 XEBSD30P08000 J Screw, x2 AA

5
5-1 RLCDTA012WJZZ J 13" LCD Panel Unit CV

å 5-2 KLMP-0120CEZZ J Lamp Unit BD

5-3 PGiDM0069CEZZ J Light Guide Panel AZ
5-4 PMiR-0292CEZZ J Reflection Mirror, x2 AG
5-5 PMiR-0293CEZZ J Reflection Mirror, x2 AF
5-6 PSHEP0276CEZZ J
5-7 PSHEP0277CEZZ J Prism Sheet AV
5-8 PSHEP0278CEZZ J Diffusion Sheet AL
5-9 PSHEP0279CEZZ J Reflection Sheet-1 AG
5-10 PSHEP0280CEZZ J Reflection Sheet-2 AG
5-11 PSHEP0306CEZZ J Lamp Reflection Sheet AC

5-12 PSLDMA024WJFW J Back Shield Panel AP
5-13 QCNW-6064CEZZ J Connecting Cord AD
5-14 QCNW-6065CEZZ J Connecting Cord AC
5-15 QCNW-6066CEZZ J Connecting Cord AE
5-16 XBBSD30P05000 J Screw, x2 AA

Not Available
Not Available

Not Available

Not Available

Not Available

Not Available

– Cabinet A —
– "SHARP" Badge —

Cabinet B Ass’y(LC-13E1H)
Cabinet B Ass’y(LC-13E1M)

– Cabinet B —

– Stand, Base —

– Top Cover —

– 13" LCD Panel Unit Ass’y —

Reflection/Deflection Sheet

(Cover), x2

BA
BA

BB

6 GCOVAA129WJKA J Chassis Frame AN
7 GCOVAA012WJKA J Chassis Frame Cover AG
8 GCOVAA078WJKA J Terminal Cover(L) AL
9 GCOVAA079WJKA J Terminal Cover(S) AH
10
11 QCNW-6068CEZZ J Connecting Cord AD
12 QCNW-A699WJZZ J Connecting Cord AG
13 QCNW-A267WJZZ J Connecting Cord AK
14 LX-BZ3442CEFF J Screw, x4 AB
15 XBBSF30P05000 J Screw, x2 AB

Not Available

–

Serial No. Label

67

—

LC-13E1H/M
LC-15E1H/M

CABINET AND MECHANICAL PARTS

H

G

F

E

4

COTROL PWB

1-3

1-1

4-2
4-3
4-4

18

1-10

4-8

1-15

1-2

4-1

1-5

1-6

K

1-9

1-4

1-8

4-5

1-5

4-6

G

4-7

1-11

1-4

18

1-14

1-7

1-4

1-9

1-5

1-4

1-5

1-13

H

1-12

I

R/C,LED PWB

1-13

1-14

K

D

12

INVERTER PWB

5-5

18

5-4

7

5-12

22

6

18

DIGITAL PWB

C

11

F

22

C

H

16

D

16

I

16

21

L

F

13

ANALOG PWB

18

17

1

5-2

5

D

5-1

5-14

5-13

5-17

L

B

C

5-16

5-16

5-15

5-17

B

2-8

2-6

5-6

5-8

5-7

8

2

2-7

2-4

A

2-5

2-2

A

2-5

5-3

5-11

20

G

2-2

5-11

20

5-9

2-1

5-10

5-4

2-3

5-5

19

10

3-6

15

3-5

9

3-3

3

20

3-2

14

3-4

3-1

68

654321

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

CABINET AND MECHANICAL PARTS

MODEL : LC-13E1H/M (Continued)

16 XBPSN30P09JS0 J Screw, x3 AB
17 XEBSD30P06000 J Screw, x1 AA
18 XEBSD30P08000 J Screw, x10 AA
19 XEBSF30P12000 J Screw, x2 AA
20 XEBSF30P20000 J Screw, x6 AB

CABINET AND MECHANICAL PARTS

MODEL : LC-15E1H/M

1 CCABAA090WJ01 J Cabinet A Ass’yBG
1-1
1-2 GCOVA2020CEZZ J R/C, LED Cover AF
1-3
1-4 PSPAGA034WJZZ J Spacer, x4 AB
1-5 PSPAGA035WJZZ J Spacer, x4 AB
1-6 PSPAHA050WJZZ J Spacer, x2 AC
1-7 PSPAHA051WJZZ J Spacer, x2 AC
1-8 PSPAHA073WJZZ J Spacer, x1 AB
1-10 QEARZ0047CEZZ J Grounding Part AC
1-11 VSP7530PB588B J Speaker(L) AS
1-12 VSP7530PB598B J Speaker(R) AS
1-13 XEBSD30P08000 J Screw, x6 AA
1-14 XEBSD30P08000 J Screw, x2 AA

2 CCABBA056WJ06 J
2 CCABBA056WJ07 J
2-1
2-2 GLEGGA008WJSA J Leg, x2 AF
2-3 HiNDPA218WJSA J Model Label(LC-15E1H) AG
2-3 HiNDPA219WJSA J Model Label(LC-15E1M) AG
2-4 LANGT9061CEFW J Reinforcement Angle BD
2-5 PSPAGA043WJZZ J Spacer, x2 AC
2-6 XEBSD30P08000 J Screw, x1 AA
2-7 PMLT-A039WJZZ J Spacer, x4 AB
2-8 PSPAHA060WJKZ J Spacer, x1 AB

3 CDAi-A023WJ01 J Stand BF
3-1
3-2 GCOVA1945CESA J Stand Grip AK
3-3 GLEGGA004WJSA J Leg, x1 AH
3-4 JHNDP0105CESA J Stand Handle AW
3-5 PSPAZ0415CEZZ J Spacer, x2 AB
3-6 XESSN40P10000 J Screw, x8 AB

Not Available
Not Available

Not Available

Not Available

– Cabinet A —
– "SHARP" Badge —

Cabinet B Ass’y(LC-15E1H)
Cabinet B Ass’y(LC-15E1M)

– Cabinet B —

– Stand, Base —

BB
BB

4 CCOVAA221WJ01 J Top Cover Ass’yAR
4-1
4-2 GCOVA1943CEKA J Button Cover(VOL) AD
4-3 GCOVA1943CEKB J Button Cover(CH) AD
4-4 JBTN-2076CEKA J Operation Button AE
4-5 JBTN-A012WJKA J Power Button AE
4-6 LHLDZA027WJKZ J Power Button Holder AE
4-7 MSPRCA014WJFW J Power Button Spring AB
4-8 XEBSD30P08000 J Screw, x2 AA

5
5-1 RLCDTA013WJZZ J 15” LCD Panel Unit DB

å 5-2 KLMP-0122CEZZ J Lamp Unit BD

5-3 PGiDM0070CEZZ J Light Guide Panel BA
5-4 PMiR-0294CEZZ J Reflection Mirror, x2 AG
5-5 PMiR-0295CEZZ J Reflection Mirror, x2 AF
5-6 PSHEP0281CEZZ J
5-7 PSHEP0282CEZZ J Prism Sheet AY
5-8 PSHEP0283CEZZ J Diffusion Sheet AL
5-9 PSHEP0284CEZZ J Reflection Sheet-1 AG
5-10 PSHEP0285CEZZ J Reflection Sheet-2 AG
5-11 PSHEP0307CEZZ J Lamp Reflection Sheet AC

5-12 PSLDM4689CEFW J Back Shield Panel AR
5-13 QCNW-6064CEZZ J Connecting Cord AD
5-14 QCNW-6065CEZZ J Connecting Cord AC
5-15 QCNW-A069WJZZ J Connecting Cord AF
5-16 XBBSD30P05000 J Screw, x2 AA
5-17 XBBSD30P05000 J Screw, x2 AA

6 GCOVA2105CEKA J Chassis Frame AP
7 GCOVAA012WJKA J Chassis Frame Cover AG
8 GCOVAA082WJKA J Terminal Cover(L) AH
9 GCOVAA083WJKA J Terminal Cover(S) AK
10
11 QCNW-A070WJZZ J Connecting Cord AD

Not Available

Not Available

Not Available

– Top Cover —

– 15” LCD Panel Unit Ass’y —

Reflection/Deflection Sheet

(Cover), x2

–

Serial No. Label

BE

—

69

LC-13E1H/M
LC-15E1H/M

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

CABINET AND MECHANICAL PARTS

MODEL : LC-15E1H/M (Continued)

12 QCNW-A699WJZZ J Connecting Cord AG
13 QCNW-A267WJZZ J Connecting Cord AK
14 LX-BZ3442CEFF J Screw, x4 AB
15 XBBSF30P05000 J Screw, x2 AB
16 XBPSN30P09JS0 J Screw, x3 AB
17 XEBSD30P06000 J Screw, x1 AA
18 XEBSD30P08000 J Screw, x10 AA
19 XEBSD30P12000 J Screw, x2 AA
20 XEBSF30P20000 J Screw, x6 AB
21 XEBSD30P06000 J Screw, x1 AA
22 PSPAHA077WJZZ J Spacer, x3 AA

SUPPLIED ACCESSORIES

å QACCB0016TAZZ J AC Cord(LC-13/15E1H) AV
å QACCK0006TAZZ J AC Cord(LC-13/15E1M) AL
å UADP-A021WJPZ J AC Adapter BG

QCNWG0008CEPZ J Antenna Cable AM
RRMCGA085WJSA J Infrared R/C Unit AR
TiNS-A279WJZZ J Operation Manual AS

(LC-13/15E1H)

TiNS-A280WJZZ J Operation Manual AY

(LC-13/15E1M)

LHLDW0109CESA J Cable Clamp, x1 AD

P ACKING PARTS

(NOT REPLACEMENT ITEM)

SPAKCA336WJZZ – Packing Case(LC-13E1H) —
SPAKCA337WJZZ – Packing Case(LC-13E1M) —
SPAKFA092WJZZ – Buffer Material(T op) —
SPAKFA095WJZZ –
SPAKPA076WJZZ – Wrapping Paper —
SPAKXA058WJZZ – Buf fer Material(Bottom) —
SSAKA0160CEZZ – Polyethylene Bag —
TLABK0001T AZZ – No Label —

LC-13E1H/M

Buf fer Material(Accessories)

—

SPAKCA338WJZZ – Packing Case(LC-15E1H) —
SPAKCA340WJZZ – Packing Case(LC-15E1M) —
SPAKFA089WJZZ – Buffer Material(T op) —
SPAKFA095WJZZ –
SPAKPA072WJZZ – Wrapping Paper —
SPAKXA059WJZZ – Buf fer Material(Bottom) —
SSAKA0160CEZZ – Polyethylene Bag —
TLABK0001T AZZ – No Label —

Buf fer Material(Accessories)

—

SERVICE JIGS

(USE FOR SERVICING)

LC-15E1H/M

QCNW-A324WJZZ J Extension Cable AE
QCNW-A552WJZZ J Extension Cable AG

(SC2001-SC3403)
(P2004-P3702)

70

★Polyethylene Bag
(SSAKA0160CEZZ)

★Buffer Material (Top)
(SPAKFA092WJZZ:LC-13E1H/M)
(SPAKFA089WJZZ:LC-15E1H/M)

★Wrapping Paper
(SPAKPA076WJZZ:LC-13E1H/M)
(SPAKPA072WJZZ:LC-15E1H/M)

★Packing Case (Accessories)
(SPAKFA095WJZZ)

LC-13E1H/M
LC-15E1H/M

PACKING OF THE SET

Operation Manual
(TiNS-A279WJZZ:LC-13/15E1H)
(TiNS-A280WJZZ:LC-13/15E1M)
Cable Clamp
(LHLDW0109CESA)
★"AAA"size Battery (2pcs)

Antenna Cable
(QCNWG0008CEPZ)
AC Adapter
(UADP-A021WJPZ)
AC Cord
(QACCB0016TAZZ:LC13/15E1H)
(QACCK0006TAZZ:LC13/15E1M)
Infrared R/C Unit
(RRMCGA085WJSA)

★No. Label
(TLABK0001TAZZ)

★

Not Replacement Item

★Buffer Material (Bottom)
(SPAKXA058WJZZ:LC-13E1H/M)
(SPAKXA059WJZZ:LC-15E1H/M)

★Packing Case
(SPAKCA336WJZZ:LC-13E1H)
(SPAKCA337WJZZ:LC-13E1M)
(SPAKCA338WJZZ:LC-15E1H)
(SPAKCA340WJZZ:LC-15E1M)

71

LC-13E1H/M
LC-15E1H/M

COPYRIGHT © 2002 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

D Japan P Japan TQ1409-S

Oct. 2002 Printed in Japan

MI. KG

SHARP CORPORATION
AV Systems Group
Quality & Reliability Control Center
Y aita, Tochigi 329-2193, Japan

SERVICE MANUAL

SUPPLEMENT

LCD COLOUR TELEVISION

LC-13E1M

LC-13E1M
LC-15E1M

SUPPLEMENT

SX2U4LC-13E1M

MODELS

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.

OUTLINE

This model is based on the Singapore-destined LC-13E1M/LC-15E1M and partially modified for the
Australlian and New Zealand market.
For the contents not covered in this Sevice Manual, accordingly, please refer to the LC-13E1M and
LC-15E1M Service Manual (S92P7LC-13E1H).

CONTENTS

» IMPORTANT SERVICE SAFETY PRECAUTION ........................................................................................2

» DESCRIPTION OF SCHEMATIC DIAGRAM ...............................................................................................4

» SCHEMATIC DIAGRAM...............................................................................................................................5

» REPLACEMENT PARTS LIST....................................................................................................................23

» PACKING OF THE SET ..............................................................................................................................35

LC-15E1M

Page

SHARP CORPORATION

LC-13E1M

2

2

LC-15E1M

SUPPLEMENT

IMPORTANT SERVICE SAFETY PRECAUTION

Ë

Service work should be perfomed only by qualified service technicians who are thor­oughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED
PROTECTION A GAINST A RISK OF
FIRE REPLACE ONLY WITH SAME
TYPE F3701 (1.6A, 250V),
F3702(1.6A, 250V), F6500 (1.25A,

A V

250V) AND F6510 (1.25A, 250V)
FUSE.

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform
the following safety checks:

1. Inspect all lead dress to make certain that leads are
not pinched, and check that hardware is not lodged
between the chassis and other metal parts in the
receiver.

2. Inspect all protective devices such as non-metallic
control knobs, insulation materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacitor networks, mechanical
insulators, etc.

3. To be sure that no shock hazard exists, check for
leakage current in the following manner.

• Plug the AC cord directly into a 110~240 volt A C outlet,
and connect the DC power cable into the receiver's
DC jack. (Do not use an isolation transformer for this
test).

• Using two clip leads, connect a 50k ohm, 10 watt
resistor paralleled by a 0.15µF capacitor in series with
all exposed metal cabinet parts and a known earth

ground, such as electrical conduit or electrical ground
connected to an earth ground.

• Use an AC voltmeter ha ving with 5000 ohm per volt, or
higher, sensitivity or measure the AC voltage drop
across the resisor.

• Connect the resistor connection to all exposed metal
parts having a return to the chassis (antenna, metal
cabinet, screw heads, knobs and control shafts,
escutcheon, etc.) and measure the AC voltage drop
across the resistor.
All checks must be repeated with the AC cord plug
connection reversed. (If necessar y, a nonpolarized
adaptor plug must be used only for the purpose of
completing these checks.)
Any reading of 0.75V peak (this corresponds to 0.5
milliamp. peak A C .) or more is e xcessive and indicates
a potential shock hazard which must be corrected
before returning the monitor to the owner .

DVM

AC SCALE

50k ohm

10W

0.15 µF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO
KNOWN EARTH
GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in LCD television
have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical

and shaded areas in the

Schematic Diagrams

For continued protection, replacement parts must be
identical to those used in the original circuit.
The use of a substitute replacement parts which do not
have the same safety characteristics as the factory
recommended replacement parts shown in this service
manual, may create shock, fire or other hazards.

components having such features are identified by “ å”

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

2

Replacement Parts Lists

.

and

SUPPLEMENT

Precautions for using lead-free solder

1 Employing lead-free solder

"All PWBs" of this model employs lead-free solder . The LF symbol indicates lead-free solder, and is attached on
the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder.
Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conv entional
lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40ºC, we recommend
you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldening
bit, contact our service station or service ranch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead
solder by 40°C, and as it has poor solder wettabillty, you may be apt to keep the soldering bit in contact with the
PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance
temperature of parts may be excoeded, remove the bit from the PWB as soon as y ou conurm the steady soldering
condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to tum on
and off the power of the bit as required.
if a different type of solder stays on the tip of the soldering bit, it is alloy ed with lead-free solder. Clean the bit after
every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

LC-13E1M
LC-15E1M

Becareful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No, ★ Description Code
ZHNDAi123250E J φ0.3mm 250g(1roll) BL
ZHNDAi126500E J φ0.6mm 500g(1roll) BK
ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

3

LC-13E1M
LC-15E1M

SUPPLEMENT

DESCRIPTION OF SCHEMATIC DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. The voltages at test points are measured on
exclusive AC adaptor and the stble supply voltage
of AC 120V. Signals are fed by a color bar signal
generator for servicing purpose and the above
voltages are measured with a 20k ohm/V tester.

INDICATION OF RESISTOR & CAPACI­TOR:

RESISTOR

1. The unit of resistance “Ω” is omitted.
(K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted.
(J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/16W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise
noted.

C

: Solid
S : Oxide Film T : Special
N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted.
(P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise
noted.

(ML): Mylar (TA): Tantalum
(PF): Polypro Film (ST): Styrol

W

: Cement

CAUTION:

This circuit diagram is original one, therefore there may be a
slight difference from yours.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE
IMPORTANT FOR MAINTAINING THE SAFETY OF
THE SET. BE SURE TO REPLACE THESE PARTS
WITH SPECIFIED ONES FOR MAINTAINING THE
SAFETY AND PERFORMANCE OF THE SET.

4

SCHEMATIC DIAGRAM

Ë

R/C, LED and CONTROL Unit

H

G

F

LC-13E1M
LC-15E1M

SUPPLEMENT

E

D

C

B

A

654321

5

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

DIGITAL Unit-1/4

H

G

F

E

D

C

B

A

87109654321

6

LC-13E1M
LC-15E1M

SUPPLEMENT

1716 1918151413121110

7

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

DIGITAL Unit-2/4

H

G

F

E

D

C

B

A

87109654321

8

LC-13E1M
LC-15E1M

SUPPLEMENT

1716 1918151413121110

9

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

DIGITAL Unit-3/4

H

G

F

E

D

C

B

A

87109654321

10

LC-13E1M
LC-15E1M

SUPPLEMENT

11

1716 1918151413121110

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

DIGITAL Unit-4/4

H

G

F

E

D

C

B

A

87109654321

12

LC-13E1M
LC-15E1M

SUPPLEMENT

13

1716 1918151413121110

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

ANALOG Unit-1/2 (LC-13E1M)

H

G

F

E

D

C

B

A

87109654321

14

LC-13E1M
LC-15E1M

SUPPLEMENT

15

1716 1918151413121110

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

ANALOG Unit-2/2 (LC-13E1M)

H

G

F

E

D

C

B

A

87109654321

16

LC-13E1M
LC-15E1M

SUPPLEMENT

17

1716 1918151413121110

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

ANALOG Unit-1/2 (LC-15E1M)

H

G

F

E

D

C

B

A

87109654321

18

LC-13E1M
LC-15E1M

SUPPLEMENT

19

1716 1918151413121110

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

ANALOG Unit-2/2 (LC-15E1M)

H

G

F

E

D

C

B

A

87109654321

20

LC-13E1M
LC-15E1M

SUPPLEMENT

21

1716 1918151413121110

LC-13E1M
LC-15E1M

SUPPLEMENT

Ë

INVERTER Unit

H

G

F

E

D

C

B

A

654321

22

LC-13E1M
LC-15E1M

SUPPLEMENT

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33 (LC-13E1M)

PARTS LIST

DUNTKA670FE34 (LC-15E1M)

DIGITAL UNIT

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.

å and shaded areas in the Replacement Parts Lists

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the
following informations.

1. MODEL NUMBER 2. REF. NO .

3. PART NO. 4. DESCRIPTION

★ MARK: SPARE PARTS-DELIVERY SECTION

Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLIES

(NOT REPLACEMENT ITEM)

DUNTKA670FE33 – DIGITAL Unit —
DUNTKB476DE04 – ANALOG Unit —
DUNTKB477DE04 – CONTROL Unit —
DUNTKB478DE04 – R/C, LED Unit —
DUNTKB479DE04 – INVERTER Unit —

DUNTKA670FE34 – DIGITAL Unit —
DUNTKB476DE05 – ANALOG Unit —
DUNTKB477DE05 – CONTROL Unit —
DUNTKB478DE05 – R/C, LED Unit —
DUNTKB479DE05 – INVERTER Unit —

LC-13E1M

LC-15E1M

LCD PANEL

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

RLCDTA012WJZZ J 13" LCD Panel Unit CV
RLCDTA013WJZZ J 15" LCD Panel Unit DB

IC401 VHiBA7046F/-1Y J BA7046F AF
IC402 VHiNJM2235V-1Y J NJM2235V AE
IC702 VHiBA033FP/-1Y J BA033FP-E2 AG
IC703 VHiPQ20VZ11-1Y J PQ20VZ11 AG
IC801 VHiVPC3230D1EQ J VPC3230D-QA-B3 BD
IC1101 VHiMB8346BV-1Y J MB88346BPFV AN
IC1102 VHiNJM4565V-1Y J NJM4565V AF
IC1103 VHiNJM2060V-1Y J NJM2060V AF
IC1104 VHiNJM2060V-1Y J NJM2060V AF
IC1105 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1106 VHiNJM4580V-1Y J NJM4580V AE
IC1107 VHiNJM4580V-1Y J NJM4580V AE
IC1108 VHiNJM4580V-1Y J NJM4580V AE
IC1109 VHiNJM353M/-1Y J NJM353M AG
IC1110 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1111 VHiMB8346BV-1Y J MB88346BPFV AN
IC1112 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1113 VHiBU4053V/-1Y J BU4053BCFV-E2 AE
IC1114 VHiNJM4580V-1Y J NJM4580V AE
IC1115 VHiNJM4580V-1Y J NJM4580V AE
IC1116 VHiNJM2147M-1Y J NJM2147M-TE1 AF
IC1201 RH-iX3378CEN1Q J LR38815 AY
IC1202 VHiPD485505-2Y J UPD485505G-25 AY
IC1206 VHiLVX125FT-1Y J TC74LVX125FT AG
IC1207 VHiTC4W66U/-1Y J TC4W66FU AE
IC1208 VHiPQ1R34++-1Y J PQ1R34 AE
IC2001 RH-iXA381WJZZQ J M306V0ME-181FP AZ
IC2002 VHiBD4746G+-1Y J BD4746G-TR AD
IC2003 VHiTC4W66U/-1Y J TC4W66FU AE
IC2004 VHiBR2416E2-1Y J BR24C16F AK

Q401 VS2SC3928AR-1Y J 2SC3928AR AB
Q402 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q711 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q712 VSDTC144EE/-1Y J DTC144EE AA
Q1101 VS2SA1729//-1Y J 2SA1729 AF
Q1102 VS2SC4520//-1Y J 2SC4520 AE
Q1103 VS2SA1036K/-1Y J 2SA1036K AC
Q1104 VS2SA1036K/-1Y J 2SA1036K AC
Q1105 VS2SA1036K/-1Y J 2SA1036K AC
Q1106 VSFMMT718//-1Y J FMMT718 AE
Q1107 VSDTC144EE/-1Y J DTC144EE AA
Q1108 VS2SC4520//-1Y J 2SC4520 AE
Q1109 VS2SA1729//-1Y J 2SA1729 AF
Q1201 VSDTC144EE/-1Y J DTC144EE AA
Q1203 VSDTC144EE/-1Y J DTC144EE AA
Q1204 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q1205 VSUMX2N++++-1Y J UMX2N++++ AB
Q2004 VSDTC114EE/-1Y J DTC144EE AB
Q2007 VSDTC144EE/-1Y J DTC144EE AA

D701 VHDDAN202K/-1Y J Diode AB
D1101 VHD1SS250//1EY J Diode AB
D1106 VHDDAN222//-1Y J Diode AA
D1107 VHD1SS250//1EY J Diode AB
D1108 VHDDAN222//-1Y J Diode AA
D1109 VHDDAN222//-1Y J Diode AA
D1110 VHDDAN222//-1Y J Diode AA
D1201 VHD1SS250//1EY J Diode AB
D1203 VHDRB491D++-1Y J Diode AD
D1205 VHDDAN222//-1Y J Diode AA
D1206 RH-EX0227CEZZY J Zener Diode AB
D1208 VHDDAN222//-1Y J Diode AA
D1209 RH-EX1247CEZZY J Zener Diode, 5.6V AB
D1210 VHDDAN222//-1Y J Diode AA
D1211 VHDDAN222//-1Y J Diode AA
D1212 VHDRB481K++-1Y J Diode AD
D2002 VHDRB491D++-1Y J Diode AD
D2004 RH-DX0061GEZZY J Diode AD

INTEGRATED CIRCUITS

TRANSISTORS

DIODES

23

LC-13E1M
LC-15E1M

SUPPLEMENT

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33 (LC-13E1M)
DUNTKA670FE34 (LC-15E1M)

DIGITAL UNIT(Continued)

PACKAGED CIRCUITS

X801 RCRSC0012CEZZY J Crystal AH
X2002 RFiLZ0169TAZZY J Filter AD

COILS

L401 VP-9N4R7KR56NY J Peaking 4.7µH AC
L402 VP-9N4R7KR56NY J Peaking 4.7µH AC
L801 VP-9N3R3KR46NY J Peaking 3.3µH AC
L802 VP-9N3R3KR46NY J Peaking 3.3µH AC
L803 VP-9N3R3KR46NY J Peaking 3.3µH AC
L804 RCiLC0055CEZZY J Coil AD
L805 RCiLC0055CEZZY J Coil AD
L1201 VP-1M470J5R4NY J Peaking 47µH AC
L1202 RCiLC0055CEZZY J Coil AD
L1203 VP-1M220J2R9NY J Peaking 22µH AB
L1204 VP-1M220J2R9NY J Peaking 22µH AB
L1205 VP-1M220J2R9NY J Peaking 22µH AB

CAPACITORS

C401 VCKYTV1AB105KY J 1 10V Ceramic AC
C402 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C403 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C404 VCEAPF0JW476MY J 47 6.3V Electrolytic AB
C405 VCKYCY1HB222KY J 2200p 50V Ceramic AA
C406 VCKYTV1AB105KY J 1 10V Ceramic AC
C407 VCCCCY1HH101JY J 100p 50V Ceramic AA
C408 VCKYTV1AB105KY J 1 10V Ceramic AC
C409 VCKYTV1AB105KY J 1 10V Ceramic AC
C410 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C411 VCKYTV1AB105KY J 1 10V Ceramic AC
C412 VCCCCY1HH331JY J 330p 50V Ceramic AA
C413 VCCCCY1HH331JY J 330p 50V Ceramic AA
C414 VCCCCY1HH331JY J 330p 50V Ceramic AA
C701 VCKYTV1CF105ZY J 1 16V Ceramic AB
C702 VCEAPF1CN226MY J 22 16V Electrolytic AD
C703 VCKYTV1CF105ZY J 1 16V Ceramic AB
C705 VCKYCY1CF334ZY J 0.33 16V Ceramic AB
C706 VCEAPF0JN226MY J 22 6.3V Electrolytic AD
C711 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C801 VCEAPF1CN106MY J 10 16V Electrolytic AD
C802 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C803 VCCCCY1HH7R0DY J 7p 50V Ceramic AA
C804 VCCCCY1HH7R0DY J 7p 50V Ceramic AA
C805 RC-KZ1025CEZZY J 1 10V Ceramic AB
C806 RC-KZ1025CEZZY J 1 10V Ceramic AB
C807 VCKYCY1HB331KY J 330p 50V Ceramic AA
C808 VCKYCY1HB331KY J 330p 50V Ceramic AA
C809 VCEAPF1CN107MY J 100 16V Electrolytic AD
C810 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C811 VCKYCY1HB331KY J 330p 50V Ceramic AA
C812 RC-KZ1025CEZZY J 1 10V Ceramic AB
C813 RC-KZ1025CEZZY J 1 10V Ceramic AB
C814 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C815 VCKYTV1CF684ZY J 0.68 16V Ceramic AB
C816 VCKYTV1CF684ZY J 0.68 16V Ceramic AB
C817 VCKYTV1CF105ZY J 1 16V Ceramic AB
C818 RC-KZ1025CEZZY J 1 10V Ceramic AB
C819 RC-KZ1025CEZZY J 1 10V Ceramic AB
C820 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C821 VCEAPF1CN107MY J 100 16V Electrolytic AD
C822 RC-KZ1025CEZZY J 1 10V Ceramic AB
C823 RC-KZ1025CEZZY J 1 10V Ceramic AB
C824 VCKYCY1AB224KY J 0.22 10V Ceramic AB
C825 VCKYCY1AB224KY J 0.22 10V Ceramic AB
C826 VCEAPF0GW227MY J 220 4V Electrolytic AD
C827 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C828 VCKYCY1AB224KY J 0.22 10V Ceramic AB
C830 VCKYCY1CF224ZY J 0.22 16V Ceramic AB
C831 VCKYCY1CF224ZY J 0.22 16V Ceramic AB
C832 VCKYCY1CF224ZY J 0.22 16V Ceramic AB
C834 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C835 VCEAPF1CW107MY J 100 16V Electrolytic AC

C836 RC-KZ1025CEZZY J 1 10V Ceramic AB
C837 RC-KZ1025CEZZY J 1 10V Ceramic AB
C838 VCEAPF0GW107MY J 100 4V Electrolytic AC
C839 RC-KZ1025CEZZY J 1 10V Ceramic AB
C840 VCKYTV1CF684ZY J 0.68 16V Ceramic AB
C1101 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1102 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1103 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1104 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1105 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1107 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1108 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1109 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1110 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1111 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1112 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1113 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1114 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1115 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1116 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1117 VCCCCY1HH560JY J 56p 50V Ceramic AB
C1118 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1119 VCKYTV1CF105ZY J 1 16V Ceramic AB
C1120 VCKYTV1EF104ZY J 0.1 25V Ceramic AB
C1122 VCKYTV1CF105ZY J 1 16V Ceramic AB
C1123 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1124 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1125 VCEAPF1CN107MY J 100 16V Electrolytic AD
C1126 RC-EZ1339CEZZY J 220 16V Electrolytic AD
C1130 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1131 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1132 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1133 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1134 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1135 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1136 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1137 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1138 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1139 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1141 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1142 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1143 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1144 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1145 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1146 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1147 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1148 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1149 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1150 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1151 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1152 VCCCCY1HH181JY J 180p 50V Ceramic AA
C1153 VCKYTV1HB103KY J 0.01 50V Ceramic AA
C1154 VCKYTV1HB103KY J 0.01 50V Ceramic AA
C1155 VCKYTV1CB334KY J 0.33 16V Ceramic AC
C1156 VCCCCY1HH560JY J 56p 50V Ceramic AB
C1157 VCKYTV1CB105KY J 1 16V Ceramic AC
C1202 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1204 VCCCCY1HH220JY J 22p 50V Ceramic AA
C1205 VCCCCY1HH220JY J 22p 50V Ceramic AA
C1206 VCEAPF1HN106MY J 10 50V Electrolytic AD
C1207 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1208 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C1209 VCEASH0JN227MY J 220 6.3V Electrolytic AC
C1210 VCEAPF0GW107MY J 100 4V Electrolytic AC
C1211 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1212 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1213 VCEAPF1CW107MY J 100 16V Electrolytic AC
C1214 VCEAPF0GW107MY J 100 4V Electrolytic AC
C1215 RC-KZ1025CEZZY J 1 10V Ceramic AB
C1217 VCEAPF1HN475MY J 4.7 50V Electrolytic AC
C1218 VCEAPF1CN106MY J 10 16V Electrolytic AD
C1223 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1224 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1225 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C1226 VCEAPF1HN106MY J 10 50V Electrolytic AD
C1227 VCKYTV1CB105KY J 1 16V Ceramic AC

24

LC-13E1M
LC-15E1M

SUPPLEMENT

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33 (LC-13E1M)
DUNTKA670FE34 (LC-15E1M)

DIGITAL UNIT(Continued)

C1228 RC-KZ1025CEZZY J 1 10V Ceramic AB
C1229 VCEAPF1CN226MY J 22 16V Electrolytic AD
C1230 VCKYTV1CB105KY J 1 16V Ceramic AC
C1231 VCEAPF1CN107MY J 100 16V Electrolytic AD
C1232 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C2006 RC-KZ1025CEZZY J 1 10V Ceramic AB
C2007 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2009 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2010 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2017 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C2018 VCCCCY1HH220JY J 22p 50V Ceramic AA
C2019 VCCCCY1HH470JY J 47p 50V Ceramic AA
C2020 VCKYCY1HB271KY J 270p 50V Ceramic AA
C2021 VCEAPF1CW107MY J 100 16V Electrolytic AC
C2023 VCEAPF1CN106MY J 10 16V Electrolytic AD
C7104 VCEAPF1CN107MY J 100 16V Electrolytic AD
C7105 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

RESISTORS

R401 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R402 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R403 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R404 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R405 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R406 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R407 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R408 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R409 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R410 VRS-CY1JF474JY J 470k 1/16W Metal Oxide AA
R412 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R414 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R415 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R416 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R417 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R418 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R419 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R705 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R711 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R712 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R714 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R715 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R716 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R717 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R726 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R801 VRS-CB1JF221JY J 220 1/16W Metal Oxide AC
R802 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R803 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R804 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R807 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R808 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R809 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA
R810 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R811 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA
R813 VRS-CB1JF220JY J 22 1/16W Metal Oxide AC
R814 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R815 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R816 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA
R826 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R831 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R832 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R833 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R834 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R905 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R1001 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1002 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1003 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1005 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1006 VRS-CY1JF243FY J 24k 1/16W Metal Oxide AA
R1007 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R1008 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA
R1009 VRS-CY1JF682FY J 6.8k 1/16W Metal Oxide AA
R1013 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA

R1014 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R1016 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R1017 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R1019 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA
R1020 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R1021 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA
R1024 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1025 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1026 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1027 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1028 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1029 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1030 VRS-TW2ED150JY J 15 1/4W Metal Oxide AA
R1031 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1032 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1033 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1034 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1102 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1104 VRS-CA1JF333JY J 33k 1/16W Metal Oxide AA
R1106 VRS-CD1JJ333JY J 33k 1/16W Metal Comp. AC
R1107 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1108 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1109 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R1110 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R1111 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1112 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1114 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1115 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1116 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1117 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1118 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R1119 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA
R1120 VRS-TX2HF5R6JY J 5.6 1/2W Metal Oxide AB
R1121 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA
R1123 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA
R1124 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA
R1125 VRS-TX2HF101JY J 100 1/2W Metal Oxide AA
R1127 VRS-TX2HF1R8JY J 1.8 1/2W Metal Oxide AB
R1128 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R1129 VRS-CY1JF363FY J 36k 1/16W Metal Oxide AA
R1130 VRS-TX2HF5R6JY J 5.6 1/2W Metal Oxide AB
R1131 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA
R1140 VRS-CY1JF273FY J 27k 1/16W Metal Oxide AA
R1142 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1143 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R1144 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R1145 VRS-TW2ED5R6JY J 5.6 1/4W Metal Oxide AA
R1146 VRS-TW2ED8R2JY J 8.2 1/4W Metal Oxide AA
R1148 VRS-TX2HF100JY J 10 1/2W Metal Oxide AB
R1150 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1151 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1152 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA
R1153 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA
R1154 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1157 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1158 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1160 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1161 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1162 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1163 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1166 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA
R1167 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1168 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1169 VRS-CD1JJ333JY J 33k 1/16W Metal Comp. AC
R1170 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1171 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1172 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1173 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA
R1174 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1175 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1176 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1177 VRS-CY1JF683JY J 68k 1/16W Metal Oxide AA
R1178 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA
R1179 VRS-CY1JF103FY J 10k 1/16W Metal Oxide AA
R1182 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1183 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA

25

LC-13E1M
LC-15E1M

SUPPLEMENT

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKA670FE33 (LC-13E1M)
DUNTKA670FE34 (LC-15E1M)

DIGITAL UNIT(Continued)

R1184 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1185 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1186 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1187 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1188 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R1189 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1193 VRS-CY1JF680JY J 68 1/16W Metal Oxide AA
R1201 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1202 VRS-CD1JJ220JY J 22 1/16W Metal Comp. AC
R1203 VRS-CD1JJ220JY J 22 1/16W Metal Comp. AC
R1204 VRS-CD1JJ220JY J 22 1/16W Metal Comp. AC
R1208 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1209 VRS-CA1JF220JY J 22 1/16W Metal Oxide AA
R1210 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA
R1211 VRS-CY1JF221JY J 220 1/16W Metal Oxide AA
R1214 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA
R1217 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1218 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R1221 VRS-CB1JF332JY J 3.3k 1/16W Metal Oxide AC
R1223 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R1225 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA
R1226 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1228 VRS-TX2HF330JY J 33 1/2W Metal Oxide AB
R1230 VRS-TV1JD562JY J 5.6k 1/10W Metal Oxide AA
R1232 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1233 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1235 VRS-CB1JF473JY J 47k 1/16W Metal Oxide AC
R1236 VRS-CB1JF473JY J 47k 1/16W Metal Oxide AC
R1237 VRS-TX2HF472JY J 4.7k 1/2W Metal Oxide AB
R1238 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R1243 VRS-CY1JF1R0JY J 1 1/16W Metal Oxide AA
R1245 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R1246 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA
R1247 VRS-CY1JF682JY J 6.8k 1/16W Metal Oxide AA
R1248 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA
R1249 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R1260 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R1261 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2002 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2007 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2009 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R2010 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2011 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA
R2012 VRS-CA1JF103JY J 10k 1/16W Metal Oxide AA
R2013 VRS-CA1JF223JY J 22k 1/16W Metal Oxide AA
R2014 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R2015 VRS-CB1JF331JY J 330 1/16W Metal Oxide AC
R2016 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2017 VRS-CA1JF102JY J 1k 1/16W Metal Oxide AA
R2018 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2021 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R2022 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R2029 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2030 VRS-CA1JF333JY J 33k 1/16W Metal Oxide AA
R2033 VRS-CB1JF101JY J 100 1/16W Metal Oxide AA
R2036 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2037 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA
R2038 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2041 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2044 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2045 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2049 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2052 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2053 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA
R2055 VRS-CA1JF223JY J 22k 1/16W Metal Oxide AA
R2056 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2057 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2060 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA
R2061 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA
R2067 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA
R2068 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA

FB801 RBLN-0090CEZZY J Ferrite Bead AD

MISCELLANEOUS PARTS

FB802 RBLN-0090CEZZY J Ferrite Bead AD
FB1201 RBLN-0090CEZZY J Ferrite Bead AD
FB1202 RBLN-0006TAZZY J Ferrite Bead AB
FB1203 RBLN-0076TAZZY J Ferrite Bead AC
P2001 QPLGN0558REZZY J Plug, 5-pin AE
P2003 QPLGN1058REZZY J Plug, 10-pin AD
P2004 QPLGN0165FJZZY J Plug, 5-pin AD
SC1201 QSOCNA002WJPZY J Socket, 20-pin AD
SC1202 QSOCN0687FJZZY J Socket, 50-pin AF
SC1203 QSOCN0206FJZZY J Socket, 30-pin AF
SC2001 QSOCN0464FJZZY J Socket, 50-pin AH

26

LC-13E1M
LC-15E1M

SUPPLEMENT

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB476DE04 (LC-13E1M)
DUNTKB476DE05 (LC-15E1M)

ANALOG UNIT

TUNER

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

TU3201 VTUVT2U5CD558 J Tuner BF

INTEGRATED CIRCUITS

IC3301 VHiNJM4560M-1Y J NJM4560M AG
IC3302 VHiNJM4560M-1Y J NJM4560M AG
IC3303 VHiNJM4560M-1Y J NJM4560M AG
IC3304 RH-iX1853BMZZQ J MSP3410G-QG-B8 BB
IC3305 VHiLA4635A+-1S J LA4635A AM
IC3501 VHiTC4053BF1EY J TC4053BF AF
IC3701 VHiNJM2377M-1Y J NJM2377M AK
IC3702 VHiNJM2147M-1Y J NJM2147M-TE1 AF

TRANSISTORS

Q3201 VS2SC3928AR-1Y J 2SC3928AR AB
Q3202 VS2SC3928AR-1Y J 2SC3928AR AB
Q3203 VSDTC144EE/-1Y J DTC144EE AA
Q3204 VSDTC144EE/-1Y J DTC144EE AA
Q3205 VSDTC144EE/-1Y J DTC144EE AA
Q3303 VSDTA144EE/-1Y J DTA144EE AA
Q3304 VSDTC314TK/-1Y J DTC144EE AC
Q3305 VSDTC314TK/-1Y J DTC144EE AC
Q3306 VS2SC3928AR-1Y J 2SC3928AR AB
Q3500 VSUMG4N++++-1Y J UMG4N++++ AB
Q3501 VS2SK1467//-1Y J 2SK1467 AE
Q3502 VS2SK1467//-1Y J 2SK1467 AE
Q3503 VS2SC3928AR-1Y J 2SC3928AR AB
Q3504 VS2SC3928AR-1Y J 2SC3928AR AB
Q3505 VSDTC114EE/-1Y J DTC144EE AB
Q3510 VSDTC314TK/-1Y J DTC314TK AC
Q3511 VSDTC314TK/-1Y J DTC314TK AC
Q3512 VS2SA1037KQ-1Y J 2SA1037KQ AA
Q3600 VSUPA606T//-1Y J U PA606T AD
Q3601 VSUPA606T//-1Y J U PA606T AD
Q3700 VSFMMT718//-1Y J FMMT718 AE
Q3701 VSDTC144EE/-1Y J DTC144EE AA
Q3702 VS2SK2503//-1Y J 2SK2503 AE
Q3704 VSFMMT619//-1Y J FMMT619 AE
Q3706 VSiMZ1/////-1Y J IMZ1 AB
Q3707 VS2SC3928AR-1Y J 2SC3928AR AB
Q3708 VSDTC114YE/-1Y J DTC114YE AB
Q3709 VSFMMT718//-1Y J FMMT718 AE
Q3710 VSDTC144EE/-1Y J DTC144EE AA

DIODES

D3301 RH-EX1396CEZZY J Zener Diode, 6.8V AB
D3302 VHDDAN222//-1Y J Diode AA
D3401 RH-EX1271CEZZY J Zener Diode, 12V AB
D3402 RH-EX1271CEZZY J Zener Diode, 12V AB
D3501 VHDDAN222//-1Y J Diode AA
D3600 VHDiMN10///-1Y J Diode AB
D3601 VHDiMN10///-1Y J Diode AB
D3604 VHDDAN222//-1Y J Diode AA
D3605 VHDDAN222//-1Y J Diode AA
D3700 VHDDAN222//-1Y J Diode AA
D3703 VHDSFPB56//2EY J Diode AC
D3704 VHD1SS250//1EY J Diode AB
D3705 VHD1SS250//1EY J Diode AB
D3706 VHDSFPB74//2EY J Diode AD
D3707 VHDSFPB74//2EY J Diode AD
D3708 VHDDAN222//-1Y J Diode AA
D3709 VHDDAN222//-1Y J Diode AA
D3711 VHDDAN222//-1Y J Diode AA

PACKAGED CIRCUIT

X3301 RCRSB0307CEZZ J Crystal, 18.432MHz AG

COILS

L3201 VP-1M220J2R9NY J Peaking 22µH AB
L3202 RCiLPA027WJZZ J Coil AD

L3301 VP-1M101J7R7NY J Peaking 100µH AC
L3302 VP-1M4R7J1R2NY J Peaking 4.7µH AB
L3500 VP-1M101J7R7NY J Peaking 100µH AC
L3700 RCiLPA026WJZZ J Coil AD
L3702 RCiLPA026WJZZ J Coil AD
L3703 RCiLC0057CEZZY J Coil AD

TRANSFORMER

å T3701 RTRNW0010CEZZY J Transformer AL

CONTROL

R3760 RVR-M0111CEZZY J 1k(B) B+ Adj. AC

CAPACITORS

C3201 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3202 VCCCCY1HH330JY J 33p 50V Ceramic AA
C3203 VCCCCY1HH330JY J 33p 50V Ceramic AA
C3204 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3205 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3206 VCKYCY1HF103ZY J 0.01 50V Ceramic AA
C3208 RC-EZ1351CEZZ J 3300 6.3V Electrolytic AF
C3210 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3301 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1M)

C3302 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1M)

C3303 VCKYCY1EB822KY J 8200p 25V Ceramic AA

(LC-15E1M)

C3304 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1M)

C3305 VCKYCY1HB392KY J 3900p 50V Ceramic AA

(LC-15E1M)

C3306 VCKYCY1EB822KY J 8200p 25V Ceramic AA

(LC-15E1M)
C3308 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3309 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1M)
C3309 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1M)
C3310 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1M)
C3310 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1M)
C3311 VCKYCY1CB273KY J 0.027 16V Ceramic AB
C3312 VCKYCY1CB273KY J 0.027 16V Ceramic AB
C3313 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1M)
C3313 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1M)
C3314 VCKYCY1CB273KY J 0.027 16V Ceramic AB

(LC-15E1M)
C3314 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1M)
C3315 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3316 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3317 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3318 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3319 VCKYCY1EB153KY J 0.015 25V Ceramic AA
C3320 VCEAPF1CN476MY J 47 16V Electrolytic AD
C3321 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3322 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3323 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3324 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3325 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3328 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3329 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3330 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3332 VCEAPF0JN107MY J 100 6.3V Electrolytic AD
C3333 VCEAPF1CN107MY J 100 16V Electrolytic AD
C3334 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3335 VCKYCY1HB222KY J 2200p 50V Ceramic AA
C3336 VCKYCY1HB222KY J 2200p 50V Ceramic AA
C3337 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3338 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3339 VCEAPF1HN335MY J 3.3 50V Electrolytic AD
C3340 VCKYCY1EF104ZY J 0.1 25V Ceramic AA

27

LC-13E1M
LC-15E1M

SUPPLEMENT

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKB476DE04 (LC-13E1M)
DUNTKB476DE05 (LC-15E1M)

ANALOG UNIT (Continued)

C3341 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3342 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3343 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3344 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3345 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3346 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3347 VCEAPF1HW225MY J 2.2 50V Electrolytic AB
C3348 VCCCCY1HH101JY J 100p 50V Ceramic AA
C3349 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3350 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3351 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3352 VCEAPF0JN107MY J 100 6.3V Electrolytic AD
C3354 VCCCCY1HH560JY J 56p 50V Ceramic AB
C3355 VCCCCY1HH560JY J 56p 50V Ceramic AB
C3356 VCCCCY1HH560JY J 56p 50V Ceramic AB
C3357 VCCCCY1HH5R0CY J 5p 50V Ceramic AA
C3358 VCCCCY1HH5R0CY J 5p 50V Ceramic AA
C3359 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3360 VCEAPF1CN107MY J 100 16V Electrolytic AD
C3361 VCEAPF1HN105MY J 1 50V Electrolytic AD
C3362 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3363 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3364 VCEAPF1HN105MY J 1 50V Electrolytic AD
C3365 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3366 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3367 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3368 VCEAPF1CN106MY J 10 16V Electrolytic AD
C3369 RC-EZ1274CEZZ J 1000 16V Electrolytic AD
C3370 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3371 VCEA4A1JN477M J 470 63V Electrolytic AE
C3372 RC-EZ1274CEZZ J 1000 16V Electrolytic AD
C3373 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3375 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1M)

C3377 VCKYCY1EB223KY J 0.022 25V Ceramic AA

(LC-13E1M)
C3380 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3382 VCKYCY1HB102KY J 1000p 50V Ceramic AA
C3383 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3384 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3385 VCKYCY1HB472KY J 4700p 50V Ceramic AA

(LC-13E1M)
C3386 VCKYCY1HB472KY J 4700p 50V Ceramic AA

(LC-13E1M)
C3387 VCKYCY1HB471KY J 470p 50V Ceramic AA

(LC-13E1M)
C3388 VCKYCY1HB471KY J 470p 50V Ceramic AA

(LC-13E1M)
C3389 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3401 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3509 VCEAPF1CW107MY J 100 16V Electrolytic AC
C3510 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3512 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3513 VCEASH1CN477MY J 470 16V Electrolytic AD
C3514 VCEAPF0JW336MY J 33 6.3V Electrolytic AB
C3515 VCEAPF0JW226MY J 22 6.3V Electrolytic AB
C3516 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3517 VCKYCY1EB223KY J 0.022 25V Ceramic AA
C3518 VCKYCY1EB223KY J 0.022 25V Ceramic AA
C3520 VCEAPF1EW475MY J 4.7 25V Electrolytic AB
C3521 VCEAPF1EW475MY J 4.7 25V Electrolytic AB
C3522 VCEAPF1CW106MY J 10 16V Electrolytic AB
C3600 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3601 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3602 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3603 VCKYTQ1EF105ZY J 1 25V Ceramic AD
C3700 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3701 VCEAPF1EW475MY J 4.7 25V Electrolytic AB
C3702 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3703 VCEAPT1CN226MY J 22 16V Electrolytic AC
C3704 VCCCCY1HH471JY J 470p 50V Ceramic AA
C3705 VCKYCY1EB103KY J 0.01 25V Ceramic AA

C3710 VCEASH1CN337MY J 330 16V Electrolytic AE
C3711 VCKYCY1HB562KY J 5600p 50V Ceramic AA
C3712 VCAAPF1CJ826MY J 82 16V Electrolytic AG
C3713 VCKYCY1HB562KY J 5600p 50V Ceramic AA
C3714 VCEASH1HN476MY J 47 50V Electrolytic AD
C3715 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C3716 VCEASH1EN227MY J 220 25V Electrolytic AE
C3717 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3718 VCEASH1CN337MY J 330 16V Electrolytic AE
C3719 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3720 VCCCCY1HH181JY J 180p 50V Ceramic AA
C3721 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3722 VCAAPF0JJ157MY J 150 6.3V Electrolytic AG
C3724 VCEASH1CN337MY J 330 16V Electrolytic AE
C3725 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3727 VCEASH1CN477MY J 470 16V Electrolytic AD
C3728 VCKYTV1CF105ZY J 1 16V Ceramic AB
C3730 VCKYTV1HF104ZY J 0.1 50V Ceramic AB
C3732 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3733 RC-KZ1025CEZZY J 1 10V Ceramic AB
C3734 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3735 VCKYCY1HF103ZY J 0.01 50V Ceramic AA
C3740 VCKYCY1EF104ZY J 0.1 25V Ceramic AA
C3741 VCEAPF1HN225MY J 2.2 50V Electrolytic AD
C3750 VCEA4A1CN108M J 1000 16V Electrolytic AD

RESISTORS

R3201 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3202 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA
R3203 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA
R3204 VRS-CY1JF152JY J 1.5k 1/16W Metal Oxide AA
R3205 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA
R3206 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3207 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA
R3208 VRS-CA1JF561JY J 560 1/16W Metal Oxide AA
R3303 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1M)

R3304 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1M)

R3305 VRS-CY1JF472FY J 4.7k 1/16W Metal Oxide AA

(LC-15E1M)

R3306 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-13E1M)

R3307 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA

(LC-15E1M)

R3308 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-15E1M)

R3309 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-15E1M)

R3310 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

(LC-13E1M)

R3311 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1M)

R3312 VRS-CY1JF123FY J 12k 1/16W Metal Oxide AA

(LC-15E1M)
R3315 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3316 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA
R3317 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3318 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA
R3319 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA
R3320 VRS-CY1JF822FY J 8.2k 1/16W Metal Oxide AA
R3321 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3322 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-13E1M)
R3322 VRS-CY1JF183JY J 18k 1/16W Metal Oxide AA

(LC-15E1M)
R3323 VRS-CY1JF183FY J 18k 1/16W Metal Oxide AA
R3324 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

(LC-13E1M)
R3324 VRS-CY1JF183JY J 18k 1/16W Metal Oxide AA

(LC-15E1M)
R3325 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R3326 VRS-CY1JF563FY J 56k 1/16W Metal Oxide AA
R3327 VRS-CY1JF154FY J 150k 1/16W Metal Oxide AA
R3328 VRS-CY1JF154FY J 150k 1/16W Metal Oxide AA
R3331 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA
