IG-CH2J
Plasmacluster Ion Generator
OPERATION MANUAL
ENGLISH
ENGLISH
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS
• WARNING
• CAUTIONS CONCERNING OPERATION
• INSTALLATION GUIDELINES
PARTS NAME
• MAIN UNITMAIN UNIT
• CONTROL PANELCONTROL PANEL
• AC ADAPTERAC ADAPTER
• BACKBACK
• REARREAR
INSTALLATION GUIDE
HOW TO SET A HELMET
OPERATION
CLEANING AND MAINTENANCE
• CABINET
• GRILL
• FILTER
• PLASMACLUSTER ION GENERATING UNIT
SPECIFICATIONS
TROUBLESHOOTING
FOR CUSTOMER ASSISTANCE
...............................................................
...................................................................................
...................................................................................
.............................................................................
...................................................................................
.................................................................................
...............
......................
......................................
........................................................
...........................................................................
...............................................................
......................................................................
..................................................
.............................................
......................................................................
.............................
..................
..........................................................
..................................................
..............................
E-2
E-2
E-3
E-3
E-4
E-4
E-4
E-4
E-5
E-5
E-6
E-6
E-7
E-8
E-8
E-8
E-9
E-10
E-12
E-13
E-14
ENGLISH
• IG-CH2J decomposes and removes the bacteria attached
to the helmet with the Plasmacluster Ion and controls the
generation of odour, however, cannot remove the odour
sinking into the helmet.
• IG-CH2J cannot create a completely sterile environment.
SHARP does not guarantee its ability to prevent microbial
infection.
Thank you for purchasing thi s SHARP Plasmac lus ter Ion
Generator. Please read this manual carefully before using
Plasmacluster Ion Generator.
After reading, keep the manual in a convenient location for future
reference.
The information provided in this manual is subject to change
without notice.
E-1
IMPORTANT SAFETY INSTRUCTIONS
Please read instructions carefully before using this unit as below.
When using electrical appliances, basic safety precautions should be
followed, including the following:
WARNING - To reduce the risk of electric shock, re or injury :
• Use 220-240 volt outlet.Use 220-240 volt outlet.
• Be sure to use the included AC adapter.
• Insert the AC adapter into the end of outlet surely.
• When you carry out the maintenance, be sure to pull out the AC adapter from the outlet.
• Periodically remove dust from the plug.Periodically remove dust from the plug.
• When it thunders, stop the operation and pull out the AC adapter from the outlet.
• If a defect is generated (if you smell something burning), stop the operation and pull out
the AC adapter from the outlet.
• DO NOT damage the cord. DO NOT process, forcibly bend, pull, or twist the cord. DO
NOT place a heavy load on it or clip it.
• DO NOT remove the plug when your hands are wet.DO NOT remove the plug when your hands are wet.
• Many loads on the outlet is prohibited.
• DO NOT use the unit if the power cord or plug is damaged, or the connection to the wallDO NOT use the unit if the power cord or plug is damaged, or the connection to the wall
outlet is loosened.
• When you pull out the AC adapter and the plug for connecting the main unit, do not pull
the cord.
• When you carry the product, do not drop it or apply a shock to it.
• DONOT drop drinkable water, cigarette ash, metals, or ammable item in the product
from air outlet or suction port.
• DO NOT operate when using aerosol insecticides or in rooms where there is oily residue,DO NOT operate when using aerosol insecticides or in rooms where there is oily residue,
incense, sparks from lit cigarettes, chemical fumes in the air, or in locations where the
unit may get wet, such as a bathroom.
• Only a Sharp Authorized Service Center should service this Plasmacluster Ion Generator.Only a Sharp Authorized Service Center should service this Plasmacluster Ion Generator.
Contact the nearest Service Center for any problems, adjustments, or repairs.
• DO NOT use the unit near or on hot objects, such as stoves or heaters or where it mayDO NOT use the unit near or on hot objects, such as stoves or heaters or where it may
come into contact with steam.
• Remove drops of water on the helmet when it is has rained.
• DO NOT use the product in a place where the water is poured or the humidity level is
high.
• DO NOT use the product at the place where is subjected to direct sunlight.
• Children should be supervised to ensure that they do not play with the appliance.Children should be supervised to ensure that they do not play with the appliance.
• DO NOT use the unit near gas appliances or replaces�DONOTusetheunitneargasappliancesorreplaces�
• This appliance is not intended for use by persons (including children) with reducedThis appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
E-2
CAUTIONS CONCERNING OPERATION:
• Do not ride the main unit and do not sit on or lean it, it may cause injury or malfunction.Do not ride the main unit and do not sit on or lean it, it may cause injury or malfunction.
• DO NOT block the air intake and/or air outlet.DO NOT block the air intake and/or air outlet.
• DO NOT use the unit near or on hot objects, such as stoves or heaters or where it mayDO NOT use the unit near or on hot objects, such as stoves or heaters or where it may
come into contact with steam.
• Be cautious when cleaning the unit.Be cautious when cleaning the unit.
Strong corrosive cleansers may damage the exterior.
• Do not use items of silicone-containing products* near the unit.
Theuororesinorsiliconecouldgetstuck inside the unit, preventing itfromproducing
plasmacluster ions.
If this happens, remove dust from the needle electrode of the Plasmacluster Ion
Generating Unit. (See E-10)
* Hair care products (split end coatings, hair mousses, hair treatments, etc.), cosmetics,
antiperspirants, antistatic agents, waterproofing sprays, polishes, glass cleaners,
chemical absorbed clothes, wax, etc.
INSTALLATION GUIDELINES:
• Avoid usin g in l ocations where the unit i s ex po sed to condensation or drasticAvoid u sing in location s where the u ni t is exposed to c on densation or d rastic
temperature changes. Appropriate room temperature is between 0-40ºC.ºC..
• Avoid locations where grease or oily smoke is generated, otherwise the main unitAvoid locations where grease or oily smoke is generated, otherwise the main unit
surface may crack as a result.
ENGLISH
E-3
PARTS NAME
MAIN UNIT
Suction port
CONTROL PANEL
Louver
OPERATION light
(blue)
ON/OFF button
AC ADAPTER
AC plug
DC plug
(Unit Connection Plug)
E-4
FILTER CLEAN
(orange)
light
BACK
Air outlet
Plasmacluster Ion Generating Unit
Сleaning brush
DC jack
REAR
ENGLISH
Filter
E-5
INSTALLATION GUIDE
Connection of AC adapter and installation of main unit
Insert the DC plug of AC
adapter in the DC jack of
1
the main unit.
DC jack
DC plug
Insert the AC plug of AC
adapter in the outlet.
2
Place the main unit at the level place in the room.
AC plug
AC adapter
3
Precautions on installation
• Be sure to place the product on a stable surface.
• Do not block the suction port and the air outlet.
• If the Plasmacluster Ion Generator causes interference to radio or television
reception, try to correct the interference by one or more of the following measures:
• Adjust or relocate the receiving antenna.
• Increase the distance between the product and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
HOW TO SET UP HELMET ON PCI UNIT
• Be sure to turn up the shield to have circulation of air.
• Wipe helmet of any water droplets if any.
< Full-face type>
<Open-face type>
E-6
<Half type>
Do not block the suction port when setting the helmet.
ENGLISH
Suction port
Suction port
OPERATION
Press the ON/OFF button to turn on.
If you pres s th e ON/ O F F bu t t o n , the
OPERATION light (blue) lights up and the
operation is started.
OPERATION light
In order to obtain the effect of Plasmacluster ion, operate the product for 8 hours*
or more.
* Varies depending on the condition of the helmet. If you cannot feel the effect after the
product is operated for 8 hours or more, operate it continuously.
Press the ON/OFF button to turn off.
If y ou p r ess t h e ON / O FF b u tton, th e
OPERATION light (blue) goes out and the
operation is stopped.
OPERATION light
ON/OFF
button
ON/OFF
button
If the odour cannot be removed suf ciently after the product is operated for 8
hours or more, the helmet may absorb the odour. Use IG-CH2J after removing
the absorbed odour by cleaning service. Then, newly attached bacteria is
removed and the odour is not generated easily.
E-7
CLEANING AND MAINTENANCE
At the cleaning or maintenance, stop the operation and pull out the plug of AC
adapter for connecting the main unit.
CABINET
At least once a month
Wipe off the taint with a soft cloth.
<For Stubborn Dirt>
Using clean soapy water, wipe
off t h e cleaning substance
completely.
GRILL
At least once a week
Remove the dust with a vacuum cleaner.
E-8
FILTER
2
1
1
Even if the FILTER CLEAN light (orange) does not light, it is recommended to
carry out the cleaning once a week.
Remove the lter.
1
The lter is attached to the rear of
the main unit.
Clip the tabs on both sides of the
lter and pull it out.
Clean up the lter.
2
Gently remove the dust attached to the
lter with a vacuum cleaner.
Do not press the fi lter with for ce with a
vacuum cleaner. Otherwise, it is damaged.
<For Stubborn Dirt>
Remove and rinse in water. (Use a soft sponge if the dirt does not come off
easily.) And dry it at the sun shadow place.
Set the lter on the main unit.
3
Insert the lter until the stopper of tab is inserted into the main unit
rmly.
If the FILTER CLEAN light is (orange)
Tabs
Filter
ENGLISH
Filter
Stopper
Do not operate the product while the lter is removed.
The dust comes in the main unit and it may cause a failure.
Press the ON/OFF button
4
for 3 seconds.
The FILTER CLEAN light flashes twice and
go off. Even if the FILTER CLEAN light is
off, press ON/OFF button for 3 seconds after
cleaning.
E-9
ON/OFF
button
PLASMACLUSTER ION
GENERATING UNIT
It is recommended to carry out the cleaning once every 6 months.

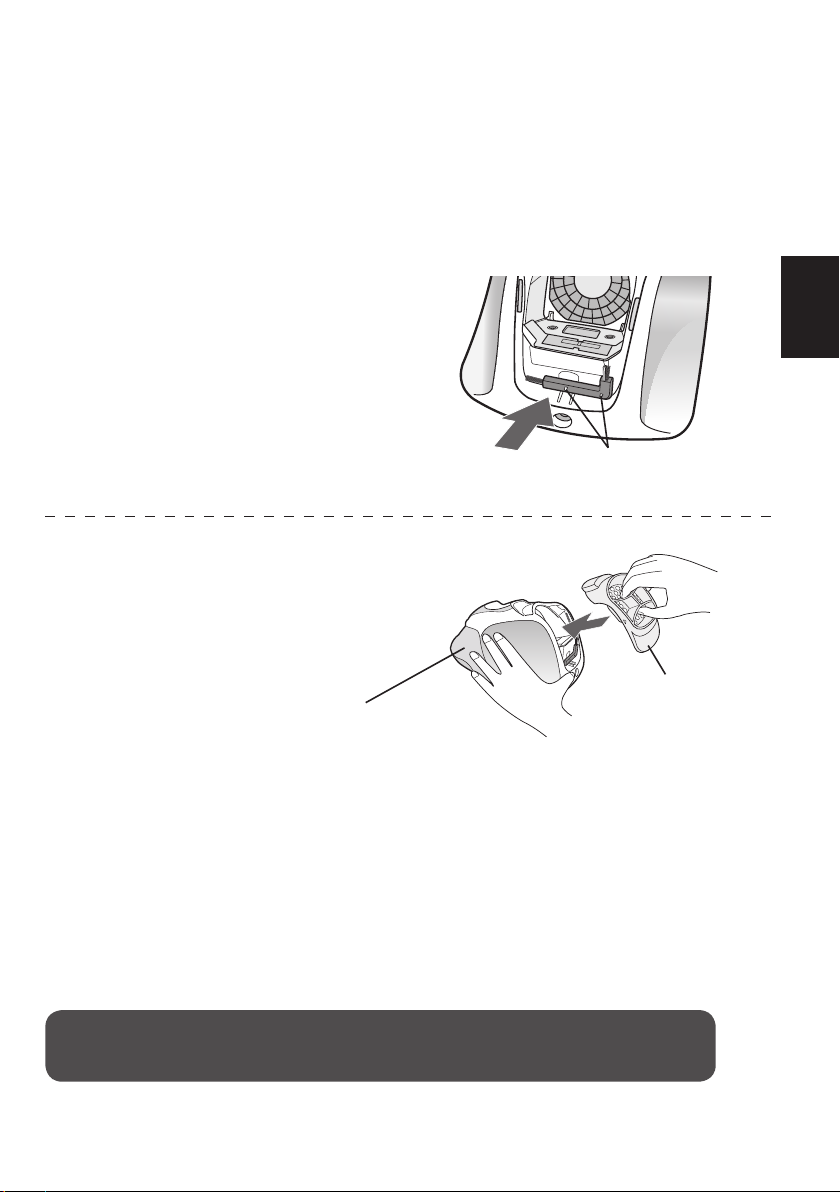

Remove the louver.
1
2
Hold the main unit with a hand and then pull out the louver.
Louver
Remove the cleaning brush.
Remove the cleaning brush attached to the main unit.
3
Сleaning brush
Clean up the needle electrode of the Plasmacluster Ion
Generating Unit.
Remove the dust from the needle electrode with using the cleaning
brush.
Сleaning brush
Needle electrode
E-10
4
Attach the cleaning brush.
Attach the cleaning brush
to the pin of the cabinet.
ENGLISH
Pin
5
Attach the louver.
Hold the main unit with a
hand and attach the louver
to the cabinet.
Cabinet
Do not operate the product while the louver is removed.
The strip of the helmet or other item touches the electrode of the
Plasmacluster Ion Generating Unit and it may cause a failure.
E-11
Louver
SPECIFICATIONS
Model
Power supply
Rated input
Rated output
Power consumption (W)
Outer dimensions (mm)
Power cord length (m)
(AC adapter)
Weight (kg)
ACCESSORIES
IG-CH2J
AC adapter
AC220V-240V • 50/60Hz • 0.3A
DC12V • 1A
3
165 (W) × 233 (D) × 121 (H)
(Not including AC adapter)
1.8
0.57
(Not including AC adapter)
AC Adapter / Operation manual
E-12
TROUBLESHOOTING
Problem WHAT TO DO
• The OPERATION light (blue) does
not light up.
(The Plasmacluster Ion Generator
does not work.)
OPERATION light
• The FILTER CLEAN light (orange)
is lighting.
FILTER CLEAN light
• The OPERATION light (blue) and
the FILTER CLEAN light (orange)
are fl ashing.
• Is the AC adapter installed correctly?
Connect correctly. (See page E-6)
ENGLISH
• Filter is getting dirty. Clean the filter.
(See E-9)
Aftercleaningthelter,pressON/OFF
button for 3 seconds.
• Failure
Unplug the AC adapter and contact
the store you purchased o r Sharp
Authorized Service Center.
OPERATION light
FILTER CLEAN light
E-13
E-14
ENGLISH
MEMO
ENGLISH
