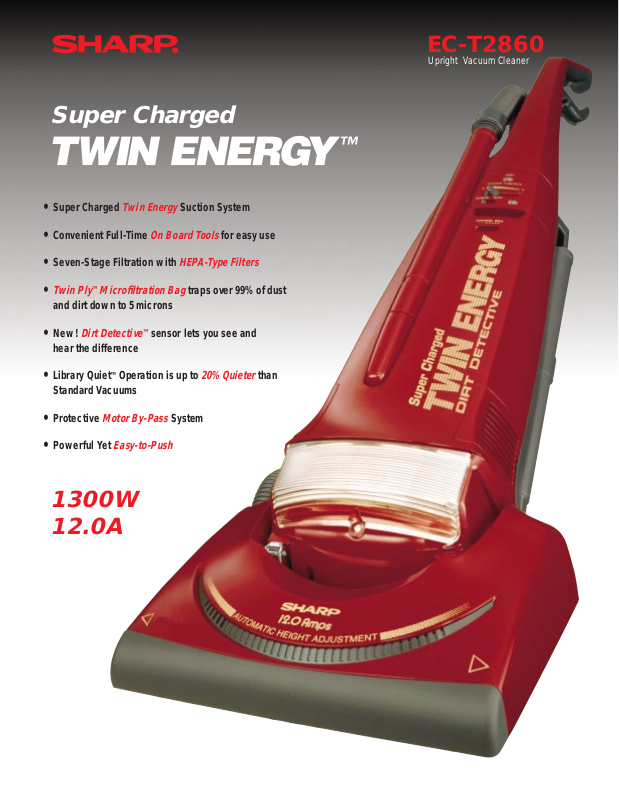

Sharp EC-T2860 User Manual
EC-T2860
Super Charged
Upright Vacuum Cleaner
1300W
12.0A
•
Super Charged
Twin Energy
Suction System
•
Convenient Full-Time
On Board Tools
for easy use
•
Seven-Stage Filtration with
HEPA-Type Filters
•
Twin PlyTMMicrofiltration Bag
traps over 99% of dust
and dirt down to 5 microns
•
New!
Dirt Detective
TM
sensor lets you see and
hear the difference
•
Library QuietTMOperation is up to
20% Quieter
than
Standard Vacuums
•
Protective
Motor By-Pass
System
•
Powerful Yet
Easy-to-Push
Super Charged Twin Energy
TM
Cleaning System
Sharp vacuum cleaners are now more powerful than ever—for better
Combined Cleaning
Performance
than other models! Three
revolutionary innovations
loosen deep-down
dirt, increase air flow,
and strengthen suction
power
for more thorough and effective cleaning!
Loosens Deep Down Dirt
Optimal carpet agitation removes deeply
embedded dirt better than ever! Because the
agitator is twisted 540-degrees, three brushes
are in contact with the floor at all times instead
of two like on conventional models.
Maximizes Air Flow
Air flow is necessary to effectively remove dirt.
The Super Charged suction system uses a
smaller diameter brush with deeper agitator fins
to maximize air flow across the nozzle and
produce 6 times more air flow than other models!
Strengthens Suction Power
The power of the Sharp Twin EnergyTMmotor
pulls up to 80” of water lift for strong effective
suction that cleans carpets like never before!
Combined Cleaning Performance
Powerful, Total Cleaning Performance
EC-T2860
Upright Vacuum Cleaner
EC-T2860 Upright A Upright B
EC-T2860 Upright A Upright B
EC-T2860 Upright A Upright B
100
90
80
70
60
50
40
30
20
10
0
2
1.8
1.6
1.4
1.2
1
0.8
0.6
0.4
0.2
0
92%
90%
86%
84%
82%
80%
76%
74%
72%
70%
68%
Vacuum
Pressure
(in. H20)
Air Flow
(m/s)
Superior
Cleaning
Performance
(% of cleaning
efficiency)
And
Results In
Twin Energy Motor
The Twin Energy motor creates a more powerful
vacuum to pull out deeply buried dust and dirt.
Easy-to-Remove Metal Bottom Plate
Metal bottom plate removes easily if belt or
agitator needs replacement.
Seven-Stage Filtration with HEPA-Type Filters
A seven-stage filtration system keeps the
exhaust air clean. First, the highly efficient top
fill Twin Ply paper bag
captures over 99% of fine
dust and pollen down to 5 microns.
A secondary
filter with added micron filter traps fine dust
particles. The Twin HEPA-type motor exhaust
filters with bonded micron filters trap super fine
particles and provide final air purification.
New! Dirt DetectiveTMLet’s You See and
Hear the Difference
The Dirt Detective Sensor detects hidden dirt in
carpeting and reduces the motor power when
the area is clean. See the sensor work—turn on
the vacuum cleaner, press “Auto” and a green
light glows. When the carpet is dirty, an orange
light brightly glows and then dims as the carpet
is cleaned. Hear the motor reduce the power
when the area is cleaned.
Automatic Carpet Height Adjustment
You can move the vacuum cleaner from one
carpet area to another without having to make
adjustments.
Convenient Full-Time On Board Tools
Now, all on board tools are permanently
attached to the vacuum cleaner, providing
greater convenience from floor to ceiling
cleaning. Detach the tools from the front and
you can clean anywhere effortlessly.
Dust Indicator and Variable Power Control
The dust indicator shows when it is time to
replace the bag. The variable speed control
adjusts the power to the optimum level for
cleaning carpets and floors as well as abovethe-floor cleaning.
Library Quiet
TM
Talk on the telephone while vacuuming! Sharp’s
Twin Energy vacuum cleaners are library quiet
at 69 decibles.
Comparative Noise Levels (db)
Protective Motor By-Pass System
Powerful suction pulls dirt through an
outer hose, by-passing the motor.
Protects motor fan from damage
if coins or other hard
objects are picked up.
01020 30 40 50 60 70 75 80 85 90 100 110
Rock Music
Snow Mobile
Lawn Mower
Standard Vacuum Cleaner
Alarm Clock
Busy Traffic
Sharp Vacuums
Dishwasher
Average TV/Radio
Whisper
Specifications
Power Supply AC 120V, 60Hz
Motor Amp 12.0 Amps
Motor Wattage 1,300 W
Filter System 7-Stage Filtration with
HEPA Type Filters
Agitator 12” (Acrylic)
Microfiltration Paper Bag Yes, Twin Ply
Replaceable Brushes No
Dust Indicator Yes
Power Control Variable
Headlight Yes
Rug/Floor Selector No
Edge Cleaning Yes
Height Adjustment Automatic
Power Cord 30 ft.
Body Color Bright Wine Red
Dimensions (W x D x H) 14-3/4” x 13-1/2” x 45-1/2”
Shipping Volume 2.64 cu. ft.
Net Weight 16.8 lbs.
Shipping Weight 19.9 lbs.
Pedal Release Yes
O.B.T.* Yes (Full-Time)
Warranty: One-year limited warranty on parts and labor.
See operation manual for complete details.
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
Sharp Electronics Corporation
Sharp Plaza, Mahwah, NJ 07430-2135
1-800-BE-SHARP
www.sharp-usa.com
UPC Code: 074000681316
*O.B.T. include Two Plastic Wands, CreviceTool and Combination Soft Brush
**Optional Deluxe On Board Tool Kit, EC-07AU2
Specifications are subject to change without notice.
VM-02-089
Twin Ply
TM
Paper Bag
Secondary
Filter with
Micron Filter
Motor
Filter
Twin HEPA-Type
Filters with
Micron Filters
