Sharp DV-NC200X Operation Manual

Download

VCR/DVD COMBINATION

FINAL

MODEL

DV-NC200X

OPERATION MANUAL

Please read this Operation Manual carefully before using your VCR/DVD COMBINATION.

PRECAUTIONS

PREFACEDVD FUNCTIONS

SETUP

PULL OPEN

OPERATE

PAL

VCR FUNCTIONSINFORMATION

DV-NC200

STOP/

RECPLAYREW FF

EJECT

TIMER

The region number for this

VCR/DVD is 4.

(TRACKING)

OPEN/CLOSE

OUTPUT

PLAYSTOP

DVDVCRCH

–

H9945AD_1.indd 1H9945AD_1.indd 1 5/11/2005 6:46:28 PM5/11/2005 6:46:28 PM

PRECAUTIONS

CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT KLASS 1 LASER APPARAT CLASSE 1 PRODUIT LASER

SAFETY INFORMATION

FOR YOUR SAFETY (in Australia): Install any external aerial to AS 1417.1

PRECAUTIONS

NOTE:

This VCR/DVD can be used only where the power supply is AC 220 V-240 V, 50 Hz. It cannot be used elsewhere.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

AS THE LASER BEAM USED IN THIS VCR/DVD IS HARMFUL TO THE EYES, DO NOT ATTEMPT TO DISASSEMBLE THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING INTERFERENCE, USE THE RECOMMENDED ACCESSORIES ONLY.

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPARATUS TO DRIPPING OR SPLASHING, NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD BE PLACED ON THE APPARATUS.

Laser Diode Properties Material: GaAs Wave length: DVD: 655 nm CD: 790 nm Emission Duration: Continuous Laser output: Max. 0.8 mW

Power Cord Protection

To avoid any malfunctions of the VCR/DVD, and to protect against electric shock, fire or personal injury, please observe the following.

• Hold the plug firmly when connecting or disconnecting the AC power cord.

• Keep the AC power cord away from heating appliances.

• Never put any heavy object on the AC power cord.

• Do not attempt to repair or reconstruct the AC power cord in any way.

• This VCR/DVD is classified as a CLASS 1 LASER product.

• The CLASS 1 LASER PRODUCT marking is embossed on the rear cover.

• This product contains a low power laser device. To ensure continued safety, do not remove any cover or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

Location and Handling

• Do not stand the VCR/DVD vertically. Install the VCR/DVD in a horizontal and stable position. Do not place anything directly on top of the VCR/DVD. Do not place the VCR/DVD directly on top of the TV.

• Do not cover or place the VCR/DVD in enclosed spaces to prevent excessive temperature build up.

• Do not place the VCR/DVD in direct sunlight, or near heat sources.

• Depending on the environment, the temperature of the VCR/DVD may increase slightly. This is not a malfunction.

• Keep the VCR/DVD away from strong magnetic objects.

• Do not place any object containing water or other liquids on the VCR/DVD. In the event that liquid should enter the cabinet, unplug the VCR/DVD immediately and contact the retailer or service centre approved by SHARP immediately.

• Do not remove the VCR/DVD cabinet. Touching parts inside the cabinet could result in electric shock and/or damage to the VCR/DVD. For service and adjustment inside the cabinet, call a qualified dealer or service centre approved by SHARP.

• Be sure to remove a disc and video tape and unplug the AC power cord from the output before carrying the VCR/DVD.

Nonuse Periods

• When the VCR/DVD is not being used, switch the VCR/DVD to the standby mode.

• When left unused for a long period of time, the VCR/DVD should be unplugged from the household AC outlet.

No Fingers or Other Objects Inside

Do not put your fingers or objects on the disc tray or in the cassette compartment.

Warning of Dew Formation

Moisture may form inside the VCR/DVD under the following conditions:

• Immediately after a heater is turned on.

• In a steamy or humid room.

• When the VCR/DVD is suddenly moved from a cold to warm environment.

If moisture forms inside this VCR/DVD, it may not operate properly or damage the video tape. In such case, turn on the power and wait for more than 2 hours for the moisture to evaporate.

H9945AD_1.indd 2H9945AD_1.indd 2 5/11/2005 6:46:48 PM5/11/2005 6:46:48 PM

DVD

DVD/VCR

DIGITAL

AUDIO

AUDIO OUT

OUT

COAXIALOPTICAL

VCR

S-VIDEO

COMPONENT

AUDIO OUT

AUDIO IN

OUT

VIDEO OUT

LRL

CB/

VIDEO IN

VIDEO OUT

CR/

AERIAL

RF OUT

–

PREFACE

Table of Contents

PRECAUTIONS

SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Location and Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Nonuse Periods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

No Fingers or Other Objects Inside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Warning of Dew Formation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

PREFACE

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Symbols Used in This Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Supplied Accessory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Copyright . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Copy Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Progressive Scan Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

If There Is Noise Interference on the TV

while a Broadcast Is Being Received . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

ABOUT THE VIDEO CASSETTES AND DISCS . . . . . . . . . . . . . . . . . .5

Playable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Unplayable Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

SETUP

FUNCTIONAL OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Rear Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

VCR/DVD SWITCHING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

ABOUT THE REMOTE CONTROL . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Installing the Batteries for the Remote Control . . . . . . . . . . . . . . . . . . . . 8

Operable Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Buttons for DVD Only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Buttons for Both VCR and DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

CONNECTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Connection to a TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Basic TV Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connection to an Audio System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

PREPARATION FOR USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Turn on the VCR/DVD for the First Time / Video Channel Setting /

Automatic Channel Preset / Clock Set Up . . . . . . . . . . . . . . . . . . . . . . 12

Select a Channel / Picture Select / Manual Channel Preset . . . . . . . 13

Skip a Preset Channel / Change the On-Screen Language . . . . . . . . 14

VCR FUNCTIONS

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

OTHER OPERATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Time Search / Index Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Auto Repeat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

RECORDING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Recording & OTR (One Touch Recording) . . . . . . . . . . . . . . . . . . . . . . . . . 16

Symbols Used in This Manual

The following symbols appear in some headings and notes in this manual.

Description refers to playback or recording of video cassette tapes.

Description refers to playback of DVD Video discs (including DVDRW/-R and DVD+RW/+R discs ( Video mode only)).

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

HINTS FOR OTR AND TIMER RECORDING . . . . . . . . . . . . . . . . . . .17

Direct Dubbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Copying a Video Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

OTHER INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Status Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Hi-Fi Stereo Sound System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Video Casette Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

TV Colour System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Automatic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Real Time Tape Counter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

DVD FUNCTIONS

PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

DISC Menu / Resume / Paused and Step-by-Step Playback /

Fast Forward/Reverse Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Slow Forward/Slow Reverse / Zoom / Rapid Play / the Disc Recorded in VR Mode (Video Recording Format)

MP3, JPEG PLAYBACK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Kodak Picture CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Dual Playback / Transition Mode /

Adjustment of Picture Size / Folder Playback . . . . . . . . . . . . . . . . . . . 23

ONSCREEN DISPLAY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

SEARCH FUNCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Track Search / Title/Chapter Search / Time Search . . . . . . . . . . . . . . . . 25

MARKER SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

REPEAT / RANDOM / PROGRAMMED PLAYBACK . . . . . . . . . . . .26

Repeat Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Repeat A-B Playback / Random Playback / Programmed Playback

SPECIAL SETTINGS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Subtitle Language / Audio Language /Camera Angles /

Digital Gamma Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Stereo Sound Mode / Virtual Surround . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

DVD SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

QUICK SETUP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

CUSTOM Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

LANGUAGE Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

DISPLAY Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

AUDIO Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

PARENTAL Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

OTHERS Setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Reset to the Default Setting (except for PARENTAL Setting) . . . . . . . 32

INFORMATION

LANGUAGE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

TROUBLESHOOTING GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Description refers to playback of Audio CDs.

Description refers to playback of Video CDs.

Playing

. . . . . . . . 21

PREFACE

. . . 27

Description refers to playback of VR mode (Video Recording format). The VR mode (Video Recording format) is a recording mode to enjoy editing the programme or manual mode for recording in desired resolution and time.

Description refers to playback of Video CDs without PBC function.

Description refers to playback of MP3 discs.

Description refers to viewing of JPEG discs.

Supplied Accessory

• Remote control with two AA size (R-6) batteries

H9945AD_1.indd 3H9945AD_1.indd 3 5/11/2005 6:46:50 PM5/11/2005 6:46:50 PM

• Round Coaxial cable

• Video/Audio cables

–

• Operation Manual

DV-NC200X

PAL

Copyright may exist in material you wish to record. Copying such material without permission of the relevant licensee(s) or owner(s) of the copyright is prohibited by law. SHARP is not in a position to authorise the recording of copyright works and nothing in this manual should be read or implied as giving that authority.

Copy Protection

This VCR/DVD supports Macrovision copy protection.

On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using a VCR, the copy protection code prevents the videotape copy from playing normally.

U.S. Patent Nos. 4,631,603; 4,577,216; 4,819,098; 4,907,093; 5,315,448; and 6,516,132.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights.

PREFACE

Use of this copyright protection technology must be authorised by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision. Reverse engineering or disassembly is prohibited.

Notice for Progressive Scan Outputs

Consumers should note that not all high definition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525 or 625 progressive scan output, it is recommended that the user switch the connection to the ‘standard definition’ output. If there are questions regarding your TV set compatibility with this 525p or 625p DVD player, please contact our customer service centre.

“Licensed under one or more of U.S. Pat. 4,972,484, 5,214,678, 5,323,396, 5,530,655, 5,539,829, 5,544,247, 5,606,618, 5,610,985, 5,740,317, 5,777,992, 5,878,080, or 5,960,037.”

If There Is Noise Interference on the TV while a Broadcast Is Being Received

Depending on the reception condition of the TV, interference may appear on the TV monitor while you watch a TV broadcast and the VCR/DVD is left on. This is not a malfunction of the VCR/DVD or the TV. To watch a TV broadcast, turn off the VCR/DVD.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

“Kodak Picture CD COMPATIBLE” is a trademark of Eastman Kodak Company.

is a trademark of DVD Format/Logo Licensing Corporation.

For Customer Use:

Read carefully the information located at the bottom of your VCR/ DVD and enter below the Serial No. Retain this information for future reference.

Model No.: VCR/DVD COMBINATION: DV-NC200X

Serial No.: ______________________________________

Maintenance

Servicing

1. Please refer to relevant topics in the “TROUBLESHOOTING GUIDE” on page 34 before returning the product.

2. Do not attempt to service this VCR/DVD yourself. Instead, unplug it and contact a SHARP Approved Service Centre for inspection. (Refer to page 35.)

3. Be sure the service technician uses authorised replacement parts or their equivalents. Unauthorised parts may cause fire, electrical shock, or other hazards.

4. Following any service or repair, be sure the service technician performs safety checks to certify that this VCR/DVD is in safe operating order.

Cleaning the Cabinet

• Use a soft cloth slightly moistened with a mild detergent solution. Do

not use a solution containing alcohol, spirits, ammonia or abrasive.

Cleaning Discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the

disc from the centre out. Do not wipe in a circular motion.

• Do not use solvents such as benzine, thinner, commercially avail-

able cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analogue records.

Recommended Measures for Optimum Picture Excellence

This VCR/DVD is a precision device constructed using extremely accurate technology.

• The disc cannot be played if the disc drive component is worn out

or if the internal pick up lens is dirty.

• If this VCR/DVD still does not perform properly although you refer

to the relevant sections and to “TROUBLESHOOTING GUIDE” on page 34, the laser optical pickup unit may be dirty. Consult a SHARP Approved Service Centre for inspection and cleaning of the laser optical pickup unit.

Soiling or friction affecting the pickup lens or disc drive can impair the image quality. At the worst, neither video nor audio will be played back. To maintain optimum picture quality, the Player should be serviced (cleaned and replacement of some parts) every 1,000 hours. Note that this period varies depending on the environment (temperature, humidity, dust, etc.) in which the unit is used. Contact your authorised SHARP supplier for details.

Disc Handling

• When you handle a disc, hold it by its edge and try not to touch the

surface of the disc.

• Always store a disc in its protective case when it is not used.

Auto Head Cleaning

• Automatically cleans video heads as you insert or remove a cassette,

so you can see a clear picture.

• Playback picture may become blurred or interrupted while the TV pro-

gramme reception is clear. Dirt accumulated on the video heads after a long period of use, or the usage of rental or worn tapes can cause this problem. If a streaky or snowy picture appears during playback, the video heads in your VCR/DVD may need to be cleaned.

1. Please visit your local Audio/Video store and purchase a good quality VHS Video Head Cleaner.

2. If a Video Head Cleaner does not solve the problem, please call our help line mentioned on page 35 to locate a SHARP Approved Service Centre.

Hint

• Remember to read the instructions along with the video head cleaner before use.

• Clean video heads only when problems occur.

–

H9945AD_1.indd 4H9945AD_1.indd 4 5/11/2005 6:46:52 PM5/11/2005 6:46:52 PM

Playable Media

ABOUT THE VIDEO CASSETTES AND DISCS

Playable media Mark (logo) Region code

Video

Cassettes

DVD-Video

*1, 2, 3

PAL

DVD-RW

DVD-R

* 1, 3, 4, 5,

6, 8, 9

DVD+RW

DVD+R

* 1, 3, 4, 5,

7, 8, 9

Video CD

* 3, 5

Audio CD

* 3, 5, 10

CD-RW

CD-R

* 3, 4, 5,

8, 9, 10

Kodak


Recorded

signals

Analogue video

with audio

Digital video

(MPEG2)

Digital video

with audio

Digital audio

MP3

JPEG

JPEG 12 cm

Media size Tape speed and Disc types

Tape width

12.65 mm

SP : 23.39 mm/sec. LP : 11.70 mm/sec.

12 cm

8 cm

Example

Title 1 Title 2

Chapter1 Chapter2 Chapter1

Chapter3 Chapter4

12 cm

7JEFP$%

"VEJP$%

&YBNQMF

5SBDL 5SBDL 5SBDL

5SBDL 5SBDL

12 cm

8 cm

.1

+1&(

&YBNQMF

(SPVQ (SPVQ

5SBDL

5SBDL

5SBDL

5SBDL

5SBDL

Chapter2

PREFACE

5SBDL

If you cannot play back a disc which bears one of the marks above, check the following notes.

*1: This VCR/DVD conforms to the PAL colour system. Also you can

play discs recorded with the NTSC system via a PAL system TV set.

*2: Certain DVD-Video discs do not operate as described in this

manual due to the intentions of the disc’s producers. *3: Scratched or stained discs may not be played back. *4: Some discs cannot be played back because of incompatible

recording conditions, characteristics of the recorder or special

properties of discs. *5: You can play back discs which bear the marks above. If you use

nonstandardised discs, this VCR/DVD may not play them back.

Even if they are played back, the sound or video quality will be

compromised. *6: Depending on the recording status of a disc, the disc may not

be played back at all or normally (the picture or sound may not

be smooth, etc.). In this case, you need to finalise the disc with

the DVD recorder. Refer to the manual accompanying the DVD

recorder. *7: Only the discs recorded in the video mode and finalised can be

played back. Unfinalised discs cannot be played back. Depending

on the recording status of a disc, the disc may not be played back

at all or the picture or sound may not be smooth, etc. *8: If the recorded portion of the disc is too small (less than 55 mm

across), it may not play back properly. *9: Do not glue paper or put stickers on to the disc. These may dam-

age the disc, and the VCR/DVD may not read it correctly. *10: Also DTS CD is available on this VCR/DVD.

: This label indicates playback compatibility with DVD-RW discs

recorded in VR mode (Video Recording Format).

Hint

• This VCR/DVD cannot play back the DVD-RW that supports CPRM (Contents Protection for Recordable Media).

• This VCR/DVD cannot play back the DVD-R discs recorded in VR mode (Video Recording Format)

• 8 cm disc is not available on some media.

About the PBC Function of Video CD

This VCR/DVD conforms to ver.1.1 and ver.2.0 of Video CD standard, with PBC function.

Ver.1.1 (without PBC function): You can enjoy playback picture as well as music CD.

Ver.2.0 (with PBC function): When using a Video CD with PBC function, “Pbc” appears on the display.

What is PBC? “PBC” stands for the Playback Control. You can play interactive software using a menu screens. Refer to instructions of Video CD.

Unplayable Media

• NEVER play back the following discs. Otherwise, malfunction may result:

DVD-RAM, CD-I, Photo CD, DVD with region codes other than 4 or ALL,

DVD-ROM for personal computers, CD-ROM for personal computers

• On the following disc, the sound MAY NOT be heard.

Super Audio CD

• Any other discs without compatibility indications.

Hint

• Only the sound recorded on the normal CD layer can be delivered.

The sound recorded on the high density Super Audio CD layer cannot be delivered.

–

H9945AD_1.indd 5H9945AD_1.indd 5 5/11/2005 6:46:53 PM5/11/2005 6:46:53 PM

Front Panel

OPERATE

DV-NC200

SETUP

FUNCTIONAL OVERVIEW

OPEN/CLOSE

PULL OPEN

1. Disc Tray

2. PLAY (DVD)

To begin disc playback.

3. STOP (DVD)

To stop playback.

4. DVD OUTPUT Indicator

The indicator is on when this VCR/DVD is in the DVD mode. Make sure that this indicator is on before using the DVD player.

5. OUTPUT

To select the DVD mode or VCR mode.

6. VCR OUTPUT Indicator

SETUP

The indicator is on when this VCR/DVD is in the VCR mode. Make sure that this indicator is on before VCR operation.

7. OPEN/CLOSE (DVD)

To open or close the disc tray.

8. CHANNEL

To change TV channels. To adjust the tracking manually during VCR playback.

9. Display

10. Remote Sensor

11. TIMER Indicator

The indicator is on when the VCR/DVD is in standby mode for a Timer Recording or during a One Touch Recording.

Display

STOP/ EJECT

OUTPUT

RECPLAYREW FF

TIMER

(TRACKING)

DVDVCRCH

PLAYSTOP

17 51516 1012 8111314 6 49 3 218 171920

12. REC ( VCR)

Press once to start recording or repeatedly to start One Touch Recording. The indicator is on during recording.

13. PLAY ( VCR)

To begin tape playback.

14. STOP/EJECT ( VCR)

To stop playback. To eject the tape in the stop mode.

15. FF ( VCR)

To fast forward the tape.

16. REW ( VCR)

To rewind the tape.

17. Cassette Compartment

18. AUDIO IN Jacks (AV2 / VCR only)

Connect Audio cable coming from the audio out jacks of a camcorder, another VCR, or an audio source here.

19. VIDEO IN Jack (AV2 / VCR only)

Connect a cable coming from the video out jack of a camcorder, another VCR or an audio-visual source (laser disc player, video disc player, etc.) here.

20. OPERATE

To turn the VCR/DVD ON or OFF. The indicator is on when this VCR/DVD is turned on.

DVD Output Mode

   

1. Lights up when the A-B repeat function is on.

2. Lights up when the ALL repeat function is on.

3. Lights up when the inserted disc comes to a pause.

4. Lights up when playing back in slow mode (DVD or Video CD).

5. Lights up when the inserted disc is being played back.

6. Lights up when the repeat function is on.

7. Displays how long the current title or track has been played back.

When a chapter or track is switched, the number of a new title, chapter or track is displayed.

8. Displays a type of the disc which is inserted on the tray.

• DVD : DVD

• CD : Audio CD, MP3, JPEG, Kodak Picture CD

• VCD : Video CD

9. Lights up when the progressive scan system is activated.

VCR Output Mode

12 3 4 5 6 7

1. *Lights up when a tape is in the VCR/DVD.

2. Lights up during playback when the repeat function is on.

3. Lights up when the playback is in still or slow mode.

4. Lights up when the inserted cassette is being played back.

5. Works as a tape counter (hour, minute, second). Also displays a

channel number, tape speed, remaining time for OTR or current time.

6. *Lights up when the Timer Recording or an OTR recording has been set.

7. *Lights up during a recording. Flashes when a recording is paused.

* ,

and mark will disappear when you set VCR/DVD in DVD

mode. However, the function indicated by each mark is still working.

–

H9945AD_1.indd 6H9945AD_1.indd 6 5/11/2005 6:46:55 PM5/11/2005 6:46:55 PM

Display During Operation

No disc inserted / cannot read disc.

Appears when the disc tray is opening.

Appears when the disc tray is closing.

Rear Terminals

$6$

$)')4!,

!5$)/

36)$%/

!5$)//54

#/!8)!,/04)#!,





21. MAIN (AC Power Cord)

Connect to a standard AC plug.

22. OPTICAL DIGITAL AUDIO OUT Jack (DVD only)

Connect to a compatible Dolby Digital receiver. Use to connect to a Dolby Digital decoder, DTS decoder or MPEG decoder.

23. COAXIAL DIGITAL AUDIO OUT Jack (DVD only)

Connect to a compatible Dolby Digital receiver. Use to connect to a Dolby Digital decoder, DTS decoder or MPEG decoder.

24. AUDIO OUT Jacks (Analogue Left/Right) (DVD only)

Connect to the Audio input jacks of A/V-compatible TV.

25. S-VIDEO OUT Jack (DVD only)

Use the S-Video cable to connect this jack to the S-VIDEO jack on your A/V-compatible TV or wide screen TV for a higher quality picture.

26. COMPONENT VIDEO OUT Jacks (DVD only)

Connect optional component Video cable here and to the component Video jacks of TV.

#/-0/.%.4

/54

6)$%//54

 

#" 0

#2 0

$6$6 #2

!5$)//54

6)$%//54

,2,

 

6#2

!5$)/).

6)$%/).



27. DVD/VCR AUDIO OUT Jacks

Connect the supplied Audio cable here and to the Audio In Jacks of a television or other audio equipment.

28. DVD/VCR VIDEO OUT Jack

Connect the yellow Video cable (supplied) here snd to the TV’s Video jack.

29. AUDIO IN Jacks (AV1 / VCR only)

Connect Audio cable coming from the audio out jacks of camcorder, another VCR, or an audio source here.

30. VIDEO IN Jack (AV1 / VCR only)

Connect cable coming from the video out jack of camcorder, another VCR, or an audio-visual source (laser disc player, video disc player, etc) here.

31. AERIAL Jack

Connect your antenna, Cable Box or Direct Broadcast System.

32. RF OUT Jack

Use the supplied Round Coaxial cable to connect this jack to the AERIAL jack on your TV.

Appears when a disc is loaded on the disc tray.

Appears when a disc or tape is being played back.

Appears when the PBC function is activated (Video CD playback only. Refer to page 5).

!%2)!,

2&/54

SETUP

VCR/DVD SWITCHING

Because this product is a combination of a VCR and a DVD player, you must select first which component you wish to operate with

OUTPUT.

VCR MODE

Press VCR on the remote control. (Verify that the VCR OUTPUT indicator is lit.)

DVD MODE

Press DVD on the remote control. (Verify that the DVD OUTPUT indicator is lit.)

Hint

• Pressing only OUTPUT on the front panel DOES NOT switch the mode of the remote control. You MUST select the correct mode on the remote control. In the wrong mode, the VCR/DVD does not respond to your commands correctly. Before starting your desired operation, select the correct mode by following the instruction (

VCR DVD

123

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

) under the subject heading.

VCR

DVD

123

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

DV-NC200

OPERATE

VCR

STOP/

RECPLAYREW FF

EJECT

TIMER

OUTPUT

PULL OPEN

OPEN/CLOSE

OUTPUT

(TRACKING)

DVD

DVD OUTPUT indicator

OUTPUT button

PLAYSTOP

DVDVCRCH

VCR button

DVD button

OPERATE

SUBTITLE

ZOOM

RETURN

1 2 3

CLEAR/C-RESET

REV

DIRECT

SKIP

GAMMA

DISPLAY

ANGLE

VCR

8 9

TAPE

SPEED

SEARCH MODE

PLAY

STOP

ON/OFF

OPEN/CLOSE

EJECT

SETUP

AUDIO

MARKER

DVD

MODE

MENUTITLE

ENTER

REPEAT

A-B REPEAT

SKIP

+10

FWD

STILL/PAUSEREC/OTR

TIMER

SLOW

VCR OUTPUT indicator

VCR/DVD COMBINATION

NA543AD

–

H9945AD_1.indd 7H9945AD_1.indd 7 5/11/2005 6:46:57 PM5/11/2005 6:46:57 PM

ABOUT THE REMOTE CONTROL

Installing the Batteries for the Remote Control

Install two AA size (R-6) batteries (supplied) matching the polarity indicated inside battery compartment of the remote control.

Hint

• Do not mix alkaline and manganese batteries.

• Do not mix old and new batteries.

Operable Range

Keep in mind the following when using the remote control:

• Make sure that there is no obstacle between the remote control and the remote sensor on the VCR/DVD.

• The maximum operable range as follows;

Beeline: approximately 7 m (23 feet)

Either side of centre: approximately 5 m (16 feet) within 30 degrees

Above: approximately 5 m (16 feet) within 15 degrees

Below: approximately 3 m (10 feet) within 30 degrees

Buttons for DVD Only

SETUP

Button

(Alphabetical order)

Media type

DV-NC200

OPERATE

PULL OPEN

STOP/

RECPLAYREW FF

EJECT

TIMER

DVD mode

OPEN/CLOSE

OUTPUT

PLAYSTOP

DVDVCRCH

(TRACKING)

• Repeats playback of a selected section. •

Repeats playback of a selected section (VCD, CD).

• Press to change the camera angle to see the sequence being played back from a different

—

angle (DVD-Video).

• Press to search chapter, title or time.

• Press to select DVD output mode and to use the remote control in DVD mode.

• Press to search track.

• Press to search time (VCD, CD).

• Press to select DVD output mode and to use the remote control in DVD mode.

• Press to accept a setting. • Press to accept a setting.

• Press to adjust the black parts of the picture brighter.

• Press to adjust the black parts of the picture britghter (VCD).

• Press to call back the Marker display. • Press to call back the Marker display (VCD, CD).

• Activates programmed playback, random play-

• Activates Virtual Surround or Rapid Play.

back or folder playback mode (CD, MP3, JPEG).

• Activates the 3D sound (VCD, CD) .

• Repeats playback of the current disc, title or chapter.

• Repeats playback of the current disc, group or track.

• Returns to the previous operation. • Returns to the previous operation.

• Press to enter the setup mode or to change setup items.

• Press to skip chapters or titles. • Press to skip tracks.

• Press to select a desired subtitle language. —

• Press to return to the first hierarchy in the

• Displays the title menu.

programme and file list when the file list is the second hierarchy or deeper (MP3, JPEG).

• Enlarges part of a DVD-reproduced image. •

–

H9945AD_1.indd 8H9945AD_1.indd 8 5/11/2005 6:46:59 PM5/11/2005 6:46:59 PM

Enlarges part of a reproduced image (VCD, JPEG).

Buttons for Both VCR and DVD

Media type

Button

(Alphabetical order)

DVD mode VCR mode

• Press to select chapter or title directly.

• (up/down/left/right) Press to select an item in the menu and to move the cursor.

• Press to select a desired audio language or sound mode.

——

• Press to clear the markers or the incorrect input.

• Press to display the current playback mode.

• Press to begin fast forward playback to a desired point.

• Press to begin slow forward playback during the pause mode.

• Press to display the DVD menus.

• Press to insert discs into or remove them from the tray.

• Press to turn the power on and off.

• Press to select track directly.

• (up/down/left/right) Press to select an item in the menu and to move the cursor.

• Press to select a desired sound mode (VCD, CD)

• Press to clear the markers or the incorrect input.

• Press to display the current playback mode.

• Press to begin fast forward playback to a desired point (VCD, CD, MP3).

• Press to begin slow forward playback during the pause mode (VCD).

Press to display the MP3 or JPEG file lists.

•

• Press to insert discs into or remove them from the tray.

• Press to turn the power on and off. • Press to turn the power on and off.

• Press to select channel (except for +10 key).

• (up/down/left/right) Press to select an item in the menu and to move the cursor.

• Press to select a desired sound mode.

• Press to change TV channels or to adjust the tracking manual.

• Press to reset the counter.

• Press to display the current time, tape counter and channel number.

• Fast forwards playback to a desired point.

• Press to forward in slow motion faster.

• Press to display the VCR menu.

• Press to remove the tape from the VCR.

SETUP

• Press to begin playback. • Press to begin playback. • Press to begin playback.

——

• Press to begin fast reverse playback to a desired point.

• Press to begin slow reverse playback during the pause mode.

——

• Press to pause playback or to advance playback one frame at a time.

• Press to stop playback. • Press to stop playback.

——

• Press to begin fast reverse playback to a desired point (VCD, CD, MP3).

• Press to pause playback.

• Press once to start recording or repeatedly to start One Touch Recording.

• Fast reverse playback to a desired point.

• Press to reverse in slow motion slower.

• Press to call up the index or time search menu.

• Press to view the video tape in slow motion.

• Press to pause playback or recording or to advance playback one frame at a time.

• Press to stop playback or recording.

• Press to select the VCR’s recording speed (SP or LP).

• Press to put the VCR into standby mode for a Timer Recording.

• Press to select VCR output mode and to use the remote control in VCR mode.

–

H9945AD_1.indd 9H9945AD_1.indd 9 5/11/2005 6:47:02 PM5/11/2005 6:47:02 PM

CONNECTIONS

Connection to a TV

CAUTION:

• Be sure to turn off the VCR/DVD and equipment to be connected before connecting.

• Read through the Operation Manual for the equipment to be connected.

• Be sure to keep the VCR/DVD connection cables separate from the TV antenna cable when you install the VCR/DVD, because it may cause electrical interference when you are watching television programmes.

• DTS audio cannot be produced with an analogue connection.

Basic TV Connection

CAUTION:

$6$

$6$6# 2

$)')4!,

!5$)/

!5$)//54

/54

#/!8)!,/04)#!,

6#2

36)$%/

#/-0/.%.4

!5$)//54

!5$)/).

/54

6)$%//54

,2,

#"

6)$%/).

6)$%//54

#2

GSPN "OUFOOB

!%2)!,

2&/54

5P3'065

KBDL

3PVOE$PBYJBMDBCMF

TVQQMJFE

5P"&3*"-

KBDL

This VCR/DVD

• Connect the VCR/DVD directly to the TV. Do not connect the VCR/DVD to a VCR, then connect the VCR to the TV. Copyright protection in the VCR could distort the picture playing on the VCR/DVD.

VCR

• When the VCR/DVD is connected to a TV using both a Video cable and an S-Video cable, only the S-Video connection is enabled (the VIDEO connection is disabled).

• You will not be able to hear all of the sound being output by the VCR/DVD if you use the Video/Audio cables (supplied) to a monaural TV that

SETUP

has only one AUDIO input jack.

Hint

• Be sure that the colours of the jacks and plugs match up when connecting the cable.

• Connect the VCR/DVD directly to the TV. If you attempt to view video on a TV connected via a VCR, the copy protection function will scramble the picture.

• If you want to listen to the audio through audio equipment, connect only the S-Video or Video cable to the TV.

Method 1 Method 2 Method 3

Basic Audio Good picture Better picture Best picture

Audio cable

(supplied)

Video cable

(supplied)

S-Video cable (commercially available)

Component Video cable

VCR/DVD

(commercially available)

(Analogue) AUDIO OUT VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT

• The S-VIDEO OUT and COMPONENT VIDEO OUT jacks are only useful in DVD mode.

If your TV is compatible with 525 or 625 progressive scanning and you want to enjoy that high quality picture;

You must select the connection Method 3 above and progressive scanning mode. To set the mode, set “PROGRESSIVE” to “ON” in the DISPLAY menu so that “P.SCAN” will appear on the display of this VCR/DVD. (The progressive scanning is not available in the VCR mode.) See pages 29, 30 for more details.

If your TV is not compatible with progressive scanning;

Use this VCR/DVD in interlace mode. Make sure that no “P.SCAN” is on the display of this VCR/DVD. If so, set “PROGRESSIVE” to “OFF” in the DISPLAY menu so that “P.SCAN” on the display of this VCR/DVD will disappear.

–

H9945AD_1.indd 10H9945AD_1.indd 10 5/11/2005 6:47:05 PM5/11/2005 6:47:05 PM

Connection to an Audio System

Method 1 Method 2

AUDIO

Stereo system

Audio cable

(supplied)

Analogue audio

input jacks

Dolby Digital decoder, DTS decoder, MPEG decoder,

MD deck or DAT deck

Digital audio

input jack

Audio Coaxial or

Optical Digital cable

(commercially

available)

VCR/DVD

(Analogue) AUDIO

OUT

Connection

Setting

Connecting to Stereo

System.

SETUP > (QUICK) >

DOLBY DIGITAL

DTS MPEG

DPCM OFF DPCM

* To complete these settings, refer to pages 29, 31.

Hint

• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

DIGITAL AUDIO OUT

Connection

Setting

SETUP > (QUICK) >

DOLBY DIGITAL

DTS MPEG

Connecting to a

Dolby Digital, DTS decoder or MPEG decoder for Dolby

BITSTREAM

Digital, DTS or MPEG audio output.

Connecting to the

other equipment (an MD deck or DAT deck etc.) with-

DPCM OFF DPCM

out Dolby Digital decoder.

* To complete these settings, refer to pages 29, 31.

Hint

• The DVD AUDIO OUT and DIGITAL AUDIO OUT jacks are only useful in DVD mode.

• The audio source on a disc in a Dolby Digital 5.1 channel surround format cannot be recorded as digital sound by an MD or DAT deck.

• By hooking this VCR/DVD up to a Multi-channel Dolby Digital decoder, you can enjoy high-quality Dolby Digital 5.1 channel surround sound as heard in the movie theatres.

• By hooking this VCR/DVD up to the DTS decoder, you can enjoy

5.1 channel surround system which reproduces the original sound as truthfully as possible. 5.1 channel surround system is developed by the Digital Theater System Inc.

• Playing back a DVD using incorrect settings may generate noise distortion and may also damage the speakers.

SETUP

Optical Cable (not supplied)

• Optical cable (not supplied) may be damaged when bent at sharp angles. Ensure cables are coiled in loops with a diameter of 15 cm or more when storing them.

• Use a cable which is 3 m or shorter.

• Insert cable plugs firmly into the connectors when making connections.

• If a plug has dust or is dirty, clean it with a soft cloth before inserting it into a connector.

–

H9945AD_1.indd 11H9945AD_1.indd 11 5/11/2005 6:47:07 PM5/11/2005 6:47:07 PM

Operations described after this section are mainly based on the remote control use. Some operations can be carried out on main unit.

PREPARATION FOR USE

Turn on the VCR/DVD for the First Time

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Refer to page 7 to switch between the VCR mode and the DVD mode.

Turn on the TV and select the video channel on the TV.

Select the desired language.

LANGUAGE

B [ ENGLISH ]

To decide.

Video Channel Setting

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Video Channel Setting will be necessary if your VCR/DVD is connected to the TV via the Round Coaxial cable.

Insert a pre-recorded tape.

SETUP

Select and adjust your TV to channel 37.

If channel 37 is set for broadcasting, or interference lines appear

• on the picture, the RF converter must be set to a different channel between CH28 and CH69.

Do you see the playback picture on the TV screen?

YES

To stop playback.

Select “INITIAL”.

To decide.

Select “RF OUT“.

To decide.

• Select a channel which is not used for broadcast between channel 28 and 69 in your area, and press Cursor B to confirm.

• Set the TV channel to the RF OUT CHANNEL which was selected on the VCR/DVD. A picture from the VCR/DVD will appear on the TV screen. If picture does not appear, repeat steps 4 to 7 using a different channel which is not used for broadcansting.

To stop playback.

TIMER SET UP B INITIAL

INITIAL

CH TUNING CLOCK B RF OUT LANGUAGE

B RF OUT CH 37

Hint

• Repeat these steps only if either there was a power failure or this VCR/DVD has been unplugged for more than 1 hour.

• You may also access the RF OUT CH menu by pressing and holding MENU on the remote control for 3 seconds during power off until the RF OUT CH menu appears.

Automatic Channel Preset

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can programme the tuner to scan all the channels you can receive in your area.

Select “INITIAL”.

To decide.

Select “CH TUNING“.

To decide.

Select “AUTO“.

To decide.

• The tuner scans and memorises all the active channels in your area.

• After scanning, the tuner stops on the lowest memorised channel.

Clock Set Up

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

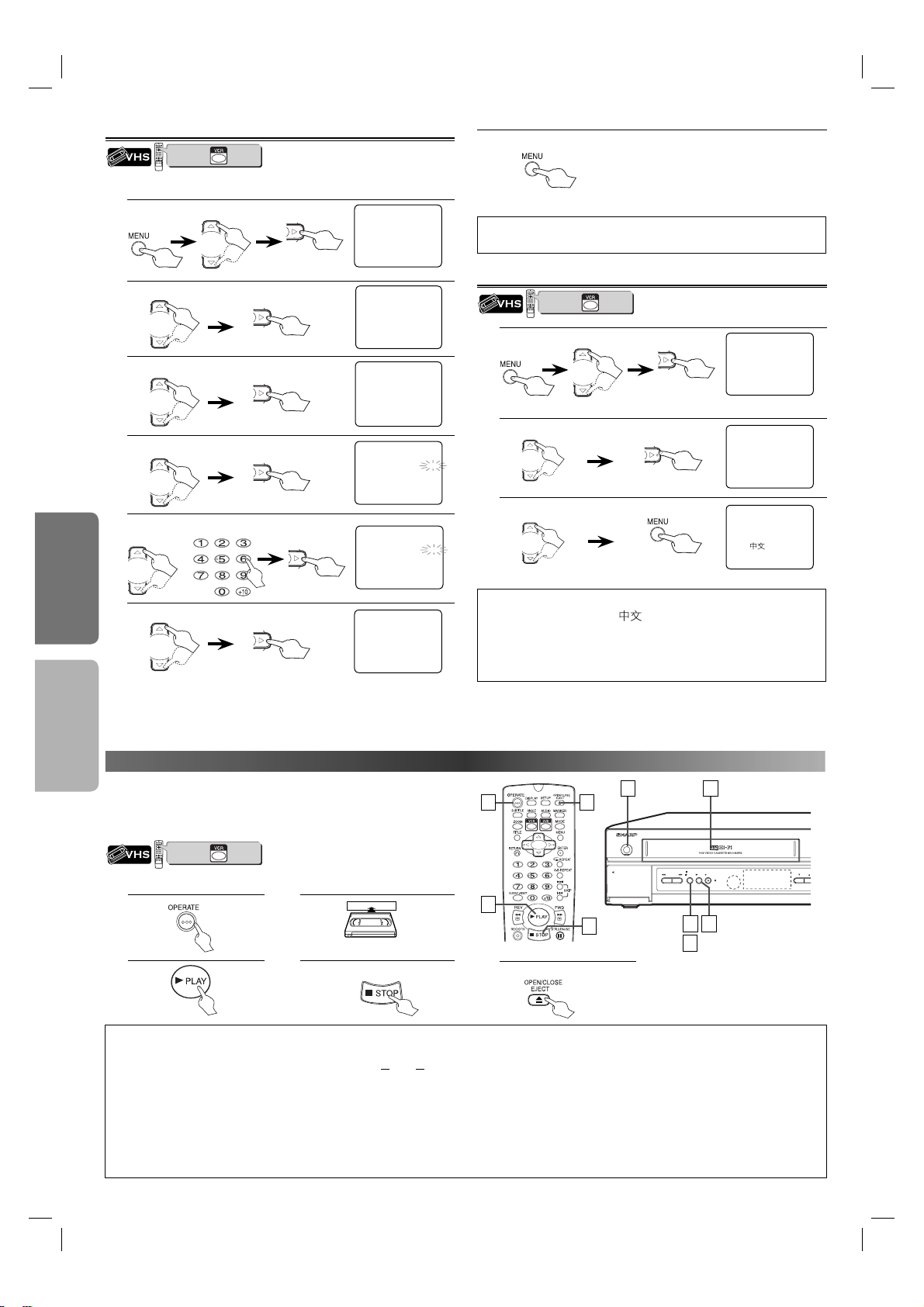

This VCR/DVD incorporates a 24-hour clock. The clock must be set for the Timer Recording function to operate correctly.

Select “INITIAL”.

Select “CLOCK”.

Select the current year.

Select the current month.

Select the current day.

To decide.

TIMER SET UP B INITIAL

INITIAL

B CH TUNING CLOCK RF OUT LANGUAGE

CH TUNING

B AUTO MANUAL

AUTO P01

TIMER SET UP B INITIAL

INITIAL

CH TUNING B CLOCK RF OUT LANGUAGE

CLOCK

B YEAR 2005 MONTH 01

DAY 01 SA HOUR MINUTE

CLOCK

YEAR 2005 B MONTH 01 DAY 01 SA HOUR MINUTE

CLOCK

YEAR 2005

MONTH 07 B DAY 01 SA

HOUR MINUTE

__ __

–

H9945AD_1_P17.indd 12H9945AD_1_P17.indd 12 5/12/2005 7:29:06 PM5/12/2005 7:29:06 PM

Select the current hour.

Select the current minute.

To exit the CLOCK screen.

To decide.

CLOCK

YEAR 2005 MONTH 07 DAY 16 SA B HOUR MINUTE

CLOCK

YEAR 2005 MONTH 07 DAY 16 SA HOUR 01 B MINUTE

__ __

Hint

• To go back one step, press Cursor s (during the steps 3 to 7).

• Although seconds are not displayed, they begin counting from 00 when you exit by pressing MENU. Use this feature to synchronise the clock with the correct time.

• Repeat these steps only if either there was a power failure or this VCR/DVD has been unplugged for more than 1 hour.

Select a Channel

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can select a desired channel by using CH K / L or directly pressing the Number buttons on the remote control.

Select your desired channel number.

Hint

• Enter a channel numbers as a two-digit number for the quickest results. For example, to select channel 6, press 0 and 6. If you only press 6, channel 6 will be selected after a brief delay.

• You can only select channels 1–99.

Picture Select

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

This function enables you to select the picture quality of a tape.

Select “SET UP”.

Select “PICTURE”.

To switch “NORMAL”, “SOFT” or “SHARP”.

To decide.

TIMER

B SET UP INITIAL

SET UP

AUTO REPEAT [OFF] B PICTURE [NORMAL]

SET UP

AUTO REPEAT [OFF] B PICTURE [SOFT]

Manual Channel Preset

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Each channel is tuned manually and individually. DO NOT use “Automatic Channel Preset” if you intend to use some of the pretuned channels.

Select “INITIAL”.

Select “CH TUNING”.

Select “MANUAL”.

Select “POSITION”.

• When a weak signal is received in Manual Tuning mode, you can change the background to solid blue or the static screen by pressing CLEAR/C-RESET.

Select your desired position number.

• You can select position number 01-99.

• If you know the area of the frequencies where the position number you wish to receive, press Cursor K / L to select “BAND”, then press Cursor B repeatedly until your desired fre- quency appears.

CHANNEL COVERAGE

VHF L: 45.75~138.25 MHz VHF H: 140.25~423.25 MHz UHF: 427.25~855.25 MHz

To decide.

To search.

• When a channel is found, the VCR/DVD will stop searching and “ON” changes to “OFF” on the right siede of “SKIP” automatically and the picture will appear on the TV screen.

• If “ON” appears on the right side of “SKIP”, press Cursor B to cancel the selecting position number then press Cursor K / L to point “SKIP”. Then press Cursor B to select “OFF”.

To exit the Manual Channel Preset.

TIMER SET UP B INITIAL

INITIAL

B CH TUNING CLOCK RF OUT LANGUAGE

CH TUNING

AU TO B MANUAL

MANUAL

B POSITON P01

CCCCCCCCCCCCCCC

BAND [VHFL] SKIP [ON]

MANUAL

B POSITON P01

CCCCCCCCCCCCCCC

BAND [VHFL] SKIP [ON]

MANUAL

POSITON P05

CCCCCCCCCCCC

CCCC

BAND [ VHFH] SKIP [OFF]

SETUP

To exit the PICTURE screen.

• To confirm that a channel has been added, press CH K / L.

Hint

• Once you select the Picture Select mode, it stays in effect even after you turn off the VCR/DVD.

–

H9945AD_1.indd 13H9945AD_1.indd 13 5/11/2005 6:47:15 PM5/11/2005 6:47:15 PM

Skip a Preset Channel

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

The channels you can no longer receive or seldom watch can be set to be skipped when you access channel with

SETUP

VCR FUNCTIONS

NA527AD

CH K / L.

Select “INITIAL”.

To decide.

Select “CH TUNING”.

To decide.

Select “MANUAL”.

TIMER SET UP B INITIAL

INITIAL

B CH TUNING CLOCK RF OUT LANGUAGE

CH TUNING

AU TO B MANUAL

To decide.

Select “POSITION”.

To decide.

Select relevant position number.

Select ”SKIP [ON]”.

To decide.

MANUAL

B POSITON P01

BAND [VHFL] SKIP [OFF]

MANUAL

B POSITON P05

BAND [VHFL] SKIP [OFF]

MANUAL

POSITON P05

BAND [VHFL] B SKIP [ON]

• To memorise the channel again, press Cursor B. “ON” will change to “OFF”.

CCCCCCCCCCCCCCC

To exit the Manual screen.

Hint

• To confirm that a channel has been deleted, press CH K / L.

Change the On-Screen Language

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Select “INITIAL”.

Select “LANGUAGE”.

Select the desired language.

Hint

• If you accidentally select “ ġġġġġ” and need English: Press MENU and choose “ߒԪ೪ۢ” by pressing Cursor K / L. Then, press Cursor B. Select “ᇮّ” by pressing Cursor K / L. Then, press Cursor B. Select “ENGLISH” by pressing Cursor K / L. Finally, press MENU.

To decide.

TIMER SET UP B INITIAL

INITIAL

CH TUNING CLOCK

RF OUT B LANGUAGE

LANGUAGE

B [ ENGLISH ]

VCR FUNCTIONS

PLAYBACK

Before:

Turn on the TV and set it to RF OUT channel.

• If RF OUT channel is already occupied for broadcasting, see “Video Channel Setting” on page 12.

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Refer to page 7 to switch between the VCR mode and the DVD mode.

1. 2.

PULL OPEN

OPERATE

DV-NC200

3. 4.

To stop playback.

To eject a tape.

Hint

• When a tape without erase-protection tab is inserted, the VCR/DVD will start playback automatically.

• Tracking adjustment will be activated automatically (Digital Tracking function) when you start playback.

• When playing pre-recorded tapes or tapes recorded on units other than your own, noise lines (black and white streaks) may appear on the playback picture. If this occurs, you can adjust the tracking control manually by pressing CH K / L until the streaks disappear. To return to the DTR function, stop the tape once and start playback again.

• Using the buttons on the VCR/DVD

Just press PLAY B on the VCR/DVD. Power will automatically turn on and playback will start (Direct Button Operation).

• Using the buttons on the remote control

Press OPERATE to turn on, and then press PLAY B .

–

STOP/

RECPLAYREW FF

EJECT

TIMER

(TRACKING)

H9945AD_1.indd 14H9945AD_1.indd 14 5/11/2005 6:47:20 PM5/11/2005 6:47:20 PM

OTHER OPERATIONS

To Cue or Review Picture during Playback (Speed Search)

Press FWD g or REV h.

• Press it again and the VCR/DVD will search in super high speed.

• Super high speed is not available for an NTSC tape.

• The sound will be muted during Speed Search.

To Freeze the Picture on TV Screen during Playback (Still Picture)

Press STILL/PAUSE F. Each time you press the button, the picture will be forwarded by one frame.

• If the picture begins to vibrate vertically during the still mode, stabilise the picture by pressing CH K / L.

• If the picture is distorted or rolling vertically, adjust the vertical hold control on your TV, if equipped.

Hint for “Speed Search” and “Still Picture”

• Usually there will be video “noise” lines (black and white streaks or dots) on the screen. This is normal. The still picture will, in addition to containing the “noise” lines, be black and white. This is not a fault of the machine but merely a by-product of the technology involved in producing a VCR with LP mode.

Time Search

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can specify the time for fast forwarding or rewinding. If a tape includes both programmes recorded in the PAL system and ones recorded in the NTSC system, this function may not be operated correctly.

• Insert a tape into this VCR/DVD.

TIME 0 : 0 0

Counter Reset Press CLEAR/C-RESET.

To Play Back in Slow Motion

Press SLOW

during playback or the still mode.

• You can control the speed by pressing FWD g(faster) or REV h(slower). Press PLAY B to return to normal playback.

• If the noise bars appear on the TV screen, you can reduce it by pressing CH K / L.

Auto Rewind

When a tape reaches its end during playback, fast forward, or recording (except Timer Recording and One Touch Recording), the tape will automatically rewind to the beginning. After rewinding finishes, the VCR/DVD will eject the tape.

Hint

• Still/Slow/Pause mode will be automatically cancelled after 5 min-

utes to prevent damage to the tape and the video head.

• To return to playback from the Speed Search/Still/Slow mode,

press PLAY B.

To rewind.

To fast forward.

Within 30 seconds.

After searching ...

PLAY B

• When 0:00 is reached, the VCR/DVD will start playback automatically.

x2 (Twice)

Select the desired length of time for fast forwarding or rewinding.

Within 30 seconds.

TIME 2 : 5 0

0:01 ~ 9:59

(1 minute~9 hours and 59 minutes)

Index Search

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can specify the number of programmes to be skipped.

• The index mark will be made automatically when REC/OTR is pressed. It will also be marked at the starting point of Timer Recording and OTR.

• The index mark is not recorded if STILL/PAUSE F is pressed and released during recording.

• The time gap between index marks on the tape should be greater than 1 minute for SP recording and 2 minutes for LP recording.

• Insert a tape into this VCR/DVD.

x1 (Once)

Within 30 seconds.

CURRENT PROGRAMME

Beginning of tape

Pro.1 Pro.2 Pro.3 Pro.4 Pro.5

02 01 01 02 03

INDEX MARK

End of tape

INDEX 01

INDEX 03

01 ~ 20

Hint

• Time Search can be set up to 9 hours 59 minutes (9:59).

• This function is not available during recording.

• If the end of the tape is reached during a search, this VCR/DVD will cancel the search and rewind the tape.

• To exit the Time Search mode, press MENU in step 2, or press STOP C after step 3.

To rewind.

To fast forward.

Within 30 seconds.

After searching ...

PLAY B

• When the preset programme is reached, the VCR/DVD will start playback automatically.

Hint

• Index Search can be set up to 20.

• This function is not available during recording.

• If the end of the tape is reached during a search, this VCR/DVD will cancel the search and rewind the tape.

• This VCR/DVD stores index mark at the beginning of the recording. There should be time gap between 2 index marks for the Index Search.

• To exit the Index Search mode, press MENU in step STOP C after step 3.

–

VCR FUNCTIONS

2, or press

H9945AD_1.indd 15H9945AD_1.indd 15 5/11/2005 6:47:26 PM5/11/2005 6:47:26 PM

Auto Repeat

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can repeat playback of a whole tape automatically.

• Insert a tape into this VCR/DVD.

Select “SET UP”.

TIMER

B SET UP INITIAL

SET UP

B AUTO REPEAT [OFF] PIC TURE [NORMAL]

SET UP

B AUTO REPEAT [ON] PIC TURE [NORMAL]

Select “AUTO REPEAT”.

To decide.

Recording & OTR (One Touch Recording)

This function enables you to set the duration of a recording simply by pressing REC/OTR. Before: Turn on the TV and set it to RF OUT channel.

• If RF OUT channel is already occupied for broadcasting, see “Video Channel Setting” on page 12.

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Refer to page 7 to switch between the VCR mode and the DVD mode.

VCR FUNCTIONS

Insert a tape.

with erase-protection tab

Select the desired channel.

Select the desired tape speed.

Tape Speed SP Mode

You can select a fixed recording time by pressing REC/OTR repeatedly.

3&$

/PSNBMSFDPSEJOH



• Recording stops when 0:00 is reached.

• To check remaining time during an OTR, press DISPLAY.

• To change the recording length during an OTR, press REC/OTR

repeatedly until the desired length appears.

• To cancel the OTR but continue recording, press REC/OTR repeatedly I

appears without the recording length.

To stop recording or before the end time of OTR, press STOP C.

•

If necessar y, rewind or fast

forward the tape to the point at which you want to begin recording.

Recording / Playback TimeTape Type

E-60 1 hour 2 hours E-120 2 hours 4 hours E-180 3 hours 6 hours E-240 4 hours 8 hours

RECORDING

P12

TV Screen

LP Mode

–

AUTO REPEAT B

To stop playback.

Hint

• To cancel Auto Repeat, follow steps 1 to 3. Then, press Cursor B, so that

“OFF“ appears beside “AUTO REPEAT”. Press MENU to exit.

• If menu remains on the TV screen at step 3, press MENU to exit.

• Once you select “AUTO REPEAT”, it stays in effect even after you turn off the VCR/DVD.

DV-NC200

OPERATE

PULL OPEN

STOP/

RECPLAYREW FF

EJECT

TIMER

(TRACKING)

You CANNOT copy a DVD to a videotape if the DVD disc is copy protected.

Hint

• To view one channel while recording another, press the channel buttons on the remote control of your TV to switch the RF OUT channel for broadcasting you want to watch.

• An NTSC 3.58 system is automatically distinguished by the VCR in case of using external input mode.

• When you copy a tape recorded in an NTSC 3.58 system using external input mode, you cannot select the LP mode at step 3.

Assemble Function

You can record in continuation from previous programme on a prerecorded tape.

1. Insert a pre-recorded tape. Press PLAY B to start playback.

2. Press STILL/PAUSE F at the desired point on the tape.

3. Press REC/OTR. The VCR/DVD will be the Recording Pause mode.

4. Press CH K / L to select the channel to be recorded.

5. Press REC/OTR or STILL/PAUSE F. The recording will begin.

6. Press STOP C when recording is completed.

Accidental erasure prevention

To prevent accidental recording on a recorded cassette, remove its erase-protection tab. To record on it later, cover the hole with plastic tape.

FSBTFQSPUFDUJPOUBC

To stop recording temporarily (Pause mode)

Press STILL/PAUSE F.

• During the Recording Pause mode, 5 screen. Each C mark represents 1 minute. After 5 minutes, the VCR

marks appear on the TV

will automatically switch to the stop mode to prevent tape damage.

• Press it again to resume recording.

–

OPEN/CLOSE

VCRCH

H9945AD_1.indd 16H9945AD_1.indd 16 5/11/2005 6:47:29 PM5/11/2005 6:47:29 PM

Timer Recording

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You may programme the VCR/DVD to start and end a recording while you are away. You can set 8 programmes to record on specific days, daily or weekly within a 1-year period.

• Insert a tape with its erase-protection tab in place. (If necessary, rewind or

fast forward the tape to the point at which you want to begin recording.)

Select “TIMER”.

To decide.

Select an empty programme number.

To decide.

• If Cursor { is pressed when the TIMER NUMBER is flashing, the entire programme contents will be erased.

Select the desired month and day.

To decide.

• You can programme one year in advance.

• You can also select the recording routine option by pressing Cursor K / L when the month digit is flashing. Those pro- grammes can only set a recording according to the same channel at the same time.

- For daily recording : Select “MO-FR” to recording from

- For everyday recording : Select “MO-SU” to recording

- For weekly recording : Select “W-MO” to recording

Select the desired start time (hour & minute).

Repeat the procedure in step 4 to set the end time.

Monday through Friday.

everyday.

every week. (e.g. W-MO : every Monday)

To decide.

B TIMER SET UP

INITIAL

TIMER NUMBER

__:__ __:__ __

CHANNEL

TIMER NUMBER

__:__ __:__ __ __

TIMER NUMBER

05/03 TU

__:__ __ __

DATE __/ START END

SPEED

B DATE __/03 START END CHANNEL SPEED

DATE B START 1 1: END CHANNEL SPEED

Select the desired channel.

To decide.

Select the desired recording speed.

• To set another programme after step 7, press Cursor B. Then, continue with step 2.

To exit.

TIMER indicator lights up on the front panel. (When you turn off the VCR/DVD, “ front panel display.) The VCR/DVD will change to the DVD mode. Turn off the VCR/DVD when you do not use the DVD functions. In some occasions, however, the VCR/DVD may be automatically turned off, instead of changing to the DVD mode after pressing TIMER ON/OFF.

TIMER NUMBER DATE START 11:30 END 13:30 B CHANNEL P1 6 SPEED

TIMER NUMBER DATE START 11:30 END 13:30 CHANNEL P1 6 B SPEED S P

” will appear in the

05/03 TU

Hint

• If you have not set the clock yet, CLOCK setting menu appears. If so, follow the steps outlined in the “Setting the Clock” . Then, set the timer.

• If you do not press Cursor B within 5 seconds of setting an item, the input mode will move to the next step.

• Press Cursor { to go back one step from the current setting during steps 3 to 7.

To Check, Correct, or Cancel a Timer Programme

1. Press TIMER ON/OFF then, VCR on the remote control.

2. Press MENU, then Cursor B.

3. Press Cursor K / L to select the programme number which you want

to check. The details of the programme will appear on the TV screen.

• Press Cursor s / B to go to the digit you want to change. Then, enter correct numbers by pressing Cursor K / L.

• You may cancel the entire programme by pressing Cursor s while the programme number flashes.

4. Press MENU to exit.

5. Press TIMER ON/OFF to return to the timer standby mode.

To Cancel a Timer Recording in Progress

Press STOP C/EJECT A on the VCR/DVD.

Hint

• STOP

C on the remote control will not function in the Timer

Recording mode.

VCR FUNCTIONS

HINTS FOR OTR AND TIMER RECORDING

Before you set OTR or Timer Recording

• If a tape is not in the VCR/DVD or does not have the erase-protection

tab, the TIMER indicator on the front panel and “ Recording cannot be performed. Please insert a recordable tape.

flash and Timer

”

• Press VCR on the remote control before you set Timer Recording. Make sure the remote control is in the VCR mode, then press TIMER ON/OFF.

After an OTR and a Timer Recording has been set, this VCR/DVD operates as follows:

• When Timer Recordings are set, the TIMER indicator on the front panel

and “

will appear. To use the VCR as usual until the time for the

” recording, press TIMER ON/OFF so that the TIMER indicator on the front panel and “ with the other features as described in this manual.

“

”

•

will not appear in the DVD mode. However, the Timer Recordings

will remain as programmed.

• Once the VCR/DVD turns to the timer standby mode, no VCR functions

are available until TIMER ON/OFF is pressed. (OUTPUT on the front panel and VCR on the remote control will not function.)

H9945AD_1_P17.indd 17H9945AD_1_P17.indd 17 5/12/2005 2:29:54 PM5/12/2005 2:29:54 PM

disappear. Select either VCR or DVD mode, then continue

”

• To cancel the timer standby mode, press TIMER ON/OFF on the remote

control or STOP C/EJECT A on the VCR/DVD, then press VCR to activate the VCR function again.

• The mode of the VCR/DVD and the remote control may differ (VCR mode

or DVD mode) when you set Timer Recording or after you cancelled Timer Recording. Press VCR or DVD on the remote control to select your desired mode before you operate.

While OTR or Timer Recording is performing.

• I f a tape runs out before an OTR or a Timer Recording is finished, the

VCR/DVD ejects the tape and switches to the DVD mode automatically. Press TIMER ON/OFF on the remote control or STOP C/EJECT A on the VCR/DVD, then press VCR to activate the VCR function again.

• I f

you want to use the VCR/DVD during a Timer Recording or while on or flashing, Press OPERATE to turn on the VCR/DVD. Press DVD on the remote control to choose DVD mode, then continue with the other DVD features as described in this manual. You don’t need to set the TIMER off to use the DVD.

–

“

”

DV D / V C RV C R

NT T

When an OTR or a Timer Recording is completed...

• If the other Timer Recordings remain as programmed, the VCR/DVD

switches to the DVD mode automatically, and the TIMER indicator on the front panel lights up to indicate the VCR/DVD is in the timer standby mode. In some occasions, however, the VCR/DVD may be automatically turned off, instead of changing to the DVD mode after pressing TIMER ON/OFF.

• The TIMER indicator on the front panel flashes if there are no more Timer

Recordings on standby. If you want to use the VCR function, press TIMER ON/OFF on the remote control or STOP C/EJECT A on the VCR/ DVD. Then press VCR to activate the VCR function.

• Once the VCR/DVD switches to the DVD mode, all the VCR function will

be unavailable. “ DVD functions are available during OTR, timer standby mode and Timer Recording.

will not appear as long as the DVD is in use. All the

”

• When you use the VCR/DVD in DVD mode during an OTR or a Timer

Recording, the VCR/DVD will not turn off automatically even if the end time of the OTR or Timer Recording has been past.

Note (for Timer Recording) :

• If there is a power failure or the VCR/DVD is unplugged for more than 1

hour, clock and all timer settings will be lost.

To avoid overlap of Timer Programming ...

• A timer programme will not work while another programme is under

execution.

Programme 1

Programme 2

Programme 3

9:00 10:00 11:00

Direct Dubbing

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Refer to page 7 to switch between the VCR mode and the DVD mode.

Recording starts.

This will be possible only if the DVD is not copy protected.

Insert a tape.

with erase-protection tab

Insert a disc with label facing up.

Press 0, 0, 3 to select DISC.

If necessar y, rewind or fast

•

forward the tape to the point at which you want to begin recording.

DISC

TV Screen

To Stop Recording. To Stop Playback.

Hint

• Press STILL/PAUSE F at the point where you want to start record- ing when you do dubbing middle of the DVD.

• To stop recording temporarily, press STILL/PAUSE F after press VCR. Press STILL/PAUSE F again to resume recording.

VCR FUNCTIONS

Select the desired tape speed.

Tape Speed SP Mode

Recording / Playback TimeTape Type

E-60 1 hour 2 hours E-120 2 hours 4 hours E-180 3 hours 6 hours E-240 4 hours 8 hours

LP Mode

• You cannot record properly from the DVD disc recorded in the NTSC system.

Copying a Video Tape

Warning: Unauthorised recordings of copyrighted video tapes may be an infringement of copyright laws.

Connect the recording VCR/DVD(this unit), playing VCR(another VCR) and your TV as outline in the following diagram.

(Back of another source)

AUDIO OUT

VCRDV D / V C R

COMPON ENT

AU D IO I N

AUDIO OUT

VIDEO OUT

VIDEO IN

VIDEO OUT

ANT-IN

ANT-O U T

(Back of Recording VCR/DVD*)

AUDIO OUT

VIDEO OUT

AUDIO IN

VIDEO IN

AERIAL

RF OUT

Playback starts.

(Back of TV)

Round Coaxial cable

Video/Audio cables

(supplied)

*Front input jacks are also available.

1. Insert a pre-recorded tape into the playing VCR.

2. Insert a tape with its erase-protection tab into the recording

VCR/DVD.

3. Press TAPE SPEED on the remote control of the recording VCR/DVD to select the desired recording speed (SP/LP).

4. Select the “AV1” or “AV2” position on the recording VCR/DVD.

• To use the input jacks on the back of this VCR/DVD, select “AV1” position by pressing 0, 0, 1 on the remote control or CH K / L.

• To use the input jacks on the front of this VCR/DVD, select “AV2” position by pressing 0, 0, 2 on the remote control or CH K / L.

5. Press REC on the recording VCR/DVD.

Hint

• For best results during dubbing, use the front panel controls whenever possible. The remote control might affect another source’s operation.

• If video or colour fades in and out, you may be copying a copy guarded video tape.

• Unauthorised recording of copyrighted materials may infringe on the rights of copyright owners, violate copyright laws and may not record clearly.

• “AV1” or “AV2” is found before the lowest memorised channel.

(Example: P02)

• “AV2” input jacks are on the front of this VCR/DVD.

6. Begin playback of the tape in another source.

7. To stop recording, press STOP C/EJECT A on the VCR/DVD for

the recording VCR/DVD, then stop playback of the tape in another source.

–

H9945AD_1.indd 18H9945AD_1.indd 18 5/11/2005 6:47:36 PM5/11/2005 6:47:36 PM

OTHER INFORMATION

Status Display

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can check the Counter or Clock & Channel number.

Each time you press DISPLAY, TV screen will change as illustrated:

When you select the channel using the remote control the Number buttons, select the desired channel (position number).

Press once. Press once.

Hi-Fi Stereo Sound System

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

This VCR/DVD will record and playback Hi-Fi stereo sound. In addition it has an A2 and NICAM stereo sound decoder. This VCR/DVD will receive stereo and bilingual broadcasts and there are several ways of recording and playing back the sound.

• During playback of the recorded tape in Hi-Fi mode

• During reception of stereo broadcasts

Each mode is indicated on the TV screen as following.

Mode Audio output

Display on

the TV screen

Stereo Stereo STEREO

L L audio from the both speakers LEFT

R R audio from the both speakers RIGHT

Normal Monaural - None -

• During reception of bilingual broadcasts

Mode Audio output

Main Main audio from the both speakers MAIN

Sub Sub audio from the both speakers SUB

Main/Sub

• Main audio from the left speakers

• Sub audio from the both speakers

0:12:34

Press once.

<CLOCK and CHANNEL

NUMBER mode>

17:40

P02

STEREO

Display on

the TV screen

MAIN + SUB

Hint

• If you play non-Hi-Fi tapes, the VCR/DVD will play automatically in monaural even if you select any mode.

• If the stereo signal becomes weak, the broadcast is automatically recorded in monaural.

Video Casette Tape

The VCR/DVD will operate with any casette that bears the VHS mark. For best results, we recommend the use of high-quality tapes. Do not use poor quality or damaged tapes.

• You can prevent accidental erasing of a recording by breaking off the erase-protection tab on the back edge of the casette.

• If you decide to record on the tape again, cover the hole with plastic tape.

erase-protection tab

Automatic Operation

Automatic Rewind, Eject, Off

When the end of a tape is reached during recording, playback or fast forward, the tape will automatically rewind to the beginning. After that, the VCR/DVD will eject the tape.

• The tape will not auto-rewind during Timer Recording or One Touch Recording.

Tape Eject

A tape can be ejected with the VCR/DVD power on or off (but the VCR/DVD must be plugged in).

TV Colour System

Different countries use different television colour systems. Tapes recorded in the PAL or NTSC system can be played back on this VCR/DVD. Usually, the picture on the TV screen will be in black and white when you play back a tape that is recorded in a different colour system.

Tapes recorded in the NTSC system can be played back on this VCR/DVD and a PAL system TV set. This feature is only available in the SP mode. When playing back such tapes, the picture may roll up or down, shrink vertically and black bars may appear both at the top and bottom of the screen. Adjust the vertical hold control on your TV, if the TV features this control.

• If a Timer Recording is set, press STOP C/EJECT A twice to eject a tape.

Real Time Tape Counter

• This shows the elapsed recording or playback time in hours, minutes and seconds on screen. (Nothing is shown in the case of blank portion.)

• The “ – ” indication will appear when the tape is rewound further than the tape counter position “0:00:00”.

• To reset tape counter, press CLEAR/C-RESET.

Hint

• When playing an NTSC tape playback picture may become blurred or picture noise may appear during speed search, slow motion or still mode. This is not a malfunction.

VCR FUNCTIONS

–

H9945AD_1.indd 19H9945AD_1.indd 19 5/11/2005 6:47:40 PM5/11/2005 6:47:40 PM

DVD FUNCTIONS

Before: Turn on the TV, amplifier and any other equipments which are connected to this VCR/DVD. Make sure the TV and audio receiver (commercially available) are set to the correct channel.

When you play NTSC recorded discs, the default setting converts this to a modified PAL. (See “DISPLAY Setting” on page 30.)

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Refer to page 7 to switch between the VCR mode and the DVD mode.

Hint

You can change the On-Screen language in “PLAYER MENU” setting. (Refer to pages 29, 30.)

DV-NC200

OPERATE

STOP/

PULL OPEN

RECPLAYREW FF

EJECT

TIMER

OPEN/CLOSE

OUTPUT

(TRACKING)

1. 2.

3. 4.

Hint

• When you play MP3 or JPEG files, details are on page 22.

• A “prohibited icon” may appear at the top-right on the TV screen when the operation is prohibited by the disc or this VCR/DVD.

• Some DVDs may start playback from title 2 or 3 due to specific programmes.

DVD FUNCTIONS

• During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

• A DVD-RW disc recorded in the VR mode may freeze momentarily during playback depending on how the playlist was made and edited (deleted titles, repeated recording).

DISC Menu

Some discs contain menus which allow you to customise disc playback. Use Cursor K / L / s / B or the Number buttons to select an item,

then press ENTER or PLAY B.

Calling up a Menu Screen (for playback of a DVD Video)

• Press MENU to call up the DVD menu.

• Press TITLE to call up the title menu.

Cancelling the PBC (for playback of a Video CD)

1. Insert a Video CD. (Playback will start automatically.)

2. Press STOP C.

3. Enter track number of your choice with the Number buttons.

4. PBC is now cancelled and the playback of the Video CD will start.

Hint

• If the feature is not available, symbol may appear on the TV screen.

• Menu operations may vary depending on the disc. Refer to the manual accompanying the disc for more details.

(

page 22

PLAYSTOP

DVDVCRCH

4 311 23

Insert a disc with label facing up.

To stop playback.

PLAYBACK

Resume

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

)

Press STOP C during playback. Resume message will appear on the TV screen.

Press PLAY B, playback will resume from the point at which playback was stopped.

Hint

• To cancel resume, press STOP C one more time during the stop mode. On some discs, STOP C will not work while the Resume

message appears. Please wait until the message disappears.

• For MP3 and JPEG, playback will resume from the beginning of the track at which playback was stopped.

• The resume information will be kept even when the power is turned off.

Paused and Step-by-Step Playback

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Press STILL/PAU SE F during playback.

• Playback will be paused and sound will be muted.

• Press STILL/PAU SE F once during Dual/Folder Playback to pause a JPEG file only. Press STILL/PAUSE F one more time to pause an MP3 track.

To continue playback, press PLAY B.

The disc goes forward by one frame each time STILL/PAUSE F is pressed during the pause mode.

To continue playback, press PLAY B.

Hint

• On DVDs, set “STILL MODE” to “FIELD” in the DISPLAY menu if pic-

tures in the pause mode are blurred. (Refer to pages 29, 30.)

Fast Forward/Reverse Search

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Press FWD g or REV h repeatedly during playback to select the required forward or reverse speed.

To continue playback, press PLAY B.

Hint

• On DVDs, set “STILL MODE” to “FIELD” in the DISPLAY menu if pic-

tures during Fast Forward and Reverse Search are blurred.

• For DVDs, Fast Forward or Reverse Search speed is different

depending on the disc.

•

For DVDs, approximate speed is 1(x2), 2(x8), 3(x20), 4(x50) and 5(x100).

• For Audio CDs, Video CDs and MP3, approximate speed is 1(x2),

2(x8) and 3(x30).

• For Audio CDs and MP3, sound will be output during Fast Forward

or Reverse Search.

–

Press 'PLAY' to play from here. To play the beginning, press 'STOP' first and then 'PLAY'.

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Resume ON

H9945AD_2.indd 20H9945AD_2.indd 20 5/11/2005 7:11:37 PM5/11/2005 7:11:37 PM

Slow Forward/Slow Reverse

ORIGINAL PLAYLIST

1 ORIGINAL1 2 ORIGINAL2 3 ORIGINAL3 4 ORIGINAL4 5 ORIGINAL5

ORIGINAL PLAYLIST

1 PLAYLIST1 2 PLAYLIST2 3 PLAYLIST3 4 PLAYLIST4 5 PLAYLIST5

ORIGINAL

1 ORIGINAL1 2 ORIGINAL2

3 ORIGINAL3

4 ORIGINAL4 5 ORIGINAL5

VCR DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Press FWD g or REV h repeatedly during the pause mode to select the required forward or reverse speed.

To continue playback, press PLAY B.

Hint

• Slow Forward or Reverse speed is different depending on the disc. Approximate speed is 1(1/16), 2(1/8) and 3(1/2).

On DVDs, set “STILL MODE” to “FIELD” in the DISPLAY menu if pic-

• tures in the slow playback mode are blurred. (Refer to pages 29, 30.)

• You cannot play Video CDs in reverse slow motion.

Zoom

VCR DVD

12 3

+10

PLAY

STOP

The zoom function allows you to enlarge the video image and to pan through the enlarged image.

During playback, press ZOOM.

• The picture becomes twice as large.

Press ZOOM repeatedly to change the zoom fac tor: “x2”, “x4” or “OFF”.

press first.

VCR/DVD COMBINATION

NA527AD

Press ENTER to switch among “ (x1.3)”, “ (x0.8)” and “OFF”.

: Plays back approximately at 0.8 times of normal playback.

: Plays back approximately at 1.3 times of normal playback.

OFF : No effects.

To continue normal playback, press PLAY B.

Hint

•

Audio (language) setting cannot be changed while using this mode.

• Virtual Surround and Digital Gamma settings cannot be changed while using this mode.

• Virtual Surround does not function while using this mode.

• This feature may not work at some point in a disc.

• When using digital audio connection, the DPCM sound will be output.

Playing the Disc Recorded in VR Mode (Video Recording Format)

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

DVDs recorded in VR mode can have a PLAYLIST assigned to alter the order or content to be played. If a PLAYLIST has been created, you can choose the ORIGINAL or PLAYLIST option.

Press MENU in stop mode.

Once a desired zoom factor is set, use Cursor K / L / s / B to slide the zoomed picture across the screen.

To exit zoom function, press ZOOM repeatedly to select “OFF”.

Hint

•

Zooming function does not work while the disc menu is showing up.

• x4 zoom is not available on some discs.

• Only x2 zoom is available on Video CDs and JPEG.

• You may not be able to move zoomed JPEG pictures.

• Zooming function is also available during pause mode.

Rapid Play

VCR

DVD

12 3

6 54

+10

PLAY

STOP

Rapid Play function is available only during playback. Available only on discs recorded in the Dolby Digital format, Rapid

Play plays back in slightly faster/slower speed with sound that is close to normal playback quality.

During playback, press MODE.

press first.

VCR/DVD COMBINATION

NA527AD

OFF

• The current setting screen will appear.

• Pressing MENU during playback is not valid.

ORIGINAL : PLAYLIST :

To select the desired title.

Hint

• PLAYLIST will not be displayed when it has not been made.

• Resume playback will not be possible if you change the setting.

• When discs recorded in VR mode, changing the audio (MAIN, SUB or MAIN+SUB) is effective only when using an analogue connection. Although you may be able to change the settings of the on-screen display, it will not affect the sound when using a digital connection.

A list of titles which are recorded with a DVD recorder. A list of titles which is made based on the ORIGINAL edited list.

To decide.

DVD FUNCTIONS

• The current setting appears.

–

H9945AD_2.indd 21H9945AD_2.indd 21 5/11/2005 7:12:15 PM5/11/2005 7:12:15 PM

MP3, JPEG PLAYBACK

MP3 or JPEG is a method of compressing files. You can copy MP3 or JPEG files on CD-RW/-Rs from the computer and play back the files on this VCR/DVD.

Insert a MP3 or JPEG-format disc, then press MENU to call up the FILE LIST on the TV screen.

When selecting the folder:

• Press Cursor B when you want to go to the next hierarchy.

• Press Cursor s when you want to go back to the previous hier- archy (except for the top hierarchy).

This VCR/DVD recommends the files recorded under the following circumstances:

Applicable MP3 ﬁ le Remarks

Sampling frequency:

44.1 kHz or 48 kHz

Constant bit rate: 32 kbps ~ 320 kbps

Applicable JPEG ﬁ le Remarks

Normal playback Upper limit: 6,300 x 5,100 dots

Lower limit: 32 x 32 dots File size: Max. 5 MB

Dual playback Upper limit: 4,000 x 4,000 dots

Lower limit: 32 x 32 dots File size: Max. 3 MB

Kodak Picture CD

12 3

DVD FUNCTIONS

The VCR/DVD can also run JPEG files stored on Kodak Picture CDs. The Picture CD is a service to convert photographs taken by a conventional film camera into digital data and write the data on a CD. The user can enjoy picture images on the television set by playing back the Picture CDs.

For details of Kodak Picture CD, contact a shop that deals with developing service of Kodak Inc.

• If all menu items cannot be displayed in the screen scope, “G ” appears at the right bottom of the screen, indicating that the user can view remaining items on the next page. “H ” appears, it indicates that the user can view other items on the previous page. The track number of the currently highlighted item and the total tracks are shown at the centre bottom of the screen.

• If “G ” is shown at the right bottom, use SKIP G to view the next page. If “H ” is shown at the left bottom, use SKIP H to view the previous page.

• It may take some time until all menu items are displayed on the menu screen.

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

VCR

DVD

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

FILE LIST

DISC NAME

FOLDER MP3 JPEG

folder name 1

folder name 2

folder name 3 folder name 4 file name 1 file name 2 file name 1

ENTER

PLAY

folder name 1

Refer to “Resume” on page 20.

For MP3 file recorded in Variable Bit Rate (VBR), the VCR/DVD may not display the actual elapsed time.

A JPEG image that extends beyond the screen is reduced so that it will be displayed within the screen.

Picture 1 Picture 2 Picture 3

Picture 4

Picture 5 Picture 6

1/32

Current track number /

the number of total tracks

Hint

• Some selections may take a while to be recognised.

• Press TITLE to return to the 1st item.

• Press MENU or RETURN to go back to the opening display.

• Folders are known as Groups; files are known as Tracks.

• Folders, MP3 files and JPEG files are displayed respectively as and .

1/ 2

• A maximum of 255 folders or 999 files may be recognised in one

disc.

• Up to 8 hierarchies can be recognised in one folder. Files in the

9th or deeper hierarchies cannot be played back.

• This VCR/DVD can play back images and sounds from data record-

ed in MP3 and JPEG formats on CD-RW/-R discs.

• A file with an extension of “.mp3 (MP3)” is called an “MP3 file”.

• A file with an extension of “.jpg (JPG)” or “.jpeg (JPEG)” is called a

“JPEG file”.

• The VCR/DVD can run an image file conforming to the Exif specifi-

cation. Exif is a file format, Exchangeable Image File format established by Japanese Electronic Industry Development Association (JEIDA).

• Files whose extension is other than “.mp3 (MP3)”, “.jpg (JPG)” and

“.jpeg (JPEG)” will not be listed in the MP3 or JPEG menu.

• If the file is not recorded in MP3 or JPEG format, noise may be pro-

duced even if the file extension is either “.mp3 (MP3)”, “.jpg (JPG)” or “.jpeg (JPEG)”.

• The name of group and track can be displayed in up to 25 charac-

ters. Unrecognisable characters will be replaced with asterisks.

• Unplayable groups or tracks may be displayed depending on the

recording conditions.

• If TITLE is pressed when a FILE LIST is displayed, the 1st item will

be highlighted.

• Progressive JPEGs (JPEG files saved in the progressive format) will

not play on this VCR/DVD.

To select a desired track.

• If a Kodak Picture CD file is selected, an image will be played back from the selected track and go to the next one in turn.

Hint

• A track is displayed for 5 seconds and then the next track is displayed.

• Every press on Cursor B will turn the image clockwise by 90 degrees when an image is displayed. A press on Cursor s will turn the image counterclockwise by 90 degrees.

• If a group is selected, press Cursor K / L to select a desired group, then press Cursor B, PLAY B or ENTER to select a track.

–

To play back.

H9945AD_2.indd 22H9945AD_2.indd 22 5/11/2005 7:12:22 PM5/11/2005 7:12:22 PM

Dual Playback

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

This function lets you play back MP3 and JPEG files simultaneously. Available only when Dual Playback is ON. See pages 29, 32 on how to set the Dual Playback ON or OFF.

To select a desired MP3 or JPEG file from the FILE LIST.

FILE LIST

DISC NAME

FOLDER MP3

folder name 1

JPEG

folder name 2 folder name 3 folder name 4 file name 1 file name 2 file name 1

ENTER

PLAY

folder name 1

1/ 2

To playback.

Hint

• To cancel Dual Playback, press MENU again at step 1.

• If you press PLAY B directly after you inserted a disc which contains both MP3 tracks and JPEG files and if the “DUAL PLAYBACK” setting is “ON”, Dual Playback will start automatically.

• If you press FWD g or REV h during Dual Playback, a JPEG file will be paused.

• Zooming or rotating a JPEG file during Dual Playback may cause an intermittent sound.

• Depending on the data size of each file, Dual Playback may not function properly. (Refer to “Applicable JPEG file” on page 22.)

Transition Mode

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can switch to the Transition Mode for JPEG files during playback.

Press MODE repeatedly until “ ” appears.

To switch “CUT IN/OUT ” or “FADE IN/OUT”.

CUT IN/OUT: The entire image appears in one time.

FADE IN/OUT: The image appears gradually and then disappears.

CUT IN/OUT

FADE IN/OUT

Adjustment of Picture Size

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Depending on the TV connected to this VCR/DVD, the overall picture cannot be displayed and the edge of the picture can be cut off. In this case, you can adjust the size of the JPEG playback image on screen.

NORMAL

Press MODE repeatedly until “ ” appears.

To switch “NORMAL” or “SMALL”.

SMALL

NORMAL: To display the image at 100% of the picture size.

SMALL: To display the image at 95% of the picture size.

Hint

• The setting screen will not be displayed while in the stop mode or from the FILE LIST.

• This feature may have no effect on some files (e.g. Files with a small picture size).

• The default setting is “NORMAL”.

Folder Playback

VCR DVD

12 3

+10

PLAY

STOP

This function lets you play all the files and tracks contained in one selected folder automatically.

If the folder contains both MP3 and JPEG files, the Dual Playback will begin automatically within that folder.

Available only when Dual Playback is ON. See pages 29, 32 on how to set the Dual Playback ON or OFF.

To select a desired folder from the FOLDER LIST.

press first.

VCR/DVD COMBINATION

NA527AD

FOLDER LIST

FOLDER

ENTER

PLAY

To playback.

DISC NAME

folder name 1

folder name 2 folder name 3 folder name 4

ALL

folder name 1

1/ 1

DVD FUNCTIONS

Hint

• The Transition mode cannot be switched when it is stopped, or from the FILE LIST screen or the Picture CD menu screen.

• The default setting is “CUT IN/OUT”.

Hint

• To cancel Folder Playback, press MODE again at step 1.

• If you press FWD g or REV h during Folder Playback, a JPEG file will be paused.

• Zooming or rotating a JPEG file during Folder Playback may cause an intermittent sound.

• Depending on the data size of each file, Folder Playback may not function properly. (Refer to “Applicable JPEG file” on page 22.)

–

H9945AD_2.indd 23H9945AD_2.indd 23 5/11/2005 7:42:52 PM5/11/2005 7:42:52 PM

ON-SCREEN DISPLAY

You can check the information about the current disc by pressing DISPLAY on the remote control.

VCR

DVD

12 3

+10

PLAY

STOP

VCR/DVD COMBINATION

NA527AD

11/16 0:00:00 - 0:03:30

1/3 0:00:00 - 1:23:45

press first.

Angle icon, appears only when available on the DVD.

Current playback status

Remaining time of the current chapter

Elapsed time of the current chapter

C (Chapter): Current chapter number/ Total chapters

Remaining time of the current title

Elapsed time of the current title

T (Title): Current title number / Total titles

VCR

DVD

12 3

+10

PLAY

STOP

VCR/DVD COMBINATION

NA527AD

4/12 0:03:21 - 0:02:15

4/12 0:13:45 - 0:45:40

press first.

Current playback status

Remaining time of the current track

Elapsed time of the current track

T (Track): Current track number /

Total tracks

ALL: Current track number / Total tracks

Current repeat setting appears only when the repeat setting is active.

A B : A-B repeat Remaining time of the entire disc

Elapsed time of the entire disc

T : Track repeat A : All tracks repeat

DVD FUNCTIONS

TL1

Layer numbers, appears only when playing a two-layered disc.

L0 : Layer 0 is playing L1 : Layer 1 is playing

Current repeat setting appears

Hint

• When you are playing a disc in PROGRAM or RANDOM mode, “

PROGRAM” (or “RANDOM”) will be displayed instead of 2.

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

only when the repeat setting is active.

C : Chapter repeat

T : Title repeat

A B : A-B repeat

BIT RATE: The amount of audio and

TRACK 01

Current playback status

The name of the file currently in playback will be displayed.

video data currently being read.

A ORG

List status ORG : Original is playing PL : Playlist is playing

Current repeat setting appears only when the repeat setting is active.

C : Chapter repeat T : Title repeat

B : A-B repeat

1/36 0:01:15

T (Track): Current track number /

Total tracks Current Repeat setting, if active

T : Track repeat G : Group (folder) repeat A : Disc repeat

Elapsed playing time of the current track

A : All repeat

PROGRAM

(Only when you are playing a disc in PROGRAM or RANDOM mode.)

RANDOM

Hint

• When the Dual Playback is “ON”, MP3 and JPEG file name will be displayed.

–

H9945AD_2.indd 24H9945AD_2.indd 24 5/11/2005 7:12:31 PM5/11/2005 7:12:31 PM

SEARCH FUNCTION

Track Search

VCR DVD

12 3

+10

PLAY

STOP

Using DIRECT SKIP

Within 30 seconds.

Hint

• For the discs with less than 10 tracks, press the track number directly.

• +10 button can also bring up the Track Search display.

• For discs with 10 or more but less than 100 tracks, to play a singledigit track, press 0 first, then the track number (e.g. for track 3, press 0, 3). To play a double-digit track, press the track number.

• For discs with 100 or more tracks, to play a single or a double-digit track, press 0 first, then the track number (e.g. for track 3, press 0, 0, 3, and for track 26, press 0, 2, 6). To play a triple-digit track, press the track number.

Using SKIP H / G

press first.

VCR/DVD COMBINATION

NA527AD

/29

Current Track

(T)

T 1 T 2 T 3 T 4

SKIP SKIP

Using SKIP H / G

Current Chapter

(C)

C 1 C 2 C 3 C 4

SKIP SKIP

Current Title (T)

T 1 T 2 T 3 T 4

SKIP SKIP

(If the disc has no chapters.)

Hint

• Depending on the disc being played, this function can also be performed by directly entering the desired chapter number with the Number buttons. Refer to the manual accompanying the disc.

• For Audio CDs and MP3, Track Search is not available for Programmed or Random Playback.

Time Search

VCR

DVD

12 3

+10

PLAY

STOP

Press DIRECT SKIP repeatedly until “ ” appears.

Within 30 seconds.

press first.

VCR/DVD COMBINATION

NA527AD

TOTAL

1:29:00

Hint

• SKIP H / G are not available when playback is stopped.

Title / Chapter Search

VCR

DVD

12 3

6 54

+10

PLAY

STOP

Using DIRECT SKIP

Press DIRECT SKIP once for the Chapter Search. Press DIRECT SKIP twice for the Title Search.

press first.

VCR/DVD COMBINATION

NA527AD

Within 30 seconds.

/12

Hint

• When there is no need to enter a number, “0” appears automatically. For example, “0: 0_ : _ _” appears in the Time Search display if the total time of the title or track is less than 10 minutes.

• Press CLEAR/C-RESET to erase the incorrect input at step

DVD FUNCTIONS

–

H9945AD_2.indd 25H9945AD_2.indd 25 5/11/2005 7:12:37 PM5/11/2005 7:12:37 PM

MARKER SETUP

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

This feature allows you to assign a specific point on a disc to be called back later.

To set a marker

To return to the marker later

REPEAT / RANDOM / PROGRAMMED PLAYBACK

At the desired marker

• Playback will restart from the specific point which you set.

To exit the Marker display

Hint

• The Marker display will disappear in about 30 seconds when there is no input.

• To clear a marker, select the marker to be cleared at step 2 in the section “To set a marker” or “To return to the marker later”, and then press CLEAR/C-RESET.

• Opening the disc tray or turning off the power will erase all markers.

• Selecting “AC” at step 2 in the section “To set a marker” or “To return to the marker later” will also erase all markers.

• You can mark up to 10 points.

Repeat Playback

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Repeat function is available only during playback.

DVD FUNCTIONS

Each time you press REPEAT, repeat function changes as examples below.

OFF

CHAPTER

TITLE

OFF

CHAPTER

TITLE

(repeat off)

(current chapter repeat)

(current title repeat)

(repeat off)

(current chapter repeat)

(current title repeat)

OFF

TRACK

ALL

(repeat off)

(current track repeat)

(entire disc repeat)

OFF

TRACK

GROUP

ALL

Hint

• Repeat setting will be cleared when moving to another title, chapter or track.

• Repeat playback may not function with some discs or during Repeat A-B Playback.

(repeat off)

(current track repeat)

(current group repeat)

(entire disc repeat)

ALL

H9945AD_2.indd 26H9945AD_2.indd 26 5/11/2005 7:12:43 PM5/11/2005 7:12:43 PM

(entire disc repeat)

–

Repeat A-B Playback

At your desired starting point (A)

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

A-

Programmed Playback

VCR

DVD

12 3

+10

PLAY

STOP

You may determine the order in which tracks will play.

press first.

VCR/DVD COMBINATION

NA527AD

Press once.

PROGRAM

CD-DA TOTAL 0:00:00

T 1 3:31 T 2 4:28 T 3 4:19 T 4 3:58 T 5 4:12 T 6 4:02 T 7 3:55

ENTER

PLAY

T 1 3:31

CLEAR

1/ 1

1/ 3

A-B

At your desired end point (B)

• Point B should be in the same title or track as point A.

Hint

• To exit the sequence, press A-B REPEAT so that “OFF” appears.

• To cancel Point A, press CLEAR/C-RESET.

• This function does not work in the other repeat modes.

Random Playback

VCR

DVD

12 3

+10

PLAY

STOP

This function shuffles the playing order of tracks instead of playback in the sequence.

Hint

• To repeat the current track in the random selections, press REPEAT repeatedly until “

• To repeat the entire random selections, press REPEAT repeatedly until “

ALL” appears during playback.

• Random Playback of MP3 or JPEG is not available while Dual Playback is ON.

press first.

VCR/DVD COMBINATION

NA527AD

Press twice.

RANDOM

CD-DA TOTAL 0:45:55

PLAY

RANDOM PROGRAM

--no indication--

TRACK” appears during playback.

PROGRAM

CD-DA TOTAL 0:08:22

T 15 3:18 T 16 4:24

ALL CLEAR

ENTER

PLAY

T 16 4:24

CLEAR

T 4 3:58 T 16 4:24

1/ 1

3/ 3

• Up to 99 tracks can be ordered.

• If 8 or more tracks were in a programme, use SKIP H / G to see all the tracks.

• While a MP3 or JPEG folder is open:

– Press Cursor B when you want to go to the next hierar-

chy.

– Press Cursor s when you want to go back to the previ-

ous hierarchy (except for the 1st hierarchy).

– Press TITLE when you want to go back to the 1st hierar-

chy.

Hint

• Press CLEAR/C-RESET at step 2 to erase the most recently entered track.

• To erase all programmed tracks at once, select “ALL CLEAR’’ and press ENTER at step 2.

• While a programme is being played back, STOP C works as follows:

- Press STOP C and PLAY B next, so that the programmed

playback restarts. (CD playback restarts from the current point. MP3 or JPEG playback restarts from the beginning of the current track.)

- Press STOP C twice and PLAY B next, so that playback restarts

from the first track in the original order. However, your programmed playback can be restarted when you follow the above steps. (Your programmes are still stored until either the disc tray is open or power is turned off.) On some discs, STOP C will not work while the Resume message appears. Please wait until the message disappears.

• To repeat the current track in the programme, press REPEAT repeatedly until “

• To repeat the entire programme, press REPEAT repeatedly until “

ALL’’ appears during playback.

• Programmed Playback of MP3 or JPEG is not available while Dual Playback is ON.

TRACK’’ appears during playback.

DVD FUNCTIONS

–

H9945AD_2.indd 27H9945AD_2.indd 27 5/11/2005 7:12:49 PM5/11/2005 7:12:49 PM

SPECIAL SETTINGS

Subtitle Language

This VCR/DVD allows you to select a subtitle language (if available) during DVD playback.

Each time you press SUBTITLE, subtitle language changes as example below.

To Set Subtitle ON/OFF

Hint

• If your language is not shown after pressing SUBTITLE several times, the disc may not have that language. However, some discs allow you to change subtitle languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual included in the disc.)

• When “NOT AVAILABLE” appears on the TV screen, it means no subtitle is recorded on the scene.

• If you choose a language that has 3-letter-language code, the code will be displayed every time you change the subtitle language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 33.)

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

OFF

ENG

...

FRE

(no subtitles)

(English subtitles)

(French subtitles)

1.ENG/6

OFF

Subtitles can be varied on the displayed number.

Current subtitles language.

Hint

• The sound mode cannot be changed during playback of discs not recorded in double sound.

• Audio language selection cannot be made during Rapid Play. (Refer to page 21.)

• If your language is not shown after pressing AUDIO several times, the disc may not have that language. However, some discs allow you to change multiple audio languages setting in the disc menu. (Operation varies depending on the disc, so refer to the manual included in the disc.)

• When “NOT AVAILABLE” appears on the TV screen, it means no audio is recorded on the scene.

• If you choose a language that has 3-letter-language code, the code will be displayed every time you change the audio language setting. If you choose any other languages, “---” will be displayed instead. (Refer to page 33.)

For VR mode only:

Pressing AUDI O cycles the sound mode through MAIN, SUB, MAIN + SUB.

•

• DVD-RW discs recorded in double sound (2 languages) can be played back in either sound mode of MAIN, SUB or MAIN + SUB.

•

With discs recorded in VR mode, changing the audio (MAIN, SUB or MAIN+SUB) is effective only when using an analogue connection. Although you may be able to change the settings of the on-screen display, it will not affect the sound when using a digital connection.

Mode AUDIO OUTPUT

MAIN

SUB

MAIN

SUB

L Main Audio

R Main Audio

L Sub Audio

R Sub Audio

L Main Audio

R Sub Audio

Display on the TV screen

MAIN

SUB

MAIN+

SUB

Camera Angles

VCR DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Some DVD discs may contain scenes which have been shot simultaneously from various angles. You can change the camera angle if “ ANGLE ICON setting is “OFF” in the OTHERS menu, “ ” will not appear. (Refer to pages 29, 32.)

” appears on the screen. If the

1 / 8

Audio Language

DVD FUNCTIONS

This VCR/DVD allows you to select an audio language (if multiple languages are available) during DVD playback.

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

Digital Gamma Setting

VCR

DIGITAL GAMMA is a digital image quality enhancement function that gives a richer image by brightening the darker and more obscure

1.ENG

3/2.1ch 48k/ 3

portions of the image without altering the brightness of the brighter portions thereby making the entire image easier to see. Three digital

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

gamma settings are available to allow for differences in the images played and in brightness of the room.

1, 2, 3 : Makes the dark parts brighter.

OFF

Each time you press AUDIO, audio language changes as example below.

ENG

SPA

(English audio)

(Spanish audio)

...

Audio can be varied on the displayed number.

Current audio language.

OFF : Shows the original picture as recorded.

FRE

(French audio)

Hint

• The setting will be kept even if the VCR/DVD is turned off.

• This function cannot be used during Rapid Play.

–

H9945AD_2.indd 28H9945AD_2.indd 28 5/11/2005 7:12:53 PM5/11/2005 7:12:53 PM

QUICK SETUP

PLAYER MENU TV ASPECT PROGRESSIVE DOLBY DIGITAL DTS MPEG

ENGLISH 4:3 LETTER BOX OFF BITSTREAM OFF DPCM

ENTER

AUDIO

DRC DOWN SAMPLING DOLBY DIGITAL DTS MPEG

ON ON BITSTREAM OFF DPCM

ENTER

DISPLAY

TV ASPECT STILL MODE PROGRESSIVE VIDEO OUT

4:3 LETTER BOX AUTO OFF PAL

ENTER

LANGUAGE

AUDIO SUBTITLE DISC MENU PLAYER MENU

ORIGINAL OFF ENGLISH ENGLISH

ENTER

PARENTAL

ENTER

OTHERS

ANGLE ICON DUAL PLAYBACK SLIDE SHOW

ON OFF 5 sec

ENTER

Stereo Sound Mode

LANGUAGE

AUDIO SUBTITLE DISC MENU PLAYER MENU

ORIGINAL OFF ENGLISH ENGLISH

ENTER

QUICK SETUP

PLAYER MENU TV ASPECT PROGRESSIVE DOLBY DIGITAL DTS MPEG

ENGLISH 4:3 LETTER BOX OFF BITSTREAM OFF DPCM

ENTER

QUICK SETUP

PLAYER MENU TV ASPECT PROGRESSIVE DOLBY DIGITAL DTS MPEG

ENGLISH 4:3 LETTER BOX OFF BITSTREAM OFF DPCM

ENTER

VCR

DVD

12 3

6 54

+10

PLAY

STOP

This VCR/DVD allows you to select a sound mode during CD playback.

Each time you press AUDIO, sound mode changes as example below.

VCR/DVD COMBINATION

NA527AD

STEREO

L-ch

press first.

STEREO

(Right and left channels are active.)

(Left channel is active.)

Virtual Surround

VCR

DVD

12 3

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can enjoy stereophonic virtual world on your existing 2 channel stereo system.

Press MODE repeatedly until “ ” appears.

OFF

R-ch

(Right channel is active.)

Hint

• If the Virtual Surround setting is “1” or “2”, the sound mode will be fixed to “STEREO”, and can not be changed.

1 : Natural effect. 2 : Emphasised effect. OFF : No effects (original sound).

• The “STEREO” can only be output when playing back DTS CD.

Hint

• The setting will be kept even if the VCR/DVD is turned off.

• On Audio CDs and Video CDs, Virtual Surround will not be effective if the sound mode is set to something other than “STEREO”. Refer to “Stereo Sound Mode”.

• Turn down the level or select “OFF” if the sound is distorted.

• This function cannot be used during Rapid Play.

DVD SETUP

QUICK SETUP Menu

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can select the “PLAYER MENU”, “TV ASPECT”, “PROGRESSIVE”, “DOLBY DIGITAL”, “DTS” or “MPEG” from the QUICK SETUP menu quickly.

Select the desired item.

<SETUP MENU> Confirm that “ (QUICK)” is highlighted.

QUICK SETUP

PLAYER MENU TV ASPECT PROGRESSIVE DOLBY DIGITAL DTS MPEG

ENGLISH 4:3 LETTER BOX OFF BITSTREAM OFF DPCM

• Refer to the sections “PLAYER MENU”, “TV ASPECT” or “PROGRESSIVE” on page 30 and “DOLBY DIGITAL”, “DTS” or “MPEG” on page 31.

CUSTOM Menu

VCR

DVD

12 3

6 54

+10

PLAY

STOP

press first.

VCR/DVD COMBINATION

NA527AD

You can change the settings of the VCR/DVD.

QUICK

on pages 30, 31 indicates DVD Setup menus also accessible from the QUICK SETUP menu.

•

Select “

(CUSTOM)”.

p.30 LANGUAGE Setting (Step 1)

p.30 DISPLAY Setting (Step 1)

p.31 AUDIO Setting (Step 1)

To select the desired item.

To decide.

DVD FUNCTIONS

LANGUAGE menu

LANGUAGE Setting (p.30) DISPLAY Setting (p.30) AUDIO Setting (p.31)

DISPLAY menu

AUDIO menu

–

PARENTAL menu OTHERS menu

PARENTAL LEVEL

ALL

PARENTAL Setting (p.31) OTHERS Setting (p.32)

–

H9945AD_2.indd 29H9945AD_2.indd 29 5/11/2005 7:12:59 PM5/11/2005 7:12:59 PM

LANGUAGE Setting

LANGUAGE

AUDIO SUBTITLE DISC MENU PLAYER MENU

ORIGINAL OFF ENGLISH ENGLISH

ENTER

DISPLAY

TV ASPECT STILL MODE PROGRESSIVE VIDEO OUT

4:3 LETTER BOX AUTO OFF PAL

ENTER

Follow the steps in the “CUSTOM Menu” on page 29.

Select the desired item.

DISPLAY Setting

You can change the display functions. Follow the steps in the “CUSTOM Menu” on page 29.

Select the desired item.

AUDIO: ✽1 ✽2

(Default: ORIGINAL)

Sets the audio language.

SUBTITLE: ✽1 ✽2

(Default: OFF)

Sets the subtitle language.

DISC MENU: ✽1

(Default: ENGLISH)

Sets the language in DVD menu.

PLAYER MENU: (Default: ENGLISH)

Sets the language for the On-Screen Display.

Select the desired language.

To exit the menu.

QUICK

LANGUAGE menu

AUDIO

ORIGINAL ENGLISH FRENCH

SUBTITLE

OFF ENGLISH FRENCH

DISC MENU

ENGLISH FRENCH SPANISH

PLAYER MENU

ENGLISH

WIDE

DISPLAY menu

Select the desired setting.

TV ASPECT:

QUICK

(Default: 4:3 LETTER BOX)

See hint below.

TV ASPECT STILL MODE PROGRESSIVE OFF VIDEO OUT PAL

4:3 LETTERBOX

AUTO

TV ASPECT

4:3

LETTER BOX

4:3

PAN & SCAN

16:9

STILL MODE:

(Default: AUTO)

See hint below.

TV ASPECT STILL MODE PROGRESSIVE OFF VIDEO OUT PAL

PROGRESSIVE:

4:3 LETTERBOX

AUTO

QUICK

STILL MODE

AUTO FIELD FRAME

Select the desired setting.

(Default: OFF)

See hint below.

TV ASPECT STILL MODE PROGRESSIVE OFF VIDEO OUT PAL

4:3 LETTERBOX

AUTO

4:3 LETTERBOX AUTO ON PAL

VIDEO OUT: (Default: PAL)

See hint below.

TV ASPECT STILL MODE PROGRESSIVE OFF VIDEO OUT PAL

4:3 LETTERBOX

AUTO

4:3 LETTERBOX AUTO OFF AUTO

Hint

✽1

• Language options are not available with some discs.

• If “OTHER” is selected in the AUDIO, SUBTITLE or DISC MENU screen, press four-digit number to enter the code for the desired language. (Refer to “LANGUAGE LIST” on page 33.)

DVD FUNCTIONS

• Only the languages supported by the disc can be selected.

✽2

• Language Setting for Audio and Subtitle are not available with some discs. Then use AUDIO and SUBTITLE. Details are on page

28.

To exit the menu.

Hint

TV ASPECT:

• Select “4:3 LETTER BOX”, so that black bars may appear on the top and bottom of the screen.

•

Select “4:3 PAN & SCAN” for a full height picture with both sides adjusted.

•

Select “16:9 WIDE” if a wide-screen TV is connected to this VCR/DVD.

STILL MODE:

• Select “AUTO” usually.

• If you select “FIELD”, the picture in the still mode will be stabilised.

•

If you select “FRAME”, the picture in the still mode will be highly defined.

PROGRESSIVE:

• Select “ON” if your TV is compatible with progressive scan. When “PROGRESSIVE” is “ON”, “P. SCAN” will appear on the front panel display.

VIDEO OUT:

When playing back an NTSC disc:

• If you have a PAL TV, select PAL; the modified PAL signal will be output.

• If you have an NTSC TV or multi system TV, select “AUTO”; the NTSC signal will be output.

–

H9945AD_2.indd 30H9945AD_2.indd 30 5/11/2005 7:13:05 PM5/11/2005 7:13:05 PM

AUDIO Setting

AUDIO

DRC DOWN SAMPLING DOLBY DIGITAL DTS MPEG

ON ON BITSTREAM OFF DPCM

ENTER

PARENTAL

PASSWORD

Please enter a 4-digit password.

ENTER

PARENTAL

Enter current password.

ENTER

PARENTAL LEVEL ALL PASSWORD CHANGE

PARENTAL LEVEL

ALL 8 7 6

Choose the appropriate audio settings for your equipments. It only affects during the playback of DVD discs. Follow the steps in the “CUSTOM Menu” on page 29.

Select the desired item.

AUDIO menu

DRC (Dynamic Range Control): (Default: ON) Set to “ON” to compress the range between soft and loud

sounds.

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM DTS OFF MPEG DPCM

DOWN SAMPLING: (Default: ON) Set to “ON” when outputting in 48 kHz.

Set to “OFF” when outputting the original sound.

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM DTS OFF MPEG DPCM

DOLBY DIGITAL:

QUICK

(Default: BITSTREAM)

Set to “BITSTREAM” when the VCR/DVD is connected to a Dolby Digital receiver.

• BITSTREAM: Outputs a Dolby Digital Signals.

• DPCM: Convert the Dolby Digital into DPCM (2 channel).

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM DTS OFF MPEG DPCM

DTS:

QUICK

(Default: OFF)

Set to “BITSTREAM” when the VCR/DVD is connected to DTS decoder.

DRC ON DOWN SAMPLING DOLBY DIGITAL BITSTREAM DTS OFF MPEG DPCM

MPEG:

QUICK

(Default: DPCM)

Set to “BITSTREAM” when the VCR/DVD is connected to MPEG decoder.

• DPCM: Convert an MPEG into DPCM.

• BITSTREAM: Outputs the MPEG Signals.

DRC ON

To exit the menu.

DOWN SAMPLING DOLBY DIGITAL BITSTREAM DTS OFF MPEG DPCM

Hint DRC:

• This function is available only to the discs which are recorded in the Dolby Digital format.

DOWN SAMPLING:

• When playing disc with copyright protection, the sound will be down sampled at 48 kHz, even if you set to “OFF”.

• This function is available only on digital outputting of a disc recorded in 96 kHz.

OFF ON BITSTREAM

OFF DPCM

ON OFF BITSTREAM OFF

DPCM

ON ON

DPCM OFF DPCM

ON ON BITSTREAM BITSTREAM

DPCM

ON ON BITSTREAM OFF BITSTREAM

PARENTAL Setting

Parental Control limits the disc viewing that exceed your settings. (An incorrect password will not play.)

This feature prevents your children from viewing inappropriate materials.

Parental Levels

Parental Level allows you to set the rating levels of your DVD discs. Playback will stop if the ratings exceed the levels you set. Follow the steps in the “CUSTOM Menu” on page 29.

Enter your desired four-digit password (except for 4737).

PARENTAL menu

PASSWORD

Please enter a 4-digit password.

Don’t forget the password. Press ‘ENTER’ to activate password.

If you have set a password already, enter the current four-digit password.

Select “PARENTAL LEVEL”.

Select the desired level.

To exit the menu.

CONTROL LEVELS

• ALL: All parental locks are cancelled.

• Level 8: DVD softwares of any grades (adult/general/children) can be played back.

• Levels 7 to 2: Only DVD softwares intended for general use and children can be played back.

• Level 1: Only DVD softwares intended for children can be played back, with those intended for adult and general use prohibited.

Hint

• DVD-Video discs may not respond to the parental lock settings.

Make sure this function works with your DVD-Video discs.

DVD FUNCTIONS

H9945AD_2.indd 31H9945AD_2.indd 31 5/11/2005 7:13:09 PM5/11/2005 7:13:09 PM

–

To Change the Password for Parental Controls

PARENTAL

Enter current password.

ENTER

PASSWORD

Please enter a 4-digit password.

OTHERS

ANGLE ICON DUAL PLAYBACK SLIDE SHOW

ON OFF 5 sec

ENTER

QUICK SETUP

PLAYER MENU TV ASPECT PROGRESSIVE DOLBY DIGITAL DTS MPEG

ENGLISH 4:3 LETTER BOX OFF BITSTREAM OFF DPCM

ENTER

QUICK SETUP

PLAYER MENU TV ASPECT PROGRESSIVE DOLBY DIGITAL DTS

ENGLISH 4:3 LETTER BOX OFF BITSTREAM OFF

ENTER

INITIALIZE

ENTER

You can change your password for parental controls. Follow the steps in the “CUSTOM Menu” on page 29.

Enter your four-digit password (except for 4737).

PARENTAL menu

Select “PASSWORD CHANGE”.

PARENTAL LEVEL ALL

Enter your new four-digit password (except for 4737).

To exit the menu.

PASSWORD CHANGE

Hint

• Record the password in case you forget it.

• If you forget the password, press 4, 7, 3, 7 at step 1, then enter your new password.

• Password will be cleared and parental levels will be set to “ALL”.

OTHERS Setting

You can change the other functions. Follow the steps in the “CUSTOM Menu” on page 29.

Select the desired item.

ANGLE ICON: (Default: ON)

Set to “ON” to show the angle icon when multiple camera angles are available during DVD playback.

ANGLE ICON DUAL PLAYBACK SLIDE SHOW

ON OFF 5 sec

DUAL PLAYBACK: (Default: OFF)

Set to “ON” to play back MP3 and JPEG files simultaneously.

ANGLE ICON DUAL PLAYBACK SLIDE SHOW

ON OFF 5 sec

SLIDE SHOW: (Default: 5 sec)

Set to the length of displayed JPEG picture.

• 5 sec : The picture changes every 5 seconds.

• 10 sec : The picture changes every 10 seconds.

• MUSIC : The picture changes according to the change of MP3 during Dual/Folder Playback. When Dual Playback is “OFF”, the picture changes every 5 seconds.

ANGLE ICON DUAL PLAYBACK SLIDE SHOW

ON OFF 5 sec

SLIDE SHOW

5 sec 10 sec Music

OTHERS menu

OFF OFF 5 sec

ON ON 5 sec

Select the desired setting.

DVD FUNCTIONS

To exit the menu.

Reset to the Default Setting (except for PARENTAL Setting)

Select the desired item.

Select “ (INITIALIZE)”.

Select “YES”.

Press twice.

To exit the menu.

SETUP menu

Initialize? NO YES

H9945AD_2.indd 32H9945AD_2.indd 32 5/11/2005 7:13:13 PM5/11/2005 7:13:13 PM

Hint

• When you cancel to initialise at step 3, select “NO”.

–

INFORMATION

LANGUAGE LIST

Language Code Language Code Language Code Language Code

A-B

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian 4853 Burmese 5971 Byelorussian 4851

C-E

Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166

F-H

Faroese 5261 Fiji 5256 Finnish [FIN] 5255

French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN] 5467

I-K

Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767

L-N

Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866

Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR] 6061

O-R

Occitan 6149 Oriya 6164 Oromo(Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish 6258 Portuguese [POR] 6266 Quechua 6367 Rhaeto-Romance 6459 Romanian [RUM] 6461 Russian [RUS] 6467

Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555

If you choose a language that has a 3 letter language code, the code will be displayed every time you change the Audio or Subtitle Language setting on page 28. If you choose any other languages, “---” will be displayed instead. (3 letter language code is written in bracket.)

Siswat 6565 Slovak 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish [TUR] 6664 Turkmen 6657 Twi 6669

U-Z

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267

Product type

SPECIFICATIONS

DVD Player with Video Cassette recorder

NUMBER OF VIDEO HEADS

VIDEO SIGNAL STANDARD

PAL colour system

AUDIO RECORDING SYSTEM

One Stationary head for liner audio Two Rotary heads for Hi-Fi stereo

CHANNEL COVERAGE

VHF L: 45.75~138.25 MHz VHF H: 140.25~423.25 MHz UHF: 427.25~855.25 MHz

TIMER BACKUP

60 minutes

DISCS (playback compatibility)

DVD Video / DVD-RW/-R / DVD+RW/+R / Audio CD / Video CD CD-RW/-R

Frequency response

DVD (linear sound) : 20 Hz to 20 kHz (sample rate: 48 kHz) 20 Hz to 44 kHz (sample rate: 96 kHz) CD : 20 Hz to 20 kHz

Signal-to-noise ratio (S/N ratio)

CD : 90 dB (JEITA)

Dynamic range

DVD (linear sound) : 86 dB CD : 86 dB (JEITA)

Total distortion factor

DVD : 1 kHz 0.008% (JEITA) CD : 1 kHz 0.008% (JEITA)

Wow and flutter

Below the measurement limitation (+/-0.001% W PEAK) (JEITA)

Connections

Front panel: Video input One RCA connector Audio input Two RCA connectors Rear panel: Audio/Video Output/Input Six RCA connectors Component Video Output Three RCA connectors S-Video output Mini DIN 4-pin jack (75 Ω) Analogue audio output Two RCA connectors

(one left channel, one right channel)

2 Vrms (47 kΩ) Coaxial digital audio output One pin jack, 500 mVpp (75 Ω) Optical digital audio output One optical connector

Power source

220-240 V ~ +/- 10%, 50Hz +/- 0.5%

Power consumption

21 W (standby: 5 W)

Operating temperature

5°C to 40°C

Dimensions

W: 435 mm H: 94 mm D: 233 mm

Weight

Approx 3.2 kg

INFORMATION

• Designs and specifications are subject to change without notice.

–

H9945AD_2.indd 33H9945AD_2.indd 33 5/11/2005 7:13:18 PM5/11/2005 7:13:18 PM

TROUBLESHOOTING GUIDE

If this VCR/DVD does not perform properly when operated as instructed in this Operation Manual, check this VCR/DVD consulting the following checklist.

PROBLEM CORRECTIVE ACTION

No power.

D V

This VCR/DVD does not respond to

the remote control.

V C R

Timer Recording is impossible.

V C R

Cannot go into record mode.

Playback picture is partially noisy.

Cannot view a tape but the audio is OK.

No, or poor, playback picture.

TV programmes cannot be seen normally.

Video or colour fades in and out when making a copy of a video tape.

The VCR/DVD turns off automatically after the Timer Recording standby mode is set.

No picture.

D V D

Disc cannot be played.

No sound.

No DTS audio is output.

Distorted picture.

INFORMATION

Audio or subtitle language does not match the set up.

The camera angle cannot be changed.

Audio or subtitle language cannot be changed.

“Prohibited icon” appears on the screen, prohibiting an operation.

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this Operation Manual for details on correct operations.

• Playback from a desired track and random playback are not available during programmed playback.

• Some functions are prohibited on some discs.

• Make sure the power plug is connected to an AC outlet.

• Make sure the power is turned on.

• Check if the power plug is connected to an AC outlet.

• Check the batteries in the remote control.

• Aim the remote control directly at the remote sensor. If necessary, remove all the obstacles between the sensor and the remote.

• You have to be within 7 m (23 feet) of this VCR/DVD.

• Check if the right mode is selected. If it’s not in the right mode, press DVD or VCR, whichever you need, on the remote control.

• Check if a cassette tape is in this VCR/DVD.

• Make sure the Timer Recording is set correctly.

• Make sure the TIMER indicator and “

• Make sure the VCR/DVD clock is set correctly.

• Make sure the tape has erase-protection tab. If needed, cover the hole with plastic tape.

• Activate this VCR/DVD in VCR mode. Press VCR on the remote control so that the VCR OUTPUT indicator is lit.

• Adjust tracking control for a better picture by pressing CH K / L on the VCR/DVD or CH K / L on the remote control.

• Head cleaning may be necessary. Refer to “Auto Head Cleaning” on page 4.

• Make sure the VCR is not in the Menu mode.

• Try to change the RF output channel other than CH37. Then select the same channel on the TV. (See “Video Channel Setting” on page 12.)

• Fine tune your TV.

• Re-check the ANT. IN and ANT. OUT connections. See page 10.

• Press VCR.

• Press VCR on the remote control to activate it in the VCR mode. Check if the VCR OUTPUT indicator is lit.

• You cannot copy a copyrighted video tape. You are experiencing copy guard protection.

• Depending on the circumstance of the Timer Recording standby mode, the VCR/DVD may be automatically turned off, instead of changing to the DVD mode. This is not a malfunction. Turn on the VCR/DVD if you want to use the DVD after this happens.

• Connect the Video cable firmly.

• Insert a correct video disc that plays on this VCR/DVD.

• Press DVD on the remote control. Check if the DVD OUTPUT indicator is lit. Then try other DVD features.

• Insert the disc.

• Clean the disc.

• Place the disc correctly with the label side up.

• Cancel the parental lock or change the control levels.

• Handle a disc with special care so that it does not have fingerprints, scratches, or dusts on its surface.

•

If the recorded portion of the disc is too small (less than 55 mm across), it may not play back properly.

• Connect the Audio cable firmly.

• Turn the power of the audio component on.

• Correct the audio output settings.

• Correct the input settings on the audio component.

• Use a DIGITAL AUDIO OUT jack when outputting the DTS audio.

• Connect this VCR/DVD directly to the TV.

• There are some cases where picture may be slightly distorted, and those are not a sign of a malfunction.

• During the playback of a 2-layered disc, pictures may stop for a moment. This happens while the 1st layer is being switched to the 2nd layer. This is not a malfunction.

• Check if the INTERLACE/PROGRESSIVE mode is set correctly according to your TV. See page 10.

• This happens right after fast forwarding or rewinding. This is not a malfunction.

• The selected language is not available for audio or subtitles on the DVD. This is not a malfunction.

• The DVD does not contain sequences recorded from different camera angles. This is not a malfunction.

• The DVD does not contain audio source or subtitles in the selected language. This is not a malfunction.

• That operation is prohibited by this VCR/DVD or the disc. This is not a malfunction.

–

appear on the VCR/DVD. If not, press TIMER ON/OFF.

”

H9945AD_2.indd 34H9945AD_2.indd 34 5/11/2005 7:13:18 PM5/11/2005 7:13:18 PM

FOR LOCATION ENQUIRIES WITHIN

AUSTRALIA

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.au

OR CALL SHARP CUSTOMER CARE

1300 135 022

(LOCAL CALL COST APPLY WITHIN AUSTRALIA)

SHARP CORPORATION OF AUSTRALIA PTY LTD

FOR LOCATION ENQUIRIES WITHIN

NEW ZEALAND

REGARDING YOUR LOCAL

SHARP APPROVED SERVICE CENTRE

VISIT OUR WEBSITE AT

www.sharp.net.nz

CONTACT YOUR SELLING DEALER/RETAILER

OR CALL

SHARP CUSTOMER SERVICES

TELEPHONE: 09 573 0111

FACSIMILE: 09 573 0113

SHARP CORPORATION OF NEW ZEALAND LIMITED

–

H9945AD_2.indd 35H9945AD_2.indd 35 5/11/2005 7:13:19 PM5/11/2005 7:13:19 PM

Congratulations on Your Purchase!

This Sharp product is warranted against faults in materials and manufacture for a period

of twelve (12) months from the date of original purchase.

If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre. These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.

The owner is responsible for any transportation and insurance costs if the product has to be returned for repair.

This warranty does not extend to accessories or defects or injuries caused by or resulting from causes not attributable to faulty parts or the manufacture of the product, including

but not limited to, defect or injury caused by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid spillage, vermin infestation, software, or

any alterations made to the product which are not authorised by Sharp.

Please retain your sales documentation, as this should be produced to validate a

warranty claim.

This warranty is in addition to and in no way limits, varies or excludes any express and implied rights and remedies under any relevant legislation in the country of sale.

IMPORTANT

DO NOT RETURN THIS DOCUMENT TO SHARP

For your reference, please enter the particulars of your

purchase

below and retain, with your purchase documentation.

Model No.

Serial No.

Date of Purchase

SHARP CORPORATION OF

NEW ZEALAND LIMITED

59 Hugo Johnston Drive

Penrose, Auckland

Retailer

SHARP CORPORATION OF

AUSTRALIA PTY. LIMITED

ABN 40 003 039 405

1 Huntingwood Drive

Huntingwood NSW 2148

SPform020 (JUNE 2004)

IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand

9HS1VMN20927 H9945AD***** 1VMN20927

H9945AD_2.indd 36H9945AD_2.indd 36 5/11/2005 7:13:19 PM5/11/2005 7:13:19 PM

Sharp DV-NC200X Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
