MINI COMPONENT SYSTEM

MODEL

CD-DP2400H

OPERATION MANUAL

If you require any advice or assistance regarding
your Sharp product, please visit our web-site
www.sharp.co.uk/support.
Customers without Internet access may telephone
08705 274277 during office hours (or [phone]
if telephoning from Ireland).

0101

Thank you for purchasing this SHARP product.
T o obtain the best performance from this product, please read this
manual carefully . It will guide you in operating your SHARP product.

CD-DP2400H Mini Component System consisting of CD-DP2400H
(main unit), CP-DP2400H (front speakers), GBOXS0072AWM1 (cen­tre speaker) and GBOXS0073AWM1 (surround speakers).

CD-DP2400H

Special notes

NOTES FOR USERS IN THE U.K. AND IRELAND

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorpo­rating a 3A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS
1362 fuse marked or and of the same rating as above, which is also indicated on
the pin face of the plug must be used.

Always refit the fuse cover after replacing the fuse. Never use the plug without the
fuse cover fitted.

In the unlikely event of the socket outlet in your home not being compatible with the
plug supplied, cut-off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed
immediately and disposed of in a safe manner.

Under no circumstances should the cut-off plug be inserted elsewhere into a 13A
socket outlet as a serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live

As the colours of the wires in the mains lead of this product may not correspond with
the coloured markings identifying the terminals in your plug, proceed as follows:

● The wire which is coloured blue must be connected to the plug terminal which is
marked N or coloured black.

● The wire which is coloured brown must be connected to the plug terminal which is
marked L or coloured red.

Ensure that neither the brown nor the blue wire is connected to the earth terminal in
your three pin plug.

- Special notes -

Before replacing the plug cover, make sure that:

● If the new fitted plug contains a fuse, its value is the same as that removed from
the cut-off plug.

● The cord grip is clamped over the sheath of the mains lead and not simply over the
lead wires.

Important Instruction

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

SERVICE INFORMATION

In the unlikely event of your equipment requiring repair, please contact the dealer or
supplier from whom it was purchased. Where this is not possible, please visit our
web-site www.sharp.co.uk/support.
Customers without internet access may telephone [phone] during office hours
(or [phone] if telephoning from Ireland).
Please note; all calls will be charged at local rate.

Certain replacement parts and accessories may be obtained from our main parts
distributor.

In the unlikely event of this equipment requiring repair during the guarantee period,
you will need to provide proof of the date of purchase to the repairing company.
Please keep your invoice or receipt, which is supplied at the time of purchase.

WILLOW VALE ELECTRONICS LTD.

0121 766 5414

WARNINGS

!

When the ON/STAND-BY button is set at STAND-BY position, mains v oltage is sti ll
present inside the unit. When the ON/STAND-BY button is set at STAND-BY posi­tion, the unit may be brought into operation by the timer mode or remote control.

!

This unit contains no user serviceable parts. Never remove covers unless qualified
to do so. This unit contains dangerous voltages, always remove mains plug from
the socket before any service operation and when not in use for a long period.

!

To prevent fire or shock hazard, do not e xpose this appliance to dripping or splash­ing. No objects filled with liquids, such as vases, shall be placed on the apparatus.

Manufactured under license from Dolby Laboratories.
"Dolby", "Pro Logic", and the double-D symbol are trademarks of Dolby Laboratories.

CAUTION

!

This product is classified as a CLASS 1 LASER product.

!

Use of controls, adjustments or performance of procedures other than those spec­ified herein may result in hazardous radiation exposure.

As the laser beam used in this compact disc player is harmful to the eyes, do not
attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW

CAUTION- INVISIBLE LASER RADIATION WHEN OPEN.
DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH
OPTICAL INSTRUMENTS.

WARNUNG- UNSICHTBARE LASERSTRAHLUNG WENN GERÄT
GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER
DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.

ATTENTION- RAYON LASER INVISIBLE EN CAS D’OUVERTURE.
NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES
INSTRUMENTS OPTIQUES.

NOTES

!

Recording and playback of any material may require consent, which SHARP is
unable to give. Please refer particularly to the provisions of the Copyright Act
1956, the Dramatic and Musical Performers Protection Act 1958, the Performs
Protection Acts 1963 and 1972 and to any subsequent statutory enactment s and
orders.

!

This equipment complies with the requirements of Directives 89/336/EEC and 73/
23/EEC as amended by 93/68/EEC.

2

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Contents

Accessories

CD-DP2400H

Page

General Information

"

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 8

Preparation for Use

"

Remote con trol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12

Basic Operation

"

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

CD Playback

"

Listening to a CD (CDs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 - 17

Repeat or ran dom play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Programmed pl ay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Radio

"

Listening to t he radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Listening to t he memorised station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2 0

Tape Playback

"

Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . . . . . . . . . . . . . . . . . . .21

Tape Recording

"

Recording to a cassette tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22, 23

Please confirm that the following accessories are included.

Remote con tr ol 1 AM loop aer ia l 1

FM aerial 1

Note:

Only the above accessories are included.

- Contents / Accessories -

General Information

Advanced Features

"

Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24, 25

Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

Enjoy the surround sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 28

References

"

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29, 30

Maintenan c e . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

TERMS OF GUARANT EE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

3

CD-DP2400H

Precautions

General Information

General

"

!

Please make sure that the unit is positioned in a well-ventilated area and that there
is at least 10 cm (4") of free space along the sides and back. There must also be a
minimum of 20 cm (8") of free space on the top of the unit.

10 cm (4") 10 cm (4")

!

Use the unit on a firm, level surface free from vibration.

!

Keep the unit away from direct sunlight, strong ma gnetic fields, excessive dust,
humidity and electronic/electrical equipment (home computers, facsimiles, etc.)
which generates electrical noise.

!

Do not place anything on top of the unit.

!

Do not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to
extremely low temperatures.

!

If your system does not work properly, disconnect the AC power lead from the wall
socket. Plug the AC power lead back in, and then turn on your system.

!

In case of an electrical storm, unplug the unit for safety.

!

Hold the AC power plug by the head when removing it from the wall socket, as
pulling the lead can damage internal wires.

!

Do not remove the outer cover, as this may result in electric shock. Refer

- Precautions -

internal service to your local SHARP service facility .

!

The ventilation should not be impeded by covering the ventilation openings with
items, such as newspapers, tablecloths, cur tains, etc.

!

No naked flame sources, such as lighted candles, should be placed on the appa­ratus.

!

Attention should be drawn to the environmental aspects of battery disposal.

!

The apparatus is designed for use in moderate climate.

!

This unit should only be used within the range of 5°C - 35°C (41°F - 95°F).

20 cm (8")

Warning:

The voltage used must be the same as that specified on this unit. Using this product
with a higher voltage other than that which is specified is dangerous and may result in
a fire or other type of accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other than that which is
specified.

10 cm (4")

Volume control

"

The sound level at a given volume setting depends on speaker efficiency, location,
and various other factors. It is advisable to avoid exposure to high volume levels,
which occurs whilst turning the unit on with the volume control setting up high, or
whilst continually listening at high volumes.

Condensation

"

Sudden temperature changes, storage or op­eration in an extremely humid environment
may cause condensation inside the cabinet
(CD pickup, tape heads, etc.) or on the trans­mitter on the remote control.
Condensation can cause the unit to malfunc­tion. If this happens, leave the power on with
no disc (or cassette) in the unit until normal
playback is possible (about 1 hour). Wipe off
any condensation on the transmitter with a soft
cloth before operating the unit.

Care of compact discs

"

Compact discs are fairly resistant to damage, however mistracking can occur due to
an accumulation of dirt on the disc surface. Follow the guidelines below for maximum
enjoyment from your CD collection and player.

!

Do not write on either side of the disc, particular ly the non-label side from which
signals are read. Do not mark this surface.

!

Keep your discs awa y from direct sunlight, heat, and excessive moisture.

!

Always hold the CDs by the edges. Fingerprints, dirt, or water on the CDs can
cause noise or mistracking. If a CD is dirty or does not play properly , clean it with a
soft, dry cloth, wiping straight out from the centre, along the radius.

NO YES

Correct

4

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Controls and indicators

1

2
3

4
5

6

12
13

14

18
19

15
16

17

21
22

7

8

9

10

11

Front panel

"

1.Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

2.Disc Skip Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

3.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 24

5.Timer/Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 25

6.Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

7.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

8.Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

9.Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

10.Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 23

11.Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . 21, 23

12.Normal Button (with Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

13.Bypass Button (with Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

14.Extra Bass/Demo Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

15.Phantom Button (with Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

16.Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

17.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

18.Tuning and Time Down Button . . . . . . . . . . . . . . . . . . . . . . . . . 14, 19

19.CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 22

20.Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21, 23

21.Tuning and Time Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 19

22.Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

23.Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

24.CD Track Down or Fast Reverse, Tape 2 Rewind,

Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 20, 21

25.Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 18, 20

26.CD or Tape Stop Button (with Indicator) . . . . . . . . . . . . . . . . . . 16, 21

27.Timer Set Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

28.CD Play or Repeat, Tape Play Button (with Indicator) . . . . 16, 17, 21

29.Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . .22, 23

30.CD Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16, 20, 21

Reference page

CD-DP2400H

- Controls and indicators -

General Information

20

24 25 26 2728 29 30

23

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

5

CD-DP2400H

General Information

Controls and indicators (continued)

2

1

33

4

65 7 8 9 10 11 12 13 14

1

- Controls and indicators -

2

15

Display

!

1.Extra Bass Indicator

2.Disc Number Indicators

3.Spectrum Analyser/Volume Level Indicator

4.Tape 2 Record Indicator

5.Memory Indicator

6.CD Pause Indicator

7.Tape Play Indicator

8.CD Play Indicator

9.CD Repeat Play Indicator

10.Music Schedule Indicator

11.Sleep Indicator

12.FM Stereo Mode Indicator

13.FM Stereo Receiving Indicator

14.Timer Recording Indicator

15.Timer Play Indicator

Rear panel

!

1.FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11

2.AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 11

3.Video/Auxiliary (Audio Signal) Input Sockets . . . . . . . . . . . . . . . . .26

4.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 12

5.Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 11

6.Centre Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 11

7.Surround Speaker Terminals. . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 11

Reference page

3

4

567

6

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Front speaker

!

1.Tweeter

2.Woofer

1

2

3.Bass Reflex Duct

4.Speaker Wire

Front speaker grilles are removable:

Make sure nothing comes into contact with the speaker
diaphragms when you remove the speaker grilles.

CD-DP2400H

3

3

4

Centre speaker

!

1.Full-Range Speaker

1

2

1

2.Speaker Wire

Surround speaker

!

1.Full-Range Speaker

2.Speaker Wire

Notes:

"

The speaker grilles on the centre and surround speakers are not removable.

"

When the surround speakers are not installed on the wall, the speaker badge will
be upside down. In this case, you can adjust the badge to face the proper direction
by turning it by hand.

Badge

- Controls and indicators -

General Information

2

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

7

CD-DP2400H

General Information

Controls and indicators (continued)

1
2
3

4
5
6

7
8

9
10
11

12

- Controls and indicators -

13
14

15

18

19
20

21
22

23
24
25

26

27

28

29

Remote control

!

Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

1.

2.Surround Level Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . .28

3.Centre Level Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . .28

Dolby Pro Logic Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

4.

5.Balance Control Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . .28

6.Test Tone Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

7.CD Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CD Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

8.

CD Track Down or Fast Reverse Button . . . . . . . . . . . . . . . . . . . . . . . .16

9.

10.CD Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Tape 1 Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

11.

Tape 1/Tape 2 Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

12.

Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

13.

Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22, 23

14.

CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15, 22

15.

On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

16.

Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

17.

Tuner Preset Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . .20

18.

CD Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

19.

CD Play or Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16, 17

20.

CD Track Up or Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . .16

21.

22.CD Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Tape 2 Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

23.

Disc Skip Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

24.

Tape 2 Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

25.

Tape 2 Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

26.

Video/Auxiliary Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

27.

Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21, 23

28.

Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

29.

Extra Bass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

30.

Reference page

16

30

17

8

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Buttons with " " mark in the illustration can be operated on the remote control

only.

Other buttons can be operated both on the main unit and the remote control.

Remote control

CD-DP2400H

Battery installation

!

Use 2 "AA" size batteries (UM/SUM-3, R6, HP-7 or similar).
Batteries are not included.

1 Remove the battery cover.
2 Insert the batteries according to the direction indicated in the bat-

tery compartment.

When inserting or removing the batteries, push them towards the battery termi-

nals.

3 Replace the cover.

Precautions for battery use:

"

Replace all old batteries with new ones at the same time.

"

Do not mix old and new batteries.

"

Remove the batteries if the unit will not be used for long periods of time. This will
prevent potential damage due to battery leakage.

Caution:

"

Do not use rechargeable batteries (nickel-cadmium battery, etc.).

"

Installing the batteries incorrectly may cause the unit to malfunction.

Notes concerning use:

"

Replace the batteries if the operating distance is reduced or if the operation
becomes erratic.

"

Periodically clean the transmitter on the remote control and the sensor on the unit
with a soft cloth.

"

Exposing the sensor on the unit to strong light may interfere with operation.
Change the lighting or the direction of the unit.

"

Keep the remote control away from moisture, heat, shock, and vibrations.

Test of the remote control

!

Check the remote control after checking all connections have been made correctly.
(See pages 10 - 12.)
Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the
music.

Remote sensor

0.2 m - 6 m
(8" - 20')

- Remote control -

Preparation for Use

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

9

CD-DP2400H

System connections

Preparation for Use

Surround speaker (Right)

FM aerial

Surround speaker (Left)

Centre speaker

AM loop aerial

VCR, DVD, etc.
(not supplied, see page 26.)

- System connections -

10

Web-site:

Front speaker (Right)

www.sharp.co.uk/support

Help Line:

not supplied

Front speaker (Left)

Wall socket
(AC 230 V, 50 Hz)

08705 274277 (office hours)

CD-DP2400H

Aerial connection

!

Supplied FM aerial:

Connect the FM aerial wire to the FM 75
OHMS socket and position the FM aerial
wire in the direction where the strongest
signal can be received.

Supplied AM loop aerial:

Connect the AM loop aerial wire to the AM
LOOP socket. Position the AM loop aerial
for optimum reception. Place the AM loop
aerial on a shelf, etc., or attach it to a stand
or a wall with screws (not supplied).

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup.
Place the aerial away from the unit for better reception.

Installing the AM loop aerial:

< Assembling > < Attaching to the wall >

Wall Screws (not supplied)

External FM aerial:

Use an external FM aerial if you require better reception. Consult your dealer.

External FM aerial

Speaker connection

!

Front speakers

Connect the black wire to the FRONT (-) terminal, and the red wire to the FRONT (+)
terminal.

Centre speaker

Connect the black wire to the CENTER (-) terminal, and the orange wire to the
CENTER (+) terminal.

Surround speakers

Connect the black wire to the SURROUND (-) terminal, and the grey wire to the SUR­ROUND (+) terminal.

Centre speaker

Surround speaker (Right) Surround speaker (Left)

Front speaker (Right)

Red
Black

Grey
Orange

Front speaker (Left)

- System connections -

Preparation for Use

Caution:

"

If you use other speakers with impedance lower than that
specified, the unit may be damaged. Front speakers: 6
ohms Centre speaker: 6 ohms Surround speakers: 12
ohms

"

Do not mistake the right and the left channels. The right
speaker is the one on the right side when you face the unit.

"

Do not let the bare speaker wires touch each other.

"

Do not allow any objects to fall into or to be placed in the
bass reflex ducts.

"

Do not stand or sit on the speakers. You may be injured.

Web-site:

www.sharp.co.uk/support

Help Line:

Incorrect

08705 274277 (office hours)

11

CD-DP2400H

32 mm (1-1/4")

8-9 mm (3/8")

Wall mounting screw

Wall surface

Wall surface

System connections (continued)

Preparation for Use

Placing the speaker system

!

To enjoy the surround effect, we recommend that you place each speaker as shown
to the below.

Centre speaker

Main unit

Front speaker
(Left)

Surround speaker
(Left)

TV

Front speaker
(Right)

Surround speaker
(Right)

Notes:

"

The front speakers and the centre speaker are magnetically shielded.
Therefore, they do not affect the display even you use them near the TV. However,
some colour variation may occur, depending on the type of TV used.

If colour variation occurs...

Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.

- System connections -

If the colour variation is still present...

Move the front speakers further away from the TV.

"

If any kind of magnet or an electromagnet is placed too close to the TV and the sys­tem, irregular colours may appear on the TV screen.

Installation of the surround speakers:

If possible, mount the surround speakers on the wall. Install them 60 cm - 90 cm (23"

- 35") above the height of your ears when you are seated.

To mount the surround speakers on the wa ll

!

The design of the surround speakers allows them to be hung on the wall. Be sure to
use the type and size of screw that is shown to the below.

5 mm (3/16")

Min. 22 mm (7/8")

1

Make a hole in the wall using a

3.2 mm (1/8")

9 mm (3/8")

drill.

2

Drive a wall mount plug into the
hole using a hammer. Drive the

wall mount plug in until it is flush
with the wall surface.

3

Drive one screw into the wall
mount plug for each speaker.

Drive the screws, so there is about a 5
mm (3/16") space between the wall and
the head of the screw.

4

Mount the surround speaker on
the wall so that the screw head is

inserted into the slot on the sur­round speaker.

12

Example: when installed on the wall Example: when installed vertically

Wall
60 - 90 cm

(23" - 35")

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Connecting the AC power lead

!

After making all connections, plug the unit. If you plug the unit first,
the unit will enter the demonstration mode.

Note:

Unplug the AC power lead from the wall socket if the unit will not be in use for a pro­longed period of time.

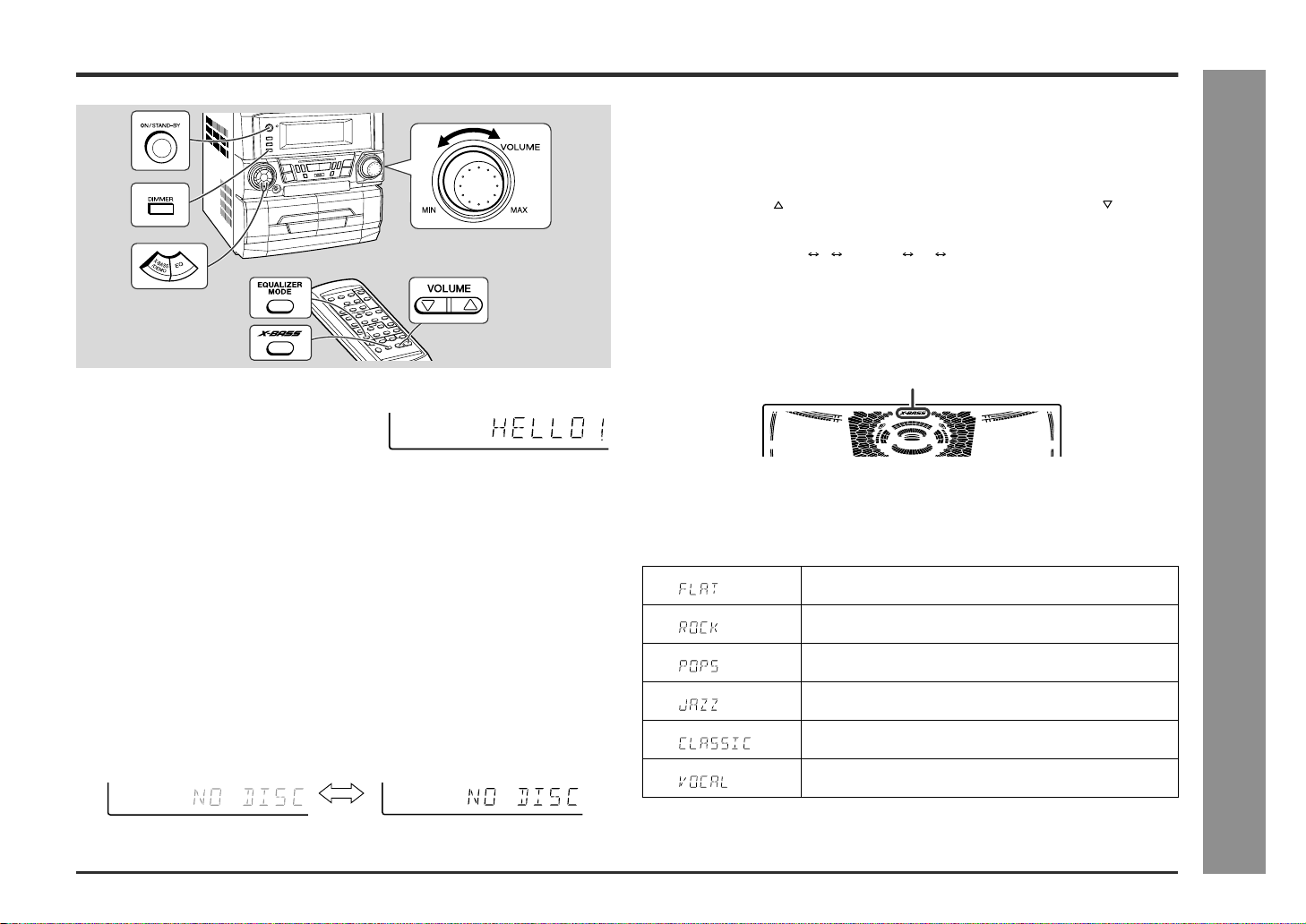

General control

Demonstration mode

!

The first time the unit is plugged in, the unit will
enter the demonstration mode. You will see
words scroll.

Volume control

!

Main unit operation:

When the VOLUME control is turned clockwise, the volume will increase. When it is
turned anti-clockwise, the volume will decrease.

Remote control operation:

Press the VOLUME button to increase the volume and the VOLUME button for
decreasing.

012 29 30 MAXIMUM

Bass control

!

When the power is first turned on, the unit will enter the extra bass mode which
emphasises the bass frequencies, and "X-BASS" will appear. To cancel the extra
bass mode, press the X-BASS/DEMO (X-BASS) button.

.....

X-BASS indicator

CD-DP2400H

To cancel the demonstration mode:

When the unit is in the power stand-by mode (demonstration mode), press the
X-BASS/DEMO button. The demonstration mode will be cancelled and the display
will disappear.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the X-BASS/DEMO button again.

Note:

When the power is on, the X-BASS/DEMO button can be used to select the extra
bass mode.

To turn the power on

!

Press the ON/STAND-BY button to turn the power on.

To set the unit to stand-by mode:

Press the ON/STAND-BY button again.

To change the display brightness (2 levels)

!

You can switch the display brightness by pressing the DIMMER button.

Dimmed Brightened

Equaliser

!

When the EQ (EQUALIZER MODE) button is pressed, the current mode setting will
be displayed. To change to a different mode, press the EQ (EQUALIZER MODE) but­ton repeatedly until the desired sound mode appears.

The sound is not modified.

Bass and treble are emphasised.

Bass and treble are slightly emphasised.

Treble is cut a little.

Treble is reduced a lot.

Vocals (midrange tones) are emphasised.

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

- General control -

Basic Operation

13

CD-DP2400H

Basic Operation

Setting the clock

In this example, the clock is set for the 24-hour (0:00) display.

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CLOCK button and within 5 seconds, press the MEMO­RY/SET button.

- Setting the cloc k -

3

Press the TUNING/TIME ( or ) button to select 24-hour or 12­hour display and then press the MEMORY/SET button.

4

Press the TUNING/TIME ( or ) button to adjust the hour and then
press the MEMORY/SET button.

"

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Hold it down to advance continuously.

"

When the 12-hour display is selected, "AM" will change automatically to "PM".

5

Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.

"

Press the TUNING/TIME ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.

"

The hour will not advance even if minutes advance from "59" to "00".

"

The clock begins counting from "0" seconds. (Seconds are not displayed.)
The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.
The time display will appear for about 5 seconds.

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.

14

"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
Note that this can only be set when the unit is first installed or it has been reset.

[Refer to "Clearing all the memory (reset)" on page 30 for details.]

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

To readjust the clock:

Perform "Setting the clock" from the beginning. If the time display is flashing, step 3
(for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to "Clearing all the memory (reset)" on

page 30 for details.]

2 Perform "Setting the clock" from the beginning.

Listening to a CD (CDs)

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CD button.

3

Press the OPEN/CLOSE button to open the disc tray.

4

Place the CD(s) on the disc tray, label side up.
When loading a third disc, press the DISC SKIP button to turn the

disc tray, then place the CD in the open position.

"

CDs can be placed on any open position on the disc tray.

"

Be sure to place 8 cm (3") CD(s) in the middle of the disc positions.

12 cm (5") 8 cm (3")

5

Press the OPEN/CLOSE button to close the disc tray.

Music schedule

CD-DP2400H

CD Playback

- Listening to a CD (CDs) -

Total number of tracks on the

CD whose number is flashing
The music schedule will display only the number of tracks on the disc.
If the CD contains more than 15 tracks, " " will appear.

6

To select the CD you want to listen to first, press one of the DISC­1 - DISC-3 buttons.

Web-site:

www.sharp.co.uk/support

Total playing time of the CD whose
number is flashing

Continued to the next page

Help Line:

08705 274277 (office hours)

15

CD-DP2400H

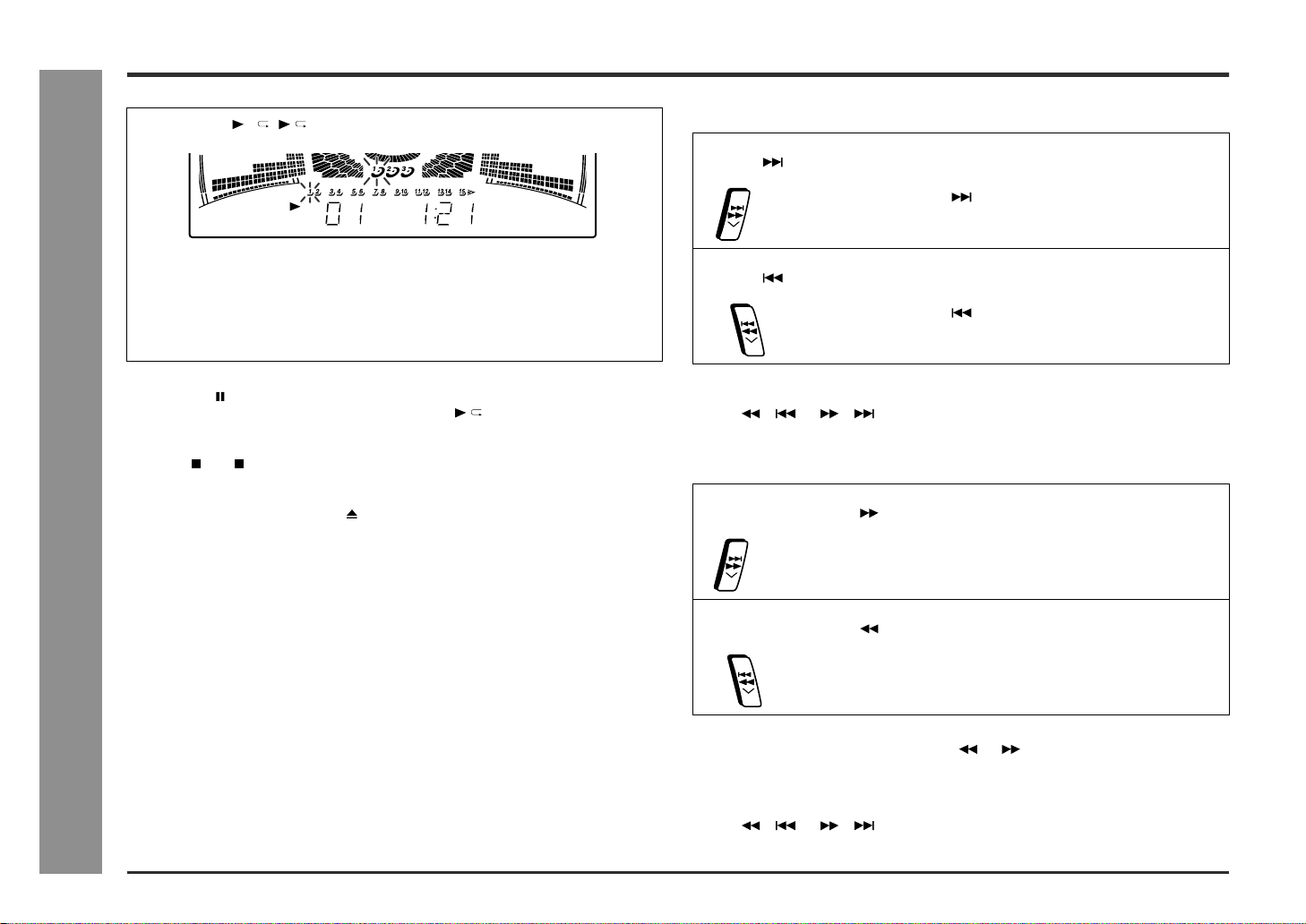

Listening to a CD (CDs) (continued)

7

Press the / ( ) button to start playback.

To locate the beginning of a track

"

To move to the beginning of the next track:

Press the button for less than 0.5 seconds during playback.

!

You can skip to any track by pressing the

button repeatedly until the desired track

number appears.

CD Playback

!

Playback will begin from track 1 on the disc you have selected to play. After
that disc finishes playing, the next disc will automatically start playback.

!

When the last track on the third disc has finished playing, the CD player will
stop automatically.

!

When there is no CD in one of the disc 1 - 3 positions, that position will be
skipped and the next CD will be played.

To interrupt playback:

Press the CD button on the remote control.
To resume playback from the same point, press the button.

To stop playback:

Press the (CD ) button.

To remove the CDs:

Whilst in the stop mode, press the OPEN/CLOSE button.
The disc tray will open. Remove the two discs. Then, press the DISC SKIP button to
rotate the disc tray and remove the remaining disc.

- Listening to a CD (CDs) -

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

Caution:

!

Do not place two CDs in one disc tray.

!

Do not push the disc tray whilst it is moving.

!

Do not turn the disc tray by hand. This may cause malfunctions.

!

If the power fails whilst the tray is open, wait until the power is restored.

!

If the disc tray is stopped forcibly, "ERR 0203" will appear in the display and the
unit will not function. If this occurs, press the ON/STAND-BY button to enter the
power stand-by mode and then turn the power on again.

!

If TV or radio interference occurs during CD operation, move the unit away from
the TV or radio.

!

If a disc is damaged, dirty, or loaded upside down, the disc will be skipped.

To restart the track being played:

Press the button for less than 0.5 seconds during playback.

!

You can skip to any track by pressing the

button repeatedly until the desired track

number appears.

Notes:

!

You can locate the beginning of a track on a single disc only.

!

The / or / button on the r emote control allows you to locate the
beginning of a track.

To locate the desired portion

"

For audible fast forward:

Press and hold down the button during playback.

For audible fast reverse:

Press and hold down the button during playback.

Notes:

!

Normal playback will resume when the or button is released.

!

You can locate the desired portion on a single disc only.

!

When the end of the last track is reached during fast forward, "END" will appear on
the display and CD operation will be paused. When the beginning of the first track
is reached during fast reverse, the unit will enter the playback mode.

!

The / or / button on the r emote control allows you to locate the
desired portion.

16

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Starting Playback with a Desired Track

"

You can play a disc starting with the desired track.

1

Whilst in the stop mode, press one of the DISC-1 - DISC-3 but­tons or DISC SKIP button to select the desired disc.

Selected disc number

Repeat or random play

Repeat play

"

All tracks on up to 3 discs, or a programmed sequence can be continuously repeated.

To repeat all tracks on up to 3 discs:

Press the / ( ) button twice.

To repeat a desired track:

Perf orm steps 1 - 4 in the "Programmed play" section and then press the / ( )
button twice.

CD-DP2400H

2

Press the or button to select the desired track.

Selected track number

You can also select a track by pressing the / or / button on the
remote control.

3

Press the / ( ) button to start playback.

Playback of the selected track is started. When the end of last track of the
disc selected is reached, the next disc will be automatically started.

To stop playback:

Press the (CD ) button.

Notes:

!

When the DISC SKIP button is pressed during playback, the next disc will begin
automatically.

!

When one of the DISC-1 - DISC-3 buttons is pressed during playback, the
selected disc will begin automatically.

To cancel repeat play:

Press the / ( ) button again.
" " will go out.

Random play

"

The tracks on the disc(s) can be played in random order automatically.

Press the RANDOM button on the remote control to begin random
play.

To cancel random play:

Press the button.

Notes:

!

If you press the / button during random play, you can move to the track
selected next by the random operation. On the other hand, the / button
does not allow you to move to the previous track. The beginning of the track being
played will be located.

!

In random play, the CD player will select and play tracks automaticall y. (You cannot
select the order of the tracks.)

Caution:

After performing repeat or random play, be sure to press the (CD ) button. Other­wise, the disc(s) will play continuously.

CD Playback

- Listening to a CD (CDs) / Repeat or random play -

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

17

CD-DP2400H

Programmed play

CD Playback

You can choose up to 32 selections for playback in the order you like.

- Programmed play -

1

Whilst in the stop mode, press
one of the DISC-1 - DISC-3 but-

tons to select the desired disc.

Selected disc number

2

Press the or button to se-

lect the desired track.

Selected track number

You can also select a track by pressing the / or / button on the

remote control.

3

Press the MEMORY/SET (MEM-

ORY) button to save the track

number.

Playback order

When the track is memorised, "MEMORY" will appear.

4

Repeat steps 1 - 3 for other tracks. Up to 32 tracks can be pro-

grammed.

If you make a mistake, the programmed tracks can be cleared by pressing the

CLEAR button.

5

Press the / ( ) button to start playback.

To clear the programmed selections:

Press the CLEAR button on the remote control
whilst the "MEMORY" indicator is lit.
Each time the button is pressed, one track will
be cleared, beginning with the last track pro­grammed. When all the tracks are cleared,
"MEMORY" will disappear.

Adding tracks to the programme:

If a programme has been previously stored, the "MEMORY" indicator will be dis­played. Then follow steps 1 - 3 to add tracks. The new tracks will be stored after the
last track of the original programme.

Notes:

!

Opening the disc tray automatically cancels the programmed sequence.

!

Even if you press the ON/STAND-BY button to enter the stand-by mode or change
the function from CD to another, the programmed selections will not be cleared.

!

During programme operation, random play is not possible.

18

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Listening to the radio

1

Press the ON/STAND-BY button to turn the power on.

2

Press the TUNER (BAND) button repeatedly to select the desired
frequency band (FM or AM).

3

Press the TUNING/TIME ( or ) button to tune in to the desired
station.

Manual tuning:

Press the TUNING/TIME button as many times as required to tune in to the de­sired station.

Auto tuning:

When the TUNING/TIME button is pressed for more than 0.5 seconds, scanning
will start automatically and the tuner will stop at the first receivable broadcast sta­tion.

Notes:

!

When radio interference occurs, auto scan tuning may stop automatically at
that point.

!

Auto scan tuning will skip weak signal stations.

!

To stop the auto tuning, press the TUNING/TIME button again.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display the "ST" indicator.

!

" " will appear when an FM broadcast is in stereo.

FM stereo mode indicator

CD-DP2400H

Radio

- Listening to the radio -

FM stereo receiving indicator

!

If the FM reception is weak, press the TUNER (BAND) button to extinguish the
"ST" indicator. The reception changes to monaural, and the sound becomes
clearer.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

19

CD-DP2400H

Listening to the memorised station

Radio

- Listening to the memorised station -

Memorising a station

"

You can store 40 AM and FM stations in memory and recall them at the push of a but­ton. (Preset tuning)

1

Perform steps 1 - 3 in "Listening to the radio" on page 19.

2

Press the MEMORY/SET button to enter the preset tuning saving
mode.

3

Within 30 seconds, press the PRESET ( or ) button to select the
preset channel number.

Store the stations in memory, in order, starting with preset channel 1.

4

Within 30 seconds, press the MEMORY/SET button to store that
station in memory.

If the "MEMORY" and preset number indicators go out before the station is mem­orised, repeat the operation from step 2.

5

Repeat steps 1 - 4 to set other stations, or to change a preset sta­tion.

When a new station is stored in memory, the station previously memorised will
be erased.

Note:

The backup function protects the memorised stations for a few hours should there be
a power failure or the AC power lead disconnection.

To recall a memorised station

"

Press the PRESET ( or ) button for less than 0.5 seconds to select
the desired station.

Preset channel Frequency and frequency band

To scan the preset stations

"

The stations saved in memory can be scanned automatically. (Preset memory scan)

1

Press the PRESET ( or ) button for more than 0.5 seconds.

The preset number will flash and the programmed stations will be tuned in se-

quentially, for 5 seconds each.

2

Press the PRESET ( or ) button again when the desired station

is located.

To erase entire preset memory

"

1 Press the ON/STAND-B Y button to enter the power stand-by mode.
2 Whilst pressing down the TUNER (BAND) button and the X-BASS/DEMO button,

press the ON/STAND-BY button until "TUNER CL" appears.

20

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Listening to a cassette tape (TAPE 1 or TAPE 2)

CD-DP2400H

Before playback:

!

For playback, use normal or low-noise tapes for the best sound.
(Metal or CrO tapes are not recommended.)

!

Do not use C-120 tapes or poor-quality tapes, as they may cause mal­functions.

!

Before loading a tape into the cassette compartment, tighten the slack
with a pen or a pencil.

Playback is possible in TAPE 1 compartment as well as in TAPE 2.

1

Press the ON/STAND-BY button to turn the power on.

2

Open the cassette door by pushing the area marked " PUSH
EJECT".

3

Load a cassette into the TAPE 1 or TAPE 2
cassette compartment with the side to be

played facing toward you.

TAPE 1 TAPE 2

4

Press the TAPE (1 2) button to select the cassette you want to
listen to.

5

Press the / button to start playback.

When playback is performed using the remote control, press the TAPE 1 or
TAPE 2 button.

To stop playback:

Press the (TAPE ) button.

Tape Playback

Fast forward/rewind: (TAPE 2 only)

1 Press the (TAPE ) button, then press the TAPE (1 2) button to select TAPE 2.
2 To advance the tape, press the ( / ) button. To rewind it, press the (

/ ) button.

Caution:

!

To remove the cassette, press the (TAPE ) button, and then open the compart­ment.

!

Before changing from one tape operation to another, press the (TAPE ) button.

!

If a power failure occurs during tape operation, the tape head will remain engaged
with the tape and the cassette door will not open. In this case, wait until the power
is restored.

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

- Listening to a cassette tape (TAPE 1 or TAPE 2) -

21

CD-DP2400H

Recording to a cassette tape

Tape Recording

Before recording:

!

When recording important selections, make a preliminary test to ensure that the
desired material is properly recorded.

!

SHARP is not liable for damage or loss of your recording arising from malfunction
of this unit.

!

The volume and sound controls can be adjusted with no effect on the recorded
signal (Variable Sound Monitor).

!

For recording, use only normal tapes. Do not use metal or CrO tapes.

- Recording to a cassette tape -

Recording can be operated in the TAPE 2 compartment. The TAPE 1 is for playback
only.

Recording from a CD (CDs)

"

You can record 3 CDs continuously.

1

Press the ON/STAND-BY button to turn the power on.

2

Load a cassette into the TAPE 2 cassette compartment with the

side to be recorded on facing you.

Wind past the leader of the tape, on which recording cannot be performed.

3

Press the CD button and load the desired disc.

4

Press one of the DISC-1 - DISC-3 buttons to select the disc to be

recorded first.

5

Press the REC/PAUSE ( )

button.

Recording will be paused.

6

Press the / button on the main unit or the TAPE 2 button on

the remote control to start recording.

!

CD playback will start approximately 7 seconds after the tape starts.

!

Recording is started from the selected CD. When the playback of the last disc
is finished or the end of the tape is reached, the CD and the cassette will stop
automatically.

To perform programmed recording:

1 Programme discs and tracks. (See page 18.)
2 Press the REC /PAUS E ( ) button.
3 Press the / (TAPE 2 ) button.

To stop recording:

Press the (CD ) button.
The CD and tape will stop.

22

Web-site:

www.sharp.co.uk/support

Help Line:

Note:

When the end of the tape is reached whilst recording, the CD player will display the
track number which was being played at that time, and stop automatically. If you want
to restart recording from the beginning of the interrupted track, turn over the tape,
press the REC/PAUSE ( ) button and then the / (TAPE 2 ) button. (If tracks
have been stored in memory using the programmed recording, recording will res tart
from the first track stored in memory.)

08705 274277 (office hours)

CD-DP2400H

Recording from the radio

"

1

Tune in to the desired station. (See page 19.)

2

Load a cassette into the TAPE 2 cassette compartment with the
side to be recorded on facing you.

Wind past the leader of the tape, on which recording cannot be performed.

3

Press the REC/PAUSE ( )
button.

Recording will be paused.

4

Press the / button on the
main unit or the TAPE 2 but-

ton on the remote control to
start recording.

To interrupt recording:

Press the REC/PAUSE ( ) button.
To resume recording, press the / (TAPE 2 ) button.

To stop recording:

Press the (TAPE ) button.

Note:

If you hear a whistling noise whilst recording an AM station, move the AM loop aerial.

Erase-prevention tab of cassette tapes:

!

When recording on a cassette tape, make
sure that the erase-prevention tabs are not
removed. Cassettes have removable tabs
that prevent accidental recording or erasing.

!

To protect the recorded sound, remove the
tab after recording. Cover the tab hole with
adhesive tape to record on the tape without
the tab.

Tab of side B Tab of side A

Side A

Dubbing from tape to tape

"

You can record from TAPE 1 to TAPE 2.

1

Press the ON/STAND-BY button to turn the power on.

2

Load a prerecorded cassette into
the TAPE 1 cassette compart-

ment. Insert a blank tape into the
TAPE 2 cassette compartment.

It is recommended that the recording
tape is the same length as the master
tape.

3

Press the TAPE (1 2) button un­til "TAPE 1" appears on the dis-

play.

4

Press the REC/PAUSE ( ) but­ton.

Recording will be paused.

5

Press the / button on the
main unit or the TAPE 2 button

on the remote control to start
dubbing.

To stop dubbing:

Press the (TAPE ) button.
TAPE 1 and TAPE 2 will simultaneously stop.

Erasing recorded tapes

"

1 Load the tape to be erased into the TAPE 2 cassette compartment with the side to

be erased facing toward you.
2 Press the TAPE (1 2) button until "TAPE 2" appears on the display.
3 Press the REC/PAUSE ( ) button.
4 Press the / button on the main unit or the TAPE 2 button on the remote con-

trol to start erasing.

Note:

Make sure that the TAPE 1 is not in use.

Tape Recording

- Recording to a cassette tape -

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

23

CD-DP2400H

Timer and sleep operation

Timer playback:

The unit turns on and plays the desired source (CD, tuner, tape) at the preset time.

Timer recording:

The unit turns on and starts recording from the tuner at the preset time.

Sleep operation:

The radio, compact disc and cassette tape can all be turned off automatically.

- Timer and sleep operation -

Advanced Features

Timer playback or timer recording

"

Before setting timer:

1 Press th e CLOCK button to check that the clock is on time.

2 For timer playback: Load a cassette or discs to be played.

For timer recording: Load a cassette for recording in the TAPE 2 cassette

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CD, TUNER (BAND) or TAPE (1 2) button to select the
desired function.

To select the timer playback source: CD, TUNER (BAND) or TAPE (1 2).
To select the timer recording source: TUNER (BAND).

When you selected the TUNER (BAND), tune in to the desired sta­tion.

3

Adjust the volume using the VOLUME control.

Do not turn the volume up too high.

4

Press the TIMER/SLEEP button repeatedly until " PLAY" or "
REC" is displayed.

For timer playback For timer recording

compartment.

24

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

5

Press the TUNING/TIME ( or ) button to specify the hour to start,
then press the MEMORY/SET button.

The illustrations show the timer playback setting.

6

Press the TUNING/TIME ( or ) button to specify the minutes,
then press the MEMORY/SET button.

7

The unit will enter the timer stand-by mode automatically.

To cancel the timer playback/timer recording:

Press the ON/STAND-BY button to turn the power on.

8

When the preset time is reached, playback or recording will start.

The volume will increase gradually until it reaches the volume you were listening
at before your system enters the timer stand-by mode.

9

In timer playback:

If you select CD or TAPE, the unit will enter the stand-by mode after the play­back. If you select TUNER, it will enter the stand-by mode one hour after the tim­er playback starts.

In timer recording:

When the recording tape reaches its end, the timer recording will end, and the
unit will enter the stand-by mode.

To reset or change the timer setting:

Perform "Timer playback or timer recording" from the beginning.

Sleep operation

"

1

Play back the desired sound source.

2

Press the TIMER/SLEEP button repeatedly until "SLEEP" is dis­played.

To change the sleep time:

Whilst the sleep time is displayed, press the TUNING/TIME ( or ) button.

(Maximum: 3 hours - Minimum: 1 minute)

!

3 hours - 5 minutes 5-minute intervals

!

5 minutes - 1 minute 1-minute intervals

3

Press the MEMORY/SET button.

4

Your system will enter the power stand-by mode automatically af­ter the preset time has elapsed.

The volume will be turned down 1 minute before the sleep operation finishes.

To cancel the sleep operation:

Press the ON/STAND-BY button whilst the sleep timer is set.

To confirm the remaining sleep time:

Press the TIMER/SLEEP button whilst the sleep timer is set.
The remaining sleep time is displayed for about 5 seconds.

Note:

Once the sleep time is set, it will remain unchanged until a new time is entered.

CD-DP2400H

- Timer and sleep operation -

Advanced Features

Notes:

!

Once the time is set, the setting will be retained until a new time is entered.

!

When performing timer playback or recording using another unit connected to the
VIDEO/AUX sockets, select "VIDEO/AUX " in step 2.

At this time, only this unit will be turned on or enter the power stand-by mode auto­matically. It will enter the power stand-by mode when the end of the recording tape
is reached in timer recording or 1 hour after the playback starts in timer playback.
However, another unit will not be turned on or off.

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

25

CD-DP2400H

Enhancing your system

The connection lead is not included. Purchase a commercially available lead as
shown below.

- Enhancing your system -

Advanced Features

Red White

VCR, DVD, etc.

White

RCA lead
(not supplied)

To the
line output
sockets

Red

Listening to the playback sounds from

!

VCR, DVD, etc.

1

Use a connection lead to c onnect the VCR, DVD, etc. to the VIDEO/
AUX sockets.

When using video equipment, connect the audio output to this unit and the video
output to a television.

2

Press the ON/STAND-BY button to turn the power on.

3

Press the VIDEO/AUX button.

4

Play the connected equipment.

Note:

To prevent hum interference, place this unit away from a television.

To record on a tape

!

1

Insert a cassette in the TAPE 2 cassette compartment.

2

Press the VIDEO/AUX button.

3

Press the REC/PAUSE ( ) button.

4

Press the / (TAPE 2 ) button.

5

Play the VCR, DVD, etc.

Headphones

!

"

Before plugging in or unplugging the headphones, reduce the volume.

"

Be sure your headphones have a 3.5 mm (1/8") diameter plug and are between 16
ohms and 50 ohms impedance. The recommended impedance is 32 ohms.

"

Plugging in the headphones disconnects the speakers automatically. Adjust the
volume using the VOLUME control.

26

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Enjoy the surround sound

CD-DP2400H

Dolby Pro Logic Surround (Normal or

!

Phantom) mode

By connecting this unit to other equipment (DVD player, VCR, etc.) with the

sound.

Normal mode:

Phantom mode:

trademark and playing it, you can enjoy Dolby Pro Logic Surround

Centre speaker

Front speaker (Left) Front speaker (Right)

Surround speaker (Right)Surround speaker (Left)

Front speaker (Left) Front speaker (Right)

To listen in the normal or phantom mode:

1

Connect the equipment you want to play (see page 26).

2

Press the VIDEO/AUX button.

3

Press the DOLBY PRO LOGIC button on the remote control to se­lect the Dolby Pro Logic Surround mode.

Each time you press the button, the display will change as follows:

NORMAL PHANTOM

NORMAL:

PHANTOM:

BYPASS:

"

You can select the desired surround mode by pressing the NORMAL or
PHANTOM button on the main unit.

4

Start playing the sound source.

To cancel the Dolby Pro Logic Surround mode:

Press the DOLBY PRO LOGIC button on the remote control until "BYPASS" appears,
or press the BYPASS button on the main unit.

Notes:

"

If the EQ (EQUALIZER MODE) button is pressed in the normal or phantom mode,
the unit is switched to the bypass mode automatically.

"

When in the normal or phantom mode, the sound mode will be set to FLAT.

"

You cannot use the Dolby Pro Logic Surround feature with headphones.

"

The selected Dolby Pro Logic Surround mode is automatically stored in memory
and will be used the next time you activate Dolby Pro Logic. This mode is memo­rised until a new mode is selected.

Sound will be output from the front left, front right, centre, and sur­round speakers.

Unlike the normal mode, no sound is output from the centre
speaker. The centre speaker signal is split equally and added to
the sound from the front speakers.

The Dolby Pro Logic Surround mode is cancelled. Sound will only
be output from the front speakers.

BYPASS

- Enjoy the surround sound -

Advanced Features

Surround speaker (Right)Surround speaker (Left)

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

27

CD-DP2400H

Advanced Features

Enjoy the surround sound (continued)

To adjust the speaker volume:

1

When in the normal or phantom mode, press the TEST TONE but­ton.

The test tone will be heard from each speaker, in order, at about 2-second inter­vals.

In normal mode:

- Enjoy the surround sound -

Left (L ch) Centre (C ch)

In phantom mode:

Right (R ch ) Surround (S ch )

2

Adjust the speaker volume level whilst the test tone is being out­put from the centre or surround speakers.

To set the centre speake r volume to the lev el of the front s peakers:

When in the normal mode, press the CENTER LEVEL button to increase the
volume and the CENTER LEVEL button to decrease it.

... ...

0-10 -9 +9 +10

To set the surround spe aker volume to the level of the front speak­ers:

When in the normal or phantom mode, press the SURROUND LEVEL button
to increase the volume and the SURROUND LEVEL button to decrease it.

... ...

0-10 -9 +9 +10

"

You can change the volume level within the range of +10dB to -10dB, in 1 dB
steps.

3

After adjusting the speaker volume level, press the TEST TONE
button.

The test tone will stop.

To balance the front speakers:

Press the BALANCE button to decrease the right speaker level (the left speaker
level will increase), and press the BALANCE button to decrease the left speaker
level (the right speaker level will increase).

28

Left (L ch)

Web-site:

Right (R ch ) Surround (S ch )

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

151 151

Notes:

"

Be sure to adjust the sound at your favorite listening position.

"

The volume settings for the centre and surround speakers are stored in memor y
for future use. Howe v er, after a power failure or unplugging the unit, they will return
to initial settings.

Troubleshooting chart

CD-DP2400H

Many potential problems can be resolved by the owner without cal ling a service tech­nician.
If something is wrong with this product, check the followi ng bef ore calling y our author­ised SHARP dealer or service centre.

General

!

Symptom Possible cause

"

The clock is not on time.

"

When a button is pressed, the unit
does not respond.

"

No sound is heard.

CD player

!

Symptom Possible cause

"

Playback does not start.

"

Playback stops in the middle or is
not performed properly.

"

Playback sounds are skipped, or
stopped in the middle of a track.

Tuner

!

"

Did a power failure occur? Reset the
clock. (Refer to page 14.)

"

Set this unit to the power stand-by mode
and then turn it back on.

"

If the unit still malfunctions, reset it. (Refer
to page 30.)

"

Is the volume level set to "0"?

"

Are the headphones connected?

"

Are the speaker wires disconnected?

"

Is the disc loaded upside down?

"

Does the disc satisfy the standards?

"

Is the disc distorted or scratched?

"

Is the unit located near excessive vibra­tions?

"

Is the disc very dirty?

"

Has condensation formed inside the unit?

Cassette deck

!

Symptom Possible cause

"

Cannot record.

"

Cannot record tracks with proper

sound quality.

"

Cannot erase completely.

"

Sound skipping.

"

Cannot hear treble.

"

Sound fluctuation.

"

Cannot remove the tape.

Remote control

!

Symptom Possible cause

"

The remote control does not oper-

ate.

"

Is the erase-prevention tab removed?

"

Is it a normal tape? (You cannot record on
a metal or CrO tape.)

"

Is there any slack?

"

Is the tape stretched?

"

Are the capstans, pinch rollers, or heads
dirty?

"

If a power failure occurs during playback,
the heads remain engaged with the tape.
Do not open the compartment forcibly.
Wait until electricity resumes.

"

Is the AC power lead of the unit plugged
in?

"

Is the battery polarity respected?

"

Are the batteries dead?

"

Is the distance or angle incorrect?

"

Does the remote control sensor receive
strong light?

References

- Troubleshooting chart -

Symptom Possible cause

"

Radio makes unusual noise con­secutively.

"

Is the unit placed near the TV or compu­ter?

"

Is the FM aerial or AM loop aerial placed
properly? Move the AC power lead away
from the aerial if located near.

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

29

CD-DP2400H

References

Troubleshooting chart (continued)

If trouble occurs

!

When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnor mal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and plug in the unit,

and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

Clearing all the memory (reset)

!

1 Press the ON/STAND-BY button to enter the power stand-by mode.
2 Whilst pressing down the / button and the X-BASS/DEMO button, press the

ON/STAND-BY button until "CLEAR AL" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.

- Troubleshooting chart / Maintenance -

Before transporting the unit

!

1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD button.
3 Press the OPEN/CLOSE butto n to open the disc tray.

Remove all CDs inserted in the unit.

4 Press the OPEN/CLOSE button to close the disc tray.

Make sure that "NO DISC" is displayed.

5 Press the ON/STAND-BY button to enter the stand-by mode, and then unplug

the AC power lead from the wall socket.

Maintenance

Cleaning the tape-handling parts

!

"

Dirty heads, capstans or pinch rollers can cause poor sound and tape jams. Clean
these parts with a cotton swab moistened with commercial head/pinch roller
cleaner or isopropyl alcohol.

"

When cleaning the heads, pinch rollers, etc., unplug the unit which contains high
voltages.

B

TAPE 1

TAPE 2

Playback head Erase head

"

After long use, the deck's heads and capstans may become magnetised, causing
poor sound. Demagnetise these par ts once every 30 hours of playing/recording
time by using a commercial tape head demagnetiser. Read the demagnetiser's
instructions carefully before use.

Cleaning the cabinet

!

Periodically wipe the cabinet with a soft cloth and a diluted
soap solution, then with a dry cloth.

Capstan Recording/Playback head
Pinch roller

A

E

D

Caution:

"

Do not use chemicals for cleaning (petrol, paint thinner,
etc.). It may damage the cabinet finish.

"

Do not apply oil to the inside of the unit. It may cause
malfunctions.

C

C

B

30

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

Specifications

CD-DP2400H

As part of our policy of continuous improvement, SHARP reserves the right to make
design and specification changes for product improvement without prior notice. The
performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.

General

!

Power source
Power consumption
Dimensions

Weight

Amplifier

!

Output power

Output terminals

Input terminals

CD player

!

Type
Signal readout
D/A converter
Frequency response
Dynamic range

Tuner

!

Frequency range

AC 230 V, 50 Hz
108 W
Width: 270 mm (10-5/8")

Height: 330 mm (13")
Depth: 332 mm (13-1/16")

8.0 kg (17.6 lbs.)

Front speakers:
RMS: 60 W (30 W + 30 W) (10 % T.H.D.)
RMS: 46 W (23 W + 23 W) (0.9 % T.H.D.)
Centre speaker:
RMS: 20 W (10 % T.H.D.)
RMS: 16 W (0.9 % T.H.D.)
Surround speakers:
RMS: 20 W (10 W + 10 W) (10 % T.H.D.)
RMS: 16 W (8 W + 8 W) (0.9 % T.H.D.)
Front speakers: 6 ohms
Centre speaker: 6 ohms
Surround speakers: 12 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)
Video/Auxiliary (audio signal): 500 mV/47 kohms

3-disc multi-play compact disc player
Non-contact, 3-beam semiconductor laser pickup
1-bit D/A converter
20 - 20,000 Hz
90 dB (1 kHz)

FM: 87.5 - 108 MHz
AM: 522 - 1,620 kHz

Cassette deck

!

Frequency response
Signal/noise ratio

Wow and flutter

Front speaker

!

Type

Maximum input power
Rated input power
Impedance
Dimensions

Weight

Centre speaker

!

Type
Maximum input power
Rated input power
Impedance
Dimensions

Weight

Surround speaker

!

Type
Maximum input power
Rated input power
Impedance
Dimensions

Weight

50 - 14,000 Hz (Normal tape)
55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

0.3 % (WRMS)

2-way type speaker system
5 cm (2") Tweeter
13 cm (5-1/4") Woofer
60 W
30 W
6 ohms
Width: 220 mm (8-11/16")

Height: 330 mm (13")
Depth: 217 mm (8-9/16")

3.0 kg (6.6 lbs.)/each

10 cm (4") full-range speaker
40 W
20 W
6 ohms
Width: 260 mm (10-1/4")

Height: 140 mm (5-1/2")
Depth: 155 mm (6-1/8")

0.9 kg (2.0 lbs.)

10 cm (4") full-range speaker
20 W
10 W
12 ohms
Width: 200 mm (7-7/8")

Height: 93 mm (2-11/16")
Depth: 170 mm (6-3/4")

0.5 kg (1.1 lbs.)/each

- Specifications -

References

Web-site:

www.sharp.co.uk/support

Help Line:

08705 274277 (office hours)

31

TERMS OF GUARANTEE

Sharp Electronics (UK) Ltd. (“Sharp”) guarantees to provide for the repair, or at its option the replace­ment, of this product subject to the conditions listed below:-

1. This guarantee shall only apply to faults which are due to inferior workmanship or materials. It does
not cover faults or damage caused by accident, misuse, fair wear and tear, neglect, tampering with
the product, or repair other than by a Service Facility appointed by Sharp.

2. As this product is intended for private domestic use only, the guarantee will not apply if the product
is used in the course of a business, trade or profession.

3. To benefit from this guarantee, any fault which occurs must be notified to Sharp, or its appointed
Service Facility within one year from the date this product was purchased. Proof of purchase must
be provided.

4. The guarantee does not cover carriage costs, jewelled styli, audio tapes, compact discs or batter­ies.

5. In the unlikely event of this product requiring repair, please contact the supplier from whom it was
purchased. Where this is not possible, please contact the Sharp Customer Information Centre on
the telephone number given below.

6. No person has any authority to vary the terms or conditions of this guarantee.

7. This guarantee is offered as an additional benefit to your statutory rights, and does not affect these

rights in any way.

If you have any difficulty operating this product, or would like information on other Sharp products,
please telephone the Sharp Customer Information Centre on the number given below.

Sharp Customer Information Centre - Telephone [phone]

SHARP ELECTRONICS (U.K.) LTD.

Sharp House, Thorp Road, Newton Heath, Manchester, M40 5BE

SHARP CORPORATION

Web-site: www.sharp.co.uk/support Help Line: 08705 274277 (office hours)

9906

0008

TINSE0392AWZZ
A0107.HK
