Sharp CDBA-180 Service manual

CD-BA180

SER VICE MANUAL

No. S7060CDBA180/

MINI COMPONENT SYSTEM

MODEL CD-BA180

CD-BA180 Mini Component System consisting of
CD-BA180 (main unit), CP-BA180 (front speaker) and
GBOXS0040AWM1 (rear speaker).

• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

This Service Manual is for the CD-BA180, which is a minor­modification model of the CD-BA150. This manual, therefore,
describes only the different points from the CD-BA150. Please
refer to the CD-BA150 service manual (No.S1003CDBA150/)
together with this manual.

CD-BA150

OPERATION MANUAL ............................................................... 5

REMOVING AND REINSTALLING THE MAIN PARTS.............. 8

ADJUSTMENT .......................................................................... 11

TROUBLESHOOTING (CD SECTION) .................................... 35

FUNCTION TABLE OF IC ........................................................ 39

Page

CONTENTS

Page

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

DISASSEMBLY.................................................................................................................................................................. 5

CD TEST MODE................................................................................................................................................................. 8

BLOCK DIAGRAM ............................................................................................................................................................. 9

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD..............................................................................................12

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 28

TYPES OF TRANSISTOR AND LED................................................................................................................................28

WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 29

VOLTAGE ........................................................................................................................................................................ 30

FL DISPLAY......................................................................................................................................................................31

REPLACEMENT PARTS LIST/EXPLODED VIEW

SHARP CORPORATION

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

CD-BA180

CD-BA180

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

SPECIFICATIONS

● General

Power source: AC 120 V, 60 Hz
Power consumption: 105 W
Dimensions: Width; 270 mm

Weight: 6.2 kg

Height; 330 mm
Depth; 375 mm

● Amplifier section

Output power: RMS; 100 W (50 W + 50 W)

Input terminals: Video/Auxiliary (audio signal);
Output terminals: Front speakers; 8 ohms

(10 % T.H.D.)

500 mV/47 kohms
Rear speakers; 16 ohms

Headphones; 16-50 ohms
(recommended; 32 ohms)

● Compact disc player section

Type: 3-disc multi-play compact
Signal readout: Non-contact, 3-beam semi-
D/A converter: 1-bit D/A converter

Frequency response:
Dynamic range: 90 dB (1 kHz)

disc player
conductor laser pickup
20 - 20,000 Hz

● Cassette deck section

Frequency response: 50-14,000 Hz (Normal tape)
Signal/noise ratio: 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter: 0.3 % (WRMS)

CP-BA180

Type: 3-way type [10 cm woofer x 2

and 5 cm tweeter]

Maximum input power: 80 W
Rated input power: 40 W
Impedance: 8 ohms
Dimensions: Width; 231.5 mm

Height; 330 mm
Depth; 210 mm

Weight: 3.1 kg/each

GBOXS0040AWM1

Type: 10 cm full-range speaker
Maximum input power: 30 W

Rated input power: 15 W
Impedance: 16 ohms
Dimensions: Width; 170 mm

Height; 170 mm
Depth; 88 mm

Weight: 0.5 kg/each

● Tuner section

Frequency range: FM; 87.5-108 MHz

AM; 530-1,720 kHz

Specifications for this model are subject to change without
prior notice.

– 2 –

CD-BA180

■ Front panel

1.

Extra Bass Indicator

12.

FM Stereo Mode Indicator

13.

FM Stereo Indicator

14.

(CD) Repeat Indicator

15.

(CD) Pause Indicator

16.

(CD) Play Indicator

17.

Record Indicator

18.

(CD) Disc Number Indicators

19.

(CD/TUNER) Memory Indicator

10.

Sleep Indicator

11.

(TAPE) Play Indicator

12.

Timer Record Indicator

13.

Timer Play Indicator

14.

Spectrum Analyzer/Volume Level Indicator

NAMES OF PARTS

1

23456 11

10 12 13

9

14

CD-BA180

87

15.

(CD) Disc Tray

16.

Memory/Set Button

17.

(CD) Track Down/Review Button
(TUNER) Preset Down Button

3

(TAPE 2) Rewind Button

18.

(CD) Track Up/Cue Button
(TUNER) Preset Up Button
(TAPE 2) Fast Forward Button

19.

(TAPE 2) Record Pause Button

20.

Timer Set Indicator

21.

On/Stand-by Button

22.

Clock Button

23.

Timer/Sleep Button

24.

Function Selector Buttons

25.

Headphone Socket

26.

Tuning and Time Up/Down Buttons

27.

(CD/TAPE) Stop Button

28.

Dimmer Button

29.

Volume Up/Down Buttons

30.

Equalizer Mode Selector Button

31.

Extra Bass/Demo Mode Button

32.

(CD) Open/Close Button

33.

(CD) Disc Skip Button

34.

(CD) Play/Repeat Button
(TAPE) Play Button

35.

(TAPE 1) Cassette Compartment

36.

(TAPE 2) Cassette Compartment

20
21

22
23

24
25

26
27

14

17 181615

35 36

14

19

28
29

30
31

32
33

34

– 3 –

CD-BA180

CD-BA180

■ Rear panel

11.

AC Power Input Socket

12.

FM/AM Loop Aerial Socket

13.

Video/Auxiliary (Audio Signal) Input Sockets

14.

Front Speaker Terminals

15.

Rear Speaker Terminals

2
3
4

1

5

■ Remote control

11.

Remote Control Transmitter LED

● CD control section

12.

Disc Number Select Buttons

13.

Memory Button

14.

Pause Button

15.

Clear Button

16.

Track Down/Review Button

17.

Track Up/Cue Button

18.

Disc Skip Button

19.

Play/Repeat Button

10.

Stop Button

11.

Random Button

● Tuner control section

12.

Preset Up/Down Buttons

● Tape control section

13.

(TAPE 1) Play Button

14.

(TAPE 2) Record Pause Button

15.

(TAPE 1/2) Stop Button

16.

(TAPE 2) Play Button

17.

(TAPE 2) Rewind Button

18.

(TAPE 2) Fast Forward Button

● Common section

19.

Equalizer Mode Selector Button

20.

Function Selector Buttons

21.

On/Stand-by Button

22.

Extra Bass Button

23.

Volume Up/Down Buttons

1

2
3

4
5
6
7

13 14 15 16 17 18

19
20

21
22

8

9
10

11
12

23

CP-BA180

11.

Tweeter

12.

Bass Reflex Duct

13.

Woofers

14.

Speaker Wire

GBOXS0040AWM1

11.

Full-Range Speaker

12.

Speaker Wire

1

3

2

4

1

2

– 4 –

(B1)x4
ø3x12mm

(B1)x2
ø3x10mm

Rear
Panel

(B1)x2
ø3x10mm

Side Panel
(Right)

Side Panel
(Left)

(A1)x2
ø3x12mm

(A1)x2
ø3x12mm

Top Cabinet

(D1)x3
ø3x10mm

(C3)x1

(C1)x1
ø3x12mm

(D1)x4
ø3x12mm

CD Player
Unit

CD Tray Cover

Rear
Panel

Pull

(C3) x1

(C2) x3

1

1

2

Main PWB

(C4)x2

CD Servo
PWB

Lock Lever

CD Player Unit
(Bottom View)

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.

4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

CD-BA180

STEP REMOVAL PROCEDURE FIGURE

1 Top Cabinet 1. Screw ..................... (A1) x4 5-1

2 Side Panel 1. Screw ..................... (B1) x8 5-1

(Left/right)

3 CD Player Unit/ 1. Turn on the power supply, 5-2

CD Tray Cover

4 Main PWB/ 1. Screw .....................

Rear Panel 2. Socket .................... (D2) x4 6-2

5 Front Panel 1. Screw ..................... (E1) x2 6-2

6 Display PWB 1. Screw .....................

7 Tape Mechanism 1. Open the cassette holder. 6-3

8

Headphones PWB

9 Turntable 1. Hook....................... (J1) x2 6-4

10 Disc Tray 1.

11 CD Servo PWB 1. Screw ..................... (L1) x1 6-6

12 CD Mechanism 1. Hook....................... (M1) x2 7-1

13

Note 1: How to open the changer manually. (Fig. 5-3)

1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom.

2.

While holding the lock lever, rotate the cam gear anticlockwise until the

cam gear rib engages with the clamp lever.

3. After that, push forward the CD slide holder.

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electro­static damage.

(Note 2) 2. Hook....................... (L2) x2

Loading Motor PWB

open the disc tray, take out the
CD cover, and close. (Note 1)

2. Screw ..................... (C1) x1

3. Hook....................... (C2) x3

4. Hook....................... (C3) x2

5. Socket .................... (C4) x2

(D1) x10

3. Flat Cable .............. (D3) x1

4. Lug Wire................. (D4) x1

5. Flat Wire................. (D5) x1

2. Hook....................... (E2) x2

(F1) x15

2. Flat Cable .............. (F2) x1

2. Screw ..................... (G1) x6

1. Screw ..................... (H1) x1 6-3

2. Cover ..................... (J2) x1

Turn fully the lock lever in the

arrow direction.

2.

While holding the lock lever,rotate
the cam gear until the cam gear
rib engages with the clamp lever.

3.

Push the slide holder backward to

engage the claw with the groove
and remove it in the direction

of the arrow. ..............

3. Socket .................... (L3) x4

2. Hook....................... (M2) x3

1. Hook....................... (N1) x5 7-1

(K1) x6

(Fig. 6-1)

5-2,6-2

6-3

5-3

6-1

6-5

CD-BA180

CD-BA180

Figure 5-1

Figure 5-2

Figure 5-3

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front
movement.

– 5 –

CD-BA180

Turntable

Disc Tray

(J2) x1

CD Player Unit

(J1) x2

Clamp Lever

CD Player Unit
(Top View)

Cam Gear Rib

Figure 6-1

(D1)x2
ø3x10mm

(D3)x1

(D2)x1

(D4)x1

(D1)x1
ø3x10mm

(E2)x1

(D2)x3

Figure 6-2

(F2)x1

(E1)x2
ø3x10mm

Display PWB

(D5)x1

Headphones
PWB

Main PWB

(E2)x1

Figure 6-4

Disc Tray

(K1) x3

3

2

1

(K1) x3

Figure 6-5

(L1) x1

(L3) x2

CD Servo

PWB

CD Player

Chassis

(F1)x15
ø3x10mm

Tape
Mechanism

(G1)x6
ø3x10mm

(H1)x1
ø3x10mm

Figure 6-3

Open

Cassette
Holder

Headphones PWB

(L2) x2

(L3) x2

Figure 6-6

– 6 –

CD-BA180

CD
Mechanism

(M1) x1

(M2) x3

(M1) x1

Figure 7-1

Loading
Motor
PWB

(N1) x5

CP-BA180

STEP

REMOVAL PROCEDURE FIGURE

1 Woofer 1. Front Panel ............ (A1) x1 7-2

2. Screw ..................... (A2) x8 7-3

2 Tweeter 1. Screw ..................... (B1) x2 7-3

(A1) x1

Driver should
be pried away
from speaker
box.

Screwdriver

Speaker Box

(A2)x4
ø4x12mm

(A2)x4
ø4x12mm

Woofer

Woofer

(B1)x2
ø3x10mm

Speaker Box

Tweeter

Figure 7-2

Figure 7-3

– 7 –

CD-BA180

TEST MODE

· Setting the test mode

Any one of test mode can be set by pressing several keys as fallows.
<X-BASS> + <CD> + <POWER> TEST:CD operation test

Function:-CD test mode.

-Enter test mode.

C D T E S T

OPEN/CLOSE operation is using manual.

<< >>, << >> buttons make pick's slide possible.

IL isn't done

<<PLAY>> key input.

Do TOC IL. Do normal play
When these following key is input
into PLAY key, track number can
be appoint directly

<< 1>> key: Track 4
<<

2>> key: Track 9
3>> key: Track 15

<<

<<STOP>> key input.

STOP

VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF

<<MEMORY>> key input.

Laser ON.

<<MEMORY>> key input.

Tracking OFF play at that
specific point.

<<MEMORY>> key input.

Tracking ON play at that
specific point.

<<STOP>> key input.

STOP

Sliding the PICKUP with
<<

>>, << >> button

must only be in STOP mode.

To cancel : Power OFF

– 8 –

CNP12

CNP11

Q2

+3.3V

+5V

CONT5

CONT2

CONT3

CONT4

CONT7

CONT6

SLD0

SPD0

FD0
TD0

+5V

TO DISPLAY SECTION

CLAMP SW

CDINT

WRQ

CE

DO

CLK

DI

CD RES

GND

DRF

CNS4

BI4

CNP4

M2

SLED

MOTOR

M1

SPINDLE

MOTOR

M

M

TRACKING COIL

FOCUS COIL

PICKUP UNIT

TE

FE

RFEV

HFL

VVDD

ADAVDD

VDD

LVDD

RVDD

XVDD

VDD5V

RFEV

FE-

FE

TE-

TE

HFL

+3.3V

CONSTANT

VOLTAGE

+5V

Q1

Q3

LASER

DRIVER

LDD

PD

VCC3

VCC2

VCC4

VCC1

TIN2

TIN1

FIN2

FIN1

IC3

M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER

IC1

LA9235M

SERVO AMP.

TO MAIN SECTION

(TO IC401)

R-CH

L-CH

AGND

DGND

+B3(+5V)

RCHO

RVSS

LVSS

LCHO

IC2

LC78641E

SERVO/SIGNAL

CONTROL

-

+

M

SW1

OPEN/

CLOSE

XL1

16.9344MHz

6

5

43

3

2

5

4

1

12

34

7

8

217

89

10

12

4

3

5

SW2

CLAMP

SW3
DISC

NUMBER

M3
T/T

UP/DOWN

MOTOR

6

12

4

3

56

12

4

3

56

75

76

45 46

47 48 32 31

30
65
66
67
68
69
70
71
72

CE
CL

DI

DO

INT

WRQ

RES

DEF

52

51

XOUT

XIN

73

5

183644 49 50 7 14 15 16

23

24

25

26

33

3

13

19

40

64

74

17

18 19 20

21

22

30

23
11

9

1

45671516 26 27

2 1725 4142 3839

35

29
22
21
14

8

40

18

24
23
28

SW4

PICKUP IN

+3.3V

CD-BA180

Figure 9 BLOCK DIAGRAM (1/3)

– 9 –

CD-BA180

FM

AM

CNP301

P.B. HEAD

TAPE 1

REC/P.B. HEAD

TAPE 2

1
2
3

TAPE
MOTOR

SOLENOID

T2 PLAY

T1 PLAY

R. PLAY

F. PLAY

FROM

CD SECTION

CNP11

L-CH

R-CH

P.B.
L-CH
R-CH

ERASE

HEAD

BF301

REC

AC BIAS

1

FM RF

AM TRACKING

T303

MOTOR

DRIVER

Q604

M

Q605
Q606

IC701
54PIN

IC701
53PIN

IC701
56PIN

IC701
55PIN

CNS402

1
2
3
4
5

SWITCHING

Q104~
Q107

IC301

TA7358AP

FM FRONT END

2

3

5

4

L312

T306

+B5

+B5

POP
REDUCE

L REC

R REC

SWITCHING

Q108
Q109

BIAS

Q114
L104

OSC

FM IF

6

8

7

FM

OSC

T301

OSC BUFF

FM+B

IC101

AN7345K

P.B

Q103

SWITCHING

FM OSC

VT

SWITCHING

H/N

T1/T2

19

Q102

Q302

AM BAND

COVERAGE

PLAYBACK AND RECORD

/PLAYBACK AMP.

L(T1)

1

R(T1)

24
2

L(T2)

23

R(T2)
L NF

3
22

R NF

T1/T2

6

REC

9

16

REF

14

NOR/

12

HIGH

15

SWITCHING

+B2

Q101

SWITCHING

+B2

Q360

13

4

21

5
20

7

18

8

17

10

Q112
L103

CF303T302

L
R

L NF
R NF

ALC

+B2

20

L REC
R

14

OSC

FM

VIDEO/AUX

+B2

PB

2

1

MIX

AM

FM/AM IF MPX.

23

AM OSC IN

X352

4.5MHz

22

7

SO401

L
R

BIAS

Q113

CF352T351

AM IF

IC303

LA1832S

21

AM RF IN

15

16

IC302

LC72131

PLL(TUNER)

FM/AM

9

L

AUX

R
L

TAPE

R

L

TUNER

R

L

CD

R

4

5

VCC

AM IF

GND

FM/AM

OUT

18

7

STEREO

DI

CE

3 4 5

11

MO/ST

10

21

9

16
10

15

AUDIO PROCESSOR

11
14

12
13

L

7

8

17

CF351

899

FM

DET

MPXIN

16

DO

CL

6

VCC

IC401

LC75341

R

18

17

MO/ST

VCO

FM/AM

17

+B2

23

3

Q110
Q111

MUTING

X351

456kHz

13

L
R

12

+B2

ZD351

14
15

DI

1

CE

2

CL

24

REC/PLAY

T1/T2

BIAS

Q401
Q402

R

21

L

4

SYSTEM
MUTE

Figure 10 BLOCK DIAGRAM (2/3)

– 10 –

CD-BA180

401
402

+B2

SYSTEM
MUTE

SP. DET.

+B3

Q601~
Q603

2 31

63

~

78

VLOAD

79
80

~

85
90

~

92
93

~

100

VDD

1

+B4

Q901
Q902
Q903
Q904

IC901

STK402040

POWER AMP.

-B2

+B5

8

~

13

FL701

FL DISPLAY

~

14

16

-B2

4 4

IC702

KIA4558P

8

+B5

~

~

44

28

29

+B4

48 49

47

OPE.AMP

7

1

REMOTE
SENSOR

RX701

IC703
KIA4558P
OPE.AMP

1

1 2 3

+B4

VDD

4042434445 41474849 4652535455 51575859 56 50

39
38
37
36
35

DO

+B4

34
33

~

31

30
29

28

KEY
SW601~SW603
SW609~SW623
SW625~SW628

RL951

+B5

SECTION

Q971

JK951

HEADPHONES

TO CD

+B3

M901

M

FAN

MOTOR

SO901

FRONT
SPEAKER

REAR
SPEAKER

AVDD

22 23232421

+B4

~

1710 16

20

RESET IC

IC704

SYS. STOP

CEDICL

1

IC701

IX0328AW

SYSTEM

MICROCOMPUTER

RESET

~

7

4

566

9

Q609

12 13

11

XL701

4.1943MHz

VDD

15

+B4

3

2

L

1

R

15

-Vcc

+Vcc

9

8

–B1

+B1

R-OUT

7

11

L-OUT

13

F801

4A/125V

D801

Y

2

-B2

+B5

+B2

+B3

+B4

-15V

M10V

A10V

+5V

UNSWITCH

+5V

CONSTANT
VOLTAGE

Q831

IC841

VOLTAGE
REGULATOR

IC851

IC852

VOLTAGE
REGULATOR

D802~D805

F802

4A/125V

F803

2A/250V

T.F.

PT801

POWER TRANSFORMER

AC POWER

SUPPLY CORD

AC 120V, 60Hz

Figure 11 BLOCK DIAGRAM (3/3)

– 11 –

CD-BA180

42

41

40
39
38
37
36

LOADING M-

VCC4

LD_M+
LD_M-

LOADING M+

35
34
33

32

31
30
29
28
27
26
25
24
23
22

SPDO

VCC3

VCC2(SPN)

SP-

SP+

SPO

GND

+B

EFBL

A

PH(R

TDO

FDO

NC

TEST

HFL

TE

TE-

FE

FE-

RFEV

BH

PH

RF

RF-

RFSW

VCC

30

29

28

27
26
25
24
23
22
21

20
19
18
17
16

REF

ODRV

AGCON

ODRV

REF

REF

REF

REF

REF

REF

REF

REF

REF

REF

REF

REF

REF

REF

AGCON

ODRV

APC

LPF

DH

PH

LPF

LPF

PH/BH

LDON

EFBL

FIN1

FIN2

REF1

TIN2

TIN1

AGON

LDD

TEST0

GND

VREF

TES1

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

FIN2

FIN1

TIN2

TIN1

+B

+B

2

5

3

1

7
6

4

4
3
2

1

7
6
5

CD SERVO PWB-B

5

1

3

7
6

4

2

4
3
2

1

7
6
5

Vcc

C

Vref

F

B

E
A

LD

VR

PD

GND

FO-

FO+

TR+

TR-

5

2

1
2
3
4
5
6
7
8

8

3

6
7

1

4

TR­TR+

FO+
FO­GND

PD
VR
LD

ACTUATOR

FO+

FO­TR-

TR+

1
2
3
4
5
6
7
88

3

6
7

1

4
5

2

PICKUP UNIT

GND(D)

PUIN

SP+

SP-

SL+
SL-

3
2

5

1

4

6

2

3

5

1

4

6

3

6

1

4

5

2

2

3

5

1

4

6

CD MOTOR PWB-C

21

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

1

SLDO

FDO

TDO

MUTE

Vref

STANDBY

VCC1

SL-

SL+

GND

TR+

TR-

FO-

FO+

FO

FD

TO

+B

+B

+

+

+

+

+

+

+

+

+

-

-

-

-

-

-

-

-

-

-

-

-

-

-

-

+

+

+B

+B

+B

+B

+

-

-

+

M
M

+

+

+

+

R54 68K

R53 68K

R52 68K

R51 68K

CNP1

R56
68K

R55
68K

C6
100/6.3

C54

47/10

C55

0.01

C51

47/10

C53

0.001
R25

10K

C7
10/35

C8

0.022

R47

3.3

Q3

KTA1266 GR

LASER DRIVER

R50

47

C14

0.33

C13

0.01

R42

120K

R3

47K

R4

10K

C11

4.7/6.3

R6
27K

R7

6.8K
R5

39K

C12

0.022

C18

3P

(CH)

R8

330

R10
27K

C26

0.047

C22

100P

R80

1M

R79

1.5M

C24

2.2/50
C21

0.1

C23

0.047

R12

680

R

1.

R11
12K

R1
68

C

0.

C27

0.1

C17

0.0047

R15
10K

C20

0.1

C42
68P

C25

0.022

C41

100/6.3

C28

47/10

C82

0.022

R44

1K

C

0.

C47

100/6.3

C49

100/6.3

C50

100/6.3

C46

0.022

IC3

M63001FP

FOCUS/TRACKING/

SPIN/SLED DRIVER

R48

6.8K

R96

1.5K

C52

0.01

CNP2

CNP3

CNS3A

CNS3B

M1

SPINDLE

MOTOR

M2

SLED

MOTOR

SW4

PICKUP IN

IC1

LA9235M

SERVO AMP.

CNS1A

CNS1B

CNS2A

CNS2B

CNP3A

13

2

5

8

4

A

B

C

D

E

F

G

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.

– 12 –

1

23456

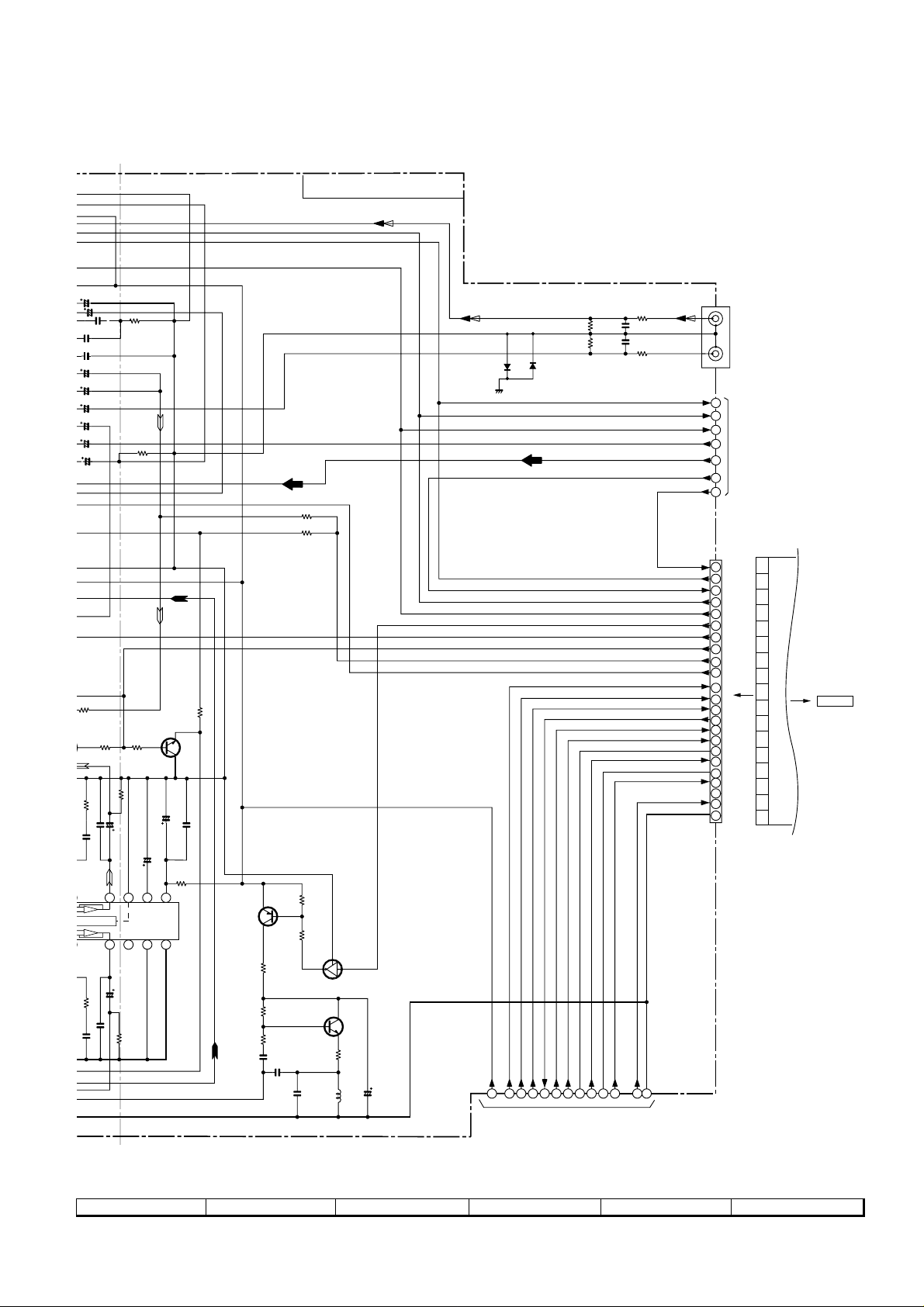

Figure 12 SCHEMATIC DIAGRAM (1/10)

CD-BA180

+B

42
41
40
39
38

37
36
35

34
33
32

31

30

29

28

27

26

25

24

23

22

C17

0.0047

13

LD_M+
LD_M­VCC4
LOADING M+
LOADING M-

GND

VCC3
SP-

SP+

SPDO

SPO

VCC2(SPN)

C20

0.1

C82

0.022

C25

R10
27K

100/6.3

0.022

R8

330

C42
68P

C47

C41

100/6.3

+B

+B

C23

0.047

C24

2.2/50

C22

100P

R15
10K

CD SIGNAL

R94
10K

R95

JITER

DEFECT

CONTROL

A/DSW

R39

470

+B

EFMO

80

D/A

SLDO

KRC102 M

79 78

AUTO

ADJUST

27

FG(D_Vref)

+B

+B

R22

470

DS1SS133

Q2

10K

FSEQ

FRAME SYNC
DEFECT,PROTECT
EFM DECODE

CLV
CONTROL

SW

LASER

28

D22

1

8

7

R12
680

PD01

R13
680

C81

0.022
PCKIST

R14

1.2K
SLCIST

EFMIN

0.1

PH(RFENV)

ADAVDD
C29

0.022
ADAVSS

PHREF
BHREF

R44

1K

R35

TDO

FDO

PD02

VVSS

VVDD

HFL

SLCO

JITTV
JITTC

VREF

TBLO

TDO
FDO

1K

1

2
3

PLL
VCEC

4
5

FR

6
7
8

SLICE
LEVEL

9

CONTROL

10
11
12

BH

13
14

FE

15

TE

16
17
18

+

-

19
20
21

S/H

22
23
24

26

25

SPDO

1

R38

270

SLDO

SPDO

6

R21

470

D21

DS1SS133

R79

1.5M

C21

0.1

R11
12K

R80
1M

C27

C26

0.047

C28

47/10

2

EFBL

DISC_NO

CONT7

V/vP

77

76

GENERAL

PROCESSEROR

CONT2

CONT1

30

29

R40 1.2K

32

O/C

R67 1K

R68 1K

CONT6

VSS

74

75

SERVO

GENERAL

CONT4

CONT3

32

31

R46 1K

R45 1.2K

C71 100P
C72 0.01
C73 100P
C74 100P
C75 100P
C76 100P
C77 100P
C78 100P

+B

C80

0.022
VDD5V

73

SERVO/SIGNAL

CORRECT

CONT5

33

35

34

PCK

R17 1K

+B

R16
10K

+B

DEF

RES

72

71

IC2

LC78641E
CONTROL

ERROR

AUDIO

OUT

37

36

VDD

C2F

DOUT

100/6.3

INT

WRQ

70

69

INTERPOLATION

MUTE

ATTENUATION

DEEMPHASIS

FSX

39

38

C30

0.022

C31

SERIAL

EXTERNAL

DIGITAL

1BIT

68

COMMAND
INTERFACE

OUT

AUDIO IN

FILTER

DAC

EFLG

40

67

SUBCODE
DECODE
CRC

TEST

CLDIDO

66

CLOCK

GENERATOR

9

R71 1K
R72 1K
R73 1K
R74 1K
R75 1K
R76 1K
R77 1K
R78 1K

CE

65

LPF

+B

64
63
62
61
60
59
58
57
56
55
54
53
52

51
50
49
48
47
46
45
44
43
42
41

L62

2.2µH

SBCK

PW
SBSY
SFSY
16M
DATA
DATACK
LRSY

ASDFIN
ASDACK
ASLRCK
XVSS

XOUT

XIN
XVDD
RVDD
RCHO
RVSS
LVSS

LCHO
LVDD

MUTER
MUTEL
EMPH

L61

0.82µH

16.9344MHz

R20

220

+B

+B

R82

2.2K

C38

10/16

C39

+B

10/16

47

R19

+B

CONSTANT VOLTAGE

Q1

2SC3203 Y

+B

ZD61

DZ3.9BSB

R81

2.2K

0.022

100/6.3

C34

0.022

12
11

10

X1

C44

C45

C56

330/6.3

C40

0.0015
C43

0.0015

DRF
RES
WRQ
INT
DO
DI
CL
CE

+B

R-CH

1

AGND

10K

R84

10K

R83

C83

0.022

+B

220

R58

C64

47/6.3

+B

O/C

GND(D)

DISC_NO

M+

M-

CNP4

2
3
4

5

1

2

3

4

5

6

7

8

9
10

1

2
3
4
5665

P14 1 - B

TO MAIN PWB

CDINT
WRQ
DRF
CE
DO
DI
CLK
CD RES
CLAMP SW

GND

BI4

1
2
3
4

6

CNS402

P21 12 - B

CNS701

TO DISPLAY PWB

SW1

OPEN/

CLOSE

SW2

CLAMP

SW3
DISC

NUMBER

+

M3

M

T/T

-

UP/DOWN
LOADING

L-CH

DGND

+5V

+B

CNP11

+B

INT
WRQ
DRF
CE
DO
DI
CL
RES

CNP12

CNS4

1
2
3
4
5

CD LOADING
MOTOR PWB-E

3

• The numbers 1 to 13 are waveform numbers shown in page 29.

7

8 9 10 11 12

Figure 13 SCHEMATIC DIAGRAM (2/10)

– 13 –

CD-BA180

A

CNS402

P13 12 - D

CNP11

TO CD SERVO

B

PWB

C

SECTION

1
2
3
4
5

TO

POWER
P16 1 - F

BI402

R-CH

1

A_GND

2

L-CH

3

CD_GND

4

+5v

5

L

q

GND (A_GND)

t

R

r

+5V

j

GND (CD_GND)

s

+B

+B

Q401,Q402 : SYSTEM MUTE

R401

330

R402

330

R403

2.7K

R404

2.7K

KTC3199 GR

C401

Q402

KTC3199 GR

R410

10K

R409

Q401

0.001

10K

R407

2.2K

C402

0.001
R408

2.2K

C403
22/25

R425

22K

C405

0.022

R415

3.9K

C404

100/16

0.1(ML)

R417

3.3K

C409

C407

10/50

C411 0.1(ML)

C413 0.0027

C417 1/50
C419 4.7/50
C421 1/50
C423 1/50

C425 1/50

C427 1/50

DI

1

CE

2

VSS

3

LOUT

4

LBASS

5

LTRE

6

LIN

7

LSEL0

8

L4

9

L3

10

L2

11

L1

12

AUDIO PROCESSOR

CCB

INTERFACE

-

+

-

-

+

AUX

DECK

TUN

CD

IC401

LC75341

+

+B+B

CLK

24

+B

VDD

­+

+

-

-

+

-

+

23

C406 22/50

VREF

22

C408 10/50

ROUT

C410

21

RBASS

RTRE

RSEL0

20
19

RIN

18

17

R4

16

R3

15

R2

14

R1

13

0.1(ML)

C412 0.1(ML)

C414 0.0027
C418 1/50
C420 4.7/50
C422 1/50
C424 1/50
C426 1/50
C428 1/50

-

+

R418

3.3K

R

D

PLAYBACK SIGNAL

FM SIGNAL

+B

RECORD SIGNAL
CD SIGNAL
VIDEO SIGNAL

R157

150

Q102

KRC104 M

R101

10K

8.6V

Q104

0.7V

0.7V

0.7V

0.7V

Q101

R106

2.2K

R108

3.3K

R109

3.3K

R107

2.2K

R102

10K

R103

4.7K

R112

R111

0V

R113

4.7K

4.7K

47K

0V

2

0V

R105

R110

47K

0V

0V

0V

2

1K

1

0V
0V

1

KRC104 M

R137

15K

R104

1K

0V

0V

Q109

KTC3199 GR

3.4V

3

3.4V

3

Q103

C106

0.001

Q108

KTC3199 GR

C107

0.001

C112
330P

C113
330P

C108

R115

100/16

R114

1K

24

1

1K

R

L

C116

100/10

C118

0.033

C114
330P

23

2

C115
330P

C117

100/10

R117

56
R138

15K

R116

56

22

3

100K

R118

112K

-

+
Hich=T1

+

-

112K

100K

R119

C119

0.033

C120
560P

R121

C121

R120

21

3.9K

560P

3.9K

4

R124

33K

C122

C123
47/25

R125

33K

C144

0.0022

R122

47/25

22

5

C137

0.022

CHASSIS

C102

0.001

C103

0.001

C104
180P

C105
180P

9.3V

9.3V

KTA1266 GR

2SC1845 F

0V

0V

0V

Q106

2SC1845 F

Q107

2SC1845 F

0V

0V

0V

Q105

2SC1845 F

E

MECHANISM

CHASSIS

EARTH

R-CH

L-CH

TAPE 1

PLAYBACK HEAD

F

ERASE

HEAD

R-CH

L-CH

TAPE 2

RECORD/

G

PLAYBACK HEAD

1
2
3

1
2

3
4
5
6
7

T1_R

A_GND

T1_L

M_GND

ERASE

T2_R2

A_GND

T2_R1

T2_L1
T2_L2

1
2
3

1
2

3
4
5
6
7

CNP101

CNP102

5.6K

R123

5.6K

C143

R126 68K

19

IC101

AN7345K

6

C139

3.3/50

0.0022

C150
22/25

MUTING

0V

3.9K

R130

R128 6.8K

18

7

6.8K

R127

3.9K

R129

R142
220K

KTC3199 GR

0.7V

0V

1.5K

R132

270P

C126

C128
22/25

17

­+

Hich=CHROME

+

-

8

270P

C127

1.5K

R131

Q110

R134

C130

C129
22/25

R133

C131

R140

10K

100

0.022

C132

56K

56K

100

0.022

C133

R136

0.0033

16

9

0.0033

R141

10K

KTC319

10K

C134

47/25

15

ALC

10

C135
47/25

R135

10K

Q11

1

Nor/CrO2

1

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.

1

23456

Figure 14 SCHEMATIC DIAGRAM (3/10)

– 14 –

MAIN PWB-A1(1/3)

CD-BA180

22/50
10/50

10

L)

0.1(ML)

0.0027

1/50

4.7/50
1/50
1/50
1/50
1/50

142
20K

Q110

3199 GR

0.7V

R140

10K

100

R134

C130

0.022

C132

C128
22/25

56K

-

+
h=CHROME
+

-

56K

C129
22/25

100

R133

C131

0.022

C133

1.5K

R418

3.3K

R141

10K

KTC3199 GR

10K

R136

C134

47/25

0.0033

16

15

ALC

10

9

C135
47/25

R135

10K

0.0033

R416

Q111

14

Nor/CrO2

11

3.9K

0.7V

C136

ALC

22/25

RIPPLE

+B

+B

+B

REC_L

REC_R

R143
220K

0V

0V

C138

220/10

+B

C145

0.001

R139

220

+B

13

Vcc

GND

12

IC101

Q112

KTA1266 GR

R146

82(1/2W)

PLAYBACK AMP.

PLAYBACK AND RECORD/

R148

C148

0.047(ML)

11.7V

R147
47K

22K

R424 470K

R423 470K

+B

11.6V

0V

KTC3203 Y

C140

0.0082(PP)

C141

0.039
(ML)

Q114

R144

47K

R145

4.7K

11.6V
2

KRC104 M

0V

L104

330µH

(ML)

0V

Q113

SO401

VIDEO/AUX

L-ch

R-ch

B
A

C
E

TUNER

SECTION

F

P19 11 - H

D
G

TO

D404

DS1SS133

D403

DS1SS133

R419

5.6K
R420

5.6K

C429
390P

C430
390P

R421

27K

R422

27K

CE
DI
CLK
TUN_R

TUN_L
DO

23

23

CE

22

DO

21

DI

20

CLK

VF1

-VP

VF2

M_10V

-15V

+5V

CNP401

19
18
17
16
15

14
13

12
11
10

9
8
7
6
5

4

3
2
1

CNP702

P21 12 - C

TO DISPLAY PWB

1

T_BIAS

T_T1/T2

REC/PLAY

SPA_SIG

SMUTE

+B

SP_RLY

D_GND

A_GND

UN_SW 5V

SP_DET

M_GND

+B
–B

+B

FC701

BIAS

3

OSC.

0V

0V

0V

3

R149

4.7

C142
47/25

+B

A_10V

g

VF1

abc

-VP

VF2

P16 1 - F, P19 11 - H

–B

SP_RLY

M_10V

p

hfki

TO

TUNER

SECTION

+B

GND (D_GND)

-15V

+5V

+B

SP_DET

UN_SW_5V

GND (A_GND)

enm

l

GND (M_GND)

7

8 9 10 11 12

Figure 15 SCHEMATIC DIAGRAM (4/10)

– 15 –

CD-BA180

Out

Ch2

12

C906
47/50

D902

DS1SS133

+

-

13

C909

100/50

D903

DS1SS133

KTC3199 GR

14

C902
220P

820

R904

R902

R906

1K

R934

68K

Q904

KTC3199 GR

4.9V

Q903

56K

15

C904

15P

R932

C936

1K

10/50

C917
47/50

R913

56K

R915

R914

56K

56K

IC901

STK40204(2Ch)

A

B

POWER AMP.

R931

C935

10/50

1

1K

C

C901
220P

R905

R933

68K

+
Ch1

-

2

C903

15P
R901

56K

R903

820

1K

C905
47/50

4

3

R920

5

22K

Ch1

R919

100

C910

100/50

+B

Out

6

0.1(1W)
C907

0.022

R911

10K

KTC3199 GR

R907

Ch1

7

Q901

Out

+B

C911

0V

+B

10/50

R909

1K

4.1V

8

0V

+Vcc

–B

–B

–B

-Vcc

9

R908

0.1(1W)

C908

0.022

R912

10K

C912

+B

Ch2

10

10/50

Out

Ch2

11

R918

100

D901

DS1SS133

4.1V

R910

1K

0V

0V

Q902

KTC3199 GR

D

E

F

G

H

TO

MAIN

SECTION
P14 1 - C,
P15 10 - H

+5V

i

L

q

GND (A_GND)

t

R

r

GND (CD_GND)

s

A_10V

g

-VP

b

VF2

c

VF1

a

SP_RLY

p

M_10V

h

-15V

f

GND (D_GND)

k

SW_5V

j

GND A_GND

l

+5V

e

SP_DET

n

GND (M_GND)

m

R803

+B

–B

R801

22K

R802

22K

D80

1N400

R807

1N400

D80

12K

C813

ZD802

DZ6.2BSA

+B

+B

+B

IC841

KIA7810AP

VOLTAGE

+B+B

REGULATOR

IC852

+B

AN78L05

VOLTAGE

REGULATOR

5.7V

+B

+B

C855

+B

0.047(ML)
C854 47/25

+B

+B

+B

+B

20V

3

1

2

D851

+B

–B

C834

DS1SS133

-B

–B

R833

0.047(ML)

22K

R841

+B

R851 10K

C853 47/25

Q831

KTC2026 Y

9.9V

9.9V

22K

R832

33(1/2W)

C833

22/25

+B

10V

3 1

C843

47/25

C842

3 1

2

C852 0.022

20V

R831

3.3(1/2W)

C832 0.022

IC841

R842

20V

2

3.3

0.1(ML)

IC851

KIA7805P

VOLTAGE

REGULATOR

C831 220/25

ZD803 DZ130BSB

C841

0.1(ML)

C851

0.1(ML)

C807

680(2W)

3300/25

• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.

1

23456

Figure 16 SCHEMATIC DIAGRAM (5/10)

– 16 –

CD-BA180

R913

56K

R915

R914

56K

56K

+B

+B

FM SIGNAL

RL951

RELAY

D951

DS1SS133

KRC107 M

2

3

4.4V

Q951

1

0.2V

+B

R953

4.7K

R954

4.7K

R975

+B

R973

15K

4.7(1/2W)

D971

DS1SS133

C972
10/50

C971
47/50

4.9V

R971

1K

R972

68K

FW951

1

5

KTC3203 Y

CNP951

1
2
3
4
5

Q971

+B

L1_OUT

R1_OUT

330(1/2W)

R951

330(1/2W)

CNP971

R952

CNS971

22

1

1

JK951

HEADPHONES

M

M901

FAN MOTOR

HEADPHONES PWB-A3

L921

+B

0.29µH

0.29µH

C930

22/50

L920

C931
22/50

SP_L-CH

+

SP_R-CH

+

SP_L-CH_GND

–

SP_R-CH_GND

–

SP_L-CH

+

SP_R-CH

+

–

SP_L-CH_GND
SP_R-CH_GND

–

FRONT SPEAKER

8 OHMS

SO901

SPEAKER

TERMINAL

REAR SPEAKER

16 OHMS

R803
80(2W)

+B

–B

R801

22K

R802

22K

D803

+B

1N4004S

D805

1N4004S

12K

R807

ZD802

C803

2200/50

C804

2200/50

1N4004S

C813

100/35

DZ6.2BSA

D801

TS6B04GM

+B

D802

1N4004S

D804

C811
47/50

C812

100/50

47K

R805

-33V

R806

10

KTA1274 Y

C806

0.047(ML)

ZD801

DZ300BSB

-28V

R804

-28V

Q801

–B

C805

0.047(ML)

C810

2.2K

1N4004S

C809

220/50

D808

C801

0.047(ML)
C802

0.047(ML)

100/50

D806

1N4004S

D807

1N4004S

4.0A/125V

2.0A/250V

C808

100/50

F801

F802

4.0A/125V

F803

CNP802

AC POWER

SUPPLY CORD

SO801

AC120V,60Hz

CNP801

1

1

2

1

1

2

2

3

3

4

4
5

5

6

6

7

7

8

8

T.F.

PT801

POWER TRANSFORMER

2

AC SOCKET PWB -A4

MAIN PWB-A1(2/3)

7

8 9 10 11 12

Figure 17 SCHEMATIC DIAGRAM (6/10)

– 17 –

CD-BA180

A

B

C

AM

FM

CNP301

1

1

2

2

3

3

D

E

C302 0.001

C338 0.001

D301 DS1SS133

D302 DS1SS133

BF301

B.P.F

C301

0.01

C375

0.001

D305

3 2 1

C303

10P(CH)

C304

0.01

DS1SS133

C308 4.7P

FM RF

C314

0.0047

FM FRONT END

C309

0.001

L312

R311

R314

22

C315

0.0047

TA7358AP

4321

C305

4.7P
(CH)

VD302

KDV147B

100K

C316

0.022

C323

0.022

IC301

R313

5

33K

C317

6

0.001

AM BAND

COVERAGE

T306

AM OSC

8

7

R302

10

C310

15P(CH)

T301

FM OSC

C312

0.022

R325

47K

R327

33

AM TRACKING

T303

C335
560P

C334

27P
(UJ)

9

C306

0.022

C311

18P(CH)

T302

R322

680

Q302

KTC3194 Y

OSC BUFF

C307
10/16

C324

8.2P(UJ)

C318
100P

FM IF

C330

15P(UJ)

SVC348S

R323

68K

VD303

KDV147B

C313

22P
(CH)

1

C332

0.022

VD301

R309

10K

2

C331

0.047

CF303

FM IF

R316

4.7K

R336

10K

C326

0.001

R365

0.022

10K

R358

3.9K

24

R351 5.6K

C362 3.3/50

23

AM OSC IN

AM OSC OUT

FM IF IN

C361 0.022

22

21

FM AFC

AM RF IN

AM MIX OUT

REG

C364 10/16

C363 0.022

20

VSM

FM

C342

321

R35

1K

T351

C352 10/16

R381

10K

C393

1/50

20

22

21

VSS

AOUT

X OUT

X IN

C350 0.022

AM IF

C394

C392

47/16

0.001

R380

1.5K

TP301

IC302

LC72131

DI

CE

4321

5

19

C351 0.022

C397

0.022

R382

+B

150

C381

12P(CH)

X352

4.5MHz

C382

15P(CH)

1

C387

C380

10/16

2.2K

R379

18

16

17

PD

AIN

VDD

FM IN

FM/AM

DO

CL

8

6

7

F

FM SIGNAL
AM SIGNAL

R375

470

R374 1K

R373 1K

R372 1K

R378 1K

G

MAIN PWB-A1(3/3)

H

• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.

1

23456

Figure 18 SCHEMATIC DIAGRAM (7/10)

+B

– 18 –

CD-BA180

TP302

R350

2.7K
C367

C365 0.022

C364 10/16

C363 0.022

1

AM RF IN

C366 0.001

1/50

19

20

18

VSM

FM IF DET./FM MPX./AM IF

R352

1K

1

AM LOW CUT

AM IF IN

4

3

IC303

LA1832S

FM/AM OUT

GND

6

5

SD

1

AM IF

CF352

C353 0.022

R393

1K

C387

0.022

47K

R377

L351

100µH

C380

10/16

2.2K

R379

8

PD

DO

C385

0.01

FM/AM

C386

13

12

330P

SD

IF IN

ST IND

MO/ST

R376

11

10

15

16

17

14

VDD

FM IN

AM IN

FM/AM

IF

CONT

8

9

7

STEREO

FM DET

8

7

R353

270

FM IF

CF351

C354 0.022

1K

X351

456kHz

17

C399

16

MPX VCO

VCC

9

0.022

C398

R395

47K

R360

4.7K

R357

R356

C369

27P

(UJ)

MPX IN

IF OUT

10

100/10

R387

470K

1K

1/50

C368

11

C357

2.2/50
C356

0.001

R388

3.9K

5.6K

PHASE

C374

15

R-CH OUT

C358

1/50

R355

3.3K

C355

0.015

14

22P

C373

0.015
C371

1/50

C372

1/50

13

MO/ST

L-CH OUT

PHASE

(FM/AM)

12

C370 1/50

R359

1.8K

R361

10K

R362

10K

L352

100µH

SWITCHING

R384

5.6K

R364

10K

R363

10K

ZD351 DZ5.1BSB
C396 100/10

C395 0.022
R392 270

R391 270

Q360

KTA1266 GR

R385

5.6K

C391
47/16

R383

5.6K

+B

+B

+B

+B

R378 1K

+B

+B

7

8 9 10 11 12

+B

A_10V

g

MAIN SECTION

P15 11 - H

GND A GND

lG

TO

TUN_SM

DI

TUN_L

TUN_R

EF ABDCK

TO

MAIN SECTION

P15 11 - C

CLK

DO

CE

GND

D GND

Figure 19 SCHEMATIC DIAGRAM (8/10)

– 19 –

CD-BA180

DISPLAY PWB-A2

A

Q601

KTC3199 GR

-25.7V

3.3V

B

R601

1K

R602

C

D

R605

R609

470K

56K

R603

10K

R604

E

F

TAPE MECHANISM PWB-D

M

T2 PLAY

SOLENOID
SOLENOID

R.PLAY

T1 PLAY

F.PLAY

+

-

TAPE

MOTOR

G

H

KTC3199 GR

100K

R607

33K

12K

D601
DS1SS133

C604

0.0068
R615

150K

-25.7V

Q602

3.3V

R608

-25.7V-25.7V

C601
270P

68K

0.0027

C603

0.0068

R610

15K

R606

C606

0.0027
C602

KTC3199 GR

-25.7V

100K

R611

1K

C605
270P

R612

C607

0.022

C608

0.022

1
2
3
4
5
6
7
8

9
10
11

12
13

Q603

3.3V

R613
820K

R614

1M

R617
220K

R618
220K

R619

2.2M

-25.7V

390K

R620

180K

FC702

1K

100K

R622

R616

R621

33

+B

IC702

KIA4558P

OPE. AMP.

2
3

5
6

2
3

5
6

IC703

KIA4558P

OPE AMP.

+B

R623

270

4
1

8
7

4
1

8
7

+B

C609

47/50

+B

DS1SS133

2.2/50

C610

0.022

ZD601

DZ6.2BSC

T2 PLAY

T2 RUN

T2 SOL

T1 SOL
T1 RUN
T1 RUN

F-REC

D602

270

R624

DS1SS133

D603

C613

2.2/50

D604

DS1SS133

C614

+5V

MTR +

R_REC

COM

C611

R627

0.022

10
11
12

C616
1/50

C612

2.2/50

R626
100K

100K

1
2
3
4
5
6
7
8
9

13

+B

CNP703

49

48

R632 10K
R629 10K
R633 10K
R634 10K
R635 10K

100K

R625

+B

C620
47/25

P22

47

44

DS1SS133

R725

D613
DS1SS133

43

D607

10K

F

P21

FL701

FL DISPLAY

F

P20

42

P19

F

41

P17

P18

39

40

R645 22K

P15

P16

37

38

R643 1K

R636

C617
10/16

D611
DS1SS133

D614
DS1SS133

P13

P14

35

34

36

R640 1K

R642 22K

R644 1K

R646 1K

R647 1K

R648 1K

Q604

68K

KTC3199 GR

R637

KTA1273 Y

Q606

KTA1271 Y

P10

P11

P12

33

32

–B

+B

R649

10K

1K

47K

R638

9.3V

Q607

0V

Q605

KTA1271 Y

0V

P09

31

9.3V

30

8.6V

9.3V

9.3V

P07

P08

29

4.2V

D615
DS1SS133

9.3V

9.3V

P05

P06

27

28

P5

81

P6

80

VLOAD

79

P7

78

P8

77

P9

76

P10

75

P11

74

P12

73

P13

72

P14

71

P15/DIST0

70

P16/DIST1

69

P17/DIST2

68

P18/DIST3

67

P19

66

P20

65

P21

64

P22

63

P23

62

P24

61

SPN

60

DISTOUT/SW OUT

59

KARAOKE LATCH

58

MIC IN

57

FPB

56

FPA

55

PLAY SW_B

54

PLAY SW_A

53

CD CLAMP

52

SW

51

T2 RUN

50

T1 RUN

1K

R653

68K

R650

R655

C618
10/16

R662

10K

R651

10K

R652

10K

G11

G10

G09

P01

P02

P03

P04

26

252423

P4P3P2

83

82

49

48

SPK_DET

1K

R654

R659

1K

1K

R658

+B

14

15

16

G13

G14

G15

P1

88

85

84

86

87

IC701

IX0328AW

SYSTEM

MICROCOMPUTER

VDD

TIMER LED

T_MOTOR

T_SOL_A

43

44

45

47

46

R661 2.2K

R664 2.2K

R663 2.2K

AC RLY_CONT

+B

10K

R656

R660

10K

4.2V

Q608

KTC3199 GR

M10V

47K

+B

+B

G08

G07

G06

G05

11

13

12

G12

G10

G11

91

89

90

T_SOL_B

SMUTE

VSS

42

41

40

R665 2.2K

LED722
4204SRT7

G04

G03

G02

G01

10

8

9

6

7

94

96

95

93

92

M-BUSY/TUN SM

AVref

SP_RLY

USE

REMOCON NOSYS STOP

39

38

35

37

36

1K

R668 1K

R669 10K

R667

+B

R670

10K

R671

10K

R672
10K

F

3 2 1

97

98

S-BUSY

T_T1/T2

REC/PLAY

RES OUT

CD CLK

AVDD

33

34

1K

R673

F

F

99

VDD

T-BIAS

DRF

WRQ

RESET

VPP/IC

CD INT

VDD

CD DI
CD DO
CD CE

AVSS

KEY 0

32

R674

G1G2G3G4G5G6G7G8G9

100

P37

X2
X1

XT2

CE

CLK

DI

DO

KEY 1

31

1K

1
2
3
4
5

6

7
8
9

10
11
12
13
14
15
16
17
18
19

20
21
22

23

24
25
26
27

28

29

30

KEY 2

R675

R68

1K

R68

R6

SPE
SPE

+B

R6
R6
R6

R6

X

4.1

R6

R6
R6
R6
R6
R6
R6
R6

R6

R6

NO
SP

• NOTES ON SCHEMATIC DIAGRAM can be found on page 28.

1

23456

Figure 20 SCHEMATIC DIAGRAM (9/10)

– 20 –

G11

G10

G09

G08

G07

G06

P01

P02

16

24

23

G15

P2

P1

85

84

86

MICROCOMPUTER

SW OUT

LATCH

_B
_A
P

VDD

TIMER LED

45

47

46

R661 2.2K

AC RLY_CONT

9

+B

10K

660

10K

4.2V

M10V

+B

+B

11

13

12

14

15

G12

G13

G14

G11

91

88

89

90

87

IC701

IX0328AW

SYSTEM

T_SOL_B

T_MOTOR

T_SOL_A

SMUTE

42

43

44

41

40

R664 2.2K

R663 2.2K

R665 2.2K

LED722

4204SRT7

Q608

KTC3199 GR

G05

10

G10

92

VSS

39

R667

G04

G03

G02

G01

3 2 1

8

9

6

7

94

96

97

95

93

M-BUSY/TUN SM

AVref

SP_RLY

USE

REMOCON NOSYS STOP

38

35

34

37

36

1K

R673

R668 1K

R669 10K

+B

R670

10K

R671

10K

R672
10K

F

F

98

99

VDD

S-BUSY

T-BIAS

T_T1/T2

REC/PLAY

RES OUT

DRF

WRQ

RESET

VPP/IC

CD INT

VDD

CD CLK

CD DI

CD DO

CD CE

AVSS

AVDD

KEY 0

33

32

1K

R674

F

G1G2G3G4G5G6G7G8G9

100

P37

X2
X1

XT2

CE

CLK

DI

DO

KEY 1

31

1K

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

KEY 2

R675

1
2
3
4
5
6
7
8
9

1/50

C621

+B

R678 1K
R679 1K

R680 1K
R681 1K
R682 1K

R683 1K

R684 1K

XL701

4.1943MHz

R685 1K

R686 1K

R687 1K

R688 1K
R689 1K
R690 1K

R691 1K
R692 1K
R693 1K

R694 1K

NO USE
SPEANA2

SPEANA1
SPEANA0

1K

R666

1K

+B

C624

0.022

R676

4.7K

15P(CH)

C623

18P(CH)

C625

C622

220/10

CD-BA180

CD INT

1

WRQ(DSP)

DRF

CD CE

CD DO

CD DI

CD CLK

RES OUT

CLAMP SW

GND

BI701

CE
DO

DI

CLK

C628

3.3/50

3.9K

R711

REPEAT

T_BIAS

T_T1/T2

REC/PLAY

SPA_SIG

SMUTE

SP_RLY

+B

M_10V

–B

D_GND

+B

A_GND

UN_SW 5V

AC_RLY CONT

SP_DET

M_GND

+B

R716

4.7K

IC704

KIA7042AP

RESET

3 1

5.9V

2

C629

0.022

100K

R714

3.9K
SW623

SW622

PLAY/

R717

68K

-VP
VF2

-15V

+5V

0V

R718

5.6K

STOP

R720
100K

SW609

DISC
SKIP

VF1

CNP702

5.9V

C630
10/50

R719

10K

+B

C634

10K

R697

680

SW616

CD

DIMMER

R708

R695

680

SW611

R696

680

SW601
POWER

+B

+B

–B

+B

R699

820

SW617

TAPE

R698

820

SW612

X-BASS/

DEMO

R700

820

SW602

CLOCK

0.001

+B

R703

1K

SW618

TUNING

DOWN

+B

L601

100µH

C626

0.1/50

R706

1.5K
SW619

MEMORY/

R701

SW613

EQUALIZER

R702

1K

SW603
TIMER/
SLEEP

+B

SET

1K

D617

DS1SS133

D616

DS1SS133

R705

1.5K

R704

47K

R709

2.2K

SW620

PRESET

DOWN

R707

1.5K
SW614

VOLUME

R710

2.2K

–B

5V BACK UP

Q609

KRC102 M

4.8V

2

0V

UP

R713

2.7K

0V

3

1

D618

DS1SS133

R712

2.7K
SW621

PRESET

UP

SW615

VOLUME

DOWN

R715

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

10

10

CNS701

23

23
22

21
20
19
18
17
16
15
14
13
12
11
10

9

8

7

6

5

4

3

2

1

+B

D620

DS1SS133

DS1SS133

RX701 N63H380A

REMOTE SENSOR

2 31

R722

R721

18K

SW626

SW625

TUNING

REC/

/TIME UP

PAUSE

SW610

OPEN/

CLOSE

1

D621

33K

FC701

C631

0.022

+B

P13 12 - F

TO

CD SERVO PWB

CNP12

P15 12 - E

CNP401

TO MAIN PWB

R723

100

C632

47/25

R724
100K

SW628
TUNER

SW627

(BAND)

VIDEO/

AUX

7

8 9 10 11 12

Figure 21 SCHEMATIC DIAGRAM (10/10)

– 21 –

CD-BA180

1

123

1

1

2

3

BCE

E

C

B

23

2

3

5

6

7

8

9

4

R409

C40

C426

ZD351

C404

L352

C370

C405

R410

C358

C403

C371

C373

Q401

C374

C372

C905

R903

C901

IC9

R919

R901

C903

C910

R920

C911

C912

R909

C908

C907

R908

R912

R911

Q902

Q901

Q904
Q903

R915

D901

D903

C917

D8

R803

R802

R801

C803

R914

R913

RL951

R953

R954

Q951

R907

R973

R905

D971

C972

D951

CNP971

R972

FW951

R971

C971

Q971

R975

T306

C365

C364

C368

R357

R350

R358

C367

C362

VD302

IC303

X351

D305

L312

CF303

C357

T302

C352

CF351

R309

VD303

Q302

T301

T351

CF352

C398

R382

C393

R375

Q360

C380

L351

R391

R392

C394

C391

IC302

R384

R387

C396

X352

C307

IC301

R314

CNP301

D301

BF301

D302

T303

VD301

C331

SO401

VIDEO/AUX

FRONT

SPEAKER

L920

L921

C804

C931

C930

AM LOOP

ANTENNA

FM ANTENNA

1
2
3

1

1

5

2
3

C308

RD

CNS971

BR

12

1

123

2

M901

FAN MOTOR

B

ECB

ECB

ECB

BCE

C

E

R-CH

L-CH

R-CH

L-CH

R-CH

L-CH

C356

R355

C355

R361

R363

R407

R425

R364

R935

C401

R362

R401

R931

C335

C332

C363

R323

R356

C342

C334

R336

C361

C369

C316

R365

R313

C366

C309

C399

R351

R352

C353

R311

C354

R353

C312

C351

C310

C313

C350

C311

R327

C324

R325

R302

R395

R383

R380

R381

R393

C385

C318

R385

R377

C392

C386

R360

C395

C381

R376

R359

C382

R388

R373

R372

R374

R378

C397

R322

C306

C375

C338

C301

C304

C315

C305

C303

C314

C317

R316

C323

C330

R422

C430
R420

R421

R419

C429

R403

JK951

HEADPHONES

R952

R951

A

0

QPWBF0582AWZZ

1

2

3

4

5

CNP951

MAIN PWB-A1

HEADPHONES
PWB-A3

+
+

–
–

R-CH

L-CH

R-CH

L-CH

+
+

–
–

D403

D404

REAR

SPEAKER

SO901

SPEAKER

TERMINAL

2 3 4 51 7 8 96

12121110

2 3 4 51 7 8 96

1110

131415171819 16

222324 21 20

131415171819 16

22 21 20

R379

C387

2 3 4 51 76

8 OHMS

16 OHMS

C326

A

B

C

D

E

F

G

H

1

23456

– 22 –

Figure 22 WIRING SIDE OF P.W.BOARD (1/8)

P26 4 - A

TO CD SERVO

PWB

CNP11

CNS402

CD-BA180

TO DISPLAY PWB

P25 10 - G

CNP702

1
2
3
4
5

1

FC701

23

70

C355

909

08
R914

Q904
Q903

7

C358

C373

R362

C372

C910

ZD351

L352

R363

R364

C907

R911

Q901

D903

C426

R409

C405

R425
C401

Q401

R401

R403

R919

R920

ECB

C404

R410

C403

R407

E

C

C901

R903

2 3 4 51 7 8 96

C911

Q902

D901

R803

C407

B

R931

C912

C908
R912

R935

C935

C905

IC901

D801

1

24

C408

R904

C902

R918

ECB

R415

C906

R932

C832

C406

12 13 14 151110

C409

20

C410

R933

C936

C411

5

IC401

C412

R934

R404

C904

R902

C909

R910
D902

ZD803

C413

R416

R906

C417

15

C414

C420

23

C402

C831

C421

C419

12

10

13

C428

C422

C418

2018161412

22

21

R408

E
C

R402

B

C807

R417

R418

C424

Q402

C851

C843

C425

C427

CNP401

C833

R423

10

1113151719

C842

8

9

C853

R851

C852

C834

C841

7

R833

R841

6

R424

5

R831

C423

234

IC852

IC851

R832

IC841

R842

BI402

1

1
2
3

Q831

B
C

E

1
2
3

5

GY

WH

GY

WH

RD

1

3

D851

R143

C143

2

C855

R121

C121

R119

1

C119

C854

R125

C123

R123

D803
D805

C801

C802

R141
BCE

Q111

R129

CNP101

3

R133

C127

R117

2

C102

C103

Q103

C129

C137

C113

C117

1

Q109

1
2
3

R157

C150

C131

R111

R103

C135

R127

R105

R115

E
C
B

1
2
3

C806

R131

C139

R112

Q102

D804

C138

R139

R135

C133

12

1

C115

C107

E
C
B

R113

Q108

C108

R102

CNP802

F801

4.0A/125V

C809

D807
D806
D808

D802

R140

C136

10

IC101

5

R104

R110

R101

R136

C145

15

20

R116

R114

7
6
5

C106

4
3
2
1

CNP102

C140

C141

E
C
B

321

Q113

F802

Q110

BCE

C132

13

R128

C126

C116

C114

24

C112

C105

R138

C104

L104

R145

Q101

4.0A/125V

C808

R132

C134

R134

R126

ECB

ECB

ECB

E

C

Q106

R149

C142

87654321

F803

2.0A/250V

E

C805

C130

C128

R130

R118

R109

B

R144

E

C

R804

C810

R142

ECB

C

C812

ZD801

B

R122

Q107

R107

Q105

Q104

B

C813

ZD802

R807

R805

C811

R124

C144

C120
R120

C118

R106

C148

Q112

Q801

R806

C122

TAPE 2 RECORD/
PLAYBACK HEAD

R137

R108

R148

R147

Q114

R146

QPWBF0582AWZZ

A

0

P27 12 - E

FROM

P27 10 - E

FROM

TAPE 1

PLAYBACK HEAD

P27 7 - C

FROM

POWER

TRANSFORMER

COLOR TABLE

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

BROWN

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

7

8 9 10 11 12

Figure 23 WIRING SIDE OF P.W.BOARD (2/8)

– 23 –

CD-BA180

C634

R686

R687

R685

R681

IC701

C624

R672

R667

R689

R713

R715

R710

R668

R676

R712

CNP703

D613

R719

SW625

REC

PAUSE

R694

R693

C613

R692

R691

R678

R690

R688

C612

XL701

R680

R679

R682

R683

R684

R616

R606

R601

RX701

C609

C632

SW611

DIMMER

Q602

Q601

123

C621

Q603

B

C

E

B

C

E

B

C

E

SW614

VOLUME

UP

C614

D604

ZD601

C611

R612

IC703

R619

D601

C601

IC702

R604

R623

R624

D602

R617

R614
SW615

VOLUME

DOWN

D603

R701

D615

C618

Q608

R650

R695

R698

SW613

EQUALIZER

Q606

Q604

C620

D611

D614

Q605

Q607

C617

SW609

DISC SKIP

SW612

X-BASS

SW610
OPEN/
CLOSE

SW621

PRESET

UP

SW622

PLAY/

REPEAT

SW623

STOP

13579

1113

1210

86

42

1

30

25

20

15

10

5

70

75

80

81

85

90

95

100

FC702

13

1

E

C

B

E
C
B

E
C
B

E
C
B

B
C
E

R602

R671

C624

R714

R626

R625

C623

C622

R611

R622

C631

R621

R627

C603

R620

R609

C608

R605

R615

C610

R610
C607

R613

R603

R607

R608
C606

R618

R707

R658

R655

R660

R649

R638

R652

R637

R651

R662

R717

R720

C604

C605

C602

R636

1
2

3

4

5

6

7

8

1
2

3
4

6
5

7

8

FROM

TAPE MECHANISM PWB

P27 9 - A

DISPLAY PWB-A2

2 31

7 8 96

12 13 14 151110 16

23 24 25

27

28 226

A

B

C

D

E

F

G

H

1

23456

Figure 24 WIRING SIDE OF P.W.BOARD (3/8)

– 24 –

P26 5 - A

TO CD SERVO PWB

CNP12

CD-BA180

R686

100

1

R713

23 24 25

C624

R710

R668

R676

R714

28 2926 30 3231 33 34 43 4435

27

81

80

85

75

90

10

R671

70

IC701

15

20

25

30

R672

C634

95

5

SW623

STOP

65

40

35

31

R675

R665

60

R674

R664

55

45

R663

SW620

PRESET

DOWN

R709

51
50

R669
R670

R673

R718

FL701

R647

R648

37

38 39

C625

R705

R645

R644

R646

R702

R659

R666

CNP702

24

3579

1

D609
D608

D607

R642

R643

R634
R635
R633
R629
R632
R661

R653

L601

R654

SW619

MEMORY/

SET

R656

R706

10 121416182022

68

11 13151719 21 23

R640

CNS701

48 4936 40 4241

47

R725

R703

10

LED722

C616

R708

10

BK

WH

R721
R699

BK

WH

BI701

SW603
TIMER/
SLEEP

R723

BK

WH

D617

C630

23456789

1

BK

WH

C628

D618

SW628
TUNER

R724

R722

SW627

VIDEO/

AUX

BK

RD

1

IC704

D621

3
2
1

C629

R711

Q609

SW626

TUING UP

1
2
3

SW617

TAPE

SW601

POWER

R696
R700

SW602

CLOCK

R716

C626

R704

R697

D616

SW616

CD

D620

QPWBF0582AWZZ

A

0

COLOR TABLE

BROWN

BR

1

FC701

CNP401

FROM
MAIN PWB
P23 10 - A

7

8 9 10 11 12

23

SW618

TUING
DOWN

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY

WHITE

BLACK

PINK

Figure 25 WIRING SIDE OF P.W.BOARD (4/8)

– 25 –

CD-BA180

P23 9 - A

FROM MAIN PWB

5

R25

IC1

C6

C45

25

20

CNS402

C83

12 45312453679108

C44

30

16

R4

R44

CNP3

C14

R35
R39

1 2 3

Q2

R17
R16

R42

C20

C28

CNP11

R5

R6

C13

R3

C26

C27

C29

D21
D22

R7

C18

R8

R21

R22

R46

C17

R10

C41

R38

R95

C12

C11

C22
R15

C42

C82

R40

CNP4

R58

R14

R45

CD SERVO PWB-B

A

CNP2

B

13

R50

4

C

CNP1

C52

E C B

8
7
6
5
4
3
2
1

7
6
5

4
3
2
1

2

1

C46

5

10

D

R48

C49

15

20

21

C53

R52

IC3

Q3

C7

C55

40

35

30
25

R53

R55

C50

C8

R51

R56

42

22

C51

R47

1

5

10

15

C54

R54

R96

C47

P25 11 - A

FROM DISPLAY PWB

CNS701

ZD61

24

25

123456123456

C64

B C E

C31

C30

R94

R80

C81

20

Q1

C21

C25
R11

30

R19

L62

C24

R13

C23

5

10

15

IC2

35

45

41

40

C56

CNP12

C71

R12

R79

80

1

50

C39

R71

C78

75

55

R78

C73

70

C38

R76

R74

R75

R73

C74

C75

C76

C77

R77

R72

C72

8

L61

7

R67

R68

C80

3

65

64

60

12

11

R20

C34

R82

X1

C40

R84

10

9

R81

C43

R83

E

1 6

CNS3A

6

GY

GY

WH

WH

6

6

CNP3A

SW4

PICKUP IN

SPINDLE MOTOR

12345

RD

WH

12345

CD MOTOR
PWB-C

12345

-

M1

M2

SLED MOTOR

+

PICKUP UNIT(306)

F

CNS1A

1
2
3
4
5
6
7

1

G

2
3
4
5
6
7
8

RD
WH
BL
WH
BL
WH

BL

RD
WH
GY
WH
GY
WH

GY
WH

CNS1B

1
2
3
4
5
6
7

1
2
3
4
5
6
7
8

CNS2BCNS2A

17

8

1

CNS3B

+

-

H

• The numbers 1 to 13 are waveform numbers shown in page 29.

1

23456

Figure 26 WIRING SIDE OF P.W.BOARD (7/8)

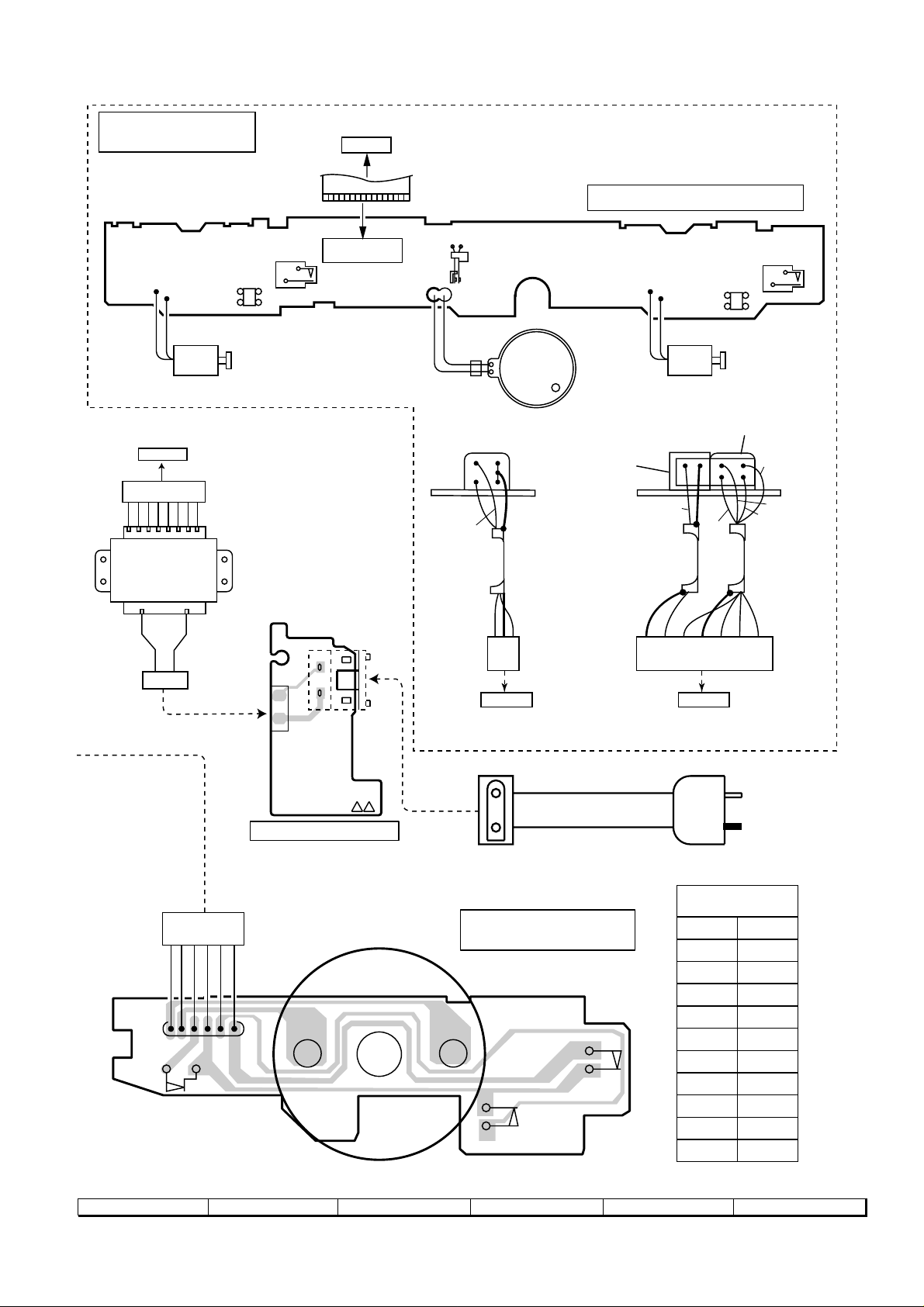

– 26 –

CD-BA180

TAPE MECHANISM
ASSEMBLY

SOLENOID SOLENOID

TO MAIN PWB

P23 10 - F

CNS802

1 2 3 4 5 6 7 8

BRBKBRYLYLRDBL

POWER

RD

TRANSFORMER

PH

PT801

TO DISPLAY PWB

1

1

SW

P24 4 - G

CNS702

3

56789

2

4

101112

FC702

13

13

1

SW

2

TAPE MOTOR

+

-

TAPE 1

PLAYBACK HEAD

WH
PK

BK

GY

TAPE MECHANISM PWB-D

RECORD/PLAYBACK HEAD

TAPE 2

ERASE HEAD

WH

YL

SW

PH

TAPE 2

RD

WH

BL

RD

12

BK

WH

SW3

DISC

NUMBER

BL

456

WH

BI4

BK

1

2

CNP801

QPWBF0582AWZZ

AC SOCKET PWB-A4

CNS4

123

RD

WH

16

+

SO801

AC INPUT

SOCKET

A

0

M3

T/T UP/DOWN

MOTOR

PK

BK

WH

21

3

CNP101

P23 12 - E

TO MAIN PWB

CD LOADING MOTOR
PWB-E

–

SW1

OPEN/

CLOSE

SW2

CLAMP

RD

WH

1234567

CNP102

P23 12 - D

TO MAIN PWB

WH

YL

AC POWER
SUPPLY CORD
AC 120V, 60Hz

COLOR TABLE

BROWN

BR

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

BL

7

8 9 10 11 12

Figure 27 WIRING SIDE OF P.W.BOARD (8/8)

– 27 –

CD-BA180

NOTES ON SCHEMATIC DIAGRAM

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means micro-micro-farad and the unit of the
capacitor without such a symbol is microfarad. As to
electrolytic capacitor, the expression “capacitance/withstand
voltage” is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

( ) indicates AM
< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

REF. NO DESCRIPTION POSITION POSITION

SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW601 POWER ON—OFF
SW602 CLOCK ON—OFF
SW603 TIMER/SLEEP ON—OFF
SW609 DISC SKIP ON—OFF
SW610 OPEN/CLOSE ON—OFF
SW611 DIMMER ON—OFF
SW612 X-BASS/DEMO ON—OFF
SW613 EQUALIZER ON—OFF
SW614 VOLUME UP ON—OFF

REF. NO DESCRIPTION

SW615 VOLUME DOWN ON—OFF
SW616 CD ON—OFF
SW617 TAPE ON—OFF
SW618 TUNING /TIME DOWN ON—OFF
SW619 MEMORY/SET ON—OFF
SW620 PRESET DOWN ON—OFF
SW621 PRESET UP ON—OFF
SW622 PLAY/REPEAT ON—OFF
SW623 STOP ON—OFF
SW625 REC/PAUSE ON—OFF
SW626 TUNING/TIME UP ON—OFF
SW627 VIDEO/AUX ON—OFF
SW628 TUNER (BAND) ON—OFF

TYPES OF TRANSISTOR AND LED

FRONT

VIEW

FRONT

FRONT
VIEW

VIEW

E C B

(S) (G) (D)
(1) (2) (3)

KTA1266 GR
KRC102 M
KRC104 M
KTA1271 Y
KTA1274 Y
2SC1845 F

KTA1273 Y
KTC3203 Y
KTC3199 GR
KRC107 M
KTC3194 Y

BCE

KTC2026

– 28 –

4204SRT7

CD-BA180

T

T

EFBL

FDO

TE

Stopped

CH1=500mV

DC 10:1

CH2=200mV
DC 10:1

CH3=1V

DC 10:1

500ms/div(500ms/div)

NORM:20kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K
Zoom : 2k

Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH2
v/DIV
200mV

1999/04/05 20:26:47

1

IC2 24

4

IC1 18 ,
IC2 16

IC1 13 ,
IC2 22

13

T

T

DATA

DATACK

LRSY

Stopped

CH1=2V

DC 10:1

CH2=2V

DC 10:1

CH3=2V

DC 10:1

5us/div

(5us/div)

NORM:100kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 5K
Zoom : 100

Mode : AUTO
Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH3
v/DIV
2 V

1999/04/05 20:50:17

10

IC2 57

IC2 58

IC2 59

11

12

T

T

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

1

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K
Zoom : 100

Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

9

IC2 37

T

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

4

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1999/04/05 17:33:17

1

IC2 24

7

IC2 1

8

IC2 2

1

2

1

3

4

IC2 24

IC2 23

IC2 24

IC2 72

IC1 18 ,
IC2 16

Stopped

CH1=500mV

DC 10:1

T

FDO

1

TDO

3

Smoothing : ON CH1 : 0.000V
BW : FULL

1

T
2

3

Smoothing : ON CH1 : 0.000V
BW : FULL

CH2 : 0.0V
CH3 : 0.000V
CH4 : 0.00V

Stopped

CH1=500mV

DC 10:1

FDO

DRF

TE

-3div -1div 0div +1div +3div

CH Position To

CH2 : 0.0V
CH3 : 0.00V
CH4 : 0.00V

CH2=10V

DC 10:1

CH3=500mV

DC 10:1

=Record Length=

Main : 100K
Zoom : 2K

CH3=1V

DC 10:1

=Record Length=

Main : 100K
Zoom : 2K

WAVEFORMS OF CD CIRCUIT

500ms/div

(500ms/div)

NORM:20kS/s

CH1
v/DIV
500mV

=Trigger==Filter= =Offset=
Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

500ms/div

(500ms/div)

NORM:20kS/s

CH2
Position

0.20div

=Trigger==Filter= =Offset=

Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

IC1 27

5

IC1 18 ,

4

IC2 16

IC2 72

3

IC2 24

1

IC2 25

6

DC 10:1

DC 10:1

T

CH2=1V

DC 10:1

CH2 : 0.00V
CH3 : 0.00V
CH4 : 0.00V

T

CH2=500mV

DC 10:1

CH2 : 0.000V
CH3 : 0.00V
CH4 : 0.00V

Stopped

CH1=10V

TE

2

DRF

T

1

=Filter= =Offset=
Smoothing : ON CH1 : 0.0V
BW : FULL

Stopped

CH1=200mV

T

FDO

2

SPDO

1

=Filter= =Offset=

Smoothing : ON CH1 : 0.000V
BW : FULL

=Record Length=

=Record Length=

Main : 100K
Zoom : 2K

Main : 100K
Zoom : 2K

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

100ms/div

(100ms/div)

NORM:100kS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2µs

1999/04/07 09:51:15

500ms/div

(500ms/div)

NORM:20kS/s

=Trigger=
Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2µs

– 29 –

CD-BA180

IC1

PIN

VOLTAGE

NO.

1.6V

1

1.6V

2

1.6V

3

1.6V

4

1.6V

5

1.6V

6

0V

7

2.6V

8

0V

9

0V

10

0V

11

3.3V

12

1.6V

13

1.6V

14

1.6V

15

0V

16

0V

17

1.6V

18

1.6V

19

1.6V

20

1.6V

21

1.6V

22

0V

23

1.6V

24

0V

25

0V

26

0V

27

1.6V

28

1.6V

29

3.3V

30

IC3

PIN

VOLTAGE

NO.

1.6V

1

1.6V

2

1.8V

3

2.1V

4

2.1V

5

2.1V

6

2.1V

7

0V

8

0V

9

0V

10

0V

11

0V

12

0V

13

0V

14

2.1V

15

2.1V

16

1.6V

17

4.9V

18

3.5V

19

1.6V

20

0V

21

0V

22

4.9V

23

4.9V

24

1.6V

25

2.1V

26

2.1V

27

1.9V

28

0V

29

0V

30

0V

31

0V

32

0V

33

0V

34

0V

35

4.2V

36

0V

37

2.1V

38

2.1V

39

4.9V

40

2.1V

41

2.1V

42

PIN
NO.

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

IC2

VOLTAGE

0.7V
0V
0V
0V

3.3V

2.4V
0V
0V

1.6V
0V

4.7V

1.7V
0V

1.6V

1.6V

1.6V

1.6V

3.3V
0V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V
0V
0V

2.1V

2.1V
0V

3.3V

3.5V

3.3V

3.3V

3.3V

1.6V

1.6V
0V
0V

3.3V

3.3V

3.0V

1.5V
0V
0V

1.5V

3.0V

3.3V

1.8V

3.0V
0V
0V
0V
0V

1.7V

3.3V
0V

3.0V

1.6V
0V

2.4V
0V
0V
0V
0V

4.8V

4.9V

4.9V

4.6V
0V

4.9V
0V
0V
0V

3.2V
0V
0V

3.4V

PIN
NO.

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

PIN
NO.

PIN
NO.

10
11
12
13
14
15
16
17
18
19
20
21
22

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

1
2
3
4
5
6
7
8
9

IC101

VOLTAGE

0V (0V)
0V (0V)

0.5V (0.5V)

1.9V (1.9V)
0V (0V)
0V (0V)
0V (0V)

0.6V (0.6V)

3.3V (3.3V)

3.3V (3.3V)
0V (0V)
0V (0V)

6.7V (6.7V)

4.0V (4.0V)
0V (0V)

3.3V (3.3V)

0.6V (0.6V)
0V (0V)
0V (0V)
0V (0V)

1.9V (1.9V)

0.5V (0.5V)
0V (0V)
0V (0V)

IC301

VOLTAGE

0.8V (0V)

1.5V (0V)

3.6V (0.4V)

1.5V (0V)
0V (0V)

3.6V (0.4V)

2.8V (0.2V)

3.5V (0.3V)

3.6V (0.3V)

IC302

VOLTAGE

2.4V (2.4V)
0V (0V)
0V (0V)
0V (0V)

4.6V (4.7V)

4.8V (4.9V)

0.1V (9.9V)

4.2V (0V)

3.3V (0V)

3.4V (0V)

4.6V (4.9V)

2.2V (0V)

4.6V (4.9V)
0V (0V)
0V (2.4V)

2.3V (0V)

4.6V (4.9V)

0.8V (4.9V)

0.8V (4.9V)

1.1V (0V)
0V (0V)

2.5V (3.0V)

VOLTAGE

IC303

PIN

VOLTAGE

NO.

2.1V (2.4V)

1

4.5V (4.8V)

2

2.1V (2.1V)

3

2.1V (2.1V)

4

0V (0V)

5

4.6V (4.6V)

6

4.6V (4.6V)

7

2.4V (3.2V)

8

4.5V (4.8V)

9

3.9V (0V)

10

3.3V (1.8V)

11

3.3V (1.1V)

12

3.5V (2.0V)

13

1.2V (1.2V)

14

1.2V (1.2V)

15

2.0V (2.0V)

16

2.7V (0V)

17

2.1V (0.9V)

18

0V (1.9V)

19

0.3V (0.9V)

20

2.6V (2.0V)

21

3.5V (3.0V)

22

IC401

PIN

VOLTAGE

NO.

0V

1

0V

2

0V

3

5.0V

4

5.0V

5

5.0V

6

5.0V

7

5.0V

8

5.0V

9

5.0V

10

5.0V

11

5.0V

12

5.0V

13

5.0V

14

5.0V

15

5.0V

16

5.0V

17

5.0V

18

5.0V

19

5.0V

20

5.0V

21

5.0V

22

10.0V

23

0V

24

PIN

VOLTAGE

NO. NO.

5.0V

1

0V

2

5.0V

3

0V

4

5.0V

5

5.0V

6

5.0V

7

1.2V

8

0.87V

9

4.84V

10

2.38V

11

2.06V

12

0V

13

0V

14

1.4V

15

4.89V

16

4.8V

17

0V

18

2.3V

19

0V

20

0V

21

0V

22

0V

23

4.44V

24

0.3V

25

0V

26

0V

27

0V

28

0V

29

0V

30

5.1V

31

5.1V

32

5.1V

33

4.9V

34

5.0V

35

4.9V

36

4.9V

37

0V

38

5.0V

39

0V

40

1.7V

41

8.0V

42

7.9V

43

8.0V

44

3.8V

45

4.89V

46

4.89V

47

4.89V

48

4.29V

49

4.29V

50

PIN

51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

100

IC701

VOLTAGE

4.29V

4.29V

4.29V

4.29V

4.29V

4.29V
0V
0V

–27.8V
–27.8V

0V
0V

–27.7V
–27.7V
–27.7V
–27.7V
–27.7V
–27.7V
–20.4V
–22.1V
–25.9V
–27.7V
–24.1V
–24.4V
–25.9V
–22.2V
–22.2V
–22.3V
–27.8V
–27.7V
–27.7V

27.7V

–20.3V
–24.0V
–20.3V

2.38V

2.58V

–25.8V
–25.8V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V
–25.7V

PIN
NO.

PIN
NO.

PIN
NO.

PIN
NO.

10
11
12
13
14
15

PIN
NO.

PIN
NO.

PIN
NO.

PIN
NO.

1
2
3

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8
9

1
2
3

1
2
3

1
2
3

1
2
3

IC704

VOLTAGE

5.0V
0V

5.0V

IC702

VOLTAGE

0V
0V
0V
–11.0V
0V
0V
0V

5.58V

IC703

VOLTAGE

0V
0V
0V
–11.0V
0V
0V
0V

5.58V

IC901

VOLTAGE

0V
0V
0V

34.4V
–32.9V
0V
0V

35.4V
–35.1V
0V
0V
–34.0V
0V
0V
0V

IC852

VOLTAGE

19.4V
0V

5.76V

IC851

VOLTAGE

19.4V
0V
5V

IC841

VOLTAGE

19.41V
0V
10V

Q831

VOLTAGE

10.0V

19.41V

10.0V

– 30 –

FL701 VVKBJ11LM02T1: FL Display

11G 10G

S1

S1

B21

B20

B19

B18

FL DISPLAY

B17

B16

B15

B8

B9
B10
B11
B12
B13
B14

CD-BA180

S1S1

B7

B6

B5

B4

B3

B2

B1

S1

9G

S1

B7 B6 B5 B4 B3 B2 B1

P1
P2
P3
P4
P5
P6
P7

11G

S1
B1
B2
B3
B4
B5
B6

10G

S1
B1
B2
B3
B4
B5
B6

1G 2G 3G 4G 5G 6G 7G 8G

S4

S2

a

j

bk

mg

n

c

Dp

6G
Dp

d
c
n
p

r

e

5G

Dp

d

n
p

e

4G

Dp

c

r

9G
S1
B1
B2
B3
B4
B5
B6

col

8G

Dp

d
c
n
p

e

S5

S3

h

f

r

e

p

d

7G
Dp

d
c
n
p

r

r

e

B1 B2 B3 B4 B5 B6 B7

3G

Dp
d
c
n
p
r
e

d

c
n
p

r
e

2G
Dp

d
c
n
p

e

1G

Dp

d
c
n
p

r

r

e
P8
P9

P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22

B7

B7
B8

B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21

B7

m

g

b
k

h

a
S2
S3
S4
S5

m

g

m

g

m

g

m

g

m

g

m

g

m

g

col

b
k

j

j

h

f

f

a
S2
S3
S4
S5

S2
S3
S4
S5

b
k

j

h

f

a

b

h

a
S2
S3
S4
S5

b

k

j

k

j

h

f

f

a
S2
S3
S4
S5

b

h

a
S2
S3
S4
S5

b

k

j

k

j

h

f

f

a
S2
S3
S4
S5

b
k

j

h

f

a
S2
S3
S4
S5

– 31 –

CD-BA180

–– MEMO ––

– 32 –

PARTS GUIDE

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

CD-BA180

MINI COMPONENT SYSTEM

MODEL CD-BA180

CD-BA180 Mini Component System consisting of
CD-BA180 (main unit), CP-BA180 (front speaker) and
GBOXS0040AWM1 (rear speaker).

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

– 33 –

CD-BA180

PARTS CODE NO. PARTS CODE

PRICE

RANK

DESCRIPTIONNO.

CD-BA180

INTEGRATED CIRCUITS

IC1 VHILA9235M/-1 J AQ Servo Amp.,LA9235M
IC2 VHILC78641E-1 J AV Servo/Signal Control,LC78641E
IC3 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled Driver,

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback
IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP

IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

IC401 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0328AWZZ J AX System Microcomputer,

IC702,703 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC704 VHIKIA7042AP1 J AC Reset,KIA7042AP
IC841 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
IC851 VHIKIA7805P-1 J AF Voltage Regulator,KIA7805P
IC852 VHIAN78L05/-1 J AE Constant Voltage Regulator,

IC901 VHISTK40204-1 J AX Power AMP.,STK40204

M63001FP
Amp.,AN7345K

LA1832S

IX0328AW

AN78L05

TRANSISTORS

Q1 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q2 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q3 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q101 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q102,103 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q104~107 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q108~111 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q113 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q114 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q401,402 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q601~604 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q605,606 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q607 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q608 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q609 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q801 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q831 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
Q901~904 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q951 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q971 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y

DIODES

D21,22 VHDDS1SS133-1 J AB Silicon,DS1SS133
D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133
D305 VHDDS1SS133-1 J AB Silicon,DS1SS133
D403,404 VHDDS1SS133-1 J AB Silicon,DS1SS133
D601~604 VHDDS1SS133-1 J AB Silicon,DS1SS133
D607 VHDDS1SS133-1 J AB Silicon,DS1SS133
D611 VHDDS1SS133-1 J AB Silicon,DS1SS133
D613~618 VHDDS1SS133-1 J AB Silicon,DS1SS133
D620,621 VHDDS1SS133-1 J AB Silicon,DS1SS133
D801 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D802~808 VHD1N4004S/-1 J AB Silicon,1N4004S
D851 VHDDS1SS133-1 J AB Silicon,DS1SS133
D901~903 VHDDS1SS133-1 J AB Silicon,DS1SS133
D951 VHDDS1SS133-1 J AB Silicon,DS1SS133
D971 VHDDS1SS133-1 J AB Silicon,DS1SS133
LED722 VHP4204SRT7-1 J AD LED,Red,4204SRT7
ZD61 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD601 VHEDZ6R2BSC-1 J AB Zener,6.2V,DZ6.2BSC
ZD801 VHEDZ300BSB-1 J AB Zener,30V,DZ30BSB
ZD802 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD803 VHEDZ130BSB-1 J AB Zener,13V,DZ13BSB

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF

PRICE

RANK

DESCRIPTION

TRANSFORMERS

! PT801 RTRNP0294AWZZ J BC Power

T301 RCILB0065AWZZ J AC OSC,FM
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Antenna
T306 RCILB0067AWZZ J AM OSC
T351 RCILI0019AWZZ J AD AM IF

COILS

L61 VP-XHR82K0000 J AC 0.82 µH
L62 VP-DH2R2K0000 J AB 2.2 µH,Choke
L104 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J AB FM RF
L351,352 VP-DH101K0000 J AB 100 µH,Choke
L601 VP-DH101K0000 J AB 100 µH,Choke
L920,921 RCILZ0026AWZZ J 0.29 µH

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCKDV147B/-1 J AH Variable Capacitance,KDV147B

VIBRATORS

X1 92LCRSTL1746AT J AH Crystal,16.9344 MHz
X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0019AWZZ J Crystal,4.5 MHz
XL701 RCRSP0003AWZZ J AH Crystal,4.1943 MHz

CAPACITORS

C6 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C7 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C8 VCKYTV1EF223Z J AA 0.022 µF,25V
C11 RC-EZY476AF0J J AB 47 µF,6.3V,Electrolytic
C12 VCKYTV1EF223Z J AA 0.022 µF,25V
C13 VCKYTV1HB103K J AA 0.01 µF,50V
C14 VCFYDA1HA334J J AC 0.33 µF,50V,Thin Film
C17 VCKYTV1HB472K J AA 0.0047 µF,50V
C18 VCCCTV1HH3R0C J AA 3 pF (CH),50V
C20,21 VCTYPA1CX104K J AB 0.1 µF,16V
C22 VCKYTV1HB101K J AA 100 pF,50V
C23 VCTYPA1CX473K J AA 0.047 µF,16V
C24 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C25 VCKYTV1EF223Z J AA 0.022 µF,25V
C26 VCTYPA1CX473K J AA 0.047 µF,16V
C27 VCKYBT1HF104Z J AC 0.1 µF,50V
C28 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C29,30 VCKYTV1EF223Z J AA 0.022 µF,25V
C31 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C34 VCKZPA1HF223Z J AA 0.022 µF,50V
C38,39 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C40 VCKYTV1HB152K J AA 0.0015 µF,50V
C41 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C42 VCCCTV1HH680J J AA 68 pF (CH),50V
C43 VCKYTV1HB152K J AA 0.0015 µF,50V
C44 VCKYTV1EF223Z J AA 0.022 µF,25V
C45 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C46 VCKYTV1EF223Z J AA 0.022 µF,25V
C47 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C49,50 VCEAZA0JW107M J AC 100 µF,6.3V,Electrolytic
C51 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C52 VCTYPA1CX103K J AA 0.01 µF,16V
C53 VCKYTV1HB102K J AA 0.001 µF,50V
C54 VCEAZA1AW476M J AB 47 µF,10V,Electrolytic
C55 VCKYTV1HB103K J AA 0.01 µF,50V
C56 VCEAZA0JW337M J AC 330 µF,6.3V,Electrolytic
C64 RC-EZY476AF0J J AB 47 µF,6.3V,Electrolytic
C71 VCKYTV1HB101K J AA 100 pF,50V
C72 VCKYTV1HB103K J AA 0.01 µF,50V
C73~78 VCKYTV1HB101K J AA 100 pF,50V
C80~83 VCKYTV1EF223Z J AA 0.022 µF,25V
C102,103 VCKYMN1HB102K J AA 0.001 µF,50V
C104,105 VCKYMN1HB181K J AA 180 pF,50V
C106,107 VCKYMN1HB102K J AA 0.001 µF,50V
C108 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C112~115 VCKYMN1HB331K J AA 330 pF,50V
C116,117 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C118,119 VCTYPA1EX333K J AA 0.033 µF,25V
C120,121 VCKYMN1HB561K J AA 560 pF,50V
C122,123 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic

– 1 –

CD-BA180

PRICE

RANK

C126,127 VCKYMN1HB271K J AA 270 pF,50V
C128,129 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C130,131 VCTYPA1CX223K J AA 0.022 µF,16V
C132,133 VCTYMN1CX332K J AA 0.0033 µF,16V
C134,135 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C136 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C137 VCTYMN1EF223Z J AA 0.022 µF,25V
C138 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C139 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C140 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C141 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C142 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C143 VCKYMN1CX222K J AA 0.0022 µF,16V
C144 VCKYPA1HB222K J AA 0.0022 µF,50V
C145 VCKYMN1HB102K J AA 0.001 µF,50V
C148 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C150 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C301 VCTYMN1CY103N J AA 0.01 µF,16V
C302 VCKYMN1HB102K J AA 0.001 µF,50V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C308 VCCSMN1HL4R7C J AA 4.7 pF,50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCCMN1HH180J J AA 18 pF (CH),50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCCMN1HH220J J AA 22 pF (CH),50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ8R2D J AA 8.2 pF (UJ),50V
C326 VCKYBT1HB102K J AA 0.001 µF,50V
C330 VCCUMN1HJ150J J AA 15 pF (UJ),50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V
C350,351 VCTYMN1EF223Z J AA 0.022 µF,25V
C352 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C365 VCKZPA1HF223Z J AA 0.022 µF,50V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCUMN1HJ270J J AA 27 pF (UJ),50V
C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C375 VCKYMN1HB102K J AA 0.001 µF,50V
C380 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C391 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1CW476M J AB 47 µF,16V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C401,402 VCKYMN1HB102K J AA 0.001 µF,50V
C403 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C404 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C405 VCKZPA1HF223Z J AA 0.022 µF,50V
C406 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C407,408 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

DESCRIPTION

NO.

C409~412 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C413,414 VCTYMN1CX272K J AA 0.0027 µF,16V
C417,418 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C419,420 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C421~428 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C429,430 VCKYMN1HB391K J AA 390 pF,50V
C601 VCCSPA1HL271J J AA 270 pF,50V
C602 VCTYMN1CX272K J AA 0.0027 µF,16V
C603,604 VCTYMN1CX682K J AA 0.0068 µF,16V
C605 VCKYMN1HB271K J AA 270 pF,50V
C606 VCTYMN1CX272K J AA 0.0027 µF,16V
C607,608 VCTYMN1EF223Z J AA 0.022 µF,25V
C609 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C610 VCTYMN1EF223Z J AA 0.022 µF,25V
C611 VCKZPA1HF223Z J AA 0.022 µF,50V
C612~614 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C616 VCEAEA1HW105M J AB 1 µF,50V,Electrolytic
C617,618 VCEAZA1CW106M J AC 10 µF,16V,Electrolytic
C620 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C621 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C622 VCCCMN1HH150J J AA 15 pF (CH),50V
C623 VCCCMN1HH180J J AA 18 pF (CH),50V
C624 VCTYBT1EF223Z J AA 0.022 µF,25V
C625 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C626 VCEAEA1HW104M J AB 0.1 µF,50V,Electrolytic
C628 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C629 VCKZPA1HF223Z J AA 0.022 µF,50V
C630 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C631 VCTYMN1EF223Z J AA 0.022 µF,25V
C632 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C634 VCKYBT1HB102K J AA 0.001 µF,50V
C801,802 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C803,804 VCEAZW1HW228M J AH 2200 µF,50V,Electrolytic
C805,806 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C807 VCEAZW1EW338M J AG 3300 µF,25V,Electrolytic
C808,809 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C810 VCEAZV1HW227M J AD 220 µF,50V,Electrolytic
C811 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C812 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C813 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C831 VCEAZA1EW227M J AC 220 µF,25V,Electrolytic
C832 VCKZPA1HF223Z J AA 0.022 µF,50V
C833 VCEAZA1EW226M J AB 22 µF,25V,Electrolytic
C834 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C841,842 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C843 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C851 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C852 VCKZPA1HF223Z J AA 0.022 µF,50V
C853,854 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C855 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C901,902 VCCSPA1HL221J J AA 220 pF,50V
C903,904 VCCSPA1HL150J J AA 15 pF,50V
C905,906 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C907,908 VCKZPA1HF223Z J AA 0.022 µF,50V
C909,910 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C911,912 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C917 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C930,931 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C935,936 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C971 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C972 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic

PARTS CODENO. PARTS CODE

PRICE
RANK

DESCRIPTION

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory

R3 VRS-TV2AB473J J AA 47 kohms,1/10W
R4 VRS-TV2AB103J J AA 10 kohm,1/10W
R5 VRS-TV2AB393J J AA 39 kohms,1/10W
R6 VRS-TV2AB273J J AA 27 kohms,1/10W
R7 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R8 VRS-TV2AB331J J AA 330 ohms,1/10W
R10 VRS-TV2AB273J J AA 27 kohms,1/10W
R11 VRS-TV2AB123J J AA 12 kohms,1/10W
R12,13 VRS-TV2AB681J J AA 680 ohms,1/10W
R14 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R15 VRS-TV2AB103J J AA 10 kohm,1/10W
R16 VRD-ST2CD103J J AA 10 kohm,1/6W
R17 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD470J J AA 47 ohms,1/6W
R20 VRS-TV2AB221J J AA 220 ohms,1/10W
R21,22 VRS-TV2AB471J J AA 470 ohms,1/10W
R25 VRD-ST2CD103J J AA 10 kohm,1/6W

VRS-TV2AB000J J AA 0 ohm,Jumper,1.25×2mm,Green

– 2 –

CD-BA180

PARTS CODE NO. PARTS CODE

R35 VRD-ST2CD102J J AA 1 kohm,1/6W
R38 VRD-ST2CD271J J AA 270 ohms,1/6W
R39 VRD-ST2CD471J J AA 470 ohms,1/6W
R40 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R42 VRS-TV2AB124J J AA 120 kohms,1/10W
R44 VRD-ST2CD102J J AA 1 kohm,1/6W
R45 VRS-TV2AB122J J AA 1.2 kohms,1/10W
R46 VRS-TV2AB102J J AA 1 kohm,1/10W
R47 VRD-ST2EE3R3J J AA 3.3 ohms,1/4W
R48 VRS-TV2AB682J J AA 6.8 kohms,1/10W
R50 VRS-TV2AB470J J AA 47 ohms,1/10W
R51~54 VRS-TV2AB683J J AA 68 kohms,1/10W
R55,56 VRD-ST2CD683J J AA 68 kohms,1/6W
R58 VRD-ST2CD221J J AA 220 ohms,1/6W
R67,68 VRD-ST2CD102J J AA 1 kohm,1/6W
R71~78 VRD-ST2CD102J J AA 1 kohm,1/6W
R79 VRS-TV2AB155J J AA 1.5 Mohms,1/10W
R80 VRD-ST2CD105J J AA 1 Mohm,1/6W
R81,82 VRS-TV2AB222J J AA 2.2 kohms,1/10W
R83,84 VRS-TV2AB103J J AA 10 kohm,1/10W
R94,95 VRS-TV2AB103J J AA 10 kohm,1/10W
R96 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R101,102 VRD-MN2BD103J J AA 10 kohm,1/8W
R103 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R104,105 VRD-MN2BD102J J AA 1 kohm,1/8W
R106,107 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R108,109 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R110 VRD-MN2BD473J J AA 47 kohms,1/8W
R111,112 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R113 VRD-MN2BD473J J AA 47 kohms,1/8W
R114,115 VRD-ST2CD102J J AA 1 kohm,1/6W
R116,117 VRD-ST2CD560J J AA 56 ohms,1/6W
R118,119 VRD-MN2BD104J J AA 100 kohm,1/8W
R120,121 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R122,123 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R124,125 VRD-MN2BD333J J AA 33 kohms,1/8W
R126 VRD-MN2BD683J J AA 68 kohms,1/8W
R127,128 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R129,130 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R131,132 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R133,134 VRD-MN2BD101J J AA 100 ohm,1/8W
R135,136 VRD-MN2BD103J J AA 10 kohm,1/8W
R137 VRD-MN2BD153J J AA 15 kohms,1/8W
R138 VRD-ST2CD153J J AA 15 kohms,1/6W
R139 VRD-ST2EE221J J AA 220 ohms,1/4W
R140 VRD-ST2CD103J J AA 10 kohm,1/6W
R141 VRD-MN2BD103J J AA 10 kohm,1/8W
R142,143 VRD-ST2CD224J J AA 220 kohms,1/6W
R144 VRD-MN2BD473J J AA 47 kohms,1/8W
R145 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R146 VRD-RT2HD820J J AA 82 ohms,1/2W
R147 VRD-MN2BD473J J AA 47 kohms,1/8W
R148 VRD-MN2BD223J J AA 22 kohms,1/8W
R149 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R157 VRD-ST2EE151J J AA 150 ohms,1/4W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361~365 VRD-MN2BD103J J AA 10 kohm,1/8W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W

PRICE

RANK

DESCRIPTIONNO.

PRICE

RANK

R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R401,402 VRD-MN2BD331J J AA 330 ohms,1/8W
R403,404 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R407 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R408 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R409,410 VRD-ST2CD103J J AA 10 kohm,1/6W
R415,416 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R417,418 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R419,420 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R421,422 VRD-MN2BD273J J AA 27 kohms,1/8W
R423,424 VRD-ST2CD474J J AA 470 kohms,1/6W
R425 VRD-MN2BD223J J AA 22 kohms,1/8W
R601 VRD-ST2CD102J J AA 1 kohm,1/6W
R602 VRD-MN2BD104J J AA 100 kohm,1/8W
R603 VRD-MN2BD103J J AA 10 kohm,1/8W
R604 VRD-ST2CD123J J AA 12 kohms,1/6W
R605 VRD-MN2BD563J J AA 56 kohms,1/8W
R606 VRD-ST2CD102J J AA 1 kohm,1/6W
R607 VRD-MN2BD333J J AA 33 kohms,1/8W
R608 VRD-MN2BD683J J AA 68 kohms,1/8W
R609 VRD-MN2BD474J J AA 470 kohms,1/8W
R610 VRD-MN2BD153J J AA 15 kohms,1/8W
R611 VRD-MN2BD104J J AA 100 kohm,1/8W
R612 VRD-ST2CD105J J AA 1 Mohm,1/6W
R613 VRD-MN2BD824J J AA 820 kohms,1/8W
R614 VRD-ST2CD394J J AA 390 kohms,1/6W
R615 VRD-MN2BD154J J AA 150 kohms,1/8W
R616 VRD-ST2CD102J J AA 1 kohm,1/6W
R617 VRD-ST2CD224J J AA 220 kohms,1/6W
R618 VRD-MN2BD224J J AA 220 kohms,1/8W
R619 VRD-ST2CD225J J AA 2.2 Mohms,1/6W
R620 VRD-MN2BD184J J AA 180 kohms,1/8W
R621 VRD-MN2BD330J J AA 33 ohms,1/8W
R622 VRD-MN2BD104J J AA 100 kohm,1/8W
R623,624 VRD-ST2EE271J J AA 270 ohms,1/4W
R625~627 VRD-MN2BD104J J AA 100 kohm,1/8W
R629 VRD-ST2CD103J J AA 10 kohm,1/6W
R632~635 VRD-ST2CD103J J AA 10 kohm,1/6W
R636 VRD-MN2BD683J J AA 68 kohms,1/8W
R637 VRD-MN2BD102J J AA 1 kohm,1/8W
R638 VRD-MN2BD473J J AA 47 kohms,1/8W
R640 VRD-MN2BD102J J AA 1 kohm,1/8W
R642 VRD-MN2BD223J J AA 22 kohms,1/8W
R643,644 VRD-MN2BD102J J AA 1 kohm,1/8W
R645 VRD-MN2BD223J J AA 22 kohms,1/8W
R646~648 VRD-MN2BD102J J AA 1 kohm,1/8W
R649 VRD-MN2BD103J J AA 10 kohm,1/8W
R650 VRD-ST2CD683J J AA 68 kohms,1/6W
R651,652 VRD-MN2BD103J J AA 10 kohm,1/8W
R653 VRD-MN2BD102J J AA 1 kohm,1/8W
R654 VRD-ST2CD102J J AA 1 kohm,1/6W
R655 VRD-MN2BD102J J AA 1 kohm,1/8W
R656 VRD-ST2CD103J J AA 10 kohm,1/6W
R658 VRD-MN2BD473J J AA 47 kohms,1/8W
R659 VRD-MN2BD102J J AA 1 kohm,1/8W
R660 VRD-MN2BD103J J AA 10 kohm,1/8W
R661 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R662 VRD-MN2BD103J J AA 10 kohm,1/8W
R663~665 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R666 VRD-MN2BD102J J AA 1 kohm,1/8W
R667,668 VRD-ST2CD102J J AA 1 kohm,1/6W
R669,670 VRD-ST2CD103J J AA 10 kohm,1/6W
R671 VRD-MN2BD103J J AA 10 kohm,1/8W
R672 VRD-ST2CD103J J AA 10 kohm,1/6W
R673~675 VRD-ST2CD102J J AA 1 kohm,1/6W
R676 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R678~694 VRD-ST2CD102J J AA 1 kohm,1/6W
R695~697 VRD-ST2CD681J J AA 680 ohms,1/6W
R698~700 VRD-ST2CD821J J AA 820 ohms,1/6W
R701~703 VRD-ST2CD102J J AA 1 kohm,1/6W
R704 VRD-MN2BD473J J AA 47 kohms,1/8W
R705,706 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R707 VRD-MN2BD152J J AA 1.5 kohms,1/8W

DESCRIPTION

– 3 –

CD-BA180

PRICE

RANK

R708 VRD-ST2CD103J J AA 10 kohm,1/6W
R709,710 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R711 VRD-MN2BD104J J AA 100 kohm,1/8W
R712,713 VRD-ST2CD272J J AA 2.7 kohms,1/6W
R714 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R715 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R716 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R717 VRD-MN2BD683J J AA 68 kohms,1/8W
R718 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R719 VRD-ST2CD103J J AA 10 kohm,1/6W
R720 VRD-MN2BD104J J AA 100 kohm,1/8W
R721 VRD-ST2CD183J J AA 18 kohms,1/6W
R722 VRD-ST2CD333J J AA 33 kohms,1/6W
R723 VRD-ST2CD101J J AA 100 ohm,1/6W
R724 VRD-ST2CD104J J AA 100 kohm,1/6W
R725 VRD-ST2CD103J J AA 10 kohm,1/6W
R801,802 VRD-ST2EE223J J AA 22 kohms,1/4W
R803 VRS-VV3DA681J J AC 680 ohms,2W
R804 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R805 VRD-ST2CD473J J AA 47 kohms,1/6W
R806 VRD-ST2CD100J J AA 10 ohm,1/6W
R807 VRD-ST2CD123J J AA 12 kohms,1/6W
R831 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R832 VRD-RT2HD330J J AA 33 ohms,1/2W
R833 VRD-ST2CD223J J AA 22 kohms,1/6W
R841 VRD-ST2CD223J J AA 22 kohms,1/6W
R842 VRD-RT2HD3R3J J AA 3.3 ohms,1/2W
R851 VRD-ST2CD103J J AA 10 kohm,1/6W
R901,902 VRD-ST2CD563J J AA 56 kohms,1/6W
R903,904 VRD-ST2CD821J J AA 820 ohms,1/6W
R905,906 VRD-ST2CD102J J AA 1 kohm,1/6W
R907,908 VRN-VV3AAR10J J AB 0.1 ohm,1W
R909,910 VRD-ST2CD102J J AA 1 kohm,1/6W
R911,912 VRD-ST2CD103J J AA 10 kohm,1/6W
R913~915 VRD-ST2CD563J J AA 56 kohms,1/6W

! R918,919 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R920 VRD-ST2CD223J J AA 22 kohms,1/6W
R931,932 VRD-MN2BD102J J AA 1 kohm,1/8W
R933,934 VRD-ST2CD683J J AA 68 kohms,1/6W
R951,952 VRD-RT2HD331J J AA 330 ohms,1/2W
R953,954 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R971 VRD-ST2CD102J J AA 1 kohm,1/6W
R972 VRD-ST2CD683J J AA 68 kohms,1/6W
R973 VRD-ST2CD153J J AA 15 kohms,1/6W
R975 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W

DESCRIPTION

OTHER CIRCUITRY PARTS

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI402/CNS402 QCNWN1561AWZZ J AF Connector Ass’y,5Pin
BI701/CNS701 QCNWN1562AWZZ J AH Connector Ass’y,10/10Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP3A 92LCONE6P53254 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP11 92LCONE5P53254 J AB Plug,5Pin
CNP12 92LCONEAP53254 J AD Plug,10Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP102 QCNCM705GAFZZ J AB Plug,7Pin
CNP301 92LCONE3P5268 J AC Plug,3Pin
CNP401 QCNCWZG23AWZZ J AK Socket,23Pin
CNP702 QCNCWZF23AWZZ J AK Socket,23Pin
CNP703 QCNCWZF13AWZZ J AC Socket,13Pin
CNP801 QCNCM049BAWZZ J AC Plug,2Pin
CNP802 QCNCM035HAWZZ J AB Plug,8Pin
CNP951 QCNCW012EAWZZ J AC Socket,5Pin
CNP971 92LCONE2P53253 J AB Plug,2Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS971 QCNWN1389AWZZ J AC Connector Ass’y,2Pin

! F801,802 92LFUSET402D J AC Fuse,4A/125V
! F803 92LFUSET202D J AD Fuse,2A/250V

FC701 QCNWN1564AWZZ J AG Flat Cable,23Pin
FC702 QCNWN1544AWZZ J AE Flat Cable,13Pin
FL701 VVKBJ11LM02T1 J FL Display
FW951 QCNWN1563AWZZ J AD Flat Wire,5Pin
JK951 QJAKM0004AWZZ J AK Jack,Headphones
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LTWMEN7E6Y J AR Motor with Worm Pulley

[T/T Up/Down Loading]

NO.

M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
RL951 RRLYD0014AWZZ J AK Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO401 QSOCJ0219AWZZ J AD Jack,Video/AUX
SO801 QSOCA0214AWZZ J AD Socket,AC Input
SO901 QTANA0808AWZZ J AF Terminal,Speaker
SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]
SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]
SW601 92LSWICH1663T J AC Switch,Key Type [POWER]
SW602 92LSWICH1663T J AC Switch,Key Type [CLOCK]
SW603 92LSWICH1663T J AC Switch,Key Type

SW609 92LSWICH1663T J AC Switch,Key Type [DISC SKIP]
SW610 92LSWICH1663T J AC Switch,Key Type

SW611 92LSWICH1663T J AC Switch,Key Type [DIMMER]
SW612 92LSWICH1663T J AC Switch,Key Type

SW613 92LSWICH1663T J AC Switch,Key Type [EQUALIZER]
SW614 92LSWICH1663T J AC Switch,Key Type [VOLUME UP]
SW615 92LSWICH1663T J AC Switch,Key Type

SW616 92LSWICH1663T J AC Switch,Key Type [CD]
SW617 92LSWICH1663T J AC Switch,Key Type [TAPE]
SW618 92LSWICH1663T J AC Switch,Key Type

SW619 92LSWICH1663T J AC Switch,Key Type
SW620 92LSWICH1663T J AC Switch,Key Type
SW621 92LSWICH1663T J AC Switch,Key Type [PRESET UP]

SW622 92LSWICH1663T J AC Switch,Key Type
SW623 92LSWICH1663T J AC Switch,Key Type [STOP]

SW625 92LSWICH1663T J AC Switch,Key Type [REC/PAUSE]
SW626 92LSWICH1663T J AC Switch,Key Type

SW627 92LSWICH1663T J AC Switch,Key Type [VIDEO/AUX]
SW628 92LSWICH1663T J AC Switch,Key Type

PARTS CODENO. PARTS CODE

PRICE
RANK

DESCRIPTION

[TIMER/SLEEP]

[OPEN/CLOSE]

[X-BASS/DEMO]

[VOLUME DOWN]

[TUNING/TIME DOWN]
[MEMORY/SET]
[PRESET DOWN]

[PLAY/REPEAT]

[TUNING/TIME UP]

[TUNER (BAND)]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LMCUSN1524A J AD Cushion

! 306 92LHPC1LXASY J BD Pickup Unit Ass'y

306- 1 ———— — Pickup Unit
306- 2 NGERR0043AFZZ J AC Gear,Rack

306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×ø3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

(Not Replacement Item)

CABINET PARTS

201 92LCAB3286AASY J Front Cabinet Ass’y
201- 1 ———— — Front Panel

201- 2 GDORF0074AWSA J AE Cassette Holder,Tape 1
201- 3 GDORF0075AWSA J AE Cassette Holder,Tape 2
201- 4 GCOVA1251AWSA J AH Cover,Cassette Holder,Tape 1
201- 5 GCOVA1252AWSA J AH Cover,Cassette Holder,Tape 2
201- 6 HDECQ0521AWSA J AD Panel,Cassette Holder,Tape 1
201- 7 HDECQ0522AWSA J AD Panel,Cassette Holder,Tape 2
201- 8 HDECQ0614AWSA J Panel,Amp.
201-10 JKNBZ0649AWSA J AF Button,Volume
201-11 JKNBZ0648AWSA J AG Button,Center Operation
201-12 JKNBZ0657AWSA J AF Button,Power/Clock
201-13 JKNBZ0658AWSA J AF Button,Function,A
201-14 JKNBZ0659AWSA J AF Button,Function,B
201-15 JKNBZ0660AWSA J AF Button,Tuning
201-16 JKNBZ0661AWSA J AE Button,Dimmer
201-20 GCOVA1258AWSA J AB Cover,Power LED

(Not Replacement Item)

– 4 –

CD-BA180

PARTS CODE NO. PARTS CODE

201-21 MLIFP0008AWZZ J AD Damper
201-22 MSPRD0151AWFJ J Spring,Cassette Holder,Tape 1
201-23 MSPRD0152AWFJ J Spring,Cassette Holder,Tape 2
201-24 92LBADGE1671A J AC Badge,SHARP
201-25 JKNBZ0650AWSA J AF Button,Disc Skip/X-BASS
202 92LCAB3283BASY J AM Side Panel Ass’y,Left
202- 1 ———— — Side Panel,Left

202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3283CASY J AM Side Panel Ass’y,Right
203- 1 ———— — Side Panel,Right

203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 92LCOV3303AASY J AK CD Tray Cover Ass’y
204- 1 ———— — Cover,CD Tray

204- 2 GCOVA1254AWSA J AE Cover,CD Tray,Left
204- 3 GCOVA1255AWSA J AE Cover,CD Tray,Right
205 GCAB-1184AWSA J AP Top Cabinet
206 GITAR0625AWSA J Rear Panel
208 LANGK0110AWFW J AE Bracket,Cassette Lock,Tape 1
209 LANGK0111AWFW J AE Bracket,Cassette Lock,Tape 2
210 LANGK0192AWFW J AD Bracket,Fan Motor
213 LCHSM0094AWFW J AP Main Chassis
214 LHLDZ1241AWZZ J AE Holder,FL Display
219 MLOKC0003AWZZ J AD Lock Lever,Cassette,Tape 1
220 MLOKC0004AWZZ J AD Lock Lever,Cassette,Tape 2
221 MSPRD0109AWFJ J AB Spring,Cassette Lock,Tape 1
222 MSPRD0110AWFJ J AB Spring,Cassette Lock,Tape 2
223 NFANP0001AWZZ J AD Rotary Fan
224 92LPT0331105 J AM Turntable
225 PCUSG0022AWZZ J AB Cushion,Leg
226 PRDAR0148AWFW J AR Heat Sink
230 QCNWN1615AWZZ J AC Lug Wire

! 231 QFSHD0001AWZZ J AB Holder,Fuse

232 92LBE241414 J AD Belt
233 92LCSPR1431C J AA Spring,Ring
234 92LEVA0330702 J AD Cushion,CD Player Unit
235 92LMAG0104302 J AE Magnet
236 92LMT0304302 J AB Plate,Metal
237 92LNBAND1318A J AA Nylon Band,80mm
238 92LNM0305401 J AB Velvet Cushion
239 92LPT0303002 J AB Roller
240 92LPT0304303 J AB Lever,Stop
241 92LPT0304304 J AB Stopper,Cam Gear
242 92LPT0304305 J AE Lever,Lock
243 92LPT0304306 J AG Stabilizer
244 92LPT0304307 J AC Support,Cam
245 92LPT0304308 J AB Lock Gear Pin
246 92LPT0304309 J AB Cap,Pulley Stopper
247 92LPT0305413 J AG Cam Gear Lower
248 92LPT0309506 J AD Gear,Turntable Drive
249 92LPT0309507 J AD Gear,Open/Close Drive
250 92LPT0309508 J AD Gear,Planet
251 92LPT0309509 J AD Gear,Drive
252 92LPT0309510 J AE Gear,Pulley
253 92LPT0309511 J AD Gear,Middle
254 92LPT0311101 J AB Lever,Clamp
255 92LPT0311102 J AC Lever,Disc
256 92LPT0312005 J AL Gear,Cam
257 92LPT0320201 J AE Support,Stabilizer
258 92LPT0330301 J AU Chassis,CD Player Unit
259 92LPT0330803 J AK CD,Chassis
260 92LPT0331003 J AT Shassis,Disc Tray
262 92LSP0304303 J AB Spring,Stopper
263 92LSP0304305 J AB Spring,Lock
264 92LSP0304306 J AB Spring,Lock Gear
267 LANGK0184AWFW J AG Bracket,Main PWB
268 KMECB0011AWZZ J BH Tape Mechanism Ass’y
269 PSHEZ0067AWZZ J AC Sheet,PWB Support
270 LANGF0039AWFW J AD Bracket,Power Transformer
271 QLUGP0002AWZZ J AB Lug Terminal
272 QLUGP0001AWZZ J AC Lug Terminal
601 XBBSD20P04000 J AA Screw,ø2×4mm
604 XEBSD30P12000 J AA Screw,ø3×12mm
605 XESSD30P10000 J AA Screw,ø3×10mm
606 XHBSD26P04000 J AA Screw,ø2.6×4mm
607 XJBSD30P12000 J AA Screw,ø3×12mm
608 XJBSD30P10000 J AA Screw,ø3×10mm
609 XJBSD30P14000 J AA Screw,ø3×14mm
611 XJSSD30P10000 J AA Screw,ø3×10mm
612 LX-HZ0009AWFD J AC Screw,Special
613 XHBSD40P10000 J AA Screw,ø4×10mm

PRICE

RANK

DESCRIPTIONNO.

(Not Replacement Item)

(Not Replacement Item)

(Not Replacement Item)

PRICE

RANK

614 LX-JZ0010AFFD J AA Screw,ø3×10mm
615 XEBSD30P10000 J AA Screw,ø3×10mm
616 LX-BZ2222AXZZ J AB Screw,Special
617 LX-JZ0004AWFD J AA Screw,ø3×12mm
618 92LSC0308MBZI J AB Screw,ø3×8mm
619 92LSC0308RBZI J Screw,ø3×8mm

DESCRIPTION

ACCESSORIES/PACKING PARTS

! QACCD0028AWZZ J AC Power Supply Cord

QANTL0007AWZZ J AK AM/FM Loop Antenna
SPAKA0245AWZZ J AM Packing Add.
SPAKC0989AWZZ J Packing Case
SPAKP0013AWZZ J AC Polyethylene Bag,Unit
SPAKZ0573AWZZ J AB CD Tray Sheet
SPAKZ0623AWZZ J AL Center Pad
TINSZ0588AWZZ J Operation Manual
TLABN0112AWZZ J AA Serial No.Label
TLABR1152AWZZ J Label,Bar Code
TLABZ0692AWZZ J AC Label,Feature,Tape 1
TLABZ0697AWZZ J AC Label,Feature,Tape 2
92LBAG1460C1 J AB Polyethylene Bag,Accessories
RRMCG0219AWSA J AR Remote Control
GFTAB1022AWSB J AK Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~4 92LPWB3286MANS J — Main/Display/Headphones/AC
PWB-B 92LPWB3303CDUS J — CD Servo

PWB-C QPWBF0027AWZZ J AD CD Motor (PWB Only)
PWB-D ———— — Tape Mechanism
PWB-E 92LPC99C017 J AE CD Loading Motor (PWB Only)

Socket (Combined Ass’y)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

CP-BA180

SPEAKER BOX PARTS

901 92L126-0009 J BA Front Panel Ass’y,Left
902 92L126-0010 J BA Front Panel Ass’y,Right
903 92L121-0178 J AP Net Frame Ass’y
904 92L051-0079 J Speaker Box Ass’y,Left
905 92L051-0085 J Speaker Box Ass’y,Right
907 92L394-0056 J AC Foot Cushion
908 92L394-0055 J AC Port Cushion
909 92L351-0373 J Label,Specifications
912 92L319-0027 J AE Catching Holder
913 92L372-0109 J AB Screw,ø3×10mm
914 92L372-0124 J AB Screw,ø4×12mm
915 92L122-0048 J AG Speaker Cord Ass’y

SP1,2 VSP0051TBN98A J AQ Tweeter
SP3,4 VSPA010WB24WA J AU Woofer
SP5,6 VSPA010WB24WA J AU Woofer

(With Capacitor)

PACKING PARTS

92L411-0075 J AG Polyethylene Bag,Front Speaker
92L412-0133 J AN Packing Add.,Top/Bottom
92L416-0068 J AC Layer Pad

GBOXS0040AWM1

SPEAKER BOX PARTS

901 92L60-00-1190 J AP Net Frame Ass’y
902 92L32-01-0510 J Bottom Cabinet
903 92L37-03-0110 J AK Speaker Cord
904 92L33-01-1680 J Label,Part Cord
905 92L35-02-0320 J AB Screw,ø3×14mm
SP1,2 VSPA010PB23WA J Speaker

PACKING PARTS

92L41-05-0340 J Packing Add.,Top/Bottom
92L41-08-0360 J Polyethylene Bag,Rear Speaker

– 5 –

CD-BA180

CD-BA180

701

A

306

306-2

304

701

B

306-1

704

306-3

302

C

301

702

D

303

703x2

E

M1

F

305

M2

G

305x2

SW4

PWB-C

H

1

23456

Figure 6 CD MECHANISM EXPLODED VIEW

– 39 –

– 6 –

CD-BA180

CD-BA180

A

608x2

B

201

C

201-21

201-24

D

616

PWB-A3

E

225

202-1

201-13

201-1

202

201-20

201-15

201-12

202-2

201-14

201-11

607x2

614x3

271

PWB-A2

201-25

214

201-21

231x6

201-16

201-10

PWB-A1

615x15

FL701

612

221

607x3

606x2

219

223

233

614x2

Q831

IC851

268

M901

601x2

609x2

272

IC841

TAPE

MECHANISM

208

210

IC901

230

226

213

206

Silicon
grease

TAPE 2

FF/REW

TAPE 2

Flywheel

Ass'y

605x6

PWB-D

BELT CONNECTION

Roller

Ass'y

Motor

Main Belt

209

606x2

608

222

220

612

617x9

Motor

TAPE 1

Flywheel Ass'y

TAPE 1

FF/REW

Roller Ass'y

267

608

608

F

201-8

G

201-6

H

1

201-22

201-3

201-2

201-4

201-5

201-7

23456

225

270

611x2

201-23

613x4

270

PT801

237x5

PWB-A4

203-1

203

203-2

608x2

Figure 7 CABINET EXPLODED VIEW (1/2)

– 40 –

– 7 –

CD-BA180

248

CD
MECHANISM

205

257

235

236

243

224

259

239

239

260

204-2

204-1

204-3

258

269

204

240

239x4

604x2

604x2

250x4

256

247

262

238

241

244

618

251

252

255

249
253

PWB-B

239

254

246

232

263

234

M3

M3

PWB-E

242

SW3

SW2

SW1

619

264

245

CD-BA180

A

B

C

D

E

F

G

H

1

23456

Figure 8 CABINET EXPLODED VIEW (2/2)

– 41 –

– 8 –

CD-BA180

CP-BA180

A

915
(with
Capacitor C1,2)

904(LEFT)

905(RIGHT)

B

909

914x4

C

903

914x4

SP3(L-CH)
SP4(R-CH)

SP1(L-CH)

SP2(R-CH)

D

SP5(L-CH)

SP6(R-CH)

913x2

912x4

E

901(LEFT)

902(RIGHT)

908

907x2

SUB

WOOFER

F

SP5(L-CH)

SP6(R-CH)

RD

RD

907x2

RD

C1,2

G

TWEETER
SP1(L-CH)

SP2(R-CH)

C1,2

Capacitor

2.2µF,50V

WOOFER

SP3(L-CH)

Electrolytic

(N.P.)

BK

BK

BK

SP4(R-CH)

SUB

H

WOOFER

SP5(L-CH)

SP6(R-CH)

WOOFER

SP3(L-CH)

SP4(R-CH)

Capacitor

2.2µF,50V

Electrolytic

(N.P.)

TWEETER
SP1(L-CH)

SP2(R-CH)

1

23456

Figure 9 SPEAKER EXPLODED VIEW (1/2)

– 42 –

– 9 –

GBOXS0040AWM1

A

CD-BA180

905x6

B

904

SP1(L-CH)

C

D

SP2(R-CH)

903

E

901

902

SP1(L-CH)

F

G

(White Line)

H

1

23456

Figure 10 SPEAKER EXPLODED VIEW (2/2)

– 43 –

– 10 –

SP2(R-CH)

BK

BK

CD-BA180

COPYRIGHT © 2000 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

– 44 –

SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

A0007-164DS•HA•M

LAG(MEX)
