Sharp AY-XP07ER, AY-XP09ER, AY-XP12ER Operating Manual
R
Air Conditioner
AY-XP07ER
AY-XP09ER
AY-XP12ER
SPLIT TYPE
ROOM AIR CONDITIONER
OPERATION MANUAL
CLIMATISEUR INDIVIDUEL
EN DEUX PARTIES
NOTICE D'UTILISATION
ACONDICIONADOR DE AIRE
DE DOBLE SERVICIO
ENGLISH
ENGLISH
FRANÇAIS
• Uses ozone layer friendly refrigerant R410A.
• Utilise un réfrigérant qui n’attaque pas la couche
d’ozone, le R410A.
• Utiliza refrigerante R410A que no daña la capa de
ozono.
• Utilizza il refrigerante R 410A che non danneggia il
buco nell’ozono.
• Usa refrigerante R410A amigo da camada de ozono.
• Χρησιµοποιεί ψυκτικ R410A αβλαβές για το
στρώµα του ζοντος.
Использует охладитель R-410A безвредный
•
для озонового слоя.
INDOOR UNIT
UNITE INTERIEURE
UNIDAD INTERIOR
UNITA' INTERNA
UNIDADE INTERIOR
ΕΣΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
DZENHTZZBQ ;KJR
AY-XP07ER
AY-XP09ER
AY-XP12ER
OUTDOOR UNIT
UNITE EXTERIEURE
UNIDAD EXTERIOR
UNITA' ESTERNA
UNIDADE EXTERIOR
ΕΞΩΤΕΡΙΚΗ ΣΥΣΚΕΥΗ
ZFHEÖZBQ ;KJR
AE-X07ER
AE-X09ER
AE-X12ER
MANUAL DE INSTRUCCIONES
CONDIZIONA TORE D'ARIA
DA CAMERA TIPO SPLIT
MANUALE DI ISTRUZIONE
AR CONDICIONADO
DE DUAS UNIDADES
MANUAL DE INSTRUÇÕES
ΑΙΡΚΟΝΤΙΣΙΟΝ ∆ΩΜΑΤΙΟΥ
ΤΥΠΟΥ SPLIT
ΕΓΧΕΙΡΙ∆ΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
КОМНАТНЫЙ КОНДИЦИОНЕР
ДВУБЛОЧНОГО ТИПА
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
ESPAÑOL
ITALIANO
PORTUGUÊS
ΕΛΛΗΝΙΚΑ
HECCRBQ
ENGLISH
Thank you for purchasing a SHARP air conditioner. Please read this manual carefully
before operating the product.
CONTENTS
• PRECAUTIONS ........................................E-1
• PART NAMES...........................................E-3
• SETTING DEODORANT DUST
COLLECTING FILTER..............................E-5
• USING THE REMOTE CONTROL ...........E-6
• BASIC OPERATION .................................E-8
•
ADJUSTING THE AIR FLOW DIRECTION .....
• PROGRESSIVE AIRFLOW ......................E-11
• FULL POWER OPERATION ....................E-11
• ONE-HOUR OFF TIMER ..........................E-12
E-10
• SELF CLEAN OPERATION................. E-12

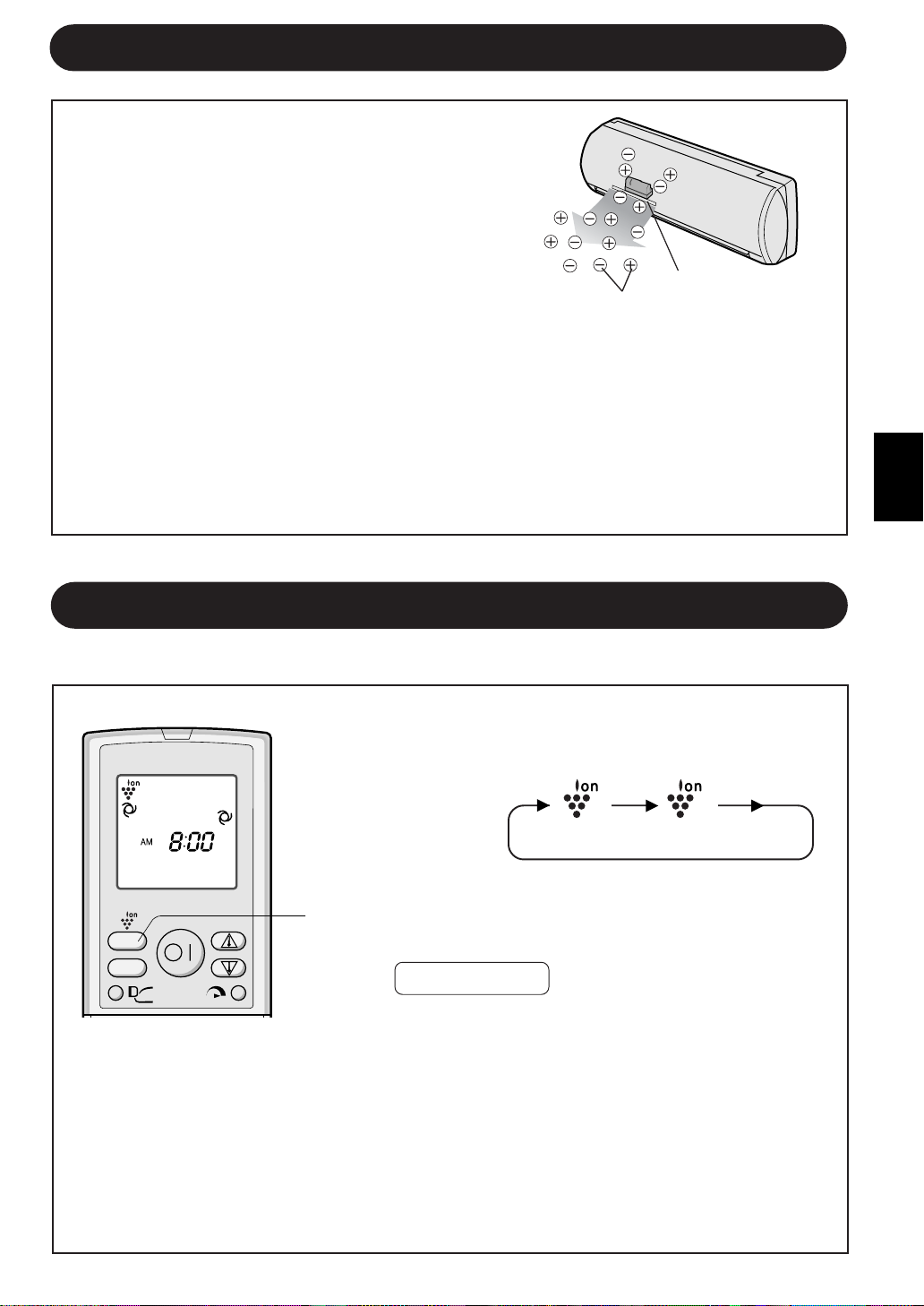

• TIPS ABOUT PLASMACLUSTER
OPERATION........................................ E-13
• PLASMACLUSTER OPERATION ....... E-13
• TIMER OPERATION............................ E-14
• AUXILIARY MODE .............................. E-16
• MAINTENANCE ................................... E-16
•

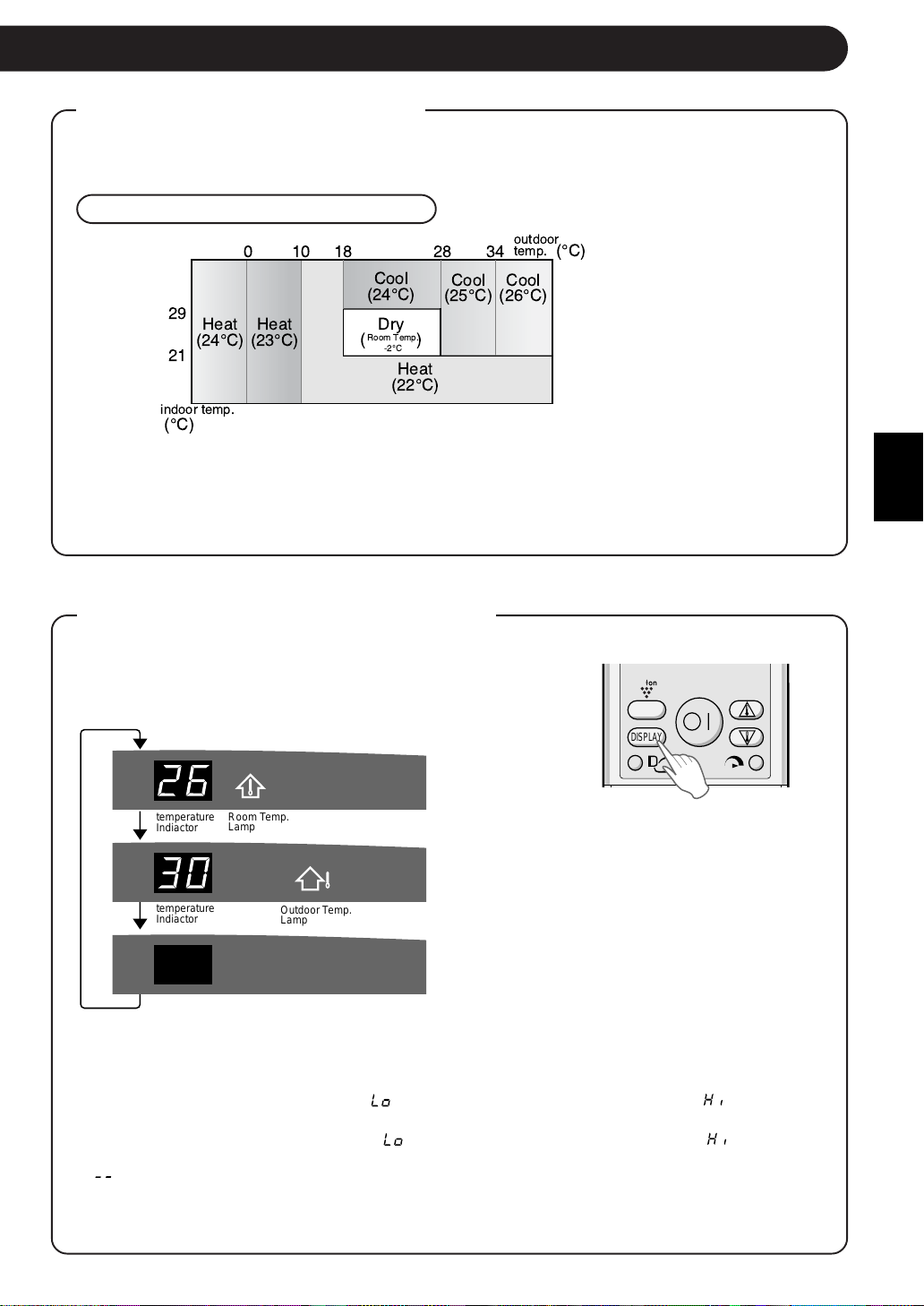

ADDITIONAL NOTES ON OPERATION .....
• TIPS ON SAVING ENERGY ................ E-19
• BEFORE CALLING FOR SERVICE .... E-20
PRECAUTIONS
WARNINGS FOR USE
Do not pull or deform the power supply cord. Pulling and misuse of the power supply cord
1
can result in damage to the unit and cause electrical shock.
Be careful not to expose your body directly to the outlet air for a long time. It may affect
2
your physical conditions.
When using the air conditioner for infants, children, elderly, bedridden, or disabled people
3
make sure the room temperature is suitable for those in the room.
E-19
ENGLISH
Never insert objects into the unit. Inserting objects can result in injury due to the high
4
speed rotation of internal fans.
Ground the air conditioner without fail. Do not connect the grounding wire to gas pipe,
5
water pipe, lightning rod or telephone grounding wire. Incomplete grounding may cause
electric shock.
If anything is abnormal with the air conditioner (ex. a burning smell), stop the operation
6
immediately and turn the circuit breaker OFF.
The appliance shall be installed in accordance with national wiring regulations. Improper
7
cable connection can cause the power supply cord, plug and the electrical outlet to
overheat and cause fire.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent
8
or a similarly qualified person in order to avoid a hazard. Use only the manufacturespecified power cord for replacement.
WARNINGS FOR INSTALLATION / REMOVAL / REPAIR
•Do not attempt to install/remove/repair the unit by yourself. Incorrect work will cause electric
shock, water leak, fire etc. Consult your dealer or other qualified service personnel for the
installation/removal/repair of the unit.
This equipment complies with the requirements of Directives 89/336/EEC and 73/23/
EEC as amended by 93/68/EEC.
E-1
PRECAUTIONS
CAUTIONS FOR USE
Open a window or door periodically to ventilate the room, especially when using gas
1
appliances. Insufficient ventilation may cause oxygen shortage.
Do not operate the buttons with wet hand. It may cause electric shock.
2
For safety, turn the circuit breaker off when not using the unit for an extended period of
3
time.
Check the outdoor unit mounting rack periodically for wear and to make sure it is firmly
4
in place.
Do not put anything on the outdoor unit nor step on it. The object or the person may fall
5
down or drop, causing injury.
This unit is designed for residential use. Do not use for other applications such as in a
6
kennel or greenhouse to raise animals or grow plants.
Do not place a vessel with water on the unit. If water penetrates into the unit, electrical
7
insulations may deteriorate and cause electric shock.
Do not block the air inlets nor outlets of the unit. It may cause insufficient performance
8
or troubles.
Be sure to stop the operation and turn the circuit breaker off before performing any
9
maintenance or cleaning. A fan is rotating inside the unit and you may get injured.
Do not splash or pour water directly on the unit. Water can cause electrical shock or
10
equipment damage.
This appliance is not intended for use by young children or infirm persons without
11
supervision.
Young children should be supervised to ensure that they do not play with the appliance.
CAUTIONS FOR LOCATION / INSTALLATION
• Make sure to connect the air conditioner to power supply of the rated voltage and
frequency.
Use of a power supply with improper voltage and frequency can result in equipment
damage and possible fire.
• Do not install the unit in a place where inflammable gas may leak. It may cause fire.
Install the unit in a place with minimal dust, fumes and moisture in the air.
•Arrange the drain hose to ensure smooth drainage. Insufficient drainage may cause wetting
of the room, furniture etc.
•Make sure a leak breaker or a circuit breaker is installed, depending on the installation
location, to avoid electrical shock.
E-2
PART NAMES
INDOOR UNIT
1
2
3
4
5
6
7
8
9
0
q
w
e
1 Inlet (Air)
2 PLASMACLUSTER Lamp
(blue, green)
3 DEODORANT DUST COL-
LECTION FILTER
(non-washable)
4 Open Panel
5 Air Filters
6 AUX. Button
7 Indicator
8 Power Supply Cord
9 Vertical Adjustment Louvres
0 Horizontal Adjustment
Louvres
q Outlet (Air)
w RECEIVER Window
e Remote Control
ENGLISH
(Open Panel Closed)
OUTDOOR UNIT
r
t
y
u
i
o
p
a
s
r OUTDOOR Temp. Lamp
(green )
t ROOM Temp. Lamp
(green )
y TEMPERATURE INDICATOR
u TIMER Lamp (orange )
i OPERATION Lamp (red )
o Inlet (Air)
p Refrigerant Tube and
Interconnecting Cord
a Drainage Hose
s Outlet (Air)
NOTE: Actual units might vary slightly from those shown above.
E-3
PART NAMES
REMOTE CONTROL
1
2
1 TRANSMITTER
2 DISPLAY (Liquid Crystal Display)
3 PLASMACLUSTER Button
4 DISPLAY Button
5 ON/OFF Button
6 THERMO. (Thermostat) Button
3
7 FULL POWER Button
8 PROGRESSIVE AIRFLOW Button
9 MODE Button
0 TIMER ON Button (for setting the timer)
q TIMER OFF Button (for setting the timer)
w ONE-HOUR OFF TIMER Button
e TIME ADVANCE Button
r TIME REVERSE Button
t SELF CLEAN Button
y TIMER SET/CANCEL Button
u Indicates BATTERY COMPARTMENT is
below this mark
i CLOCK Button
o FAN Button
p SWING Button
DISPLAY
MODE
FAN
SWING
1h
CLEAN
SET/C
4
5
6
7
8
9
0
q
w
e
r
t
y
u
i
o
p
L.C.D. REMOTE CONTROL DISPLAY
a PROGRESSIVE AIRFLOW SYMBOL
s SELF CLEAN SYMBOL
d PLASMACLUSTER SYMBOL
f MODE SYMBOLS
: AUTO : DRY
a
s
d
f
g
h
j
k
l
: HEAT : COOL
g THERMOSTAT SETTING FOR AUTO AND
DRY MODES
h TEMPERATURE INDICATOR
j TRANSMITTING SYMBOL
k FULL POWER SYMBOL
l FAN SPEED SYMBOLS
: AUTO : LOW
: HIGH : SOFT
; TIMER ON INDICATOR/CLOCK
Indicates the on timer preset time or current
time.
31
TIMER OFF INDICATOR
Indicates the preset time for off timer or onehour off timer.
E-4
;
31
SETTING DEODORANT DUST COLLECTION FILTER
The deodorant dust collection filters are packed as accessory of this unit. During
operation of the air conditioner, the filters remove dust and tobacco smoke from the
air and discharges clean air.
Take out the air filters.
1
1 Open the open panel.
2 Push the air filters up slightly to
unlock them.
1
2
3
Filter stopper
3 Pull the air filters down to remove
them.
Set the deodorant dust collection filter
2
under the filter stoppers located on
the air filter.
ENGLISH
Deodorant dust
collection filter
Air filter
3
2
1
Reinstall the air filters
3
1 Reinstall the air filters in the origi-
nal positions.
2 Close the open panel.
3 Push the arrow-marked of the
panel firmly to lock it in place.
Precautions
• The filters are sealed in a plastic bag to keep their dust collection effect.
Do not open the bag until using the filters. (Otherwise the filters life may get shorter.)
• Do not expose the filters to direct sunlight. (Otherwise they may deteriorate.)
E-5
USING THE REMOTE CONTROL
LOADING BATTERIES Use two size-AAA (R03) batteries.
Remove the remote control
1
cover.
Insert batteries in the compart-
2
ment, making sure the ± and
— polarities are correctly
aligned.
• The display indicates "AM
6:00" when batteries are properly installed.
Remote control
cover
Reinstall the cover.
3
-
+
+
-
NOTES:
• The battery life is approximately one year in normal use.
• When you replace the batteries, always change both batteries, and make sure
they are the same type.
• If the remote control does not operate properly after replacing the batteries, take
out the batteries and reinstall them again after 30 seconds.
• If you will not be using the unit for a long time, remove the batteries from the
remote control.
HOW TO USE THE REMOTE CONTROL
Point the remote control towards
the unit’s signal receiver window
and press the desired button. The
unit generates a beep when it receives the signal.
• Make sure there is no curtain or other
object between the remote control and the
unit.
• The remote control can send signals from
up to 7 metres away.
E-6
