Be sure to become thoroughly familiar with this manual to gain
the maximum benefit from the product.
Before installing this product, be sure to read the installation
requirements and cautions sections of the "Operation manual for
general information and copier operation".
Be sure to keep all operation manuals handy for reference
including this manual, the "Operation manual for general
information and copier operation" and operation manuals for any
optional equipment which has been installed.
MODEL
AR-S11
Page
• MAIN FEATURES OF THE
AR-S11
• PART NAMES
• SPECIFICATIONS
• METHODS OF SORTING
COPIES
•
SELECTING THE MODE OF
THE 20-BIN SORTER
• USING THE 20-BIN
SORTER
• MISFEED IN THE 20-BIN
SORTER
• FOR KEY OPERATORS
2
2
2
3
4
5
6
7
20-BIN SORTER
OPERATION MANUAL
MAIN FEATURES OF THE AR-S11
Sort bins
Copies are delivered to
these bins.
Sorter release button (See page 6)
If a misfeed occurs in the 20-bin sorter,
press this button to open the space
between the sorter and the machine.
The 20-bin sorter allows you to sort copies into collated sets (sort mode), or group them by original page.
When installed on an AR-C260 Series machine, sets of up to 20 full-colour copies can be made in sort mode.
PART NAMES
CAUTIONS
● Do not put pressure on the sorter or subject it to undue force (particularly the sort bins).
● Do not place your hands on the sorter during copying because the sorter moves up and down.
NOTES
● To install the 20-bin sorter, a duplex bypass/inverter unit and either a stand/1 x 500 sheet paper drawer, a stand/
3 x 500 sheet paper drawer, or a duplex module/2 x 500 sheet paper drawer must also be installed.
● In printer mode, output is only possible to the top bin.
SPECIFICATIONS
Name 20-BIN SORTER AR-S11
Number of bins 20
Paper output
Bin capacity See the next page.
Paper size
Paper weight
Power supply Supplied from machine (Stand/paper drawer)
Dimensions 519 mm (W) x 545 mm (D) x 820 mm (H) (20-7/16" (W) x 21-15/32" (D) x 32-19/64" (H))
Weight * Approximately 28kg (61.8 lbs.) *without mounting kit
Face down output (however, face up output in non-sort mode when using paper other
than plain paper or heavy paper 1 (paper weight: 106 to 200 g/m
Non sort mode: Max. A3W (12" x 18")
Sort and group mode: Max. A3 (11" x 17")
Non sort mode: 64 to 300 g/m
Sort and group mode: 64 to 105 g/m
2
or 28+ to 54 lbs.))
Min. A5 (7-1/4" x 10-1/2"R)
Min. A5 (8-1/2" x 5-1/2")
2
(17 to 80 lbs.) (Plain paper and special paper
that can be fed according to the paper feeding specifications of
the machine.)
two sheets of Heavy Paper 1 (paper weight: 106 to 200 g/m
28+ to 54 lbs.) can be held in each bin in COVERS mode.)
2
(17 to 28 lbs.) (Plain paper only; however, up to
2
or
2
SPECIFICATIONS
SORTER CAPACITY
Bin 1 bin 1 bin to 20 bins
Mode Non sort Sort Group
64 to 80 g/
Paper weight
A3W, 12" x 18" 60 sheets 60 sheets 10 sheets No No No No No
A3, B4, 11" x17",
8-1/2" x 14", 8-1/2" x 13"
A4, A4R, B5R,
8-1/2" x 11", 8-1/2" x 11"R
Paper size
B5, A5, 8-1/2" x 5-1/2" 100 sheets 100 sheets 10 sheets
7-1/4" x 10-1/2"R 100 sheets 100 sheets 10 sheets No No No No No
*1
The indicated number of sheets is the number that can be held in one bin, and is also the maximum number of original pages that
can be copied at once in sort mode. (See the note on page 5, "Maximum number of original pages")
*2 The indicated number of sheets is the number that can be held in one bin, and is also the maximum number of copies that can
be set in group mode. (See the note on page
*3 Up to two sheets can be held in each bin when used as a cover in COVERS mode.
2
m
(17 to
21 lbs.)
60 sheets 60 sheets 10 sheets
100 sheets 100 sheets 10 sheets
81 to 105
g/m2 (21+
to 28 lbs.)
5
, "
106 to 300
g/m2 (28+
to 80 lbs.)
Maximum number of copies that can be set
64 to 80 g/
m2 (17 to
21 lbs.)
25 sheets*125 sheets*
50 sheets*150 sheets*
50 sheets*150 sheets*
81 to 105
g/m2 (21+
to 28 lbs.)
106 to 200
g/m2 (28+
to 54 lbs.)
1
1
1
No*
No*
No*
".)
3
3
3
64 to 105
g/m2 (17 to
28 lbs.)
25 sheets*
30 sheets*
30 sheets*
106 to 200
g/m2 (28+
to 54 lbs.)
2
No
2
No
2
No
NOTES
● When copying in COVERS mode, take care that the number of copies in one set, including covers, does not
exceed the maximum number of sheets that can be held in one bin as indicated above.
● Copying normally stops when the number of sheets in each bin reaches the limit. This can be disabled with the
"OVERRIDE SORTER BIN CAPACITY LIMIT" key operator program (page 7), allowing copying to continue
even if the limit is exceeded. Note, however, that this may result in misfeeds or copies overflowing from the bin.
● If the [INTERRUPT] key is touched during copying in sort mode or group mode (one-sided copying only), the
mode will automatically switch to non-sort mode. The mode will switch back to the previous mode when the
[INTERRUPT] key is touched once again to exit the interrupt state. (Interrupt is not possible during automatic
two-sided copying (one-sided to two-sided or two-sided to two-sided)).
● When colour copying is performed, much toner may be put on copy paper depending on the image. In this case,
the copies may be curled.
METHODS OF SORTING COPIES
The 20-bin sorter has the following three modes.
● In the diagrams, 5 copies each are made of originals 1, 2, and 3 in each of the modes.
■■■■ Sort mode
One set of copies is sorted into each bin.
■■■■ Group mode
One set of copies grouped by original page is delivered
to each bin. The copies are output face down.
Original
5 sets of copies
(The copies are output face down in each bin.)
Original
5 copies per page
(The copies are output face down in each bin.)
■■■■ Non sort mode
All copies are delivered to the top bin (unsorted).
Plain paper and Heavy Paper 1 (paper weight: 106 to 200 g/m
paper types are output face up.
NOTE
Output to the 20-bin sorter in sort mode and group mode is only possible when the machine is in Copy mode.
2
or 28+ to 54 lbs.) are output face down. All other
3
SELECTING THE MODE OF THE 20-BIN SORTER
OUTPUT
OK
NON SORT
SORT
SORTER CENTRE TRAY
GROUP
SPECIAL MODES
2-SIDED COPY
OUTPUT
READY TO COPY.
AUTO
EXPOSURE
AUTO A4
PAPER SELECT
100
%
COPY RATIO
INTERRUPT
B5
0
A3
A4
A4
DUPLEX
INTERRUPT
READY TO COPY.
0
OK
OUTPUT
SORT
GROUP
CENTRE TRAY
OFFSET
SORTER
1
Touch the [OUTPUT] key in
the main screen.
2
Touch the [SORTER] key.
3
Touch the key of the desired sorter mode
( , , or ).
To have copies delivered to the 20-bin sorter, follow the steps below to switch the output location to the sorter and
select the desired sorter mode (NON SORT, SORT, or GROUP).
[GROUP] key
This key selects group mode.
One set of copies grouped by original page is
output to each sorter bin.
[SORT] key
This key selects sort mode.
One set of sorted copies is output to each sorter
bin.
[NON SORT] key
This key selects non-sort mode.
Copies are output without sorting to the top bin of
the sorter.
[SORTER] key
This key switches the output location to the sorter.
The key is highlighted when the sorter is selected.
4
[CENTRE TRAY] key
This key switches the output location to the centre
tray. The key is highlighted when the centre tray is
selected.
[OK] key
This key closes the output setting screen and
returns you to the main screen.
* When key , , or is touched to select the sorter
mode, the entire key of the selected mode is
highlighted. (When the sorter mode is selected
automatically, the icon above the key is highlighted.)

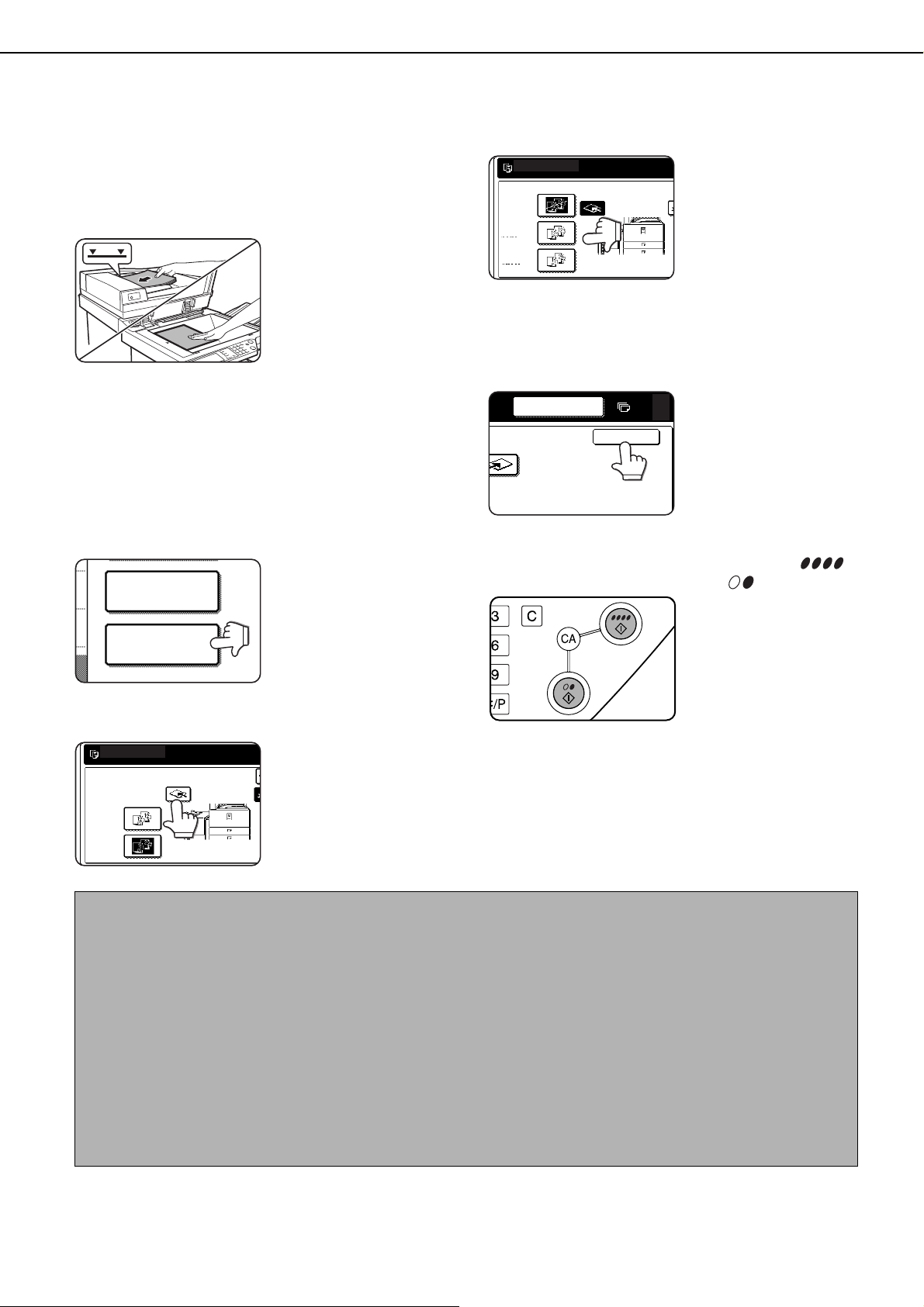

USING THE 20-BIN SORTER
2-SIDED COPY
OUTPUT
READY TO COPY.
OUTPUT
SORT
GROUP
SORTER
OUTPUT
NON SORT
SORT
SORTER
GROUP
READY TO COPY.
OK
CENTRE TRAY
INTERRUPT
0
Place the original in the document feeder
1
tray (when a reversing automatic
document feeder is installed) or on the
document glass. (Refer to page 4-6 of
"Operation manual (for general
information and copier operation)".)
Select copy settings as needed, including
2
two-sided or one-sided copy mode, paper
size select, exposure adjustment, and
copy ratio. (Refer to chapter 5 of
"Operation manual (for general
information and copier operation)".)
Touch the [OUTPUT] key.
3
Touch the [SORTER] key.
4
Touch the key for the desired output
5
mode.
The touched key is
highlighted to indicate
that the function is
enabled.
If the original was placed
on the document glass in
step 1, non-sort mode is
automatically selected. If
the original was placed in the document feeder tray,
sort mode is automatically selected.
Touch the [OK] key.
6
Set the number of copies as needed and
7
press the [COLOUR COPY START ( )]
or [BLACK COPY START ( )] key.
Replace the original with
the next original and
press the [START] key.
Repeat this operation
until all originals have
been scanned.
NOTES
●●●● Maximum number of original pages
This is the maximum number of original pages that can be copied at once in sort mode or group mode.
In sort mode: The limit is the same as the maximum number of sheets that can be held in one bin. (See *1 in
the "SORTER CAPACITY" table on page 3.)
In group mode: Up to 20 sheets (the same as the number of bins in the sorter).
●●●● Maximum number of copies that can be set
The maximum number of copies that can be set in sort mode and group mode is as follows:
In sort mode: Up to 20 copies (the same as the number of bins in the sorter)
In group mode:
● When "Transparency film with insert sheets" or "A3 (11" x 17") Full-bleed" is selected (these are special
functions), the copies are output in non-sort mode. Sort and group modes cannot be selected.
● To cancel a copy run, press the [CLEAR] key. Copying will stop and the number in the copy quantity display will
be reset to 0.
The number of sheets that can be held in one bin (See *2 in the "SORTER CAPACITY" table on page 3.)
5
MISFEED IN THE 20-BIN SORTER
Reset after misfeed in machine
If you removed misfed paper from the machine
in step 2, reset the machine as explained below.
If this is not done, it may not be possible to clear
the misfeed display.
1
Open the duplex bypass/inverter
unit.
Grasp the finger
hold and gently
open the unit.
2
Gently close the duplex bypass/
inverter unit.
When a misfeed has occurred during copying, the message "MISFEED HAS OCCURRED." will appear in the touch
panel display of the operation panel and copying output will stop.
NOTE
Touch the [INFORMATION] key for more detailed information as necessary.
Push the sorter release button and slide
1
the sorter carefully along the guides away
from the machine.
Remove the misfed paper.
2
Remove the misfed
paper from the sorter.
Remove the misfed
paper from the exit area
of the machine.
If you removed misfed
paper from the machine,
perform a "Reset after
misfeed in machine" as
explained at right before
Slide the sorter back toward the machine
3
and latch it into place.
proceeding to step 3.
Confirm that the misfeed
display is cleared.
If the message
indicating a misfeed is
still displayed, check the
inside of the machine
and remove any
remaining misfed paper.
6
FOR KEY OPERATORS
The following key operator programs can be used when the optional 20-bin sorter is installed.
To enter the key operator programs, see "Using the key operator programs" on page 3 of the Key Operator's Guide.
■■■■ Additional programs
All of the additional programs are enabled by touching the checkbox ( ) to make a checkmark appear ( ).
(See "Supplementary explanation of key operation for key operator programs" on page 3 of the Key operator's
guide.)
DISABLING OF SORTER
This program is used to disable use of the 20-bin sorter when it malfunctions.
When disabled, copies cannot be output to the 20-bin sorter.
This program can be selected in the Device control category of general key operator programs. (See page 9 of
the Key operator's guide.)
OVERRIDE SORTER BIN CAPACITY LIMIT
When the 20-bin sorter is installed and copying is performed in sort mode or group mode, copying normally stops
automatically if the capacity limit of each bin is reached.
This program allows you to override the capacity limit and allow copying to continue. Caution should be exercised
when enabling this program, as misfeeds, a machine failure, or copies overflowing from bins may result.
This program can be selected in the Copy settings (Other function settings) category of programs for copy mode.
(See page 13 of the Key operator's guide.)
7
AR-S11
PRINT IN CHINA
2003A KS1
TINSE2447FCZZ
SHARP CORPORATION
Loading...
