SHARP AR-C170M User Manual

Download

• BEFORE USING

THE PRODUCT

•

MANAGING THE MACHINE

• PERIPHERAL DEVICES

• BEFORE MAKING

COPIES

• BASIC PROCEDURE FOR MAKING COPIES

• CONVENIENT COPY FUNCTIONS

•

MACHINE MAINTENANCE (FOR COPYING)

• SPECIFICATIONS

1-1

2-1

3-1

4-1

5-1

6-1

7-1

8-1

Page

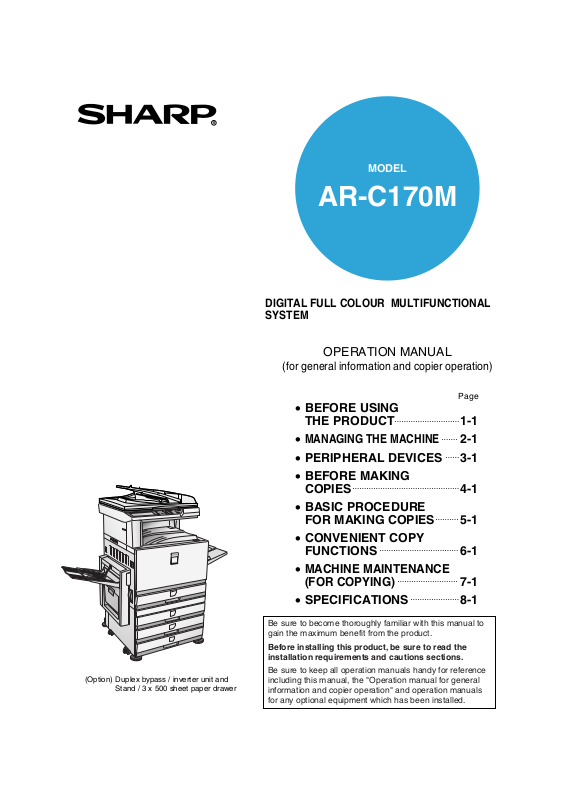

DIGITAL FULL COLOUR MULTIFUNCTIONAL SYSTEM

OPERATION MANUAL

(for general information and copier operation)

MODEL

AR-C170M

(Option) Duplex bypass / inverter unit and

Stand / 3 x 500 sheet paper drawer

Be sure to become thoroughly familiar with this manual to gain the maximum benefit from the product.

Before installing this product, be sure to read the installation requirements and cautions sections.

Be sure to keep all operation manuals handy for reference including this manual, the "Operation manual for general information and copier operation" and operation manuals for any optional equipment which has been installed.

Warranty

While every effort has been made to make this document as accurate and helpful as possible, SHARP Corporation makes no warranty of any kind with regard to its content. All information included herein is subject to change without notice. SHARP is not responsible for any loss or damages, direct or indirect, arising from or related to the use of this operation manual. © Copyright SHARP Corporation 2004. All rights reserved. Reproduction, adaptation or translation without prior written permission is prohibited, except as allowed under copyright laws.

Warning:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

In some areas, the "POWER" switch positions are marked "I" and " " on the copier instead of "ON" and "OFF". The symbol " " denotes the copier is not completely de-energized but in a stand-by condition at this "POWER" switch position. If your copier is so marked, please read "I" for "ON" and " " for "OFF".

Caution! For a complete electrical disconnection, pull out the main plug. The socket-outlet shall be installed near the equipment and shall be easily accessible.

Required in IEC-950 (EN 60 950) - Europe

• The equipment should be installed near an accessible socket outlet for easy disconnection.

Required in Appendix ZB of BS 7002 (En 60 950) — United Kingdom

MAINS PLUG WIRING INSTRUCTIONS

The mains lead of this equipment is already fitted with a mains plug which is either a non-rewireable (moulded) or a rewireable type. Should the fuse need to be replaced, a BSI or ASTA approved fuse to BS1362 marked or

and of the same rating as the one removed from the plug must

be used. Always refit the fuse cover after replacing the fuse on the moulded plug. Never use the plug without the fuse cover fitted. In the unlikely event of the socket outlet in your home not being compatible with the plug supplied either cut-off the moulded plug (if this type is fitted) or remove by undoing the screws if a rewireable plug is fitted and fit an appropriate type observing the wiring code below.

DANGER: The fuse should be removed from the cut-off plug and the plug destroyed immediately and disposed of in a safe manner. Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet as a serious electric shock may occur.

To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW: Earth BLUE: Neutral BROWN: Live

As the colours of the wires in this mains lead may not correspond with coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured GREEN-AND YELLOW must be connected to the terminal in the plug which is marked with the letter E, or by the safety earth symbol

Å@, or coloured green or green-

and-yellow. The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

If you have any doubt, consult a qualified electrician. WARNING: THIS APPARATUS MUST BE EARTHED.

➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢

➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢

➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣

➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢➣➢

Part 1: General Information

0-1

OPERATION MANUALS

The following operation manuals are provided for the machine. Please read the appropriate manuals as needed for the features you wish to learn about.

●●●●

Operation manual (for general information and copier operation) (this manual):

The first half of this manual provides general information about the machine, including safety information, loading paper, removing misfeeds, and regular maintenance. The second half of the manual explains how to use the copy functions.

●●●●

Key operator's guide:

This primarily explains key operator programs for machine management and copier related functions. Key operator programs for the printer, the facsimile and network scanner functions are explained in separate manuals. Key operator programs are used by key operators to configure function settings to meet the needs of the customer.

●●●●

Operation manual (for facsimile):

This manual explains the procedures for using the machine as a facsimile. To use the fax function, the facsimile expansion kit must be installed.

●●●●

Installation guide (for printer):

This explains how to connect the machine to your computer, install the printer driver for Windows, and configure the printer driver settings.

●●●●

Operation manual (for printer)*:

This manual explains the procedures for using the machine as a printer.

●●●●

Operation manual (for network scanner)*:

This manual explains the procedures for using the machine as a network scanner when connected to a computer. To use the network scanner function, the network scanner expansion kit and a 256MB optional memory must be installed. * The Operation manual (for printer) and the Operation manual (for network scanner) are provided as PDF files

on the supplied CD-ROM. These manuals are not provided as printed manuals.

NOTES

● Considerable care has been taken in preparing this manual. If you have any comments or concerns about the manual, please contact your nearest SHARP Service Department.

● This product has undergone strict quality control and inspection procedures. In the unlikely event that a defect or other problem is discovered, please contact your dealer or nearest SHARP Service Department.

● Aside from instances provided for by law, SHARP is not responsible for failures occurring during use of the product or its options, or failures due to incorrect operation of the product and its options, or other failures, or for any damage that occurs due to use of the product.

The display screens, messages, and key names shown in the manual may differ from those on the actual machine due to product improvements and modifications.

Some options may not be available in some countries and regions. This manual assumes that the optional facsimile expansion kit and the network scanner expansion kit have been installed, however, the basic operations of the machine are the same regardless of the peripheral devices that are installed. For the peripheral devices that can be installed, see "Part names and functions of peripheral devices" (1-6).

0-2

Improper installation may damage this product. Please note the following during initial installation and whenever the machine is moved.

1. The machine should be installed near an accessible power outlet for easy connection.

2. Be sure to connect the power cord only to a power outlet that meets the specified voltage and current requirements. Also make certain the outlet is properly grounded.

● For the power supply requirements, see the name plate on the main unit.

3. Do not install your machine in areas that are:

● damp, humid, or very dusty

● exposed to direct sunlight

● poorly ventilated

● subject to extreme temperature or humidity

changes, e.g., near an air conditioner or heater.

4. Be sure to allow the required space around the machine for servicing and proper ventilation.

A small amount of ozone is produced within the printer during operation. The emission level is insufficient to cause any health hazard.

NOTE:

The present recommended long term exposure limit for ozone is 0.1 ppm (0.2 mg/m

) calculated as an 8 hr. timeweighted average concentration. However, since the small amount that is emitted may have an objectionable odor, it is advisable to place the copier in a ventilated area.

INSTALLATION REQUIREMENTS

0-3

Moving this machine

Pull out the four handles as shown below, grasp them firmly, and keep the machine horizontal while moving it.

If the machine has been placed on a stand/paper drawer:

The stand/paper drawer is on casters for moving. Unlock the casters and the adjusters of the stand/paper drawer and gently move the machine taking care to steady it to prevent it from toppling. For locking and unlocking the casters and the adjusters, see page 0-4.

Left side Right side

Bypass tray

Exit tray

Handles

Caution

Two people are required to lift and carry this machine.

If the machine is to be left unused for a long time

If the machine is to be left unused for a month or longer, follow the procedure on pages 2-6 and 2-7 to release the pressure on the fusing roller.

Before lifting the machine, fold up the exit tray and tape it securely to the machine.

Before lifting the machine, fold up the bypass tray and tape it securely to the machine.

0-4

CAUTIONS

1. Do not touch the photoconductive drum. Scratches or smudges on the drum will cause dirty prints.

2. The fusing unit is extremely hot. Exercise care in this area.

3. Do not look directly at the light source. Doing so may damage your eyes.

4. Four adjusters are provided on all optional stand/ paper drawer units. These adjusters should be lowered until they contact the floor. When moving the machine with the optional stand/ paper drawer, be sure to raise the adjusters. Also, unlock the two casters at the front of the optional stand/paper drawer. After moving the machine, lower the four adjusters until they reach the floor and lock the two casters.

5. Do not make any modifications to this machine. Doing so may result in personal injury or damage to the machine.

6. Since this machine is heavy, it is recommended that it be moved by more than one person to prevent injury.

7. When connecting this machine to a computer, be sure to first turn both the computer and the machine off.

8. Do not make copies of anything which is prohibited from copying by law. The following items are normally prohibited from printing by national law. Other items may be prohibited by local law.

●

Money ● Stamps ● Bonds ● Stocks

●

Bank drafts ● Checks ● Passports

●

Driver's licences

"BATTERY DISPOSAL"

THIS PRODUCT CONTAINS A LITHIUM PRIMARY MEMORY BACK-UP BATTERY THAT MUST BE DISPOSED OF PROPERLY. PLEASE CONTACT YOUR LOCAL SHARP DEALER OR AUTHORISED SERVICE REPRESENTATIVE FOR ASSISTANCE IN DISPOSING OF THIS BATTERY.

This product utilizes tin-lead solder, and a fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance: www.eia.org

Fusing unit

Adjuster

Lock

Release

Caster

Release

0-5

OPERATION MANUALS.................................................0-1

INSTALLATION REQUIREMENTS.................................0-2

● Moving this machine..................................................0-3

CAUTIONS......................................................................0-4

CHAPTER 1 BEFORE USING THE PRODUCT

INTRODUCTION.............................................................1-2

MAIN FEATURES...........................................................1-2

PART NAMES AND FUNCTIONS ..................................1-4

● Exterior ......................................................................1-4

● Interior .......................................................................1-5

● Part names and functions of peripheral devices........1-6

● Operation panel.........................................................1-8

● Touch panel...............................................................1-9

AUDITING MODE .........................................................1-11

● Using the machine when the auditing mode is

enabled ...................................................................1-11

CHAPTER 2 MANAGING THE MACHINE

LOADING PAPER...........................................................2-2

● Loading paper in paper tray 1....................................2-2

● Changing the paper size in paper tray 1....................2-2

● Loading paper in the bypass tray ..............................2-4

●

Loading paper in the stand/1 x 500 sheet paper drawer/ stand/3 x 500 sheet paper drawer

................................2-7

● Specifications (stand/1 x 500 sheet paper drawer/

stand/3 x 500 sheet paper drawer)............................2-7

● Loading paper in the duplex module/2 x 500 sheet

paper drawer .............................................................2-8

● Specifications (duplex module/2 x 500 sheet paper

drawer) ......................................................................2-8

● Specifications of paper trays .....................................2-9

● Setting the paper type (except the bypass tray)......2-11

● Setting the paper size when an extra size is loaded

.................................................................................2-11

● Setting the paper type and paper size in the bypass

tray...........................................................................2-12

CUSTOM SETTINGS....................................................2-13

● Operation procedure common to all custom settings

.................................................................................2-13

● About the settings....................................................2-14

REPLACING THE TONER CARTRIDGES...................2-15

STORAGE OF SUPPLIES............................................2-17

MISFEED REMOVAL....................................................2-18

● Misfeed removal guidance.......................................2-18

● Misfeed in the paper feed area................................2-19

● Misfeed in the transport area, fusing area, and exit

area .........................................................................2-20

● Misfeed in the stand/1 x 500 sheet paper drawer....2-21

● Misfeed in the stand/3 x 500 sheet paper drawer....2-21

● Misfeed in the duplex bypass/inverter unit and duplex

module/2 x 500 sheet paper drawer........................2-22

TROUBLESHOOTING..................................................2-24

CHAPTER 3 PERIPHERAL DEVICES

SADDLE STITCH FINISHER ......................................... 3-2

● Part names and functions ......................................... 3-2

● Specifications............................................................ 3-2

● Saddle stitch finisher functions ................................. 3-4

● Using the saddle stitch finisher................................. 3-6

● Staple cartridge replacement and staple jam removal

.................................................................................. 3-7

● Misfeed in the saddle stitch finisher........................ 3-10

● Troubleshooting saddle stitch finisher problems..... 3-12

● Stapling position quick reference guide for duplex

output...................................................................... 3-13

● Relation between print image and saddle stitch ..... 3-14

20-BIN SORTER .......................................................... 3-15

● Part names.............................................................. 3-15

● Specifications.......................................................... 3-15

● Methods of sorting copies....................................... 3-16

● Selecting the mode of the 20-bin sorter.................. 3-17

● Using the 20-bin sorter............................................ 3-18

● Misfeed in the 20-bin sorter .................................... 3-19

LARGE CAPACITY TRAY............................................ 3-20

● Part name ............................................................... 3-20

● Specifications.......................................................... 3-20

● Loading paper in the large capacity tray................. 3-21

● Misfeed in the large capacity tray ........................... 3-22

CONTENTS

0-6

CHAPTER 4 BEFORE MAKING COPIES

PART NAMES AND FUNCTIONS (The Reversing Single

Pass Feeder).................................................................. 4-2

● Exterior ..................................................................... 4-2

● Operation Panel........................................................ 4-3

● Touch Panel (main screen of copy mode)................ 4-4

REVERSING SINGLE PASS FEEDER.......................... 4-5

● Acceptable originals.................................................. 4-5

SETTING ORIGINALS ................................................... 4-6

CHAPTER 5 BASIC PROCEDURE FOR MAKING

COPIES

NORMAL COPYING....................................................... 5-2

● Copying from the reversing single pass feeder ........ 5-2

● Automatic two-sided copying from the reversing single

pass feeder............................................................... 5-6

● Copying from the document glass ............................ 5-7

● Automatic two-sided copying from the document glass

.................................................................................. 5-9

EXPOSURE ADJUSTMENTS...................................... 5-10

REDUCTION/ENLARGEMENT/ZOOM........................ 5-12

● Automatic selection (auto image) ........................... 5-12

● Manual selection..................................................... 5-13

● XY ZOOM ............................................................... 5-15

SPECIAL PAPERS....................................................... 5-17

CHAPTER 6 CONVENIENT COPY FUNCTIONS

SPECIAL MODES .......................................................... 6-2

● Common operation procedure for using the special

functions ................................................................... 6-3

● Margin shift ............................................................... 6-4

● Erase ........................................................................ 6-5

● Dual page copy......................................................... 6-6

● Centring .................................................................... 6-7

● Transparency film with insert sheets ........................ 6-8

● Covers ...................................................................... 6-9

● B/W reverse ............................................................ 6-10

COLOUR ADJUSTMENTS MENU............................... 6-11

● RGB adjust ............................................................. 6-12

● Sharpness............................................................... 6-13

● Suppress background............................................. 6-13

● Colour balance........................................................ 6-14

● Brightness............................................................... 6-15

● Intensity .................................................................. 6-15

IMAGE EDIT MENU ..................................................... 6-16

● Single colour ...........................................................6-17

● Mirror image ............................................................ 6-17

● Photo Repeat .......................................................... 6-18

● Multi shot................................................................. 6-19

● A3 (11" x 17") Full-bleed ......................................... 6-21

● Multi-page enlargement ..........................................6-22

● Extra size ................................................................ 6-24

● Pamphlet copy ........................................................6-25

JOB PROGRAM MEMORY..........................................6-26

● Storing a job program.............................................. 6-26

● Recalling a job program .......................................... 6-27

● Deleting a stored job program................................. 6-27

INTERRUPTING A COPY RUN ................................... 6-28

CHAPTER 7 MACHINE MAINTENANCE (FOR

COPYING)

REMOVING AN ORIGINAL MISFEED...........................7-2

● Removing a misfed original from the reversing single

pass feeder ...............................................................7-2

USER MAINTENANCE (For copying) ............................ 7-3

CLEANING THE ORIGINAL SCANNING AREA ............7-3

TROUBLESHOOTING.................................................... 7-4

CHAPTER 8 SPECIFICATIONS

SPECIFICATIONS..........................................................8-2

● Copier and Main unit.................................................8-2

● Reversing single pass feeder....................................8-4

● Duplex bypass/inverter unit (optional).......................8-4

INDEX............................................................................. 8-5

1-1

CHAPTER 1

BEFORE USING THE

PRODUCT

This chapter contains basic information that should be read before using the product.

Page

INTRODUCTION ...........................................................................................1-2

MAIN FEATURES..........................................................................................1-2

PART NAMES AND FUNCTIONS .................................................................1-4

●

Exterior...................................................................................................1-4

●

Interior....................................................................................................1-5

●

Part names and functions of peripheral devices....................................1-6

●

Operation panel......................................................................................1-8

●

Touch panel ...........................................................................................1-9

AUDITING MODE ........................................................................................1-11

●

Using the machine when the auditing mode is enabled.......................1-11

1-2

INTRODUCTION

To gain the maximum benefits in using this product, it is recommended that the user read this manual to become familiar with all the features and functions of the basic product and the precautionary information contained in the manual.

This product is a high speed Digital full colour copier/printer that can be expanded to become multifunctional through the installation of optional peripheral devices. The product can be extended to include printer, network scanning or network printing capabilities. This manual describes the basic use of the product as a copier and does not contain information on using any of the optional peripheral devices. Separate operation manuals are included with each of the optional peripheral devices. Refer to these manuals for their operation.

Original and paper sizes

This machine allows use of standard sizes in both the AB and inch systems. These are shown in the tables below.

The meaning of "R" in original and paper size indications

Some original and paper sizes can be placed in either the portrait or landscape orientations. To differentiate between landscape and portrait, the landscape orientation size indication will contain an "R". These are indicated as A4R, B5R, 8-1/2" x 11"R, 5-1/2" x 8-1/2"R, etc. Sizes that can be placed only in the landscape orientation (A3, B4, 11" x 17", 8-1/2" x 14", 8-1/2" x 13") do not contain the "R" in their size indication.

Size indication with "R"

Landscape orientation

Size indication without "R"

Portrait orientation

MAIN FEATURES

Full-colour copies with vivid colours based on digital technology

Photos, colour text, and other originals are scanned by full-colour CCD sensors, and the acquired image information is output in vivid full colour at a resolution of 600 dpi using digital image processing technology. The machine can also be used as a full-colour network printer, and a network scanner function can further be added as an option.

A range of optional units to enhance productivity

A range of optional equipment is available to enhance productivity, such as duplex units for producing two-sided output, additional paper feed units to increase the number of available paper sizes and paper capacity, and paper output units that are capable of stapling and saddle stitch binding.

Sizes in the AB system

Sizes in the inch system

11" x 17" (LEDGER)

8-1/2" x 14" (LEGAL)

8-1/2" x 13" (FOOLSCAP)

8-1/2" x 11" (LETTER)

7-1/4" x 10-1/2" (EXECUTIVE)

5-1/2" x 8-1/2" (INVOICE)

MAIN FEATURES

1-3

Advanced image processing features based on digital technology

The scanned image data is converted to digital data, enabling the following advanced image processing features:

●●●● Photo Repeat :

Up to 24 full-size copies of a photo image can be made on a single sheet of paper (page 6-18).

●●●● Multi shot :

Up to four original pages can be copied onto a single sheet (page 6-19).

●●●● Pamphlet copy* :

Copies of original pages are arranged in proper order for copying so that the copies can be centre-stapled and folded into a pamphlet (page 6-25). * Pamphlet copy requires the Duplex module/2 x 500 sheet paper drawer and Duplex bypass/inverter unit

options. If a saddle stitch finisher is installed, copies can be stapled in two positions along the centre of copies and folded at the centre.

* Pamphlet copy is only possible with black and white copies.

Image processing manual exposure adjustment for optimal copying

Image processing is optimized for the type of original being copied (text, photo, mixed text and photo or map). This along with the ability to manually adjust exposure makes it possible to obtain copies that are faithful to the original.

Standard offset function makes it easy to distinguish between sets of copies

As sets of copies are delivered to the centre tray, each set is offset from the previous set for easy separation.

Energy saving features

This product has the following two power reducing modes that conform to the Energy Star guidelines to help conserve natural resources and reduce environmental pollution.

Preheat mode

Preheat mode automatically reduces the temperature of the fusing unit after the time set in the key operator programs elapses when the machine is on standby. This allows the machine to use less power while on standby. The machine automatically returns to normal operation when a key is pressed on the operation panel, or when an original is placed to make a copy or send a fax.

Auto power shut-off mode

Auto power shut-off mode automatically shuts off power to the fusing unit after the time set in the key operator programs elapses when the machine is on standby. This minimizes the power used by the machine while on standby. When this mode activates, the touch panel screen turns off. To return the machine to normal operation, press the mode select key (the indicator of this key will be lit). Auto power shut-off mode can be configured in the key operator programs. The mode is initially set (factory default setting) to activate after 60 seconds elapses. (See page 9 of the key operator's guide.)

If a print job or fax is received while auto power shut-off mode or preheat mode is activated, the machine automatically returns to normal operation.

As an ENERGY STAR

Partner, SHARP has determined that this product meets the ENERGY

STAR

guidelines for

energy efficiency.

1-4

PART NAMES AND FUNCTIONS

Exterior

Left tray (See page 5-5)

Finished sheets are deposited here.

Left side cover

Open this cover when a paper misfeed occurs in the fusing unit or the transfer unit.

Reversing single pass feeder

This automatically feeds originals to be scanned. The feeder can turn the original over and scan the back side as well as the front side for support of two-sided originals.

Power switch

Press to turn power on and off.

Front cover

Open to replace toner cartridge.

Operation panel

Centre tray (See page 5-5)

Finished sheets are deposited here.

Bypass tray

Special papers (including transparency film) and copy paper can be fed from the bypass tray.

Stand/1 x 500 sheet paper drawer *

(See page 2-7)

Stand/3 x 500 sheet paper drawer *

(See page 2-7)

Duplex module/2 x 500 sheet paper drawer*

(See page 2-8)

Paper tray

Each tray can hold approximately 500 sheets of the recommended paper for colour (80 g/m

or 21 lbs.), or approximately 500 sheets of SHARP standard paper (80 g/m2 or 21 lbs.).

Left side cover release

Push this release up to open the left side cover.

Duplex bypass/inverter unit * (See page 1-6)

* , , and are peripheral devices. For a description of these devices, see page 1-6.

Without the duplex bypass/inverter unit installed.

PART NAMES AND FUNCTIONS

1-5

Interior

Fusing unit

Toner images are fused here.

Toner cartridge

The toner cartridge must be replaced when indicated on the operation panel. (See page 2-15)

Right side cover

Open when a misfeed has occurred in the paper feed area.

Right cover of paper drawer

Open this cover to remove paper misfed in the paper drawer.

CAUTION

The fusing unit is hot. Take care in removing misfed paper.

PART NAMES AND FUNCTIONS

1-6

Part names and functions of peripheral devices

Large Capacity tray (AR-LC8)

The large capacity tray provides the added convenience of having 3,500 sheets of A4 or 8-1/2" x 11" paper (80 g/m

or 21 lbs.) available.

Stand/1 x 500 sheet paper drawer (AR-D17N)

This stand has one paper tray. It can hold approximately 500 sheets of the recommended paper for colour (80 g/m

or 21 lbs.), or approximately 500 sheets of SHARP standard paper (80 g/m

or 21 lbs.).

Duplex module/2 x 500 sheet paper drawer (AR-D19N)

This stand includes a module for automatic twosided printing and two paper trays. The two trays can hold approximately 500 sheets of the recommended paper for colour (80 g/m

or 21 lbs.), or approximately 500 sheets of SHARP standard paper (80 g/m

or 21 lbs.). To perform two-sided printing, a duplex bypass/inverter unit (AR-RB1) is required.

Stand/3 x 500 sheet paper drawer (AR-D18N)

This stand has three paper trays. Each tray can hold approximately 500 sheets of the recommended paper for colour (80 g/m

or 21 lbs.), or approximately 500 sheets of SHARP standard paper (80 g/m

or 21 lbs.).

Saddle stitch finisher (AR-F13)

The finisher can deliver sets saddle stitched and folded at the paper centreline to form a pamphlet*, edge stapled in three different modes or unstapled. For two-hole or three-hole output, a hole punch module must be installed. * When used for pamphlet copying, only black and

white output is possible.

20-bin sorter (AR-S11)

Copies can be collated into sets (sort mode), or grouped by original page (group mode). When using sort mode, up to 20 sets of copies can be made.

Duplex bypass/inverter unit (AR-RB1)

This module is required to automatically turn paper over within the machine for automatic two-sided printing.

PART NAMES AND FUNCTIONS

1-7

■■■■ Other optional equipment

●●●●Network scanner expansion kit (AR-NS2)

This kit is required to add the network scanner function*. * To use the network scanner function, the

network scanner expansion kit (AR-NS2), scanner interface board (AR-EB8), and 256 MB or more of optional memory must be installed.

●●●●Facsimile expansion kit (AR-FX10)

This kit must be installed to use the fax function.

●●●●Fax memory (8 MB) (AR-MM9)

This adds memory for use by the fax function.

●●●●256 MB optional memory (AR-SM5)

This adds memory for use by the copy function.

■■■■ Face-up and face-down output

After printing, the paper is delivered to the exit tray. This product has two exit trays (centre tray and left tray). The paper specifications (page 8-3) and output conditions differ for each tray; however, if the paper and output conditions are such that the paper can be delivered to either tray, you can select the tray to which the paper will go.

● Paper exits to the centre tray face-down only.

● Paper exits to the left tray face-up only. However, if a duplex bypass/inverter unit has been installed, face-

down output is also possible. In this case, face-up or face-down output is automatically selected according to the paper and output conditions (it is not possible to manually select face-up or face-down.)

PART NAMES AND FUNCTIONS

1-8

Operation panel

Touch panel

The machine status, messages and touch keys are displayed on the panel. When using the touch panel, first change the display to the mode that you wish to use: printer mode, copy mode, network scanner mode*

, or fax mode*2. For details see the

next page.

Mode select keys and indicators

Use to change modes and the corresponding display on the touch panel.

[PRINT] key/READY indicator/DATA indicator

Press to enter the printer mode.

READY indicator

Print data can be received when this indicator is lit.

DATA indicator

Lights up or blinks when print data is being received. Also lights up or blinks when printing is being performed.

[IMAGE SEND] key/LINE indicator/DATA

indicator

Press this key to switch the display between network scanner mode*

and fax mode*2. (See the

operation manuals for network scanner and fax.)

[COPY] key

Press to select the copy mode.

[JOB STATUS] key

Press to display the current job status. (See page 1-10.)

[CUSTOM SETTINGS] key

Use to adjust the contrast of the touch panel or to set key operator programs. (See page 2-13.)

Numeric keys

Use to enter number values for various settings.

[ ] key ([ACC.#-C] key)

This is used when the copy, network scan*

, and

fax*

functions are used.

[#/P] key

This is used as a program key when using the copy function, and to dial when using the fax function*

[C] key

This key is

used in copy mode, network scanner

mode*

, and fax mode*2.

[BLACK COPY START ( )] key

This is used to make black and white copies and to scan a black and white original when the network scan function is used. This is also used to scan an original to be faxed using the fax function*

[CA] key

This key is

used in copy mode, network scanner

mode*

, and fax mode*2.

[COLOUR COPY START ( )] key

This is used to make full-colour or single-colour copies and to scan a colour original when the network scanner function is used.

*1 When the network scanner option is installed. *2 When the fax option is installed.

PART NAMES AND FUNCTIONS

1-9

Touch panel

Using the touch panel

[Example 1]

Items on the touch panel are easily selectable by touching the key associated with the item with a finger. Selection of an item will be accompanied with a beep tone to confirm the item was selected. Also, the key area for the item will be highlighted for visual confirmation.

[Example 2]

Keys which are greyed out on any screen are not selectable. If a greyed out key is touched, a double beep will be sounded.

The confirmation beeps can be disabled by a key operator program. (See page 10 of the key operator's guide.)

The touch panel screens shown in this manual are printed images, and may appear different from the actual screens.

Selection of function

[Example 1]

Items which are highlighted at the time a screen appears are already selected and will be registered to function if the [OK] key is touched.

[Example 2]

When the machine is used in the copy mode, the functions shown in the table below can only be set or cancelled on the special feature screen by alternate touches of the function keys on the panel.

[Example 3]

When the machine is used in the copy mode and a special feature is selected, a corresponding icon representing the feature will appear on the touch key and on the main screen of the mode selected. If this icon is touched, the setting screen of the function (or a menu screen) will appear, allowing the settings to be checked or adjusted and the function to be cancelled easily.

JOB QUEUE

COPY

SHARP001

0666211221

003 / 00

010 / 00

SETS / PRO

Beep tone

1/13

COMPLETE

Copier feature

● Dual page copy

● Centring

● Transparency inserts

● Mirror image

● A3 (11"x17") Full-bleed

● B/W Reverse

CANCEL OK

RIGHT

BINDING

LEFT

BINDING

TRANSPARENCY

INSERTS

DUAL PAGE COPY

SPECIAL MODES

2-SIDED COPY

OUTPUT

READY TO COPY.

DUPLEX

PART NAMES AND FUNCTIONS

1-10

Job status screen (common to print, copy, network scan and fax)

This screen is displayed when the [JOB STATUS] key on the operation panel is pressed. A job list showing the current job at the top of the job queue or a list showing completed jobs can be displayed. The contents of jobs can be viewed or jobs can be deleted from the queue. (The screen below is an example and differs from actual screens.)

Job list

This shows the current job and the jobs waiting to be run. The icons to the left of the jobs in the queue show the job mode.

The displayed jobs in the job list are themselves operation keys. To cancel printing or to give a job the highest print priority, touch the relevant job key to select the job and execute the desired operation using the keys described in 5 and 6.

* "PAPER EMPTY" in the job status display

When a job status display indicates "PAPER EMPTY", the specified paper size for the job is not loaded in any of the trays. When the [DETAIL] key appears, the key of a job in the job queue can be touched followed by the [DETAIL] key to change the paper size selection to a different paper size (only in printer mode).

Mode select key

This only appears in the job status screen of fax mode. The key is used to switch the job list display between "JOB QUEUE" and "COMPLETE". "JOB QUEUE": Shows stored jobs and the job in

progress.

"COMPLETE" : Shows finished jobs.

[PRINT JOB] key

Use to display the print job list for printer, copy and fax mode.

[SCANNER JOB] key

This displays a list of jobs that only used the network scanner function. (Only when the network scanner function is added.)

[FAX JOB] key

This displays the transmission/reception status and finished jobs of fax mode when the fax option is installed.

Display switching keys

Use to switch the page of the displayed job list.

[STOP/DELETE] key

Use to cancel or delete the current job or delete the selected reserved job. Note that a fax print job cannot be cancelled or deleted.

[PRIORITY] key

This only appears in the job status screen of fax mode. Touch this key to give priority to a job that has been selected in the job queue.

[DETAIL] key

The key is only effective for computer print jobs and only appears in the job status screen of the printer mode. It is used to display detailed information of a selected print job and to change the paper size for the print job.

JOB QUEUE

COPY

SHARP001

066211221

STATUS

PAPER EMPTY

003 / 000

PRINT JOB SCANNER JOB

FAX JOB

JOB QUEUE

COMPLETE

DETAIL

PRIORITY

STOP/DELETE

WAITING

003 / 000

001 / 000

1/1

SETS / PROGRESS

Copy mode Printer mode

Network scanner mode

Fax send job Fax reception job

1-11

AUDITING MODE

When the account counter function is turned on, a count is kept of the number of copy sheets used by each account (maximum of 200 accounts). The counts can be displayed and totaled as needed. "The key operator programs can be used to enable auditing mode separately for copy mode, fax mode, network scanner mode, and printer mode. (Page 6 of key operator's guide)"

Using the machine when the auditing mode is enabled

The procedure for using the machine for copying functions when the Auditing Mode has been enabled for the copier functions is explained below.

When the account counter is turned on, the following messages appear on the touch panel. There are two types of prompts, depending on whether the account counter was turned on for both the colour copy and the black and white copy modes, or only for colour copy mode.

●Account counter enabled for both the colour copy and the black and white copy modes

●The account counter is enabled only for the colour copy mode

When the [ ] key ([ACC.#-C] key) or the [COLOUR COPY START] key is pressed, the message at left appears.

In this case, enter your 5-digit account number as explained on the next page to gain access to the copier functions.

NOTES

● When the account counter is turned on for fax or network scanner functions, a message will appear prompting you to enter your account number each time the touch panel is changed to the main screen of the function. Enter your account number as explained below and then proceed with the job.

● When the account counter is turned on for the printer function, you must enter your account number in the setting screen of the printer driver on your computer in order to print.

ENTER YOUR ACCOUNT NUMBER.

ENTER YOUR ACCOUNT NUMBER FOR THE COLOUR MODE. PRESS [CANCEL] TO CHANGE TO B/W MODE.

CANCEL

AUDITING MODE FOR COLOUR

AUDITING MODE

1-12

Enter your account number (5 digits) with the numeric keys.

As you enter your account number, the hyphens ( ) change to asterisks ( ). If you enter an incorrect digit, press the key and reenter the correct digit. When a correct account number is entered, the following message will appear.

This does not appear if the account counter has only been set for colour copy mode.

If a limit has been set by key operator program for the number of copies that can be made by the account, the remaining number that can be made is displayed.

This message appears for several seconds and then changes to the following message.

Follow the appropriate steps to perform the copy job.

When copying is begun, the following message will appear.

In the case of interrupt copying (page 6-28), the following message will appear.

When the copy job is finished, press the [ ] key ([ACC.#-C] key)

NOTE

If "Account number security" is turned on in the key operator programs, the following message will appear in the event that an incorrect account number is entered three times in a row. (Page 8 of the key operator's guide)

While this message appears (for about one minute), no other operations can be performed.

ACCOUNT STATUS:COPIES MADE/REMAINING B/W S.COLOUR F.COLOUR

READY TO COPY.

PLEASE SEE YOUR KEY OPERATOR FOR ASSISTANCE.

READY TO COPY. PRESS [ACC.#] WHEN FINISHED.

READY TO COPY. WHEN INTERRUPT COPYING IS FINISHED PRESS [CANCEL].

2-1

CHAPTER 2

MANAGING THE MACHINE

This chapter explains how to load paper, replace the toner cartridge, and remove paper misfeeds. It also contains information about supplies.

Page

LOADING PAPER..........................................................................................2-2

●

Loading paper in paper tray 1 ................................................................2-2

●

Changing the paper size in paper tray 1 ................................................2-2

●

Loading paper in the bypass tray...........................................................2-4

●

Loading paper in the stand/1 x 500 sheet paper drawer/stand/3 x 500

sheet paper drawer.....................................................................................2-7

●

Specifications (stand/1 x 500 sheet paper drawer/stand/3 x 500

sheet paper drawer)...............................................................................2-7

●

Loading paper in the duplex module/2 x 500 sheet paper drawer.........2-8

●

Specifications (duplex module/2 x 500 sheet paper drawer) .................2-8

●

Specifications of paper trays..................................................................2-9

●

Setting the paper type (except the bypass tray)...................................2-11

●

Setting the paper size when an extra size is loaded............................2-11

●

Setting the paper type and paper size in the bypass tray ....................2-12

CUSTOM SETTINGS ..................................................................................2-13

●

Operation procedure common to all custom settings...........................2-13

●

About the settings ................................................................................2-14

REPLACING THE TONER CARTRIDGES..................................................2-15

STORAGE OF SUPPLIES...........................................................................2-17

MISFEED REMOVAL ..................................................................................2-18

●

Misfeed removal guidance ...................................................................2-18

●

Misfeed in the paper feed area ............................................................2-19

●

Misfeed in the transport area, fusing area, and exit area.....................2-20

●

Misfeed in the stand/1 x 500 sheet paper drawer................................2-21

●

Misfeed in the stand/3 x 500 sheet paper drawer................................2-21

●

Misfeed in the duplex bypass/inverter unit and duplex module/2 x 500

sheet paper drawer..............................................................................2-22

TROUBLESHOOTING.................................................................................2-24

2-2

LOADING PAPER

The message "ADD PAPER" or "OPEN TRAY AND ADD PAPER" will appear when paper runs out during operation. Follow the procedure below to load paper.

Loading paper in paper tray 1

Pull out paper tray 1.

Gently pull the tray out until it stops.

Load paper into the tray.

Load a stack of paper no higher than the indicator line (about 500 sheets of the recommended paper for colour (80 g/m

or 21 lbs.), or approximately 500 sheets of SHARP standard paper (80 g/m

or 21 lbs.)).

Gently push tray 1 into the machine.

Push the tray firmly all the way into the machine.

Set the paper type.

If you change the paper type, be sure to set the paper type refer to "Setting the paper type" (page 2-11).

Loading paper in paper tray 1 is now complete.

Changing the paper size in paper tray 1

The following paper size settings are available for paper tray 1: A3 to A5 (11" x 17" to 8-1/2" x 5-1/2"), and "EXTRA"*1. Use the following procedure to change the size as needed. *1This is limited to square or rectangular paper, A3 to A5 (11" x 17" to 8-1/2" x 5-1/2") size.

Pull out paper tray 1.

If paper remains in the tray, remove it.

Adjust the paper size slide to the paper size.

Move the paper size slide right or left to indicate the paper size being loaded. If a special size paper is loaded in the paper tray, set the size slide to

"EXTRA" to inform the machine that a special size paper has been loaded. (When INCH-based size paper is loaded, move the size slide to "EXTRA".)

Note that setting the size slide to "EXTRA" only informs the machine that a special size of paper has been loaded; it does not inform the machine of the specific size. If you wish to inform the machine of the specific size, follow the steps in "Setting the paper size when an extra size is loaded" (page 2-

11). (If you do not set a size, part or all of the image may not print.)

Adjust the guide plates A and B by squeezing their lock levers and sliding them to the paper size to be loaded.

The guide plates A and B are slidable. Adjust them to the paper size to be loaded while squeezing their lock levers.

NOTES

● Do not use curled or folded paper. Doing so may cause a misfeed.

● For best results use paper supplied by SHARP. (See pages 2-9, 2-17.)

● When you change the paper type and size in paper tray 1, you must change the paper type and size settings as

explained in "Setting the paper type" (page 2-11).

● Do not place heavy objects or press hard on any tray which is pulled out.

NOTE

If you load a different size of the same type of paper, you only need to change the position of the size slide (see step 2 below); you do not need to change the paper type.

LOADING PAPER

2-3

Load paper into the tray.

Gently push tray 1 into the machine.

Push the tray firmly all the way into the machine.

Set the paper type of the paper that was loaded in the 1st tray.

If you loaded a different type of paper from the previous paper, be sure to set the new paper type as explained in "Setting the paper type" (page 2-

11).

Changing paper size in paper tray 1 is now complete.

NOTE

If the size slide position (step 2 of page 2-2) is not set correctly after changing the paper size, or if the paper type (page 2-11) is not set correctly, incorrect paper selection or paper misfeeding may occur.

LOADING PAPER

2-4

Loading paper in the bypass tray

The bypass tray can be used to feed the same paper specified for paper tray 1 or for special papers. For paper types that can be used in the bypass tray, see the specifications for the bypass tray in the paper tray specifications (page 2-9).

Up to 250 sheets of SHARP standard paper or up to 100 postcards can be set in the bypass tray.

Open the bypass tray.

When loading paper that will extend past the end of the tray, pull out the tray extension to support the paper and to allow the paper sensors to properly sense the paper size.

Be sure to pull the tray extension all the way out. If the tray extension is not pulled all the way out, the size of the paper loaded in the bypass tray may not display correctly.

To support papers that extend past the tray extension, pull out the wire extension.

Set the bypass tray guides to the width of the copy paper.

Insert the copy paper all the way into the bypass tray. (Do not force the paper in.)

Place the copy paper face up. If the bypass tray guides are set wider than the copy paper, the inside of the machine may become

soiled, resulting in smudges on succeeding copies. Special purpose papers other than SHARP recommended transparency film must be fed individually. Multiple sheets of SHARP recommended transparency film can be loaded in the bypass tray.

Set the type and size of the paper loaded in the bypass tray.

If you loaded a different type of paper from the previous paper, be sure to set the new paper type as explained in "Setting the paper type and paper size in the bypass tray" (page 2-12). If you loaded a special size of paper in the bypass tray, set the paper size as explained in "Setting the paper type and paper size in the bypass tray" (page 2-12). (If you do not set a size, part or all of the image may not print.)

This completes the procedure for loading paper in the bypass tray.

NOTES

● After loading the paper in the bypass tray, be sure to set the paper type and size (step 4) if these were changed.

● Do not use inkjet paper. This may cause misfeeds in the fusing unit.

NOTES

When loading paper in

the bypass tray or

closing the tray, close

the paper cover as

shown.

LOADING PAPER

2-5

NOTES

● Be sure to load A6R paper, A5 paper, 5-1/2" x 8-1/ 2" paper, and postcards as shown in the diagram below.

A6R paper, post cards. A5 paper, 5-1/2" x 8-1/2" paper.

● When loading plain paper other than paper recommended for colour, SHARP standard paper, special media other than postcards, SHARPrecommended transparency film, or paper to be printed on the back, the paper must be loaded one sheet at a time. Loading more than one sheet at a time will cause misfeeds.

● Before loading heavy paper, straighten any curling in the paper.

● When adding paper, remove any paper remaining in the tray, combine it with the paper to be added, and reload as a single stack.

● Do not use paper that has already been printed on by a plain paper fax machine or a laser printer. This may cause printed images to become dirty.

● When printing on transparency film, be sure to remove each sheet as it exits the machine. Allowing sheets to stack in the output tray may cause curling.

● Use only SHARP-recommended transparency film. Insert the film so that the rounded corner is on the left for horizontal loading, or on the right for vertical loading.

● When loading multiple sheets of transparency film in the bypass tray, fan the sheets several times before loading.

Horizontal loading

Vertical loading

LOADING PAPER

2-6

■■■■ Setting envelopes or postcards

When setting envelopes or postcards in the bypass tray, set them in the orientation shown below.

Printing onto envelopes or postcards

●Attempting to print onto both sides of envelopes or postcards may result in misfeeds or poor prints.

●Do not use pre-printed envelopes.

●Before inserting a postcard or envelope, straighten any curled edges. Curled edges may cause creases, colour

deviations, misfeeds, and poor quality images.

Printing onto envelopes

●Attempting to print on envelopes that have metal clasps, plastic snaps, string closures, windows, linings, selfadhesive patches or synthetic materials may cause misfeeds, inadequate toner adherence or other trouble.

●Envelopes with embossed surfaces may cause the prints to become smudged.

●Under high humidity and temperature conditions the glue flaps on some envelopes may become sticky and be

sealed closed when printed.

●Use only envelopes which are flat and crisply folded. Curled or poorly formed envelopes may be poorly printed or may cause misfeeds.

●Print quality is not guaranteed in the area 10 mm or 13/32" from the edges of the envelope.

●Print quality is not guaranteed on parts of envelopes where there is a large step-like change of thickness, such as on three-layer or four-layer envelopes.

●Print quality is not guaranteed on envelopes having peel off flaps for sealing the envelopes.

Fusing unit pressure adjusting levers

In some cases damage to the envelopes, colour deviations, or smudging may occur even if envelopes within the specifications are used. This problem may be reduced by shifting the fusing unit pressure adjusting levers from their normal pressure position to the lower pressure position. Follow the procedure on the next page. (2-7)

Loading postcards

Insert the postcard with the side to be printed on facing up. The postcard should be oriented as shown in the diagram.

Loading envelopes

Only the front side of envelopes can be printed. Insert the envelope with the front side facing up.

NOTE

Be sure to return the lever to the normal position when you have finished feeding envelopes. If not, inadequate toner adherence, paper misfeeds or other trouble may occur.

Can be used

Cannot be used

LOADING PAPER

2-7

Unlatch the duplex bypass/inverter unit and slide it to the left.

Unlatch the unit and gently move it away from the machine. If the machine is not equipped with a duplex bypass/ inverter unit, open the side cover similarly.

Lower the two fusing unit pressure adjusting levers marked A and B in the illustration.

Gently close the duplex bypass/inverter unit.

If the machine is not equipped with a duplex bypass/inverter unit, close the side cover.

Loading paper in the stand/1 x 500 sheet paper drawer/ stand/3 x 500 sheet paper drawer

Upper tray / middle tray / lower tray*

Up to 500 sheets of paper recommended for colour or SHARP recommended plain paper can be loaded in these trays. The method of loading paper is the same as for paper tray 1 in the main unit (see the explanation on page 2-2). * The stand/1 x 500 sheet paper drawer only has the upper tray.

Specifications (stand/1 x 500 sheet paper drawer/stand/3 x 500 sheet paper drawer)

The stand/3 x 500 sheet paper drawer cannot be installed at the same time as the large capacity tray. Specifications are subject to change for improvement without notice.

B:Front side of

fusing unit

Normal position

Lower pressure position

A:Rear side of

fusing unit

NOTE

If the size of paper being loaded is different from the previous size, or is an extra size, or if the paper type is different from the previous type, you must change the paper tray settings in the custom settings. Change the settings as explained in "Setting the paper type" and "Setting the paper size when an extra size is loaded" on page 2-11.

Name

Stand/1 x 500 sheet paper drawer (AR-D17N) Stand/3 x 500 sheet paper drawer (AR-D18N)

Paper size/weight

A3, B4, A4, A4R, B5, B5R, A5, Extra. (11" x 17", 8-1/2" x 14", 8-1/2" x 13",

8-1/2" x 11", 8-1/2" x 11"R, 7-1/4" x 10-1/2"R, 5-1/2" x 8-1/2")

/ 64 to 105 g/m2 or 17 to 28 lbs.

Paper capacity

Paper recommended for colour (80 g/m2 or 21 lbs.): 500 sheets;

SHARP standard paper (80 g/m2 or 21 lbs.): 500 sheets

Power supply Supplied from the main unit

Dimensions

600 mm (W) x 642 mm (D) x 403 mm (H) (23-5/8" (W) x 25-9/32" (D) x 15-7/8" (H))

(not including the adjuster)

Weight Approximately 22.5 kg or 49.6 lbs. Approximately 29.5 kg or 65.0 lbs.

LOADING PAPER

2-8

Loading paper in the duplex module/2 x 500 sheet paper drawer

Upper tray:

The upper tray contains a duplex module that automatically turns print paper over for automatic two-sided printing.

Middle and lower paper trays:

The middle and lower trays are paper trays. Up to 500 sheets of paper recommended for colour or SHARP recommended plain paper can be loaded in these trays. The method of loading paper is the same as for paper tray 1 in the main unit. See the explanation on page 2-2.

Specifications (duplex module/2 x 500 sheet paper drawer)

Specifications are subject to change for improvement without notice.

NOTE

Name Duplex module/2 x 500 sheet paper drawer (AR-D19N)

Paper size/weight

A3, B4, A4, A4R, B5, B5R, A5, Extra. (11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 7-1/4" x 10-1/2"R, 5-1/2" x 8-1/2") / 64 to 105 g/m

or 17 to 28 lbs.

Paper capacity

Paper recommended for colour (80 g/m2 or 21 lbs.): 500 sheets; SHARP standard paper (80 g/m2 or 21 lbs.): 500 sheets

Power supply Supplied from the main unit

Dimensions

600 mm (W) x 642 mm (D) x 403 mm (H) (23-5/8" (W) x 25-9/32" (D) x 15-7/8" (H))

(not including the adjuster) Weight Approximately 31 kg or 68.3 lbs. Duplex module

Size of plain paper

A3, B4, A4, A4R, B5, B5R, A5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11",

8-1/2" x 11"R, 7-1/4" x 10-1/2R", 5-1/2" x 8-1/2" Weight of plain paper 64 to 200 g/m2 or 17 to 54 lbs. Number of sheets One sheet (single pass type)

LOADING PAPER

2-9

Specifications of paper trays

The specifications for the types and sizes of paper that can be loaded in the paper trays are shown below.

*1 When the Duplex module/2 x 500 sheet paper drawer is installed. *2 When the Stand/3 x 500 sheet paper drawer is installed.

Paper tray type

Tray No.

(tray

name)

Applicable paper types Applicable paper sizes Remarks

A Paper tray 1 Tray 1

Paper recommended for colour

A3, B4, A4, A4R, B5, B5R, A5, Extra. (11"x17", 8-1/2"x14", 8-1/2"x13", 8-1/2"x11", 8-1/2"x11"R, 5-1/2"x8-1/2", 7-1/4"x10-1/2"R)

See "STORAGE OF SUPPLIES" on page 2-17

Plain paper

A3, B4, A4, A4R, B5, B5R, A5, Extra. (11"x17", 8-1/2"x14", 8-1/2"x13", 8-1/2"x11", 8-1/2"x11"R, 5-1/2"x8-1/2", 7-1/4"x10-1/2"R)

See "More information on plain paper" on the next page

B Bypass tray

Bypass

tray

Same as paper types and sizes in row A * Paper size A3W (12" x 18") and A6R can also be used in the bypass tray

Special paper (Refer to the next page for applicable special papers.)

Heavy paper

Heavy paper 1

A6R - A3W (5-1/2"x8-1/2" 12"x18"), Special (paper weight: 106 to 200 g/m

(28

to 54 lbs.)), Postcard

See "More information on special media that can be used" on the next page

Heavy paper 2

A6R - A3W (5-1/2"x8-1/2" 12"x18"), Special (paper weight: 201 to 300 g/m

(54

to 80 lbs.))

Transparency film Transparency film

Envelopes

●Standard-size envelopes that can be used :COM10,Monarch,DL,C5

Stand/1 x 500

sheet paper drawer

Tray 2

Same as paper types and sizes in row A

Stand/3 x

500 sheet

paper

drawer

Upper Tray 2

Middle Tray 3

Lower Tray 4

Duplex

module/2 x

500 sheet

paper

drawer

Upper Duplex

Duplex module (See page 2-8 for paper sizes and weights that can be used.)

Middle Tray 2

Same as paper types and sizes in row A

Lower Tray 3

Large Capacity tray

Tray 4*1

Tray 5*

Same as paper types in row A A4 (8-1/2"x11")

See the specifications in "LARGE CAPACITY TRAY" on page 3-20, and "More information on plain paper" on the next page.

LOADING PAPER

2-10

■■■■ More information on plain paper

The following restrictions apply to plain paper. Be sure to load the paper correctly. Incorrect loading may result in skewed feeding or misfeeds.

* In the large capacity tray, only A4 size paper can be used when using AB sizes, and only 8-1/2" x 11" can be

used when using inch sizes.

■■■■ More information on special media that can be used

The following restrictions apply to special media. The use of incorrect media may result in fusing problems (weak adhesion of toner to paper or toner smudging when rubbed), skewed feeding, misfeeds, or other failures.

● Special paper such as heavy paper 2, transparency film, and envelopes cannot be output to the centre tray.

● Paper that cannot be output to the centre tray is output face-up to the left tray.

■■■■ Paper that can be used for automatic two-sided printing

Paper used for automatic two-sided printing (paper that can be fed through the duplex module) must meet the following conditions:

Paper type : Plain paper as specified on page above. Paper size : Must be one of the following standard sizes: A3, B4, A4, A4R, B5, B5R or A5 (11" x 17", 8-1/2"

x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 7-1/4" x 10-1/2" or 5-1/2" x 8-1/2")

Paper weight : 64 to 200 g/m

or 17 to 54 lbs.

Paper in AB system Paper in inch system

A6R - A3W* 5-1/2"x8-1/2" - 12"x18"*

Plain

paper

SHARP standard paper

80g/m

21 lbs.

Restrictions on paper other than SHARP standard paper

64 to 105g/m2 or 17 to 28 lbs.

Recycled, coloured, pre-punched, pre-printed and letterhead papers must conform to the same conditions as above.

Type Remarks

Special

paper

Heavy paper

heavy paper 1

For paper sizes from A6R to A3W (5-1/2" x 8-1/2" to 12" x 18"), paper weights from 106 to 200 g/m

(28 to 54 lbs.) can be used.

● Postcards can be used. Do not use folded postcards, picture postcards, or postcards with a coated front. These may cause misfeeds or a dirty printed image.

heavy paper 2

For paper sizes from A6R to A3W (5-1/2" x 8-1/2" to 12" x 18"), paper weights from 201 to 300 g/m2 (54 to 80 lbs.) can be used.

Transparency film Use SHARP recommended transparencies.

Envelopes

Applicable standard envelopes: COM-10, Monarch, DL, C5 Envelopes can only be fed from the Bypass tray. Applicable paper stock weight for envelopes is 75 to 90 g/m2 or 20 to 23 lbs.

NOTES

●

Special papers as described above cannot be used for automatic two-sided printing. Heavy paper up to 200 g/m

(54 lbs.) can be used.

● The image quality and toner fusibility of special papers may change due to ambient conditions, operating conditions, and paper characteristics, resulting in image quality inferior to that of SHARP standard paper.

● Various types of plain paper and special paper are sold. Some of these cannot be used in the machine. Please consult your retailer or your dealer when buying paper.

LOADING PAPER

2-11

Setting the paper type (except the bypass tray)

Follow these steps to change the paper type setting when the paper type has been changed in a paper tray. For the paper types that can be used in each tray, see page 2-9. To change the paper type setting for the bypass tray, see page 2-12.

Press the [CUSTOM SETTINGS] key.

The custom setting menu screen will appear.

Touch the [TRAY SETTINGS] key.

The paper tray selection screen will appear.

Select the paper tray for which the setting is to be made. (For the tray numbers, see the tray specifications on page 2-9.)

If the desired tray is not on the display, use or

key to scroll the

display until it appears.

Select the type of paper that was loaded in the tray.

The currently selected paper type will be highlighted. To change the setting, touch the desired type.

Touch the [OK] key to complete the setting.

Setting the paper size when an extra size is loaded

When a paper tray is set to "extra", this informs the machine that an extra size is being used. It does not inform the specific size. To enter the specific size of the paper loaded, follow the steps below. For example, if 8-1/2" x 11" size paper is loaded in the tray (with the size slide set to "extra"), you can use this procedure to set the paper size recognized by the machine to 8-1/2" x 11" size. If you loaded an irregular size of paper, you can enter the dimensions of the paper. To set the paper size when an extra size of paper is loaded in the bypass tray, see page 2-12.

Perform steps 1 through 4 of "Setting the paper type" at left.

Touch the key to display the paper size setting screen.

When the loaded paper size appears in the display (if you loaded an INCH-based size such as 8-1/2" x 11"), touch the size key to highlight it, and then touch the [OK] key to complete the procedure.

If an irregular size of paper was loaded after the [EXTRA] key was touched, touch the key in the screen of step 2 to display the following screen.

When the screen opens the X key will be highlighted. Use the

and

touch keys to enter the X dimension. Next touch the Y key to highlight it and enter the dimensions for Y. The permitted range for the X dimension is 139 to 432 mm (5-1/2 to 17 inches), and the permitted range for the Y dimension is 182 to 297 mm (7-1/4 to 11-3/4 inches). When both have been entered, touch the [OK] to complete the operation.

NOTE

Special paper such as transparency film, envelopes, and postcards can only be used in the bypass tray.

TOT L COUNT

TRAY SETTINGS

ADDRES CONTRO

KEYBOARD

SELECT

KEY

CONTRA

TRAY 1

TRAY 2 PLAIN /

TYPE / SIZE

PLAIN /

PLAIN

PRE-PRINTED

RECYCLED

LETTER HEAD

PRE-PUNCHED

COLOUR

CUSTOM SETTINGS

EXTRA SIZE

TRAY 3 TYPE/SIZE SETTING

A3 B4

A4R

EXTRA

B5R

11X17

2/3

8 X11R

7 X10 R

8 X14

8 X13

8 X11

1 / 2

5 X8

139

182

(139 432) mm

(182 297) mm

LOADING PAPER

2-12

Setting the paper type and paper size in the bypass tray

Follow the steps below to set the type and size of the paper loaded in the bypass tray.

Touch the [PAPER SELECT] key.

(When copy mode is selected)

Touch the [PAPER SELECT] key in the main screen of the copy mode.

(When printer mode is selected)

Touch the [PAPER SELECT] key in the main screen of printer mode.

Touch the key for the desired paper type.

(When copy mode is selected)

The key for the selected paper type will be highlighted.

(When printer mode is selected)

The steps that follow differ depending on the paper type selected. Follow the steps for the selected type.

● If you touched [PLAIN], go to step 6.

● If you touched [HEAVY PAPER], go to step 3

● If you touched [TRANSPARENCY], go to step 4.

● If you touched [ENVELOPE], go to step 5.

Touch [HEAVY PAPER 1] or [HEAVY PAPER 2], and go to step 6.

For the types of heavy paper that can be used, see page 2-10.

Touch [SPEED MODE] or [QUALITY MODE] for the transparency film, and go to step 7.

● SPEED MODE is for fast printing.

● QUALITY MODE is for a high quality image.

Touch the type of envelope, and go to step 7.

If you inserted a non-standard size of paper in the bypass tray, remove the checkmark from "ENABLE AUTO SIZE DETECTION" and then touch the [EXTRA SIZE] tab.

When the screen opens, the X key will be highlighted. Use the and

touch keys to enter the X dimension. If you inserted a standard size of paper in the bypass tray, make sure that a checkmark appears in the [ENABLE AUTO SIZE DETECTION] checkbox.

Next touch the key to highlight it and enter the dimensions for Y.

The permitted range for the X dimension is 139 to 432 mm (5-1/2 to 17

inches), and the permitted range for the Y dimension is 100 to 297 mm (4 to 11-3/4 inches).

Touch the [OK] key to complete the setting.

PAPER SELECT

AUTO A4

100%

PAPER SELECT

CONDITION SETTINGS

PAPER SELECT

100%

COPY RATIO

PLAIN

HEAVY PAPER

TRANSPARENCY

ENVELOPE

UTO

EXPOSURE

PAPER SELECT

PLAIN

HEAVY PAPER

TRANSPARENCY

ENVELOPE

CONDITION

SETTINGS

HEAVY PAPER1 106g/m2 200g/m

HEAVY PAPER2 201g/m

300g/m

SPEED MODE

QUALITY MODE

COM-10

MONARCH

ENABLE AUTO SIZE DETECTION

EXTRA SIZE

BASIC SETTING

139

100

(100 297) mm

(139 432) mm

BASIC SETTING

EXTRA SIZE

2-13

CUSTOM SETTINGS

The items that can be set with the custom settings are shown below.

● Total count ................................... The number of pages processed by the machine and optional equipment

can be displayed. (See page 2-14.)

● Display contrast ........................... Used to adjust the contrast of the operation panel display. (See page 2-14.)

● List print ....................................... Used to print a list of machine settings. (See page 2-14.)

● Clock adjust

....................................Used to set the date and time of the built-in clock of the machine. (See this page.)

● Tray settings ................................ The paper type, paper size and automatic tray switching can be set for each

tray. Automatic tray switching allows feeding to switch between trays loaded with the same type and size of paper. If one tray runs out of paper during printing, printing will continue from the other tray. (

See

page 2-14)

For the detailed descriptions and use of the settings listed below, see the Operation manuals for fax and network scanner.*

● Address control............................ Use this to store fax destinations (fax numbers). This is also used to store

groups, memory boxes, and user indexes. If the network scanner function is available, e-mail addresses, user indexes, and scanner senders can also be stored.

● Receive mode.............................. Use this to configure fax reception settings (auto/manual).

● Fax data forward.......................... Faxes received to memory can be forwarded to another destination.

● Keyboard select........................... When using the fax function or network scanner function, you can switch

the arrangement of the letter keys in the display keyboard used for storing and editing destinations in the English character entry screen.

● Key operator program.................. These are programs that are used by the key operator (administrator of the

machine) to configure machine settings. A key appears for these settings in the custom settings menu screen. For information on these settings, see the key operator's guide.

* These settings can be configured if the fax function or network scanner function is available.

Operation procedure common to all custom settings

Press the [CUSTOM SETTINGS] key.

The custom setting menu screen will appear.

More information on setting procedures

In the following type of screen, a setting is turned on when a checkmark ( ) appears next to the key. A checkmark will appear or disappear by alternate touches of the checkmark box. In the following screen, tray 1 can be used in print, copy, and fax modes. Tray 2 can only be used in the copy mode.

Touch the key of the desired item to display its setting screen.

The settings accessed by touching the [CLOCK] key are explained here.

Detailed descriptions for program settings start on the next page.

The procedure for setting the clock is shown below as an example.

CUSTOM SETTINGS

TRAY SETTINGS

TRAY 1

TRAY 2 PLAIN /

TYPE / SIZE

COPY

1/2

PLAIN /

FAX

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

ADDRESS CONTROL

KEYBOARD

SELECT

KEY OPERATOR PROGRAMS

CLOCK

DISPLAY

CONTRAST

LIST PRINT

FAX DATA

FORWARD

EXIT

RECEIVE MODE

DAYLIGHT SAVING TIME SETTING

CUSTOM SETTINGS

CLOCK ADJUST

MINUTE

2000

DATE FORMAT

YEAR

MONTH

DAY

HOUR

CUSTOM SETTINGS

2-14

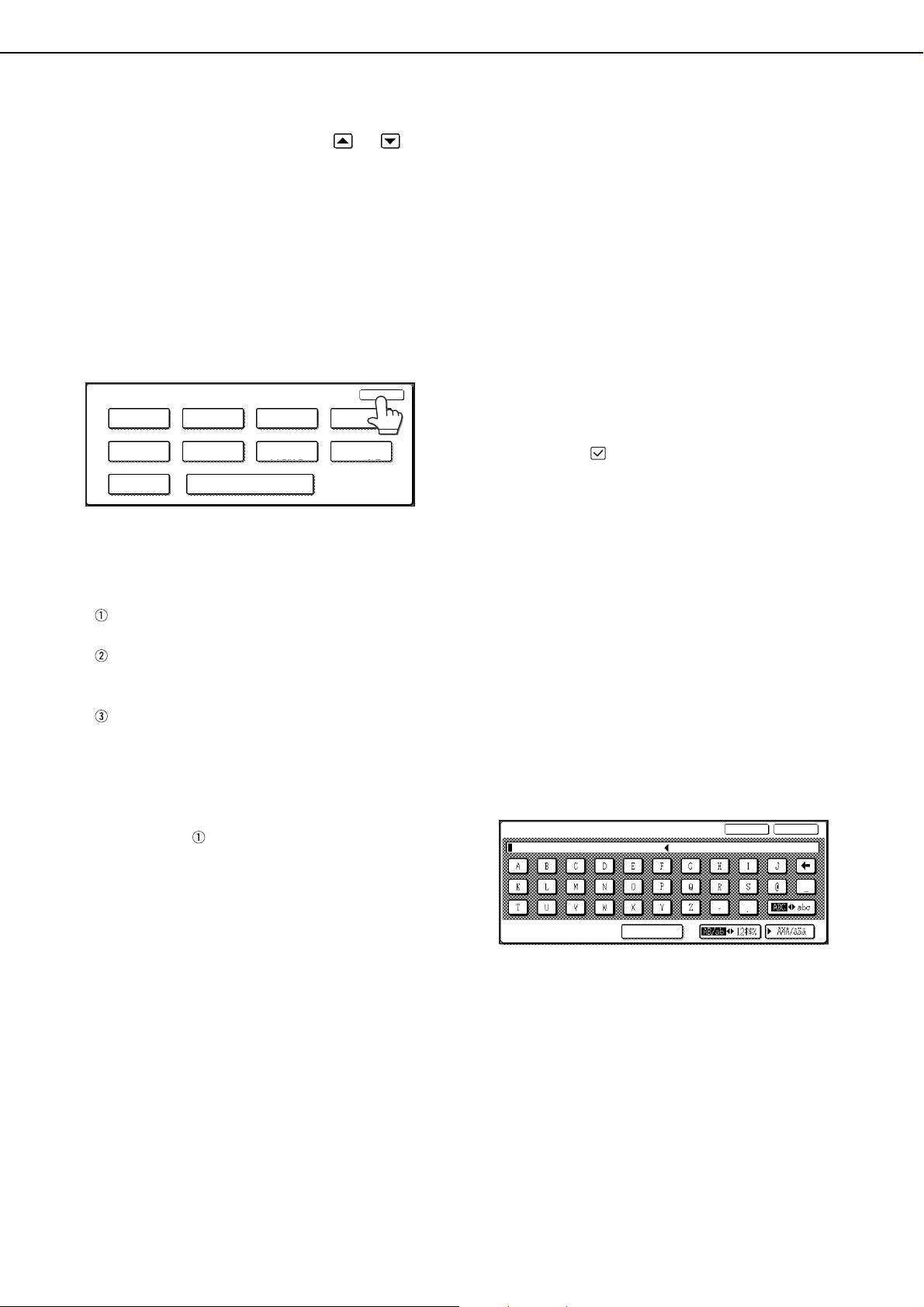

Touch the year, month, day, hour or minute key, and then use the or key to adjust the setting.

● If you select a non-existent date (for example, Feb.

30), the [OK] key will grey out to prevent entry of the date.

● Select [DAYLIGHT SAVING TIME SETTING] checkbox to have the time automatically change at the beginning and end of daylight saving time.

Touch the [OK] key.

To finish the setting operation, touch the [EXIT] key.

About the settings

■■■■ Total count

This displays the following sheet counts:

The number of sheets printed in copy, print, and fax modes. The number of sheets transmitted using the fax function and scanned using the network scanner function. The number of sheets used by optional equipment such as the reversing single pass feeder and the duplex module of the duplex module/2 x 500 sheet paper drawer, and the number of sheets stapled by the saddle stitch finisher.

In the case of only,

● Each sheet of paper that is A3 (11" x 17") size or larger is counted as two sheets.

● Each sheet of paper used for automatic two-sided copying is counted as two sheets (A3 (11" x 17") paper is counted as four sheets). (When an optional duplex module/2 x 500 sheet paper drawer and a duplex bypass/inverter unit are installed.)

■■■■ Display contrast

Screen contrast adjustment is used to make the LCD touch panel easier to view under various lighting conditions. Touch the [LIGHTER] key to make the screen lighter, or the [DARKER] key to make the screen darker.

■■■■ List print

Used to print a list of the settings configured in the fax, printer and network scanner function.

■■■■ Clock adjust

Use this to set the date and time in the machine's built-in clock. This clock is used by functions that require date and time information. The format of the printed date can also be changed.

■■■■ Tray settings

The paper type, paper size, enabled modes and automatic tray switching can set for each tray. See page 2-11 for details on setting the paper type and paper size. Automatic tray switching to another paper tray is used to automatically switch to another tray with the same size and type of paper in the event that the paper runs out during continuous printing. This requires that the trays be loaded with the same size of paper. To enable any function, touch the check box key so that a checkmark ( ) appears.

■■■■ Keyboard select

When using the fax function or network scanner function, you can switch the arrangement of the letter keys in the display keyboard that appear in the character entry screen when storing or editing destinations. Select the arrangement of the letter keys that you find easiest to use.

The following three alphabet keyboard configurations are available:

● Keyboard 1 (QWERT... configuration)*

● Keyboard 2 (AZERTY...configuration)

● Keyboard 3 (ABCDEF...configuration)

* The default setting is "Keyboard 1".

(Example: Character entry screen when Keyboard 3 is selected)

CUSTOM SETTINGS

TOTAL COUNT

TRAY SETTINGS

KEYBOARD

SELECT

KEY OPERATOR PROGRAMS

CLOCK

DISPLAY

CONTRAST

ADDRESS CONTROL

LIST PRINT

EXIT

RECEIVE MODE

FAX DATA

FORWARD

DESTINATION NAME

SPACE

CANCEL

2-15

REPLACING THE TONER CARTRIDGES

When toner runs low, "[ ] TONER SUPPLY IS LOW" appears in the display. It is recommended that you keep a set of new toner cartridges so that you can replace them quickly when toner runs out.

Follow these steps to replace the toner cartridge that is out of toner.

Open the front cover.

Lift the cartridge lock lever toward you.

Example: Replacing the yellow toner cartridge

While holding the lock lever on the toner cartridge, pull the toner cartridge toward you.

Hold the toner cartridge with both hands as shown in the illustration, and pull it out of the machine.

Remove a new toner cartridge from the package and shake it horizontally five or six times.

READY TO COPY. ([ ]TONER SUPPLY IS LOW.)

CHANGE THE TONER CARTRIDGE. ([ ])

If you continue to use the toner cartridge, the toner will eventually run out, the machine will stop and the following message will appear.

This indicates the colour of toner that is low. = Yellow toner = Magenta toner = Cyan toner = Black toner

Y M C Bk

NOTES

● There may be cases that copy images become light or uneven before the message is displayed, depending on the way the machine is used. If this occurs, take out the toner cartridge by following the same steps as replacement, shake it horizontally to even out the toner in the cartridge, and re-insert the toner cartridge. If copy images do not improve even after following this procedure, replace the toner cartridge with a new cartridge.

● If one of the toners is out, including black toner, colour copying will not be possible. If Y, M, or C runs out but BK toner remains, black and white copying will still be possible.

Arrangement of colour toner cartridges

Cyan

Magenta

Yellow

Black

NOTE

Shake the toner cartridge well to ensure that the toner flows well and will not stick to the inside of the cartridge.

REPLACING THE TONER CARTRIDGES

2-16

Remove the protective material from the new toner cartridge.

Insert the new toner cartridge.

Align the insert holes as shown and then push the cartridge in.

Push the cartridge in until it locks securely in place.

Return the cartridge lock lever.

Close the front cover.

After the toner cartridge is replaced, the machine automatically enters resolution adjustment mode. (In some cases, this may take about 5 minutes.)

NOTE

A toner cartridge of a different colour cannot be installed. For instance, a yellow cartridge cannot be installed in the cyan position.

NOTE

Do not push the white area shown in the illustration. The lock lever may come down.

CAUTION

● Do not throw the toner cartridge into a fire. Toner may fly and cause burns.

● Store toner cartridges out of the reach of small children.

2-17

STORAGE OF SUPPLIES

Standard supplies for this product that can replaced by the user include paper, toner cartridges, and staple cartridges for the finisher.

■■■■ Proper storage

1. Store the supplies in a location that is:

● clean and dry,

● at a stable temperature,

● not exposed to direct sunlight.

2. Store paper in the wrapper and lying flat.

3. Paper stored in packages standing up or out of the wrapper may curl or become damp, resulting in paper misfeeds.

4. Store a new toner cartridge box horizontally. Do not store it standing on end. If stored standing on end, the toner may not distribute well even after shaking the cartridge vigorously, and will remain inside the cartridge without flowing out.

For best copying results, be sure to use only Sharp Genuine Supplies which are designed, engineered, and tested to maximize the life and performance of Sharp products. Look for the Genuine Supplies label on the toner package.

GENUINE SUPPLIES

Supply and Consumables

The supply of spare parts for a repair of the appliance is guaranteed for at least 7 years following the termination of production. Spare parts are those parts of the apparatus which may break down within the scope of the ordinary use of the product - whereas those parts which normally exceed the life of the product are not to be considered as spare parts. Consumables too, are available for 7 years following the termination of production.

2-18

MISFEED REMOVAL

When a misfeed has occurred during printing, the message "MISFEED HAS OCCURRED." will appear in the touch panel display of the operation panel and printing output will stop. The approximate locations of possible misfeeds are indicated by " " in the illustration below. The page numbers for detailed information for misfeed removal for each are also shown.

Misfeed removal guidance

Misfeed removal guidance can be displayed by touching the [INFORMATION] key on the touch panel after a misfeed has occurred.

NOTE

Received faxes are all temporarily stored in memory. If a paper misfeed occurs, received faxes cannot be printed. When the misfeed is removed, the received faxes will print out automatically.

NOTES

● Be careful not to tear the misfed paper during removal.

● If paper is accidentally torn during removal, be sure to remove all pieces.

● Take care not to damage or leave fingerprints on the transfer belt when removing the misfed paper.

Misfeed in the fusing area,

and exit area (page 2-20)

Misfeed in the duplex bypass/inverter unit (page 2-22)

Misfeed in the saddle stitch finisher (page 3-10)

Misfeed in the reversing single pass feeder (see page 7-2 in the "Copy Functions" section)

Misfeed in the transport area (page 2-20)

Misfeed in the bypass tray (page 2-19)

Misfeed in the duplex module/2 x 500 sheet paper drawer (page 2-22)

Misfeed in the stand/1 x 500 sheet paper drawer or the stand/3 x 500 sheet paper drawer (page 2-21)

Misfeed in the large capacity tray (page 3-22)

Misfeed in the 500 sheet paper drawer (page 2-19)

Misfeed in the 20-bin sorter (page 3-19)

CAUTION

The fusing unit is hot. Take care in removing paper.

Upper fusing unit

Fusing unit paper guide

Transfer belt

INFORMATION

MISFEED REMOVAL

2-19

Misfeed in the paper feed area

Misfeed in the 500 sheet paper drawer

Open the upper side cover.

Push the lever upward and gently open the cover.

Remove the misfed paper.

Be careful not to tear the misfed paper during removal.

If misfed paper is not found in step 2, pull out paper tray 1 and remove the misfed paper.

Be careful not to tear the misfed paper during removal.

Gently close the paper tray.

Push the tray firmly all the way into the machine.

Gently close the upper side cover.

After closing, confirm that the misfeed message has been cleared and the normal display appears.

Misfeed in the bypass tray

Remove the misfed paper from the bypass tray.

Be careful not to tear the misfed paper during removal.

After removing the misfed paper, open and close the duplex bypass/inverter unit to reset.

Grasp the finger hold and gently open the unit.

After closing, confirm that the misfeed message has been cleared and the normal display appears. If the duplex bypass/ inverter unit is not installed, close the side cover in the same way.

NOTE

Paper misfed from a paper tray may be extending out of the tray into the right side cover area. In this case if the tray is drawn out of the machine, the paper may become torn and difficult to remove. To prevent this from happening, always open the right side cover first and remove the misfed paper if it is extending into that area.

NOTE

If paper is loaded in the bypass tray, temporarily remove the paper and close the bypass tray before opening the side cover.

NOTE

The misfeed may have occurred inside the machine. Check carefully and remove it.

MISFEED REMOVAL

2-20

Misfeed in the transport area, fusing area, and exit area

Transport area

Open the upper side cover and check for a misfeed.

Push the lever upward and gently open the cover.

Be careful not to tear the misfed paper during removal.

Gently close the upper side cover.

Exit area

Misfeed in the exit area

Models with an e xit tray attached to the duplex bypass/inverter unit:

Gently remove the misfed paper as shown in the illustration, taking care not to tear the paper.

Models without the duplex bypass/ inverter unit:

Gently remove the misfed paper as shown in the illustration, taking care not to tear the paper.

Upper exit tray:

Gently remove the misfed paper as shown in the illustration, taking care not to tear the paper.

Fusing area

Open the duplex bypass/inverter unit.

Grasp the finger hold and gently open the unit.

Remove the misfed paper as shown in the illustrations below.

If paper is misfed in the transport area, turn roller rotating knob A in the direction of the arrow to remove the misfed paper.

If you do not find a misfeed, open the cover of the fusing unit and check for a misfeed inside the fusing unit.

Misfeed in the transfer unit

If paper is misfed on the transfer belt, remove it gently without touching the transfer belt. Do not pull out the transfer unit.

Gently close the duplex bypass/inverter unit.

After closing, confirm that the misfeed message has been cleared and the normal display appears. If the duplex bypass/ inverter unit is not installed, close the side cover in the same way.

NOTE

If paper is loaded in the bypass tray, temporarily remove the paper and close the bypass tray before opening the side cover.

NOTE

The misfeed may have occurred inside the machine. Check carefully and remove it.

NOTE

Even after clearing a misfeed, paper may remain inside the machine on the transfer belt where it is not visible. In this case, after visible misfeeds are removed, the paper on the transfer belt will be automatically moved to a position where it is visible and a misfeed will be indicated once again on the display. Clear the misfeed as explained in "Misfeed in the transfer unit" (step 3 on the right side of this page). For this reason, it may be necessary to perform the "Misfeed in the transfer unit" procedure twice.

The fusing unit is hot. Take care in removing paper. (Do not touch any metal parts.)

The transfer unit is hot. Take care in removing paper. (Do not touch any metal parts.)

CAUTION

MISFEED REMOVAL

2-21

Misfeed in the stand/1 x 500 sheet paper drawer

Open the upper and lower side covers.

Push the lever upward and gently open the cover.

Remove the misfed paper.

Be careful not to tear the misfed paper during removal.

If misfed paper is not found in step 2, pull out paper tray 1 and remove the misfed paper.

Be careful not to tear the misfed paper during removal.

Gently push the paper tray into the machine.

Push the tray firmly all the way into the machine.

Gently close the upper and lower side covers.

After closing, confirm that the misfeed message has been cleared and the normal display appears.

Misfeed in the stand/3 x 500 sheet paper drawer

To remove a misfeed in the upper, middle, or lower tray, follow steps 1 through 5 above of "Misfeed in the stand/1 x 500 sheet paper drawer".

NOTE

If paper is loaded in the bypass tray, temporarily remove the paper and close the bypass tray before opening the side cover.

NOTE

The misfeed may have occurred inside the machine. Check carefully and remove it.

MISFEED REMOVAL

2-22

Misfeed in the duplex bypass/inverter unit and duplex module/2 x 500 sheet paper drawer

Perform steps 1 and 2 of "Misfeed in the stand/1 x 500 sheet paper drawer" on the previous page.

Open the upper cover of the duplex bypass/inverter unit.

Remove the misfeed from the upper part of the duplex bypass/inverter unit.

Hold the upper cover of the unit open while removing the misfed paper.

Close the upper cover of the duplex bypass/inverter unit.

Lift the exit tray if one is installed and open the cover of the duplex bypass/inverter unit.

Remove the misfed paper.

While holding the exit tray up, remove the misfed paper as shown in the illustration. Be careful not to tear the misfed paper during removal.

Close the cover of the duplex bypass/ inverter unit and return the exit tray to its original position.

Remove a misfeed from the bottom of the duplex bypass/inverter unit.

Gently remove the misfed paper from the bottom of the duplex bypass/inverter unit as shown in the illustration, taking care not to tear the paper.

Make sure that there is no misfed paper in the machine.

Pull out the duplex module of the duplex module/2 x 500 sheet paper drawer.

NOTE

MISFEED REMOVAL

2-23

Remove the misfed paper from the duplex module.

Be careful not to tear the misfed paper during removal.

Gently close the duplex module.

Push the tray firmly all the way into the machine.

Gently close the duplex bypass /inverter unit.

■■■■ Misfeed in the upper or lower tray

To remove misfed paper from the upper tray or lower tray, follow steps 1 through 5 of "Misfeed in the stand/1 x 500 sheet paper drawer" on page 2-

21.

2-24

TROUBLESHOOTING

Check the following troubleshooting list before requesting service as many problems can be fixed by the user. If you are unable to solve the problem by checking the list, turn off the power switch, unplug the power cord. Problems related to general use of the machine are described below. For problems related to the copy function, see page 7-4. For fax, printer, and network scanner problems, see the manuals for those functions. For peripheral device problems, see the explanation of the device.

If the message "CALL FOR SERVICE. CODE:**-**" appears in the touch panel, turn off the power switch, wait about 10 seconds, and then turn the power switch back on. If the message still appears after turning the switch off and on several times, it is likely that a failure has occurred and maintenance would be required. In this event, stop using the machine, unplug the power cord, and contact your Sharp dealer. Note : Letters and numbers appear in "**-**" above. When you contact your Sharp dealer, please tell your dealer

what letters and numbers appear.

Problem Check Solution or cause

The machine does not operate.

Printer plugged in? Plug the printer into a grounded outlet. Power switch on? Turn on the power switch.

READY indicator off?

The printer is warming up. (Warm-up time is approximately 99 seconds.) Wait until the READY indicator lights up.

Message indicating need to load paper displayed?

Load paper. (page 2-2)

Message indicating need to replace the toner cartridge displayed?

Replace the toner cartridge.(page 2-15)

Message indicating a paper misfeed displayed?

Remove misfed paper. (page 2-18)

A message appears saying that the power must be turned off and then turned on.

Turn off the power switch, wait about 10 seconds, and then turn on the switch again. If the same message appears after turning the power switch off and on several times, it is possible that the machine needs service. In this event, contact your dealer.

Copying/printing is not possible.

A message appears saying that this type of paper cannot be used for two-sided copying.

Two-sided printing is not possible on special paper. Use paper that can be used for automatic two-sided printing. (page 2-10)

Incorrect bypass tray paper size.

Incorrect display of paper sizes A3W, A3, B4, A4R, 12" x 18", 11" x 17", 8-1/2" x 14", 8-1/2" x 13", or 8-1/2" x 11"R only.

When loading sizes A3W, A3, B4, A4R, 12" x 18", 11" x 17", 8-1/2" x 14", 8-1/2" x 13", or 8-1/2" x 11"R, be sure to open the tray extension.

Copying/printing on paper from the bypass tray is skewed.

The number of sheets placed on the bypass tray exceeds the maximum number.

Do not place more than the maximum number of sheets.

The bypass guide is not adjusted to the size of the loaded paper.

Adjust the bypass guide to the size of the loaded paper.

Paper from the bypass tray misfeeds.

The paper size and paper type have not been set.

Be sure to set the paper size and paper type when using special size or special type papers. (page 2-12)

The number of sheets placed on the bypass tray exceeds the maximum number.

Do not place more than the maximum number of sheets.

The bypass guide is not adjusted to the size of the loaded paper.

Adjust the bypass guide to the size of the loaded paper.

Printing stops before the job is finished.

If too many pages collect on the output tray, the tray full sensor activates and stops printing.

Remove the paper from the output tray.

You have run out of paper. Load paper. (page 2-2)

TROUBLESHOOTING

2-25

Smudges on printed sheets.

Does a message appear indicating the need for maintenance?

Please contact the your dealer as soon as possible.

Colour deviations occur.

When printing in colour, character and colour deviations appear.

Perform colour registration as explained on pages 12 and 13 of the key operator's guide.

The displayed paper size differs from the loaded paper size.

The display of the tray's paper size slide differs from the paper size in the tray.

When you change the paper size in the tray, be sure to adjust the paper size slide on the tray to the new paper size. (page 2-2)

When printing on a special size of paper, part of the printed image is missing.

The paper size setting is not set correctly in the paper tray settings of the custom settings.

When using a special size of paper, set the correct paper size in millimetres in the paper tray settings of the custom settings (see page 2-11). If the paper size setting is not correct, part or all of the image may not print (this depends on the options installed).

When printing on a special size of paper using the bypass tray, part of the printed image is missing.

The paper size is not set correctly in the special size settings for the bypass tray.

When using a special size of paper, set the correct paper size in millimetres as explained in step 6 on page 2-12. If the paper size setting is not correct, part or all of the image may not print (this depends on the options installed).

Paper misfeeds frequently.

Is paper other than SHARPrecommended paper being used?

Use SHARP-recommended paper.

Paper curled or damp?

Do not use curled or crimped paper. If you do not use paper for a long time, store paper in the wrapper in a dry location.

Is the paper curled and does it frequently misfeed in the duplex module/2 x 500 sheet paper drawer or saddle stitch finisher?

Paper may be curled when output depending on the paper type and quality. In some cases turning the paper over in the tray will reduce misfeeding due to curling.

Multiple sheets of paper fed simultaneously?

Remove the paper from the paper tray or the bypass tray, fan the paper as shown in the illustration, and then load it again.

Printed paper is wrinkled or the image rubs off easily.

Is paper other than SHARPrecommended paper being used?

Use SHARP-recommended paper.

Is paper size or weight out of the allowable range?

Use paper in the allowable range.

Do wrinkles appear when printing envelopes?

Moving the pressure adjusting levers of the fusing unit from the normal position to a weaker pressure position may help alleviate this problem. (page 2-6)

Is the pressure adjustment lever of the fusing unit out of position?

Return the pressure adjusting levers of the fusing unit to the normal position. (page 2-7)

Paper damp?

Be sure to store paper in the wrapper in a dry location and do not store paper in a location that is

●humid

●at a high temperature or an extremely low

temperature.

The contrast on the touch panel is too high or too low.

Is LCD contrast properly adjusted?

Adjust the contrast using "DISPLAY CONTRAST" of custom settings. (page 2-13)

Problem Check Solution or cause

3-1

CHAPTER 3

PERIPHERAL DEVICES

This chapter explains procedures for using the peripheral devices such as the Saddle Stitch Finisher (AR-F13).

Page

SADDLE STITCH FINISHER.........................................................................3-2

●

Part names and functions ......................................................................3-2

●

Specifications.........................................................................................3-2

●

Saddle stitch finisher functions...............................................................3-4

●

Using the saddle stitch finisher ..............................................................3-6

●

Staple cartridge replacement and staple jam removal...........................3-7

●

Misfeed in the saddle stitch finisher.....................................................3-10

●

Troubleshooting saddle stitch finisher problems ..................................3-12

●

Stapling position quick reference guide for duplex output....................3-13

●

Relation between print image and saddle stitch...................................3-14

20-BIN SORTER..........................................................................................3-15

●

Part names...........................................................................................3-15

●

Specifications.......................................................................................3-15

●

Methods of sorting copies ....................................................................3-16

●

Selecting the mode of the 20-bin sorter...............................................3-17

●

Using the 20-bin sorter.........................................................................3-18

●

Misfeed in the 20-bin sorter..................................................................3-19

LARGE CAPACITY TRAY ...........................................................................3-20

●

Part name.............................................................................................3-20

●

Specifications.......................................................................................3-20

●

Loading paper in the large capacity tray..............................................3-21

●

Misfeed in the large capacity tray.........................................................3-22

3-2

SADDLE STITCH FINISHER

The saddle stitch finisher can automatically place two staples for centreline binding of prints or copies and fold them along the centreline. An optional hole punching unit is available for installation into the finisher.

Part names and functions

Specifications

NOTES

● Do not press on the saddle stitch finisher (particularly the offset tray).

● Use caution when near the offset tray during printing as the tray moves up and down.

● To install the saddle stitch finisher, a duplex bypass/inverter unit and either a stand/1 x 500 sheet paper drawer,

a stand/3 x 500 sheet paper drawer, or a duplex module/2 x 500 sheet paper drawer must also be installed.

Name SADDLE STITCH FINISHER (AR-F13)

Paper size/Useable paper

Paper size Upper paper tray: Face up output: Same as paper specifications of machine Face down output: A3W, A3, B4, A4, A4R, B5, B5R, A5, 12" x 18", 11" x 17",

8-1/2" x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 7-1/4" x 10-1/2"R, 5-1/2" x 8-1/2"

Lower tray: A3, B4, A4R, 11" x 17", 8-1/2" x 11"R Paper weight

Upper tray: 64 to 300

g/m

or 17 to 80 lbs. for face up output

64 to 200

g/m

or 17 to 54 lbs. for face down output

Lower tray: 64 to 105

g/m

or 17 to 28 lbs.

Paper types Upper tray: Same as paper specifications of the machine Lower tray: Plain paper only

Number of trays 2 (offset tray + saddle stitch tray)

Tray capacity

Upper paper tray: Non-stapling: 1000 sheets of paper: A4, A4R, B5, B5R, 8-1/2" x 11",

8-1/2" x 11"R (80 g/m

or 21 lbs.) 500 sheets of paper: Sizes other than A4, A4R, B5, B5R, 8-1/2" x 11" or 8-1/2" x 11"R (up to 10 envelopes or postcards inside the staple compiler; alignment is not guaranteed)

Stapling: Maximum of 30 sets or 1000 sheets of A4, B5, or 8-1/2" x 11"

paper (50 sets maximum for vertically fed paper stapled at one location in the upper left corner). Maximum of 30 sets or 500 sheets of other paper sizes.

Lower tray: Stapled print capacity is (6 - 10) sheets x 10 sets or (1 - 5)

sheets x 20 sets.

Stapler compiler

Paper to be stapled is stacked temporarily. When printing on post cards or envelopes, remove the output from here.

Offset tray

Output which is stapled or offset will be delivered to this tray.

Saddle stitch tray

Saddle stitched output is delivered here.

Top cover

Open for misfeed removal.

Stapler section

Open the front cover and pull out this section to replace the staple cartridge or to remove jammed staples.

Front cover

Open to replace the staple cartridge, to remove the misfed paper, or to remove jammed staples.

(Continued on next page)

SADDLE STITCH FINISHER

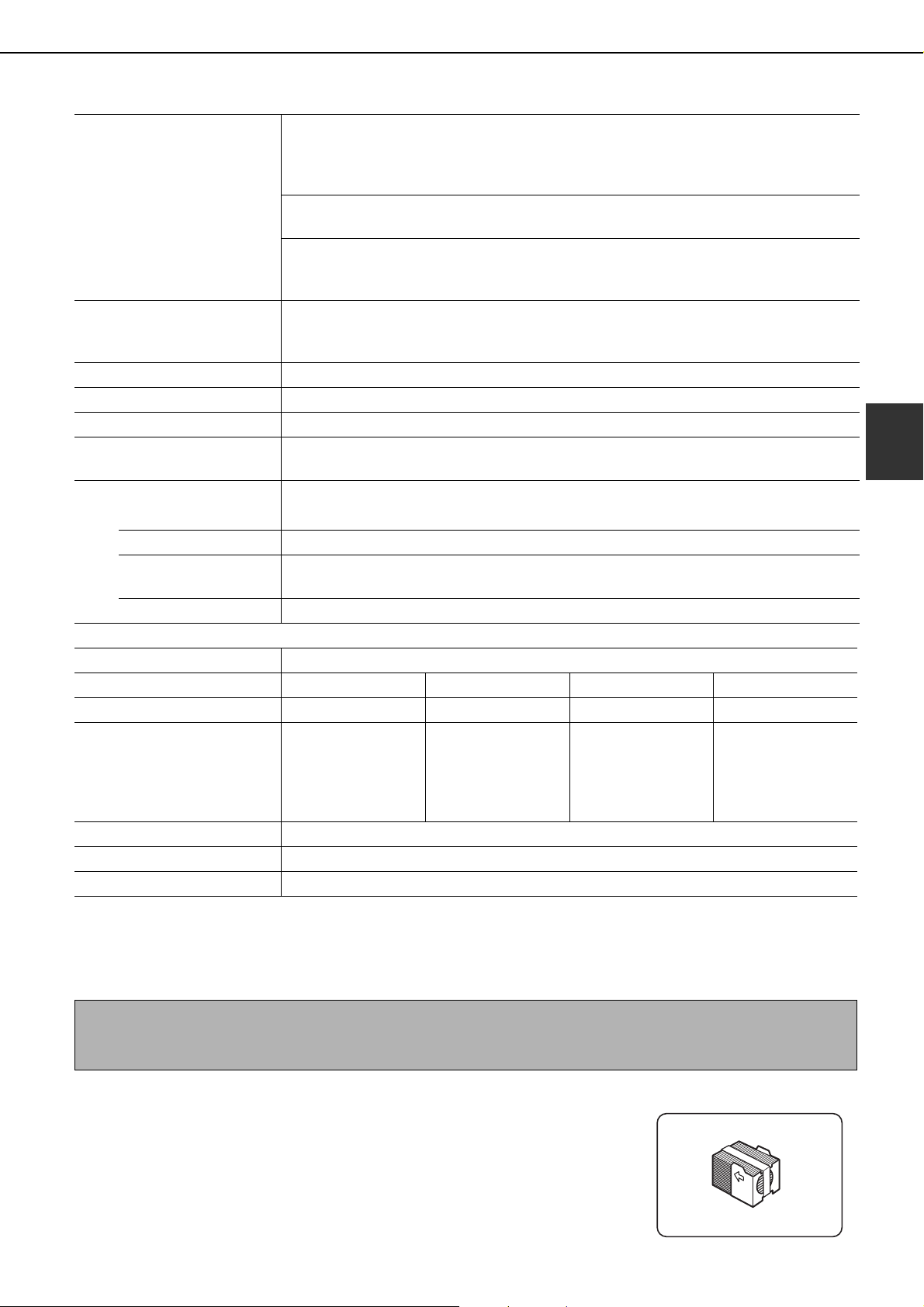

3-3

*1 Multiple punch modules cannot be installed together. Some models may not be available in some regions. *2 With AR-PN1B, two or three holes can be punched depending on the paper size. *3 With AR-PN1C and AR-PN1D, the number of holes is the same. The hole interval, however, is not the same.

Specifications are subject to change for improvement without notice.

Supplies

AR-SC2 staple cartridges must be used for this finisher. The cartridge package contains three cartridges of approximately 5000 staples each.

Staple

Allowed paper sizes for stapling Upper tray: A3, B4, A4, A4R, B5, 11" x 17", 8-1/2" x 14", 8-1/2" x 13",

8-1/2" x 11", 8-1/2" x 11"R

Lower tray: A3, B4, A4R, 11" x 17", 8-1/2" x 11"R Maximum number of sheets for stapling

See "Staple sort mode" on the next page Stapling positions

Upper tray: 3 locations (1 position back, 1 position front, 2 positions centre) Lower tray: 120 mm (4-47/64") pitch from centre of paper

Saddle stitch

Maximum of 10 sheets can be stapled (80 g/m

or 21 lbs.) Paper size: A3, B4, A4R, 11" x 17", 8-1/2" x 11"R Paper weight: 64 to 105 g/m

or 17 to 28 lbs. Power supply Supplied from machine (Stand / paper drawer) Dimensions

633mm(W) x 603mm(D) x 771mm(H) (24-59/64" (W) x 23-3/4" (D) x 30-23/64" (H)) Weight Approximately 36kg (79.4lbs.) Overall dimensions when

attached to machine

1432mm(W) x 676mm(D) (when tray is extended)

Remarks

Paper output

Upper tray: Supports both face-up and face-down output Lower tray: Face-down output only

Paper full detection Both upper and lower tray

Offset function

Upper tray only (offset function not possible for A3W, A5R, 12" x 18" and

5-1/2" x 8-1/2"R size paper)

Paper conveying Centre reference

Name Punch module Model*

AR-PN1A AR-PN1B*

AR-PN1C*

AR-PN1D*

Number of holes 2 3 or 2 4 4

Paper sizes for hole punching

11"x17", 8-1/2"x14", 8-1/2"x13", 8-1/2"x11", 8-1/2"x11"R, A3, B4, A4, A4R, B5, B5R

3 holes: 11" x 17", 8-1/2" x 11", A3, A4 2 holes: 8-1/2"x14", 8-1/2" x 11"R

A3, A4

11"x17", 8-1/2"x14", 8-1/2"x13", 8-1/2"x11", 8-1/2"x11"R, A3, B4,

A4, A4R, B5, B5R Power supply Supplied from machine saddle stitch finisher Dimensions 95mm(W) x 560mm(D) x 170mm(H) (3-3/4" (W) x 22-1/16" (D) x 6-45/64" (H)) Weight Approximately 2.5kg (5.6lbs.)

NOTES

● Transparency film, envelopes, postcards, and other special papers cannot be stapled.

● If mixed paper sizes are selected for stapling jobs, stapling will be automatically cancelled.

SADDLE STITCH FINISHER

3-4

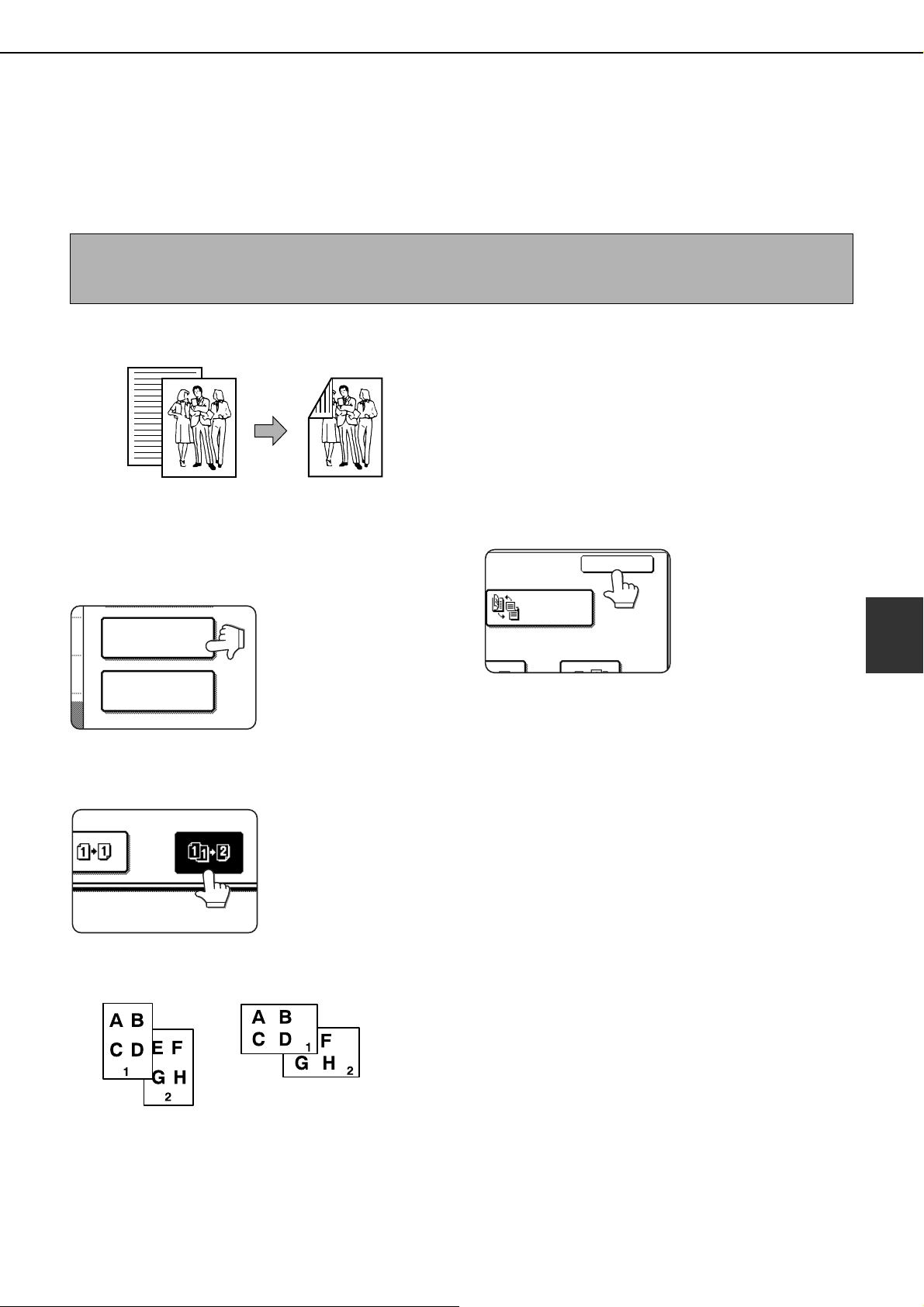

Saddle stitch finisher functions

■■■■ Sort mode

Sorted sets will be delivered.

■■■■ Group mode

Groups of copies of the same page will be delivered.

■■■■ Offset mode

Sets will move from side to side so that each set or group will be offset from the previous set or group for easy separation. (The offset function only operates in the offset tray.) Stapled sets will not be offset.

■■■■ Staple sort mode

Collated sets of prints or copies will be stapled and delivered to the offset tray. When saddle stitching is selected, the prints or copies will be stapled at the centre and delivered to the saddle stitch tray. The stapling positions, orientation, paper size for stapling, and stapling capacity are shown below.

PrintoutsOriginal

Offset mode Non-offset mode

Stapling positions

Top left corner of printouts

Lower left corner of printouts

Portrait orientation

Landscape orientation

Available paper sizes: A4, B5 and 8-1/2" x 11" Stapling capacity: For each size, up to 30 sheets can be stapled

Same as above

Available paper sizes:

A3, B4,

A4R,

11" x 17",

8-1/2" x 14", 8-1/2" x 13" and 8-1/2" x 11"R Stapling capacity: Up to 30 sheets of A4R or 8-1/2" x 11"R paper can be stapled, up to 25 sheets of other paper sizes

Saddle stitch on centrefold line.

Paper in the portrait direction cannot be saddle stitched.

Available paper sizes: A3, B4, A4R, 11" x17" and 8-1/2" x 11"R Stapling capacity: For each size, up to 10 sheets can be stapled

Centre left two positions of printouts

Same as above

SADDLE STITCH FINISHER

3-5

■■■■ Saddle stitch function

The saddle stitch finisher can automatically place two staples for centreline binding of prints or copies and fold them along the centreline.

■■■■ Hole punching (only if a punch module is installed)

If the saddle stitch finisher is equipped with a hole punch module, printed paper can be hole punched and delivered to the offset tray. Saddle stitching and hole punching cannot be selected at the same time. The automatic image rotation will not function when the hole punching function is used. For the allowed paper sizes for punching, see the specifications on page 3-3. When using the punch function in copy mode, place the original with the top toward the inside of the machine. If the original is not placed in this orientation, punching will not take place at the correct positions. (See "Standard original setting orientation" on page 4-7 of the copy section.)

{Original 1} {Punch positions}

{Original 2} {Punch positions}

SADDLE STITCH FINISHER

3-6

Using the saddle stitch finisher

Touch the [Output] key on the main screen of copy mode to display the screen that allows selection of sort, staple sort, centreline stapling, group function, and the output tray.

[GROUP] key (See page 3-4.)

When Group is selected, all copies of the same original will be grouped.

[STAPLE SORT] key (See page 3-4.)

When Staple Sort is selected, sorted sets will be stapled and delivered to the offset tray. (They will not be offset stacked.)

[SORT] key (See page 3-4.)

When Sort is selected, sets of copies will be sequentially delivered.

[FINISHER TRAY] key (See page 3-2.)

When the offset function is selected, output goes to the offset tray. (The offset tray is automatically selected when the staple sort function is turned on.)

[OFFSET] key (See page 3-4.)

The offset function operates when "Yes" is selected, and doesn't operate when "No" is selected. (The offset checkmark is automatically cleared when the staple sort function is turned on.)

[CENTRE TRAY] key

If the centre tray is selected, output paper will be delivered to the exit tray located above the main unit.

[OK] key

Touch to close the [OUTPUT] screen and to return to the main screen.

[SADDLE STITCH] key (See page 3-5.)

When saddle stitching is selected, the copies will be stapled at the centre and delivered to the saddle stitch tray. Touch this key to display the pamphlet copy setting screen (page 6-25). (This is only possible when a checkmark appears in the checkbox of the [AUTOMATIC SADDLE STITCH] key operator program (see page 12 of the Key operator's guide.))

[PUNCH] key (See page 3-5.)

If the saddle stitch finisher is equipped with a hole punch module, printed paper can be hole punched and delivered to the offset tray.

* When one of the functions is selected, it is

highlighted.

OUTPUT

SADDLE STITCH

PUNCH

FINISHER TRAY

CENTRE TRAY

STAPLE

SORT

GROUP

OFFSET

SADDLE STITCH FINISHER

3-7

Staple cartridge replacement and staple jam removal

When the staple cartridge becomes empty or staples become jammed, a message will appear in the message display of the operation panel. Follow the procedure below to replace the staple cartridge or remove jammed staples.

■■■■ Staple cartridge replacement

Open the front cover.

Pull out the stapler section.

Turn roller rotating knob A in the direction of the arrow to move the staple unit to the front.

Turn the roller rotating knob until the triangle mark is aligned with the index.

Remove the empty staple box.

Remove the empty staple cartridge.

Press the lock button to unlock the staple box cover and remove the staple cartridge.

Insert a new staple cartridge into the staple box.

After inserting the staple cartridge, press down on the staple box cover to lock the cartridge in place.

Remove the tape from the staple cartridge by pulling it straight.

Insert the staple box.

Push the staple box in until it clicks into place.

Push the stapler section back into the finisher.

Close the front cover.

NOTE

If staples remain, the staple cartridge cannot be removed.

Roller rotating knob A

Staple unit

NOTES

● Do not remove the tape from the cartridge before inserting the staple cartridge into the box.

● Make sure that the new staple cartridge is locked securely in the staple box. Press down on the staple box cover until you hear a "click" indicating that the staple cartridge is locked.

NOTE

Make a test print or copy in the staple sort mode to ensure that stapling is performed properly.

SADDLE STITCH FINISHER

3-8

■■■■ Staple jam removal

Unlatch the saddle stitch finisher and slide it away from the main unit.

Open the front cover.

Turn roller rotating knob C as shown in the illustration until the blue indication is seen.

Remove the paper from the stapler compiler.

If saddle stitching was selected, open the saddle stitch section cover.

Remove the misfed paper.

Be careful not to tear the misfed paper during removal.

Close the saddle stitch section cover.

Pull out the stapler section.

Turn roller rotating knob A in the direction of the arrow to move the staple unit to the front.

Turn the roller rotating knob until the triangle mark is aligned with the index.

Remove the staple box.

Blue

Roller rotating knob C

Roller rotating knob A

Staple unit

SADDLE STITCH FINISHER

3-9

Raise the lever at the end of the staple box.

Remove the top staple if it is bent. If bent staples remain, a staple jam will occur again.

Return the lever to its original position.

Reinstall the staple box.

Push the staple box in until it clicks into place.

Push the stapler section back into the finisher.

Close the front cover.

Push the saddle stitch finisher back against the main unit.

■■■■ Disposal of hole punch scrap (when the punch unit is installed)

Unlatch the saddle stitch finisher and slide it away from the main unit.

Pull out the punch scrap collecting container and empty it.

Discard the punch scraps in a plastic bag or other container, taking care not to let the scraps scatter.

Return the punch scrap collecting container to its original position.

Push the saddle stitch finisher back against the main unit.

NOTE

Make a test print or copy in the staple sort mode to ensure that stapling is performed properly

SADDLE STITCH FINISHER

3-10

Misfeed in the saddle stitch finisher

When a misfeed occurs in the saddle stitch finisher, remove the misfed paper following the procedure below.

Unlatch the saddle stitch finisher and slide it away from the main unit.

Remove the misfed paper from the main unit.

After removing the misfed paper, open and close the duplex bypass/ inverter to reset the jam indicator. ("Misfeed in the Fusing area" step 1 or 4 on page 2-20)

If there was no misfed paper in step 2, pull roller rotating knob B on the punch unit towards you and rotate it. (Only when an optional punch unit is installed.)

Rotating roller rotating knob B releases the caught paper.

Open the top cover.

Remove the misfed paper.

Remove the paper gently, taking care not to tear it.

Close the top cover.

Remove the misfed paper from the stapler compiler.

Be careful not to tear the misfed paper during removal.

Open the saddle stitch section cover.

Remove the misfed paper.

Be careful not to tear the misfed paper during removal.

NOTE

The saddle stitch finisher and the machine are connected at the rear. Exercise caution when pulling them apart.

Roller rotating

knob B

SADDLE STITCH FINISHER

3-11

Open the front cover.

Turn roller rotating knob in the direction of the arrow.

Remove any misfed paper from the saddle stitch tray.

Be careful not to tear the misfed paper during removal.

Close the saddle stitch section cover.

Close the front cover.

Push the saddle stitch finisher back against the main unit.

SADDLE STITCH FINISHER

3-12

Troubleshooting saddle stitch finisher problems

Check the list below before calling for service.

* When a hole punch module is installed

Problem Check Solution or cause

Stapling position is not correct (including saddle stitch).

Stapling position not set properly?

Check the stapling position setting. (See pages 3-4, 3-13 and 3-14.)

The saddle stitch finisher does not operate.

Are any saddle stitch finisher covers open? Close all covers. (See page 3-10 and 3-11.) Message indicating need to remove paper

from the stapler compiler displayed?

Remove all remaining paper from the stapler compiler referring to step 4 on page 3-8.

Stapling cannot be performed (including saddle stitch).

Message to check the staple unit displayed?

Remove jammed staples. (See page 3-8.)

Message to add staples displayed?

Replace the staple cartridge. (See page 3-7.) Check that a staple cartridge has been installed. (See page 3-7.)

Different size paper included?

Stapling cannot be performed onto different size paper.

Is the paper badly curled, preventing stapling?

Differences in paper quality and type may result in bad curling of output paper. Take the paper out of the tray or bypass tray, turn it around, and reload it so that the top and bottom edges are reversed.

The punch hole positions are not correct*

The punch function is not set to the correct punch positions.

Check the allowed hole punch positions. (See page 3-5.)

Cannot be punched.*

Message to check the punch module displayed?

Dispose of punch scraps. (See page 3-9.)

Mixed paper sizes?

Punching is not possible when different paper sizes are mixed together.

Paper is badly curled and the output paper is not punched.

"CALL FOR SERVICE. CODE: F1-00." is displayed.

The cable between the machine and the saddle stitch finisher is not connected.

Turn off the power of the machine, connect the cable on the back of the saddle stitch finisher to the connector on the machine, and then turn on the machine power.

SADDLE STITCH FINISHER

3-13

Stapling position quick reference guide for duplex output

The orientation of the copy paper, original, scanned original data, and binding position selection are all interrelated. The table below shows these relationships.

Orientation of original or original data

Output result

Page 1 Page 2

Page 1 & Page 2

Duplexed

One-position stapling Two-position stapling

Two-position staplingOne-position stapling

One-position stapling

Left binding with two-position stapling is not possible.

Right binding with twoposition stapling is not possible.

Top binding with two-position stapling is not possible.

Two-position stapling along the shorter edge is not possible.

Right binding

Top binding

Left binding

Portrait orientation printing

Landscape orientation printing

SADDLE STITCH FINISHER

3-14

Relation between print image and saddle stitch

The orientation of the copy paper, original, scanned original data, and binding position selection are all interrelated. The table below shows these relationships.

Same as above

Orientation of original or original data

Output result

Page 1

Page 3

Page 2

Page 4

Page 1 & Page 2

Duplexed

Page 3 & Page 4

Duplexed

Right bindingLeft binding Left binding Right binding

Portrait orientation printing

Landscape orientation printing

Page 1

Page 3

Page 2

Page 4

Same as above

Page 1 & Page 2

Duplexed

Page 3 & Page 4

Duplexed

3-15

20-BIN SORTER

The 20-bin sorter allows you to sort copies into collated sets (sort mode), or group them by original page. Sets of up to 20 full-colour copies can be made in sort mode.

Part names

Specifications

CAUTIONS

● Do not put pressure on the sorter or subject it to undue force (particularly the sort bins).

● Do not place your hands on the sorter during copying because the sorter moves up and down.

NOTES

● To install the 20-bin sorter, a duplex bypass/inverter unit and either a stand/1 x 500 sheet paper drawer, a stand/ 3 x 500 sheet paper drawer, or a duplex module/2 x 500 sheet paper drawer must also be installed.

● In printer mode, output is only possible to the top bin. To have received faxes delivered to the 20-bin sorter, use "OUTPUT TRAY SETTING" in the key operator programs for the fax function to change the output tray selection to the 20-bin sorter. (Page 8-9 of the Operation Manual (for facsimile).)

Name 20-BIN SORTER (AR-S11)

Paper size/ Useable paper

Paper size Non sort mode: Max. A3W (12" x 18")

Min. A6R (5-1/2" x 8-1/2"R)

Paper weight and Paper types Non sort mode: 64 to 300 g/m

(17 to 80 lbs.) (Plain paper and special paper that can be fed according to the paper feeding specifications of the machine.)

Sort and group mode: 64 to 105 g/m

(17 to 28 lbs.) (Plain paper only; however, up to

two sheets of Heavy Paper 1 (paper weight: 106 to 200 g/m

28+ to 54 lbs.) can be held in each bin in COVERS mode.)

Number of bins 20 Tray CAPACITY See "SORTER CAPACITY" on the next page. Power supply Supplied from machine (Stand/paper drawer) Dimensions 519 mm (W) x 545 mm (D) x 820 mm (H) (20-7/16" (W) x 21-15/32" (D) x 32-19/64" (H)) Weight* Approximately 28kg (61.7 lbs.) *without mounting kit Overall dimensions

when attached to machine

1194 mm (W) x 676 mm (D) (47-1/64" (W) x 26-5/8" (D))

Remarks

Paper output method

Face down output (however, face up output in non-sort mode when using paper other than plain paper or heavy paper 1 (paper weight: 106 to 200 g/m

or 28+ to 54 lbs.))

Sort bins

Copies are delivered to these bins.

Sorter release button (See page 3-19)

If a misfeed occurs in the 20-bin sorter, press this button to open the space between the sorter and the machine.

20-BIN SORTER

3-16

SORTER CAPACITY

The indicated number of sheets is the number that can be held in one bin, and is also the maximum number of original pages that can be copied at once in sort mode. (See the note on page 3-18, "Maximum number of original pages")

*2 The indicated number of sheets is the number that can be held in one bin, and is also the maximum number of copies that can

be set in group mode. (See the note on page

3-18

, "

Maximum number of copies that can be set

".)

*3 Up to two sheets can be held in each bin when used as a cover in COVERS mode.

Methods of sorting copies

The 20-bin sorter has the following three modes.

● In the diagrams, 5 copies each are made of originals 1, 2, and 3 in each of the modes.

■■■■ Sort mode

One set of copies is sorted into each bin.

5 sets of copies

(The copies are output face down in each bin.)

■■■■ Group mode

One set of copies grouped by original page is delivered to each bin. The copies are output face down.

5 copies per page

(The copies are output face down in each bin.)

■■■■ Non sort mode

All copies are delivered to the top bin (unsorted). Plain paper and Heavy Paper 1 (paper weight: 106 to 200 g/m

or 28+ to 54 lbs.) are output face down. All other

paper types are output face up.

Bin 1 bin 1 bin to 20 bins Mode Non sort Sort Group

Paper weight

64 to 80 g/ m

(17 to

21 lbs.)

81 to 105 g/m

(21+

to 28 lbs.)

106 to 300 g/m

(28+

to 80 lbs.)

64 to 80 g/ m2 (17 to 21 lbs.)

81 to 105 g/m

(21+

to 28 lbs.)

106 to 200 g/m

(28+

to 54 lbs.)

64 to 105 g/m

(17 to

28 lbs.)

106 to 200 g/m

(28+

to 54 lbs.)

Paper size

A3W, 12" x 18" 60 sheets 60 sheets 10 sheets No No No No No A3, B4, 11" x17",

8-1/2" x 14", 8-1/2" x 13"

60 sheets 60 sheets 10 sheets

25 sheets*125 sheets*

No*

25 sheets*

A4, A4R, B5R, 8-1/2" x 11", 8-1/2" x 11"R

100 sheets 100 sheets 10 sheets

50 sheets*150 sheets*

No*

30 sheets*

B5, A5, 8-1/2" x 5-1/2" 100 sheets 100 sheets 10 sheets

50 sheets*150 sheets*

No*

30 sheets*

7-1/4" x 10-1/2"R 100 sheets 100 sheets 10 sheets No No No No No

NOTES

● When copying in COVERS mode, take care that the number of copies in one set, including covers, does not exceed the maximum number of sheets that can be held in one bin as indicated above.

● Copying normally stops when the number of sheets in each bin reaches the limit. This can be disabled with the "OVERRIDE SORTER BIN CAPACITY LIMIT" key operator program (page 16 of the Key Operator's Guide), allowing copying to continue even if the limit is exceeded. Note, however, that this may result in misfeeds or copies overflowing from the bin.

● If the [INTERRUPT] key is touched during copying in sort mode or group mode (one-sided copying only), the mode will automatically switch to non-sort mode. The mode will switch back to the previous mode when the [INTERRUPT] key is touched once again to exit the interrupt state. (Interrupt is not possible during automatic two-sided copying (one-sided to two-sided or two-sided to two-sided)).

● When colour copying is performed, much toner may be put on copy paper depending on the image. In this case, the copies may be curled.

Original

NOTE

Output to the 20-bin sorter in sort mode and group mode is only possible when the machine is in Copy mode.

20-BIN SORTER

3-17

Selecting the mode of the 20-bin sorter

To have copies delivered to the 20-bin sorter, follow the steps below to switch the output location to the sorter and select the desired sorter mode (NON SORT, SORT, or GROUP).

[GROUP] key

This key selects group mode. One set of copies grouped by original page is output to each sorter bin.

[SORT] key

This key selects sort mode. One set of sorted copies is output to each sorter bin.

[NON SORT] key

This key selects non-sort mode. Copies are output without sorting to the top bin of the sorter.

[SORTER] key

This key switches the output location to the sorter. The key is highlighted when the sorter is selected.

[CENTRE TRAY] key

This key switches the output location to the centre tray. The key is highlighted when the centre tray is selected.

[OK] key

This key closes the output setting screen and returns you to the main screen.

* When key , , or is touched to select the sorter

mode, the entire key of the selected mode is highlighted. (When the sorter mode is selected automatically, the icon above the key is highlighted.)

OUTPUT

NON SORT

SORT

SORTER

CENTRE TRAY

GROUP

SPECIAL MODES

2-SIDED COPY

OUTPUT

READY TO COPY.

AUTO

EXPOSURE

AUTO A4

PAPER SELECT

100

COPY RATIO

INTERRUPT

DUPLEX

INTERRUPT

READY TO COPY.

OUTPUT

SORT

GROUP

CENTRE TRAY

OFFSET

SORTER

Touch the [OUTPUT] key in the main screen.

Touch the [SORTER] key.

Touch the key of the desired sorter mode ( , , or ).

20-BIN SORTER

3-18

Using the 20-bin sorter

Place the original in the document feeder tray or on the document glass. (See page 4-6.)

Select copy settings as needed, including two-sided or one-sided copy mode, paper size select, exposure adjustment, and copy ratio. (See chapter 5.)

Touch the [OUTPUT] key.

Touch the [SORTER] key.

Touch the key for the desired output mode.

The touched key is highlighted to indicate that the function is enabled.

If the original was placed on the document glass in step 1, non-sort mode is

automatically selected. If the original was placed in the document feeder tray, sort mode is automatically selected.

Touch the [OK] key.

Set the number of copies as needed and press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

If you are using the

document glass, replace

the original with the next

original and press the

[START] key. Repeat

this step following the

correct page order until

all originals have been

copied.

2-SIDED COPY

OUTPUT

READY TO COPY.

OUTPUT

SORT

GROUP

SORTER

OUTPUT

NON SORT

SORT

SORTER

GROUP

READY TO COPY.

CENTRE TRAY

INTERRUPT

NOTES

●●●● Maximum number of original pages

This is the maximum number of original pages that can be copied at once in sort mode or group mode. In sort mode: The limit is the same as the maximum number of sheets that can be held in one bin. (See *1 in

the "SORTER CAPACITY" table on page 3-16.)

In group mode: Up to 20 sheets (the same as the number of bins in the sorter).

●●●● Maximum number of copies that can be set

The maximum number of copies that can be set in sort mode and group mode is as follows: In sort mode: Up to 20 copies (the same as the number of bins in the sorter) In group mode:

The number of sheets that can be held in one bin (See *2 in the "SORTER CAPACITY" table on page 3-16.)

● When "Transparency film with insert sheets" or "A3 (11" x 17") Full-bleed" is selected (these are special functions), the copies are output in non-sort mode. Sort and group modes cannot be selected.

● To cancel a copy run, press the [CLEAR] key. Copying will stop and the number in the copy quantity display will be reset to 0.

20-BIN SORTER

3-19

Misfeed in the 20-bin sorter

When a misfeed has occurred during copying, the message "MISFEED HAS OCCURRED." will appear in the touch panel display of the operation panel and copying output will stop.

Push the sorter release button and slide the sorter carefully along the guides away from the machine.

Remove the misfed paper.

Remove the misfed paper from the sorter.

Remove the misfed paper from the exit area of the machine. If you removed misfed paper from the machine, perform a "Reset after misfeed in machine" as explained at right before proceeding to step 3.

Slide the sorter back toward the machine and latch it into place.

Confirm that the misfeed display is cleared. If the message indicating a misfeed is still displayed, check the inside of the machine and remove any remaining misfed paper.

NOTE

Touch the [INFORMATION] key for more detailed information as necessary.

Reset after misfeed in machine

If you removed misfed paper from the machine in step 2, reset the machine as explained below. If this is not done, it may not be possible to clear the misfeed display.

Open the duplex bypass/inverter unit.

Grasp the finger hold and gently open the unit.

Gently close the duplex bypass/ inverter unit.

3-20

LARGE CAPACITY TRAY

The large capacity tray can hold approximately 3,500 sheets (80 g/m2 (21 lbs.)) of A4 (8-1/2" x 11") size paper. (For the types of paper that can be loaded in the large capacity tray, see "Large Capacity tray" in the tray specifications (page 2-9).)

Part name

Specifications

Specifications are subject to change for improvement without notice.

NOTES

● Do not place heavy objects on the large capacity tray or press down hard on the tray.

● To install the large capacity tray, the optional duplex module/2 x 500 sheet paper drawer must also be installed.

● The large capacity tray cannot be installed at the same time as the stand/3 x 500 sheet paper drawer.

Name LARGE CAPACITY TRAY (AR-LC8) Paper size A4 (8-1/2" x 11") Paper weight 64 to 105 g/m

(17 to 28 lbs.) Number of trays 1 tray Paper capacity 3,500 sheets (80 g/m

or 21 lbs.)

Power supply Supplied from machine

Dimensions

376 mm (W) x 545 mm (D) x 595 mm (H)

(14-13/16" (W) x 21-15/32" (D) x 23-7/16" (H)) Weight* Approximately 30kg (66.2 lbs.) *without mounting kit Overall dimensions when

attached to machine

976 mm (W) x 676 mm (D) (38-7/16" (W) x 26-5/8" (D))

Top cover

Open for misfeed removal.

LARGE CAPACITY TRAY

3-21

Loading paper in the large capacity tray

Pull the tray out until it stops.

When the tray is in operation, do not use excessive force to pull the tray out. This may damage the tray.

Place the paper in the centre of the paper table.

The paper stack must not be higher than the indicator line (up to 3,500 sheets of SHARP standard paper (80 g/m

(21 lbs.))

If the paper type was changed, be sure to change the appropriate settings as explained in "Setting the paper type (except the bypass tray)" (See page 2-11).

Push the tray firmly all the way into the machine.

The paper table will automatically rise to the paper feed position.

LARGE CAPACITY TRAY

3-22

Misfeed in the large capacity tray

When a misfeed occurs in the large capacity tray, remove the misfed paper, following the procedure below.

While holding the tray release lever, carefully slide the large capacity tray away from the main unit until it stops.

Remove any misfed paper from the main unit and the large capacity tray.

If the misfed paper is stuck inside the machine and cannot be removed, open the side cover and then remove the misfed paper. (See "Misfeed in the transport area, fusing area, and exit area" on page 2-20.)

Open the top cover.

Remove the misfed paper.

Be sure not to tear the misfed paper during removal. After removing the misfed paper, close the top cover.

Push the large capacity tray towards the main unit and latch it into place.

Gently push the large capacity tray back in until it stops.

If misfed paper is not found in step 2, pull the tray out.

Remove the misfed paper.

Gently push the tray back into place.

The paper feed table automatically rises to the paper feed position. Make sure that the paper misfeed screen is cleared and the normal message screen appears.

Release lever

Upper right side cover

Part 2: Copier Operation

4-1

CHAPTER 4

BEFORE MAKING COPIES

This chapter provides basic information necessary for using the copier functions of the machine. Please read this chapter before making copies.

Page

PART NAMES AND FUNCTIONS (The Reversing Single Pass Feeder)......4-2

●

Exterior...................................................................................................4-2

●

Operation Panel.....................................................................................4-3

●

Touch Panel (main screen of copy mode) .............................................4-4

REVERSING SINGLE PASS FEEDER .........................................................4-5

●

Acceptable originals...............................................................................4-5

SETTING ORIGINALS...................................................................................4-6

4-2

PART NAMES AND FUNCTIONS (The Reversing Single Pass Feeder)

Exterior

*RSPF exit area

Finished originals are output here.

Document feeder tray (page 4-6)

Set the originals here for automatic feeding.

Original guides (page 4-6)

Adjust to the size of the originals.

Document feeding area cover (page 7-2)

Open to remove misfed originals in this area.

*RSPF right side cover (page 7-2)

Open to remove misfed originals.

Reversing tray

Pull out to remove misfed originals.

Document glass

All originals which cannot be copied from the document feeder tray must be copied here.

* "RSPF" is an acronym for "Reversing Single Pass Feeder".

PART NAMES AND FUNCTIONS (The Reversing Single Pass Feeder)

4-3

Operation Panel

Touch panel (Details are on the next page 4-4)

Messages and touch keys are displayed here. Selections are made by touching the displayed keys. Selections made with the keys are confirmed by a "beep"* that is sounded when a key is touched, and highlighting of the selection key. * If a key that cannot be selected is touched, double-

beep will sound.

Keys that are greyed out cannot be selected.

Mode select keys

Use to change modes and the corresponding display on the touch panel.

[COPY] key

Press to select the copy mode and display the main screen of the copy mode. (next page 4-4) If this key is pressed and held while the main screen of the copy mode is displayed, the total output count will be displayed.

Numeric keys

Use to select the number of copies and to make numerical entries for setting operations.

[C] key (clear key)

Press to clear a copy quantity entry. If this key is pressed while the reversing single pass feeder is being used, any originals in progress will be automatically output.

[CA] key (clear all key)

This returns all copy mode settings to the default settings. However, the touch panel display mode will not be changed. When beginning a copy job, press this key.

[ ] key ([ACC.#-C] key)

If the auditing mode has been set, press this key to close an open account after finishing a copy job. For setting of the auditing mode, see page 1-11.

[#/P] key (page 6-26)

Press to select the job memory mode.

[START] key

When the indicator is lit, a copying job can be started. Press to start copying.

● [COLOUR COPY START ( )] key Press this key to start a single or multiple colour

copy job.

● [BLACK COPY START ( )] key Press this key to start a black and white copy job.

PART NAMES AND FUNCTIONS (The Reversing Single Pass Feeder)

4-4

Touch Panel (main screen of copy mode)

The main screen of copy mode shows messages and keys necessary for copying and settings that can be selected. Touch a key to make a selection. The main screen of the copy mode will be displayed when the [COPY] key is pressed.*

Message display

Basic status messages are displayed here.

[INTERRUPT] key display area

When interrupt copy is available, the [INTERRUPT] key will be displayed here. When an interrupt copy job is being run, a [CANCEL] key will be displayed here to be used for cancelling the interrupt copy job.

Copy quantity display

Displays the selected number of copies before the [START] key is pressed or the number of remaining copies after the [START] key is pressed. A single copy can be made when "0" displayed.

[2-SIDED COPY] key (page 5-6, 5-9)

Touch to display the duplex copy mode setting screen.

[OUTPUT] key (page 5-3, 5-8)

Touch to select sort, group, and staple sort.

[SPECIAL MODES] key (page 6-2)

Touch to display the special modes selection screen.

Original feed display

This lights steadily when an original is placed on the original table of the reversing single pass feeder. When "Stream feeding mode" in the key operator programs is turned on, the display blinks during the waiting period (about 5 seconds) for placement of the next original. (See page 12 of the key operator's guide.)

Paper size display

The display shows the location of the paper trays, the size of the paper in the trays and the approximate amount of paper loaded in each tray. The approximate amount of paper in a tray is indicated by .

Original size display

Displays the original size only when an original is placed for copying.

Exposure display

Displays the icon of the selected resolution and the exposure scale.

[EXPOSURE] key (page 5-10)

Use this key to adjust the copy exposure.

Paper select display

Displays the selected paper size. When the auto paper select mode has been selected, "AUTO" will be displayed.

[PAPER SELECT] key (page 5-2, 5-7)

Use this key to select the paper size.

Copy ratio display

Displays the selected copy ratio.

[COPY RATIO] key (page 5-13)

Use this key to select the copy ratio.

SPECIAL MODES

2-SIDED COPY

OUTPUT

READY TO COPY.

AUTO

EXPOSURE

AUTO A4

PAPER SELECT

100

COPY RATIO

PLAIN

INTERRUPT

DUPLEX

ORIGINAL

* Except when the custom

settings screen is displayed.

The screen at left shows the machine with the duplex module/2 x 500 sheet paper drawer and the duplex bypass/ inverter unit installed. The image will vary depending on the equipment installed.

4-5

REVERSING SINGLE PASS FEEDER

The reversing single pass feeder can be used to automatically feed originals for continuous copying. Both sides of two-sided sheet originals can be scanned without having to manually turn the originals over. This feature is convenient for making copies of a large number of originals.

Acceptable originals

When the reversing single pass feeder is used, up to 40 originals of the same size can be set in the feeder (maximum stack thickness of 4 mm, or 30 originals of weight 90 g/m2).

■■■■

Size and weight of acceptable originals

Notes on use of the reversing single pass feeder

●Use originals within the specified size and weight ranges. Use of originals out of the specified range may cause an original misfeed.

●Before loading originals into the document feeder tray, be sure to remove any staples or paper clips.

●If originals have damp spots from correction fluid, ink or glue from pasteups, be sure they are dried before they

are fed. If not, the interior of the document feeder or the document glass may be soiled.

●To prevent incorrect original size detection, original misfeeds or smudges on copies, use the following as a guide for feeding originals.

Transparency film, tracing paper, carbon paper, thermal paper or originals printed with thermal transfer ink ribbon should not be fed through the document feeder. Originals to be fed through the feeder should not be damaged, crumpled or folded or have loosely pasted paper on them or cutouts in them.

56g/m

or 15 lbs.290g/m

or 24 lbs.

Original size:

(148 x 210 mm)

A5 or

5-1/2" x 8-1/2"

A3 or

11" x 17"

(297 x 420 mm)

Weight (thickness):

g/m

... Weight of a sheet of paper of 1 m

4-6

SETTING ORIGINALS

■■■■ When using the reversing single

pass feeder

Adjust the original guides to the size of the originals.

Place the originals face up in the document feeder tray.

Set the originals all the way into the feed slot. Do not exceed the maximum height line marked on the original guide.

■■■■ When using the document glass

Open the document cover, place the original face down on the document glass, and then gently close the document cover.

[ How to place the original ]

Place the original in the appropriate position shown below according to its size. ( Centre the original on the centring scale.)

* When the reversing single pass feeder is used, these sizes are only supported for one-sided originals.

NOTES

● Do not place any objects under the original size detector, because they may damage it or the original size may not be detected properly.

● If an original has been placed in the document feeder tray of the reversing single pass feeder, remove it. Otherwise the original in the document feeder tray will be scanned instead of the original on the document glass.

Original size detector

B4 or 8½x14

A3 or 11x17

A4 or 8½x11

A5 or 5½x8½

Original scale

Centring scale

Original scale

Centring scale

NOTE

Original size detection function

One of the four groups of standard original sizes shown below can be selected for detection by the original size detection function. The factory default setting is "AB-1 (INCH-1)". The setting can be changed using "ORIGINAL SIZE DETECTOR SETTING" in the key operator programs. (Page 11 of the key operator's guide.)

Group

Detectable original sizes

Document feeder tray (for reversing single pass feeding) or document glass 1 INCH - 1 11" x 17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2"* 2 INCH - 2 11" x 17", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2"* 3 AB - 1 A3, A4, A4R, A5, B4, B5, B5R 4 AB - 2 A3, A4, A4R, A5, B5, B5R, 8-1/2" x 13"

SETTING ORIGINALS

4-7

■■■■ Standard original setting orientation

Place originals in the document feeder tray or on the document glass so that the top and bottom of the original is positioned as shown in the illustration. If not, staples will be incorrectly positioned and some special features may not give the expected result.

■■■■ Automatic copy image rotation - rotation copying

If the orientation of the originals and copy paper are different, the original image will be automatically rotated 90° and copied. (When an image is rotated, a message will be displayed.) If a function is selected that is not suitable for rotation, such as enlarging the copy to greater than A4 (8-1/2" x 11") size or staple sorting with the saddle stitch finisher, rotation will not be possible.

[Example]

●This function operates in both the auto paper select or auto image mode. (Rotation copying can be disabled with a key operator program. See page 15 of the key operator's guide.)

Document feeder tray

Document glass

Top

Bottom

Top

Bottom

Top

Bottom

[Example 1]

[Example 2]

Top

Bottom Bottom

Top

Document feeder tray

Document glass

Document feeder tray

Document glass

* When the original is placed as shown in example 2 and stapling is to be performed, orient

the top of the original as shown below.

Orientation of original Orientation of paper Copy after rotation

Face down Face down

5-1

CHAPTER 5

BASIC PROCEDURE

FOR MAKING COPIES

This chapter explains the procedures for using basic copy functions, including making normal copies and enlarging/reducing copies.

Page

NORMAL COPYING......................................................................................5-2

●

Copying from the reversing single pass feeder......................................5-2

●

Automatic two-sided copying from the reversing single pass feeder.....5-6

●

Copying from the document glass .........................................................5-7

●

Automatic two-sided copying from the document glass.........................5-9

EXPOSURE ADJUSTMENTS .....................................................................5-10

REDUCTION/ENLARGEMENT/ZOOM .......................................................5-12

●

Automatic selection (auto image).........................................................5-12

●

Manual selection..................................................................................5-13

●

XY ZOOM ............................................................................................5-15

SPECIAL PAPERS ......................................................................................5-17

5-2

NORMAL COPYING

This section describes the normal copying procedure.

Copying from the reversing single pass feeder

■■■■ 1-sided copies of 1-sided originals

Place the originals in the document feeder tray. (page 4-6)

Ensure that the 1-sided to 1-sided copy mode is selected.

The one-sided to onesided mode is selected when no icon for a twosided mode appears in the dashed area on the display. If the 1-sided to 1-sided copy mode is already selected, steps 3 to 5 are not needed.

Touch the [2-SIDED COPY] key.

Touch the [1-sided to 1-sided copy] key.

It may happen that a mode other than [1sided to 1-sided copy] is selected, thus [1-sided to 1-sided copy] should be selected again. (Touch the [1-sided to 1sided copy] key so that it is highlighted.)

Touch the [OK] key.

Ensure that paper of the same size as the originals is automatically selected. (*Note)

The selected tray will be highlighted or the message "LOAD xxxxxx PAPER." will appear. If the message appears, load paper in a paper tray with paper of the

required size. Even if the message above is displayed, copying can be performed onto the currently selected paper.

(*Note) The following requirements must be satisfied. Originals of a standard size (A3, B4, A4, A4R, B5,

B5R or A5 (11" x 17", 8-1/2" x 14", 8-1/2" x 11", 81/2" x 11"R or 5-1/2" x 8-1/2")) are set and the auto paper select function is enabled.

If originals of a size other

than the sizes above are

to be copied, manually

select the desired paper

size by touching the

[PAPER SELECT] key

and then touching the

desired paper size

selection key. The selected key will be highlighted and the paper selection screen will close. To close the paper selection screen without making a selection, touch the [PAPER SELECT] key.

NOTE

Certain restrictions exist depending on the amount of memory installed and the copy settings. (See "Copy mode output restrictions" and "Specifications for memory capacity and maximum number of originals" on page 5-4.)

Original Copy

PLAIN

DUPLEX

ORIGINAL

2-SIDED COPY

OUTPUT

PAPER SELECT

AUTO A4

100

PLAIN

RECYCLED

NORMAL COPYING

5-3

Select the desired output mode (see page 5-5).

The sort mode is the default mode. To select the group mode, touch the [OUTPUT] key, then touch the [GROUP] key on the output setting screen, and then touch the [OK] key on the setting screen.

Use the numeric keys to set the desired number of copies.

Up to 999 can be set. If you are only making a single copy, the copy can be made with the copy number display showing "0". Use the [C] (clear) key to cancel an entry if a mistake has been made.

Press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

If the [C] key is pressed while originals are being scanned, scanning will stop. If copying had already started, copying and scanning will stop after the original in progress is output to the original exit area. In these cases the copy quantity will be reset to "0".

NOTE

If colour copies are made with the output set to "Sort", only one set of copies will be made even if a selection is made for a greater number of copies. (See page 5-5 "Copy output (sort and group)"). When "Group" is selected, the selected number of copies will be made (See next page 5-4 "Copy mode output restrictions").

NOTE

The 1-sided to 1-sided copying mode is set as the default in the initial settings. If the default setting has not been changed using the "Initial status settings" program (key operator program), steps 3 to 5 on page 5-2 can be omitted.

2-SIDED COPY

OUTPUT

NORMAL COPYING

5-4

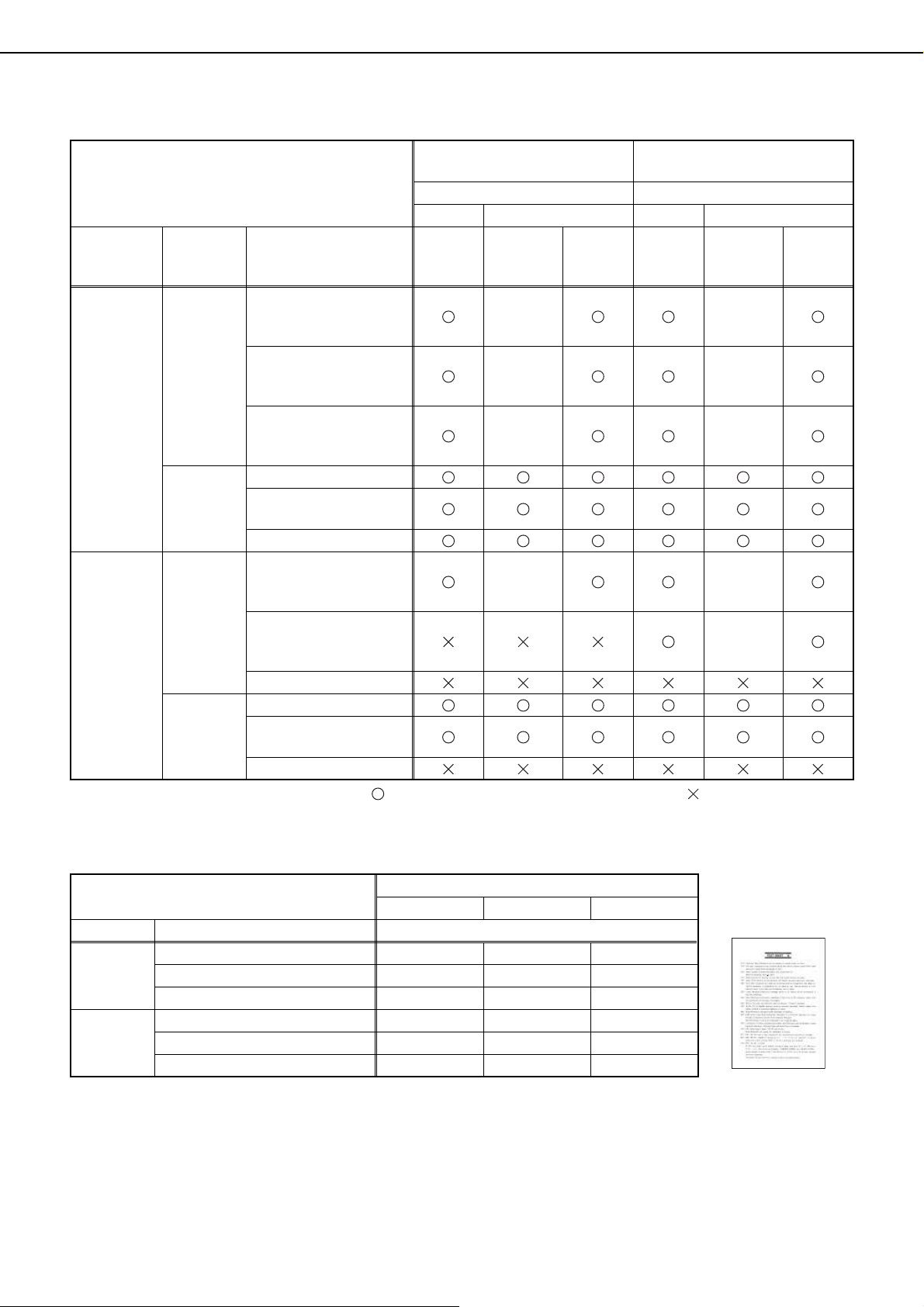

Copy mode output restrictions

: Copying possible using selected settings : Copying not possible

* A3W (12" x 18")-size paper cannot be used for automatic two-sided copying. A3W (12" x 18") only indicates the paper size.

Specifications for memory capacity and maximum number of originals

*1 For colour copying, the selected number of copies will be printed for each original scanned. (Sorting is not

possible.)

*2 In automatic two-sided copy mode, at least 128 MB of added memory is required to copy on B4 and A3 (8-1/2"

x 14" and 11" x 17") paper. *3 A3W (12" x 18") paper cannot be used in automatic two-sided copy mode. *4 Sorting is possible when making black and white copies. If the number of originals does not exceed the above

indicated limit, all originals are scanned into memory and then the set number of sets of copies is printed. (The

number of originals is based on text original (A).)

No added memory

Memory added

(128 MB or 256 MB)

Number of copies entered Number of copies entered

No Yes No Yes

Two-sided copying mode

Output mode

original/paper size

Sort/

Group

Sort Group

Sort/

Group

Sort Group

One-sided copying

Colour copying

Up to A4 (8-1/2" x 11")

Only one copy possible

B4, A3 (8-1/2" x 14", 11" x 17")

Only one copy possible

A3W (12" x 18")*

Only one copy possible

Black and white copying

Up to A4 (8-1/2" x 11") B4, A3

(8-1/2" x 14", 11" x 17") A3W (12" x 18")*

Automatic two-sided copying

Colour copying

Up to A4 (8-1/2" x 11")

Only one copy possible

B4, A3 (8-1/2" x 14", 11" x 17")

Only one copy possible

A3W (12" x 18")*

Black and white copying

Up to A4 (8-1/2" x 11") B4, A3

(8-1/2" x 14", 11" x 17") A3W (12" x 18")*

Added memory

None 128 MB 256 MB

Mode Original size Maximum number of originals

Colour copying

Up to A4 (8-1/2" x 11") 2 2 2 B4, A3 (8-1/2" x 14", 11" x 17") 1

A3W (12" x 18")

111

Black and white copying

Up to A4 (8-1/2" x 11") 400 400 680 B4, A3 (8-1/2" x 14", 11" x 17") 200 200 340 A3W (12" x 18") 165 165 280

Text original (A) : A4 or 8-1/2" x 11"

NORMAL COPYING

5-5

Copy output (sort and group)

Example: Making five sets or five copies each of three originals

● Sorting copies into sets

● Grouping copies by page

About the offset function

This function offsets each set of copies from the previous set in the output tray, making it easy to separate sets of copies. (Offset can function for output to the centre tray or in the offset tray of the saddle stitch finisher.)

Turning on the offset function

The offset function operates when a checkmark appears in the [OFFSET] checkbox, which is displayed by touching the [CENTRE TRAY] key and then selecting the upper output tray. (If a checkmark doesn't appear, touch the checkbox.)

Offset width: Approximately 30 mm (1-3/10") (A3W (12" x 18") paper cannot be offset.)

SPECIAL MODES

2-SIDED COPY

OUTPUT

SORT

GROUP

Original

Press the [BLACK COPY START] key

Press the [COLOUR COPY START] key

Set the number of copies (5)

Touch the [OUTPUT] key

Touch the [SORT] key

Five sets of copies

In the case of colour copying, only one set of copies can be made even if a selection is made for the number of copies. (See "Copy mode output restrictions" on page 5-4.) If multiple sets are needed, place the original on the original table again and repeat the copying procedure for each set needed.

"Sort" is automatically selected when the original is placed on the document feeder tray of the reversing single pass feeder.

SPECIAL MODES

2-SIDED COPY

OUTPUT

SORT

GROUP

Original

Press the [BLACK COPY START] key

Press the [COLOUR COPY START] key

Set the number of copies (5)

Touch the [OUTPUT] key

Touch the [GROUP] key

5 copies per page

"Group" is automatically selected when the original is placed on the document glass.

Offset function "ON"

Offset function "OFF"

INTERRUPT

READY TO COPY.

OUTPUT

SORT

GROUP

OFFSET

CENTRE TRAY

LEFT TRAY

Selecting the output tray

When the [LEFT TRAY] key in the above illustration is highlighted, copies are output to the tray on the left side of the machine (the left tray). When the [CENTRE TRAY] key is highlighted, copies are output to the centre tray. Touch the key of the tray you wish to use for copy output.

NORMAL COPYING

5-6

Automatic two-sided copying from the reversing single pass feeder

When a duplex module/2 x 500 sheet paper drawer and a duplex bypass/inverter unit are installed, the following automatic two-sided copy functions are possible. The copy paper is turned over automatically, allowing easy twosided copying.

The following two-sided modes can be selected

1. Automatic two-sided copying from one-sided originals

2. Automatic two-sided copying from two-sided originals

3. Automatic one-sided copying from two-sided originals

● This function can be used even if a duplex module/2 x

500 sheet paper drawer and/or a duplex bypass/ inverter unit are not installed.

Place the originals in the document feeder tray. (page 4-6)

Touch the [2-SIDED COPY] key.

Select the desired duplex copy mode.

The left screen shows the display when a reversing single pass feeder, a duplex module/ 2 x 500 sheet paper drawer, and a duplex

bypass/inverter unit are installed. The display will vary depending on the equipment installed.

If a copy key is touched for a mode that cannot be selected, a double beep will be sounded.

The image to be copied onto the second side of 2sided copies can be inverted so that the resultant 2-sided copies are in the correct orientation for binding at the top. For top binding, touch the [BINDING CHANGE] key on the 2-sided copy selection screen.

Touch the [OK] key.

Make selections and proceed as in steps 6 to 9 on pages 5-2 and 5-3.

NOTE

Original Copy

2-SIDED COPY

OUTPUT

SIDED COPY

BINDING CHANGE

READY TO COPY.

INTERRUPT

Example of a portrait-oriented original

Example of a landscape-oriented original

BINDING CHANGE

NORMAL COPYING

5-7

Copying from the document glass

When copying originals which cannot be fed from the reversing single pass feeder such as thick originals, open the document cover and copy the originals from the document glass.

■■■■ 1-sided copies of 1-sided originals

Set an original on the document glass. (page 4-6)

[ How to place the original ]

Place the original in the appropriate position shown below according to its size. ( Centre the original on the centring scale.)

Ensure that the 1-sided to 1-sided copy mode is selected.

The one-sided to one-

sided mode is selected

when no icon for a two-

sided mode appears in

the dashed area on the

display.

Ensure that paper of the same size as the original is automatically selected. (*Note)

The selected tray will be highlighted or the message "LOAD xxxxxx PAPER." will appear. If the message appears, load paper in a paper tray with paper of the

required size. Even if the message above is displayed, copying can be performed onto the currently selected paper.

(*Note) The following requirements must be satisfied.

Originals of a standard size (A3, B4, A4, A4R, B5, B5R or A5 (11" x 17", 8-1/2" x 14", 8-1/2" x 11", 81/2" x 11"R or 5-1/2" x 8-1/2")) are set and the auto paper select function is enabled.

If originals of a size other

than the sizes above are

to be copied, manually

select the desired paper

size by touching the

[PAPER SELECT] key

and then touching the

desired paper size

selection key. The selected key will be highlighted and the paper selection screen will close. To close the paper selection screen without making a selection, touch the [PAPER SELECT] key.

NOTE

Original Copy

NOTE

Do not place any objects under the original size detector, because they may damage it or the original size may not be detected properly.

Original size detector

B4 or 8½x14

A3 or 11x17

A4 or 8½x11

A5 or 5½x8½

Original scale

Centring scale

Original scale

Centring scale

PLAIN

DUPLEX

ORIGINAL

PAPER SELECT

AUTO A4

100

PLAIN

RECYCLED

NORMAL COPYING

5-8

Select the desired output mode. (See page 5-5.)

When a document is detected on the document glass, the group mode will be automatically selected. To select sort copy, touch the [OUTPUT]

key, then touch the [SORT] key on the displayed screen, and then touch the [OK] key.

Use the numeric keys to set the desired number of copies.

Up to 999 can be set.

If you are only making a

single copy, the copy

can be made with the

copy number display

showing "0".

Use the [C] (clear) key to

cancel an entry if a

mistake has been made.

Press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

Replace the original with the next original and press the [START] key. Repeat this operation until all originals have been scanned.

Touch the [READ-END] key.

If you selected "Sort" for the output in step 4 and pressed the [BLACK COPY START] key in step 6, it is necessary to touch the [READ-END] key.

NOTE

If the [SORT] or [GROUP] key is touched, its corresponding icon will appear on the touch panel. To clear the icon display, press the [CA] (clear all) key. Note that all selections made to that point will be cancelled.

NOTE

If colour copies are made with the output set to "Sort", only one set of copies will be made even if a selection is made for a greater number of copies. (See page 5-5 "Copy output (sort and group)") When "Group" is selected, the selected number of copies will be made (See page 5-4 "Copy mode output restrictions").

2-SIDED COPY

OUTPUT

READ-END

PLACE NEXT ORIGINAL. PRESS [START]. WHEN FINISHED, PRESS [READ-END].

NORMAL COPYING

5-9

Automatic two-sided copying from the document glass

When a duplex module/2 x 500 sheet paper drawer and a duplex bypass/inverter unit are installed, the following automatic two-sided copy function is possible. The copy paper is turned over automatically, allowing easy two-sided copying.

Place an original on the document glass. (page 4-6)

Touch the [2-SIDED COPY] key.

Touch the [1-sided to 2-sided copy] key.

When making automatic two-sided copies of a one-sided A3 (11" x 17") or B4 (8-1/2" x 14") size portrait original, or when the front and back side of a two-sided original are copied backwards, touch the [BINDING CHANGE] key.

Touch the [OK] key.

Make selections and proceed as in steps 3 to 7 on pages 5-7 and 5-8.

NOTE

Original Copy

2-SIDED COPY

OUTPUT

Example of a portrait-oriented original

Example of a landscape-oriented original

BINDING CHANGE

5-10

EXPOSURE ADJUSTMENTS

This copier has seven exposure modes to choose from: AUTO, TEXT/PRTD. PHOTO, TEXT/PHOTO, TEXT, PHOTO, PRINTED PHOTO and MAP.

[AUTO]

This is the standard initial setting for this copier. When a black and white copy is made, the exposure is automatically adjusted to obtain the best image quality. When a full-colour copy is made, the image is adjusted in the same way as when [TEXT/PRTD.PHOTO] (initial settings) is selected.

[TEXT/PRTD. PHOTO, TEXT/PHOTO, TEXT, PHOTO, PRINTED PHOTO and MAP.]

The exposure can be manually adjusted in 9 steps.

Touch the [EXPOSURE] key.

Select [AUTO], [TEXT/PRTD. PHOTO], [TEXT/PHOTO], [TEXT], [PHOTO], [PRINTED PHOTO], or [MAP] depending upon the original type.

Example:

The [TEXT/PRTD.PHOTO]

key is selected

AUTO

EXPOSURE

AUTO A4

PAPER SELECT

INTERRUPT

TEXT/ PRTD.PHOTO

PRINTED PHOTO

TEXT/PHOTO

TEXT


MAP

AUTO

READY TO COPY.

COPY OF COPY

COLOUR TONE ENHANCEMENT

MANUAL

TEXT/ PRTD.PHOTO

TEXT

PRINTED PHOTO

AUTO

NOTES

●●●●

Selecting the resolution

Six resolution settings are available for both colour copying and black and white copying, depending on the contents of the original.

●●●●

Making a copy of a copy

When making a copy of a copy made on this machine, touch the checkbox for COPY OF COPY to select the mode. Three resolution settings are available when this mode is selected: "TEXT/PRINTED PHOTO", "TEXT", and "PRINTED PHOTO".

●

For brighter colours in colour copies, touch the COLOUR TONE ENHANCEMENT checkbox. The following restrictions apply when colour tone enhancement is selected:

Colour tone enhancement cannot be selected at the same time as COPY OF COPY mode (above). Brightness adjustment (page 6-15) and single colour copying (page 6-17) are not possible. The reversing single pass feeder cannot be used. (It can be used when making black and white copies.)

Original type Contents of the original

AUTO

Normally this setting is selected. When a black and white copy is made, the exposure is automatically adjusted to obtain the best image quality. When a full-colour copy is made, the image is adjusted in the same way as when [TEXT/PRTD.PHOTO] (initial settings) below is selected.

TEXT/ PRTD. PHOTO

This mode provides the best balance for copying an original which contains both text and printed photographs.

TEXT/ PHOTO

This mode provides the best balance for copying an original which contains both text and photographs.

TEXT

This mode is useful in enhancing very low density areas of an original or in suppressing unusually highdensity background areas.


This mode provides the best copies of photographs with fine details.

PRINTED PHOTO

This mode is useful for copying printed photographs.

MAP

This mode is useful to provide the best shading and fine details found on most maps.

EXPOSURE ADJUSTMENTS

5-11

If a setting other than "AUTO" has been selected in step 2, manually adjust the copy exposure.

Touch the key to

make darker copies.

Touch the key to

make lighter copies.

Use the numeric keys to set the desired number of copies.

Press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

NOTES

●●●●

Recommended exposure levels for the text mode

1 to 2: Dark originals such as newspaper 3: Normal density originals 4 to 5: Originals written with pencils or light

colour characters

●●●● Colour adjustment menu

As special functions for colour copying, the following colour image adjustments can be made. (Page 6-11)

● RGB ADJUST

● SHARPNESS

● SUPPRESS BACKGROUND

● COLOUR BALANCE

● BRIGHTNESS

● INTENSITY

MANUAL

PRIN PHOT

TEXT

To return to the automatic exposure mode, touch the [EXPOSURE] key and select [AUTO].

NOTE

The exposure level for automatic exposure adjustment can be changed using the key operator program on page 15 of the key operator's guide. (Exposure adjustment)

5-12

REDUCTION/ENLARGEMENT/ZOOM

Reduction and enlargement ratios can be selected either automatically or manually as described in this section.

Automatic selection (auto image)

The reduction or enlargement ratio will be selected automatically based on the original size and the selected paper size.

Place the original in the document feeder tray or on the document glass. (page 4-6)

The detected original size will be displayed.

Touch the [PAPER SELECT] key and then select the desired paper size.

When touching the

desired paper size

selection key, the

selected key will be

highlighted and the

paper selection screen

will close.

Touch the [AUTO IMAGE] key.

The [AUTO IMAGE] key will be highlighted and the best reduction or enlargement ratio for the original size and the selected paper size will be selected and displayed in the copy ratio display.

Use the numeric keys to set the desired number of copies.

Up to 999 can be set. If you are only making a single copy, the copy can be made with the copy number display showing "0".

Press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

If you placed the original on the document glass, set the output to "Sort", and pressed the [BLACK COPY START] key, you must touch the [READEND] key after all pages of the original have been scanned. (Step 7 on page 5-8)

NOTE

Automatic ratio adjustment can only be used for the following original and paper sizes. It cannot be used for other sizes. However, in the case of non-standard original and paper sizes, the sizes can be entered to make automatic ratio adjustment possible for those sizes. (page 6-24)

Original sizes:A3, B4, A4, A4R, B5, B5R, A5 (11" x

17", 8-1/2" x 14", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2")

Paper size:

A3, B4, A4, A4R, B5, A5 (11" x 17", 8-1/ 2" x 14", 8-1/2" x 13", 8-1/2" x 11", 8-1/2" x 11"R, 5-1/2" x 8-1/2")

NOTE

If paper of the desired size is not loaded in any tray, load paper of the required size in a paper tray or the bypass tray.

PLAIN

RECYCLED

1. A4

A4R

PAPER

COPY

AUTO IMAGE

NOTE

If the message "ROTATE ORIGINAL FROM TO

" is displayed, change the orientation of the original as indicated in the message. When the message above is displayed, copying can be done without changing the orientation, but the image will not fit the paper correctly.

Use the [C] (clear) key to cancel an entry if a mistake has been made.

To cancel the auto image mode, touch the [AUTO IMAGE] key again to clear the highlighted display. (Step 3)

A4R

AUTO

EXPOSURE

AUTO IMAGE

PAPER SELECT

141

COPY RATIO

PLAIN

DUPLEX

ORIGINAL

REDUCTION/ENLARGEMENT/ZOOM

5-13

Manual selection

Five preset ratios (maximum 400%, minimum 25%) can be selected with the enlargement and reduction keys. In addition, the zoom keys can be used to select any ratio from 50% to 200% in increments of 1%.

Place the original in the document feeder tray or on the document glass. (page 4-6)

Touch the [COPY RATIO] key.

Use the [MENU] key to select menu " " or menu " " for copy ratio selection.

● A. Preset reduction copy ratios are: 70%, 81% and 86% (for the AB system). 77% and 64% (for the inch system).

● B. Preset enlargement copy ratios are: 115%, 122% and 141% (for the AB system). 121% and 129% (for the inch system).

● A. Preset reduction copy ratios are: 50% and 25%*.

● B. Preset enlargement copy ratios are: 200% and 400%*.

* When the reversing single pass feeder is used, the

ratio can only be set within the range 50% to 200%.

(The custom ratios set by the key operator appear in ratio menu 2.)

Use the reduction, enlargement, and [ZOOM] keys on the touch panel to set the desired copy ratio.

Zoom ratios: Any ratio from 50% to 200% can be set in 1% increments. Touch the [ ] key to increase the ratio, or the [ ] key to decrease the ratio. If you continue to touch either key for 3 seconds, the ratio begins to change quickly.

Touch the [OK] key.

NOTE

When the reversing single pass feeder is used, the ratio can only be set within the range 50% to 200%.

AUTO A4

PAPER SELECT

100

COPY RATIO

READY TO COPY.

100

ZOOM

115

141

122

XY ZOOM MENU AUTO IMAGE

100

EXPOSURE

PAPER SELECT

COPY RATIO

AUTO

AUTO A4

B4 A3

B5 B4

B4 A3

A4 A3

B5 A4

A5 A4

B5 B4

A5 A4

B5 A4

A4 A3

READY TO COPY.

100

ZOOM

50%200

25%400

100

XY ZOOM MENU AUTO IMAGE

EXPOSURE

PAPER SELECT

COPY RATIO

AUTO

AUTO A4

NOTES

● Touch a reduction or enlargement key to set the approximate ratio, then touch the [ ] key to decrease the ratio or the [ ] key to increase the ratio.

● The message "IMAGE IS LARGER THAN COPY PAPER." may appear, indicating that the selected copy ratio is too large for the copy paper size. However, if you press the [START] key, a copy will be made.

● To set the horizontal and vertical copy ratios separately, use the XY ZOOM feature. See page 5-15.

100

ZOOM

115

141

122

XY ZOOM MENU

B4 A3

B5 B4

B4 A3

A4 A3

B5 A4

A5 A4

B5 B4

A5 A4

B5 A4

A4 A3

100

ZOOM

115

141

122

XY ZOOM MENU AUTO

B5 B4

B4 A3

A4 A3

B5 A4

A5 A4

B5 B4

A5 A4

B5 A4

A4 A3

141

100

B5 B4

B4 A3

A4 A3

B5 A4

REDUCTION/ENLARGEMENT/ZOOM

5-14

Ensure that the desired paper size has been automatically selected based on the selected copy ratio or select another size as needed.

Use the numeric keys to set the desired number of copies.

Up to 999 can be set. If you are only making a single copy, the copy can be made with the copy number display showing "0".

Press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

NOTE

If the auto paper select display does not appear, no appropriate paper size for the selected ratio is available.

Use the [C] (clear) key to cancel an entry if a mistake has been made.

To return the ratio to 100%

To return the ratio setting to 100%, touch the [COPY RATIO] key to display the ratio menu and then touch the [100%] key. (Steps 2 and 3 on page 5-13.)

A4R

AUTO

EXPOSURE

AUTO B4

PAPER SELECT

COPY RATIO

PLAIN

INTERRUPT

DUPLEX

ORIGINAL

Auto paper select display

REDUCTION/ENLARGEMENT/ZOOM

5-15

XY ZOOM

The XY ZOOM feature allows the horizontal and vertical copy ratios to be changed independently. Five preset ratios (maximum 400%, minimum 25%) can be selected with the enlargement and reduction keys. In addition, the zoom keys can be used to select any ratio from 50% to 200% in increments of 1%.

Example: Selecting 100% for the length and 50% for the width

Place the original in the document feeder tray or on the document glass. (page 4-6)

Touch the [COPY RATIO] key on the touch panel.

Touch the [XY ZOOM] key.

Touch the [X] key.

Use the reduction, enlargement, and ZOOM ([ ], [ ]) keys to change the copy ratio in the horizontal (X) direction.

A fixed ratio key will not become highlighted when touched. When the reversing single pass feeder is used, the ratio can only be set within the range 50% to 200%.

The zoom keys can be used to change the ratio from 50% to 200% in increments of 1%. Touch the [ ] key to increase the ratio, or the [ ] key to decrease the ratio. If you continue to touch either key for 3 seconds, the ratio begins to change quickly.

Touch the [Y] key.

NOTE

When the reversing single pass feeder is used, the ratio can only be set within the range 50% to 200%.

Original

Copy

AUTO A4

PAPER SELECT

100

COPY RATIO

PLAIN

READY TO COPY.

100

ZOOM

115

141

122

XY ZOOM MENU AUTO IMAGE

100

EXPOSURE

PAPER SELECT

COPY RATIO

AUTO

AUTO A4

B4 A3

B5 B4

B4 A3

A4 A3

B5 A4

A5 A4

B5 B4

A5 A4

B5 A4

A4 A3

100

ZOOM

NOTE

Touch a reduction key or an enlargement key to set the approximate ratio, then touch the [ ] key to decrease the ratio or [ ] key to increase the ratio.

ZOOM

XY ZOOM

100

ZOOM

XY ZOOM

CANCEL

100

ZOOM

REDUCTION/ENLARGEMENT/ZOOM

5-16

Use the reduction, enlargement, and ZOOM ([ ], [ ]) keys to change the copy ratio in the vertical (Y) direction.

A fixed ratio key will not become highlighted when touched. When the reversing single pass feeder is used, the ratio can only be set within the range 50% to 200%.

The zoom keys can be used to change the ratio from 50% to 200% in increments of 1%.

Touch the [ ] key to increase the ratio, or the

[ ] key to decrease the ratio. If you continue to touch either key for 3 seconds, the ratio begins to change quickly.

Either copy ratio can be changed for fine-tuning until the next step is performed.

Touch the [OK] key.

Touch the [PAPER SELECT] key and select the paper tray with the desired paper size.

If the AUTO PAPER

SELECT mode is on, the

appropriate copy paper

size will have been

automatically selected

based on the original

size and selected copy

ratios.

Make all other desired settings such as exposure, paper size and number of copies and then press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

ZOOM

XY ZOOM

CANCEL

141

400

200

100

PAPE

AUTO

PLAIN

RANSPARENCY

ENVELOPE

PAPER SELECT

EXPOSURE

COPY RATIO

100%

AUTO

To cancel this function, touch the [CANCEL] key or the [XY ZOOM] key again as in step 3 or 5 on page 5-15.

5-17

SPECIAL PAPERS

Special papers including transparency film, postcards and envelopes must be fed through the bypass tray.

Place the original in the document feeder tray or on the document glass. (page 4-6)

Load the special paper in the bypass tray.

See pages 2-6 and 2-9

for the specifications of

paper that can be used

in the bypass tray.

For the paper loading

instructions see

"Loading paper in the

bypass tray" (page 2-4).

Touch the [PAPER SELECT] key and then select the bypass tray.

Select the type of paper

that you inserted in the

bypass tray.

Make all other desired settings such as exposure or the number of copies, and press the [COLOUR COPY START ( )] or [BLACK COPY START ( )] key.

When copying from the

document glass in the

sort mode using the

[BLACK COPY START

( )] key, touch the

[READ-END] key after

all originals have been

scanned. (step 7 on

page 5-8)

AUTO

EXPOSURE

AUTO A4

PAPER SELECT

100

COPY RATIO

AIN

NOTES

●

Output location for copies on heavy paper 2, transparencies, and envelopes

Copies on these types of paper will be output faceup to the tray on the left side of the machine. They cannot be delivered to the centre tray. Facedown delivery is not possible for these papers.

●●●●

Colour adjustment menu

As special functions of colour copying, the following colour image adjustments are available. (Page 6-11)

● RGB ADJUST

● SHARPNESS

● SUPPRESS BACKGROUND

● COLOUR BALANCE

● BRIGHTNESS

● INTENSITY

6-1

CHAPTER 6

CONVENIENT COPY

FUNCTIONS

This chapter explains special-purpose functions, storing of copy settings, and other convenient functions. Please select and read sections of this chapter as needed.

Page

SPECIAL MODES..........................................................................................6-2

●

Common operation procedure for using the special functions...............6-3

●

Margin shift ............................................................................................6-4

●

Erase......................................................................................................6-5

●

Dual page copy......................................................................................6-6

●

Centring .................................................................................................6-7

●

Transparency film with insert sheets......................................................6-8

●

Covers....................................................................................................6-9

●

B/W reverse .........................................................................................6-10

COLOUR ADJUSTMENTS MENU ..............................................................6-11

●

RGB adjust...........................................................................................6-12

●

Sharpness............................................................................................6-13

●

Suppress background..........................................................................6-13

●

Colour balance.....................................................................................6-14

●

Brightness............................................................................................6-15

●

Intensity................................................................................................6-15

IMAGE EDIT MENU.....................................................................................6-16

●

Single colour ........................................................................................6-17

●

Mirror image.........................................................................................6-17

●

Photo Repeat.......................................................................................6-18

●

Multi shot..............................................................................................6-19

●

A3 (11" x 17") Full-bleed ......................................................................6-21

●

Multi-page enlargement .......................................................................6-22

●

Extra size .............................................................................................6-24

●

Pamphlet copy .....................................................................................6-25

JOB PROGRAM MEMORY .........................................................................6-26

●

Storing a job program ..........................................................................6-26

●

Recalling a job program.......................................................................6-27

●

Deleting a stored job program..............................................................6-27

INTERRUPTING A COPY RUN...................................................................6-28

6-2

SPECIAL MODES

When the [SPECIAL MODES] key on the main screen of the copy mode is touched, the special modes screen containing several special function touch keys will appear. These functions are shown below.

[MARGIN SHIFT] key (page 6-4)

Use this to shift the image on the copy to create binding margins.

[ERASE] key (page 6-5)

Use this to erase peripheral shadows that occur when making copies of books and other thick originals.

[DUAL PAGE COPY] key (page 6-6)

This is useful to copy the left and right pages of bound documents without shifting the document on the document glass.

[CENTRING] key (page 6-7)

Use this to centre the copied image on the paper.

[COVERS] key (page 6-9)

Use this to insert a different type of paper for use as front and back covers. (The reversing single pass feeder must be used.)

[TRANSPARENCY INSERTS] key (page 6-8)

When copying onto transparencies, use this to automatically insert a sheet of copy paper between transparency sheets.

[OK] key on the special modes screen

Touch the [OK] key to return to the main screen of the copy mode.

/ key

Touch these keys to switch between the special modes menu screens.

The special modes menu consists of two screens. Touch the key to switch to the screen below.

● The special modes below can be selected in the second screen (2/2).

[IMAGE EDIT] key (page 6-16)

Touch this key to display the image edit menu screen. This allows you to select the special functions shown below for image editing.

[COLOUR ADJUSTMENTS] key (page 6-11)

Touch this key to display the colour adjustments menu screen. This allows you to select the special functions shown below for colour adjustment when making colour copies.

[B/W REVERSE] key (page 6-10)

A copy can be made with black and white reversed. (This function can only be used for black and white copying.)

SPECIAL MODES

MARGIN SHIFT ERASE

COVERS

TRANSPARENCY

INSERTS

CENTRING

DUAL PAGE COPY

ORIGINAL

SPECIAL MODES

2-SIDED COPY

OUTPUT

READY TO COPY.

AUTO

EXPOSURE

AUTO A4

PAPER SELECT

100

COPY RATIO

PLAIN

INTERRUPT

DUPLEX

SPECIAL MODES

Touch the [SPECIAL MODES] key in the main screen

ORIGINAL

SPECIAL MODES

COLOUR

ADJUSTMENTS

IMAGE EDIT

B/W REVERSE

IMAGE EDIT

SINGLE COLOUR

MIRROR IMAGE

PHOTO REPEAT MULTI SHOT

A3 FULL-BLEED

MULTI-PAGE

ENLARGEMENT

EXTRA SIZE PAMPHLET COPY

COLOUR ADJUSTMENTS

RGB ADJUST

SUPPRESS

BACKGROUND

SHARPNESS

COLOUR

BALANCE

BRIGHTNESS

INTENSITY

SHARP AR-C170M User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Warranty

Part 1: General Information

OPERATION MANUALS

INSTALLATION REQUIREMENTS

Moving this machine

CAUTIONS

CONTENTS
