SHARP AR153E, AR122E, AR152E, AR157E Service Manual

Download

Page 1

(AR-157E)

SERVICE MANUAL

CODE : 00ZAR157E/A1E

DIGITAL LASER COPIER/ PRINTER

AR-122E AR-152E AR-153E

MODEL

CONTENTS

[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 1

[ 2 ] SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 1

[ 3 ] CONSUMABLE PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 1

[ 4 ] EXTERNAL VIEWS AND INTERNAL STRUCTURES . . . . . . . . . 4 - 1

[ 5 ] UNPACKING AND INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . 5 - 1

[ 6 ] COPY PROCESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 1

[ 7 ] OPERATIONAL DESCRIPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 1

[ 8 ] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . 8 - 1

[ 9 ] ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 1

[10] SIMULATION, TROUBLE CODES . . . . . . . . . . . . . . . . . . . . . . . 10 - 1

[11] MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 1

AR-157E

[12] USER PROGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 1

[13] ELECTRICAL SECTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 1

[14] CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 1

Parts marked with “ ” are important for maintaining the safety of the machine. Be sure to replace these parts with the replacement parts specified to maintain the safety and performance of the machine.

This document has been published to be used

SHARP CORPORATION

for after sales service only. The contents are subject to change without notice.

Page 2

Page 3

CAUTION

This product is a class 1 laser product that complies with 21CFR 1040 of the CDRH standard and IEC825. This means that this machine does not produce hazardous laser radiation. The use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This laser radiation is not a danger to the skin, but when an exact focusing of the laser beam is achieved on the eye’s retina, there is the danger of spot damage to the retina.

The following cautions must be observed to avoid exposure of the laser beam to your eyes at the time of servicing.

1) When a problem in the laser optical unit has occurred, the whole optical unit must be exchanged as a unit, not as individual parts.

2) Do not look into the machine with the main switch turned on after removing the developer unit, toner cartridge, and drum cartridge.

3) Do not look into the laser beam exposure slit of the laser optical unit with the connector connected when removing and installing the optical system.

4) The middle frame contains the safety interlock switch.

Do not defeat the safety interlock by inserting wedges or other items into the switch slot.

LASER WAVE – LENGTH : 770 ~ 795nm Pulse times : 11.82µs/7mm Out put power : 0.17mW

± 0.01mW

CAUTION

INVISIBLE LASER RADIATION,

WHEN OPEN AND INTERLOCKS DEFEATED.

AVOID EXPOSURE TO BEAM.

VORSICHT

UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET UND SICHERHEITSVERRIEGELUNG ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN.

VARO !

AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN.

ADVARSEL

USYNLIG LASERSTRÅLNING VED ÅBNING, NÅR SIKKERHEDSBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLNING.

VARNING !

OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. – STRÅLEN ÄR FARLIG.

Page 4

At the production line, the output power

of the scanner unit is adjusted to 0.57 MILLI-WATT PLUS 20 PCTS and is maintained constant by the operation of the Automatic Power Control (APC). Even if the APC circuit fails in operation for some reason, the maximum output power will only be 15 MILLI-WATT 0.1 MICRO-SEC. Giving and accessible emission level of 42 MICRO-WATT which is still-less than the limit of CLASS-1 laser product.

Caution

This product contains a low power laser device. To ensure continued safety do not remove any cover or attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

Caution label on the unit

The label ( ) in the fusing area of the unit indicates the following: : Caution, risk of danger : Caution, hot surface

The foregoing is applicable only to the 220V model

230V model and 240V model.

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.

LUOKAN 1 LASERLAITE KLASS 1 LASER APPARAT

Page 5

CONTENTS

[1] GENERAL

1. Major functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

[2] SPECIFICATIONS

1. Basic Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

2. Operation specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

3. Copy performance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

4. RSPF. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

[3] CONSUMABLE PARTS

1. Supply system table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

2. Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3. Production control number (lot No.) identification . . . . . . . 3-2

4. TD cartridge replacement . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

1. Appearance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

2. Internal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1

3. Operation panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4. Motors and solenoids . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

5. Sensors and switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

6. PWB unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

7. Cross sectional view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

[5] UNPACKING AND INSTALLATION

1. Copier installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

2. Cautions on handling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

3. Checking packed components and accessories . . . . . . . . 5-1

4. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5. Removing protective packing materials . . . . . . . . . . . . . . . 5-2

6. Developer unit installation . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

7. Toner cartridge installation . . . . . . . . . . . . . . . . . . . . . . . . 5-3

8. Loading copy paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

9. Power to copier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

10. Moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-4

[6] COPY PROCESS

1. Functional diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

2. Outline of print process . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

3. Actual print process. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

[7] OPERATIONAL DESCRIPTIONS

1. Outline of operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-1

2. Scanner section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-2

3. Laser unit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

4. Fuser section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-3

5. Paper feed section and paper transport section . . . . . . . . 7-4

6. SPF section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-7

7. D-D (Duplex to Duplex) mode paper/

document transport (Duplex model) . . . . . . . . . . . . . . . . . 7-8

[8] DISASSEMBLY AND ASSEMBLY

1. High voltage section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1

2. Operation panel section . . . . . . . . . . . . . . . . . . . . . . . . . . .8-4

3. Optical section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-5

4. Fusing section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-7

5. Tray paper feed/transport section . . . . . . . . . . . . . . . . . . . .8-9

6. Manual paper feed section . . . . . . . . . . . . . . . . . . . . . . . .8-15

7. Rear frame section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-19

8. Power section . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-20

9. 2nd cassette section . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-20

10. Duplex motor section (RSPF model only) . . . . . . . . . . . . .8-22

11. Reverse roller section (RSPF model only) . . . . . . . . . . . .8-23

12. RSPF section (RSPF model only) . . . . . . . . . . . . . . . . . . .8-23

[9] ADJUSTMENTS

1. Optical section. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-1

2. Copy density adjustment. . . . . . . . . . . . . . . . . . . . . . . . . . .9-4

3. High voltage adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . .9-5

4. Duplex adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-6

[10] SIMULATION, TROUBLE CODES

1. Entering the simulation mode . . . . . . . . . . . . . . . . . . . . . .10-1

2. List of simulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-2

3. Contents of simulations. . . . . . . . . . . . . . . . . . . . . . . . . . .10-3

4. Trouble codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10-17

[11] MAINTENANCE

1. Maintenance table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11-1

2. Maintenance display system . . . . . . . . . . . . . . . . . . . . . . .11-1

[12] USER PROGRAMS

1. Functions that can be set with user programs. . . . . . . . . .12-1

2. Change the setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-1

3. Density level adjustment . . . . . . . . . . . . . . . . . . . . . . . . . .12-2

4. Toner save mode setup and cancel . . . . . . . . . . . . . . . . .12-2

[13] ELECTRICAL SECTION

1. Block diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-1

2. Circuit descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13-3

[14] CIRCUIT DIAGRAM

1. MCU PWB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-1

2. OPERATION PWB . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-10

3. POWER SUPPLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-11

4. NOISE FILTER CIRCUIT . . . . . . . . . . . . . . . . . . . . . . . .14-13

5. ACTUAL WIRING DIAGRAM . . . . . . . . . . . . . . . . . . . . .14-15

Page 6

[1] GENERAL

1. Major functions

Configurations

Item

CPM SB/MB 2 Tray SPF R-SPF

Model AR-122E 12CPM SB Opt AR-152E 15CPM SB Opt AR-153E 15CPM MB Opt Opt Opt AR-157E 15CPM MB Opt ∗2Opt ∗2 16M

Descriptions of items

CPM: Copy speed (Copies Per Minute) SB/MB: SB = Manual feed single bypass, MB = Manual feed multi bypass 2 tray: Second cassette unit. SPF: Original feed unit R-SPF: Duplex original feed unit Color scanner: Color scanner function GDI printer: GDI printer function with USB. PCL printer: PCL printer function with USB. SOPM: Scan Once Print Many function (Many copies are made by one scan.) Duplex: Auto duplex copy function Memory: Standard page memory FAX: FAX function.

Descriptions of table

: Standard provision : No function or no option available

Opt: Option

∗1: AL-12PKM ∗2: AR-PG2

Color

Scanner

GDI

printer

∗1Opt ∗18M ∗1Opt ∗18M

2Opt ∗28M

∗

PCL

printer

SOPM Duplex Memory FAX

(Options)

AR-SP5

AR-122E/152E/153E

AR-157E

AR-D16

AR-PG2AL-12PKM

AR-122E/152E/153E/157E GENERAL 1 - 1

Page 7

[2] SPECIFICATIONS

1. Basic Specifications

Item Type Desktop Copy system Dry, electrostatic Segment (class) Digital personal copier Copier dimensions AR-122E 20.4"(W)X18.2"(D)X11.6"(H) (518mm(W)X462.5mm(D)X295.6mm(H))

AR-152E 20.4"(W)X18.2"(D)X11.6"(H) (518mm(W)X462.5mm(D)X295.6mm(H)) AR-153E 20.4"(W)X19.4"(D)X11.6"(H) (518mm(W)X492.5mm(D)X295.6mm(H)) AR-157E 20.4"(W)X19.4"(D)X18.3"(H) (518mm(W)X492.5mm(D)X465.4mm(H))

Weight (Approximately)

2. Operation specifications

Paper feed section

Paper exit section Exit way Face down

Originals Original set Center Registration (left edge)

Paper feed system

AB system Tray paper feed

Inch system Tray paper feed

AR-122E 35.3lbs.(17Kg) TD and drum cartridges included AR-152E 35.3lbs.(17Kg) AR-153E 35.3lbs.(17Kg) AR-157E 50.7lbs.(24Kg)

Section, item Details

AR-122E/152E 1 tray (250 sheet) + single bypass AR-153E 1 tray (250 sheet) + multi bypass (50 sheet) AR-157E 2 tray (500 sheet) + multi bypass (50 sheet) Paper size A4, B5, A5 (Landscape)

section

Multi bypass paper feed section

Single bypass paper feed section

section

Multi bypass paper feed section

Single bypass paper feed section

Capacity of output tray 100 sheets

Max. original size A4 (8-1/2" x 14") Original kinds sheet, book Original size detection None

Paper weight 56 - 80g/m Paper feed capacity 250 sheets Kinds Standard paper, specified paper, recycled paper Remark User adjustment of paper guide available Paper size A4, B5, A5, B6, A6 (Landscape) Paper weight 52 - 128g/m Paper feed capacity 50 sheets Kinds Standard paper, specified paper, recycled paper, OHP,

Label, Envelop (Single copy) Remark User adjustment of paper guide available Paper size A4, B5, A5, B6, A6 (Landscape) Paper weight 52 - 128g/m Paper feed capacity 1 sheet Kinds Standard paper, specified paper, recycled paper, OHP,

Label, Postal card, Envelop, Post card (Including

double postal without fold line) Remark User adjustment of paper guide available Paper size 8-1/2" x 14", 8-1/2 x 11", 8-1/2" x 5-1/2" (Landscape) Paper weight 15 - 21 lbs. Paper feed capacity 250 sheets Kinds Standard paper, specified paper, recycled paper Remark User adjustment of paper guide available Paper size 8-1/2" x 14", 8-1/2 x 11", 8-1/2" x 5-1/2", 3-1/2" x 5-1/2"

(Landscape) Paper weight 14 - 34.5 lbs. Paper feed capacity 50 sheets Kinds Standard paper, specified paper, recycled paper, OHP,

Label, Envelop (Single copy) Remark User adjustment of paper guide available Paper size 8-1/2" x 14", 8-1/2 x 11", 8-1/2" x 5-1/2" (Landscape) Paper weight 14 - 34.5 lbs. Paper feed capacity 1 sheet Kinds Standard paper, specified paper, recycled paper, OHP,

Label, Envelop Remark User adjustment of paper guide available

(15 - 21 lbs.)

(14 - 34.5 lbs.)

AR-122E/152E/153E/157E SPECIFICATIONS 2 - 1

Page 8

Section, item Details

Optical section Scanning

section

Scanning system 3 CCDs (RGB) sensor scanning by lighting white lamp CCD sensor Resolution 600 dpi Lighting lamp Type CCFL

Voltage 1100Vrms (Min) Power consumption 9.6W (Max)

Output data R, G, B 1 or 8 bits/pixel / A/D 16bit Writing section

Writing system Writing to OPC drum by the semiconductor laser

Laser unit Resolution 600 dpi

Image forming Photoconductor type OPC (30ø)

Life 25k

Charger Charging system Saw -tooth charging with a grid, / (-) scorotron

discharge Transfer system (+) DC scorotron system Separation system (-) DC scorotron system

Developing Developing system Dry, 2-component magnetic brush development system Cleaning Cleaning system Counter blade system (Counter to rotation)

Fusing section Fusing system Heat roller system

Upper heat roller type Teflon roller Lower heat roller type Silicon rubber roller Heater lamp type Halogen lamp

Voltage 120V/230V Power consumption 800W

Electrical section Power source Voltage 100V, 110V, 120/127V, 230V, 240V

Frequency Common use for 50 and 60Hz

Power consumption Max. Less than 1000W

Average (during copying)

AR-122E 300 Wh/H *1) AR-152E 300 Wh/H *1) AR-153E 300 Wh/H *1)

AR-157E 310 Wh/H *1) Average (stand-by) 80Wh/H *1) Pre-heat mode 18Wh/H *1) Auto power shut-off mode 4.5Wh/H *1)

*1) May fluctuate due to environmental conditions and the input voltage.

AR-122E/152E/153E/157E SPECIFICATIONS 2 - 2

Page 9

3. Copy performance

Section, item Details AR-122E AR-152E AR-153E AR-157E

Copy magnification Fixed

Manual steps (manual, photo) Copy speed First copy time Tray paper feed 9.6 sec. (Pre-heat mode:25 sec. / Auto power-shut-off mode : 40 sec.)

AB system A4 (Landscape)

AB system B5 (Landscape)

Inch system 8-1/2" x 14" (Landscape)

Inch system 8-1/2" x 11" (Landscape)

Max. continuous copy quantity 99 Void Void area leading edge 1 - 4mm

Warm-up time 0 sec. Power save mode reset time 0 sec. Paper jam recovery time 0 sec.

magnification ratios

Zooming magnification ratios

Copy speed (CPM)

Image loss leading edge same size: 3.0mm or less (OC) / 4mm or less (SPF/R-SPF/Duplex)

Same size 12 15 15 15 Enlargement 12 15 15 15 Reduction 12 15 15 15 Same size 12 15 15 15 Enlargement 12 15 15 15 Reduction 12 15 15 15 Same size 12 12 12 12 Enlargement 12 12 12 12 Reduction 12 12 12 12 Same size 12 15 15 15 Enlargement 12 15 15 15 Reduction 12 15 15 15

Trailing edge 4mm or less, 6mm or less (Duplex copying/both image) Side edge void area 0.5mm or more (per side)

3 Reduction + 2 Enlargement

(AB system : 25, 70, 86, 100, 141, 400%)

(Inch system : 25, 64, 78, 100, 129, 400%)

25 - 400%

(376 steps in 1% increments)

5 steps

A4 or Letter/100%/Auto Exposure

4.5mm or less (total of both sides)

Enlarge: 2mm or less (OC) / 3mm or less (SPF/R-SPF/Duplex)

Reduction (50%): 6.0mm or less (OC) / 8mm or less (SPF/R-SPF/

Duplex)

4. RSPF

Original capacity 30 sheets (52 to 90g/m Original size A4 to A5/10" x 14" to 5-1/2" x 8-1/2" Original replacement speed 12CPM(A4/8-1/2" x 11"Landscape)(15CPM model) Job speed(Tray1,Landscape) Single copy S to S 12CPM

S to D 5.6CPM D to S 5.5CPM D to D 5.2CPM

Multi copy S to S 15CPM

D to S 15CPM Original placement Face up Original weight 52 to 90g/m Mixed feeding(Paper size) Performance Degraded Original which cannot Thermal papers, originals with punch holes for files, be used folded paper, transparent

originals such as OHP films, stapled or clip used originals with cover up liquid used,

Originals with tape sealed, originals with high level frictional coefficient such as photos or

catalogs.

(14 - 23.9lbs.)

)(14 to 23.9 lbs.)

AR-122E/152E/153E/157E SPECIFICATIONS 2 - 3

Page 10

[3] CONSUMABLE PARTS

1. Supply system table

A. SEC governments

No. Name Content Life Product name Package Remark

1 Toner CA(Black) Toner

(Toner: Net Weight 210g) Polyethylene bag × 10

B. SEC/SECL/LAG

No. Name Content Life Product name Package Remark

1 Toner CA(Black) Toner

(Toner: Net Weight 210g) Polyethylene bag × 10

2 Developer Developer

(Developer: Net Weight 170g)

3 Drum kit Drum × 1 25K AR-152DR 10

Drum fixing plate × 1

Note: Printing of the master/individual cartons is made in 2 languages, English/French.

Packed together with the machine: DR 25K/Developer UN/Process UN

C. Europe subsidiaries/East Europe/SCA/SCNZ

No. Name Content Life Product name Package Remark

1 Toner CA(Black) Toner

(Toner: Net Weight 210g) Polyethylene bag × 10

2 Developer Developer

(Developer: Net Weight 170g)

3 Drum kit Drum × 1 25K AR-152DM 10

Drum fixing plate × 1

Note: Printing of the master/individual cartons is made in 4 languages, English/French/German/Spanish.

Packed together with the machine: DR 25K/Developer UN/Process UN

× 10 80K AR-152MT-J 1 ∗ Life setup is based on A4

6%.

MT=NT ∗10

× 10 80K AR-152MT 1 ∗ Life setup is based on A4

6%.

MT=NT ∗10

× 10 250K AR-152MD 1 MD=ND ∗10

× 10 80K AR-152LT 1 LT=T ∗10

× 10 250K AR-152LD 1 LD=DV ∗10

D. SMEF (Middle East, Africa) Israel/Russia/CIS/Taiwan/Philippines

No. Name Content Life Product name Package Remark

1 Toner CA(Black) Toner

(Toner: Net Weight 210g) Polyethylene bag × 10

2 Developer Developer

(Developer: Net Weight 170g)

3 Drum kit Drum × 1 25K AR-152DR 10

Drum fixing plate × 1

Note: Printing of the master/individual cartons is made in 4 languages, English/French/German/Spanish.

Packed together with the machine: DR 25K/Developer UN/Process UN

× 10 80K AR-152ET 1 ∗ Life setup is based on A4

6%.

ET=FT ∗10

× 10 250K AR-152CD 1 CD=SD ∗10

E. Asia (Subsidiary)

No. Name Content Life Product name Package Remark

1 Toner CA(Black) Toner

(Toner: Net Weight 210g) Polyethylene bag × 10

2 Developer Developer

(Developer: Net Weight 170g)

3 Drum kit Drum × 1 25K AR-152DR 10

Drum fixing plate × 1

Note: Printing of the master/individual cartons is made in 4 languages, English/French/German/Spanish.

Packed together with the machine: DR 25K/Developer UN/Process UN

× 10 80K AR-152CT 1 ∗ Life setup is based on A4

6%.

CT=ST ∗10

× 10 250K AR-152CD 1 CD=SD ∗10

AR-122E/152E/153E/157E CONSUMABLE PARTS 3 - 1

Page 11

F. SRH Chinese language version

No. Name Content Life Product name Package Remark

1 Toner CA(Black) Toner (Toner: Net Weight 210g) × 10 80K AR-152CT-C 1 ∗ Life setup is based on A4

Polyethylene bag × 10

2 Developer Developer (Developer: Net

Weight 170g)

3 Drum kit Drum × 1 25K AR-152DR-C 10

Drum fixing plate × 1

Note: Printing of the master/individual cartons is made in 2 languages, English/Chinese.

Packed together with the machine: DR 25K/Developer UN/Process UN

× 10 250K AR-152CD-C 1 CDC=SDC ∗10

6%.

CTC=STC ∗10

2. Environmental

The environmental conditions for assuring the copy quality and the machine operations are as follows:

(1) Normal operating condition

Temperature: 20°C to 25 Humidity: 65 ± 5%RH

(2) Acceptable operating condition

Humidity (RH)

85%

60%

20%

10˚C 30˚C 35˚C

(3) Optical condition

Humidity (RH)

90%

3. Production control number (lot No.) identification

Production month Production day Destination code (Dealer, distributor, OEM, etc.) Production place (SOCC: Fixed to B.) End digit of year Version No.

∗: Destination

Division No.

EX Destination

Option Destination

The label on the drum cartridge shows the date of production. (SOCC production)

A same pack G B same pack H

AP BQ

60%

15%

–25˚C30˚C40˚C

(4) Supply storage condition

Humidity (RH)

90%

20%

–5˚C45˚C

Production month Production day Destination code (Dealer, distributor, OEM, etc.) Production place (SOCC: Fixed to B.) End digit of year Version No.

X000119Ver.A 1

Production month (1 - 9 = Jan. - Sep. 0 = Oct. X = Nov. Y = Dec.) Serial number of month Fixed to 1. Pack division (See table below) End digit of year Version No.

AR-122E/152E/153E/157E CONSUMABLE PARTS 3 - 2

Page 12

Division No. Ex production 1 Option 2 Same pack 3

Production control label attachment position

4. TD cartridge replacement

1) Open the front and side cabinets of the copier.

2) Keep holding Toner lover, and

3) Carefully pull out Toner unit from the copier.

4) Put Toner unit in a collection bag immediately after removing it from the copier

Production control label attachment position(*1)

∗1 The production control label is not attached to the cartridge of a

China product.

Sub lot Production day Production month End digit of year Production place

Note: Never carry exposed Toner unit. Be sure to put it in the

collection bag.

AR-122E/152E/153E/157E CONSUMABLE PARTS 3 - 3

Page 13

[4] EXTERNAL VIEWS AND INTERNAL STRUCTURES

1. Appearance

SPF/RSPF

Interface

1 Original cover 2 Side cover 3 Bypass tray 4 Bypass tray guides 5 Side cover open button 6 Front cover

7 Paper tray 8 Operation panel 9 Original table 10 Document feeder tray 11 SPF exit area *1 / RSPF exit area *2 12 Original guides 13 Feeding roller cover 14 USB interface 15 Parallel interface 16 Paper output tray 17 Paper output tray extension 18 Power switch 19 Handle 20 Power cord

*1 SPF only *2 RSPF only

9 8

6 7

Single bypass

16 17

18 19

2. Internal

1 Toner cartridge lock release button 2 Toner cartridge 3 Drum cartridge

4 Drum cartridge handle 5 Fusing unit release lever 6 Charger cleaner

7 Transfer charger

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 1

Page 14

3. Operation panel

10 11 12

1817161513

Inch system

(AR-122E)

(AR-157E)

1 Duplex Mode select key and indicator

(RSPF only)

3 Light and dark keys and exposure indicators

Use to adjust the MANUAL or PHOTO exposure level. Selected exposure level is shown by a lit indicator. Use to start and terminate user program setting.

5 SPF/RSPF indicator 6 SPF misfeed indicator 7 Copy ratio selector key and copy ratio indicators

Use to sequentially select preset reduction/enlargement copy ratios. Selected copy ratio is shown by a lit indicator.

9 Display

Displays the specified copy quantity, zoom copy ratio, user program code, and error code.

11 ON LINE key / indicator

Lights up when the machine is used as a printer and scanner. *2

13 Paper feed location indicators

Light up to show the selected paper feed station.

15 Zoom keys / indicator

Use to select any reduction or enlargement copy ratio from 25% to 400% in 1% increments.

17 Clear key

• Press to clear the display, or press during a copy run to terminate copying.

• Press and hold down during standby to display the total number of copies made to date.

2 Exposure mode selector key and indicators

Use to sequentially select the exposure modes: AUTO, MANUAL or PHOTO. Selected mode is shown by a lit indicator.

4 Alarm indicators

Developer replacement required indicator Misfeed indicator Toner cartridge replacement required indicator *1 Maintenance indicator

8 Copy ratio display (%) key

10 SCANNER key and indicator *2, *3

12 Power save indicator

Lights up when the copier is in a power save mode.

14 Tray select key

Use to select a paper feed station (paper tray or bypass tray).

16 Copy quantity keys

• Use to select the desired copy quantity (1 to 99).

• Use to make user program entries.

18 Print key and ready indicator

• Copying is possible when the indicator is on.

• Use to set a user program.

• Press to start copying

10 11 12

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 2

Page 15

*1. Toner Developer Cartridge Replacement

When toner density is lower than a specified level, the TONER DEVELOPER CARTRIDGE REPLACEMENT indicator lights up to warn the user. If the Toner Developer Cartridge is not replaced in that time, the Ready Lamp changes to blinking and then start to supply the toner after around 10 copies. (Cartridge replacement lamp continues to light.) If toner density is not back to specific level after two minutes, the READY indicator goes out and Toner Developer indicator starts blinking, and the copier stops.

*2. Indicators on the operation panel

The ON LINE indicator and the start ( ) indicator indicate the state of the printer or scanner.

Start indicator

On: Indicates the unit is ready for copying or scanning is

being performed.

Blinking: Indicates that an interrupt print job is in progress, or that

the unit is initializing (the cover has been opened and closed or the power turned off and on).

Off: Indicates copying or scanning is being performed or the

unit is in the auto power shut-off mode.

SCANNER indicator

ON LINE indicator

Start indicator

Power save indicator

ON LINE indicator

The ON LINE key is pressed and on line and off line are changed. On: Indicates the unit is ready for printing or scanning is

being performed. (On line) Blinking: Printing or data is being received from a computer. Off: Copying is being performed. (Off line)

Power save indicator

On: Indicates the unit is in a power save mode.

Scanner indicator

On: The SCANNER ( ) key has been pressed and the unit

is in scanner mode. Blinking: A scan job is being executed from the computer, or scan

data is stored in the unit's memory. Off: The unit is in the copy mode.

*3. Using the SCANNER key to begin scanning

This scanning method can only be used if the Button Manager has been installed using the installer. To scan using this method, you must first complete the settings in Button Manager in your computer. For more information on Button Manager, see the online manual or the help file for Button Manager.

Note:

• Scanning is not possible during a copy job.

• If the unit is used to begin a scan job during a print job using the parallel interface connection or the USB interface connection, the scan job will be stored and scanning will begin when the print job is completed.

• When scanning an original that has been placed in the SPF/ RSPF, only one original can be placed unless you are using Sharpdesk.

1) Press the SCANNER ( ) key.

The unit enters scan mode.

2) Place the original you wish to scan on the original table/SPF/

RSPF. For the procedure for placing the original, see "ORIGINAL

PLACEMENT".

3) Press the right copy quantity key to display the number of the

application that you wish to use for scanning. The application numbers are initially as follows.

The application numbers are initially as follows.

Application

number

Application launched

SC1 Sharpdesk (if installed) SC2 E-mail (your standard e-mail program in the

Windows OS you are using) SC3 Fax (if a fax program is installed) SC4 OCR (if an OCR program is installed) SC5 Microsoft Word (if installed) SC6 Any application set in Button Manager

4) Press the start ( ) key. The selected application launches and scanning begins.

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 3

Page 16

4. Motors and solenoids

213

No. Part name Control signal Function / Operation

1 Main motor MM Drives the copier. 2 Scanner motor MRMT Drives the optical mirror base (scanner unit). 3 Toner motor TM Supplies toner. 4 Cooling fan motor VFM Cools the optical section. 5 Resist roller solenoid RRS Resist roller rotation control solenoid 6 Paper feed solenoid CPFS1 Cassette Paper feed solenoid 1 7 Multi paper feed solenoid MPFS Multi manual pages feed solenoid 8 SPF motor SPFM Drives the single pass feeder

9 Duplex motor DMT Devices the duplex paper transport section 10 Original feed solenoid SPUS Original feed solenoid 11 Paper feed solenoid CPFS2 Cassette Paper feed solenoid 2 12 SRRC Original resist roller solenoid 13 SPFS Original paper feed solenoid

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 4

Page 17

5. Sensors and switches

No. Name Signal Type Function Output

1 Scanner unit home position

sensor 2 POD sensor POD Transmission sensor Paper exit detection "H" at paper pass 3 PPD2 sensor PPD2 Transmission sensor Paper transport detection 2 "L" at paper pass 4 Cassette detection switch CED1 Micro-switch Cassette installation detection "L" at cassette insertion 5 Manual feed detection

switch 6 PPD1 sensor PPD1 Transmission sensor Paper transport detection 1 "L" at paper pass 7 Door switch DSW Micro-switch Door open/close detection

8 Drum reset switch DRST Micro-switch New drum detection switch Instantaneously "L" at insertion of new

9 SPF sensor SPID/

10 SPPD sensor SPPD Transmission sensor Paper transport detection "L" at paper pass 11 SDOD sensor SDOD Transmission sensor SPF open/close detection Book

12 2nd cassette DSW Micro-switch 2nd cassette door open detection 1 or 0V of 5V at door open 13 PPD3 sensor PPD3 Transmission sensor Paper transport detection 3 "L" at paper pass

MHPS Transmission sensor Scanner unit home position detection "H" at home position

MFD Transmission sensor Manual feed paper detection

Transmission sensor Paper entry detection

SD SW

(single only)

(safety switch for 24V)

Cover open/close detection

sensor

"L" at paper detection

1 or 0V of 24V at door open

drum "L" at paper pass

"L" at paper pass

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 5

Page 18

6. PWB unit

No. Name Function

1 Exposure lamp invertor PWB Exposure lamp (CCFL) control 2 Main PWB (MCU) Copier control 3 Operation PWB Operation input/display 4 Power PWB AC power input, DC voltage control, High voltage control 5 CCD sensor PWB For image scanning 6 LSU motor PWB For polygon motor drive 7 TCS PWB For toner sensor control 8 LSU PWB For laser control 9 I/F PWB Scanner/GDI Printer control (parallel I/F, USB I/F)

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 6

Page 19

7. Cross sectional view

15 16

No. Part name Function and operation

1 Scanner unit Illuminates the original with the copy lamp and passes the reflected light to the lens unit(CCD). 2 Exposure lamp Exposure lamp (CCFL) Illuminates original 3 LSU (Laser unit) Converts the original image signal into laser beams and writes onto the drum. 4 Paper exit roller Roller for paper exit 5 Main charger Provides negative charges evenly to the drum surface. 6 Heat roller Fuses toner on the paper. (Teflon roller) 7 Pressure roller Fuses toner on the paper. (Silicon rubber roller) 8 Drum Forms images. 9 Transfer unit Transfers images onto the drum.

10 Pickup roller Picks up the manual feed paper. (In multi feed only) 11 Manual paper feed tray Tray for manual feed paper 12 Manual paper feed roller Transport the paper from the manual paper feed port. 13 PS roller unit Takes synchronization between the lead edge and the rear edge of the paper. 14 Paper feed roller Picks up a sheet of paper from the cassette. 15 Pickup roller Picks up documents. 16 Separation roller Separates documents to feed properly. 17 PS roller Feeds documents to the scanning section. 18 Paper exit roller Discharges documents.

AR-122E/152E/153E/157E EXTERNAL VIEWS AND INTERNAL STRUCTURES 4 - 7

Page 20

[5] UNPACKING AND INSTALLATION

1. Copier installation

Improper installation may damage the copier. Please note the following during initial installation and whenever the copier is moved.

Caution: If the copier is moved from a cool place to a warm place, con-

densation may form inside the copier. Operation in this condition will cause poor copy quality and malfunctions. Leave the copier at room temperature for at least 2 hours before use.

Do not install your copier in areas that are:

• damp, humid, or very dusty

• exposed to direct sunlight

2. Cautions on handling

Be careful in handling the copier as follows to maintain the performance of this copier.

Do not drop the copier, subject it to shock or strike it against any object.

Do not expose the drum cartridge to direct sunlight. Doing so will damage the surface (green portion) of the drum cartridge,

causing poor print quality.

• poorly ventilated

• subject to extreme temperature or humidity changes, e.g., near an air conditioner or heater.

The copier should be installed near an accessible power outlet for easy connection.

Be sure to connect the power cord only to a power outlet that meets the specified voltage and current requirements.

Also make certain the outlet is properly grounded. Be sure to allow the required space around the machine for servicing

and proper ventilation.

8" (20cm)

8"(20cm)

Store spare supplies such as drum cartridges and TD cartridges in a dark place without removing from the package before use.

If they are exposed to direct sunlight, poor print quality may result. Do not touch the surface (green portion) of the drum cartridge. Doing so will damage the surface of the cartridge, causing poor print

quality.

3. Checking packed components and accessories

Open the carton and check if the following components and accessories are included.

Power cord

Operation manual

Drum cartridge

(installed in unit)

(10cm)

4" (10cm)

AR-122E/152E/153E/157E UNPACKING AND INSTALLATION 5 - 1

Page 21

4. Unpacking

Be sure to hold the handles on both sides of the copier to unpack the copier and carry it to the installation location.

5. Removing protective packing materials

1) Remove pieces of tape and protective cover. Then open the original cover and remove protective materials (a) and (b).

4) Remove the CAUTION tape from the front cover and remove the two protective pins from the fusing unit by pulling the strings upward one at a time.

Protective pins

CAUTION tape

6. Developer unit installation

1) 2) 3) Open the side and front cabinets of the copier.

4) Remove the locking tape of the developer unit.

5) Remove the screw which is fixing the copier and Developer unit.

6) Remove Developer unit slowly from the copier.

AR-122E/152E/153E

AR-157E

2) Release the scan head locking switch.

Grasp here and turn in the direction of the arrow.

Lock Unlock

AR-122E/152E/153E

AR-157E

7) Remove the screw (1 pc).

8) Remove Upper developer unit.

3) Ensure that the bypass tray is open and then open the side cover by pressing the open button on the side cover.

AR-122E/152E/153E/157E UNPACKING AND INSTALLATION 5 - 2

Page 22

9) Shake the aluminum bag to stir developer

10) Supply developer from the aluminum bag to the top of the MX roller evenly.

Note: Be careful not to splash developer outside Developer unit.

11) Attach Upper developer unit and fix it with a screw.

12) Rotate the MG roller gear to distribute developer evenly.

7. Toner cartridge installation

1) To prevent against uneven distribution of toner, hold Toner unit with both hands and shake it several times horizontally.

2) Hold the section of Toner unit shown in the figure below, remove the packing tape, and remove the cushion.

3) Pull out the cushion in the arrow direction.

Note: Never rotate the gear in the reverse direction. Note: When carrying Developer unit, do not tilt it extremely as

shown with the arrow in the figure below. (Prevention of splash of developer)

4) Insert Toner unit carefully into the copier.

5) Insert until the hook is engaged with the copier as shown in the figure below.

6) Pull out the shutter in the arrow direction.

13) Insert Developer unit carefully into the copier. Note: Quick insertion may result in splash of developer. Be sure to

insert carefully.

14) Confirm that Developer unit is completely inserted to the bottom of the machine, fix Developer unit and the machine with a screw.

15) Completion of Developer unit installation

AR-122E/152E/153E/157E UNPACKING AND INSTALLATION 5 - 3

Note: Do not hold and carry the shutter. Otherwise the shutter may

drop and Toner unit may drop.

7) Completion of Toner unit installation Close the front and side cabinets.

Page 23

8. Loading copy paper

9. Power to copier

Note: This copier is equipped with two paper trays. Load copy paper

into the two paper trays.

1) Raise the handle of the paper tray and pull the paper tray out until it stops.

2) Remove the pressure plate lock. Rotate the pressure plate lock in the direction of the arrow to remove it while pressing down the pressure plate of the paper tray.

3) Store the pressure plate lock that was removed in step 2 and the screw that was removed when unpacking the machine in the front of the paper tray. To store the pressure plate lock, rotate the lock to fix it on the relevant location.

4) Adjust the paper guides on the paper tray to the copy paper width and length. Squeeze the lever of paper guide (A) and slide the guide to match with the width of the paper. Move paper guide (B) to the appropriate slot as marked on the tray.

Paper guide (B)

Paper guide (A)

1) Ensure that the power switch of the copier is in the OFF position. Insert the attached power cord into the power cord socket at the rear of the copier.

2) Plug the other end of the power cord into the nearest outlet.

10. Moving

Moving instructions

When moving the unit, follow the procedure below. Note: When moving this unit, be sure to remove the TD cartridge in

advance.

1) Turn the power switch off and remove the power cord from the out-

let.

2) Open the side cover and front cover, in that order. Remove the TD

cartridge and close the front cover and side cover, in that order. To open and close the side cover and front cover, and to remove

the TD cartridge, see "TD CARTRIDGE REPLACEMENT".

3) Raise the handle of the paper tray and pull the paper tray out until it

stops.

4) Push the center of the pressure plate down until it locks in place

and lock the plate using the pressure plate lock which has been stored in the front of the paper tray.

5) Push the paper tray back into the unit.

6) Lock the scan head locking switch.

Note: When shipping the unit, the scan head locking switch must be

locked to prevent shipping damage.

7) Close the multi-bypass tray and the paper output tray extension,

and attach the packing materials and tape which were removed during installation of the unit. See "PREPARING THE UNIT FOR INSTALLATION".

8) Pack the unit into the carton. See "CHECKING PACKED COMPO-

NENTS AND ACCESSORIES".

5) Fan the copy paper and insert it into the tray. Make sure the edges go under the corner hooks.

Note: Do not load paper above the maximum height line ( ).

Exceeding the line will cause a paper misfeed.

6) Gently push the paper tray back into the copier.

Note: After loading copy paper, to cancel the blinking "H" without

restarting copying, press the clear ( ) key. The "P" in the display will go out and the ready ( ) indicator will light up.

AR-122E/152E/153E/157E UNPACKING AND INSTALLATION 5 - 4

Page 24

[6] COPY PROCESS

1. Functional diagram

An OPC drum is used for the photoconductor. (Structure of the OPC drum layers)

Main charger

OPC layer (20 microns thick) Pigment layer (0.2 to 0.3 microns thick) Aluminum drum

(Basic operation cycle)

Laser beam

MG roller

Main high voltage unit

Cleaning blade

Drum

Transfer unit

Resist roller

Semiconductor laser

Focus correction lens

Exposure

To face down tray

Saw tooth

Cleaning blade

Waste toner box

Paper release Fusing

Heat roller

Heater lamp

AR-122E/152E/153E/157E COPY PROCESS 6 - 1

Cleaning

Separation

Electrode

Charge

Drum

Transfer

Transfer charger

Transfer high voltage unit

Developing

Cassette

paper feed

Synchronization

with drum

Toner

Developer

PS roller

Manual feed

Print process

Paper transport route

Page 25

2. Outline of print process

This printer is a non-impact printer that uses a semiconductor laser and electrostatic print process. This printer uses an OPC (Organic Photo Conductor) for its photoconductive material. First, voltage from the main corona unit charges the drum surface and a latent image is formed on the drum surface using a laser beam. This latent image forms a visible image on the drum surface when toner is applied. The toner image is then transferred onto the print paper by the transfer corona and fused on the print paper in the fusing section with a combination of heat and pressure.

Step-1: Charge Step-2: Exposure * Latent image is formed on the drum. Step-3: Developing

Latent image formed on the drum is then changed into visible image with toner.

Step-4: Transfer

The visible image (toner image) on the drum is transferred onto the print paper.

Step-5: Cleaning

Residual toner on the drum surface is removed and collected by the cleaning blade.

Step-6: Optical discharge

Residual charge on the drum surface is removed, by semiconductor laser beam.

3. Actual print process

Step-1: DC charge

A uniform negative charge is applied over the OPC drum surface by the main charging unit. Stable potential is maintained by means of the Scorotron charger. Positive charges are generated in the aluminum layer.

Step-2: Exposure (laser beam, lens)

A Laser beam is generated from the semiconductor laser and controlled by the print pattern signal. The laser writes onto the OPC drum surface through the polygon mirrors and lens. The resistance of the OPC layer decreases for an area exposed by the laser beam (corresponding to the print pattern signal). The beam neutralizes the negative charge. An electrostatic latent image is formed on the drum surface.

Semiconductor laser

Exposure (semiconductor laser)

OPC layer

Pigment layer

Aluminum drum

Drum surface charge after the exposure

OPC layer

Pigment layer

Aluminum

Non-image area Image area

layer

About

DC5.5KV

( 580V/ 390V)

AR-122E/152E/153E/157E COPY PROCESS 6 - 2

Page 26

Step-3: Developing (DC bias)

A bias potential is applied to the MG roller in the two component magnetic brush developing method, and the toner is charged negative through friction with the carrier. Non-image area of the drum surface charged with negative potential repel the toner, whereas the laser exposed portions where no negative charges exist, attract the toner. As a result, a visible image appears on the drum surface.

:Carrier (Magnetized particle) :Toner (Charge negative by friction) (N) (S) Permanent magnet

(provided in three locations)

Step-4: Transfer

The visible image on the drum surface is transferred onto the print paper by applying a positive charge from the transfer corona to the backside of the print paper.

About DC 5.2kV

400V 8V

Toner is attracted over the shadowed area because of the developing bias.

MG roller

Step-5: Separation

Since the print paper is charged positively by the transfer corona, it is discharged by the separation corona. The separation corona is connected to ground.

Step-6: Cleaning

Toner remaining on the drum is removed and collected by the cleaning blade. It is transported to the waste toner collecting section in the cleaning unit by the waste toner transport roller.

AR-122E/152E/153E/157E COPY PROCESS 6 - 3

Page 27

Step-7: Optical discharge (Semiconductor laser)

Before the drum rotation is stopped, the semiconductor laser is radiated onto the drum to reduce the electrical resistance in the OPC layer and eliminate residual charge, providing a uniform state to the drum surface for the next page to be printed. When the electrical resistance is reduced, positive charges on the aluminum layer are moved and neutralized with negative charges on the OPC layer.

Semiconductor laser

Charge by the Scorotron charger

Function

The Scorotron charger functions to maintain uniform surface potential on the drum at all times, It control the surface potential regardless of the charge characteristics of the photoconductor.

Basic function

A screen grid is placed between the saw tooth and the photoconductor. A stable voltage is added to the screen grid to maintain the corona current on the photoconductor. As the photoconductor is charged by the saw tooth from the main corona unit, the surface potential increases. This increases the current flowing through the screen grid. When the photoconductor potential nears the grid potential, the current turns to flow to the grid so that the photoconductor potential can be maintained at a stable level.

Start

1) Because the grid potential is at a low level, the drum potential is at about -400V. (Carrier may not be attracted though the carrier is pulled towards the drum by the electrostatic force of -400V.

2) Developing bias (-400V) is applied when the photoconductor potential is switched from LOW to HIGH.

3) Once developing bias (-400V) is applied and the photo conductor potential rises to HIGH, toner will not be attracted to the drum.

Stop

The reverse sequence takes place. Retaining developing bias at an abnormal occurrence

Function

The developing bias will be lost if the power supply was removed during print process. In this event, the drum potential slightly abates and the carrier makes deposits on the drum because of strong static power. To prevent this, the machine incorporates a function to retain the developing bias for a certain period and decrease the voltage gradually against possible power loss.

Basic function

Normally, the developing bias voltage is retained for a certain time before the drum comes to a complete stop if the machine should stop before completing the normal print cycle. The developing bias can be added before resuming the operation after an abnormal interruption. Therefore, carrier will not make a deposit on the drum surface.

Process controlling

Function

The print pattern signal is converted into an invisible image by the semiconductor laser using negative to positive (reversible) developing method. Therefore, if the developing bias is added before the drum is charged, toner is attracted onto the drum. If the developing bias is not added when the drum is charged, the carrier is attracted to the drum because of the strong electrostatic force of the drum. To avoid this, the process is controlled by adjusting the drum potential and the grid potential of the Scorotron charger.

Basic function

Voltage added to the screen grid can be selected, high and low. To make it easily understood, the figure below shows voltage transition at the developer unit.

START STOP

Toner attract potential

Low

Print potential

Developing bias

High

Time

Drum potential

AR-122E/152E/153E/157E COPY PROCESS 6 - 4

Page 28

[7] OPERATIONAL DESCRIPTIONS

1. Outline of operation

The outline of operation is described referring to the basic configuration.

(Basic configuration)

Scanner section

Operation

section

Printer section

CCD

MCU (Main control/image process section)

LSU (Laser unit) Laser diode, Polygon mirror lens

Laser beam

Process section

Cassette paper

feed section

Paper exit

Fusing section

Paper transport section

Manual paper

feed section

Printer/ Scanner I/F

Note: The scanner function is effective

USB or Parallel

only by USB connection.

(Outline of copy operation)

Setting conditions

1) Set copy conditions such as the copy quantity and the copy density with the operation section, and press the COPY button. The information on copy conditions is sent to the MCU.

Image scanning

2) When the COPY button is pressed, the scanner section starts scanning of images. The light from the copy lamp is reflected by the document and passed through the lens to the CCD.

Photo signal/Electric signal conversion

3) The image is converted into electrical signals by the CCD circuit and passed to the MCU.

Image process

4) The document image signal sent from the CCD circuit is processed under the revised conditions and sent to the LSU (laser unit) as print data.

Electric signal/Photo signal (laser beam) conversion

5) The LSU emits laser beams according to the print data. (Electrical signals are converted into photo signals.)

6) The laser beams are radiated through the polygon mirror and various lenses to the OPC drum.

Printing

7) Electrostatic latent images are formed on the OPC drum according to the laser beams, and the latent images are developed to be visible images(toner images).

8) Meanwhile the paper is fed to the image transfer section in synchronization with the image lead edge.

9) After the transfer of toner images onto the paper, the toner images are fused to the paper by the fusing section. The copied paper is discharged onto the exit tray.

(Outline of printer operation)

The print data sent from the PC are passed through the I/F and the MCU to the LSU. The procedures after that are the same as above 5) and later.

(Outline of scanner operation)

The scan data are passed through the MCU and the I/F to the PC according to the conditions requested by the PC or set by the operations with the operation panel.

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 1

Page 29

2. Scanner section

A. Scanner unit

The scanner unit in the digital copier scans images. It is composed of the optical unit and the drive unit. The optical unit

performs scanning in the main scan direction with the light receiving elements (color CCD). The drive unit performs scanning in the sub scanning direction by moving the optical unit.

B. Optical system

Two white lamps are used as the light source. Light radiated from the light source is applied to the document on the

document table. The reflected light from the document is reflected 5 times by No. 1 - No. 3 mirrors and passed through the reduction lens to form images on the light-receiving surface of 3-line CCD.

The light-receiving surface of the color CCD is provided with 3 line scanning sections for RGB. Separate images scanned in each color section are overlapped to complete color scanning. (When PC scanning)

The resolution is 600dpi. When copying, only the green component is used to print with the

printer. The color component for printing can be switched to red or blue by the

service simulation.

(Spectrum characteristics of the color CCD)

6.00E-01

5.00E-01

4.00E-01

3.00E-01

Intensity of UV

2.00E-01

1.00E-01

0.00E+00

Lamp : MBVM26W25W260NLH/G Lamp current : 5mA Temp. : 25 degree

0 200 400 600 800

MBVM26W25W260NLH/G

Wave length (nm)

(Spectrum characteristics of the lamp)

C. Drive system

The drive system is composed of the scanner motor, the pulley gear, the idle pulley, the idle gear, the belt 473, the belt 190, and the shaft.

The motor rotation is converted into reciprocated movements of the belt 473 through the idle gear, the pulley gear, the belt 190, and the idle pulley to drive the optical unit.

(Optical unit)

1 Table glass 2 Optical unit 3 Lens 4 Mirror 1 5 Mirror 2 6 Mirror 3 7 CCD PWB 8 Lamp 9 Reflector

34 6 285

1 Scanner motor 2 Pulley gear 3 Idle pulley 4 Belt 473 5 Belt 190 6 Optical unit 7 Shaft 8 Idle gear 9

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 2

Page 30

3. Laser unit

The image data sent from the MCU (image process circuit) is sent to the LSU (laser unit), where it is converted into laser beams.

A. Basic structure

The LSU unit is the writing section of the digital optical system. The semiconductor laser is used as the light source, and images are

formed on the OPC drum by the polygon mirror and fθ lens, etc. The laser beams are passed through the collimator lens, the cylindrical

lens, the polygon mirror, the fθ lens, and the mirror to form images on the OPC drum in the main scanning direction. The laser emitting PWB is provided with the APC (auto power control) in order to eliminate fluctuations in the laser power. The BD PWB works for measurement of the laser writing start point.

B. Laser beam path

No Component Function

1 Semiconductor laser Generates laser beams. 2 Collimator lens Converges laser beams in parallel. 3 Polygon mirror,

polygon motor

4 BD (Mirror, lens, PWB) Detects start timing of laser scanning. 5fθ lens Converges laser beams at a spot on the

Makes the laser scanning speeds at both ends of the drum same as each other.

Reflects laser beams at a constant rpm.

drum. Makes the laser scanning speeds at both

ends of the drum same as each other. (Refer to the figure below.)

C. Composition

Effective scanning width: 216mm (max.) Resolution: 600dpi Beam diameter: 75um in the main scanning direction, 80um in the sub

scanning direction Image surface power: 0.17 ±0.01mW (Laser wavelength 770 - 795nm) Polygon motor section: Brushless motor 20.787rpm

No. of mirror surfaces: 6 surfaces

4. Fuser section

a ≠ b ≠ c

ab c

d = e = f

def

f θ LENS

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 3

Page 31

A. General description

General block diagram (cross section)

Separator pawl

Paper guide

Thermistor

Top view

Heat roller

Thermal fuse

Heat roller

Thermistor

PPD2

Thermal fuse

Heater lamp

Pressure roller

2) The surface temperature of the upper heat roller is set to 165 190°C. The surface temperature during the power save mode is set to 100°C.

3) The self-check function comes active when one of the following malfunctions occurs, and an "H" is displayed on the multicopy window.

a. When the heat roller surface temperature rises above 240°C. b. When the heat roller surface temperature drops below 100°C during

the copy cycle. c. Open thermistor d. Open thermal fuse e. When the heat roller temperature does not reach 190°C within 27

second after supplying the power.

(4) Fusing resistor

Fusing resistor

This model is provided with a fusing resistor in the fusing section to improve transfer efficiency.

Since the upper heat roller is conductive, when using copy paper that contains moisture and the distance between the transfer unit and the fusing unit is short, the transfer current may find a path to ground via the copy paper, the upper heat roller and the discharging brush.

5. Paper feed section and paper transport

section

A. Paper transport path and general operations

Separator pawl

(1) Heat roller

A Teflon roller is used for the heat roller and a silicone rubber roller is used for the lower heat roller for better toner fusing performance and paper separation.

(2) Separator pawl

Three separator pawls are used on the upper heat roller. The separator pawls are Teflon coated to reduce friction with the roller and prevent a smear on the paper caused by the separator pawl.

(3) Thermal control

1) The heater lamp, thermistor, main PWB, DC power supply PWB, and triac within the power supply unit are used to control the temperature in the fuser unit. To prevent against abnormally high temperature in the fuser unit, a thermal breaker and thermal fuse are used for safety purposes.

Heated by the heater lamp. (950W)

Safety device (thermal breaker, thermal fuse)

The surface temperature of the upper heat roller is sensed by the thermistor.

54 3

6 7

8 9 10

11121314

1 Scanner unit 8 Drum 2 Copy lamp 9 Transfer unit 3 LSU (Laser unit) 10 Pickup roller 4 Paper exit roller 11 Manual paper feed tray 5 Main charger 12 Manual paper feed roller 6 Heat roller 13 PS roller unit 7 Pressure roller 14 Paper feed roller

Paper feed is made in two ways; the tray paper feed and the manual paper feed. The tray is of universal-type, and has the capacity of 250 sheets.

The front loading system allows you to install or remove the tray from the front cabinet.

The general descriptions on the tray paper feed and the manual paper feed operation are given below.

Triac (in the power supply unit)

Level of the thermistor is controlled by the main PWB.

With the signal from the main PWB, the triac is controlled on and off. (power supply PWB)

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 4

Page 32

(1) Cassette paper feed operation

1) The figure below shows the positions of the pick-up roller, the paper feed clutch sleeve, and the paper feed latch in the initial state without pressing the COPY button after lighting the ready lamp. The paper feed latch is in contact with the projection of the clutch sleeve.

2) When the COPY button is pressed, the main drive motor starts rotating to drive each drive gear. The pick-up drive gear also is driven at that time. Since, however, the paper feed latch is in contact with the projection of the clutch sleeve, rotation of the drive gear is not transmitted to the pick-up roller, which does not rotate therefore.

5) At this time, the paper is fed passed the paper entry detection switch (PPD1), and detected by it. After about 0.15 sec from detection of paper by PPD1, the tray paper feed solenoid (PFS) turns on so that the clutch sleeve projection comes into contact with the paper feed latch to stop the pick-up roller. Then the pickup roller rotates for about 0.15 sec so that the lead edge of the paper is evenly pressed on the resist roller, preventing against skew feeding.

PFS

RRS

OFF

PFS

RRS

OFF

3) After about 0.1 sec from when the main motor start rotating, the tray paper feed solenoid (PFS) turns on for a moment. This disengages the paper feed latch from the projection of the clutch sleeve, transmitting rotation of the pick-up drive gear to the paper feed roller shaft, rotating the pick-up roller to feed the paper.

PFS

RRS

OFF

6) To release the resist roller, the tray paper feed solenoid and the resist solenoid are turned on by the paper start signal to disengage the resist start latch from the clutch sleeve, transmitting rotation of the resist drive gear to the resist roller shaft. Thus the paper is transported by the resist roller.

7) After the resist roller starts rotating, the paper is passed through the pre-transfer guide to the transfer section. Images are transferred on the paper, which is separated from the OPC drum by the drum curve and the separation section.

PFS

RRS

OFF

8) The paper separated from the drum is passed through the fusing paper guide, the heat roller (fusing section), POD (paper out detector) to the copy tray.

4) After more than half rotation of the pick-up roller, the paper feed latch is brought in contact with a notch on the clutch sleeve, stopping rotation of the pick-up roller.

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 5

Page 33

(2) Manual multi paper feed operation

1) Before paper feed operation, the manual paper feed solenoid (MPFS) is turned OFF as shown in the figure below.

3) When pawl C of the manual paper feed clutch sleeve is engaged with the manual feed latch, the manual feed stopper falls and the manual take-up roller rises. At that time, the manual paper feed roller is rotating.

MPFS

2) When the PRINT button is pressed, the manual paper feed solenoid (MPFS) turns on to disengage the manual paper feed latch. A from the manual paper feed clutch sleeve A, rotating the manual paper feed roller and the manual take-up roller. At the same time, the manual paper feed stopper opens and the manual take-up roller is pressed to the surface of the paper to start paper feeding.

MPFS

4) The lead edge of the transported paper is pressed on the resist roller by the transport roller. Then the paper is stopped temporarily to allow synchronization with the lead edge of the image on the OPC drum. From this point, the operation is the same as the paper feed operation from the tray. (Refer to A-5 - 8.)

5) The solenoid turns off to close the gate and return to the initial state.

MPFS

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 6

Page 34

(3) Conditions of occurrence of paper misfeed

a. When the power is turned on:

PPD or POD is ON when the power is turned on.

b. Copy operation

a PPD1 jam PPD1 does not turn off within 4 sec after turning

on the resist roller.

b PPD2 jam PPD2 is off immediately after turning on the

resist roller. PPD2 does not turn off within 1.2 sec after turning off the resist roller.

c POD jam POD does not turn on within 2.9 sec after turning

on the resist roller. POD does not turn off within 1.5 sec - 2.7 sec after turning off PPD2.

6. SPF section

A. Outline

The SPF (Single Path Feeder) is installed to the AL-1456 as a standard provision, and it automatically copies up to 30 sheets of documents of a same size. (Only one set of copies)

B. Document transport path and basic composition

1 Pickup roller 2 Sheet of document for

paper feed 3 Set detection ACT 4 Paper stopper 5 Document feed roller 6 Separation sheet 7 Paper entry sensor 8 PS roller D 9 Transport follower roller 10 Paper exit roller

11 Paper exit follower roller 12 Document tray

C. Operational descriptions

Time chart (Tray feed)

Document set

Document set sensor

Copy start

The scanner is shifted to the exposure position.

(SPF side)

SPFM rotation

SPF motor rotation

(Copier side)

MM rotation

SPID ON

Document feed unit lamp ON

PSW ON

MIRM rotation

Main motor rotation

PSW MIRR M SPF M CL SPUS SPPD

SCANST

MAIN M CPFS1 RRS

PPD1 PPD2 POD

625msec

756msec

752msec

D. Cases where a document jam is caused

1) When SPPD is ON (document remaining) when the power is turned on.

2) When SPPD is not turned ON within about 1.5 sec (at 100% copy) after starting the document feed operation.

3) When SPPD is not turned on within about 4.7 sec (at 100% copy) after turning on SPPD.

4) When the SPF document jam release door or the OC cover is opened during document transport (SPF motor rotating).

7. D-D (Duplex to Duplex) mode paper/ document transport (Duplex model)

A. Initial state

Set duplex documents on the document tray. Set paper on the cassette. (In the duplex mode, the manual feed tray

cannot be selected.)

B. Front copy

Document transport:

The document feed roller feeds the document from the paper feed roller to the PS roller.

• The document is exposed in the exposure section, and sent to the

document exit section

• by the transport/paper exit roller.

• R-SPF gate solenoid ON

• The document is sent to the intermediate tray.

(but not discharged completely.)

• The document is stopped once, then switchback operation is

performed. (To the back copy)

Paper transport:

The document is passed through the paper feed roller and the PS roller by the paper feed roller

and the images on the front surface are transferred.

• The paper is passed through the fusing section and the lower side of

the gate section to the paper exit tray side, (but not discharged completely.)

• It is stopped once and switchback operation is performed.

(To the back copy)

CPFS ON

PPD ON

RRC ON

(Transfer)

(Fusing)

POD ON

(Paper exit)

In the zooming mode, the magnification ratio in the sub scanning direction (paper transport direction) is adjusted by changing the document transport speed.

Paper feed

Synchronization

Paper transport

SPUS ON

SPPD ON

(Exposure)

(Document exit)

Document feed

Document transport sensor

Document transport

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 7

Page 35

C. Back copy

Document transport:

By switchback operation, the document is sent through the PS roller to the exposure section, where the back of the document is exposed.

• It is sent to the document exit section by the transport roller and the paper exit roller.

• R-SPF gate solenoid ON. The document is sent to the intermediate tray, (but not discharged completely.)

• It is stopped once and switchback operation is performed.

• It is sent through the PS roller and the exposure section (without exposure operation) to the document exit section.

• R-SPF gate solenoid OFF

• The document is discharged to the document exit tray.

Paper transport:

Switchback operation is performed.

• The paper is sent through the upper side of the gate section and the duplex transport section, and the PS roller, and the images on the back are transferred.

• It is sent through the fusing section and discharged to the paper exit tray.

Switchback operation is made after back copying in order to discharge documents according to the setting.

Set document Documents after discharge,

with empty feed4without empty feed

23 4 32 1 41 2

There are following job modes as well as D-D mode. S - S (Simplex to Simplex) S - D (Simplex to Duplex), Rotation copy mode (The back images are rotated 180°C.) S - D (Simplex to Duplex), Copy mode without rotation D - S (Duplex to Simplex)

Rotation copy mode:

The front and the back are in upside down each other.

Copy mode without rotation:

The front and the back are not in upside down.

AR-122E/152E/153E/157E OPERATIONAL DESCRIPTIONS 7 - 8

Page 36

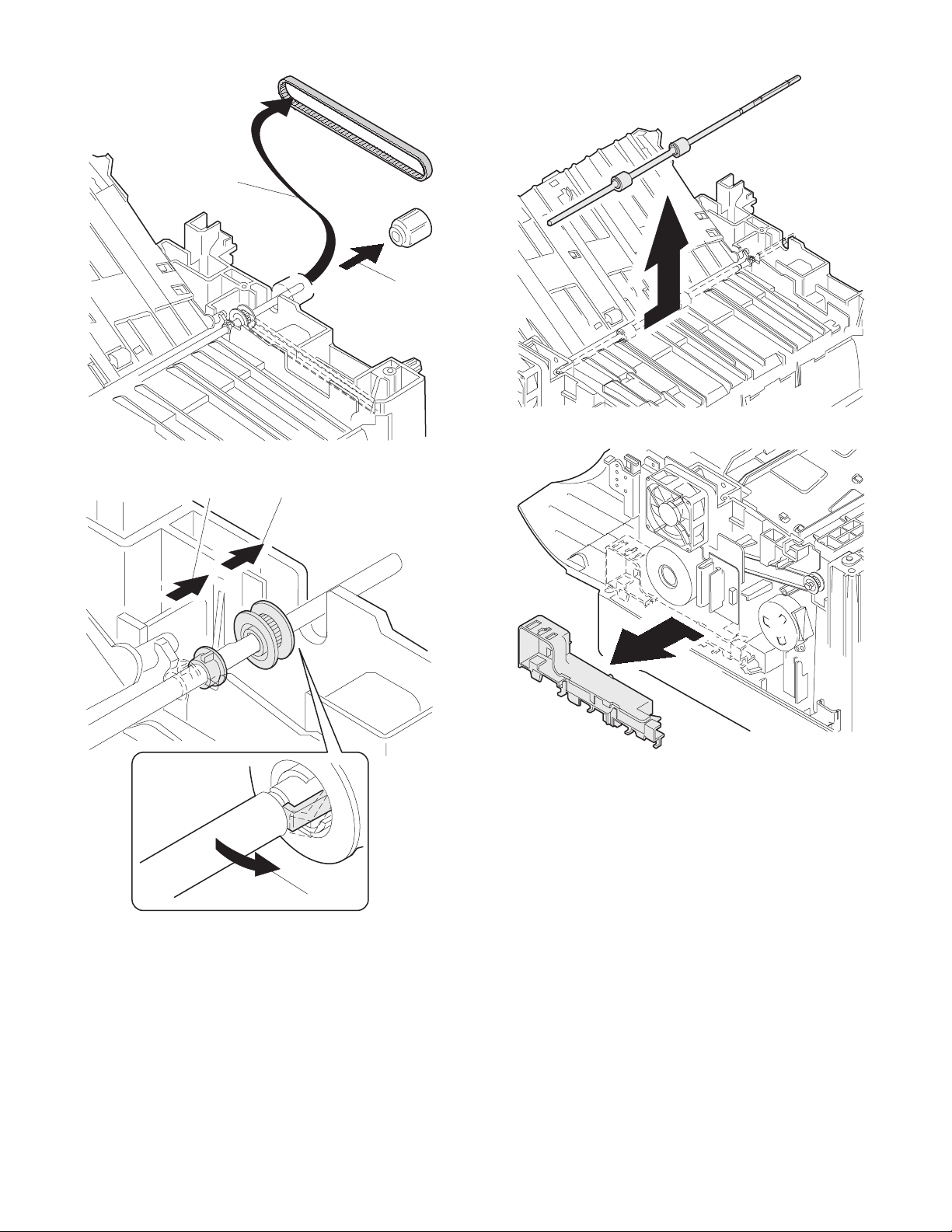

[8] DISASSEMBLY AND ASSEMBLY

Before disassembly, be sure to disconnect the power cord for safety.

1. Do not disconnect or connect the connector and the harness during the machine is powered. Especially be careful not to disconnect or connect the harness between the MCU PWB and the LSU (MCU PWB: CN119) during the machine is powered. (If it is disconnected or connected during the machine is powered, the IC inside the LSU will be destroyed.)

2. To disconnect the harness after turning on the power, be sure to turn off the power and wait for at least 10 sec before disconnection. (Note that a voltage still remains immediately after turning off the power.)

The disassembly and assembly procedures are described for the following sections:

1. High voltage section

2. Operation panel section

3. Optical section

4. Fusing section

5. Tray paper feed/transport section

6. Manual paper feed section

7. Rear frame section

8. Power section

9. 2nd cassette section

10. Duplex motor section

11. Reverse roller section

12. RSPF section

1. High voltage section

2) Remove the drum fixing plate and the photoconductor drum. (Note) Dispose the drum fixing plate which was removed.

(2)

(3)

3) Check the cleaning blade and the red felt for no damage.

• If there is any damage, execute all procedures from item 5) and

later.

• If there is no damage, execute the procedure of item 12).

4) Remove the main charger. (Cleaning the screen grid and the sawteeth.)

A. List

No. Part name Ref.

1Drum 2 Transfer charger unit 3 Charger wire

B. Drum replacement

1) Remove the drum cover. (4 Lock Tabs)

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 1

Page 37

5) Remove the cleaning blade. Note: Dispose the cleaning blade which was removed.

6) Clean the cleaning section and the waste toner pipe to remove waste toner completely with a vacuum cleaner.

7) Remove the felt and duplex tape completely. Note: Be careful not to scratch or bend the sub blade.

8) Attach the cleaning blade. Securely insert the plate section of the cleaning blade into the unit

and fix it with a screw. Do not touch the cleaning blade rubber with your hand. When attaching the cleaning blade, press the cleaning blade in the

arrow direction and attach.

Attach the felt pad while slightly pressing section A of the cleaning blade.

Do not touch the tip of the cleaning blade. Do not put the felt pad under the cleaning blade. Do not put the felt pad on the sub blade. Do not press the sub blade with the felt pad.

10) Attach the main charger. Securely set the MC holder on the projection of the process frame. Securely insert two projections of the MC holder into the groove in

the process frame. When attaching the MC holder ass'y, be careful not to make con-

tact with the cleaning blade.

11) Attach the drum fixing plate and the photoconductor drum. Apply grease to the inside of the photoconductor drum. (Dia. 2)

9) Attach the felt pads (moquettes).

0 – 0.3 mm

∗

Felt Pad R

Sub blade

Felt Pad R

0.2 – 0.5 mm

Be careful not to allow the moquette to cover the sub blade.

Example of NG

: Check while pressing the blade.

∗

Cleaning blade

∗

Cleaning blade

0 – 0.3 mm

Felt Pad F

0 – 0.5 mm0 – 0.5 mm

Felt Pad F

0.2 – 0.5 mm

Attach the drum from (b). (Prevention against the sub blade edge breakage)

Attach the drum so that its position with the sub blade is as shown.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 2

Page 38

12) Attach the detection gear. Note:

• The detection gear is not installed to the drum cartridge packed

with the main body. Add a new one.

13) Attach the drum cover. Note: After attaching the drum cover, do not make a copy.

When attaching the drum cover, engage the detection gear 20T rib with the 30T gear rib, and attach the drum cover to the process frame.

C. Disassembly procedure (Transfer changer unit)

1) Press the side cover open/close button and open the side cover.

2) Push up the lock pawls (2 positions) of the side cover, and remove the transfer charger.

Lock pawl rear

Transfer charger

Lock pawl front

D. Assembly procedure

For assembly, reverse the disassembly procedure.

E. Charger wire cleaning

1) Remove the charger cleaner from the manual paper feed unit.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 3

Page 39

2) Set the charger cleaner to the transfer unit, and move it recipro-

cally a few times in the direction of the arrow shown in the figure below.

2. Operation panel section

A. List

No. Part name Ref.

1 Operation panel unit 2 Operation PWB

B. Disassembly procedure

1) Open the side door, and Open the front cover.

F. Charger wire replacement

1) Remove the TC cover and remove the screw.

2) Remove the spring and remove the charger wire.

3) Install a new charger wire by reversing the procedures (1) and (2). At that time, be careful of the following items.

• The rest of the charger wire must be within 1.5mm. Refer to Fig.1

• The spring hook section (charger wire winding section) must be in

the range of the projection section.

• Be careful not to twist the charger wire.

Charger wire

2) Remove the screws (4 pcs.), the harness, and the operation panel unit.

1mm

Protrusion

1.5mm

Fig.1

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 4

Page 40

3) Remove four screws, and remove the operation cabinet.

4) Remove four screws, and remove the operation PWB.

2) Remove the connector and the clamp, and remove the RSPF unit.

Note that there are 10 pawls

C. Assembly procedure

For assembly, reverse the disassembly procedure

3. Optical section

A. List

NO. Part name Ref.

1 Copy lamp unit 2 Copy lamp 3 Lens unit

B. Disassembly procedure

1) Remove four screws, and remove the rear cabinet and the rear cabinet cover.

3) Remove the four screws, remove the operation unit, and disconnect the connector.

4) Remove the right cabinet.

5) Remove the left cabinet.

6) Remove the screw, and remove the rear cover.

7) Remove the table glass.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 5

Page 41

8) Move the carriage to the position indicated on the figure.

9) Loosen the screw which is fixing the tension plate.

10) Move the tension plate in the arrow direction to release the tension, and remove the belt.

11) Remove the screw, and remove the rod stopper.

12) Remove the rod.

C. Assembly procedure

CCD core

1) Pass the core through the CCD-MCU harness.

2) Insert the CCD-MCU harness into the CCD PWB connector of the carriage unit.

3) Move the core which was passed through the CCD-MCU harness near the CCD PWB connector as shown in the figure below, and fix it with a filament tape (19mm wide, 40mm long). For the attachment reference, refer to the figure below. Clean and remove oil from the attachment section.

4) Attach the CCD-MCU harness to the duplex tape on the back of the carriage unit.

5) Attach the PWB holder to the position specified in the figure below.

6) Pass the core through the FFC and the PWB holder, and fix the core.

Note: Attach the FFC to the base plate securely with duplex tape to prevent against coming loose.

13) Lift the rear side of the carriage, remove the belt and the connector, and remove the carriage.

Note: Attach the FFC to fit with the marking line.

Marking line

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 6

Page 42

4. Fusing section

A. List

No. Part name Ref.

1 Thermistor 2 PPD2 sensor 3 Heater lamp 4 Pressure roller 5 Heat roller

B. Disassembly procedure

1) Remove the connectors (3 pcs.) of the rear cabinet.

2) Open the side cover, remove two screws, and remove the fusing unit.

4) Remove the screw and remove the U-turn guide.

Pressure roller section disassembly

5) Remove the three screws, remove the fusing cover lower on the right side, and open the heat roller section.

3) Cut the binding band, remove the screw, and remove the thermistor.

Thermistor

6) Remove the screw and remove the PPD2 sensor.

PPD2 sensor

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 7

Page 43

7) Remove the plate spring on the right and remove the heater lamp.

Heater lamp

10) Remove the pressure release levers on the right and the left sides.

11) Remove the pressure roller, the pressure bearing, and the spring. Note: Apply grease to the sections specified with an asterisk (*).

Pressure roller

8) Remove the spring and remove the separation pawls (3 pcs.).

9) Remove the E-ring and remove the reverse gate.

Heat roller disassembly (Continued from procedure (4).)

5) Remove screws, remove the fusing cover, and open the heat roller section.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 8

Page 44

6) Remove the C-ring and the fusing bearing, and remove the heat roller.

7) Remove the parts from the heat roller.

Note: Apply grease to the sections specified with *.

Heat roller

5. Tray paper feed/transport section

A. List

No. Part name Ref.

1 PPD1 sensor PWB 2 LSU unit 3 Intermediate frame unit 4 Paper feed roller

B. Disassembly procedure

1) Remove two screws, and remove the hinge guide R.

2) Disconnect three positions of the connectors.

3) Remove six screws, and remove the scanner unit.

4) Remove the fan duct.

8) Remove two screws and remove the thermo unit.

4) Remove each connector and three screws, and remove the MCU PWB.

C. Assembly procedure

For assembly, reverse the disassembly procedure.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 9

Page 45

5) Remove the PWB insulation mylar and remove the paper transport detection sensor (PPD2).

7) Remove two springs and open the intermediate frame unit.

6) Remove two screws and remove the toner motor.

8) Remove the pulleys on the both sides and remove the paper exit roller.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 10

Page 46

9) Pull out the paper exit roller knob and remove the belt.

10) Release the belt pulley (a) lock and remove the belt pulley bearing.

11) Remove the paper exit roller.

12) Remove the harness guide.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 11

Page 47

13) Remove five screws and remove the main drive plate and the belt.

15) Remove six screws and remove the LSU unit.

CAUTION:Attach the gears securely

14) Remove the parts as shown below, and remove the pressure release solenoid and the paper feed solenoid.

The scan inclination classification is indicated on the right or the left of the LSU production number label according to the classification.

When replacing the LSU, add the spacer according to the scan inclination classification. (The spacer is packed together with every LSU.)

Scan inclination classification check Scan inclination classification 1: +0.26 – +0.5 (White marking on

the right of the production number label) Scan inclination classification 2: – 0.25 – +0.25 (White marking) Scan inclination classification 3: – 0.5 – – 0.26 (White marking on

the left of the production number label)

LSU spacer not required

Machine front side Add one LSU spacer.

Machine rear side Add one LSU spacer.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 12

Page 48

Addition of the spacer Scan inclination classification 1: Add the LSU spacer to the rear

side of the machine. Scan inclination classification 2: No need to add the spacer. Scan inclination classification 3: Add the LSU spacer to the front

side of the machine.

Fit the holes and attach.

Insert into the positioning boss.

[Note for assembling the LSU]

When installing the LSU, turn the LSU clockwise and fix with screws in order to provide an attachment backlash in the proper direction.

Observe the following sequence of fixing screws.

2 4

16) Remove each pawl, and remove the paper exit tray.

Insert into the positioning boss.

Fit the holes and attach.

Machine front side

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 13

Page 49

17) Remove two screws and remove the fusing connector.

18) Remove five screws and the connector, and lift the intermediate frame unit to remove.

21) Remove three screws and remove the TC front paper guide.

22) Remove the screw and the connector, and remove the PPD1 sensor PWB.

19) Remove the screw and the E-ring, and remove the PS semi-circular earth plate and the PS roller unit.

20) Remove the E-ring and remove the spring clutch from the PS roller unit.

PS roller unit

PS semi-circuler

PS semi-circular earth plate

earth plate

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 14

Page 50

23) Remove two E-rings and remove the paper feed roller.

24) Remove three E-rings and remove the clutch unit.

Clutch unit

Paper feed roller

B. Disassembly procedure

Single unit

1) Remove the screw and remove the single upper cover.

Back

Front

C. Assembly procedure

For assembly, reverse the disassembly procedure.

6. Manual paper feed section

A. List

No. Part name Ref.

1 Manual transport roller 2 Cassette detection switch 3 PPD1 sensor PWB 4 Side door detection unit

2) Remove the screw and remove the side door detection unit.

Back Wire treatment

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 15

Page 51

3) Remove three screws and remove the single manual feed upper frame.

5) Remove the E-ring and remove the manual paper feed transport roller.

4) Remove the PPD1 sensor PWB.

6) Remove the cassette detection switch.

Wire treatment

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 16

Page 52

7) Remove the multi cover.

Multi cover

2) Remove the screw and remove the side door detection unit.

Back Wire treatment

Multi unit

1) Remove the screw and remove the multi upper cover.

3) Remove three screws and remove the multi paper feed upper frame.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 17

Page 53

4) Remove two screws and remove the multi feed bracket unit from the multi paper feed upper frame.

6) Remove the pick-up roller.

5) Remove three E-rings and remove the manual paper feed roller B9.

7) Cut the binding band and remove the multi paper feed solenoid.

Multi paper feed solenoid

C. Assembly procedure

For assembly, reverse the disassembly procedure.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 18

Page 54

D. Pressure plate holder attachment

1) Attach the pressure plate holder so that the resin section is not covered with the seal M1-N.

Seal M1-N

2) Disconnect the connector.

3) Remove two screws, and remove the scanner motor.

Pressure plate holder

Attachment reference

7. Rear frame section

A. List

No. Part name Ref.

1 Mirror motor 2 Main motor 3 Exhaust fan motor

B. Disassembly procedure

1) Remove four screws, and remove the rear cabinet and the rear cabinet cover.

4) Remove two screws and one harness, and remove the main motor.

5) Remove two screws and one connector, and remove the exhaust fan motor.

C. Assembly procedure

For assembly, reverse the disassembly procedure.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 19

Page 55

8. Power section

A. List

No. Part name Ref.

1 Noise filter PWB 2 Power PWB

B. Disassembly procedure

Noise filter PWB

1) Disconnect the connector at two positions.

2) Remove the screw, and remove the noise filter PWB unit.

9. 2nd cassette section

No. Part name Ref.

A Paper sensor B Cassette detection SW C Paper feed solenoid D Transport roller E Paper feed clutch

F 2nd paper feed roller

Paper feed unit removal

Power PWB

1) Disconnect each connector.

2) Remove the screw, and remove the earth line.

3) Remove two screws, and remove the power PWB unit.

1) Remove the screw.

2) Remove the rear cover.

* When installing, engage the pawl and install the unit.

C. Assembly procedure

For assembly, reverse the disassembly procedure.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 20

Page 56

1) Open the right cabinet.

2) Remove three screws.

3) Remove one connector from MCU.

4) While tilting down the 2nd connection arm A, pull and remove the paper feed unit toward you.

B. Cassette detection switch

1) Remove the pawl.

2) Remove the cassette detection switch.

3) Remove the harness.

* When installing, securely insert two bosses C on the machine side

and two bosses D on the paper feed unit side. Be sure to secure the ground wire B.

* Insert the 2nd page feed.

A. Paper sensor

1) Remove the pawl.

2) Remove the paper sensor.

3) Remove the harness.

C. Paper feed solenoid

1) Remove the screw.

2) Remove the connector.

3) Remove the paper feed solenoid.

D. Transport roller

1) Remove two E-rings.

2) Remove the transport roller.

* Install so that the earth spring A is brought into contact over bearing

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 21

Page 57

E. Paper feed clutch

1) Remove the E-ring.

2) Remove the paper feed clutch.

3) Remove the parts.

10. Duplex motor section (RSPF model only)

A. Remove the rear cabinet.

1) Remove four screws.

2) Remove the rear cabinet.

B. Remove the main PWB.

1) Disconnect each connector.

2) Remove four screws, and remove the MCU PWB.

* When installing, fit the cut surface A.

F. 2nd paper feed roller

1) Remove the E-ring and the parts.

2) Remove the 2nd paper feed roller.

3) Disconnect the connector.

4) Remove five screws, and remove the I/F PWB.

* When installing, hang the 2nd connection arm on the 2nd connection

arm Spring B. Be sure to install so that the earth spring C is in contact under the bearing D.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 22

Page 58

C. Remove the Duplex motor.

1) Remove two screws.

2) Remove the Duplex motor cover.

3) Remove the Duplex motor.

Note: When reassembling, be sure to engage the Duplex motor gear

with the belt on the main body side.

11. Reverse roller section (RSPF model only)

A. Remove the reverse unit.

1) Remove four screws

2) Remove the spring, and the earth wire

3) Remove the reverse unit.

12. RSPF section (RSPF model only)

A. RSPF

(1) Remove the rear cabinet.

1) Remove four screws.

2) Remove the rear cabinet.

(2) Remove the RSPF.

1) Remove the connector and the cable.

2) Remove the RSPF.

B. Remove the reverse roller.

1) Bend the reverse roller and remove it.

B. Intermediate tray

1) Remove the intermediate tray.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 23

Page 59

C. Upper cover

1) Remove four screws from the bottom of the main body.

2) Remove the upper cover.

E. Upper cover of the pickup unit.

1) Remove two screws from the bottom of the pickup unit.

2) Remove the upper cover.

D. Pickup unit

1) Remove the belt, the paper feed frame spring, and two harnesses.

2) Remove the pickup unit.

F. Sensor PWB

1) Remove two screws.

2) Remove the sensor PWB.

3) Remove the harness.

Note: When reassembling, be careful of the hole position for the paper

feed frame spring.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 24

Page 60

G. Pickup solenoid

1) Remove two screws.

2) Remove the pickup solenoid.

Note: When reassembling, hang the iron core on the solenoid arm.

H. Clutch

(1) Remove the clutch unit.

1) Remove the E-ring.

2) Remove the pulley and the bush.

3) Slide the bush in the arrow direction.

4) Lift the clutch pawl.

5) Remove the clutch unit.

(2) Remove the clutch

1) Remove the E-ring.

2) Remove the parts.

I. Manual paper feed roller, pickup roller

(1) Remove the pickup unit.

1) Lift the paper stopper.

2) Slide the take-up roller unit.

3) Slide the bushing in the arrow direction.

4) Remove the take-up roller.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 25

Note: When reassembling, hang the convex portion of the roller unit

on the solenoid arm.

Page 61

(2) Remove the Manual paper feed roller, pickup roller.

1) Remove the parts.

2) Remove the manual paper feed roller.

3) Remove the pickup roller.

4) Remove the parts.

K. Belt 1

1) Remove the belt.

J. Transport unit removal

1) Disconnect the connector, and cut the binding band.

2) Remove two screws, and remove the document tray unit.

3) Remove five screws, and remove the transport unit.

L. Belt 2

1) Remove three screws.

2) Remove the drive unit.

3) Remove the belt.

Note: When reassembling, hang the belt on the boss.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 26

Page 62

M. SPF motor

1) Remove the harness.

2) Remove two screws.

3) Remove the SPF motor.

N. Solenoid

1) Remove the harness.

2) Remove two screws.

3) Remove the solenoid.

O. Clutch

1) Cut the band with nippers.

2) Remove the harness.

3) Remove the clutch.

P. Paper supply roller

(1) Remove the parts.

1) Remove the two screws.

2) Remove the parts.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 27

Page 63

(2) Remove the paper supply roller.

1) Loosen the screw.

2) Open the paper exit paper guide.

3) Remove the parts.

4) Remove the paper supply roller.

R. Transport roller 1.

(1) Remove the parts.

1) Remove the parts.

Q. Paper entry sensor

1) Loosen the screw.

2) Open the paper exit paper guide.

3) Remove the paper entry sensor.

4) Remove the harness.

(2) Remove the parts.

1) Loosen the screw.

2) Open the paper exit paper guide.

3) Remove the parts.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 28

Page 64

(3) Remove the transport roller.

1) Remove the paper exit paper guide.

2) Remove the transport roller.

(2) Remove the paper feed paper guide upper.

1) Remove two screws.

2) Remove the paper feed paper guide upper.

(3) Remove the paper exit roller.

1) Remove the parts.

2) Remove the paper exit roller.

S. Paper exit roller

(1) Remove the parts.

1) Remove two screws.

2) Remove the parts.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 29

Page 65

T. Solenoid

(1) Remove the reverse gate

1) Remove the ring

2) Remove the reverse gate

Note: When reassembling, be careful of the groove and the hole

positions of the spring.

Note: When reassembling, hang 2) on the solenoid.

(2) Remove the solenoid.

1) Remove the screw.

2) Remove the solenoid.

AR-122E/152E/153E/157E DISASSEMBLY AND ASSEMBLY 8 - 30

Page 66

[9] ADJUSTMENTS

1. Optical section

A. Copy magnification ratio adjustment

The copy magnification ratio must be adjusted in the main scanning direction and in the sub scanning direction. To adjust, use SIM 48-1.

(1) Outline

The main scanning (front/rear) direction magnification ratio adjustment is made automatically or manually.

Automatic adjustment: The width of the reference line marked on the shading correction plate is scanned to perform the main scanning (front/rear) direction magnification ratio adjustment automatically.

Manual adjustment: The adjustment is made by manual key operations. (In either of the automatic and manual adjustments, the zoom data register set value is changed for adjustment.)

The magnification ratio in the sub scanning direction is adjusted by changing the carriage (scanner) scanning speed.

(2) Main scanning direction magnification ratio adjustment

a. Cases when the adjustment is required

1) When the main PWB is replaced.

2) When the EEPROM in the main PWB is replaced.

3) When "U2" trouble occurs.

4) When repairing or replacing the optical section.

b. Necessary tools

• Screwdriver (+)

•Scale

c. Adjustment procedure Automatic adjustment

In the first place, perform SIM48-1 (Main scanning direction magnification ratio adjustment and black level correction (CCD dark component target value setup)).

To perform the automatic adjustment, place the gray gradation chart (UKOG-0162FCZZ) face down so as to fit with the left center of the platen with the darker side (Density 10) on the left of OC.

Manual adjustment

1) Set the scale vertically on the document table. (Use a long scale for precise adjustment.)

2) Set the copy magnification ratio to 100%.

3) Make a copy on A4 or 81/2" x 11" paper.

4) Measure the length of the copied scale image.

5) Calculate the main scanning direction magnification ratio. Main scanning direction magnification ratio

Copy image dimensions

Original dimension

(When a 100mm scale is used as the original.)

Paper feed direction

mm 1/2mm

10 20

Reference

X 100 (%)

100 110 120 130

100

Comparison point

JAPAN

110

120 130

140

Original (Scale)

HARDENED STAINLESS

150

Shizuoka

HARDENED STAINLESS

150

Shizuoka

Copy

110

10 1

Back of the chart

In the case of the automatic adjustment, when the PRINT switch is pressed, the mirror base unit moves to the white plate for shading to scan the width of the reference line, calculating the correction value and displaying and storing this value.

After completion of the automatic adjustment, press the density adjustment Down key, and the black level will be displayed in hexadecimal number (3 digits) of 12bits.

After execution of the automatic adjustment, go out from the simulation mode and make a copy to check the magnification ratio.

Adjustment mode Lighting lamp

Main scanning direction auto copy

Auto exposure lamp ON magnification ratio adjustment and black level automatic correction Main scanning direction manual copy

Manual exposure lamp ON magnification ratio adjustment Sub scanning direction copy

Photo exposure lamp ON magnification ratio adjustment SPF mode scanning direction magnification ratio adjustment

Auto, Manual, Photo lamp

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 1

6) Check that the copy magnification ratio is within the specified range. If it is not within the specified range, perform the following procedures.

7) Execute SIM 48-1 to select the main scanning direction copy magnification ratio adjustment mode. To select the adjustment mode, use the copy mode select key.

If the magnification ratio is not in the specified range (100±1.0%), manually adjust as follows.

8) Set the adjustment mode to Manual with the copy mode select key.

9) Enter the new set value of main scanning direction copy magnification ratio with the copy quantity set key, and press the COPY button.

10) Change the set value and repeat the adjustment until the ratio is within the specified range. When the set value is changed by 1, the magnification ratio is changed by 0.1%.

(3) Sub scanning direction copy magnification ratio

a. Cases when the adjustment is required

1) When the scanner unit drive section is disassembled or the part is replaced.

2) When the main PWB is replaced.

3) When the EEPROM in the main PWB is replaced.

4) When "U2" trouble occurs.

Page 67

b. Necessary tools

•Scale

c. Adjustment procedure

1) Set the scale on the document table as shown below. (Use a long scale for precise adjustment.)

2) Set the copy magnification ratio to 100%.

3) Make a copy on A4 or 81/2" x 11" paper.

4) Measure the length of the copied scale image.

5) Calculate the sub scanning direction copy magnification ratio using the formula below.

Copy image dimensions

Original dimension

X 100 (%)

110

Original (Scale)

HARDDENCD

mm 1/2mm

Reference

10 20

100

Comparison point

JAPAN

110 120 130

JAPAN

110 120

130

STAINLESS

140

150

Shizuoka

HARDDENCD STAINLESS

140

150

Shizuoka

Copy

Paper feed direction

6) Check that the actual copy magnification ratio is within the specified range. (100 ± 1.0%). If it is not within the specified range, perform the following procedures.

7) Execute SIM 48-1 to select the sub scanning direction copy magnification ratio adjustment mode. To select the adjustment mode, use the copy mode select key. (Photo exposure lamp ON)

8) Enter the new set value of sub scanning direction copy magnification ratio with the copy quantity set key, and press the COPY button.

Repeat procedures 1) - 8) until the sub scanning direction actual copy magnification ratio in 100% copying is within the specified range.

When the set value is changed by 1, the magnification ration is changed by 0.1%.

B. Image position adjustment

There are following five kinds of image position adjustments, which are made by laser control except for the image scan start position adjustment. For the adjustments, SIM 50 - 01, 50 - 10, 50 - 18 and SIM 50 - 19 are used.

No. Adjustment item Simulation

1 Print start position 50 - 01 2 Image lead edge void amount 50 - 01 3 Image scan start position 50 - 01 4 Image rear edge void amount 50 - 01 5 SPF image scan start position 50 - 01 6 Center offset 50 - 10 7 Memory reverse position adjustment in

duplex copy 8 Duplex copy rear edge void adjustment 50 - 19 9 Duplex back print start position 50 - 19

To select the adjustment mode with SIM 50 - 01, use the copy mode select key.

The relationship between the adjustment modes and the lighting lamps are as shown in the table below.

Adjustment mode Lamp ON

Print start position (Main cassette paper

AE, main cassette lamp

feed) Print start position (2nd cassette paper

AE, 2nd cassette lamp

feed) Print start position (Manual paper feed) AE, manual feed lamp Image lead edge void quantity TEXT lamp Image scan start position PHOTO lamp Image rear edge void quantity AE, TEXT, PHOTO

lamp

SPF image scan start position AE, TEXT lamp

: Supported for the installing model and skipped for non-installing

mode.

To select the adjustment mode with SIM 50 - 10, use the copy mode select key.

The relationship between the adjustment modes and the lighting lamps are as shown in the table below.

Machine with the multi manual paper feed unit

Adjustment mode Lamp ON

Print center offset (Main cassette paper

AE, main cassette lamp

feed) Print center offset (Manual paper feed) AE, manual paper feed lamp OC/document center offset AE, TEXT lamp

Machine with the single manual paper feed unit

Adjustment mode Lamp ON

Print center offset (Main cassette paper

AE, main cassette lamp

feed) Print center offset (Manual paper feed) AE, manual paper feed lamp OC/document center offset AE, TEXT lamp

Duplex copy rear edge void adjustment mode

Adjustment mode Lamp ON

Image cut rear edge void quantity

AE lamp

(RSPF) Paper rear edge void quantity TEXT lamp Print start position (Duplex back) PHOTO lamp RSPF (Back) original center offset AE, TEXT, PHOTO lamps

50 - 18

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 2

Page 68

(1) Lead edge adjustment

1) Set a scale to the center of the paper lead edge guide as shown below, and cover it with B4 or 8 1/2" x 14" paper.

2) Execute SIM 50 - 01

3) Set the print start position (AE lamp ON) (A), the lead edge void amount (TEXT lamp ON) (B), and the scan start position (PHOTO lamp ON) (C) to 0, and make a copy of a scale at 100%.

4) Measure the image loss amount (R mm) of the scale image. Set C = 10 X R (mm). (Example: Set the value of C to 30.) When the value of C is increased by 10, the image loss is decreased by 1mm. (Default: 50)

5) Measure the distance (H mm) between the paper lead edge and the image print start position. Set A = 10 X H (mm). (Example: Set the value of A to 50.) When the value of A is increased by 10, the image lead edge is shifted to the paper lead edge by 1mm. (Default: 50)

6) Set the lead edge void amount to B = 50 (2.5mm). When the value of B is increased by 10, the void amount is increased by about 1mm. For 25 or less, however, the void amount becomes zero. (Default: 50)

(Example)

Distance between paper lead edge and image: H = 5mm

Image loss: R = 3mm

5mm

(2) Image rear edge void amount adjustment

1) Set a scale to the rear edge section of A4 or 11" x 8 1/2" paper size as shown in the figure below, and cover it with B4 or 8 1/2" x 14" paper.

B4 or 8 1/2″ × 14″ paper

A4 size rear edge

2) Execute SIM 50 - 01 to select the image rear edge void amount adjustment mode. The set adjustment value is displayed on the copy quantity display.

3) Make a copy and measure the void amount of image rear edge.

Void amount (Standard value: 2 3mm)

Scale image

Paper rear edge

4) If the measurement value is out of the specified range, change the set value and repeat the adjustment procedure. The default value is 50.

Note: The rear edge void cannot be checked with the first sheet after

entering the simulation mode, the first sheet after turning off/on the power, or the first sheet after inserting the cassette. Use the second or later sheet to check the rear edge void.

(3) Center offset adjustment

1) Set the self-made test chart for the center position adjustment so that its center line is aligned with the center mark of the document guide.

• Test chart for the center position adjustment.

Draw a line at the center of A4 or 8 1/2" x 11" paper in the paper transport direction.

Document guide

10mm

2) Execute SIM 50 - 10 to select the print center offset (cassette paper feed) adjustment mode. The set adjustment value is displayed on the copy quantity display.

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 3

Center

Copy paper (A4 or 8 1/2″ × 11″)

Page 69

3) Make a copy and check that the copied center line is properly positioned. The standard value is 0 ±2mm from the paper center.

(Copy A)

(Copy B)

2.0mm or less

Shift

2.0mm or less

Copy image

Copy paper folding line

Copy image

Test chart comparison table

UKOG0162FCZZ DENSITY

12345678910W

No. UKOG-

0089CSZZ DENSITY

0.1 0.2 0.3 0.5 1.9 0

No. KODAK

GRAY

123419A

SCALE

Shift

(Paper feed direction)

Copy paper folding line

4) If the measured value is out of the specified range, change the set value and repeat the adjustment procedure. When the set value is increased by 1, the copy image is shifted by

0.1mm toward the rear frame.

• For the manual paper feed, change the manual paper feed

adjustment mode and perform the similar procedures.

• Since the document center offset is automatically adjusted by the

CCD which scan the reference lines (F/R) on the back of document guide, there is no need to adjust manually.

2. Copy density adjustment

A. Copy density adjustment timing

The copy density adjustment must be performed in the following cases:

• When maintenance is performed.

• When the developing bias/grid bias voltage is adjusted.

• When the optical section is cleaned.

• When a part in the optical section is replaced.

• When the optical section is disassembled.

• When the OPC drum is replaced.

• When the main control PWB is replaced.

• When the EEPROM on the main control PWB is replaced.

• When the memory trouble (U2) occurs.

B. Note for copy density adjustment

1) Arrangement before execution of the copy density adjustment

• Clean the optical section.

• Clean or replace the charger wire.

• Check that the voltage at the high voltage section and the

developing bias voltage are in the specified range.

C. Necessary tool for copy density adjustment

• One of the following test charts:

UKOG-0162FCZZ, UKOG-0089CSZZ, KODAK GRAY SCALE

• B4 (14" x 8 1/2") white paper

• The user program AE setting should be "3."

1 10

23456789

D. Features of copy density adjustment

For the copy density adjustment, the image data shift function provided in the image process LSI is used.

List of the adjustment modes

Auto Mode Brightness 1 step only Manual Mode Brightness 5 steps. Adjustment of only the center

brightness is made.

Photo Mode Brightness 5 steps. Adjustment of only the center

brightness is made.

Manual T/S mode

Brightness 5 steps. Adjustment of only the center brightness is made.

T/S Auto mode Brightness 1 step only

E. Copy density adjustment procedure

Use SIM 46 - 01 to set the copy density for each copy mode. For selection of modes, use the copy mode select key.

(1) Test chart (UKOG-0162FCZZ) setting

1) Place the test chart so that its edge is aligned with the A4 (Letter) reference line on the document table. Then place a A4 (14" x 8 1/2") white paper on the test chart and close the document cover.

White paper

Test chart

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 4

Page 70

(2) Perform the adjustment in each mode.

1) Execute SIM 46-1.

2) Select the mode to be adjusted with the exposure mode select key. Set the exposure level to 3 for all adjustment. (Except for the auto mode.)

(1)

(2)

(1) Mode select key/display

lamp

(2) Exposure level select

key/display lamp

Adjustment mode

Exposure mode

display lamp Auto mode Auto lamp ON "3" is slightly copied. Manual mode Manual lamp ON "3" is slightly copied. Photo mode Photo lamp ON "3" is slightly copied. Manual T/S mode Manual lamp/Photo lamp ON"3" is slightly copied.

Auto T/S mode Auto lamp/Photo lamp ON "3" is slightly copied.

3) Make a copy. Check the adjustment level (shown in the above table) of the exposure test chart (Sharp Gray Scale).

Sharp Gray Scale adjustment level

Non toner save mode

1 10

23456789

Sharp gray chart

adjustment level

3. High voltage adjustment

A. Main charger (Grid bias)

Note:

• Use a digital multi meter with internal resistance of 10MΩ or more

measurement.

• After adjusting the grid LOW output, adjust the HIGH output. Do not reverse the sequence.

Procedures

1) Set the digital multi meter range to DC700V.

2) Set the positive side of the test rod to the connector CN11-3

(GRID) of high voltage section of the power PWB and set the negative side to the frame ground (power frame).

3) Execute SIM 8-3. (The main charger output is supplied for 30 sec

in the grid voltage LOW output mode.) Adjust the control volume (VRG2) so that the output voltage is

– 390 ±20V.

5) Execute SIM 8-2. (The main charger output is supplied for 30 sec

in the grid voltage HIGH output mode.)

6) Adjust the control volume (VRG1) so that the output voltage is 580

±12V.

VRG1

VRG2

Slightly copied.

Not copied.

Toner save mode

1 10

23456789

Slightly copied.

Not copied.

(When too bright): Decrease the value displayed on the copy quantity

display.

(When too dark): Increase the value displayed on the copy quantity

display.

* The value can be set in the range of 1 - 99.

B. DV bias check

Note: • A digital multi meter with internal resistance of 1GΩ must be

use for correct check.

• The adjustment volume is locked, and no adjustment can be made.

Procedures

1) Set the digital multi meter range to DC500V.

2) Set the positive side of the test rod to the connector CN-10-1 (DV BIAS) and set the negative side to the frame ground (power frame).

3) Execute SIM 25-1 to output the developing bias for 30sec, and check that the output is – 400 ±8V.

VRDV

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 5

Page 71

4. Duplex adjustment

A. Adjusting the paper reverse position in memory

for duplex copying

This step adjusts the front surface printing (odd-number pages of a document set) in the S-D mode copying and the leading edge position of an image on even-number pages in the D-S mode.

That is, it covers the adjustment of the second surface printing mode (image loss at the front edge of an image) in which image data is once stored in memory.

The image data is read, starting from its front end in the document delivery direction (Reference direction of document setting in the OC mode)and stored in memory.

This stored image data is printed starting at the printing start position, in the order of last-stored data to the first-stored data.

In other words, the front edge image loss of the image can be adjusted by changing the document read end position.

(Adjustment procedure)

1) Preparing test chart (Draw a scale at the rear end of one side of a sheet of A4 white paper or letter paper)

510

2) Set the test chart so that the scale is positioned as shown below, in the S-D mode and the D-S mode.

Scale (S-D mode) Scale (D-S mode)

2nd printing surface where scale is printed (lower side)

B. Adjusting trailing edge void in duplex copy mode

This is the adjustment of the first surface printing mode (rear end void) in duplex copying.

In a duplex copying operation, the paper is delivered starting from the rear end of the first printing surface. It is therefore necessary to make a void area at the rear end on the first printing surface to prevent paper jam at the fusing part.

There are two adjustment modes:

1) Image cut rear end void quantity (R-SPF) 50-19(AE) The size (length) of a document read from the R-SPF is detected, the image at the trailing edge of the first printing surface is cut to make a void area. (The adjustment of void quantity at the time when the cassette paper size is not recognized.)

2) Paper trailing edge void quantity 50-19 (TEXT) This adjustment is made when the cassette paper size is recognized. The trailing edge void quantity can be adjusted by changing the trailing edge image laser OFF timing.

The paper void quantity should be first adjusted before the image cut trailing edge void quantity (R-SPF) is adjusted.

3) Execute simulation 50-18 to make a copy and check the front edge image loss at the area where the scale is printed. Adjust the setting so that the front edge image loss is less than 4.0 mm in the R-SPF mode. An increase of 1 in setting represents an increase of 0.1 mm in image loss.

Front edge of paper

The front edge of the scale on test chart

less than 4 mm

510

Void area

(Adjustment procedure)

(1) Paper trailing edge void quantity

1) Preparing test chart (Draw a scale at the rear end of one side of a sheet of A/4 white paper or letter paper)

2) Set the test chart on the document glass as shown below.

Document guide

The trailing edge has a scale

Table glass

3) Using the user simulation [18], set the paper size of the first cassette.

• Letter paper: 4

• A4 paper: 3

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 6

Page 72

4) Execute simulation 50-19 to turn on the TEXT lamp and make the printing mode in OC-D mode. Make a copy of the test chart to check the void area of the scale on the image.

Void position to be check

Paper

The trailing edge void on the first printing surface is shown above.

Adjust the setting so that the void area is 4 - 5 mm. An increase in 1 of setting represents 0.1 mm in void area.

(2) Image cut trailing edge void quantity (R-SPF)

1) Set the test chart so that the scale is positioned as shown below.

Scale (D-D mode)

2) Execute simulation 50-19 to turn on the AE lamp(on the operation panel) and make the printing mode in the D-D mode.

3) Remove and reinsert the cassette.

Note: Make sure to carry out this step before making a copy during

this adjustment.

4) Make a copy and check the void area of the scale on the image. Adjust the setting so that the void area is 2 - 4 mm. An increase of 1 in setting represents an increase of 0.1 mm in void area. l Void position to be checked

AR-122E/152E/153E/157E ADJUSTMENTS 9 - 7

Page 73

[10] SIMULATION, TROUBLE CODES

1. Entering the simulation mode

To enter the serviceman simulation mode, press the keys as follows: Clear → Density select → Clear→ Density select To cancel the simulation mode, press the clear key. Flow chart of entering the simulation mode

The current set adjustment value and the counter value are displayed on the COPY QUANTITY displayed Sensor check, etc. are displayed by the

alarm lamps, etc.

To change the current set values, enter with the COPY QUANTITY key.

10th digit:

1st digit:

Count up of values: COPY QUANTITY key

Count down of values: Zoom key + COPY QUANTITY key

The entered value is displayed on the COPY QUANTITY display.

Press the COPY key.

Is there a sub code ?

Press the COPY key.

Is it the

simulation for

operation

check?

YES

Perform the operation according to the simulation number.

Is another

simulation to be

performed ?

Press the clear key.

All displays on the operation panel go off, and the machine enters the ready state for entering the main code.

YES

Press the COPY key.

The COPY QUANTITY display blinks to indicate "00" and the machine

enters the ready state for sub code input.

Enter the sub code with the COPY QUANTITY key.

10th digit

1st digit: Count up of values:

COPY QUANTITY key Count down of values: Zoom key + COPY QUANTITY key

Press the COPY key.

Is the main code the same ?

Is the sub code displayed ?

YES

Press the clear key.

The COPY QUANTITY display blinks to indicate the previously set sub enters the ready 7 state for sub code input.

code, and the machine

YES

Press the clear key.

Enter the new main code.

The main code is displayed on the COPY QUANTITY display.

Start

Press the clear key.

Within 1sec

Press the exposure mode selector key.

Within 1sec

Press the clear key.

Within 1sec

Press the exposure mode selector key.

All displays on the operation panel go off, and the machine enters he ready state for entering he main code.

Enter the main code with the COPY QUANTITY key.

10th digit:

1st digit:

Count up of values: COPY QUANTITY key Count down of values: Zoom key + COPY QUANTITY key

The main code is displayed on the COPY QUANTITY display.

The entered value is registered.

Press the clear key.

End

AR-122E/152E/153E/157E SIMULATION, TROUBLE CODES 10 - 1

Page 74

2. List of simulations

Sim No.

01 Optical system 01 Mirror scan operation

02 SPF Individual

05 Lamp ON

06 Machine

07 Aging 01 Warm-up display and aging with jam

08 High voltage

10 Other None Toner motor aging 14 Trouble reset None Cancel of troubles other than U2 16 U2 trouble

20 01 Maintenance counter clear 21 01 Maintenance cycle setup

22 Counter

24 Special

25 Main motor

Kind of

main code

load operation

check

individual load operation

output check

reset

display

counter clear

Sub

code

06 Aging of mirror scanning 02 SPF sensor status display 03 Motor ON 04 Paper feed solenoid ON 05 Pressure release solenoid ON

(RSPF) 06 Resist clutch ON (RSPF) 07 Gate solenoid ON (RSPF) 01 Operation panel display check 02 Fusing lamp, cooling fan operation

check 03 Copy lamp ON 01 Paper feed solenoid ON 02 Resist solenoid ON

06 Intermittent aging 01 Developing bias 02 Main charger (Grid high) 03 Grid voltage (Low) 06 Transfer charger

None Cancel of U2 trouble

02 Mini maintenance cycle setup (Valid

only when the destination is set to

Japan AB series.) 01 Maintenance counter display 02 Maintenance preset value display 04 JAM total counter display 05 Total counter display 06 Developer counter display 08 SPF counter display 12 Drum counter display 14 P-ROM version display 17 Copy counter display 18 Printer counter display 19 Scanner mode counter display 21 Scanner counter display 22 SPF JAM counter display 01 JAM total counter clear 04 SPF counter clear 06 Developer counter clear 07 Drum counter clear 08 Copy counter clear 09 Printer counter clear 13 Scanner counter clear 14 SPF JAM total counter clear 15 Scanner mode counter clear 01 Main motor operation check (Cooling

fan motor rotation check) 10 Polygon motor ON

Operation

Sim No.

26 Various setup 01 Manual feed setup

30 Sensor

43 Fusing

46 Exposure

48 Magnification

49 01 Flash ROM program writing mode 50 Lead edge

51 Timing

53 08 SPF scan position automatic

61 Laser system

63 Shading 01 Shading check 64 Self print 01 Self print

Kind of

main code

operation check (Standard provision)

temperature setup

adjustment

ratio correction and black level adjustment

adjustment

operation

Sub

code

02 (R) SPF setup 03 Second cassette setup 04 Machine duplex setup 06 Destination setup 07 Machine conditions check 20 Rear edge void setup 30 CE mark support control ON/OFF 37 Developer life-over termination

cancel 38 Cancel of stop at drum life over 39 Memory capacity check 40 Polygon motor OFF time setup

(Time required for turning OFF after

completion of printing) 42 Transfer ON timing control setup 43 Side void setup 44 SPF document rear edge read setup 62 Energy-save mode copy lamp setup 63 Fan control select setup 64 Heater control setup during the

scanner mode 01 Paper sensor status display

01 Fusing temperature setup (Normal

copy) 04 Fusing temperature setup 2 05 Fusing temperature setup in duplex

copy 09 Setup of fusing control of postcard

size paper 01 Copy density adjustment (300dpi) 02 Copy density adjustment (600dpi) 18 Image contrast adjustment (300dpi) 19 γ table setup or AE operation mode

setup 20 SPF exposure correction 29 Image contrast adjustment (600dpi) 31 Image sharpness adjustment 32 Copier color reproduction setup 01 Front/rear (main scanning) direction

and scan (sub scanning) direction

magnification ratio adjustment and

black level adjustment

01 Lead edge image position 10 Center offset adjustment 18 Memory reverse position adjustment

in duplex copy 19 Duplex copy rear edge void

adjustment 02 Resist quantity adjustment

adjustment 03 Polygon motor check

(HSYNC output check)

Operation

AR-122E/152E/153E/157E SIMULATION, TROUBLE CODES 10 - 2

Page 75

3. Contents of simulations

Input method: Clear key → Exposure Select key → Clear key → Exposure Select key

Main

Sub

code

01 01 Mirror scan operation

(Operation/Procedure)

1. When this simulation is executed, the mirror home position is detected.

Sensor name Display lamp

Mirror home position sensor OPC drum cartridge replacement lamp

2. When the _START key is pressed, scanning is executed at the speed corresponding to the currently set copy magnification ratio. The copy magnification ratio can be arbitrarily set with the magnification ratio select key/zoom key.

06 Aging of mirror scanning

When the PRINT switch is pressed, the mirror base performs full scan at the speed of the set magnification ratio. After 3 sec, the mirror case performs full scan again. These procedures are repeated until the clear key is pressed. (When the PRINT switch is pressed once, the ready lamp keeps OFF.) The status of the mirror home position sensor is displayed with the photoconductor cartridge lamp. (The lamp is ON when the mirror is at the home position.) During aging, the copy lamp keeps ON.

02 02 SPF sensor status display

05 01 Operation panel display check

ON/OFF of the sensors in the SPF can be checked with the following lamps.

Developer cartridge replacement lamp Document set detection (SPID) Jam lamp SPF document transport detection (SPPD) Photoconductor cartridge replacement lamp SPF cover open/close detection (SDOD) SPF jam lamp SPF open/close detection (SDSW)

03 Motor ON

(Operation/Procedure) When the start key is pressed, the SPF motor rotates for 10 sec at the speed corresponding to the currently set magnification ratio.

04 Paper feed solenoid ON

(Operation/Procedure) When the start key is pressed, the SPF paper feed solenoid repeats ON (500 ms) and OFF (500 ms) 20 times.

05 Pressure release solenoid ON (RSPF)

(Operation/Procedure) When the start key is pressed, the RSPF document transport solenoid (SPFS) repeats ON (500 ms) and OFF (500 ms) 20 times.

06 Resist clutch ON (RSPF)

(Operation/Procedure) When the start key is pressed, the RSPF resist clutch (SRRC) repeats ON (500 ms) and OFF (500 ms) 20 times.

07 Gate solenoid ON (RSPF)

(Operation/Procedure) When the start key is pressed, the RSPF gate solenoid (SGS) repeats ON (500 ms) and OFF (500 ms) 20 times.

• When the PRINT switch is pressed, all LEDs (including 7-segment LEDs) on the operation panel are lighted. (LED check mode)

• When 1Up key is pressed, the LEDs on the operation panel are lighted individually from the top left to the bottom right in sequence.

After completion of all individual lighting, all LEDs are lighted simultaneously. (The 7-segment LED lights the three-digit sections at the same time.) Individual lighting frequency ON: 300ms, OFF: 20ms

• When the CLEAR key is pressed, this simulation is terminated.

• When the PRINT switch is pressed in the LED check mode, the machine enters the Key input check mode.

“Key input check mode” When the machine enters the Key input check mode, the value display section indicates “– – –.” Every time any key on the operat ion panel is pressed, the entered value is added and displayed on the value display section. However, the keys that were pressed once are not counted again.

• When the PRINT switch is pressed, the entered value is added and displayed for 3 sec and all the LEDs are lighted. (LED lighting

check mode)

(Note for Key input check mode)

• Press the PRINT switch at the end. (If it is pressed in the middle of the process, the entered value up to that moment is displayed for

3 sec and the machine enters the LED lighting check mode. (ALL the LEDs are lighted.))

• Multiple key inputs are ignored.

02 Fusing lamp, cooling fan operation check

When the PRINT switch is pressed, the fusing lamp repeats operations of 500ms-ON and 500ms-OFF 5 times. During that time, the cooling fan motor rotates.

Display Sensor

Content

FAX document size detection Paper size detection

AR-122E/152E/153E/157E SIMULATION, TROUBLE CODES 10 - 3

Page 76

Main

Sub

code

05 03 Copy lamp ON

(Operation/Procedure) When the START key is pressed, the copy lamp is lighted for 5 sec.

06 01 Paper feed solenoid ON

(Operation/Procedure) When the START key is pressed, the paper feed solenoid selected by the tray select key repeats ON (500ms) and OFF (500ms) 20 times.

02 Resist solenoid ON

(Operation/Procedure) When the START key is pressed, the resist solenoid (RRS) repeats ON (500ms) and OFF (500ms) 20 times.

07 01 Warm-up display and aging with jam

(Operation/Procedure)

1. When the simulation is executed, warming up is started.

2. Warm-up time is counted and displayed every second on the copy quantity display.

3. After completion of warm-up, the time count is stopped and the ready lamp is lighted.

4. Press the clear key to clear the warm-up time display, set the copy quantity, and press the START key, and the machine will copy the set quantity repeatedly.

This simulation is canceled by turning off the power or executing any simulation which performs hardware reset.

06 Intermittent aging

(Operation/Procedure)

1. When the simulation is executed, warming up is started.

2. After completion of warm-up, the ready lamp is lighted.

3. Set the copy quantity and press the START key, and the machine will copy the set quantity repeatedly.

4. After 3 sec of the interval time from completion of copying the set quantity, the machine will resume copying.

5. The above operation 4 is repeated.

This simulation is canceled by turning off the power or executing any simulation which performs hardware reset.

08 01 Developing bias

(Operation/Procedure) When the START key is pressed, the developing bias is outputted for 30 sec.

02 Main charger (Grid high)

(Operation/Procedure) When the START key is pressed, the main charger output is supplied for 30 sec in the grid voltage HIGH mode.

03 Grid voltage (Low)

(Operation/Procedure) When the START key is pressed, the main charger output is supplied for 30 sec in the grid voltage LOW mode.

06 Transfer charger

(Operation/Procedure) When the START key is pressed, the transfer charger output is supplied for 30 sec.

10 None Toner motor aging

(Operation/Procedure) When the START key is pressed, the toner motor output is supplied for 30 sec.

14 None Cancel of troubles other than U2

(Operation/Procedure) After canceling the trouble, the simulation is also automatically canceled.

16 None Cancel of U2 trouble

(Operation/Procedure)

1. When the START key is pressed, the EEPROM total counter check sum is rewritten and the trouble is canceled.

2. After canceling the trouble, the simulation is also automatically canceled.

20 01 Maintenance counter clear

When the PRINT switch is pressed, the maintenance count is cleared and the value “000000” is displayed.

21 01 Maintenance cycle setup

The currently set code (default) of the maintenance cycle is displayed, and the newly set data are saved.

Content

Code Setup

0 3,000 sheets 1 6,000 sheets 2 9,000 sheets 3 13,000 sheets 4 25,000 sheets *Default 5 Free (999,999 sheets)

AR-122E/152E/153E/157E SIMULATION, TROUBLE CODES 10 - 4

Page 77

Main code

Sub

code

Content

21 02 Mini maintenance cycle setup (Valid only when the destination is set to Japan AB series.)

The currently set code (default) of the mini maintenance cycle is displayed, and the newly set data are saved.

Code Setup

0 5,000 sheets *Default 1 10,000 sheets 2 Free (999,999 sheets)

22 01 Maintenance counter display
