Sharp 28LS-94EC Operating Manual

Download
28LS-94EC
COLOUR TELEVISION
OPERATION MANUAL
INSTRUKCJA OBS£UGI
TELEWIZORA KOLOROWEGO
R
Please read this operation manual carefully before using the colour television.
Contents
Safety Precautions...................................................2
Supplied Accessories...............................................4
Remote Control Buttons..........................................5
Control Panel Buttons..............................................6
Antenna Connections...............................................6
Preparation................................................................7
Features...........................................................................7
Before Switching on your TV..................................7
Power connection.............................................................7
Aerial Connections...........................................................7
How to connect external equipment................................7
Remote Control Battery Installation..................................7
Switching the TV ON/OFF........................................8
To switch the TV on..........................................................8
To switch the TV off..........................................................8
Initial Settings...........................................................8
Operating with the onset buttons......................................8
Operating with Remote Control........................................9
Menu System.............................................................9
Sound menu.....................................................................9
Picture menu..................................................................10
Feature menu.................................................................11
Installation Menu............................................................12
Other Features........................................................14
Information On Screen...................................................14
Sound Mute....................................................................14
Sound Modes.................................................................14
Screen Format...............................................................14
No-Signal Timer Indicator...............................................14
Still Picture.....................................................................14
To Display the Time........................................................14
Flash back ( ).............................................................14
Double-digit (- / - -).........................................................14
AV Modes.......................................................................14
Teletext.....................................................................15
To operate Teletext.........................................................15
To select a page of Teletext............................................15
To Select Index Page.....................................................15
To Select Teletext with a TV Programme.......................15
Searching for a page while watching TV........................15
To Select Double Height Text.........................................15
To Reveal “concealed” Information................................15
To Stop Automatic Page Change...................................15
Split Screen....................................................................15
To Select a Subcode Page.............................................15
Fastext...........................................................................15
To exit Teletext...............................................................16
Connecting external equipment............................16
Via the Euro connector...................................................16
RGB mode.....................................................................16
S-VHS EXT2 Mode........................................................16
Via the ANT (aerial) socket.............................................16
TV and Video Recoder (VCR)........................................16
NTSC Playback..............................................................16
Copy Facility...................................................................16
Connecting Headphones................................................16
Connecting external equipment............................17

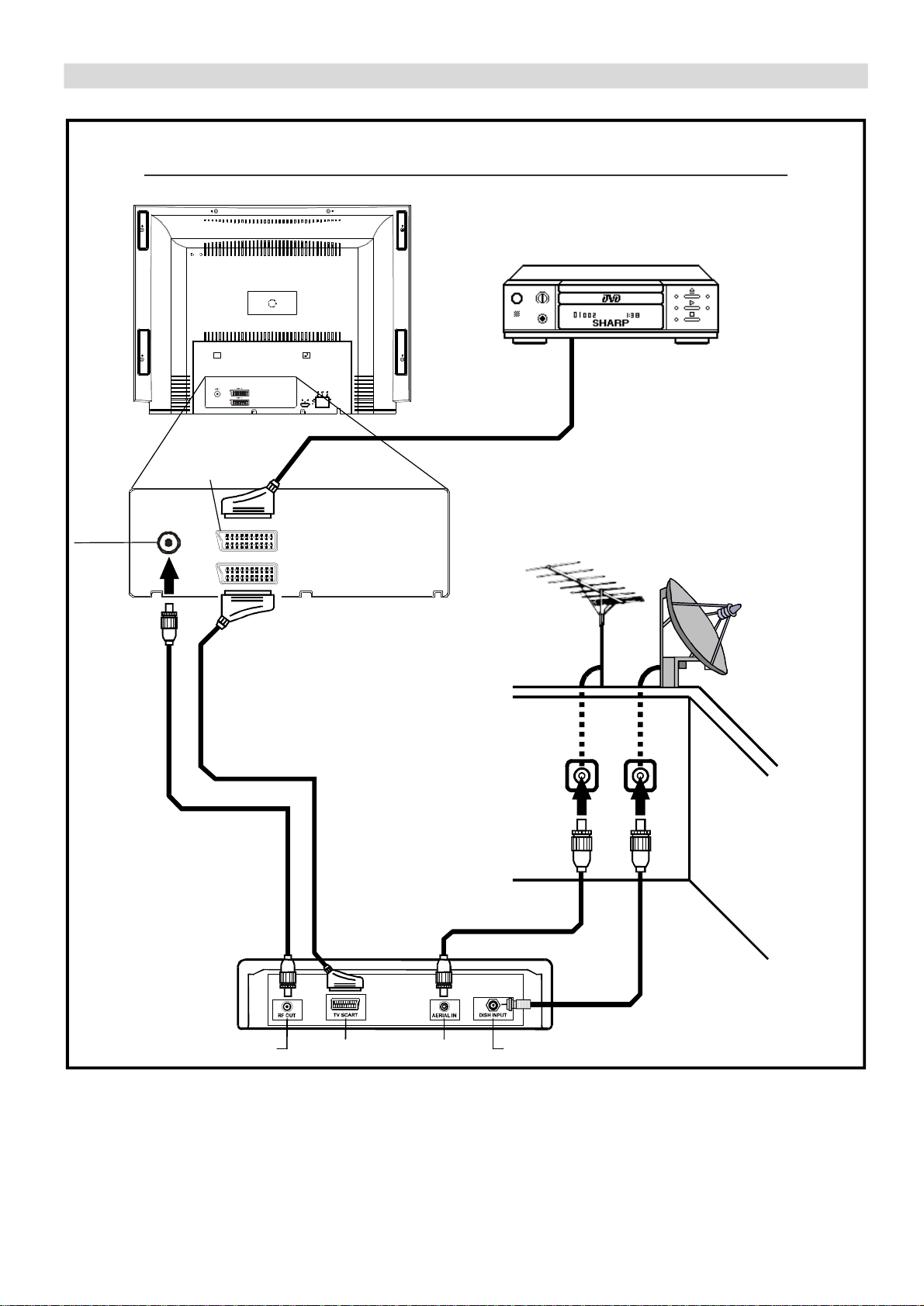

Typical Connections...............................................18
Typical Connections (Continued)..........................19
Typical Connections (Continued)..........................20
Typical Connections (Continued)..........................21
Typical Connections (Continued)..........................22
21-pin Euro-SCART and 21-pin Audio/Video........23
Troubleshooting......................................................24
Specifications..........................................................25
ENGLISH - 1 -
Safety Precautions
Mains Socket Outlet
This equipment complies with the requirements of Direc­tives 89/336/EEC, 92/31/EEC and 73/23/EEC as amended by 93/68/EEC.
This receiver should only be operated from a 220-240V AC, 50 Hz outlet. Ensure you select the correct voltage setting for your convenience.
AC 220~240 V, 50 Hz
To prevent fire or electrical shock, do not use the TV set in an excessively damp place.
Television equipment and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart combination to overturn.
To prevent electrical shock, do not subject the AC power cord to damage by bending or twisting it, or by placing heavy items on top of it and do not place the AC power cord under the TV set. If the AC power cord becomes damaged, unplug it from the wall outlet immediately and call your deal­er for service.
Position the TV set out of direct sunlight and away from heat, as high temperatures can damage the cabinet, CRT, or other electronic parts.
Do not cover ventilation slots with objects such as newspa­pers, tablecloths, curtains, etc.
Do not cover the ventilation holes at the back of the TV set, this can cause fire or other serious problems. Leave an ade­quate open space behind the TV set for good ventilation.
In order to ensure that the television is properly ventilated, leave a space of at least 10 cm around the set.
Do not install this equipment in a confined space such as a bookcase or a built-in cabinet.
Do not place this television equipment on an unstable cart, stand, or table. The television equipment may fall, causing serious injury to a child or an adult, and serious damage to the equipment.
Use only with a cart or stand recommended by the manu­facturer, or sold with the television equipment.
Never remove the back of the cabinet, as there is high volt­age in the TV set.
Please call for service. When replacement parts are required, be sure the service
technician has used replacement parts which are specified by the manufacturer or have the same specifications as the original one. Unauthorized substitutions may result in fire, electrical shock, or other hazards.
ENGLISH - 2 -
Unplug the power cord from the wall outlet immediately if the TV set begins to make unusual noises or give off smoke or an odd smell, then call your dealer for service.
If the TV set is put onto a smaller size or uneven stand, ta­ble or track may cause the TV cabinet distort. Do not put or insert anything between TV set and the stand, table or track.
Always disconnect your television from the mains and the aerial cables during thunderstorms.
Even if your television is switched off, it can still be dam­aged by lightning striking the mains and/or aerial cable.
Do not leave your TV set in Stand-by or operating mode when you leave the house.
In order to prevent electrical shocks and fires, ensure that the television is not subjected to splashes or spills of wa­ter, and avoid inserting objects or pouring any type of liquid into the set.
To prevent fire, never place any type of candle or naked flames on the top or near the TV set.
If an object or liquid enters the set, disconnect the mains supply and contact technical service.
Wall or shelf mounting should follow the manufacturer’s in­structions, and should use a mounting kit approved by the manufacturer.
The tube of your TV has a special coating. Do not knock or rub on the tube face with sharp or hard surfaces, otherwise you will damage the coating.
To prevent damaging the surface of the television screen, remove finger prints only with a soft cloth dampened with glass
cleaner. Do not use any abrasive cleaners. Do not use thinner, benzene or other strong chemical clean-
ers.
Warning!
Any intervention contrary to regulations, in particular, any modification of high voltage or a replacement of the picture tube may lead to an increased concentra­tion of x-rays. Any television modified in this way no longer complies with license and must not be operated.
Instructions for waste disposal:
Packaging and packaging aids are recyclable and should principally be recycled. Packaging materials, such as foil bag, must be kept away from children. Batteries, including those which are heavy metal-free, should not be disposed of with household waste. Please dispose of used batteries in an environmentally sound manner. Find out about the legal regulations which apply in your area.
Do place the TV set onto an even stand, table or track which size is bigger than the TV set.
CAUTION: For environmental and safety reasons, it is recommended that this television set is not left in stand-by mode whilst not in use. Switch it off using the main switch. During periods of absence from home it is also wise to disconnect the set by unplugging the mains plug.
ENGLISH - 3 -
Supplied Accessories
Respect the
environment and
put used batteries
in a container that is
COLOUR TELEVISION
28LS-94EC
OPERATION MANUAL
INSTRUKCJA OBSłUGI TELEWIZORA KOLOROWEGO
Remote control
+
+
Please read this operation manual carefully before using the colour television.
Prosimy uważnie przeczytać ten podręcznik obsługi przed rozpoczę ciem korzystania z telewizora.
Operation Manual
especially designed for this purpose.
Type-(R03 AAA) Dry Batteries
ENGLISH - 4 -
1
16
21
23
30
31
32
= Stand By = Cursor Up = Cursor Right OK = Store / Still Picture = Info (Program Table) 0 - 9 = Direct Program
- / - - = Double Digit = Screen Format button P/CH+ = Program Up + = Volume + = TV / Quit Menu
EXT
= EXT button (EXT-1, EXT-2-2 or S-VHS EXT2)
Yellow = Feature Menu Blue = Installation Menu = Hold = Update = Index Page = Reveal = Expand = Mix = Teletext = Time
Red = Sound Menu Green = Picture Menu = Mute I-II = Mono/Stereo - Dual I-II
- = Volume Down
- P/CH = Program Down = Flash back button M = Menu
= Cursor Down = Cursor Leftt
Remote Control Buttons
CAUTION
RISK OF ELECTRIC SHOCK
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock of persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
ENGLISH - 5 -
Control Panel Buttons
FRONT PANEL
REAR PANEL
Speakers (left + right)
POWER = Power On / Offf
- VOL + = Volume -/+
- P/Ch + = Program -/+ MENU = Menu
H-Phone = Headphone
ANT = Antenna (75 Ω) EXT.1 = Scart Socket 1 (with RGB)
EXT.2 = Scart Socket 2 (with S-VHS)
Power Cable
Antenna Connections
ENGLISH - 6 -
Preparation
1,5 V. (AAA R03)
Before Switching on your TV
Place TV on a solid surface. For ventilation, leave a space of at least 10 cm free all
around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.
“Use this apparatus in tropical and moderate climates.”
Features
• Remote Control Color Television
• 100 UHF / VHF / Cable channel presets
• Cable Channel Compatible
• Menu Driven functions
• 2 Euro connector Sockets
• German+Nicam Stereo
• Full function teletext (Fastext)
• Direct Channel access
• APS (Automatic Programming system) Tuning
• Program custom name feature
• Automatic search tuning
• Sleep Timer
• Child lock
• Blue mute on no video signals
• Audio mute on no video signals
• Auto switch off after 5 mins of no signal
• WSS (wide screen signal decoding)
• NTSC playback
• Headphone
• Split Screen (Picture and Text)
• CTI (Color Transient Improvement)
• Automatic VCR detection
• Simple 100 Hz.
Power connection
Important: The TV set is designed to operate on 220- 240V AC, 50 Hz.
• After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
Aerial Connections
• Connect the aerial plug to the aerial input socket located at the back of the TV.
How to connect external equipment
See “Connecting external equipment” on page 17.
• See the instruction manuals provided with the external de­vices too.
Remote Control Battery Installation
Before using the TV set for the first time, install the supplied dry batteries in the remote control.
1. With your thumb nail, pull up the slit as indicated by the
arrow to remove the battery cover.
2. Insert two batteries 1.5 V (R03 AAA size). Be sure to
match the battery +/- terminals with the +/- marks inside the compartment.
+
+
3. Replace the battery cover.
Notes:
• Remove batteries if weak or if the unit is not in use for long periods.
• Do not mix old and new batteries.
• Incorrect installation of the batteries may damage the re­mote control.
ENGLISH - 7 -

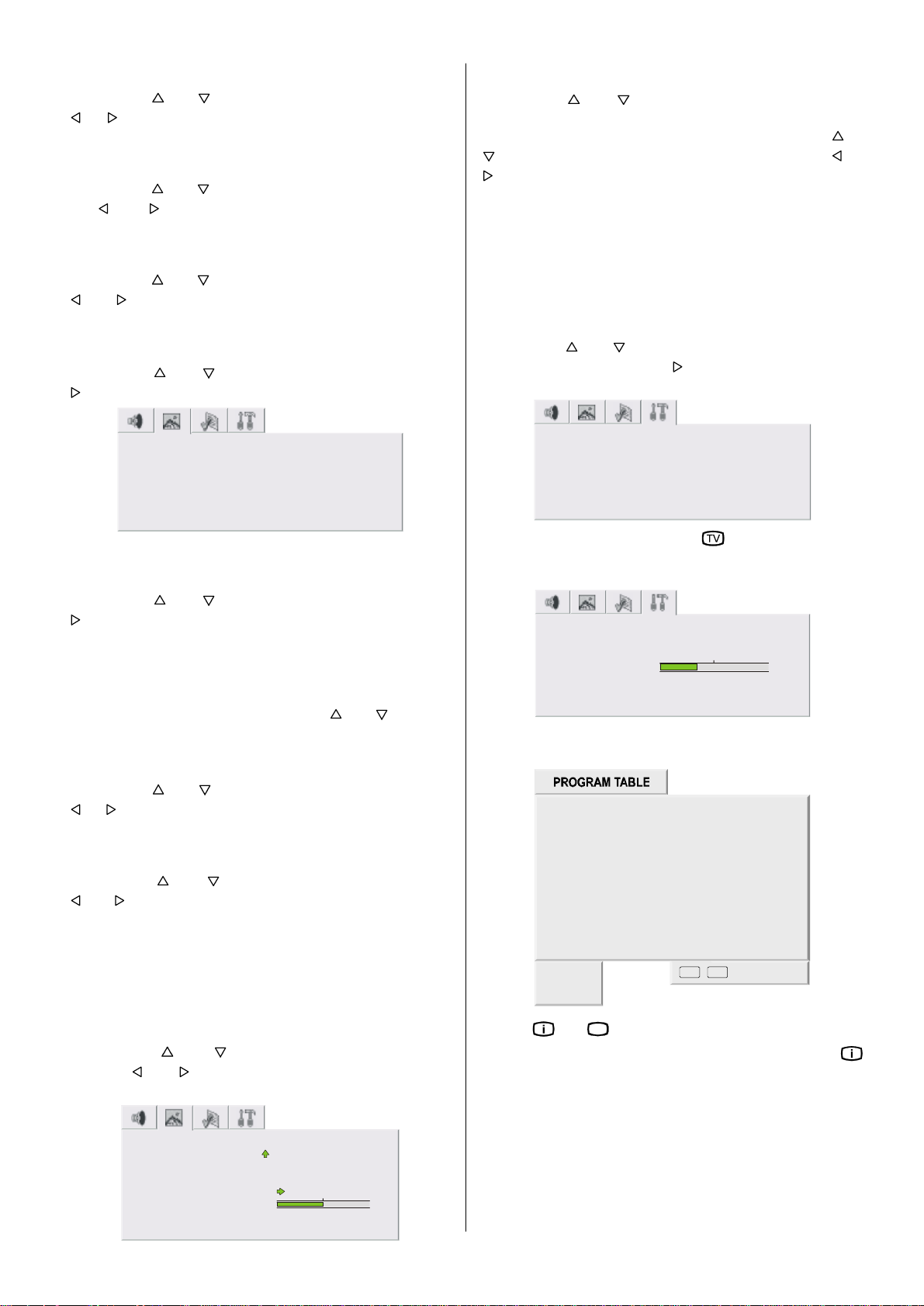

Switching the TV ON/OFF
21 - - - - -
22 - - - - -
23 - - - - -
24 - - - - -
25 - - - - -
26 - - - - -
27 - - - - -
28 - - - - -
29 - - - - -
30 - - - - -
TViEXIT
You can operate your TV either using the remote con­trol handset or directly using the TV onset buttons.
To switch the TV on
Your TV will switch on in two steps: 1- Press the power button located on the front of the TV.
Then the TV switches itself to standby mode and the
RED LED located below the TV turns on.
2- To switch on the TV from stand-by mode either:
Press a digit button or stand-by button on the remote control so that a programme number is selected,
or, Press Power Button and “P/Ch+” or “-P/Ch” buttons on the
TV or on the remote control respectively, so the TV will switch on and the RED Led will turn GREEN.
To switch the TV off
• Press the stand-by button on the remote control, so the TV will switch to stand-by mode and the GREEN LED will be­come RED, or,
• Press the power button located on the front of the TV.
Initial Settings
The message “PLEASE CHECK ANTENNA CABLE!” will be displayed when you turn on your TV for the first time.
EXECUTION APS
PLEASE CHECK ANTENNA CABLE!
LANGUAGEENGLISH
COUNTRYSPAIN START
TV CANCEL
Note: If you connect Video Recorder to your TV via antenna
input (ANT socket); to tune the VCR channel automatically you must set the VCR in play mode before you start APS. (Please use a PAL / SECAM Video Cassette).
1- Select LANGUAGE with “ ” or “ ” button, then press
the “ ” or “ ” button to select a menu language.
2- Select COUNTRY with “ ” or “ ” button, then press the
“ ” or “ ” button to select the correct country..
3- Select START with “ ” or “ ” button, then press the “ ”
button to start APS.
APS, (Automatic Programming System) automatically pro­grammes the received channels in your TV’s programme numbers. During APS, “APS IS RUNNING PLEASE WAIT” message will be displayed. After APS is finalized, the “PRO- GRAM TABLE” appears.
To cancel APS, press the “ ” button.
EXECUTION APS
APS IS RUNNING, PLEASE WAIT!
PROGRESS 35% CHANNEL
TV CANCEL
-----
11
1 - - - - -
- - - - -
2
- - - - -
3
- - - - -
4
- - - - -
5
- - - - -
6 7 - - - - ­ 8
- - - - -
9
- - - - -
10
- - - - -
change
delete
- - - - -
12
- - - - -
13
- - - - -
14
- - - - -
15
- - - - -
16
- - - - -
17
- - - - -
18
- - - - -
19
- - - - -
20
- - - - -
/
Moving cursor to four direction you can reach 30 pro­grammes in the same page. By scrolling the pages up or down by pressing the navigation buttons you can select all the programmes.
By cursor action, programme selection is done automatical­ly.
Programme Number is between 1 and 99. Programme Name has a name string with 5 characters. After autostore process the Programme Names are set to:
• Channel search "C-01" or "S-01" (band and channel num- ber) or name of the tuned channel if defined.
Change:
This function is used to change the places of the pro­grammes in Program Table. Select the programme you want to move and press BLUE button. Selected programme will be highlighted. Move the cursor to desired program place and press BLUE button again.
Delete:
Select the programme you want to delete and press RED button. The programme will be deleted from the Program Table without any warning.
• "delete" string becomes green while the selected channel is being deleted from the Program Table.
• Press “ ” or “TV” button to exit Program Table.
Operating with the onset buttons
Volume setting and programme selection can be made us­ing the buttons on the front of the TV.
Volume Setting:
• Press “-VOL” button to decrease volume or “VOL+” button to increase volume, so a volume level scale will be dis­played on the screen.
Programme Selecting:
• Press “P/Ch+” button to select next programme or “-P/Ch” button to select the previous programme.
Entering Main Menu:
• Press “MENU” button to enter main menu. In the main menu select submenu using “P/Ch+” or “-P/Ch” button and enter the submenu using “VOL +” or “-VOL” button. To learn the usage of the menus, refer to “Menu System” on page 9.
ENGLISH - 8 -
Operating with Remote Control
Sound menu
The remote control handset of your TV is designed to con­trol all the functions of the model you selected. The func­tions will be described in accordance with the menu system of your TV.
Functions which you can use out of menu system are de­scribed below.
Volume Setting:
Press “ +” button to increase volume. Press “- ” button to decrease volume.
Programme Selecting (Previous or next programme):
• Press “-P/CH” button to select the previous programme.
• Press “P/CH+” button to select the next programme.
Programme Selecting (direct access):
Press digit buttons on the remote control handset to select programmes between 0 and 9. TV will switch to the selected program after a short delay.
• For a two digit program number press “ - /- -” button. Press the first digit and then second digit of the programme channel you want to watch.
Menu System
First icon belongs to the sound menu. By pressing “ ” or “OK” button, Sound menu appears on the screen.
You can enter Sound menu directly by pressing RED button.
Volume
When you entered the sound menu Volume will be the first selected item. Press “ ” button to increase volume level. Press “ ” button to decrease volume level.
SOUND
VOLUME
BALANCE SOUND MODEMONO SURROUND MODE BASS
OFF
Balance
By pressing “ ” or “ ” button, select Balance. Press “ ” button to increase balance rightward. Press “ ” button to
decrease balance leftward.
SOUND
VOLUME
BALANCE
SOUND MODEMONO SURROUND MODE BASS
OFF
Sound Mode
By pressing “ ” or “ ” button, select Sound Mode. You can change the sound mode to MONO, STEREO (NICAM STE- REO), DUAL 1 (NICAM 1) or DUAL 2 (NICAM 2) by press-
ing “ ” or “ ” button.
Your TV has been designed with a menu system to provide an easy manipulation of a multifunction system. "M" button has two functions. The first function of it is open and close the menu, the second function is closing the submenu and then opening its parent menu. The short way in order to en­ter the menus, press:
“M” buttonMenu Red buttonSound menu Green buttonPicture menu Yellow buttonFeature menu Blue buttonInstallation menu “ ” buttonProgram Table When you press "M" button, the following menu appears on
the screen.
Press “ ” or “ ” button to select a menu title and then “ ” or “OK” button to enter the menu.
SOUND
VOLUME BALANCE
SOUND MODEMONO
SURROUND MODE BASS
OFF
Surround Mode
By pressing “ ” or “ ” button, select Surround Mode. Youou can change the surround mode to *INCR. STEREO, INCR.
MONO or OFF by pressing “ ” or “ ” button. * INCR.: Incredible
SOUND
VOLUME BALANCE SOUND MODEMONO
SURROUND MODE
BASS
OFF
Bass
By pressing “ ” or “ ” button, select Bass. Press “ ” but­ton to increase Bass level. Press “ ” button to decrease
Bass level.
ENGLISH - 9 -
Picture menu
NORMAL
NORMAL
NORMAL
NORMAL
SOUND
VOLUME BALANCE SOUND MODEMONO SURROUND MODE
BASS
OFF
Treble
By pressing “ ” or “ ” button, select Treble. Press “ ” but­ton to increase Treble level. Press “ ” button to decrease
Treble level.
SOUND SURROUND MODE
BASS
TREBLE
HEADPHONE AVL
OFF
OFF
Headphone Menu
By pressing “ ” or “ ” button, select Headphone. Press “ ” button to enter Headphone menu.
Volume
By pressing “ ” or “ ” button, select Volume. Press “ ” button to increase headphone volume level. Press “ ” but-
ton to decrease headphone volume level.
By pressing “ ” or “ ” button, select the second icon.
By pressing “ ” or “OK” button, Picture menu appears on the screen.
You can enter Picture menu directly by pressing GREEN button.
Setting Brightness
When you entered the Picture menu Brightness will be the first selected item. Press “ ” button to increase Brightness level. Press “ ” button to decrease Brightness level.
BRIGHTNESS
CONTRAST COLOR SHARPNESS TINT
Setting Contrast
• Using “ ” or “ ” button select Contrast.
• Press “ ” button to increase contrast level.
• Press “ ” button to decrease contrast level.
HEADPHONE
VOLUME
BALANCE SOUND MODEMONO
Balance
By pressing “ ” or “ ” button, select Balance. Press “ ” button to move headphone balance rightward. Press “ ” but-
ton to move headphone balance leftward.
Sound Mode
By pressing “ ” or “ ” button, select Sound Mode. You can change the sound mode to MONO, STEREO (NICAM STE- REO), DUAL 1 (NICAM 1) or DUAL 2 (NICAM 2) by press-
ing “ ” or “ ” button.
AVL
Automatic Volume Limiting (AVL) function normalizes sound to obtain fixed output level between programs, having differ-
ent sound levels. Pressing “ ” or “ ” button will turn ON or
OFF this feature.
SOUND SURROUND MODE
BASS TREBLE HEADPHONE
AVL
OFF
OFF
To Store the Settings
• Press “OK” button to store Sound menu settings.
• “STORED” will be displayed at the bottom of the menu.
ENGLISH - 10 -
BRIGHTNESS
CONTRAST
COLOR SHARPNESS TINT
Setting Color
• Using “ ” or “ ” button select Color..
• Press “ ” button to increase color level.
• Press “ ” button to decrease color level.
BRIGHTNESS CONTRAST
COLOR
SHARPNESS TINT
Setting Sharpness
• Using “ ” or “ ” button select Sharpness.
• Press “ ” button to increase sharpness level.
• Press “ ” button to decrease sharpness level.
BRIGHTNESS CONTRAST COLOR
SHARPNESS
TINT
Setting Tint
NORMAL
Wide Mode (Special detail information)
This item is used to change the Colour Temperature. By pressing “ ” or “ ” button you may select one of these op-
tions: COOL, WARM, NORMAL.
BRIGHTNESS CONTRAST COLOR SHARPNESS
TINT
Setting Hue (In AV mode only)
(During Playback NTSC system, this will appear in AV mode only when NTSC video source is applied. Otherwise, HUE option is invisible in Picture menu.):
• Using “ ” or “ ” button select Hue.
• Press “ ” button to increase hue level.
• Press “ ” button to decrease hue level.
SHARPNESS TINT
HUE
SCREEN FORMAT PICTURE SMART
NORMAL
AUTO PERSONAL
Special detail information about 16:9 and 4:3.
16:9
With 16:9 Mode you adapt the picture 16:9 format while also stretching the centre of view. This is an advantage, for ex­ample, when watching sports games where there is no real fixed centre of the picture.
4:3
You can watch 4:3 programs in 4:3 format by switching to NORMAL Mode function.
Screen Format
By pressing “ ” or “ ” button, select Screen Format. Youou can change the screen format to 4:3, AUTO or 16:9 by
pressing “ ” or “ ” button.
COLOR SHARPNESS TINT
SCREEN FORMAT
PICTURE SMART
Screen Format can be set by “ ” button also. If “ ” button is pressed once, Screen Format indicator ap-
pears on the screen. If it is pressed one more time, the Screen Format will be changed.
Each time you press the “ ” button, the width of the pic­ture changes as indicated:
* Auto mode (VPS code): The VPS signal is sent by some
broadcasting stations with information of the original size.
When the TV is in AUTO mode and receives the VPS sig-
nal, it changes the size automatically as indicated below:
When the TV is receiving VPS code 16:9 the TV selects 16:9 automatically.
When the TV is receiving VPS code 4:3 the TV selects 4:3 automatically.
External source: When you are watching the TV set through the Euro-SCART EXT.1 terminal and it receives in­formation of 16:9 format (through the audio-video control pin) the TV selects 16:9 automatically.
NORMAL
AUTO
PERSONAL
Picture Smart
By pressing “ ” or “ ” button, select Picture Smart. Youou can change the picture smart to PERSONAL, RICH, NATU-
RAL or SOFT by pressing “ ” or “ ” button.
COLOR SHARPNESS TINT SCREEN FORMAT
PICTURE SMART
NORMAL AUTO
PERSONAL
To Store the Settings
• Press “OK” button to store Picture menu settings.
• “STORED” will be displayed at the bottom of the menu.
Feature menu
By pressing “ ” or “ ” button select the third icon.
By pressing “ ” or “OK” button, Feature menu appears on the screen.
You can enter Feature menu directly by pressing YELLOW button.
Sleep Timer
As you enter the Feature menu, Sleep Timer will be the first selected option. Use “ ” or “ ” button to change the Sleep
Timer values between OFF, 15 MIN, 30 MIN, 45 MIN, 60
MIN, 90 MIN, 120 MIN, 150 MIN and 180 MIN.
ENGLISH - 11 -
If sleep timer is activated, at the end of the selected the time, the TV goes automatically to stand-by mode.
To Store the Settings
• All settings are stored automatically in Feature menu. There is no need to press “OK” button.
FEATURE
SLEEP TIMEROFF
CHILD LOCK BLUE SCREEN EXT2 OUTPUT
OFF OFF TV
Child Lock
You can use this feature to prevent children turning on TV or changing programs or adjustments etc. without remote con­trol.
The Child Lock feature can be set by “ ” or “ ” button to either ON or OFF. When OFF is selected, there will be no difference in the operation of your TV. When ON is selected, the TV can only be controlled by the remote control handset. In this case, the front panel buttons (except the Power On/ Off button) will not work.
FEATURE
SLEEP TIMEROFF
CHILD LOCK
BLUE SCREEN EXT2 OUTPUT
While the CHILD LOCK is ON, pressing any of the front/ right panel buttons (except Power on/off button) causes the warning menu to appear on the middle of the screen.
CHILD LOCK
OFF
OFF TV
Installation Menu
By pressing “ ” or “ ” button, select the fourth icon.
By pressing “ ” or “OK” button, Installation menu appears on the screen. You can enter installation menu directly by pressing BLUE button.
INSTALLATION
LANGUAGEENGLISH
COUNTRY TXT LANGUAGE PROGRAMMING EXECUTION APS
Language
By pressing “ ” or “ ” button, select Language. You can select the language by pressing “ ” or “ ” button.
Country
By pressing “ ” or “ ” button, select Country. You can se­lect the country by pressing “ ” or “ ” button.
UK WEST EUROPE
Blue Screen
In case, no valid signal is detected (in TV or AV mode) Blue Screen is activated. During search process Blue Screen is not active.
The Blue Screen feature can be set by “ ” or “ ” button to either ON or OFF.
FEATURE
SLEEP TIMEROFF CHILD LOCK
BLUE SCREEN
EXT2 OUTPUT
OFF
OFF
TV
EXT2 Output
• You can use this menu to select the internal or external source that will be output at EXT.2 terminal.
• In the “FEATURE” menu select “EXT2 OUTPUT” using “ ” or “ ” button. Then select the source you want to be output at EXT.2 pressing “ ” or “ ” button (one of the sources: TV, EXT-1 or SCREEN.
FEATURE
SLEEP TIMEROFF CHILD LOCK BLUE SCREEN
EXT2 OUTPUT
OFF OFF
TV
Txt Language
By pressing “ ” or “ ” button, select Txt Language. Youou can select the Teletext Language by pressing “ ” or “ ”
button. The options are WEST EUROPE, EAST EUROPE,
GREEK - TURKEY and RUSSIAN.
WEST EUROPEEAST EUROPEGREEK-TURKEYRUSSIAN
ENGLISHFRENCHENGLISHCZECH/SLOVAK FRENCHSWEDISHFRENCHGERMAN/DUTCH SWEDISHFINNISHSWEDISHRUSSIAN FINNISHDANNISHFINNISHLITHUANIAN DANNISHCZECH/SLOVAKDANNISHLETTISH CZECH/SLOVAKGERMAN/DUTCHGERMAN/DUTCHUKRANIAN GERMAN/DUTCHITALIANPORTUGUESEESTONIAN PORTUGUESEHUNGARIANSPANNISHBULGARIAN SPANNISHPOLISHITALIAN ITALIANSLOVENIANHUNGARIAN HUNGARIANRUMANIANTURKISH ICELANDICCROATIANGREEK NORWEGIANICELANDIC
Programming
By pressing “ ” or “ ” button, select Programming. Youou can enter the programming menu by pressing “ ” button.
PROGRAMMING
PROGRAM12
COLOR NORMAUTO STANDARDBG SEARCH FINE TUNING
0
ENGLISH - 12 -
Program
21 - - - - -
22 - - - - -
23 - - - - -
24 - - - - -
25 - - - - -
26 - - - - -
27 - - - - -
28 - - - - -
29 - - - - -
30 - - - - -
TViEXIT
By pressing “ ” or “ ” button, select Program. By pressing “ ” / “ ” or digit buttons, you can select the program num-
ber. There are 100 program storage between 0 and 99.
Color Norm
By pressing “ ” or “ ” button, select Color norm. By press­ing “ ” or “ ” button, you can change the standard to
AUTO, PAL or SECAM.
Standard
By pressing “ ” or “ ” button, select Standard. By pressing “ ” or “ ” button, you can change the standard to BG, L, I
or DK.
Search
By pressing “ ” or “ ” button, select Search. By pressing “ ” button, you can enter Search menu.
Name
By pressing “ ” or “ ” button in Programming menu, se­lect Name. You can change the program name. When you select the Name, cursor is on the first letter. By using “ ” or
“ ”‚ buttons you can select the letter. By pressing “ ” or “ ” button, you can move the cursor to second or third letter
of the program name. Name can be 5 digit length.
To Store the Settings
• Press “OK” button to store Programming menu settings.
• “STORED” will be displayed at the bottom of the menu.
• Press “M” button to exit programming menu.
Execution APS:
By pressing “ ” or “ ” button, select Execution APS in In­stallation menu. By pressing “ ” button, you can enter Exe-
cution APS menu.
SEARCH
SEARCH
CHANNEL00 BANDC
If you can not tune to a channel, try APS.
Search
By pressing “ ” or “ ” button, select Search. By pressing “ ” button, you can start Search. When you start the chan-
nel searching “SEARCHING…” is written and when a chan­nel was found which has been searched, “FOUND” is writ­ten across the SEARCH item in the menu above.
When word “FOUND” it appears, is not possible to select “CHANNEL” or “BAND” by pressing the “ ” or “ ” button.
Press “M” button to select these items.
Channel
By pressing “ ” or “ ” button, select Channel. By pressing “ ” / “ ” or digit buttons, you can change the channel num-
ber.
Band
By pressing “ ” or “ ” button, select Band. By pressing “ ” or “ ” button, you can change the Band to C or S.
To Store the Settings
• Press “OK” button to store Search menu settings.
• “STORED” will be displayed.
To exit the Search menu, press “M” button.
EXECUTION APS
ALL PROGRAMS WILL BE CLEARED!
OK START TV CANCEL
If you want to cancel APS, press “ ” button, you return to Installation menu. If “OK” button is pressed, APS function starts and the following menu comes to the screen.
EXECUTION APS
APS IS RUNNING, PLEASE WAIT!
PROGRESS35% CHANNEL
TV CANCEL
-----
After APS is completed, the PROGRAM TABLE is dis­played.
11
1 - - - - -
- - - - -
2
- - - - -
3
- - - - -
4
- - - - -
5
- - - - -
6 7 - - - - ­ 8
- - - - -
9
- - - - -
10
- - - - -
change
delete
- - - - -
12
- - - - -
13
- - - - -
14
- - - - -
15
- - - - -
16
- - - - -
17
- - - - -
18
- - - - -
19
- - - - -
20
- - - - -
/
Fine Tuning
By pressing “ ” or “ ” button, select Fine Tuning. By pressing “ ” or “ ” button, you can fine tune the program
manually.
PROGRAMMING
COLOR NORM STANDARD SEARCH
FINE TUNING
NAME
AUTO BG
0
- - - - -
ENGLISH - 13 -
• Press “ ” or “TV” button to exit Program Table. Note: To enter PROGRAMME TABLE directly, press “ ”
button.
• See Page 8 Program Table explanation.
Other Features
FORMAT
NO SIGNAL
4 : 50 MIN
Information On Screen
Programme Number, Programme Name (or AV) and Sound Indicator are displayed on the upper right of the
screen. They are displayed after programme change for 3 seconds.
the Stand-By mode (it will take 5 minutes). The indicator is displayed in 3 seconds when there is no valid signal.
After a Remote Control command (if No-Signal Timer is ac­tive) the timer stops and if no signal detected again the tim­er is initialized to 5 minutes and starts 3 seconds later again to count down.
- - C01
, , Sound Indicator (Mono, Stereo, Dual)
The alternatives of Sound Indicator are Mono, Stereo, Dual which shows the current sound mode.
Programme Number, Programme Name and Sound Indica­tor OSD’ s are displayed when a new programme is entered
by pressing digit or "- / - -" button, " " button, "P/CH+" or "-P/CH" button.
Sleep Timer and Screen format indicators are displayed with Programme Number, Programme Name and Sound Indica-
tor by pressing "TV" button. Sleep Timer Indicator shows the time left if enabled.
Programme Number and Programme Name(5 characters)
Sleep Timer Indicator (If activated)
Screen format Indicator
Sound Mute
To cut off the sound from the TV press “ ” button. To restore the sound press the “ ” button again or use the “ +” or “-
” buttons, in this case the volume will start from minimum set­ting.
Sound Modes
This is a stereo option. The alternatives of Sound Modes are Mono, Stereo, Dual 1 and Dual 2. This indicator is dis­played in the lower middle side of the screen. "I-II" button is used to select Mono, Stereo, Dual 1 or Dual 2.
In Mono broadcast or in forced-mono (for stereo broadcast).
Still Picture
Pressing “OK” button makes the picture on the screen fro- zen. Pressing this button again enables moving pictures again.
To Display the Time
• While watching a TV programme with Teletext transmis­sion press “ “ button. The current time information, cap-
tured from Teletext will be displayed at the upper right cor­ner of the screen.
• If the programme being watched does not have Teletext transmission, no time information will be displayed.
• The time information will disappear after pressing “ “ button again.
Flash back ( )
This button is used to return to the previous viewed preset. By pressing the " " button repeatedly it is possible to tog-
gle between two presets.
Double-digit (- / - -)
This OSD is displayed when the "- / - -" button pressed in place of the programme number indicator.
After then, in order to enter a programme it must be pressed to two digit consecutively. When it is late to press any digit button this function will be ignored and the display will be erased. In the same way it must not be late to press any dig­it button after entering the first digit. The limit of the delay time is 3 seconds.
In Stereo broadcast.
If dual broadcast detected. Dual 1 is selected in default and also can be selected after Dual 2 by Remote Control.
If Dual 2 selected by Remote Control.
Screen Format
The Screen Format OSD is displayed below the sound indi­cator, by TV satus OSD's. By pressing “ ” button, the
screen format can be switched into AUTO, 4:3 or 16:9.
AUTO FORMAT
4:3 FORMAT
16:9
No-Signal Timer Indicator
It is displayed in the middle of the screen when no valid sig­nal detected. It shows the remained time for the switching to
ENGLISH - 14 -
AV Modes
By pressing the “ “ button you can switch your TV to AVV modes (except being in Teletext). Pressing this button will switch the TV in one of the optional AV modes: EXT-1,
EXT-2, S-VHS EXT2. EXT.1 supports the RGB mode and EXT.2 supports S-VHS EXT2 mode unless there is an
S-VHS socket.. In order to quit the AV mode press the “TV”, digit buttons or
“P/CH+” / “-P/CH” button.
Teletext
Teletext is an information system that displays text on your TV screen. Using the Teletext information system you can view a page of information on a subject that is available in the list of contents (index).
No on screen display will be available in text mode. No contrast, brightness or colour control, but volume control
is available in text mode.
To operate Teletext
• Select a TV station on which Teletext is being transmitted.
• Press (TELETEXT) “ ”button. Usually the list of contents (index) is displayed on the screen.
To Select Double Height Text
• Press “ “ button for the top half of the information page to be displayed in double height text.
• Press “ “ button again for the bottom half of the informa­tion page to be displayed in double height text.
• Press “ “button once more for the full page of normal height text.
To Reveal “concealed” Information
• Pressing “ “ button once will reveal answers on a quiz or games page.
• Pressing “ “ button again will conceal the revealed an­swers.
To Stop Automatic Page Change
The teletext page you have selected may contain more in­formation than can be displayed on one screen, in such cas­es the page will update periodically.
• Press “ “ button to stop the automatic page change.
• Press “ “ button again to allow the next page to be dis­played.
To select a page of Teletext
• Press the appropriate digit buttons for the required Teletext page number.
The selected page number is displayed at the top left corner of the screen. The Teletext page counter searches until the selected page number is located, so that the desired page is displayed on the screen.
• Press “P/CH+” button to move the Teletext screen forward one page at a time.
• Press “-P/CH” button to move the Teletext screen back- ward one page at a time.
To Select Index Page
• To select the page number of the index (generally page
100), press “ “ button.
To Select Teletext with a TV Programme
• Press “ “ button. The text is now superimposed over the programme on the screen.
• Press “ “ button again to return to the Teletext page.
Searching for a page while watching TV
• To search for a specific page whilst viewing the TV picture, whilst viewing teletext enter the desired Page number,
then press the “ button will restore the TV picture. Once the desired page is found the Header of this page will ap-
pear on the screen. Press the “ “ button to view the full page.
Split Screen
• To watch a TV programme and teletext at the same time on the screen this function is used.
• While watching a TV programme with teletext transmission press “ ” button.
• Teletext is displayed on the screen. Press “ ” button again. The screen is divided into two parts. TV program is displayed on the left side of the screen. Teletext is dis­played on the right side of the screen.
• To exit split screen press “ ” button one more time.
To Select a Subcode Page
Subcode pages are subsections of long teletext pages that can only be displayed on the screen one section at a time.
• Select the required teletext page.
• Press “ ” button. number / - - will be displayed on the left top corner of the screen.
• Select the required subcode page number by pressing 2 digit buttons. (e.g. 0 5)
• You can go to other subcode pages by pressing “ ” or “ ” buttons or,
• After number / - - displayed, you can simply press “ ” button again to update the subcode pages automatically.
Fastext
Teletext mode will be selected according to transmission au­tomatically.
Your TV supports the 10 page Teletext system. When the page number of any of the 10 pages in memory is entered, the system will not search for the requested page; instead it will display the page automatically.
• Press “ ” button to move the Teletext screen forward one page at a time.
• Press “ ” button to move the Teletext screen backward one page at a time.
ENGLISH - 15 -
For Fastext
The subject-heading for the information may have a particu­lar colour or can be in a form located in a coloured box.
• Press an appropriate RED, GREEN, YELLOW or BLUE button in order to reach the relevant page quickly.
To exit Teletext
• Press “TV” button. The screen will switch to TV mode.
Connecting external equipment
Via the Euro connector
Your TV set has two euro connector sockets. If you wish to connect external equipment (e.g. video recorder, decoder, etc.) which have Euro connectors, to your TV, use the EXT.1 (EXT-1) or EXT.2 (EXT-2) terminals.
If an external device is connected via Euro connector sock­ets the TV will be switched to AV mode automatically.
RGB mode
If a piece of equipment outputs RGB signals use the EXT-1 Euro connector as this is RGB ready.
S-VHS EXT2 Mode
If the equipment connected to your TV set supports S-Video (Y/C) output from Euroconnector, you can have a better pic­ture quality by selecting S-VHS EXT2 mode and connecting your equipment to the EXT.2 (S-VHS EXT2) terminal of TV. See your equipment's booklet to check if your equipment has such feature.
Via the ANT (aerial) socket
If your equipment does not have an Euroconnector or RCA jacks, connect it to the TV with an aerial cable. For details, see the manual provided with the equipment.
• To store the test signal that comes from the equipment, see “Installation Menu” on page 12 and store it to the programme number 0. You can watch images from that equipment to select the programme number which you stored the test signal.
TV and Video Recoder (VCR)
• Connect the Video Recorder to the ANT (antenna input) socket of the TV with the aerial cable.
• Connect the Video Recorder to the EXT.1 or EXT.2 termi­nal with the SCART cable, or connect it to the terminal with the audio and video cables.
• VCR is detected automatically.
NTSC Playback
Connect a NTSC video recorder to a terminal. Then press
EXT
“
” button to select the corresponding AV mode.
NTSC 3.58/4.43 system is detected automatically in AV mode.
Copy Facility
You can output the video and audio signals which inputs from TV, EXT.1 (EXT-1) or SCREEN terminal to the video recorder connected to the EXT.2 (EXT-2) terminal.
• To select the output source, see “EXT2 Output” on page
12.
Connecting Headphones
Use the stereo headphone socket on the lower right side of your TV, to connect headphones.
ENGLISH - 16 -
Connecting external equipment
Antenna
EXT-2
EXT-1
Before connecting anything
• Switch off all equipment.
• Read the manuals provided with the equipments.
To select an AV mode
Pressing “
• To return to the TV mode, repeatedly press “ EXT.1 (EXT-1) terminal: Euroconnector (21-pin, SCART)
• Video input, Audio L/R inputs and RGB inputs are available.
• TV broadcast outputs (Video and Audio L/R) are available. EXT.2 (EXT-2) terminal: Euroconnector (21-pin, SCART)
• Video input, S-VIDEO (Y/C) input and Audio L/R inputs are available.
• Video and Audio L/R outputs are available. (see “EXT2 Output” on page 12.)
EXT
” button on the remote control selects one of AV modes (EXT-1, EXT-2, S-VHS EXT2)
EXT
” button.
EXT.2
EXT.1
CAMERA
VIDEO
DECODER
AUDIO
HEADPHONE
FOR SATELLITE RECEIVER
ENGLISH - 17 -
Typical Connections
Aerial connection - TV set only -
Aerial Connections - TV and VCR -
BACK OF TV
Aerial (Not supplied)
Aerial IN
ANT.
ANT.
BACK OF TV
EXT.2
EXT.1
AV/TERMINAL (EXT-1)
EXT.2
EXT.1
Aerial IN
Scart Lead
Aerial Lead (Not supplied)
Aerial (Not supplied)
(Not supplied)
Aerial Lead (Not supplied)
BACK OF VCR
Audio/Video
RF OUT
Aerial IN
Note: For further details, please refer to operation manual of your VCR.
ENGLISH - 18 -
Aerial Lead (Not supplied)
Typical Connections (Continued)
Connections - TV, DVD Player, DECODER and VCR (Videorecorder) -
DVD PLAYER
Scart Lead
(Not supplied)
(Not supplied)
(Not supplied)
(Not supplied)
(Not supplied)
BACK OF TV
AV/TERMINAL (EXT-2)
DECODER
Scart Lead
Aerial IN
AV/TERMINAL (EXT-1)
Scart Lead
(Not supplied)
BACK OF VCR
Audio/Video
RF OUT
Aerial Lead
Aerial IN
Aerial
Aerial Lead
Note: For further details, please refer to operation manuals of your DVD Player, DECODER and VCR.
ENGLISH - 19 -
Typical Connections (Continued)
Connections - TV, DVD Player and Digital Set Top Box -
DVD PLAYER
Scart Lead
(Not supplied)
(Not supplied)
Satellite dish
(Not supplied)
(Not supplied)
(Not supplied)
BACK OF TV
AV/TERMINAL (EXT-2)
Aerial IN
ANT.
Aerial Lead
(Not supplied)
EXT.2
EXT.1
Scart Lead
(Not supplied)
DIGITAL SET TOP BOX
Aerial
Aerial Lead
Dish Lead
RF OUTAERIAL IN
TV SCART
DISH IN
Note: For further details, please refer to operation manuals of your DVD Player and Digital Set Top Box.
ENGLISH - 20 -
Typical Connections (Continued)
Connections - TV, DVD Player, VCR and Digital Set Top Box -
DVD PLAYER
Scart Lead
(Not supplied)
(Not supplied)
Satellite dish
(Not supplied)
(Not supplied)
(Not supplied)
(Not supplied)
(Not supplied)
BACK OF TV
Aerial IN
AV/TERMINAL (EXT-2)
ANT.
BACK OF VCR
Aerial Lead
(Not supplied)
EXT.2
EXT.1
Scart Lead
(Not supplied)
Audio/Video
Aerial Lead
RF OUT
Aerial IN
Scart Lead
DIGITAL SET TOP BOX
Aerial
Aerial Lead
Dish Lead
RF OUTAERIAL IN
TV SCART
DISH IN
Note: For further details, please refer to operation manuals of your DVD Player, VCR and Digital Set Top Box.
ENGLISH - 21 -
Typical Connections (Continued)
Connection-TV power cable to a 220 ~ 240 V system -
BACK OF TV
Connections - TV and Video camera -
BACK OF TV
Mains Socket Outlet AC 220~240 V, 50 Hz
CAMCORDER
INOUT
IN
OUT
Audio/Video lead (Not supplied)
Note: For further details, please refer to operation manual of your Video Camera.
ENGLISH - 22 -
21-pin Euro-SCART and 21-pin Audio/Video
2
3
REAR TV RF Input
1. Aerial terminal
21-pin In/Out
EXT.2
2. 21-pin Audio/Video (RGB) (EXT-1) With
PAL/SECAM/NTSC
3. 21-pin Audio/Video (EXT-2) With PAL/SECAM/NTSC/S-Video Input
EXT.1
1
21-pin Euro-SCART with RGB input (EXT.1)
1. Audio right output8. Audio-video control15. Red input
2. Audio right input9. Earth for green16. Red/Green/Blue control
3. Audio left output10. Not used17. Earth for video
4. Common earth for audio11. Green input18. Earth for Red/Green/Blue control
5. Earth for blue12. Not used19. Video output
6. Audio left input13. Earth for red20. Video input (PAL/SECAM/NTSC)
7. Blue input14. Not used21. Plug shield
21-pin Audio/Video with S-Video Input (EXT.2)
1. Audio right output 8. Audio-video control15. Chroma S-Video input
2. Audio right input 9. Earth16. Not used
3. Audio left output10. Not used17. Earth for video
4. Common earth for audio11. Not used18. Earth
5. Earth12. Not used19. Video output
6. Audio left input13. Earth20. Video input (PAL/SECAM/NTSC/S-Video)
7. Not used14. Not used 21. Plug shield
ENGLISH - 23 -
Troubleshooting
TV not plugged in Outlet power OFF
Turn OFF using the Main Power button, then turn ON again after a minute
Check if the Brightness or Contrast setting in the picture setting mode might be all
The following conditions do not always denote trouble. Therefore, performs the checks described below before calling for service. If the problem cannot be corrected by the use of this guide, pull the power plug out from the electrical outlet and call for service.
PROBLEMS
Remote control does not work
No colour / Picture weak
POSSIBLE CAUSES / REMEDIES
Main power button of TV not ON
Check batteries in the Remote Control
Try a new channel to check for possible station trouble
Aerial not connected to terminal at the back of the TV set
If outside aerial is used, check for broken wires
Adjust COLOUR control
Try fine tuning to correct
Try a new channel to check for possible station trouble
Aerial not connected to terminal at the back of the TV set
If outside aerial is used, check for broken wires
Poor reception on some channels
Sound OK, poor picture
Picture OK, poor sound
No picture or sound
Check for local interference
Try a new channel to check for possible station trouble Aerial not connected to terminal at the back of the TV set
If outside aerial is used, check for broken wires Check for local interference
Adjust COLOUR control
Try fine tuning to correct
the way to the minus side
Try a new channel to check for possible station trouble
Check for local interference
Increase the volume / Check Audio levels
Try a new channel to check for possible station trouble TV not plugged in Outlet power OFF
Main power button of TV not ON
Aerial not connected to terminal at the back of the TV set
If outside aerial is used, check for broken wires
Turn OFF using the Main Power button, then turn ON again after a minute Check if the Brightness or Contrast setting in the picture setting mode might be
all the way to the minus side
Increase the volume / Check Audio levels
ENGLISH - 24 -
Specifications
TV BROADCASTING
PAL SECAM B/G D/K K’ I/I’ L/L’
RECEIVING CHANNELS
VHF (BANDI/III) UHF (BAND U) HYPERBAND CABLE-TV(BG: S01-S41 / S75-S79
L: S01-S41 / S75-S77 I: S01-S41 DK: S01-S19, S22-S41)
NUMBER OF PRESET CHANNELS
100
CHANNEL INDICATOR
ON SCREEN DISPLAY
RF AERIAL INPUT
75 Ohm Unbalanced
OPERATING VOLTAGE
220-240V AC, 50 Hz.
POWER CONSUMPTION (W) (max)
101 Watt Power Consumption at Stand-by < 3 W
AUDIO OUTPUT (RMS)
2x10 W
AUDIO SYSTEMS (Receiving)
Mono FM, German Stereo (IGR) and Digital Stereo NICAM
PICTURE TUBE
28” 4:3
Safety
CE - MARK
EMC
CE - MARK
DIMENSIONS (DxLxH) (mm)
DIMENSIONS
DLHWeight (kg)
46874056132
ENGLISH - 25 -
R
SHARP CORPORATION
50054197 06/04
50054197
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
