21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
P ARTS LIST
P ARTS REPLACEMENT
Replacement parts which have these special safety characteristics
identified in this manual; electrical components having such features
are identified by å and shaded areas in the Replacement Parts Lists
and Schematic Diagrams. The use of a substitute replacement part
which dose no have the same safety characteristic as the factory
recommended replacement parts shown in this service manual may
create shock, fire or other hazards.
"HOW TO ORDER REPLACEMENT P ARTS"
To have your order filled promptly and correctly, please furnish the
following informations.
1. MODEL NUMBER 2. REF . NO.
3. PART NO. 4. DESCRIPTION
★ MARK : SPARE PARTS-DELIVERY SECTION
' MARK : X- RAY RELATED PARTS
Ref. No. Part No. ★ Description Code
PICTURE TUBE
å VB51LSK955X*S R Picture Tube CK
å DY601 RCiLH0207PEZZ R Deflection Yoke BD
å L702 RCiLG0069PEZZ R Degaussing Coil AR
or
RCiLG0090PEZZ
PMAGF3046CEZZ R Magnet AF
å QEARC2122PEZZ R Grounding Strap AF
PRINTED WIRING BOARD ASSEMBLIES
(NOT REPLACEMENT ITEM)
PWB-A DUNTKA298WEV0 – MAIN Unit —
PWB-B DUNTKA210WEV2 – CRT Unit —
PWB-E DUNTKA299WEV0 – MTS Unit —
NOTE : THE PARTS HERE SHOWN ARE SUPPLIED AS AN
PWB-A: DUNTKA298WEV0
MAIN UNIT
TUNER
ASSEMBLY BUT NOT INDEPENDENTL Y.
å TU51 VTUVTBT5UF202 R Tuner BD
INTEGRA TED CIRCUITS
IC304 VHiAN5276//-1 J AN5276 AR
IC401 RH-iX3193CEZZ J TA1252BN AT
IC402 VHiTA7348P/-1 R TA7348P AK
IC403 VHiTC90A45F-1 J TC90A45F AM
å IC501 VHiLA7841//-1 J LA7841 AM
IC670 VHiUPC358C/-1 J UPC358C AD
å IC701 VHiSTRF6654-1 J STR-F6654 AX
å IC702 RH-FX0008GEZZ J PC123FY8 AE
IC731 VHiMiP0254/-1 J I.C. AL
å IC732 RH-FX0008GEZZ J PC123FY8 AE
å IC733 RH-FX0034CEZZ J PC817 AE
å IC751 VHiSE120N//-1 J SE120N AG
å IC761 VHiKA7809AP-1 J KIA7809API AE
or
VHiTA7809S/-1
å IC771 VHiKA7809AP-1 J KIA7809API AE
IC781 VHiKA7805AP-1 J KIA7805API AE
å IC2001 RH-iX3465CEZZ R I.C. BB
IC2002 VHiM24C02B/-1 J M24C02-BN6 AH
IC2003 VHiKiA7045A-1 J KIA7045AP AE
IC2701 VHiKA78S05P-1 J KIA78S05P AD
TRANSISTORS
Q201 VS2SA1530R/-1 J 2SA1530R AB
Q202 VS2SA1530R/-1 J 2SA1530R AB
Q203 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q401 VS2SA1530R/-1 J 2SA1530R AB
Q402 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q403 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q404 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q406 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q450 VS2SA1530R/-1 J 2SA1530R AB
Q501 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q601 VS2SC2482//-1 J 2SC2482 AD
å Q602 VS2SD2581++3E R 2SD2581 AL
Q670 VS2SA1246//1E J 2SA1246 AE
Q671 VS2SD1830//1E J 2SD1830 AF
Q681 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q761 VS2SC3198-Y-1 J 2SC3198 (Y) AA
Q762 VSUN2212///-1 J UN2212/ AA
Q2001 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q2002 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q2003 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
24
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA254WEV0
MAIN UNIT (Continued)
DIODES
D52 RH-EX0673GEZZ J Zener Diode, 32V AB
D301 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
D451 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
D452 RH-EX0628GEZZ J Zener Diode, 8.2V AC
D453 RH-EX0610GEZZ J Zener Diode, 5.0V AA
D502 RH-EX0654CEZZ J Zener Diode, 75V AD
å D505 RH-DX0295CEZZ J Diode AD
D506 RH-DX0295CEZZ J Diode AD
D507 RH-EX0672GEZZ J Zener Diode, 30V AB
D508 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
D509 RH-EX0615GEZZ J Zener Diode, 5.6V AA
D513 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
D601 RH-EX0631GEZZ J Zener Diode, 9.1V AA
D602 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
å D603 RH-DX0449CEZZ J Diode AK
å D611 RH-DX0131CEZZ J Diode AC
å D612 RH-EX0658GEZZ J Zener Diode, 22V AA
å D613 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
å D621 RH-DX0131CEZZ J Diode AC
å D631 RH-DX0302CEZZ J Diode AC
D632 RH-EX0630GEZZ J Zener Diode, 9V AA
å D701 RH-DX0386CEZZ J Diode AG
D702 RH-DX0055TAZZ J Diode AD
D703 RH-DX0055TAZZ J Diode AD
D704 RH-DX0164CEZZ J Diode AC
D705 RH-DX0400CEZZ J Diode AC
D706 RH-EX0621GEZZ J Zener Diode, 6.8V AB
D707 VHD1SS82///1A J Diode AC
D708 VHD1SS82///1A J Diode AC
D709 VHD1SS82///1A J Diode AC
D710 VHD1SS82///1A J Diode AC
D711 VHD1SS82///1A J Diode AC
D713 RH-DX0492CEZZ J Diode AE
D714 RH-EX0601GEZZ J Zener Diode, 3.6V AA
å D731 RH-DX0279CEZZ J Diode AB
å D732 RH-DX0279CEZZ J Diode AB
å D733 RH-DX0279CEZZ J Diode AB
å D734 RH-DX0279CEZZ J Diode AB
D735 RH-DX0132CEZZ J Diode AC
D736 RH-DX0279CEZZ J Diode AB
D737 RH-DX0279CEZZ J Diode AB
å D751 RH-DX0461CEZZ J Diode AG
D752 RH-DX0445CEZZ J Diode AL
D761 RH-DX0406CEZZ J Diode AD
D762 RH-EX0641GEZZ J Zener Diode, 12V AA
D765 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
å D771 RH-DX0302CEZZ J Diode AC
D2020 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
D2401 RH-PX0301CEZZ J Photodiode AB
D2701 RH-DX0142CEZZ J Diode AA
or
VHD1SS119//-1
or
RH-DX0475CEZZ
å VA701 RH-VX0048CEZZ J Varistor AE
PACKAGED CIRCUITS
å PR701 RMPTP0062CEZZ J Packaged Circuit AH
X801 RCRSB0001PEZZ R Crystal AL
or
RCRSB0205CEZZ
FIL TERS AND COILS
CF601 RFiLA0034CEZZ J Ceramic Filter AD
CF2001
RFiLC0121GEZZ J Ceramic Filter AD
L401 VP-XF100J0000 J Peaking 10µH AB
L402 VP-XF100J0000 J Peaking 10µH AB
L403 VPACK220J0000 J Peaking 22µH AB
L404 VPACK220J0000 J Peaking 22µH AB
L670 RCiLZ1042CEZZ J Coil AH
L671 RCiLZ1043CEZZ J Coil AM
L672 VP-XF8R2K0000 J Peaking 8.2µH AB
å L701 RCiLF0012PEZZ R Coil AN
or
RCiLF0043PEZZ
å L702 RCiLF0012PEZZ R Coil AN
or
RCiLF0043PEZZ
L751 RCiLP0225CEZZ J Coil AF
L801 VP-XF470K0000 J Peaking 47µH AB
T2001 RCiLB0158CEZZ R Oscillation Coil AD
TRANSFORMERS
å T601 RTRNZ0731CEZZ J Transformer AG
å T602 RTRNF0202PEZZ R H-Out Transformer BA
å T701 RTRNW0001CEZZ R Transformer AT
å T702 RTRNZ0103GJZZ J Transformer AM
or
RTRNZ0104GJZZ
CONTROL
R401 RVR-M4328CEZZ J 1k(B) Video Level Adj. AC
CAPACITORS
[EL.··· Electrolytic, M-Poly.··· Metalized Polypro Film]
C51 VCEA0A1HW105M J 1.0 50V EL. AB
C52 VCEA0A1CW228M J 2200 16V EL. AD
C53 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C201 VCQYTA1HM473J J 0.047 50V Mylar AA
C202 VCEA0A1HW105M J 1.0 50V EL. AB
C203 VCQYTA1HM472J J 4700p 50V Mylar AB
C341 VCEA0A1EW107M J 100 25V EL. AC
C343 VCEA0A1EW108M J 1000 25V EL. AD
C345 VCEA0A1HW106M J 10 50V EL. AB
C346 VCEA0A1VW108M J 1000 35V EL. AD
C347 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C348 VCEA0A1HW225M J 2.2 50V EL. AB
C349 VCEA0A1EW108M J 1000 25V EL. AD
C401 VCEA0A1HW106M J 10 50V EL. AB
C403 VCCCCY1HH390J J 39p 50V Ceramic AA
C404 VCCCCY1HH180J J 18p 50V Ceramic AA
25
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA298WEV0
MAIN UNIT (Continued)
C405 VCEA0A1CW107M J 100 16V EL. AC
C406 VCFYFA1HA474J J 0.47 50V Mylar AC
C408 VCKYCY1EB103K J 0.01 25V Ceramic AA
C409 VCKYCY1EB103K J 0.01 25V Ceramic AA
C410 VCKYCY1EB103K J 0.01 25V Ceramic AA
C411 VCKYCY1EB103K J 0.01 25V Ceramic AA
C412 VCEA0A1CW476M J 47 16V EL. AB
C413 VCCCCY1HH181J J 180p 50V Ceramic AA
C414 VCKYCY1EB103K J 0.01 25V Ceramic AA
C415 VCKYCY1EB103K J 0.01 25V Ceramic AA
C416 VCKYCY1EB103K J 0.01 25V Ceramic AA
C417 VCKYCY1EB103K J 0.01 25V Ceramic AA
C418 VCEA0A0JW476M J 47 6.3V EL. AB
C419 VCKYCY1EB103K J 0.01 25V Ceramic AA
C420 VCCCCY1HH330J J 33p 50V Ceramic AA
C421 VCCCCY1HH120J J 12p 50V Ceramic AA
C422 VCCCCY1HH3R0C J 3.0p 50V Ceramic AA
C423 VCCCCY1HH270J J 27p 50V Ceramic AA
C424 VCCCCY1HH120J J 12p 50V Ceramic AA
C425 VCCCCY1HH3R0C J 3.0p 50V Ceramic AA
C426 VCCCCY1HH270J J 27p 50V Ceramic AA
C430 VCEA0A1HW106M J 10 50V EL. AB
C431 VCEA0A1HW105M J 1.0 50V EL. AB
C432 VCQYTA1HM104J J 0.1 50V Mylar AA
C433 VCEA0A1CW477M J 470 16V EL. AC
C434 VCKYCY1EB103K J 0.01 25V Ceramic AA
C450 VCEA0A1HW474M J 0.47 50V EL. AB
C451 VCFYFA1HA334J J 0.33 50V Mylar AB
C452 VCEA0A1HW226M J 22 50V EL. AB
C501 VCKYCY1CB104K J 0.1 16V Ceramic AB
C502 VCKYCY1CB104K J 0.1 16V Ceramic AB
C503 VCE9EA1CW106M J 10 16V EL. (N.P) AC
C504 VCQYTA1HM563K J 0.056 50V Mylar AB
C505 VCQYTA2AA563K J 0.056 100V Mylar AB
C506 RC-FZ0272CEZZ J 0.39 100V Mylar AD
C508 VCKYPA1HB102K J 1000p 50V Ceramic AA
C509 VCCSPA2HL100D J 10p 500V Ceramic AA
C510 VCEA0A1HW107M J 100 50V EL. AB
C512 VCFYFA1HA394J J 0.39 50V Mylar AC
C513 VCFYFA1HA155J J 1.5 50V Mylar AF
C514 VCQYTA1HM683J J 0.068 50V Mylar AB
C515 VCKYPA2HB102K J 1000p 500V Ceramic AA
C516 VCEA0A1EW108M J 1000 25V EL. AD
C517 VCEAEA1HW225M J 2.2 50V EL. AB
C518 VCKYCY1EB103K J 0.01 25V Ceramic AA
C519 VCFYFA1HA474J J 0.47 50V Mylar AC
C520 VCEA0A1CW226M J 22 16V EL. AB
C521 VCFYFA1HA474J J 0.47 50V Mylar AC
C601 VCKYCY1EB223K J 0.022 25V Ceramic AA
C602 VCEA0A1HW105M J 1.0 50V EL. AB
C603 VCKYCY1CB104K J 0.1 16V Ceramic AB
C604 VCKYPA1HB102K J 1000p 50V Ceramic AA
C605 VCKYPA2HB561K J 560p 500V Ceramic AA
C607 VCKYPA1HB472K J 4700p 50V Ceramic AA
å C608 VCFPVC3CA472H J 4700p 1600V M-Poly. AD
C609 VCQPPC2JB393J J 0.039 630V Mylar AC
C610 VCFPVC3CA682H J 6800p 1600V M-Poly. AC
å C611 VCEA0A1HW105M J 1.0 50V EL. AB
C621 VCKYPA2HB102K J 1000p 500V Ceramic AA
C622 VCEA0A2EW106M J 10 250V EL. AD
C623 VCFYFA1HA394J J 0.39 50V Mylar AC
C624 VCCCCY1HH820J J 82p 50V Ceramic AA
C631 VCQYTA1HM104J J 0.1 50V Mylar AA
C632 VCKYPA2HB102K J 1000p 500V Ceramic AA
C633 VCEA0A1EW108M J 1000 25V EL. AD
C634 VCFPVC2DB224J J 0.22 200V M-Poly. AE
C635 RC-EZ0724CEZZ J 100 160V EL. AG
C670 RC-FZ0377CEZZ J 4.7 100V Mylar AF
C671 VCEA0A1HW106M J 10 50V EL. AB
C672 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C673 VCCCCY1HH391J J 390p 50V Ceramic AA
C674 VCCCCY1HH391J J 390p 50V Ceramic AA
C676 RC-FZ0359CEZZ J 0.39 250V Mylar AF
å C701 RC-FZ028SCEZZ J 0.1
or
RC-FZ016SCEZZ
or
RC-FZ029CUMZZ
or
RC-FZ0008SCEZZ
or
RC-FZ063SGEZZ
C702 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
or
RC-KZ0029CEZZ
C703 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
or
RC-KZ0029CEZZ
C704 RC-EZ0804CEZZ J 220 400V EL. AU
C705 RC-KZ0338CEZZ J 560p 2kV Ceramic AD
C706 RC-KZ007JCEZZ J 0.01 250V Ceramic AC
C707 VCQYTA1HM102J J 1000p 50V Mylar AA
C708 VCEA0A1EW226M R 22 25V EL. AB
C709 VCQYTA1HM471J J 470p 50V Mylar AB
C710 RC-KZ0339CEZZ J 680p 2kV Ceramic AD
C712 VCKYPA2HB102K J 1000p 500V Ceramic AA
C713 VCKYPA2HB102K J 1000p 500V Ceramic AA
C714 VCKYPA2HB102K J 1000p 500V Ceramic AA
C715 VCFYAA2AA103J J 0.01 100V Mylar AF
C716 VCQYTA1HM272J J 2700p 50V Mylar AA
C717 VCEA0A2AW475M R 4.7 100V EL. AB
å C720 RC-KZ0102GEZZ J 680p 250V Ceramic AE
or
RC-KZ0155CEZZ
C730 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
or
RC-KZ0029CEZZ
C731 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
or
RC-KZ0029CEZZ
C732 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
or
RC-KZ0029CEZZ
å C733 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
or
RC-KZ0029CEZZ
C734 VCEA0A2GW475M J 4.7 400V EL. AE
C735 VCQYTA1HM104K J 0.1 50V Mylar AC
C736 VCKYPA2HB821K J 820p 500V Ceramic AA
C737 RC-KZ1022CEZZ J 47p 1kV Ceramic AC
C738 RC-KZ0160GEZZ J 0.01 250V Ceramic AC
C751 VCEA4W2CN227M J 220 160V EL. AG
C752 RC-KZ0339CEZZ J 680p 2kV Ceramic AD
C753 VCKYPA1HB102K J 1000p 50V Ceramic AA
C754 VCEA0A1EW108M J 1000 25V EL. AD
C755 VCKYPA2HB102K J 1000p 500V Ceramic AA
C756 VCQYTA1HM473J J 0.047 50V Mylar AA
C761 VCKYPB2HE103P J 0.01 500V Ceramic AB
C762 VCEA0A1CW476M J 47 16V EL. AB
C763 VCEA0A1CW108M J 1000 16V EL. AD
C765 VCEA0A1CW107M J 100 16V EL. AC
C766 VCEA0A1CW477M J 470 16V EL. AC
C767 VCKYCY1EB103K J 0.01 25V Ceramic AA
C768 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C771 VCKYPA2HB102K J 1000p 500V Ceramic AA
C772 VCEA0A1EW108M J 1000 25V EL. AD
C773 VCEA0A1EW476M J 47 25V EL. AB
C774 VCEA0A1CW477M J 470 16V EL. AC
C775 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C781 VCEA0A1EW476M J 47 25V EL. AB
C782 VCEA0A1HW106M J 10 50V EL. AB
C801 VCKYCY1EB103K J 0.01 25V Ceramic AA
C802 VCKYCY1EB103K J 0.01 25V Ceramic AA
C803 VCKYCY1EB103K J 0.01 25V Ceramic AA
C805 VCKYCY1EB103K J 0.01 25V Ceramic AA
C806 VCEA0A1CW107M J 100 16V EL. AC
AC250V
Mylar AD
26
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA298WEV0
MAIN UNIT (Continued)
C830 VCCCCY1HH120J J 12p 50V Ceramic AA
C831 VCKYCY1HB222K J 2200p 50V Ceramic AA
C832 VCEA0A1HW224M J 0.22 50V EL. AB
C833 VCEA0A1HW474M J 0.47 50V EL. AB
C836 VCKYPA1HF103Z J 0.01 50V Ceramic AA
C901 VCEA0A1HW335M J 3.3 50V EL. AB
C902 VCQYTA1HM183K J 0.018 50V Mylar AB
C903 VCEA0A1HW335M J 3.3 50V EL. AB
C904 VCQYTA1HM183K J 0.018 50V Mylar AB
C1001 VCEA0A1HW106M J 10 50V EL. AB
C1002 VCEA0A1HW105M J 1.0 50V EL. AB
C1003 VCEA0A1HW105M J 1.0 50V EL. AB
C1101 VCEA0A1HW106M J 10 50V EL. AB
C1102 VCEA0A1HW106M J 10 50V EL. AB
C1103 VCEA0A1HW106M J 10 50V EL. AB
C2001 VCCCCY1HH330J J 33p 50V Ceramic AA
C2002 VCCCCY1HH330J J 33p 50V Ceramic AA
C2003 VCCCCY1HH330J J 33p 50V Ceramic AA
C2004 VCCCCY1HH330J J 33p 50V Ceramic AA
C2005 VCEA0A1HW106M J 10 50V EL. AB
C2006 VCEA0A1HW105M J 1.0 50V EL. AB
C2007 VCCCCY1HH270J J 27p 50V Ceramic AA
C2008 VCEA0A0JW477M J 470 6.3V EL. AC
C2009 VCKYCY1CB104K J 0.1 16V Ceramic AB
C2011 VCKYCY1HB561K J 560p 50V Ceramic AA
C2013 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2014 VCKYCY1HB221K J 220p 50V Ceramic AA
C2015 VCEA0A1HW105M J 1.0 50V EL. AB
C2016 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2025 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2026 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2028 VCCCCY1HH101J J 100p 50V Ceramic AA
C2029 VCKYCY1HB102K J 1000p 50V Ceramic AA
C2030 VCKYCY1HB472K J 4700p 50V Ceramic AA
C2031 VCCCCY1HH390J J 39p 50V Ceramic AA
C2032 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2080 VCEA0A1HW106M J 10 50V EL. AB
C2081 VCEA0A1HW106M J 10 50V EL. AB
C2091 VCEA0A1AW107M J 100 10V EL. AB
C2093 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C2601 VCEA0A1CW476M J 47 16V EL. AB
C2602 VCCCCY1HH101J J 100p 50V Ceramic AA
C2701 VCEA0A1CW228M J 2200 16V EL. AD
RESISTORS
[M-Ox.··· Metal Oxide, M-Film··· Metal Film]
å R51 VRN-VV3AB3R3J J 3.3 1W M-Film AA
R52 VRN-MD2AL101J J 100 1/10W M-Film AA
R53 VRD-RA2BE1R0J J 1.0 1/8W Carbon AA
R54 VRN-MD2AL101J J 100 1/10W M-Film AA
R201 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R202 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R203 VRD-RA2BE151J J 150 1/8W Carbon AA
R204 VRN-MD2AL122J J 1.2k 1/10W M-Film AA
R205 VRN-MD2AL684J J 680k 1/10W M-Film AA
R206 VRN-MD2AL122J J 1.2k 1/10W M-Film AA
R207 VRN-MD2AL223J J 22k 1/10W M-Film AA
R208 VRN-MD2AL153J J 15k 1/10W M-Film AA
R301 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R306 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R307 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R308 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R309 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R341 VRD-RA2BE123J J 12k 1/8W Carbon AA
R342 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R402 VRN-MD2AL821J J 820 1/10W M-Film AA
R403 VRN-MD2AL101J J 100 1/10W M-Film AA
R405 VRN-MD2AL681J J 680 1/10W M-Film AA
R406 VRD-RA2BE821J J 820 1/8W Carbon AA
R407 VRN-MD2AL681J J 680 1/10W M-Film AA
R409 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R411 VRN-MD2AL821J J 820 1/10W M-Film AA
R412 VRN-MD2AL000J J 0 1/10W M-Film AA
R414 VRN-MD2AL361J J 360 1/10W M-Film AA
R416 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R417 VRN-MD2AL101J J 100 1/10W M-Film AA
R418 VRN-MD2AL822J J 8.2k 1/10W M-Film AA
R419 VRN-MD2AL821J J 820 1/10W M-Film AA
R420 VRN-MD2AL000J J 0 1/10W M-Film AA
R421 VRN-MD2AL000J J 0 1/10W M-Film AA
R423 VRN-MD2AL391J J 390 1/10W M-Film AA
R426 VRN-MD2AL000J J 0 1/10W M-Film AA
R429 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R431 VRN-MD2AL333J J 33k 1/10W M-Film AA
R432 VRN-MD2AL392J J 3.9k 1/10W M-Film AA
R433 VRN-MD2AL272J J 2.7k 1/10W M-Film AA
R435 VRN-MD2AL564J J 560k 1/10W M-Film AA
R441 VRN-MD2AL271J J 270 1/10W M-Film AA
R442 VRN-MD2AL271J J 270 1/10W M-Film AA
R452 VRN-MD2AL103J J 10k 1/10W M-Film AA
R453 VRN-MD2AL223J J 22k 1/10W M-Film AA
R454 VRN-MD2AL562J J 5.6k 1/10W M-Film AA
R455 VRN-MD2AL680J J 68 1/10W M-Film AA
R456 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R457 VRD-RM2HD560J J 56 1/2W Carbon AA
R458 VRN-MD2AL000J J 0 1/10W M-Film AA
R501 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R504 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
R505 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R506 VRN-RA2BK223F J 22k 1/8W M-Film AB
R507 VRN-RA2BK153F J 15k 1/8W M-Film AA
R508 VRD-RA2BE1R0J J 1.0 1/8W Carbon AA
R510 VRN-RA2BK123F J 12k 1/8W M-Film AA
R512 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R513 VRN-MD2AL333J J 33k 1/10W M-Film AA
R514 VRS-VU3DE331J R 330 2W M-Ox. AB
R519 VRN-VV3DB1R8J J 1.8 2W M-Film AB
R523 VRN-MD2AL101J J 100 1/10W M-Film AA
R524 VRN-MD2AL154J J 150k 1/10W M-Film AA
R525 VRN-MD2AL154J J 150k 1/10W M-Film AA
R528 VRN-MD2AL104J J 100k 1/10W M-Film AA
R529 VRN-MD2AL104J J 100k 1/10W M-Film AA
R530 VRN-RA2BK153F J 15k 1/8W M-Film AA
R531 VRN-RA2BK272F J 2.7k 1/8W M-Film AA
R601 VRN-MD2AL331J J 330 1/10W M-Film AA
R602 VRN-MD2AL392J J 3.9k 1/10W M-Film AA
R603 VRN-MD2AL101J J 100 1/10W M-Film AA
R604 VRD-RA2BE561J J 560 1/8W Carbon AA
R605 VRD-RA2BE101J J 100 1/8W Carbon AB
R606 VRD-RA2BE331J J 330 1/8W Carbon AA
R607 VRS-VU3AE562J R 5.6k 1W M-Ox. AK
R608 VRS-KT3LB392J J 3.9k 3.0W M-Ox. AC
å R609 VRD-RM2HD150J J 15 1/2W Carbon AA
å R611 VRN-VV3ABR82J J 0.82 1W M-Film AA
R612 VRD-RM2HD101J J 100 1/2W Carbon AA
R614 VRD-RA2BE184J J 180k 1/8W Carbon AA
R615 VRD-RA2BE563J J 56k 1/8W Carbon AA
R616 VRN-MD2AL824J J 820k 1/10W M-Film AA
å R621 VRN-VV3AB5R6J J 5.6 1W M-Film AA
å R631 VRS-VU3AE103J R 10k 1W M-Ox. AK
R633 VRD-RA2BE683J J 68k 1/8W Carbon AA
R634 VRD-RA2BE183J J 18k 1/8W Carbon AA
å R636 VRS-KA3NG3R3K J 3.3 7.0W M-Ox. AD
å R637 VRN-SV2HBR22J J 0.22 1/2W M-Film AA
R638 VRD-RM2HD392J J 3.9k 1/2W Carbon AA
R639 VRN-MD2AL103J J 10k 1/10W M-Film AA
R670 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R671 VRD-RA2BE103J J 10k 1/8W Carbon AA
R672 VRD-RA2BE472J J 4.7k 1/8W Carbon AA
R673 VRD-RA2BE822J J 8.2k 1/8W Carbon AA
R674 VRD-RM2HD182J J 1.8k 1/2W Carbon AA
å R675 VRN-VV3LB2R7J J 2.7 3.0W M-Film AB
R676 VRN-MD2AL683J J 68k 1/10W M-Film AA
R677 VRN-MD2AL153J J 15k 1/10W M-Film AA
R678 VRN-MD2AL333J J 33k 1/10W M-Film AA
å R683 VRS-KT3LB122J J 1.2k 3.0W M-Ox. AC
27
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA298WEV0
MAIN UNIT (Continued)
R684 VRD-RA2BE103J J 10k 1/8W Carbon AA
R685 VRD-RA2BE103J J 10k 1/8W Carbon AA
R686 VRN-MD2AL000J J 0 1/10W M-Film AA
R687 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R701 VRC-UA2HG395K J 3.9M 1/2W Solid AA
R702 VRW-KQ41C3R3K J 3.3 15W Cement AG
R703 VRS-KT3LB473J J 47k 3.0W M-Ox. AE
R705 VRD-RM2HD124J J 120k 1/2W Carbon AA
R706 VRD-RM2HD124J J 120k 1/2W Carbon AA
R707 VRD-RM2HD124J J 120k 1/2W Carbon AA
R708 VRD-RA2BE684J J 680k 1/8W Carbon AA
R709 VRD-RA2BE393J J 39k 1/8W Carbon AA
R710 VRD-RM2HD150J J 15 1/2W Carbon AA
å R711 VRS-KT3LB473J J 47k 3.0W M-Ox. AE
R712 VRD-RM2HD150J J 15 1/2W Carbon AA
R713 VRD-RA2BE681J J 680 1/8W Carbon AA
R714 VRN-VV3ABR27J J 0.27 1W M-Film AA
R715 VRN-VV3ABR27J J 0.27 1W M-Film AA
R716 VRD-RM2HD152J J 1.5k 1/2W Carbon AA
R718 VRD-RA2BE122J J 1.2k 1/8W Carbon AA
R721 VRD-RM2HD272J J 2.7k 1/2W Carbon AA
å R725 VRC-UA2HG825K J 8.2M 1/2W Solid AA
å R726 VRC-UA2HG825K J 8.2M 1/2W Solid AA
R731 VRW-KP3HC100J J 10 5W Cement AD
R732 VRD-RM2HD104J J 100k 1/2W Carbon AA
R734 VRD-RM2HD123J J 12k 1/2W Carbon AA
R735 VRD-RM2HD123J J 12k 1/2W Carbon AA
R751 VRD-RA2BE392J J 3.9k 1/8W Carbon AA
R761 VRD-RA2BE104J J 100k 1/8W Carbon AA
R762 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R763 VRD-RA2BE562J J 5.6k 1/8W Carbon AA
R764 VRD-RA2BE473J J 47k 1/8W Carbon AA
R766 VRN-MD2AL103J J 10k 1/10W M-Film AA
R767 VRN-MD2AL103J J 10k 1/10W M-Film AA
R768 VRD-RA2BE123J J 12k 1/8W Carbon AA
R771 VRD-RM2HD820J J 82 1/2W Carbon AA
R781 VRS-VU3LE103J R 10k 3.0W M-Ox. AB
R801 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R802 VRN-MD2AL332J J 3.3k 1/10W M-Film AA
R803 VRN-MD2AL332J J 3.3k 1/10W M-Film AA
R804 VRN-MD2AL332J J 3.3k 1/10W M-Film AA
R805 VRN-MD2AL222J J 2.2k 1/10W M-Film AA
R806 VRN-MD2AL222J J 2.2k 1/10W M-Film AA
R807 VRN-MD2AL222J J 2.2k 1/10W M-Film AA
R811 VRN-MD2AL121J J 120 1/10W M-Film AA
R812 VRN-MD2AL121J J 120 1/10W M-Film AA
R813 VRN-MD2AL121J J 120 1/10W M-Film AA
R831 VRN-MD2AL333J J 33k 1/10W M-Film AA
R832 VRN-MD2AL332J J 3.3k 1/10W M-Film AA
R833 VRN-MD2AL562J J 5.6k 1/10W M-Film AA
R901 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R902 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R1001 VRN-MD2AL750J J 75 1/10W M-Film AA
R1002 VRD-RA2BE101J J 100 1/8W Carbon AB
R1003 VRN-MD2AL104J J 100k 1/10W M-Film AA
R1004 VRD-RA2BE101J J 100 1/8W Carbon AB
R1005 VRN-MD2AL104J J 100k 1/10W M-Film AA
R1006 VRN-MD2AL101J J 100 1/10W M-Film AA
R1009 VRN-MD2AL000J J 0 1/10W M-Film AA
R1101 VRN-MD2AL750J J 75 1/10W M-Film AA
R1102 VRN-MD2AL101J J 100 1/10W M-Film AA
R1103 VRN-MD2AL104J J 100k 1/10W M-Film AA
R1104 VRD-RA2BE101J J 100 1/8W Carbon AB
R1105 VRN-MD2AL104J J 100k 1/10W M-Film AA
R1106 VRN-MD2AL101J J 100 1/10W M-Film AA
R2001 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2002 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2003 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2004 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
å R2006 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
å R2007 VRN-MD2AL223J J 22k 1/10W M-Film AA
å R2008 VRN-MD2AL273J J 27k 1/10W M-Film AA
å R2009 VRN-MD2AL473J J 47k 1/10W M-Film AA
R2010 VRN-MD2AL223J J 22k 1/10W M-Film AA
R2011 VRN-MD2AL000J J 0 1/10W M-Film AA
R2014 VRN-MD2AL000J J 0 1/10W M-Film AA
R2016 VRN-MD2AL562J J 5.6k 1/10W M-Film AA
R2019 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2020 VRN-MD2AL101J J 100 1/10W M-Film AA
R2021 VRD-RA2BE101J J 100 1/8W Carbon AB
R2022 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2023 VRD-RA2BE222J J 2.2k 1/8W Carbon AA
R2024 VRN-MD2AL101J J 100 1/10W M-Film AA
R2025 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2026 VRD-RA2BE101J J 100 1/8W Carbon AB
R2027 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2032 VRN-MD2AL101J J 100 1/10W M-Film AA
R2034 VRN-MD2AL105J J 1.0M 1/10W M-Film AA
R2035 VRN-MD2AL153J J 15k 1/10W M-Film AA
R2036 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2037 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2038 VRN-MD2AL223J J 22k 1/10W M-Film AA
R2040 VRN-MD2AL103J J 10k 1/10W M-Film AA
R2041 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2044 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2045 VRN-MD2AL223J J 22k 1/10W M-Film AA
R2046 VRN-MD2AL223J J 22k 1/10W M-Film AA
R2055 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2056 VRN-MD2AL101J J 100 1/10W M-Film AA
R2057 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2059 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2060 VRN-MD2AL000J J 0 1/10W M-Film AA
R2061 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2062 VRN-MD2AL823J J 82k 1/10W M-Film AA
R2065 VRN-MD2AL103J J 10k 1/10W M-Film AA
R2066 VRN-MD2AL153J J 15k 1/10W M-Film AA
R2067 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2068 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2069 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2070 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2071 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2073 VRN-MD2AL103J J 10k 1/10W M-Film AA
R2074 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2075 VRN-MD2AL682J J 6.8k 1/10W M-Film AA
R2076 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2077 VRN-MD2AL103J J 10k 1/10W M-Film AA
R2078 VRN-MD2AL333J J 33k 1/10W M-Film AA
R2081 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2082 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2083 VRN-MD2AL102J J 1.0k 1/10W M-Film AA
R2092 VRD-RA2BE101J J 100 1/8W Carbon AB
R2093 VRD-RA2BE101J J 100 1/8W Carbon AB
R2095 VRN-MD2AL333J J 33k 1/10W M-Film AA
R2401 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R2501 VRD-RA2BE103J J 10k 1/8W Carbon AA
R2502 VRN-MD2AL273J J 27k 1/10W M-Film AA
R2503 VRN-MD2AL563J J 56k 1/10W M-Film AA
R2504 VRN-MD2AL563J J 56k 1/10W M-Film AA
R2505 VRN-MD2AL123J J 12k 1/10W M-Film AA
R2506 VRN-MD2AL153J J 15k 1/10W M-Film AA
R2507 VRN-MD2AL272J J 2.7k 1/10W M-Film AA
R2601 VRD-RA2BE470J J 47 1/8W Carbon AA
SWITCHES
S2501 QSW-P0596CEZZ J Power AH
S2502 QSW-K0079GEZZ J MENU AB
S2503 QSW-K0079GEZZ J CH-Up AB
S2504 QSW-K0079GEZZ J CH-Down AB
S2505 QSW-K0079GEZZ J Vol-Up AB
S2506 QSW-K0079GEZZ J Vol-Down AB
MISCELLANEOUS P ARTS
å RY761 RRLYU0045CEZZ R Relay AL
å F701 QFS-C3229CEZZ J Fuse, 3.15A AD
FB401 RBLN-0061TAZZ J Ferrite Bead AD
FB601 RBLN-0047CEZZ J Ferrite Bead AB
28
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-A: DUNTKA298WEV0
MAIN UNIT (Continued)
FB602 RBLN-0047CEZZ J Ferrite Bead AB
FB701 RBLN-0037CEZZ J Ferrite Bead AB
FB702 RBLN-0037CEZZ J Ferrite Bead AB
FB731 RBLN-0037CEZZ J Ferrite Bead AB
FB751 RBLN-0037CEZZ J Ferrite Bead AB
FB753 RBLN-0037CEZZ J Ferrite Bead AB
FB761 RBLN-0037CEZZ J Ferrite Bead AB
FH701 QFSHD1014CEZZ J Fuse Holder AC
FH702 QFSHD1013CEZZ J Fuse Holder AC
J1001 QTANJ0536CEZZ R A/V T erminal AH
J1101 QJAKG0074CEZZ R A/V Jack AF
P301 QPLGN0461CEZZ J Plug, 4-pin (S) AB
P303 QSOCZ1541CEZZ J Socket, 15-pin AD
P401 QPLGN0841CEZZ J Plug, 8-pin (KY) AB
P501 QPLGN0160FJZZ J Plug, 5-pin (K) AD
P601 QPLGN0741CEZZ J Plug, 7-pin (N) AC
P602 QPLGN0361CEZZ J Plug, 3-pin AB
P701 QPLGN0269GEZZ J Plug, 2-pin (P) AB
P702 QPLGN0207CEZZ J Plug, 2-pin (M) AA
P703 QTiPM0083CEZZ J Tip AB
P704 QTiPM0083CEZZ J Tip AB
P2001 QPLGN0561CEZZ J Plug, 5-pin AB
P2002 QPLGN0561CEZZ J Plug, 5-pin (EJ) AB
P2003 QPLGN0561CEZZ J Plug, 5-pin (EJ) AB
RMC2601
RRMCU0222CEZZ J R/C Receiver AL
or
RRMCU0235CEZZ
RDA304
PRDAR0258PEFW R Heat Sink, for IC304 AG
RDA501
PRDAR0280PEFW R Heat Sink, for IC501 AF
RDA602
PRDAR0224PEFW R Heat Sink, for Q602 AF
RDA603
PRDAR0198PEFW R Heat Sink, for D603 AG
RDA671
PRDAR0279PEFW R Heat Sink, for Q671 AE
RDA701
PRDAR0305PEFW R Heat Sink, for IC701 AK
RDA752
PRDAR0160PEFW R Heat Sink, for D752 AF
RDA771
PRDAR0259PEFW R Heat Sink, for IC771 AE
QCNW-2552PEZZ R Connecting Cord AD
LHLDP1066PE00 R Holder AC
LX-BZ0086TAFD J Screw AA
LX-BZ3049GEFD J Screw AA
LX-BZ3100CEFD J Screw AA
LX-TZ3004CEFD J Screw AA
PWB-B: DUNTKA210WEV2
CRT UNIT
INTEGRATED CIRCUIT
IC850 VHiTDA6103Q-1 J TDA6103Q/N3 AL
TRANSISTORS
Q850 VS2SA1266-Y-1 J 2SA1266 (Y) AA
Q851 VS2SC3198-Y-1 J 2SC3198(Y) AA
DIODES
D853 RH-EX0619GEZZ J Zener Diode, 6.2V AA
D854 RH-DX0142CEZZ J Diode AA
D855 RH-DX0142CEZZ J Diode AA
CAPACITORS
[EL.··· Electrolytic]
C850 VCFYSB2EB823J J 0.082 250V Mylar AD
C851 RC-KZ018JCEZZ J 0.01 3kV Ceramic AC
C852 VCEA0A1CW227M J 220 16V EL. AC
C853 VCFYFA1HA224J J 0.22 50V Mylar AB
C854 VCEA0A1CW227M J 220 16V EL. AC
C855 VCEA0A2EW106M J 10 250V EL. AD
C856 VCEA0A1CW476M J 47 16V EL. AB
C899 VCCCPA1HH150J J 15p 50V Ceramic AA
RESISTORS
R850 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R851 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R852 VRD-RA2BE152J J 1.5k 1/8W Carbon AA
R853 VRD-RA2BE272J J 2.7k 1/8W Carbon AA
R854 VRD-RA2BE272J J 2.7k 1/8W Carbon AA
R855 VRD-RA2BE272J J 2.7k 1/8W Carbon AA
R856 VRD-RM2HD224J J 220k 1/2W Carbon AA
R857 VRD-RM2HD224J J 220k 1/2W Carbon AA
R858 VRD-RM2HD224J J 220k 1/2W Carbon AA
R862 VRC-MA2HG152K J 1.5k 1/2W Solid AA
R863 VRC-MA2HG152K J 1.5k 1/2W Solid AA
R864 VRC-MA2HG152K J 1.5k 1/2W Solid AA
R867 VRD-RA2BE272J J 2.7k 1/8W Carbon AA
R868 VRD-RA2BE182J J 1.8k 1/8W Carbon AA
R869 VRD-RA2BE393J J 39k 1/8W Carbon AA
R870 VRD-RA2BE223J J 22k 1/8W Carbon AA
R871 VRD-RA2BE223J J 22k 1/8W Carbon AA
R872 VRD-RA2EE680J J 68 1/4W Carbon AA
R873 VRD-RM2HD224J J 220k 1/2W Carbon AA
R874 VRD-RM2HD184J J 180k 1/2W Carbon AA
R875 VRD-RM2HD184J J 180k 1/2W Carbon AA
R876 VRD-RM2HD184J J 180k 1/2W Carbon AA
These resistor is "0 ohm".
29
FB850 RBLN-0037CEZZ J Ferrite Bead AB
MISCELLANEOUS P ARTS
P854 QPLGN0741CEZZ J Plug, 7-pin (N) AC
P860 QPLGN0841CEZZ J Plug, 8-pin (KY) AB
SC850 QSOCV0931CEZZ J CRT Socket AK
RDA850
PRDAR0248PEFW R Heat Sink, for IC850 AF
LX-BZ3100CEFD J Screw AA
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
PWB-E: DUNTKA299WEV0
MTS UNIT
INTEGRATED CIRCUIT
IC3001 VHiCXA2074Q-1 J CXA2074Q AY
TRANSISTORS
Q3901 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q3902 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q3903 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q3904 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q3905 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
Q3906 VS2SC3928R/-1 J 2SC3928R AB
or
VS2SD601AR/-1
CAPACITORS
[EL.··· Electrolytic]
C3001 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3002 VCKYCY1HB562K J 5600p 50V Ceramic AA
C3003 VCQYTA1HM123K J 0.012 50V Mylar AA
C3004 VCEA0A1HW105M J 1.0 50V EL. AB
C3005 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3006 VCEA0A1HW106M J 10 50V EL. AB
C3007 VCEA0A1HW475M J 4.7 50V EL. AB
C3008 VCKYCY1HF103Z J 0.01 50V Ceramic AA
C3009 VCEA0A1CW227M J 220 16V EL. AC
C3010 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3011 VCEA0A1HW475M J 4.7 50V EL. AB
C3012 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3013 VCKYCY1HB272K J 2700p 50V Ceramic AA
C3014 VCQYTA1HM473K J 0.047 50V Mylar AB
C3015 VCSATA1CE335K J 3.3 16V Tantalum AC
C3016 VCE9GA1HW475M J 4.7 50V EL. (N.P) AB
C3017 VCSATA1CE106K J 10 16V Tantalum AD
C3018 VCEA0A1HW105M J 1.0 50V EL. AB
C3021 VCKYCY1CB473K J 0.047 16V Ceramic AA
C3022 VCKYCY1CB473K J 0.047 16V Ceramic AA
C3029 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3030 VCKYCY1HB682K J 6800p 50V Ceramic AA
C3317 VCEA0A1HW106M J 10 50V EL. AB
C3331 VCEA0A1HW106M J 10 50V EL. AB
C3901 VCE9GA1HW335M J 3.3 50V EL. (N.P) AB
C3902 VCEA0A1CW337M J 330 16V EL. AC
C3903 VCE9GA1HW335M J 3.3 50V EL. (N.P) AB
C3910 VCKYCY1HB681K J 680p 50V Ceramic AA
C3911 VCKYCY1HB681K J 680p 50V Ceramic AA
C3912 VCEA0A1CW336M J 33 16V EL. AB
R3104 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R3901 VRS-CY1JF331J J 330 1/16W M-Ox. AA
R3903 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R3904 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R3905 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R3906 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R3907 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R3908 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA
R3910 VRD-RA2BE102J J 1.0k 1/8W Carbon AA
R3911 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R3912 VRS-CY1JF183J J 18k 1/16W M-Ox. AA
R3913 VRS-CY1JF472J J 4.7k 1/16W M-Ox. AA
R3914 VRS-CY1JF152J J 1.5k 1/16W M-Ox. AA
R3915 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA
R3916 VRS-CY1JF683J J 68k 1/16W M-Ox. AA
R3917 VRD-RA2BE332J J 3.3k 1/8W Carbon AA
R3918 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
MISCELLANEOUS P ARTS
P3001 QPLGZ1541CEZZ J Plug, 15-pin AD
RESISTORS
[M-Ox.··· Metal Oxide]
R3001 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3002 VRS-CY1JF101J J 100 1/16W M-Ox. AA
R3003 VRS-CY1JF105J J 1.0M 1/16W M-Ox. AA
R3004 VRS-CY1JF104J J 100k 1/16W M-Ox. AA
R3005 VRS-CY1JF623J J 62k 1/16W M-Ox. AA
R3006 VRS-CY1JF000J J 0 1/16W M-Ox. AA
R3007 VRS-CY1JF332J J 3.3k 1/16W M-Ox. AA
R3008 VRS-CY1JF302J J 3.0k 1/16W M-Ox. AA
R3010 VRS-CY1JF392J J 3.9k 1/16W M-Ox. AA
R3011 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA
R3012 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA
R3013 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA
R3014 VRS-CY1JF102J J 1.0k 1/16W M-Ox. AA
30
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
CABINET P ARTS
1 CCABA2611WEV0 R Front Cabinet Ass’y BH
1-1
Not Available
1-2 HBDGB3142CESA J Badge, "SHARP" AG
1-3 GCOVA0125PESA R LED Decpratopm. R/C cover AC
1-4 JBTN-0334PESA R Power Button AD
1-5 JBTN-0335PESA R Control Button AE
1-6 MSPRC0008PEFW R Spring, Power Button AB
1-7 HDECQ0155PESA R Speaker Panel (L) AH
1-8 HDECQ0156PESA R Speaker Panel (R) AH
2 CCABB2433WEV0 R Rear Cabinet Ass’y BB
2-1
Not Available
1 CCABA2633WEV0 R Front Cabinet Ass’y BH
1-1
Not Available
1-2 HBDGB3142CESA J Badge, "SHARP" AG
1-3 GCOVA0125PESA R LED Decpratopm. R/C cover AC
1-4 JBTN-0334PESA R Power Button AD
1-5 JBTN-0335PESA R Control Button AE
1-6 MSPRC0008PEFW R Spring, Power Button AB
1-7 HDECQ0155PESA R Speaker Panel (L) AH
1-8 HDECQ0156PESA R Speaker Panel (R) AH
1-9
Not Available
2 CCABB2433WEV0 R Rear Cabinet Ass’y BB
2-1
Not Available
21C-FX10T
– Front Cabinet —
– Rear Cabinet —
21C-FH100T
– Front Cabinet —
– Port Cover —
– Rear Cabinet —

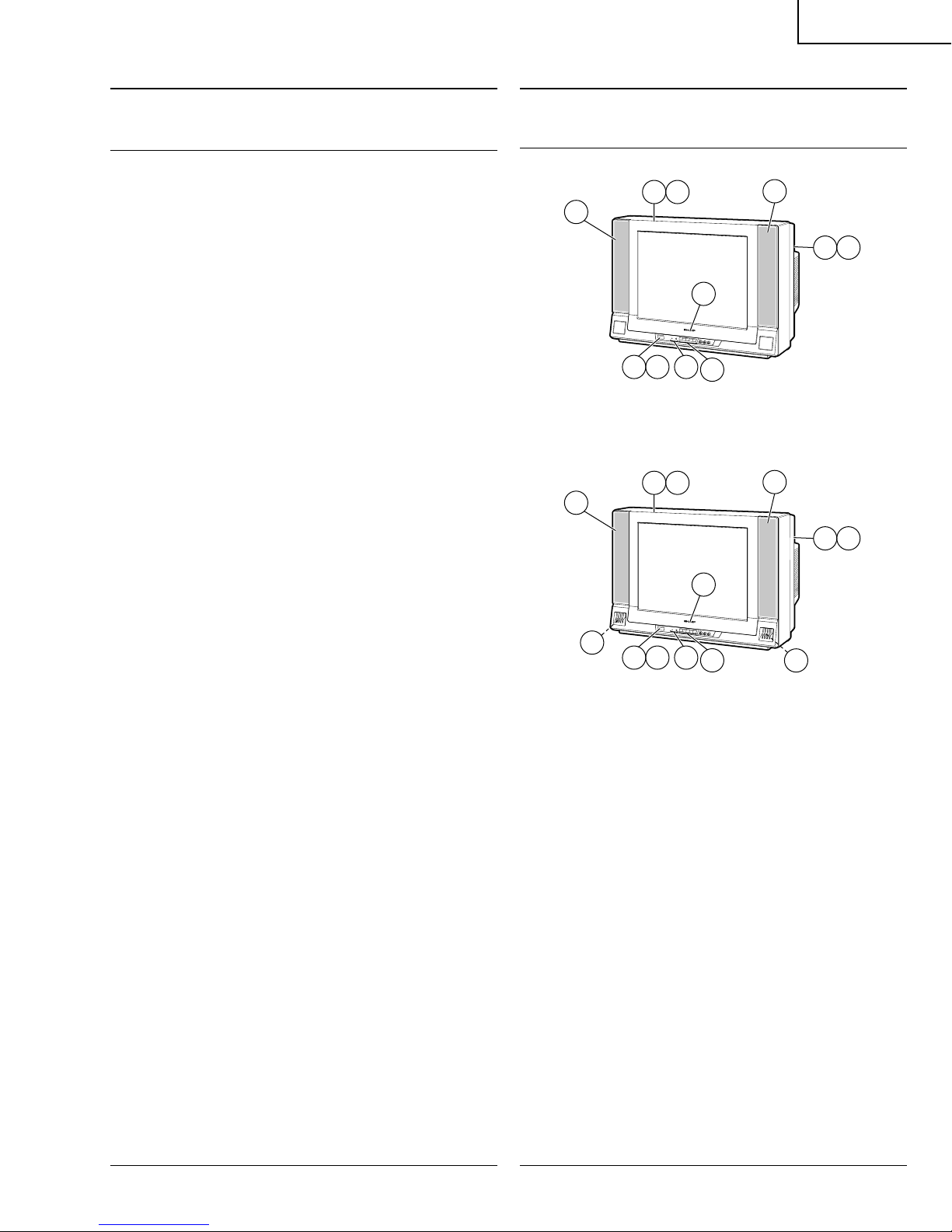

CABINET P ARTS LOCATION
1-8
2 2-1
1-8
2 2-1
1-7
1-7
1
1-1
1-4 1-6 1-3
21C-FX10T
1
1-1
1-2
1-5
1-9
1-4
1-6 1-3
21C-FH100T
1-2
1-5
1-9
31
21C-FX10T
21C-FH100T
Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code
MISCELLANEOUS PARTS
å
ACC701
QACCZ3008PEZZ R AC Cord AN
QCNW-2448PEZZ R Connecting Cord AG
QCNW-2531PEZZ R Connecting Cord AF
QCNW-2532PEZZ R Connecting Cord AE
QCNW-2542PEZZ R Connecting Cord AG
QCNW-2548PEZZ R Connecting Cord AE
SP1 VSP1206PB516A R Speaker 6 ohm (R) AR
SP2 VSP1206PB516A R Speaker 6 ohm (L) AR
LHLDK0024PEZZ R AC Cord Holder AC
SUPPLIED ACCESORRIES
TCAUA0002PEZZ R Caution Card AB
RRMCG1538PESB R Infrared R/C Unit AX
TGAN-0220PEZZ R Guarantee Card AE
TGAN-0221PEZZ R Guarantee Card AE
TiNS-7120PEZZ R Operation Manual AH
(21C-FH100T)
(21C-FX10T)
P ACKING P ARTS
(NOT REPLACEMENT ITEM)
SPAKC6696PEZZ – Packing Case —
(21C-FH100T)
SPAKC6697PEZZ – Packing Case —
(21C-FX10T)
SPAKP0122PEZZ – Wrapping Sheet —
SPAKX2749PEZZ – Buffer Material —
SSAKA0001PEZZ – Polyethylene Bag —
32
Loading...
