Servend NGF Service Manual

SII-004

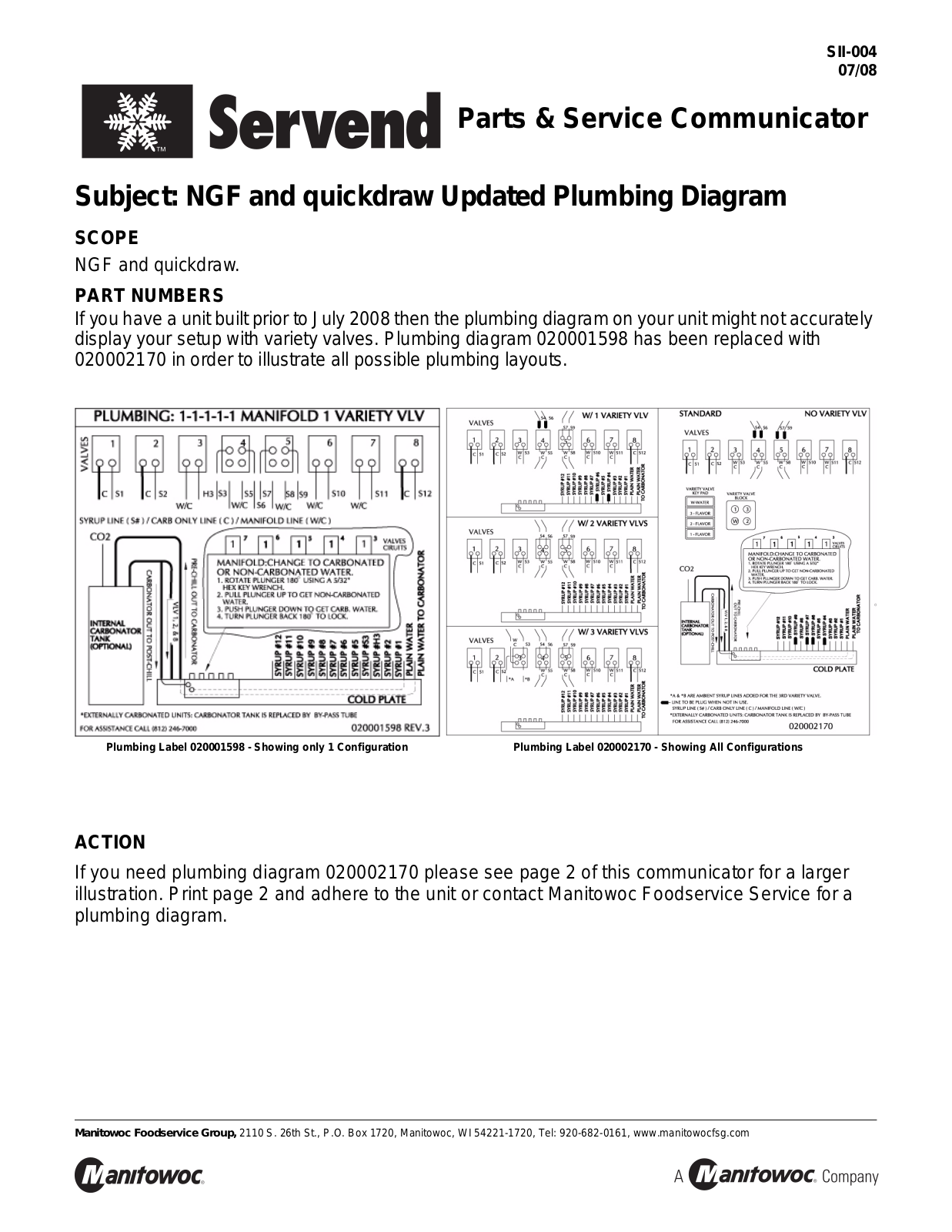

Plumbing Label 020001598 - Showing only 1 Configuration Plumbing Label 020002170 - Showing All Configurations

07/08

Parts & Service Communicator

Subject: NGF and quickdraw Updated Plumbing Diagram

SCOPE

NGF and quickdraw .

PART NUMBERS

If you have a unit built prior to July 2008 then the plumbing diagram on your unit might not accurately
display your setup with variety valves. Plumbing diagram 020001598 has been replaced with
020002170 in order to illustrate all possible plumbing layouts.

ACTION

If you need plumbing diagram 020002170 please see page 2 of this communicator for a larger
illustration. Print page 2 and adhere to the unit or contact Manitowoc Foodservice Service for a
plumbing diagram.

Manitowoc Foodservice Group, 2110 S. 26th St., P.O. Box 1720, Manitowoc, WI 54221-1720, Tel: [phone], www.manitowocfsg.co m

NGF and quickdraw Updated Plumbing Diagram SII-004 07/08

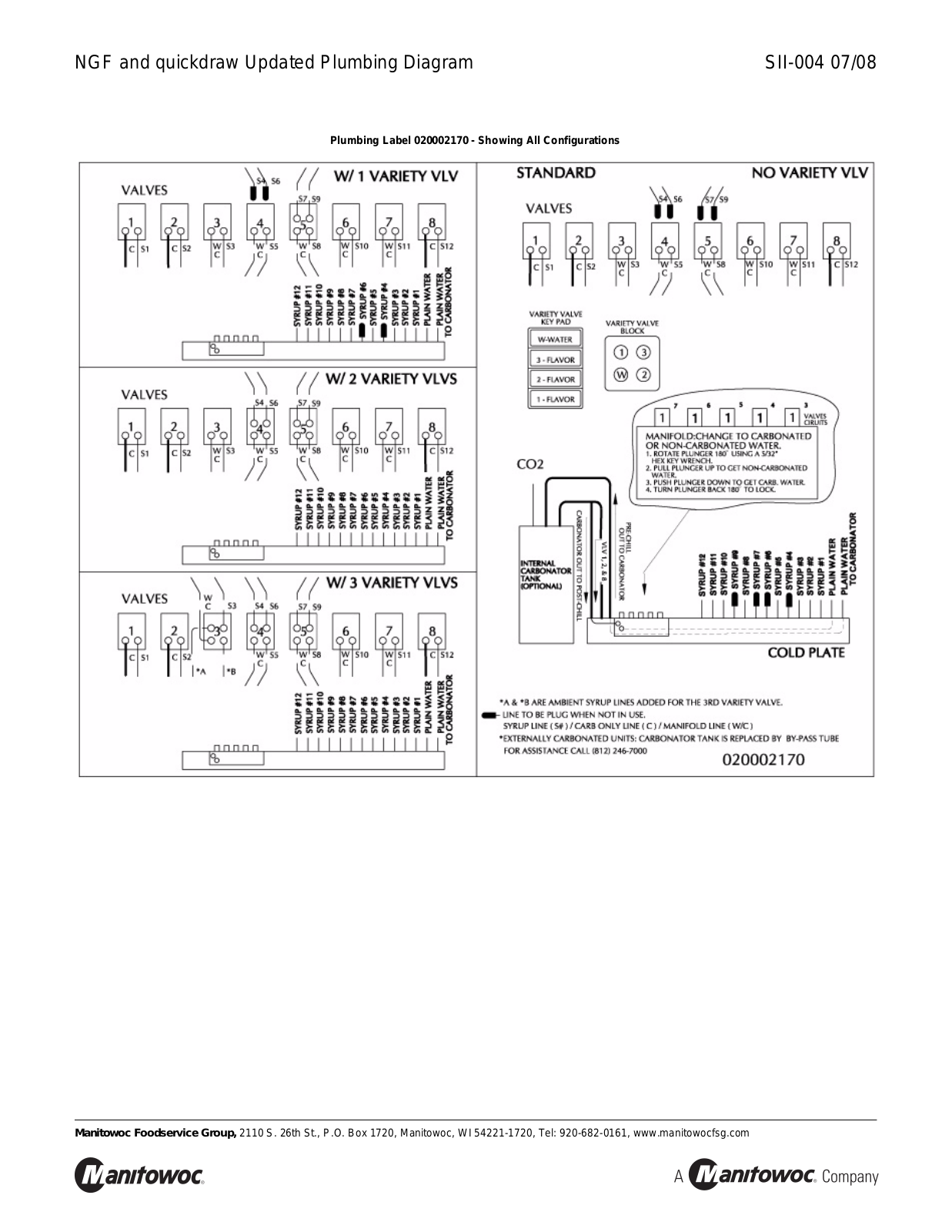

Plumbing Label 020002170 - Showing All Configurations
